SURROUND CINEMA SPEAKERS
SCS145.5
OWNER’S GUIDE
®
Page 2
READ FIRST!
13. Unplug this apparatus during light­ning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been dam­aged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. Do not use attachments not recommended by the product manufacturer, as they may cause hazards.
16. This product should be operated only from the type of power source indicated on the marking label. If you
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near
water.
6. Clean only with a dry cloth.
7. Do not block any ventilation
openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding­type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combina­tion to avoid injury from tip-over.
2
are not sure of the type of power sup­ply to your home, consult your product dealer or local power company. For products intended to operate from bat­tery power, or other sources, refer to the operating instructions.
17. If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some pro­tection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/ NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding con­ductors, location of antenna-discharge unit, connection to grounding elec­trodes, and requirements for the grounding electrode. See Figure A.
Figure A. Example of Antenna Grounding as per National Electrical Code, ANSI/NFPA 70
18. An outside antenna system should
not be located in the vicinity of over­head power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or cir­cuits, as contact with them might be fatal.
19. Do not overload wall outlets, extension cords, or integral conven­ience receptacles, as this can result in a risk of fire or electric shock.
20. Never push objects of any kind into this product through openings, as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
21. The apparatus shall not be exposed to dripping or splashing, and no objects filled with liquids, such as vases, shall be placed on the apparatus.
22. Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
23. When replacement parts are required, be sure the service tech­nician has used replacement parts specified by the manufacturer or that have the same characteristics as the original part. Unauthorized substitu­tions may result in fire, electric shock or other hazards.
24. Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.
25. The product should be mounted to a wall or ceiling only as recommended by the manufacturer.
Page 3
THANK YOU FOR CHOOSING JBL
For more than 50 years, JBL has been involved in every aspect of music and film recording and reproduction, from live performances to the recordings you play in your home, car or office.
We’re confident that the JBL system you have chosen will
INCLUDED
provide every note of enjoy­ment that you expected – and that when you think about purchasing additional audio equipment for your home, car or office, you will once again choose JBL.
Please take a moment to register your product on our
Four satellites for left, right and surrounds. Wall-mount brackets.
One center channel speaker with adjustable support leg.
Web site at www.jbl.com. It enables us to keep you posted on our latest advance­ments, and helps us to better understand our customers and build products that meet their needs and expectations.
JBL Consumer Products
Powered subwoofer.
Two 20' speaker cables for connection from receiver to subwoofer.
Two 15' speaker cables for connection from subwoofer to front speakers.
Three 40' speaker cables for connection from receiver to rear satellites and center speaker.
3
Page 4
SPEAKER PLACEMENT
5
– 6 ft.
0-2 ft.
FRONT SPEAKERS
CENTER CHANNEL SPEAKER
Stands shown are optional.
SURROUND SPEAKERS
The front speakers should be placed the same distance from each other as they are from the listening position. They should be placed at about the same height from the floor as the listeners’ ears will be, or they may be angled toward the listeners.
The center channel speaker should be placed slightly behind the front left and right speakers, and no more than two feet above or below the tweeters of the left and right speakers. It is often con­venient to set the center speaker on top of the tele­vision set, as shown in the drawing. Use the supplied support leg to aim it toward the listener by screwing the leg in to angle the speaker up, or unscrewing the leg
slightly to angle the speaker down.
The surround speakers should be placed slightly behind the listening position and, ideally, should face each other and be at a level higher than the listeners’ ears. If that is not possible, they may be placed on a wall behind the listening position, facing forward.
In Dolby* Digital and DTS systems, it is best to aim all of the speakers (except the subwoofer) toward the lis­tening position at about ear­level height. In systems where only analog surround processing (such as Dolby Pro Logic*) is available, it may be preferable to aim the speakers straight out from the wall to obtain a more diffuse sound.
SUBWOOFER
The low-frequency material reproduced by the subwoofer is mostly omnidirectional, and this speaker may be placed in a convenient loca­tion in the room. However, bass reproduction will be maximized when the sub­woofer is placed in a corner along the same wall as the front speakers. Experiment with subwoofer placement by temporarily placing the
®
subwoofer in the listening position and moving around the room until the bass reproduction is best. Place the subwoofer in that location.
4
Page 5
MOUNTING OPTIONS
SATELLITES AND SURROUNDS
On shelves.
On the wall. Wall
On optional stands (FS1000).
brackets are included.
WALL-MOUNTING
Attach plate to wall. The brackets should be placed, if possible, so that the screws will fasten into a wooden wall stud. If that is not possible, use properly selected wall anchors.
The customer is responsible for proper selection and use of mounting hardware, avail­able through hardware stores, to properly and safely wall­mount the speakers.
Slide speaker onto support.
IMPORTANT NOTE: The satellite speaker, when mounted on these brackets, can only be adjusted hori­zontally (left or right). The speaker cannot be adjusted vertically (up or down) or otherwise tilted. Any attempt to do so will damage the speaker bracket wall plate and/or support and such
Place speaker and support on wall plate. Make sure that at least 1/4" (6mm) of the wall plate metal shaft is inserted into the support cavity. Continue to firmly press the support onto the wall plate metal shaft until it is fully secured in place.
damage will not be covered under warranty.
MOUNTING THE SATELLITES ON OPTIONAL FS1000 FLOOR STANDS
1. Attach the stand adaptor
3.
to the top of the stand upright with the pins toward the rear of the stand. Fasten the adaptor
2.
1.
to the upright with the supplied screw.
2. Place the loudspeaker
into the grommet on the bottom of the speaker.
3. Connect the wire to the loudspeaker, remember­ing to preserve the polar­ity (“+” and “–”) (see page 6).
securely on the stand by inserting the adaptor pin
5
Page 6
SPEAKER CONNECTIONS
CONNECTION TIPS
Separate and strip the ends of the speaker wire as shown. The wires supplied with the system may already be stripped and tinned for easy insertion into the speaker terminals. Speakers and electronics terminals have corresponding (+) and (–) terminals. Most manu­facturers of speakers and electronics, including JBL, use red to denote the (+) terminal and black for the (–) terminal.
The (+) lead of the speaker wire is noted with a stripe. It is important to connect both speakers identically: (+) on the speaker to (+) on the amplifier and (–) on the speaker to (–) on the ampli­fier. Wiring “out of phase” results in thin sound, weak bass and a poor stereo image.
With the advent of multi­channel surround sound systems, connecting all of the speakers in your system with the correct polarity remains equally important in order to preserve the proper ambience and directionality of the program material.
To connect the supplied speaker wires to the speaker terminals, press the red or black plastic tab for the desired terminal, insert the bare end of the wire into the hole and release the tab. Gently tug on the wire to make sure that it is fully inserted.
6
Page 7
DOLBY DIGITAL OR DTS
LINE LEVEL IN
LFE INPUT
LFE OUT
L
R
SUBWOOFERRECEIVER
+ – + –
+ –
+ – + –
+ –
+ – + –
+ –+ –
(OR OTHER DIGITAL SURROUND MODE) CONNECTION
Connect this jack to the LFE output or subwoofer output on your receiver or amplifier. Connect each speaker to the corresponding speaker
Use this installation method for Dolby Digital, DTS or other digital surround processors:
Use the line-level input jack marked “LFE” for the Low­Frequency Effects channel.
DOLBY PRO LOGIC (NON-DIGITAL)
Use this installation method for Dolby Pro Logic appli­cations (not Dolby Digital, DTS or other digital process­ing), where the receiver/ processor is equipped with a subwoofer output, or a
terminals on your receiver or amplifier.
Make sure that you have configured your surround sound processor for “Subwoofer On.” The receiver should be config-
volume-controlled preamp (line-) level output:
Use RCA-type interconnects to connect the line-level subwoofer outputs on your receiver or amplifier to the line-level inputs on the sub­woofer. IMPORTANT: Do not
ured for 5.1-channel operation, and the front left, front right, center and rear speakers should all be set to “Small.” If your receiver allows you to set the cross­over frequency between the subwoofer and the main speakers, select either 120Hz or 150Hz, or select the set­ting that is the closest fre­quency below these.
LINE LEVEL
use the LFE input on the sub­woofer with Dolby Pro Logic processors. NOTE: If your receiver or amplifier only has one subwoofer output jack, then you will need to use a Y-connector (not included). Plug the male end of the Y­connector into your receiver or amplifier’s subwoofer out­put jack, and connect each of the two female ends to separate RCA-type intercon­nects. Finally, plug the RCA­type interconnects into the line-level inputs on the sub­woofer.
Connect each speaker to the corresponding speaker terminals on your receiver or amplifier.
Make sure your receiver or processor is correctly con­figured to indicate that the subwoofer is “On.”
Note for advanced users: If your receiver/processor has a built-in low-pass crossover filter for the subwoofer out­put, you may use the LFE input to bypass the sub­woofer’s internal crossover.
7
Page 8

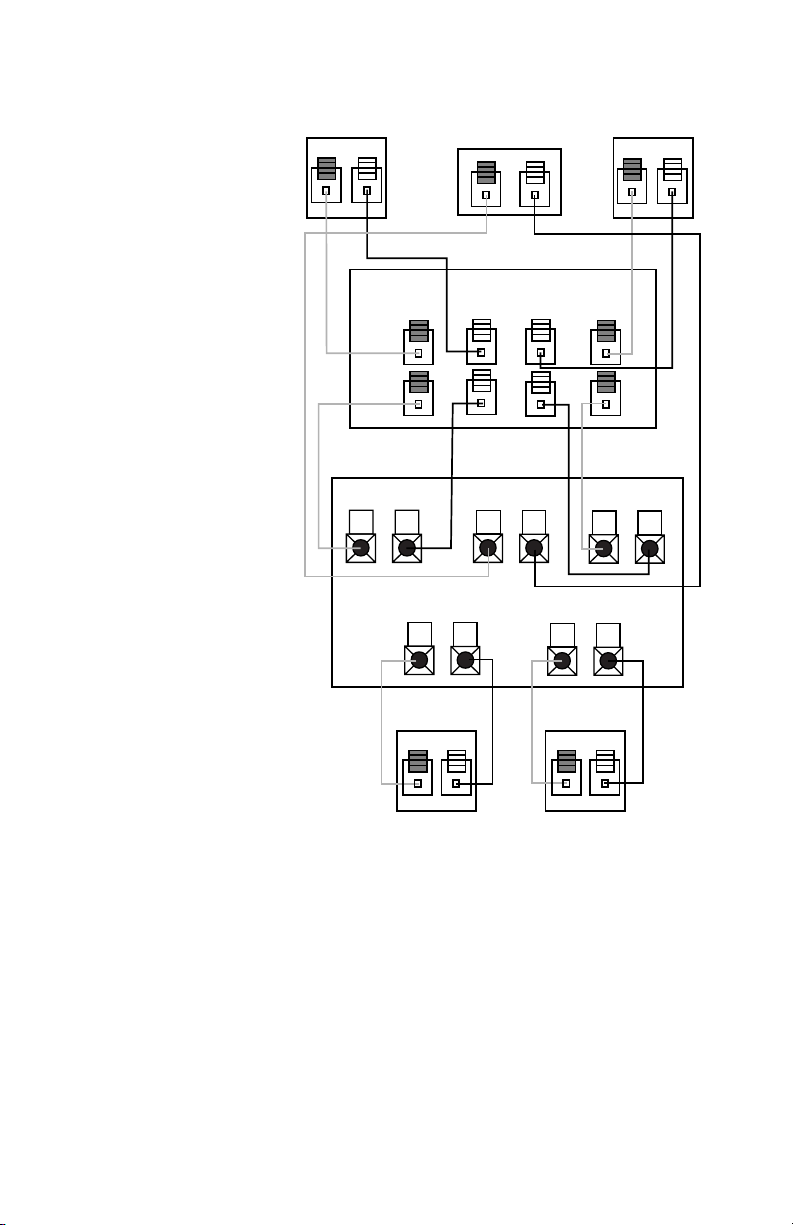

DOLBY PRO LOGIC (NON-DIGITAL)
Right Front
Right Surround
Left Front
Left Surround
Center
+ – + –
+ –
+ –
+ –
+ –
+ –
Left Front Center
+ –
Left Surround
Right Front
+ –
Right Surround
+ –
Subwoofer
Receiver
SPEAKER LEVEL
+ – – +
L R
OUT
IN
Use this installation method for Dolby Pro Logic applica­tions (not Dolby Digital, DTS
®
or other digital processing), where the receiver/processor does not have a subwoofer output, or a volume-controlled preamp (line-) level output:
Connect your receiver or amplifier’s front left and right speaker terminals to the left and right terminals on the subwoofer that are marked “Speaker Level In.” Connect the left and right terminals on the subwoofer that are marked “Speaker Level Out” to the corresponding termi­nals on the back of your front left and right speakers.
Connect your receiver or amplifier’s center and surround speaker terminals to the corresponding termi­nals on the back of your cen­ter and surround speakers.
SPEAKER LEVEL
8
Page 9
OPERATION
MIN MAX
Subwoofer
Level
MIN MAX
Subwoofer
Level
Move the Master Power switch (marked “Power” ¡) to the “•” (On) position to use the subwoofer. The SUB145 subwoofer will automatically turn on or go into standby (sleep) mode when left in the auto mode (“Auto/On” switch
SPEAKER LEVEL
+ – – +
L R
OUT
IN
IMPORTANT: CONNECT STRIPED WIRE TO RED ( ) SPEAKER TERMINAL.
LINE LEVEL IN
LFE
+
SUB145
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
in the “Auto” position). When your receiver or ampli­fier is off, or is not sending program material to the sub­woofer, the subwoofer will be in standby mode (LED will be red). When the sub senses an audio signal,
L
AUTO ON
R
GREEN: ON RED: STANDBY
POWER
woofer
it will
SUBWOOFER
LEVEL
MIN MAX
automatically turn on (LED will be green). If the subwoofer does not sense a signal after approximately twenty minutes, it will automatically go back into standby mode.
When the “Auto/On” switch is switched to the “On” position, the subwoofer will remain on, whether or not program material is playing.
If you will be away from home for an extended period of time,
£
or if the subwoofer will not be used, switch the Master Power switch ¡ to the Off position.
¡
VOLUME
Volume may be adjusted using the Subwoofer Level
£ as shown.
control
9
Page 10
TROUBLESHOOTING
If there is no sound from any of the speakers:
• Check that receiver/ampli­fier is on and a source is playing.
• Check that the powered subwoofer is plugged in, and
Power switch ¡ is
that its switched on (“•” position).
• Check all wires and con­nections between receiver/ amplifier and speakers. Make sure all wires are con­nected. Make sure none of the speaker wires are frayed, cut or punctured, or touching each other.
• Review proper operation of your receiver/amplifier.
If there is no sound coming from one speaker:
• Check the “Balance” control on your receiver/amplifier.
• Check all wires and con­nections between receiver/ amplifier and speakers. Make sure all wires are con­nected. Make sure none of the speaker wires are frayed, cut or punctured, or touching each other.
• In Dolby Digital or DTS modes, make sure that the receiver/processor is config­ured so that the speaker in question is enabled.
• Turn off all electronics and switch the speaker in question with one of the
other speakers that is work­ing correctly. Turn every­thing back on, and deter­mine whether the problem has followed the speaker, or has remained in the same channel. If the problem is in the same channel, the source of the problem is most likely with your receiver or amplifier, and you should consult the owner’s manual for that product for further informa­tion. If the problem has fol­lowed the speaker, consult your dealer for further assis­tance or, if that is not possi­ble, visit www.jbl.com for further information.
If there is no sound from the center speaker:
• Check all wires and con­nections between receiver/ amplifier and speaker. Make sure all wires are connected. Make sure none of the speaker wires are frayed, cut or punctured, or touch­ing each other.
• If your receiver/processor is set in Dolby Pro Logic mode, make sure the center speaker is not in phantom mode.
• If your receiver/processor is set in Dolby Digital or DTS modes, make sure the receiver/ processor is configured so that the center speaker is enabled.
If the system plays at low volumes but shuts off as volume is increased:
• Check all wires and con­nections between receiver/ amplifier and speakers. Make sure all wires are connected. Make sure none of the speaker wires are frayed, cut or punctured, or touching each other.
• If more than one pair of main speakers is being used, check the minimum imped­ance requirements of your receiver/amplifier.
If there is low (or no) bass output:
• Make sure the connections to the left and right “Speaker Inputs” have the correct polarity (+ and –).
• Make sure the subwoofer is plugged into an active electrical outlet turned on (Power switch ¡ in the “•” position).
• In Dolby Digital or DTS modes, make sure your receiver/processor is config­ured so that the subwoofer and LFE output are enabled.
, and is
10
Page 11
If there is no sound from the surround speakers:
• Check all wires and con­nections between receiver/ amplifier and speakers. Make sure all wires are con­nected. Make sure none of the speaker wires are frayed, cut or punctured, or touching each other.
• Review proper operation of your receiver/amplifier and its surround sound features.
• Make sure the movie or TV show you are watching is recorded in a surround sound mode. If it is not, check to see whether your receiver/amplifier has other surround modes you may use.
In Dolby Digital or DTS modes, make sure your receiver/processor is config­ured so that the surround speakers are enabled.
• Review the operation of your DVD player and the jacket of your DVD to make sure that the DVD features the desired Dolby Digital or DTS mode, and that you have properly selected that mode using both the DVD player’s menu and the DVD disc’s menu.
11
Page 12
SPECIFICATIONS
SCS145.5 System
Frequency Response
35Hz – 20kHz (–6dB)
Satellites
Recommended Power
10 – 100 Watts
Impedance
8 Ohms nominal
Sensitivity
86dB @ 1 Watt/1 meter
Tweeter
One 1/2" (13mm) titanium-laminate dome, video-shielded
Midrange
One 3" (75mm) driver, video-shielded
Dimensions (H x W x D)
4-3/8" x 3-3/16" x 3-3/4" 111mm x 81mm x 95mm
Weight
1.1 lb/0.5kg
Center
Recommended Power
10 – 100 Watts
Impedance
8 Ohms nominal
Sensitivity
86dB @ 1 Watt/1 meter
Tweeter
One 1/2" (13mm) titanium-laminate dome, video-shielded
Midrange
Dual 3" (75mm) drivers, video-shielded
Dimensions (H x W x D)
3-1/4" x 7-5/8" x 3-3/4" 83mm x 194mm x 95mm
Weight
1.89 lb/0.86kg
Subwoofer
Amplifier
100 Watts RMS
Woofer
8" (200mm)
Enclosure
Bass reflex
Dimensions (H x W x D)
15" x 13" x 14" 381mm x 330mm x 356mm
Weight
30 lb/13.6kg
All features and specifications are subject to change without notice.
*Trademarks of Dolby Laboratories.
DTS is a registered trademark of Digital Theater Systems, Inc.
OWNER’S GUIDE
PRODUCT LINE:
SURROUND CINEMA
SPEAKERS
MODEL:
SCS14 5.5
DESIGN GOAL: Bring the thrill of live performance and movie sound
the home environment bycalling on JBL’s professional engineering leadership.
to
SATELLITE TYPE:
sealed enclosure
SUBWOOFER TYPE:
PORT DESIGN: FreeFlow™ flared
12
PROFESSIONAL REFERENCE:Cinema Loudspeaker Series
Titanium-laminate-dome tweeter,
Bass-reflex enclosure
PRO SOUND COMES HOME
JBL Consumer Products
250 Crossways Park Drive, Woodbury, NY 11797
8500 Balboa Boulevard, Northridge, CA 91329
516.255.4JBL (4525) (USA only)
www.jbl.com
© 2004 Harman International Industries, Incorporated
JBL is a registered trademark of Harman International Industries, Incorporated.
Part No. 406-000-05100
