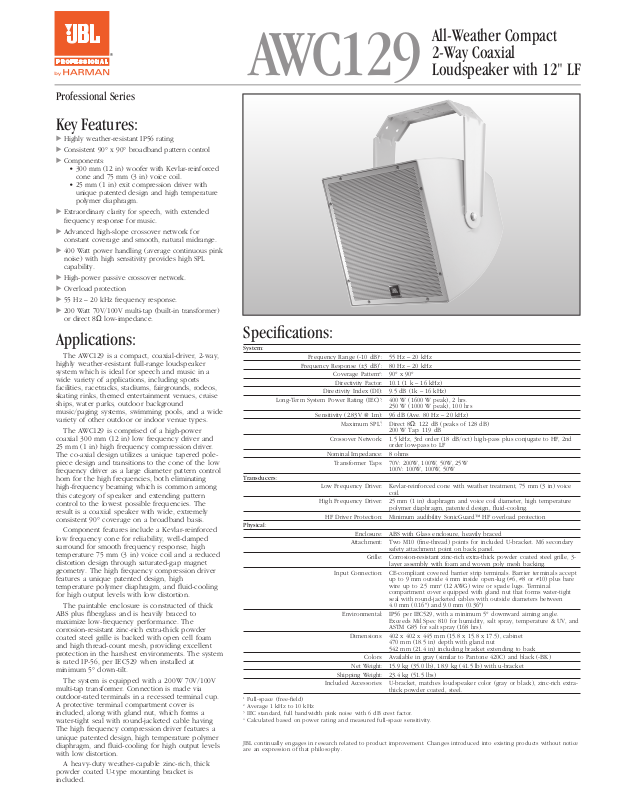

JBL AWC129 Datasheet

Professional Series

Key Features:

䉴

Highly weather-resistant IP56 rating

䉴

Consistent 90° x 90° broadband pattern control

䉴

Components:

• 300 mm (12 in) woofer with Kevlar-reinforced cone and 75 mm (3 in) voice coil.

䉴

• 25 mm (1 in) exit compression driver with unique patented design and high temperature polymer diaphragm.

䉴

Extraordinary clarity for speech, with extended frequency response for music.

䉴

Advanced high-slope crossover network for constant coverage and smooth, natural midrange.

䉴

400 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability.

䉴

High-power passive crossover network.

䉴

Overload protection

䉴

55 Hz – 20 kHz frequency response.

䉴

200 Watt 70V/100V multi-tap (built-in transformer) or direct 8Ω low-impedance.

Applications:

The AWC129 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.

The AWC129 is comprised of a high-power coaxial 300 mm (12 in) low frequency driver and 25 mm (1 in) high frequency compression driver. The co-axial design utilizes a unique tapered polepiece design and transitions to the cone of the low frequency driver as a large diameter pattern control horn for the high frequencies, both eliminating high-frequency beaming which is common among this category of speaker and extending pattern control to the lowest possible frequencies. The result is a coaxial speaker with wide, extremely consistent 90° coverage on a broadband basis.

Component features include a Kevlar-reinforced low frequency cone for reliability, well-damped surround for smooth frequency response, high temperature 75 mm (3 in) voice coil and a reduced distortion design through saturated-gap magnet geometry. The high frequency compression driver features a unique patented design, high temperature polymer diaphragm, and ﬂuid-cooling for high output levels with low distortion.

The paintable enclosure is constructed of thick ABS plus ﬁberglass and is heavily braced to maximize low-frequency performance. The corrosion-resistant zinc-rich extra-thick powder coated steel grille is backed with open cell foam and high thread-count mesh, providing excellent protection in the harshest environments. The system is rated IP-56, per IEC529 when installed at minimum 5° down-tilt.

The system is equipped with a 200W 70V/100V multi-tap transformer. Connection is made via outdoor-rated terminals in a recessed terminal cup. A protective terminal compartment cover is included, along with gland nut, which forms a water-tight seal with round-jacketed cable having The high frequency compression driver features a unique patented design, high temperature polymer diaphragm, and ﬂuid-cooling for high output levels with low distortion.

A heavy-duty weather-capable zinc-rich, thick powder coated U-type mounting bracket is included.

All-Weather Compact 2-Way Coaxial

AWC129

Loudspeaker with 12" LF

Speciﬁcations:

System:

Long-Term System Power Rating (IEC)

Transducers:

Physical:

Full-space (free-ﬁeld)

Average 1 kHz to 10 kHz

IEC standard, full bandwidth pink noise with 6 dB crest factor.

Calculated based on power rating and measured full-space sensitivity.

JBL continually engages in research related to product improvement. Changes introduced into existing products without notice are an expression of that philosophy.

Frequency Range (-10 dB)1: 55 Hz – 20 kHz

Frequency Response (±3 dB)1: 80 Hz – 20 kHz

Coverage Pattern2: 90° x 90°

Directivity Factor: 10.1 (1 k – 16 kHz)

Directivity Index (DI): 9.5 dB (1k – 16 kHz)

Sensitivity (2.83V @ 1m): 96 dB (Ave. 80 Hz – 20 kHz)

Maximum SPL

Crossover Network: 1.5 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd

Nominal Impedance: 8 ohms

Transformer Taps: 70V: 200W, 100W, 50W, 25W

Low Frequency Driver: Kevlar-reinforced cone with weather treatment, 75 mm (3 in) voice

High Frequency Driver: 25 mm (1 in) diaphragm and voice coil diameter, high temperature

HF Driver Protection: Minimum audibility SonicGuard™ HF overload protection

Input Connection: CE-compliant covered barrier strip terminals. Barrier terminals accept

Environmental: IP56 per IEC529, with a minimum 5° downward aiming angle.

Shipping Weight: 23.4 kg (51.5 lbs)

Included Accessories: U-bracket, matches loudspeaker color (gray or black), zinc-rich extra-

: 400 W (1600 W peak), 2 hrs.

250 W (1000 W peak), 100 hrs

: Direct 8Ω: 122 dB (peaks of 128 dB)

200 W Tap: 119 dB

order low-pass to LF

100V: 100W, 100W, 50W

coil.

polymer diaphragm, patented design, ﬂuid-cooling.

Enclosure: ABS with Glass enclosure, heavily braced

Attachment: Two M10 (ﬁne-thread) points for included U-bracket. M6 secondary

Dimensions: 402 x 402 x 445 mm (15.8 x 15.8 x 17.5), cabinet

Net Weight: 15.9 kg (35.0 lb), 18.9 kg (41.5 lb) with u-bracket

safety attachment point on back panel.

Grille: Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-

layer assembly with foam and woven poly mesh backing.

up to 9 mm outside 4 mm inside open-lug (#6, #8 or #10) plus bare wire up to 2.5 mm compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between

4.0 mm (0.16") and 9.0 mm (0.36")

Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs).

470 mm (18.5 in) depth with gland nut 542 mm (21.4 in) including bracket extending to back

Colors: Available in gray (similar to Pantone 420C) and black (-BK)

thick powder coated, steel.

(12 AWG) wire or spade lugs. Terminal

䉴 AWC129

20 100 1000 10000 20000

Frequency (Hz)

105

SPL (dB)

Ohms

542

[21.4]

470

[18.5]

445

[17.5]

191 [7.5]

31 [1.2]

[1.21]

126 [5.0]

10.2 [R.40]

12.7 [R.50]

102 [4.0]

12.7 [R.50]

28 [1.1]

3.8

[R.15]

61 [2.4]

96 [3.8]

[2.5]

[0.9]

[1.0]

402

[15.8]

402 [15.8]

Bracket Rotational Range = ±90°

90º

45º

[3.1]

252

[9.9]

367

[14.5]

389

[15.3]

352

[13.9]

M6 secondary safety attachment point

All-Weather Compact 2-Way Coaxial Loudspeaker with 12" LF

Frequency Response and Impedance

Beamwidth

Dimensions

Off-Axis Frequency Response

-10

Attenuation (dB)

-20

-30 20 100 1000 10000 20000

Frequency (Hz)

Directivity Index:

Directivity Index (DI), dB

20 100 1000 10000 20000

Frequency (Hz)

Attaching U-Bracket to Cabinet

0 deg

10 deg

20 deg

30 deg

40 deg

50 deg

60 deg

70 deg

80 deg

100

Directivity Factor (Q)

Dimensions in mm (in)

Terminal Compartment

JBL Professional 8500 Balboa Boulevard, P.O. Box 2200 Northridge, California 91329 U.S.A.

www.jblpro.com

M10 Bolt

Friction Gasket

Flat Washe r

Lock Washer

Gland nut for round jacketed cable between 4.0mm (0.16”) and 9.0mm (0.36”) O.D.

SS AWC129 CRP 06/12
