Jay-tech VideoShot Full-HD 39 User Manual
CONTENTS
PRECAUTIONS ....................................................................................................................................... 1
DISCLAIMER ........................................................................................................................................... 1
FACTORY DEFAULT SETTINGS ........................................................................................................... 1
PREPARATION ........................................................................................................................................ 2
INTRODUCTION .................................................................................................................................. 2
INSERTING BATTERY ......................................................................................................................... 4
INSERTING MEMORY CARD ............................................................................................................. 4
BASIC OPERATION ................................................................................................................................ 5
TURN ON / OFF THE DV ..................................................................................................................... 5
SET DATE AND TIME .......................................................................................................................... 5
FORMATTING THE MEMORY CARD ................................................................................................. 5
SWITCHING BETWEEN MODES ....................................................................................................... 6
DISPLAY ON THE LCD SCREEN ....................................................................................................... 6
Video Mode........................................................................................................................................ 6
Capture Mode .................................................................................................................................... 7
Playback Mode .................................................................................................................................. 8
MENU ....................................................................................................................................................... 9
SETUP MENU ...................................................................................................................................... 9
VIDEO MODE MENU ......................................................................................................................... 10
CAPTURE MODE MENU ................................................................................................................... 10
PLAYBACK MODE MENU ................................................................................................................. 11
VIDEO RECORDING ............................................................................................................................. 12
TAKING PHOTO .................................................................................................................................... 12
PLAYBACK ............................................................................................................................................ 12
PLAYBACK VIDEO CLIPS ................................................................................................................. 12
PLAYBACK PHOTOS......................................................................................................................... 13
CONNECTING DV TO HDTV ................................................................................................................ 13
DOWNLOAD STORED FILES TO YOUR COMPUTER ...................................................................... 13
USE DV AS A PC CAMERA ................................................................................................................. 13

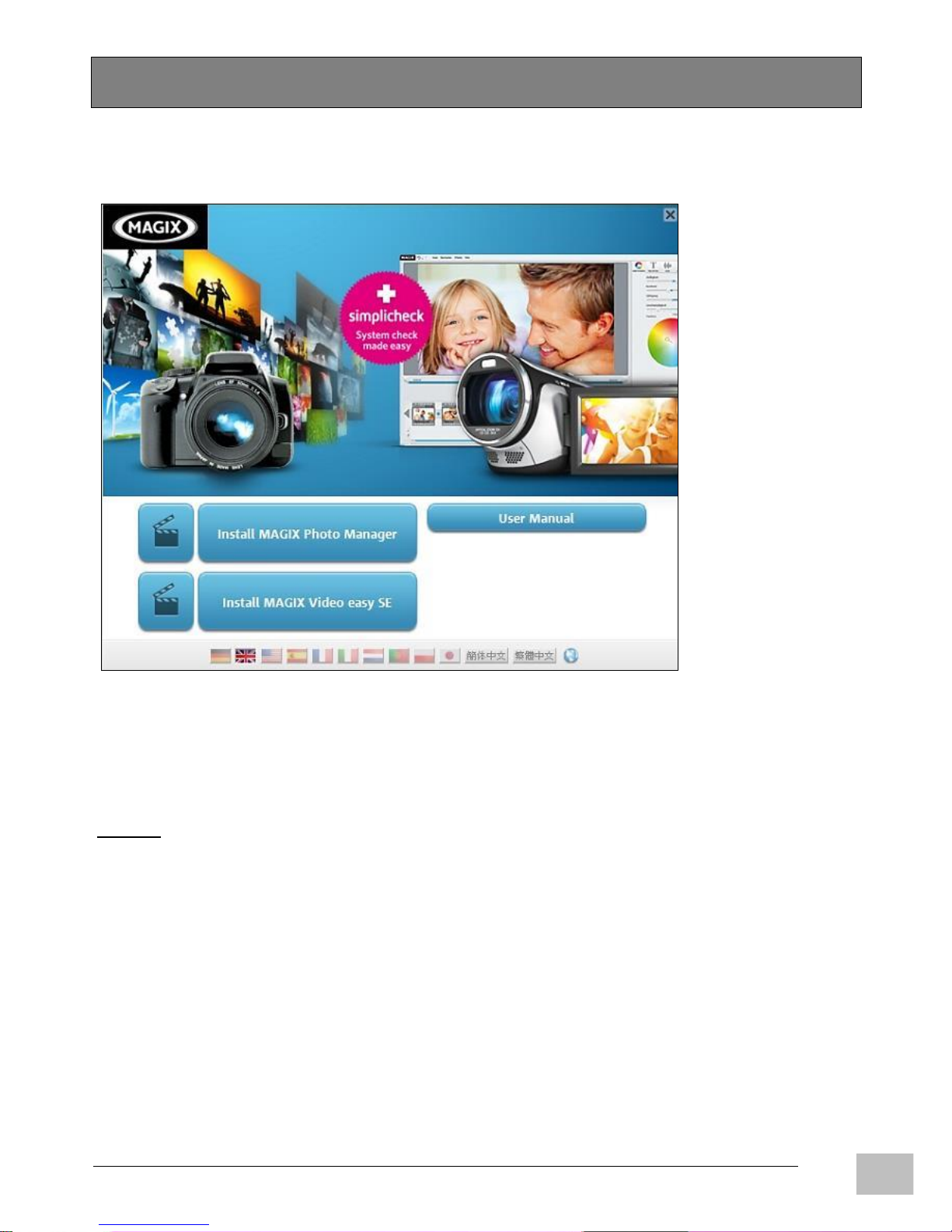

SOFTWARE INSTALLATION................................................................................................................ 14
SPECIFICATIONS ................................................................................................................................. 15
VS-FHD39N EN/1501.V01
EN
1
Thank you for purchasing this camera. Please read these operating instructions carefully in order to
use the camera correctly. Keep the instructions in a safe place after reading so that you can refer to
them later.
PRECAUTIONS
Before using the camera, please ensure that you read and understand the safety precautions
described below. Always ensure that the camera is operated correctly.
Do not point the camera directly into the sun or other intense light sources which could damage
your eyesight.
Do not try to open the case of the camera or attempt to modify this camera in any way.
Maintenance and repairs should be carried out only by authorized service providers.
Keep the camera and its accessories out of the reach of children and animals to prevent
accidents or damage to the camera.
If you notice smoke or a strange odor coming from the camera, turn the power off immediately.
Take the camera to the nearest authorized service center for repair. Never attempt to repair the
camera by your own.
Use only the recommended power accessories. Use of power sources not expressly
recommended for this equipment may lead to overheating, distortion of the equipment, fire,
electrical shock or other hazards.
DISCLAIMER
We assume no responsibility for damages suffered by the user or third parties as a result of
inappropriate handling of the product or its accessories, or by their operational failure and by their use.
We reserve the right to make changes to this product and its accessories without prior notice.
FACTORY DEFAULT SETTINGS
To return to the factory default settings:
Press the OK/MENU button to enter the menu.
Use the Right button to enter the Setup menu.
Use the Down button to choose “Default Setting” and press the OK/MENU button.
Choose “Cancel” to cancel the request or choose “OK” to return to the factory settings.
EN/1501.V01 VS-FHD39N
EN
2
PREPARATION
INTRODUCTION
1. LCD touch screen
2. Up / Playback button
3. Power button
4. T / Zoom in button
5. W / Zoom out button
6. Mode button
7. Charging LED
8. Shutter button
9. OK / MENU button
10. Right / LED lamp button
11. USB jack
12. HDMI jack
13. Down button
14. Left button
15. Built-in speaker
VS-FHD39N EN/1501.V01
EN
3
16. Lens
17. Built-in microphone
18. Self-timer LED
19. LED lamp
20. Wrist strap eyelet
21. Tripod slot
22. Battery compartment
23. Memory card slot
24. Battery/Memory card cover
EN/1501.V01 VS-FHD39N
EN
4
INSERTING BATTERY
1. Slide-open the battery/memory card
cover.
2. Insert the battery by correct direction
until the battery latch locks up the
battery.
3. To remove battery, slide the battery
latch and the battery will pop up from
the battery compartment.
NOTES:
To charge battery, when the battery
is placed in the camera, connect the
DV with the computer via the USB
cable. The charging LED will be lit in
red color when charging and it will go
off when charging is completed.
Please kindly note that the battery charging will only proceed when the DV is being turned off.
For the first time use of the battery, please charge the battery for at least 6 hours.
It is normal that the temperature of the DV and the battery rise after the battery is being used in a
long period of time.
INSERTING MEMORY CARD
1. Slide-open the battery/memory card cover.
2. Insert the memory card by the correct direction and press it down until a click sound is heard.
3. To remove the memory card, press down the memory card again and the memory card will pop
up from the memory card slot.
