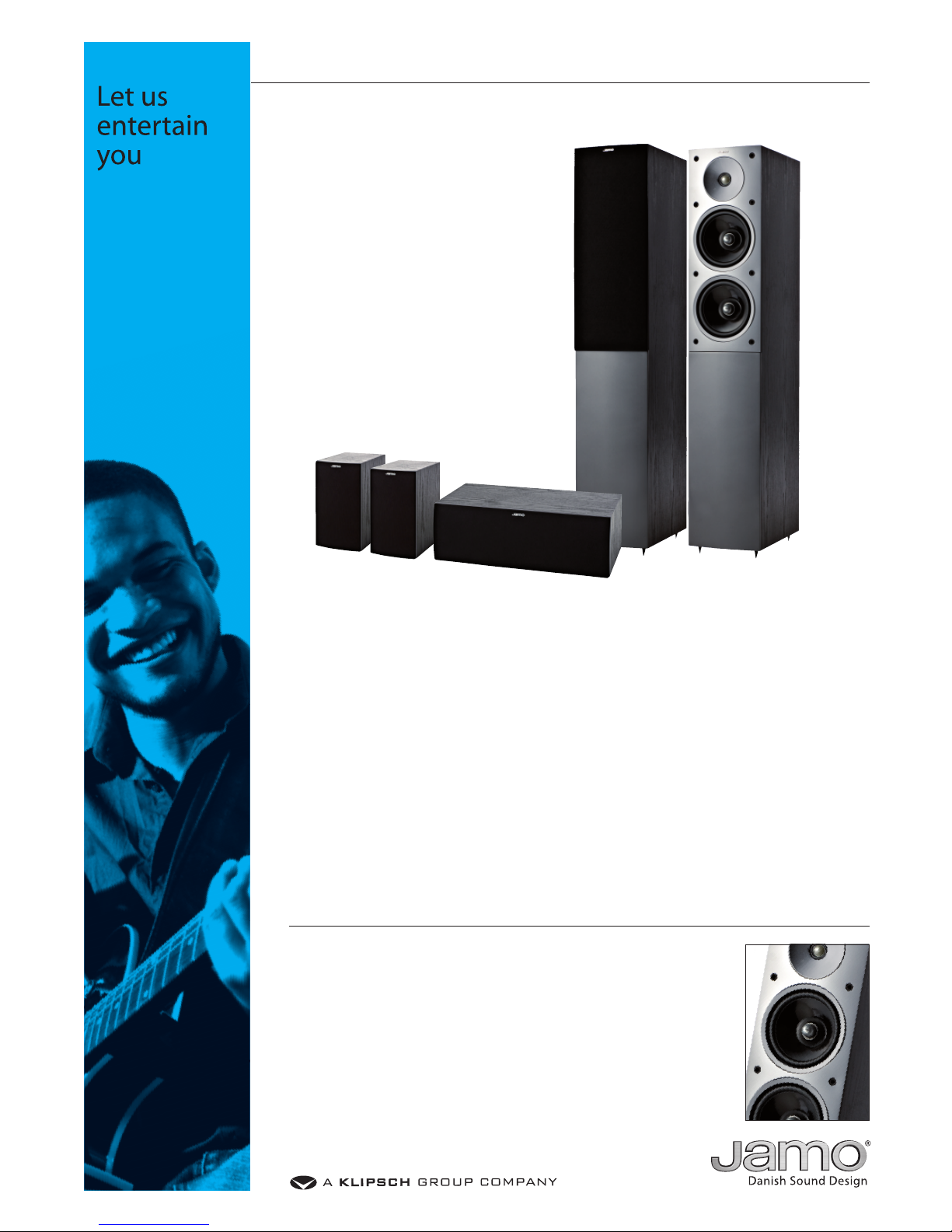

Jamo S 506 HCS 3
With more than 750 watts of music power the Jamo
S 506 HCS 3 system offers excellent value for money
without compromises in design or sound. Give these
speakers a listen and compare them to our competitors’
products – we promise you will be surprised!
If adding a SUB 250 you will get a total music power of
1000 watts.
The S 506 has a wave-guide-coupled 1” tweeter, and 2
x 6½” midrange/woofers ensure strong and clear vocals
and instruments as well as stromg, well-defi ned bass.
The 2 midrange/woofers are mounted in separate,
fully isolated enclosures in order to minimize negative
interferences, and further the individual tuning of each
of the cavities eases the load of the amplifi er and result
in a more tunefull, low-distortion bass.
A very thick baffl e provides a solid foundation for
the best possible performance from the 2 carefully
engineered mid-woofers, and further increases the
stiffness of the already very strong enclosure.
The easily adjustable spikes ensure that the speakers
always stand securely, and the good mechanical contact
to the listening-room-fl oor enhances the acoustic
experience.
The S 506 is fully equipped for optional bi-wiring and
bi-amplifi cation, and will thus allow the enthusiast to
“tweak” the sound-performance to his or hers needs.
We should also mention that the S 506 HCS 3 system
comes with removable front fabric grilles.
You have the choice of leaving them on or off, but, just as
importantly, it also show that we have nothing to hide
with these beauties….quite the opposite!
The centre and satellites speakers come with supplied
wall mounts, allowing versatility when it comes to
placement options.
S 506 HCS 3
Specifi cations S 506 S 502 S 500 CEN
System 2-way bassrefl ex 2-way bassrefl ex 2-way bassrefl ex
Woofer (mm/in) 2 x 165 / 6½ 102 / 4 2 x 102 / 4
Tweeter 25 / 1 25 / 1 25 / 1
Power W long/shortterm 130 / 180 80 / 130 100 / 140
Frequency Range (Hz) 45-20.000 80-20.000 75-20.000
Sensitivity (db/2.8V/1m) 89 86 87
Impedance (Ohm) 6 6 6
Weight (kg/lb) 15,2 / 33,1 4,7 / 11,0 2,7 / 6,6
Dimensions (mm) HxWxD 1000x195x301 240x134x202 134x400x207
Dimensions (in) HxWxD 39.4x7.7x11.9 9.4x5.3x7.9 5.3x15.7x8.1
