Flight Machine
Models
JFT
FLIGHT
Project
Item
Quantity
CSI Sec tion 11400
Approval
Date
Options
Blower dryer
Additional wash section
Additional load module
Additional unload module
25’ (8 m) wash down
hose - mounted
Electrical connection with
circuit breakers
Dual point electrical connection
Low profile doors
Flanged feet
Multiple conveyor peg choice
Drain at load or unload end

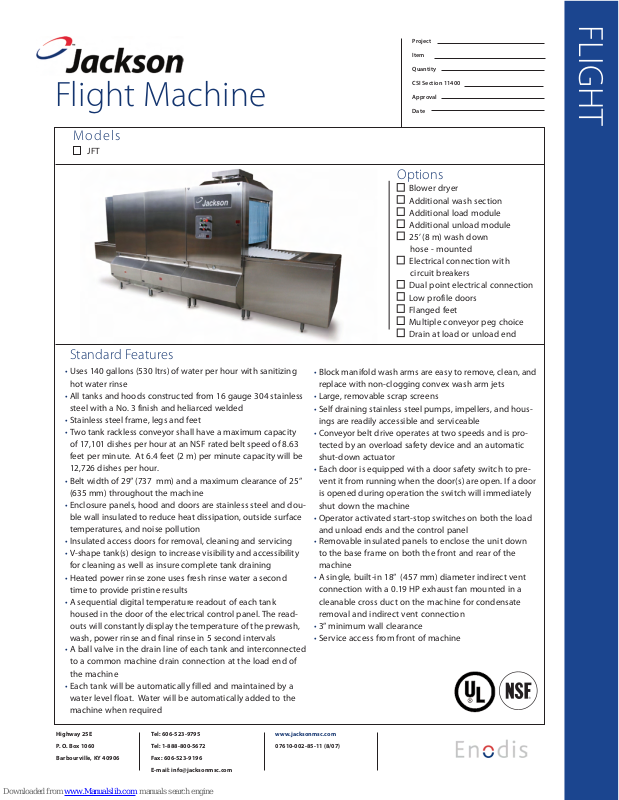

Standard Features
Uses 140 gallons (530 ltrs) of water per hour with sanitizing
•
hot water rinse
All tanks and hoods constructed from 16 gauge 304 stainless
•
steel with a No. 3 finish and heliarced welded
Stainless steel frame, legs and feet
•
Two tank rackless conveyor shall have a maximum capacity
•
of 17,101 dishes per hour at an NSF rated belt speed of 8.63
feet per minute. At 6.4 feet (2 m) per minute capacity will be
12,726 dishes per hour.
Belt width of 29” (737 mm) and a maximum clearance of 25”
•
(635 mm) throughout the machine
Enclosure panels, hood and doors are stainless steel and dou-
•
ble wall insulated to reduce heat dissipation, outside surface
temperatures, and noise pollution
Insulated access doors for removal, cleaning and servicing
•
V-shape tank(s) design to increase visibility and accessibility
•
for cleaning as well as insure complete tank draining
Heated power rinse zone uses fresh rinse water a second
•
time to provide pristine results
A sequential digital temperature readout of each tank
•
housed in the door of the electrical control panel. The readouts will constantly display the temperature of the prewash,
wash, power rinse and final rinse in 5 second intervals
A ball valve in the drain line of each tank and interconnected
•
to a common machine drain connection at the load end of
the machine
Each tank will be automatically filled and maintained by a
•
water level float. Water will be automatically added to the
machine when required
Block manifold wash arms are easy to remove, clean, and
•
replace with non-clogging convex wash arm jets
Large, removable scrap screens
•
Self draining stainless steel pumps, impellers, and hous-
•
ings are readily accessible and serviceable
Conveyor belt drive operates at two speeds and is pro-
•
tected by an overload safety device and an automatic
shut-down actuator
Each door is equipped with a door safety switch to pre-
•
vent it from running when the door(s) are open. If a door
is opened during operation the switch will immediately
shut down the machine
Operator activated start-stop switches on both the load
•
and unload ends and the control panel
Removable insulated panels to enclose the unit down
•
to the base frame on both the front and rear of the
machine
A single, built-in 18” (457 mm) diameter indirect vent
•
connection with a 0.19 HP exhaust fan mounted in a
cleanable cross duct on the machine for condensate
removal and indirect vent connection
3” minimum wall clearance
•
Service access from front of machine
•
Highway 25E
P. O. Box 10 60
Barbourvil le, KY 40906
Tel: 606-523-9795
Tel: 1-888-800-567 2
Fax: 606-523-9 196
E-mail: in fo@jacksonmsc.com
www.jacksonms c.com
07610-002-85 -11 (8/07)
Load
A “start/stop” switch is located at
the load end of the machine for the
operators convenience
Load platform is 12 gauge stainless
steel.
Machine Dimensions
Load
Height Depth Length
36”
(914.4 mm)
38-1/4”
(972 mm)
36”
(914.4 mm)
Shipping Dimensions
Load / Unload (Shipped Together)
Height Depth Length
71”
(914.4 mm)
Weight: 621 lbs / 282 kg
48”
(1219 mm)
60”
(1524 mm)
Pre-wash Tank
The pre-wash tank features a stainless
steel manifold system with stricturefree jets to optimize pressure for soil
removal and to provide easy access for
removal and cleaning.
A 3.0 HP, 1725 RPM motor and pump
is horizontally mounted. The pump
housing is stainless steel and selfdraining. A stainless steel strainer
with a removable basket is included.
The pre-wash tank is a sloped design
to ensure complete tank draining and
to minimize soil build-up.
Pre-wash Tank
Height Depth Length
73”
(1854 MM)
Pre-wash Tank
Height Depth Length
79”
(2007 mm)
Weight: 642 lbs / 291 kg
46”
(1168 MM)
48”
(1219 mm
36”
(914.4 mm)
60”
(1524 mm)
Wash Tank Power Rinse Tank
The wash tank features a stainless
steel manifold system with stricturefree jets to optimize pressure for soil
removal and to provide easy access
for removal and cleaning.
A 3.0 HP 1725 RPM motor and pump
is horizontally mounted. The pump
housing is stainless steel and selfdraining. A stainless steel strainer
pan is included. The wash tank is a
sloped design to ensure complete
tank draining and to minimize soil
build-up.
Wash Tank
Height Depth Length
73”
(1854 mm)
Wash Tank
Height Depth Length
79”
(2007 mm)
Weight: 642 lbs / 291 kg
46”
(1168 mm)
48”
(1219 mm
36”
(914.4 mm)
60”
(1524 mm)
Stainless steel power rinse arms with
stricture free jets mounted above and
below the wares are easily removable
for cleaning.
A 2.0 HP, 1725 RPM motor with a
stainless steel housing and impeller
are included. Power rinse tank is a
sloped design to ensure complete
tank draining and to minimize soil
build-up
Power Rinse Tank
Height Depth Length
73”
(1854 mm)
46”
(1168 mm)
Power Rinse Tank
Height Depth Length
79”
(2007 mm)
Weight: 627 lbs / 284 kg
48”
(1219 mm
Stainless steel rinse arms with jets
mounted above and below the wares
are easily removable for cleaning.
The final rinse water will cascade back
to the power rinse, wash and then the
pre-wash tanks.
Blower Dryer
A stainless steel tunnel incorporated into the discharge section of the
machine. The blower dryer keeps the
operating personnel from removing
the wares before it reaches the end of
the unload section. An industrial fantype with a squirrel cage driven by
a 0.6 HP direct drive motor dries the
wares as it exits the machine.
*The Blower Dryer is an option
and must be specified at time
of order.
Unload
A “start/stop” switch is located at
the unload end of the machine for
the operators convenience.
Unload platform is 14 gauge stainless steel.
The drive wheel shaft is supported
by two heavy-duty grease-lubricated ball bearings in pillow blocks.
Final Rinse
Height Depth Length
36”
(914.4 mm)
82”
(2083 mm)
46”
(1168mm)
36”
(914.4 mm)
Final Rinse
Height Depth Length
60”
(1524 mm)
88”
(2235 mm)
Weight: 635 lbs / 288 kg
48”
(1219 mm
60”
(1524 mm)
Blower Dryer
Height Depth Length
88“
(2235 mm)
38-1/4”
(972 mm)
36
(914.4 mm)
Blower Dryer
Height Depth Length
93”
(2362 mm)
Weight: 504 lbs / 229 kg
48”
(1219 mm
60”
(1524 mm)
Unload
Height Depth Length
36”
(914.4 mm)
38-1/4”
(972 mm)
42”
(1067 mm)
Unload / Load
Shipped with load end
Electric
3" [76mm] Minimum
Floor Sink or Floor Drain
(Optional to drain at load or
unload end of the machine.)
1
7
6

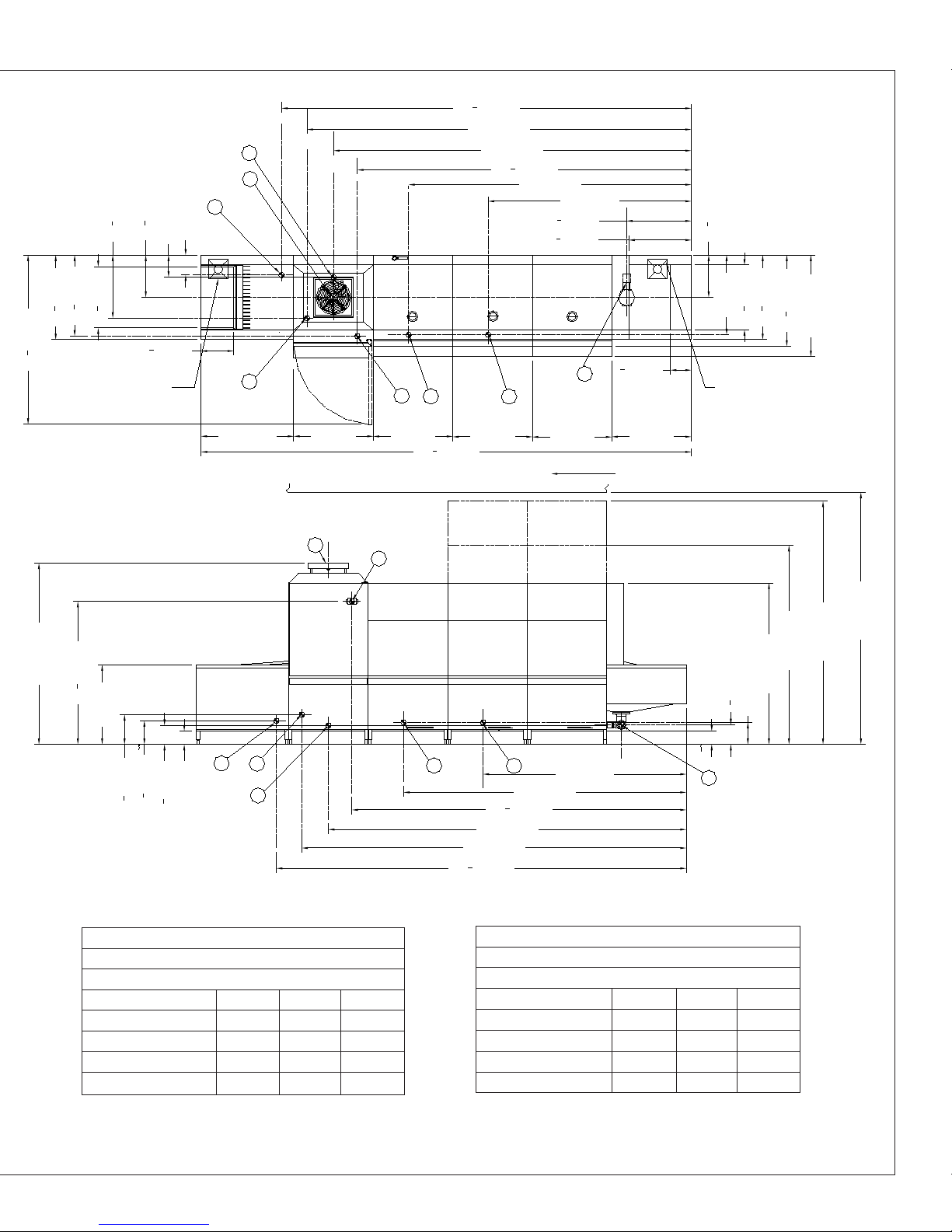

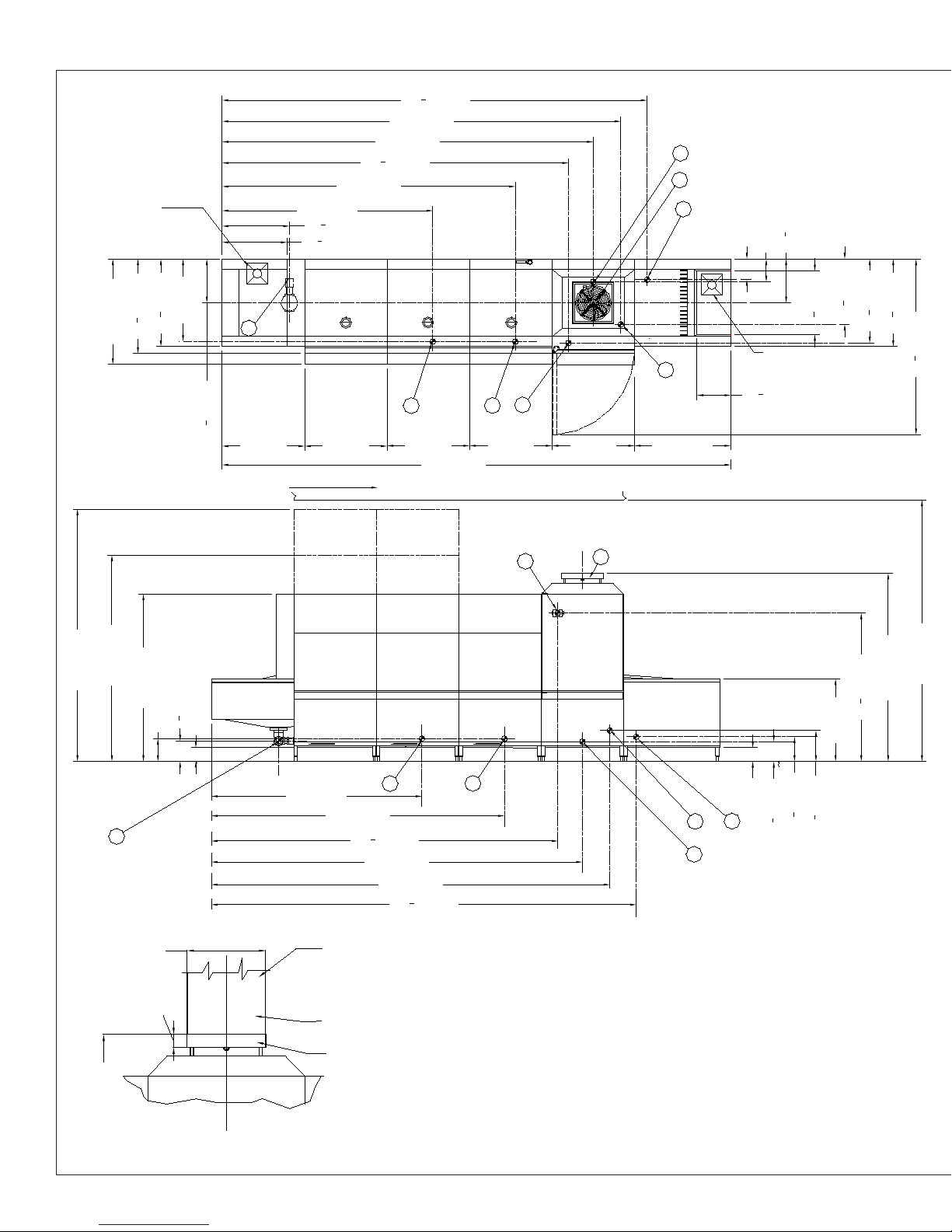

Control Cabinet Door Open
Doors In The Open Postion
Power Connections Inside Control Panel
2
3
4
5
TYPICAL
Top of Exhaust Fan Housing
6
1
2
3
4
5
6'-10" [2083mm]
9'-6" [2896mm]
10
3
4
" [273mm]
3' [914mm]
5'-4
3
4
" [1644mm]
6" [152mm]
5
1
8
" [129mm]
15'-5
1
2
" [4712mm]
13'-6" [4115mm]
12'-7" [3836mm]
6" [152mm]
8
7
8
" [226mm]
3' [914mm]
6'-1" [1855mm]
9'-2" [2794mm]
18'-6" [5639mm]
3'-6" [1067mm]3' [915mm]3' [914mm]3' [914mm]3' [914mm]3' [914mm]
9" [229mm]
1'-7
1
8
" [486mm]
3' [914mm]
3'-2
1
4
" [972mm]
6'-4
1
2
" [1943mm]
15'-5
1
2
" [4712mm]
13'-6" [4115mm]
12'-7" [3836mm]
2'-5
3
8
" [746mm]
2'-4
3
8
" [721mm]
1'-7
1
8
" [486mm]
3'-2
1
4
" [971mm]
3'-5
1
4
" [1048mm]
3'-10" [1168mm]
DIRECTION OF OPERATION
7
7'-6" [2286mm]
Optional - Short Doors In The Open Position
Maximum Ceiling Height for Short Doors - 7'-10" [2388mm]
1'-2
3
4
" [375mm]
2'-3
3
4
" [706mm]
3" [76mm] Minimum
Floor Sink or Floor Drain
(Optional to drain at load or
unload end of the machine.)
9
1
4
" [234mm]
2'-5
1
4
" [743mm]

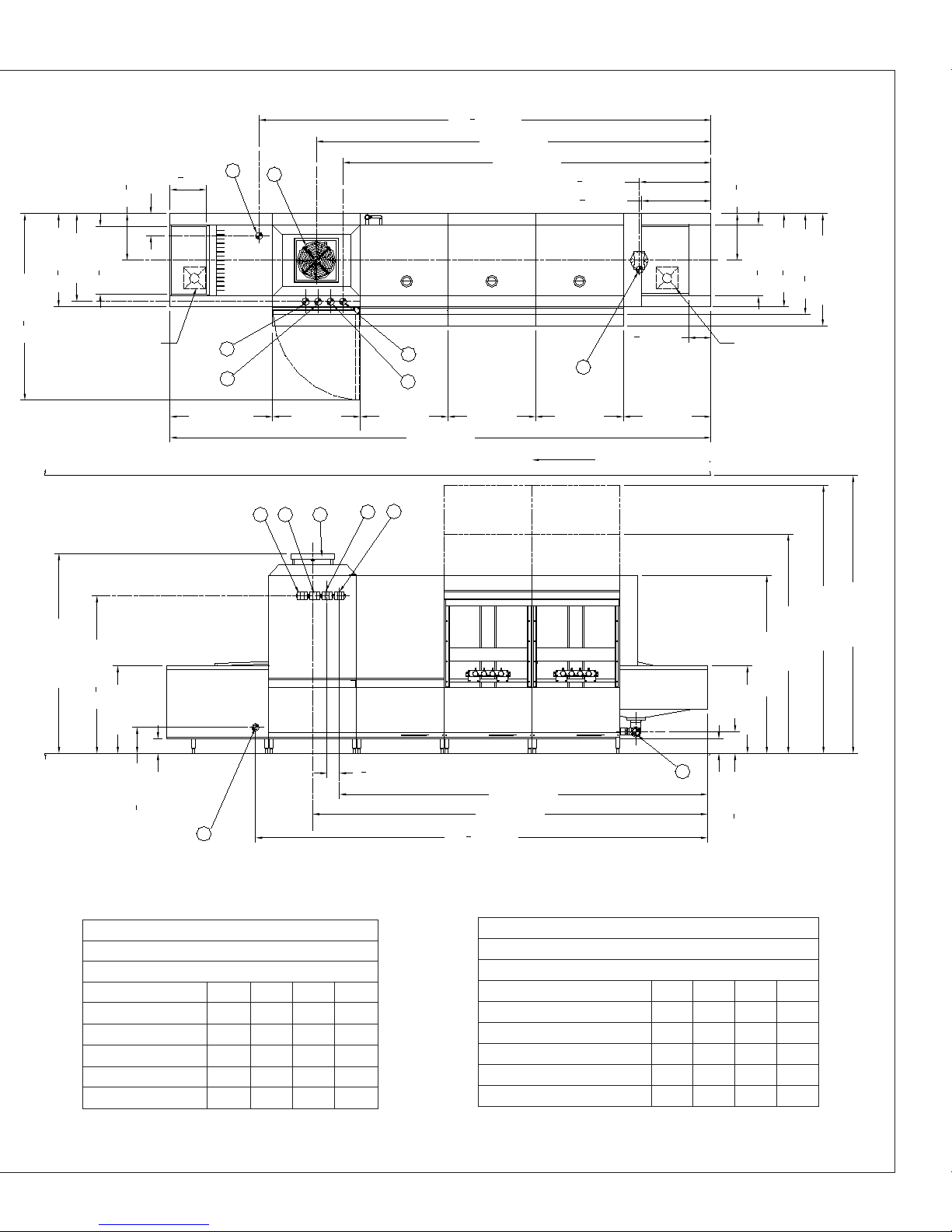

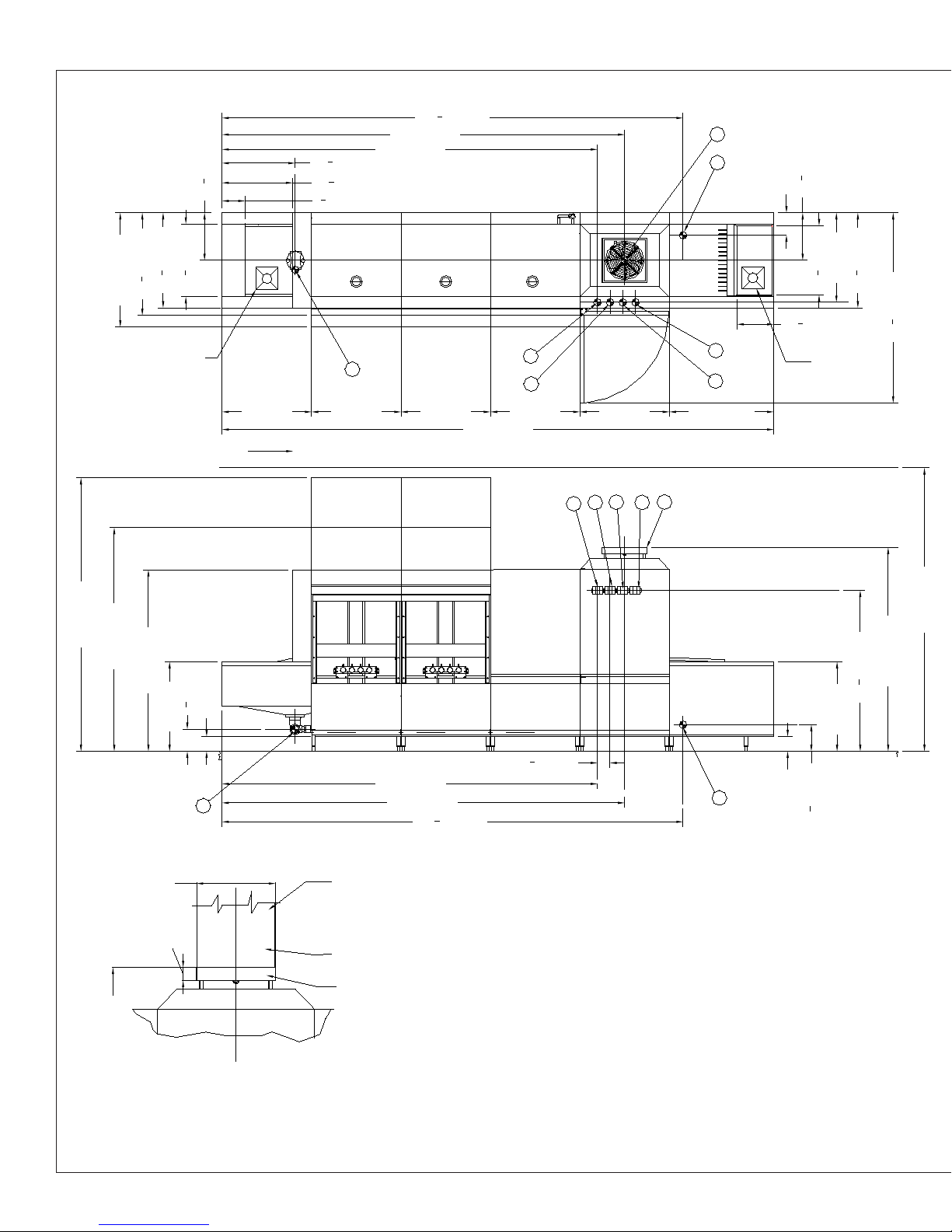

Control Cabinet Door Open
7
6
4
5
2
3
1
3" [72mm] Minimum
Floor Sink or Floor Drain
(Optional to drain at load or unload
end of the machine.)
Doors In The Open Position
1
Typical
6
Top of Exhaust Fan Housing
Power Connections Inside Control Panel
2
3
4
5
DIRECTION OF OPERATION
1'-7
1
8
" [486mm]
3'-2
1
4
" [971mm]
3'-5
1
4
" [1048mm]
3'-10" [1168mm]
2'-4
3
8
" [721mm]
2'-5
3
8
" [746mm]
12'-7" [3836mm]
13'-6" [4115mm]
15'-5
1
2
" [4712mm]
9" [229mm]
1'-7
1
8
" [486mm]
3' [914mm]
3'-2
1
4
" [972mm]
6'-4
1
2
" [1943mm]
3' [914mm]3' [914mm]3' [914mm]3' [914mm]3' [915mm]3'-6" [1067mm]
18'-6" [5639mm]
9'-6" [2896mm]
9'-2" [2794mm]
6'-1" [1855mm]
3' [914mm]
8
7
8
" [226mm]
6" [152mm]
12'-7" [3836mm]
13'-6" [4115mm]
15'-5
1
2
" [4711mm]
5
1
8
" [129mm]
6" [152mm]
10
3
4
" [273mm]
3' [914mm]
5'-4
3
4
" [1644mm]
6'-10" [2083mm]
7
7'-6" [2286mm]
Optional - Short Doors In The Open Position
Maximum Ceiling Height for Short Doors - 7'-10" [2388mm]
3" [72mm] Minimum
Floor Sink or Floor Drain
(Optional to drain at load
or unload end of the machine.)
2'-3
3
4
" [706mm]
1'-2
3
4
" [375mm]
9
1
4
" [234mm]
2'-5
1
4
" [743mm]
Note:
The condensate removal system built into the dishmachine consists of a fan
that will remove 1200 CFM. A single condensate connection must be provided
by the installing contractor. This is an indirect connection that must be capable
of removing 1200 CFM from the area.
A.F.F.
Exhaust Requirements
- 1200 CFM
6'-10" [2083mm]
3" [72mm] Deep
18" [457mm] I.D. Square
Condensate duct pan mounted on top of
dishmachine electrical section.
Condensate Exhaust Duct
Minimum 18" Square (Cross Section 324 Sq. In.)
Provided by HVAC Contractor
Condensate duct to extended into duct pan.
Legend
1 - 1-1/2" NPT Machine Drain Connection
(Floor drain - optional to either end)
2 - *Wash Tank Electrical Connection
3 - *Rinse Tank Electrical Connection
4 - *Booster Heater Electrical Connection
5 - *Motor Controls Electrical Connection
6 - 3/4" NPT Incoming Water Connection
7 - Condensate Connection - See Detail
*See Table For Amp Draw
Visit us at www.jacksonmsc.com or call us at 1-888-800-5672
Control Cabinet Door Open
7
6
4
5
2
3
1
3" [72mm] Minimum
Floor Sink or Floor Drain
(Optional to drain at load or unload
end of the machine.)
Doors In The Open Position
1
Typical
6
Top of Exhaust Fan Housing
Power Connections Inside Control Panel
2
3
4
5
DIRECTION OF OPERATION
1'-7
1
8
" [486mm]
3'-2
1
4
" [971mm]
3'-5
1
4
" [1048mm]
3'-10" [1168mm]
2'-4
3
8
" [721mm]
2'-5
3
8
" [746mm]
12'-7" [3836mm]
13'-6" [4115mm]
15'-5
1
2
" [4712mm]
9" [229mm]
1'-7
1
8
" [486mm]
3' [914mm]
3'-2
1
4
" [972mm]
6'-4
1
2
" [1943mm]
3' [914mm]3' [914mm]3' [914mm]3' [914mm]3' [915mm]3'-6" [1067mm]
18'-6" [5639mm]
9'-6" [2896mm]
9'-2" [2794mm]
6'-1" [1855mm]
3' [914mm]
8
7
8
" [226mm]
6" [152mm]
12'-7" [3836mm]
13'-6" [4115mm]
15'-5
1
2
" [4711mm]
5
1
8
" [129mm]
6" [152mm]
10
3
4
" [273mm]
3' [914mm]
5'-4
3
4
" [1644mm]
6'-10" [2083mm]
7
7'-6" [2286mm]
Optional - Short Doors In The Open Position
Maximum Ceiling Height for Short Doors - 7'-10" [2388mm]
3" [72mm] Minimum
Floor Sink or Floor Drain
(Optional to drain at load
or unload end of the machine.)
2'-3
3
4
" [706mm]
1'-2
3
4
" [375mm]
9
1
4
" [234mm]
2'-5
1
4
" [743mm]
Jackson Rackless Conveyors
Wash, Power Rinse & Final Rinse (18’-6” minimum length)
Electric equirements with booster
Wash 24 76.3 6 9.9 35. 0
Rinse 26 77.8 7 0.8 35. 4
Motors and Controls 12.2 12.3 6.2
Booster 27 75.0 6 7.8 33. 9
Total 241.3 2 20.8 110.5
K W 208V 230V 46 0V
Visit us at www.jacksonmsc.com or call us at 1-888-800-5672
Jackson Rackless Conveyors
Wash, Power Rinse & Final Rinse (18’-6” minimum length)
Electric requirements with booster and blower dryer
K W 208V 230V 460V
Wash 24 76.3 69.9 36. 0
Rinse 26 77.8 70.8 35.4
Blower Dr yer, Motors and Controls 20 43.7 41.4 20. 7
Booster 27 75.0 67.8 33.9
Total 272.8 2 49.9 126
Steam
Control Cabinet Door Open
3" [72mm] Minimum
Floor Sink or Floor Drain
(Optional to drain at load
or unload end of the
machine.)
PREWASH
SECTION
WASH
SECTION
POWER RINSE
SECTION
CONTROL
CABINET
DIRECTION OF OPERATION
Top of Condensate Duct Pan
5
6
Doors In The Open Position
1
4
3
7
2
8
1
5
6
2
3
8
7
4
6'-4
1
2
" [1945mm]
3'-2
1
4
" [972mm]
3'-0
5
8
" [930mm]
2'-4
1
2
" [724mm]
1'-7
1
8
" [486mm]
10" [254mm]
9" [229mm]
3'-6" [1067mm]3' [914mm]3' [914mm]3' [915mm]
3' [913mm]3' [914mm]
15'-5
1
2
" [4712mm]
2'-4
3
8
" [719mm]
2'-5
3
8
" [745mm]
7'-8" [2335mm]
10'-8" [3250mm]
12'-7
1
4
" [3840mm]
13'-6" [4115mm]
14'-6" [4420mm]
1'-7
1
8
" [486mm]
3' [914mm]
3'-2
1
4
" [972mm]
3'-5
1
4
" [1048mm]
3'-10" [1168mm]
18'-6" [5639mm]
9'-6" [2896mm]
6'-10" [2084mm]
5'-4
3
4
" [1644mm]
3' [915mm]
1'-1
1
2
" [343mm]
10
3
4
" [273mm]
8
5
8
" [219mm]
6" [152mm]
7'-8" [2335mm]
10'-8" [3250mm]
12'-7
1
4
" [3843mm]
13'-6" [4115mm]
14'-6" [4420mm]
15'-5
1
2
" [4712mm]
6" [152mm]
8
7
8
" [226mm]
10" [253mm]
6'-1" [1855mm]
9'-2" [2794mm]
7'-6" [2286mm]
Optional - Short Doors In The Open Position
Maximum Ceiling Height for Short Doors - 7'-10" [2388mm]
3"[76mm] Minimum
Floor Sink or Floor Drain
(Optional to drain at load or
unload end of the machine.)
1'-2
3
4
" [375mm]
2'-3
3
4
" [705mm]
A.F.F.
Exhaust Requirements
- 1200 CFM
6'-10" [2083mm]
3" [72mm] Deep
18" [457mm] I.D. Square
Condensate duct pan mounted on top of
dishmachine electrical section.
Condensate Exhaust Duct
Minimum 18" Square (Cross Section 324 Sq. In.)
Provided by HVAC Contractor
Condensate duct to extended into duct pan.
Note:
The condensate removal system built into the dishmachine consists of a fan
that will remove 1200 CFM. A single condensate connection must be provided
by the installing contractor. This is an indirect connection that must be capable
of removing 1200 CFM from the area.
Legend
1 - 1-1/2" NPT Machine Drain Connection
(Floor drain - optional to either end)
2 - Electrical Connection - See Table for Amp Draw
3 - 3/4" NPT Incoming Water Connection
4 - 1-1/2" NPT Steam Connection
5 - 3/4" NPT Wash Section Condensate Return
6 - 3/4" NPT Power Rinse Section Condensate Return
7 - 3/4" NPT Booster Heater Condensate Return
8 - Condensate Connection - See Detail
Visit us at www.jacksonmsc.com or call us at 1-888-800-5672
Control Cabinet Door Open
3
8
4
1
3" [72mm] Minimum
Floor Sink or Floor Drain
(Optional to drain at load or
unload end of the machine.)
Door In The Open Position
1
PREWASH
SECTION
WASH
SECTION
POWER RINSE
SECTION
CONTROL
CABINET
5
6
4
3
7
DIRECTION OF OPERATION
5
2
6
7
Top Of Condensate Duct Pan
2
8
3'-10" [1168mm]
3'-5
1
4
" [1048mm]
3'-2
1
4
" [972mm]
3' [914mm]
1'-7
1
8
" [486mm]
2'-4
3
8
" [719mm]
2'-5
3
8
" [745mm]
7'-8" [2335mm]
10'-8" [3250mm]
12'-7
1
4
" [3840mm]
13'-6" [4115mm]
14'-6" [4420mm]
15'-5
1
2
" [4712mm]
9" [229mm]
10" [254mm]
1'-7
1
8
" [486mm]
2'-4
1
2
" [724mm]
3'-0
5
8
" [930mm]
3'-2
1
4
" [972mm]
6'-4
1
2
" [1944mm]
3'-6" [1067mm] 3' [914mm]
3' [914mm]
3' [915mm]
3' [913mm]
3' [914mm]
18'-5
7
8
" [5637mm]
6" [152mm]
8
7
8
" [226mm]
10" [253mm]
6'-1" [1855mm]
9'-2" [2794mm]
9'-6" [2896mm]
7'-8" [2335mm]
10'-8" [3250mm]
12'-7
1
4
" [3843mm]
13'-6" [4115mm]
14'-6" [4420mm]
15'-5
1
2
" [4712mm]
6" [152mm]
8
5
8
" [219mm]
10
3
4
" [273mm]
1'-1
1
2
" [343mm]
3' [915mm]
5'-4
3
4
" [1644mm]
6'-10" [2084mm]
7'-6" [2286mm]
Optional - Short Doors In The Open Position
Maximum Ceiling Height for Short Doors - 7'-10" [2388mm]
2'-5
1
4
" [743mm]
9
1
2
" [240mm]
3" [72mm] Minimum
Floor Sink or Floor Drain
(Optional to drain at load or
unload end of the machine.)
2'-3
3
4
" [705mm]
1'-2
3
4
" [375mm]
Jackson Rackless Conveyors
Wash, Power Rinse & Final Rinse (18’-6” minimum length)
Steam tank heat electrical requirements with booster
Wash 9.7 9.7 4.9
Rinse 5.6 5.6 2.8
Pre-wash/Drive/Exhaust 12. 2 12 .3 6.2
Total 27.5 27 .6 13 .9
208V 230V 460 V
Visit us at www.jacksonmsc.com or call us at 1-888-800-5672
Jackson Rackless Conveyors
Wash, Power Rinse & Final Rinse (18’-6” minimum length)
Steam tank heat, booster and blower dryer electrical requirements
208V 230V 460V
Wash 9.7 9.7 4.9
Rinse 5.6 5.6 2.8
Pre-wash/Drive/Exhaust 18.7 1 7.9 6.2
Total 34.0 3 3.2 13.9
Flight Machine
ELECTRICAL
An electromechanical control system for increased reliability mounted in a stainless steel control cabinet on the front of the machine.
A step-down transformer is included to provide 115 volt, 60 cycles, 1 phase operation for controls including selenoid valves, timers,
etc. Wiring is 105 C, 600-volt thermoplastic insulated wire and routed throught UL approved conduit.
Low watt density tubular heating elements are mounted inside the wash and power rinse tanks and are easily removable from the
exterior of the unit. Heaters are protected by a water level float switch control and a high limit overload.
Tank water temperature is maintained by a fast reacting thermostat which will control the heating element.
STEAM
Stainless steel tubular steam coils mounted inside the wash and power rinse tanks below the optimum water level and protected by
a water level float switch control. An external “Y” strainer and high temperature steam solenoid to regulate the flow of steam through
the coil. Tank temperature is controlled and maintained by a fast reacting thermostat that will control the operation of the steam
solenoid. A float and thermostatic steam trap to remove the condensate from the coil are included. Steam coils will require a 15-30
PSI flowing steam pressure.
BOOSTER HEATERS - ELECTRIC
An internally mounted 27 kW electric booster heater sized to raise incoming 110˚F (43˚C) water supply to 180˚F (82˚C) minimum
for sanitizing rinse. The electric booster heater will have the capacity to heat 155 GPH from 110˚F (43˚C) to 180˚F (82˚C) minimum.
The tank is designed for a working pressure 150 PSI and hydrostatically tested at 300 PSI. The heater is complete with all plumbing,
including NPT pipe and fittings from inlet and outlet. Electric heating elements are metal sheathed controlled by a close tolerance
immersion thermostat. The booster is protected with a high temperature limit switch and low water cut-off.
BOOSTER HEATERS - STEAM
An internally mounted steam booster heater sized to raise incoming 110˚F (43˚C) water supply to 180˚F (82˚C) minimum for sanitizing rinse. The steam booster heater will have the capacity to heat 216 GPH from 110˚F (43˚C) to 180˚F (82˚C) minimum. The tank is
designed for a working pressure 150 PSI and hydrostatically tested at 300 PSI. The heater is complete with all plumbing, including
NPT pipe and fittings necessary to meet all installation requirements. The booster is protected with a high temperature limit switch
and low water cut-off.
DIMENSION REQUIREMENTS
Wall Clearance (Minimum) 3” / (19 mm)
Inside Clearance
25”H x 30” W
(635 mm x 762 mm)
OPERATING CAPACITY
Dishes per Hour - Belt Speed 6.4 FPM 12,726
Dishes per Hour - Belt Speed 8.6 FPM 17,101
OPERATING TEMPERATURES
Pre-Wash (Recommended) 140˚F / (60˚C)
Wash (Minimum) 152˚F / (67˚C)
Rinse (Minimum) 161˚F / (72˚C )
Final Rinse 180˚F / (82˚C)
MOTORS
Pre-wash Pump Motor 3.0 HP
Wash Pump Motor 3.0 HP
Power Rinse Pump Motor 2.0 HP
Conveyor Drive Motor 1/4 HP
HOW TO SPECIFY - JFT:
STEAM REQUIREMENTS
Steam Flow Pressure (PSIG) 15-30
Consumption @ 110˚F Incoming Water Temperature 145 lbs./hr.
Consumption with blower dr yer 245 lbs.hr.
WATER REQUIREMENTS
Inlet Tempterature 110˚F / (43˚C)
Gallons per Hour 140 / (530 Ltr)
Waterline Size IPS (Minimum-inches) 3/4 / (19 mm)
Drainline Size IPS (Minimum-Inches) 2 / (51 mm)
Flow Pressure (PSI) 15-25
TANK CAPACITY
Pre-wash Tank 36 gal / (136 ltr)
Wash Tank 36 gal / (136 ltr)
Power Rinse Tank 36 gal / (136 ltr)
PUMP CAPACITY
Pre-wash Pump 260 gal / (984 ltr)
Wash Pump 260 gal / (984 ltr)
Power Rinse Pump 230 gal / (871 ltr)
Highway 25E
P. O. Box 10 60
Barbourvil le, KY 40906
We reserve the right to change specications appearing in this bulletin without incurring any obligation for equipment previously or subsequently sold.
Tel: 606-523-9795
Tel: 1-888-800-567 2
Fax: 606-523-9 196
E-mail: in fo@jacksonmsc.com
www.jacksonms c.com
07610-002-85 -11 (8/07)
Loading...
