Jabra Engage 75

Engineered to be the world’s most

powerful professional wireless headsets

• Industry-leading wireless performance. Better customer connections.

• Crystal-clear calls. Enhance the customer experience.

• More talk time, less interruptions. Increase productivity.

Speciﬁcations

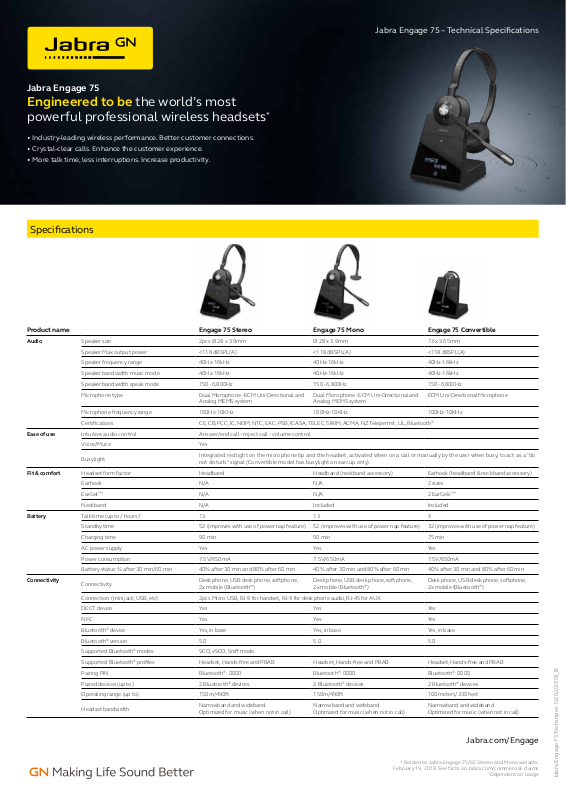

Jabra Engage 75 – Technical Speciﬁcations

Product name Engage 75 Stereo Engage 75 Mono Engage 75 Convertible

Audio Speaker size 2pcs Ø 28 x 3.9mm Ø 28 x 3.9mm 13 x 3.65mm

Speaker Max output power <118 dBSPL(A) <118 dBSPL(A) <118 dBSPL(A)

Speaker frequency range 40Hz-16kHz 40Hz-16kHz 40Hz-16kHz

Speaker bandwidth music mode 40Hz-16kHz 40Hz-16kHz 40Hz-16kHz

Speaker bandwidth speak mode 150 - 6,800Hz 150 - 6,800Hz 150 - 6,800Hz

Microphone type Dual Microphone - ECM Uni-Directional and

Microphone frequency range 100Hz-10KHz 100Hz-10KHz 100Hz-10KHz

Certiﬁcations CE, CB, FCC, IC, NOM, NTC, EAC, PSB, ICASA, TELEC, SIRIM, ACMA, NZ Telepermit, UL, Bluetooth

Ease of use Intuitive audio control Ans wer/end call - r eject call - volu me control

Voice/Mute Yes

Busylight

Fit & comfort Headset form factor Headband Headband (neckband accessory) Earhook (headband & neckband accessory)

Earhook N/A N/A 2 sizes

EarGel

Neckband N/A Included Included

Battery Talk time (up to / hours)

Standby time 52 (improves with use of power nap feature) 52 (improves with use of power nap feature) 32 (improves with use of power nap feature)

Charging time 90 min 90 min 75 min

AC power supply Yes Ye s Yes

Power consumption 7.5V/650mA 7.5V/650mA 7.5V/650mA

Battery status % after 30 min/60 min 40% after 30 min and 80% after 60 min 40% after 30 min and 80% after 60 min 40% after 30 min and 80% after 60 min

Connectivity

Connection (mini jack, USB, etc) 2pcs Micro USB, RJ-9 for handset, RJ-9 for desk phone audio, RJ-45 for AUX

DECT device Yes Yes Ye s

NFC Yes Ye s Yes

device Yes, in base Yes, in base Yes, in base

Bluetooth

version 5.0 5.0 5.0

Bluetooth

Supported Bluetooth

Pairing PIN Bluetooth

Paired devices (up to) 2 Bluetooth

Operating range (up to) 150m/490ft 150m/490ft 100 meters/330 feet

Headset bandwidth

modes SCO, eSCO, Sni mode

proﬁles Headset, Hands-free and PBAB Headset, Hands-free and PBAB Headset, Hands-free and PBAB

Analog MEMS system

Integrate d red light on the mi crophone tip an d the headset, ac tivated when on a ca ll or manually by th e user when busy, to act a s a “do not distu rb” signal (Conver tible model ha s busylight on ea rcup only).

N/A N/A 2 EarGels

13 13 9

Desk phone, USB desk phone, softphone, 2x mobile (Bluetooth

Narrowband and wideband. Optimized for music (when not in call)

)

: 0000 Bluetooth®: 0000 Bluetooth®: 0000

devices 2 Bluetooth® devices 2 Bluetooth® devices

Dual Microphone - ECM Uni-Directional and Analog MEMS system

Desk phone, USB desk phone, softphone, 2x mobile (Bluetooth®)

Narrowband and wideband. Optimized for music (when not in call)

ECM Uni-Directional Microphone

Desk phone, USB desk phone, softphone, 2x mobile (Bluetooth®)

Narrowband and wideband. Optimized for music (when not in call)

Jabra.com/Engage

* Relates to Jabra Engage 75/65 Stereo and Mono variants.

February 19, 2018. See facts on Jabra.com/commercial-claims

Dependent on usage

Jabra Engage 75 Techsnp ec 12/02/2018_B

Speciﬁcations

Product name Engage 75 Stereo Engage 75 Mono Engage 75 Convertible

General Box content Headset incl. padding, base, power supply,

Packaging dimensions (L x W x H) Unit box: 147 x 190 x 93mm Unit box: 147 x 190 x 93mm Unit box: 145 x 190 x 93mm

Master carton dimensions (L x W x H) 395 x 300 x 206mm 395 x 300 x 206mm 395 x 300 x 206mm

Main unit dimensions (W x D x H) Base: 93 x 90 x 106mm

Weight (incl main wearing style) Base: 218g

Battery included Yes/exchangeable Yes/exchangeable Yes

Security DECT Security Step C & using FIPS approved algorithms for key generation, payload encryption and authentication

Warranty North America: 1 year limited warranty

Operating temperature -10°C to +55°C (non condensing) -10°C to +55°C (non condensing) -10°C to +55°C (non condensing)

Storage temperature -5°C to +45°C (non condensing) -5°C to +45°C (non condensing) -5°C to +45°C (non condensing)

Charging plug dimensions Ø 2.35mm Ø 2.35mm Ø 2.35mm

USB cable, desk phone cable, documentation, Quick start guide

Headset: 141 x 32 x 169mm

Headset: 90g

Europe/APAC: 2 year limited warranty

Headset incl. padding, base, power supply, USB cable, desk phone cable, documentation, Quick start guide, neckband

Base: 93 x 90 x 106mm Headset: 147 x 32 x 169mm

Base: 218g Headset: 64g

North America: 1 year limited warranty Europe/APAC: 2 year limited warranty

Headset, earhook, base, power supply, USB cable, desk phone cable, documentation, Quick start guide, accessories: headband, earhook & eargel, neckband

Base: 93 x 90 x 110m Headset: 105 x 32 x 50mm

Base: 218g Headset: 18g

North America: 1 year limited warranty Europe/APAC: 2 year limited warranty

Region SKU Description EAN UPC

EMEA

UK/HK/ SG/AU/NZ

9556-583-111 Jabra Engage 75 Mono 5706991019797 706487017363

9555-583-111 Jabra Engage 75 Convertible 5706991019766 706487017332

9559-583-111 Jabra Engage 75 Stereo 5706991019858 706487017424

9556-583-125 Jabra Engage 75 Mono 5706991019810 706487017387

9555-583-125 Jabra Engage 75 Convertible 5706991019780 706487017356

9559-583-125 Jabra Engage 75 Stereo 5706991019872 706487017448

9556-583-117 Jabra Engage 75 Mono 5706991019803 706487017370

9555-583-117 Jabra Engage 75 Convertible 5706991019773 706487017349

9559-583-117 Jabra Engage 75 Stereo 5706991019865 706487017431
