ITC KM250, KM320 User Manual

TV BOX - ITC KM250/KM320

USER MANUAL

ITC GLOBAL MEDIAL

_________________________________

P.O.BOX 8383, Santa Rosa, CA 95407

Phone: [phone]

: [phone]

Fax

www.itcnetwork.tv

2 TV BOX - ITC KM250/KM320

ITC Global Media

TV BOX - ITC KM250/KM320 3

Contents

1. Welcome........................................................................................................................................ 6

2. Product Overview .......................................................................................................................... 7

2.1. What is Included in the Package............................................................................................. 7

2.2. Device Controls ...................................................................................................................... 7

2.3. Safety Compliances .............................................................................................................. 14

2.4. Warranty ............................................................................................................................... 14

3. Product Features........................................................................................................................... 15

3.1. Key Features ......................................................................................................................... 15

Features and Capabilities......................................................................................................... 15

Technical Specifications.......................................................................................................... 16

Software Features..................................................................................................................... 17

3.2. Hardware Specification......................................................................................................... 18

Using TV BOX - ITC KM250/KM320........................................................................................... 20

4.1. Getting Familiar with TV/LCD Menu Options .................................................................... 20

4.1.1. Menu Structure............................................................................................................... 20

4.1.2. Main Menu..................................................................................................................... 21

4.1.3. Video Sub-Menu............................................................................................................ 22

4.1.4. IP Television (this function requires service subscription)............................................ 23

4.1.5. Pay Per View (this function requires service subscription)........................................... 24

4.1.6. Video On Demand (this function requires service subscription)................................... 25

4.1.7. User Video..................................................................................................................... 26

4.1.8. Audio Sub-Menu............................................................................................................ 28

4.1.9. Online Radio (this function requires service subscription)............................................ 28

4.1.10. Audio On Demand (this function requires service subscription)................................. 29

4.1.11. User Audio................................................................................................................... 31

4.1.12. Telephony Sub-Menu................................................................................................... 32

4.1.13. Video/Audio Call (this function may require service subscription)............................ 33

4.1.14. History and Media History Service.............................................................................. 35

4.1.15. Voicemail Service........................................................................................................ 36

4.1.16. SMS Sending (this function requires service subscription)......................................... 37

4.1.17. Information Sub-Menu................................................................................................. 38

4.1.18. Weather Service........................................................................................................... 39

4.1.19. Currency Exchange Service......................................................................................... 40

4.1.20. News Service ............................................................................................................... 41

4.1.21. Stock Quote Service..................................................................................................... 42

4.1.22. Communication Sub-Menu.......................................................................................... 43

4.1.23. Email Service............................................................................................................... 44

4.1.24. Chat/Messenger Service............................................................................................... 45

4.1.25. Phone Book Service..................................................................................................... 46

4.1.26. Virtual Network Console (VNC) Service.................................................................... 47

ITC Global Media

4 TV BOX - ITC KM250/KM320

4.1.27. Services Sub-Menu...................................................................................................... 48

4.1.28. Program Scheduler Service.......................................................................................... 49

4.1.29. Calculator Service........................................................................................................ 50

4.1.30. Alarm ........................................................................................................................... 51

4.1.31. Wake-Up Call .............................................................................................................. 52

4.1.32. Setup Service ............................................................................................................... 53

4.1.33. Search Service.............................................................................................................. 54

4.2. Placing and Answering Device Calls.................................................................................... 55

4.2.1. Handset, Speaker Phone and Handset Mode ................................................................. 55

4.2.2. Multiple SIP Lines......................................................................................................... 55

4.2.3. Placing Calls .................................................................................................................. 55

4.2.4. Placing Calls using IP Address...................................................................................... 56

4.2.5. Answering Incoming Calls ............................................................................................ 56

4.2.6. Call Hold........................................................................................................................ 56

4.2.7. Call Waiting and Switching between Calls ................................................................... 56

4.2.8. Call Transfer .................................................................................................................. 57

4.2.10 Voicemail and Message Waiting Indication................................................................. 58

4.2.11 Mute and Delete............................................................................................................ 58

4.2.12 Speed Dial..................................................................................................................... 58

4.3. Voicemail Features ............................................................................................................... 58

4.4. Call Features ......................................................................................................................... 59

5. Configuration Guide .................................................................................................................... 60

5.1. Configuration with Web Browser......................................................................................... 60

5.1.1. Access the Web Configuration Menu............................................................................ 60

5.1.2. User Login Dialog.......................................................................................................... 60

5.1.3. Start Menu...................................................................................................................... 60

5.1.4. System Information Dialog............................................................................................ 61

5.1.5. System Configuration Dialog ........................................................................................ 63

5.1.6. SIP Configuration .......................................................................................................... 65

5.1.7. General PBX Configuration........................................................................................... 68

5.1.8. Voicemail Configuration ............................................................................................... 69

5.1.9. Voicemail Messages Administration............................................................................. 70

5.1.10. Call Routing Configuration.......................................................................................... 71

5.1.11. Phone Book Configuration .......................................................................................... 73

5.1.12. Phone Book Entry Configuration................................................................................. 73

5.1.13. Distinctive Ring Tone Configuration........................................................................... 74

5.1.14. Call History List........................................................................................................... 76

5.1.15. Voicemail Announcement File Configuration............................................................. 77

5.1.16. Calling Card Application Mode................................................................................... 77

5.1.17. Global Directory Configuration................................................................................... 78

5.1.18. Auto Attendant/Virtual Configuration......................................................................... 78

5.1.19. Streaming Services....................................................................................................... 79

5.1.20. Wireless Services......................................................................................................... 80

5.1.21. Payment Services......................................................................................................... 81

5.1.22. Chat/Messenger Services............................................................................................. 81

5.1.23. Email Services ............................................................................................................. 82

5.1.24. Remote Configuration Upgrade................................................................................... 83

ITC Global Media

TV BOX - ITC KM250/KM320 5

5.1.25. Remote Firmware Upgrade.......................................................................................... 83

5.1.26. Remote Configuration Extract..................................................................................... 84

5.1.27. Saving the Configuration Changes .............................................................................. 84

5.2. Remote Configuration and Firmware Upgrade..................................................................... 84

5.2.1. Remote Configuration Upgrade..................................................................................... 85

5.2.2. Remote Firmware Upgrade............................................................................................ 85

ITC Global Media

6 TV BOX - ITC KM250/KM320

1. Welcome

Thank you for purchasing ITC Global Media award-winning TV BOX KM250/KM320 Digital Media
Center. You made an excellent choice and we hope you will enjoy all its capabilities. ITC Global Media
Corporation's award-wining TV BOX KM250/KM320 SIP Digital Media Center is the innovative Digital
Media Center that offer a rich set of IPTV, Video Conferencing, and Telephony functionalities and superb
sound quality. They are fully compatible with SIP industry standard and can interoperate with many other
SIP compliant devices and software on the market.

For more information about the company, please visit us at: www.itcnetwork.tv

ITC Global Media

TV BOX - ITC KM250/KM320 7

2. Product Overview

2.1. What is Included in the Package

The ITC KM250 device package contains:

1. One ITC KM250 Main Case

2. One Audio and Video Cable

3. Advanced Infra Red Remote Control

4. One Universal Power Adaptor

5. One Ethernet Cable

6. User Manual

The ITC KM320 device package contains:

1. One ITC KM320 Video Phone

2. One Audio and Video Cable

3. One Universal Power Adaptor

4. One Ethernet Cable

5. User Manual

2.2. Device Controls

TV BOX - ITC KM250

Element Description

1 Infra Red (IR) Receiver
2 Event LED. The LED has 3 colors.

ITC Global Media

8 TV BOX - ITC KM250/KM320

GREEN - Device is registered in SIP proxy
RED – Device is registered with Media Streaming server
GREEN & RED (BLUE) – Device is registered both to Streamer and SIP proxy.
GREEN – Device is Off-Hook
RED BLINKING – Device has received a new Voicemail (Ratio 1:1)
GREEN BLINKING – Phone line is Ringing (Ratio 3:1)
GREEN BLINKING – DND On (Ratio 1:1)
GREEN BLINKING – Power Off (Ratio 1:3)

3 Line Failover LED. If the device fails to function, the LED will create Phone Line failover to

allow calls to go directly from the phone to the outside line.
4 Power LED. The LED indicates that the power is ON.
5 VGA camera used in Video Conference mode.
6 DC Power Input. The device requires stabilized 5V/2A DC Power supply.
7 Video OUT RCA connector
8 Audio OUT Left Channel RCA Connector
9 Audio OUT Right Channel RCA Connector
10 10 Mbps Ethernet Port
11 Phone Connector (FXS). The two central connections (pins 2 and 3) are used to connect the

Phone to the device. If the device is used with PBX/FXO module the outer two connectors

(pins 1 and 4) are used for Line connection.
12 Line/PSTN Connector (FX0). The two central connections (pins 2 and 3) are used to connect

to the Central Office phone line.. If the device is used with PBX/FXO module the outer two

connectors (pins 1 and 4) are used for Line/PSTN connection as well.

ITC Global Media

TV BOX - ITC KM250/KM320 9

Remote Control for ITC KM250

Element Description

13 USB 1.1 port for External Storage
14 Secure Digital Card for External Storage
15 Turn On/Off the device in Sleep Mode
16 Make Audio calls, pick up phone lines, or hang-up all phone lines
17 Make Video calls, or zoom Video selections.
18 Mute the Audio
19 Alpha-Numeric Characters used to enter Digits or other Characters
20 Buttons that provide different types of functionality

FLASH – switch between multiple phone lines
CONF – places all active phone lines in conference
BOOK – switches to the Phone Book functionality or bookmark a channel
HIST – switches to the phone call history
SAVE – record Video or Audio content. Toggle to turn of/on recording.
DEL – delete a data entry or turn on/off parental locks on channel selection
FOLDR – switches to folder selection or switches to the upper menu
FUNC – switches to the main function menu

21 Navigator Buttons

LEFT – switch to the LEFT selection, or delete the last entered character
RIGHT – switch to the RIGHT selection, or scroll within a selection
UP – scroll between channel selections or data items
DOWN – scroll between channel selections or data items

ITC Global Media

10 TV BOX - ITC KM250/KM320

OK – make a selection, save a selection, or pick up the phone line

22 Function Shortcut Keys allow switching to the underlying functions

VIDEO – switch to Video selection
AUDIO – switch to Audio selection
PICT – switch to Picture Browser selection
CHAT – switch to Chat/Messenger selection

23 Page manager keys switch between channel or data pages
24 Volume management keys
25 Play management keys.

PLAY – play Video or Audio or Picture Browser selection
STOP – stop playing Video or Audio or Picture Browser selection
PAUSE – pause the play of Video or Audio or Picture Browser selection
FORWARD – forward Video or Audio or Picture Browser selection
BACKWARD – backward Video or Audio or Picture Browser selection

26 Display key allow to get information about channel selection, to switch between

Video conference screens, to

ITC Global Media

TV BOX - ITC KM250/KM320 11

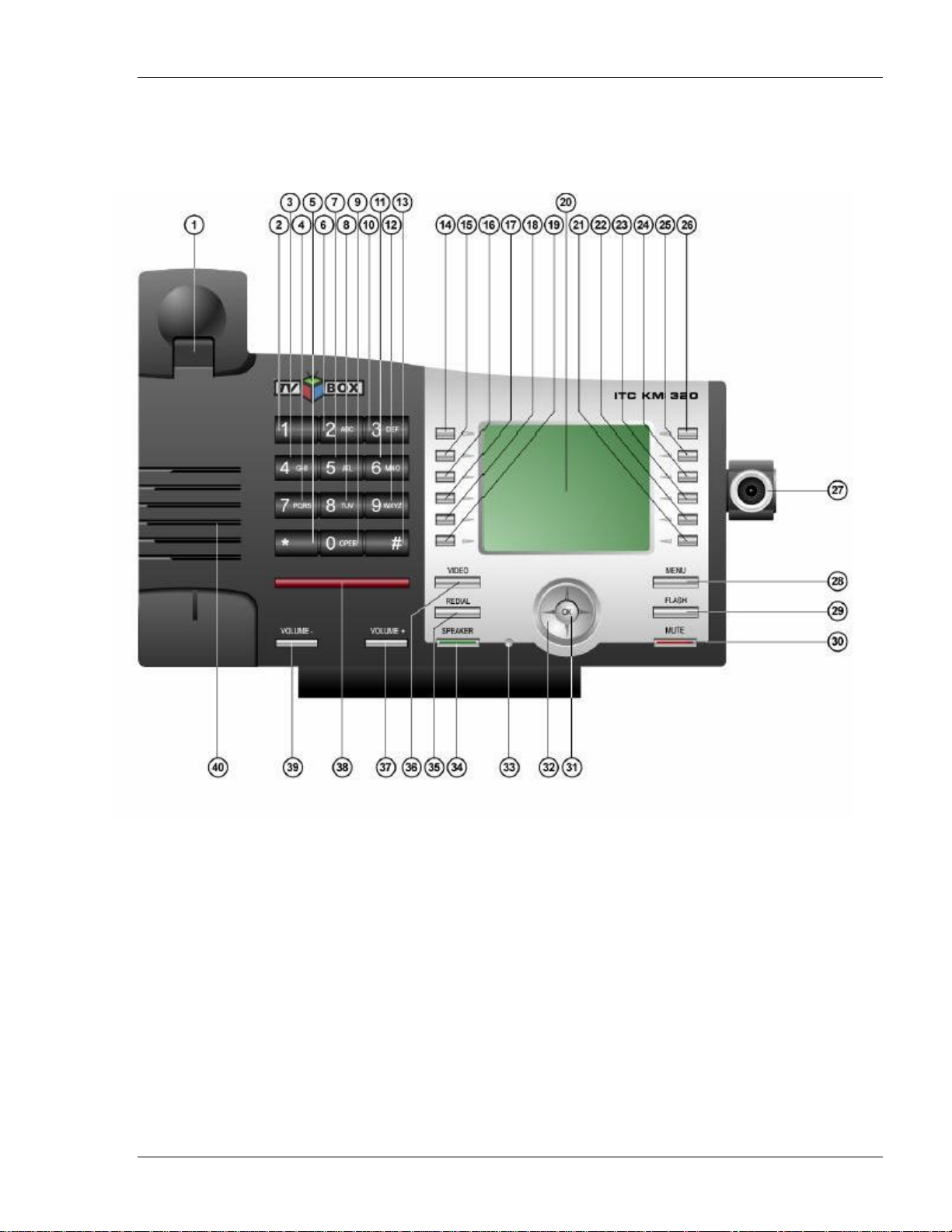

ITC KM320 Color Video Phone

ITC Global Media

12 TV BOX - ITC KM250/KM320

ITC Global Media

TV BOX - ITC KM250/KM320 13

Element Description

1 Handset switch
1-13 Buttons used to dial numbers or enter alpha-numeric characters.
14-19 Buttons that are used to select functions or phone lines from the Graphical menu.

LONG * 14 – Shortcut to Video Mode

LONG * 15 – Shortcut to Audio Mode

LONG * 16 – Shortcut to Picture Browser Mode

LONG * 17 – Shortcut to Chat Mode

LONG * 18 – Shortcut to History Mode

LONG * 19 – Shortcut to Bookmark Mode

20 Color LCD display
21 DISPLAY button - provide selection information
22 PAUSE button - pause content playing
23 STOP button – stop the content playing
24 PLAY button – play content selection
25 DELETE button – put parental lock or remove parental lock
26 SAVE button – record Video or Audio content.
27 VGA Video Camera
28 MENU button – enter the TOP MENU screen.

LONG* MENU – enter the UPPER Menu
29 FLASH button – switch between two phone lines
30 MUTE button – mute microphone or audio coming form Video player.
31 OK button - make a selection, save a selection, or pick up the phone line
32 NAVIGATOR button – scroll between data items

LEFT – switch to the LEFT selection, or delete the last entered character

RIGHT – switch to the RIGHT selection, or scroll within a selection

UP – scroll between channel selections or data items

DOWN – scroll between channel selections or data items
33 LINE LED – LED indicator for line status

ON – line is ON (Off-Hook)

BLINK – Do-Not-Disturb (DND) is ON

34 SPEAKER – activate the speaker phone and put the phone Off-Hook
35 REDIAL – redial the last dialed number
36 VIDEO – make Video calls or put the phone in Video mode
37 VOLUME (+) - increase the audio volume
38 LED Indicator – indicate phone state

BLINK – Voicemail is waiting

SEQUENTIAL BLINK – phone line is ringing

39 VOLUME (-) - decrease the volume
40 PHONE BUILT-IN SPEAKER
41 Headset
42 Phone cord that connects to 43 and 50
43 Phone cord RJ11 connector
44 Video OUT RCA connector used to connect to external TV set
45 Audio OUT LEFT connector used to connect to external Audio system
46 AUDIO OUT RIGHT connector used to connect to external Audio system
47 DC Power connector for 5V/2A stabilized power feed
48 LINE/PSTN connector used to connect to the external phone line
49 LAN connector
50 Phone line RJ11 connector used to connect to the phone handset

ITC Global Media

14 TV BOX - ITC KM250/KM320

51 Headset Speaker used to connect to the headset
52 Headset Microphone used to connect to the headset
53 USB Port used to connect external USB hard drive devices
* LONG – requires the button to be pressed longer than two seconds

2.3. Safety Compliances

The TV BOX - ITC KM 250/320 is compliant with various safety standards including
FCC/CE. Its power adaptor is compliant with UL standard. The device should only be operated with the
universal power adaptor provided with the package. Damages to the device caused by using other
unsupported power adaptors are not covered by the manufacturer’s warranty.

2.4. Warranty

TV BOX has a reseller agreement with our reseller customer. End user should contact the
company from whom you purchased the product for replacement, repair or refund.

If you purchased the product directly from TV BOX, contact your TV BOX
Sales and Service Representative for a RMA (Return Materials Authorization) number.

TV BOX reserves the right to remedy warranty policy without prior notification.

ITC Global Media

TV BOX - ITC KM250/KM320 15

3. Product Features

3.1. Key Features

TV BOX - ITC KM250/320 is a next generation consumer IP device system based
on industry open standard SIP (Session Initiation Protocol). Built on innovative
technology, TV BOX features market leading superb sound quality and rich functionalities
at mass-affordable price. The advanced voice processing capabilities of ITC KM250/320
are imilar to any type of IP Centrex System.

Features and Capabilities

Video and Audio Features

• IPTV Streaming

• Content Distribution via HTTP/TCP Unicast

• Content Distribution via UDP Unicast and/or Multicast

• Video on Demand (VOD) Support

• Pay-per-View (PPV) Support

• Trick Play Support (Pause, Replay, Rewind, etc.)

• Digital Audio Streaming (Online Radio)

• Picture Slide Show

• Show Scheduling and Optional Recording

• Parental Control

• Content Library Support for Remote PC

• Low Bit Rates Support

• Optional Personal Video Recorder (PVR)

• Optional Time Scheduling of the PVR

Online Services Capabilities

• Interface to Local PC Content (Media Extension Center Functionality)

• Chat Client compatible with ICQ, AOL, MSN

• Email Reader

• News Reader

• Weather Interface

• Calculator

• Currency Converter

VoIP Telephony

• SIP Protocol with NAT Traversal

• Video Conferencing Support

• Peer Auto Discovery

• Four (4) Phone Line Support

• Advanced PBX Features

• Call Waiting, Call Forward, Call Hunting

• Automated Call Forwarding to Multiple Numbers

• E.911 Support via FXO Port

• FXO/FXS and IP Origination/Termination

ITC Global Media

16 TV BOX - ITC KM250/KM320

• Advanced IVR Support and Management

• Auto Attendant Support

• Voice Encryption

• Wake-Up Phone Service

Web Interface

• Advanced System Management

• Voicemail Retrieval

• Phone Book

• Advanced Feature Management

• Customizable IVR Response Management

• Call History Lists

• User/Administrator System Views

Voicemail

• Up to 80 Voicemail Messages

• Remote Voicemail Retrieval via Phone or Web

• Advanced Voicemail Management

• Voicemail-to-Email Support

• Unified Messaging

Technical Specifications

Connectors

• One FXO (RJ-11)

• One FXS (RJ-11)

• One Ethernet (RJ-45)

• One Integrated Video Camera

• One USB 1.1 (Type A)

• One SD (Secure Digital) Card Interface

• One Video RCA Analog Port

• One Stereo Audio RCA Analog Port

• Infrared (IR) Remote Control Interface

• Optional WiFi/Wireless 2.4 802.11a Interface

• Optional Three FXO (RJ-11)

Codecs

• MPEG4/SP Video

• H.263 Video Conferencing

• MP3 Audio

• AAC Audio

• G.711 A-law / µ-law (56 & 64 kbps)

• G.711 Annex I

• G.729, G.279A

• G.726-32

• Echo Canceller (G.165 / G.168)

• Advanced Dynamic Jitter Control

• Voice Activity Detection (VAD)

ITC Global Media

TV BOX - ITC KM250/KM320 17

• DTMF Detection and Generation

• Fax/Modem Pass-Through (G.711)

Protocols

• SIP

• H.264

• DHCP

• NTP

• DNS

• RTP / RTCP / SRTP

• HTTP

• UDP/TCP

• SDP

• SMTP

• PPPoE

Device Provisioning

• Via Central Content Management System

• Caller ID Number Assignment

• User/Admin Interface

• PPPoE

• Web interface

Software Features

• Support MPEG4, MP3, AAC and other encoding standards

• Support H.263 Video Conferencing Standards.

• Support advanced audio and video processing including IPTV, Pay-per-View, Video on Demand,

Online Radio, Audio-on-Demand.

• Support SIP 2.0, TCP/UDP/IP, RTP/RTCP, HTTP, ARP/RARP, ICMP,

• DNS, DHCP, NTP/SNTP, TFTP, SIMPLE/PRESENCE protocols

• Support multiple SIP accounts and up to 4 media channels concurrently

• Support multiparty conferencing and 3-way calling

• Support NAT traversal

• Advanced Digital Signal Processing (DSP) technology to ensure superior hi fidelity audio quality,

interoperable with various 3rd party SIP end user device, Proxy/Registrar/Server and Gateway
products

• Advanced adaptive jitter buffer control, packet delay and loss concealment technology

• Support popular codecs including G711 (a-law and u-law), G.726, G.729A/B.

• Dynamic negotiation of codec and voice payload length

• Support standard voice features such as Caller ID Display or Block, Call Waiting, Call Waiting

Caller ID, Call Hold, Call Transfer (attended/blind), Do-Not-Disturb, Automated Call Forwarding.

• Call Forwarding, in-band and out-of-band DTMF(RFC2833), SIP INFO, Dial Plans, Auto Dial,

Auto Answer, 100 Speed Dial capacity.

• Supports advanced Voicemail functionality to allow custom voicemail services and capacity for

over 80 voicemail messages

• Supports Unified Messaging including Voicemail-to-Email, Email notifications, Remote Voicemail

retrieval via Web and Device.

ITC Global Media

18 TV BOX - ITC KM250/KM320

• Supports redial, call log, volume control, voice mail with indicator, customizable downloadable

ring tone, etc.

• Support Silence Suppression, VAD (Voice Activity Detection), CNG (Comfort Noise Generation),

Line Echo Cancellation (G.168) and AGC (Automatic Gain Control)

• Support basic and MD5 encrypted authentication

• Support Voice Encryption with other TV BOX devices.

• Provide easy configuration through manual operation (device keypad) and Web

• Supports interface for automated provisioning by downloading encrypted configuration file via

HTTP for mass deployment

• Support for Layer 2 (802.1Q VLAN, 802.1p) and Layer 3 QoS (ToS)

• Support firmware upgrade via HTTP.

• Support DNS SRV Look up and SIP Server Fail Over

3.2. Hardware Specification

The table below describes the hardware specification of ITC KM250:

Model ITC KM250/320

LAN interface
FXO interface
FXS interface

RJ45 10 Base-T
RJ-11
RJ-11

Optional 3 FXO interfaces
USB 1.1 interface
Video Camera
SD Card interface
Stereo Audio Port
Video Port
Wifi/Wireless Interface
Infra Red interface
LED

Universal Switching Power
Adaptor

Dimension
Weight
Temperature
Humidity
Compliance

RJ-11
Type A
CMOS VGA
Secure Digital (ITC KM250 only)
RCA interface
RCA Interface

802.11a Protocol
IR Remote Control (ITC KM250 Only)
LED in Yellow, Blue, Mixed color with Function Blink Pattern

Two LEDS with Yellow Color
Input: 100-240VAC 50-60 Hz,

Output: +5VDC, 2A,
UL certified

150mm (W), 75mm (D), 40mm (H)

0.22kg (0.7lbs)
40 - 130oF, 5 – 45oC
10% - 90% (non-condensing)
FCC / CE

ITC Global Media

TV BOX - ITC KM250/KM320 19

ITC Global Media

20 TV BOX - ITC KM250/KM320

4. Using TV BOX - ITC KM250/320

4.1. Getting Familiar with TV/LCD Menu Options

ITC KM250/320 device includes advanced display functionally to allow dynamic and easy device
management. The device must be connected to the TV set or to a Motor with RCA video and audio input
connectors:

4.1.1. Menu Structure

TV BOX - ITC KM250/320 features a tree-like, multi-level menu hierarchy to allow easy
menu navigation and access. The table below represents the menu structure:

Main Menu Sub-Menu Function Function ID
Video Video

Audio Audio

Telephony Telephony

Information Information

Communication Communication

Services Services

IP Television 1
Pay Per View 2
Video On 3
User Video 4
Picture Browser 5
User Picture Browser 6
Exit 7

Online Radio 10
Audio On Demand 11
User Audio 12
Exit 13

Video/Audio Call 20
History 21
Voicemail 22
Send SMS 23
Exit 24

Weather 30
Currency 31
News 32
Stock Quotes 33
Help 34
Exit 35

Email 40
Chat/Messenger 41
Phone Book 42
Virtual Terminal 43
Exit 44

Program Scheduler 50

ITC Global Media

TV BOX - ITC KM250/KM320 21

Calculator 51
Alarm 52
Wake-Up Call 53
Setup 54
Search 55
Exit 56

4.1.2. Main Menu

Upon start-up the device will display the main menu. The menu will allow users to select the sub-menu
functions that they need to access. To enter one of the listed sub-menu options, the users must use
“UP/DOWN” buttons of the navigator. Once the desired selection is high-lighted, the users must press
“OK” button to execute. The navigator buttons are accessible via the Remote Control (ITC KM250) or via
the keypad (ITC KM320). Both devices allow support “hot-keys” to allow easy access of commonly used
functions.

Button Function

Navigator-UP Switches to the UP function.
Navigator-DOWN Switches to the DOWN function.
Navigator-OK Enters the selected function.

ITC Global Media

22 TV BOX - ITC KM250/KM320

4.1.3. Video Sub-Menu

ITC KM250/320 supports advanced video option to allow users to watch IP Television, Video on
Demand, Pay per View, and User Video provided content. The sub-menu is entered after the users select the
Video option from the main menu, once they press the “Video” button of the remote control (ITC KM250),
or press the “Video” button of the phone set (ITC KM320). To return to the Main Menu the users
must select “Exit” from the sub-menu.

Button Function

Navigator-UP Switches to the UP function.
Navigator-DOWN Switches to the DOWN function.
Navigator-OK Enters the selected function.
Func/Menu Switches to the upper menu.

ITC Global Media

TV BOX - ITC KM250/KM320 23

4.1.4. IP Television (this function requires service subscription)

The IP Television function allows the users to watch online IP TV streaming video content. Once selected
the function will connect to the remote server and retrieve the data content. The system will display various
channel information including name, index, time, rating, artist, and cost information. If the selected channel
requires payment the system will ask the users to confirm the selection.

Button Function

Navigator-UP Switches to the UP channel
Navigator-DOWN Switches to the DOWN channel
Navigator-LEFT Moves Left across Folder selection
Navigator-RIGHT Moves Right across Folder selection
Channel-UP Moves one page UP (one page has 6 channels)
Channel-DOWN Moves one page DOWN (one page has 6 channels)
Navigator-OK Selects and plays channel/file
PLAY Plays the selected channel/file
STOP Stops paying the selected channel/file
PAUSE Pauses the playing of the channel/file
DISPLAY Switches On/Off Information display mode
MUTE Mutes the audio output
VOLUME +/- Increases/Decreases the volume
FOLDR Switches On/Off folder selection
SAVE Initiates channel/file recording (if configured)
DEL Switches On/Off Parental Lock. Requires password.
MON Switches between digital ZOOM modes. 1x, 2x, 4x
BOOK Makes the selected channel Favorite

ITC Global Media

24 TV BOX - ITC KM250/KM320

HIST Switches to viewed content history

4.1.5. Pay Per View (this function requires service subscription)

The Pay per View function allows the users to watch online Video streaming content. Once selected the
function will connect to the remote server and retrieve the data content. The system will display various
channel information including name, index, time, rating, artist, and cost information. If the selected channel
requires payment the system will ask the users to confirm the selection.

Button Function

Navigator-UP Switches to the UP channel
Navigator-DOWN Switches to the DOWN channel
Navigator-LEFT Moves Left across Folder selection
Navigator-RIGHT Moves Right across Folder selection
Channel-UP Moves one page UP (one page has 6 channels)
Channel-DOWN Moves one page DOWN (one page has 6 channels)
Navigator-OK Selects and plays channel/file
PLAY Plays the selected channel/file
STOP Stops paying the selected channel/file
PAUSE Pauses the playing of the channel/file
DISPLAY Switches On/Off Information display mode
MUTE Mutes the audio output
VOLUME +/- Increases/Decreases the volume
FOLDR Switches On/Off folder selection
SAVE Initiates channel/file recording (if configured)
DEL Switches On/Off Parental Lock. Requires password.

ITC Global Media

TV BOX - ITC KM250/KM320 25

MON Switches between digital ZOOM modes. 1x, 2x, 4x
BOOK Makes the selected channel Favorite
HIST Switches to viewed content history

4.1.6. Video On Demand (this function requires service subscription)

The Video On Demand function allows the users to watch online Video streaming content. Once selected
the function will connect to the remote server and retrieve the data content. The system will display various
channel information including name, index, time, rating, artist, and cost information. If the selected channel
requires payment the system will ask the users to confirm the selection.

Button Function

Navigator-UP Switches to the UP channel
Navigator-DOWN Switches to the DOWN channel
Navigator-LEFT Moves Left across Folder selection
Navigator-RIGHT Moves Right across Folder selection
Channel-UP Moves one page UP (one page has 6 channels)
Channel-DOWN Moves one page DOWN (one page has 6 channels)
Navigator-OK Selects and plays channel/file
PLAY Plays the selected channel/file
STOP Stops paying the selected channel/file
FORWARD >> Forwards the channel/file (if possible)
BACKWARD << Backwards the channel/file (if possible)
PAUSE Pauses the playing of the channel/file
DISPLAY Switches On/Off Information display mode
MUTE Mutes the audio output

ITC Global Media

26 TV BOX - ITC KM250/KM320

VOLUME +/- Increases/Decreases the volume
FOLDR Switches On/Off folder selection
SAVE Initiates channel/file recording (if configured)
DEL Switches On/Off Parental Lock. Requires password.
MON Switches between digital ZOOM modes. 1x, 2x, 4x
BOOK Makes the selected channel Favorite channel.
HIST Switches to viewed content history

In some cases, the Video on Demand and Pay per View content will require payment and the subscribers
will be prompted to confirm the payment prior to receiving the Video stream.

4.1.7. User Video

The User Video function allows the users to watch Video streaming content over Local Area Network
(LAN). The device will scan for open shared directories and locate compatible file types (AVI, MP3) that
can be played. Once selected the function will connect to the remote server and retrieve the data content.
The system will display various channel information including name, file type and size information.

ITC Global Media
