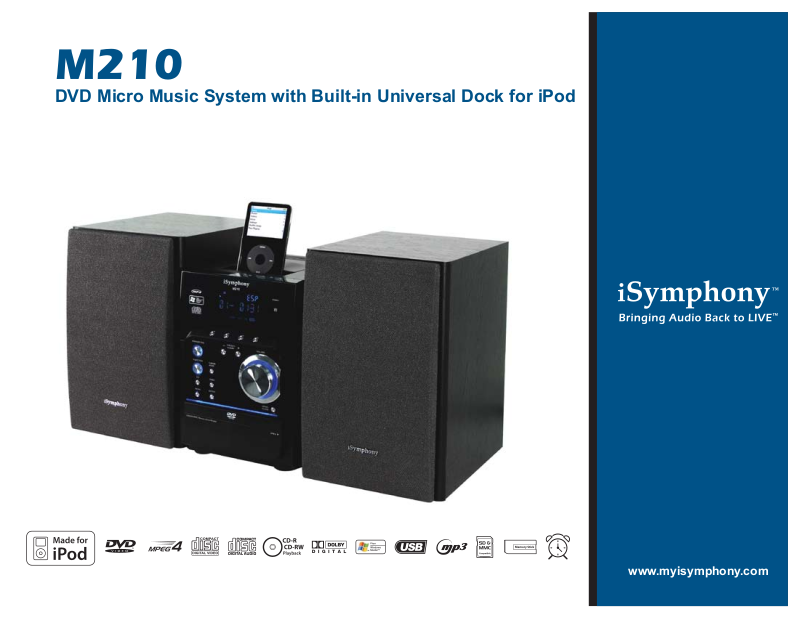

DVD Micro Music System with Built-in Universal Dock for iPod
M210
www.myisymphony.com
Features
Technical Specification
www.myisymphony.com
“iPod” is a registered trademark owned by Apple Inc. in the U.S and in other countries.
Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
“iSymphony”, “Bringing audio back to live” and “Bringing audio back to life” are trademarks of iSymphony Holdings Enterprises, LLC.
Model #: M210
Product weight
Product dimensions
Master pack weight
Master pack dimensions
Product UPC
Master box
UPC
GTIN-14
26.24 lbs
20.37”(L) x 13.06”(W) x 10.62”(H)
27.12 lbs
21.73”(L) x 16.57”(W) x 13.74”(H)
827396511305
02827396511303
40827396511303
Manufactured and serviced by:
iSymphony Holdings Enterprises
7801 Hayvenhurst Avenue Van Nuys, CA 91406 USA
www.myisymphony.com
Works with the
following iPod models:
• 400 Watts peak power, 100 Watts RMS output power
• 5 ½ inch poly-cone woofers and 1 inch dome tweeters for full bass and
detailed highs
• Built-in Universal Dock for iPod - Charges your iPod while docked
• Progressive Scan DVD Player with DVD/DVD±R/RW, CD/CD-R/RW, MP3,
WMA and MPEG4 playback
• DVD Up-convert to 1080i
• USB compatible – play music from USB ash memory devices
• SD, MMC and Memory Stick card slots supporting music playback
• AM/FM Stereo with Digital Synthesized Tuner
• Dynamic Bass Boost System for rich, full bass and Equalizer with Classic,
Rock, Pop and Jazz presets
• Encoding capabilities: WMA recording from CD, FM Stereo and AUX Input
• Removable dock adapters to t iPod models - iPod touch, nano 3G, iPod
classic, nano 2G, iPod 5G, nano 1G, iPod 4G and mini
• Remote control included
General
Power Requirements 120V AC, 60 Hz
Power consumption 230W (operation)
4W (standby)
Amplifier section
Power Output 50 Watts x 2
Tuner
FM Tuning range 7.5 MHz to 108 MHz
(100 KHz Step)
AM Tuning range 530 KHz to 1710 KHz
(10 KHz Step)
Preset memory stations FM 40 / AM 40
DVD player section
Laser Semiconductor
Signal-to-noise ratio 60 db (1 KHz, 0 dB)
Harmonic distortion 0.5% (1 KHz, 0 dB)
Wow and flutter Immeasurable
Supported Discs CD, CD-R, CD-RW, DVD, DVD-R,
DVD+R, DVD-RW, DVD+RW,
VCD, SVCD
Supported Audio Formats PCM, MP3, WMA, Dolby Digital
Supported Video Formats MPEG1, 2, 4, DVD,
Windows Media Video
Card/USB Section
Flash memory card support SD/MMC/Memory Stick up to 2GB
USB Support Flash Storage Device up to 2GB
Video Output
Color System/Lines NTSC/PAL interlaced and
Progressive scan
Progressive scan (480p/576p)
Composite Video Out 1.0Vp-p (75 Ω load)
Component Video Out Y:1.0Vp-p (75 Ω load)
Cr/Pr:0.7Vp-p (75 Ω load)
Cb/Pb:0.7Vp-p (75 Ω load)
Brightness signal: 1.0Vp-p
(75 Ω load)
Chrominance: 0.286Vp-p
(75 Ω load)
S-Video Output Brightness signal: 1.0Vp-p
(75 Ω load)
Chrominance: 0.286Vp-p
(75 Ω load)
Audio Output
Line Output Audio L/R 500 mv RMS
Optical digital output Dolby Digital bitstream
Subwoofer Output 1V RMS (47k Ω ) at 100 Hz
Speaker system
Speakers 2 Way full range + 1 subwoofer
+ 2 tweeter
Impedance 4 ohms
