Specifications and Main Features
- Model Number: CR1
- Rated Power Output: 4 watts
- Docking Compatibility: Various Adapters for Different iPod Models
- Alarm function: to wake radio, electronics buzzer with snooze function.
- Source of Power: The unit requires six ‘C’ batteries which do not come included with the product. While it can alternatively operate on 110V using an adapter which is provided in the pack. Moreover, it needs 2 ‘AA’ batteries for its internal clock and memory.
- Cabinet Dimensions: 310 × 165 × 85 millimeters
- Weight: 1.8 kgs
- FM Band Frequency Response: 88.0 MHz - 108.5 Mhz
- AM Band Frequency Response: 520 kb - 1720 kHz
- Useable Sensitivity For FM: 22dBu
- Useable Sensitivity For AM: 65dBm
- Antenna: Telescopic for FM and ferrite bar for AM.
- Power input jack: AC110V, 60hertz.
- Maximum Power output: 15 W.
- Impedance Headphone jack: 32 ohm.
Frequently Asked Questions
Q: My iSymphony CR1 has technical issues with operation.
A: iSymphony CR1 included docking iPod models also includes dock adapters for nano.
Q: Is it possible for me to operate my iSymphony CR1 without using an AC power source?
A: That is correct, iSymphony CR1 can operate on 6 ‘C’ batteries allowing you to carry it without any wires stopping you.
Q: What is the best possible way of setting the alarm for the device iSymphony CR1?
A: To set the alarm. Slide the Radio/ Buzzer selector switch, ALARM SET button should be held while using the hour.
Q: Is there a snooze functionality?
A: The SNOOZE button gives you a leeway of 5 minutes by turning the alarm off.
Q: What to do if the iPod is connected to the dock and is not charging?
A: Only when the machine is turned on by the AC power shall the iPod battery charge, therefore confirm the presence of an AC power adapter.

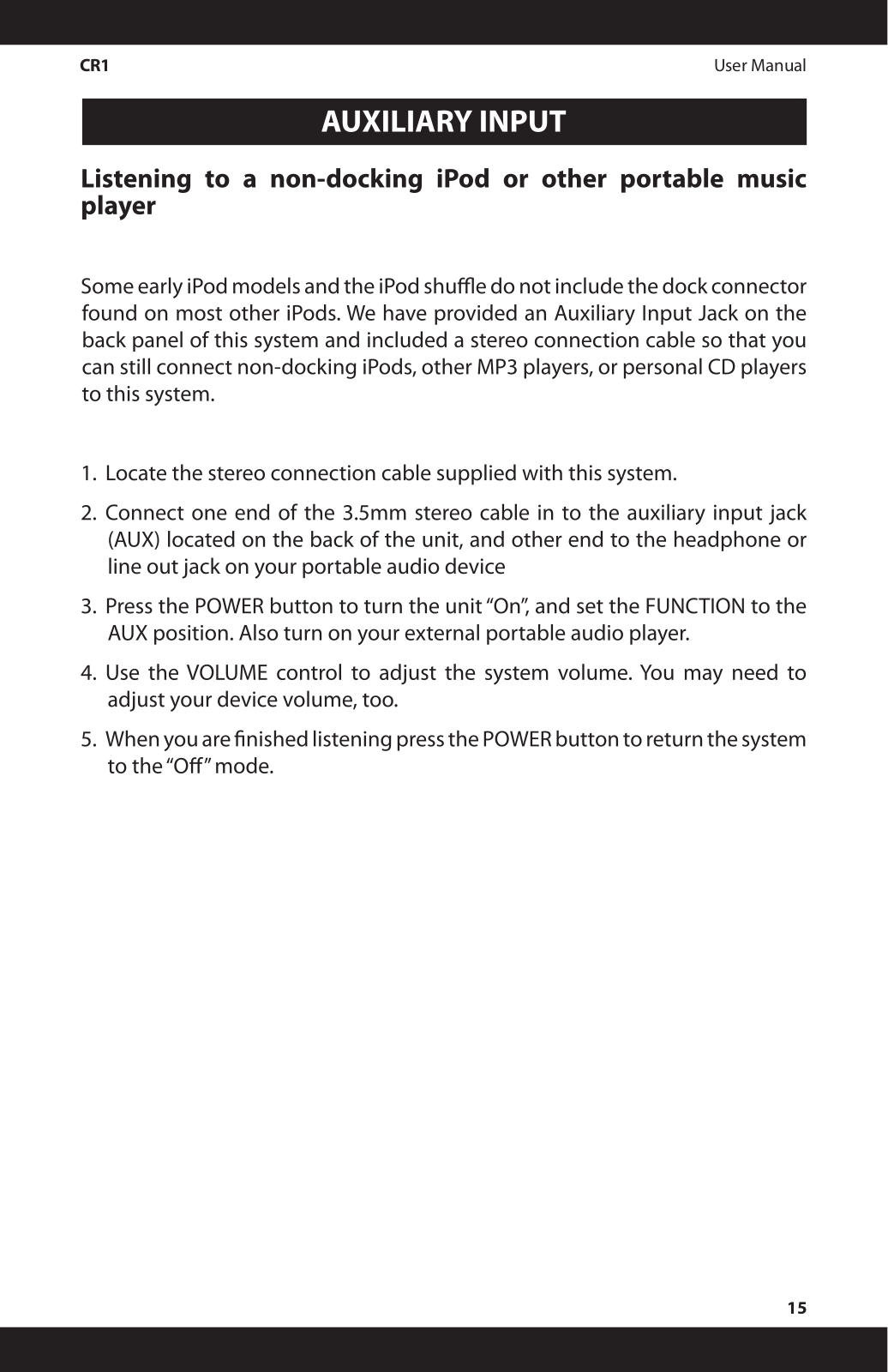

Q: Is it possible to play music from an iPod that does not fit into docking space?
A: By using the provided stereo connection lead, it is possible to connect a non docking iPod, or other devices without the need for an AUX input jack.
Q: What steps should be taken if the sound is quiet?
A: If batteries are used, it is mandatory to check the battery level, and if AC power is used, confirm the connections are adequately made. Change the batteries to 6 ‘C’ if the need arises.
