Instruction Manual
IDM 103N/105N/106N
Digital Multimeter
EN FR IT
1
ISO-TECH IDM 103N/105N/106N
DIGITAL MULTIMETER
INSTRUCTION MANUAL
2
Safety Alert Symbol :
READ and UNDERSTAND all
safety alert symbols : in
this manual.
Failure to read and understand
safety instructions can result in
INJURY or DEATH
Warning
. . . . . . . . . .
. . . . . . . . . .
. . . . . . . . . .
. . . . . . . .
Caution
. . . . . . . . .
. . . . . . . . . .
. . . . . . . . . .
. . . . . . . .
. . . . . . . . .
Limited Warranty
This meter is warranted to the original purchaser against defects in material and workmanship for 3 year from the date of
purchase. During this warranty period RS Components will, at
its option, replace or repair the defective unit, subject to verification of the defect or malfunction. This warranty does not
cover fuses, disposable batteries, or damage from abuse,
neglect, accident, unauthorized repair, alteration, contamination, or abnormal conditions of operation or handling.
Any implied warranties arising out of the sale of this product,
including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited to the
above. RS Components shall not be liable for loss of use of
the instrument or other incidental or consequential damages,
expenses, or economic loss, or for any claim or claims for
such damage, expense or economic loss. Some states or
countries laws vary, so the above limitations or exclusions
may not apply to you.
For full terms and conditions, refer to the current RS
Catalogue.
3
Title Page
Safety …………………………………………………………….
”
Warning” and “Caution” Alert Symbol Statements ……
Warning and Cautions ………………………………………….
Symbols as Marked on The Meter ……………………………
Symbols and Terms in The Manual …………………………..
Safety Compliance And Certification ………………………
Safety Compliance ………………………………………………
Safety Certification ………………………………………………
Introduction ……………………………………………………..
Unpacking and Inspection ……………………………… …… ..
Environmental Conditions ………………………………………
The Meter Description …………………………………………..
Making Basic Measurements ………………………………..
Preparation and Caution Before Measurement ………………
Measuring AC/DC Voltage and Frequency …………………..
Measuring Resistance ………………………………………….
Testing for Diode and Continuity ………………………………
Measuring DC/AC mA and AC / DC A Current and Frequency .
Measuring Hz / PRM ……………………………………………
Measuring Capacitance ………………………………………..
Measuring Temperature …………………………… …… …… ..
Features ………… ………………………………………… …….
Features Description ……………………………………………
Features Available vs Functions ……………………………….
Using The Features ……………………………………………
Manual Ranging and Auto Ranging …………………………..
Min Max Recording Mode ………………………………………
REL △ ……………………………………………………………
Display Hold ……………………………………………………..
Backlight ………………………………………………………….
Auto Power Off (Battery Saver) ………………………………..
Disable Auto Power Off …………………………………………
Maintenance …………………………………………………….
Cleaning and Storage …………………………………………..
Fuse Replacement ………………………………………………
Battery Replacement …………………………………… …… …
Trouble Shooting ………………………………………………
Basic Trouble Shooting …………………………………………
Testing the Fuse and Test Leads ……………………………..
Specification ……………………………………………………
General Specification …………………………………………..
Electrical Specification ………………………………………….
Terms in the Specification ……………………………………..
04
04
04
06
07
08
08
08
09
09
09
10
11
11
12
14
15
16
18
19
20
21
21
22
22
22
23
24
24
25
25
26
26
26
27
27
28
28
28
29
29
30
4
Safety
"Warning" and "Caution" Alert Symbol Statement :
" Caution" Alert Symbol
A " Caution" Statement: identifies
conditions and actions that could
DAMAGE the Meter or the equipment under test.
Warnings
" Warnings" and " Cautions" :
․ When using test leads or probes, keep your fingers be hind the finger guards.
․ Remove test lead from Meter before opening the battery
door or Meter case.
" Warning" Alert Symbol
A "Warning" Statement identifies
hazardous conditions and actions
that could cause BODILY HARM or
DEATH.
5
․ Use the Meter only as specified in this manual or the
protection by the Meter might be impaired.
․ Always use proper terminals, switch position, and
range for measurements.
․ Never attempt a voltage measurement with the test
lead inserted into the A input terminal.
․ Verify the Meter’s operation by measuring a known
voltage. If in doubt, have the Meter serviced.
․ Do not apply more than the rated voltage, as marked
on Meter, between terminals or between any terminal
and earth ground.
․ Do not attempt a current measurement when the open
voltage is above the fuse protection rating. Suspected
open circuit voltage can be checked with voltage fun ction.
․ Only replace the blown fuse with the proper rating as
specified in this manual.
․ Use caution with voltages above 30 Vac rms, 42 Vac
peak , or 60 Vdc. These voltages pose a shock hazard.
․ To avoid false readings that can lead to electric shock
and injury, replace battery as soon as low battery indi cator appears.
․ Disconnect circuit power and discharge all high-voltage
capacitors before testing resistance, continuity, diodes,
or capacitance.
․ Do not use Meter around explosive gas or vapor
․ To reduce the risk of fire or electric shock do not ex-
pose this product to rain or moisture.
6
Cautions
․ Disconnect the test leads from the test points before
changing the position of the function rotary switch.
․ Never connect a source of voltage with the function rotary
switch in Ω/
</ mA //Hz position.
․ Do not expose Meter to extremes in temperature or high
humidity.
․ Never set the meter in mA function to measure the
voltage of a power supply circuit in equipment that could
result in damage the meter and the equipment under test.
Symbols as Marked on The Meter :
: AC (Alternating Current)
: DC (Direct Current)
: Caution, Risk of Electric shock. To alert you to the
presence of a potentially hazardous voltage.
: Caution, Risk of Danger. Refer to Warnings and
Cautions in the manual.
: Double Insulation protection against electric shock.
: Conforms to European Union directives.
7
Symbols and Terms in The Manual
Symbols :
: Caution, Risk of Danger.
Warning : To identifies hazardous conditions and actions
that could cause BODILY HARM or DEATH
Caution : To identifies conditions and actions that could
DAMAGE the meter or equipment under test.
: Fuse.
Terms :
CAT Level : Over Voltage Category Level, indicates measurement can be performed at which measuring circuit level. The
different level measuring circuit has different high transient
stresses voltage.
PER IEC 1010 OVERVOLT AGE INSTALLATION C ATEGORY
OVERVOLTAGE CATEGORY Ⅰ
Equipment of OVERVOLTAGE CATEGORY Ⅰ is equipment
for connection to circuits in which measures are taken to limit
the transient overvoltage to an appropriate low level. Noteexamples include protected electronic circuits.
OVERVOLTAGE CATEGORY Ⅱ
Equipment of OVERVOLTAGE CATEGORY Ⅱ is energy
consuming equipment to be supplied from this fixed installation.
OVERVOLTAGE CATEGORY Ⅲ
Equipment of OVERVOLTAGE CATEGORY Ⅲ is equipment
in fixed installations. Note-Examples include switches in this
fixed installation and some equipment for industrial use with
permanent connection to the fixed installation.
OVERVOLTAGE CATEGORY Ⅳ
Equipment of OVERVOLTAGE CATRGORY Ⅳ is for use at
the origin of the installations Note-Examples include electricity
meters and primary over-current protection equipment.
8
PER IEC1010 Pollution degree
POLLUTION
Addition of foreign matter, solid, liquid or gaseous (ionized
gases), that may produce a reduction of dielectric strength or
surface resistivity.
POLLUTION degree
For the purpose of evaluating spacing of this product, the
following degrees of POLLUTION in the microenvironment
are defined.
POLLUTION DEGREE 1
No POLLUTION or only dry, non-conductive POLLUTION
occurs. The POLLUTION has no influence.
POLLUTION DEGREE 2
Normally POLLUTION only non-conductive POLLUTION
occurs. Occasionally, however, a temporary conductivity
caused by condensation must be expected.
POLLUTION DEGREE 3
Conductive POLLUTION occurs, or dry, non-conductive
POLLUTION occurs which becomes conductive due to condensation, which is expected.
NOTE : In such conditions equipment is normally protected
against exposure to direct sunlight, precipitation, and
full wind pressure, but neither temperature nor
humidity is controlled.
Safety Compliance And Certification
Safety compliance
The Meter conform to CENELEC LVD (Low-Voltage rective)
73/23/EEC and EMC (Electromagnetic Compatibility
directive) 89/336/EEC
The Meter meet the requirements to IEC 61010-1 (2001) ,
EN 61010-1 (2001), UL 3111-1 (Jan.1994)
CSA C22.2 NO.1010-1-92 +A2: Feb. 1997
Safety Certification :
9
Introduction
Unpacking and Inspection
Upon removing your new Digital Multimeter from its packing,
you should have the following items.
1. Digital Multimeter.
2. Test lead set (one black, on red)
3. User Manual.
4. Protective holster.
Environmental Conditions
This product is safe at least under the following conditions:
1. Indoor Use.
2. Altitude up to 2000 Meter.
3. Operating Temperature and Relative Humidity :
Non-condensing ≦10°C ,11°C ~ 30°C (≦80% R.H)
31°C ~ 40°C (≦75% R.H), 41°C ~ 50°C (≦45% R.H),
4. Storage Temperature and Relative Humidity : -20°C ~ 60°C
(0 ~ 80% R.H) when battery removed from Meter.
5. Pollution degree 2
6. Installation category :
The standard 100 series models meet the requirements for
double insulation to IEC 61010-(2001), EN61010 (2001),
UL3111-1(6.1994), CSA C22.2 NO.1010-1-92 to terminals:
V/Ω : Cat. Ⅱ 1000V, Cat. Ⅲ 600V
mA /A : Cat. Ⅱ 600V, Cat. Ⅲ 300V
10
Power On/Off
COMMON Input
C
Input
mA InputA
Features
Functions &
Display
The Meter Description
Front Panel Illustration
1. 4000 counts LCD display.
2. Push-buttons for features.
3. Rotary switch to turn the Power On or Off and to select a
function.
4. Input Terminal for A current function
5. Input Terminal for all functions EXCEPT current (A)
functions
6. Common (Ground reference) Input Terminal for all functions.
11
Making Basic Measurements
Preparation and Caution Before Measurement
: Observe the rules of
Warnings and Cautions
.
When connecting the test leads to the DUT (Device Under
Test) connect the common (COM) test lead before connect-
ing the live lead ; w hen removing the test leads removing the
test live lead before removing the common test lead.
The figures on the following pages show how to make basic
measurements.
TEST EQUIPMENT RISK ASSESSMENT (UK RECOMMENDATION)
Users of this equipment and/or their employers are reminded
that Health and Safety Legislation require them to carry out
valid risk assessments of all electrical work so as to identify
potential sources of electrical danger and risk of electrical
injury such as from inadvertent short circuits. Where the
assessments show that the risk is significant then the use of
fused test leads constructed in accordance with the HSE
guidance note GS38 "Electrical Test Equipment for use by
Electricians" should be used.
12

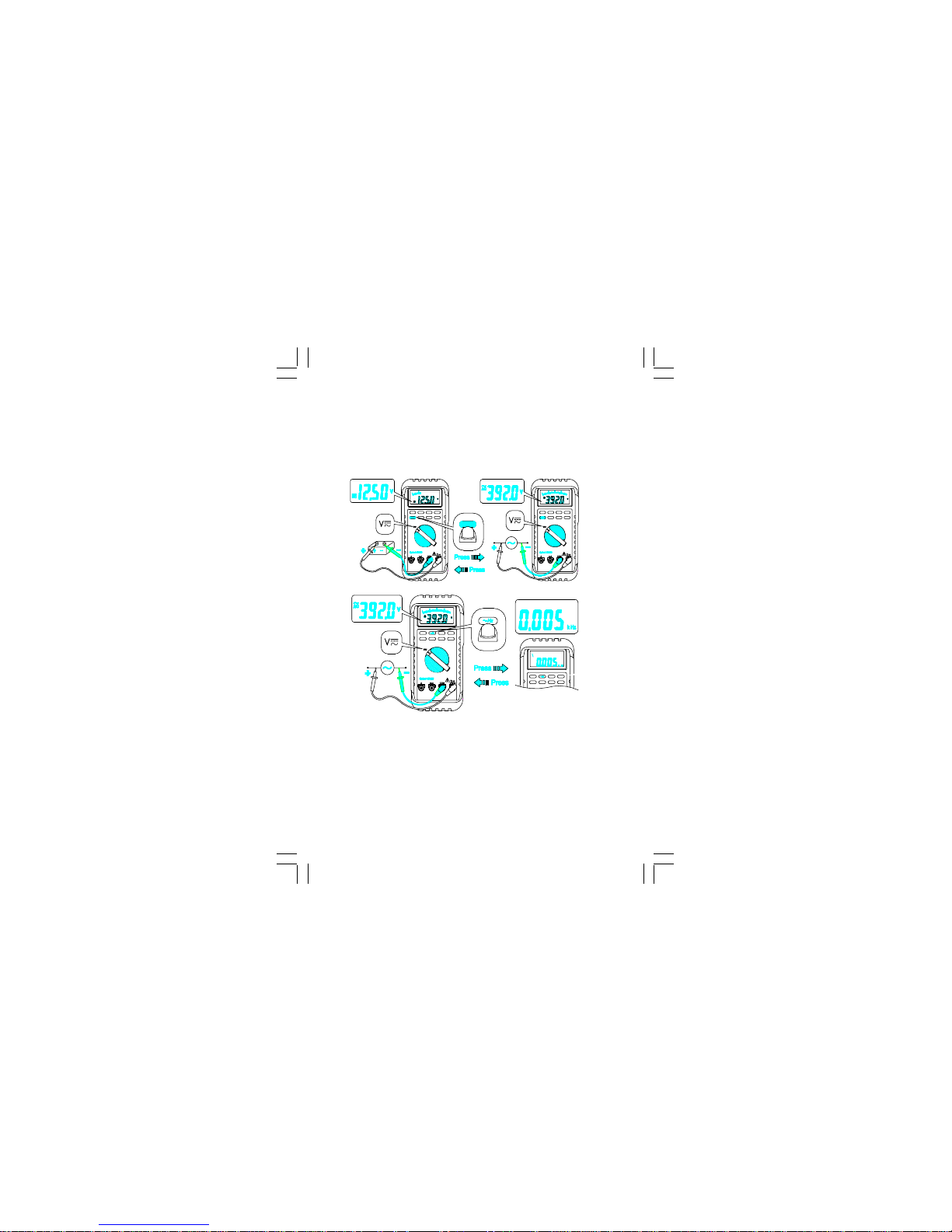

Measuring AC/DC Voltage And Frequency
13
Note – When measuring voltage, the Meter acts like a 10MΩ
impedance in parallel with the circuit under test. This loading
effect of the 10MΩof the Meter can cause measurement
errors, loading efffect error, Especially in high impedance circuits.
For example : A 1.1M impedance circuit will cause a –10%
measuring error. The error percentage of the loading effect
of the Meter is expressed as following :
- Zcircuit
Zcircuit + 10MΩ
%
100 x
The non-zero display reading is normal when the meter test
leads are open, which will not affect actural measurement
accuracy. The Meter will show zero or close to reading when
the test leads are shorted. In reading AC voltage or current,
reading-settling time increases to several seconds at the low
end of AC voltage and current ranges in rms models.
14

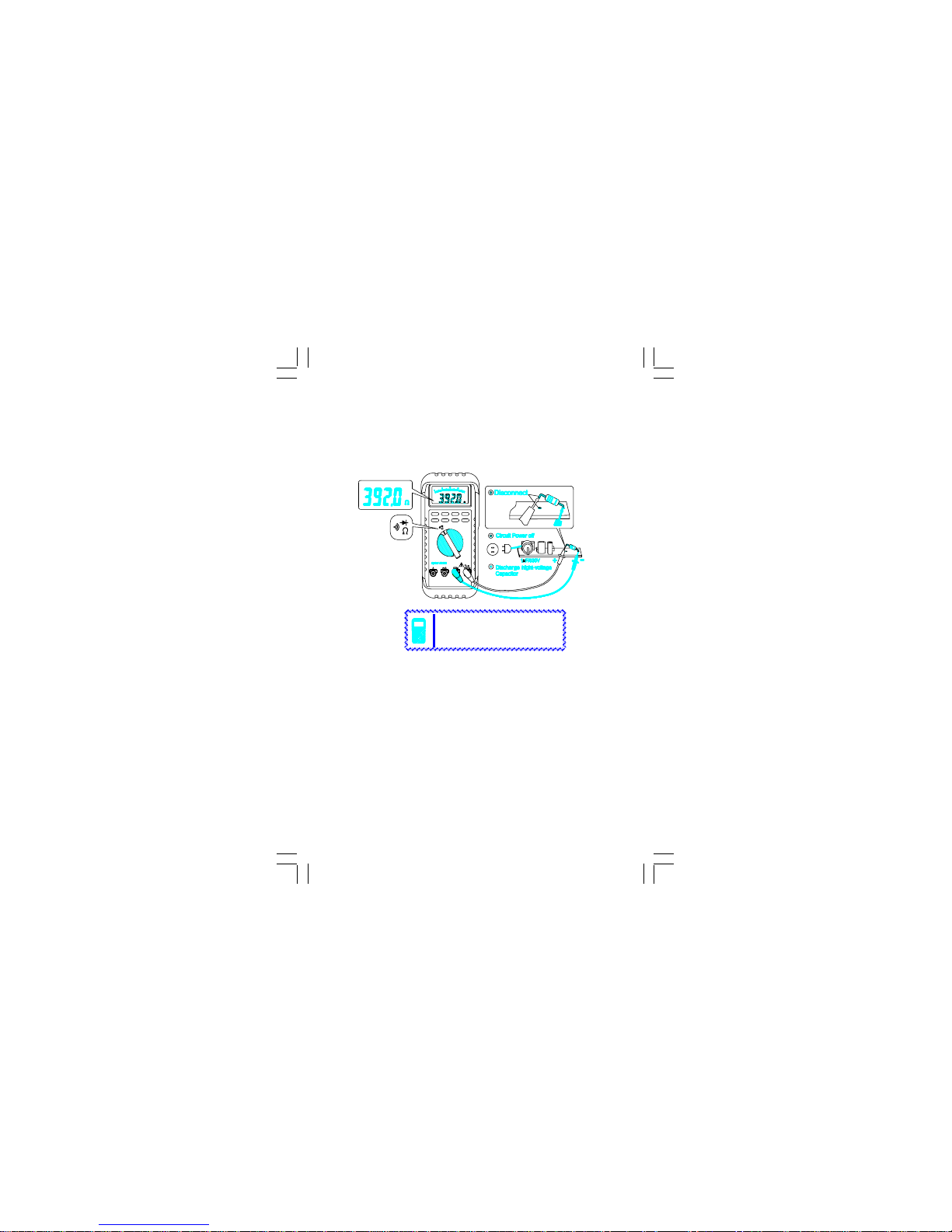

Measuring Resistance
Caution
To avoid possible damage to the Meter or to the equipment under test, disconnect circuit power and discharge
all high-voltage capacitors before measuring resistance.
Note – The Meter provides a open voltage ≦–1.5V to the
circuit under test that cause the diode, transistor junction to
conduct so it is batter to disconnect the resistance from the
circuit to get a correct measurement.
The resistance of test leads is about 0.1Ω ~ 0.2Ω. To test the
leads resistance, touch the probe tips together. For accuracy
measurement in low resistance use the relative features to
zero the test leads resistance.
15
Testing for Diode and Continuity
Diode :
Continuity :
Good! Good!
Bad!
Caution
For in-circuit test, turns circuit power off and Discharge
the high-voltage capacitors through an appropriate
resistance load.
16

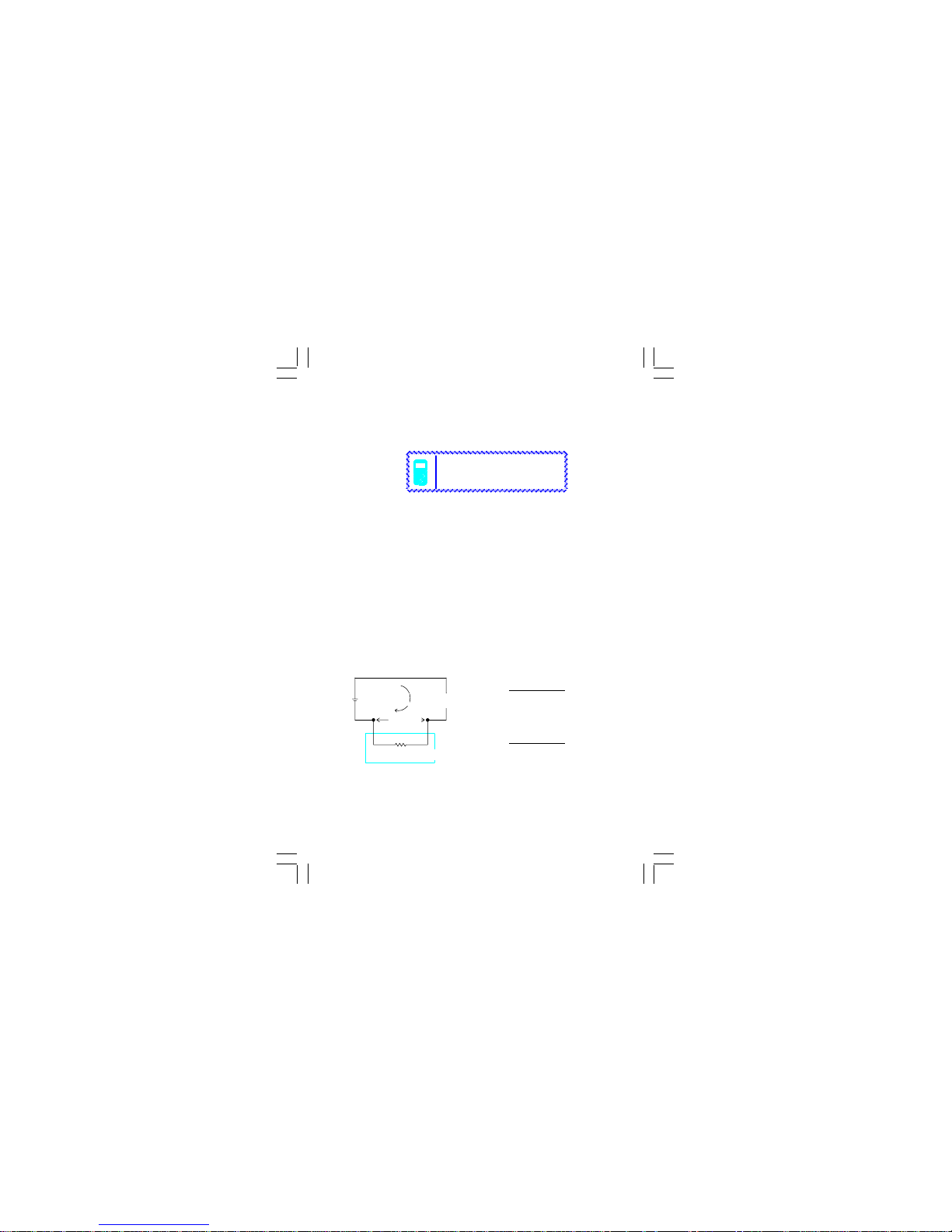

Measuring DC mA, AC mA, DC A, AC A Current
And Frequency
Note – Use the diode test to check the semiconductor junction
is good or bad. The Meter sends a current through the
semiconductor junction to measures the voltage drop across
the junction. A good junction drops between 0.4 V to 0.9 V.
Never attempt an in–circuit measurement where The
open–circuit potential to earth potential is great than
500V, or example a 3-phase system measurement, you
may damage the Meter or to be injured.
Warning
17
To avoid possible damage to the Meter or to the equip-
ment under test, check the Meter’s fuses before measur-
ing current. Use the proper terminals, function, and range for
your measurement.
Never place the probes across (in parallel with) any
circuit or component when the leads are plugged into the
current terminals.
When measuring current, the Meter acts like a impedance
such as 5Ω at AC/DC mA (0.005Ω at DC / AC A) in series
with the circuit.
This loading effect of the Meter can cause measurement
errors, loading effect error, especially in low impedance
circuits.
For example : To measure a 5Ω impedance circuit at DC / AC
mA range will cause a –50% measuring error. The error per-
centage of the loading effect of the Meter is expressed as
following :
Caution
- 5Ω
Zcircuit + 5Ω
% 100 x
or
- E
Burden
ES
% 100 x
ES Im Z
Circuit
E
Burden
AMMETER SHUNT
18
Making Basic Measurements
Measuring Hz / RPM
Note – Connect the red test lead to the “
VΩHz ” terminal
and the other (black) test lead to the “COM” terminal.
Set the rotary function selector to “Hz RPM” position to measure the frequency or RPM with the blue switch.
Connect the test leads to the circuit to be measured.
19
Measuring Capacitance
To avoid possible damage to the meter or to the equipment under test, disconnect circuit power and discharge
all high-voltage capacitors before measuring capacitance.
Use the DC voltage function to confirm that the capacitor
discharged.
Note– To improve the measurement accuracy of small value
capacitor, memory the reading with the test leads open than
substracts the residual capacitance of the Meter and leads
from measurement.
C
UNKNOWN
= C
MEASUREMENT
- C
RESIDUAL
Caution
20
Measuring Temperature (Model 106 only)
Caution
Do not Connect senor K Type C115 (Bead probe) to live
Circuits.
Sensor K Type C115
Sensor K Type C115
Vent
Or
Pipe
21
Features
Features
Feature Description
The Meter has Features :
Display Hold – To freezes the display.
Min Max Hold – To record the Max or Min reading of the
display.
Peak
> – To record the Max or Min reading of the display.
REL △ – Press the REL Key to zero the display, and store
the displayed reading as a reference value.
HZ – If “HZ” switch is pushed in voltage or current
measurement mode, the meter enters frequency
counter mode with automatic range selection. There fore, pressing “RANGE” switch in HZ mode does
not change the frequency range. However, “RANGE”
switch changes the sensitivity of frequency detection.
If the input signal has a small amplitude, the user
shall increase the sensitivity.
Range – To select the manual ranging mode. The default
mode is Automatic Range.
RS232
– An optical isolated interface output for data com-
muncation.
Backligh – LCD display backlight.
APO (Auto Power Off) (Battery Sever) –
The Meter automatically enters "Sleep Mode" and blanks the
display if the Meter is not used for 30 minutes. Press any of the
feature buttons and change the rotary switch position will reset
the time of APO. When RS232 output is active the APO is
disabled.
22
ACV
DCV
<
Ω
DCmA
ACmA
DCA
ACA
Hz RPM
°C
°F
Light Key O O O O O O O O O
Hz
O X X O O X X X X
PEAK
O X X O O X X X X
RANGE O X O O O O O O X
Blue Key O O O O O O O O X
MIN Max O O O O O O O O O
REL △
O O O O O O O O O
HOLD
O O O O O O O O O
Features Available vs Functions
Using The Features
Manual Ranging and Auto Ranging
23
MIN MAX Record
Note - The Range button is pressed to select manual ranging
and to change ranges. When the Range button is pressed
once, the RANGE indicator turns off. Press Range button to
select the appropriate range for measurement you want to
make. Press Range button and hold for 1 seconds to return to
autorange.
Using The Features
24
Note – Press the Hold button to toggle in and out of the
display Hold mode. The MAX / MIN feature is unavailable
when display Hold is active.
Display Hold
Note – Press HOLD button in MIN MAX mode makes the
Meter stop updating the maximum and minimum value. When
display Hold mode is nested in MIN MAX mode, to release
MIN MAX mode is needed to release display hold first.
REL △
Using The Features
25
Backlight
display backlight.
Note – Press the Backlight Button
to toggle in and out the
Note – If the Meter idles for more than 30 minutes, the Meter
automatically turns the power off. When this happens, the
LCD displaying-state of the Meter is saved, the Meter can be
turns back on by pushing any buttons, the LCD display the
saved state when auto power off itself, pushing Hold button to
disable the hold state. Any button press or rotary change reset
the time of Auto-Power-OFF.
Auto Power Off (Battery Saver)
Using The Features
26
Disable Auto Power Off
Maintenance
․
Do not attempt to repair this meter. It contains no user serviceable parts. Repair or servicing sh ould only be
performed by qualified personal.
․
Failure to observe this precaution can result in injury
and can damage the meter.
Caution
Cleaning and storage
Periodically wipe the housing with a damp cloth and mild
detegent. Dirt or moisture in the terminals can effect readings.
If the Meter doesn’t be used for long period more than 60
days, remove the battery and store it separately.
Maintenance
27
Caution
․ Use Two fuses with the
amperage, interrupt, voltage,
and speed rating specified.
․ Fuse rating : 1A, 600V, Fast.
Fuse rating : 15A, 600V, Fast.
Caution
․ Replace the battery as soon
as the low battery indicator
"" appears to avoid false
reading.
․ 103N/105 : Battery 1.5V x 2
106 : Battery 9V
Fuse Replacement

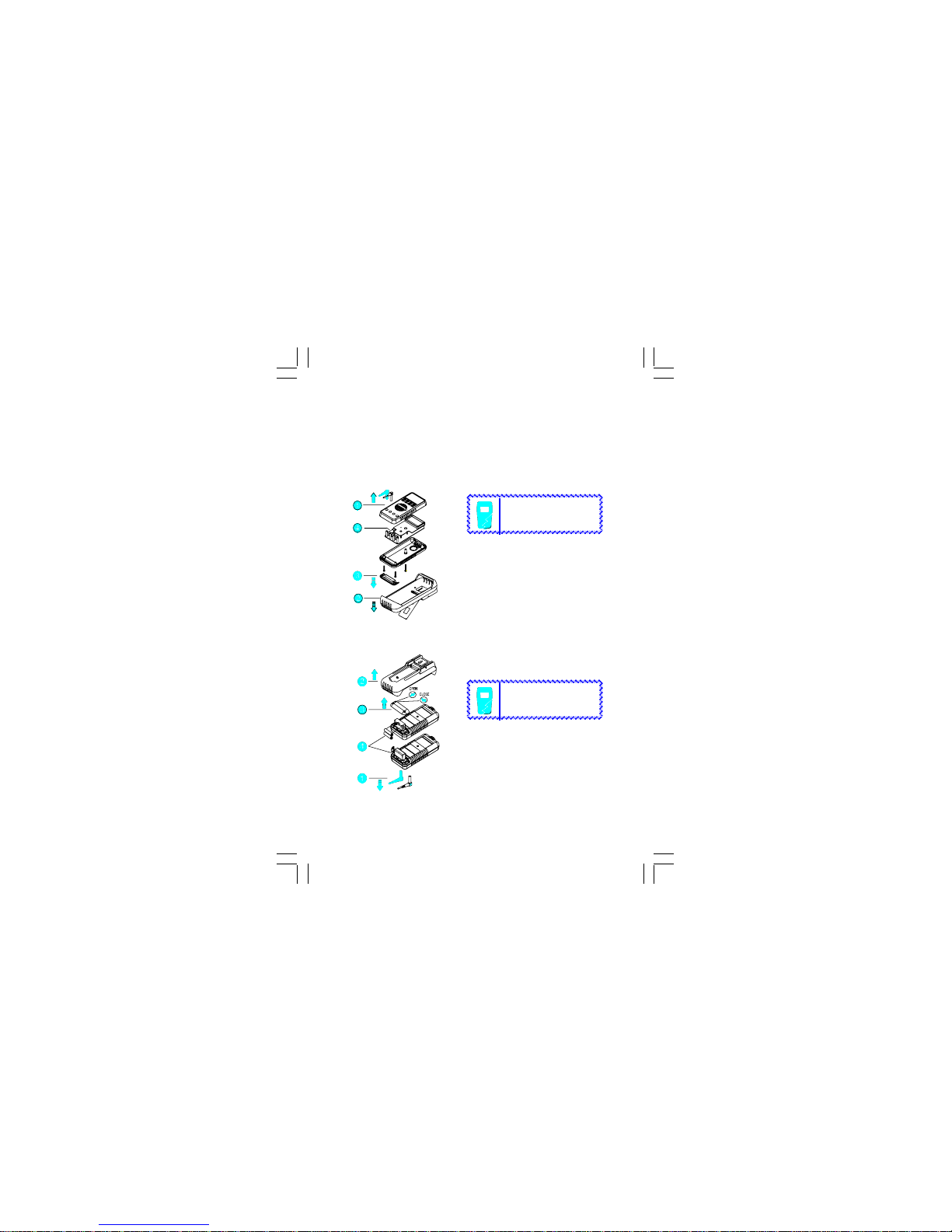

Refer to Figure xx to replace fuse :
Battery Replacement
Refer to Figure xx to replace the battery :
28
Trouble Shooting
Do not attempt to repair your Meter unless you are qualified to
do so and have the relevant calibration, performance test and
service information.
Basicc Trouble Shooting
If the Meter fails, fist check the battery, the loose of battery
and battery snap, fuse, test leads, replace as necessary.
Review this manual to make sure that you are operating the
Meter correctly.
Testing the Fuse and Test Leads
Testing the current fuse and test leads as shown below.
Testing the Fuse Testing the Test Leads
29
Specification
General Specifications
Display : The Liquid Crystal Display (LCD) with a maximum
reading of 4000 and 82 segments bar graph.
Polarity Indication : Automatic, positive implied, negative
indicated.
Overrange Indication : “OL” or “-OL”
Low Battery Indication : “” is displayed when the battery
voltage drops below operating voltage.
Sampling : 2 times/sec for digit. 12 times/sec for analog
bargraph.
Auto Power Off : Approx 30 minutes.
Operating Ambient :
Non-condensing ≦10°C,11°C ~ 30°C (≦80% R.H)
31°C ~ 40°C (≦75% R.H), 41°C ~ 50°C (≦45% R.H),
Storage Temperature : -20ºC to 60ºC , 0 to 80% R.H. when
battery removed from Meter.
Temperature Coefficient :
0.15 x (Spec.Acc’y) / ºC , <18ºC or > 28ºC .
Power Requirements :
Alkaline 1.5V x 2 batteries (for 103N/105N)
Alkaline 9V battery (for 106)
Battery Life :
Alkaline 500 hours. (for 103N/105N)
Alkaline 300 hours. (for 106)
Dimensions (W x H x D) :
90mm x 200mm x 42mm , without holster.
100mm x 212mm x 55mm , with holster.
Accessories : Protective Holster, Battery (installed), Test
leads and User manual.
Specification
30
Electrical Specifications
Accuracy is ± (% reading + number of digits) at 23ºC ± 5ºC ,
less than 80% R.H.
(1) DC Volts
Range
Accuracy
103N 105N/106
400.0mV
±(0.3% + 2dgt) ±(0.3% + 2dgt)
4.000V
±(0.4% + 2dgt)
±(0.1% + 2dgt)
40.00V
400.0V
1000V
±(0.25% + 2dgt)
(2) AC Volts
Range
Accuracy
103N 105N/106
400.0mV
±(2.0% + 8dgt)* ±(2.0% + 8dgt)*
4.000V
±(1.3% + 5dgt)**
***
±(1.5% + 5dgt)
40Hz to 60Hz
±(1.0% + 5dgt)
61Hz to 1KHz
40.00V
400.0V
750V
±(1.5% + 5dgt)
40Hz to 60Hz
±(1.3% + 5dgt)
61Hz to 1KHz
31
Over voltage protection : 1000V rms
Input Impedance : 10MΩ // less than 100pF.
CMRR / NMRR : (Common Mode Rejection Ratio)
(Normal Mode Rejection Ratio)
V
AC
: CMRR > 60dB at DC, 50Hz / 60Hz
V
DC
: CMRR > 100dB at DC, 50Hz / 60Hz
NMRR > 50dB at DC, 50Hz / 60Hz
AC Conversion Type :
103N / 105N : Average sensing rms indication.
106 : AC conversions are ac-coupled, true rms responding,
calibrated to the rms value sine wave input.
The specified accuracy is for since wave at full scale
and non-sine wave at half scale below 500Hz with crest
factor up to 2.
AC conversions are average sensing , calibrated to the
rms value sine wave input.
* Frequency Response : 50Hz ~ 60Hz.
** Frequency Response : 40Hz ~ 300Hz.
*** Frequency Response : 40Hz ~ 500Hz for 4V range.
(3) DC Current
Range
Accur acy
103N 105N/106
40.00mA
±(0.6% + 2dgt) ±(0.4% + 2dgt)
300mV max
400.0mA
±(0.7% + 2dgt) ±(0.5% + 2dgt)
3V max
10.00A
±(1.2% + 3dgt) ±(1.0% + 3dgt)
3V max
Voltage
Burden
32
(4) AC Current
Range
Accuracy
Voltage
Burden
103N 105N/106
40.00mA
±(1.5% + 5dgt)*
300mV max
400.0mA
3V max
10.00A
±(2.5% + 5dgt) ±(2.0% + 5dgt)
3V max
±(1.5% + 5dgt)*
Frequency Response : 40Hz ~ 1KHz.
AC Conversion Type :
103N / 105N : Average sensing rms indication.
106 : AC conversions are ac-coupled, true rms responding,
calibrated to the rms value sine wave input.
The specified accuracy is for since wave at full scale
and non-sine wave at half scale below 500Hz with crest
factor up to 2.
AC conversions are average sensing, calibrated to the
rms value sine wave input.
Overload Protection :
1A , 600V IR 10KA fuse (Bussmann BBS-1 or equivalent) for
mA input. (Size 10.3mm x 34.9mm)
15A , 600V IR 100KA fuse (Bussman KTK 15 or equivalent)
for A input. (Size 10.3mm x 38.1mm)
33
(5) Resistance
Open circuit Voltage : -1.3V approx.
Range
Accuracy
103N 105N/106
400.0Ω ±(0.7% + 3dgt) ±(0.7% + 3dgt)
4.000KΩ
±(0.6% + 3dgt)
40.00KΩ
400.0KΩ
4.000MΩ
±(0.7% + 3dgt) ±(0.6% + 3dgt)
40.00MΩ
±(1.5% + 5dgt) ±(1.5% + 5dgt)
±(0.4% + 2dgt)
(6) Diode Check and Continuity
Range Resolution Accur acy
1 mV
±(1.5% + 5 dgt)*
* For 0.4V ~ 0.8V
Max.Test Current : 1.5mA
Max. Open Circuit Voltage : 3V
Overload Protection : 600V rms.
Continuity : The internal sounder operates when resistance
is less than 30Ωapproximately.
34
Overload Protection : 600V rms.
* For 105N / 106 only.
** The spec is not guaranty.
Range Sensitivity Accur acy
4.000KHz / 40.00KRPM
150mV rms ≧ 20Hz
1.5V rms ≦ 20Hz
40.00KHz / 400.0KRPM
400.0KHz / 4.000KRPM
4.000MHz / 40.00MRPM 300mV rms
400.0MHz / 4.000MRPM **
Frequency :
±(0.01% + 1dgt)
RPM :
±(0.01% +
10dgt)
40.00MHz / 400.0MRPM 1V rms
(7) Frequency / RPM
(8) Capacitance
Range Accur acy Overload Protection
4.000nF
±(3.0% + 10 dgt)
600V rms
40.00nF
±(2.0% + 8 dgt)
400.0nF
4.000µF
40.00µF
400.0µF
4.000mF *
40.00mF *
±(5.0% + 20 dgt) **
35
(9) Temperature (ºC ) for 106 only
Temperature Accu racy
Overload
Protection
-20°C ~ 0°C
±(2% + 4°C)
1°C ~ 100°C
±(1% + 3°C)
101°C ~ 500°C
±(2% + 3°C)
501°C ~ 800°C
±(3% + 2°C )
600V rms
(10) Temperature (°F ) for 106 only
Temperature Accu racy
Overload
Protection
-4°F ~ 32°F
±(2% + 8°F)
33°F ~ 212°F
±(1% + 6°F)
213°F ~ 932°F
±(2% + 6°F)
933°F ~ 1472°F
±(3% + 4°F)
600V rms
* In these two ranges the reading maybe rolling within speci fication.
** specify reading <half of full scale range.
36
(11) PEAK HOLD
Function
Range Accura cy
DCV
400mV Unspecified
4V
±(1.5% + 300dgt) 2*
40V
±(1.5% + 60dgt)
400V
1000V
ACV
400mV
Unspecified
4V
±(1.5% + 300dgt) 2*
40V
±(1.5% + 60dgt)
400V
750V
DCA / ACA
40mA 3*
400mA 3*
10A 3*
±(1.5% + 60dgt)
±(3.0% + 60dgt)
Note : 1. With zero calibrated before measurement.
2* 4V range specifies readings above 10% of full
scale of range.
3* Amp ranges specify reading <90% of full scale of
range.
4. In the noise generating field, may affect intervals.
Asia
Iso-Tech
460 Alexandra Road, #15-01A
PSA Building
Singapore 119963
Europe
Iso-Tech
PO Box 99
Corby
Northamptonshire
NN17 9RS
United Kingdom
Japan
West Tower (12th Floor)
Yokohama Business Park
134 Godocho, Hodogaya
Yokohama, Kanagawa 240-0005 Japan
USA
7410 Pebble Drive
Fort Worth
Texas 76118-6961
Canada
1701 Woodward Drive
Ste 108 Ottawa
Ontario K2C 0R4, Canada
South America
Av. Pdte. Eduardo Frei M. 6001-71
Centro Empresas El Cortijo
Conchali, Santiago, Chile
Loading...
