Iso-Tech ICM 136R Instruction Manual

Instruction Manual ICM 136R Electrical Clamp Multimeter
EN FR IT DE ES
Safety Information
For safe operation of this clamp-multimeter, read these instructions completely before you use it and comply with them fully. Failure to observe these warnings can result in severe injury or death.
- If possible, do not work alone, so assistance can be given if required.
- Do not use the clamp-multimeter or test-leads if they are damaged.
- Do not use the clamp-multimeter if it is not operating correctly, or if it is wet.
- Use the clamp-multimeter only as specified in these Operating Instructions, or the protection provided by it may be impaired.
- Use extreme caution and wear Personal Protective Equipment when taking measurements where Hazardous Live parts could be Accessible.
- Use caution when measuring or working near voltages above 30 V ac rms, or 60 V dc. These voltages may cause a shock.
- Do not allow fingers to protrude beyond the Tactile Barrier when fitting or removing the instrument from around a Hazardous Live conductor, as this may cause a shock.
Symbols as marked on the Clamp­multimeter and instructions
Risk of electric shock
Refer to operating instructions.
DC measurement
7
Equipment protected by double or reinforced insulation
Battery
Earth
AC measurement
Conforms to EU directives
May be used on uninsulated Conductors.
Caution
If the clamp-multimeter is used in the vicinity of equipment which generates electromag­netic interference, the display may become unstable or the measurements shown may be subject to large errors.
TEST EQUIPMENT RISK ASSESSMENT
Users of this equipment and or their employers are reminded that Health and Safety Legislation require them to carry out valid risk assessments of all electrical work so as to identify potential sources of electrical danger and risk of electrical injury such as from inadvertent short circuits. Where the assessments show that the risk is significant then the use of fused test leads constructed in accordance with HSE guidance note GS38 “ Electrical Test Equipment for use by Electricians” should be used.
Maintenance
Do not attempt to repair the clamp­multimeter. It contains no user-serviceable parts. Contact RS Components fo r re pair, servicing or calibration of this clamp­multimeter. The address is given at the end of these instructions.
Cleaning
To clean the clamp-multimeter, use a damp cloth moistened with a weak detergent solution. Do not use abrasives or solvents.
On / Off
Auto Power Off
Auto Power Off disable :
Press any button (except the Hold button), or rotate the rotary switch to reset the Auto Power-Off function and turn the clamp-multimeter on.
30min
AC V / DC V
Resistance
Continuity

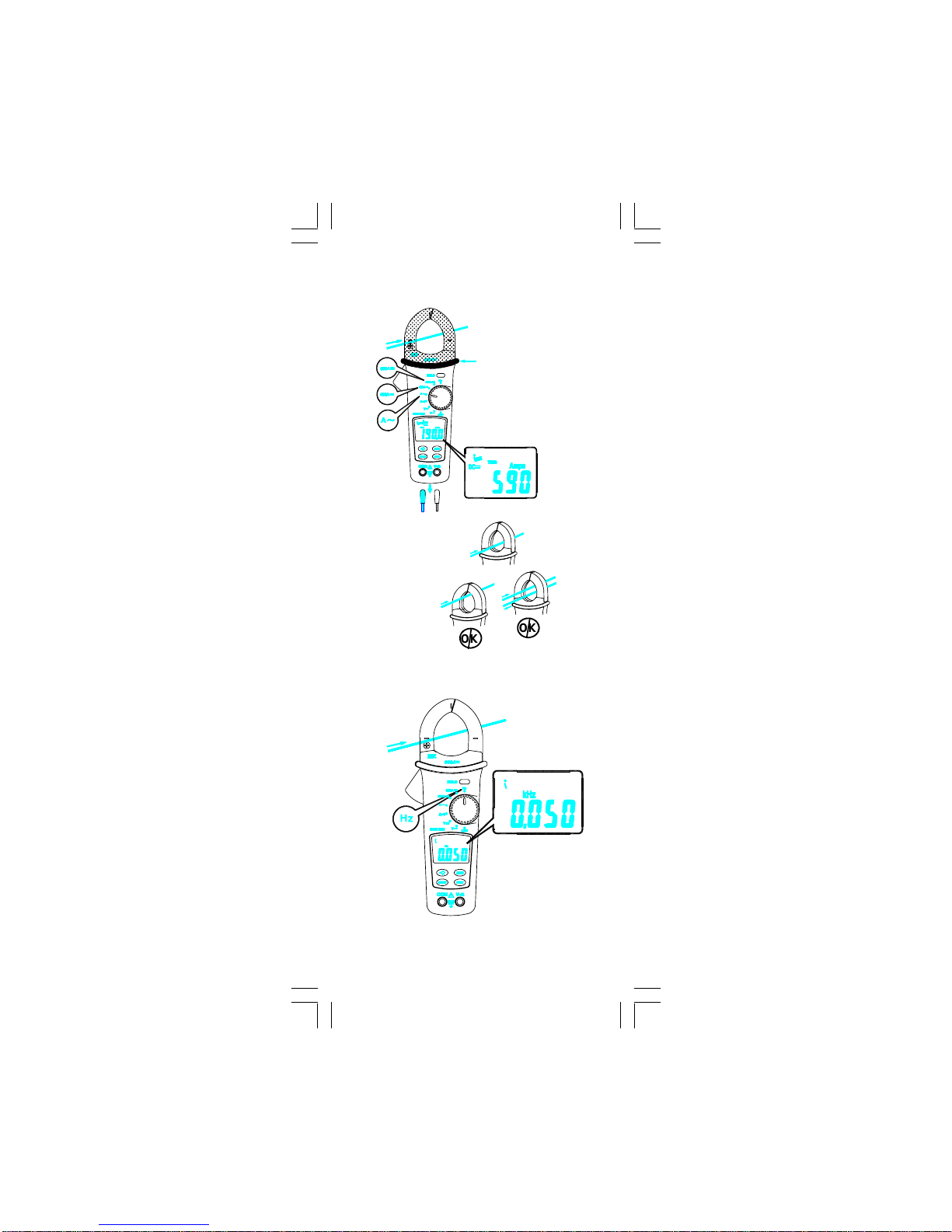

ACA / DCA
5
9
0
A
I
I
I
I
OK
OK
OK
I + (-I) = 0
CAT.Ⅲ.600V with respect to
earth for the jaw.
Tactile Barrier for hand guard
Do not hold the meter across the Tactile Barrier
A
C
A
5
0
H
z
Hz
Zero
o REL: Meter save the displayed offset value after press the ZERO button first time. The LCD is displaying the relative value. p REL (flashing): Meter saved the offset value. Present value is displaying
n Normal : Press and hold ZERO for 2 sec to return to normal operation and cancel the offset value
.
Data Hold
0
A
1
9
0
A
o MAX: The clamp-multimeter stores the maximum and minimum values. The maximum value is displayed. p MIN: The clamp-multimeter stores the maximum and minimum value. The minimum value is displayed. q MAX MIN (flashing) : The clamp-multimeter stores the maximum and minimum values. The present value is displayed. n Normal: Press and hold the MIN MAX button to return to normal operation.
Min / Max Hold
Battery Replacement
 Warning : Disconnect the clamp-
multimeter from all power sources and remove it from around a conductor before removing the battery compartment cover.
Replace battery:
Replace the battery when the low battery symbol “” appears on the display.
Peak Hold
o P
MAX
: The clamp-multimeter stores the peak maximum and minimum values. The peak maximum value is displayed.
p P
MIN
: The clamp-multimeter stores the peak maximum and minimum values. The peak minimum value is displayed. q CAL: Press and hold the PEAK button
>3 sec to calibrate the clamp-multimeter for accurate measurement.
n Normal: Press and hold the PEAK button to return to normal operation.
Back Light
The back-light will automatically turn off after approximately 60 seconds.
10
Specifications
1-1 General Specifications
LCD display :
4000 counts, 3 3/4 digit LCD readout.
Measuring rate : 1.5 times / sec. Overrange display :
“OL” is displayed for “Ω” functions, Actual value is shown for “A” and “V”
function.
Automatic power off time :
Approximately 30 minutes after power on.
Low battery indicator :  is displayed. Power requirement :
9V battery type 6LR61 (IEC) Alkaline.
Battery life :
ALKALINE 9V ; 200 hours typical.
1-2 Environmenta l Conditions
Indoor Use only. Calibration : One year calibration cycle. Operating temperature :
0°C ~ 30°C (80% RH) 30°C ~ 40°C (75% RH) 40°C ~ 50°C (45%RH)
Storage temperature :
-20 to +60°C, 0 to 80% RH (batteries not
fitted).
Overvoltage category :
IEC 61010-1 600V CAT.Ⅲ. CAT. equipment is designed to protect
against the transients in the equipment in fixed installations, such as distribution panels, feeders and short branch circuits and lighting systems in large buildings.
Operating altitude : 2000m (6562 ft) Conductor Size : 35mm diameter. Pollution degree : 2 EMC : EN 61326-1 Shock vibration :
Sinusoidal vibration per MIL-T-28800E (5 ~ 55 Hz, 3g maximum). Drop Protection : 4 feet drop to hardwood on concrete floor.
11
Function Range Accuracy
V
0~400.0Vrms 400~600Vrms
±(1.0%+ 5 dig its ) 50Hz ~ 500Hz
V
0~400.0 V
400~600 V
±(0.7% + 2 digits)
Overload protection : 600 Vrms Input impedance: 1MΩ // less than 100pF.
AC Conversio n Type:
AC Conversions are ac-coupled, true rms responding, calibrated to the rms value of a sine-wave input. Accuracies are given for sine-wave at full-scale and non-sine wave below half-scale. For non sine-wave add the following Crest Factor corrections: For Crest Factor of 1.4 to 2.0, add 1.0% to accuracy. For Crest Factor of 2.0 to 2.5, add 2.5% to accuracy. For Crest Factor of 2.5 to 3.0, add 4.0% to accuracy. CF 3 @ 400A, 400V 2 @ 600A, 600V
1-3 Electrical Specifications
Accuracy is ± (% reading + number of digits) at 23°C ± 5°C < 80%RH.
Temperature coefficient :
Add 0.2 x (Specified accuracy) / °C, < 18°C, > 28°C .
Voltage
12
Resistance & Continuity
Function Range Accuracy
Ω 400.0Ω ±(1% + 3 digits)
Overload protection : 600 Vrms Max. open circuit voltage : 3V Continuity check : Internal sounder
activates if the resistance of the circuit under test is less than 30Ωapproximately.
AC Current
*1 : Over 80% of full scale (4000 digits) add ±1.6% Overload protection : 600 Arms
AC Conversion Type and additional accuracy is same as AC Voltage.
Position Error : ±1% of reading.
Function Range Accuracy
A
(50~60Hz)
0~60.0A
±(1.9% + 7 digits)
60.1~400.0A
±(1.9% + 5 digits)*1
400~600A
A
(61~400Hz)
0~60.0A
400~600A
±(2.5% + 7 digits)
±(2.5% + 5 digits)
±(2.9% + 5 digits)
60.0~400.0A
±(2.5% + 5 digits)*1
DC Current
Function Range Accuracy
A
0~60.0A
±(1.5% + 10 digits)
60.0~400.0A
±(1.9% + 5 digits)
400~600A
±(1.9% + 10 digits)
Overload protection : 600 Arms Position Error : ±1% of reading. Addition error according to remanence :
1% max. of current crest.
Auto Power Off (APO)
The meter will automatically shut itself off after approximately 30 minutes after power on.
13
Limited Warranty
This instrument is warranted to the original purchaser aga inst def ect s in ma ter ia l and workmanship for 3 year from the date of purchase. During this warranty period, RS Components will, at its option, replace or repair the defective unit, subject to verifica­tion of the defect or malfunction. This warranty does not cover fuses, disposable batteries, or damage from abuse, neglect, accident, unauthorized repair, alteration, contamination or abnormal conditions of operation or handling. Any implied warranties arising from the sale of this product, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited to the above. The manufacturer shall not be liable for loss of use of the instrument or other incidental or consequential damages, expenses, or economic loss, or for any claim or claims for such damage, expense or economic loss. Some states or countries laws vary, so the above limitations or exclusions may not apply to you. For full terms and conditions, refer to the current RS Catalogue.
Frequency : Hz
Overload protection : 600 Arms Sensitivity : 3 Arms for ACA (A)
(>400Hz Unspecified) Peak Hold : ± (3% + 15dgt)
*>600Vpeak Unspecified. *>600Apeak Unspecified.
Min/Max Hold : add ± 15 dgt to accuracy for ACA / DCA. * Automatically switch to the low resolution range at Peak Hold and MIN MAX Hold.
Range Resolution Accuracy
20~400Hz 1Hz
±(0.1% + 2 digits)
