User Maintenance Manual
EUROPA 4520 BASIC & SITE
Telephone: +44 (0)1704 543830 Fax: +44 (0)1704 544799 Email: info@isotech.co.uk Website: www.isotech.co.uk
Isothermal Technology Limited, Pine Grove, Southport, Merseyside, PR9 9AG, England
Europa 4000 Series 02-04/17
Guarantee
ⓒIsothermal Technology Limited
This instrument has been manufactured to exacting standards and is guaranteed for twelve
months against electrical break-down or mechanical failure caused through defective material or
workmanship, provided the failure is not the result of misuse.
In the event of failure covered by this guarantee, the instrument must be returned, carriage paid,
to the supplier for examination and will be replaced or repaired at our option.
FRAGILE CERAMIC AND/OR GLASS PARTS ARE NOT COVERED BY THIS GUARANTEE
INTERFERENCE WITH OR FAILURE TO PROPERLY MAINTAIN THIS INSTRUMENT MAY
INVALIDATE THIS GUARANTEE
The company is always willing to give technical advice and assistance where appropriate. Equally,
because of the programme of continual development and improvement we reserve the right to
amend or alter characteristics and design without prior notice. This publication is for information
only.
This handbook contains information that has been reproduced with the kind permission of
Eurotherm. Such data is subject to the following notice.
Isothermal Technology Limited
Pine Grove, Southport, Merseyside, PR9 9AG, England
Telephone: +44 (0)1704 543830 / Fax: +44 (0)1704 544799
Email: info@isotech.co.uk / Website: www.isotech.co.uk
2
Contents
1 UNPACKING AND INITIAL INSPECTION ......................................................................................... 5
2 BEFORE YOU USE THE EQUIPMENT ................................................................................................ 6
3 SUMMARY OF SYMBOLS .................................................................................................................... 7
4 ELECTRICITY SUPPLY ....................................................................................................................... 8
5 THE UNIT MUST BE EARTHED ................................................................................................. 9
6 EMC INFORMATION ................................................................................................................. 10
7 CAUTIONARY NOTE ................................................................................................................. 11
8 SAFETY WARNINGS ................................................................................................................ 12
8.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................ 12
8.2 DO NOT MODIFY OR DISASSEMBLE ................................................................................................................. 12
8.3 BEWARE OF ELECTRICAL CONSIDERATIONS...................................................................................................... 12
8.4 BE CAREFUL WHERE IT IS USED ..................................................................................................................... 12
8.5 BE CAREFUL WITH EXTREMES OF TEMPERATURE .............................................................................................. 12
8.6 BE CAREFUL WITH INSERTS ........................................................................................................................... 12
9 CONSIDER THE ENVIRONMENT ..................................................................................................... 13
10 INTRODUCTION ............................................................................................................................. 14
10.1 COMPARISON CALIBRATION .......................................................................................................................... 14
10.2 BASIC OPERATION ....................................................................................................................................... 14
10.3 SITE OR SELF-CONTAINED CALIBRATORS ....................................................................................................... 14
10.4 EXTERNAL STANDARDS + BASIC ................................................................................................................... 15
10.5 ADVANCED CALIBRATORS .......................................................................................................................... 15
11 MODE OF OPERATION ................................................................................................................... 16
11.1 METAL BLOCK BATH .................................................................................................................................... 16
11.2 BLACKBODY SOURCE .................................................................................................................................... 16
11.3 SURFACE SENSOR CALIBRATION .................................................................................................................... 16
11.4 STIRRED LIQUID BATH ................................................................................................................................. 17
11.5 ITS-90 FIXED POINT CALIBRATION .............................................................................................................. 17
11.6 ISOTECH BASIC DRY BLOCK INTERFACE ......................................................................................................... 18
11.7 ISOTECH SITE DRY BLOCK INTERFACE ........................................................................................................... 19
12 SPECIFICATION ............................................................................................................................. 20
13 BEST PERFORMANCE GRAPH ....................................................................................................... 21
14 OPERATING THE MODEL ............................................................................................................... 22
14.1 FRONT PANEL LAYOUT ................................................................................................................................. 22
14.1.1 The Temperature Controller
14.1.2 Altering the Setpoint
14.2 CONTROLLER FEATURES ............................................................................................................................... 22
14.2.1 Setpoint Ramp Rate
14.2.2 Instrument Address
14.3 MONITORING THE CONTROLLER STATUS ....................................................................................................... 23
14.3.1 Units
14.4 THE TEMPERATURE INDICATOR: SITE MODELS ONLY ...................................................................................... 24
14.5 CONNECTING TEMPERATURE SENSORS .......................................................................................................... 24
................................................................................................................................................. 23
....................................................................................................................... 22
........................................................................................................................ 22
......................................................................................................................... 23
........................................................................................................... 22
3
14.5.1 Platinum Resistance Thermometers, PRTs
14.5.2 Input Connections
14.5.3 Connecting Thermocouples
14.5.4 Setting the Input Type
14.6 ENABLING/DISABLING CUSTOM CALIBRATION ................................................................................................ 25
14.7 INSTRUMENT ADDRESS ................................................................................................................................ 25
14.8 MONITORING THE INDICATOR STATUS .......................................................................................................... 26
14.8.1 Units
14.9 INDICATOR OPERATION ............................................................................................................................... 26
15 CALIBRATION DATA EXAMPLE ..................................................................................................... 27
15.1 CONNECTING A 4-20MA CURRENT TRANSMITTER .......................................................................................... 27
15.2 USING THE CURRENT LOOP INTERFACE 935-06-161 WITH THE SITE MODEL .................................................... 29
15.3 TESTING THERMAL SWITCHES ...................................................................................................................... 30
15.4 PROCEDURE FOR THE REVERSAL OF THE POLARITY FOR THE SWITCH CONTACT FEATURE ..................................... 30
15.5 SELECTING INPUT TYPE ............................................................................................................................... 30
16 USING THE PC INTERFACE ........................................................................................................... 31
16.1 CONNECTIONS ............................................................................................................................................ 31
16.2 PROTOCOL .................................................................................................................................................. 31
17 CAL NOTEPAD ................................................................................................................................. 32
17.1 DEVELOPMENT ............................................................................................................................................ 32
17.2 ISOTECH I-CAL EASY LOG .......................................................................................................................... 33
................................................................................................................................................. 26
........................................................................................................................... 24
............................................................................................................ 24
.................................................................................................................... 24
.................................................................................... 24
18 DIAGNOSTIC ALARMS ................................................................................................................... 34
19 APPENDIX 1: INDICATOR CONFIGURATION (REFERENCE ONLY) .......................................... 35
20 ACCESSORIES ................................................................................................................................. 37
4
1 Unpacking And Initial Inspection
Our Packing Department uses custom designed packaging to send out your unit, but as accidents
can still happen in transit, you are advised, after unpacking the unit, to inspect it for any sign of
shipping damage and confirm that your delivery is in accordance with the packing check list. If
you find any damage or that part of the delivery is missing notify us or our agent and the carrier
immediately. If the unit is damaged you should keep the packing for possible insurance
assessment.
5
2 Before You Use The Equipment
Please read the handbook and familiarise yourself with all warnings, hazards and safety
information. Regularly inspect the equipment, accessories and electrical leads. Do not use if there
is any sign of damage. Keep the equipment clean, only use a damp cloth. Do not use solvents or
allows liquids to enter the case.
6
3 Summary of Symbols
ISO3864 – Caution, read the entire manual before use
IEC 417 – Caution, hot surface (risk of burn)
O
Off l On
Waste Electrical and Electronic Equipment (WEEE directive) symbol
Complies with European regulations (CE mark)
USB symbol
Ethernet RJ45 symbol
Risk of Electrical Shock
l O l O l
RS422 Serial Port
7
4 Electricity Supply
Before connecting to the electricity supply please familiarise yourself with the parts of the manual
relevant to your model.
Your unit's supply voltage requirement is specified on a label on the instrument along with the
serial number. Only connect to a power supply matching the requirement stated on the equipment.
8
5 The Unit Must Be Earthed
Colour
Function
Green/yellow
Earth (Ground)
Brown
Live (line)
Blue
Neutral
This equipment is a Class 1 Appliance and must be earthed (grounded). Use the supplied power
cord and plug it directly into an AC outlet with a protective earth.
If using an alternative cord ensure it is of adequate rating.
If fitting a plug to the cable we have supplied the cable is colour coded as follows:
Do not use the equipment if it is not correctly earthed. If in doubt consult Isothermal Technology
Ltd or a qualified electrician.
9
6 EMC Information
This product meets the requirements of the European Directive on Electromagnetic Compatibility
(EMC) 89/336/EEC as amended by EC Directive 92/31/EEC and the European Low Voltage
Directive 73/25/EEC, amended by 93/68/EEC. To ensure emission compliance please ensure that
connecting leads are fully screened.
The product meets the susceptibility requirements of EN 50082-1, criterion B.
10
7 Cautionary Note
Operators of this equipment should be adequately trained in the handling of hot and cold items.
It is important the user has been trained about the selection and use of liquids over a wide
temperature range. It is expected that personnel using this equipment will be competent with the
management of apparatus which may be powered or under extremes of temperature and are able
to appreciate the hazards which may be associated with and the precautions to be taken with,
such equipment.
11
8 Safety Warnings
8.1 Environmental Conditions
Operating temperature: 5-40°C (41-122°F)
Relative Humidity: 5-80% - Non-condensing
8.2 Do Not Modify Or Disassemble
Do not use the apparatus for jobs other than those for which it was designed, i.e. the
calibration of thermometers
There are no user serviceable parts inside. Do not dismantle or modify the apparatus. For
repair information contact Isothermal Technology Ltd
For equipment with fans, the fan should kept free from dust build up; a soft brush or
vacuum cleaner may be used on the external grill
8.3 Beware Of Electrical Considerations
The equipment is for installation category II (transient voltages) and pollution degree
II in accordance with IEC 664 at altitudes to 2000 metres
Sensor Input Connection must never exceed 30V with reference to ground
Thermostat test inputs should be voltage free: isolate from any voltage source during test
8.4 Be Careful Where It Is Used
The equipment is not for use in hazardous areas or in an environment close to flammable
materials or gases
The equipment must be used on a flat level surface, with adequate space around it for air
flow and avoid blocking ventilation slots
Ensure free space above the unit to avoid risk of burn or fire
The equipment should only be used indoors
Site in a way that allows access to the power switch, and to allow the cable to be
disconnected
Avoid excessive heat, humidity, dust and vibration ensuring it will not be subjected to
dripping or splashing liquids
8.5 Be Careful With Extremes Of Temperature
In normal use the calibration volume, inserts and probes will become very hot and present
a burn hazard
Do not remove inserts, probes or handle the equipment when it is hot or cold.
Allow the equipment and accessories to reach a temperature between ambient and 70°C
before switching off or storing the equipment in its case
Do not use the equipment outside its recommended temperature range
Operating the equipment at extremes of temperature for extended periods may call for
early replacement of the heating assembly
Wear appropriate protective clothing
8.6 Be Careful With Inserts
Only use inserts supplied with, or ordered specifically for, this model
Do not handle inserts while they are very hot or cold
Inserts for low temperature models may melt and cause a fire if used in high temperature
models
Only use Isotech inserts which are specially treated to avoid them from becoming stuck in
the calibration volume
Do not use powders, liquids or compounds in the insert; this may lead to the insert or
probes becoming stuck
12

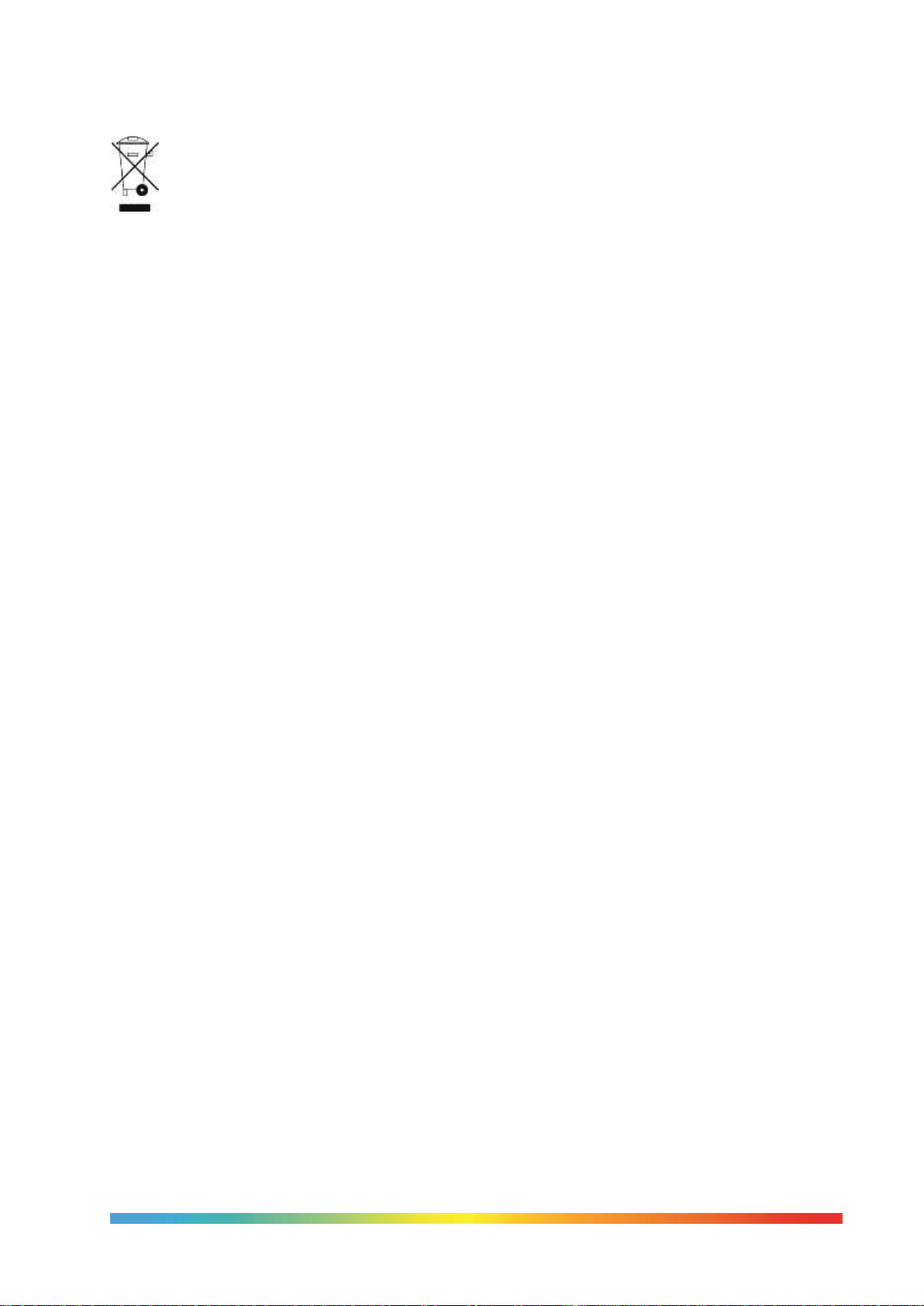

9 Consider The Environment
The equipment should be recycled or disposed of in a proper way; following the Waste
Electrical and Electronic Equipment (WEEE) directive
13
10 Introduction
The purpose of the Europa 4520 models is to provide an adjustable isothermal enclosure for
calibration purposes. It has been designed to be rugged and easily maintained.
The isothermal enclosure consists of a fixed heater block into which an insert can be
placed. Temperature sensors for calibration are placed in suitably drilled holes in the insert. The
replaceable inserts enable a variety of items to be calibrated.
Additionally there are accessories to allow the calibration of surface sensors and also infrared
thermometers.
The heater block houses a heater and the control sensor used by the temperature controller to
sense the block temperature.
There are two electrically driven fans in the unit. One runs continuously and cools the electronics
in the instrument and the other is switched to cool the block when the set temperature is lower
than the block temperature.
10.1 Comparison Calibration
By definition, one compares industrial thermometers to a calibrated standard. There are three
methods commonly used.
10.2 Basic Operation

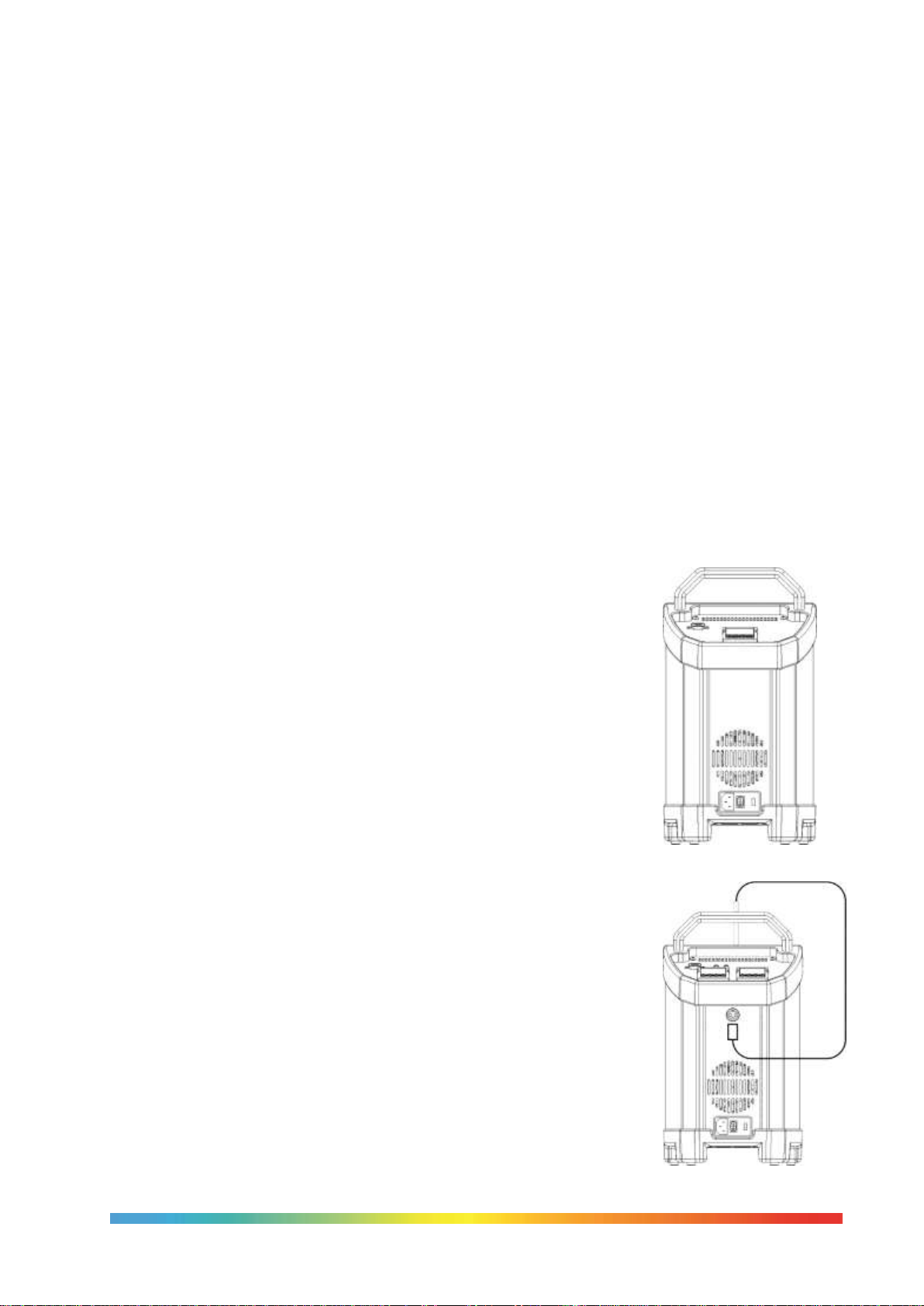

Using the controller as the “calibrated standard”. This method means
that the complete bath is calibrated by comparing the controller reading
to a calibrated standard placed in the bath.
This is a common method but is unsafe since the control sensor is
a) inaccessible
b) in the wrong place to give correct temperature of the insert
For these reasons it fails to satisfy ISO9000 and gives large uncertainties.
10.3 Site or Self-Contained Calibrators
In these an indicator and external calibrated sensor are used to measure
the temperature of the insert. This arrangement gives good results and
traceability. To recalibrate however it does mean sending the whole
calibrator back to the calibration laboratory. The calibrator is selfcontained, self-sufficient and meets ISO9000 requirements.
14

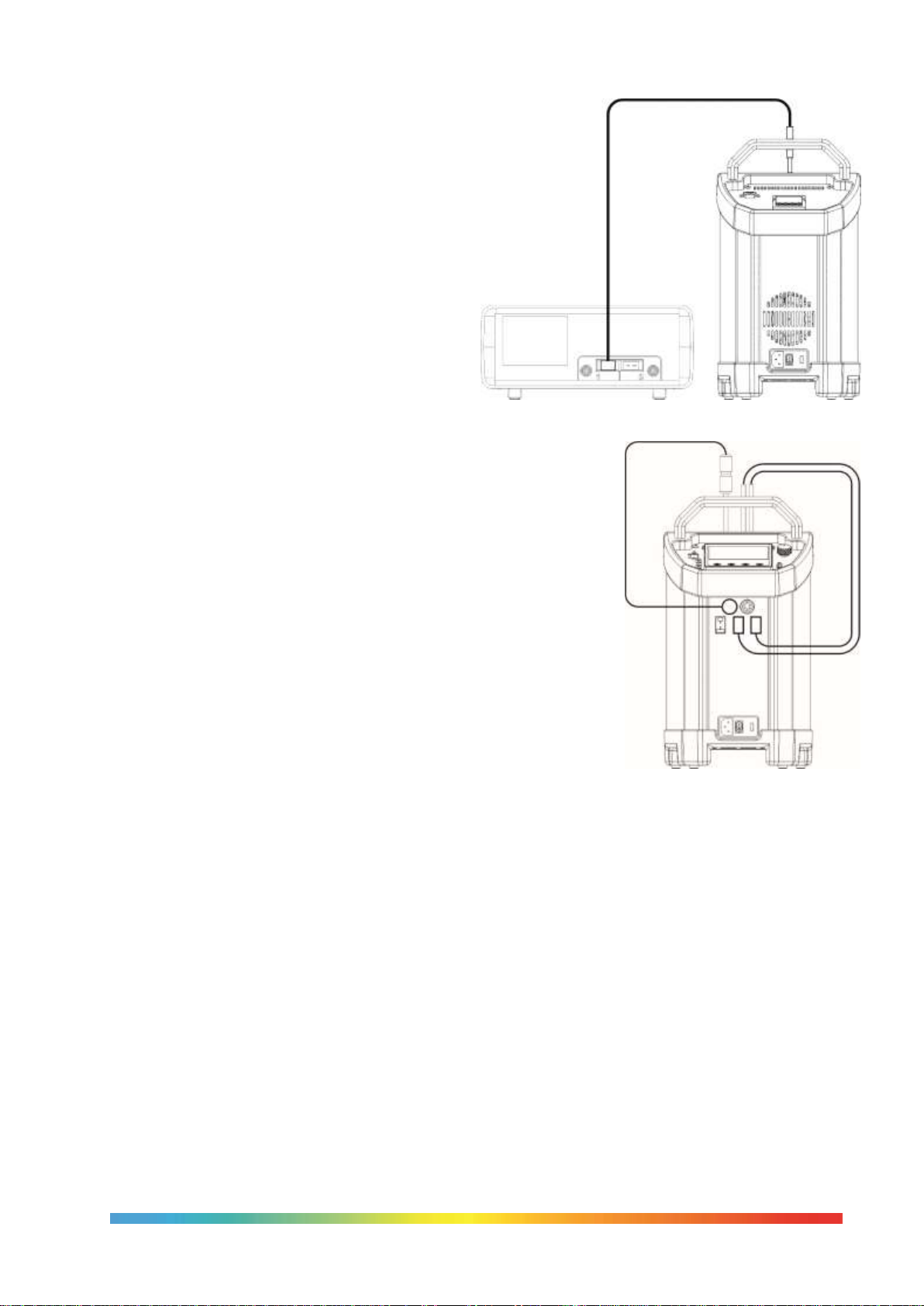

10.4 External Standards + Basic
Here a separate indicator and calibrated sensor
are used to measure the inserts temperature.
With a suitable indicator such as the Isotech
milliK this gives the most accurate and reliable
results, depending on the indicator.
It means that the calibrator does not need
calibrating; only the indicator and its calibrated
sensor need re-calibration. One indicator may
be used with a range of blocks. This method
also meets ISO9000 requirements.
10.5 ADVANCED Calibrators
The ADVANCED model includes an indicator with channels for both
the test thermometers and an external calibrated sensor used to
measure the temperature of the insert. This allows best practice
calibration with established traceability and uncertainty. To
recalibrate however, it does mean sending the whole calibrator
back to the calibration laboratory. The calibrator is self-contained
for reference and test probes, self-sufficient and meets ISO9000
requirements.
15
11 Mode Of Operation
11.1 Metal Block Bath
The thermometers under test are placed into suitable holes in the metal insert. For
the ADVANCED and Site models a calibrated reference probe should be placed into
the insert and the actual temperature can be read from the temperature
indicator. For the Basic models an external temperature indicator should be used.
For traceable calibration the actual value of the insert temperature should be
recorded along with the values from the sensors under test.
Wait until the temperature indicated by the controller and the output of the
thermometer are both stable (see specification for typical values) record three sets
of readings over a period of about six minutes. Check that these readings are
consistent and then calculate their average values. If the device has itself been
calibrated, correct the average values accordingly.
11.2 Blackbody Source
The Blackbody Target Kit (951-06-04) can be added for simple calibration on
infrared thermometers.
Place the target into the well with the supplied thermocouple fitted. For the
ADVANCED and Site models the actual temperature from the thermocouple
can be read from the temperature indicator. For the Basic models an external
temperature indicator should be used. The test IR thermometers should be
compared to this value.
11.3 Surface Sensor Calibration
The Europa 4520 can be used with an accessory to calibrate surface sensors.
The surface sensor insert kit (part number 951-06-02), is placed into the calibration
well.
The supplied PRT is placed in the pocket of the surface sensor insert and connected
to the temperature indicator of the Site models. For the ADVANCED and Site models
the actual temperature from the thermocouple can be read from the temperature
indicator. For the Basic models an external temperature indicator should be used.
The test surface thermometers should be compared to this value.
16
11.4 Stirred Liquid Bath
The stirred liquid bath function of the Europa 4520 is well suited for odd shaped sensors which
will not easily be accommodated in a metal insert.
The Europa 4520 Liquid Container (part number 951-06-01) is placed into the calibration well and
the container is filled with a suitable liquid, see accessory page, for the temperature range that
the bath is to be used over. The container should be filled to 25mm from the top of the tank.
Care must be taken to adjust the level as the liquid contracts or expands with temperature
changes. The stirrer speed control is set ON and to the mid position. If necessary the speed to
can be adjusted to give the optimum value for a particular application, this position should be
found experimentally and then noted for future use.
The thermometers under test are placed into the liquid. Two accessories are available to support
the thermometers.
a) The Thermometer Support Kit (part number 921-02-06) allows thermometers with a
diameter of 2 to 6.5mm to be suspended in the liquid.
b) The Sensor Guide which fits into the tank and can support a number of thermometers
(part number 951-02-24).
It is important that one of the accessories is used to prevent the probes from reaching the bottom
of the tank which would stop the stirring action. For the S models a calibrated reference probe
should be placed into the liquid and the actual temperature can be read from the temperature
indicator. For the B models an external temperature indicator should be used.
For traceable calibration the actual value of the liquid temperature should be recorded along with
the values from the sensors under test.
11.5 ITS-90 Fixed Point Calibration
The ITS-90 fixed point function of the Europa 4520 is well suited for fast, convenient, mess free
calibration of thermometers to uncertainties as low at 0.001°C.
The special cell is placed into the Europa 4520 calibration well. The stir speed control should be
set to the OFF position. For detailed operating information, refer to the separate manual provided
with the Cell
17
11.6 Isotech Basic Dry block interface
1. Main supply voltage connection socket
This socket allow the Mains Voltage to be
applied to power up the equipment. Use
only the supplied lead or a suitably specified
IEC alternative. Confirm the supply voltage
using the ratings label on the rear of the
equipment.
2. Power On/Off switch
Once the Power lead is connected, this
switch will power up and down the
equipment
3. Fuse carrier and window showing fuse
rating
With the mains cable disconnected, the fuse
carrier can be removed for the inspection or
replacement of the fuse. The fuse rating is
displayed through the window.
4. Temperature Controller
Refer to Section 14 for details.
5. Magnetic stirrer speed adjuster
Manual adjustment of the Magnetic stirring speed (where fitted)
6. PC Serial interface
Enables connection to a PC. Refer to Section 16 for details.
18
11.7 Isotech Site Dry block interface
1. Main supply voltage connection socket
This socket allow the Mains Voltage to be
applied to power up the equipment. Use only
the supplied lead or a suitably specified IEC
alternative. Confirm the supply voltage using
the ratings label on the rear of the equipment.
2. Power On/Off switch
Once the Power lead is connected, this switch
will power up and down the equipment
3. Fuse carrier and window showing fuse
rating
With the mains cable disconnected, the fuse
carrier can be removed for the inspection or
replacement of the fuse. The fuse rating is
displayed through the window.
4. PRT input socket
These allow for the connection of external
Platinum resistance thermometers.
Do not connect any other form of input to
these sockets.
5. Thermocouple input socket
These allow for the connection of a range of Thermocouples to be connected.
not connect any other form of input to these sockets.
6. Temperature controller
Refer to Section 14 for details.
7. Magnetic stirrer speed adjuster
Manual adjustment of the Magnetic stirring speed (where fitted)
8. Temperature indicator
9. PC Serial interface
Enables connection to a PC. Refer to Section 16 for details.
10. Switch Contact (thermostat)
Warning:
Warning: Do
19
12 Specification
Model
Parameter
Europa 4520 Basic/Site
Temperature Range
-35°C to 140°C**
Stability
Blackbody ±0.3°C Surface Sensor ±0.5°C ITS-90 Cells
±0.0005°C
Display Resolution
0.01°C from -19.99 to 99.99°C then 0.1°C: 0.01°C over
PC Interface
Uniformity – between Wells Dry Block
Mode (Radial)
<0.008°C
Uniformity – lower 40mm (Axial) Dry
Block Mode
<0.040°C
Uniformity – Radial Liquid Bath Mode
<0.02°C
Uniformity – Lower 40mm (Axial) As
Liquid Bath Mode
<0.026°C
Cools from 140°C to 0°C
in 15 minutes
Heats from -30°C to 140°C
in 15 minutes
Best Performance
See Graph (refer to Section 13)
Calibration volume
35mm diameter by 160mm deep
Standard Insert
6 pockets, 2 x 4.5mm, 2 x 6.4mm, 1 x 8.0mm, 1 x
9.5mm diameter, all 157mm deep
Indicator units
°C, °F, K
Power
115Vac or 230Vac 50/60Hz 150 Watts
Dimensions
384H (including handle) x 212W x 312Dmm
Weight
10.2kg
**
In ambient of 20°C: minimum temperature is 55°C below ambient, absolute minimum -45°C
20
13 Best Performance Graph
Europa heat-up / cool-down graph with insert fitted:
21
14 Operating The Model
14.1 Front Panel Layout
14.1.1 The Temperature Controller
The controller has a dual display, the upper display indicates the nominal block temperature, and
the lower display indicates the desired temperature or setpoint.
14.1.2 Altering the Setpoint
To change the setpoint of the controller simply use the UP and DOWN keys to raise and lower the
setpoint to the required value. The lower display changes to indicate the new setpoint.
14.2 Controller Features
14.2.1 Setpoint Ramp Rate
By default the Dry Blocks are configured to heat and cool as quickly as possible. There may be
some calibration applications where it is advantageous to limit the heating or cooling rate.
An example might be when testing bimetallic thermostats; by forcing the Dry Block to heat at a
controlled rate it is easier to determine the temperature at which the thermostat changes state.
The Dry Block can have its heating rate limited with the Setpoint Ramp Rate feature. This feature
is accessed from the Scroll key. Depress the key until the display shows,
SP.RAT
The upper display will show the current value, and is adjustable from OFF to 999.9. The units are
°C/min and are adjustable via the UP/DOWN keys.
When the SP.RAT is active the lower setpoint display will now automatically update with the
current value, known as the working setpoint. The setpoint can be seen by pressing either the UP
and DOWN key.
The Setpoint ramp rate operates when the bath is heating and cooling.
22
14.2.2 Instrument Address
The controller has a configurable "address" which is used for PC communications. Each instrument
has an address; this allows several instruments to be connected in parallel on the same
communications bus. The default value is 1. This address would only need to be changed if more
than one Dry Block is connected to the same PC port.
To check the Address value press the scroll key until the lower display indicates,
ADDR
The upper display will show the current value that can be modified with the UP and DOWN keys.
14.3 Monitoring The Controller Status
A row of beacons indicate the controllers status as follows,
OP1 Heat Output
OP2 Cool Output (only for models which operate below 0°C)
REM This beacon indicates activity on the PC interface
For models fitted with cool down fans, such as the Calisto and Jupiter, the lower display will
alternate between the setpoint and the message, cooling to temperature. This message is not an
error but is showing that the cooling fan is operating. It will automatically switch off when the
temperature is within 5°C of the setpoint.
14.3.1 Units
Momentary pressing of the Scroll key will show the controller units °C or °F.
23
14.4 The Temperature Indicator: Site Models Only
The Site models include an electronic temperature indicator. The indicator can be configured for
the desired sensor type, and for custom calibration data. The customer calibration data can be
set ON or OFF.
14.5 Connecting Temperature Sensors
14.5.1 Platinum Resistance Thermometers, PRTs
Set the input type to suit from either the front panel of the Isotech Config Software utility.
PRTs can be connected to Inputs P1 and P2. When connecting a PRT ensure the corresponding
thermocouple input is not used, that is if connecting a PRT to Input P1 then Input T1 must not be
used, is if connecting a PRT to Input P2 then Input T2 must not be used.
14.5.2 Input Connections
The five pin cable plug to suit PRTs is part number 935-16-107. These are readily available,
suppliers include RS Components (Part Number 129-8573) and Farnell (Part Number 112-2585).
With three wire PRT connections ensure identical lead resistance in all three legs of the connection
by using the same length and gauge of cables.
14.5.3 Connecting Thermocouples
Set the input type to suit from either the front panel of the Isotech Config Software utility.
Thermocouples can be connected to Inputs T1, T2 and T3. When connecting a thermocouple
ensure the corresponding PRT input is not used, that is if connecting a thermocouple to Input T1
then Input P1 must not be used, is if connecting a thermocouple to Input T2 then Input P2 must
not be used.
Input connectors are the industry standard “miniature thermocouple plugs”.
14.5.4 Setting the Input Type
A 100 Ohm resistance thermometer can be connected to the PRT Connector or a thermocouple
may be connected to the miniature TC Connector.
Ensure that only a PRT or a TC is connected at any one time. If a PRT and TC are
connected simultaneously the indicator will read in error.
Check that any sensor placed into the equipment is suitable for the temperature range. Sensors
can be damaged if taken outside their normal operating limits.
24
The desired sensor type is easily set, press the Scroll key until the lower display indicates,
In.Typ
The upper display will show the current set sensor type,
J.tc J thermocouple
K.tc K thermocouple
L.tc L thermocouple
r.tc R thermocouple (Pt/Pt13%Rh)
b.tc B thermocouple (Pt30%Rh/Pt6%Rh)
n.tc N thermocouple
t.tc T thermocouple
S.tc S thermocouple (Pt/Pt10%Rh)
PL.2 PL 2 thermocouple
rtd 100 Ohm platinum resistance thermometer.
T012 E thermocouple
Again the value can be modified with the UP and DOWN keys.
14.6 Enabling/Disabling Custom Calibration
Custom calibration allows the indicator to be programmed to suit a particular temperature sensor.
This allows the indicator to automatically show the true temperature, without having to manually
apply a correction.
When the Custom or User Calibration is active the indicator will show the REM beacon lit
continuously. The use of User calibration can make a significant difference to the accuracy of the
instrument, and this REM beacon provides a clear and continuous indication of the calibration
status. Isotech will configure and set user calibration when the Dry Block is ordered with a
temperature sensor.
To alter the calibration status press the Scroll key until the lower display shows,
UCAL
The upper display will indicate either,
ON for user calibration
Or
OFF for factory calibration of the indicator
Use the UP and DOWN keys to toggle between the two values.
When calibrating an unknown sensor against a calibrated probe it may be necessary to switch
the calibration off for the unknown, and on for the calibrated probe.
14.7 Instrument Address
Like the controller, the indicator has a configurable "address" which is used for PC
communications. Each instrument has an address; this allows several instruments to be connected
in parallel on the same communications bus. The default value is 2 (The controller defaults to 1).
25
This address would only need to be changed if more than one Dry Block is connected to the same
PC port.
To check the Address value press the scroll key until the lower display indicates,
ADDR
The upper display will show the current value that can be modified with the UP and DOWN keys.
14.8 Monitoring The Indicator Status
For the indicator the REM beacon is lit continuously when the user calibration is active, the REM
beacon flashes when the PC communications port is active.
14.8.1 Units
Momentary pressing of the Scroll key will show the controller units °C or °F.
14.9 Indicator Operation
The indicator can be configured with up to five custom calibration points; the points contain "data
pairs". First the temperature (point) and secondly the Error (offset) at this temperature point.
Isotech Dry Block calibration certificates will show the values to suit a particular sensor.
These values can be inspected, and modified with the following procedure,
Hold the PAGE key down until the display indicates,
CONF
GOTO
then
0
CODE
Set the Code to 2 with the UP key
The display reads,
CONF
Press the Page Key until the controller shows
CAL
Now use the Scroll key to examine the data pairs. The values Pnt 1- Pnt 5 and Ofs 1 to Ofs 5
can be modified with the UP and DOWN keys.
To exit this mode hold the Page key until the top display shows,
CONF
GOTO
And then set the upper display to Lev 1. While in this mode take care not to modify other
parameters.
26
15 Calibration Data Example
A maximum of five points may be entered, shown as Pnt 1 to Pnt 5 for the temperature point
and Ofs 1 to Ofs 5 for the offset values.
The Pnt values must be entered in ascending order.
Set a Pnt to a value lower than the previous point to disable it.
The indicator would be programmed with the following data:
Pnt 1 100 Ofs 1 0.8
Pnt 2 300 Ofs 2 1.1
Pnt 3 500 Ofs 3 2.1
Pnt 4 -999 Ofs 4 0
Pnt 5 -999 Ofs 5 0
15.1 Connecting A 4-20mA Current Transmitter
The transmitter should be powered externally, a 2.49 Ohm current sense resistor is fitted
internally to the equipment and this allows the indicator to read mA input.
To scale the linear to display temperature:
1 The scaling can be configured in the CAL sub-menu within CONF menu.
2 Access the Input sub-menu by pressing the Page button.
3 Set the input type to mV.
4 Press again to enter the mv.hi value (see table below)
5 Press again to enter the mv.lo value (see table below)
6 Press again to enter the rng.hi value (see table below)
7 Press again to enter the rng.lo value (see table below)
8 To exit press Page and Scroll buttons together and select level 1 using the up/down
buttons.
27
28
15.2 Using the Current Loop Interface 935-06-161 with the Site model
Connect the Transmitter to the equipment as shown in the above image.
Note: do not connect 935-06-161 via the PRT socket. The Current Loop interface has built in
resistance and does not require the internal resistance of the equipment. Connect via the
Thermocouple socket only.
29
15.3 Testing Thermal Switches
The Site Model Europa’s include a switch test facility which is used in conjunction with the
supplied Cal Notepad Software. See Cal Note Pad manual or instructions on how to use this.
15.4 Procedure for the reversal of the polarity for the Switch Contact
feature
1. Enter Configuration level on the temperature Indicator as described in INDICATOR
OPERATION
2. Press the PAGE button to enter IO-1
3. Press the Scroll button to enter I.SENSE
4. Use the up/down button to toggle between nor or inv
5. Exit this level by pressing PAGE and SCROLL together and selecting either LEVEL 1 or
LEVEL 2 and the polarity will have changed.
15.5 Selecting Input Type
30
16 Using The PC Interface
The 4000 series models include an RS422 PC interface and a special converter cable that allows
use with a standard RS232 port. When using the bath with an RS232 port it is essential that this
converter cable is used. Replacement cables are available from Isotech, part number ISO-232-
432. A further lead is available as an option, Part Number ISO-422-422 lead which permits up
to 5 instruments to be daisy chained together.
The benefit of this approach is that a number of calibration baths may be connected together in
a "daisy chain" configuration - and then linked to a single RS232, see diagram.
Note: The RS 422 standard specifies a maximum lead length of 1200M (4000ft). A true RS422
port will be required to realise such lead lengths. The Isotech conversion leads are suitable for
maximum combined lead lengths of 10M that is adequate for most applications.
16.1 Connections
For RS232 use simply connect the Isotech cable.
RS422 Connections
Pin Connection
4 Tx+ A
5 Tx- B
8 Rx+ A
9 Rx- B
1 Common
16.2 Protocol
The instruments use the "Modbus Protocol"
If required, e.g. for writing custom software the technical details are available from our
Document Library at www.isotech.co.uk
31
17 Cal Notepad
Cal Notepad can be used can be used to log and display values from the Dry Blocks and an
optional temperature indicator such as the milliK or TTI-10. The software requires Windows 9X,
XP, a minimum of 5Mb of free hard drive space and free serial ports for the instruments to be
connected.
17.1 Development
Cal Notepad was developed by Isothermal Technology using LabVIEW from National
Instruments. The license details are shown on the download page and in the Cal Notepad
manual.
32
17.2 Isotech I-Cal EASY LOG
This application allows logging of data from the 4000 series model. Additionally if a license is
purchased it allows for fully automatic calibration including certificate printing and the calculation
of coefficients.
Refer to the Isotech I-Cal EASY handbook and help system for more details
More information can be downloaded from the Isotech website
http://www.isotech.co.uk/downloads
33
18 Diagnostic Alarms
Display
shows
What it means
What to do about it
E.Conf
A change made to a parameter takes
a finite time to be entered. If the
power to the controller is turned off
before the change has been entered
then this alarm will occur.
Do not turn the power off to the
controller while ConF is flashing
Enter configuration mode then return
to the required operating mode. It
may be necessary to re-enter the
parameter change since it will not
have been entered in the previous
configuration.
E.CaL
Calibration error
Re-instate Factory calibration, refer
to Isotech
E2.Er
EEPROM error
Return to Isotech for repair
EE.Er
Non-vol memory error
Note the error and contact Isotech.
E.Lin
Invalid input type. This refers to
custom linearisation which may not
have been applied correctly or may
have been corrupted.
Go to the INPUT list in configuration
level and set a valid thermocouple or
input type
Emod
IO1, OP2, or OP3 has been changed
If this has been field changed by the
installation of a new board, enter
config level, then exit back to
operator level.
If the message occurs at any other
time return to factory for repair.
Diagnostic alarms indicate a possible fault within the controller or connected devices.
Additional Information;
1. If the input is too high HHHHH will be displayed.
2. If the input is too low LLLLL will be displayed.
34
19 Appendix 1: Indicator Configuration (Reference Only)
Name
Description
Value
unit
Instrument Units
`C (0)
dEcP
Decimal Places in Display
NN.NN
CtrL
Control Type
PID (0)
Act
Control Action
REV (0)
COOL
Cooling Type
LIN (0)
PwrF
Power Feedback Enable
OFF (0)
Pdtr
Manual/Auto Transfer PD
Control
NO (0)
FoP
Forced Output Enable
NO (0)
Sbrt
Sensor Break Type
SB.OP (0)
rnGH
Process Value High Limit
670
rnGL
Process Value Low Limit
0.00
Name
Description
Value
inPt
Linearisation Type
RTD
CJC
CJC Type
(EXT)
imP
Sensor break impedance
AUTO (1)
Name
Description
Value
UCAL
User Calibration Enable
YES (1)
Pnt1
User Cal Point 1
0
Pnt5
User Cal Point 5
-99.00
OFS1
User Cal Offset 1
0.00
Pnt2
User Cal Point 2
-99
OFS2
User Cal Offset 2
0.00
Pnt3
User Cal Point 3
-99
OFS3
User Cal Offset 3
0.00
Pnt4
User Cal Point 4
-99.00
OFS4
User Cal Offset 4
0.00
OFS5
User Cal Offset 5
-99.00
Config.INST
Config.IP
Config.CAL
Note: User Cal values are unique to each instrument. If available set values to those from
calibration certificate
35
Config.AL
Name
Description
Value
AL_1
Alarm 1 Type
OFF (0)
Ltch1
Alarm 1 Latching
NO (0)
AL_2
Alarm 2 Type
OFF (0)
Ltch2
Alarm 2 Latching
NO (0)
AL_3
Alarm 3 Type
OFF (0)
Ltch3
Alarm 3 Latching
NO (0)
AL_4
Alarm 4 Type
OFF (0)
Ltch4
Alarm 4 Latching
NO (0)
Name
Description
Value
id
Module Identity
CMS (7)
Func
Module Function
CMS (65)
bAud
Baud Rate
9600 (0)
Prty
Comms Parity
NONE (0)
rES
Comms Resolution
FUL (0)
Name
Description
Value
id
Module Identity
LOG (3)
Func
Module function
NONE (0)
SEnS
Sense of Output
NOR (0)
Name
Description
Value
id
Module Identity
LOG (3)
Func
Module function
NONE (0)
SEnS
Sense of Output
NOR (0)
Config.HA
Config.1A
Config.2A
36
20 Accessories
Option 1
Standard Dry Block Insert
2 x 4.5mm, 2 x 6.4mm, 1 x 8mm, 1 x 9.5mm x 157mm deep
951-02-15
Option 2 & 3
Liquid Container Kit
951-06-01
Liquid Container
951-02-21
PTFE Collar
951-02-23
Magnetic Followers
932-12-55
Sealing Collar (O Ring)
932-12-57
Sensor Guide
951-02-24
Liquid in Glass Thermometer Support Kit
921-02-06
Gantry
921-02-07
Blank Disc
951-02-20A
Drilled Disc
951-02-20
3 x Gantry Plugs
820-20-24
3 x O Seals
932-12-49
Option 4
Blackbody target
951-06-04
Option 5
Surface Sensor Insert Calibrator Kit
Surface Sensor Insert
Surface Sensor Probe
951-06-02
951-02-19
935-14-83
Option 6
Slim Gallium Cell
17401M
Slim Mercury Cell & Insulation Assembly
17724M
Water Triple Point Cell, Container and 3 Caps
B8/30/130
C10 Silicon Oil (-35°C to 140°C)
520-05-01
Semi Standard PRT
935-14-82/DB
Current Loop Interface
935-06-161
Carrying Case
931-22-111
37
