Iriver SP2000 User Manual

SP2000

INSTRUCTION BOOK

User Guide

CONTENTS

Getting Started

Package Contents Product Overview Power Management Charging Connections Firmware Updates

_01

02 03 05 06 07 13

Using the Device

Basic Operations Home Screen Notification Bar Using Open APP Service AK CONNECT Listening to Music Playlist Management USB DAC Installation How to Use USB Audio CD Ripping AK CD-Player Car Mode Settings Connecting to Wi-Fi Using Bluetooth Equalizer Setup

Miscellaneous

Safety Pre-Cautions Troubleshooting Copyright Certifications Registered Trademarks Disclaimers Specifications

_03

_02

14 18 20 23 24 30 33 36 37 38 40 41 42 48 49 51

54 56 57 58 59 60 61

User Guide

Package Contents

Contents may be changed without prior notice to improve the performance or quality of the product.

SP2000

USB Type-C CablemicroSD Card

Slot Cover

Leather Case & Protective Film: Protect the device and its

screen.

microSD Card Slot Cover: The cover is used to protect the microSD card slot when not in use. It is installed in the product by default.

USB Type-C Cable: For charging and data transfer.

Quick Start Guide: Basic overview of device functionality.

Warranty Card: Provides warranty details for your device.

Maintain a copy of this card since it may be required for future technical support requests.

User Guide: The User Guide can be downloaded from the Astell&Kern website. [http://www.astellnkern.com Support > Download].

Leather Case & Protective Film

Quick Start Guide & Warranty Card

Getting Started 02

User Guide

Product Overview

The appearance of the product, as well as the printed and engraved information, may vary depending on the model.

3.5mm Unbalanced Port/ Optical Out Terminal

2.5mm Balanced Port

Previous/ Rewind

Play/Pause

Next/ Fast-Forward

microSD Card Slot

USB Type-C Port

3.5mm Unbalanced Port / Optical Out Terminal:

- 3.5mm Unbalanced / S/PDIF Port symbol.

For audio output, connect earphones or headphones that utilize a 3.5mm jack. Music can be played back on a S/PDIF

-capable external device via an optical cable.

Power/ Volume

LCD Touchscreen

Home Button

Getting Started

User Guide

Power/Volume: - Power symbol.

Short press - Turns the screen on or off. Press and hold - Turns the device on or off. Turn the wheel to adjust the playback output volume level.

2.5mm Balanced Port: - 2.5mm Balanced Port symbol.

For audio output, connect earphones or headphones that utilize a 2.5mm jack.

microSD Card Slot: - microSD Card Slot symbol.

Insert a microSD card to access its files.

LCD Touchscreen: Display screen with touch control features. Home Button: Press to return to the Home Screen. Play/Pause: Play or pause the current song. Previous/Rewind:

Short press - Play the previous song or restart the current song. Press and hold - Rewind the current song. Next/Fast-Forward: Short press - Play the next song. Press and hold - Fast-forward the current song.

USB Type-C Port: - DC Power symbol.

For charging and data transfer.

Getting Started

User Guide

Power Management

Powering the Device On/Off

1. Press and hold the [Power] button to turn on the device.

2. While the device is on, press and hold the [Power] button to shut down the device. A confirmation message will appear.

3. Press [OK] to turn off the device.

This device has an automatic shutdown feature to save battery power. The device will turn off if there is no user input during the period defined in [Menu - Settings - Timer Settings - Auto Power Off] (See Page 46)

Turning the Screen On/Off

1. While the screen is on, press the [Power] button to turn off the screen.

2. Press [Power] button again to turn it on.

This device has an automatic timeout feature to save battery power. The screen will turn off if there is no user input during the period defined in [Menu - Settings - Timer Settings - Screen Timeout]. (See Page 46)

Reset Function

1. In case of unexpected device failure or freeze, press and hold [Power] for 7 seconds to force a shutdown. The device can then be restarted after the shutdown is complete.

Resetting the device will not affect stored data or time settings. Do not use the reset function while the product is in use. Doing so may corrupt the data on the device.

Getting Started

User Guide

Charging

Charging via USB Wall Adapter

1. Commercially available 9V 1.67A output adapters may be used for charging.

Fast charging time: Approx. 2 hours 30 minutes (Fully discharged, Power-off, 9V 1.67A adapter) / Normal charging: Approx. 5 hours (Fully discharged, Power-off, 5V 2A adapter) A fast charger of 9V 1.67A may be used. Using a 12V adapter will not charge the device and may cause malfunction. The manufacturer shall not be responsible for problems caused by the use of adapters that do not adhere to the recommended specifications.

Getting Started

User Guide

Connections

3.5mm Unbalanced Port

1. Connect earphones or headphones to the 3.5mm unbalanced port.

2.5mm Balanced Port

Connect earphones or headphones to the 2.5mm balanced port.

Connecting to a Balanced Audio Device

1. Connect to an external audio device by using the 3.5mm unbalanced port and 2.5mm balanced port.

Unbalanced

Port (Ground)

Balanced Port (LR)

Getting Started

User Guide

Connecting to S/PDIF OUT

1. Using an optical cable, connect the SP2000 to a S/PDIFcapable external device to output music through the external

device. Enable output format conversion from [Menu > Settings > S/PDIF Conversion] to convert the output to a predefined format upon S/PDIF connection.

DSD format is converted to PCM when using S/PDIF OUT. With PCM, the output bit (16/24-bit) and sample (48/96/192 kHz) rates can be selected. The volume will be fixed at the maximum level. Audio may not be reproduced if the specifications of the external device and output format are incompatible. Refer to the respective instruction manual of each device before use.

Getting Started

User Guide

Connecting to a Computer

1. Turn on the device and your computer.

Use the USB Type-C cable to connect the device to a computer

in accordance with settings in [Menu - Settings - USB Mode]. [Default] Media Device (USB Drive): Transfer files from a computer to the device. DAC Input: Listen to music on a connected computer through the device. (See Page 37)

Mac users need to download and install Android File Transfer from the Astell&Kern website. [http://www.astellnkern.com > Support > Download] For an optimal connection, quit any unnecessary programs before connecting the device to the computer. Do not use cables other than the USB Type-C cable provided with the device. Doing so may cause malfunctions. Use USB 2.0 only on Mac. Type-C-to-Type-C cable is recommended when connecting with a MAC that supports Type-C port.

Getting Started

User Guide

Copy Files (Folders) to the Device

1. To copy files/folders from your computer, select the desired

files/folders and drag & drop them into the device folder.

Ensure the USB Type-C cable is properly connected. Turning off the device, computer or disconnecting the USB Type-C cable while copying or moving files/folders may corrupt files or device memory. File transfer speeds may be affected by the computer and/or the OS environment.

Getting Started

User Guide

Delete Files (or Folders) from the Device

1. Select the file/folder to delete, right-click the mouse, and

then select [Delete].

2. Select [Yes] in the [Confirm File/Folder Deletion] window

to delete the selected files/folders.

Disconnecting from the Computer

1. Disconnect the USB Type-C cable after the transfer between

the device and computer is complete.

Disconnecting the device from the computer during a file transfer may corrupt data on the device.

Getting Started

User Guide

Insert/Remove a microSD Card

1. Refer to the diagram and gently

insert a microSD card into the microSD card slot.

2. To safely remove a microSD card,

on the Home Screen, select [Safely remove SD card] from the Notification Bar or select [Unmount SD card] from [Menu - Settings - System Information].

3. Gently press the microSD card in

to unlock and release it from the slot.

Recommended microSD Cards

SAMSUNG, SANDISK

Maximum Capacity: 512GB Notes on Inserting a microSD Card Do not force the microSD card into the slot. Doing so may cause malfunction of the product and damage to the card. Do not repeatedly insert/remove the microSD card. If not inserted properly, the microSD card may cause product malfunctions and may become lodged in the product. Notes on Removing a microSD Card Be sure to safely remove the microSD card from the device. Not following the proper procedure may corrupt data and cause serious damage to the both the card and device. Do not remove the microSD card during use. Doing so may cause malfunction, delete data and damage the microSD card.

Getting Started

User Guide

Notes on Using a microSD Card If the microSD card is not recognized or functions improperly, format the card, preferably in the FAT32 system. Using cards other than the recommended microSD card types may cause malfunctions. A microSD card is not included in the product package. Please purchase separately.

Firmware Updates

Wi-Fi Update / OTA (Over-the-Air)

1. Connect to a wireless network.

2. If a new firmware update is available, the screen will

display a Firmware Update Guide window.

3. Select [Update].

4. Follow the on-screen instructions to proceed with the

firmware update.

For Wi-Fi connections, see Page 48. The firmware update may not start if the battery level is too low. (A minimum battery level of 20% is required.) Do not disconnect from the wireless network while downloading the update file. Doing so may cause data corruption and/or damage to the system. If an error occurs or the notice in the Notification Bar disappears during an update, download the firmware update again through [Menu - Settings - Update - System]. Moving to another screen during a file download will cancel the download.

Getting Started

User Guide

Basic Operations

LCD Touchscreen

1. This device features a LCD touchscreen that allows you

to perform operations by touch. Use the touchscreen to access various features on the device.

To prevent damage to the screen, do not use a sharp object or excessive force.

Return to the Home Screen

1. Press [ ] at any time to return to the Home Screen.

Home Screen

Using the Device

User Guide

From the Home Screen, swipe your finger to the left, right, up or down from any edge of the touchscreen to access display menus. Each side of the Home Screen will activate a different display menu.

Main Menu

1. From the left edge of the touchscreen, swipe your finger

right to display the Main Menu, or tap the “A” icon in the upper left corner of the screen.

Music files extracted using the AK CD-Ripper accessory that are stored in the Ripping folder of the internal memory will be displayed in the CD library menu.

Using the Device

User Guide

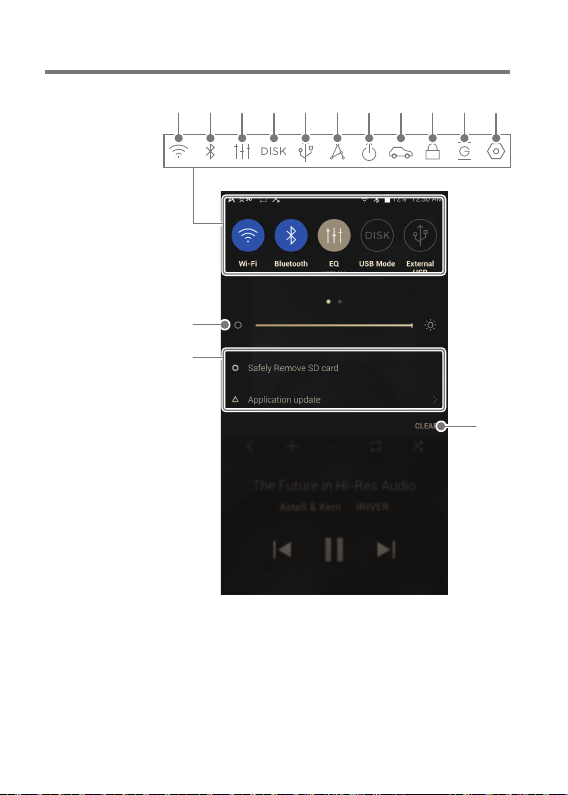

Notification Bar

1. From the top edge of the touchscreen, swipe your finger

down to display the Notification Bar.

View Current Playlist

1. From the right edge of the touchscreen, swipe your finger

left to display the Now Playing menu.

Using the Device

User Guide

View Play History

1. From the bottom edge of the touchscreen, swipe your

finger up to display the Play History menu.

Moving Up/Down on a List

1. Scroll through a list by dragging your finger up or down.

Using the Device

User Guide

Home Screen

Details

Song Progress

Recent Menu List

Add to Playlist

Title

Artist/Album

Displays the Main Menu.

Displays current song information.

Indicates song duration.

Go to the last displayed menu list.

Add the current song to a playlist.

Song title information. File name is displayed when the title is unavailable.

Displays the artist and album info.

Using the Device
