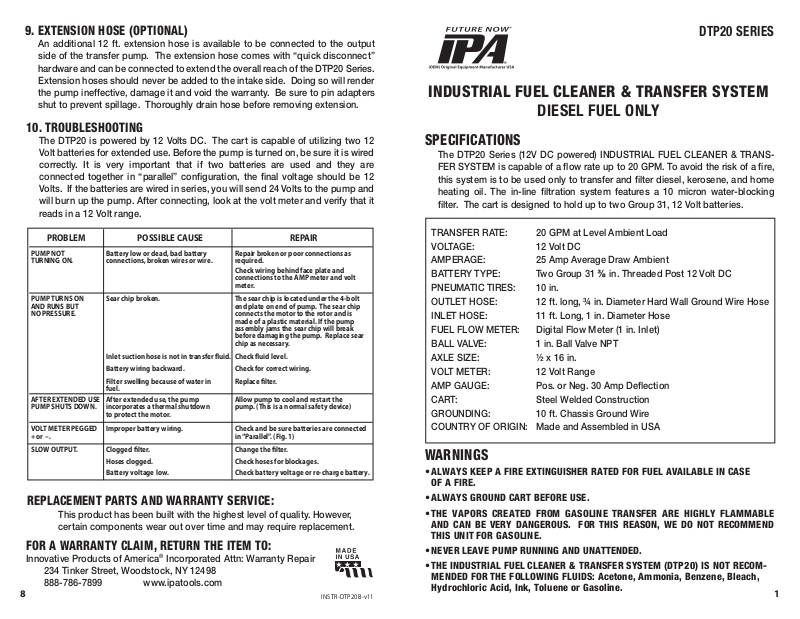

9. EXTENSION HOSE (OPTIONAL)
An additional 12 ft. extension hose is available to be connected to the output
side of the transfer pump. The extension hose comes with “quick disconnect”
hardware and can be connected to extend the overall reach of the DTP20 Series.
Extension hoses should never be added to the intake side. Doing so will render
the pump ineffective, damage it and void the warranty. Be sure to pin adapters
shut to prevent spillage. Thoroughly drain hose before removing extension.
10. TROUBLESHOOTING
The DTP20 is powered by 12 Volts DC. The cart is capable of utilizing two 12
Volt batteries for extended use. Before the pump is turned on, be sure it is wired
correctly. It is very important that if two batteries are used and they are
connected together in “parallel” configuration, the final voltage should be 12
Volts. If the batteries are wired in series, you will send 24 Volts to the pump and
will burn up the pump. After connecting, look at the volt meter and verify that it
reads in a 12 Volt range.
DTP20 SERIES
INDUSTRIAL FUEL CLEANER & TRANSFER SYSTEM
DIESEL FUEL ONLY
SPECIFICATIONS
The DTP20 Series (12V DC powered) INDUSTRIAL FUEL CLEANER & TRANSFER SYSTEM is capable of a flow rate up to 20 GPM. To avoid the risk of a fire,
this system is to be used only to transfer and filter diesel, kerosene, and home
heating oil. The in-line filtration system features a 10 micron water-blocking
filter. The cart is designed to hold up to two Group 31, 12 Volt batteries.
PROBLEM POSSIBLE CAUSE REPAIR
PUMP NOT
TURNING ON.
PUMP TURNS ON
AND RUNS BUT
NO PRESSURE.
AFTER EXTENDED USE
PUMP SHUTS DOWN.
VOLT METER PEGGED
+ or
-
.
SLOW OUTPUT.
Battery low or dead, bad battery
connections, broken wires or wire.
Sear chip broken.
Inlet suction hose is not in transfer uid.
Battery wiring backward.
Filter swelling because of water in
fuel.
After extended use, the pump
incorporates a thermal shutdown
to protect the motor.
Improper battery wiring.
Clogged lter.
Hoses clogged.
Battery voltage low.
Repair broken or poor connections as
required.
Check wiring behind face plate and
connections to the AMP meter and volt
meter.
The sear chip is located under the 4-bolt
end plate on end of pump. The sear chip
connects the motor to the rotor and is
made of a plastic material. If the pump
assembly jams the sear chip will break
before damaging the pump. Replace sear
chip as necessary.
Check uid level.
Check for correct wiring.
Replace lter.
Allow pump to cool and restart the
pump. (This is a normal safety device)
Check and be sure batteries are connected
in “Parallel”. (Fig. 1)
Change the lter.
Check hoses for blockages.
Check battery voltage or re-charge battery.
TRANSFER RATE: 20 GPM at Level Ambient Load
VOLTAGE: 12 Volt DC
AMPERAGE: 25 Amp Average Draw Ambient
BATTERY TYPE: Two Group 31 ⅜ in. Threaded Post 12 Volt DC
PNEUMATIC TIRES: 10 in.
OUTLET HOSE: 12 ft. long, ¾ in. Diameter Hard Wall Ground Wire Hose
INLET HOSE: 11 ft. Long, 1 in. Diameter Hose
FUEL FLOW METER: Digital Flow Meter (1 in. Inlet)
BALL VALVE: 1 in. Ball Valve NPT
AXLE SIZE: ½ x 16 in.
VOLT METER: 12 Volt Range
AMP GAUGE: Pos. or Neg. 30 Amp Deflection
CART: Steel Welded Construction
GROUNDING: 10 ft. Chassis Ground Wire
COUNTRY OF ORIGIN: Made and Assembled in USA
WARNINGS
• ALWAYS KEEP A FIRE EXTINGUISHER RATED FOR FUEL AVAILABLE IN CASE
OF A FIRE.
REPLACEMENT PARTS AND WARRANTY SERVICE:
This product has been built with the highest level of quality. However,
certain components wear out over time and may require replacement.
• ALWAYS GROUND CART BEFORE USE.
• THE VAPORS CREATED FROM GASOLINE TRANSFER ARE HIGHLY FLAMMABLE
AND CAN BE VERY DANGEROUS. FOR THIS REASON, WE DO NOT RECOMMEND
THIS UNIT FOR GASOLINE.
FOR A WARRANTY CLAIM, RETURN THE ITEM TO:
Innovative Products of America® Incorporated Attn: Warranty Repair
234 Tinker Street, Woodstock, NY 12498
888-786-7899 www.ipatools.com
8 1
• NEVER LEAVE PUMP RUNNING AND UNATTENDED.
• THE INDUSTRIAL FUEL CLEANER & TRANSFER SYSTEM (DTP20) IS NOT RECOM-
MENDED FOR THE FOLLOWING FLUIDS: Acetone, Ammonia, Benzene, Bleach,
INSTR -DTP20B -v11
Hydrochloric Acid, Ink, Toluene or Gasoline.
• DO NOT TRANSFER GASOLINE: Although the DTP20 DC powered transfer pump
can transfer gasoline and no damage will occur to the pump, it is NOT recommended. Because of the DC application of the fuel transfer cart, there is a
potential danger of battery sparks igniting gasoline that may have spilled or
collected on the cart from prior use. One gallon of gasoline is equivalent to
three sticks of dynamite and the possibility of great harm or bodily injury
exists if ignited. Please also be careful in calm or dry climate as this increases
the risk of static. ALWAYS USE THE GROUND WIRE PROVIDED.
• THE DTP20 IS RECOMMENDED FOR TRANSFERRING OF THE FOLLOWING FLUIDS:
Diesel, Kerosene, Heptanes, Mineral Spirits and Hexane.
• NO SMOKING or any type of ignition. No exceptions.
SET UP
1. BATTERY INSTALLATION
PRIOR TO REMOVING THE BATTERY, BE CERTAIN TO COMPLETELY
CLEAN ANY FUEL OIL IN THE BATTERY AREA. AVOID ARCING!
TO REMOVE THE BATTERY PROTECTION COVER:
and slide the plate out towards the back. Then install two well-charged
Group 31, 12 Volt Batteries. One well-charged Group 31 Battery can last
up to four hours and eight hours with two batteries. When installing
batteries, keep in mind that only proper parallel wiring polarity produces
12 Volts (See Fig. 1). DO NOT WIRE BATTERIES IN SERIES AS THIS
BRINGS THE POWER UP TO 24 VOLTS, DAMAGE THE UNIT AND
POSSIBLY CAUSE A FIRE. THIS VOIDS THE WARRANTY.
Remove the screws
FILTER
HOUSING (M)
PUMP (B)
8 FT. INLET
HOSE (I)

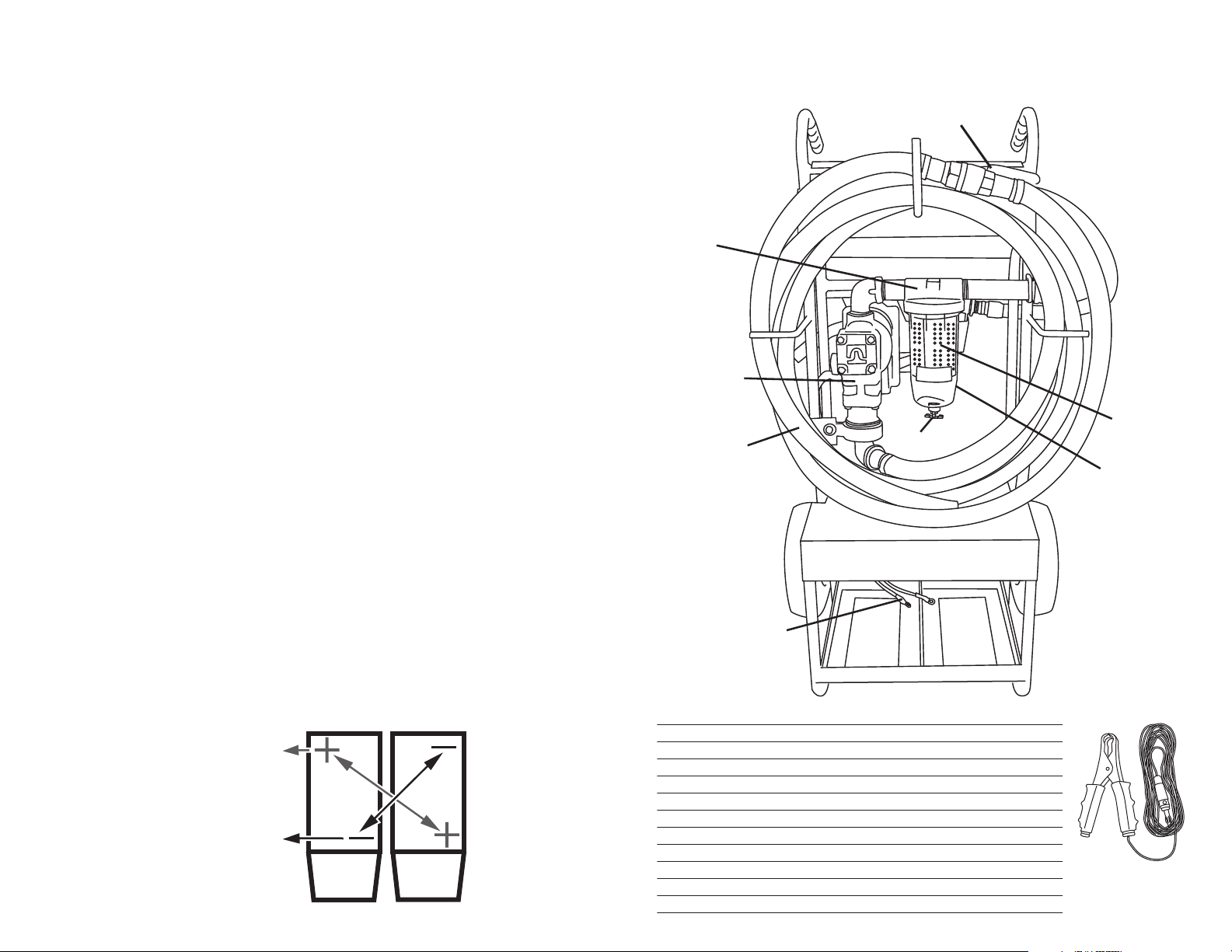

DTP20B PARTS
BACK VIEW
BALL VALVE & 3 FT.
EXTENSION (F)
PETCOCK
(DRAIN)
FILTER
ELEMENT (C)
CLEAR
FILTER BOWL
(D)
After proper installation of batteries, check the volt meter for correct 12 Volt
indication. Slide the battery protection cover back over the batteries and
reinsert the screws. Be careful not to touch the battery terminals with the metal
cover; you could create a spark and ignite any nearby fuel or oil.
CORRECT BATTERY INSTALLATION:
WARNING: FOR SAFE INSTALLATION, CONNECT 12 VOLT BATTERIES IN PARALLEL
BATTERY
CONNECTORS
Fig. 4
WITH POSITIVE TO POSITIVE AND NEGATIVE TO NEGATIVE. ANY OTHER CONFIGURATION IS INCORRECT AND WILL DAMAGE THE PUMP AND VOID THE WARRANTY.
POSITIVE
TO PUMP
PARALLEL WIRING
POSITIVE TO POSITIVE
NEGATIVE TO NEGATIVE
NEGATIVE
TO PUMP
12V DC
GROUP 31
2 7
BATTERIES NOT INCLUDED
12V DC
GROUP 31
Fig. 1
DE SCR IPTIO N PAR T N UMB ER
K = T OP PAN EL CR T1- PANE L1YLW
L = LO WER PAN EL CR T1- PANE L2YLW
M = FI LTER HO USI NG F IL000 01
N = FRA ME ASS EMBLY CR T1- ASBLK
O = DC CHARGE PORT/CIGARETTE SOCKET 79 00K- 33
P = G ROU ND W IRE IN LET 7900K- 13A
Q = CHASS IS GR OUND CA BLE 79 00K-2BC HAS
R = V OLT M ETE R ME T00 002
S = WIR E M ESH SCREEN INSE RT TMN 0001-1
T = HAN DLE GR IP VH G00 001
PLUM BING FI TTI NG PACK PLM B-P K1
CHASSIS GROUND
CABLE (R)
TOP
PANEL(K)
OUTLET
HOSE (E)
WIRE MESH
SCREEN
INSERT (S)
FRAME
ASSEMBLY (N)
LOWER
PANEL(L)
AXEL (G)

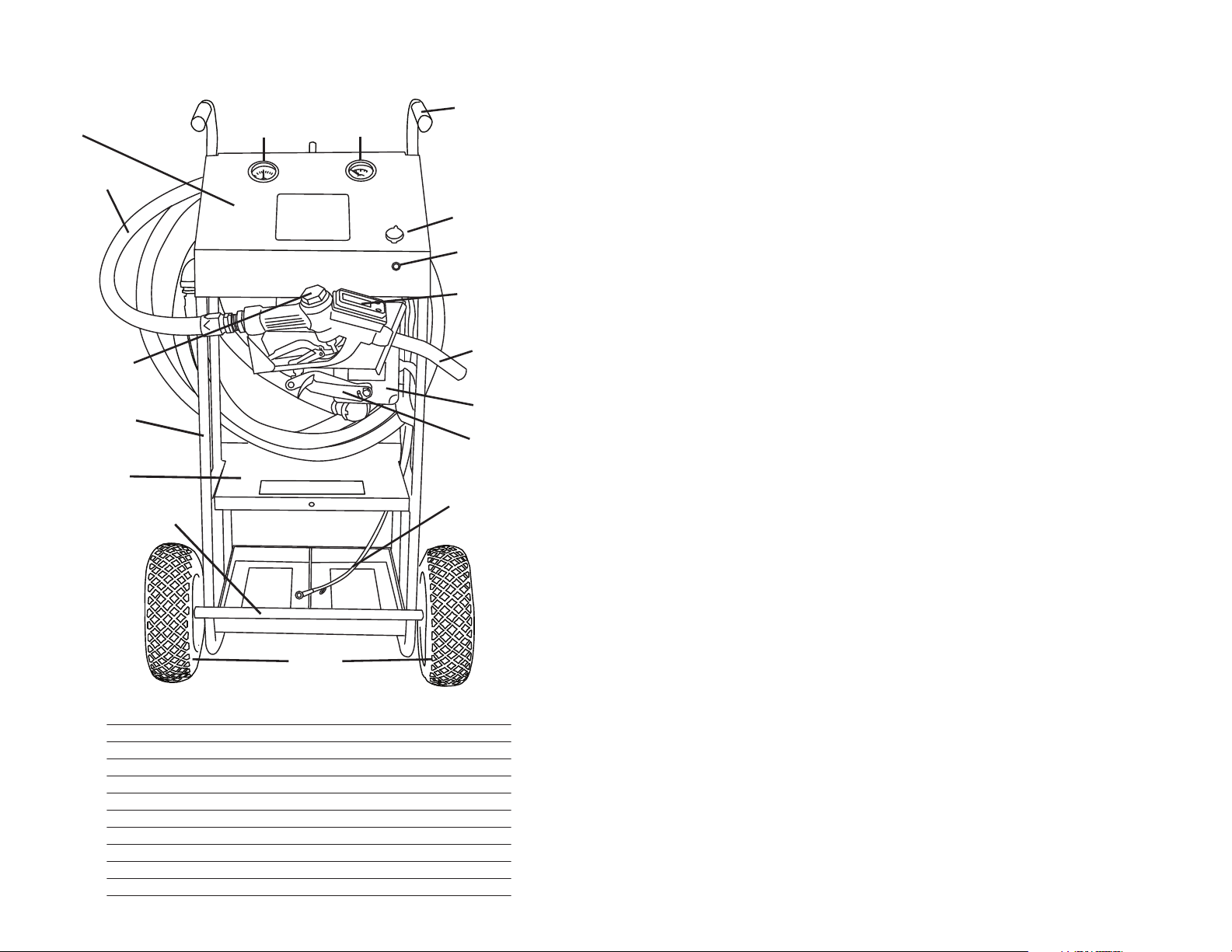

DTP20B PARTS
FRONT VIEW
AMP
METER (A)
VOLT
METER (R)
HANDLE
GRIP (T)
DC CHARGE PORT/
CIGARETTE SOCKET
(O)
GROUND
WIRE INLET (P)
METER
NOZZLE (J)
PUMP (B)
ON/OFF
LEVER
BATTERY
CONNECTORS
2. OPERATIONAL TESTING PRIOR TO USE
DO NOT TURN THE UNIT ON UNLESS PROPER WIRING IS VERIFIED. Only
short durations of dry-running the pump should be used for operational verification. Continuous dry-running of the pump will damage the pump unit and void
warranty. To operate the pump assembly, move the lever handle (Chrome Foot)
UP for the “ON” position. The switch is located on the right side of the pump
assembly. Once the pump unit is turned on, you should hear the pump running.
Then verify proper 12 Volt connection.
3. FUEL TRANSFER AND OPERATIONAL USE
After setting up the DTP20 according to the directions and safety instructions,
you are now ready to transfer fuel oil. The DTP20 is fully mobile and capable of
traversing most terrains. Roll the DTP20 out to a tank that has fuel in it. Attach
ground wire to create ground from the tank to the cart. Afterward, insert the
suction side of the intake hose assembly into the tank you are transferring the
fuel from. BE SURE THE BALL VALVE IS LEFT OPEN WHEN TRANSFERRING
FUEL. Once the suction side is correctly installed in the tank, then zero the fuel
flow meter prior to fuel transfer (See “TO VIEW VOLUME FLOW” on pg 6).
Before turning on the fuel pump, insert the pump nozzle into the tank where the
fuel oil is being transferred. Pull the trigger on the handle and begin transferring
fuel. While fuel is being transferred, be diligent in looking for any leaks or spills.
For the best transfer rate, keep the suction side as close to level as possible and
keep your batteries fully charged. DO NOT WEDGE any object in the trigger to
keep the pump handle “ON”. Running the pump dry will cause permanent
damage and void the warranty. Listen for the fuel or observe the flow from the
nozzle to determine when to shut off the pump. Always have an emergency spill
kit ready in case of a spill.
WHEELS
(H)
Fig. 3
4. FUEL TRANSFER WITH REDUCED ADAPTER:
If you are not just transferring fuel but would like to sweep the debris off the
bottom of a fuel tank, the use of the smaller ¾” adapter is recommended. To use
DE SCR IPTIO N PAR T N UMB ER
A = A MP METER 790 0K-1 7
B = PU MP PM P00 001
C = FILT ER ELEME NT F IL0 000 2
D = CL EAR FI LTER B OWL FI L00 001-1
E = 12 FOO T OUT LET HOS E HS -RB 12
F = BAL L VA LVE & 3 FOOT E XTE NSION DTP 20B -3AS
G = A XLE CR T1- AXLEA
H = WHE ELS 79 00K-48
I = 8 FO OT I NLE T H OSE HS -CL R8
J = NO ZZL E W/ ME TER & SCR EEN TM N00 01
the 3/4” adapter, remove the 8’ X 1” hose assembly from the lower intake pump
port. Install the ¾” hose assembly. At this point you can also install the ½”
adapter on the end of the ¾” hose and use it for sweeping or accessing small
tank openings.
6 3
5. METERS
The Amp Meter displays the amount of current the pump is drawing from the
batteries. Several factors affect the amount of current drawn from the batteries,
such as length of hose, temperature, fluid viscosity, and the condition of terminal connections. The pump typically draws between 20-30 amps under normal
operating conditions. Look for a positive indication on AMP and VOLT meter to
confirm proper battery connections.
The Voltage Meter indicates proper battery connections and current condition
of the batteries at standstill and under load. This pump should not be run when
the battery’s voltage reads less than 11.0 volts. A fully charged battery should
read approximately 12.4 volts DC before the load is applied.
MAINTENANCE AND BATTERY INSTALLATION:
• Periodically remove Nozzle screen and clean any dirt and debris from the wire
mesh.
• To change batteries, remove the outer 4 screws holding the digital screen.
Remove digital screen housing to reveal batteries. Reverse process for
reassembly.
Current Flow Range: 0.00-9999.9
Total Flow Range: 0-99999
Accuracy: 4%
Battery Type: AA x 2
Battery Life: 9000 Hrs
Stand-by Time: 2 Years (approx)
Operating Temp: 14 F – 140 F
CALIBRATE
DISPLAY
LBat
LTR
GAL
PT
QT
6. FILTERS & SCREENS
The DTP20 Series comes standard with a water blocking 10 Micron filter. The
filter element will permanently swell when water is present. Once in contact
with water the filter will prevent any fluid from transferring through the DTP20
and will need to be changed. This swelling is not visible to the naked eye. A
noticeable decrease in flow rate displayed on the meter along with visible water

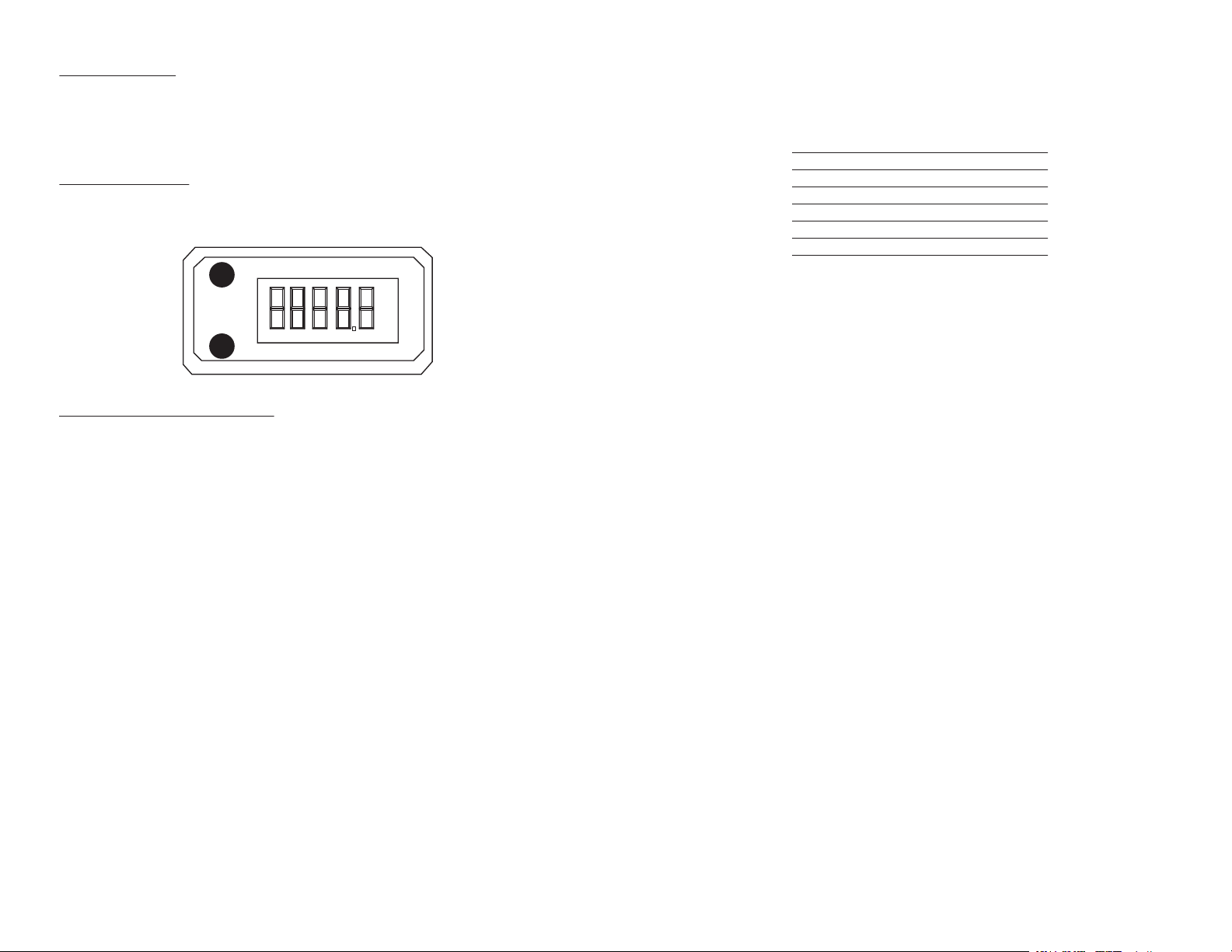

Fig. 2 -Digital Flow Meter on Nozzle
The Digital Flow Meter/Nozzle is a mechanical fuel nozzle with built in digital
flow meter and fuel filter. The user can select gallons, liters, quarts or pints as
the desired unit of measurement while transferring fuel. The meter comes with
(2 AA Included) internal batteries that last approximately 9000 hours before
needing to be replaced. The digital meter features a resettable flow meter with
a lifetime tally. The nozzle has a removable wire mesh screen that can be
cleaned to prevent dirt or debris from passing through. The nozzle is designed
to be hand operated only and DOES NOT feature an automatic shut off, so the
user must NEVER LEAVE THE NOZZLE UNATTENDED while transferring fuel and
NEVER WEDGE AN OBJECT, such as a gas cap into the lever.
The following are instructions for viewing, resetting and changing various
functions of the fuel meter.
TO SELECT UNIT OF MEASURE:
The following are instructions for viewing, resetting and changing various functions of the
fuel meter.
TO SELECT UNIT OF MEASURE:
• Hold down the “Calibrate” button until screen changes (approx. 5 seconds)
- Then press “display” button repeatedly until unit of measure is highlighted (Gallons,
Liters, Quarts or Pints )
- Press Calibration button repeatedly to choose the desired unit of measure.
• Press the “Display” button repeatedly to select from Gallons, Liters, Quarts or Pints.
• Once the desired Unit of Measure is selected allow screen to sit untouched for 10
seconds to lock it in.
TO VIEW VOLUME FLOW:
• Current Flow volume is displayed on the screen at all times, by default.
• Total Volume (lifetime tally) is viewed by pressing the Calibrate Button. After 10
seconds, the screen will default back to Current Flow Volume.
• Resetting Flow Meter: Press and Hold the “Display” button for 1 Second then release.
4 5
This will reset the meter to zero.
in the clear bowl are indicators that your fuel is contaminated. Immediately turn
off the pump and check the fuel source. Water and fuel can be drained from the
pet cock before changing the filter. The flow rate may also be affected by the
addition of devices that add resistance e.g. Flow Line, Hoses, Flow Meter,
obstruction of the Screens, etc. Other factors such as the temperature of the oil
being transferred can affect the flow rate. The colder the fluid being transferred,
the slower the flow rate and the greater the current draw.
7. MAINTAINING BATTERIES
Battery connections should always be kept clean and free of corrosion. Corrosion on the battery terminals causes resistance and leads to premature battery
failure. While two Group 31 batteries provide enough power to transfer thousands of gallons of fuel, it is important that these batteries be fully recharged
after each usage. To charge your batteries when still connected to the pump,
connect your battery charger’s positive lead to the positive lead of the first
battery and the negative lead to the negative lead of the other battery. Follow
standard battery care charge time and procedures. If the cigarette charger is
used, install it to a DC outlet charger only. The DTP20 Series does not come
with a battery charger.
NOTE: WHEN BATTERIES ARE CONNECTED IN PARALLEL, THEY TAKE
APPROXIMATELY TWICE AS LONG TO FULLY CHARGE. DO NOT USE A
TRICKLE CHARGER THAT EXCEEDS 10 AMP DC OUTPUT.
8. TIRES MAINTENANCE
Your pump has been fitted with heavy duty pneumatic tires. These tires
increase the life of your pump by reducing vibration and jarring to the frame and
components. The tires allow for easy movement over rough terrain. The pneumatic tires have many advantages, but it is important to maintain them properly.
The tires require 8 psi of air pressure for proper inflation. Always check your air
pressure to achieve optimum performance over rough terrain. Avoid sharp
objects and sidewall punctures.
Loading...
