Zip® 250™ Drive
FireWire
®
Accessory
Quick Install
Insert the IomegaWare™ software CD and install the
software.
The software will work with all Iomega FireWire® and USB drives.
Macintosh
®
users—Double-click on the IomegaWare installer™ icon.
PC users—If the CD does not start automatically, double-click on the CD
icon in My Computer, then double-click on the Setup.exe icon. To access
the User’s Manual, see step 6 in this booklet.
1
Connect the FireWire® Accessory to the Zip® 250™ drive.
NOTE: The FireWire™ Accessory locks onto the Zip® 250™ connector. Always
connect the Zip 250 FireWire Accessory before connecting the FireWire
cable.
To remove the FireWire™ Accessory, disconnect the FireWire™ cable first,
then pull firmly.
2

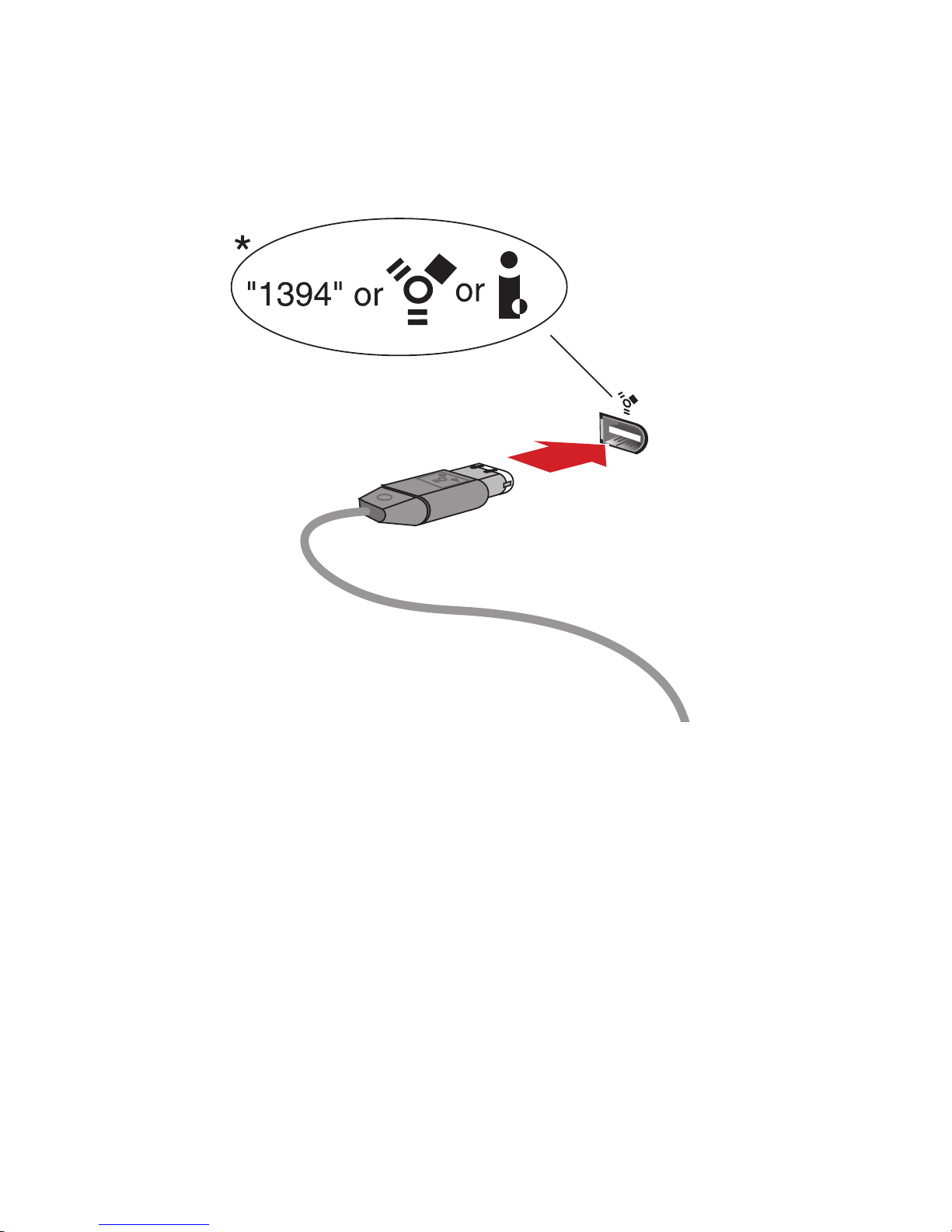

Restart the system. Plug the FireWire® cable into the computer.
A “1394” logo* will identify the connector on your computer. The drive
can be connected or disconnected to the computer while the computer is on.
CAUTION! If you are connecting multiple FireWire® devices view the User’s
Manual HTML (see step 6 in this booklet) for important power information
to prevent potential system or device damage.
3
*

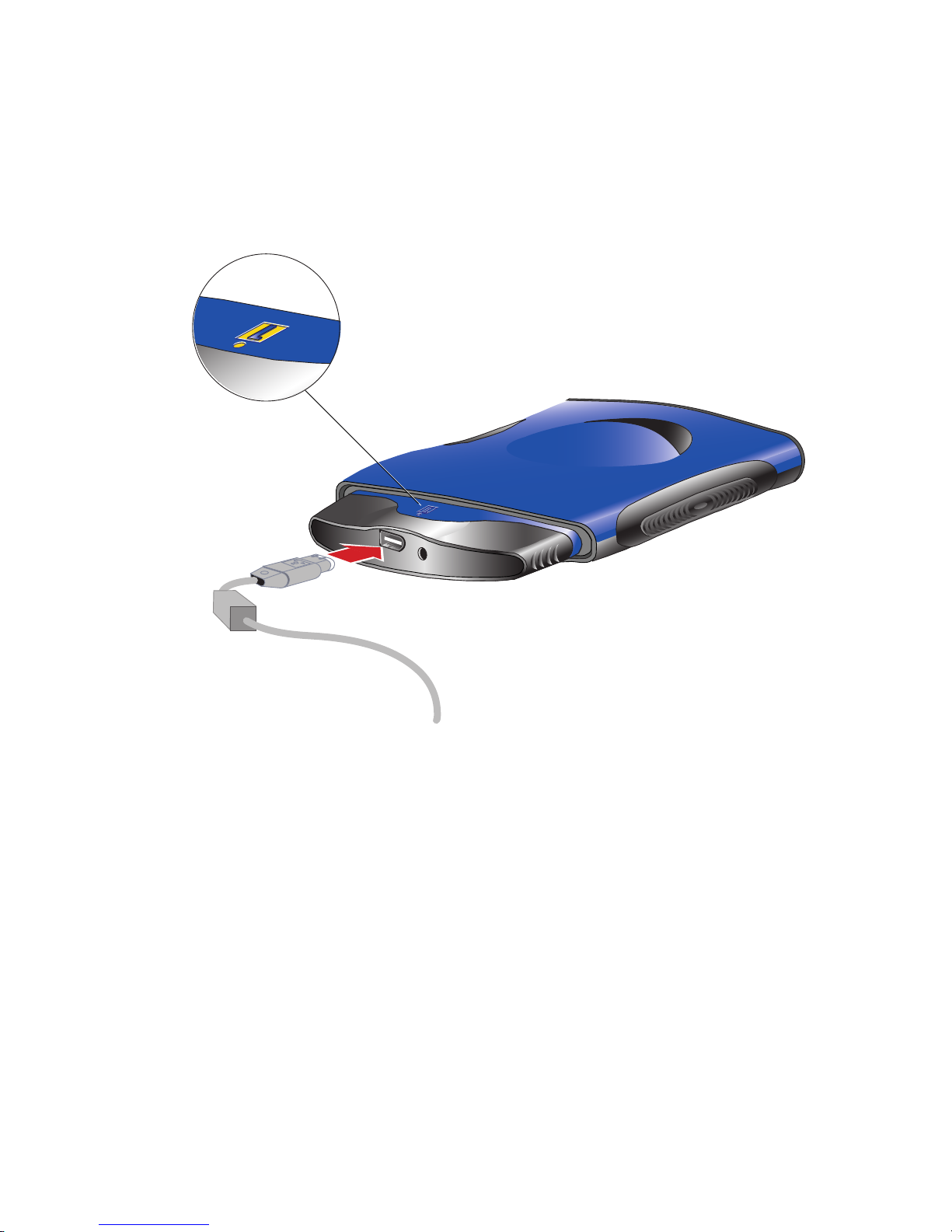

Connect the FireWire® cable to the Accessory (as shown).
If the light on the top of the FireWire® Accessory* does not come on,
connect the Zip
®
250™ power supply.
IMPORTANT! Windows® 98 SE users: If you see the dialog box “Please
insert the disk labeled Windows 98 Second Edition CD-ROM.” Insert the
CD that came with the FireWire® Accessory instead. Click OK.
This message will only appear the first time you connect the Accessory.
4
5
*

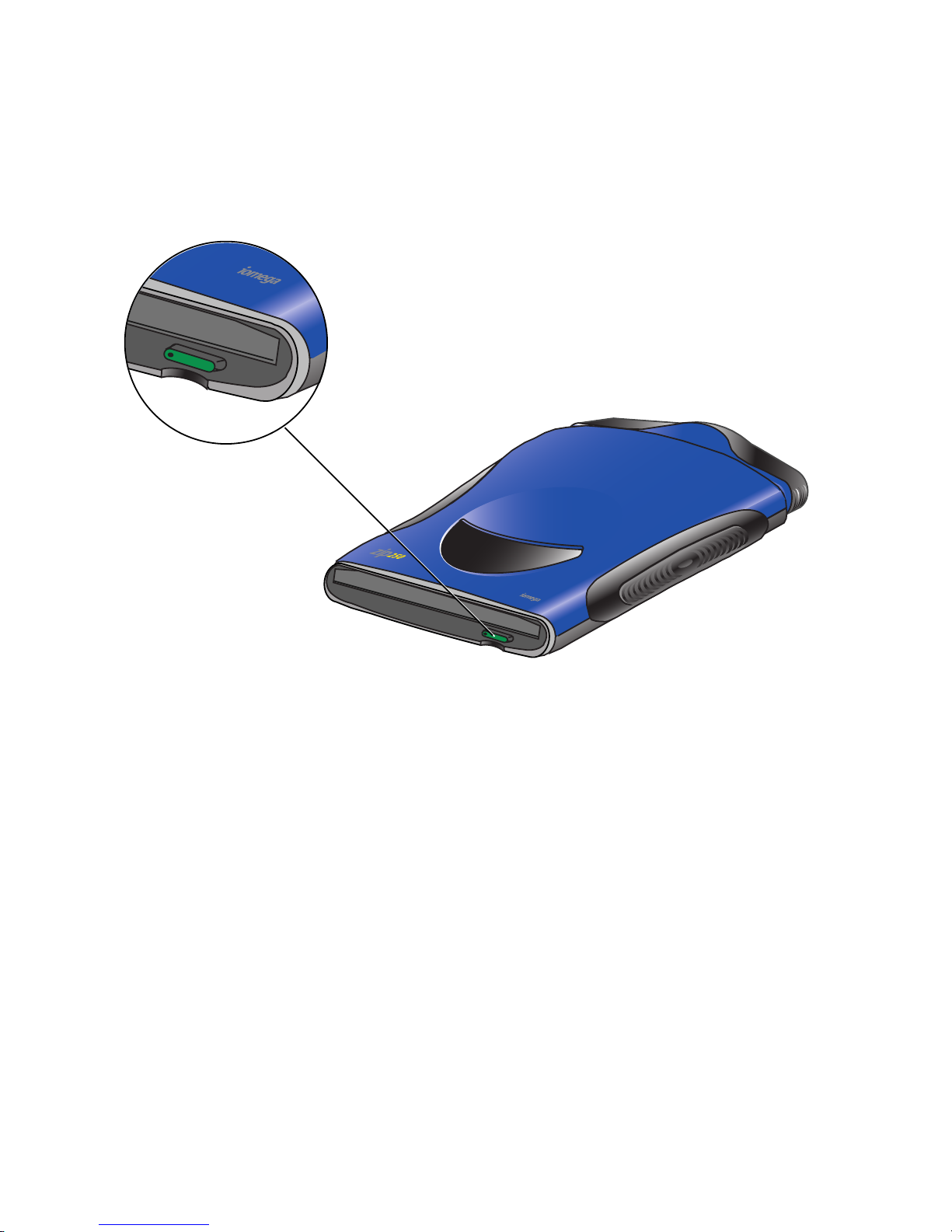

The green power light* will flash momentarily and you will
hear the drive power up.
If the Zip® 250® drive does not power up, you may need to connect the Zip
250
drive power supply.
IMPORTANT: Insert a disk only after you are sure the drive has power.
Remove the Zip® disk from the drive before disconnecting it from the
computer.
6
To view the User’s Manual HTML installed on your system.
Macintosh® users—Double-click the IomegaWare® folder, then click on the
FireWire Accessory User’s Manual folder icon.
PC users—Double-click on the IomegaWare
®
icon on your desktop, then
the Get Help tab, then double click the FireWire Accessory User’s Manual
folder.
To view the User’s Manual, you must have Microsoft
®
Internet Explorer® 3.0
or higher or Netscape Navigator
®
4.5 or higher installed on your system.
Refer to the User’s Manual HTML for other types of connections,
connecting to a FireWire
®
chain, and connecting to a notebook computer.
The User’s Manual includes a complete list of worldwide support options!
Iomega Web Site http://www.iomega.com
Automated FaxBack Help (U.S. & Canada) 1-888-4-IOMEGA (1-888-446-6342)
Technical Support/Customer Service 1-888-4-IOMEGA (1-888-446-6342)
CE (European Community)
Product Name: Iomega Zip 250MB FireWire Accessory
Model Number: ZIP1394A
The Zip 250MB FireWire Accessory conforms to the following European Directive(s)
and Standard(s): Application of Council Directives: 89/336/EEC. Standards to which
Conformity is declared: EN55022, EN50082-1. Importer’s Name: Iomega Netherlands
branch of Iomega International, S.A. Type of Equipment: Information Technology
Equipment.
Manufacturer/Responsible Party
Iomega Corporation
1821 West Iomega Way
Roy, UT 84067 U.S.A.
801-332-1000
30232300 03/29/00 r18
