Iomega REV 35GB CHANGING BEZEL User Manual
REV™ 35gb
Removable Hard Disk Drive
Integrator Guide
1
Table of Contents
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
ATAPI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Iomega REV Internal ATAPI Drive
Iomega REV Internal ATAPI Drive Jumper Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SCSI
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

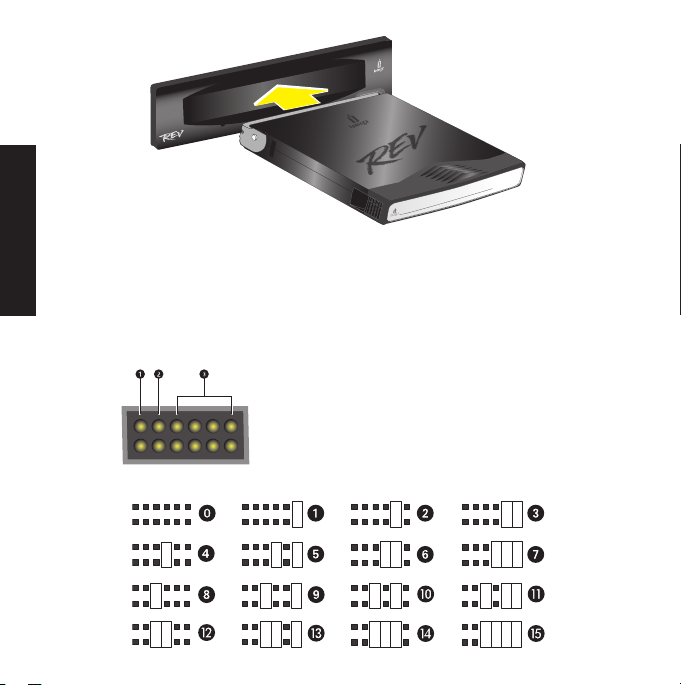

Installing the Iomega REV Internal SCSI Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Iomega REV Internal ATAPI Drive Jumper Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tech Notes
About the Iomega REV System Software
Troubleshooting the REV Internal SCSI Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
16
4
8
9
2
System Requirements
The following are the minimum system requirements for using a REV drive.
Supported Operating Systems
• Windows XP (Home and Professional)
• Windows Server 2003 (Standard and Small Business Editions)
• Windows 2000 Professional (SP3 and SP4)
• Windows 2000 Server (SP3 and SP4)
• Windows 2000 Advanced Server (SP3 and SP4)
Hardware Requirements
• 333 MHz processor, or higher
• Available 5.25
• Available internal power connector
•
4X CD-ROM drive to use the Solutions CD
• 100MB hard drive space
• 128MB RAM
Additional Hardware Requirements for REV SCSI drive
• SCSI adapter card (68-pin SCSI only)
" or 3.5" drive bay
3
Installing the Iomega REV Internal ATAPI Drive
ATAPI
1
Install the REV System Software.
NOTE: See the “About the REV System Software” section of this guide for more
information.
2

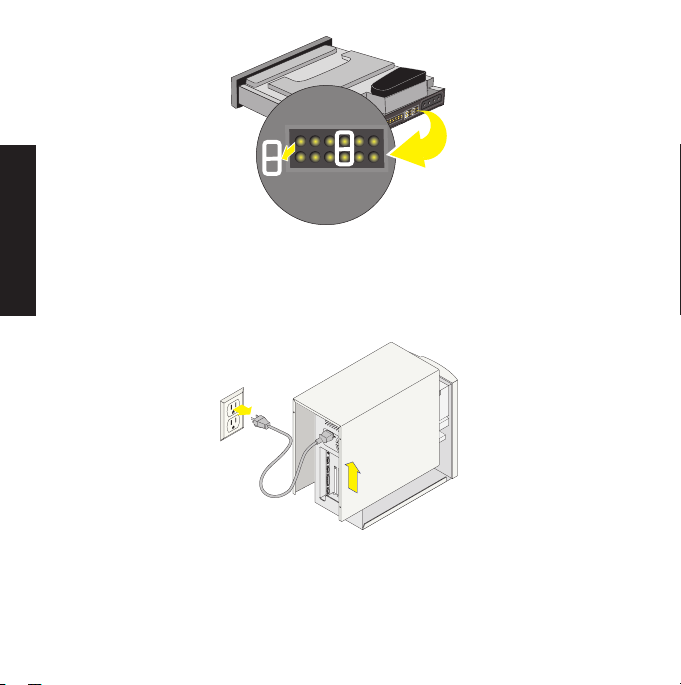

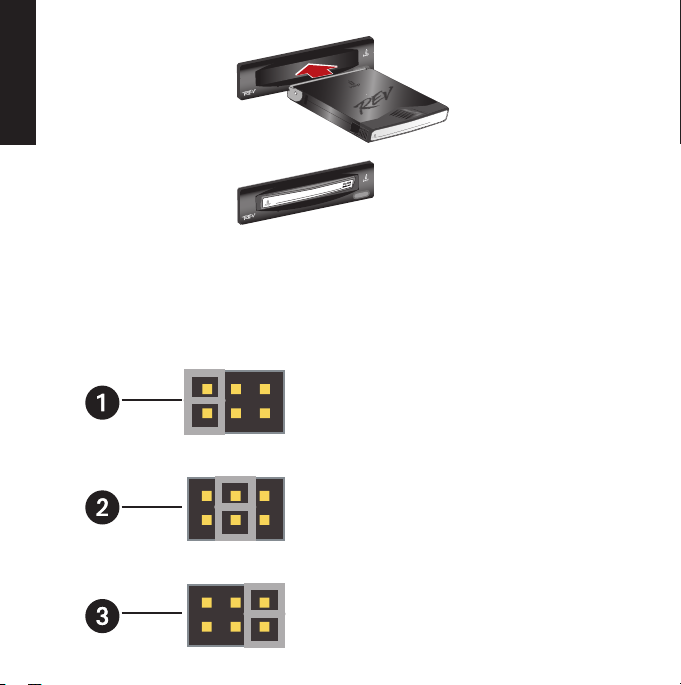

Disconnect the power cord, and remove the cover to your computer. Verify that the
REV drive jumper settings are set to Cable Select as shown in the illustration.
NOTE: If you will be connecting another drive to the REV IDE data cable set the jumper
settings for that drive to cable-select.
4
3
Locate a vacant drive bay (5.25" or 3.5" drive bay) and remove the panel cover. Slide
the REV drive into the drive bay.
"
NOTE: If you are installing into a 5.25
(available from your computer retailer).
drive bay, you will need a mounting bracket
4
Connect the black connector of the IDE data cable to the back of the REV drive
NOTE: For best performance, use the cable that shipped with the drive.
ATAPI
5
