Invacare XPO2 User Manual

Invacare® Oxygen Products

• Portable Oxygen Concentrator

• HomeFill

Oxygen Filling

System

• Oxygen Concentrators

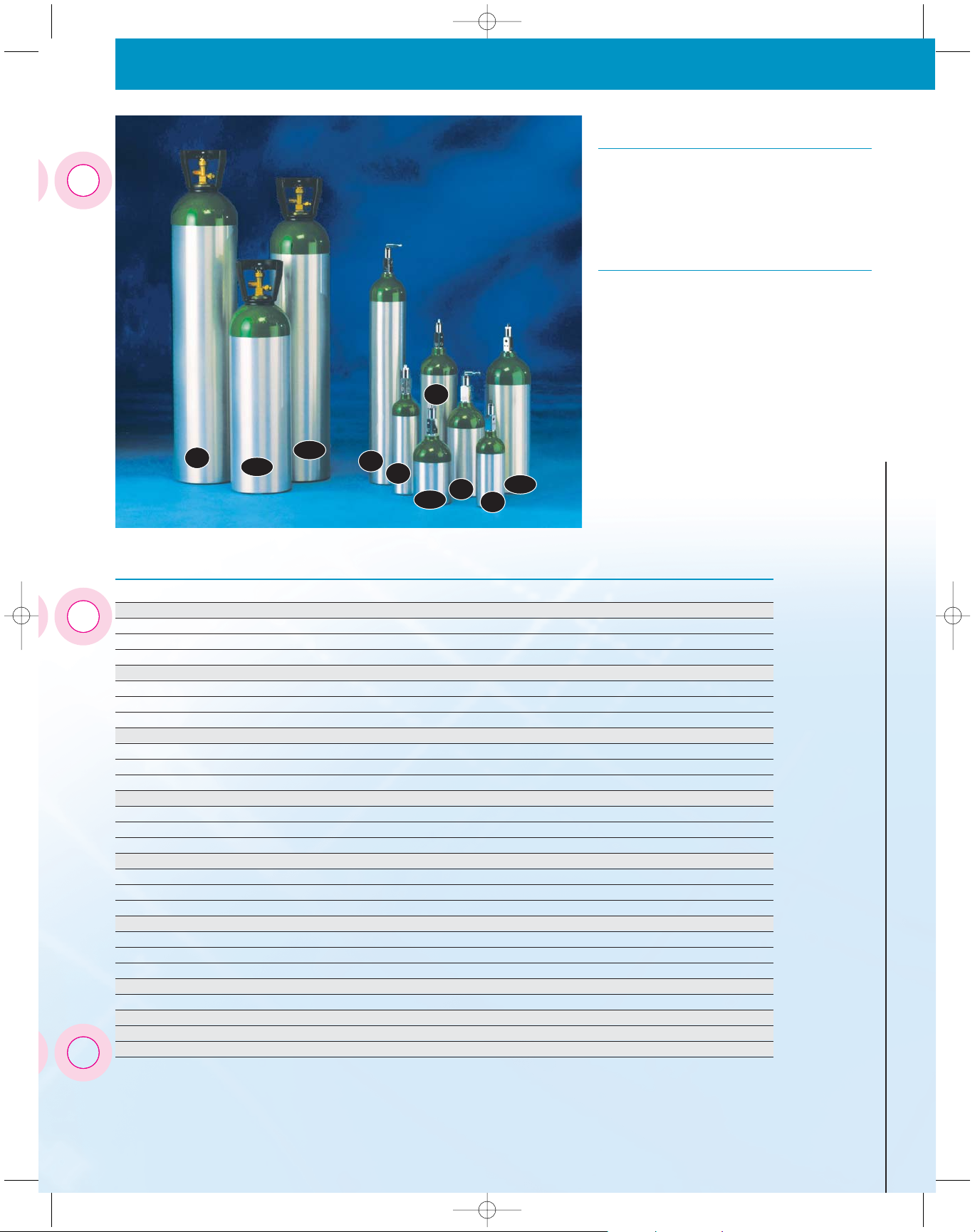

• Cylinders and Accessories

• Compressed Oxygen Systems

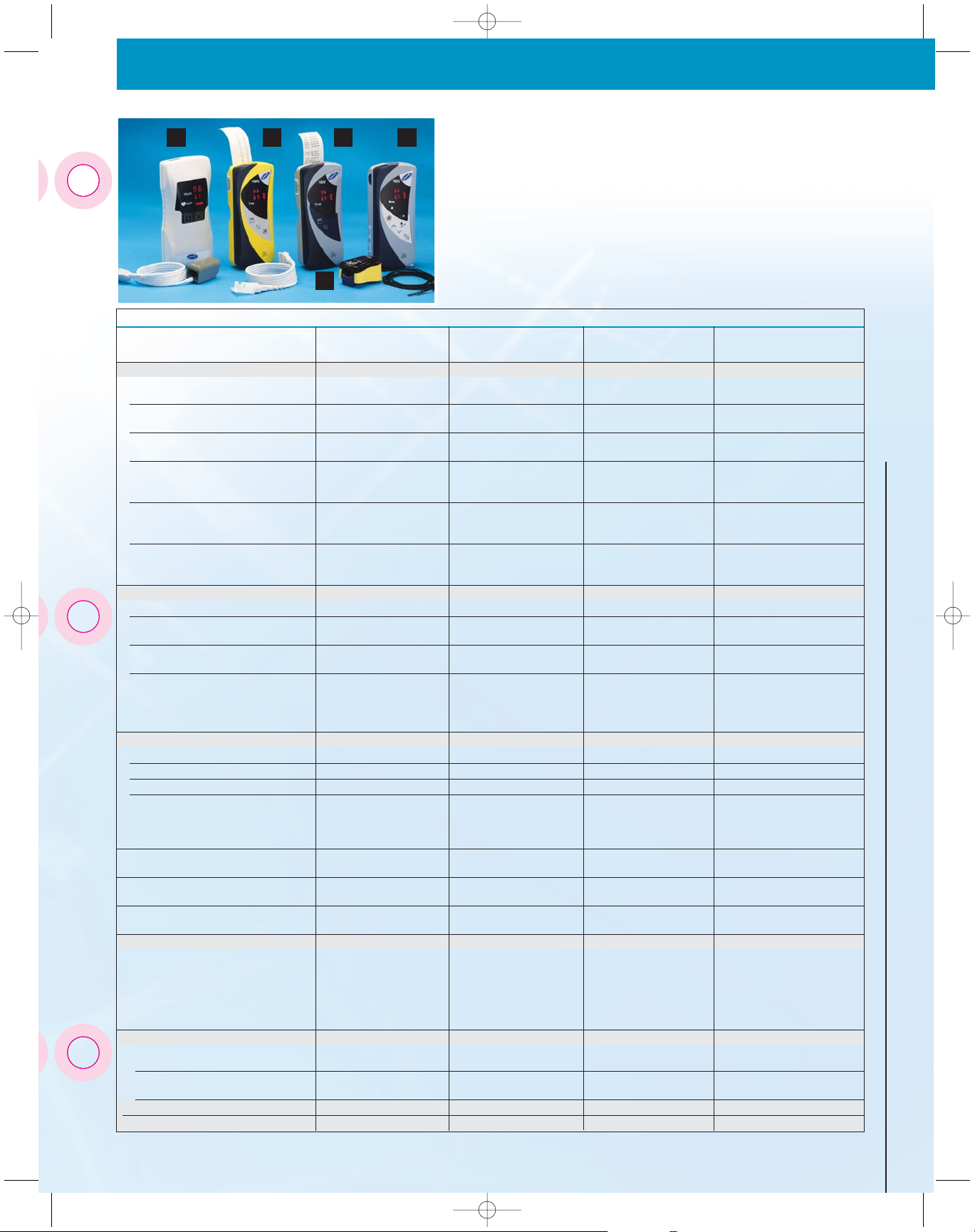

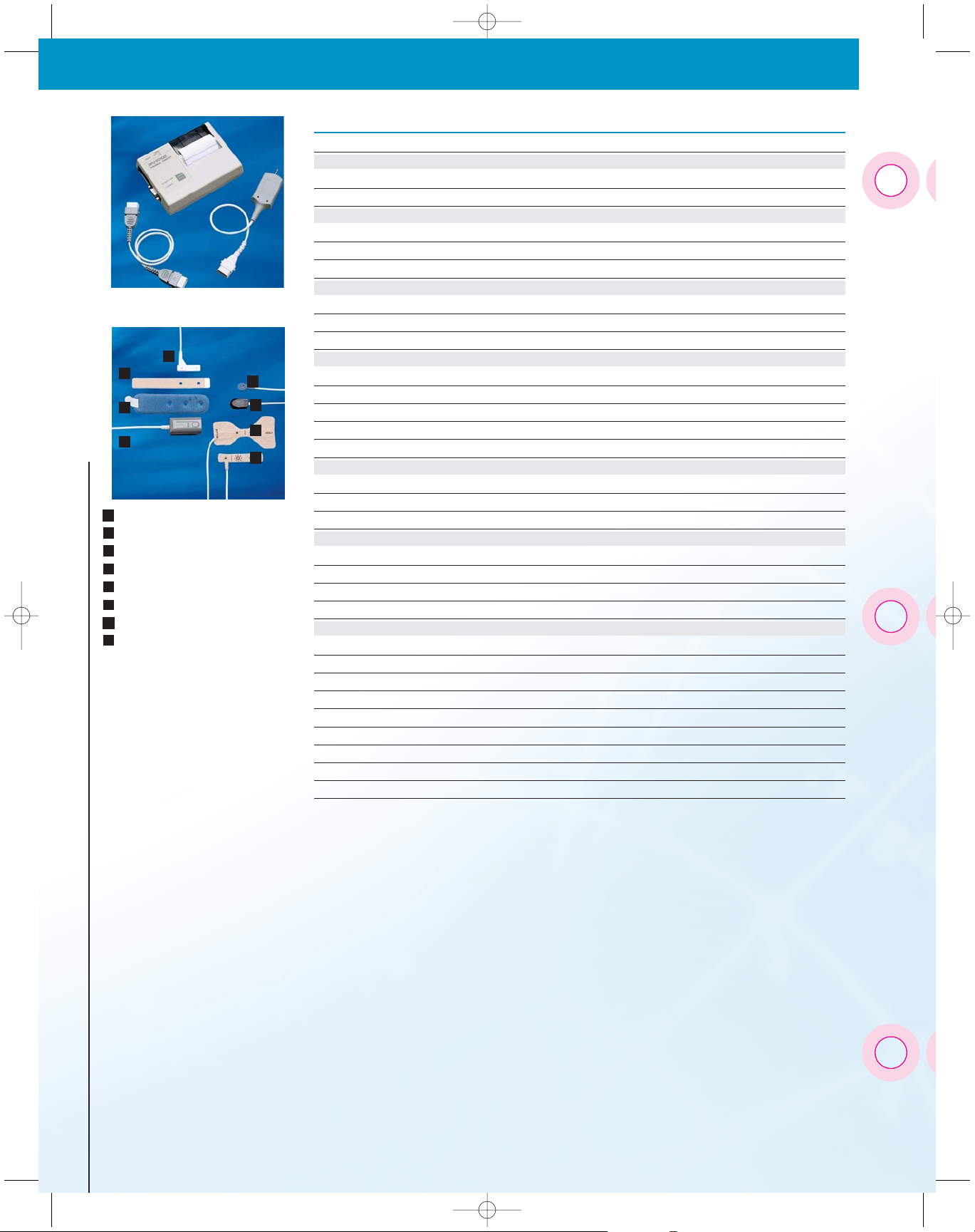

• Patient Monitoring Systems

Yes,you can.

280274_05-054:05-054 1/21/08 12:35 PM Page 1

Invacare

™

Portable Oxygen Concentrator

The new Invacare® XP

™

portable concentrator is the latest addition to Invacare’s proven line of home oxygen technologies.

Now providers and patients have a choice of ambulatory systems from Invacare, the world leader in oxygen. Named for its

extreme portability, the XPO2is designed to be lightweight, clinically robust, and easy to operate. The supplemental battery and

AC/DC power options make it easy for patients to go just about anywhere without the fear of running out of oxygen.

Small, lightweight design to enhance

patient convenience.

Features

• Pulse dose settings 1-5 meet the needs of a broad

range of patients

• Battery, AC, or DC operation for patient convenience

• No separate battery recharger. Charge internal and

external batteries with either the AC or DC adapter

• Supplemental battery pack allows for extended

battery duration

Provider Benefits

• Durable, reliable product backed by Invacare’s

proven history of oxygen technologies

• Clinically robust design to keep patients oxygenated

at all levels of activity

• A great alternative or adjunct to HomeFill®to meet

patients’ ambulatory needs

• Supports a non-delivery model for lower

operating costs

Patient Benefits

• Small, lightweight and inconspicuous

• Designed for ease of use

• No more fear about running out of oxygen

• Encourages mobility, travel and independence

• Easy to understand control panel for simple operation

Setting Average Pulse Volume @20 bpm

115 ml 223 ml 331 ml 437 ml 542 ml

The patented, integrated electronic conserver provides a substantial bolus

of oxygen at each setting and breath rate.

Invacare

™

Portable Oxygen Concentrator

280274_05-054:05-054 1/21/08 12:35 PM Page 2

Invacare

™

Portable Oxygen Concentrator

Invacare

™

Portable Oxygen Concentrator

Supplemental battery attached here

Product Specifications

Oxygen flow Pulse Dose Delivery, Settings 1-5

Oxygen concentration 90% +/- 3% at all settings

Weight 6 pound concentrator, 1.3 pounds supplemental battery

Dimensions 10" H x 7" W x 4" D

Battery duration 2.5 hours at setting 2, internal battery

2.5 hours at setting 2, supplemental battery

Battery recharge time 3 hours*

Power consumption 35 watts

AC power adapter 100-240 VAC 50/60 Hz, 1.5 amps at 120 VAC

DC power adapter 12-16 VDC, 3.3 amps at 18 VDC

Operating altitude Up to 10,000 ft (3046 m) above sea level

Oxygen capacity 900 ml per minute

Concentrator limited warranty 5 years

Battery limited warranty 1 year

* recharge time increases if unit is running while charging

Convenient DC adapter and battery pack allow patients the freedom to travel whenever and wherever they want.

The Invacare®XP

™

Portable Concentrator includes the components

shown. Other accessories are available separately.

DC power adapter

AC power adapter

Battery pack

Wheeled cart and accessory bag.

Model Selection Guide

Model number Description

XPO100B Concentrator, carrying case, supplemental battery,

AC adapter, DC adapter

XPO100 Concentrator, carrying case, AC adapter, and DC adapter

XPO110 Supplemental battery pack

XPO120 Wheeled cart

XPO130 AC power adapter

XPO140 DC power adapter

XPO150 Concentrator carrying case

XPO160 Accessory bag

280274_05-054:05-054 1/21/08 12:36 PM Page 3

Invacare®HomeFill®Oxygen Filling System

Invacare

HomeFill

Oxygen Filling System

Specifications - HomeFill Compressor

Electrical requirements 120 VAC ± 10% at 60 Hz

Power consumption 200 watts

Rated current input 2.0 amps

Inlet pressure rating 14 - 21 psi

Oxygen output (from concentrator)

5-liter concentrator 0 - 3 lpm (while filling cylinders)

10-liter concentrator 0 - 5 lpm (while filling cylinders)

Oxygen input 0 - 2 lpm

Dimensions

Width 20.25"

Height 15"

Depth 16"

Weight 33 lb.

*For patients with oxygen flow rates up to 5 liters per minute.

Invacare®HomeFill®Oxygen Filling System

Model no. IOH200 (compressor), IOH270 (Ready-Rack), Perfecto2 (concentrator)

The Invacare HomeFill has revolutionized ambulatory oxygen by allowing

patients to fill their own cylinders from their Invacare®5-liter and 10-liter*

concentrators. With HomeFill, providers reduce costs by virtually

eliminating cylinder deliveries, while patients enjoy their freedom and

independence with an unlimited supply of ambulatory oxygen. The

HomeFill Oxygen Filling System allows the patient to breathe at home

from a continuous flow concentrator and then use a convenient ambula-

tory pack when they are “out and about.”

The available Patient Convenience Pack for the HomeFill uses the latest

integrated pneumatic conserving technology while remaining lightweight.

This cylinder combines all the patient independence and provider cost

savings realized with the HomeFill delivery model plus carefree conven-

ience and simplicity. The convenience pack (available in M2, ML4, ML6

and M9) requires no batteries, no cumbersome connection tubes, and

uses a standard single lumen cannula. It allows the patient to quickly fill

an ambulatory cylinder and go where they want, when they want. Now

HomeFill cylinders are also available with CGA870 compatible post

valves and integrated conservers. With a full line of cylinders, HomeFill

now meets the needs of most oxygen patients.

HomeFill System with optional IOH270 Ready-Rack shown

Features

• Small and lightweight

• Connections and controls are easy to use

• Patient has independence and freedom

• Patient breathes from continuous flow concentrator while

filling cylinders

• Virtually eliminates the high service costs of frequent

delivery of cylinders or liquid oxygen

280274_05-054:05-054 1/21/08 12:36 PM Page 4

Invacare®HomeFill®Oxygen Filling System

Invacare

HomeFill

Oxygen Filling System

The HomeFill™compressor is lightweight, weighing only 33 pounds.

Connections and controls are designed for ease of operation by the patient.

Model Selection Guide

Model no. Units/case Limited warranty Description

IOH200 1 1 year* HomeFill oxygen compressor

IOH200PC 1 1 year* HomeFill compressor with Ready-Rack, cylinder carrying bag and two ML6 HomeFill cylinders

IOH200PC2 1 1 year* HomeFill compressor with Ready-Rack, two cylinder carrying bags and two M2 HomeFill cylinders

IOH200PC4 1 1 year* HomeFill compressor with Ready-Rack, cylinder carrying bag and two ML4 HomeFill cylinders

IOH200PC9 1 1 year* HomeFill compressor with Ready-Rack, cylinder carrying bag and two M9 HomeFill cylinders

IOH260 1 1 year HomeFill Ready-Rack for use with Platimum™concentrators

IOH270 1 1 year HomeFill Ready-Rack for use with Perfecto

™

concentrator

HF2PCL6 1 3 years (regulator) HomeFill Patient Convenience Pack - cylinder only (ML6 size)

HF2PCL4 1 3 years (regulator) HomeFill Patient Convenience Pack - cylinder only (ML4 size)

HF2PC9 1 3 years (regulator) HomeFill Patient Convenience Pack - cylinder only (M9 size)

HF2PCL6BAG 1 n/a HomeFill Patient Convenience Pack - bag only (ML6 size)

HF2PCL4BAG 1 n/a HomeFill Patient Convenience Pack - bag only (ML4 size)

HF2PC9BAG 1 n/a HomeFill Patient Convenience Pack - bag only (M9 size)

HF2PCM2KIT 1 3 years (regulator) HomeFill Patient Convenience Pack - bag and cylinder (M2 size)

HF2PCL4KIT 1 3 years (regulator) HomeFill Patient Convenience Pack - bag and cylinder (ML4 size)

HF2PCL6KIT 1 3 years (regulator) HomeFill Patient Convenience Pack - bag and cylinder (ML6 size)

HF2PC9KIT 1 3 years (regulator) HomeFill Patient Convenience Pack - bag and cylinder (M9 size)

IOH200PPC 1 1 year* HomeFill compressor with Ready-Rack for Perfecto

™

concentrator, cylinder carrying bag

and two ML6 HomeFill cylinders

IOH200PPC2 1 1 year* HomeFill compressor with Ready-Rack for Perfecto2concentrator, 2 cylinder carrying bags

and two M2 HomeFill cylinders

IOH200PPC4 1 1 year* HomeFill compressor with Ready-Rack for Perfecto2concentrator, cylinder carrying bag

and two ML4 HomeFill cylinders

IOH200PPC9 1 1 year* HomeFill compressor with Ready-Rack for Perfecto2concentrator, cylinder carrying bag

and two M9 HomeFill cylinders

IOH2M6 1 6 years (regulator) HomeFill cylinder assembly - M6 size

IOH2M9 1 6 years (regulator) HomeFill cylinder assembly - M9 (C) size

IOH2MD 1 6 years (regulator) HomeFill cylinder assembly - D size

HF2POST6 1 1 year HomeFill cylinder assembly - CGA870 Post Valve compatible - ML6 size

HF2POST9 1 1 year HomeFill cylinder assembly - CGA870 Post Valve compatible - M9 size

HF2POSTD 1 1 year HomeFill cylinder assembly - CGA870 Post Valve compatible - D size

* 3-year (or 5,000-hour) parts and labor limited warranty on internal-wear components and control-panel components.

MD M9 M6 M2 ML4 ML6 ML9

280274_05-054:05-054 1/21/08 12:36 PM Page 5
