Invacare IRC5PW User Manual

Download

Parts Catalog

Oxygen Concentrators

Perfecto2 (IRC5P, IRC5PO2)

Perfecto2V (IRC5PO2V)

Issued: Oct 4, 2011

PerfectoW (IRC5PW, IRC5PO2W)

Platinum 5LX

Non Platinum 5LX

10L

HomeFill™ Oxygen System

DODD

Check 02 Plus Conc. Analyzer

Yes, you can. ™

Throughout this catalog you will notice letters to draw your attention to specific footnotes which are located at the bottom of the page or below specified charts.

Parts Catalog Usage Guide

To order call toll free 1-800-333-6900, or www.invacare.com

The information contained in this document is subject to change without notice. This catalog contains service parts for Form No. 93-38. If you have any questions regarding this catalog, please contact one of our Customer Service Representatives.

For Customer Service Support Call:

1-800-333-6900

For Faxed In Orders Call:

1-800-678-4682 or

1-440-366-0709

For Technical Service Call:

1-800-832-4707

Literature Can Be Found at:

www.invacare.com or

1-800-828-6272

SYMBOL DEFINITION

Examples:

A,B,C etc. NOTE: NLA

= Special Comments = General information pertaining to that specific page = No Longer Available

HARDWARE MEASUREMENTS

The measurements for the hardware will be listed as follows:

Screws, Bolts Washers Spacers

For your convenience, we have supplied an area for you to list your Invacare Representatives.

Corporation. Platinum, Check O2 Plus and HomeFill are trademarks of Invacare Corporation. Palnut is a registered trademark of Transtechnology

Corporation. Tygon is a registered trademark of Norton Company. Information is subject to change without notification.

Diameter X Thread Count/Pitch X Length Inside Diameter X Outside Diameter X Thickness Inside Diameter X Outside Diameter X Length

Name Phone Numbers

Form No. 93-38

TABLE of CONTENTS

Page

Number

To order call toll free 1-800-333-6900, or www.invacare.com

Form No. 93-38

Description

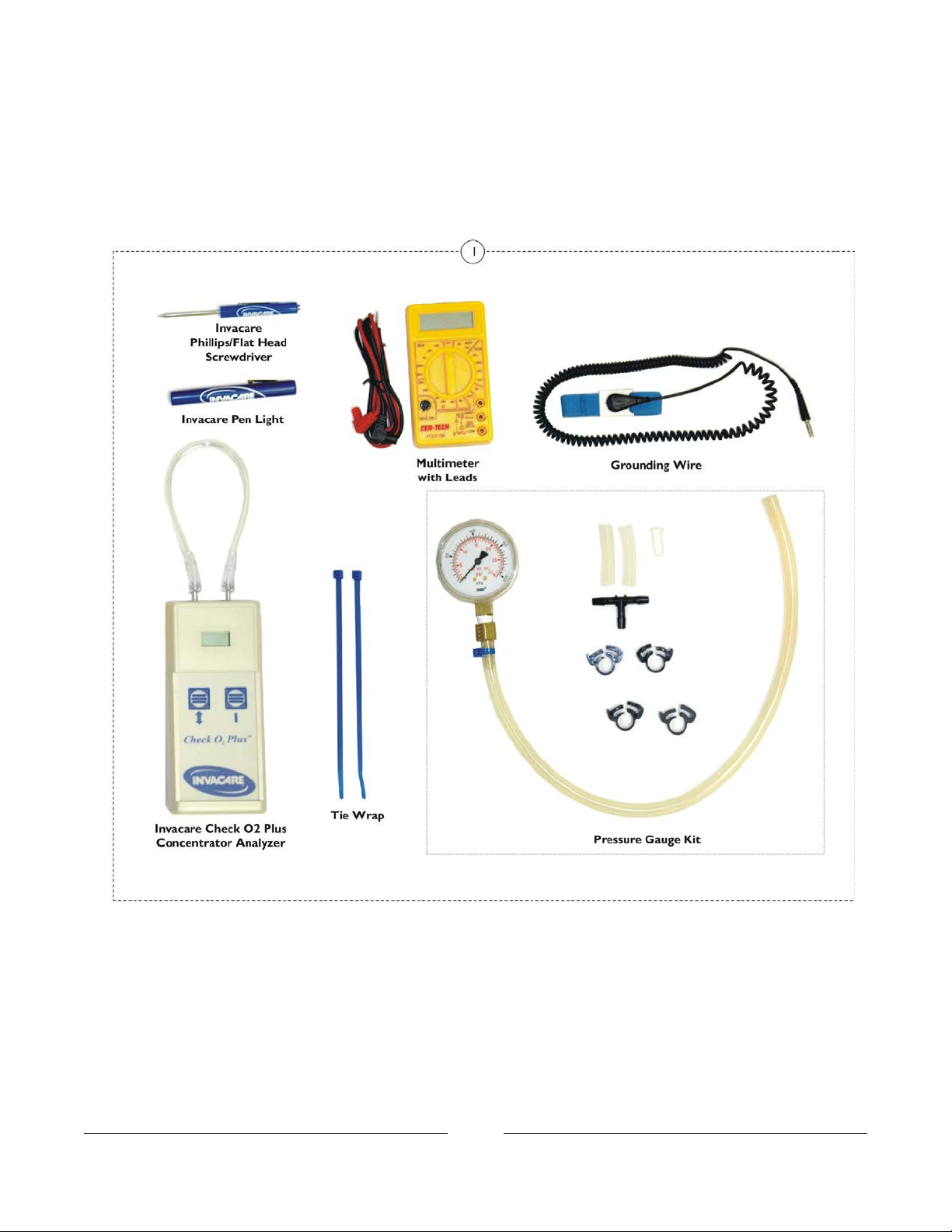

Accessories - Concentrator Tool Kit ......................................................................................... 86

Accessories - Venture Demand Oxygen Delivery Device & Cylinder ....................................... 84

Cabinet and Base (10 Liter Models) ......................................................................................... 13

Cabinet and Base (Perfecto2) .................................................................................................. 15

Cabinet and Base (Perfecto2V) ................................................................................................ 17

Cabinet and Base (PerfectoW) ................................................................................................. 19

Cabinet and Base (Platinum 5 Models) .................................................................................... 11

Cabinet, Base, Cylinder and Tabletop (Non Platinum 5 Models) ............................................. 8

Compressor and Mounting Hardware (10 Liter Models) .......................................................... 27

Compressor and Mounting Hardware (Non Platinum 5 Models) .............................................. 21

Compressor and Mounting Hardware (Perfecto2/PerfectoW) .................................................. 29

Compressor and Mounting Hardware (Perfecto2V) ................................................................. 31

Compressor and Mounting Hardware (Platinum 5 Models) ..................................................... 24

Control Panel and P.C. Board (Non Platinum 5 Models - After 12/14/00) ............................... 36

Control Panel and P.C. Board (Platinum 5 Models - After 12/5/02) ........................................ 42

Control Panel and P.C. Board (Platinum 5 Models - Before 12/5/02) ..................................... 39

Control Panel and P.C. Board (10 Liter Models) ...................................................................... 45

Control Panel and P.C. Board (Non Platinum 5 Models - Before 12/15/00) ............................. 33

Control Panel and P.C. Board (Perfecto2/Perfecto2V/PerfectoW) ........................................... 47

HomeFill Base and HomeFill Stand Components .................................................................... 80

HomeFill Cylinder Assembly .................................................................................................... 82

TABLE of CONTENTS

Page

Number

To order call toll free 1-800-333-6900, or www.invacare.com

Form No. 93-38

Description

Invacare Check 02 Plus Concentrator Analyzer ....................................................................... 79

Miscellaneous Components ..................................................................................................... 89

Packaging, Literature, and Preventative Maintenance Kit ........................................................ 4

Quick Reference Chart ............................................................................................................. 6

Remote Flowmeters ................................................................................................................. 76

Sieve Bed Assembly and Product Tank (Platinum 5 Models) ................................................. 66

Sieve Bed Assembly and Product Tank (10 Liter Models) ....................................................... 68

Sieve Bed Assembly and Product Tank (Non Platinum 5 Models) .......................................... 63

Sieve Bed Assembly and Product Tank (Perfecto2) ................................................................ 70

Sieve Bed Assembly and Product Tank (Perfecto2V) .............................................................. 72

Sieve Bed Assembly and Product Tank (PerfectoW) ............................................................... 74

Sound Box Assembly (10 Liter Models) ................................................................................... 56

Sound Box Assembly (Non Platinum 5 Models) ....................................................................... 49

Sound Box Assembly (Perfecto2/Perfecto2V) .......................................................................... 59

Sound Box Assembly (PerfectoW) ........................................................................................... 61

Sound Box Assembly (Platinum 5 Models) .............................................................................. 53

Warranty Replacement Parts ................................................................................................... 88

Packaging, Literature, and Maintenance Kits

Literature and Preventative Maintenance Kit

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1106666 Owner's Manual, Domestic U.S.

(IRC3LX,5LX,6LX)

1 1A,B

1110514-NLA NLA - Owner's Manual, Domestic U.S.

(IRC3LX,5LX)

1 1A,C

1059390-NLA NLA - Owner's Manual, Canadian

(IRC3LX,5LX,6LX)

1 1A,B

1118353 Owner's Manual, 10L 1 1A 1100873 Owner's Manual, Domestic U.S., HomeFill Oxygen

System

1 1A

1114802-NLA NLA - Owner's Manual, Canadian, HomeFill Oxygen

System

1 1A

1075286 Operator's Manual, IOH100 1 1A 2000895 Kit, Preventative Maintenance (IRC3LX,5LX) 1 1A,B 1117149 Kit, Receptacle Fitting Brass 1 1A,D

NLA - Fitting, Brass (1/4") 1 1 Instruction Sheet 1 1

1123520 Kit, Preventative Maintenance, Platinum 5 1 1A,E

See Chart Packaging and Literature 1 1

1143482 Owner's Manual, Perfecto2/Perfecto2V/PerfectoW 1 1A 1154302 Placard, HomeFill Compressor Guide For Facility

Use

1 1A

A - Not Shown.

B - All Models Except Platinum 5.

C - Platinum 5 Models.

D - Kit includes: (1) each #1105572 Receptacle Fitting, (1) each #1117150 Instruction Sheet.

E - Kit includes: (2) each #1107412 Cabinet Filter, (1) each #1131249 Inlet Filter, (1) each #P0750X030 HEPA Filter and (1)

each #1134864 Preventative Maint. Record Sheet.

NOTE:

IRCSA - Extended Warranty for IRC3LX Models.

NOTE: When adjusting or replacing parts, refer to your Owner's Manual for assistance.

NOTE:

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Packaging, Literature, and Maintenance Kits

Packaging

Bottom

Insert

Misc.

Pieces

Assembly

Packaging Kit Carton

Kit

Top/Bottom

Top

Insert

Poly

Bag

1110580

111224620004541112247N/A2000725

2002771

All Models

Except

Platinum 5

See Note(s) A See Note(s) F

N/A

1116625-NLA

2000454

1116624-NLA

1135509

1108744

1133694

Platinum 5

and 10L

Models

See Note(s) H See Note(s) D See Note(s) C See Note(s) C

N/AN/AN/AN/AN/AN/A

1102315

Homefill

See Note(s) B

1162042

114792320004541162044N/A1162043

1161123

Perfecto2,

Perfecto2V,

PerfectoW

See Note(s) H See Note(s) G

N/AN/AN/AN/A

1151765

1151765N/A

PL6 Homefill

Cylinder

See Note(s) E

N/AN/AN/AN/A

1151766

1151766N/A

P9 Homefill

Cylinder

See Note(s) E

N/AN/AN/AN/A

1151767

1151767N/A

PL4 Homefill

Cylinder

See Note(s) E A - Includes Carton, Inserts, Bag, Owner's Manual, Tygon Tubing and Humidifier Adaptor. B - Includes Shipper Carton, Bag and Foam Inserts. C - Individual item no longer available, refer to Kit Part #1135509 as a replacement. D - Kit includes Top and Bottom Foam Inserts. E - Kit includes Carton and Foam Inserts. F - Includes Humidifier Bottle Adapter, Owner's Manual, Humidifier Bottle Tube, and Poly Bag. G - Includes Carton Foam Insert H - Kit includes Carton, Top Insert, Bottom Insert and Poly Bag

NOTE:

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Quick Reference Chart

Common Replacement Filters

Part Number Description

Bacteria Filter (All Models)P0750X030

Cabinet Filter (All Models except Platinum 5)2000489

Cabinet Filter (Platinum 5 Models and 10 Liter Model)1107412

Cabinet Filter (Perfecto2/Perfecto2V/PerfectoW)1143492

Inlet Filter (All Models)1131249

Model

Compressor

Assembly

Sieve Beds

4 Way

Valve

P.C. Board

1078183-NLA

1101141

1101707

See Note

3LX

See Note(s) L See Note(s) B See Note(s) G See Note(s) A

1078183-NLA

1101141

1101707

See Note

5LX

(Before 04/2002)

See Note(s) L See Note(s) B See Note(s) G See Note(s) A

1078183-NLA

1101141

1110783

1106690

5LX Platinum

See Note(s) C See Note(s) B See Note(s) G See Note(s) F, A

1078183-NLA

1101141

1110783

1106690E

5LX Platinum

See Note(s) C See Note(s) B See Note(s) F, A See Note(s) B

1108720

1101141

1110783

1157138

5LX Platinum

See Note(s) D See Note(s) B See Note(s) G See Note(s) E

1108720E

1101141

1110783

1157138

5LX Platinum

See Note(s) D See Note(s) B See Note(s) G See Note(s) E

1078181-NLA

1101141

1101707

See Note

5LX02

(Before 07/1998)

See Note(s) L See Note(s) B See Note(s) G See Note(s) A

See Note

1101141

1101707

See Note

5LX02

(07/1998 - 03/2002)

See Note(s) L See Note(s) B See Note(s) G See Note(s) A, L

See Note

1101141

1161699

1106690

5LX02 Platinum

See Note(s) C See Note(s) B See Note(s) G See Note(s) A, L, F

1108731

1101141

1161699

1157138

5LX02 Platinum

See Note(s) D See Note(s) B See Note(s) G See Note(s) A

1108731E

1101141

1161699

1157138

5LX02 Platinum

See Note(s) D See Note(s) B See Note(s) G See Note(s) A

1079444-NLA

1101141

1101707

See Note

5SLX02T

See Note(s) L See Note(s) B See Note(s) G See Note(s) A

1078181-NLA

1101141

1101707

1075071

6LX02

(Before 07/1998)

See Note(s) B See Note(s) G See Note(s) A

See Note

1101141

1101707

1075071

6LX02

(After 06/1998)

See Note(s) B See Note(s) G See Note(s) A, L

If unit was manufactured before 01/2001, then entire Manifold/Valve Assembly Kit, Part Number 1105552 is required for Non Platinum Concentrators. See Category "Sound Box Assembly" for more information.

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Quick Reference Chart

Model

Compressor

Assembly

Sieve Beds

4 Way

Valve

P.C. Board

1079444-NLA

1101141

1101707

10750716LX02T

See Note(s) B See Note(s) G See Note(s) A

1078181-NLA

1101141

1101707

10750716LX02H

See Note(s) B See Note(s) G See Note(s) A

1128737

1101141

1144034

113066610LX

See Note(s) B See Note(s) G

1128737

1101141

1144034

1130666E10LX

See Note(s) B See Note(s) G

1128742

1101141

1144034

113066610LXO2

See Note(s) B See Note(s) G

1128742

1101141

1144034

1130666E10LXO2

See Note(s) B See Note(s) G

11434751101141

1161257

1162038

Perfecto2 (IRC5P)

PerfectoW (IRCPW)

w/o SensO2

See Note(s) H See Note(s) K

11434861101141

1161257

1162038

Perfecto2 (IRC5PO2)

PerfectoW

(IRCPO2W)

w/ SensO2

See Note(s) H See Note(s) K

1143486E1101141

1161257

1162038

Perfecto2 (IRC5PO2)

PerfectoW

(IRCPO2W)

w/ SensO2

See Note(s) H See Note(s) K

11648081101141

1165099

1165097

Perfecto2V

(IRC5PO2V)

w/ SensO2

See Note(s) K See Note(s) J A - Includes instruction sheet. B - Includes (2) Sieve Beds, (2) Clamps, (2) Hose Clamps, and (4) Tie Wraps. C - Before 04/14/2004. D - After 04/13/2004. E - After 11/2002. F - Before 12/2002. G - If the unit was built before 01/2001, then the entire Manifold/Valve Assembly Kit, Part Number 1105552 is required for Non Platinum Concentrators. See Category "Sound Box Assembly" for more information. H - When replacing the Compressor Assembly, Part Number 1131250, Capacitor w/ Tie Wraps is also required. J - Includes (2) Sieve Beds, (2) Tie Wraps, 8" Long, and (4) Tie Wraps, 17-1/2" Long. K - When replacing the Compressor Assembly, Part Number 1165098, Capacitor w/ Tie Wraps is also required. L - No longer available in the field as a service part.

NOTE:

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Cabinet, Base, Cylinder and Tabletop

All Models Except Platinum 5

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Cabinet, Base, Cylinder and Tabletop

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

2002295 Cabinet Assembly 1 11 A 2002001-NLA NLA - Foam, Side Cabinet 1 1 2001999-NLA NLA - Foam, Front Cabinet 1 1

2000489 Filter, Cabinet 1 22

2002107 Grid, Filter 1 23

2001609 Filter Grid and Cabinet Filter Assembly 1 24

2002540 NLA - Rivet, Plastic 1 15

1022500 Retainer, Push On 1 16

P0875X071-NLA Strap, Hook and Loop 1 17

1070050 Tie Wrap (3-29/32" L) 1 18

1008547 Cord, Elastic 1 19

2000508 Screw, Phillips Truss Head Self Tap (#8-32 x 5/8") 1 810 1074004-NLA NLA - Base Assembly, IRC5LX02T 1 111 H 1075661-NLA NLA - Base Assembly, IRC6LX02 1 111 H

2001792 Base Assembly, IRC3LX, 5LX, 5LX02 1 111 H 1075662-NLA NLA - Base Assembly, IRC6LX02T 1 111 H 1073358-NLA NLA - Base Assembly, IRC6LX02H 1 111 H

P0875X500 Caster Assembly (2") 1 412 B,C

1076830-NLA NLA - Caster (2") 1 412 D,J

1110426 Caster Assembly (2") 1 412

2000576 Stand-Off, Twist-Lok (1/2") 1 113

2000360 Grommet, Plastic 1 814

1056249 Relief, Strain 1 115

2001761 Cord, Power, Domestic U.S. 1 116 G

2000773 Cord, Power, Domestic U.S. 1 116 F

1081182 Cord, Power, Canadian 1 116

1075469 Washer (11/16 x 1/4 x 1/16") 1 117

1125090 Label, Oxygen Cylinder 1 118

IOHM6 Oxygen Cylinder and Regulator, M6 Size Cylinder 1 119 I IOHM9 Oxygen Cylinder and Regulator, C Size Cylinder 1 119 I

IOHD Oxygen Cylinder and Regulator, D Size Cylinder 1 119 I IOHE Oxygen Cylinder and Regulator, E Size Cylinder 1 119 I

1079987-NLA NLA - Cable (Telemetry Set-Up) 1 1E

1075248 Label, Cylinder Ring 1 1E

1075219 Label, Cylinder 1 1E

1013763 Label, Power Cord Warning 1 1E 1101103-NLA NLA - Top, Table 1 120 1102388-NLA NLA - Leg 1 221 1105524-NLA NLA - Brace 1 122 K 1102628-NLA Kit, Table Top Hardware 1 123

Screw, Phillips Pan Head (1/4-20 x 1-1/2") 1 4 Nut, Wing (1/4-20) 1 4 NLA - Washer (1/4 x 23/32 x 1/16") 1 4

All Models Except Platinum 5

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Cabinet, Base, Cylinder and Tabletop

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1101911-NLA NLA - Carton, Table 1 1E 1100874-NLA NLA - Instruction Sheet, Table Top 1 1E 1056748-NLA NLA - Suppressor, Surge 1 1E

A - Includes Items 2 thru 9.

B - Attach Casters using Screws. If necessary, order Screw p/n P0851X410 (4 ea) and Keps Nut p/n P0870X400 (4 ea).

C - Before 6/15/98 (Screw in Style).

D - After 6/14/98 (Stem Style).

E - Not Shown.

F - To be used on 301/501 Models.

G - To be used with LX Models.

H - Includes Casters, Foam and Standoff.

I - Includes Labels and Carton.

J - Item no longer available, refer to Part #1110426.

K - Individual Item no longer available, replace with an IOH260 Ready Rack.

NOTE:

All Models Except Platinum 5

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Cabinet and Base

Platinum 5 Models

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Cabinet and Base

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1108803 Cabinet Cover without Tie Wraps 1 11 E,A 1115373-NLA NLA - Cabinet Cover with Tie Wraps 1 11

1070050 Tie Wrap (3-29/32" L) 1 12

1008547 Cord, Elastic 1 13

1115868 Kit, Cabinet Handle 1 1C

Handle, Top, Warm Grey 1 14

NLA - Screw, Hex Head Tap (1/4-15 x 3/4") 1 25 1107412 Filter, Cabinet 1 16 1107400 Grid, Filter 1 17 1107414 Foam, Side Shroud 1 28 1107413 Foam, Front Shroud 1 19 1172003 Package, Power Cord Strap w/ Hardware 1 110 E

Strap, Hook and Loop 10 111

Rivet, Plastic 10 112

Retainer, Push On 10 1 1110766 Door, Filter Access with Foam Gasket 1 113 1112258 Base Cabinet Assembly 1 114 B 1108816 Foam, Base 1 115 1104151 Fitting, Hose Barb with Nut (1/8") 1 116 1108211 Cap, End, Dust, Green 1 117 1108764 Cord, Power 1 118 1056249 Relief, Strain 1 119

1076830-NLA NLA - Caster (2") 1 420 D

1110426 Caster Assembly (2") 1 420 2000576 Stand-Off, Twist-Lok (1/2") 1 121 2000360 Grommet, Plastic 1 422 2000508 Screw, Phillips Truss Head Self Tap (#8-32 x 5/8") 1 423

1056748-NLA NLA - Suppressor, Surge 1 1F

A - Includes Cover Cabinet and Items 2-12.

B - Includes Base Cabinet and Items 15-21.

C - Kit Includes Items 4-5.

D - Item no longer available, refer to Part Number 1110426.

E - After 6/28/07, the Hook and Loop Strap are no longer used on the Cabinet Cover Assembly. If Hook and Loop Strap is

needed you must order Package Part Number 1172003 for replacement.

F - Not Shown.

NOTE:

Platinum 5 Models

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Cabinet and Base

10 Liter Models

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Cabinet and Base

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1108803 Cabinet Cover without Tie Wraps 1 11 D,A 1006525 Tie Wrap (3-29/32" L) 1 12 1008547 Cord, Elastic 1 13 1115868 Kit, Cabinet Handle 1 1C

Handle, Top, Warm Grey 1 14

Strap, Hook and Loop 10 111

Rivet, Plastic 10 112

Retainer, Push On 10 1 1110766 Door, Filter Access with Foam Gasket 1 113 1105499 Base, Domestic 1 114 D 1108816 Foam, Base 1 115 1104151 Fitting, Hose Barb with Nut (1/8") 1 116 1108211 Cap, End, Dust, Green 1 117 1108764 Cord, Power 1 118 1056249 Relief, Strain 1 119 1110426 Caster Assembly (2") 1 420 2000576 Stand-Off, Twist-Lok (1/2") 1 121 2000360 Grommet, Plastic 1 422 2000508 Screw, Phillips Truss Head Self Tap (#8-32 x 5/8") 1 423

1056748-NLA NLA - Suppressor, Surge 1 1

A - Includes Cabinet Cover and Items 2-13.

C - After 6/28/07, the Hook and Loop Strap are no longer used on the Cabinet Cover Assembly. If Hook and Loop Strap is

needed you must order the Package, Cord Power Strap w/ Hardware Part Number 1172003.

D - Includes Base and items 14-21.

NOTE:

10 Liter Models

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Cabinet and Base

Perfecto2

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Cabinet and Base

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1143470 Top Shroud Assembly, Graphite 1 11 A 1153341 Top Shroud Assembly, Beige 1 11 C,E,A 1147920 Label, Text 1 12 1137267 Label, Diagnostic 1 13 1143492 Filter, Cabinet 1 14

1143432-NLA NLA - Door, Cabinet Access, Graphite 1 15

1161831 Door, Cabinet Access, Beige 1 15 D,E,G 1143550 Clip, Retaining 1 26 1108810 Screw, Hi-Lo Six Lobe Drive (#10-16 x 5/8") 1 47 1143464 Foam, Shroud - Front 1 18 1143465 Foam, Shroud - Side 1 29 1163095 Base Assembly 1 110 F

Base and Baffle Assembly, Concentrator 1 111

Caster Assembly (2") 1 412

Cap, End, Dust, Green 1 113

Fitting, Hose Barb with Nut (1/8") 1 114

NLA - Label, Spec 1 115

Cord, Power 1 116

Relief, Strain 1 117 1168590 Base and Baffle Assembly, Concentrator 1 111 1110426 Caster Assembly (2") 1 412 1108211 Cap, End, Dust, Green 1 113 1104151 Fitting, Hose Barb with Nut (1/8") 1 114

1147921-NLA NLA - Label, Spec 1 115

1143493 Cord, Power 1 116 1143546 Relief, Strain 1 117 2000360 Grommet, Plastic 1 418

A - Includes Cabinet and Items 2 thru 9.

C - Top Shroud Assembly color was "Graphite" before 1/16/09.

D - Use with units "After 10/30/07."

E - Top Shroud Assembly color is Beige "After 1/16/2009".

F - Includes items 11 thru 17.

G - Cabinet Access Door was revised 10/16/09 to allow the Cabinet Filter to be assembled to the outside of the Cabinet

Access Door. The Cabinet Access Door is backward compatible in the field for models manufactured before 10/16/09.

NOTE:

Perfecto2

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Cabinet and Base

Perfecto2V

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Cabinet and Base

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1165488 Top Shroud Assembly 1 11 A 1164905 Label, Text 1 12 1137267 Label, Diagnostic 1 13 1143492 Filter, Cabinet 1 14 1161831 Door, Cabinet Access, Beige 1 15 1143550 Clip, Retaining 1 26 1108810 Screw, Hi-Lo Six Lobe Drive (#10-16 x 5/8") 1 47 1143464 Foam, Shroud - Front 1 18 1143465 Foam, Shroud - Side 1 29 1163095 Base Assembly 1 110 B

Base and Baffle Assembly, Concentrator 1 111

Caster Assembly (2") 1 412

Cap, End, Dust, Green 1 113

Fitting, Hose Barb with Nut (1/8") 1 114

NLA - Label, Spec 1 115

Cord, Power 1 116

Relief, Strain 1 117 1168950 Base and Baffle Assembly, Concentrator 1 111 1110426 Caster Assembly (2") 1 412 1108211 Cap, End, Dust, Green 1 113 1104151 Fitting, Hose Barb with Nut (1/8") 1 114

1147921-NLA NLA - Label, Spec 1 115

1143493 Cord, Power 1 116 1143546 Relief, Strain 1 117 2000360 Grommet, Plastic 1 418

A - Includes Cabinet and Items 2 thru 9.

B - Includes items 11 thru 17.

NOTE:

Perfecto2V

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Cabinet and Base

PerfectoW

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Cabinet and Base

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1161717 Top Shroud Assembly, Beige 1 11 A,F 1161721 Label, Text, English - PerfectoW 1 12 1137267 Label, Diagnostic 1 13 1108810 Screw, Hi-Lo Six Lobe Drive (#10-16 x 5/8") 1 44 1153695 Foam, Inlet - Ceiling 1 15 1143492 Filter, Cabinet 1 16 1161831 Door, Cabinet Access, Beige 1 17 F,G 1153700 Foam, Inlet - Wall 1 18 1154029 Foam, Shroud - Side 1 29 1154028 Foam, Shroud - Front 1 110 1143550 Clip, Retaining 1 211 1156532 Inlet Air Scoop Assembly 1 112 B 1161718 Instruction Sheet, Inlet Air Scoop Assembly 1 1E

1143429-NLA NLA - Base, Concentrator 1 113 C,H

1168590 Base and Baffle Assembly, Concentrator 1 113 C 1153706 Foam, Damping - Base 1 214 1154501 Foam, Resonator 1 115 1153705 Foam, Damping Outlet Base 1 116 2000360 Grommet, Plastic 1 417 1108211 Cap, End, Dust, Green 1 118

1147921-NLA NLA - Label, Spec 1 119

1104151 Fitting, Hose Barb with Nut (1/8") 1 120 1110426 Caster Assembly (2") 1 421 1153704 Damper, Sound Base 1 122

1143444-NLA NLA - Baffle, Exhaust 1 123

1143546 Relief, Strain 1 124 1143493 Cord, Power 1 125

A - Includes Cabinet and Items 2-11.

B - Includes Inlet Foam and Scoop. When ordering item 12, order instruction sheet part number 1161718 also.

C - Includes Base Only.

E - Not Shown.

F - Changed Top Shroud Assembly Color back to Beige. After 1/16/2009.

G - Cabinet Access Door was revised 10/16/09 to allow the Cabinet Filter to be assembled to the outside of the Cabinet

Access Door. The Cabinet Access Door is backward compatible in the field for models manufactured before 10/16/09.

H - No longer available, use 1168590 as the replacement.

NOTE:

PerfectoW

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Compressor and Mounting Hardware

All Models Except Platinum 5

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Compressor and Mounting Hardware

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

See Note See Footnote 1 11 J

1075071 Compressor Assembly - 6LX, 6LX02 1 11

1075071E WARR RPLMT - Compressor Assembly (6LX,

6LXO2)

1 11

2000894 Kit, Compressor Rebuild 1 1A,F

Kit, Rebuild 1 1

Instruction Sheet 1 1 1157138 Kit, Compressor Complete Assembly - Thomas 1 1

Compressor with Mounting Hardware - Thomas 1 1

Kit, Compressor Restraint Bracket (Thomas) 1 1

Capacitor, 15 MFD 1 1

Tie Wrap (8" L) 2 1

1106690E WARR RPLMT - Compressor Assembly - Thomas

(5LX Plat.)

1 1

1109235-NLA Kit, Rebuild for Thomas Compressors 1 1A,G,I

Kit, Rebuild 1 1

NLA - Instruction Sheet 1 1 1154510 Kit, Compressor Rebuild w/ Trigon Seals &

Instruction Sheet - IRC5LX/IRC5LXO2 (Thomas)

1 1A,G

Kit, Compressor Rebuild w/ Trigon Seals -

IRC5LX/IRC5LXO2 Thomas

1 1

Instruction Sheet, Thomas Rebuild 2660-2650 1 1

2000904-NLA NLA - Kit, Compressor Rebuild 1 1A,H

NLA - Kit, Rebuild 1 1

NLA - Instruction Sheet 1 1 1086187 Hose, Barbed, Patch Lock (1/2 x 1/4" NPT) 1 12 2001374 Fitting, Resonator 1 13 B 1108819 Fitting, Elbow (1/2" Beaded Hose x 1/4" NPT) 1 13 C

P0876X026 Clamp, Hose 1 14

1095537 Kit, Resonator Retro-Fit 1 15 B

Resonator 1 1

Screw, Phillips Pan Head (#10-16 x 1/2") 1 2

NLA - Tubing, Silicon (1/2 x 5") 1 1

Tube, Braided (10 x 1/2") 1 1

Spring, Extension (7/16 x 9-3/4" L) 1 1

Screw, Socket Button Head (1/4-20 x 3/8") 1 1

Bracket, Mounting 1 1

Clip, Flange 1 1

Fitting, Elbow (1/2" Beaded Hose x 1/4" NPT) 1 1

Tie Wrap (8" L) 1 1

Instruction Sheet 1 1 1085873 Resonator 1 15 C 2001682 Tie Wrap (8" L) 1 36 2002264 Tubing, Reinforced Braided (1/2 x 26") 1 17

All Models Except Platinum 5

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Compressor and Mounting Hardware

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1088316 Spring, Extension (7/16 x 9-3/4" L) 1 18 2000888 Mounting Bracket Assembly 1 29 2000876 Washer, Cup 1 410 1105418 Screw, Phillips Pan Head (1/4-20 x 1-1/2") 1 411 1085696 NLA - Screw, Phillips Truss Head (1/4-20 x 1/2") 1 412

P0875X510 Mount, Diamond 1 413

2002906 Spacer (1/4 x 1/2 x 7/32") 1 414

P0875X560 Boot, Terminal 1 115

2003019-NLA NLA - Kit, Capacitor 15 MFD 1 1D

Capacitor, 15 MFD 1 1

Clamp, Cap 1 1

Screw, Phillips Pan Head (8-32 x 1/2") 1 1

Washer, Flat (#8) 1 1

Nut, Keps (#6-32) 1 1

Boot, Terminal 1 1

Tie Wrap (3-29/32" L) 1 1

NLA - Screw, Phillips Hex Washer Head (#8-32 x

3/8")

1 1

Tie Wrap (8" L) 1 2

2000770-NLA NLA - Capacitor - MFD3LX 1 116 E

1085697 Relief Valve w/ Patch Lock, 35 PSIG 1 117 B

A - Not Shown.

B - Before 7/00.

C - After 6/00.

D - Use with IRC5LX/ IRC6LX After 1/97 and IRC3LX After 6/97.

E - Use with IRC5LX/ IRC6LX Before 2/97 and IRC3LX Before 7/97.

F - Rebuild Kit is for Thomas Compressor Model #2618 and #2638. Compressor Model numbers are required when ordering

the Rebuild Kit.

G - Rebuild Kit is for Thomas Compressor Model #2650 and #2660. Compressor Model numbers are required when ordering

the Rebuild Kit.

H - Rebuild Kit is for Thomas Compressor Model #2619 and #2639. Compressor Model numbers are required when ordering

the Rebuild Kit.

I - Part #1109235 is No Longer Available. Order part #1154510 as a replacement kit.

J - No longer available as a service part in the field.

NOTE:

All Models Except Platinum 5

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Compressor and Mounting Hardware

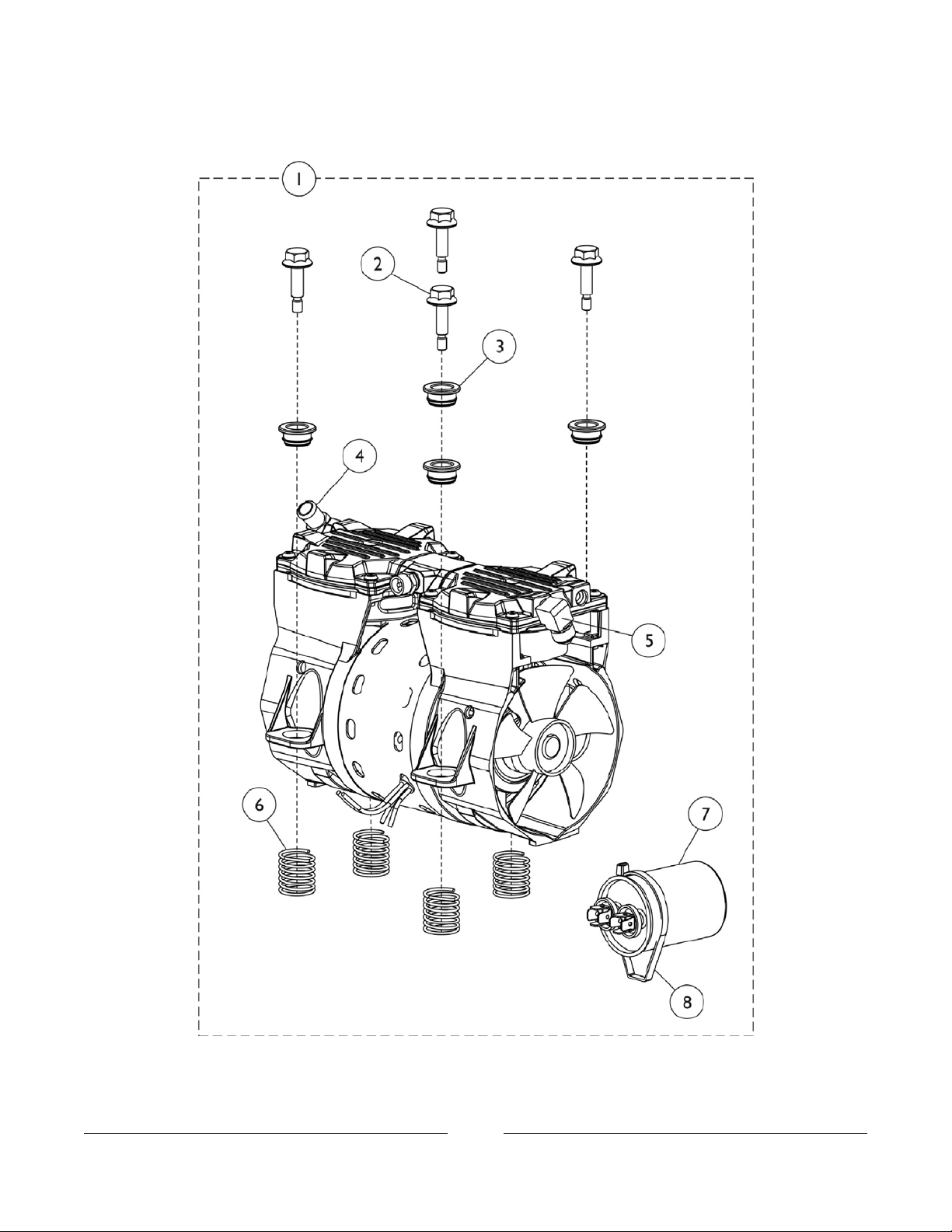

Platinum 5 Models

NOTE: Compressors are interchangeable. However, Capacitor and Bracket Restraint must also be

replaced at the same time.

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Compressor and Mounting Hardware

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1108819 Fitting, Elbow (1/2" Beaded Hose x 1/4" NPT) 1 21

1105504-NLA NLA - Spring, Compressor Mount 1 42

1150581 Spring, Compressor Mount 1 42

1106446-NLA NLA - Pin, Spring Retainer 1 43

1150580 Pin, Spring Retainer 1 43 1107411 Glide, Pin 1 44 1157138 Kit, Compressor Complete Assembly - Thomas 1 15 E

Kit, Compressor Restraint Bracket (Thomas) 1 110

Compressor with Mounting Hardware - Thomas 1 1

Capacitor, 15 MFD 1 1

Tie Wrap (8" L) 2 1

1106690E WARR RPLMT - Compressor Assembly - Thomas

(5LX Plat.)

1 15 F

1154510 Kit, Compressor Rebuild w/ Trigon Seals &

Instruction Sheet - IRC5LX/IRC5LXO2 (Thomas)

1 1A,F,J

Kit, Compressor Rebuild w/ Trigon Seals -

IRC5LX/IRC5LXO2 Thomas

1 1

Instruction Sheet, Thomas Rebuild 2660-2650 1 1 1068698 Capacitor, 15 MFD 1 1A,C 2001682 Tie Wrap (8" L) 1 2A 1108740 Retainer, Push (1/4") 1 16

1085696-NLA NLA - Screw, Phillips Truss Head (1/4-20 x 1/2") 1 17 1128406-NLA NLA - Screw, Phillips Hex Washer Head w/ Patch

(1/4-20 x 3/4")

1 17

1108824 Bumper, Bracket 1 38

1107406-NLA NLA - Bracket, Restraint (Thomas) 1 19 C

1108092 Kit, Compressor Restraint Bracket (Thomas) 1 110 C

1125371-NLA NLA - Compressor with Mounting Hardware - Gast 1 111 I

1125371E Compressor Assembly, Warranty Replacement -

Gast (5LX Plat.)

1 111 G

1124028 Kit, Rebuild for Gast Compressors 1 1A,B

Kit, Rebuild 1 1

Instruction Sheet - Compressor Rebuild 1 1 1131250 Kit, Capacitor Replacement 10 MFD 1 1A,D,H 1121244 Kit, Compressor Restraint Bracket (Gast) 1 112 D

Platinum 5 Models

NOTE: Compressors are interchangeable. However, Capacitor and Bracket Restraint must also be

replaced at the same time.

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Compressor and Mounting Hardware

A - Not Shown.

B - Includes: Instruction Sheet, (2) Head O-Rings, (4) Leaf Valves, (4) Self Tapping Screws, (4) Retainer Screws and (2)

Piston Cups.

C - Must use with Thomas Compressors.

D - Must use with Gast Compressors.

E - For use in converting from Gast Compressors to Thomas Compressors.

F - When replacing or servicing a compressor, the capacitor and (2) tie wraps must also be replaced, reference part #1068698

and #2001682.

G - When replacing or servicing a compressor, the capacitor must also be replaced, reference part #1131250.

H - Includes: (1) Capacitor, 10MFD and (2) Tie Wraps.

I - Item no longer available, refer to Kit Part # 1157138 as a replacement.

J - Kit includes Retainer Plates and Trigon Seals to enable rebuilding of both Trigon and pre-Trigon configurations.

NOTE:

Platinum 5 Models

NOTE: Compressors are interchangeable. However, Capacitor and Bracket Restraint must also be

replaced at the same time.

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Compressor and Mounting Hardware

10 Liter Models

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Compressor and Mounting Hardware

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1130666 Compressor Assembly - 10LX/ 10LXO2 1 11 B

1130666E WARR RPLMT - Compressor Assembly - 10LX/

10LXO2

1 11

1153687 Kit, Compressor Rebuild w/ Instruction Sheet 1 11 C

Compressor Rebuild Assembly - Thomas 1 1

Instruction Sheet, Rebuild 1 1 1128740 Capacitor, 30 MFD 1 1D 1089455 Tie Wrap (15-1/4" L) 1 2D 1128741 Compressor - 10LX/10LXO2 1 12

1128741E-NLA NLA - WARR RPLMT - Compressor - 10LX/10LXO2 1 12

1108819 Fitting, Elbow (1/2" Beaded Hose x 1/4" NPT) 1 23

1105504-NLA NLA - Spring, Compressor Mount 1 44

1150581 Spring, Compressor Mount 1 44

1106446-NLA NLA - Pin, Spring Retainer 1 45

1150580 Pin, Spring Retainer 1 45 1107411 Glide, Pin 1 46 1108092 Kit, Compressor Restraint Bracket (Thomas) 1 17 A

1107406-NLA NLA - Bracket, Restraint (Thomas) 1 18 1128406-NLA NLA - Screw, Phillips Hex Washer Head w/ Patch

(1/4-20 x 3/4")

1 19

1108824 Bumper, Bracket 1 310 1108740 Retainer, Push (1/4") 1 111

A - Includes Bracket, Screw, Push Retainer and Bumper.

B - Includes Items 2-6.

C - When replacing or servicing a compressor, the capacitor part #1128740 and (2) Tie Wraps part #1089455 must also be

replaced.

D - Not Shown.

NOTE:

10 Liter Models

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Compressor and Mounting Hardware

Perfecto2/PerfectoW

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Compressor and Mounting Hardware

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1162038 Kit, Compressor with Hardware - PW/PO2W 1 11 A,D

Compressor - P2/ PO2/PW/P02W 1 1

Screw, Hex Head Flange (1/4-20 x 7/8") 1 42

Bushing, Mounting 1 43

Fitting, Elbow (1/2" Beaded Hose x 1/4" NPT) 1 14

Elbow, Male Flare 1 15

Spring, Compression (63/64 x 1-1/4 x 1/16") 1 46

Capacitor, 10 MFD 1 17

Tie Wrap (17-1/2" L) 1 18

1162038E WARR RPLMT - Kit, Compressor w/ Hardware,

PW/PO2W

1 11 A

NLA - WARR RPLMT - Compressor,

P2/PO2/PW/PO2W

1 1

Screw, Hex Head Flange (1/4-20 x 7/8") 1 42

Bushing, Mounting 1 43

Fitting, Elbow (1/2" Beaded Hose x 1/4" NPT) 1 14

Elbow, Male Flare 1 15

Spring, Compression (63/64 x 1-1/4 x 1/16") 1 46

Capacitor, 10 MFD 1 17

Tie Wrap (17-1/2" L) 1 18 1143461 Screw, Hex Head Flange (1/4-20 x 7/8") 1 42 1143462 Bushing, Mounting 1 43 1108819 Fitting, Elbow (1/2" Beaded Hose x 1/4" NPT) 1 14

1169408-NLA NLA - Fitting, Elbow Swivel (1/4 NPT x 3/8 Tube) 1 15 E

1143489 Elbow, Male Flare 1 15 1143460 Spring, Compression (63/64 x 1-1/4 x 1/16") 1 46 1131250 Kit, Capacitor Replacement 10 MFD 1 17 B 1018239 Tie Wrap (17-1/2" L) 1 18 1153688 Kit, Compressor Rebuild w/ Instruction Sheet 1 1C

Compressor Rebuild - Thomas 1 1

Instruction Sheet, Thomas Rebuild 2660-2650 1 1

A - Kit includes the Compressor and items 2 thru 8.

B - Includes 10MFD Capacitor and (2) Tie Wraps.

C - When replacing or servicing a compressor, Part Number 1131250 must also be replaced.

D - When ordering a replacement compressor, you should order 1143557 Heat Exchanger when replacing a unit

manufactured between 5/17/11 and 7/20/11.

E - No longer available, use 1143489 as its replacement.

NOTE:

Perfecto2/PerfectoW

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Compressor and Mounting Hardware

Perfecto2V

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Compressor and Mounting Hardware

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1165097 Kit, Compressor with Hardware - PO2V 1 11 A,D

Compressor - PO2V 1 1

Screw, Hex Head Flange (1/4-20 x 7/8") 1 42

Bushing, Mounting 1 43

Fitting, Elbow (1/2" Beaded Hose x 1/4" NPT) 1 14

Elbow, Male Flare 1 15

Spring, Compression (63/64 x 1-1/4 x 1/16") 1 46

Capacitor, 22MFD 1 17

Tie Wrap (17-1/2" L) 1 18 1143461 Screw, Hex Head Flange (1/4-20 x 7/8") 1 42 1143462 Bushing, Mounting 1 43 1108819 Fitting, Elbow (1/2" Beaded Hose x 1/4" NPT) 1 14

1169408-NLA NLA - Fitting, Elbow Swivel (1/4 NPT x 3/8 Tube) 1 15 E

1143489 Elbow, Male Flare 1 15 1143460 Spring, Compression (63/64 x 1-1/4 x 1/16") 1 46 1167620 Kit, Compressor Rebuild, PO2V 1 1C 1165098 Kit, Capacitor Replacement, 22MFD 1 19 B

Capacitor, 22MFD 1 17

Tie Wrap (17-1/2" L) 1 18

A - Kit includes the Compressor and items 2-8

B - Kit includes items 7 and 8

C - Not Shown. Kit includes (2) ea. Cylinders, (2) ea. Seal Cups, (4) ea. Reed Valves, (4) ea. O-Rings, (12) ea. Head

Mounting Screws, (4) ea. Valve Flapper Screws, (4) Washers and Instruction Sheet

D - When ordering a replacement compressor, you should order 1143557 Heat Exchanger, when replacing a unit

manufactured between 5/17/11 and 7/20/11.

E - No longer available. Use 1143489 as its replacement.

NOTE:

Perfecto2V

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Control Panel and P.C. Board

(All Models Except Platinum 5)

Before 12/15/00

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Control Panel and P.C. Board

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1101585-NLA NLA - Control Panel Assembly - IRC3LX 1 11

1101584 Control Panel Assembly - IRC5LX 1 11 1101583 Control Panel Assembly - IRC5LX02 1 11

1073754-NLA NLA - Control Panel Assembly - IRC5LX02T 1 11

1101582 Control Panel Assembly - IRC6LX02/ IRC6LX02H 1 11 1073752 Control Panel Assembly - IRC6LX02T 1 11

2001769-NLA NLA - Panel, Control 1 12

40120X001 Screw, Phillips Pan Head (#8-32 x 3/8") 1 23

1080809-NLA Label, Control Panel, English - IRC3LX 1 14

2002356 Label, Control Panel, English - IRC5LX 1 14 2002355 Label, Control Panel, English - IRC5LXO2, 5LXO2T 1 14 1074670 Label, Control Panel, English - IRC6LXO2, 6LXO2T,

6LXO2H

1 14

1079329 Label, Control Panel, French Canadian - IRC5LX 1 14 1079330 Label, Control Panel, French Canadian - IRC5LXO2 1 14 1079331 Label, Control Panel, French Canadian - IRC6LXO2 1 14 1079324 Label, Control Panel, Spanish - IRC5LX 1 14 1079325 Label, Control Panel, Spanish - IRC5LXO2 1 14 1079326 Label, Control Panel, Spanish - IRC6LXO2 1 14 2000473 Connector, Barbed (1/4") 1 15

2001086-NLA NLA - Knob, Flowmeter 1 16

1128379 Package, Knob, Flowmeter, Silver w/ Black Swish 10 16 I 1128380 Package, Knob, Flowmeter, Black w/ Silver Swish 10 16 J 2001989 Flowmeter with Palnuts - 3 Liter 1 17

2001773-NLA NLA - Flowmeter with Palnuts - 5 Liter 1 17 H

1110561 Flowmeter without Palnuts - 5 Liter 1 17 G 1074672 Flowmeter with Palnuts - 6 Liter 1 17 2000799 Adapter with Tubing for Humidifier Bottle 1 18 2000503 Adapter, Humidifier Bottle 1 19 1098707 Hour Meter Assembly with Clip 1 110 2001134 Switch, On/Off 1 111 1056554 Circuit Breaker (8 AMP) 1 112

2000464-NLA NLA - Support, Control Panel 1 213

2002674 Palnut (3/8-27) 1 114 2000507 Palnut (9/16-18) 1 215 1061773 Remote LED Assembly, Sens O2 - IRC5LXO2 1 116

2001696-NLA NLA - Transformer Assembly 1 117 B

1085200 Transformer Assembly 1 117 C 1028794 Screw, Phillips Truss Head Tap (#6 x 1/4") 1 618 2000460 Valve, Check 1 219 2001682 Tie Wrap (8" L) 1 220

P0750X030 Filter, HEPA Outlet 1 121

(All Models Except Platinum 5)

Before 12/15/00

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Control Panel and P.C. Board

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

2000897 Tubing, Tygon (1/4 x 24") 1 122

2001834-NLA NLA - Harness, Wire IRC5LX 1 123 D

2001762 Harness, Wire-Sensor - IRC5LX02 1 123 D 2003085 Harness, Wire, (All LX Models) 1 123 E 1036162 Stand-Off, P.C. Board 1 624

See Chart # 25 P.C. Boards 1 125 F

2001321-NLA NLA - T-Fitting 1 1A

A - Not Shown.

B - Before 11/97.

C - After 10/97.

D - Before 5/97.

E - After 4/97.

F - See P.C. Board Chart.

G - Palnuts are no longer included, must be ordered separately. Requires (2) Palnuts - #2000507.

H - Item no longer available, refer to Part #1110561.

I - Knob is silver with black "swish". Used on Flowmeters with a Phillips Head Indented Screw on top.

J - Knob is black with silver "swish". Used on Flowmeters with a Slotted Head Screw on top.

NOTE:

#25 P.C. Boards

Model P.C. Board

Reconditioned

P.C. Board

1078183E1078183-NLAIRC3LX 1078183E1078183-NLAIRC5LX

1078181E-NLA1078181-NLA

IRC5LX02

Before 7/98

1113693E-NLA1113693

IRC5LX02

After 6/98

N/A1079444-NLAIRC5LX02T

1078181E-NLA1078181-NLA

IRC6LX02

Before 7/98

1113693E-NLA1113693

IRC6LX02

After 6/98

N/A1079444-NLAIRC6LX02T

All P.C. Boards include an Instruction Sheet.

(All Models Except Platinum 5)

Before 12/15/00

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Control Panel and P.C. Board

(All Models Except Platinum 5)

After 12/14/00

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Control Panel and P.C. Board

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1101585-NLA NLA - Control Panel Assembly - IRC3LX 1 11

1101584 Control Panel Assembly - IRC5LX 1 11 1101583 Control Panel Assembly - IRC5LX02 1 11 1101582 Control Panel Assembly - IRC6LX02/ IRC6LX02H 1 11 1081276 Control Panel Only 1 12 2003065 NLA - Screw, Phillips Hex Washer Head (#8-32 x

3/8")

1 23

2000473 Connector, Barbed (1/4") 1 14

2001086-NLA NLA - Knob, Flowmeter 1 15

1128379 Package, Knob, Flowmeter, Silver w/ Black Swish 10 15 D 1128380 Package, Knob, Flowmeter, Black w/ Silver Swish 10 15 E 2000799 Adapter with Tubing for Humidifier Bottle 1 16 2000503 Adapter, Humidifier Bottle 1 17 2001989 Flowmeter with Palnuts - 3 Liter 1 18

2001773-NLA NLA - Flowmeter with Palnuts - 5 Liter 1 18 C

1110561 Flowmeter without Palnuts - 5 Liter 1 18 B 1074672 Flowmeter with Palnuts - 6 Liter 1 18 1098707 Hour Meter Assembly with Clip 1 19 2001134 Switch, On/Off 1 110

1101587-NLA NLA - Label, Text Control Panel - IRC3LX 1 111

1105530 Label, Text Control Panel - IRC5LX 1 111 1105532 Label, Text Control Panel - IRC5LXO2 1 111

1101586-NLA NLA - Label, Text Control Panel - IRC6LX02 1 111 1101590-NLA NLA - Label, Logo Control Panel - IRC3LX 1 112 1105531-NLA NLA - Label, Logo Control Panel - IRC5LX, 5LXO2 1 112 1101588-NLA NLA - Label, Logo Control Panel - IRC6LXO2 1 112

1101591 Support, Control Panel 1 213 1056554 Circuit Breaker (8 AMP) 1 114 2000507 Palnut (9/16-18) 1 215 2002674 Palnut (3/8-27) 1 116 1085200 Transformer Assembly 1 117 1102696 Screw, Phillips Pan Head SEMS (#8-32 x 3/8") 1 218 1101620 Harness, Wire (24V) 1 119

P0750X030 Filter, HEPA Outlet 1 120

2000897 Tubing, Tygon (1/4 x 24") 1 121 2001682 Tie Wrap (8" L) 1 222

See Chart #23 P.C. Boards 1 123 A

A - See P.C. Board Chart.

B - Palnuts not included. See item 15.

C - Item no longer available, refer to Part #1110561.

D - Knob is silver with black "swish". Used on Flowmeters with an Indented Phillips Head Screw on top.

E - Knob is black with silver "swish". Used on Flowmeters with a Slotted Head Screw on top.

NOTE:

(All Models Except Platinum 5)

After 12/14/00

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Control Panel and P.C. Board

#23 P.C. Boards

Model P.C. Board

Reconditioned

P.C. Board

1078183E1078183-NLAIRC3LX 1078183E1078183-NLAIRC5LX

1113693E-NLA1113693IRC5LX02

N/A1079444-NLAIRC5LX02T

1113693E-NLA1113693IRC6LX02

N/A1079444-NLAIRC6LX02T

1113693E-NLA1113693IRC6LX02H

All P.C. Boards include an Instruction Sheet.

(All Models Except Platinum 5)

After 12/14/00

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Control Panel and P.C. Board

(Platinum 5 Models)

Before 12/5/02

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Control Panel and P.C. Board

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1110784-NLA NLA - Control Panel Assembly - IRC5LX 1 11 J

1115189 Control Panel Assembly - IRC5LX 1 11

1106693-NLA NLA - Control Panel Assembly - IRC5LX02 1 11 I 1115190-NLA NLA - Control Panel Assembly - IRC5LX02 1 11 I

2000507 Palnut (9/16-18) 1 32 1056554 Circuit Breaker (8 AMP) 1 13 1098707 Hour Meter Assembly with Clip 1 14 2001134 Switch, On/Off 1 15 1105530 Label, Text Control Panel - IRC5LX 1 16 1105532 Label, Text Control Panel - IRC5LXO2 1 16

2001773-NLA NLA - Flowmeter with Palnuts - 5 Liter 1 17 F

1110561 Flowmeter without Palnuts - 5 Liter 1 17 1128379 Package, Knob, Flowmeter, Silver w/ Black Swish 10 18 G 1128380 Package, Knob, Flowmeter, Black w/ Silver Swish 10 18 H 2000473 Connector, Barbed (1/4") 1 19

See Note See Footnote 1 110 D,N

1123239 Decal, Logo, Control Panel 1 110 E

2003065-NLA NLA - Screw, Phillips Hex Washer Head (#8-32 x

3/8")

1 211

1128404 Screw, Phillips Hex Washer Head (#8-32 x 3/8") 1 211 1085200 Transformer Assembly 1 112 1102696 Screw, Phillips Pan Head SEMS (#8-32 x 3/8") 1 213

2001902-NLA NLA - Screw, Phillips Pan Head (#4-40 x 1/4") 1 214

1076275 Tubing, Tygon (1/8 x 18") 1 115 1110481 Harness, Wire, 9 Pin 1 116

1078183-NLA NLA - P.C. Board Replacement LX 1 117 B,C

1113693 P.C. Board, LX02 1 117 B,C 1110779 Tubing Assembly, Check Valve Discharge 1 118 A,M 1108815 Tubing, Silicon (1/4 x 16-1/4") 1 119 M 1108809 Tubing, PVC (1/4 x 12-3/4") 1 120 2001682 Tie Wrap (8" L) 1 221 K,L 1110473 Tubing, PVC (1/4 x 1-3/4") 1 222 K,L 2000460 Valve, Check 1 123 K,L

P0750X030 Filter, HEPA Outlet 1 124 K,L

1143144 Tubing, PVC (1/4 x 5") 1 125 K,L 1081276 Control Panel Only 1 126

(Platinum 5 Models)

Before 12/5/02

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Control Panel and P.C. Board

A - Includes (2) Tubing, Check Valve, Elbow and Tie Wrap.

B - Includes Item 15 and Instruction Sheet.

C - Before 11/19/02.

D - Before 4/14/04.

E - After 4/13/04.

F - Item no longer available, refer to Part #1110561. Palnuts must be ordered separately, refer to Part #2000507 in a quantity

of 2.

G - Knob is silver with black "swish". Used on Flowmeters with an Indented Phillips Head Screw on top.

H - Knob is black with silver "swish". Used on Flowmeters with a Slotted Head Screw on top.

I - Item no longer available.

J - Item no longer available, refer to Part #1115189.

K - "After 7/19/06" the location of the HEPA Filter has changed. The HEPA Filter is now located inside the cabinet.

L - For use with Control Panel Assembly "After 7/19/06."

M - For use with Control Panel Assembly "Before 7/20/06."

N - No longer available as a service part in the field.

NOTE:

(Platinum 5 Models)

Before 12/5/02

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Control Panel and P.C. Board

(Platinum 5 Models)

After 12/5/02

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Control Panel and P.C. Board

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1115189 Control Panel Assembly - IRC5LX 1 11 C

1115190-NLA NLA - Control Panel Assembly - IRC5LX02 1 11 D

2000507 Palnut (9/16-18) 1 32 1056554 Circuit Breaker (8 AMP) 1 13 1098707 Hour Meter Assembly with Clip 1 14 2001134 Switch, On/Off 1 15 1108820 Label, Text Control Panel - IRC5LX 1 16 1108755 Label, Text Control Panel - IRC5LX02 1 16

2001773-NLA NLA - Flowmeter with Palnuts - 5 Liter 1 17 B

1110561 Flowmeter without Palnuts - 5 Liter 1 17 1128379 Package, Knob, Flowmeter, Silver w/ Black Swish 10 18 H 1128380 Package, Knob, Flowmeter, Black w/ Silver Swish 10 18 G 2000473 Connector, Barbed (1/4") 1 19 1123239 Decal, Logo, Control Panel 1 110 F

2003065-NLA NLA - Screw, Phillips Hex Washer Head (#8-32 x

3/8")

1 211

1128404 Screw, Phillips Hex Washer Head (#8-32 x 3/8") 1 211 1085200 Transformer Assembly 1 112 1102696 Screw, Phillips Pan Head SEMS (#8-32 x 3/8") 1 213

2001902-NLA NLA - Screw, Phillips Pan Head (#4-40 x 1/4") 1 214

1076275 Tubing, Tygon (1/8 x 18") 1 115 1108737 Harness, Wire, 10 Pin 1 116 1108720 LXN PCB Assembly 1 117 C

1108720E WARR RPLMT - LXN PCB Assembly 1 117 C

1108731 ISBN PCB Assembly 1 117 D

1108731E WARR RPLMT - ISBN PCB Assembly 1 117 D

1110779 Tubing Assembly, Check Valve Discharge 1 118 A,K 1108815 Tubing, Silicon (1/4 x 16-1/4") 1 119 K 1108809 Tubing, PVC (1/4 x 12-3/4") 1 120 2001682 Tie Wrap (8" L) 1 221 I,J 1110473 Tubing, PVC (1/4 x 1-3/4") 1 222 I,J 2000460 Valve, Check 1 123 I,J

P0750X030 Filter, HEPA Outlet 1 124 I,J

1143144 Tubing, PVC (1/4 x 5") 1 125 I,J 1081276 Control Panel Only 1 126

(Platinum 5 Models)

After 12/5/02

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Control Panel and P.C. Board

A - Includes (2) Tubing, Check Valve, Elbow and Tie Wrap.

B - Item no longer available, refer to Part #1110561.

C - To be used on model IRC5LX.

D - To be used on model IRC5LX02.

F - After 4/13/04.

G - Knob is black with silver "swish". Used on Flowmeters with a Slotted Head Screw on top.

H - Knob is silver with black "swish". Used on Flowmeters with an Indented Phillips Head Screw on top.

I - "After 7/19/06" the location of the HEPA Filter has changed. The HEPA Filter is now located inside the cabinet.

J - For use with Control Panel Assembly "After 7/19/06."

K - For use with Control Panel Assembly "Before 7/20/06."

NOTE:

(Platinum 5 Models)

After 12/5/02

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Control Panel and P.C. Board

10 Liter Models

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Control Panel and P.C. Board

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1132056 Control Panel Assembly - 10LX 1 11 1130682 Control Panel Assembly - 10LXO2 1 11 2000507 Palnut (9/16-18) 1 32 1056554 Circuit Breaker (8 AMP) 1 13 1098707 Hour Meter Assembly with Clip 1 14 2001134 Switch, On/Off 1 15 1130062 Label, Control Panel - 10LX 1 16 1125073 Label, Control Panel - 10LXO2 1 16

1128739-NLA NLA - Flowmeter without Palnuts 1 17 D,E

1135961 Flowmeter Assembly 1 17 D 2000473 Connector, Barbed (1/4") 1 18 1128738 Label, Logo 1 19 1102696 Screw, Phillips Pan Head SEMS (#8-32 x 3/8") 1 210 1085200 Transformer Assembly 1 111 1110779 Tubing Assembly, Check Valve Discharge 1 112 A,H 1108815 Tubing, Silicon (1/4 x 16-1/4") 1 113 H 1108809 Tubing, PVC (1/4 x 12-3/4") 1 114 1128737 PCB Control Assembly - 10LX 1 115 1128742 PCB Control Assembly - 10LXO2 1 115

1128742E WARR RPLMT - PCB Control Assembly - 10LXO2 1 115

1108737 Harness, Wire, 10 Pin 1 116 1076275 Tubing, Tygon (1/8 x 18") 1 117

2001902-NLA NLA - Screw, Phillips Pan Head (#4-40 x 1/4") 1 218

1128404 Screw, Phillips Hex Washer Head (#8-32 x 3/8") 1 219

2003065-NLA NLA - Screw, Phillips Hex Washer Head (#8-32 x

3/8")

1 219

1128379 Package, Knob, Flowmeter, Silver w/ Black Swish 10 120 C 1128380 Package, Knob, Flowmeter, Black w/ Silver Swish 10 120 B 2001764 Jumper Wire Assembly 1 121 2001682 Tie Wrap (8" L) 1 222 F,G 1110473 Tubing, PVC (1/4 x 1-3/4") 1 223 F,G 2000460 Valve, Check 1 124 F,G

P0750X030 Filter, HEPA Outlet 1 125 F,G

1143144 Tubing, PVC (1/4 x 5") 1 126 F,G 1081276 Control Panel Only 1 127

A - Includes Tubing, Check Valve, Elbow and Tie Wrap.

B - Knob is black with silver "swish". Used on Flowmeters with a Slotted Head Screw on top.

C - Knob is silver with black "swish". Used on Flowmeters with an Indented Phillips Head Screw on top.

D - When replacing Flowmeter Assembly Part #1135961 in units built "Before 4/06," it is required that the Patient Outlet

Pressure be increased to 9psi. Contact Invacare Technical Support at 1-800-832-4707 for more details.

E - Flowmeter 1128739 is no longer available, refer to Part #1135961 for replacement.

F - "After 7/19/06" the location of the HEPA Filter has changed. The HEPA Filter is now located inside the cabinet.

G - For use with Control Panel Assembly "After 7/19/06."

H - For use with Control Panel Assembly "Before 7/20/06."

NOTE:

10 Liter Models

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Control Panel and P.C. Board

Perfecto2/Perfecto2V/PerfectoW

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Control Panel and P.C. Board

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1143576 Control Panel Assembly - P2/PW 1 11 1143553 Control Panel with SensO2 Assembly - PO2/PO2W 1 11 1164802 Control Panel w/ SensO2 Assembly - PO2V 1 11 1110561 Flowmeter without Palnuts - 5 Liter 1 12 2000473 Connector, Barbed (1/4") 1 13 1143503 Horn Assembly 1 14 1098707 Hour Meter Assembly with Clip 1 15 1143475 PCB Assembly - P2/PW 1 16 1143486 PCB Assembly - PO2/PO2W 1 16

1143486E WARR RPLMT - PCB Assembly - PO2/PO2W 1 16

1164808 PCB Assembly - PO2V 1 16 1143499 Screw, Phillips Hex Washer Head (#8-16 x 3/8) 1 27 1143542 Breaker, Circuit 6 AMP 1 18 2001682 Tie Wrap (8" L) 1 29 1110473 Tubing, PVC (1/4 x 1-3/4") 1 210 2000460 Valve, Check 1 111 1143144 Tubing, PVC (1/4 x 5") 1 112

P0750X030 Filter, HEPA Outlet 1 113

2000507 Palnut (9/16-18) 1 314 2001134 Switch, On/Off 1 115 1008547 Cord, Elastic 1 116 1006525 Tie Wrap (3-29/32" L) 1 117 1095497 Decal, Invacare Logo (1.6) 1 118 1143545 Label, LED - P2/PW 1 119 1143479 Label, LED - PO2/PO2V/PO2W 1 119 1143469 Panel, Control 1 120 2001764 Jumper Wire Assembly 1 121 1163429 Package, Label, No Smoking,

Perfecto2/Perfecto2V/PerfectoW

20 122

1143501-NLA NLA - Power Jumper Assembly 1 123

2000799 Adapter with Tubing for Humidifier Bottle 1 124 1128379 Package, Knob, Flowmeter, Silver w/ Black Swish 10 125 1128380 Package, Knob, Flowmeter, Black w/ Silver Swish 10 125 1143477 Main Harness Assembly 1 1A,B 1143526 Wire Harness Valve Assembly 1 1A,B

A - Not Shown.

B - Connects to the PC Board.

NOTE:

Perfecto2/Perfecto2V/PerfectoW

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

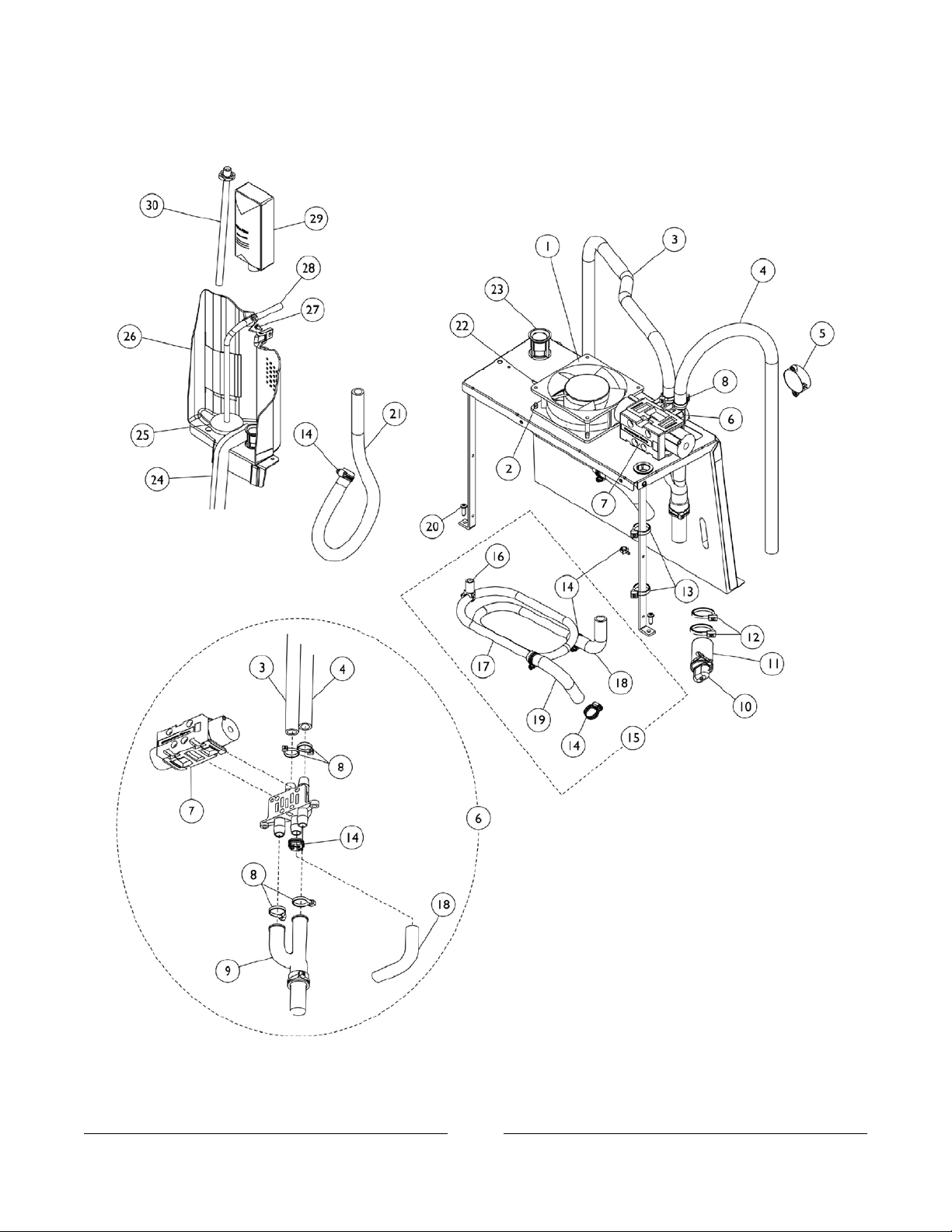

Sound Box Assembly

All Models Except Platinum 5

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Sound Box Assembly

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1073613-NLA NLA - Gasket, Foam 1 11

2001361 Kit, Exhaust Fan Service 1 12

Fan, Exhaust 1 1

Mount, Cable Tie 1 4

Tie Wrap (3-29/32" L) 1 1

NLA - Screw, Phillips Hex Washer Head (#7-19 x

3/8")

1 1

Screw, Phillips Pan Head (10-24 x 3/4") 1 4

Tie Wrap (15-1/4" L) 1 1

Tie Wrap (8" L) 1 4

Instruction Sheet 1 1

2000765-NLA NLA - Spring, Extension (7/16 x 7-1/2" L) 1 13

2001375 Hose, Reinforced Silicon (1/2 x 8-1/2") 1 14

P0876X026 Clamp, Hose 1 25

2000755 Mount, Cable Tie 1 46 1076750 Screw, Phillips Pan Head (10-24 x 3/4") 1 47 2001682 Tie Wrap (8" L) 1 108

1085014-NLA NLA - Exchanger, Heat 1 19 K

2000884 Kit, Heat Exchanger 1 19

NLA - Exchanger, Heat 1 19

Clamp, Hose 1 25

Tie Wrap (8" L) 1 48

2000411-NLA NLA - Rod, Support 1 210

P0870X050 Nut, Keps (#6-32) 1 111 1088281-NLA NLA - Tubing, Silicon (1/2 x 5") 1 112 2001194-NLA Spring, Compression (17-1/4") 1 113

P0875X720 Nut (3/4-16) 1 114

2002997 Label, Diagnostic - IRC5LX02 1 115 2001096-NLA NLA - Fitting, Bulk Head (1/2") 1 116 1108078-NLA NLA - Filter, Inlet 1 117 J

1131249 Filter, Inlet Sound Reduced 1 117

2002264 Tubing, Reinforced Braided (1/2 x 26") 1 218

1105552 Kit, 4 Way Valve/Manifold Service 1 119 C,A

Manifold Assembly 1 1 Kit, 4-Way Valve w/ Screws 1 1 Hose, Reinforced Silicon (1/2 x 8-1/2") 1 1 Tubing, Reinforced Braided (1/2x 4-1/8") 1 2 Clamp, Hose 1 1 Tubing, Reinforced Braided (1/2 x 26") 1 2 Tie Wrap (8" L) 1 6 Clamp, Plastic (1/2") 1 2 Bushing, Step (1/2") 1 4 Washer, Flat (#8) 1 2

All Models Except Platinum 5

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Sound Box Assembly

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

Screw, Phillips Pan Head (#8-32 x 3/4") 1 2 Resistor Service Assembly 1 1 Tie Wrap, Banded (3-29/32" L) 1 2 Instruction Sheet 1 1

1083005-NLA NLA - Valve, 4-Way with Screen 1 120 D

1083005E-NLA NLA - Valve, 4-Way with Screws (Reconditioned) 1 120 D

1101141 Kit, 4-Way Valve w/ Screws 1 120 E

1101141R Valve, Reconditioned 1 1B

1101141E-NLA Kit, Valve - Warranty Replacement 1 1B

Valve, Reconditioned 1 1 Gasket 1 1

Screw, Socket Head (M5 x .8 x 2 MM) 1 4 1095209 Tubing, Reinforced Braided (1/2x 4-1/8") 1 221 1095538 Kit, Muffler Retro-Fit 1 122 F

Muffler Assembly 1 1

Screw, Phillips Pan Head (#10-16 x 1/2") 1 2

Screw, Socket Button Head (1/4-20 x 3/8") 1 1

Bracket, Mounting 1 1

Clip, Flange 1 1

Instruction Sheet 1 1 1085872 Muffler Assembly 1 122 G 2001116 Uni-Muffler 1 123 2001765 Harness, Horn/Alarm 1 124 2003052 Valve, Operator Pilot 1 125 L 1085112 O-Ring, Pilot Valve (35/64" I.D.) 1 1 1080973 Kit, Pilot Valve Stem and Poppet Replacement 1 1B

Pilot Valve Poppet and Stem 1 1

Instruction Sheet, Pilot Coil 1 1 2003083 Kit, Pilot Valve Poppet Replacement 1 1H,B

2003082-NLA NLA - Instruction Sheet, Pilot Valve Poppet Kit 1 1I,B

1080971 Kit, Pilot Coil Replacement 1 1B

Coil, Pilot 1 1

Instruction Sheet, Pilot Coil 1 1 2000830 Guard, Cooler 1 1B

All Models Except Platinum 5

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Sound Box Assembly

A - Manifold #2002752, 4-Way Valve #1083005 and 4-Way Valve #1083005E are no longer available. Must order

Manifold/Valve Service Kit (p/n 1105552). To be used on units built before 01/01.

B - Not Shown.

C - Includes items 4, 5, 8, 18, 20, 21 and Instruction Sheet.

D - Before 12/00.

E - After 11/00.

F - Before 7/00.

G - After 6/00.

H - Includes O-Ring, Labels, Slotted Poppets and Instruction Sheet.

I - See Tech Services for a copy of Instruction Sheet.

J - Item no longer available, refer to Part #1131249.

K - Part Number 1085014 is No Longer Available by itself. Refer to the Heat Exchanger Kit part number 2000884

L - A new Pilot Valve O-Ring part #1085112 is recommended when ordering a new Operator Pilot Valve

NOTE:

All Models Except Platinum 5

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Sound Box Assembly

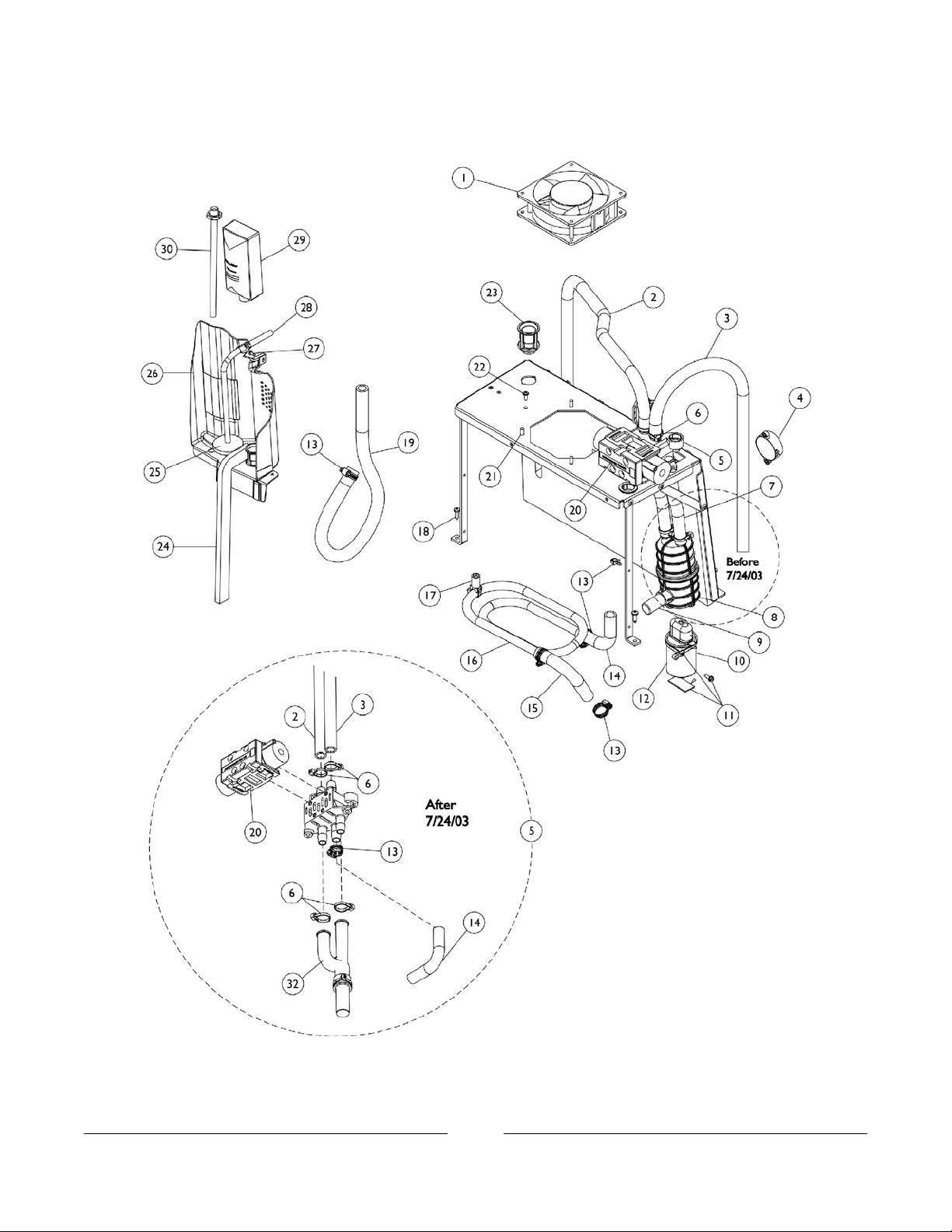

Platinum 5 Models

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Sound Box Assembly

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

2001361 Kit, Exhaust Fan Service 1 11

Fan, Exhaust 1 1

Mount, Cable Tie 1 4

Tie Wrap (3-29/32" L) 1 1

NLA - Screw, Phillips Hex Washer Head (#7-19 x

3/8")

1 1

Screw, Phillips Pan Head (10-24 x 3/4") 1 4

Tie Wrap (15-1/4" L) 1 1

Tie Wrap (8" L) 1 4

Instruction Sheet 1 1 1108783 Tubing, Braided (1/2 x 23") 1 12 1108784 Tubing, Braided (1/2 x 20-1/4") 1 13 2001765 Harness, Horn/Alarm 1 14 1108085 Manifold/Valve Assembly 1 15 B 2001682 Tie Wrap (8" L) 1 56 1110848 Tubing, Braided (1/2 x 6-3/16") 1 27 1085872 Muffler Assembly 1 18 F 2001116 Uni-Muffler 1 19 F

P0875X560 Boot, Terminal 1 110 M

1110776-NLA NLA - Capacitor Mounting Hardware 1 111 A

1068698 Capacitor, 15 MFD 1 112 H 1131250 Kit, Capacitor Replacement 10 MFD 1 112 D,I

P0876X026 Clamp, Hose 1 513

1108822 Elbow, PVC Formed (1/2 x 2-1/2 x 2-1/2") 1 114 1106698 Elbow, Silicon (1/2 x 3-1/2") 1 115 1108817 Heat Exchanger Assembly 1 116 J 1110780 Stand-Off, Heat Exchanger 1 117 1108810 Screw, Hi-Lo Six Lobe Drive (#10-16 x 5/8") 1 718

1108086-NLA NLA - Tubing (1/2 x 19") 1 119

1112561 Tube, Compressor 1 119 1101141 Kit, 4-Way Valve w/ Screws 1 120

1101141R Valve, Reconditioned 1 1L

1101141E-NLA Kit, Valve - Warranty Replacement 1 1L

Valve, Reconditioned 1 1

Gasket 1 1

Screw, Socket Head (M5 x .8 x 2 MM) 1 4 1110852 Screw, Slotted Hex Washer Head (#10-24 x 1/2") 1 421

1003363-NLA Screw, Phillips Pan Head (#8-32 x 3/8") 1 122

1128404 Screw, Phillips Hex Washer Head (#8-32 x 3/8") 1 122 1106675 Coupling, Inlet Filter 1 123 2000812 Seal, Foam 1 224

P0750X030 Filter, HEPA Outlet 1 125 K

1110777-NLA NLA - Partition 1 126

Platinum 5 Models

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Sound Box Assembly

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1115183 Partition Assembly 1 126 E 1128404 Screw, Phillips Hex Washer Head (#8-32 x 3/8") 1 127 1108815 Tubing, Silicon (1/4 x 16-1/4") 1 128

1108078-NLA NLA - Filter, Inlet 1 129

1131249 Filter, Inlet Sound Reduced 1 129

1110768-NLA NLA - Adaptor, Humidifier Bottle 1 130

2000799 Adapter with Tubing for Humidifier Bottle 1 130 1087225 Screw, Phillips Pan Head (#10-16 x 1/2") 1 231 F 1110775 Muffler/Y-Tube Assembly 1 132 G 2003052 Valve, Operator Pilot 1 1L

A - Includes Screw, Tie Wraps and Foam Tape.

B - Due to style change effective 7/24/03, includes Items 2, 3, 6, 13, 14, 20 and 32.

D - Includes: (1) Capacitor, 10MFD and (2) Tie Wraps.

E - After 12/5/02.

F - Before 7/24/03.

G - After 7/23/03.

H - Use with Thomas Compressors.

I - Use with Gast Compressors.

J - Includes Heat Exchanger, Standoff, and Tie Wrap.

K - After 7/19/06 the Hepa Filter was moved to the inside of cabinet, located between the Flow Meter and the Patient Outlet

Barb. See "Control Panel and P.C. Plat. 5 - After 12/5/02" category to view reflective changes.

L - Not Shown.

M - Boot removed from assembly after 6/28/07.

NOTE:

Platinum 5 Models

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Sound Box Assembly

10 Liter Models

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Sound Box Assembly

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

2000817 Fan, Exhaust 1 11 1110852 Screw, Slotted Hex Washer Head (#10-24 x 1/2") 1 42 1108783 Tubing, Braided (1/2 x 23") 1 13 1108784 Tubing, Braided (1/2 x 20-1/4") 1 14 2001765 Harness, Horn/Alarm 1 15 1130671 Manifold/Valve Assembly - 10 Liter 1 16 C,B 2003052 Valve, Operator Pilot 1 1H 1085112 O-Ring, Pilot Valve (35/64" I.D.) 1 1 1101141 Kit, 4-Way Valve w/ Screws 1 17

1101141R Valve, Reconditioned 1 1D

1101141E-NLA Kit, Valve - Warranty Replacement 1 1D

Valve, Reconditioned 1 1

Gasket 1 1

Screw, Socket Head (M5 x .8 x 2 MM) 1 4 2001682 Tie Wrap (8" L) 1 58 1130670 Muffler/Y-Tube Assembly 1 19

P0875X560 Boot, Terminal 1 110 E

1128740 Capacitor, 30 MFD 1 111 1089455 Tie Wrap (15-1/4" L) 1 212 1006525 Tie Wrap (3-29/32" L) 1 313

P0876X026 Clamp, Hose 1 214

1108817 Heat Exchanger Assembly 1 115 A 1110780 Stand-Off, Heat Exchanger 1 116

1107422-NLA NLA - Exchanger, Heat 1 117 G

1108822 Elbow, PVC Formed (1/2 x 2-1/2 x 2-1/2") 1 118 1106698 Elbow, Silicon (1/2 x 3-1/2") 1 119 1108810 Screw, Hi-Lo Six Lobe Drive (#10-16 x 5/8") 1 720 1112561 Tube, Compressor 1 121

1003363-NLA Screw, Phillips Pan Head (#8-32 x 3/8") 1 122

1106675 Coupling, Inlet Filter 1 123 2000812 Seal, Foam 1 224

P0750X030 Filter, HEPA Outlet 1 125 F

1115183 Partition Assembly 1 126

2003065-NLA NLA - Screw, Phillips Hex Washer Head (#8-32 x

3/8")

1 127

1128404 Screw, Phillips Hex Washer Head (#8-32 x 3/8") 1 127 1108815 Tubing, Silicon (1/4 x 16-1/4") 1 128 1131249 Filter, Inlet Sound Reduced 1 129 2000799 Adapter with Tubing for Humidifier Bottle 1 130

10 Liter Models

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Sound Box Assembly

A - Includes Heat Exchanger, Clamp, Elbow, Standoff and Tie Wrap.

B - Includes Items 3, 4, 7-9, 14, 18, Manifold and Tie Wraps.

C - Includes O-Ring and Operator Pilot Valve effective 6/4/05.

D - Not Shown.

E - Boot removed from units after 6/28/07.

F - After 7/19/06 the Hepa Filter was moved to the inside of cabinet, located between the Flow Meter and the Patient Outlet

Barb. See "Control Panel and P.C. 10 Liter Models" category to view reflective changes.

G - Item no longer available, refer to part #1108817 for replacement.

H - A new Pilot Valve O-Ring part #1085112 is recommended when ordering a new Operator Pilot Valve

NOTE:

10 Liter Models

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Sound Box Assembly

Perfecto2/Perfecto2V

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Sound Box Assembly

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1131249 Filter, Inlet Sound Reduced 1 11 1143449 Restrictor, Inlet Filter 1 12 1106675 Coupling, Inlet Filter 1 13 1143435 Resonator Assembly 1 14 1128404 Screw, Phillips Hex Washer Head (#8-32 x 3/8") 1 75 1143581 Tube, Compressor Inlet 1 16 2001682 Tie Wrap (8" L) 1 37 1143484 Fan, Exhaust - P2/PW 1 18 1143574 Transformer Assembly - P2/PW 1 19 1143478 Transformer Assembly - PO2/PO2V/PO2W 1 19 1143491 Rivet, Isolator Mount 1 410 1143554 Muffler Assembly 1 111 1108810 Screw, Hi-Lo Six Lobe Drive (#10-16 x 5/8") 1 512 1147917 Mount, Foam Valve 4-Way 1 113 1143467 Foam, Soundbox - Vertical 1 114 1143474 Gusset, Soundbox 1 215

1172007-NLA NLA - Heat Exchanger Assembly 1 116 C,A

1143557 Heat Exchanger Assembly 1 116 B 1143582 Clamp, Hose Adjustable (3/8") 1 117

1169408-NLA NLA - Fitting, Elbow Swivel (1/4 NPT x 3/8 Tube) 1 118 C

1143489 Elbow, Male Flare 1 118

A - Use this part number to replace the Heat Exchanger after 05/17/11. When ordering a new Heat Exchanger, you must also

order a new fitting (1169408).

B - Use this part number to replace 1172007, you must also order 1143489 also.

C - No longer available. Use 1143489 as its replacement.

NOTE:

Perfecto2/Perfecto2V

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Sound Box Assembly

PerfectoW

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Sound Box Assembly

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1131249 Filter, Inlet Sound Reduced 1 11 1153703 Tube, Clear (1/2 x 2-3/4") 1 12 1106675 Coupling, Inlet Filter 1 13 1143435 Resonator Assembly 1 14 1128404 Screw, Phillips Hex Washer Head (#8-32 x 3/8") 1 75 1143473 Soundbox, Horizontal 1 16 2001682 Tie Wrap (8" L) 1 37 A 1143484 Fan, Exhaust - P2/PW 1 18 1143574 Transformer Assembly - P2/PW 1 19 1143478 Transformer Assembly - PO2/PO2V/PO2W 1 19 1143491 Rivet, Isolator Mount 1 410 1143554 Muffler Assembly 1 111 1108810 Screw, Hi-Lo Six Lobe Drive (#10-16 x 5/8") 1 512 1147917 Mount, Foam Valve 4-Way 1 113 1154030 Foam, Soundbox - Vertical 1 114 1143474 Gusset, Soundbox 1 215

1172007-NLA NLA - Heat Exchanger Assembly 1 116 B

1143557 Heat Exchanger Assembly 1 116 C 1143582 Clamp, Hose Adjustable (3/8") 1 117 1153693 Foam, Resonator - Top 1 118 1153694 Foam, Resonator - Bottom 1 119 1153699 Foam, Soundbox - Ceiling 1 120 1153707 Tube, Resonator Inlet Preformed 1 121 1153692 Tube, Inlet Silencer 1 122 1153788 Resonator, Inlet 1 123 1153708 Tube, Resonator Outlet Preformed 1 124 1143445 Soundbox, Vertical 1 125

1169408-NLA NLA - Fitting, Elbow Swivel (1/4 NPT x 3/8 Tube) 1 126 D

1143489 Elbow, Male Flare 1 126

A - After 1/31/10, this number is the replacement for the numbers 1006525 and 2001694.

B - Use this part number to replace Heat Exchanger after 05/17/11. When ordering a new Heat Exchanger, you must also

order the fitting (1169408).

C - Use this part number to replace 1172007, you must also order 1143489 also.

D - No longer available. Use 1143489 as its replacement.

NOTE:

PerfectoW

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Sieve Bed Assembly and Product Tank

All Models Except Platinum 5

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Sieve Bed Assembly and Product Tank

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1101707 Sieve Bed Assembly (Pair) 2 11 A 2001682 Tie Wrap (8" L) 1 12 2000897 Tubing, Tygon (1/4 x 24") 1 13 1104310 Kit, Check Valve 1 14

Clamp, Hose 1 2

Tie Wrap (3-29/32" L) 1 1

Instruction Sheet 1 1

Check Valve, Barb (5/16") 1 2

Tie Wrap (8" L) 1 9

Tube, Clear (1/4") 1 1 1162039 Kit, Regulator 1 15 L

Regulator 1 1

Screw, Regulator (8-32 x 3/8") 1 4

O-Ring (11/64" I.D.) 1 2 1075498 Regulator 1 15 D,G 1162040 Kit, Regulator w/ SenO2 1 15 E,L

Regulator 1 1

Screw, Regulator (8-32 x 3/8") 1 4

O-Ring (11/64" I.D.) 1 2

1082588-NLA NLA - Product Tank Assembly - IRC5LX 1 16 F,K 1114925-NLA NLA - Product Tank Assembly - IRC5LX 1 16

1075665 Product Tank Assembly - IRC5LX02 1 16 G,I 1002807 Clamp, Hose 1 27 2001656 PE Valve Assembly w/ Fitting 1 18 H 1080972 Kit, PE Valve Stem and Poppet Replacement 1 1B

PE Valve Poppet and Stem 1 1

Kit, PE Coil/Valve Instruction Sheet 1 1 1080970 Kit, PE Coil Replacement 1 1B

Coil, PEl 1 1

Kit, PE Coil/Valve Instruction Sheet 1 1 1081208 Kit, PE Coil/Valve Instruction Sheet 1 1B 2000492 Elbow, Barbed (1/2") 1 29 2001652 Clamp, Plastic (1/2") 1 210 2002264 Tubing, Reinforced Braided (1/2 x 26") 1 111 1070147 Screw, Phillips Pan Head (#4-24 x 1") 1 412 D 1075666 Screw, Regulator (8-32 x 3/8") 1 412 E

2001321-NLA NLA - T-Fitting 1 113

1075499 Regulator, Two Way 1 114

1076916-NLA NLA - Cap, End, Vinyl, Black 1 115

1070050 Tie Wrap (3-29/32" L) 1 216

2001951-NLA NLA - Restrictor Assembly - IRC3LX 1 117 1078263-NLA NLA - Restrictor Assembly (IRC5LX) 1 117 C

1089455 Tie Wrap (15-1/4" L) 1 418

All Models Except Platinum 5

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Sieve Bed Assembly and Product Tank

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

2002808-NLA NLA - Plate, Adaptor 1 1B,D 2001673-NLA Kit, Pressure Gauge Tap In with Gauge 1 1B,J

Fitting, Tee Barb (1/4") 1 1

Plug, Hose (1/4") 1 1

Clamp (1/4") 1 4

Tubing, Silicone (1/4 x 16") 1 1

Kit, Pressure Gauge 1 1

Instruction Sheet 1 1 2001671 Kit, Pressure Gauge Tap In without Gauge 1 1B

Fitting, Tee Barb (1/4") 1 1

Plug, Hose (1/4") 1 1

Clamp (1/4") 1 4

Tubing, Silicone (1/4 x 16") 1 1

Instruction Sheet 1 1 2001674 Kit, Pressure Gauge 1 1

A - Includes (2) Sieve Beds, (2) Clamps, (2) Hose Clamps and (4) Tie Wraps.

B - Not Shown.

C - Used on Serial Numbers: 99A655582, 99A655585, 99A655590, 99A655594, 99A655596, 99A65662, 99A65664,

99A65688, 99A65692, 99A65744, 99A65745, 99A65877, 99A65879, 99A65900.

D - Before 5/98.

E - After 4/98.

F - LX Models.

G - LX02 Models.

H - Includes Tubing, Tie Wraps, Barb Fitting and PE Valve.

I - Before 6/23/03.

J - Item no longer available. Please order part #2001671 and 2001674 as a replacement.

K - Item no longer available. Please order part #1114925 as a replacement.

L - Kit includes the Regulator, (4) Screws, (2) O-Rings

NOTE:

All Models Except Platinum 5

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Sieve Bed Assembly and Product Tank

Platinum 5 Models

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Sieve Bed Assembly and Product Tank

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1101707 Sieve Bed Assembly (Pair) 2 11 A 1110774 Tubing, PVC (1/4 x 2-1/2") 1 22 2001682 Tie Wrap (8" L) 1 93 2001656 PE Valve Assembly w/ Fitting 1 14 1108783 Tubing, Braided (1/2 x 23") 1 15 2001652 Clamp, Plastic (1/2") 1 26 1002807 Clamp, Hose 1 27 1070147 Screw, Phillips Pan Head (#4-24 x 1") 1 48 1108784 Tubing, Braided (1/2 x 20-1/4") 1 19 1104310 Kit, Check Valve 1 110 B

Clamp, Hose 1 2

Tie Wrap (3-29/32" L) 1 1

Instruction Sheet 1 1

Check Valve, Barb (5/16") 1 2

Tie Wrap (8" L) 1 9

Tube, Clear (1/4") 1 1 1162039 Kit, Regulator 1 111 L

Regulator 1 1

Screw, Regulator (8-32 x 3/8") 1 4

O-Ring (11/64" I.D.) 1 2 1162040 Kit, Regulator w/ SenO2 1 111 L

Regulator 1 1

Screw, Regulator (8-32 x 3/8") 1 4

O-Ring (11/64" I.D.) 1 2 1106774 HomeFill Tubing Assembly 1 112 C,G 1116433 HomeFill Tubing Assembly 1 112 C,H,J

1082588-NLA NLA - Product Tank Assembly - IRC5LX 1 113 D,E,G,

1114925-NLA NLA - Product Tank Assembly - IRC5LX 1 113

1116731 Product Tank Assembly - IRC5LX 1 113 E,H,J 1075665 Product Tank Assembly - IRC5LX02 1 113 D,F,G 1116730 Product Tank Assembly - IRC5LX02 1 113 F,H,J 1108809 Tubing, PVC (1/4 x 12-3/4") 1 114 1070050 Tie Wrap (3-29/32" L) 1 115

A - Includes (2) Sieve Beds, (2) Clamps, (2) Hose Clamps and (4) Tie Wraps.

B - Includes Check Valve, Tubing and Tie Wraps.

C - Includes Tubing and Fittings.

D - Includes Items 8 and 11.

E - IRC5LX.

F - IRC5LX02.

G - Before 6/23/03.

H - After 6/22/03.

J - Due to design change the Homefill Tubing Assembly has changed from a 8-1/2" to a 18" Hose, with a removal of the fitting

as well. The change is compatable with existing units.

K - Item no longer available. Please order part #1114925 as a replacement.

L - Kit includes the Regulator, (4) Screws, (2) O-Rings

NOTE:

Platinum 5 Models

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Sieve Bed Assembly and Product Tank

10 Liter Models

NOTE: Item #11 Product Tank is no longer available as an individual part. Please refer to item #10 Product

Tank Assembly.

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Sieve Bed Assembly and Product Tank

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1144034 Kit, Sieve Beds (Pair) 1 11 B

Sieve Bed Assembly - 10LX/10LXO2 1 2

Tie Wrap (8" L) 1 4

Clamp, Plastic (1/2") 1 2

Clamp, Hose 1 2 1110774 Tubing, PVC (1/4 x 2-1/2") 1 22 2001682 Tie Wrap (8" L) 1 93 2001656 PE Valve Assembly w/ Fitting 1 14 A 1108783 Tubing, Braided (1/2 x 23") 1 15 2001652 Clamp, Plastic (1/2") 1 26 1002807 Clamp, Hose 1 27 1108784 Tubing, Braided (1/2 x 20-1/4") 1 18 1075666 Screw, Regulator (8-32 x 3/8") 1 49 1132389 Product Tank Assembly - 10LX 1 110 C 1130675 Product Tank Assembly - 10LXO2 1 110 C 1104310 Kit, Check Valve 1 112

Clamp, Hose 1 2

Tie Wrap (3-29/32" L) 1 1

Instruction Sheet 1 1

Check Valve, Barb (5/16") 1 2

Tie Wrap (8" L) 1 9

Tube, Clear (1/4") 1 1 1130067 Regulator, Manifold Mount - 10L w/o O2 Bleed 1 113 H 1130066 Regulator, Manifold Mount - 10L w/ O2 Bleed 1 113 I 1116433 HomeFill Tubing Assembly 1 114 E,G 1108809 Tubing, PVC (1/4 x 12-3/4") 1 115 1070050 Tie Wrap (3-29/32" L) 1 116

A - Includes Valve, Tubing and Tie Wraps.

B - Includes Item #1 (2) Sieve Bed Assemblies, item #3 (4) Tie Wraps, item #6 (2) Plastic Clamps and item #7 (2) Hose

Clamps

C - Includes Product Tank, Check Valve Assembly, Tie Wraps and Homefill Tubing. Item #11 Product Tank is no longer

available as an individual part.

E - Includes Fitting, Restrictor, Hose, Filter and Tie Wraps.

G - Due to design change the Homefill Tubing Assembly has changed from a 8-1/2" to a 18" Hose, with a removal of the fitting

as well. The change is compatable with existing units.

H - Regulator does not have an O2 bleed port

I - Regulator does have an O2 bleed port

NOTE:

10 Liter Models

NOTE: Item #11 Product Tank is no longer available as an individual part. Please refer to item #10 Product

Tank Assembly.

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Sieve Bed Assembly and Product Tank

Perfecto2

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Sieve Bed Assembly and Product Tank

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1159071 Product Tank Assembly 1 11 1159072 Product Tank Assembly w/ SensO2 Regulator 1 11 2001682 Tie Wrap (8" L) 1 32 1162039 Kit, Regulator 1 13 A

Regulator 1 1

Screw, Regulator (8-32 x 3/8") 1 4

O-Ring (11/64" I.D.) 1 2 1162040 Kit, Regulator w/ SenO2 1 13 A

Regulator 1 1

Screw, Regulator (8-32 x 3/8") 1 4

O-Ring (11/64" I.D.) 1 2 1143544 Check Valve Assembly 1 14 B 1143580 Check Valve Assembly 1 15 C 1161257 Kit, Sieve Beds (Pair) 1 16 D

Tie Wrap (8" L) 1 27

Tie Wrap (17-1/2" L) 1 48

Sieve Bed Assembly 1 29 2001682 Tie Wrap (8" L) 1 27 1018239 Tie Wrap (17-1/2" L) 1 48 1143578 PE Valve Assembly 1 110 1143447 Tube, Exhaust 1 111 2001682 Tie Wrap (8" L) 1 312 1143446 Tube, F 1 113 1143556 Manifold/Valve Assembly 1 114 E 1101141 Kit, 4-Way Valve w/ Screws 1 1F 1143497 Valve, Operator Pilot Low Power 1 1I 1085112 O-Ring, Pilot Valve (35/64" I.D.) 1 1

1143494-NLA NLA - Clamp, Hose (1/2") 1 415 G

1160798 Clamp, Hose Spring (1/2") 1 415 H 1143458 Tube, Preformed (1/2") 1 216

A - Kit includes the Regulator, (4) Screws, (2) O-Rings

B - Includes (1) Valve, (2) Tie Wraps, (1) 6" Tubing and (1) 3" Tubing.

C - Includes (1) Valve, (2) Tie Wraps, (1) 12-3/4" Tubing and (1) 1-3/4" Tubing.

D - Includes items 7-9

E - Includes (1) Valve, 4-Way with Screws, (1) Pilot Valve O-Ring, (1) Air Manifold, (1) Operator Pilot Low Power Valve

F - Includes the 4-Way Valve with Screws only

G - Item no longer used, replace with Part #1160798

H - Plastic Clamp replaced with a Spring Clamp 9/12/08

I - A new Pilot Valve O-Ring part #1085112 is recommended when ordering a new Operator Pilot Low Power Valve.

NOTE:

Perfecto2

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Sieve Bed Assembly and Product Tank

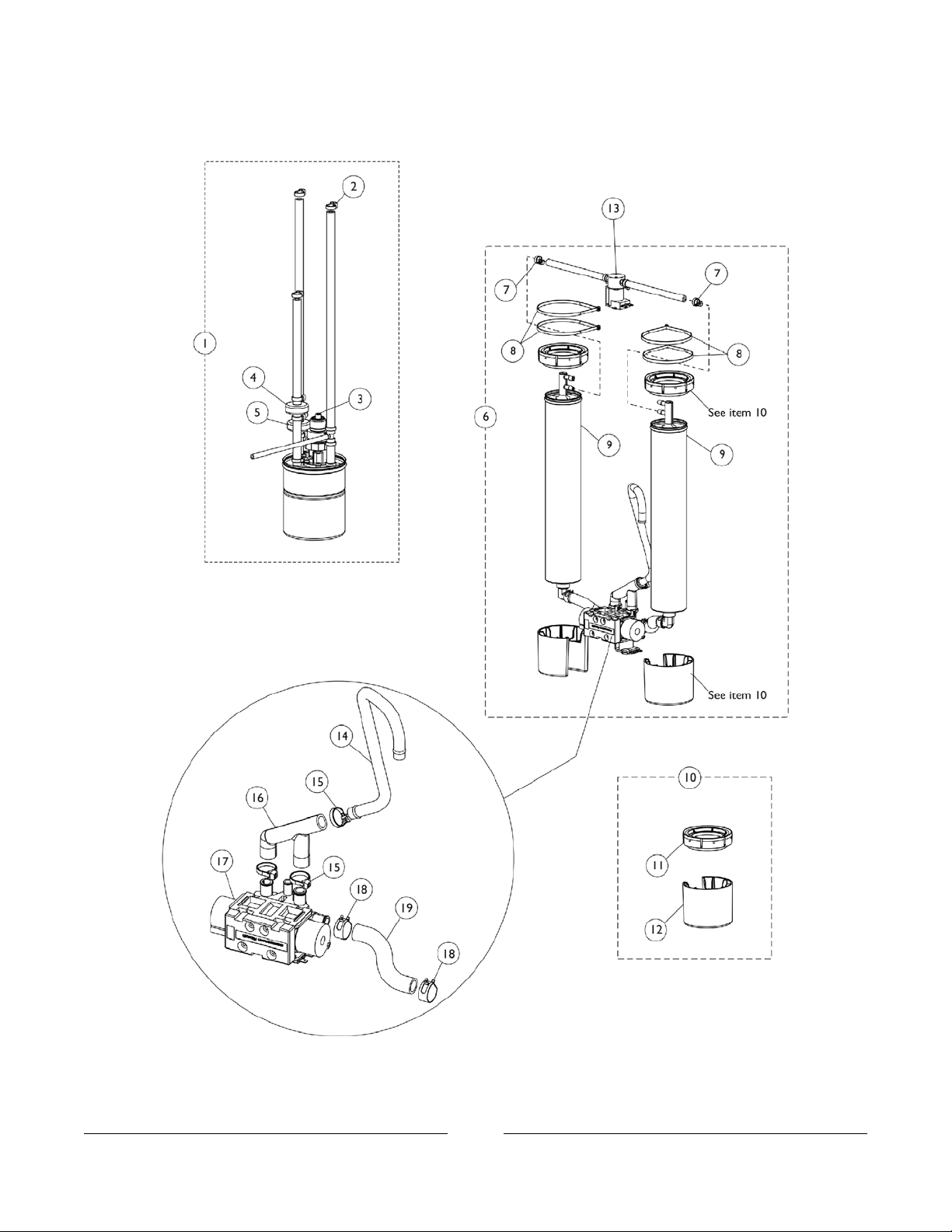

Perfecto2V

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Sieve Bed Assembly and Product Tank

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1161711 Product Tank Assembly 1 11 2001682 Tie Wrap (8" L) 1 32 1162040 Kit, Regulator w/ SenO2 1 13 A

Regulator 1 1

Screw, Regulator (8-32 x 3/8") 1 4

O-Ring (11/64" I.D.) 1 2 1143544 Check Valve Assembly 1 14 B 1143580 Check Valve Assembly 1 15 C 1165099 Kit, Sieve Beds (Pair) 1 16 D

Tie Wrap (8" L) 1 47

Tie Wrap (17-1/2" L) 1 48

Sieve Bed Assembly 1 29 2001682 Tie Wrap (8" L) 1 47 1018239 Tie Wrap (17-1/2" L) 1 48 1165100 Kit, Adapters, Sieve Bed 1 110 E

Adapter, Sieve Bed Top 1 111

Adapter, Sieve Bed Bottom 1 112 1164785 PE Valve Assembly 1 113 1143447 Tube, Exhaust 1 114 2001682 Tie Wrap (8" L) 1 315 1143446 Tube, F 1 116 1143556 Manifold/Valve Assembly 1 117 F 1101141 Kit, 4-Way Valve w/ Screws 1 1G 1143497 Valve, Operator Pilot Low Power 1 1H 1085112 O-Ring, Pilot Valve (35/64" I.D.) 1 1 1160798 Clamp, Hose Spring (1/2") 1 418 1143458 Tube, Preformed (1/2") 1 219

A - Kit includes the Regulator, (4) Screws, (2) O-Rings

B - Includes (1) Valve, (2) Tie Wraps, (1) 6" Tubing and (1) 3" Tubing.

C - Includes (1) Valve, (2) Tie Wraps, (1) 12-3/4" Tubing and (1) 1-3/4" Tubing.

D - Includes items 7-9

E - Includes items 11 and 12. Kit accommodates (1) Sieve Bed

F - Includes (1) Valve, 4-Way with Screws, (1) Pilot Valve O-Ring, (1) Air Manifold, (1) Operator Pilot Low Power Valve

G - Includes the 4-Way Valve with Screws only

H - A new Pilot Valve O-Ring Part #1085112 is recommended when ordering a new Operator Pilot Low Power Valve

NOTE:

Perfecto2V

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Sieve Bed Assembly and Product Tank

PerfectoW

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Sieve Bed Assembly and Product Tank

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1161712 Product Tank Assembly 1 11 A 1161711 Product Tank Assembly 1 11 B 2001682 Tie Wrap (8" L) 1 32 1162039 Kit, Regulator 1 13 H

Regulator 1 1

Screw, Regulator (8-32 x 3/8") 1 4

O-Ring (11/64" I.D.) 1 2 1162040 Kit, Regulator w/ SenO2 1 13 H

Regulator 1 1

Screw, Regulator (8-32 x 3/8") 1 4

O-Ring (11/64" I.D.) 1 2 1143544 Check Valve Assembly 1 14 C 1143580 Check Valve Assembly 1 15 D 1006525 Tie Wrap (3-29/32" L) 1 36 1161257 Kit, Sieve Beds (Pair) 1 17 E

Tie Wrap (8" L) 1 28

Tie Wrap (17-1/2" L) 1 49

Sieve Bed Assembly 1 210 2001682 Tie Wrap (8" L) 1 28 1018239 Tie Wrap (17-1/2" L) 1 49 1143578 PE Valve Assembly 1 111 1143447 Tube, Exhaust 1 112 2001682 Tie Wrap (8" L) 1 313 1143446 Tube, F 1 114 1143556 Manifold/Valve Assembly 1 115 F 1101141 Kit, 4-Way Valve w/ Screws 1 1G 1143497 Valve, Operator Pilot Low Power 1 1I 1085112 O-Ring, Pilot Valve (35/64" I.D.) 1 1 1160798 Clamp, Hose Spring (1/2") 1 416 1143458 Tube, Preformed (1/2") 1 217

A - Use with PW Models.

B - Use with PO2W Models.

C - Includes (1) Valve, (2) Tie Wraps, (1) 6" Tubing and (1) 3" Tubing.

D - Includes (1) Valve, (2) Tie Wraps, (1) 12-3/4" Tubing and (1) 1-3/4" Tubing.

E - Includes items 8-10

F - Includes (1) Valve, 4-Way with Screws, (1) Pilot Valve O-Ring, (1) Air Manifold, (1) Operator Pilot Low Power Valve

G - Includes the 4-Way Valve with Screws only

H - Kit includes the Regulator, (4) Screws, (2) O-Rings

I - A new Pilot Valve O-Ring part #1085112 is recommended when ordering a new Operator Pilot Low Power Valve

NOTE:

PerfectoW

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Remote Flowmeters

IRCRF5 - Adult, IRCPF16 - Pediatric

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Remote Flowmeters

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

2001208 Handle, Flowmeter Stand, Chrome 1 11 2001206 Label, No Smoking 1 12 2003080 Stand, Flowmeter 1 13 D

2001207-NLA NLA - Stand, Flowmeter 1 14 B

2001202 Fitting, Tee 1 15 1141758 Tubing, Silicone (1/4 x 16") 1 16 1073266 Hose, Clear Vinyl (1/8 x 6") 1 17 1073267 Hose, Clear Vinyl (1/8 x 1") 1 18 1073268 Hose, Clear Vinyl (1/8 x 2-13/16") 1 19 1073269 Hose, Clear Vinyl (1/8 x 3-5/16") 1 110 2003074 Mat, Rubber 1 111 D 1079652 Mat, Rubber 1 111 B 1026031 Nut, Hex with Nylon Cap (#10-32) 1 112

2001198-NLA NLA - Fitting, Barbed (9/16-18 x 1/8") 1 113

2001103 Flowmeter 1 114 D 2001896 Flowmeter 1 114 B,C 2001288 Fitting, Barbed with Palnut (1/8") 1 115 D 2000473 Connector, Barbed (1/4") 1 115 B 2003075 Decal, Logo, Ped 1 116 D 2001210 Decal, Logo, In. 1 116 B 1018138 Screw, Socket Button Head (#10-24 x 1/4") 1 117 2000507 Palnut (9/16-18) 1 418 2001879 Restrictor, Barbed (1/8") 1 119 2001098 Tee, Single Barbed (1/8") 1 120

P0955X030 Connector, Humidifier Bottle 1 121

1067973 Screw, Phillips Flat Head (4-40 x 3/8") 1 422

3260S Bottle, Humidifier 1 123 2000799 Adapter with Tubing for Humidifier Bottle 1 124 2000503 Adapter, Humidifier Bottle 1 125 2001219 Carton 1 1A 2001105 Instruction Manual, Pediatric Flowmeter IRCPF16 1 1A,D 2001222 Instruction Sheet, Remote Flowmeter IRCRF5 1 1A,B 1071207 Tubing, Oxygen Supply (7' L) 1 1A,D 2003110 Tubing, Oxygen Supply (21' L) 1 1A,D 2001221 Tubing, Oxygen Supply (50' L) 1 1A,B

1071275-NLA NLA - Kit, Set-Up Pediatric Flowmeter 1 1A,D

Tubing, Oxygen Supply (21' L) 1 1 Tubing, Oxygen Supply (7' L) 1 2 Connector, Tubing 1 1 Adapter, Humidifier Bottle 1 1 Instruction Manual, Pediatric Flowmeter IRCPF16 1 1

IRCRF5 - Adult, IRCPF16 - Pediatric

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Remote Flowmeters

A - Not Shown.

B - Adult.

C - Includes item 18.

D - Pediatric.

NOTE:

IRCRF5 - Adult, IRCPF16 - Pediatric

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

2002246 Tubing (12" L) 1 1

Invacare Check 02 Plus Concentrator Analyzer

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

HomeFill Base and HomeFill Stand Components

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

HomeFill Base and HomeFill Stand Components

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1099820 Fuse (2 AMP) 1 11 2000489 Filter, Cabinet 1 12 1108211 Cap, End, Dust, Green 1 13 C 1127653 Dust Cover with Lanyard (1-1/2") 1 14 F 1156644 Dust Cover with Lanyard (1") 1 14 M

1086773-NLA NLA - Tip, Rubber, Black (3/4" Tubing) 1 45 B,E

1128290 Package, Rubber Tip, Black (Fits 3/4" Tubing) 4 15 E

504068 Cap, End, Dust, Oxygen Cylinder 1 1D,A 1112949 Cord, Power 1 1A 1006525 Tie Wrap (3-29/32" L) 1 26 K 1145488 Package, Straight Internal Valve Fitting (1/8") 10 17 K 1105177 Supply Line Assembly w/ Coiled Tubing (12 ft.) 1 18 G,I 1072002 Pad, Non Skid 10 1H,A 1145487 Supply Line Assembly w/ Straight Tubing (3-21/64

FT)

1 19 I,L

1145489 Package, Hose Fitting (1/4" Barb) 10 110 J 2001682 Tie Wrap (8" L) 1 211 J

A - Not Shown.

B - Item no longer available, see Part #1128290.

C - Used for Homefill Interface Port.

D - For use with Homefill Oxygen Cylinder.

E - For use on IOH250 Invacare Homefill Stand.

F - For use over Oxy Lock Coupler with 1-1/2" Diameter.

G - Includes Coiled Tubing, Fittings and Tie Wraps.

H - Use with Homefill Ready Rack.

I - After 4/12/06, the tubing style has changed to a Coiled Tubing.

J - Use with Supply Line Assembly "Before 4/13/06" with Straight Tubing.

K - Use with Supply Line Assembly "After 4/12/06" with Coiled Tubing.

L - Includes Straight Tubing, Fittings and Tie Wraps.

M - For use over Oxy Lock Coupler with 1" Diameter.

NOTE: Please c

ontact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 ext. 3722.

NOTE:

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

HomeFill Cylinder Assembly

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

HomeFill Cylinder Assembly

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1157638 Kit, Protective Cap w/Hardware, Black 1 11

Cap, End, Protective, Black 1 1

Screw, Cap Mounting 1 3 1157640 Package, Fitting Cover 10 12 1117149 Kit, Receptacle Fitting Brass 1 13 A

NLA - Fitting, Brass (1/4") 1 1

Instruction Sheet 1 1 1157639 Kit, Fitting w/ Instructions 1 14 A

Instruction Sheet 1 1

Fitting, Male 1 1 1125090 Label, Oxygen Cylinder 1 15 1157637 Gauge, Pressure (1-1/4" Diam.) 1 16

A - Existing Fitting shape must be determined before ordering replacement part, refer to image as a reference.

NOTE:

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

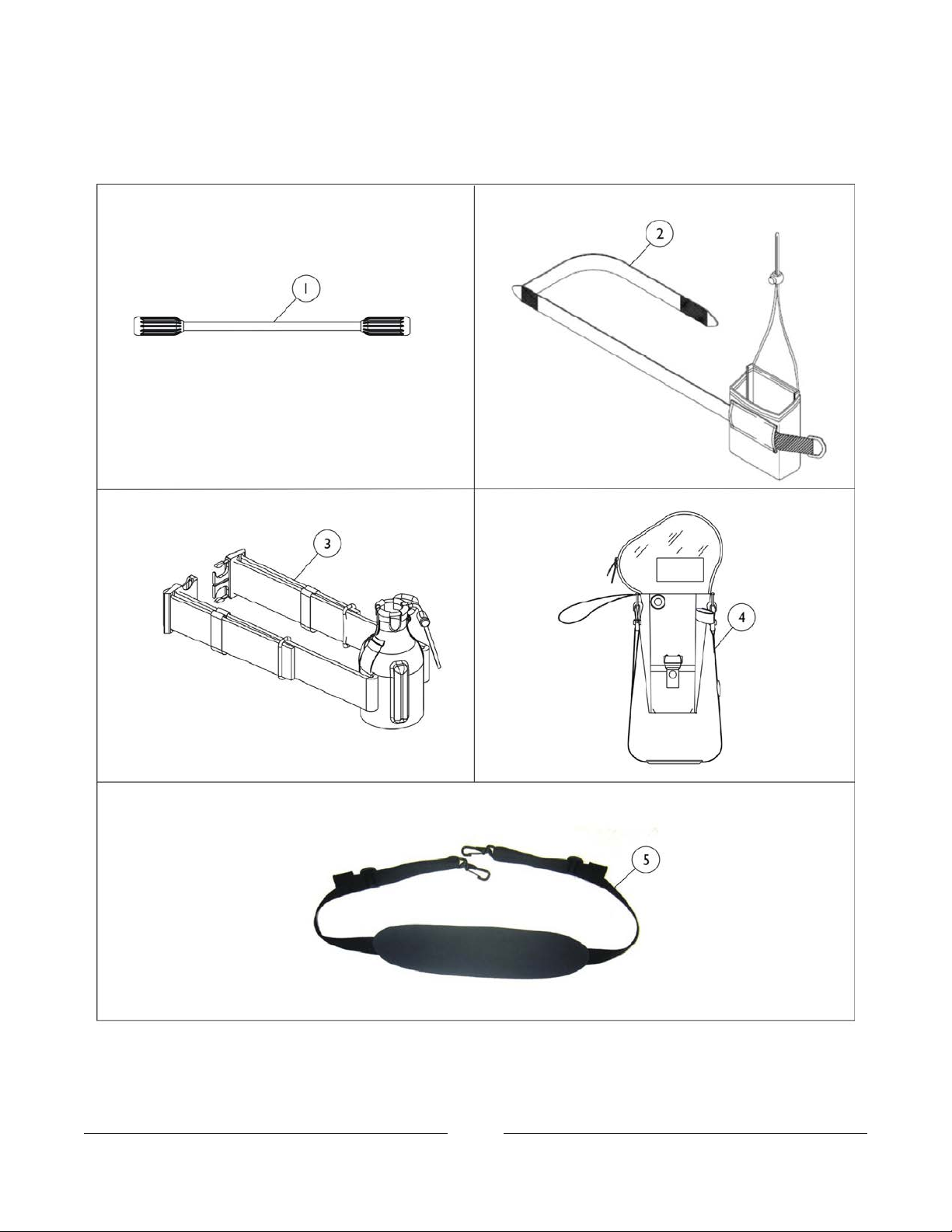

Venture Demand Oxygen Delivery Device & Cylinder

Accessories

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Venture Demand Oxygen Delivery Device & Cylinder

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

2002246 Tubing (12" L) 1 11 2002919 Pouch, Venture 1 12 1147509 Bag Assembly, M2 Cylinder 1 13 A 1093320 Bag, Shoulder - M6/M9 1 14 B

1130794-NLA NLA - Strap, Shoulder - ML6 and ML9 Shoulder Bag 1 15 C

1154103 Strap, Shoulder Bag 1 15

A - Includes Bag and Strap.

B - Bag color has changed from Green to Black, as of 02/10/06.

C - No Longer Available. Replaced with 1154103.

NOTE:

Accessories

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Concentrator Tool Kit

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Concentrator Tool Kit

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1128756-NLA Kit, Concentrator Tools 1 11

Light, Pen-Size with Invacare Logo 1 1

Screwdriver, Pen Size Phillips/Flat Head 1 1

Tie Wrap (8" L) 1 2

Multimeter with Leads 1 1

Analyzer, Check O2 Plus Concentrator Invacare 1 1

Strap, Ground with Wire and Clip 1 1

Fitting, Tee Barb (1/4") 1 1

Plug, Hose (1/4") 1 1

Clamp (1/4") 1 4

Tubing, Silicone (1/4 x 16") 1 1

Kit, Pressure Gauge 1 1

Instruction Sheet 1 1

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Part Number Description Quantity per Assembly

1WARR RPLMT - LXN PCB Assembly

1108720E

See Note(s) A

WARR RPLMT - ISBN PCB

Assembly

1108731E

See Note(s) A

WARR RPLMT - Compressor

Assembly, Thomas (5LX Plat.)

1106690E

See Note(s) B

WARR RPLMT - Compressor

(10LX/10LXO2)

1128741E-NLA

See Note(s) C

WARR RPLMT - Compressor

Assembly (10LX/10LXO2)

1130666E

See Note(s) C

WARR RPLMT - PCB Assembly

(PO2/PO2W)

1143486E

See Note(s) D

WARR RPLMT - PCB Control

Assembly (10LXO2)

1128742E

See Note(s) E

WARR RPLMT - Compressor

Assembly (6LX/6LXO2)

1075071E

See Note(s) F A - See "Control Panel and PC Boards (Platinum 5 Models - After 12/5/02)" Category for more information. B - See "Compressor and Mtg. Hardware (Platinum 5 Models)" Category for more information. C - See "Compressor and Mtg. Hardware (10 Liter Models)" Category for more information. D - See "Control Panel and PC Boards (Perfecto2/PerfectoW)" Category for more information. E - See "Control Panel - Rear View" Category for more information. F - See "Compressor and Mtg. Hardware (Non Platinum 5 Models)" Category for more information.

NOTE:

Warranty Replacement Parts

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Item

Number

Part Number

DescriptionNote

Quantity Per

Package Assembly

1168406 Kit, Knob, 0-6 lpm, Homefill 1 11

Knob, 0-6 lpm, Homefill 10 1

Miscellaneous Components

Form No. 93-38

To order call toll free 1-800-333-6900, or www.invacare.com

Yes, you can. ™

93-38

© 2011 Invacare Corporation. All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Invacare. Trademarks are identified by ™ and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted. (Revised 08/01/11)

Invacare Corporation

One Invacare Way Elyria, Oh USA 44036-2125 800-333-6900

Technical Support 800-832-4707 Florida Technical Support 407-321-5630

Customer Service 800-333-6900

www.invacare.com

Form No.

Invacare IRC5PW User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
