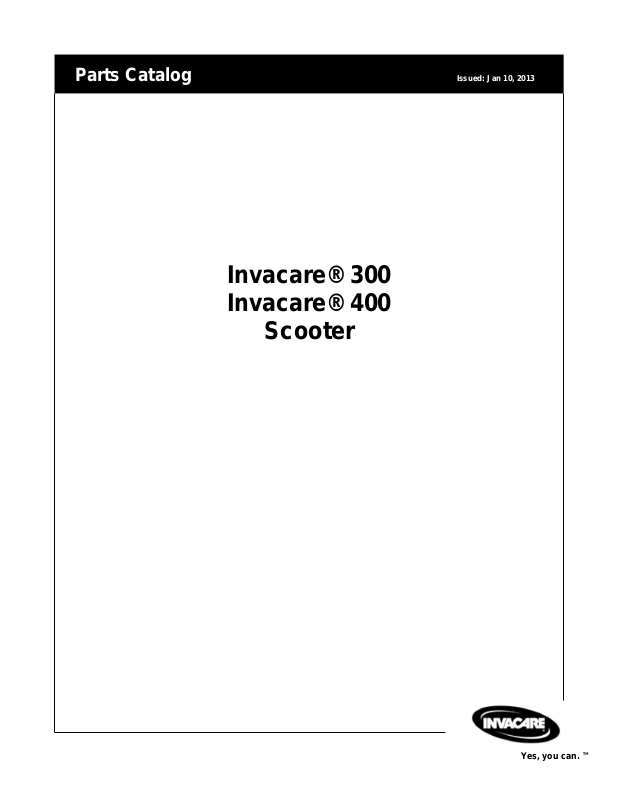

Page 1
Parts Catalog
Issued: Jan 10, 2013
Invacare® 300
Invacare® 400
Scooter
Yes, you can. ™
Page 2
Throughout this catalog you will notice letters to draw your attention to specific footnotes which are located at the
bottom of the page or below specified charts.
Parts Catalog Usage Guide
To order call toll free 1-800-333-6900, or www.invacare.com
The information contained in this document is subject to change without notice. This catalog contains
service parts for Form No. 03-023. If you have any questions regarding this catalog, please contact one
of our Customer Service Representatives.
For Customer Service Support Call:
1-800-333-6900
For Faxed In Orders Call:
1-800-678-4682 or
1-440-366-0709
For Technical Service Call:
1-800-832-4707
Literature Can Be Found at:
www.invacare.com or
1-800-828-6272
SYMBOL DEFINITION
Examples:
A,B,C etc.
NOTE:
NLA
= Special Comments
= General information pertaining to that specific page
= No Longer Available
HARDWARE MEASUREMENTS
The measurements for the hardware will be listed as follows:
Screws, Bolts
Washers
Spacers
For your convenience, we have supplied an area for you to list your Invacare Representatives.
© 2013 Invacare Corporation, Elyria, Ohio. Invacare, Yes, you can. and the Medallion Design are registered trademarks of the Invacare Corporation, Elyria,
Diameter X Thread Count/Pitch X Length
Inside Diameter X Outside Diameter X Thickness
Inside Diameter X Outside Diameter X Length
Name Phone Numbers
Ohio.
Form No. 03-023
1
Page 3
TABLE of CONTENTS
Page
Number
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-023
Description
Basket - Headlight and Tiller Shroud - Invacare 400 Scooter .................................................. 24
Basket and Hardware - Invacare 300 Scooter ......................................................................... 23
Casters - Front and Forks ........................................................................................................ 26
Charger and Controller ............................................................................................................. 43
Frame with Hardware - Invacare 300 Scooter .......................................................................... 6
Frame with Hardware - Invacare 400 Scooter .......................................................................... 7
Hardware - Tiller Angle Adjustment .......................................................................................... 21
Harness - Wiring - Battery and Battery Strap ........................................................................... 42
Harness - Wiring - Rear ............................................................................................................ 46
Packaging, Literature and Decals ............................................................................................ 4
Seat and Arms - 16" ................................................................................................................. 30
Seat and Arms - 18-20" ............................................................................................................ 32
Seat Post and Hardware .......................................................................................................... 38
Shroud - Footboard, Bellow, and Carpet ................................................................................. 27
Shroud - Rear ........................................................................................................................... 36
Strap - Positioning .................................................................................................................... 39
Swingarm and Caster with Hardware - Invacare 300 ............................................................... 9
Swingarm and Caster with Hardware - Invacare 400 ............................................................... 10
Tiller Assembly - Invacare 400 Scooter .................................................................................... 17
Tiller Assembly with Main Wiring Harness - Invacare 300 Scooter .......................................... 13
Tool Kit with Remote Programmer ........................................................................................... 48
2
Page 4
TABLE of CONTENTS
Page
Number
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 03-023
Description
Transaxle and Battery/Controller Tray ..................................................................................... 40
Wheels - Drive .......................................................................................................................... 35
3
Page 5
Packaging, Literature and Decals
When adjusting or replacing parts, please refer to your Owner's Manual for assistance.
Form No. 03-023
4
To order call toll free 1-800-333-6900, or www.invacare.com
Page 6
Packaging, Literature and Decals
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1116980 Packaging, Seat Assembly (16-18" Seat) 1 11 C
Carton, Inner 1 12
Carton, Inner 1 13
NLA - Insert, Carton 1 14
NLA - Carton (16 - 18" Seat) 1 15
1125395 Packaging, Seat Assembly (20"Seat) 1 11 C
Carton, Inner 1 12
Carton, Inner 1 13
NLA - Insert, Carton 1 14
NLA - Carton, 20" Seat 1 15
1120440-NLA Kit, Packaging (Invacare 300 Scooter) 1 16 A,B
NLA - Carton, Shipper (Invacare 300 Scooter) 1 17
NLA - Sleeve, Foam - Seat Post 1 18
NLA - Insert, Carton 1 49
NLA - Carton, Shipper - Top/Bottom 1 110
NLA - Insert, Carton 1 111
NLA - Insert, Carton 1 112
NLA - Owner's Manual 1 1
1125397-NLA Kit, Packaging (Invacare 400 Scooter) 1 16 A,B
NLA - Carton, Shipper (Invacare 400 Scooter) 1 17
NLA - Sleeve, Foam - Seat Post 1 18
NLA - Insert, Carton 1 49
NLA - Carton, Shipper - Top/Bottom 1 110
NLA - Insert, Carton 1 111
NLA - Insert, Carton 1 112
NLA - Owner's Manual 1 1
1133440 Kit, Literature & Labels (Invacare 300 Scooter) -
French/Canadian
1 1D,E
1133441-NLA NLA - Kit, Literature & Labels (Invacare 400
Scooter) - French/Canadian
1 1D,E
A - Owner's Manual is Not Shown but a part of the Packaging Kit.
B - Includes: Items 7 thru 12 and Owner's Manual.
C - Includes: Items 2-5.
D - Not Shown
E - Includes: Weight Capacity Label, Owner's Manual, Wiring Diagram Label, Label Instruction Sheet and Pinch Warning
Label
NOTE:
When adjusting or replacing parts, please refer to your Owner's Manual for assistance.
5
Form No. 03-023
To order call toll free 1-800-333-6900, or www.invacare.com
Page 7
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1120432-NLA NLA - Frame Assembly (Invacare 300 Scooter) 1 11 A
NLA - Frame, Invacare 300 Scooter, Black 1 12
Fastener, Hook with Adhesive Back (1" W x 1" L) 1 13
Nut, Keps (5/16-18) 1 44
Bumper, Rubber (1" Diameter x 5/8") 1 45
NLA - Kit, Headset Bearing 1 16
A - Includes: Items 2-6.
NOTE:
Frame with Hardware
Invacare 300 Scooter
Form No. 03-023
To order call toll free 1-800-333-6900, or www.invacare.com
6
Page 8
Frame with Hardware
Invacare 400 Scooter
Form No. 03-023
7
To order call toll free 1-800-333-6900, or www.invacare.com
Page 9
Frame with Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1055707-NLA NLA - Kit, Headset Bearing 1 11
1124903-NLA NLA - Frame w/ Headset Bearings, Black (Invacare
400 Scooter)
1 12
1125388 Kit, Frame Hardware (Invacare 400 Scooter) 1 13 A
Nut, Keps (5/16-18) 1 24
Bumper, Rubber (1" Diameter x 5/8") 1 25
Fastener, Loop Adhesive Back (1" W x 3" L) 1 26
Decal, Warning Pinch Point 1 27
NLA - Strap, Battery (Invacare 400 Scooter) 1 18
1125365 Latch Handle Mounting Assembly - Invacare 400
Scooter
1 19 B
A - Includes: Items 4-8.
B - This assembly does not come with the Frame Hardware Assembly.
NOTE:
Invacare 400 Scooter
Form No. 03-023
To order call toll free 1-800-333-6900, or www.invacare.com
8
Page 10
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1120433 Frame, Swingarm Assembly (Invacare 300 Scooter) 1 11 A,B
NLA - Pin, Cotter (1/8 x 1-1/4") 1 22
NLA - Washer, Steel (29/32 x 1-3/8 x 1/8") 1 43
Washer, Shoulder 1 44
NLA - Element, Viscous 1 25
Swingarm with Caster - Right (Invacare 300
Scooter)
1 16
Swingarm with Caster - Left (Invacare 300 Scooter) 1 16
Caster, Swivel (5") (Invacare 300 Scooter) 1 27
A - Includes: Items 2-7; Assembly Includes both Right and Left sides.
B - The Swingarm assembly includes the caster.
NOTE:
Swingarm and Caster with Hardware - Invacare 300
Form No. 03-023
To order call toll free 1-800-333-6900, or www.invacare.com
9
Page 11
Swingarm and Caster with Hardware - Invacare 400
Form No. 03-023
10
To order call toll free 1-800-333-6900, or www.invacare.com
Page 12
Swingarm and Caster with Hardware - Invacare 400
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1124906 Frame, Swingarm Assembly (Invacare 400 Scooter) 1 11 A
NLA - Pin, Cotter (1/8 x 1-1/4") 1 22
NLA - Washer, Steel (29/32 x 1-3/8 x 1/8") 1 23
Washer, Shoulder 1 44
Tube, Pivot, Black 1 15
Tip, Plastic, Black 1 16
Tie Wrap (5-5/8" L) 1 27
NLA - Rod, Release Brake 1 18
Washer (1/4 x 1/2 x 1/16") 1 29
Pin, Cotter (5/64 x 1/2") 1 110
Screw, Hex Head (1/4-20 x 5/8") 1 211
Locknut (1/4-20) 1 212
NLA - Bracket, Extension Brake, Black 1 113
NLA - Element, Viscous 1 214
NLA - Caster, Swivel (5-1/2") (Invacare 400
Scooter)
1 217
Cap, Hub, Black 1 218
Nut, Keps (5/16-18) 1 219
Washer, Caplugs (11/32" I.D. x 1" O.D.) 1 220
Bumper, Rubber (1" Diameter x 5/8") 1 221
Decal, Warning Pinch Point 1 223
Rivet (1/8 x 1") 1 224
NLA - Plate, Nylon 1 125
NLA - Frame, Swingarm, Black - Left 1 126
NLA - Frame, Swingarm, Black - Right 1 122
1122050 Swingarm with Caster - Left (Invacare 400 Scooter) 1 116 B,C
NLA - Caster, Swivel (5-1/2") (Invacare 400
Scooter)
1 217
Cap, Hub, Black 1 218
Nut, Keps (5/16-18) 1 219
Washer, Caplugs (11/32" I.D. x 1" O.D.) 1 220
Bumper, Rubber (1" Diameter x 5/8") 1 221
Decal, Warning Pinch Point 1 223
NLA - Frame, Swingarm, Black - Left 1 126
1122049 Swingarm with Caster - Right (Invacare 400
Scooter)
1 115 B,D
NLA - Caster, Swivel (5-1/2") (Invacare 400
Scooter)
1 217
Cap, Hub, Black 1 218
Nut, Keps (5/16-18) 1 219
Washer, Caplugs (11/32" I.D. x 1" O.D.) 1 220
Bumper, Rubber (1" Diameter x 5/8") 1 221
NLA - Frame, Swingarm, Black - Right 1 122
Decal, Warning Pinch Point 1 223
Form No. 03-023
To order call toll free 1-800-333-6900, or www.invacare.com
11
Page 13
Swingarm and Caster with Hardware - Invacare 400
A - Includes: Items 2-26; Assembly Includes both Right and Left sides.
B - The Swingarm assembly includes the caster.
C - Includes: Items 17-21 & 23-26.
D - Includes: Items 17-23.
NOTE:
Form No. 03-023
To order call toll free 1-800-333-6900, or www.invacare.com
12
Page 14
Tiller Assembly with Main Wiring Harness - Invacare 300
Scooter
Form No. 03-023
13
To order call toll free 1-800-333-6900, or www.invacare.com
Page 15
Tiller Assembly with Main Wiring Harness - Invacare 300
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1126100 Key, Ignition 1 11
1118267-NLA NLA - Shroud, Tiller with Circuit Board - Candy Red
Pearl
1 12 A
Knob, Control 1 13
Key Switch with Key Assembly 1 14
NLA - Decal, Faceplate 1 15
Switch, Horn 1 16
NLA - Stud (#4-40 x 3/8") 1 67
NLA - Shroud, Tiller, Upper, Candy Red Pearl 1 18
NLA - Decal, Invacare 3-D Logo (1-19/32" L) 1 19
Circuit Board with Speed Pot 1 110
Nut, Hex Keps (#4-40) 1 611
Label, Patent Pending 1 1
1118268-NLA NLA - Shroud, Tiller with Circuit Board - Deep Blue
Pearl
1 12 A
Knob, Control 1 13
Key Switch with Key Assembly 1 14
NLA - Decal, Faceplate 1 15
Switch, Horn 1 16
NLA - Stud (#4-40 x 3/8") 1 67
NLA - Shroud, Tiller, Upper, Deep Blue Pearl 1 18
NLA - Decal, Invacare 3-D Logo (1-19/32" L) 1 19
Circuit Board with Speed Pot 1 110
Nut, Hex Keps (#4-40) 1 611
Label, Patent Pending 1 1
1119473-NLA NLA - Kit, Throttle Lever with Instruction Sheet 1 112 C,D
Wig Wag (Throttle Pot) 1 113
Bracket, Support 1 114
Spring, Torsion 1 115
Screw, Set Socket Cup Point (#8-32 x 3/16") 1 216
Tiller Lever Assembly, Black 1 117
Locknut (#10-32) 1 218
Cap, End, Throttle, Black 1 219
Instruction Sheet, Throttle Lever 1 1
Bag, Poly Zip-Lip (8-3/4" L x 6" W) 1 1
1118430-NLA NLA - Tiller Assembly - Deep Blue Pearl 1 120 B
Switch, Horn 1 12
NLA - Decal, Faceplate 1 12
NLA - Shroud, Tiller, Upper, Deep Blue Pearl 1 12
Nut, Hex Keps (#4-40) 1 62
NLA - Key Switch with Key Assembly 1 14
NLA - Stud (#4-40 x 3/8") 1 67
NLA - Decal, Invacare 3-D Logo (1-19/32" L) 1 19
Scooter
Form No. 03-023
To order call toll free 1-800-333-6900, or www.invacare.com
14
Page 16
Tiller Assembly with Main Wiring Harness - Invacare 300
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
Circuit Board with Speed Pot 1 110
NLA - Throttle Lever Assembly 1 112
Grip, Hand, Black Foam 1 221
Plug Button, Black (5/8") 1 222
NLA - Screw, Socket Head (#10-24 x 1-1/4") 1 123
NLA - Handle, Tiller Angle Adjustable with Cable
(Invacare 300 Scooter)
1 124
NLA - Shroud, Tiller, Lower 1 125
NLA - Weldment, Tiller (Compact) 1 126
Knob, Control 1 127
Boot, Key Switch 1 228
NLA - Clamp, Cable 1 129
Screw, Phillips Pan Head (#6-20 x 3/8") 1 130
Tie Wrap (5-5/8" L) 1 131
Screw, Phillips Pan Head (#8-16 x 5/8") 1 432
Harness, Wiring, Main Tiller 1 133
Label, Serial Number 1 134
Label, Patent Pending 1 1
1118429 NLA - Tiller Assembly - Candy Red Pearl 1 120 B
Switch, Horn 1 12
NLA - Decal, Faceplate 1 12
NLA - Shroud, Tiller, Upper, Candy Red Pearl 1 12
Nut, Hex Keps (#4-40) 1 62
NLA - Key Switch with Key Assembly 1 14
NLA - Stud (#4-40 x 3/8") 1 67
NLA - Decal, Invacare 3-D Logo (1-19/32" L) 1 19
Circuit Board with Speed Pot 1 110
NLA - Throttle Lever Assembly 1 112
Grip, Hand, Black Foam 1 221
Plug Button, Black (5/8") 1 222
NLA - Screw, Socket Head (#10-24 x 1-1/4") 1 123
NLA - Handle, Tiller Angle Adjustable with Cable
(Invacare 300 Scooter)
1 124
NLA - Shroud, Tiller, Lower 1 125
NLA - Weldment, Tiller (Compact) 1 126
Knob, Control 1 127
Boot, Key Switch 1 228
NLA - Clamp, Cable 1 129
Screw, Phillips Pan Head (#6-20 x 3/8") 1 130
Tie Wrap (5-5/8" L) 1 131
Screw, Phillips Pan Head (#8-16 x 5/8") 1 432
Harness, Wiring, Main Tiller 1 133
Label, Serial Number 1 134
Scooter
Form No. 03-023
To order call toll free 1-800-333-6900, or www.invacare.com
15
Page 17
Tiller Assembly with Main Wiring Harness - Invacare 300
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
Label, Patent Pending 1 1
A - Includes: Items 3-11 and Patent Label (not shown).
B - Includes: Items 2, 4, 7, 9-10, 12, 21-34, Patent Label (not shown).
C - Includes: Items 13-19, Instruction Sheet and Bag (not shown).
D - Throttle Pot is included with this assembly.
NOTE:
Scooter
Form No. 03-023
To order call toll free 1-800-333-6900, or www.invacare.com
16
Page 18
Tiller Assembly with Main Wiring Harness - Invacare 400
Scooter
Form No. 03-023
17
To order call toll free 1-800-333-6900, or www.invacare.com
Page 19
Tiller Assembly with Main Wiring Harness - Invacare 400
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1125342 Shroud, Tiller with Circuit Board - Candy Red Pearl
(Invacare 400 Scooter)
1 11 A
NLA - Key Switch with Key Assembly 1 12
Switch, Light 1 13
Decal, Faceplate 1 14
Switch, Horn 1 15
NLA - Stud (#4-40 x 3/8") 1 66
NLA - Decal, Invacare 3-D Logo (1-19/32" L) 1 17
Circuit Board with Speed Pot 1 18
Nut, Hex Keps (#4-40) 1 69
Label, Patent Pending 1 1
NLA - Shroud, Tiller, Upper, Candy Red Pearl 1 1
1125343-NLA Shroud, Tiller with Circuit Board - Deep Blue Pearl
(Invacare 400 Scooter)
1 11 A
NLA - Key Switch with Key Assembly 1 12
Switch, Light 1 13
Decal, Faceplate 1 14
Switch, Horn 1 15
NLA - Stud (#4-40 x 3/8") 1 66
NLA - Decal, Invacare 3-D Logo (1-19/32" L) 1 17
Circuit Board with Speed Pot 1 18
Nut, Hex Keps (#4-40) 1 69
NLA - Shroud, Tiller, Upper, Deep Blue Pearl 1 1
Label, Patent Pending 1 1
1126100 Key, Ignition 1 126 F
1119473-NLA NLA - Kit, Throttle Lever with Instruction Sheet 1 113 C,D
NLA - Throttle Lever Assembly 1 1
Instruction Sheet, Throttle Lever 1 1
Bag, Poly Zip-Lip (8-3/4" L x 6" W) 1 1
1114265 Cap, End, Throttle, Black 1 214
1124904 Tiller Assembly - Cand Red Pearl (Invacare 400
Scooter)
1 110 B
NLA - Key Switch with Key Assembly 1 12
Switch, Light 1 13
Decal, Faceplate 1 14
Switch, Horn 1 15
NLA - Stud (#4-40 x 3/8") 1 66
Circuit Board with Speed Pot 1 18
Nut, Hex Keps (#4-40) 1 69
Knob, Control 1 111
Boot, Key Switch 1 112
Bag, Poly Zip-Lip (8-3/4" L x 6" W) 1 113
Instruction Sheet, Throttle Lever 1 113
Scooter
Form No. 03-023
To order call toll free 1-800-333-6900, or www.invacare.com
18
Page 20
Tiller Assembly with Main Wiring Harness - Invacare 400
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
NLA - Throttle Lever Assembly 1 113
NLA - Screw, Socket Head (#10-24 x 1-1/4") 1 115
Grip, Hand, Black Foam 1 216
Plug Button, Black (5/8") 1 217
NLA - Handle, Tiller Angle Adjustable with Cable
(Invacare 400 Scoooter)
1 118
NLA - Shroud, Tiller, Lower 1 119
Harness, Wiring, Main Tiller 1 120
Screw, Phillips Pan Head (#8-16 x 5/8") 1 421
NLA - Harness, Wiring, Light 1 122
Tie Wrap (5-5/8" L) 1 123
Screw, Phillips Pan Head (#6-20 x 3/8") 1 224
NLA - Clamp, Cable 1 225
NLA - Shroud, Tiller, Upper, Candy Red Pearl 1 1
NLA - Tiller Weldment - Black (Invacare 400
Scooter)
1 1
Label, Serial Number 1 1
Label, Patent Pending 1 1
1124905 Tiller Assembly - Deep Blue Pearl (Invacare 400
Scooter)
1 110 B
NLA - Key Switch with Key Assembly 1 12
Switch, Light 1 13
Decal, Faceplate 1 14
Switch, Horn 1 15
NLA - Stud (#4-40 x 3/8") 1 66
NLA - Decal, Invacare 3-D Logo (1-19/32" L) 1 17
Circuit Board with Speed Pot 1 18
Nut, Hex Keps (#4-40) 1 69
Knob, Control 1 111
Boot, Key Switch 1 112
Bag, Poly Zip-Lip (8-3/4" L x 6" W) 1 113
Instruction Sheet, Throttle Lever 1 113
NLA - Throttle Lever Assembly 1 113
NLA - Screw, Socket Head (#10-24 x 1-1/4") 1 115
Grip, Hand, Black Foam 1 216
Plug Button, Black (5/8") 1 217
NLA - Handle, Tiller Angle Adjustable with Cable
(Invacare 400 Scoooter)
1 118
NLA - Shroud, Tiller, Lower 1 119
Harness, Wiring, Main Tiller 1 120
Screw, Phillips Pan Head (#8-16 x 5/8") 1 421
NLA - Harness, Wiring, Light 1 122
Tie Wrap (5-5/8" L) 1 123
Screw, Phillips Pan Head (#6-20 x 3/8") 1 224
Scooter
Form No. 03-023
To order call toll free 1-800-333-6900, or www.invacare.com
19
Page 21
Tiller Assembly with Main Wiring Harness - Invacare 400
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
NLA - Clamp, Cable 1 225
NLA - Shroud, Tiller, Upper, Deep Blue Pearl 1 1
NLA - Tiller Weldment - Black (Invacare 400
Scooter)
1 1
Label, Serial Number 1 1
Label, Patent Pending 1 1
1126100 Key, Ignition 1 126 F
A - Includes: Items 2-9 and Patent label and Upper Shroud (not shown).
B - Includes: Items 2-25 and Patent Label, Upper Shroud, Tiller Weldment, and Serial Label (not shown).
C - Includes: All items contained in box as shown in drawing with Instruction Sheet.
D - Throttle Pot is included with this assembly.
F - This Key is included with item 2.
NOTE:
Scooter
Form No. 03-023
20
To order call toll free 1-800-333-6900, or www.invacare.com
Page 22
Tiller Angle Adjustment Hardware
Form No. 03-023
21
To order call toll free 1-800-333-6900, or www.invacare.com
Page 23
Tiller Angle Adjustment Hardware
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1120475 Kit, Tiller Mounting Hardware (Invacare 300
Scooter)
1 11 B,C
Screw, Hex Head (1/4-20 x 1-1/2") 1 22
NLA - Bracket, Cable Mounting, Black 1 13
Spacer, Coved (1/4 x 11/16 x 1/2") 1 24
Locknut (1/4-20) 1 25
1125361-NLA NLA - Kit, Tiller Mounting Hardware (Invacare 400
Scooter)
1 11 B,D
Screw, Hex Head (1/4-20 x 1-5/8") 1 22
NLA - Bracket, Cable Mounting, Black 1 13
Spacer, Coved (1/4 x 11/16 x 1/2") 1 24
Locknut (1/4-20) 1 25
1120471-NLA Kit, Adjustable Angle Tiller 1 16 A
Pin, Roll (1/8" x 9/16") 1 17
NLA - Glide, Adjustable Angle 1 18
NLA - Wedge, Actuator 1 19
NLA - Spacer 1 110
NLA - Pivot, Adjustable Angle Upper 1 111
NLA - Spring, Compression (7/8" L) 1 112
NLA - Pin, Locking 1 113
Screw, Hex Head (5/16-18 x 1-3/4") 1 114
Screw, Socket Head w/ Patch (5/16-18 x 1-3/4") 1 215
NLA - Pivot, Adjustable Angle Lower 1 116
NLA - Bushing (5/16 x 5/8 x 1") 1 117
Washer, Flat (21/64 x 53/64 x 7/64") 1 218
Locknut (5/16-18) 1 119
A - Includes: Items 7-19.
B - Includes: Items 2-5.
C - Used on the Zoom 300 Compact Scooter.
D - Used on the zoom 400 Midsize Scooter.
NOTE:
Form No. 03-023
22
To order call toll free 1-800-333-6900, or www.invacare.com
Page 24
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1118432 Kit, Basket Mounting Hardware 1 11 A
Nut, Hex with Nylon Cap (1/4-20) 1 22
Spacer, Coved (1/4 x 11/16 x 1/2") 1 23
NLA - Bracket, Basket Mounting, Black (Invacare
300 Scooter)
1 14
NLA - Pad, Foam 1 15
Screw, Socket Button Head (1/4-20 x 1-1/2") 1 26
1120484 Basket, Front 1 17
A - Includes: Items 2-6
NOTE:
Basket and Hardware - Invacare 300 Scooter
Form No. 03-023
To order call toll free 1-800-333-6900, or www.invacare.com
23
Page 25
Basket, Headlight, and Tiller Shroud
Invacare 400 Scooter
Form No. 03-023
24
To order call toll free 1-800-333-6900, or www.invacare.com
Page 26
Basket, Headlight, and Tiller Shroud
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1118432 Kit, Basket Mounting Hardware 1 11 A
Nut, Hex with Nylon Cap (1/4-20) 1 22
Spacer, Coved (1/4 x 11/16 x 1/2") 1 23
NLA - Bracket, Basket Mounting, Black (Invacare
300 Scooter)
1 14
NLA - Pad, Foam 1 15
Screw, Socket Button Head (1/4-20 x 1-1/2") 1 26
1125364 Kit, Basket Mounting Hardware (Invacare 400
Scooter)
1 17 B
NLA - Pad, Foam 1 18
NLA - Bracket, Basket Mounting, Black (Invacare
400 Scooter)
1 19
Washer (1/4 x 1/2 x 1/16") 1 210
Screw, Hex Head (1/4-20 x 5/8") 1 211
Locknut (1/4-20) 1 212
1120484 Basket, Front 1 113 C
1125359-NLA NLA - Tiller Shroud and Headlight Assembly -
Candy Red Pearl
1 114 D
1125360-NLA NLA - Tiller Shroud and Headlight Assembly - Deep
Blue Pearl
1 114 D
1119187 Headlight 1 115
1028769 Locknut (5/16-18) 1 116
1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 117
1091870 Screw, Socket Button Head w/ Patch (1/4-20 x 3/4") 1 218
1125357-NLA NLA - Bracket, Light Mounting, Black 1 119
1070412 Screw, Hex Head (5/16-18 x 2-1/4") 1 120
1124888 Shroud, Front Tiller - Candy Red Pearl 1 121
1124889-NLA NLA - Shroud, Front Tiller - Deep Blue Pearl 1 121
1037610 Screw, Hex Head (1/4-20 x 1-5/8") 1 222
1125358-NLA NLA - Bracket, Tiller Shroud Mounting with Inserts,
Black
1 123
1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 224
1025195 Locknut (1/4-20) 1 225
7930323 Package, Locknut (1/4-20) 25 1
1114279-NLA NLA - Shroud, Tiller, Black - Rear 1 126
1114276 Screw, Phillips Pan Head (#8-16 x 5/8") 1 427
A - Includes: Items 2-6.
B - Includes: Items 8-12.
C - The Basket is the same for the HMV300 and the HMV 400.
D - Includes: Items 15-27.
NOTE:
Invacare 400 Scooter
Form No. 03-023
25
To order call toll free 1-800-333-6900, or www.invacare.com
Page 27
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1114572 Fork and Stem Assembly 1 11
1006049 Bearing (7/16") 1 2B,C
1020592 Spacer, Bearing (7/16 x 5/8 x 1-3/4") 1 1B,C
1118250 Kit, Front Wheel Mounting Hardware 1 22 A,D,E
Bolt, Hex Head Cap (7/16-20 x 4-3/4") 1 13
NLA - Spacer (7/16 x 5/8 x 11/16") 1 24
Locknut (7/16-20) 1 15
1070811 Wheel Assembly, Semi-Pneumatic, Urethane, Light
Grey (8" x 1-3/4")
1 16 D
1101108 Wheel Assembly, Semi-Pneumatic (8" x 2-1/4") 1 16 E
A - Includes: Items 2-5.
B - Not Shown.
C - These items are included with the caster (part number 1070811 & 1101108).
D - Used for Zoom 300.
E - Used for Zoom 400.
NOTE:
Front Casters and Forks
Form No. 03-023
To order call toll free 1-800-333-6900, or www.invacare.com
26
Page 28
Shroud - Footboard, Bellow, and Carpet
Form No. 03-023
27
To order call toll free 1-800-333-6900, or www.invacare.com
Page 29
Shroud - Footboard, Bellow, and Carpet
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1120474-NLA Kit, Footboard Carpet with Hardware (Invacare 300
Scooter)
1 11 C
Screw, Phillips Pan Head Tap (#10-32 x 1/2") 1 42
Carpet, Footboard (Invacare 300 Scooter) 1 13
1120473-NLA NLA - Bellow, Invacare 300 Scooter 1 14
1120447 Kit, Footboard Assembly - Candy Red Pearl
(Invacare 300 Scooter)
1 15 B
Fastener, Hook (2" W x 8" L) 1 16
NLA - Molding, Shroud - Invacare 300 Scooter 1 17
NLA - Fastener, Hook with Adhesive (1" W x 6" L) 1 28
NLA - Decal - Scooter 1 19
NLA - Footboard Shroud, Candy Red Pearl -
Invacare 300 Scooter
1 110
NLA - Decal, Warning 1 111
Decal, Weight Capacity 300 Lbs - Invacare 300
Scooter
1 112
1120473-NLA NLA - Bellow, Invacare 300 Scooter 1 14
1120457 Kit, Footboard Assembly - Deep Blue Pearl
(Invacare 300 Scooter)
1 15 B
Fastener, Hook (2" W x 8" L) 1 16
NLA - Molding, Shroud - Invacare 300 Scooter 1 17
NLA - Fastener, Hook with Adhesive (1" W x 6" L) 1 28
NLA - Decal - Scooter 1 19
NLA - Footboard Shroud, Deep Blue Pearl -
Invacare 300 Scooter
1 110
NLA - Decal, Warning 1 111
Decal, Weight Capacity 300 Lbs - Invacare 300
Scooter
1 112
1125348 Kit, Footboard Assembly - Candy Red Pearl
(Invacare 400 Scooter)
1 113 D
Fastener, Hook (2" W x 8" L) 1 114
Decal, Weight Capacity 400 Lbs - Invacare 400
Scooter
1 115
NLA - Decal, Warning 1 116
NLA - Footboard Shroud, Candy Red Pearl -
Invacare 400 Scooter
1 117
NLA - Fastener, Hook with Adhesive (1" W x 6" L) 1 218
NLA - Decal - Scooter 1 119
Molding, Shroud - Invacare 400 Scooter 1 120
1125349 Kit, Footboard Assembly - Deep Blue Pearl
(Invacare 400 Scooter)
1 113 D
Fastener, Hook (2" W x 8" L) 1 114
Decal, Weight Capacity 400 Lbs - Invacare 400
Scooter
1 115
NLA - Decal, Warning 1 116
NLA - Footboard Shroud, Deep Blue Pearl -
Invacare 400 Scooter
1 117
Form No. 03-023
To order call toll free 1-800-333-6900, or www.invacare.com
28
Page 30
Shroud - Footboard, Bellow, and Carpet
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
NLA - Fastener, Hook with Adhesive (1" W x 6" L) 1 218
NLA - Decal - Scooter 1 119
Molding, Shroud - Invacare 400 Scooter 1 120
1125354-NLA NLA - Kit, Footboard Carpet with Hardware
(Invacare 400 Scooter)
1 121 A,E
NLA - Carpet, Footboard (Invacare 400 Scooter) 1 122
Screw, Phillips Pan Head Tap (#10-32 x 1/2") 1 423
1125350 Bellow, Invacare 400 Scooter 1 124
A - The Bellow is not included with this assembly.
B - Includes: Items 6-12.
C - Includes: Items 2-3.
D - Includes: Items 14-20.
E - Includes: Items 22-23.
NOTE:
Form No. 03-023
29
To order call toll free 1-800-333-6900, or www.invacare.com
Page 31
16" Seat and Arms
Form No. 03-023
30
To order call toll free 1-800-333-6900, or www.invacare.com
Page 32
16" Seat and Arms
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1117008-NLA NLA - Seat Assembly, Grey (16" W) 1 11
1116977 NLA - Kit, Arm Assembly with Seat Pivot (16" Wide
Seat)
1 12 C,D
Pivot, Seat 1 13
Washer, Steel (5/16 x 1-1/4 x 1/16") 1 44
NLA - Screw, Hex Head w/Patch (1/4-20 x 1-1/8") 1 45
NLA - Bushing (1/4 x 3/4 x 1/2") 1 66
NLA - Arm Assembly, Flip-Up, Black - Right 1 17
Knob, Adjustment, Black (5/16-18 x 3/4") 1 38
NLA - Arm Assembly, Flip-Up, Black - Left 1 19
NLA - Bracket, Arm Support 1 110
Washer (1/4 x 1/2 x 1/16") 1 611
Screw, Hex Head w/Patch (1/4-20 x 1-3/8") 1 612
1070553-NLA NLA - Screw, Phillips Pan Head (#10-32 x 5/8") 1 4A,B
1114228-NLA NLA - Arm Assembly, Flip-Up, Black - Left 1 113 E
1137221-NLA NLA - Arm Assembly, Flip-Up, Black - Left 1 113
1116976 Arm Pad Assembly, Desk Length with Hardware -
Left
1 114
1114910 Knob, Adjustment, Black (5/16-18 x 3/4") 1 115
1116906-NLA NLA - Tube, Lower Arm - Left 1 116 E
1113647 Tube, Arm, Lower Adjustable Width, Black - Left 1 116
1114227-NLA NLA - Arm Assembly, Flip-Up, Black - Right 1 117 E
1137220-NLA NLA - Arm Assembly, Flip-Up, Black - Right 1 117
1116975 Arm Pad Assembly, Desk Length with Hardware -
Right
1 118
1116905-NLA NLA - Tube, Lower Arm - Right 1 119 E
1113646 Tube, Arm, Lower Adjustable Width, Black - Right 1 119
A - Not Shown.
B - Screws to attach Arm Pad.
C - Items 7 & 9, 13 & 17 Arm Assembly Includes: Items 14 & 18 (Arm Pads) and item 15 (Adjustment Knobs).
D - Includes: Items 2-12.
E - Due to style change, Arm Rests need to be replaced in pairs. Order 1 ea. of 1137221 Left and 1137220 Right
NOTE:
Form No. 03-023
31
To order call toll free 1-800-333-6900, or www.invacare.com
Page 33
18-20" Seat and Arms
Form No. 03-023
32
To order call toll free 1-800-333-6900, or www.invacare.com
Page 34
18-20" Seat and Arms
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1116973-NLA NLA - Seat Assembly, Grey (18" W) 1 11
1125341 Seat Assembly, Grey ( 20" W) 1 11
1133152 Kit, Arm Assembly with Seat Pivot (18-20" Wide
Seat)
1 12 A,F
NLA - Arm Assembly, Flip-Up, Black - Left 1 13
Knob, Adjustment, Black (5/16-18 x 3/4") 1 34
NLA - Arm Assembly, Flip-Up, Black - Right 1 15
NLA - Plate, Reinforcement (18-20" Wide Chairs) 1 16
Washer (1/4 x 1/2 x 1/16") 1 107
Screw, Hex Head w/ Patch (1/4-20 x 1") 1 108
Pivot, Seat 1 19
Washer, Steel (5/16 x 1-1/4 x 1/16") 1 410
Screw, Hex Head w/ Patch (5/16-18 x 1") 1 411
1114228-NLA NLA - Arm Assembly, Flip-Up, Black - Left 1 112 B,G
1137221-NLA NLA - Arm Assembly, Flip-Up, Black - Left 1 112 B
1116976 Arm Pad Assembly, Desk Length with Hardware -
Left
1 113
1114910 Knob, Adjustment, Black (5/16-18 x 3/4") 1 114
1116906-NLA NLA - Tube, Lower Arm - Left 1 115 G
1113647 Tube, Arm, Lower Adjustable Width, Black - Left 1 115
1114227-NLA NLA - Arm Assembly, Flip-Up, Black - Right 1 116 C,G
1137220-NLA NLA - Arm Assembly, Flip-Up, Black - Right 1 116 C
1116975 Arm Pad Assembly, Desk Length with Hardware -
Right
1 117
1114910 Knob, Adjustment, Black (5/16-18 x 3/4") 1 118
1116905-NLA NLA - Tube, Lower Arm - Right 1 119 G
1113646 Tube, Arm, Lower Adjustable Width, Black - Right 1 119
1119791 NLA - Kit, Arm Assembly with Seat Pivot (18-20"
Wide Seat)
1 120 D,E
Plate, Reinforcement 1 121
Locknut (5/16-18) 1 422
NLA - Bracket, Seat Mounting, Black 1 123
Washer (1/4 x 23/32 x 1/16") 1 424
Screw, Hex Head w/ Patch (1/4-20 x 1") 1 425
Pivot, Seat 1 126
Washer, Steel (5/16 x 1-1/4 x 1/16") 1 427
Screw, Hex Head w/ Patch (5/16-18 x 1") 1 428
NLA - Arm Assembly, Flip-Up, Black - Left 1 129
Knob, Adjustment, Black (5/16-18 x 3/4") 1 330
NLA - Bushing (1/4 x 3/4 x 1/2") 1 631
Washer (1/4 x 1/2 x 1/16") 1 632
NLA - Arm Assembly, Flip-Up, Black - Right 1 133
NLA - Bracket, Arm Support 1 134
Screw, Hex Head w/Patch (1/4-20 x 1-3/8") 1 635
Form No. 03-023
To order call toll free 1-800-333-6900, or www.invacare.com
33
Page 35
18-20" Seat and Arms
A - Includes: Items 3-11
B - Includes: Items 13-15
C - Includes: Items 17-19
D - Includes: Items 21-35
E - For Seat Assemblies Manufactured BEFORE 2/27/05
F - For Seat Assemblies Manufactured AFTER 2/28/05
G - Due to style change, Arm Rests need to be replaced in pairs. Order 1 ea. of 1137221 Left and 1137220 Right
NOTE:
34
Form No. 03-023
To order call toll free 1-800-333-6900, or www.invacare.com
Page 36
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1114529-NLA NLA - Wheel Assembly, Pnuematic w/ Flat Free
Insert (9" x 3")
1 21 A
1105043 Wheel Assembly, Drive w/ Bearings, Pneumatic w/
Flat Free Insert (10" x 3")
1 21 B
1114258 Kit, Wheel Mounting Hardware 1 12 C
Locknut (1/2-20) 1 2
Washer (1/2") 1 2
A - Used on the Zoom 300.
B - Used on the Zoom 400.
C - Includes: (2) Washers and (2) Locknuts.
NOTE:
Drive Wheels
Form No. 03-023
To order call toll free 1-800-333-6900, or www.invacare.com
35
Page 37
Rear Shroud
Form No. 03-023
36
To order call toll free 1-800-333-6900, or www.invacare.com
Page 38
Rear Shroud
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1120439 Kit, Rear Shroud with Decals - Candy Red Pearl
(Invacare 300 Scooter)
1 11 A
Fastener, Loop with Adhesive Back (1" W X 1" L) 1 32
NLA - Shroud, Rear, Candy Red Pearl (Invacare
300 Scooter)
1 13
Decal, Invacare Medallion - Large 1 14
NLA - Molding, Rear Shroud 1 15
NLA - Decal, Wire Diagram - Dual 12 AH Batteries 1 16
Decal, Drive/Push 1 1
NLA - Decal, Logo - Invacare 300 Scooter 1 1
1120456 Kit, Rear Shroud with Decals - Deep Blue Pearl
(Invacare 300 Scooter)
1 11 A
Fastener, Loop with Adhesive Back (1" W X 1" L) 1 32
NLA - Shroud, Rear, Deep Blue Pearl (Invacare 300
Scooter)
1 13
Decal, Invacare Medallion - Large 1 14
NLA - Molding, Rear Shroud 1 15
NLA - Decal, Wire Diagram - Dual 12 AH Batteries 1 16
Decal, Drive/Push 1 1
NLA - Decal, Logo - Invacare 300 Scooter 1 1
1125352 Kit, Rear Shroud with Decals - Candy Red Pearl
(Invacare 400 Scooter)
1 17 B
NLA - Molding, Rear Shroud 1 18
NLA - Decal, Wire Diagram - Dual U1 Batteries 1 19
Fastener, Loop with Adhesive Back (1" W x 2" L) 1 410
NLA - Shroud, Rear - Candy Red Pearl (Invacare
400 Scooter)
1 111
Decal, Invacare Medallion - Large 1 112
Decal, Drive/Push 1 1
NLA - Decal, Logo - Invacare 400 Scooter 1 1
1125353 Kit, Rear Shroud with Decals - Deep Blue Pearl
(Invacare 400 Scooter)
1 17 B
NLA - Molding, Rear Shroud 1 18
NLA - Decal, Wire Diagram - Dual U1 Batteries 1 19
Fastener, Loop with Adhesive Back (1" W x 2" L) 1 410
NLA - Shroud, Rear - Deep Blue Pearl (Invacare
400 Scooter0)
1 111
Decal, Invacare Medallion - Large 1 112
NLA - Decal, Logo - Invacare 400 Scooter 1 1
Decal, Drive/Push 1 1
A - Includes: Items 2-6 and Not Shown Drive/Push Decal and Logo Decal.
B - Includes: Items 8-12 and Not Shown Drive/Push Decal and Logo Decal.
NOTE:
Form No. 03-023
To order call toll free 1-800-333-6900, or www.invacare.com
37
Page 39
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1120441-NLA NLA - Seat Post Assembly with Hardware 1 11 A
Locknut, Low Profile (3/8-16) 1 1
Washer, Flat (3/8 x 11/16 x 1/16") 1 2
Label, Patent Pending 1 1
Screw, Hex Head (3/8-16 x 1-3/4") 1 1
NLA - Seat Post, Pivot 1 12
A - Used on both the Zoom 300 and Zoom 400.
NOTE:
Seat Post and Hardware
Form No. 03-023
To order call toll free 1-800-333-6900, or www.invacare.com
38
Page 40
Part Number Description
Strap, Positioning, Seat/Chest w/ Auto Style Push Button
Buckle (Eyelet to Eyelet Length 61")
1034625
Positioning Strap
Form No. 03-023
39
To order call toll free 1-800-333-6900, or www.invacare.com
Page 41
Transaxle and Battery/Controller Tray
Form No. 03-023
40
To order call toll free 1-800-333-6900, or www.invacare.com
Page 42
Transaxle and Battery/Controller Tray
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1122045-NLA NLA - Transaxle, MK25A (Invacare 400 Scooter) 1 11 D
1120434-NLA NLA - Controller Tray Assembly 1 12 C
1120469-NLA NLA - Transaxle, MK15A (Invacare 300 Scooter) 1 13 C
1120423-NLA NLA - Element, Viscous 1 24 C
1120436-NLA Kit, Controller Tray Hardware (Invacare 300
Scooter)
1 15 B
Locknut (1/4-20) 1 46
Washer (1/4 x 23/32 x 1/16") 1 87
Screw, Hex Head (1/4-20 x 1-5/8") 1 48
Screw, Phillips Pan Head (#4-40 x 1/2") 1 29
Cover, Connector 1 110
Nut, Hex Keps (#4-40) 1 211
Tip, Plastic, Black 1 112
NLA - Rod, Release Brake, Black 1 113
NLA - Plate, Nylon 1 114
Rivet (1/8 x 1") 1 215
Pin, Cotter (5/64 x 1/2") 1 116
Washer (1/4 x 1/2 x 1/16") 1 217
Tie Wrap (11-1/2" L) 1 118
Tie Wrap (5-5/8" L) 1 219
Screw, Phillips Pan Head (#6-32 x 1-1/8") 1 3
Nut, Keps (#6-32) 1 3
1121086 Cord, AC Power, 115VAC, 3 Prong On-Board (6'
6-1/2" L)
1 1A,C,D
7930318 Package, Screw, Phillips Pan Head (#4-40 x 1/2") 25 1
7930323 Package, Locknut (1/4-20) 25 1
A - Not Shown.
B - Includes: Items 6-19.
C - Used on the Zoom 300.
D - Used on the Zoom 400.
Note:
The Battery/Controller Tray on the Zoom 400, Midsize, is welded to the Frame.
NOTE:
Form No. 03-023
41
To order call toll free 1-800-333-6900, or www.invacare.com
Page 43
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1120478 Kit, Battery Mounting w/ Strap Hardware (Invacare
300 Scooter)
1 11 A
1120477 Wire Harness Assembly, Red 1 12
1120476 Wire Harness Assembly, Black 1 13
1021260 Tie Wrap (5-5/8" L) 1 64
1119606 Wire Harness Assembly (3") 1 15
1120467-NLA NLA - Strap, Battery 1 16 B
1125389 Harness, Battery (Invacare 400 Scooter) 1 27
1124892-NLA NLA - Strap, Battery (Invacare 400 Scooter) 1 1C
A - Includes: Items 2-6.
B - Used for the Zoom 300 only.
C - Not Shown for Zoom 400 only and Is included with the Frame and Hardware Assembly.
NOTE:
Battery Wiring Harness and Battery Strap
Form No. 03-023
42
To order call toll free 1-800-333-6900, or www.invacare.com
Page 44
Charger and Controller
Form No. 03-023
43
To order call toll free 1-800-333-6900, or www.invacare.com
Page 45
Charger and Controller
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1125393 Kit, Controller Tray Assembly (Invacare 400
Scooter)
1 11 B,F
Cover, Connector 1 12
Screw, Phillips Pan Head (#6-32 x 1-1/8") 1 33
Controller (Invacare 400 Scooter) 1 14
Charger, Battery 3 Amp. (Invacare 400 Scooter &
LX3)
1 15
Tie Wrap (17-1/2" L) 1 26
Screw, Phillips Pan Head (#4-40 x 1/2") 1 37
Screw, Phillips Pan Head (#6-32 x 3/4") 1 48
Fastener, Hook with Adhesive Back (1" W x 1" L) 1 19
Nut, Keps (#6-32) 1 710
Nut, Hex Keps (#4-40) 1 411
NLA - Tray, Controller (Invacare 400 Scooter) 1 112
Tie Wrap (5-5/8" L) 1 613
1114176 Charger, Battery 3 Amp. (Invacare 400 Scooter &
LX3)
1 15 F
1095502 Package, Tie Wrap (11-1/2" L) 10 16
1119183 Controller (Invacare 300 Scooter) 1 114 E
1116914-NLA NLA - Charger, Battery 2 Amp. (Invacare 300
Scooter & SX3)
1 115 E
1095502 Package, Tie Wrap (11-1/2" L) 10 116
P0870X050 Nut, Keps (#6-32) 1 317
1039773 Screw, Phillips Pan Head (#6-32 x 1-1/8") 1 318
1125394 Kit, Controller Mounting Tray Hardware 1 119 D,F
Screw, Hex Head (1/4-20 x 1-3/4") 1 4
Locknut (1/4-20) 1 4
Washer (1/4 x 23/32 x 1/16") 1 8
1121086 Cord, AC Power, 115VAC, 3 Prong On-Board (6'
6-1/2" L)
1 1A
1095503 Package, Tie Wrap (5-5/8" L) 10 1A,C
See Chart Batteries 1 1A
A - Not Shown.
B - Includes: Items 2-12 and Rear Wire Harness (found on "Rear Wiring Harness" page).
C - These Cable Ties bind the wires to each other.
D - Includes: (4) 1/4-20 x 1-5/8 Hex Head Cap Screws, (8) Washers, and (4) 1/4-20 Hex Lock Nuts.
E - Used on the Zoom 300.
F - Used on the Zoom 400.
NOTE:
Battery
Equipment Number Description
Form No. 03-023
44
To order call toll free 1-800-333-6900, or www.invacare.com
Page 46
Charger and Controller
Battery
Equipment Number Description
Batteries, 12V (pair)
12AH-2
See Note(s) A, B
Batteries, U1 with Handle (pair)
U1BH-2
See Note(s) C, A
A - Batteries are an equipment item and numbers are shown for reference only.
B - Used on the Zoom 300.
C - Used on the Zoom 400.
NOTE:
Form No. 03-023
To order call toll free 1-800-333-6900, or www.invacare.com
45
Page 47
Rear Wiring Harness
Form No. 03-023
46
To order call toll free 1-800-333-6900, or www.invacare.com
Page 48
Rear Wiring Harness
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1119608-NLA NLA - Harness, Main Wiring (Invacare 300 Scooter) 1 11 A
1125363 Harness, Main Wiring (Invacare 400 Scooter) 1 11 A,C
1117809-NLA NLA - Circuit Breaker (40 AMP) 1 12
1118873-NLA NLA - Fuse, 5 Amp. 1 13
1117817 Fuse (10 AMP) 1 14
1095503 Package, Tie Wrap (5-5/8" L) 10 1B
A - Includes: Items 2 - 4.
B - Not Shown
C - This part plugs into the Controller, Motor, Battery and Tiller Harness.
NOTE:
Form No. 03-023
To order call toll free 1-800-333-6900, or www.invacare.com
47
Page 49
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
1125223 NLA - Kit, Scooter Tool 1 11
Strap, Ground with Wire and Clip 1 1
Programmer, Remote (DS2K-PD) 1 1
Leads, Test (1") 1 1
Multimeter with Leads 1 1
Screwdriver, Pen-Size 1 1
Light, Pen-Size with Invacare Logo 1 1
Bag, Zip-Lip 1 1
Tape Measure, Compact 1 1
Tool Kit with Remote Programmer
Form No. 03-023
To order call toll free 1-800-333-6900, or www.invacare.com
48
Page 50
Yes, you can. ™
03-023
© 2013 Invacare Corporation. All rights
reserved. Republication, duplication or
modification in whole or in part is prohibited
without prior written permission from
Invacare. Trademarks are identified by ™
and ®. All trademarks are owned by or
licensed to Invacare Corporation or its
subsidiaries unless otherwise noted.
(Revised 01/10/13)
Invacare Corporation
One Invacare Way
Elyria, OH USA
44036-2125
800-333-6900
Technical Support
800-832-4707
Florida Technical Support
407-321-5630
Customer Service
800-333-6900
www.invacare.com
Form No.
Loading...
