Getting Started

1

2

Understanding the 2102 S Access Point 1-3

Understanding the LEDs 1-3
Understanding the Ports 1-4

General Installation Guidelines 1-5

Installing the 2102 S Access Point 1-5

Mounting the 2102 S Access Point 1-6

Positioning the Antenna 1-7

Setting the IP Address of the 2102 S Access Point 1-8

Resetting the 2102 S to Factory Defaults 1-9

Configuring the 2102 S

Establishing a Web Browser Session 2-3

Changing the User Name and Password 2-4

Configuring the 2102 S Access Point as a DHCP Server 2-5

Supported DHCP Options 2-7
Unsupported DHCP Options 2-7

Configuring the 2102 S Access Point as a NAT Server 2-8

Configuring the Radio

3

Configuring the 802.11b HR Radio 3-3

Configuring WEP 3-5

iii

MobileLAN access 2102 S User’s Guide

Maintaining and Troubleshooting the 2102 S

4

A

Analyzing the 2102 S Access Point 4-3

Viewing AP Connections 4-3
Viewing Port Statistics 4-4
Viewing the DHCP Status 4-5
Viewing the Configuration Summary 4-5
Viewing Information About the Access Point 4-6

Understanding the LED Lighting Sequence 4-7

Upgrading the 2102 S Access Point Firmware 4-8

Using the MobileLAN access Utility 4-8
Using a Web Browser 4-9

Troubleshooting the Radio 4-10

Commonly Asked Technical Support Questions 4-11

Getting Help with Your Installation 4-11

Specifications and Default Settings

Physical Specifications A-3

B

Other Specifications A-3

Radio Specifications—IEEE 802.11b HR A-4

Default Settings A-4

TCP/IP Settings Menu Defaults A-4
Ethernet Port Configuration Menu Defaults A-5
Password Menu Defaults A-5
IEEE 802.11b HR Radio Menu Defaults A-5

Using External Antennas

Attaching an External Antenna B-3

General Antenna Placement Guidelines B-4

Positioning Antennas for IEEE 802.11b HR Radios B-4

Positioning Antennas for Antenna Diversity B-4

Intermec 2.4 GHz Antennas and Antenna Accessories B-6

iv

Configuring HereUAre

Contents

C

I

About HereUAre C-3

Index

v

Before You Begin

This section introduces you to standard warranty provisions, safety precautions,
cautions, notes, document formatting conventions, and sources of additional product
information.

Warranty Information

To receive a copy of the standard warranty provision for this product, contact your local
Intermec sales organization. In the U.S. call 1-800-755-5505, and in Canada call 1-800­668-7043.

Opening this product may void the warranty. The internal workings of this

Note:

product can only be accessed by Intermec service personnel. Radio replacements and
upgrades require Intermec service personnel.

Safety Summary

Your safety is extremely important. Read and follow all warnings and cautions in this
book before handling and operating Intermec equipment. You can be seriously injured,
and equipment and data can be damaged if you do not follow the safety warnings and
cautions.

Before You Begin

Do not repair or adjust alone Do not repair or adjust energized equipment alone under
any circumstances. Someone capable of providing first aid must always be present for
your safety.

First aid Always obtain first aid or medical attention immediately after an injury.
Never neglect an injury, no matter how slight it seems.

Resuscitation Begin resuscitation immediately if someone is injured and stops
breathing. Any delay could result in death. To work on or near high voltage, you should
be familiar with approved industrial first aid methods.

Energized equipment Never work on energized equipment unless authorized by a
responsible authority. Energized electrical equipment is dangerous. Electrical shock
from energized equipment can cause death. If you must perform authorized emergency
work on energized equipment, be sure that you comply strictly with approved safety
regulations.

vii

MobileLAN access 2102 S User’s Guide

Cautions and Notes

The cautions and notes in this guide use the following format.

Caution

A caution alerts you to an operating procedure, practice, condition, or statement that
must be strictly observed to prevent equipment damage or destruction, or corruption
or loss of data.

Conseil

Une précaution vous avertit d’une procédure de fonctionnement, d’une méthode,
d’un état ou d’un rapport qui doit être strictement respecté pour empêcher
l’endommagement ou la destruction de l’équipement, ou l’altération ou la perte de
données.

Notes either provide extra information about a topic or contain special

Note:

instructions for handling a particular condition or set of circumstances.

About This Guide

The MobileLAN™ access 2102 S User’s Guide provides information about the features
of this product, and how to install, configure, and troubleshoot it. You must be familiar
with your host PC and your other Intermec equipment.

Terminology

In this guide, the terms 2102 S and access point are used to describe the 2102 S Access
Point device.

Format Conventions for Input From a Keyboard or Keypad

This table describes the form atting convent ions for inpu t from host PC keyboards:

Convention How to Interpret the Convention

Special text

Italic text Indicates a variable that you must replace with a value.

Bold text

where Introduces a list of parameters and explains the values you can specify for

Shows the command as you should enter it into the device.

Indicates the keys you must press on a PC keyboard. For example, “press

” means you press the key labeled “Enter” on the PC keyboard.

Enter

them.

viii

1

Getting Started

adsf

This chapter introduces the 2102 S Access Point with the MobileLAN™ access utility
and explains how to install it.

Understanding the 2102 S Access Point

The 2102 S access point is designed to be powerful and easy to use. It attaches to a
wired network and provides wireless network access for end devices.

The MobileLAN access utility is designed to help you make simple configuration
changes to your access point. You can upgrade the access point firmware from the
utility, as well as access the Web browser menus to make further configuration changes.

The 2102 S ships with these items:

Power supply (Part No. 3-304029-01) and AC power cord

•

Mounting bracket

•

Safety information

•

Antenna

•

Getting Started

1

™

The 2102 S with an IEEE 802.11b High Rate (HR) radio installed is
Wi-Fi™ certified for interoperability with other 802.11b HR wireless
LAN devices.

Caution

You must use the appropriate Intermec power supply with these devices or equipment
damage may occur.

Conseil

Vous devez utiliser la source d'alimentation Intermec adéquate avec cet appareil sinon
vous risquez d'endommager l'équipement.

Understanding the LEDs

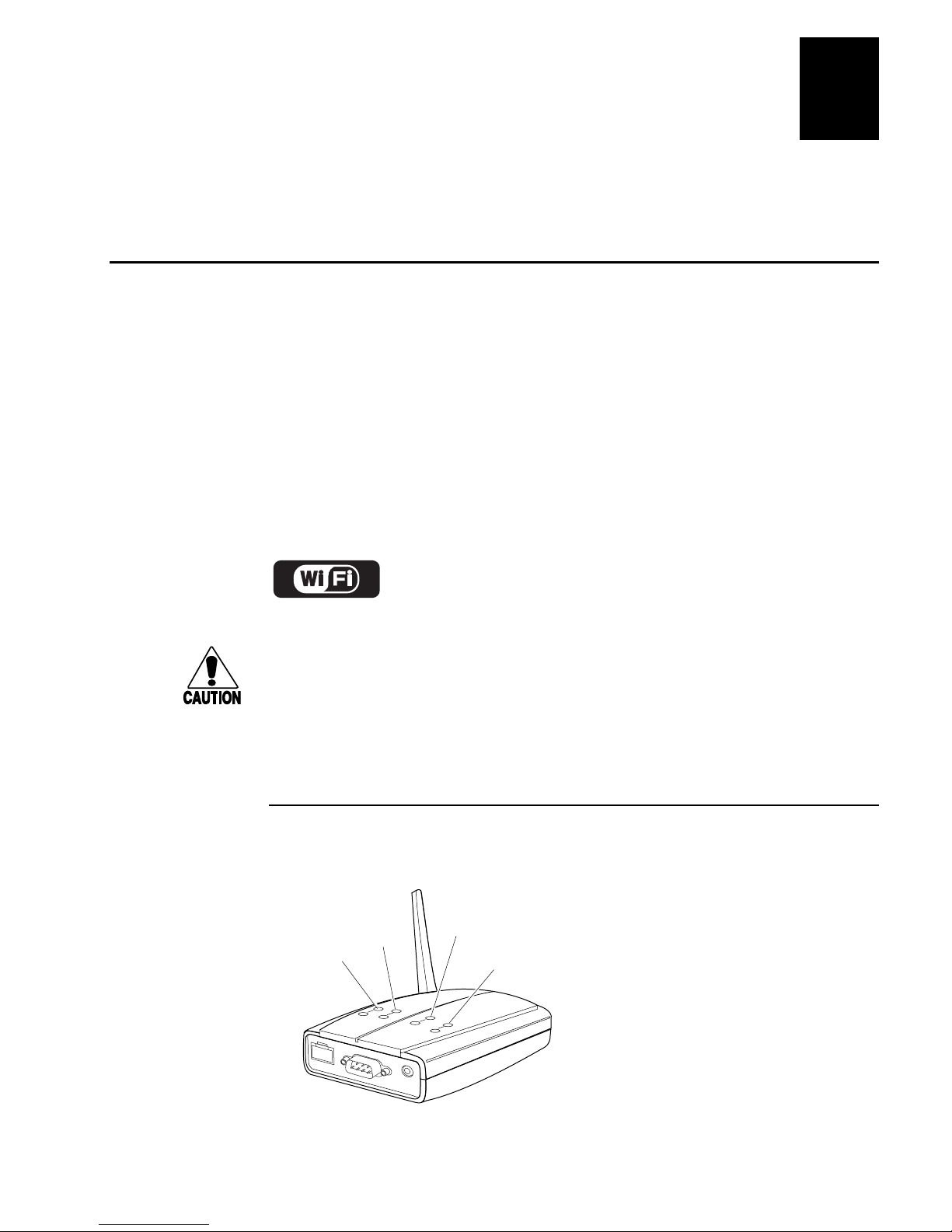

The following illustration identifies the four LEDs on the 2102 S.

Wired

Radio

Power

LAN

Error

MPA001U.eps

1-3

MobileLAN access 2102 S User’s Guide

The following table describes the LEDs on the 2102 S.

LED Description

Power Remains on when power is applied.
Radio Flashes when a frame is transmitted or received on the radio port.
Wired LAN Flashes when a frame is transmitted or received on the Ethernet port.
Error

Flashes during normal operation. Remains on if an error is detected.

Understanding the Ports

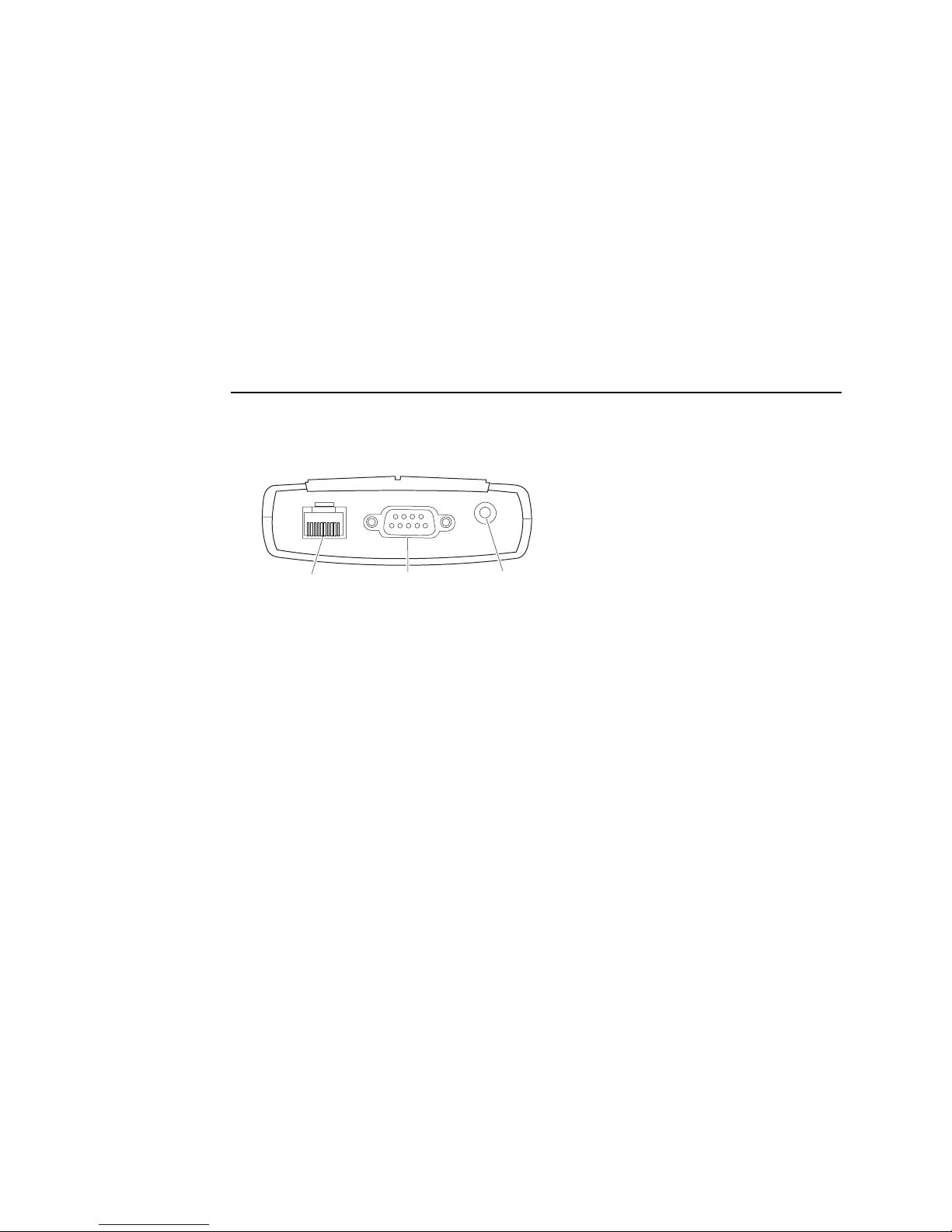

The following illustration identifies the ports on the 2102 S.

10BaseT
Ethernet port

Serial
port

The following table describes the ports on the 2102 S.

Port Description

10BaseT port Used with an appropriate cable, the 10BaseT port connects the access point

to your Ethernet network.

Power
port

MPA002U.eps

Serial port Used with a null-modem cable, the serial port connects the access point to a

Power port Used with an appropriate power cable, the power port connects the access

1-4

terminal or PC to perform initial configuration.

point to an AC power source.

General Installation Guidelines

Intermec recommends that you have Intermec or other certified providers conduct a site
survey to determine the ideal locations for all of your network components. A proper
site survey requires special equipment and training.

The following general practices should be followed in any installation:

Locate access points centrally within areas requiring coverage.

•

Overlap access point coverage areas to avoid coverage holes.

•

Try to position the access point so its LEDs are visible. The LEDs are useful for

•

troubleshooting.
Install wired LAN cabling within node limit and cable length limitations.

•

Use an uninterruptible power supply when the AC power system is not reliable.

•

See Appendix B for information about antenna placement and accessories.

Microwave ovens operate in the same frequency band as 802.11b HR radios;

Note:

therefore, if you use a microwave within range of your 2102 S, you may notice
performance degradation. Both your microwave and your 2102 S will continue to
function, but you may want to consider relocating your microwave out of range of your
access point.

Getting Started

1

Installing the 2102 S Access Point

Follow these steps to install the 2102 S.

1. Mount the access point.

2. If necessary, attach an external antenna. For more information, see “Attaching an
External Antenna” in Appendix B.

1-5

MobileLAN access 2102 S User’s Guide

Mounting the 2102 S Access Point

You can install the 2102 S horizontally on a desk or counter, or you can install it
vertically on a wall using the wall bracket that ships with it. Follow the instructions that
ship with the bracket and access point. An optional cubicle bracket is also available for
mounting the 2102 S on a cubicle wall.

These optional mounting bracket kits and accessories are available for the 2102 S:

Cubicle bracket kit (Part No. 070440)

•

Power supply holder kit (Part No. 069893)

•

Dual antenna bracket kit (Part No. 069888)

•

Diversity antenna (Part No. 071489)

•

Contact your Intermec representative for more information about ordering access point
accessories.

The following instructions explain how to mount the 2102 S using the mounting bracket
that ships with it.

Install the mounting bracket and 2102 S on a sturdy surface in accordance with local
building codes. You need the following tools and materials to install the bracket:

Two #5 or M3 screws. The screws should be appropriate for the surface on which

•

you are mounting the bracket.
Drill and drill bit appropriate for the mounting screws

•

Screwdriver

•

To mount the 2102 S

1. Use the mounting bracket as a template to mark the location of the mounting holes
on the mounting surface.

2. Drill the mounting holes.

3. Position the bracket on the mounting surface.

1-6

Positioning the Bracket

Getting Started

1

Mounting
bracket

Hook
(2 places)

Clip

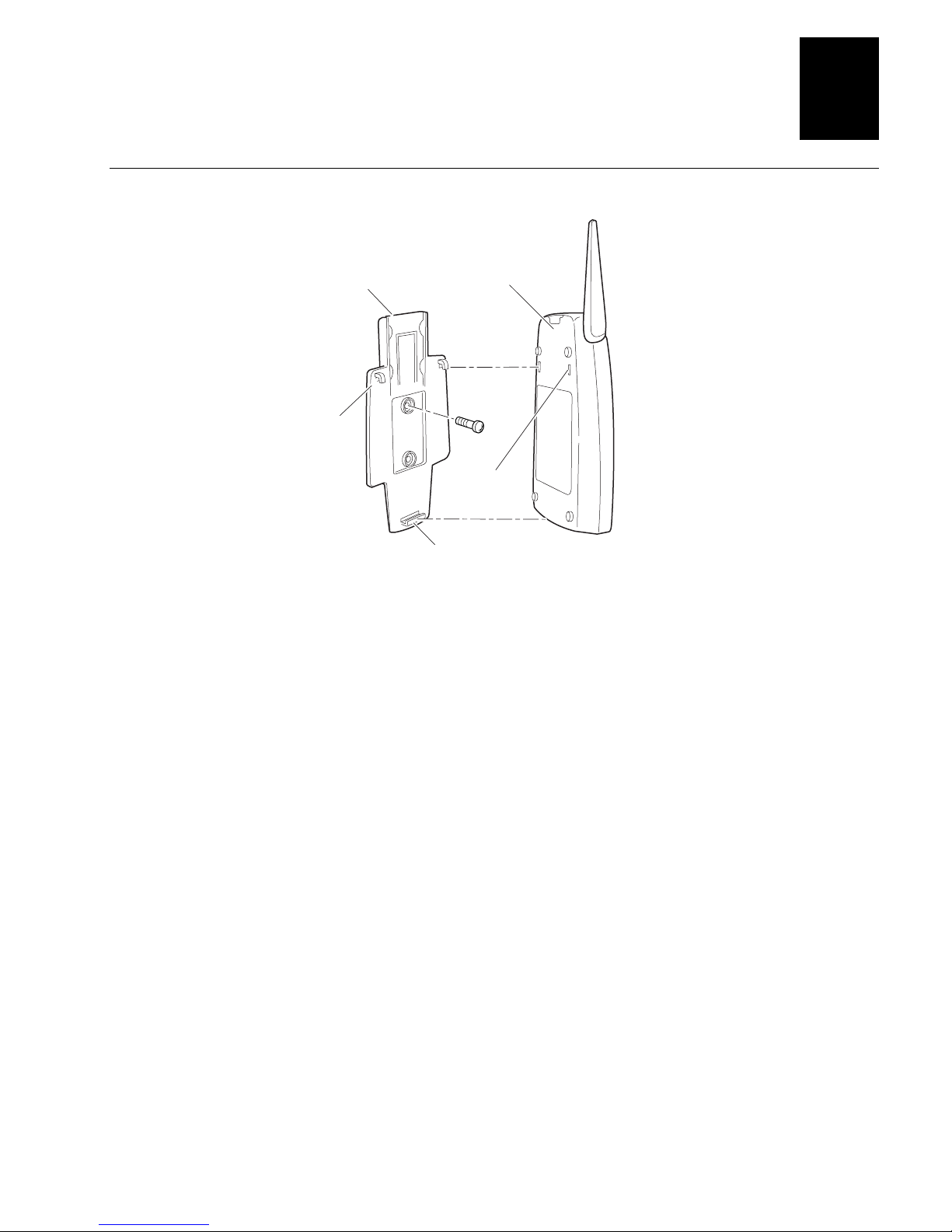

4. Using the screws you provided, secure the bracket to the wall.

5. Fit the slots on the back of the 2102 S over the hooks on the mounting bracket.

6. Slide the 2102 S up slightly, and then press the base of the 2102 S until it clicks into
the clip at the bottom of the mounting bracket.

2102 back
panel

Screw
(2 places)

Slot
(2 places)

MPA003U.eps

Positioning the Antenna

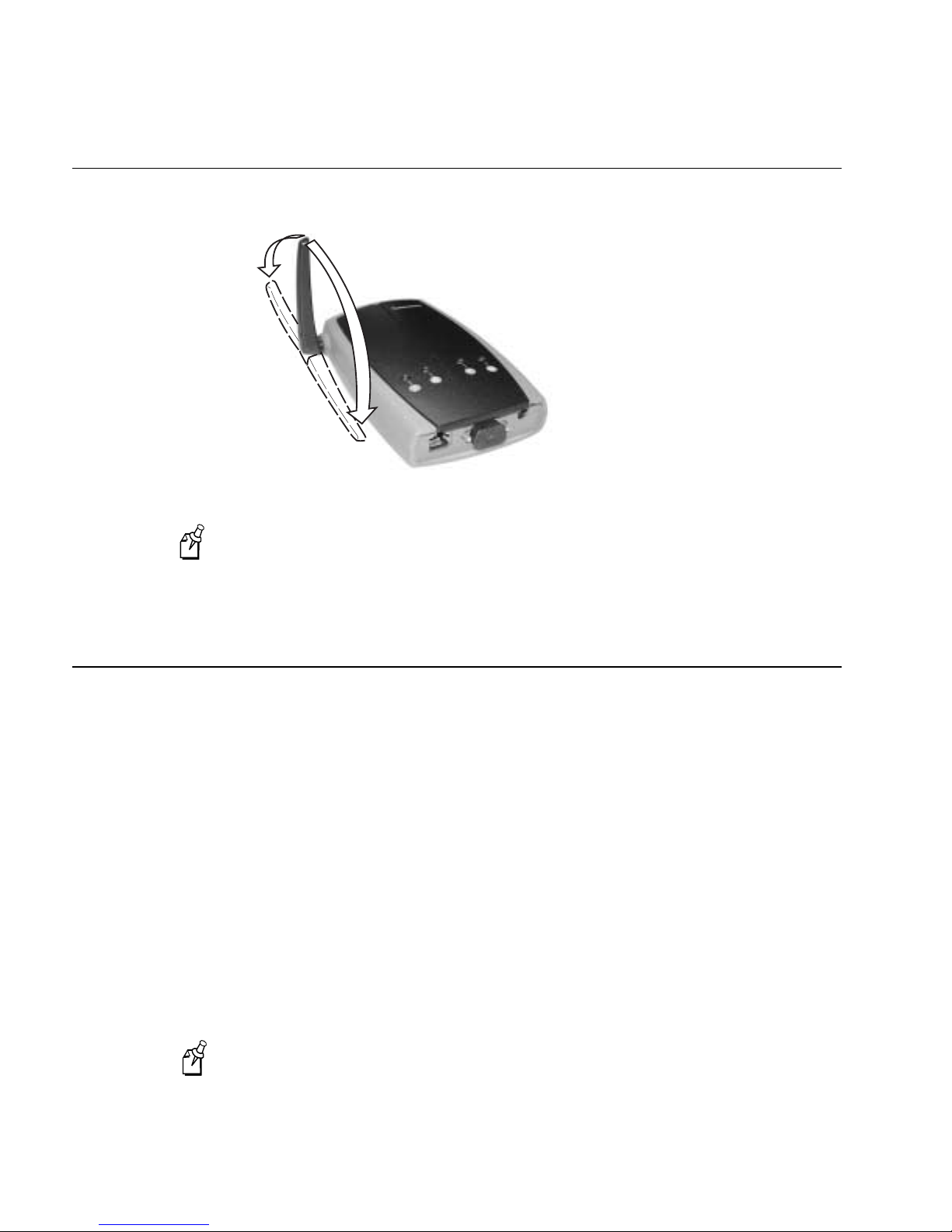

The 2102 S features a built-in antenna that rotates 180° as shown in the next illustration.
Use the following guidelines when positioning the antenna.

Place the antenna at 0° when storing the 2102 S.

•

Place the antenna at 90° when using the 2102 S horizontally; for instance, when the

•

2102 S is positioned on a desk or counter.
Place the antenna at 180° when using the 2102 S vertically; for instance, when the

•

2102 S is mounted on a wall or cubicle.

1-7

MobileLAN access 2102 S User’s Guide

Positioning the Antenna

90°

180°

Do not force the antenna past the hard stop at 0° or 180° or you may break the

Note:

antenna connector.

0°

MPA004U.eps

You are now ready to configure the 2102 S.

Setting the IP Address of the 2102 S Access Point

You can use the MobileLAN access utility to set an initial IP address in your access
point. To use the MobileLAN access utility, you must have the following:

Windows95-OSR2/98SE/ME, Windows NT4.0/2000

•

Access Point software release 1.60

•

To set the IP address of the 2102 S using the MobileLAN access utility

1. Install the MobileLAN access utility on your PC.
a. Place the MobileLAN access utility CD-ROM in the CD-ROM drive of your

PC. The setup program runs automatically. Follow the instructions that appear
on your screen. If the setup program does not run automatically, navigate to
your CD-ROM drive and double-click MLASetup.exe. Follow the instructions
that appear on your screen.

2. Open the MobileLAN access utility by double-clicking the MobileLAN access
utility shortcut on your desktop.

You must have the IP address and MAC address (located on the bottom of

Note:

the 2102 S) of your access point before performing the next steps.

3. Be sure the access point is not turned on, and then click Set IP Address.

1-8

Getting Started

4. Enter an unused IP address for the access point in the New IP Address for AP field.

5. Enter the MAC address of the access point in the AP Ethernet MAC Address field.

6. Click Set AP, and then turn on the access point. The status bar indic at es the sta tus
of the access point as it completes the configuration.

You must complete Steps 3 through 6 before the access point has been

Note:

running for more than 60 seconds, or you will need to reboot the access point.

7. When the configuration process is complete, click Configure AP to launch a Web
browser to further configure the access point.

1

Resetting the 2102 S to Factory Defaults

This section explains how to reset the 2102 S to its factory defaults.

To reset the access point to factory defaults

1. Be sure the access point is not turned on, and then click Set Defaults.

2. Enter the current IP address of the access point in the Current IP Address of AP
field.

3. Click Set AP, and then turn on the access point. The status bar indic at es the sta tus
of the access point as it resets.

You must complete Steps 2 and 3 before the access point has been running for

Note:

more than 60 seconds, or you will need to reboot the access point.

dsah

1-9

asdf

2

Configuring the 2102 S

sadf

This chapter explains how to establish a Web browser session and how to manage the
2102 S remotely.

Establishing a Web Browser Session

After you have configured the IP address and other basic network parameters, you can
access your 2102 S from a remote location.

Although you can manage the device remotely using either a Telnet session or a

Note:

Web browser, this manual assumes you are using a Web browser.

You must know the IP address of the access point to access it remotely. If a DHCP
server assigned the IP address, you must determine the IP address from the DHCP
server.

Only one session can be active with the access point at a time. If your session terminates
abruptly or a new signon screen appears, someone else may have accessed the access
point.

To access the access point remotely, you must first establish a Web browser session.
When using the Web to establish remote access to your access point, remember that if
you have a username and password configured for the access point, your session
terminates if you do not use it for 15 minutes.

Configuring the 2102 S

2

The Web browser interface for the access point has been tested using Netscape v4.0 and
higher and Internet Explorer v4.0 and higher. Remotely accessing the access point using
other browsers may provide unpredictable results.

If you access the Internet using a proxy server, you must add the IP address of the

Note:

access point to your Exceptions list. The Exceptions list contains the addresses that you
do not want to use with a proxy server.

To establish a Web browser session with the access point

1. Identify the IP address of the access point.

2. Start the Web browser application.

3. Access the access point using one of these methods:

In the Address field (Internet Explorer) or the Location field (Netscape

•

Communicator), enter the IP address of the access point, and press
Choose Open from the File menu. In the Open field, enter the IP address of the

•

access point and press

The TCP/IP Settings screen appears.

Enter

.

Enter

.

2-3

MobileLAN access 2102 S User’s Guide

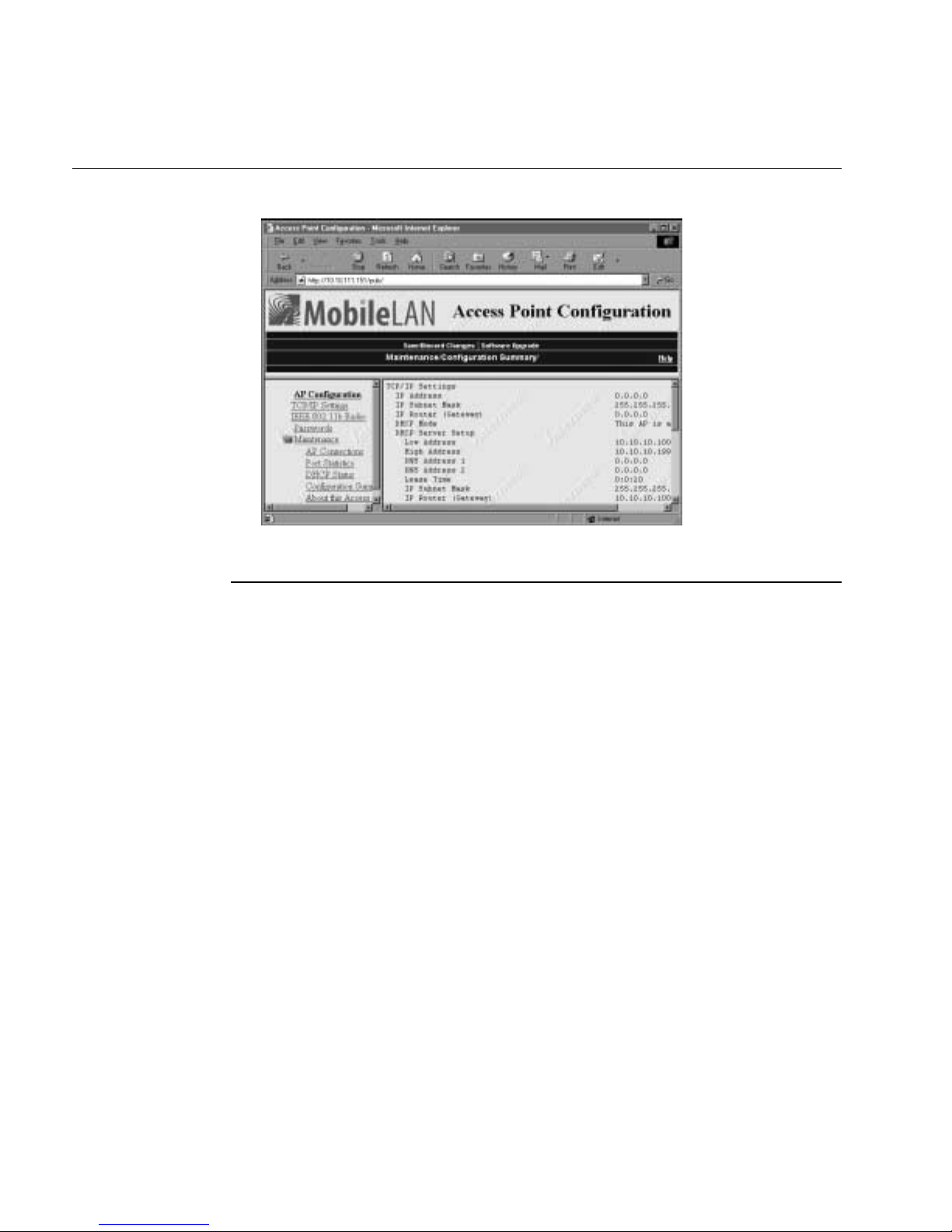

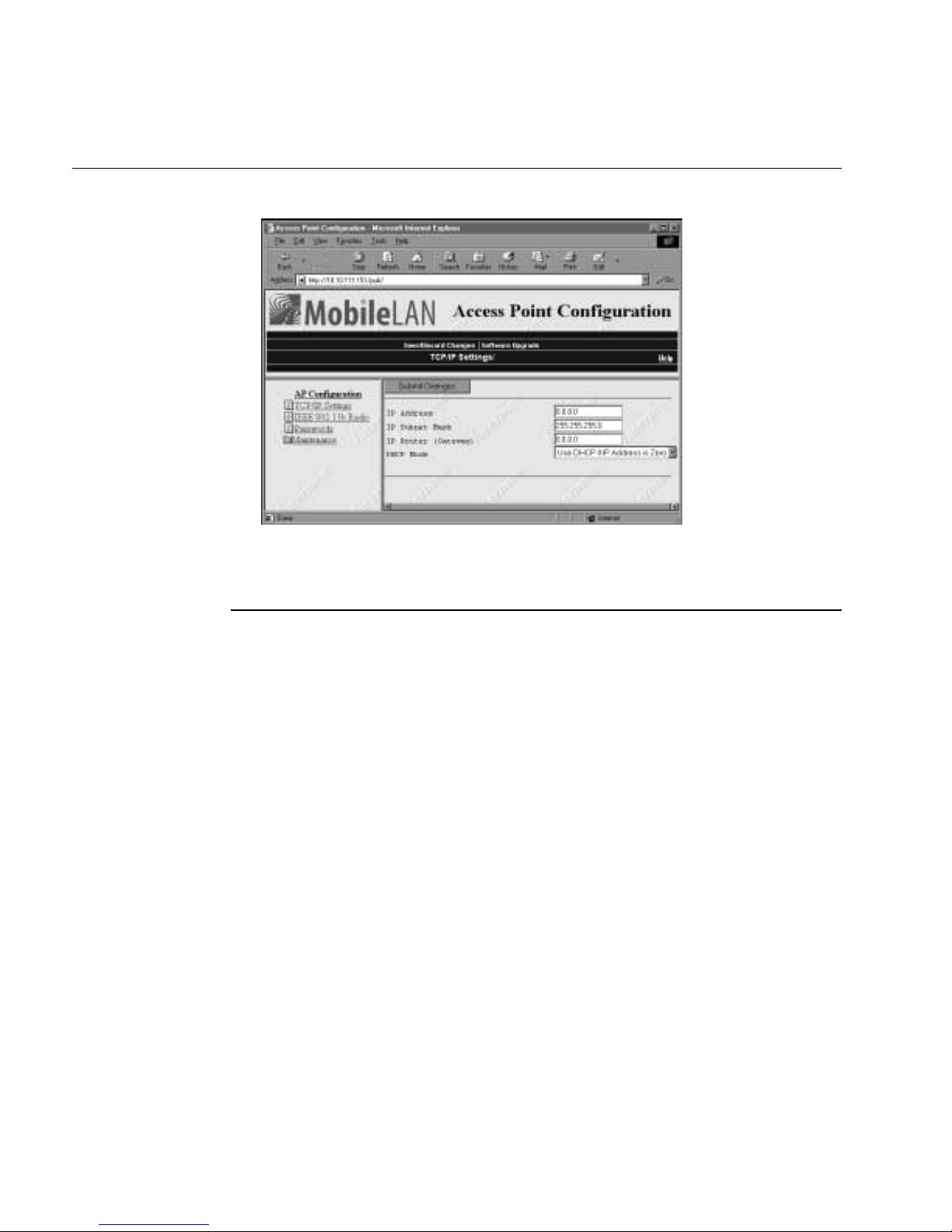

The TCP/IP Settings Screen

Your Web browser session is established.

Changing the User Name and Password

To ensure security to your access point, you can make changes to your access point
security parameters after you establish a Web browser session.

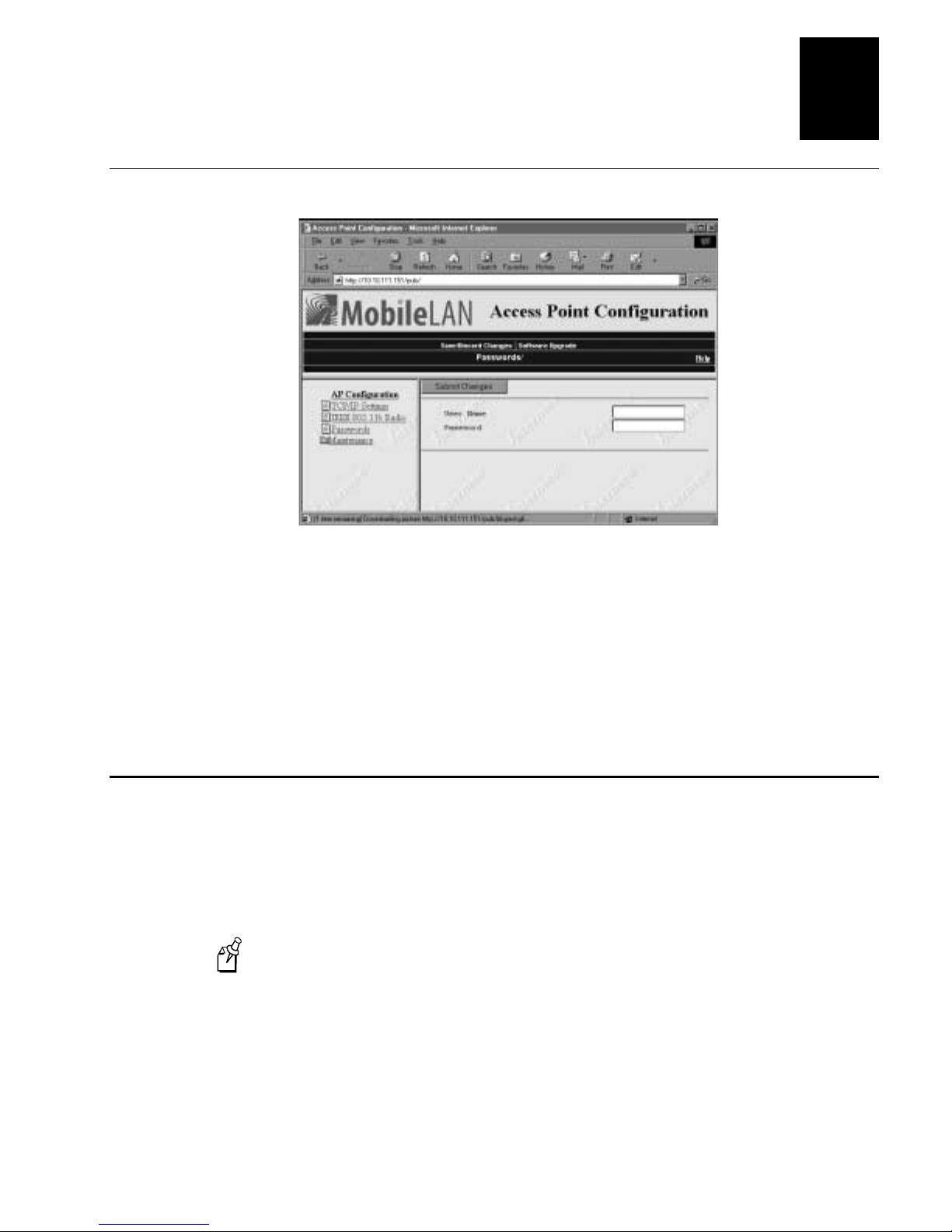

To change the user name and password

1. Establish a Web browser session. For more information, see “Establishing a Web
Browser Session” on page 2-3.

2. Click Passwords. The Passwords screen appears.

2-4

The Passwords Screen

Configuring the 2102 S

2

3. Type a user name in the User Name field and a password in the Password field. The
User Name and Password can each be up to 16 characters long. Click Submit
Changes and follow the instructions that appear on your screen to save your
changes.

4. Click Save/Discard Changes, and then reboot the access point. The new user name
and password are saved, and you must enter these new values each time you
establish a Web browser session for your access point.

Configuring the 2102 S Access Point as a DHCP Server

The 2102 S access point contains a simple DHCP server that you can use to provide
DHCP server functions for small installations where no other DHCP server is available.
The DHCP server will offer IP addresses to any DHCP client it hears as long as a pool
of unallocated IP addresses is available. These clients may include other access points,
wireless clients, wired hosts on the distribution LAN, or wired hosts on secondary
LANs.

This DHCP server is not intended to replace a general purpose, configurable

Note:

DHCP server, and it makes no provisions for synchronizing DHCP policy between itself
and other DHCP servers. Customers with complex DHCP policy requirements should
use other DHCP server software.

You must configure an access point acting as a DHCP server with a static IP address.

2-5

MobileLAN access 2102 S User’s Guide

To configure the 2102 S access point as a DHCP server

1. Establish a Web browser session. For more information, see “Establishing a Web
Browser Session” on page 2-3.

2. Click TCP/IP Settings and configure the following parameters:

Subnet mask

•

Static IP address

•

3. Enable the server.
a. In the TCP/IP Settings screen, click the DHCP Mode down arrow and choose

This AP is a DHCP Server.

b. Click Submit Changes and follow the instructions that appear on your screen to

save your changes.

4. Configure the DHCP server.
a. Click DHCP Server Setup. The DHCP Server Setup screen appears.

b. Configure the DHCP server. When you are finished, click Submit Changes and

follow the instructions that appear on your screen to save your changes.
The table on the next page explains each parameter.

2-6

Configuring the 2102 S

2

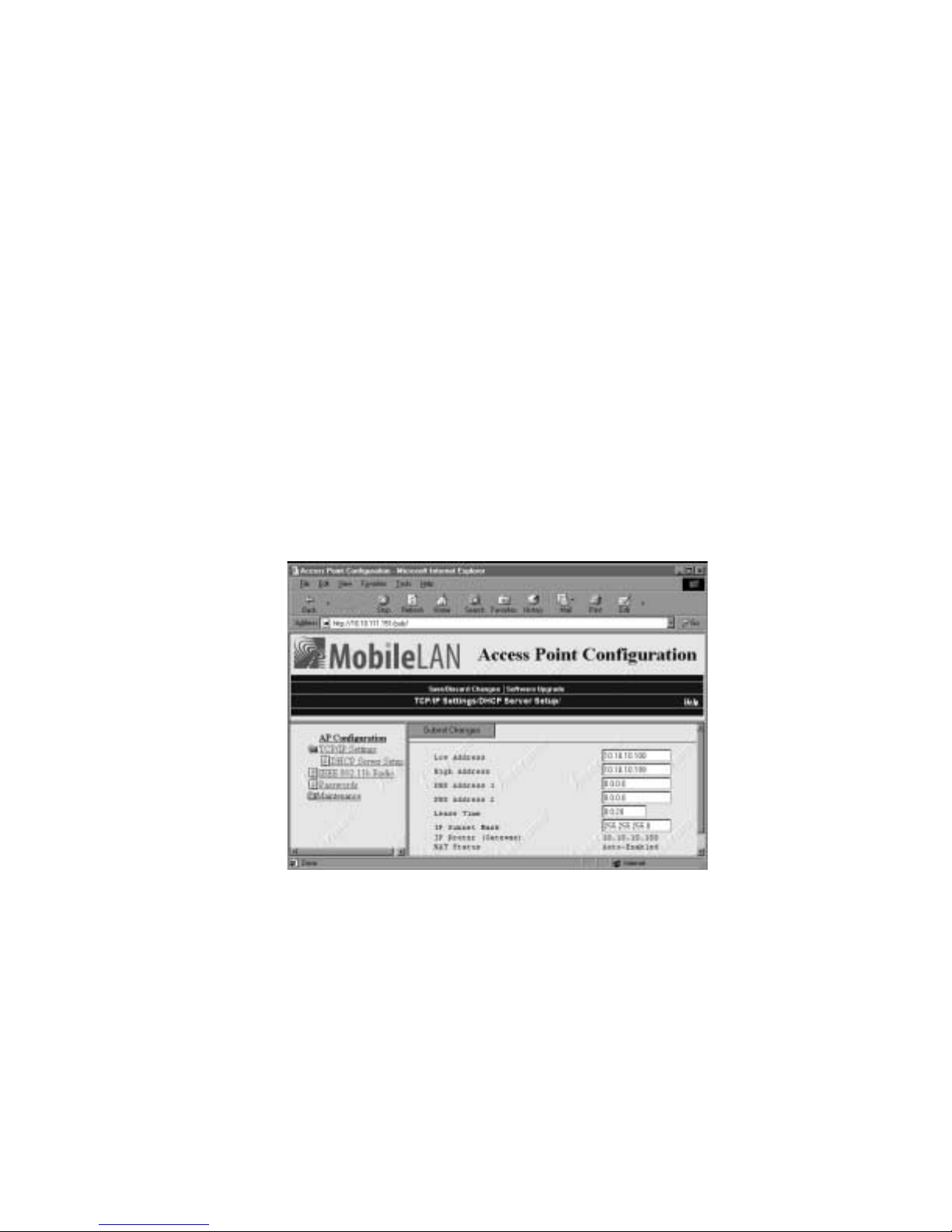

DHCP Server Parameters

Parameter Explanation

Low Address Specifies the low IP address in the range of IP addresses available to the DHCP server for

distribution to DHCP clients. If these addresses are not on the same subnet as the access point, the
access point will perform Network Address Translation (NAT) for the devices to which it grants
IP addresses.

High Address Specifies the high IP address in the range of IP addresses available to the DHCP server for

distribution to DHCP clients. If these addresses are not on the same subnet as the access point, the
access point will perform Network Address Translation (NAT) for the devices to which it grants
IP addresses.

DNS Address 1 Specifies the IP address of a Domain Name Server that will be distributed to DHCP clients. You

can enter up to two DNS addresses to be delivered to DHCP clients.

DNS Address 2 Specifies the IP address of a Domain Name Server that will be distributed to DHCP clients. You

can enter up to two DNS addresses to be delivered to DHCP clients.

IP Subnet Mask Indicates how many host bits of the IP address represent a subnet number. Use IP subnets to

partition traffic and to connect routers. The IP subnet mask must represent contiguous ones (1)
from the left and contiguous zeros (0) from the right.

IP Router (Gateway) Specifies what IP router DHCP will be offering to clients. If NAT has been automatically enabled,

the access point will use the lowest DHCP address to provide an IP router that performs NAT.

NAT (Network
Address Translation)
Status

Specifies if DHCP has been properly configured and if the range has automatically enabled NAT.
NAT operation is disabled or enabled automatically depending on the continuous range of

addresses you enter into the DHCP Server. NAT is disabled if the ra nge of addresses to be given
to DHCP clients is on the same subnet as the access point. If the range of addresses to be given
out by the DHCP server is not on the same subnet as the access point, you are creating a virtual
network and the DHCP server will also perform NAT translation.

Supported DHCP Options

The DHCP server issues IP address leases to configure the following fields and options:

IP broadcast address

contain the same values as configured for the access point.

Lease duration

This address, along with the subnet mask and default router, will

The default lease duration is twenty minutes.

Unsupported DHCP Options

The DHCP server implemented in the 2102 S access point does not support any DHCP
options other than those listed on this page. The DHCP server disregards any DHCP
options that are not explicitly required by the DHCP specification. The DHCP server
ignores all packets with a non-zero giaddr (gateway IP address). The DHCP server only
responds to requests emanating from it’s own subnet.

2-7

MobileLAN access 2102 S User’s Guide

Configuring the 2102 S Access Point as a NAT Server

1. Establish a Web browser session. For more information, see “Establishing a Web
Browser Session” on page 2-3.

2. Click TCP/IP Settings and configure the following parameters:

Subnet mask

•

Static IP address

•

3. Choose This AP is a DHCP Server in the DHCP Mode field.

4. Click DHCP Server Setup and verify that the range of NAT addresses that are
automatically assigned will be valid for your environment. If you need to change
the IP addresses, be sure to enter a contiguous range of IP addresses that are not on
the same subnet as the IP address you have configured for your access point.

5. Click Submit Changes and follow the instructions that appear on your screen to save
your changes.

6. Configure any optional parameters. asdf

2-8

3

Configuring the Radio

sdf

This chapter explains how to configure your radio.

Configuring the 802.11b HR Radio

1. Establish a Web browser connection. For more information, see “Establishing a
Web Browser Session” on page 2-3.

2. Click IEEE 802.11b Radio. The IEEE 802.11b Radio screen appears.

Configuring the Radio

3

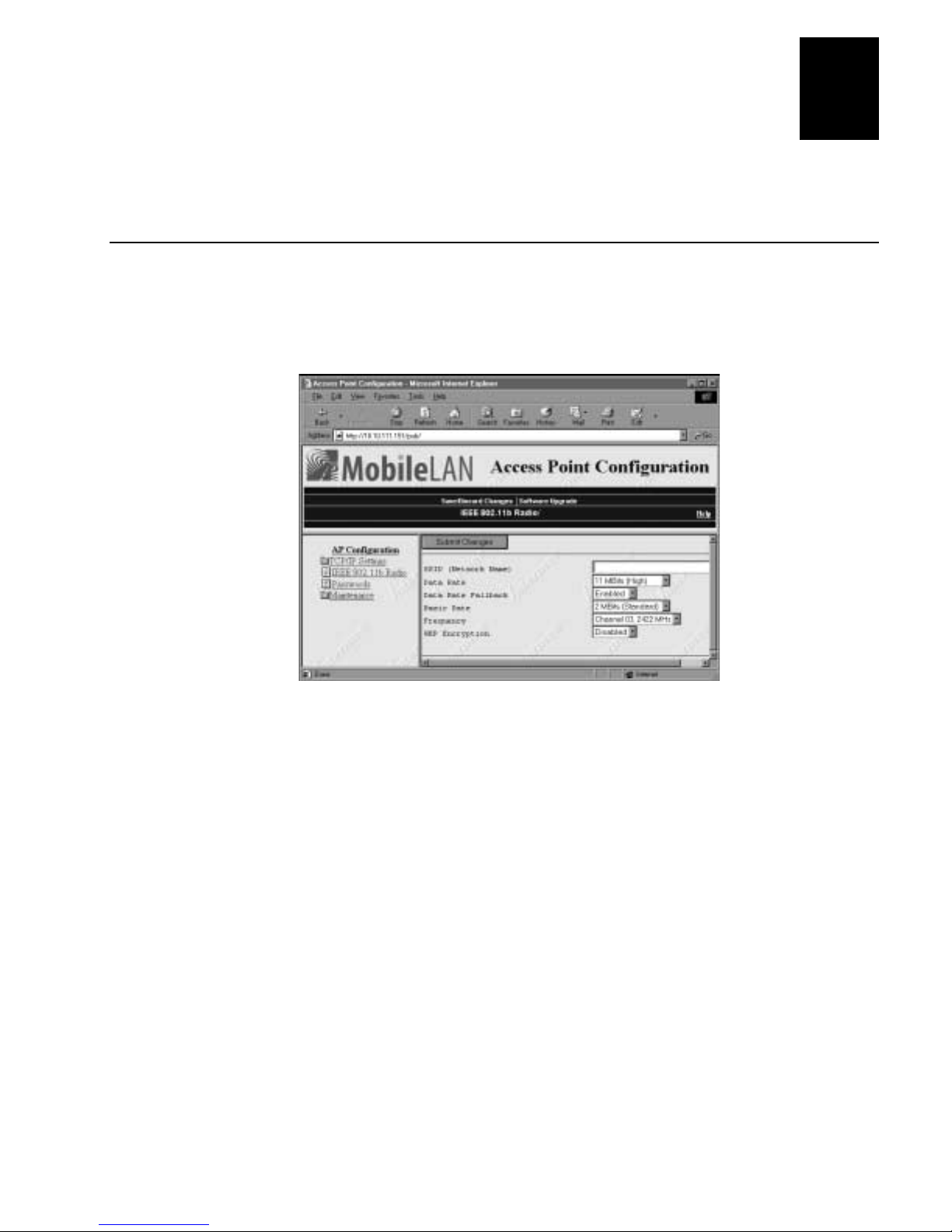

3. Configure the parameters for the radio. When you have finished, click Submit
Changes and follow the instructions that appear on your screen to save your
changes.

The table on the next page explains each parameter.

3-3

MobileLAN access 2102 S User’s Guide

802.11b HR Radio Parameters

Parameter Explanation

SSID (Network
Name)

Data Rate Determines the bit rate for data transmission. In general, higher speeds mean shorter range and

Data Rate
Fallback

Basic Rate Determines the bit rate for Multicast data transmission. In general, higher speeds mean shorter

Frequency The frequency is the particular frequency within the 2.4 to 2.5 GHz range that the access point uses

The 802.11b HR radio communicates with other 802.11b HR radios with the same network name.
Use this parameter to assign a network name to the access point, and then assign the same network
name to the end devices that will connect to the access point. The SSID (Network Name) can be no
more than 32 alphanumeric characters. The default SSID (Network Name) is INTERMEC (case­sensitive).

lower speeds mean longer range.
Determines if the radio will fall back to slower speeds when it is unable to deliver a packet.

Interference or range limitations may make it impossible to deliver a packet at the default rate. If
this option is enabled, the access point will attempt to deliver the packet at a slower rate which may
have greater range or interference tolerance.

range and lower speeds mean longer range. In an installation with mixed speed settings, this
parameter must be set no higher than the maximum speed of the lowest rate terminal which must
receive Multicast traffic.

to transmit and receive packets. The available frequencies are country-dependent and are
determined by the radio.

Configure all access points used in Spain, France, or Japan to a common frequency. For all other
countries, you can configure all access points to a common frequency, or you can select up to three
frequencies that are at least three channels (or 25 MHz) apart. You could select 2412 MHz, 2437
MHz, and 2462 MHz, for example.

You may want to use a single frequency to isolate the installation to part of the band; for example,
use a single frequency if other DS systems or multiple microwave ovens are in use in the area.

For optimal performance of access points that are within range of each other, you should configure
their frequencies to be five channels apart. You could configure the access points to use channels 1,
6, and 11, for example.

WEP Encryption Use this option to enable or disable WEP encryption. This option appears on your menu only if

your 802.11b HR radio supports WEP data encryption for wireless communication.

3-4

Worldwide Frequencies for the 802.11b HR Radio

Channel FCC ETSI France Japan Israel

1 2412 2412 2412
2 2417 2417 2417
3 2422 (default) 2422 2422 2422
4 2427 2427 2427
5 2432 2432 2432
6 2437 2437 2437
7 2442 2442 2442
8 2447 2447 2447
9 2452 2452 2452
10 2457 2457 2457 2457
11 2462 2462 2462 (default) 2462
12 2467 2467

Configuring the Radio

3

13 2472 2472
14
FCC countries include the United States, Canada, China, Taiwan, India, Thailand, Indonesia,

Malaysia, Hong Kong, and most South A merican countr i es.
ETSI countries include all European Union countries except France. It also includes

Switzerland, Iceland, Norway, Czech Republic, Slovenia, Slovakia, Turkey, Russia, and the
United Arab Emirates.

Mexico and Singapore use the same channels as France.
The 802.11b HR channels that are allowed in a given country may change without notice. Be

sure you use only those frequencies that are permissible in the given country.

Configuring WEP

Click WEP Configuration under the IEEE 802.11b Radio menu to set WEP
configuration parameters. This option appears only if your 802.11b HR radio supports
WEP encryption and you enabled WEP Encryption.

To set WEP configuration parameters

1. Establish a Web browser connection. For more information, see “Establishing a
Web Browser Session” on page 2-3.

2. Choose IEEE 802.11b Radio.

3. Enable WEP Encryption.

3-5

MobileLAN access 2102 S User’s Guide

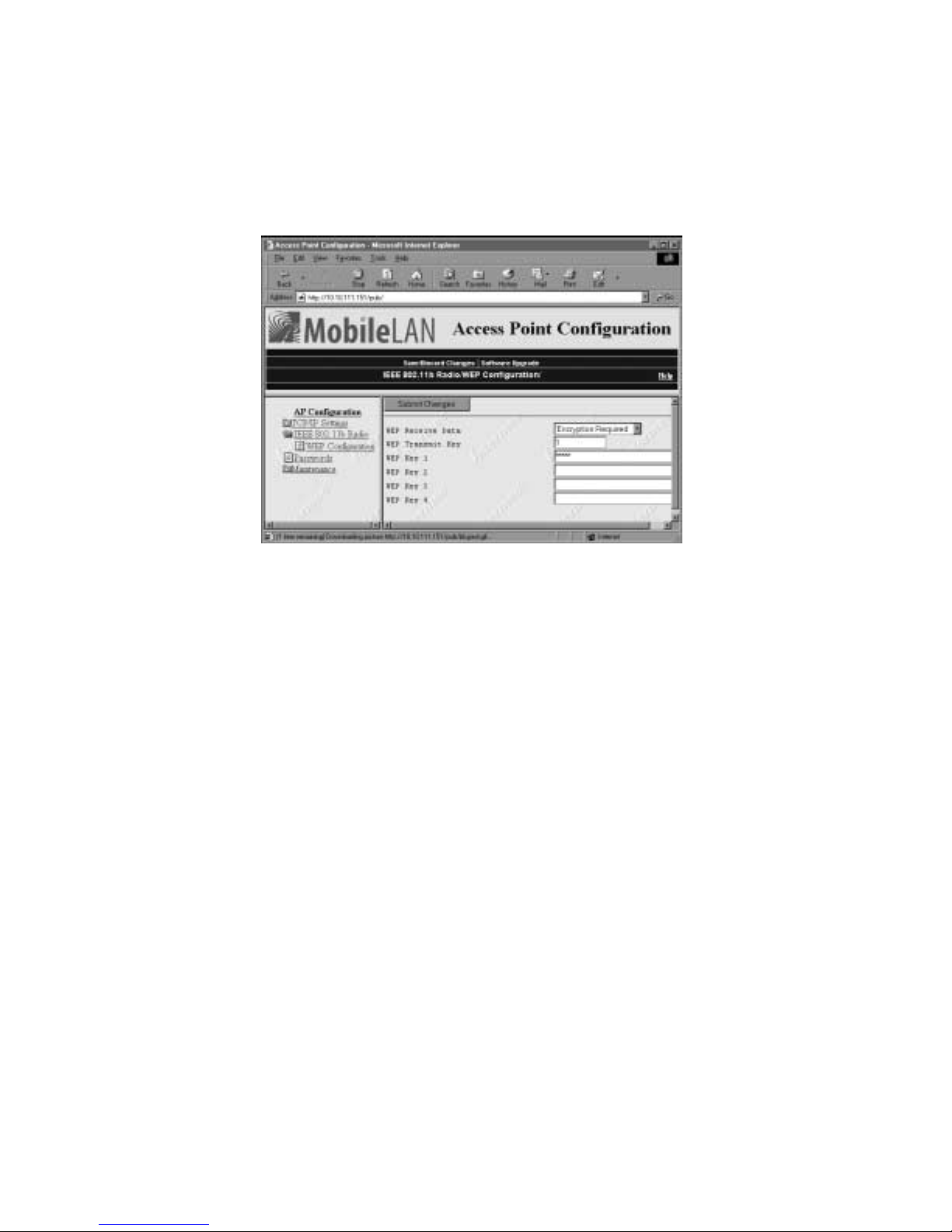

4. Click WEP Configuration in the IEEE 802.11b Radio menu. The WEP
Configuration screen appears.

5. Set the parameters for WEP configuration. Click Submit Changes and follow the
instructions that appear on your screen to save your changes.

The following table explains each parameter.

Parameter Explanation

WEP Receive Data Use this parameter to determine if the access point will receive

transmissions from end devices that are not using WEP.

Unencryption Allowed

that are not using WEP.

Encryption Required

that are not using WEP.

WEP Transmit Key Use this parameter to determine which of the four default WEP

keys this access point uses to transmit data. The default is 1,
which means that the access point uses WEP key 1 to transmit

data.
WEP Key 1 WEP code 80211 by default.
WEP Key 2 Your own WEP code.
WEP Key 3 Your own WEP code.
WEP Key 4 Your own WEP code.

Allows transmissions from end devices

Prevents transmissions from end devices

To ensure maximum security, you should configure each WEP key with a different
WEP code.

3-6

4

Maintaining and Troubleshooting the 2102 S

asdf

Maintaining and Troubleshooting the 2102 S

This chapter explains how to upgrade your 2102 S, and it answers some commonly
asked questions about the 2102 S.

Analyzing the 2102 S Access Point

You can view different parameters configured for the 2102 S, including AP Connections,
DHCP Status, and Port Statistics. The information on these screens may be needed when
you call Intermec Technical Support.

Viewing AP Connections

AP Connections shows information about the end devices connected to the access point.

To view information about devices connected to the access point

1. Establish a Web browser connection. For more information, see “Establishing a
Web Browser Session” on page 2-3.

2. Click Maintenance.

4

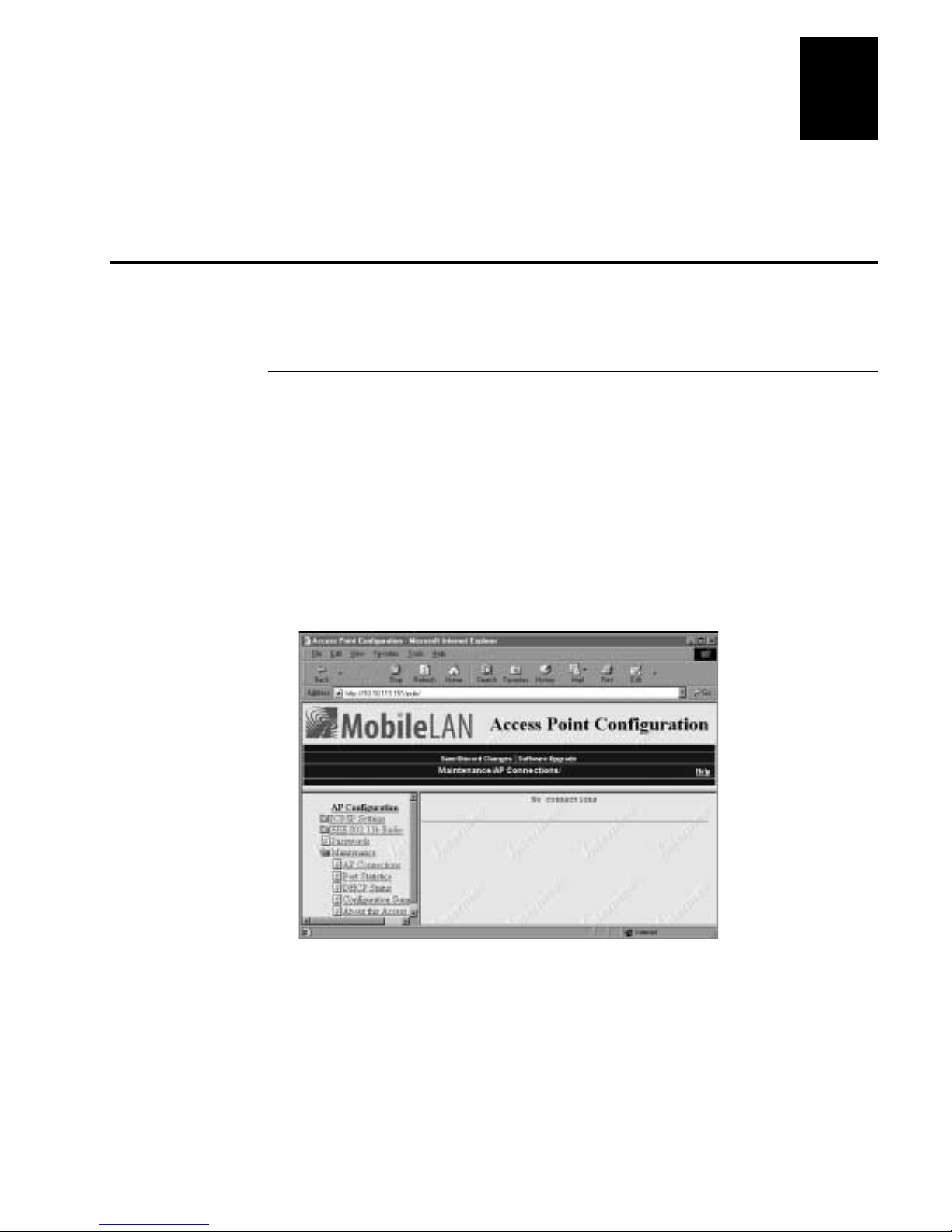

3. Click AP Connections. The read-only AP Connections screen appears showing
information about the devices connected to the access point.

4-3

MobileLAN access 2102 S User’s Guide

Viewing Port Statistics

The Port Statistics screen shows the total number of frames and bytes that the access
point has transmitted and received since it was last booted.

To view port statistics

1. Establish a Web browser connection. For more information, see “Establishing a
Web Browser Session” on page 2-3.

2. Click Maintenance.

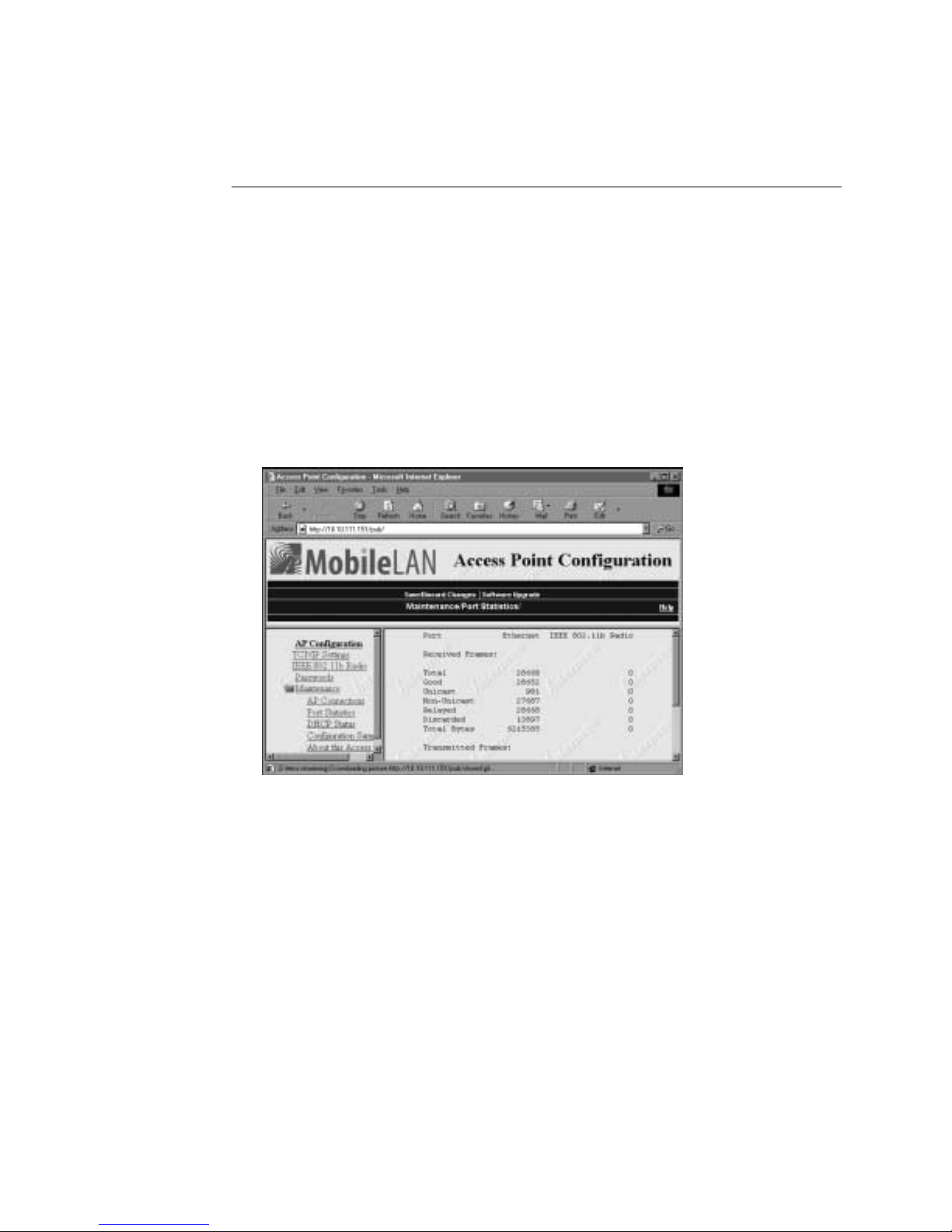

3. Click Port Statistics. The read-only Port Statistics screen appears showing the
frames and bytes transmitted and received.

4-4

Maintaining and Troubleshooting the 2102 S

4

Viewing the DHCP Status

The DHCP Status screen shows the IP addresses that are available, in use, or expired.

To view the DHCP status

1. Establish a Web browser connection. For more information, see “Establishing a
Web Browser Session” on page 2-3.

2. Click Maintenance.

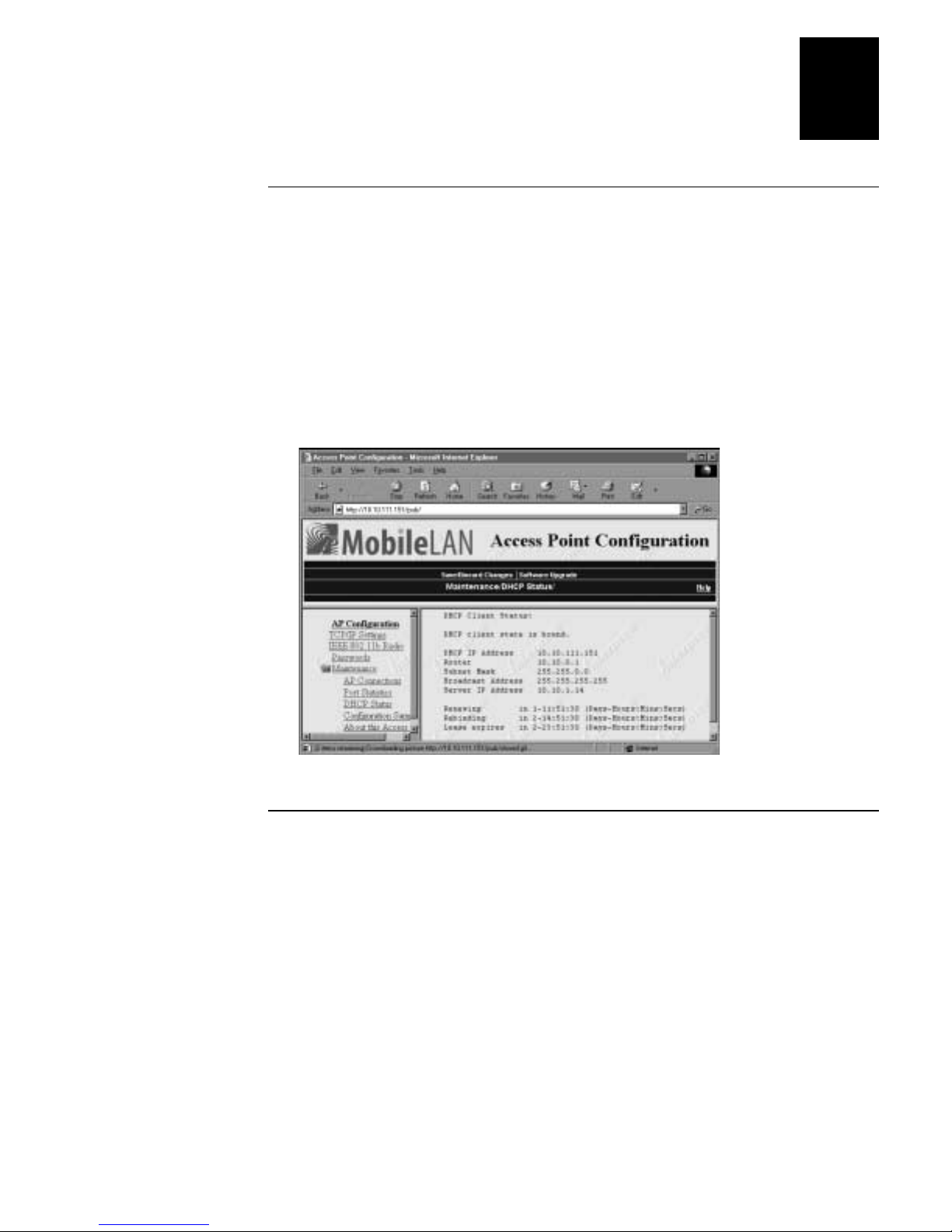

3. Click DHCP Status. The read-only DHCP Status screen appears listing all available,
in use, and expired IP addresses.

Viewing the Configuration Summary

The Configuration Summary screen summarizes the major configuration settings and
installed hardware for the access point.

To view the configuration summary

1. Establish a Web browser connection. For more information, see “Establishing a
Web Browser Session” on page 2-3.

2. Click Maintenance.

3. Click Configuration Summary. The read-only Configuration Summary screen
appears listing each parameter in the access point and its current configuration.

4-5

MobileLAN access 2102 S User’s Guide

The Configuration Summary Screen

Viewing Information About the Access Point

The About this Access Point screen shows information about the access point including
software version, radio version, and MAC address.

To view information about the access point

1. Establish a Web browser connection. For more information, see “Establishing a
Web Browser Session” on page 2-3.

2. Click Maintenance.

3. Click About this Access Point. The read-only About this Access Point screen
appears showing information about the access point.

4-6

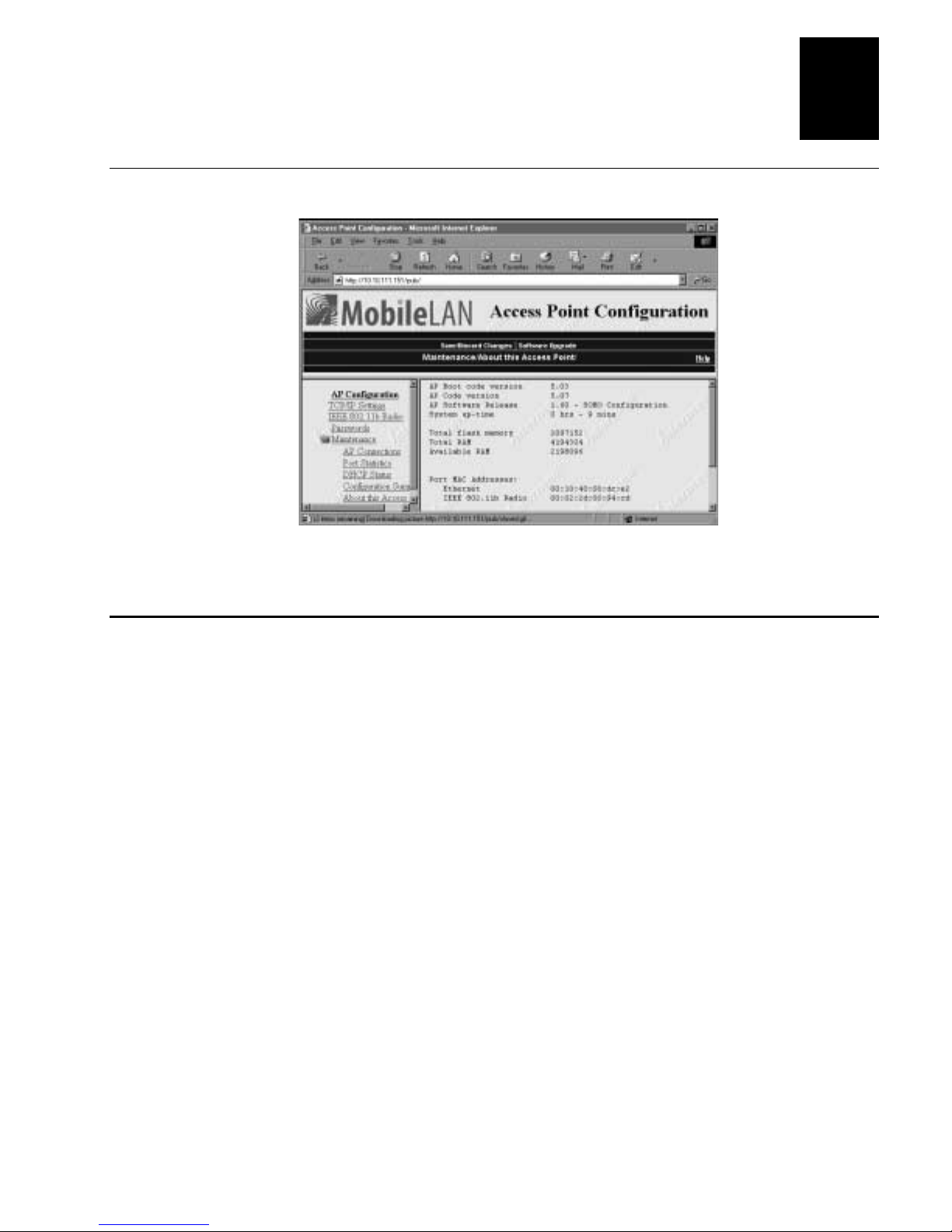

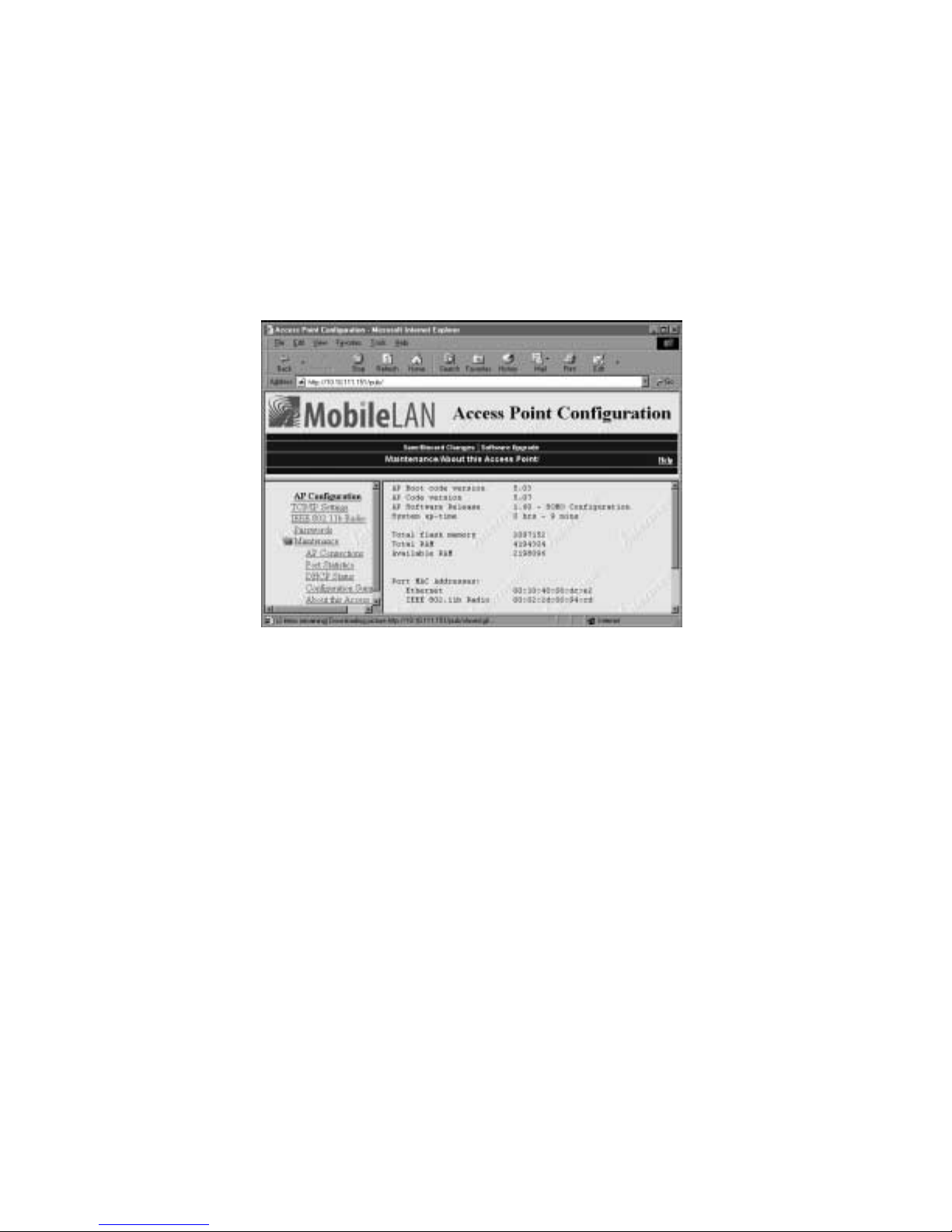

The About this Access Point Screen

Maintaining and Troubleshooting the 2102 S

4

Understanding the LED Lighting Sequence

When the 2102 S is powered on, the LEDs flash as the access point boots and performs
internal diagnostics.

The next table describes the LED activity during the boot process.

Power Radio Wired LAN Error Description

On Off Off On Flash checksum being calculated
On On Off On Flash checksum failure
On Off On Off RAM test in progress
On On On Off RAM test failure
On Off Off Off Monitor loading in progress
On Off Off On Ethernet test in progress
On On Off On Ethernet test failure

4-7

MobileLAN access 2102 S User’s Guide

After the access point successfully boots, the LEDs display the following pattern:

Power Radio Wired LAN Error

On Flashes Flashes Flashes during normal operation

Upgrading the 2102 S Access Point Firmware

For optimal performance, you should install the most current firmware version on your
access point. Firmware releases are available from www.mobilelan.intermec.com.

You can install the firmware release using

the MobileLAN access utility. For more information, see “Using the MobileLAN

•

access Utility” in the next section.
a Web browser session. For more information, see “Using a Web Browser” later in

•

this chapter.

Using the MobileLAN access Utility

To upgrade the firmware using the MobileLAN access utility, you must first install the
firmware release on your PC, and then upload the release to your access point.

To install the firmware release on your PC

1. Navigate your Web browser to http://mobilelan.intermec.com and click Software
Downloads.

2. Choose the latest firmware release from the list of available software downloads,
and follow the instructions that appear on your screen.

After you have saved the firmware release on your PC, use the MobileLAN access
utility to upload the file from your PC to the access point.

4-8

Maintaining and Troubleshooting the 2102 S

To upload the firmware using the MobileLAN access utility

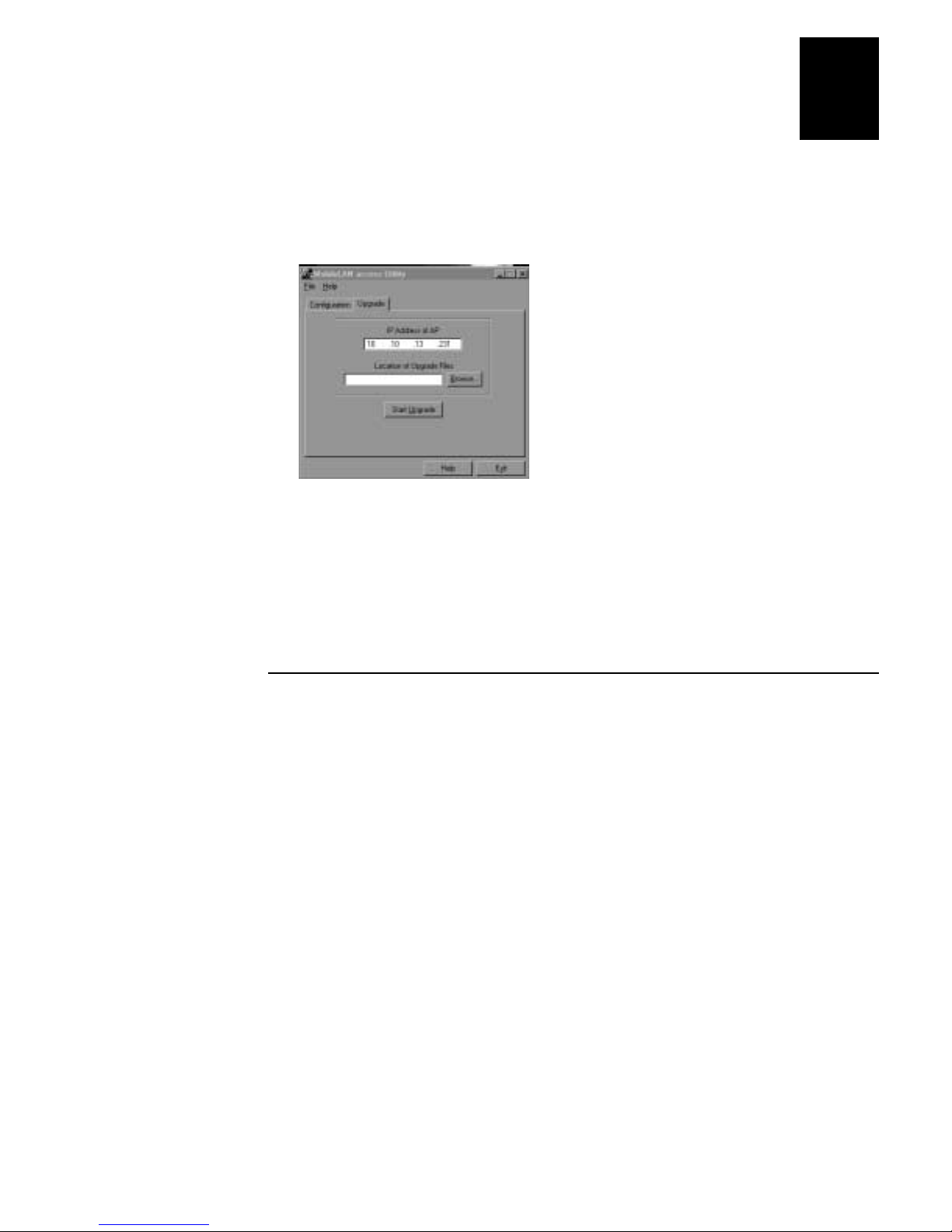

1. Click Upgrade in the MobileLAN access utility. The upgrade screen appears.

2. Enter the IP address of access point you want to upgrade.

3. Enter the drive and filename of the upgrade file, or click Browse to locate the file.

4

4. Click Start Upgrade. The upgrade may take up to three minutes to complete.

5. When the upgrade is complete, reboot the access point (by unplugging it from the
power source and plugging it back in) to activate the new firmware.

Using a Web Browser

To upgrade the firmware using a Web browser session, you must first install the
firmware release on your PC, and then upload the release to your access point. For more
information about the firmware, see the release notes that accompany the firmware
release.

To install the firmware release on your PC

1. Navigate your Web browser to http://mobilelan.intermec.com and click Software
Downloads.

2. Choose the latest firmware release from the list of available software downloads,
and follow the instructions that appear on your screen.

After you have saved the firmware release on your PC, use the Web browser interface to
upload the file from your PC to the access point.

To upload the firmware release using the Web browser interface

1. Establish a Web browser connection. For more information, see “Establishing a
Web Browser Session” on page 2-3.

4-9

MobileLAN access 2102 S User’s Guide

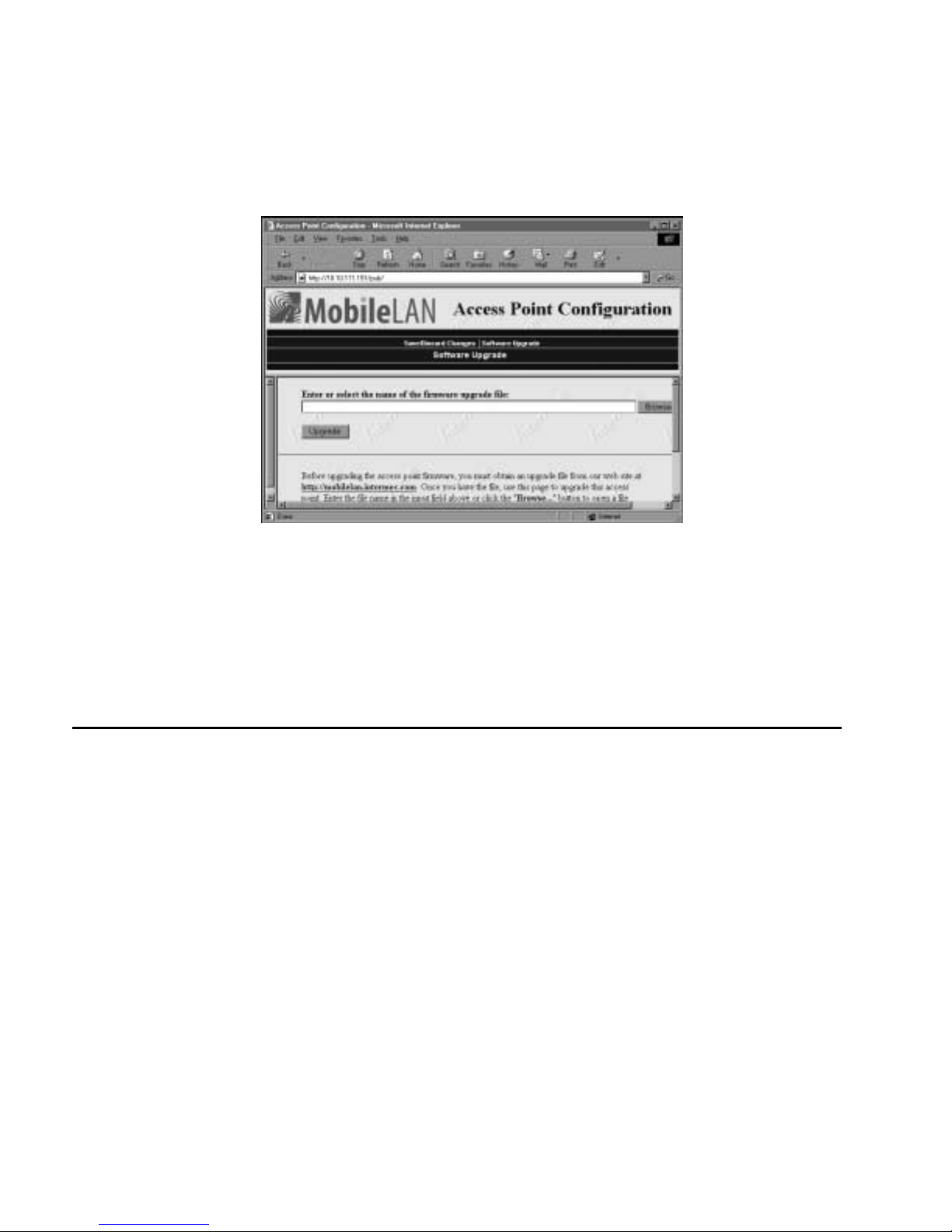

2. Click Software Upgrade. The Software Upgrade screen appears.

3. Enter the name of the upgrade file, or click Browse to locate the file.

4. Click Upgrade to start the upgrade. The upgrade may take up to three minutes to
complete.

5. When the upgrade is complete, reboot the access point to activate the new firmware.

Troubleshooting the Radio

If the radio is faulty or the configuration matrix string is incorrect, the LEDs on the
access point display the following pattern after the access point boots:

Power Radio Wired LAN Error

On Off On On

4-10

Maintaining and Troubleshooting the 2102 S

Commonly Asked Technical Support Questions

Problem/Question Possible Solution/Answer

Is the access point fully
booted?

The Power LED is not
on.

You cannot configure
the access point locally
using the seri al port.

When the access point is fully booted, the Power LED remains steady
green and the Wired LAN LED flashes.

The access point may have a hardware problem.

1. Make sure the power cable is firmly plugged into the access point
and the power source.

2. Unplug the access point, and then plug it back into the power
source. Verify that the Power LED remains on.

3. Call Intermec Technical Support

1. Verify that you are using a null-modem cable to connect the
access point to your terminal or PC.

2. Verify that your terminal or PC is set to 9600, N, 8, 1, no flow
control.

.

4

3. Your system may be in autobaud mode. Reboot and press a key
once per second until the signon screen appears.

You cannot connect to
the access point using a
Web browser.

You need to verify the
WEP keys.

The throughput seems
slow.

If you access the Internet through a proxy server, be sure you have
added the IP address of the access point to the Exceptions list.

You cannot verify the WEP keys. The keys are encrypted after you
enter them and are never displayed again. You may need to
reconfigure your access points and end devices to reset the WEP keys.

•

Verify that your antennas are well placed and that they are not

blocked by metal or other obstacles.

•

You may want to add a second access point and implement

roaming if you move the antenna closer to the device and
throughput increases.

Getting Help with Your Installation

The 2102 S is designed to be easy to install and configure; however, you may need to
call Intermec Technical Support if you have problems. Before calling, be sure you can
answer the following questions:

•

What were you doing when the error occurred?

•

What error message did you see?

•

Can you reproduce the problem?

•

What version of access point firmware are you using?

4-11

MobileLAN access 2102 S User’s Guide

To confirm the firmware version on your

access point

1. Establish a Web browser connection. For more information, see “Establishing a
Web Browser Session” on page 2-3.

2. Click Maintenance, and then click About this Access Point. The About this Access
Point screen appears.

You should have the information on this screen available when you call Intermec
Technical Support.

In the United States, call Intermec Technical Support at 1-800-755-5505. Outside the
United States, call your local Intermec office.

4-12

A

Specifications and Default Settings

asdf

This appendix provides specifications and system defaults for reference purposes
only. Actual product performance and compliance with local telecommunications
regulations may vary from country to country. Intermec only ships products that are
type approved in the destination country.

Physical Specifications

Specifications and Default Settings

A

Operating Temperature
Storage Temperature
Humidity (non-condensing) 10 to 90%
Electrical

Weight 232 g (0.51 lb)
Height 9.32 cm (3.67 in)
Length 14.66 cm (5.77 in)
Width 3.53 cm (1.39 in)

Other Specifications

Architecture Transpar ent bridge
Ethernet interfaces 10BaseT (twisted-pair)
Data rate 10 Mbps (Ethernet)
Media Access protocol CSMA/CD

-20°C to +65°C (-4°F to +149°F)

-40°C to +70°C (-40°F to +158°F)

∼

100 to 240V

1.0 to 0.5A
50 to 60 Hz

Ethernet compatibility Ethernet packet types and Ethernet addressing
Filtering rate 14,880 frames per second
Filters (protocol) AppleTalk, NetBEUI, IPX, IP, DECNET, Other
Filters (others) IP ARP, Novell RIP, SAP, LSP
Serial port max data rate 115,200 bps
Management interface s S NMP, Web browser-based manager, t ext-based menu

Software upgrades Downloadable over the network or serial port
SNMP agent Version 1 RFC 1213

system, serial port, Telnet, Ethernet

A-3

MobileLAN access 2102 S User’s Guide

Radio Specifications—IEEE 802.11b HR

Data rate 11 Mbps (High), 5.5 Mbps (Medium),

2 Mbps (Standard), 1 Mbps (Low)

with automatic fallback for increased range
Channels 11 (North America), 13 (Europe), 4 (France), 11 (Japan)
Range (11 Mbps) 160 m (525 ft) open environment

50 m (165 ft) semi-open environment

24 m (80 ft) closed environment
Frequency band 2.4 to 2.5 GHz world-wide
Radio type Direct sequence, spread spectrum
Radio power output 32 mW (15 dBm)

Default Settings

The factory default settings for the 2102 S are listed in this section. You can record the
settings for your installation in each table for reference.

TCP/IP Settings Menu Defaults

Parameter Name Range Default Site Setting

IP Address 4 nodes, 0 to 255 0.0.0.0
IP Subnet Mask 4 nodes, 0 to 255 255.255.255.0
IP Router (Gateway) 4 nodes, 0 to 255 0.0.0.0
IP Frame Type DIX/SNAP DIX
DHCP Mode Always, Disabled, Enabled

(if 0), or DHCP Server

DHCP Server Name 0 to 31 characters (blank)

Always Use
DHCP

A-4

Specifications and Default Settings

A

Ethernet Port Configuration Menu Defaults

Parameter Name Range Default Site Setting

Port Control Enabled/Disabled Enabled

Password Menu Defaults

Parameter Name Range Default Site Setting

User Name up to 16 characters user name not required
Password up to 16 characters password not required

IEEE 802.11b HR Radio Menu Defaults

Parameter Name Range Default Site Setting

SSID (Network Name) 0 to 32 characters INTERMEC
Data Rate 1, 2, 5.5, or 11 Mbits 11 Mbits
Data Rate Fallback Enabled or disabled Enabled
Basic Rate 1, 2, 5.5, or 11 Mbits 2 Mbits
Frequency Channel 1 to 14,

2400 to 2500 MHz
WEP Encryption Enabled/Disabled Disabled
WEP Configuration

WEP Receive Data Unencryption Allowed/

Encryption Required

WEP Transmit Key 1
WEP Key 1 80211
WEP Key 2 (blank)
WEP Key 3 (blank)
WEP Key 4 (blank)

Channel 3, 2422 MHz

Encryption Required

A-5

aasdf

B

Using External Antennas

asdf

This appendix provides information about attaching and positioning external antennas
with the 2102 S. Specific guidelines for antenna separation are provided for those
configurations that have multiple antennas.

Attaching an External Antenna

You can attach an external antenna to the 2102 S. To attach an external antenna, you
must disconnect the built-in antenna and attach an antenna cable directly to the radio
card in the access point. The following steps explain how to attach an antenna cable to
the 2102 S.

For more information about antenna options, contact your local Intermec representative.

To attach an external antenna to the 2102 S

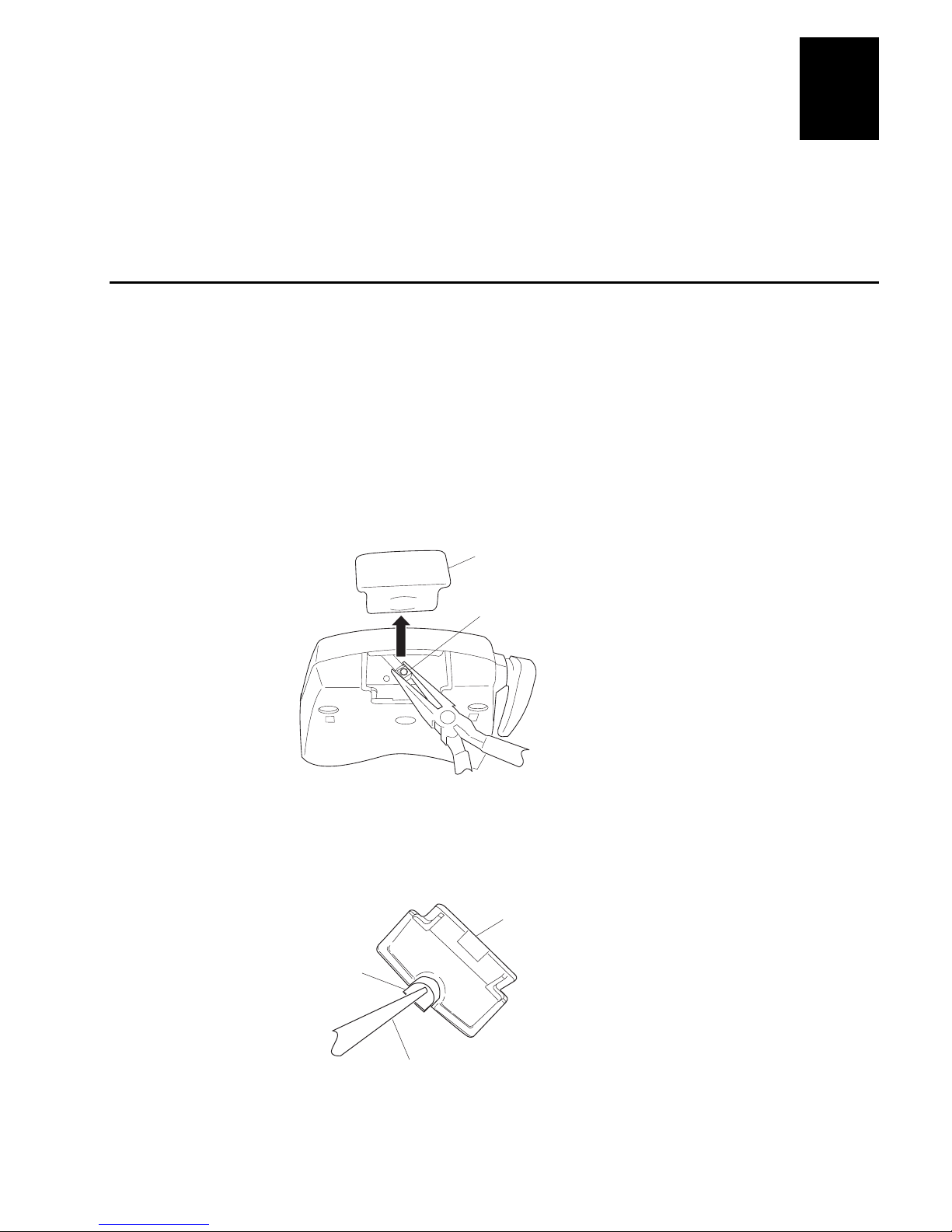

1. Remove the radio card door.

2. Pull straight up on the antenna wire to disconnect it from the radio card.

Door

Using External Antennas

B

Antenna
wire

MPA005U.eps

3. Tuck the antenna wire inside the access point housing.

4. Remove the punch-out tab from the door.

Door

Punch-out
tab

Pliers

MPA006U.eps

B-3

MobileLAN access 2102 S User’s Guide

5. Attach the antenna cable to the radio by inserting the cable connector into the radio
card.

6. Replace the door.

General Antenna Placement Guidelines

Proper antenna placement can help improve range. For information about antenna
options, contact your Intermec representative. Here are some general guidelines for
positioning antennas:

Place the antenna as high as possible. In an office environment, try to place it above

•

cubicle walls.
Do not place a sheet of metal (such as a filing cabinet) between two antennas.

•

The following sections provide detailed information about antenna placement for those
access points that can have more than one antenna.

Positioning Antennas for IEEE 802.11b HR Radios

The 802.11b HR radio features antenna diversity, which means that two antennas can be
attached to a single radio. The antenna ports on the radio card are marked | and ||. Port |
is the send/receive port; port || is the receive-only port. (Note that the antenna diversity
system uses only one antenna at a time.)

Intermec recommends that you use two antennas for optimal performance of your

802.11b HR radio. If you attach only one antenna to the 802.11b HR radio, you must

attach it to Port |. Both antenna ports are visible on the 2102 S.

Positioning Antennas for Antenna Diversity

If you are using two antennas for one 802.11b HR radio, placement of the antennas is
critical because each antenna has a particular function. Antennas placed too close
together may cause interference with each other. Antennas placed too far apart may not
be able to establish two-way communications with other radios. To achieve optimum
placement for the two antennas, you must place the transmit/receive antenna so that it is
within range of all the radios that the receive-only radio can hear.

Note these important points about antenna placement for an 802.11b HR radio:

Use external antennas to achieve the recommended antenna separation for

•

placement of either omni or directional antennas.
Position directional antennas so they point in the same direction.

•

B-4

Using External Antennas

Follow the recommended antenna separation precisely when using the closest

•

distances. Movement of as little as 3.05 centimeters (1.2 inches) may strongly affect
performance.

Position the antennas so that both antennas are within range of the radios they need

•

to communicate with.
Do not position the two antennas around a corner or so that a wall is between them.

•

The recommended antenna separation is listed in the following table. You should
choose the greatest distance possible within the constraints of your environment.

Location Recommended Antenna Separation

Highly reflective warehouse environment 0.33 m (13 in) or 0.64 m (25 in)
Moderately reflective warehouse environment 0.64 m (25 in), 1.22 m (4 ft), or 1.83 m (6 ft)
Open/Office environment 1.22 m (4 ft) to 3.05 m (10 ft)

B

B-5

MobileLAN access 2102 S User’s Guide

Intermec 2.4 GHz Antennas and Antenna Accessories

The following table identifies many of the Intermec antennas and antenna accessories
for the 802.11b HR radio. Contact your Intermec representative for detailed
information.

Part Number Description

069753 Antenna, 2.4 GHz Omni
069903 Antenna, 2.4 GHz Omni, 802.11b HR
070140 Antenna, 2.4 GHz, 3dBi Mini Flat (OpenAir)
070141 Antenna, 2.4 GHz, 3dBi Mini Flat (802.11b HR)
067261 Antenna, 2.4 GHz, 3dBi Mini Omni
067262 Antenna, 2.4 GHz, 5dBi Dual Flat
063363 Antenna, 2.4 GHz, 5dBi Omni
063365 Antenna, 2.4 GHz, 15dBi Yagi
065349 Antenna, 2.4 GHz, 9dBi Omni
067263 Antenna, 2.4 GHz, 9dBi Flat Panel
071121 Antenna, diversity
071122 Antenna, corner
069886 Adapter cable, OpenAir (to cable)
069887 Adapter cable, 802.11b HR (to cable)
070402 Adapter cable, OpenAir (to antenna)
070403 Adapter cable, 802.11b HR (to antenna)
061475 Cable connector, Type N polarized
063146 Cable connector, Type N
063198 Splitter, 2.4 GHz only
063245 Cable, 1.5 m (5 ft)
063246 Cable, 6.1 m (20 ft)
064616 Cable, 7.6 m (2.5 ft)
064432 LMR400 cable, 30.5 m (100 ft)
589377 LMR400 cable prep tool
061868 Lightning suppressor and bracket
586610 Lightning suppressor capsule
071489 Antenna, 2.4 GHz, Diversity

asdf

B-6

C

Configuring HereUAre

asdf

This appendix explains the HereUAre option and how to configure it.

About HereUAre

Using HereUAre, you can make Internet access available to your customers and charge
them for that access time.

To configure HereUAre

1. Establish a Web browser connection. For more information, see “Establishing a
Web Browser Session” on page 2-3.

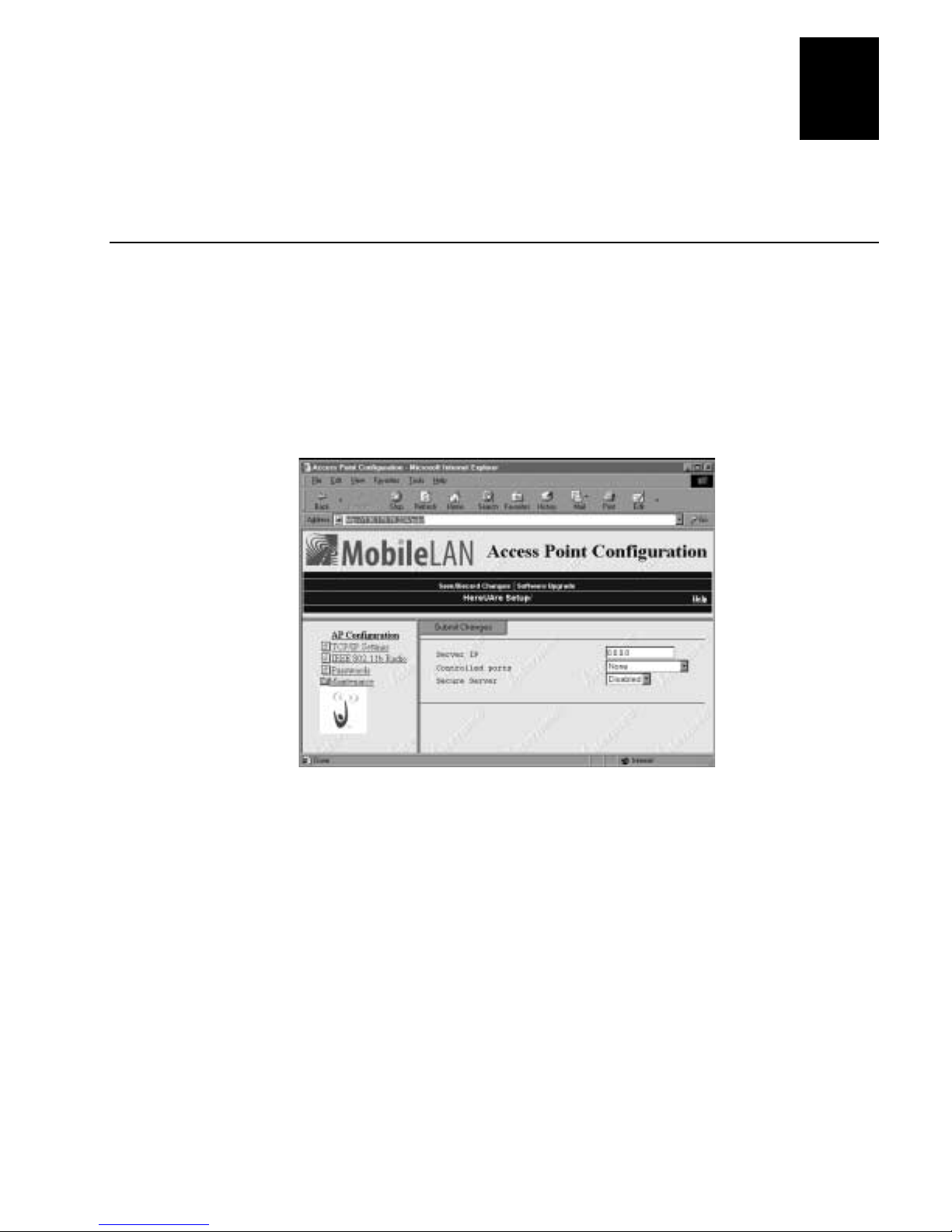

2. Click HereUAre. The HereUAre Setup screen appears.

Configuring HereUAre

C

3. Configure the parameters. When you are finished, click Submit Changes and follow
the instructions that appear on your screen to save your changes.

The following table explains each parameter.

Parameter Explanation

Server IP Indicates the IP address of the server.
Controlled ports Sets the port contro l.
Secure Server Enables or disables the server security. If you enable the security,

you must click Submit Changes and follow the instructions that
appear on your screen to save your cha nges. You ca n then configure
the encryption and authentication keys.

C-3

I

Index

sadf

Index

I

Numbers

10BaseT port, descr ibe d, 1-4

2.4 GHz antennas and ant enna accessories, B-6
2102 S

accessories, list of, 1-6
analyzing problems, 4-3
antenna

external, attaching, B-3

external, using, B-3
cannot configure locally using serial port, 4-11
cannot connect using a Web browser, 4-11
configuring

as DHCP server, 2-5

as NAT server, 2-8
installing, 1-5

getting help, 4-11
learning about, 1-3
LED pattern when fully booted, 4-11
LEDs, described, 1-4
managing remotely, 2-3
mounting, 1-6
radio, configuring, 3-3
understanding, 1-3

802.11b HR radio
antenna diversity, B-4
antennas, placing, B-4
channels, A-4
configuring, 3-3
data rate, A-4
frequency band, A-4
LED pattern when faulty, 4-10
menu, 3-3
parameters, explained, 3-4
positioning antennas, B-4
power output, A-4
radio type, A-4
range, A-4
specifications, list of, A-4
worldwide frequencies for, 3-5

A

about this access point

screen, 4-7, 4-12
viewing information, 4-6

access point, see 2101 S
accessories, antenna, list of, B-6
address

DNS, 2-7
high, 2-7
IP broadcast, 2-7
low, 2-7
MAC, viewing, 4-6

analyzing the 210 2 S, 4-3

antenna

accessories, list of, B-6
adapter cables, B-6
attaching, B-3
diversity, B-4
external, using, B-3
guidelines, 1-7
list of accessories, B-6
placement

for 802.11b HR radios, B-4

for antenna diversity, B-4
placement guidelines, B-4
positioning, 1-7
positioning for 802.11b HR radio, B-4
positioning for diversity, B-4
recommended separation, B-5
separation, B-4, B-5

AP Connections

screen, 4-3
viewing, 4-3

architecture, A-3
attaching an external antenna, B-3
available IP addresses, viewing, 4-5

B

basic rate, 3-4

menu defaults, A-5

boot process, LED activity, described, 4-7
broadcast address, 2-7
bytes transmitted and received, 4-4

C

changing

password, 2-4
user name, 2-4

commonly asked technical support questions, 4-11
configuration matrix string, LED pattern when incorrect, 4-10
configuration summary

screen, 4-6
viewing, 4-5

configuring

2102 S as a DHCP server, 2-5
2102 S as NAT server, 2-8

802.11b HR radio, 3-3
HereUAre, C-3
WEP, 3-5

confirming firmware version, 4-12

D

data rate, 3-4, A-3

menu defaults, A-5

data rate fallback, 3-4

menu defaults, A-5

decreasing interference, 1-5

I-3

MobileLAN access 2102 S User’s Guide

defaults

802.11b HR radio, A-4
Ethernet Port Configuration menu, A-5
IEEE 802.11b HR Radio menu, A-5
Password menu, A-5
resetting, 1-9
settings, list of, A-4
TCP/IP Settings menu, A-4

DHCP

clients, 2-7
mode, menu defaults, A-4
options

supported, 2-7
unsupported, 2-7

server

configuring the 2102 S as, 2-5
parameters, 2-7

name, menu defaults, A-4
Server Setup screen, 2-6
status

screen, 4-5

viewing, 4-5

diversity, positioning antennas for, B-4
DNS address, 2-7

E

electrical specification s, A-3
encryption required, WEP, 3-6
encryption, WEP, 3-4
Error LED

described, 1-4, 4-7
pattern when configuration matrix string is incorrect, 4-10
pattern when radio is faulty, 4-10

establishing a Web browser session, 2-3
Ethernet

compatibility, A-3
data rate, A-3
interfaces, A-3

Ethernet Port Configuration menu defaults, list of, A-5
ETSI countries, 3-5
Exceptions list, 2-3
expired IP addresses, viewing, 4-5
external antennas

attaching, B-3
using, B-3

F

factory defaults

settings, list of, A-4
resetting, 1-9

FAQs, 4-11
faulty radio, LED pattern, 4-10
FCC countries, 3-5
filtering rate, A-3

filters, A-3

other, A-3
protocol, A-3

firmware

confirming version, 4-12
installing, 4-8, 4-9
upgrading

using a Web browser, 4-9
using the MobileLAN access utility, 4-8

uploading, 4-9
frames transmitted and received, 4-4
frequency, 3-4

802.11b HR radio, list of 3-5

menu defaults, A-5

G

gateway

IP address, 2-7

IP router, 2-7
general antenna placement guidelines, B-4
general installation guidelines, 1-5
guidelines

antenna, 1-7

general antenna placement, B-4

general installation, 1-5

H

hardware, installed, viewing, 4-5
height, A-3
help with installation, 4-11
HereUAre

about, C-3

configuration parameters, C-3

configuring, C-3

Setup screen, C-3
high address, defined, 2-7
humidity, A-3

I

installation

getting help with, 4-11

guidelines, 1-5
installed hardware, viewing, 4-5
installing

the 2102 S, 1-5

the firmware release on your PC, 4-8
interfaces, management, A-3
interference, decreasing, 1-5
Intermec antennas and accessories, B-6
Intermec Technical Support, 4-11
IP

address, 2-7

available, in use, expired, 4-5
menu defaults, A-4
gateway, 2-7
setting, 1-8

I-4

Index

I

IP (continued)

broadcast address, 2-7
frame type, menu defaults, A-4
router (gateway)

defined, 2-7

menu defaults, A-4
subnet mask, 2-7
subnet mask, menu defaults, A-4

K

key, WEP, 3-6

L

lease duration, 2-7
LEDs

activity, described, 4-7
described, 1-4
lighting sequence, understanding, 4-7
pattern when configuration matrix string is incorrect, 4-10
pattern when radio is faulty, 4-10
understanding, 1-3

length, A-3
lights, see LEDs
low address, defined, 2-7

M

MAC address, viewing, 4-6
management interfaces, A-3
managing the 2102 S remotely, 2-3
Media Access protocol, A-3
microwave oven, decreasing in terference from, 1-5
MobileLAN access utility

using to set initial IP address, 1-8
using to upgrade, 4-8
using to upload firmware, 4-9

mounting bracket kits, listed, 1-6
mounting the 2102 S, 1-6

N

Network Address Translation (NAT), 2-7

server, configuring the 2102 S as, 2-8

network name (SSID), 3-4

O

operating temperature, A-3
optional mounting bracket kits, 1-6
options, antennas, B-6

P

parameters

802.11b HR radio, 3-4
DHCP server, 2-7
HereUAre, C-3
WEP, 3-6

password

changing, 2-4

menu defaults, A-5
Passwords screen, 2-5
physical specifications, A-3
placement guidelines, antenna, B-4
port control, menu defaults, A-5
port statistics

screen, 4-4

viewing, 4-4
ports

described, 1-4

understanding, 1-4
positioning antenna

external, for 802.11B HR radios, B-4

external, for antenna diversity, B-4
positioning the antenna, 1-7
Power LED

described, 1-4, 4-7

not on, 4-11

pattern when access point is fully booted, 4-11

pattern when configuration matrix string is incorrect, 4-10

pattern when radio is faulty, 4-10
Power port, described, 1- 4
problems, analyzin g, 4-3
proxy server, using to access Internet, 2-3

Q

questions, technical support, 4-11

R

radio

configuring, 3-3

LED pattern when faulty, 4-10

troubleshooting, 4-10

version, viewing, 4-6
Radio LED

described, 1-4, 4-7

pattern when configuration matrix string is incorrect, 4-10

pattern when radio is faulty, 4-10
rate

basic, 3-4

data, 3-4, A-3

data fallback, 3-4

filtering, A-3
receive data, WEP, 3-6
recommended antenna separation, B-5
resetting the factory defaults, 1-9
router, IP address, 2-7

S

separation, antenna, B-4
serial port

cannot connect using, 4-11

described, 1-4

I-5

MobileLAN access 2102 S User’s Guide

serial port (continued)

max data rate, A-3

server

DHCP, configuring the 2102 S as, 2-5
DHCP, parameters, 2-7

NAT, configuring the 2102 as, 2-8
slow throughput, 4-11
SNMP agent, A-3
Software Upgrade screen, 4-10
software version, viewing, 4-6
specifications

802.11b HR radio, A-4

architecture, A-3

electrical, A-3

Ethernet

compatibility, A-3
data rate, A-3

interfaces, A-3
filtering rate, A-3
filters, A-3
list of, A-3
management access, A-3
Media Access protocol, A-3
physical, A-3
serial port max data rate, A-3
SNMP agent, A-3
software upgrades, A-3

SSID (network name), 3-4

menu defaults, A-5

storage temperature, A-3
subnet mask, IP, 2-7
supported DHCP options, 2-7

T

TCP/IP Settings menu

defaults, list of, A-4
screen, 2-4

technical support questions, 4-11
temperature

operating, A-3
storage, A-3

throughput is slow, 4-11
transmit key, WEP, 3-6
troubleshooting, 4-10

U

understanding

the 2102 S, 1-3
the LED lighting sequence, 4-7
the LEDs, 1-3
the ports, 1-4

unencryption allowed, WEP, 3-6
unsupported DHCP options, 2-7
upgrading firmware

using a Web browser, 4-9
using the MobileLAN access utility, 4-8

uploading firmware, 4-9
user name

changing, 2-4
menu defaults, A-5

using the MobileLAN access utility

to upgrade firmware, 4-8
to upload firmware, 4-9

V

viewing

AP Connections, 4-3
configuration summary, 4-5
DHCP status, 4-5
information about the access point, 4-6
installed hardware, 4-5
IP addresses, available, in use, expired, 4-5
MAC address, 4-6
port statistics, 4-4
software version, 4-6

W

Web browser

cannot connect using, 4-11
session, establishing, 2-3

using to upgrade firmware, 4-9
weight, A-3
WEP

Configuration menu, 3-6

configuration parameters, explained, 3-6

configuration, menu defaults, A-5

configuring, 3-5

encryption

described, 3-4
required, 3-6

key

described, 3-6
verifying, 4-11

receive data

described, 3-6
menu defaults, A-5

transmit key

described, 3-6
menu defaults, A-5

unencryption allowed, 3-6
WEP encryption menu defaults, A-5
width, A-3
Wi-Fi certification, 1-3
Wired LAN LED

described, 1-4, 4-7

pattern when access point is fully booted, 4-11

pattern when configuration matrix string is incorrect, 4-10

pattern when radio is faulty, 4-10
worldwide frequencies for 802.11b HR radio, 3-5

I-6
