Intermec 5055, 5055 Data Collection PC User Manual

5055 Data Collection PC

USER’S GUIDE

""""""""""""""""""""""""""""

P/N: 961-054-017

Revision B
April 2002

NOTICE

"

The information contained herein is proprietary and is provided solely for the
purpose of allowing customers to operate and service Intermec manufactured
equipment and is not to be released, reproduced, or used for any other purpose
without written permission of Intermec.

Disclaimer of Warranties. The sample source code included in this document is
presented for reference only. The code does not necessarily represent complete,
tested programs. The code is provided “AS IS WITH ALL FAULTS.” ALL

WARRANTIES ARE EXPRESSLY DISCLAIMED, INCLUDING THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE.

We welcome your comments concerning this publication. Although every effort has
been made to keep it free of errors, some may occur. When reporting a specific
problem, please describe it briefly and include the book title and part number, as
well as the paragraph or figure number and the page number.

Send your comments to:
Intermec Technologies Corporation
Publications Department
550 Second Street SE
Cedar Rapids, IA 52401

ANTARES, INTERMEC, NORAND, NOR*WARE, PEN*KEY, ROUTEPOWER,
TRAKKER, and TRAKKER ANTARES are registered trademarks and ArciTech,
ENTERPRISE WIRELESS LAN, i-gistics, INCA, Mobile Framework, MobileLAN,
TE 2000, UAP, and UNIVERSAL ACCESS POINT are trademarks of Intermec
Technologies Corporation.



1999 Intermec Technologies Corporation. All rights reserved.

Acknowledgments

ActiveX, Microsoft, MS, MS-DOS, Windows,

trademarks and
trademarks of Microsoft Corporation.

AS/400, AT, IBM, IBM PC, Micro Channel, MQSeries, PS/2,

registered trademarks and
International Business Machines Corporation.

Microclean II

SanDisk

MSDN, Visual Basic, Visual C++,

and

AIX

is a registered trademark of Foresight International.

is a trademark of SanDisk Corporation.

Presentation Manager

and

Windows NT

and

are registered

Windows for Pen

and

OS/2

are trademarks of

are

are

CONTENTS

""""""""""""""""""""""""""""

SECTION 1

Introduction

About this Publication 1-1...............................

Related Publications 1-2.................................

General Information 1-2.................................

Installation 1-2......................................

Mobile Computer: How it Works 1-3...................

The Computer 1-4.......................................

The Display 1-5.....................................

Connectors 1-6......................................

Speakers 1-7.....................................

Microphone 1-7..................................

Keyboard/Mouse 1-7.............................

LPT1 — (Printer Port) 1-7........................

DC Power Input 1-7..............................

On/Off Switch 1-7................................

COM1, COM2 (Serial Ports) 1-7...................

Headphone 1-8..................................

Network Connection (NET) 1-8....................

Card/Drive Slots 1-8.................................

IDE Drive Bay 1-8...............................

PC Card Slots (PCMCIA) 1-8......................

Radio Antenna Connectors (RF) 1-8................

AC-DC Power Supply 1-10.............................

Maintenance 1-12........................................

Cleaning 1-12........................................

Daily Checks 1-12....................................

Factory Service 1-13......................................

Global Services and Support Center 1-14...................

Web Support 1-14........................................

5055 Data Collection PC User ’s Guide

i

CONTENTS

Specifications 1-15.......................................

Physical 1-15.........................................

Environmental 1-15...................................

Electrical 1-15........................................

SECTION 2

Operation

Startup Requirements 2-1...............................

Startup Sequence 2-2....................................

Options 2-2.............................................

Hard Drive Installation 2-2...........................

SanDisk Drive Installation 2-4........................

PC Card Installation 2-6.............................

Radio Installation 2-8................................

Internal Antenna Cable Installation 2-8............

Antenna Installation 2-9..........................

Multiple Antennas 2-10............................

External Antenna Cable 2-11......................

Antenna Bracket Installation 2-12..................

Connector Cover 2-13..............................

Desktop Mount Option 2-14........................

PC (PCMCIA) Cards 2-15.................................

Removing PC Cards 2-15..............................

Patch Antenna 2-16......................................

Start-up 2-17............................................

Installing Software 2-17..................................

External Drive 2-17...................................

Downloading from a Network 2-17.....................

Restart (or, “Reboot”) 2-18.................................

War m Restart 2-18....................................

Cold Restart 2-18.....................................

Available Tethered Scanners 2-19..........................

Symbol Scanners 2-19.................................

PSC Scanners 2-19...................................

5055 Data Collection PC User ’s Guide

ii

CONTENTS

Installed Scanner Software 2-20...........................

Setting Terminal Emulation 2-20.......................

Setting DOS Applications 2-21.........................

Setting RS-232 Parameters 2-21.......................

(for Symbol LS3203 or LS3603 Scanners) 2-21.......

Set All Defaults 2-21..............................

Data Transmission Format 2-22....................

RS-232 Host Prefix/Suffix Values 2-23...............

RS-232 Host Parity 2-24...........................

RS-232 Host Stop Bit Select 2-24...................

RS-232 Host ASCII Format 2-24....................

RS-232 Host Transmit Code ID Character

(Optional) 2-25................................

RS-232 Host Decode Options 2-25..................

Scanner Problems 2-26............................

SECTION 3

System Setup

System Configuration Utility 3-2.........................

Disks 3-2...........................................

Virus Alert 3-2...................................

IDE Settings 3-3.................................

Removable is C 3-3...............................

Components 3-4.....................................

COM Ports 3-4...................................

Scanner COMx 3-5...............................

LPT Port 3-5....................................

LPT Type 3-6....................................

Mouse 3-6.......................................

Display 3-7......................................

Keyboard Numlock 3-7...........................

Keyboard Repeat 3-7.............................

5055 Data Collection PC User ’s Guide

iii

CONTENTS

SECTION 4

Connector Pinouts

Connectors 4-1..........................................

Parallel Printer Port 4-2.................................

COM Serial Ports (COM1, COM2) 4-3.....................

Keyboard and Mouse Ports 4-4........................

10BASE-T Interface 4-5..............................

Audio Connections 4-6...............................

FIGURES

Figure 1-1 The Data Collection PC Network 1-3............

Figure 1-2 Intermec 5055 Data Collection PC (front view) 1-5

Figure 1-3 Connectors 1-6................................

Figure 1-4 Drives and Antenna Connectors 1-9............

Figure 1-5 AC-DC Power Supply 1-10......................

Figure 1-6 DC-DC Power Supply 1-11......................

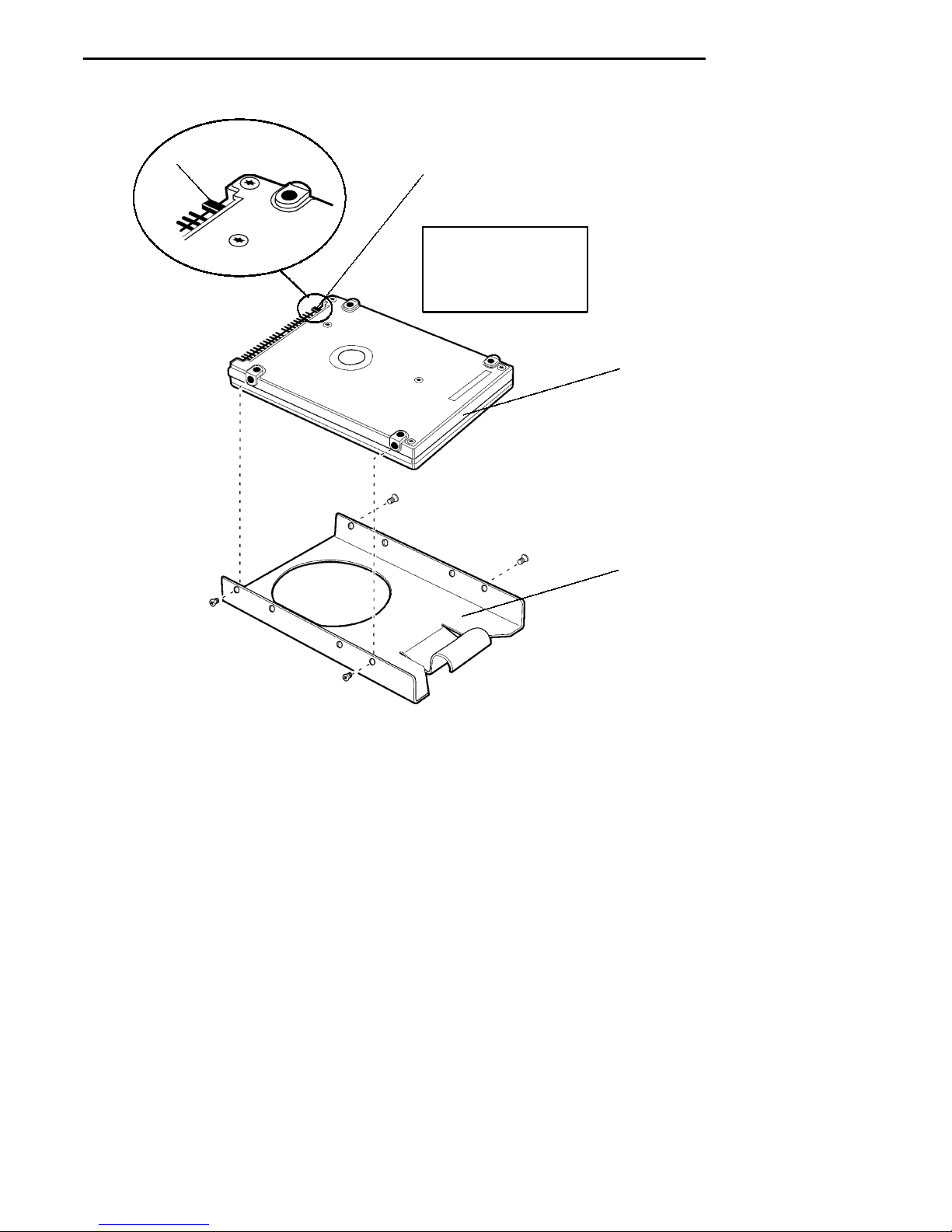

Figure 2-1 Hard Drive Adapter 2-3.......................

Figure 2-2 SanDisk Jumper 2-4..........................

Figure 2-3 SanDisk Drive Adapter 2-5....................

Figure 2-4 Drive Bays 2-7................................

Figure 2-5 Antenna Installation 2-9.......................

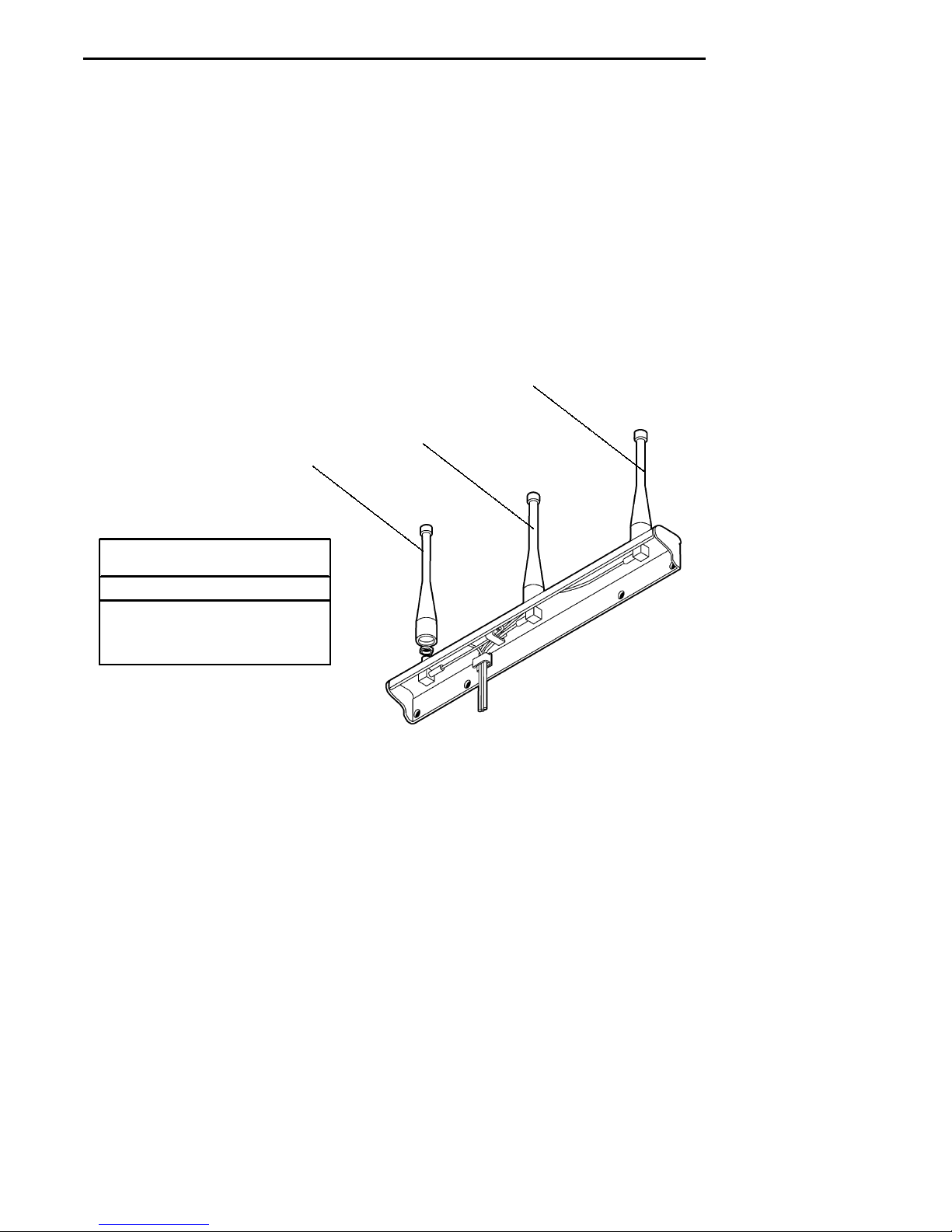

Figure 2-6 Multiple Antennas 2-10.........................

Figure 2-7 Antenna Cable Channel Cover 2-11..............

Figure 2-8 Antenna and Bracket Assembly (installed) 2-12...

Figure 2-9 Connection Cover 2-13..........................

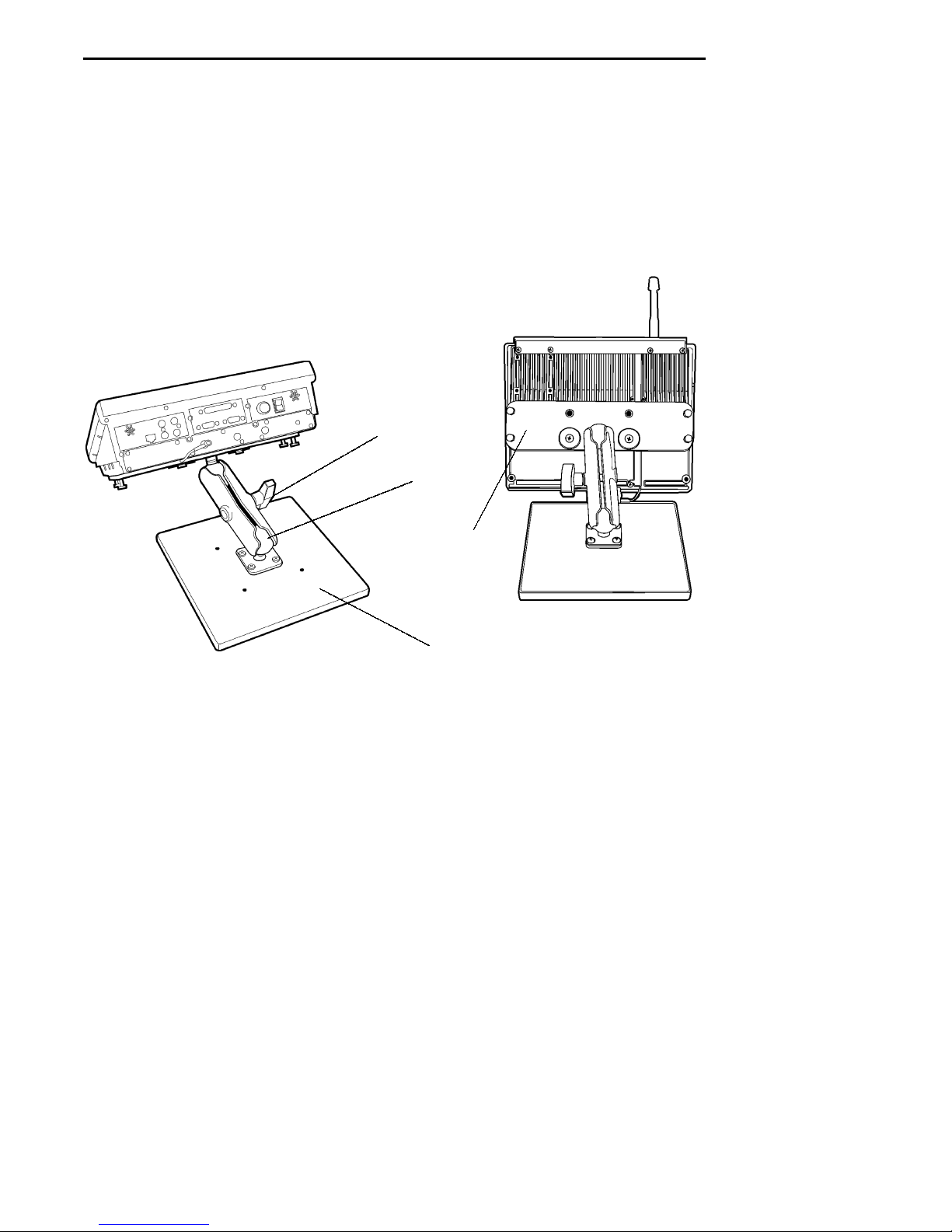

Figure 2-10 Desktop Mount Options 2-14...................

Figure 2-11 Drive and PC Card Removal 2-15...............

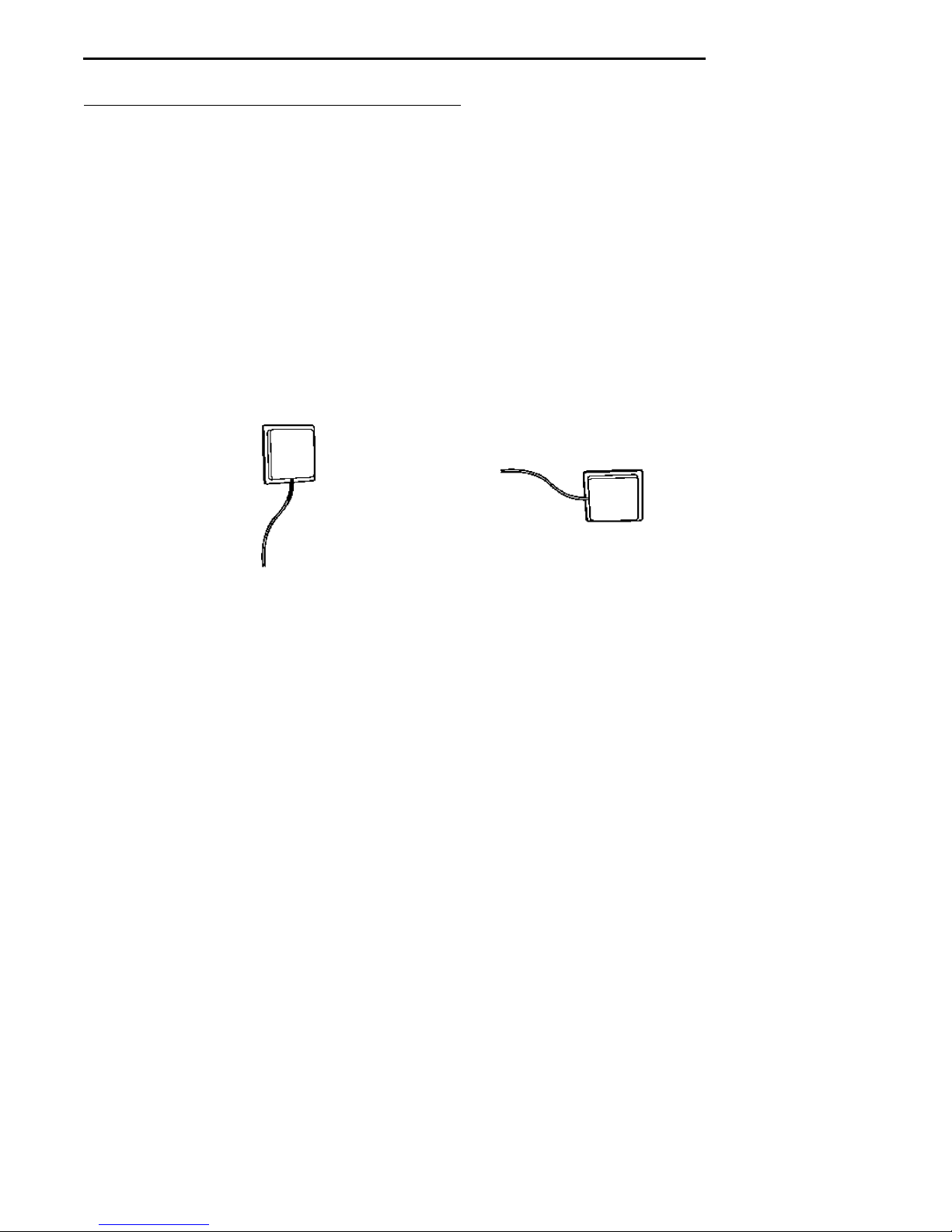

Figure 2-12 Antenna Polarization 2-16.....................

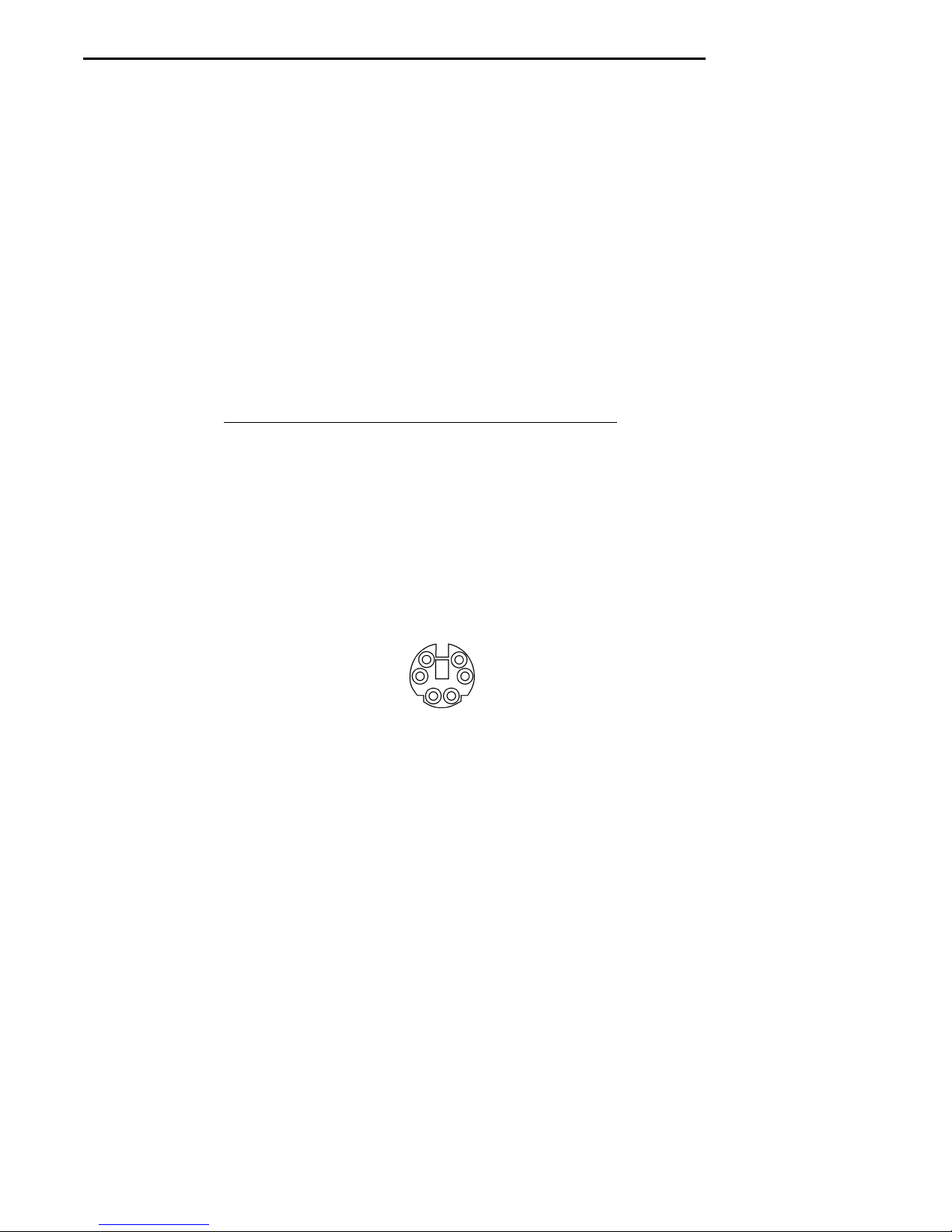

Figure 4-1 Connectors 4-1................................

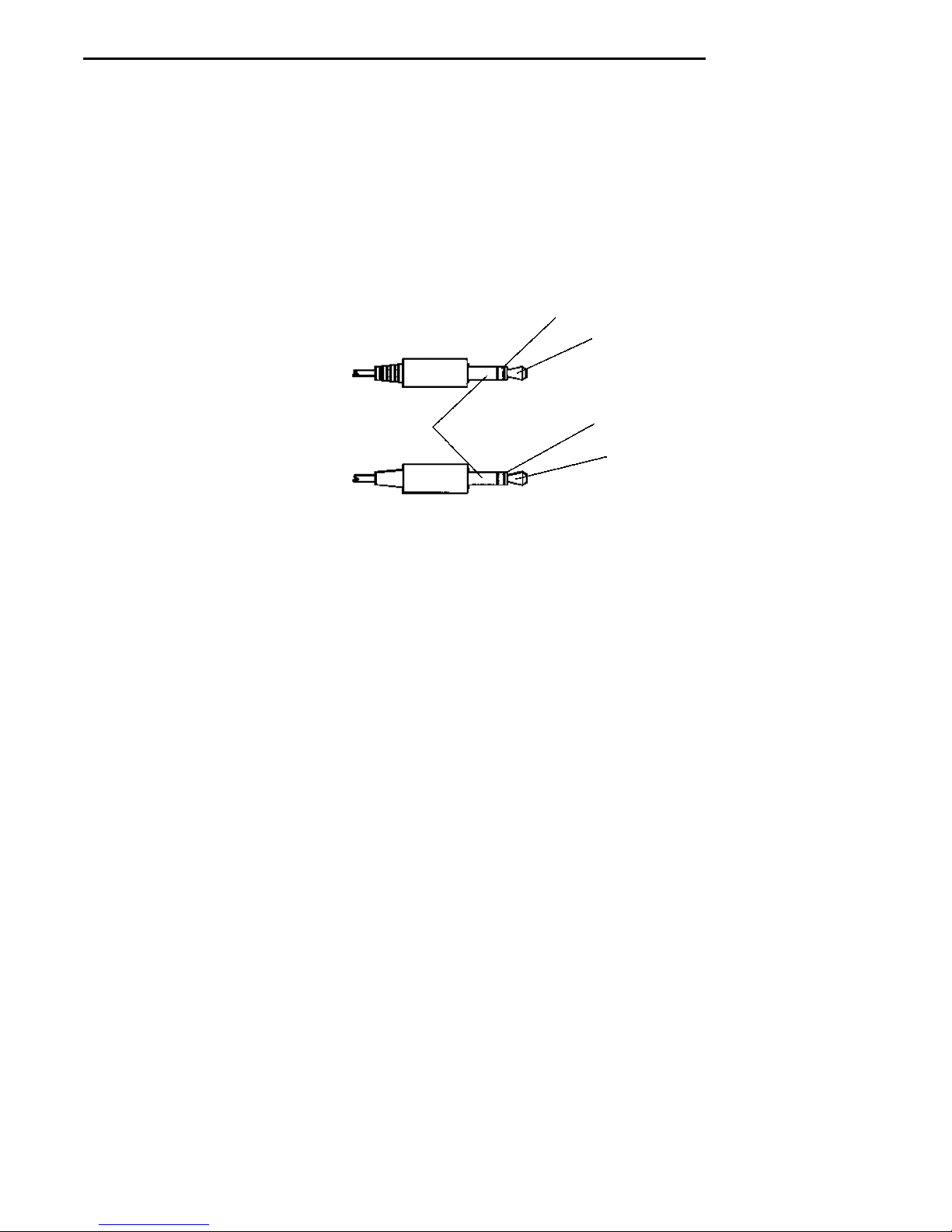

Figure 4-2 Audio Connectors 4-6..........................

TABLES

Table 4-1 Parallel Port (LPT1) Pinout 4-2..................

Table 4-2 Serial Communication Pors (COM1/COM2) 4-3...

Table 4-3 Serial Communication Port Pinouts 4-3..........

Table 4-4 Keyboard/Mouse Port Pinouts 4-4...............

Table 4-5 RJ-45 Pinouts 4-5..............................

5055 Data Collection PC User ’s Guide

iv

Section 1

Introduction

""""""""""""""""""""""""""""

About this Publication

This user’s guide contains a product introduction and gen­eral information, operating instructions, system features,
and connector pinouts. Software instructions are
cluded in this manual.

This publication consists of the following sections that make
up the User’s Guide:

Section 1 — Introduction

The General Information section is most useful to the
end user. It describes the ON/OFF switch, cable con­nections, the display, and other features of the com­puter.

not

in-

Section 2 — Operation

This section provides basic information for using thee
computer, and the accessories and options available
for it.

Section 3 — System Setup

The System Setup section is intended primarily for the
system programmer; this section describes details of
your computer and methods for customizing it to your
specific needs. CMOS setup instructions are included
here.

Section 4 — Connector Pinouts

This section provides connector pinout information.

5055 Data Collection PC User ’s Guide

1-1

Introduction

Related Publications

To order printed versions of the Intermec manuals, contact
your local Intermec representative or distributor. Following
are related INTERMEC manuals and part numbers (P/N):

"

Vehicle Power Supply Installation Instructions

(P/N: 962-054-004)

"

5055 Data Collection PC Technical Reference

(P/N: 978-054-002)

General Information

The Intermec 5055 Data Collection PC is a powerful real­time computer designed for warehouse and automated ma­terial handling environments. Although the computer is
intended for data collection, it contains a modern high­speed Pentium processor and has full PC capabilities. De­pending upon your requirements, this computer may be
equipped with an integrated r adio for total mobility. The
standard Ethernet
a local area network (LAN).

on board

SECTION 1

allows hardwire connection to

All computer electronics, the radio module, and the large
display are housed within a single metal container. A dc--dc
power converter can be remotely mounted on a vehicle to
ensure a stable power source in mobile applications. Fixed-­mount computers (i.e., those connected to a local area net-­work) have a separate ac--dc power supply.

Installation

The Intermec 5055 Data Collection PC installs easily on
vertical or horizontal surfaces using one of several adjust-­able mounting brackets.

5055 Data Collection PC User ’s Guide

1-2

SECTION 1

Introduction

Mobile Computer: How it Works

Wireless data collection PCs are “real-time“ devices because
the computer tracks inventory movement on the go. When
you enter data into the unit, the integrated radio module
transmits that information to a base unit or

access point

From there, information goes to a host computer. If the
entry was a request for information, the host transmits the
response to the computer that made the request. These

real-time

data transactions ensure that the most current
information is available to the host computer and to all mo-­bile units. Figure 1-1 shows a basic LAN system to aid
your understanding of the local area network concept.

Network

Management Station

(server)

.

Access

Point

Fixed-Mount Computer

(hardwired to LAN)

Mobile Mount

Data Collection PC

Figure 1-1

The Data Collection PC Network

5055 Data Collection PC User ’s Guide

Access

Point

1-3

Introduction

The Computer

The illustrations in this section will familiarize you with
external features of the Intermec 5055 Data Collection PC.
Figure 1-5 shows the
mount units, while Figure 1-6 shows the

Converter

All connectors that are part of the computer system are de­scribed in detail in Section 4 of this manual.

The list below is presented here so that you will notice
these items as they are shown in the following pages. This
list is repeated in Section 2 because many of the problems
you are likely to encounter may result from overlooking one
or more of these items.

Each work day make sure that:

Mounting knobs are tight.

"

The DC power input cable is secure.

"

The DC power output cable is secure.

"

The AC power supply (fixed-mount) is plugged into the

"

wall.
The On/Off switch is ON (press the 1 side of the switch

"

to enable power).

The antenna connector(s) (if so equipped) is secure.

"

The LAN connector (if so equipped) is secure.

"

The scanner cable (if so equipped) is secure.

"

LPT1, the printer cable (if so equipped) is secure.

"

AC Power Supply

used with fixed -

DC-DC Power

used in mobile mount installations.

SECTION 1

5055 Data Collection PC User ’s Guide

1-4

SECTION 1

Introduction

The Display

The display can be both an input and an output device, be­cause you can touch it to make entries (input) and it dis­plays (outputs) information. The touchscreen requires direct
pressure to detect your entries or menu selections.

1

1. Display

Figure 1-2

Intermec 5055 Data Collection PC

(front view)

5055 Data Collection PC User ’s Guide

1-5

Introduction

SECTION 1

Connectors

The On/Off switch and all connectors are located on the bot­tom of the unit. These include a power connector, antenna
connectors, LPT1 parallel input-output (I/O) connector, two
standard serial I/O connectors (COM1 and COM2), a key­board (KYBD) connector, a network (NET) connector, and
dual PCMCIA (PC Card) slots (see Figure 1-4).

3

1

2

11

10

1. Speakers

2. Microphone jack

3. 6-pin mini DIN

4. LPT1

5. DC power input

6. On/Off switch

7. COM2

8. COM1

9. 6-pin mini DIN

10. Headphone jack

11. Network

4

(audio IN)

(PS/2 mouse)

(printer)

(RS-232 w/5 V dc)
(RS-232 w/5 V dc)

(PS/2 keyboard)

(audio OUT)

5

89

8

7

6

1

5055 Data Collection PC User ’s Guide

1-6

Figure 1-3

Connectors

SECTION 1

Introduction

Speakers

Speakers are provided to allow standard PC/AT sounds, as
well as business audio to play and record.

Microphone

This 3.5 mm connector accepts an external microphone.

Keyboard/Mouse

Locking 6-pin mini-DIN connectors accommodate an exter­nal PS/2 standard mouse
devices with locking connectors should be used on mobile
mounted terminals to ensure against unwanted disconnec­tion. PS/2 devices with non-locking connectors can be used
with fixed-mount terminals.

(3)

and keyboard

(9)

.OnlyPS/2

LPT1 — (Printer Port)

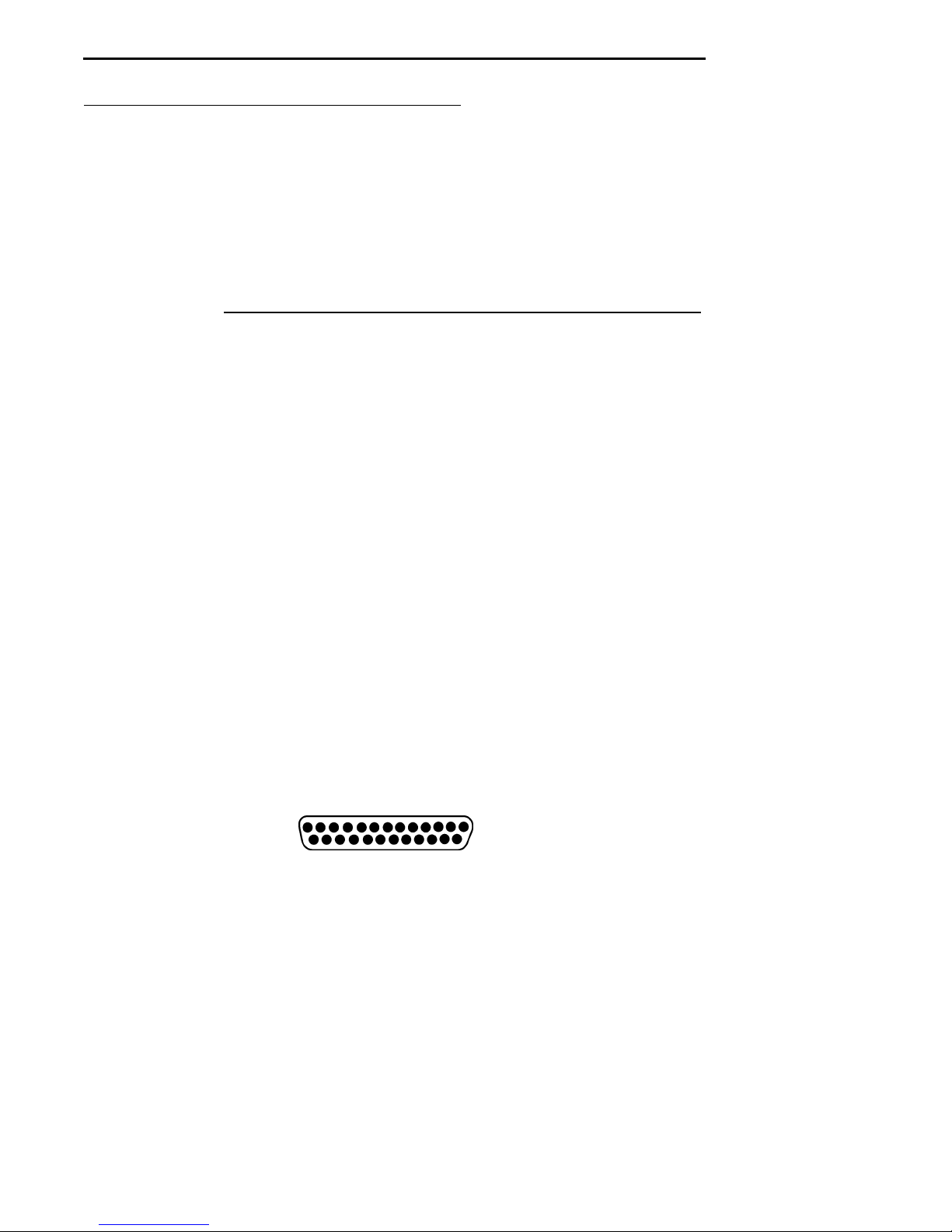

This is an enhanced parallel port with a 25-pin (DB-25)

, D-subminiature connector for parallel devices.

male

fe-

DC Power Input

This is a 3-pin circular connector which is threaded to re­ceive a power cable connector that has a locking collar. A
regulated +12 volt power supply/converter is required.

On/Off Switch

"

NOTE: ALWAYS perform a proper system (or Windows) shut-down before

shutting the computer OFF.

This switch is located on the bottom of the unit next to the
DC power input connector. Always disable (press the “0”
side of the switch to disable) power when connecting or dis­connecting cables and accessories.

COM1, COM2 (Serial Ports)

Each port has its own address and a 9-pin male connector
to attach RS--232 serial devices. COM ports can provide 5
volts dc to support a decoding type tethered scanner.

5055 Data Collection PC User ’s Guide

1-7

Introduction

Headphone

This 3.5 mm connector accepts an external headphone.

Network Connection (NET)

The Intermec 5055 Data Collection PC has Ethernet
(10BASE-T, RJ-45 jack) on board.

B

CAUTION: Use spinning-media PC Cards for fixed-mount applications

only.

WARNING: Both edges of PC cards must be in the correct grooves in the

drive to avoid damage to the card or to the computer.

WARNING: To prevent damaged pins, do NOT force PC cards or the IDE

drive into their respective slots.

Card/Drive Slots

SECTION 1

Remove the antenna connector panel to access the card/
drive slots. When reinstalling the panel, carefully dress an­tenna cables into the slots to guard against damage.

IDE Drive Bay

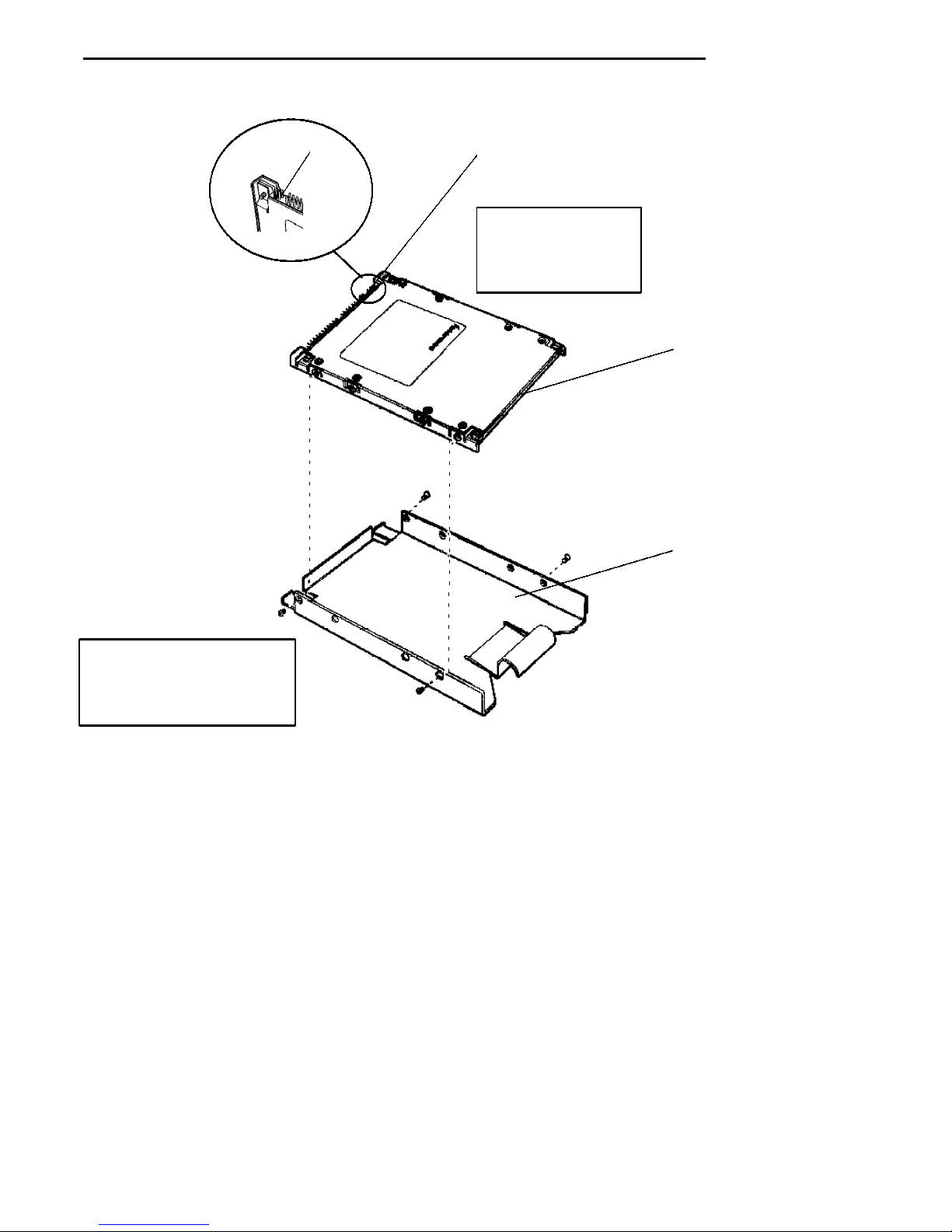

A special metal carrier adapts most currently available
miniature (2.5 inch) IDE type drives to this bay. The metal
carrier has a tab that securely holds the drive in place.

PC Card Slots (PCMCIA)

These user-accessible slots (0 and 1) are for PC Card de­vices. Each 68-pin slot can accommodate a Type I, II, or III
device.

Radio Antenna Connectors (RF)

All connector locations are shown, however one or more of
them may be p lugged depending upon the radio(s) in your
computer. The computer has an antenna mounting bracket
at the top of the unit.

5055 Data Collection PC User ’s Guide

1-8

SECTION 1

Introduction

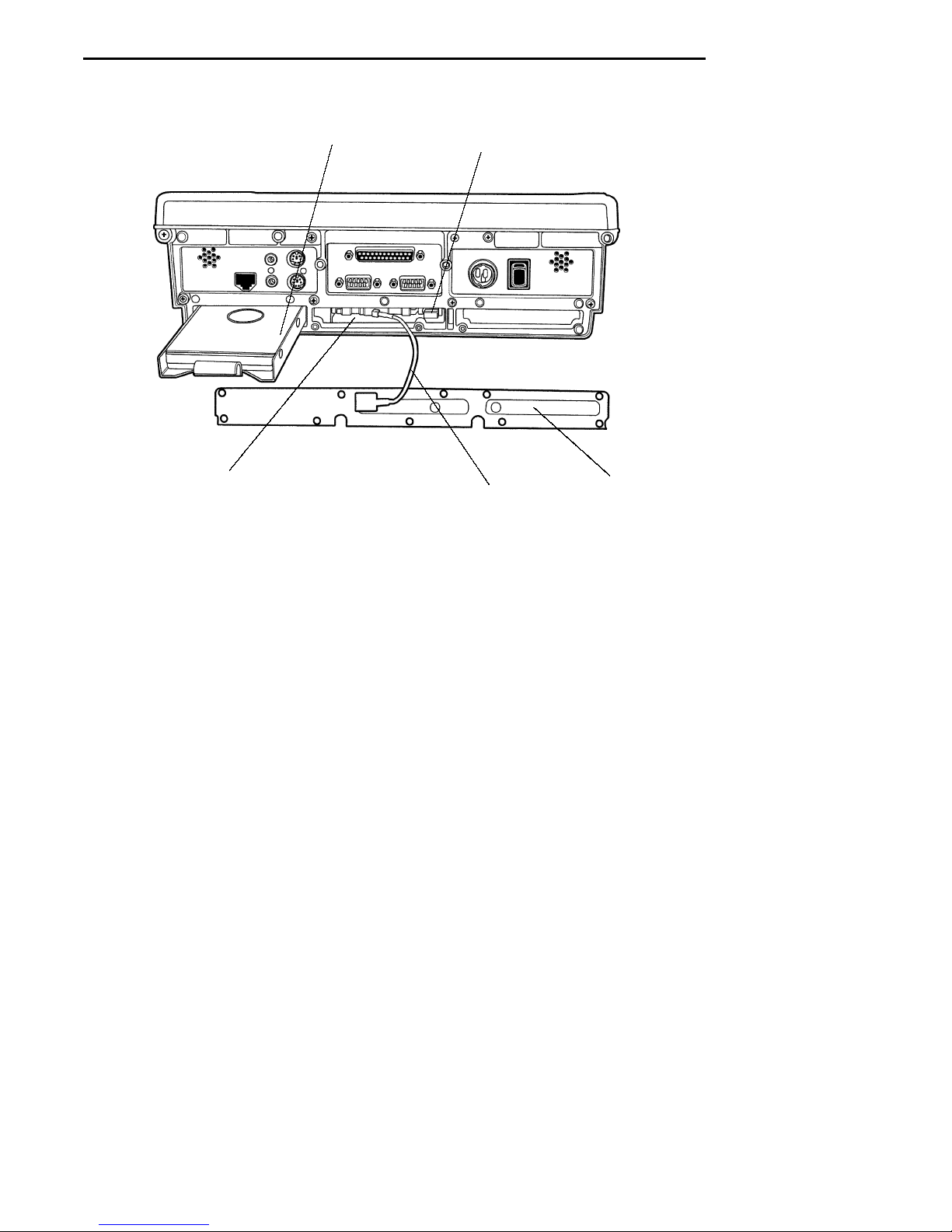

See Caution

1

1. IDE drive bay

2. PC card slot 0

3. PC card slot 1

4. Antenna connector panel

23

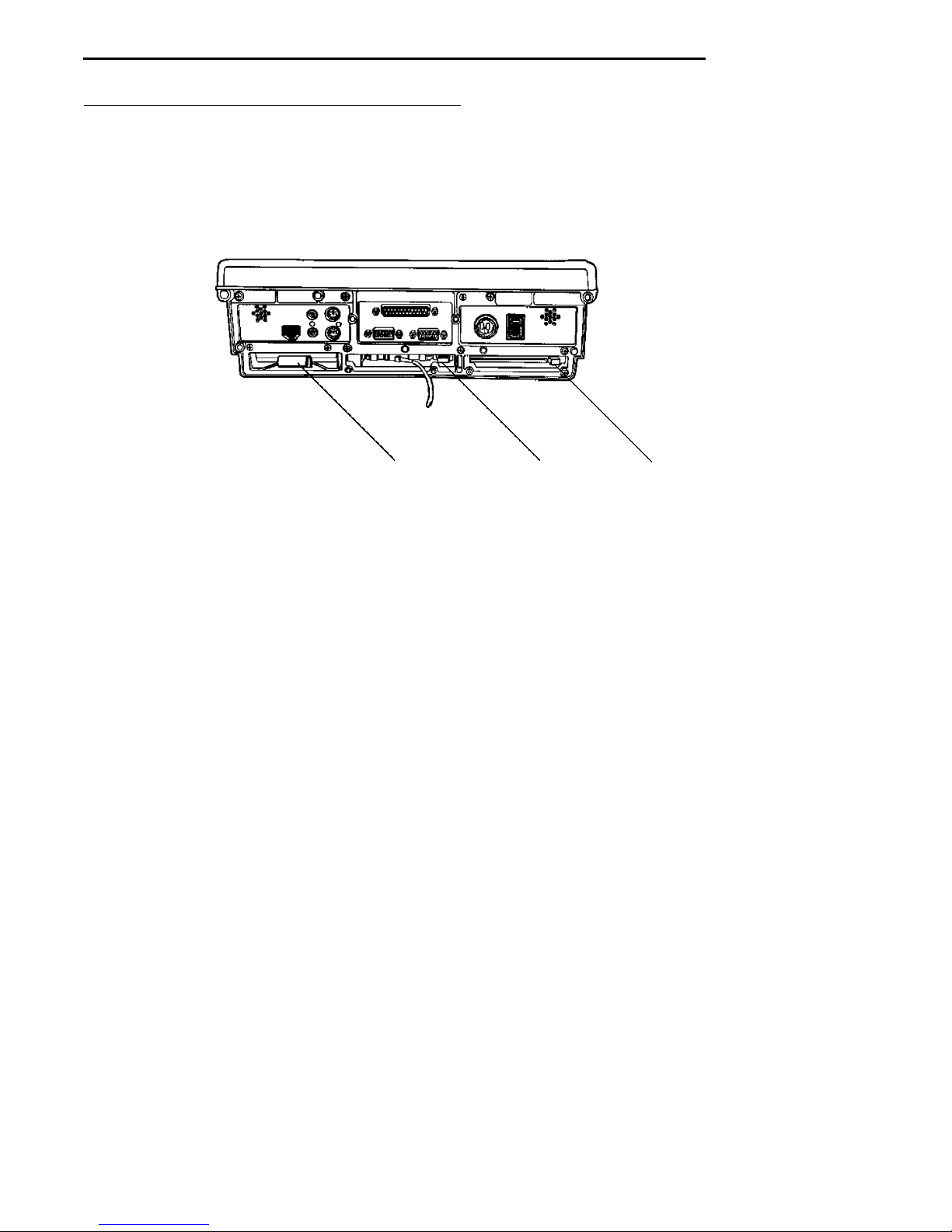

Figure 1-4

Drives and Antenna Connectors

CAUTION

To avoid damaging the unit

Do NOT remove the four screws shown in circles.

4

5055 Data Collection PC User ’s Guide

1-9

Introduction

AC-DC Power Supply

"

NOTE: ALWAYS perform a proper system(or Windows) shut-down before

shutting the computer OFF.

SECTION 1

The ac power supply shown below

does NOT have

an On/Off
switch: to disable power to a fixed-mount 5055 Computer,
use the On/Off switch on the computer itself or unplug the
AC power cable from the wall outlet.

2

1

1. DC power cord

2. AC power cord connector

(not visible)

5055 Data Collection PC User ’s Guide

1-10

Figure 1-5

AC-DC Power Supply

SECTION 1

WARNING: Make sure you have the correct power converter for your

application. See Specifications for input voltage ranges.

1

2

Introduction

Model: 851-041-001 P/N: 066777-01

15–96 V; 5.5 A

3

1. Green LED

2. Output Connector

3. Input Connector

(power output indicator)

Figure 1-6

DC-DC Power Supply

Model: 851-040-001 P/N: 066776-01

10–96 V; 10 A

5055 Data Collection PC User ’s Guide

1-11

Introduction

Maintenance

Your terminal requires very little maintenance. Clean the
terminal and the display periodically, and perform the daily
checks listed below. If a failure message appears on the dis­play, the computer may need to be sent to an authorized
service facility f or repair or adjustment.

Cleaning

A recommended cleaner for the exterior of the Mobile
Mount Radio Data Computer is
made by Foresight International, Inc., 4887 F Street, Oma­ha, Nebraska 68127--0205 (phone: [phone]).

B

CAUTION: Do not pour any cleaner directly on the display.

B

CAUTION: Do NOT use a water-based cleaner on the display.

MICRO-CLEAN II Cleaner

SECTION 1

,

B

CAUTION: Use ethanol-based cleaners ONLY on the display.

"

NOTE: Keep the display area clean and free of dust, dirt, grime or smudges.

Failure to do so can result in unreliable touch entries.

Use a soft, lint-free cloth dampened with ethanol alcohol to
to remove dirt or finger smudges from the display area.

Daily Checks

Each work day you should check to make sure that:

All antenna connectors are secure.

"

All mounting knobs are tight.

"

The power cable is secure.

"

The scanner cable is secure.

"

5055 Data Collection PC User ’s Guide

1-12

SECTION 1

Factory Service

If the unit is faulty, you can ship it to your nearest autho­rized Service Center for factory-quality repair service.
Their address and telephone number can be found on the
Product Service Information Card.

When products must be shipped for repair:

Make sure that all antennas are removed.

"

Package in original shipping carton if possible.

"

Fill out a Product Service Information Card and in-

"

clude this card with the product.

If the original shipping container is not available, appropri­ate packaging materials can be substituted. If in doubt,
contact your regional Customer Support Specialist for in­structions.

If repairs are necessary, fill out the Product Service Infor­mation Card and send it in with the unit. Be sure to in­clude a brief description of the problem(s) when you return
the product for repair. A new card is included when the re-­paired product is returned to you.

Introduction

5055 Data Collection PC User ’s Guide

1-13

Introduction

Global Services and Support Center

Select any of the following services available from Intermec
Technologies Corporation:

Factory Repair and On-site Repair

To request a return authorization number for one of
our authorized service centers, or to request an on-site
repair technician,

call 1-800-755-5505, then select option 1.

Technical Support

For technical support on your Intermec product,

call 1-800-755-5505, then select option 2.

Service Contract Status

To inquire about an existing contract, or to renew a
contract,

call 1-800-755-5505, then select option 3.

Schedule Site Surveys or Installations

To schedule a site survey, or to request a product or
system installation,

call 1-800-755-5505, then select option 4.

SECTION 1

Web Support

Visit our Web site at
many of our current manuals in PDF format.

Visit our technical knowledge base (Knowledge Central) at

http://intermec.custhelp.com

information or to request technical help for all Intermec
products.

5055 Data Collection PC User ’s Guide

1-14

http://www.intermec.com

to review technical

to download

SECTION 1

Specifications

Physical

Environmental

Size 12” x 9.35” x 2.125” top/3.775” bottom (w/hd)

Weigh t 7–9 lbs

(approximate, depending on configuration)

Introduction

Operating temp. EL display: –22 to +122qF (–30 to +50qC)

Storage temp. –40 to +185qF (–40 to +85qC)

Humidity 0 to 95% noncondensing

all displays: –4 to +122qF (–20 to +50qC)

Electrical

Power Sources external, dc-dc converter (vehicle installations)

Communication 6-pin mini-DIN

(I/O connections)

Standards FCC Class B, TUV RFI mark, DOC, SCyTm, UL1950,

Processor Pentium, 133 MHz

L--2 Cache 512K

Standard Memory 64-bit SDRAM

Flash Memory 256K

PC Card options twov2.0PCMCIAtypeIIIslots

Displays 640 x 480 color TFT

Touchscreen Resistive

Compatibility

Software fully PC-compatible, industry standard environment

Operating Systems MS-DOS or Windows options

auto-ranging input
12 V dc regulated output
two models:

120 V ac, 60 Hz, 0.8 amp input, 12 V dc output, 3.0 amps

9-pin D-sub
25-pin D-sub
RJ-45 jack
audio pin jacks

CUL C22.2950, various CE marks

one internal type III IDE drive slot available

640 x 480 wide-temperature monochrome EL
800 x 600 color TFT

(supports menu and mouse-driven applications)

10.0 – 36 V dc input /54watts max.
96 V dc input/54 watts max.

15 –

(PS/2 keyboard and mouse connectors)

(two RS-232C serial port connectors)

(parallel port for printer, disk drive, etc.)

(local area network Ethernet connection)

(earphone and microphone)

(standard)

(standard)

(standard)

(standard)

(standard)

(optional)

, options from 8–64 MB

,or

(optional)

5055 Data Collection PC User ’s Guide

1-15

Introduction

SECTION 1

5055 Data Collection PC User ’s Guide

1-16

Section 2

Operation

""""""""""""""""""""""""""""

This section tells you how to prepare the computer for first­time operation and includes instructions for attaching or
installing certain options or peripheral equipment. Once
the computer has successfully booted to the operating sys­tem you may need to load an application program or data.

Startup Requirements

Before powering up the computer for the first time, be sure
it is securely mounted, that all cable connections are secure,
and that the DC power input cable is firmly attached. The
computer begins its startup (“boot”) sequence when power
is supplied to the DC power input connector and the On/Off
switch is
an AC-powered (fixed-mount) computer, the power supply
must be connected to the computer and plugged into a wall
outlet. Vehicle mounts require that the dc-dc power con­verter be properly connected to the vehicle batteries and to
the computer.

ON

(press the 1 side of the switch). In the case of

5055 Data Collection PC User ’s Guide

2-1

Operation

Startup Sequence

Your computer should start up after all connections have
been made to the unit, power has been applied, and the On/
Off switch has been moved to the
side of the switch). During startup, the computer (1) per­forms a power-on self-test, (2) runs the hardware initializa­tion program, and (3) boots the operating system.

Once the computer starts up (“boots”) successfully, you may
load additional application software if this has not already
been done for you. If you install a radio or other optional
device, you may have to install driver software or make
new system setups for the device(s) to work properly.

Options

ON

position (press the 1

SECTION 2

This computer can accommodate a 2.5 inch hard drive (or a
SanDisk drive) plus two PC cards. The instructions and
illustrations that follow will help you perform these instal­lations if they have not already been done.

Hard Drive I nstallation

An adapter is required to install a spinning media hard
drive. Refer to the accompanying illustrations and the fol­lowing instructions to attach the adapter to your drive.

1. Install the jumper exactly as shown.

2. Place the drive in the adapter as shown.

3. Align the connector-end of the drive and the adapter.

4. Use four screws to secure the drive.

5. Slide this assembly gently into the computer
(Figure 2-4) until the latch snaps into place.

5055 Data Collection PC User ’s Guide

2-2

SECTION 2

Operation

1

2

WARNING:

Spaces between pins

MUST be in this corner.

3

4

1. Jumper

2. Note pin spacing

3. Drive

4. Adapter

Figure 2-1

Hard Drive Adapter

5055 Data Collection PC User ’s Guide

2-3

Operation

SECTION 2

SanDisk Drive Installation

An adapter is also required to install a SanDisk drive. Re­fer to accompanying illustrations and the instructions below
to attach the adapter to your drive. If your computer is set
up so that C: = Removable, this means the SanDisk drive
will be the boot dis k and

does not require a jumper

computer will boot from some other source, the SanDisk
drive

must be jumpered

.

1. IF the SanDisk is not the boot drive, install the jump­er exactly as shown.

2. Place the SanDisk drive in the adapter as shown.

3. Align the connector-end of the drive and the adapter.

4. Use four screws to secure the drive.

5. Slide this assembly gently into the computer
(Figure 2-4) until the latch snaps in place.

1

. If your

2

5055 Data Collection PC User ’s Guide

2-4

1. Bootable

2. NOT bootable

(no jumper)

Figure 2-2

SanDisk Jumper

(jumper in place)

SECTION 2

Operation

1

2

WARNING:

Spaces between pins

MUST be in this corner.

3

4

JUMPER NOTE:

Do NOT install jumper if computer

will boot from the SanDisk

1. Jumper

2. Note pin spacing

3. Drive

4. Adapter

(see Note)

Figure 2-3

SanDisk Drive Adapter

5055 Data Collection PC User ’s Guide

2-5

Operation

SECTION 2

PC Card Installation

The hard drive bay and PC Card drives (“slots”) are located
on the bottom of the computer. Use a Phillips screwdriver
to remove the antenna connector panel to access the drive
bays. If your PC card is a radio module, follow these in­structions to install the module (PC card) itself, then see
Radio Installation

(following Figure 2-4)

procedure.

"

NOTE: Follow these same instructions to install a hard drive (with adapter

attached). See for the hard drive bay location. Disregard steps 3
and 4 below when installing a hard drive.

To install a PC Card, follow these steps:

B

CAUTION: Take care to remove ONLY those screws that retain the cover.

1. Remove the antenna connector panel.

2. Hold the PC Card (or hard drive) with the connector
facing into the computer.

to complete the

B

CAUTION: Do NOT force PC cards or drives into their slots.

3. Slide the PC Card into either slot.

4. If you encounter excess resistance, you may need to
flip the card over and repeat Step 3. The card is fully
seated when the card ejector is extended.

5. Use Program Manager to check the Card View icon. It
will identify which slot contains a PC Card and which
slot is empty. PC Cards are identified as drive D:\
and E:\.

B

CAUTION: Reinstall the antenna connector panel to maintain unit integrity.

6. Reinstall the drive bay cover.

5055 Data Collection PC User ’s Guide

2-6

SECTION 2

Operation

1

5

1. Hard drive

2. PC Card ejector

3. Antenna connector panel (inside shown)

4. Internal antenna cable

5. PC card (radio module shown)

2

4

3

Figure 2-4

Drive Bays

5055 Data Collection PC User ’s Guide

2-7

Operation

SECTION 2

Radio Installation

When installing a PC card radio module, you must install
the following items before the radio can operate properly:

The

"

"

"

"

"

internal

The

external

The cover for the external antenna cable channel.

The antenna adapter bracket.

The antennas.

antenna cable and connector.

antenna cable and connector.

The following pages provide illustrated installation instruc­tions f or each of those components. Install each component
in the order these instructions are presented.

Internal Antenna Cable Installation

Typically, the radio PC card module comes with the internal
antenna cable attached to it. The free end is a threaded
connector which must be installed in the antenna connector
panel. Refer to Figure 2-2, item #4 for an example of how
this cable is routed and installed. Follow the instructions
below to install connectors in the drive bay cover. It is as­sumed that the PC card radio module has just been
installed in the computer and the drive bay cover has not
been reinstalled.

1. Choose a mounting hole in the antenna connector pan­el that allows you to dress the cable to its full length.

2. Remove the plug from that hole in the antenna con­nector panel.

3. Slip the t hreaded connector through the hole.

4. Place a shaker type washer onto the connector.

5. Thread a nut onto the connector. Tighten securely.
Take care NOT to overtighten the nut to prevent
breaking the connector.

6. Reinstall the antenna connector panel.

5055 Data Collection PC User ’s Guide

2-8

SECTION 2

Operation

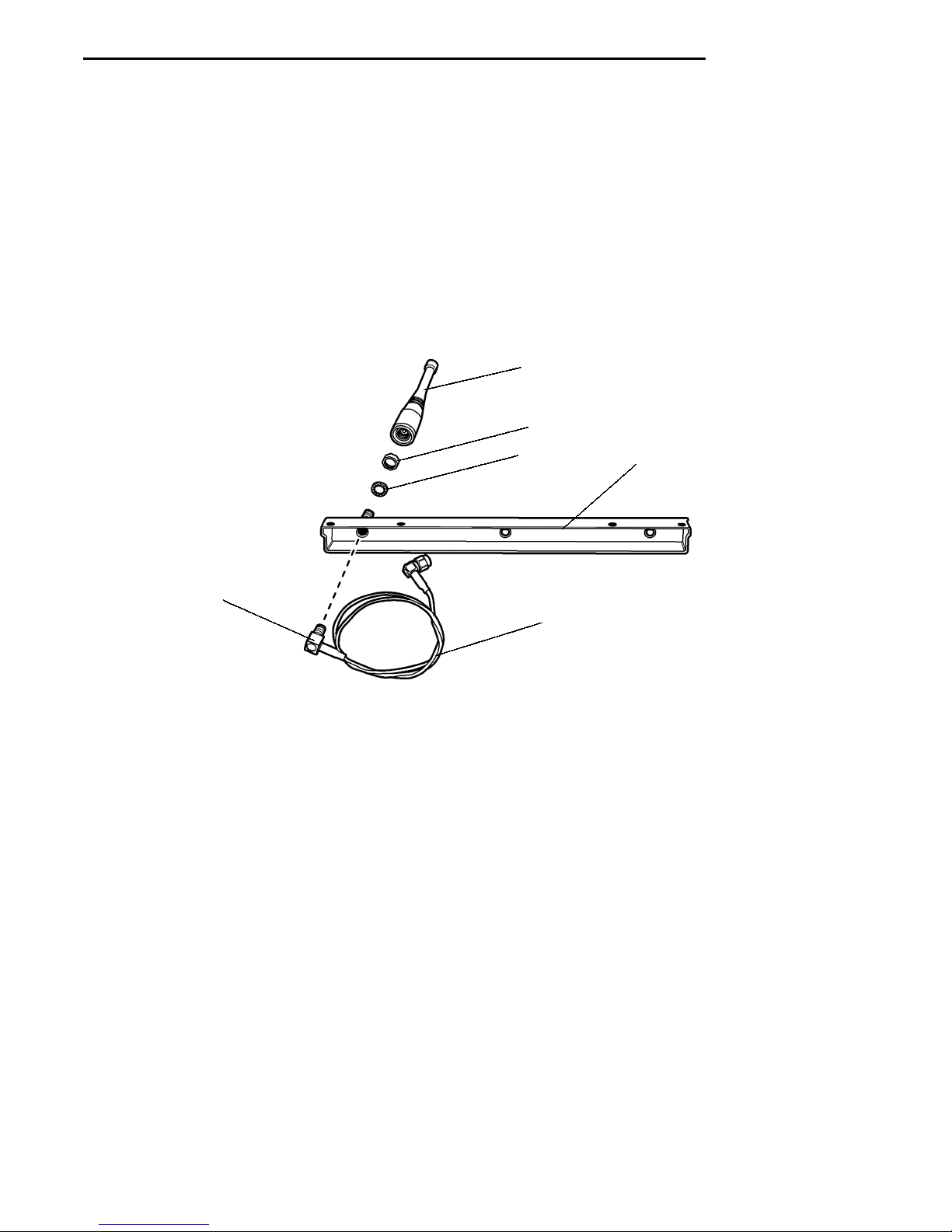

Antenna Installation

The antenna mounts on a bracket on the top of the comput­er. Refer to Figure 2-3 and follow the instructions below to
install an antenna on the mounting bracket.

1. Slip the threaded connector thru the mounting hole.

2. Slide a shaker washer onto the connector.

3. Secure the antenna with the nut provided.

4. Screw the antenna onto the connector.

1

2

3

6

5

1. Antenna

2. Nut

3. Shaker washer

4. Mounting bracket

5. Internal antenna cable

6. Threaded connector

4

Figure 2-5

Antenna Installation

5055 Data Collection PC User ’s Guide

2-9

Operation

SECTION 2

Multiple Antennas

Certain radio types may use two antennas to enhance the
performance of that particular radio. This is evident when
a PC card radio has two antenna cables attached to it. If
two antennas serve a single radio, locate them at opposite
ends of the antenna mounting bracket. A third antenna
can be installed in the remaining center hole.

See the preceding page for general antenna installation in­structions. The illustration below is a guideline for instal­ling multiple antennas

1

(cables NOT shown)

3

2

.

Antenna Location Chart

Radio type Antenna location

Proxim 1

802.11DS 1 and 3

1. Antenna

2. Antenna

3. Antenna

5055 Data Collection PC User ’s Guide

2-10

(connected to same radio as #3)
(independent from 1 and 3)
(connected to same radio as #1)

Figure 2-6

Multiple Antennas

SECTION 2

Operation

External Antenna Cable

After the antenna mounting bracket is assembled, cables
must be dressed into the channel and the cover installed

before

the antenna bracket is attached to the computer.

1. Dress the cable into the channel on the computer.

2. Connect the cable to the radio output connector.

3. Install the antenna cable channel cover as shown.

4. Secure the channel cover with the screws provided.

1

1. Antenna and bracket assembly

2. Channel cover

3. Radio output connector

Figure 2-7

Antenna Cable Channel Cover

5055 Data Collection PC User ’s Guide

2

3

2-11

Operation

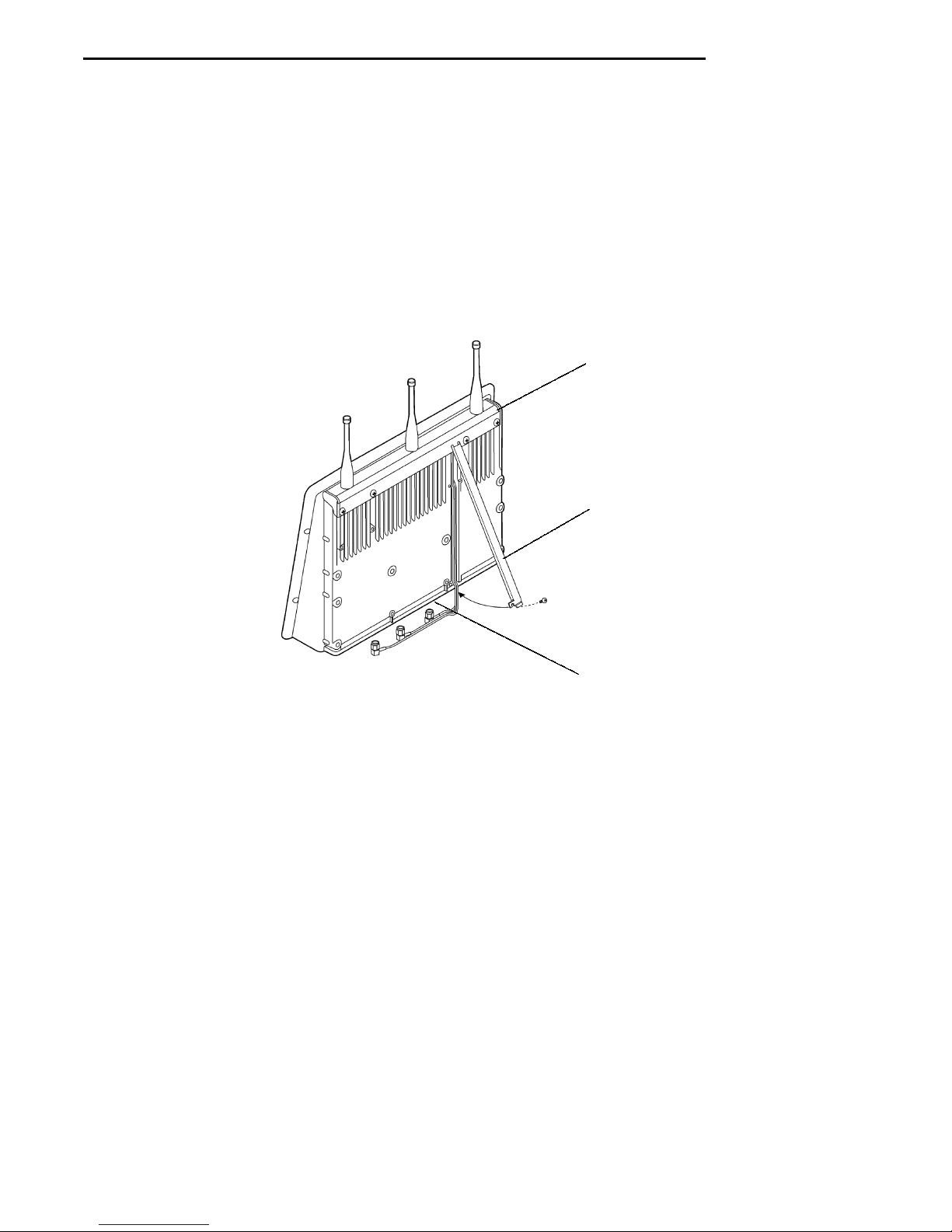

Antenna Bracket Installation

Position the antenna and bracket assembly as shown below.
Install this assembly using the Phillips screws provided
with the mounting bracket kit. Make sure all screws are
tightened securely.

B

CAUTION: Dress antenna cables within the channel and the antenna

mounting bracket with care to guard against pinching or
damaging the cables. Damaged or pinched cables can
diminish or prevent radio transmission and reception
performance.

SECTION 2

5055 Data Collection PC User ’s Guide

2-12

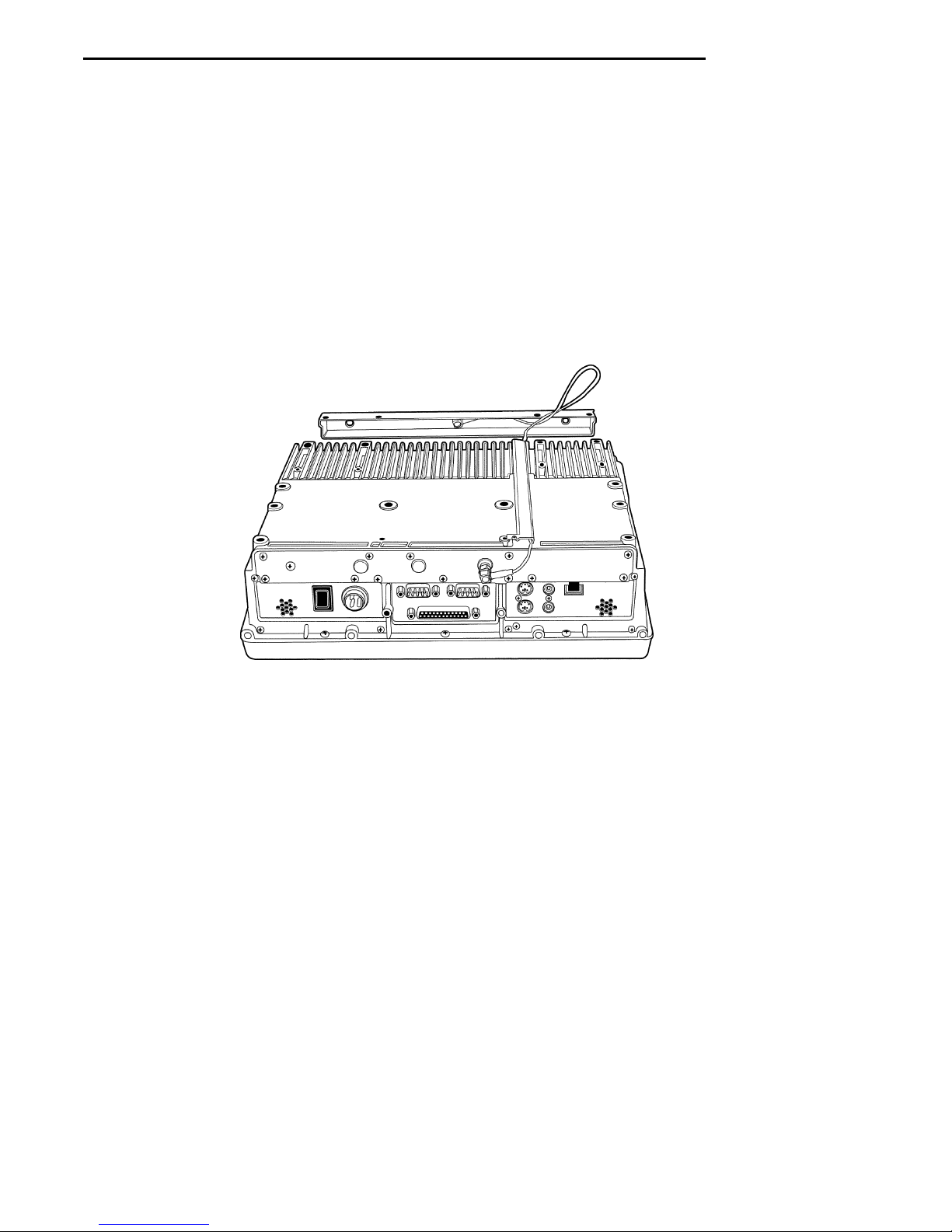

Figure 2-8

Antenna and Bracket Assembly

(installed)

SECTION 2

Operation

Connector Cover

A protective cover guards the antenna connectors and the
exposed portion of the external antenna cable against
physical damage. If you have this option, install the protec­tive cover as shown below. Tighten all installation screws
securely.

1

1. Connection cover (installed)

Figure 2-9

Connection Cover

5055 Data Collection PC User ’s Guide

2-13

Operation

Connector View

SECTION 2

Desktop Mount Option

This computer can be used as a stationary computer on a
desktop or other work surface. An optional heavily­weighted baseplate and adjustable twin-ball pedestal are
available, as shown in Figure 2-10. An ac-dc power con­verter is required to power the computer for desktop use.

Rear View

1

2

5055 Data Collection PC User ’s Guide

2-14

3

4

1. Adjustment knob

2. Twin-ball pedestal

3. Mounting bracket

4. Weighted baseplate

Figure 2-10

Desktop Mount Options

SECTION 2

PC (PCMCIA) Cards

This computer allows the use of PCMCIA Type II and Type
III PC Cards. Instructions for installing PC cards are pro­vided earlier in this section.

Operation

1

1. PC card ejector

2. Hard drive release (lift up, then pull out)

Figure 2-11

Drive and PC Card Removal

2

Removing PC Cards

To remove a PC Card, follow these steps:

1. Remove the antenna connector panel.

2. Determine which PC Card you w ant to remove.

3. Press

inward

4. Grasp the edge of the card to remove it.

5. Reinstall the panel that you removed in Step 1.

on the ejector to release the PC Card.

5055 Data Collection PC User ’s Guide

1

2-15

Operation

Patch Antenna

The 2.4 GHz “patch” antenna can be mounted on a wall us­ing either screws or small patches of adhesive-backed hook­and-loop fastener material. Since system performance and
antenna polarization is site-dependent, a permanent
mounting location and orientation may require some exper­imentation. In most fixed installations the antenna should
initially be mounted in a vertically polarized position: e.g.,
with the cable from the antenna parallel to the floor/ceiling.

In mobile installations, best performance will be achieved
by mounting the antenna flat,
cage. Use at least two screws to hold the antenna in place.

on top

SECTION 2

of the operator safety

Horizontal
Polarization

5055 Data Collection PC User ’s Guide

2-16

Vertical
Polarization

Figure 2-12

Antenna Polarization

SECTION 2

Start-up

All options and accessories must be connected or installed,
and the power supply connected to the computer. It will
start up (“boot”) to a factory-configured operating system
when you move the On/Off switch to the ON position. If the
computer does not, it may be necessary to install an operat­ing system or application software.

Factory-configured operating systems currently available:

MS DOS

"

Windows 95

"

Windows NT

"

Windows 2000

"

Installing Software

Operation

External Drive

An external CD-ROM drive is offered as an optional acces­sory for the Intermec 5055 Data Collection PC. The correct
device driver for this factory-offered accessory is already
loaded on your computer to simply software installation
and upgrades.

Downloading from a Network

Where individual computers (“clients”) are connected to a
network ( “server”) it is often more efficient to download ap­plication software directly from the server to each client.

5055 Data Collection PC User ’s Guide

2-17

Operation

Restart (or, “Reboot”)

"

NOTE: Make sure that a keyboard is attached to the computer BEFORE

attempting to perform a warm restart.

If the system locks up during normal operations, you can
reset it by performing either a “warm” or a “cold” restart.
Usethewarmrestarttoclearthesystemmemorytorun
another program but not perform a self-test. When a warm
restart does not restore operation, perform a cold restart.

Warm Restart

If your operating system is MS-DOS, exit the current ap­plication, then do the following to perform a warm restart:

1. Press
keyboard simulator to reprocess the AUTOEXEC.BAT
and CONFIG.SYS files.

2. Load, or reload, the desired software application.

3. Resume normal operation.

If your operating system is Windows 95, NT, or 2000, select

StartoShut Down

Restart

lect

Ctrl+Alt+Del

to perform a restart.

on the keyboard or displayed

from the Windows desktop, then se-

SECTION 2

Cold Restart

Perform a proper system shutdown, then toggle the
switch on the bottom of the computer to the Off position.
Wait one second, then toggle the switch back to the On posi­tion. If the
following:

For fixed-mount units

from the wall outlet for a few seconds. Be sure to plug
it back in.

For vehicle-mount units

DC power converter for a few seconds.

5055 Data Collection PC User ’s Guide

2-18

On/Off

On/Off

switch is inaccessible, then do one of the

, unplug the AC power supply

, interrupt power to the DC-

SECTION 2

Available Tethered Scanners

The tethered bar code scanner normally attaches to your
computer at the 9-pin D-sub connector COM1. When the
scanning application is installed, the computer provides the
power (5 volts dc) to operate the scanner. Your computer
supports specific Intermec scanners, plus the following
Symbol and PSC scanners, which are available under the
Part Numbers shown:

Symbol Scanners

Straight screw-on connector serial cable 321-518-001

"

LS-3203ER-I200A, Extended Range part number

"

858-042-800

LS-3603-I200A Fuzzy Logic part number 858-079-901

"

Operation

PSC Scanners

Straight screw-on connector serial cable 321-476-082

"

PSC5300 IP Series Standard Range part number

"

858-065-012

PSC5300 IP Series VIN part number 858-065-022

"

PSC5300 IP Series Long Range part number

"

858-065-052

PSC5300 IP Series Extra Long Range part number

"

858-065-072

PSC5300 IP Series Ultra Long Range part number

"

858-065-092

PSC5300 IP Series Long Range High Power part

"

number 858-065-152

PSC5300 IP Series Extra Long Range High Power

"

part number 858-065-172

5055 Data Collection PC User ’s Guide

2-19

Operation

Installed Scanner Software

Tethered scanning is supported for any external device that
sends its serial data at 9600 baud, 8 data bits, no parity, 1
stop bit with an ASCII STX (hex 02) before the data and an
ASCII ETX (hex 03) after the data. No protocols, such as
ACK/NAK, RTS/CTS, or XON/XOFF, are supported. All
8-bit characters between the STX and ETX will be stuffed
in the PC BIOS key buffer.

Setting Terminal Emulation

1. In AUTOEXEC.BAT, make sure the scanner driver is
loaded with 65SCN7B.

2. Select the Terminal Emulation Main Menu from the
Terminal Emulation Mode.

3. Select

4. Enter “CR52401” for the password.

5. Select
ENT five times.

6. At Main Menu, select

5) Scanner Test

If you experience problems when using your laser scanner
with terminal emulation, try these steps:

1) Set-up Parms

2) Barcode Parmso3) Laser

.

.

4) Testso1) Peripherals

SECTION 2

,thenpress

o

1. Reboot to the DOS prompt by performing a reset
[press the RESET button or CTRL + ALT + DEL].
Press 0 at pause.

2. Type DEL CONFIG.DAT, then press ENT.

3. Press CTRL + ALT + DEL to reboot.

5055 Data Collection PC User ’s Guide

2-20

SECTION 2

Setting DOS Applications

In AUTOEXEC.BAT, make sure the scanner driver is
loaded in the PS/DOS section with 65SCN7B-E-W.

"

NOTE: PCS scanners do NOT require RS-232 setup.

Setting RS-232 Parameters

(for Symbol LS3203 or LS3603 Scanners)

Tethered laser power is always on, so a tethered laser can
scan, decode, and send the data as soon as it is connected,
even when it is not properly configured. Therefore, proper
operation of the tethered laser is no indication that the la ­ser is correctly configured for the scanner driver 65SCN7B.

Scan the following bar codes to set up your LS3203ER­I200A or LS3603-I200A scanner so it will work with your
computer. Scan all the bar codes (except for the Host
Transmit Code ID Character and Host Decode Options) to
enable your scanner to use the 65SCN7B scanner driver.

Operation

Set All Defaults

Scan the Set All Defaults bar code to set up your scanner
for RS-232 serial communication.

5055 Data Collection PC User ’s Guide

2-21

Operation

SECTION 2

Data Transmission Format

1. Scan the <PREFIX><DATA><SUFFIX> bar code.

<PREFIX><DATA><SUFFIX>

2. Scan the PREFIX bar code.

3. Scan the PREFIX values 1,0,0,2 bar codes from page
2-23; to change your selection, scan CANCEL.

PREFIX

4. Scan the SUFFIX bar code.

5. Scan the SUFFIX values 1,0,0,3 bar codes from page
2-23; to change your selection, scan CANCEL.

SUFFIX

5055 Data Collection PC User ’s Guide

2-22

SECTION 2

0

1

2

Operation

RS-232 Host Prefix/Suffix Values

6

7

8

3

9

4

CANCEL

5

5055 Data Collection PC User ’s Guide

2-23

Operation

SECTION 2

RS-232 Host Parity

NONE

RS-232 Host Stop Bit Select

1STOPBIT

RS-232 Host ASCII Format

8-BIT

5055 Data Collection PC User ’s Guide

2-24

SECTION 2

Operation

RS-232 Host Transmit Code ID Character

(Optional)

Select to enable or disable this setting. The default is
Transmit Code ID Character. The Transmit Code ID Char­acter must be enabled if you are using FWP640H0 or
FWP640H4 terminal emulation software in your computer.

TRANSMIT CODE ID CHARACTER

DO NOT TRANSMIT
CODE ID CHARACTER

RS-232 Host Decode Options

Scan one of these bar codes to enable or disable the audible
beep after a good scan.‘

DO NOT BEEP AFTER
GOOD DECODE

BEEP AFTER
GOOD DECODE

5055 Data Collection PC User ’s Guide

2-25

Operation

SECTION 2

Scanner Problems

If you have problems with your scanner:

1. Refer to the user guide for your scanner.

2. Call the 24-hour Customer Support Center at
1-800-755-5505.

5055 Data Collection PC User ’s Guide

2-26

Section 3

System Setup

""""""""""""""""""""""""""""

The System Configuration Utility (SCU, or “system setup”)
is identical with standard personal computers in most re­spects. You will find a complete description of the SCU in
the

5055 Data Collection PC Technical Reference

978-054-002.



Unique features found in the Intermec

5055 Data Collec­tion PC setup may be especially important to you. These
unique features are described in this section. Among them
are:

Designating the startup device.

"

The ability to rotate the display 180 degrees (which

"

allows mounting the unit upside down).
Disabling the mouse to free up available IRQs.

"

,P/N:

5055 Data Collection PC User ’s Guide

3-1

System Setup

System Configuration Utility

A PS/2-compatible keyboard is required to configure the In­termec Technologies System Configuration Utility (SCU).
Turn off the 5055 PC before attaching the keyboard, if one
is not attached already.

SECTION 3

Reboot the 5055 PC. Be ready to press the

[S]

and

keys when the following prompt appears just after

<Ctrl>,<Alt>

the system memory tests:

<CTRL-ALT-S> to enter the System Configuration Utility

When you see this prompt, you have 2.5 seconds to press all
three keys at the same time to enter the SCU, otherwise
the computer proceeds to boot up.

"

NOTE: Any changes made to the SCU are not effective until they are saved

and the 5055 PC is rebooted. Press
save the changes.

Press

<Esc>

dow, then press

<Esc>

to exit any window without changes. Press

repeatedly to activate the Escape Key Pressed win-

OK

to save the current setup parameters to

<Alt>, [X], [S]

, then

<Enter>

the CMOS RAM and reboot the 5055 PC.

Disks

This setup option designates t he startup device (“drive”) for
the 5055 PC. Press
contains options to enable the Virus Alert, determine from
which drive to boot the computer (Removable is C), and d ic­tate which drives are enabled (IDE Settings).

<Alt>,[D]

for the Disks menu which

,

to

Virus Alert

Press
the
if Sector 0 of the bootable disk has been changed. The de­fault is to enable the warning.

5055 Data Collection PC User ’s Guide

3-2

<Alt>,[D],[V]

Virus Alert

to add or remove a check mark from

option. If checked, this enables a warning

SECTION 3

System Setup

IDE Settings

"

NOTE: “Drive 2” must be enabled if the removable IDE drive is installed in

the 5055 PC.

Press

<Alt>,[D],[I]

1. Press

<Tab>

to enable enhanced IDE settings.

twice to move the cursor to the “Drive 1”

box which sets the internal drive.

Press

"

or to remove the “X” to disable t he

Enabled

Press

"

disable the Programmed I/O (PIO) mode (

Mode

[D]

to add an “X” to drive-enable “Drive 1”

Drive

option.

[P]

to add or remove an “X” to enable or

)option.

PIO

2. If this 5055 PC is set up to have a removable drive, be
sure the internal drive is enabled, via the “Drive 1”
box. Press

<Tab>

to move the cursor into the “Drive

2” box which sets the removable IDE drive.

"

"

3. Press

Press
or to remove the “X” to disable

Press
disable

[D]

[P]

PIO Mode

<Enter>

to add an “X” to drive-enable “Drive 2”

Drive Enabled

to add or remove an “X” to enable or

.

to save changes and exit.

Removable is C

Press
able or disable
IDE drive becomes the startup device, otherwise the inter­nal IDE drive is the startup device.

<Alt>,[D],[R]

Removable is C

to add or remove a check mark to en-

. If enabled, the removable

.

5055 Data Collection PC User ’s Guide

3-3

System Setup

SECTION 3

Components

Press

<Alt>, [C]

for the

Components

menu to set COM

and parallel (LPT) ports, enable scanning, and do settings.

COM Ports

This option (the serial port power option) sets up the port
address and interrupt for two serial (COM) ports. Press

<Alt>, [C], [C]

1. Press

Settings

rupt for the first internal COM port.

"

NOTE: In steps 2 and 3, a dot appears in the parentheses in front of the se-

lected option:

2. Select one of the following for the first internal COM
port (COM A):

"

"

"

"

3. Press

COM B Settings

to select the port address and interrupt for the second
internal COM port (COM B):

"

"

"

"

Press

<Enter>

your selections.

for the COM Ports window.

<Tab>

twice to move the cursor to the

box and select the port address and inter-

“(S)”

[N]

None

[1]

COM 1, 3F8, IRQ 4

[2]

COM 2, 2F8, IRQ 3

[3]

COM 4, 2E8, IRQ 3

<Tab>

to move the cursor to the

(default)

box, then press one of the following

[N]

None

[1]

COM 1, 3F8, IRQ 4

[2]

COM 2, 2F8, IRQ 3

[3]

COM 4, 2E8, IRQ 3

(default)

to exit the COM Ports window and save

COM A

5055 Data Collection PC User ’s Guide

3-4

SECTION 3

System Setup

Scanner COMx

Press
check mark to enable or disable that COM port. If checked,
the enabled COM port powers a peripheral device, such as
by outputting a +5 volts CD on the RI line, pin 9.

Be sure the appropriate COM port is enabled before attach­ing a scanner to the 5055 PC. The factory default has both
of these options disabled (no check mark).

<Alt>, [C], [1]or<Alt>, [C], [2]

to add or remove a

LPT Port

Press
assign the port address and interrupt line for the internal
parallel (printer) port.

"

NOTE: In steps 2 and 3, an option is selected when a dot appears in the

parentheses in front of that option:

Press
selections.

<Alt>,[C],[P]

1. Press

<Tab>

to access the LPT Port window and

twice to access the

“(S)”

Port Address

2. Select one of the following port addresses for the par­allel port:

[N]

"

"

"

"

3. Press

Interrupt Line

None

[1]

LPT1, Addr 3BC

[2]

LPT2, Addr 378

[3]

LPT3, Addr 278

<Tab>

to move the cursor to the

(default)

box, then press either of the following

to select the interrupt line f or the parallel port.

[5]

"

"

<Enter>

IRQ 5

[7]

IRQ 7

(default)

to exit the LPT Port window and save your

box.

5055 Data Collection PC User ’s Guide

3-5

System Setup

SECTION 3

LPT Type

Press
select parallel port enhanced capabilities.

"

NOTE: In step 2, a dot appears in the parentheses in front of the selected

option:

<Alt>,[C],[T]

1. Press

“(S)”

<Tab>

to access the LPT Type window and

twice to access the

Port Definition

2. Select one of the following four parallel (printer) port
advanced capabilities:

[S]

Standard AT (Centronics)

A standard interface for connecting printers and
other parallel devices.

[B]

Bidirectional (PS/2)

(default)

A standard interface for communicating between
the PC and attached devices using the PS/2 mode.

[E]

Enhanced Parallel (EPP)

A parallel port standard for PCs that supports bi­directional communications. EPP is good for links
that change directions frequently, such as drives.

box.

Note EPP and ECP are about ten times faster than the
older Centronics standard.

Press

<Enter>

selections.

Mouse

Press
enable or disable the mouse port to free IRQ 12 for use with
other peripherals. The default enables the mouse port.

5055 Data Collection PC User ’s Guide

3-6

<Alt>, [C], [M]

[C]

Extended Capabilities (ECP)

A parallel port standard for PCs that is similar to
the EPP. ECP is good for transferring large blocks
of data quickly, such as to and from printers.

to exit the LPT Type window and save your

to add or remove the check mark to

SECTION 3 System Setup

Display

WARNING: ONLY use the invert mounting and display option in indoor

environments. This prevents damage to the computer.

Display only applies to the color VGA display and inverts
the display contents 180 degrees. This allows for installing
the 5055 PC in diff erent positions such as on a wall.

The default display has the connectors to the bottom of the
5055 PC, thus the Display option has no check mark.

To “invert” the display, or rotate the display 180 degrees so
that the display has the antenna to the bottom, press
<Alt>, [C], [D] to enter a check mark.

Keyboard Numlock

Press <Alt>, [C], [N] to add or remove the check mark to
start the 5055 PC with the Num Lock key enabled (de-
fault) or disabled.

Keyboard Repeat

Press <Alt>, [C], [K] for the Keyboard Repeat window to
set the keyboard auto repeat delay and repeat rate.

1. Press <Tab> twice to access the Key Repeat Rate
box to select the repetition rate to be set for the
keyboard when the PC boots up.

"

NOTE:

In steps 2 and 4, a dot appears in the parentheses in front of the se­lected option:

“(S)”

2. Press the up and down arrow keys between the six cps
(characters per second) rates (2, 6, 10, 15, 20 or 30 —
default is 10), then press the space bar to select a rate.

3. Press <Tab> to move the cursor to the Key Delay box
and select a delay time between repetitions.

4. Press the up and down arrow keys between the delay
times (1/4, 1/2 (default), 3/4, or 1 second), then press
the space bar to select that delay time.

Press <Enter> to exit the Keyboard Repeat window and
save your selections.

5055 Data Collection PC User ’s Guide 3-7

System Setup SECTION 3

3-8 5055 Data Collection PC User’s Guide

Section 4

Connector Pinouts

""""""""""""""""""""""""""""

Connectors

Connectors are located on the bottom of the computer and
are identified in Figure 4-1 below.

1

6

5

2

1. 6-pin mini DIN

2. LPT1

3. COM2

4. COM1

5. 6-pin mini DIN

6. Network

(printer)

4

(PS/2 mouse)

(PS/2 keyboard)

3

Figure 4-1

Connectors

5055 Data Collection PC User ’s Guide

4-1

Connector Pinouts

Parallel Printer Port

The LPT1 printer port is an enhanced parallel port with a
24-pin (DB25)
data communication for a line printer.

female

Parallel Port

SECTION 4

connector. It provides bidirectional

Tab le 4 -1

(LPT1)

Pinout

Pin

1PSTB;datastrobe

2 PLD0; data 0

3 PLD1; data 1

4 PLD2; data 2

5 PLD3; data 3

6 PLD4; data 4

7 PLD5; data 5

8 PLD6; data 6

9 PLD7; data 7

10 PACK; acknowledge

11 PBUSY; busy

12 PPE; paper end

13 PSLCT: printer selected

14 PAFD; auto feed

15 PERR; printer error

16 PINIT; printer initialized

17 PSLIN; printer selected

18–25 Ground

Signal

13

25

5055 Data Collection PC User ’s Guide

4-2

1

14

SECTION 4

COM Serial Ports (COM1, COM2)

Each COM serial port has its own address and uses a 9-pin

connector to attach RS-232 serial devices, such as a

male

printer, a mouse, an external modem, a scanner, or a serial
network connection.

Tab le 4 -2

Serial Communication Pors (COM1/COM2)

Connector Pinouts

Port

COM1 4 03FS

COM2 3 02F8

Serial Communication Port Pinouts

Pin

1 DCD; data carrier detect

2 RXD; receive data

3TXD;transmitdata

4 DTR; data terminal ready

5 GND; ground

6 DSR; data set ready

7RTS;readytosend

8CTS;cleartosend

9 RI; ring indicator

Signal

scanner)

IRQ Base I/O

Tab le 4 -3

or

(selectable for tethered

5volsdc

15

96

5055 Data Collection PC User ’s Guide

4-3

Connector Pinouts

SECTION 4

Keyboard and Mouse Ports

These 6-pin mini-DIN, PS/2-standard connectors connect an
external keyboard and mouse to the computer.

Where an external keyboard is
er, you may use an emulated keyboard

application)

"

NOTE: You must have the external mouse or keyboard plugged into the cor-

rect port. If those are reversed, neither device will work properly.

Pin

1 Keyboard data

2 No connection

3 Ground

4+5voltsdc

5 Keyboard clock

6 No connection

that can be activated on the display.

Tab le 4 -4

Keyboard/Mouse Port Pinouts

Signal

(or mouse data)

(or mouse clock)

not connected

(if available in your

56

to the comput-

5055 Data Collection PC User ’s Guide

4-4

4

2

3

1

SECTION 4

Connector Pinouts

10BASE-T Interface

The RJ-45 type 8-pin modular connector shown below pro­vides an interface to an Ethernet local area network. Pin­outs are as shown below when the user views the connector
straight on from the outside of the computer.

Tab le 4 -5

RJ-45 Pinouts

Pin

1TX+(TOP)

2TX–(TON)

3RX+(TIP)

4 Not Used

5 Not Used

6RX–(TIN)

7 Not Used

8 Not Used

Signal

18

5055 Data Collection PC User ’s Guide

4-5

Connector Pinouts

Audio Connections

The microphone and earphone plug pinouts are shown in
Figure 4-2 below. Note that 2.5 volts bias is present on the
computer’s microphone jack.

"

NOTE: Make sure you plug the audio connectors into the correct output

jacks. Failure to do so can result in damage to the earphone.

1

2

Microphone

SECTION 4

Earphone

5

1. Bias

(2.5 volts)

2. Mic +

3. Right

4. Left

5. Common

(ground)

Figure 4-2

Audio Connectors

3

4

5055 Data Collection PC User ’s Guide

4-6

1

Corporate Headquarters

6001 36th Avenue West
Everett,Washington 98203

tel [phone]

fax [phone]

www.intermec.com

5055 Data Collection PC Users Guide - April 2002

*961054017*

*961054017* REV B
