Intermec 4985 Programmer's Manual

4985 Network Controller

PROGRAMMER’S

GUIDE

" " " " " " " " " " " " " " " " " " " " " " " " " " " "

PN: 977-028-006

Revision A

May 1996

"

NOTICE This publicationcontains information proprietary to Intermec Technologies Corpo-

ration. It is being supplied to you with the express understanding that the in­formation contained herein is for the benefit of the contracting party only,and
may not be copied, distributed, or displayed to third parties without the express
written consent of Intermec Technologies Corporation, and shall be returned to
Intermec Technologies Corporation upon written request. If a purchase, license, or
nondisclosure agreement has been executed, the terms of that agreement shall
govern this document.

This publication is furnished for information only, and the information in it is
subject to change without notice. Although every effort has been made to provide
complete and accurate information, Intermec Technologies Corporation assumes
no responsibility or liability for any errors or inaccuracies that may appear in this
document.

Disclaimer of Warranties. The sample source code included in this document is
presented for reference only. The code does not necessarily represent complete,
tested programs. The code is provided “AS IS WITH ALL FAULTS.” ALL

WARRANTIES ARE EXPRESSLY DISCLAIMED, INCLUDING THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE.

Wewelcome your comments concerning this publication. Although every effort has
been made to keep it free of errors, some may occur. When reporting a specific
problem, please describe it briefly and include the book title and part number,as
well as the paragraph or figure number and the page number.

Send your comments to:
Intermec Technologies Corporation
Publications Department
550 Second Street SE
Cedar Rapids, IA 52401

NORAND and PEN*KEY are registered trademarks of Intermec Technologies
Corporation.

Ó 1991 Intermec Technologies Corporation. All rights reserved.

This publication printed on recycled paper.

Acknowledgments

MS-DOS is a registered trademark of Microsoft Corporation.

FCC Computer Compliance

"

NOTICE This equipment meets Class A digital device limits per Part 15 of FCC Rules.

These limits protect against interference in a commercial area. It emits, uses, and
can radiate radio frequency energy. If you do not install and use the equipment
according to its instructions, it may interfere with radio signals. Using it in a
residential area is likely to cause interference. If this occurs, you must correct the
interference at your expense.

CONTENTS

" " " " " " " " " " " " " " " " " " " " " " " " " " " "

SECTION 1

Introduction 1-1. . .. . . . . . . .. . . . . . . .. . . . . . . .. . . . . . . .. . . . . . . .. . . .

About the Controller 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Host Interfaces 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 2

Getting Started 2-1. . .. . . . . . . .. . . . . . . .. . . . . . . .. . . . . . . .. . . . . . . ..

Network Configurations 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

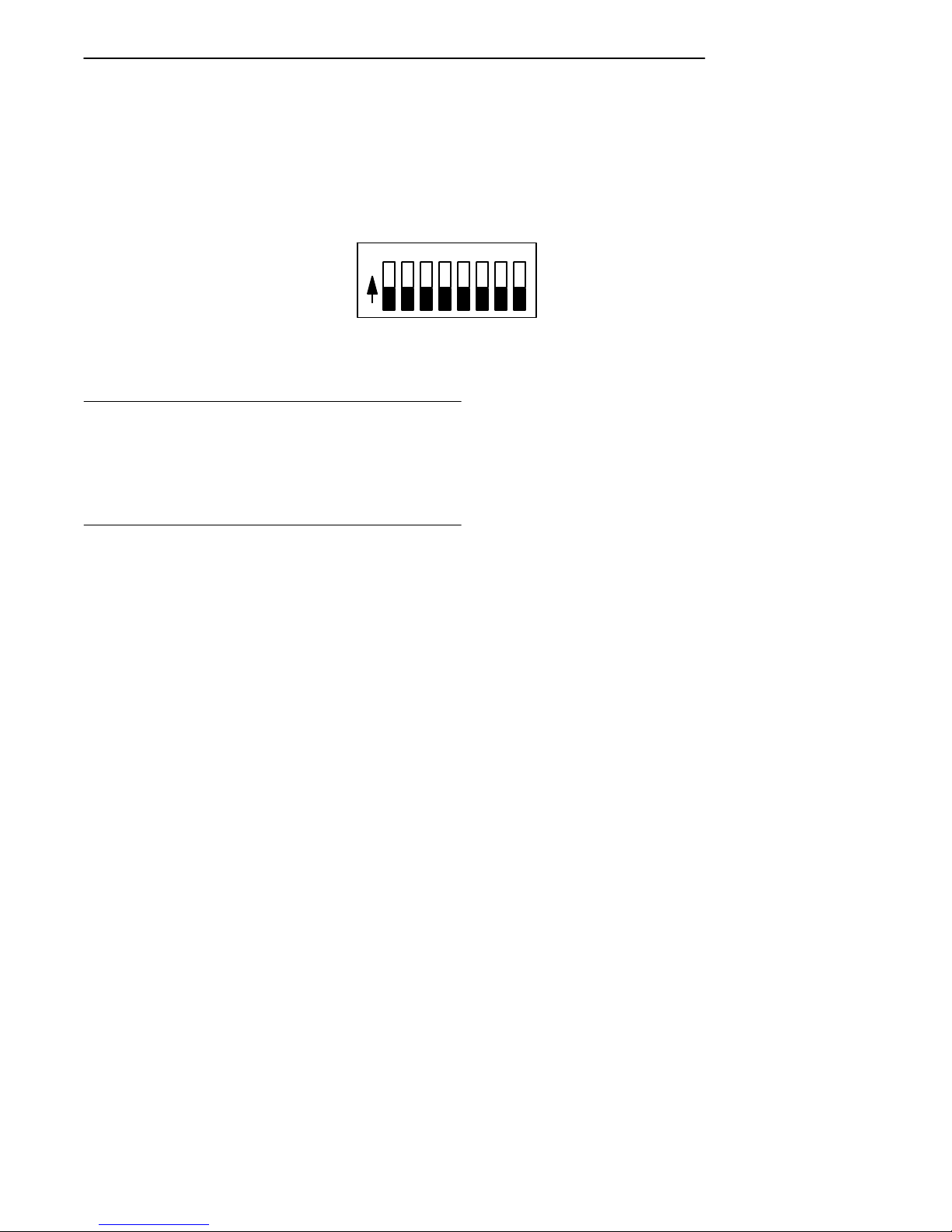

4985 Configuration Switches 2-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Communication Session 2-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Device Channels 2-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Help 2-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Beeping 2-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Connections 2-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Testing 2-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Modem Indicator 2-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cleaning 2-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Specifications 2-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Hardware 2-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Unpacking Equipment 2-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

General Equipment 2-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Optional Peripherals 2-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Single Dock 2-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Multidock 2-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Auxiliary Power Unit (APU) 2-15. . . . . . . . . . . . . . . . . . . . . . . . .

Power Supply 2-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Modems 2-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Location 2-18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

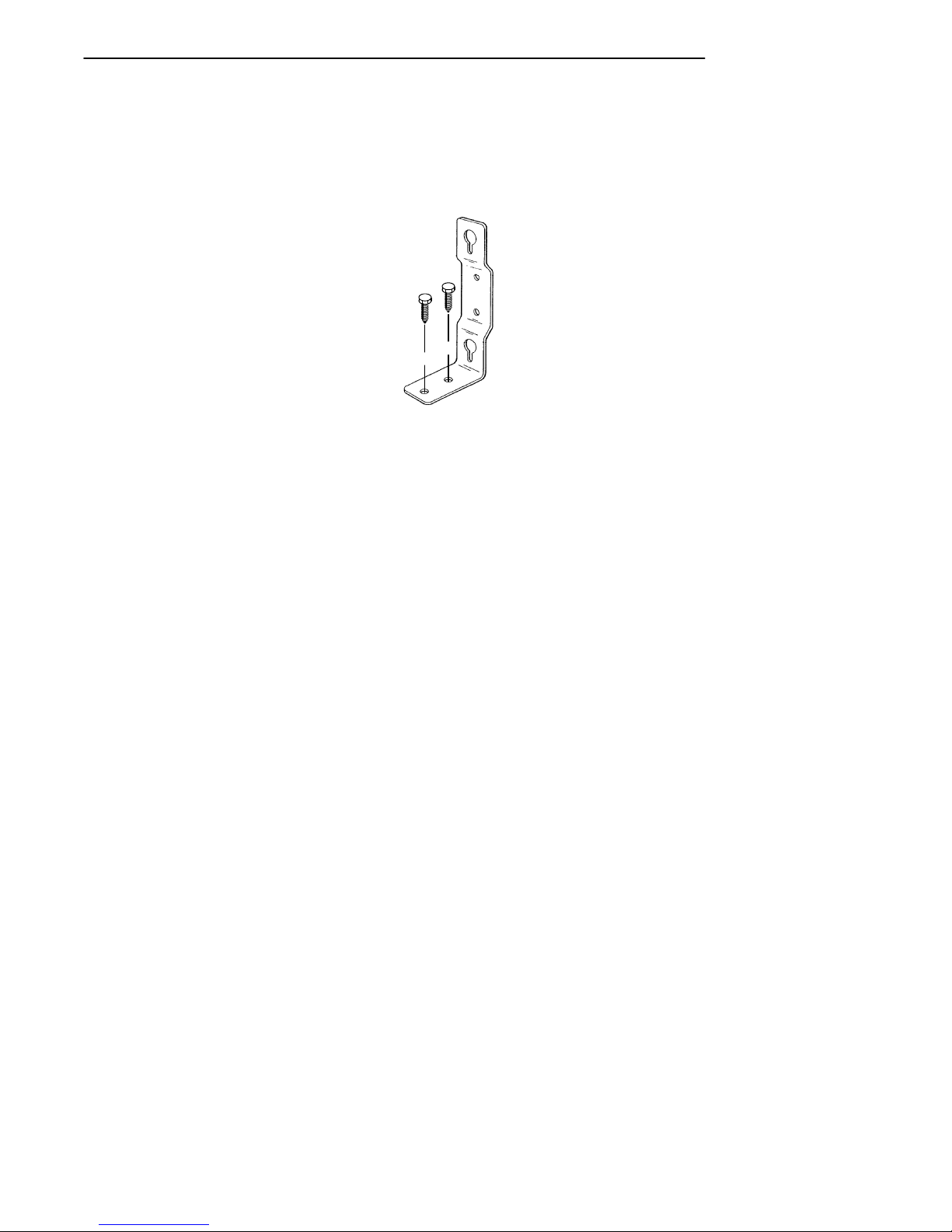

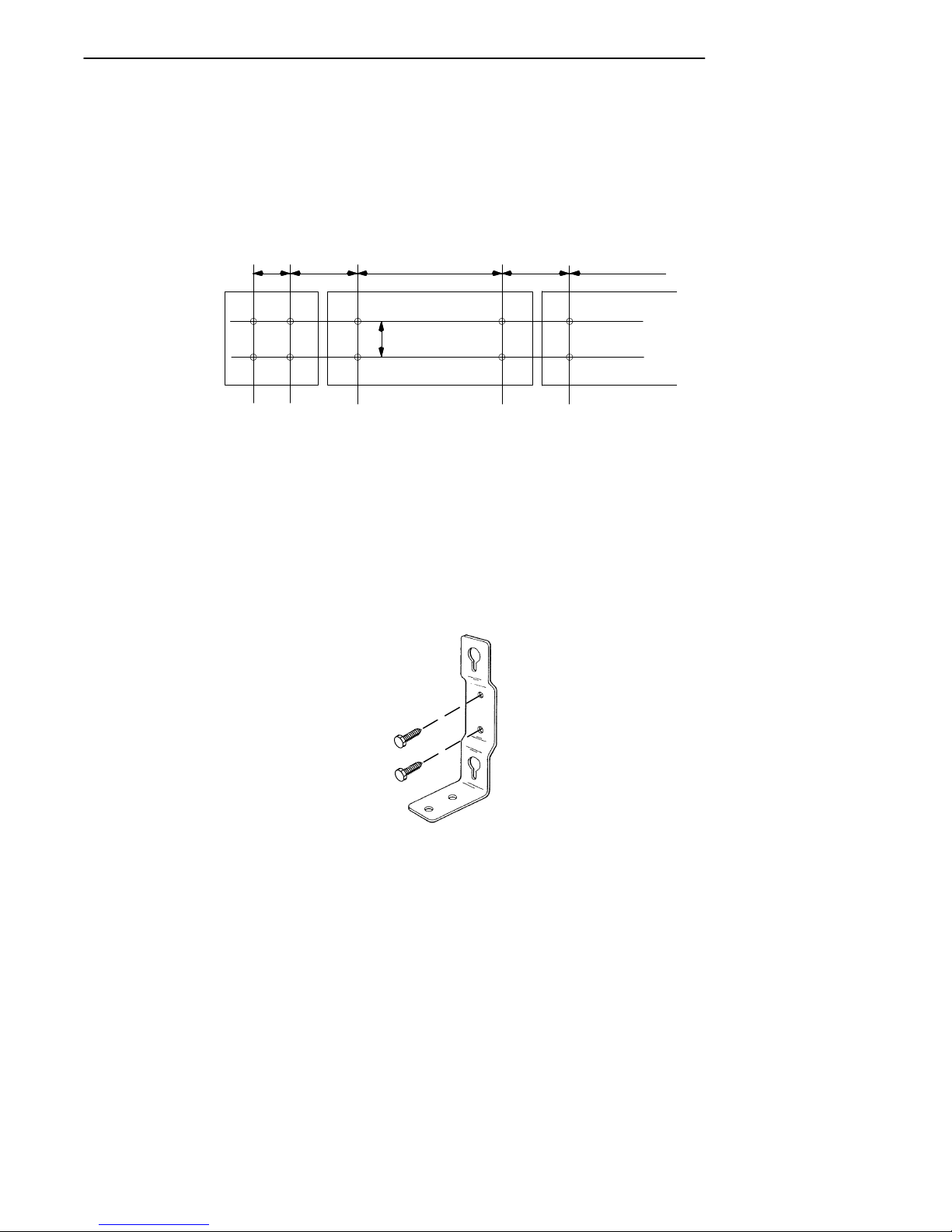

Brackets 2-18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4985 Network Controller Programmer’s Guide i

CONTENTS "

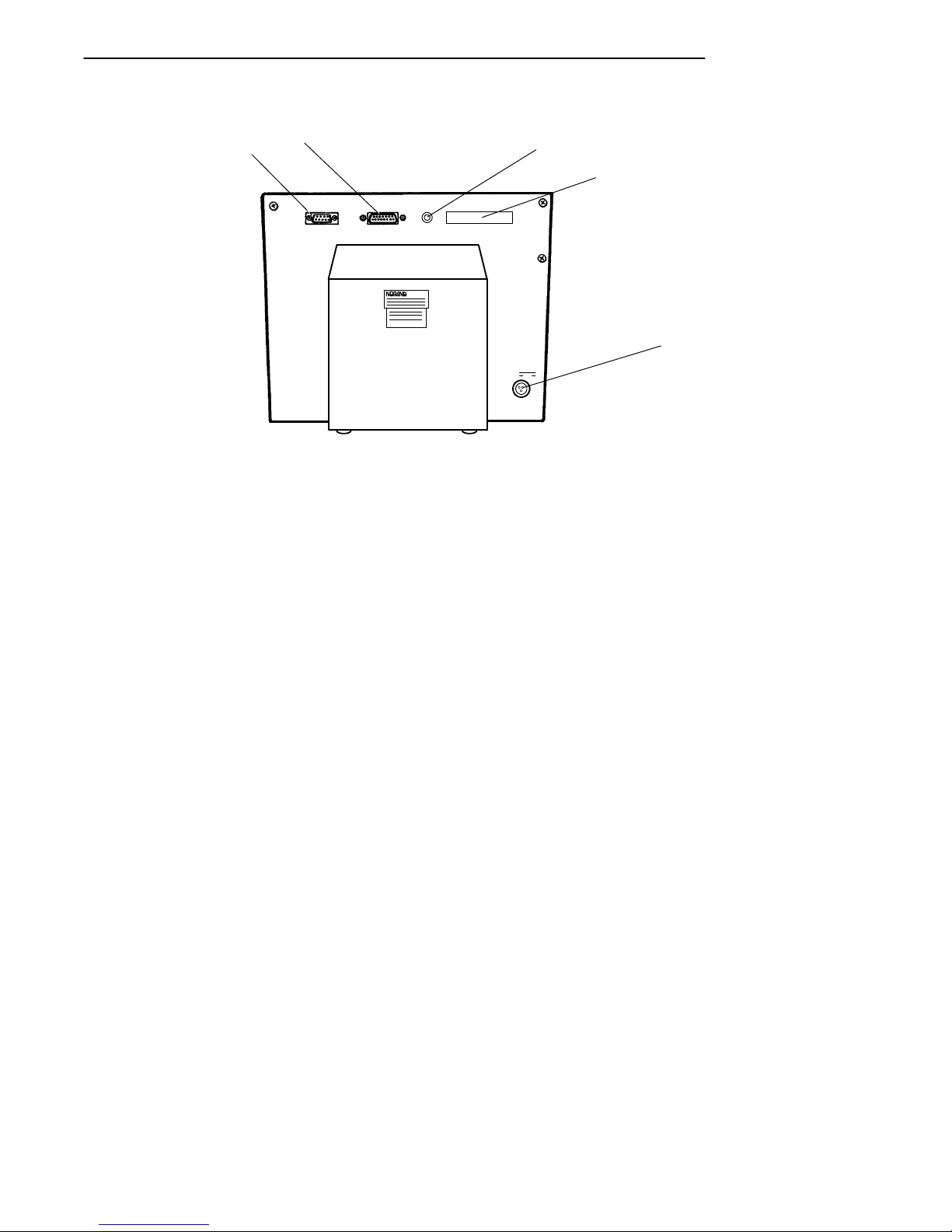

Connectors 2-20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

AC Power 2-21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 3

Installation 3-1. . .. . . . . . . .. . . . . . . .. . . . . . . .. . . . . . . .. . . . . . . .. . . . .

Start Up Operations 3-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Reset Button 3-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

File System 3-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 4

File Structures 4-1. . . . . . . .. . . . . . . .. . . . . . . .. . . . . . . .. . . . . . . .. . . . .

Introduction 4-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Host-to-Controller Records 4-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Special Commands 4-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Type ? - Host Ready Command 4-2. . . . . . . . . . . . . . . . . . . . . . .

Type * - Reinitialization Command 4-2. . . . . . . . . . . . . . . . . . . .

Record Layouts 4-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Type 0 - Download Data Record 4-3. . . . . . . . . . . . . . . . . . . . . .

Type 1 - End-of-Data Record 4-4. . . . . . . . . . . . . . . . . . . . . . . . .

Type 2 - Initialization Record 4-5. . . . . . . . . . . . . . . . . . . . . . . . .

Type 3 - Activate (Auto -Answer) Record 4-6. . . . . . . . . . . . . . . .

Type 4 - Activate (Auto -Dial) Record 4-6. . . . . . . . . . . . . . . . . .

Type 5 - Deactivate for One Minute Record 4-8. . . . . . . . . . . . .

Type 6 - Host Directive Record 4-8. . . . . . . . . . . . . . . . . . . . . . .

Type 7 - Reboot Controller Directive 4-9. . . . . . . . . . . . . . . . . .

Directive Types 4-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

File Upload Directive “1” 4-10. . . . . . . . . . . . . . . . . . . . . . . . . . . .

File Create or Load Directive “2” 4-10. . . . . . . . . . . . . . . . . . . . .

File Delete Directive “3” 4-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

File Download Directive “4” 4-12. . . . . . . . . . . . . . . . . . . . . . . . . .

File Processing Abort “6” 4-13. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Controller-to-Host Record Layouts 4-13. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Type 0 - Upload Data Record 4-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Type 1 - End of Session Status Record 4-14. . . . . . . . . . . . . . . . . . . . .

Type 2 - Data Request Record 4 -16. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Type 3 - Inactive Status Record 4-16. . . . . . . . . . . . . . . . . . . . . . . . . . .

Type 4 - Active Status Record 4-16. . . . . . . . . . . . . . . . . . . . . . . . . . . .

ii 4985 Network Controller Programmer’s Guide

CONTENTS "

Type 5 - Activate Request Record 4-17. . . . . . . . . . . . . . . . . . . . . . . . .

Type 6 - Special Request Record 4-18. . . . . . . . . . . . . . . . . . . . . . . . . .

Type 7 - Directive Status Record 4-19.. . . . . . . . . . . . . . . . . . . . . . . . .

Initialization Record 4-20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

System Mode Parameters 4-21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Host Parameters 4-23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Port Parameters 4-25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Activation Parameters 4-26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 5

Other Features 5-1. . . . . . . .. . . . . . . .. . . . . . . .. . . . . . . .. . . . . . . .. . . . .

Controller-Based File Processing 5-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NCDIR.NCC 5-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Host-to-Controller File Processing Related Commands 5-5. . . . . . . . . . .

Initialization Record (Type 2) 5-5. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Host Directive Record (Type 6) 5-6. . . . . . . . . . . . . . . . . . . . . . . . . .

Host Directive Subrecords (Types 1-3) 5-6. . . . . . . . . . . . . . . . . . . .

File Upload (Subtype 1) 5-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

File Create or Load (Subtype 2) 5-6. . . . . . . . . . . . . . . . . . . . . .

File Delete (Subtype 3) 5-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Controller-to-Host File Processing Related Commands 5-7. . . . . . . . . . .

Controller-to-Host Records with 2-Byte Channel ID 5-7. . . . . . . . . .

Directive Status Record (Type 7) 5-7. . . . . . . . . . . . . . . . . . . . . . . . .

Booting HHCs from Controller 5-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NETRPL.LST 5-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Host-to-Controller Session Sample 1 5-8. . . . . . . . . . . . . . . . . . . . . . . . . . .

Host-to-Controller Session Sample 2 5-10. . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 6

Writing the Host Program 6-1. . .. . . . . . . .. . . . . . . .. . . . . . . .. . . . . . . .

Starting the Main Routine 6-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Receiving Data 6-4.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Download Data 6-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Ending Status Routine 6-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Handling Time-Fill Records 6-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Activating LAN Port 6-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Processing Special Requests 6-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4985 Network Controller Programmer’s Guide iii

CONTENTS "

Processing Directive Status Records 6-8. . . . . . . . . . . . . . . . . . . . . . . . . .

Adapting Older Host Programs 6-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Record Types 6-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NI311 Record Types 6-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NI311-to-Host 6-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Host-to-NI311 6-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4985 Network Controller 6-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Controller-to-Host 6-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Host-to-Controller Records 6-10.. . . . . . . . . . . . . . . . . . . . . . . . .

Special Commands 6-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Logical Channels 6-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Data Record Length 6-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Enhancements 6-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 7

4000 Series Warm Start System 7-1. . . . . . .. . . . . . . .. . . . . . . .. . . . . . .

Creating File Maintenance Lists 7-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Setting Version Number 7-4.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Converting HHC Application Programs 7-4. . . . . . . . . . . . . . . . . . . . . . . .

APPENDIX A

Power-Up Self-Tests A-1.. . . . . . . .. . . . . . . .. . . . . . . .. . . . . . . .. . . . . . . .

APPENDIX B

Communication Session B-1.. . . . . . . .. . . . . . . .. . . . . . . .. . . . . . . .. . . .

APPENDIX C

CRC Checking with Asynchronous Inter face C-1. . . . . . .. . . . . . . .. . . . .

APPENDIX D

File Structure Records D-1.. . . . . . . .. . . . . . . .. . . . . . . .. . . . . . . .. . . . . .

Host-to-Controller Records D-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Special Commands D-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Record Layouts D-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

iv 4985 Network Controller Programmer’s Guide

CONTENTS "

Directive Types D-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Controller-to-Host Record Layouts D-7. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Initialization Record D-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Activation Parameters D-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

FIGURES

Figure 2-1 Host-to-4985 Using 4980 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2-2 4980 Network Communications Controller Connection

to 4985 Controller 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2-3 4920 Host Communications Package Connection

to 4985 Controller 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2-4 4985 Multidocks with Maximum Configuration 2-3. . . . . . . .

Figure 2-5 Optional Wiring with 2 APUs Connected 2-5. . . . . . . . . . . . . .

Figure 2-6 Default Switch Settings 2-6. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2-7 Typical Host-to-4985 Setup 2-7. . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2-8 1-Byte Identifier 2-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2-9 2-Byte Identifier 2-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2-10 4985 Network Controller 2-12. . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2-11 4950 Single Dock 2-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2-12 4960 Multidock 2-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2-13 Auxiliary Power Unit 2-15. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2-14 Power Supply Placement and Connectors 2-16. . . . . . . . . . . .

Figure 2-15 Approximate Dimensions of Auxiliary Power Unit 2-17. . . . .

Figure 2-16 Approximate Dimensions of 4985 Network Controller 2-17. .

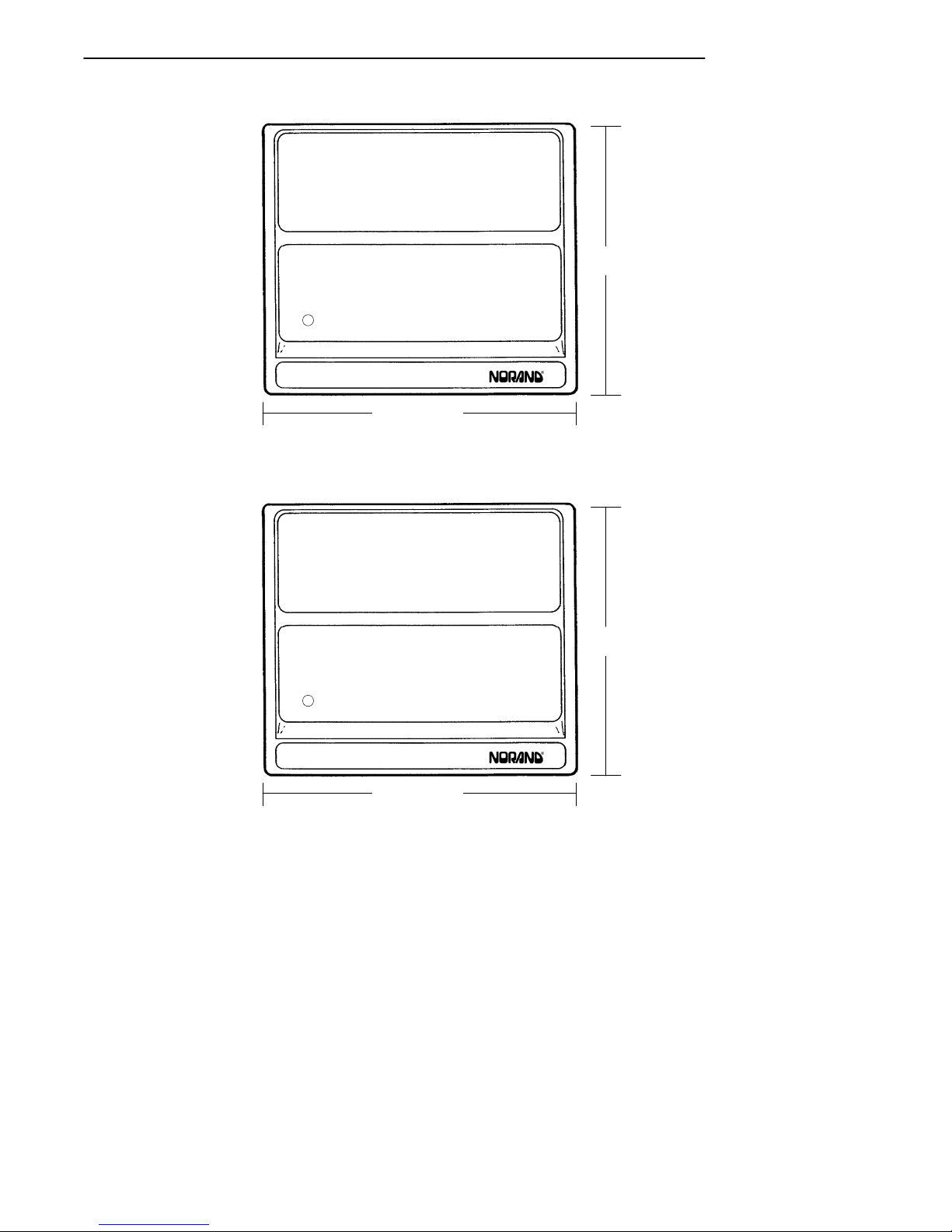

Figure 2-17 Approximate Dimensions of Docks 2-18. . . . . . . . . . . . . . . . .

Figure 2-18 Sample Wall Layout with Brackets 2-19. . . . . . . . . . . . . . . . . .

Figure 2-19 Vertical or Wall-MountedBracket 2-19. . . . . . . . . . . . . . . . . .

Figure 2-20 Horizontal or Shelf-Mounted Brackets 2-20. . . . . . . . . . . . . . .

Figure 2-21 Connectors on the Back of a 4985 Network Controller 2-21.

Figure 2-22 Isolated Ground Outlets 2-22. . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 3-1 Default Switch Settings 3-5. . . . . . . . . . . . . . . . . . . . . . . . . . . .

TABLES

Table 3-1 Bank 1 Dip Switches 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-2 Bank 2 Dip Switches 3-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-3 Bank 3 Dip Switches 3-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 4-1 Type ? -Host Ready Command 4-2. . . . . . . . . . . . . . . . . . . . . . .

Table 4-2 Type * -Reinitialization Command 4-2. . . . . . . . . . . . . . . . . . . .

4985 Network Controller Programmer’s Guide v

CONTENTS "

Table 4-3 Type 0 -Download Data Record 4-3. . . . . . . . . . . . . . . . . . . . . .

Table 4-4 Type 1 -End-of-Data Record 4 -4. . . . . . . . . . . . . . . . . . . . . . . . .

Table 4-5 Type 2 -Initialization Record 4-5. . . . . . . . . . . . . . . . . . . . . . . . .

Table 4-6 Type 3 -Activate (Auto-Answer) Record 4-6. . . . . . . . . . . . . . .

Table 4-7 Type 4 -Activate (Auto-Dial) Record 4-7. . . . . . . . . . . . . . . . . .

Table 4-8 Type 5 -Deactivate for One Minute Record 4-8. . . . . . . . . . . .

Table 4-9 Type 6 -Host Directive Record 4-9. . . . . . . . . . . . . . . . . . . . . . .

Table 4-10 Type 7 -Reboot Controller Directive 4-9. . . . . . . . . . . . . . . . .

Table 4-11 File Upload Directive “1” 4-10. . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 4-12 File Create or Load Directive “2” 4-11. . . . . . . . . . . . . . . . . . . .

Table 4-13 File Delete Directive “3” 4-12.. . . . . . . . . . . . . . . . . . . . . . . . . .

Table 4-14 File Download Directive “4” 4-12. . . . . . . . . . . . . . . . . . . . . . . .

Table 4-15 File Processing Abort “6” 4-13. . . . . . . . . . . . . . . . . . . . . . . . . .

Table 4-16 Type 0 -Upload Data Record 4-14. . . . . . . . . . . . . . . . . . . . . . .

Table 4-17 Type 1 -End of Session Status Record 4-15. . . . . . . . . . . . . . . .

Table 4-18 Type 2 -Data Request Record 4-16. . . . . . . . . . . . . . . . . . . . . . .

Table 4-19 Type 3 -Inactive Status Record 4-16. . . . . . . . . . . . . . . . . . . . . .

Table 4-20 Type 4 -Active Status Record 4-17. . . . . . . . . . . . . . . . . . . . . . .

Table 4-21 Type 5 -Activate Request Record 4-17. . . . . . . . . . . . . . . . . . . .

Table 4-22 Type 6 -Special Request Record 4-18. . . . . . . . . . . . . . . . . . . . .

Table 4-23 Type 7 -Directive Status Record 4-19. . . . . . . . . . . . . . . . . . . .

Table 4-24 System Mode Parameters 4-22. . . . . . . . . . . . . . . . . . . . . . . . . .

Table 4-25 Host Parameters 4-24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 4-26 Type 4 -LAN Parameters 4-26. . . . . . . . . . . . . . . . . . . . . . . . . .

Table 5-1 NCDIR.NCC Record Layout 5-2. . . . . . . . . . . . . . . . . . . . . . . . .

Table 5-2 NETRPL.LST File 5-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table A-1 Beep Count A-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table D-1 Type ? -Host Ready Command D-1.. . . . . . . . . . . . . . . . . . . . .

Table D-2 Type * -Reinitialization Command D-1. . . . . . . . . . . . . . . . . . .

Table D-3 Type 0 -Download Data Record D-1. . . . . . . . . . . . . . . . . . . . .

Table D-4 Type 1 -End-of-Data Record D-2. . . . . . . . . . . . . . . . . . . . . . . . .

Table D-5 Type 2 -Initialization Record D-2. . . . . . . . . . . . . . . . . . . . . . . .

Table D-6 Type 3 -Activate (Auto-Answer) Record D-2. . . . . . . . . . . . . . .

Table D-7 Type 4 -Activate (Auto-Dial) Record D-3. . . . . . . . . . . . . . . . . .

Table D-8 Type 5 -Deactivate for One Minute Record D-3. . . . . . . . . . . .

Table D-9 Type 6 -Host Directive Record D-4. . . . . . . . . . . . . . . . . . . . . .

Table D-10 Type 7 -Reboot Controller Directive D-4. . . . . . . . . . . . . . . . .

Table D-11 File Upload Directive “1” D-4. . . . . . . . . . . . . . . . . . . . . . . . . .

Table D-12 File Create or Load Directive “2” D-5. . . . . . . . . . . . . . . . . . . .

Table D-13 File Delete Directive “3” D-6.. . . . . . . . . . . . . . . . . . . . . . . . . .

vi 4985 Network Controller Programmer’s Guide

CONTENTS "

Table D-14 File Download Directive “4” D-6. . . . . . . . . . . . . . . . . . . . . . . .

Table D-15 File Processing Abort “6” D-6. . . . . . . . . . . . . . . . . . . . . . . . . .

Table D-16 Type 0 -Upload Data Record D-7. . . . . . . . . . . . . . . . . . . . . . .

Table D-17 Type 1 -End of Session Status Record D-7. . . . . . . . . . . . . . .

Table D-18 Type 2 -Data Request Record D-8. . . . . . . . . . . . . . . . . . . . . .

Table D-19 Type 3 -Inactive Status Record D-8. . . . . . . . . . . . . . . . . . . . .

Table D-20 Type 4 -Active Status Record D-8. . . . . . . . . . . . . . . . . . . . . . .

Table D-21 Type 5 -Activate Request Record D-8. . . . . . . . . . . . . . . . . . .

Table D-22 Type 6 -Special Request Record D-9. . . . . . . . . . . . . . . . . . . .

Table D-23 Type 7 -Directive Status Record D-10. . . . . . . . . . . . . . . . . . . .

Table D-24 System Mode Parameters D-11. . . . . . . . . . . . . . . . . . . . . . . . .

Table D-25 Host Parameters D-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table D-26 Type 4 -LAN Parameters D-14. . . . . . . . . . . . . . . . . . . . . . . . . .

GLOSSARY

INDEX

4985 Network Controller Programmer’s Guide vii

CONTENTS "

viii 4985 Network Controller Programmer’s Guide

Section 1

Introduction

" " " " " " " " " " " " " " " " " " " " " " " " " " " "

The 4985 Network Communication Controller provides the commu­nication link between a NORANDâHand-Held Computers (HHCs) and
your host computer. Two serial communication channels service the
network. The host interface channel is an RS-232 interface, while the
Local Area Network (LAN) is an RS-485 interface.

Once powered on, the 4985 Network Communication Controller re ­quires little or no operator intervention. Y oucan enter changes to the
host interface portion using the dip switches (located at the back of the
controller) or a host program that directs the internal soft changes.
This document aids in the writing of the interface program for your
host computer.

At the initial installation, configure the 4985 Network Controller for the
network it should operate. There are three banks of dip switches for
functional configuration of the controller. Each bank contains eight
switches. The first bank defines the type of communications, the se­cond defines the modem type connected to the network, and the third
bank defines the controller’s unique address in your overall network.

Norand supports NORAND modems. You can enable or disable the
modem configuration by setting on or off the appropriate DIP switch.

The file maintenance system provides an HHC boot mechanism. Y our
host computer downloads a boot file list during the file processing
stage of communication. After completing file processing, all of the
files specified in the list can be downloaded to the HHC on the RS-485
network.

4985 Network Controller Programmer’s Guide 1-1

SECTION 1 " Introduction

About the Controller

This controller requires little or no operator intervention during nor­mal operation. Once the initial configuration is complete, controller
operation becomes transparent to the user.

The power-up sequence verifies proper operation of the Read-Only
Memory (ROM), Random Access Memory (RAM), and partial testing
of the serial communication controller. Upon successful completion of
the power-up self-test, the controller sounds a single beep. Passing the
power-up self-test also implies proper operation of the internal Central
Processing Unit (CPU) and bus interface logic. A double beep indi­cates the host port is ready to communicate.

Should the controller beep multiple times during power-up,the control­ler has failed a portion of the startup test sequence. Consult the beep
counts table in Appendix A for descriptions of the error codes.

After successful power up, the controller is ready to communicate with
the device attached to the host interface port. If the host port device is
a modem, the controller may configure the modem and wait for the
remote system to call.

Y oucan access a debug facility for analysis of controller hardware and
configuration.

Host Interfaces

Y oumay need a host communication program and support programs
to talk to the controller. Norand provides two host interfaces: Asynch­ronous and Secondary ADCCP.

The Secondary ADCCP interface only communicates with the
NORAND 4980 Network Controller or the 4920 PC Communication
Package and can communicate locally or remotely using modems.

The asynchronous interface connects the controller directly to your
host computer. This connection provides a gateway for data to pass
between the HHCs and your host using logical channels and record
types.

This guide primarily covers the asynchronous interface which is
4980-compatible. The primary difference between the 4980 and 4985 is

1-2 4985 Network Controller Programmer’s Guide

SECTION 1 " Introduction

the 4985 Controller has only two ports and lacks a display, keypad, and
disk drive. Since one port is dedicated to the host interface, there is
only one port remaining for communicating with HHCs.

The different record types, sent back and forth between the controller
and the host, help tailor the communications session to meet that spe­cific session’s needs.

4985 Network Controller Programmer’s Guide 1-3

SECTION 1 " Introduction

1-4 4985 Network Controller Programmer’s Guide

Section 2

Getting Started

" " " " " " " " " " " " " " " " " " " " " " " " " " " "

Network Configurations

The host port attaches to a host computer, a PC, or another controller.
This connection must use one of two datalink protocols: ASYNC or Sec­ondary ADCCP.

ADCCP

Synchronous

ASYNC

4980 Controller

Modem

Host Computer

SADCCP

Synchronous

Modem

4960 Multidock

NPCP

4985 Controller

Figure 2-1

Host-to-4985 Using 4980

Figure 2-1 demonstrates the host computer directly connecting to a
4980 Network Controller, wired to a synchronous modem. A telephone

4985 Network Controller Programmer’s Guide 2-1

SECTION 2 " Getting Started

line or lease links the two identical modems. Both modems must be
configured exactly alike for smooth communications. The 4985 Net­work Controller connects to the modem with the host port.

Figure 2-2 shows the 4980 Network Controller on the left connected to
a host computer. The 4985 Controller on the right is at a remote site,
hooked up with at least one six-pack multidock.

4980 Network
Controller

Modem

-OR-

Direct Connect

Modem

4985 Controller

4980 Network Communications Controller Connection to 4985 Controller

Figure 2-2

Figure 2-3 shows a setup using the 4920 Communications Package for
a PC connection to the 4985 Controller.

Modem

-OR-

Direct Connect

4920 Host Communications Package

(Includes Communication Coprocessor)

Figure 2-3

4920 Host Communications Package Connection to 4985 Controller

2-2 4985 Network Controller Programmer’s Guide

Modem

4985 Controller

SECTION 2 " Getting Started

Figure 2-4 has the most Hand-Held Computers (HHCs) that can com­municate through one 4985 Controller. The NORANDâAuxiliary Pow­er Units (APUs) connect in series with the multidocks.

4985 Controller

Multidock Multidock

APU

Multidock Multidock

APU

Multidock Multidock

Multidock MultidockMultidock

Multidock

4985 Multidocks with Maximum Configuration

Figure 2-4

4985 Network Controller Programmer’s Guide 2-3

SECTION 2 " Getting Started

"

NOTE: Add APUs to the network when using more than two multidocks. This ensures

adequate power for the multidocks to recharge the HHCs when placed in these
docks. One APU powers four multidocks. The controller powers two multidocks
directly.

Figure 2-5 differs from Figure 2-4 by connecting the two APUs togeth­er instead of chaining the second APU in series to a multidock. The
second APU connects directly to the first APU.

2-4 4985 Network Controller Programmer’s Guide

SECTION 2 " Getting Started

4985 Controller

Multidock Multidock

APU

Multidock Multidock

APU

Multidock Multidock

Multidock MultidockMultidock

Multidock

Optional Wiring with 2 APUs Connected

Figure 2-5

If hooking up the maximum number of multidocks allowed, use the
wiring diagram in Figures 2-4 or 2-5. Take into consideration your
power outlets and physical setup.

4985 Network Controller Programmer’s Guide 2-5

SECTION 2 " Getting Started

4985 Configuration Switches

Three 8-position DIP switches allows a user to customize the 4985 for
their particular system application. Switches “1” through “5” of DIP
bank #2 apply only to ADCCP host applications. DIP bank #3 config­ures the controllers identification number for a large system. The con­troller converts this 8-bit ID to an ASCII decimal number in the
49850000 to 49850255 range. This ID goes to the host computer at the
start of the host-to-controller communication session. The default val­ue is “49850000” and “49850255” is reserved.

"

NOTE: Details of the three Data Input (DI) bank switches start on page 3-1.

Figure 2-6 shows switch settings for connecting the 4985 Network Con­troller to the 4980 Network Controller or the 4920 Communication
Package using Secondary ADCCP and a NM9600 Modem.

O

1 2 3 4 5 6 7 8

N

Bank 1

Default Switch Settings

Figure 2-6

O

1 2 3 4 5 6 7 8

N

Bank 2

Bank 1: Switch 1: Command mode is off

Switch 2: Communications mode uses Secondary

ADCCP

Switch 3-5: Communications uses external clocking to

determine speed
Switch 6: Reserved.
Switch 7-8: Sets controller to handle three channels

active to HHCs concurrently.

"

NOTE: All reserved switches or those not applicable must be in the off position.

Bank 2: Switch 1: Auto-configure the modem

Switch 2-3: Auto-dialing is off

2-6 4985 Network Controller Programmer’s Guide

Switch 4: Auto-answer is off
Switch 5: Controller sends AT&F command to modem

Switch 6: Reserved.
Switch 7-8: Three logical channels enabled.

Communication Session

This describes the host-to-HHC communication session. Session ex­amples illustrate what is happening, physically and logically.

SECTION 2 " Getting Started

before configuring.

Host

4985 Network Controller

ASYNC

Direct-Connected

Figure 2-7

Typical Host-to-4985 Setup

4960 Multidock

The host communicates with the 4985 Controller using the NORAND
asynchronous proprietary protocol. The multidock connects to the
LAN port on the 4985 Controller and the host to the HOST port.

The primary controller use is to facilitate the host-to-HHC communica­tion session. The controller provides the physical connection neces­sary for communication, and maintains the session on a logical chan­nel. This allows you more options to expand your communications
network.

A logical channel between an HHC and your host always passes
through one or more controllers on a logical channel.

The logical channel ID prefixes all records sent from the controller to
the host. It is a 1-byte field if you have disabled device channels and a
2-byte field if you have enabled device channels.

4985 Network Controller Programmer’s Guide 2-7

SECTION 2 " Getting Started

In this case, logical channels, specified by a single HHC channel ID,
prefix each record sent from the controller.

Logical Channel

Record Type Data

Figure 2-8

1-Byte Identifier

The 4985 Network Controller uses the 2-byte identifier option for com­patibility. It consists of four parts.

Device Channel

Logical Channel Record Type Data

Figure 2-9

2-Byte Identifier

A device channel is zero as the 4985 is directly connected, the ASYNC
interface is used, and an HHC channel will be “1”, “4”, or “7.” The de­vice channel identifies which controller the HHC channel belongs to.

After making the physical connection, the communication session for
all HHC types is identical. The HHCs’ protocol is transparent to the
host computer.

The communication session for an HHC consists of:

" Upload phase
" Download phase
" End-of-Session status from the HHC

Typically, the HHC sends its ID in the first upload record. The host
uses this information to tie a set of download data as specific HHC.

EXAMPLE: The host receives upload records from an HHC on a logical channel until the

upload is complete. The host then receives download data requests on the same
logical channel from the HHC. The host, using the HHC’s terminal ID, organizes
the requested download data and sends the download data to the HHC on the
logical channel until finished. At this point, the HHC reports the session status by
sending an end-of-session record to the host.

2-8 4985 Network Controller Programmer’s Guide

Configuration information sent to the controller from the host is sent in
the system initialization record at the start of communication.

The host can fine-tune the system and port configurations to meet the
needs of a particular communications session.

Device Channels

Some things to remember:

" A logical channel number and record type prefix all controller

" HHC data is in a contiguous sequence on a logical channel.
" The host telecommunications program must maintain state vari-

Help

The controller runs several self-diagnostic programs during power-up,
ensuring the equipment is in normal working order. If a problem dur­ing power-up, the controller beeps several times and the unit does not
operate.

SECTION 2 " Getting Started

data.

ables and file pointers indexed by the logical channel number.

Beeping

The most common problems are often easiest to detect, and in many
cases, correct. These include loose cable connections, loss of AC pow­er, bad or no telecommunication, and sometimes faulty equipment.
The HHC display sometimes helps to diagnose a problem.

The controller performs a series of power-up self-tests each time it
powers on. A single beep indicates that all power-up tests passed. Two
beeps indicate the host port has reset and is ready to communicate. A
long beep or a short pattern of beeps repeating for longer than 30 se­conds indicate a problem with the internal hardware. The unit must go
to a service center for repair. These beeps are diagnostic tools for the
service technician. See Appendix A for a list of beep counts and their
problem areas.

4985 Network Controller Programmer’s Guide 2-9

SECTION 2 " Getting Started

Connections

During the installation and startup testing, the system should have
made all connections to the controller and its peripherals. If problems
do occur, ensure that the system has fully seated connectors. Ensure
that power connections are attached securely to wall outlets.

Testing

Diagnostics can run through a command interpreter on the RS-232
port using an attached ASCII terminal. These tests require a techni­cian to access the highly technical test findings.

Modem Indicator

Modems frequently have LEDs to show events as they happen. If a
LED should light but does not, the modem manual and this informa­tion can help determine where the trouble exists. The modem could
be bad, or the connections to either the controller or to the telephone
lines could be defective. The modem indicators, if any, can help isolate
a telecommunication (TCOM) problem.

Cleaning

Periodic cleaning maintain the appearance and reliability of the control­ler. When cleaning, inspect for damage or wear. Clean the controller
with a soft cloth dampened with a quality glass cleaner. Do not use sol

vent solutions.

Specifications

Communication Protocol Support:

RS-232 Secondary ADCCP (9.6Kbps) or Host Async (38.4Kbps)
RS-485 NPCP (500Kbps)

2-10 4985 Network Controller Programmer’s Guide

Hardware

SECTION 2 " Getting Started

Environmental: Operating temperature: 32° to 122° Fahrenheit

0° to 50° Celsius

Memory: 512K Internal RAM

128K Internal ROM

Microprocessor: 80C186 @ 8 MHz
Physical: Height: 9.5 inches (241 mm)

Width: 13 inches (330 mm)
Depth: 7.5 inches (191 mm)
Weight: 5lbs
Chassis: 0.063 inch-thick (1.6 mm)

#5052H32 aluminum

Power Capacity: 12HHCs maximum
Power Supply: External: +15 Volts @ 3.5 Amps
Serial Interfaces: RS-232 1 port

RS-485 1 port

B

CAUTION: Applying cleaners directly to any part of the controller will damage the

controller. Do not use alcohol, benzene, carbon tetrachloride, or any other
solvents to clean any portion of the controller. Use a soft, lint-free cloth
moistened in a quality glass cleaner to clean the exterior of the controller.

B

CAUTION: Using the controller in an hostile environment that includes temperature

extremes or where moisture can enter the unit will damage the controller.
Operate the controller indoors, sheltered from precipitation.

"

NOTE: Ensure that a properly wired, isolated-ground AC outlet powers the power sup-

ply for the controller. Properly installed isolated ground outlets and wiring pro­duce a relatively ElectroMagnetic Interference (EMI) or noise free environment.
This ensures proper operation of sensitive electronics such as computers and
telecommunications devices.

Unpacking Equipment

Inspect the shipping containers for signs of damage before unpacking
the equipment. If any damage, you must immediately report that fact
to the carrier.

4985 Network Controller Programmer’s Guide 2-11

SECTION 2 " Getting Started

Remove equipment and materials from the shipping containers and
examine all items to become familiar with their physical characteris­tics. Check for signs of damage before you proceed.

Install mounting brackets in pairs, on 6-inch centers for the controller
and the Auxiliary Power Unit (APU), and on 16-inch centers for the
multidocks.

We do not provide mounting hardware. Use 1/4-inch hardware suit­able for your wall or mounting surfaces (such as concrete block,
poured concrete, drywall, plywood, sheet-metal, countertop, shelving,
or a table).

LAN

RS485

HOST/MO­DEM

RS232

CONFIG SWITCHESRESET

ROUTE­COMMANDER

R

4000 SERIES

Front Back

Figure 2-10

4985 Network Controller

General Equipment

The controller interfaces between a group of HHCs and another con­troller,or a larger computer, such as a PC or mainframe. It is a low­cost controller for remote networks supporting 12 or fewer HHCs.

At each remote site, a controller connects to the HHCs by cables and a
peripheral device, such as multidock or single dock. In turn, the con­troller connects to other network controller devices, a PC, modems, or
a larger computer (host site) through cables or telephone link.

2-12 4985 Network Controller Programmer’s Guide

INPUT

15
V

3.5
A

SECTION 2 " Getting Started

This provides flexible, software-controlled 2 -way communication of
data, messages, and program changes between a host computer and
many HHCs. The controller acts as a buffer (temporary storage) and
control device to ensure orderly communication and minimal errors.

The controller provides communication power and charging voltage for
up to twelve 4000 Series HHCs. Add an APU to expand the network
beyond the power supply capabilities of the controller. Connect up to
two APUs and ten multidocks in series to one 4985 Network Controller.

Optional Peripherals

Optional peripheral devices allow for flexibility and customization:

Single Dock

Figure 2-11

4950 Single Dock

The 4950 Single Dock accommodates one HHC. Use the single dock
under specific restrictions. Special consideration for system power is
required. See your Norand Systems Engineer for details.

4985 Network Controller Programmer’s Guide 2-13

SECTION 2 " Getting Started

Multidock

Chain the 4960 multidocks together with cables to increase the num­ber of HHCs connected to each controller. Each rack has six docks for
the 4000 Series HHCs.

Figure 2-12

4960 Multidock

2-14 4985 Network Controller Programmer’s Guide

Auxiliary Power Unit (APU)

SECTION 2 " Getting Started

Auxiliary Power Unit

Figure 2-13

Place an APU in the network after the first two multidocks, before the
next group of four multidocks. The APU furnishes charging current to
the next group of multidocks and also strengthens signals on the com­munication lines to ensure reliable, error-freedata transmission in both
directions. There can be a maximum of two APUs and ten multidocks.

4985 Network Controller Programmer’s Guide 2-15

SECTION 2 " Getting Started

Power Supply

Insert your power cord from stan­dard outlet plugs here.

Power Supply Placement and Connectors

Place the power supply on the attached mounting shelf located at the
back of the controller.

Modems

Limit the modem configuration to support these two modems: NO­RAND NM2400A and NORAND 9600.

Enter remote auto-dial phone numbers into the NORAND modems.
Use the NORAND 9600 Modem front panel to enter the numbers. Use
an RS-232 terminal to enter the phone numbers into an NM2400A. Re­fer to the operation documents for your modem before entering phone
numbers into the modem.

2-16 4985 Network Controller Programmer’s Guide

Connect the network controller to
this power supply outlet.

Figure 2-14

SECTION 2 " Getting Started

10”

ROUTE­COMMANDER

R

4000 SERIES

11-1/2”

Figure 2-15

Approximate Dimensions of Auxiliary Power Unit

10”

ROUTE­COMMANDER

R

4000 SERIES

Approximate Dimensions of 4985 Network Controller

11-1/2”

Figure 2-16

4985 Network Controller Programmer’s Guide 2-17

SECTION 2 " Getting Started

Location

Avoid extreme temperatures or humidity. Plan your space carefully
before you install the mounting brackets. Figures 2-15 through 2-17
show approximate dimensions of the controller,the APU, the multi­dock, and the single dock.

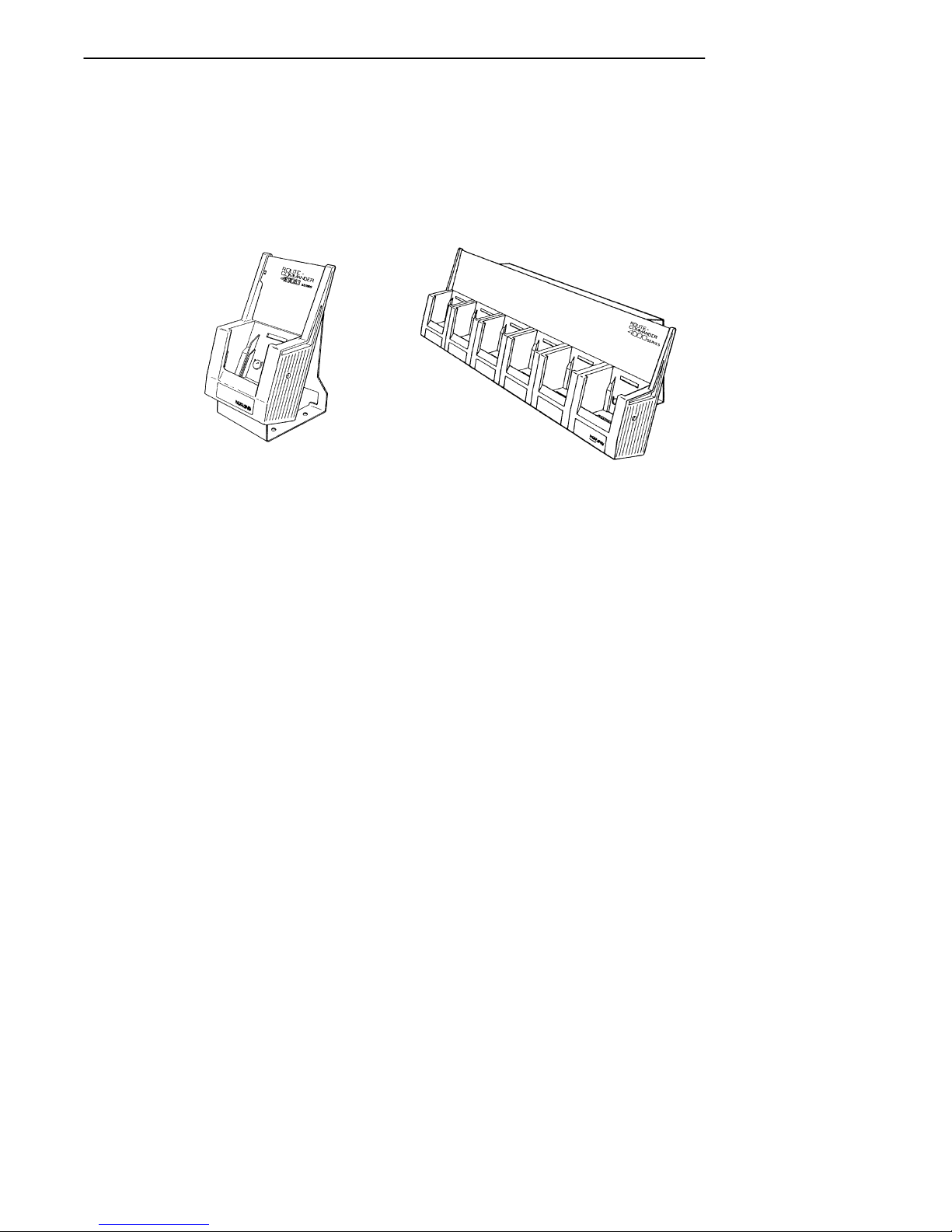

5”

Long

9-1/4”
High

8-3/4”

High

25-1/2”

Long

4950 Single Dock

Approximate Dimensions of Docks

Figure 2-17

Use graph paper to draw the installation to scale in your planning.

" Minimum required spacing between a 4985 Network Controller

and a multidock is 19 and 3/4 inches. Plan for 39 and 1/4 inches
of space.

" Minimum required spacing between two multidocks is 26 and

1/2 inches. Plan for 51 and 1/2 inches of space.

Locate the controllers and APUs within reach of properly grounded,
3-prong AC outlets.

"

NOTE: Do not use extension cords with this equipment.

Brackets

Install the system once you determine the location and plan the layout.
Figure 2-18 illustrates a wall layout using a pencil, a carpenter’s rule, a

2-18 4985 Network Controller Programmer’s Guide

4960 Multidock

SECTION 2 " Getting Started

chalk line, and a level. After installing each pair of brackets, mount the
equipment item to ensure clearances between adjacent pieces.

Clearance between
bracket holes for
second multidock

6” 9” 16” 9-1/2” 16”

2-1/8”

Bracket holes for
4985 Controller

Sample Wall Layout with Brackets

Bracket holes for
first multidock

Figure 2-18

Bracket holes for
second multidock

Install controller and APU brackets on 6-inch centers, using hardware
appropriate to the mounting surfaces. Mount multidock brackets on
16-inch centers. You can mount these brackets on a vertical surface or
wall (Figure 2-19).

Vertical or Wall-Mounted Bracket

Figure 2-19

4985 Network Controller Programmer’s Guide 2-19

SECTION 2 " Getting Started

These brackets have two holes on the lower arm for mounting on to a
horizontal surface, such as a countertop or table. When mounting on a
horizontal surface, use at least an 8-inch shelf depth (Figure 2-20).

Horizontal or Shelf-Mounted Brackets

Figure 2-20

The controller,APU, and multidock all have pairs of large rivets welded
to the back frame or cover. These rivets go in the mounting bracket
keyholes, then slide down to lock the equipment securely in place.

Connectors

Multidock connectors (on each end) are identical and interchangeable.
There is not an input or an output connector. Use the most convenient
connector available on the multidock when connecting it to the control­ler, an APU, or when chaining to another multidock.

2-20 4985 Network Controller Programmer’s Guide

SECTION 2 " Getting Started

2

1

3

4

LAN

RS485

HOST/MODEM

RS232

RESET

CONFIG SWITCHES

15V

INPUT

3.5A

1. Multidock

2. Host or modem

3. Reset switch

4. Configuration switch

5. Power connector

Figure 2-21

Connectors on the Back of a 4985 Network Controller

"

NOTE: You can connect up to two multidocks. Add another APU if you want another

multidock. You need special adapters for a single dock.

5

AC Power

Use alternating current (AC) power for data communication equipment
with isolated ground outlets. Properly installed isolated ground outlets
and wiring produce a relatively ElectroMagnetic Interference (EMI) or
noise free environment. This ensures proper operation of sensitive
electronics such as computers and telecommunications devices.

4985 Network Controller Programmer’s Guide 2-21

SECTION 2 " Getting Started

5

1

2

4

3

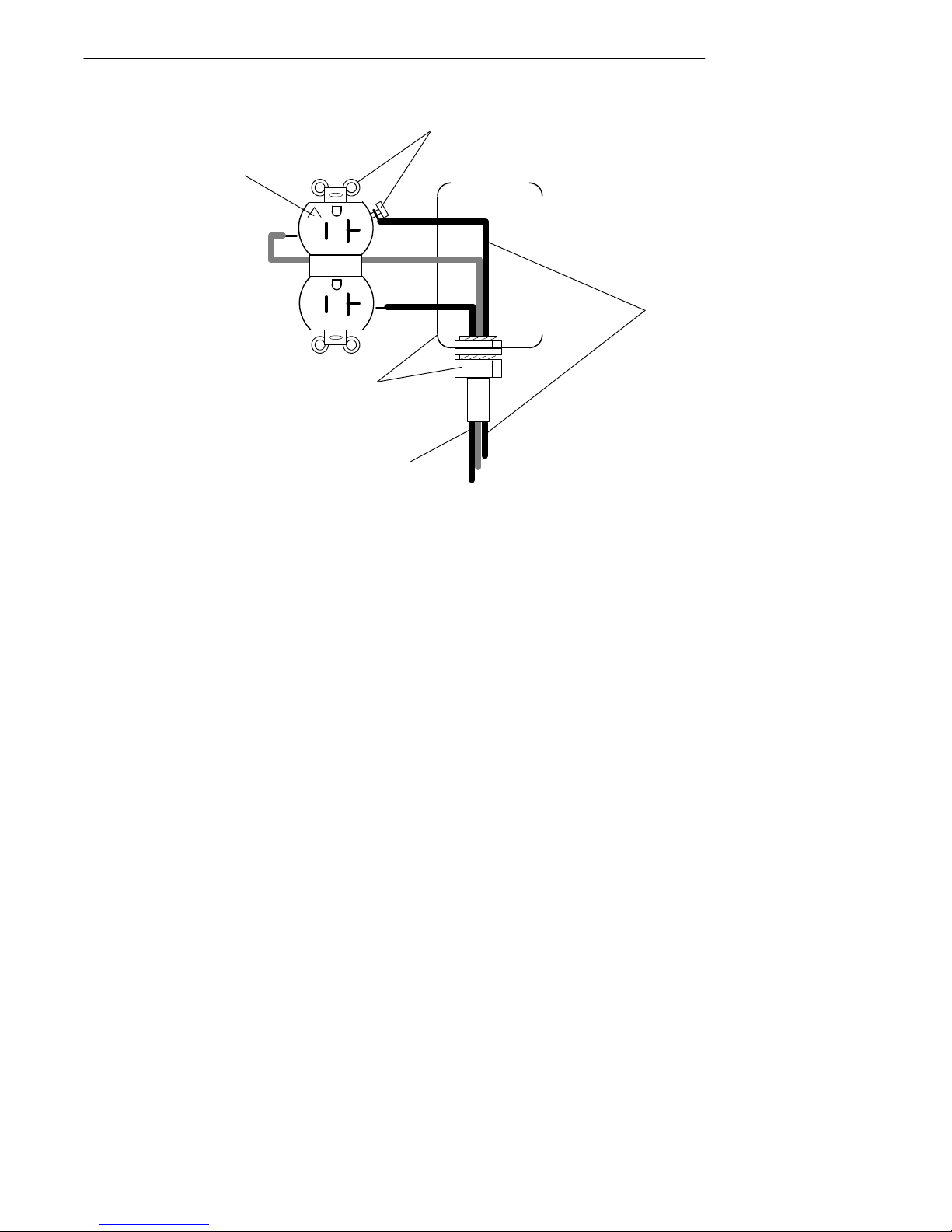

1. Insulated from each other by design

2. Insulated ground wire

3. “Neutral” wire (white, insulated)

4. Conduit, box, metal wallplate (provides “Safety Ground”)

5. Orange triangle

Isolated Ground Outlets

An Isolated Ground (IG) installation requires special outlets such as
General Electric catalog number 8200-IG2 (15 amp) or 8300-IG2 (20
amp). Wire these per applicable standards, such as National Electrical
Code paragraph 250-74, (exception #4). A separate, insulated ground
wire must be run, uninterrupted, from the outlets and terminate direct­ly at an equipment grounding conductor terminal of the derived system
or service.

2-22 4985 Network Controller Programmer’s Guide

Figure 2-22

Section 3

Installation

" " " " " " " " " " " " " " " " " " " " " " " " " " " "

Start Up Operations

Start-up normally takes less than one minute.
At the time of initial installation, configure the controller for the system

in which it operates. Three banks of Data Input (DI) switches are for
functional configuration of the controller. Each bank contains eight
switches.

" Bank 1: Defines host port communication type: ASYNC or Sec-

ondary ADCCP. If the host type is ASYNC, the host port param­eters are: parity,data bits, speed, and channel ID.

" Bank 2: Functions include modem configuration, auto-answer,

auto-dial, and a number of HHCs allowed to transmit concurrent­ly.

" Bank 3: Defines identity code of the controller in a system con-

figuration. Controller identification consists of a 3-digit number
between “000” and “254.” There are 256 unique identity codes.
The default ID is zero.

"

NOTE: ID number 255 is reserved.

Model 4985 Network Controller Programmer’s Guide 3-1

SECTION 3 " Installation

Bank 1 Dip Switches

Table 3-1

Dip
Switch Meaning Description

1 Command

mode

off: Normal host communications.
on: Controller powers up in command

mode and awaits input commands from
user on the RS-232 port. Provided as a
diagnostic tool.

2 Host type Specifies which host type is active.

off: Secondary ADCCP
on: Asynchronous host

3-5 Speed (bps) ADCCP uses external clocking.

3 4 5 speed

off off off : 19200 bps (default)
on off off : 1200bps
off on off : 2400bps
on on off : 4800bps
off off on : 9600bps
on off on : 19200bps
off on on : reserved
on on on : reserved

6 Parity ASYNC host only

off: No parity
on: Even parity

7 Databits ASYNC host only

off: 8 data bits
on: 7 data bits

8 Reserved

3-2 Model 4985 Network Controller Programmer’s Guide

SECTION 3 " Installation

Bank 2 Dip Switches

Table 3-2

Dip
Switch Meaning Description

1 Modem

configure flag

(Secondary ADCCP host only)
off: Controller auto-senses the modem type

before configuring the attached
NM2400A or NORANDâ9600 Modem.

on: Attached modem is not configured.

2-3 Autodial

select (see

Note 1 after
table)

(Secondary ADCCP host only)
Specifies which number stored in the
attached modem to dial when a terminal is
ready to communicate.

off off: Autodial off
on off: Dial stored number 1
off on: Dial stored number 2
on on: Alternate between stored number 1

or 2. The controller switches to the
other number stored in the modem
whenever a dial operation fails.

4 Force

autoanswer

(see Note 2
after table)

5 Skip modem

reset

(Secondary ADCCP host only)
off: Controller answers the phone only

when a HHC is ready to communicate.

on: Controller always answers the phone.
off: Controller sends an AT&F command to

modem before modem is configured.

on: Controller does not reset the NORAND

Modem to factory default settings.
6 Reserved
7-8 Number of

logical
channels on
the LAN port.

(see Note 3
after table)

This number equals the number of HHCs
that can be active concurrently.

off off: 1 channel active
on off: 2 channels active concurrently
off on: 3 channels active concurrently
on on: Reserved

Model 4985 Network Controller Programmer’s Guide 3-3

SECTION 3 " Installation

"

NOTE 1: If enabled (autodial switches 2 and 3) and the Modem Configure Flag (switch 1)

is “on”, the controller uses the Hayes command string “ATE0V0” to configure the
modem and “ATDS” or “ATDS2” to dial.

Also, if enabled, the controller will attempt to dial the host at power-up. This is
useful for loading boot files into the controller during the initial power-up.

"

NOTE 2: If you wish the host computer to dial the controller to load boot files, you may

perform the following steps:

1. Set Force autoanswer to “on.”

2. Press the reset button to purge files stored in the controller.

3. Download the boot files to the controller.

4. When finished, set Force autoanswer to “off.”

5. Power-off the controller for 30 seconds (resets controller to original configura­tion).

"

NOTE 3: If you change the switch settings after the controller is powered on, you must

either power off the controller for 30 seconds and power it back on, or press the
reset switch. This action reconfigures the controller according to the new switch
settings.

"

NOTE: Pressing the reset button will erase all boot and other files from the controller’s

memory.

Bank 3 Dip Switches

Table 3-3

Dip
Switch Meaning Description

1-8 Controller ID Default ID is 49850000.

These switches set an 8-bit number from hex “00” to “FF.” The 8-bit
number translates to an ASCII decimal number sent to the host at the
beginning of a host-to-controller session.

The host may use the number to uniquely identify the controller. The
host needs the ID to maintain the HHC boot file on the controller.

The ID sent to the host will range from “49850000” to “49850254,”
where the last three digits come from the switch settings and the first
five digits are the device type.

3-4 Model 4985 Network Controller Programmer’s Guide

SECTION 3 " Installation

Figure 3-1 shows the switch settings for an ID equal to “0000 0000.”
The following is another way of representing the ID setting of zero:
“off” “off” “off” “off” “off” “off” “off” “off.” The notation “off” and “on”
represent the individual switch settings. Zero represents “off” and “1”
represents “on” (such as 0000 0000).

O

1 2 3 4 5 6 7 8

N

Default Switch Settings

Figure 3-1

Reset Button

"

NOTE: You should always request permission from your data processing department

before pressing the reset button. Pressing this button erases the files needed to
“boot” the HHCs.

File System

The controller supports a nonvolatile file system. This file system
stores 4000 Series HHC boot files, program files, and data files.

Files downloaded to the controller are backed up for a minimum of one
hour after the controller loses power. After that time, they could cor­rupt. Press the reset button before you download the files to the con­troller.

Download files from a host computer. For specific instructions on
maintaining files with a host program application refer to the related
publications listed below:

4980 Programmer’s Guide NPN: 977-028-001
4920 and 4921 User’s Guide

Volume A NPN: 961-021-011
Volume B NPN: 961-021-012

4920 and 4921 Reference Guide NPN: 961-021-013

Model 4985 Network Controller Programmer’s Guide 3-5

SECTION 3 " Installation

3-6 Model 4985 Network Controller Programmer’s Guide

Section 4

File Structures

" " " " " " " " " " " " " " " " " " " " " " " " " " " "

Introduction

Many of the configuration switches can be reconfigured by the host
computer. These are with:

" Initialization record parameters. The host sends this record at

the beginning of a communication session.

" Activation record parameters. The host sends this record to acti-

vate the LAN port.

Records from controller-to-hostuse a two-byte channel ID (when en­abled) consisting of a one-byte device channel field. HHC channels be­long to the active device on the corresponding device channel.

The 4985 asynchronous interface works with device channel “0”. The
Local Area Network (LAN) port works with HHC channels “1”, “4”,
and “7”.

Record formats with the two-bytechannel option are the same as one­byte channels. The difference is that the device channel ID prepends
to each record.

"

NOTE: Appendix D contains a quick reference to all of the following records.

Host-to-Controller Records

Special Commands

The host may send two special commands to the controller. Records
from the host, except for the special commands, must all be of the
same fixed-length, and may include end-of-line pad bytes.

4985 Network Controller Programmer’s Guide 4-1

SECTION 4 " File Structures

Type ? - Host Ready Command

The host sends this record to the controller when ready to receive da­ta.

Type ? - Host Ready Command

Position Bytes Description

1 1 Question mark “?”

EXAMPLE: (CR = end of record marker)

?<CR>

Type * - Reinitialization Command

The host sends this record to reset the controller when the controller
is expecting a ready command.

Type * - Reinitialization Command

Position Bytes Description

1 1 Asterisk “*”

EXAMPLE: (CR = end of record marker)

*<CR>

Each record sent from your host must have a record type field. There
may be eight record types sent from your host to the controller. The
controller may translate between ASCII and EBCDIC for EBCDIC
hosts. You can enable the translation of the records using the host-to­controller initialization record. The eight record types are:

" “0” = Download Data " “1” = End-of-Data
" “2” = Initialize " “3” = Activate Auto-answer
" “4” = Activate Auto-dial " “5” = Deactivate for one minute
" “6” = Host Directive " “7” = Reboot Controller Directive

Table 4-1

Table 4-2

Record Layouts

This explains the function of each record type. Actual record layouts
appear after the record description.

4-2 4985 Network Controller Programmer’s Guide

SECTION 4 " File Structures

Each record from an ASYNC host must begin with a one -byte begin­ning-of-record delimiter (a slash “/”) and a one-byte command code
(ASCII) “0” through “7”.

The host sends records in response to requests from the controller,
except for the initialization record. The initialization record is sent to
activate a controller that is inactive yet ready for activation.

The host may also send two special commands to the controller,a
question mark “?” and an asterisk “*”. A question mark indicates the
host is ready to receive data and serves as an acknowledgement re ­cord. The asterisk resets the controller,although the controller will
reset itself if the host issues an invalid record or fails to respond within
the host timeout period.

The record includes an end-of-record delimiter, by default <CR>,
which is configured in the initialization record.

Records from the host (not including the special commands) must all
be of the same fixed-length, and may include end-of-line pad bytes.

The controller uses the initialization record sent from the host to deter­mine these lengths:

" Record size " End-of-linepad

Type 0 - Download Data Record

The host sends a download data record in response to a download re­quest. Information obtained from upload data links download data with
a specific HHC on a logical channel.

Type 0 - Download Data Record

Table 4-3

Position Bytes Description

1 1 Beginning delimiter: “/”
2 1 Command code: “0”
3 256 Download data
259 2 Optional CRC bytes (if enabled)
261+ Optional pad (up to 3 bytes)

4985 Network Controller Programmer’s Guide 4-3

SECTION 4 " File Structures

EXAMPLE: (CR = end of record marker)

/0xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx<CRC><CRC>ppp<CR>

Beginning delimiter = “/”
Command code = Download Data “0”
Download data = “xxx”
Optional CRC bytes = 2
Optional pad = “ppp”
Optional end-of-record delimiter = <CR>

Type 1 - End-of-Data Record

The host sends an end-of-data record in response to a download re­quest from the controller. This indicates that no more download data
exists for this session or file. The host also sends end-of-data records
in response to a file request to terminate file processing.

Type 1 - End-of-Data Record

Position Bytes Description

1 1 Beginning delimiter: “/”
2 1 Command code: “1”
3 256 Download data with required pad bytes if less

than 256 bytes of data.

259+ Optional pad (up to 5 bytes)

4-4 4985 Network Controller Programmer’s Guide

Table 4-4

EXAMPLE: (CR = end of record marker)

/1xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxppppp<CR>

Beginning delimiter = “/”
Command code = End-of-Data “1”
Download data = “xxx”
Optional pad = “ppppp”
Optional end-of-record delimiter = <CR>

Type 2 - Initialization Record

At the beginning of a host-to-controller session, an initialization record
sets the system mode parameters and default port activation parame­ters. The initialization record parameters are defined on page 4-20.

SECTION 4 " File Structures

Type 2 - Initialization Record

Position Bytes Description

1 1 Beginning delimiter: “/”
2 1 Command code: “2”
3 256 Initialization parameters list. The parameter list

terminates with a slash “/.”

259+ Optional pad (up to 5 bytes)

EXAMPLE: (CR = end of record marker)

/2xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx/ppppp<CR>

Beginning delimiter = “/”
Command code = Initialization Record “2”
Parameter initialization list = “xxx”
Optional pad = “ppppp”
Optional end-of-record delimiter = <CR>

4985 Network Controller Programmer’s Guide 4-5

Table 4-5

SECTION 4 " File Structures

Type 3 - Activate (Auto-Answer) Record

The host sends an activate record in response to an activate request
record. Nonswitched (direct) connections are auto-answerconnec­tions. See page 4-26 to build your activation parameters list.

Type 3 - Activate (Auto-Answer) Record

Position Bytes Description

1 1 Beginning delimiter: “/”
2 1 Command code: “3”
3 1 ASCII blank “ ”
4 255 Optional activation parameters list. This list ter-

minates with a slash “/” and the remaining bytes
filled with blanks.

259+ Optional pad up to 5 bytes

EXAMPLE: (CR = end of record marker)

/3 xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx/ppppp<CR>

Beginning delimiter = “/”
Command code = Activate Record “3”
ASCII blank = “ ”
Activation parameters list = “xxxx”
Optional pad = “ppppp”
Optional end-of-record delimiter = <CR>

Table 4-6

Type 4 - Activate (Auto-Dial) Record

The host responds to an activate request record with an activate re­cord. Nonswitched (direct) connections are auto-answer connections.
The controller processes auto-dial activate records for connections that
are dial-out. The activation parameters lists are derived on page 4-26.

4-6 4985 Network Controller Programmer’s Guide

SECTION 4 " File Structures

"

NOTE: This is used on the 4980 Controller and is presented here for compatibility. The

4985 uses autoanswer records for NPCP.

Type 4 - Activate (Auto-Dial) Record

Position Bytes Description

1 1 Beginning delimiter: “/”
2 1 Command code: “4”
3 1 ASCII blank “ ”
4 255 Optional activation parameters list. This list ter-

minates with a slash “/”. When used, this field
should be filled with blanks.

259+ Optional pad up to 5 bytes

EXAMPLE: (CR = end of record marker)

/4 xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx/ppppp<CR>

Beginning delimiter = “/”
Command code = Auto Dial Record “4”
ASCII blank = “ ”
Activation parameters list = “xxxx”
Optional pad = “ppppp”
Optional end-of-record delimiter = <CR>

Table 4-7

4985 Network Controller Programmer’s Guide 4-7

SECTION 4 " File Structures

Type 5 - Deactivate for One Minute Record

Use deactivate records to postpone activating the port for one minute.
The controller will issue another activation request after one minute.

Type 5 - Deactivate for One Minute Record

Position Bytes Description

1 1 Beginning delimiter: “/”
2 1 Command code: “5”
3 256 Required pad bytes
259+ Optional pad up to 5 bytes

EXAMPLE: (CR = end of record marker)

/5xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxppppp<CR>

Beginning delimiter = “/”
Command code = 5
Filler = “xxxx”
Optional pad = “ppppp”
Optional end-of-record = <CR>

Type 6 - Host Directive Record

The host sends a directive in response to a special download data re ­quest from the controller. Five subtypes of host directives are avail­able. Types “1”, “2”, and “3” manage user data files. Type “4” sends
download data to an HHC and type “6” cancels file processing.

Table 4-8

4-8 4985 Network Controller Programmer’s Guide

SECTION 4 " File Structures

Type 6 - Host Directive Record

Table 4-9

Position Bytes Description

1 1 Beginning delimiter: “/”
2 1 Command code: “6”
3 1 Directive type: “1” - “4” and “6”:

“1” = File upload directive
“2” = File create or load directive
“3” = File delete directive
“4” = File download directive
“6” = File processing abort

4 256 Directive information. The information required

for this field depends on the directive type used.

259+ Optional pad up to 5 bytes

Type 7 - Reboot Controller Directive

This directive may be sent in response to any controller-to-hostrecord
and will force the controller to reboot.

Type 7 - Reboot Controller Directive

Table 4-10

Position Bytes Description

1 1 Beginning delimiter: “/”
2 1 Command code: “7”
3 1 Reboot state

“0” = Do not clear files from RAM disk
“1” = Clear files from RAM disk

4 256 Filler bytes

Directive Types

If file processing is enabled using the system mode parameter in the
initialization record, the host will receive file requests from the control­ler at the beginning of a host-to-controller session and after the host

4985 Network Controller Programmer’s Guide 4-9

SECTION 4 " File Structures

acknowledges a controller Directive Status Record. These requests
can have one of several host directives. These four file directives for
file maintenance are:

" Upload " Create or load
" Delete " Processing abort

"

NOTE: The controller sends a directive status to the host immediately after completing a

host directive.

File Upload Directive “1”

The host sends an upload directive, in response to a file processing
special request, to upload a file stored on the 4985 controller (usually
the directory file).

File Upload Directive “1”

Table 4-11

Position Bytes Description

1 1 Beginning delimiter: “/”
2 1 Command code: “5”
3 1 Directive Type: “1”
4 8 DOS compatible filename, left-justified
12 3 DOS compatible filename extension, left-justified
15 245 Filler bytes (ASCII space)

EXAMPLE: /51FILENAMEEXT. . .xxxxxppppp<CR>

File Create or Load Directive “2”

The host sends this directive, in response to a file processing special
request, to create a data file on the controller. After the controller re­ceives a create directive, it sends the host data request records. The
host then sends data records until all the data is sent. An end-of-data
record from the host marks the end of the data for the file.

All directory entries use the following format:

4-10 4985 Network Controller Programmer’s Guide

SECTION 4 " File Structures

File Create or Load Directive “2”

Table 4-12

Position Bytes Description

1 1 Beginning delimiter: “/”
2 1 Command code: “6”
3 1 Directive type: “2”
4 8 DOS compatible filename (required)
12 3 DOS compatible file extension (required)
15 6 Date field (YYMMDD)
21 4 24-hour time (HHMM)
25 2 User-defined filler
27 1 User-defined file type

“0” or blank indicates an HHC boot file.
28 1 Filler (should be zero filled 0x30)
29 1 File status:

“0” = Good
“1” = Undefined
“2” = Feleted

“3” = System
30 6 File size (in ASCII digits) required
36 Filler bytes

EXAMPLE: /62FILENAMEEXTddddddttttff000123456ppppp<CR>

4985 Network Controller Programmer’s Guide 4-11

SECTION 4 " File Structures

File Delete Directive “3”

The host sends this directive, in response to a file processing request,
to delete a data file from the controller’s directory.

File Delete Directive “3”

Table 4-13

Position Bytes Description

1 1 Beginning delimiter: “/”
2 1 Command code: “6”
3 1 Directive type: “3”
4 8 DOS compatible filename (required)
12 3 DOS compatible file extension (required)
15 245 Filler bytes

EXAMPLE: /63FILENAMEEXT. . .xxxxxppppp<CR>

File Download Directive “4”

The host sends this directive in response to a request for download
data from an HHC. After receiving a download directive, the controller
opens the file specified and downloads it to the HHC. The controller
must contain this file (created with File Create).

File Download Directive “4”

Table 4-14

Position Bytes Description

1 1 Beginning delimiter: “/”
2 1 Command code: “6”
3 1 Directive type: “4”
4 8 DOS compatible filename (required)
12 3 DOS compatible file extension (required)
15 245 Filler bytes

EXAMPLE: /64FILENAMEEXT. . .xxxxxppppp<CR>

4-12 4985 Network Controller Programmer’s Guide

SECTION 4 " File Structures

File Processing Abort “6”

The host sends this directive to inform the controller that a file error
has occurred on the host. The controller responds by locking the files on
the controller. Normal telecommunication begins with the HHCs at this
time. No HHC cold starts are possible in a locked file system. The files
unlock after a successful file processing session.

File Processing Abort “6”

Table 4-15

Position Bytes Description

1 1 Beginning delimiter: “/”
2 1 Command code: “6”
3 1 Directive type: “6”
4 256 Filler bytes

EXAMPLE: /66xxxx . . .xxxxxppppp<CR>

Controller-to-Host Record Layouts

Controller-to-host record types implement the file transfer protocol and
status information between the controller and the host. The record
type functions and a sample record layout are given here. The 1 -byte
channel ID supports older host programs. Activate the 2-byte channel
ID in your host program. The 4921 PC Telecommunications Packages
uses 2-byte channel ID, which defines the records that follow.

There may be nine status and request record types sent from the con­troller to your host that require a response from your host.

" “0” = Upload Data " “1” = End of Session Status
" “2” = Data Request " “3” = Inactive Status
" “4” = Active Status " “5” = Activate Request
" “6” = Special Request " “7” = Directive Status
" “8” = Identification

4985 Network Controller Programmer’s Guide 4-13

SECTION 4 " File Structures

Type 0 - Upload Data Record

The HHC sends upload data records contiguously to the host on a log­ical channel.

Type 0 - Upload Data Record

Position Bytes Description

1 1 Device channel ID
2 1 HHC channel ID: “1”, “4”, or “7”
3 1 Record type: “0”
4 256 Upload data
260 2 CRC bytes if CRC checking is enabled
262 3 Optional padding bytes

EXAMPLE: (CR = end of record marker)

010xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx<CRC><CRC><CR>

Device channel ID = 0
HHC channel ID = 1
Record type = upload data
“x’s” are uploaded data
<CRC><CRC> = 2 CRC bytes for upload data

Table 4-16

"

NOTE: CRC implementation is detailed in Appendix C.

Type 1 - End of Session Status Record

This record indicates the status of a single HHC session. Each HHC
sends an end-of-session record when finished communicating.

4-14 4985 Network Controller Programmer’s Guide

SECTION 4 " File Structures

Type 1 - End of Session Status Record

Position Bytes Description

1 1 Device channel ID: “0”
2 1 Channel ID: “1”, “4”, or “7”
3 1 Record type: “1”
4 1 End of session status code:

“0” = Good status
“1” = Abort. Port connection lost.
“4” = Disconnect. The session disconnected,

“8” = HHC logic error. The HHC detected a

5 4 HHC application status information
9 1 Local port identifier
10 249 Reserved for diagnostic information

EXAMPLE: (CR = end of record marker)

0110G0001xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx<CR>

Table 4-17

probably due to a datalink protocol error.
logic error in the file transfer process.

Device channel ID = 0
HHC channel ID = 1
Record type = end of session
End of session is good.
Local port identifier is 1
Optional diagnostic data is indicated by “x’s”.

4985 Network Controller Programmer’s Guide 4-15

SECTION 4 " File Structures

Type 2 - Data Request Record

Type 2 - Data Request Record

Position Bytes Description

1 1 Device channel ID: “1”
2 1 HHC channel ID: “1”
3 1 Record type = “2”

EXAMPLE: (CR = end of record marker)

012<CR>

Device channel ID = 0
HHC channel ID = 1
Record type = data request

Type 3 - Inactive Status Record

Type 3 - Inactive Status Record

Position Bytes Description

1 1 Device channel ID: “1”
2 1 HHC channel ID: “1”
3 1 Record type = “3”

Table 4-18

Table 4-19

EXAMPLE: (CR = end of record marker)

013<CR>

Device channel ID = 0
HHC channel ID = 1
Record type = inactive status

Type 4 - Active Status Record

Active status records indicate a logical port status. The host port uses
active status records as time-fill records whenever it is idle. The host

4-16 4985 Network Controller Programmer’s Guide

SECTION 4 " File Structures

program may discard or use these records to maintain real-time status
information.

Type 4 - Active Status Record

Position Bytes Description

1 1 Device channel ID: “1”
2 1 HHC channel ID: “1”
3 1 Record type = “4”

EXAMPLE: (CR = end of record marker)

014<CR>

Device channel ID = 0
HHC channel ID = 1
Record type = Activate Status “4”

Type 5 - Activate Request Record

The host activates the LAN port in response to activate request re­cords. The controller sends a request to the host to activate an en­abled port after start of session and after each port disconnects. The
prior connection status for this port is also in the request record. The
host is expected to respond with record types “3” or “4.”

Table 4-20

Type 5 - Activate Request Record

Table 4-21

Position Bytes Description

1 1 Device channel: “0”
2 1 HHC channel ID: “1”
3 1 Record type: “5”

4985 Network Controller Programmer’s Guide 4-17

SECTION 4 " File Structures

Type 5 - Activate Request Record

Position DescriptionBytes

4 1 Status code for the previous activation of the port:

“0” = Good

“1” = Port disconnect due to protocol error

“2” = Noanswer

“3” = Modemerror

“4” = Lineprotocol error

“5” = Badactivation parameters

“6” = Error activating port

“7” = Auto-answerport timeout

“8” = HHCerror

“9” = Busy

“ : ” = Modem reported no dial tone

“ ; ” = Modem reported no carrier

“ < ” = Call collision. Modem reported ring.
5 4 Reserved for diagnostic information
9 252 Required padding

EXAMPLE: (CR = end of record marker)

015xyyyy<CR>

Device channel = 0
HHC channel ID = 1
Record type = Activate Request “5”
“x” = previous activation status code
“y” = diagnostic information

Table 4-21

Type 6 - Special Request Record

Special request records lump a variety of special records into one re­cord type. A subtype field determines the actual request type. Cur­rently there is only one subtype defined.

Type 6 - Special Request Record

Position Bytes Description

1 1 Device channel ID: “0”

4-18 4985 Network Controller Programmer’s Guide

Table 4-22

SECTION 4 " File Structures

Type 6 - Special Request Record

2 1 Channel ID: “1”
3 1 Record type: “6”
4 1 Special request subtype:

“1” = Obtains file processing from the host.

EXAMPLE: (CR = end of record marker)

0161<CR>

Device channel = 0
Channel ID = 1
Record type = special request
Special request subtype = file processing request

Type 7 - Directive Status Record

The controller sends directive status records to the host after complet­ing a host directive (with or without error).

Type 7 - Directive Status Record

Table 4-22

The host responds with a file directive or
an end-of-data record.

Table 4-23

Position Bytes Description

1 1 Device channel ID: “0”
2 1 Channel ID: “1”
3 1 Record type: “7”

4 1 Status type: “1” - “6”:

“1” = File upload

“2” = File create or load

“3” = File delete

“4” = File download

“5” = Reserved

“6” = File processing short

4985 Network Controller Programmer’s Guide 4-19

SECTION 4 " File Structures

Type 7 - Directive Status Record

Table 4-23

Position DescriptionBytes

5 1 Directive status:

“0” = Good status
“A” = File open error
“B” = File read error
“C” = File write error
“D” = Maximum files exceeded on a create

operation

“E” = Maximum open files exceeded on a file

open operation
“F” = File not found
“G” = Bad file handle
“H” = File in use. A create operation cannot

overwrite or delete a file while in use.

Occurs if a file boots an HHC when host

attempts to recreate the file.
“I” = File not open
“J” = File allocation error
“K” = End of file
“L” = File directory error
“M” = Request aborted
“O” = File system locked

6 3 Reserved for diagnostic information

EXAMPLE: (CR = end of record marker)

01710xxx<CR>

Device channel ID = 0
Channel ID = 1
Record type = Directive Status
Status type = File upload
Status = good
“xxx” is reserved for diagnostic information

Initialization Record

The host can change system parameters with an initialization record
sent at the beginning of a session.

4-20 4985 Network Controller Programmer’s Guide

SECTION 4 " File Structures

These parameters are subdivided into system, host, and port.
A slash “/” terminates initialization parameters if the initialization

record is padded without spaces. The initialization record size is 258
bytes, minimum.

A parameter list has this general format: -[type]parm

[type] a one-byte field specifying the parameter type.
“parm” the parameter value.

System Mode Parameters

Y oucan customize the controller configuration using system parame­ters. -S[system mode]

The system mode is a 1- to 5-digit numeric (base 10) field adjusting the
operational mode for the controller. Mode parameters have a value
and are turned on by adding in the values for each specific mode. The
following mode parameters are supported in the initialization record:

/* defined bits in “S” record mode */
/* system mode parameters */
/* LABEL DECIMAL BINARY */

MODE_OFF 0 /* 0000 0000 0000 0000 */
EDBDIC_ON 1 /* 0000 0000 0000 0001 */
STRANS 4 /* 0000 0000 0000 0100 */
SBOOT 8 /* 0000 0000 0000 1000 */
DEBUG_ON 16 /* 0000 0000 0001 0000 */
NCC_CHAN_ON 32 /* 0000 0000 0010 0000 */
RMT_ID_ON 64 /* 0000 0000 0100 0000 */
FILES_ON 128 /* 0000 0000 1000 0000 */
RMT_A_RQ_ON 256 /* 0000 0001 0000 0000 */
LCL_ID_ON 512 /* 0000 0010 0000 0000 */
FORCED_AA_ON 1024 /* 0000 0100 0000 0000 */
DIRECT_CNCT_ON 2048 /* 0000 1000 0000 0000 */
DEACT_RQ_ON 4096 /* 0001 0000 0000 0000 */
CRC_ON 8192 /* 0010 0000 0000 0000 */

EXAMPLE: If a system mode is 104 (8 + 32 + 64), then boot processing, 2-byte channel

IDs, and remote controller IDs are enabled.
If no mode is defined, then the default system mode is 8 (LAN port defined by

default).

4985 Network Controller Programmer’s Guide 4-21

SECTION 4 " File Structures

System Mode Parameters

Table 4-24

Value Meaning Description

0 Modedisabled. All mode parameters set off.
1 Force EBCDIC host. Controller determines if host is EBCDIC or

ASCII if this field is not added in.

4 Transparent mode on all ports. Appliesto EBCDIC hosts. When added in,

ASCII or EBCDIC data translation is disabled on
all ports. Data translation can be enabled or
disabled for individual ports.

8 Boot4000 Series HHCs in a

LAN connected to the
controller.

Enabled when a LAN port is installed and a list
of boot files exists on the controller’s system

disk.
16 Debug mode. Reserved for Norand diagnostic use.
32 2-byte channel option. When added in, all records sent to the host are

preceded by a 2-byte channel identifier. The

2-byte channel option is required if any of the

controllers in the network are remote.
64 Forwards ID records from

remote controller to the host.

Must be on if the 2-byte channel option is

enabled.
128 Controller file processing. When added in, the host is prompted with file

requests at the beginning of a host-controller

communications session.
256 Forwards port activation

requests from remote
controllers to the host.

Enable only if necessary for the host computer

to send activation parameters to ports on remote

controllers. Normally,the host does not need to

see activation requests from remote controllers,

unless the remote controller is directly cabled to

a host controller that is directly connected to the

host computer.

4-22 4985 Network Controller Programmer’s Guide

SECTION 4 " File Structures

System Mode Parameters

Value DescriptionMeaning

512 Send Local controller ID on

power up to host.

1024 Forceautoanswer for remote

controllers.

2048 Thesecondary controller is

direct-connected to the
primary.

4096 DeactivateRequest ON

(ASYNC only)

8192 CyclicRedundancy Check

(CRC) ON. (ASYNC only)

Table 4-24

When added in, the local controller begins a

communications session with the host by

sending an ID record. This host then responds

with an initialization record. Should be disabled,

as it prohibits the host from using initialization

record parameters to tailor the host-controller

interface. When enabled, the EBCDIC host

option must be set for EBCDIC host computers.

When enabled, a remote controller always

answers the phone, even when no HHCs are

ready to communicate. If not enabled, a remote

controller will not answer the phone unless an

HHC is ready.

Applies to remote controllers. If enabled, a

controller connected to an HHC port on a host

controller always maintains the link to the host

controller.

If on, the controller periodically sends a

deactivate request to the host for each enabled

auto-answer port not currently active, such as a

port waiting for a phone call. The host can then

time window port configurations. Not useful

with the 4985.

If on, the controller appends two CRC characters

to the end of the upload data (type 0) records.

Host appends two characters to the end of

download data blocks (type 0). See Appendix C.

Host Parameters

Y oucan customize the controllers host parameters in the initialization
record.

4985 Network Controller Programmer’s Guide 4-23

SECTION 4 " File Structures

Parameter Default Description

-A[mode] 0 1 to 5 digit numeric field setting mode

-C[parity] 0 1 digit numeric field setting parity and

-D[stopbits] 1 1 digit numeric field setting stop bits.

-E[delimiter] 13 1- to 2-digit numeric field specifying

Table 4-25

Host Parameters

for host port, such as -A0.

number of data bits. Valid values are:

“0” = No parity/8 data bits(-C0)
“1” = Odd parity/7 data bits (-C1)
“2” = Even parity/7 data bits (-C2)

Valid values are:

“1” = One stop bit (-D1)
“2” = Two stop bits (-D2)
“3” = Three stop bits (-D3)

collating sequence number of character
marking end of all records sent from
controller to host. A delimiter of “0”
specifies no end-of-record delimiter.

-F[block size] 0 Numeric field ranging from 258 to

-G[pad char] 32 1- to 3-digit numeric field specifying the

-H[ready char] 63 1- to 3-digit field specifying the host

4-24 4985 Network Controller Programmer’s Guide

1029; specifies the minimum controller­to-host record block size. Does not in­clude the end-of-record delimiter char­acter. Records shorter than the block
size are padded to the block size and
the delimiter character is appended.
Forces the controller to send fixed­length blocks to the host.

characters that pad short blocks when
a minimum block size is specified.

“ready” directive.

SECTION 4 " File Structures

Table 4-25

Host Parameters

Parameter DescriptionDefault

-I[read timeout] 30 2- or 3-digit numeric field specifying the

maximum seconds the controller waits
for a response from host. If no re­sponse received within set time, the
controller will reset and await an initial­ization record from the host. Validval­ues are 10 to 120.

-J[host-delay] 0 1- or 2-digit numeric field specifying
delay in hundredth of seconds before
controller sends next message to host
after receiving a ready character from
host. Valid values are 0 to 50.

-K[char-gap] 10 1- or 2-digit numeric field specifying
maximum intercharacter gap time in
whole seconds allowed in a block of
data sent from host. Valid values are 9
to 40.

-L[cts-gap] 5 1- to 3-digit numeric field specifying

EXAMPLE: /2-E0-I60-K30/

Port Parameters

Port parameters change the activation defaults for the HHC port re­ceiving the initialization record. These changes remain in effect until
you reboot the controller. The initialization record gets port parame­ters after the system and host initialization parameters.

Port parameters have this general format:

@[port], [port-type], activation parameters

-[port] 1 digit number specifying HHC port. The 4985 only has

one port so the default is “1.”

maximum time in tenths of seconds the
controller waits for CTS after RTS. Val­id values are 0 to 100.

4985 Network Controller Programmer’s Guide 4-25

SECTION 4 " File Structures

-[port-type] 1 digit number specifying port type. Valid port types
are:

" 4 LAN (NPCP) for LAN port only. For example: @1,4 (port 1,

NPCP)

-“Activation parameters” same as those parameters allowed
in an activation record for the port type specified. These are defined
starting on page 4-26.

The above string would appear in the host-to-controller initialization
record (type 2).

Activation Parameters

The host sends activation parameters to activate the HHC port. The
host-to-controller record layouts subsections specify these record lay­outs. You can specify optional parameters in activation records to cus­tomize a port configuration. The host can send some of the parameters
only in an activation record.

The parameter list has this general form: -[type][parameter]

-[type] 1-byte character specifying the parameter type.
[parameter] a string of digits or characters.

"

NOTE: All optional parameters begin with a dash.

Type 4 - LAN Parameters

Table 4-26

Parameter Default Description

-C[channels] 3 channels Specifies number of HHCs that commu-

nicate concurrently. Validvalues are 1,
2, or 3 (-C3).

-T[timeout] 60 seconds Specifies a “no activity” timeout period

in seconds. If timeout period expires,
port deactivates. Valid values are from
20 to 120 (-T60).

4-26 4985 Network Controller Programmer’s Guide

EXAMPLE: Async Host

/2 -S128 -C0 @1,4,-C3/

-S128 enable file processing

-C0 specifies 8 data bits and no parity.
@1,4,-C3 specifies three HHC communication channels on LAN (port 1)
/ end of string terminating initialization data. The slash is required

SECTION 4 " File Structures

only if record is not padded with spaces.

4985 Network Controller Programmer’s Guide 4-27

SECTION 4 " File Structures

4-28 4985 Network Controller Programmer’s Guide

Section 5

Other Features

" " " " " " " " " " " " " " " " " " " " " " " " " " " "

Controller-Based File Processing

“File Processing” refers to a method of transferring from the host com­puter updated application and data files to a local or remote controller.
These files would be stored in the controller’s RAM disk. The new
files will overwrite or replace the existing files on the controller. The
controller can store up to 40 data files on the system. The total file size
area must not exceed 360,000 bytes. The data files may contain files to
boot Hand-Held Computers (HHCs), download data, or warm-boot files
for HHCs using the File Server method.

To successfully implement file processing, you must:

" Understand the controller disk directory structure and format of

the NCDIR.NCC and NETRPL.LST control files.

" Implement host directive, special request, and directive status

records on your host computer.

" Know how to upload the NCDIR.NCC control file from the con-

troller to your host computer.

" Perform version checking of HHC application software program

changes done on the host computer against each HHC for prop­er version numbers.

" Know how to download to HHCs, without a proper version, a

“download request” file. The “download request” file must have
the proper filenames located on the controller.

4985 Network Controller Programmer’s Guide 5-1

SECTION 5 " Other Features

File processing first starts with the knowledge of what files are cur­rently on the controller and valid for file processing. This information
is stored in the NCDIR.NCC file. During the file processing phase of
communications where the host application and the controller ex­change information, the host should retrieve the NCDIR.NCC file first
to compare the contents of the controller file system with the current
host files. Here, any files that may have been changed or need to be
removed from the controller can be processed.

NCDIR.NCC

The NCDIR.NCC file contains zero, one, or multiple records on all valid
files currently loaded on the controller. This information includes file­names, date created, file size, and file status. The record size is 32 by­tes. The record layout is as follows:

NCDIR.NCC Record Layout

Position Bytes Description

1 8 MS-DOS compatible filename (required)
9 3 MS-DOS compatible file extension (required)
12 6 Creation date (YYMMDD)
18 4 Creation time (HHMM, military 24-hour clock)
22 2 Pad
24 1 Pad - “0” or blank HHC boot file
25 1 Translation type
26 1 File status:

“0” = good
“1” = undefined
“2” = deleted
“3” = system

27 6 File length (in bytes) required

5-2 4985 Network Controller Programmer’s Guide

Table 5-1

SECTION 5 " Other Features

Pad the last data record for a file with blanks if the file length is not an
even multiple of 256. Do not include the pad in the file length field in
the directory entry for the file.

EXAMPLE: An entry in the NCDIR.NCC file (* represents blank spaces)

APP*****EXE9308191134**000110667

The NCDIR.NCC file should be the first file sent from the controller to
the host. It should also be the last file sent back to the controller from
the host to update the controller. Once the host receives the
NCDIR.NCC file, the host must be able to break the file into the re­cords as defined earlier and compare the contents with the files on the
host.

After retrieving the NCDIR.NCC file and validating or marking the files
to be deleted, created, or downloaded to the controller,the host can
begin sending the proper sequence records to the controller for file
processing. This sequence of commands can be summarized into the
following:

" For each record the host wants uploaded from the controller, the

host would send an upload directive with the filename.

" If the host is downloading a new file to the controller, the host

would send a download directive or a “create or load” directive.

" The host, after each directive record, should be aware of the sta-

tus records from the controller and act appropriately based on
the status. The last file sent to the controller should be the new
updated NCDIR.NCC file.

" 4000 cold booting changes can be affected by file processing.

The 4000, when cold booting, uses the NETRPL.LST file contain­ing a list of files that are sent to it when the 4000 requests a boot
session. If the host did not send a NETRPL.LST file, the control­ler will create a file listing all files in the controller as boot files.
Normal operations do not affect the NETRPL.LST file.

Use an “Abort” record to abort the file processing session and lock the
4985 file system. The file system unlocks after a successful file proces­sing session.

4985 Network Controller Programmer’s Guide 5-3

SECTION 5 " Other Features

Pad the last data record for a file with blanks if the file length is not an
even multiple of 256. Do not include the pad in the file length field in
the directory entry for the file.

All directory entry fields must contain ASCII character data.
Fill all fields in a directory entry when creating a directory entry, ex-

cept for the file status field. The file status field indicates the current
status of the file.

Enter these fields:

" Filename
" Translation type
" File length

The filename and extension entries must be MS-DOS compatible, left­justified, and padded with blanks. If not using an extension, pad the
extension with blanks.

The translation field applies only to file data sent from a host. The file
length field must contain the exact length of the file in bytes, be right­justified, and padded to the left with leading zeros.

Y oucan fill in the date, time, fill, and type fields. However,future
NORANDâsoftware releases may use the specified fields.

EXAMPLE: Directory entry: MYFILE DAT9606222322 000001064

MYFILE Filename: MS-DOS compatible
DAT File extension: MS-DOS compatible
960622 Date created: June 22, 1996
2322 Time created: 11:22 pm
00 User defined filler
0 File type - HHC boot file
0 Filler
0 File status: Good
1064 File length is 1064 bytes

5-4 4985 Network Controller Programmer’s Guide

SECTION 5 " Other Features

If enabled on the controller (file processing), the host can update con­troller files at the beginning of each host-to-controller session. The
controller provides four directives for this purpose:

" 1 Upload
" 2 Create or load
" 3 Delete
" 4 Abort

After the host sends the initialization record, the controller sends file
requests to the host to initialize file processing and will continue to
send file requests to the host after each file processing transaction con­cludes until the host responds with an end-of-data record, terminating
file processing, and beginning data communications.

Host-to-Controller File Processing
Related Commands

"

NOTE: See Section 4 for details on record types and definitions.

Initialization Record (Type 2)

The host sends the initialization record to the controller at the begin­ning of each communication session. The host can activate file proces­sing in the controller using the system mode parameter (-S) in the ini­tialization record. The entire parameter list is located in Section 4 on
page 4-20.

EXAMPLE: /2 -S224/

Initialize controller with the following controller options enabled:

" Controller file processing
" Forward ID records from remote controller to host
" 2-byte channel option

4985 Network Controller Programmer’s Guide 5-5

SECTION 5 " Other Features

Host Directive Record (Type 6)

The host sends a directive record only during the file processing phase
of a communication session. This record requests information from
the controller or file uploads with the controller. The entire parameter
list is located on page 4-1.

A host directive may be sent by the host in response to a special re ­quest from the controller. Types “1” to “3” manage user data files (or
HHC boot files) stored on the controller. (If file processing, a system
mode parameter is enabled and the host is prompted with file requests
at the beginning of a host-to-controller session.) Type “4” sends a file
stored on the controller to an HHC requiring download data.

Host Directive Subrecords (Types 1-3)

File Upload (Subtype 1)

An upload directive may be sent in response to a file request to upload
a data file from the controller.

File Create or Load (Subtype 2)

A file create or load directive may be sent in response to a file request
to create a user data file on the controller. The directive must contain a
user data file directory entry which includes a filename and user-de­fined information. The file is saved into a RAM disk. After the control­ler receives the create directive, the host is prompted with data request
records. The host can send data records in response until all the new
file data has been sent. An end-of-data record from the host marks the
end of the data for the file.

File Delete (Subtype 3)

A file delete directive may be sent in response to a file request to delete
a user data file from the controller user file directory.

"

NOTE: A directive status record (type 7) goes to the host immediately after a host direc-

tive has been completed.

5-6 4985 Network Controller Programmer’s Guide

SECTION 5 " Other Features

Controller-to-Host File Processing
Related Commands

"

NOTE: See Section 4 on page 4-13 for record types and definitions.

Controller-to-Host Records with 2-Byte
Channel ID

Records from the controller to the host can, optionally, use a 2-byte
channel ID consisting of a 1-byte “device channel” field and a 1-byte
“HHC channel” field. HHC channels belong to the device active on the
corresponding device channel. Device channel “0” is reserved for the
controller directly connected to the host computer. Device channels
“1” to “9” are for remote controllers. The record formats for the 2-byte
channel option are the same as the 1-byte channel option except that
the device channel ID is prepended to each record from the controller.

Directive Status Record (Type 7)

After a directive has been completed, successful or not, the controller
sends a directive status record to the host containing the directive type
and a 1-byte status code. The status codes for the file are on page 4-19.

Booting HHCs from Controller

The controller can boot 4000 Series HHCs in the Local Area Network
(LAN) environment with a list of files kept in a file named

NETRPL.LST.

“Boot” is the industry jargon for bringing a computer to normal operat­ing condition when it has been without power. Norand has adopted the
term to describe the same process for starting our 4000 Series Com­puters.

NETRPL.LST must be one of the directory entries in the file directory
NCDIR.NCC (described on page 5-1).

NETRPL.LST is a pointer file that consists of filenames needed for

booting the HHC.

4985 Network Controller Programmer’s Guide 5-7

SECTION 5 " Other Features

NETRPL.LST is composed of 11-byte records. Each record contains
an 8-byte filename and 3-byte extension. A blank filename terminates
the list of files.

These filenames must have corresponding directory entries in the file
directory NCDIR.NCC.

When the boot option is in effect, the controller attempts to send all
files specified in NETRPL.LST to any terminal trying to boot on the
attached LAN.

NETRPL.LST

The controller can boot 4000 Series HHCs in the LAN environment
with a list of files kept in a NETRPL.LST file.

NETRPL.LST is a data file residing on the controller. It consists of a
series of 11-byte records. Each record contains two fields, the filename
and the filename extension. A blank record terminates the list of files.

When the boot option is in effect, the controller attempts to send all
files specified in the NETRPL.LST file to any terminal on the LAN at­tempting to boot.

Table 5-2

NETRPL.LST File

Position Bytes Description

1 8 DOS compatible filename (right-justified, padded

with blank spaces)

9 3 DOS compatible filename extension

Host-to-Controller Session Sample 1

This shows the exchange of control records between the host comput­er and the controller when there are no files residing on the controller.

"

NOTE: Asterisks indicate spaces in the command column. Complete commands may

not be shown.

5-8 4985 Network Controller Programmer’s Guide

SECTION 5 " Other Features

Host Controller Command

Init Record
Host Ready

Upload File Directive
Host Ready

Host Ready

Host Ready

File Create/Load Directive
Host Ready

Data Block
Host Ready

Data Block
Host Ready
.

-------->

-------->
<--------

-------->

-------->
<--------

-------->
<--------

-------->
<--------

-------->

-------->
<--------

-------->

-------->
<--------

-------->

-------->

File Processing Request

Data Record

Status Record

File Processing Request

Download Request

Download Request

. <repeat until all data downloaded for file>

.

Download Request

Status Record

File Processing Request

End of Data Record
Host Ready

Host Ready

End of Data Record

<--------

-------->

-------->
<--------

-------->
<--------

-------->
<end of file processing phase>
<beginning of data communication phase>

<--------

Activate Request

/2 -S224
?
0161
/61NCDIR***NCC
?
010*********
?
01710
?
0161
/62NETRPL**LST9507050914*****000022
?
012
/62APP*****EXE9507021412*****021123
?
012
/0<data>
?

012
/1
?
01720
?
0161
/1

/0150

4985 Network Controller Programmer’s Guide 5-9

SECTION 5 " Other Features

Host-to-Controller Session Sample 2

This shows the exchange of control records between the host comput­er and the controller when there are files residing on the controller.

"

NOTE: Asterisks indicate spaces in the command column. Complete commands may

not be shown.

Host Controller Command

Init Record -------->
Host Ready -------->

<-------- File Processing Request
Download File Directive -------->
Host Ready -------->

<-------- Data Record

Host Ready -------->

<-------- Status Record
Host Ready -------->

<-------- File Processing Request
File Delete Directive -------->
Host Ready -------->

<-------- Status Record
Host Ready -------->

<-------- File Processing Request
Data Block -------->
Host Ready -------->

<-------- Download Request
Data Block -------->
Host Ready -------->

<-------- Download Request
Host Ready -------->

<-------- Status Record
Host Ready -------->

<-------- File Processing Request
End of Data Record -------->
Host Ready -------->
<end of file processing phase>
<beginning of data communication phase>

<-------- Activate Request

/2 -S224
?
0161
/61NCDIR***NCC
?
010APP*****EXE9507021412*****021123

NETRPL**LST9507050914*****000022
?
01710
?
0161
/63NETRPL**LST
?
01730
?
0161
/62NETRPL**LST9507021422*****000022
?
012
/0APP*****EXE
?
012
?
01720
?
0161
/11
?

/0150

5-10 4985 Network Controller Programmer’s Guide

Section 6

Writing the Host Program

" " " " " " " " " " " " " " " " " " " " " " " " " " " "

The communications controller offers several options designed to pro­vide flexible options for reading records from the communications con

troller.

" Youcan add an end-of-record delimiter to the end of each record.

The default delimiter is a carriage return.

" Youcan configure the communications controller to pad all re-

cords to a fixed-block size. The host sets the pad character. The
default is an ASCII space.

" The host-ready character, a question mark by default, can

change to any other character, such as an XON character.

" The upload data record data portion may contain transparent

data if the port configures for transparent mode with EBCDIC
hosts. All other data sent to the host is character data.

" The network communications controller reads the initialization

record as 8-bit data, no parity,and one-stop bit, so that the host
can set the parity for the host-communications controller connec­tion in the initialization record.

If the host is reading transparent data from the communications con­troller,then the host cannot read to an end-of-record delimiter. You
could solve this problem by padding all records to a fixed length. Yet,
this is inefficient as extra length would be added to download requests.

As an alternative, the system reads the channel ID and record type por­tion of each record before the rest of the record. The host could then
use a table, indexed by record type, to determine the number of bytes
to read for the record.

4985 Network Controller Programmer’s Guide 6-1

SECTION 6 " Writing the Host Program

"

NOTE: The system sends the asterisk before the initialization record or when the

controller expects a question mark to reset the controller.

The purpose of this section is to help you write a host communications
program. The pseudo-coded host program acts as a guide to writing
your own program.

There are many ways to write a computer program. Each method has
its advantages depending on the programming language used. Host
computers may have different operating systems, device names and
assignments, or linkages. Norand provides a generic pseudo-coded
host program that includes most everything you need to know for your
host computer to communicate with the 4985 Network Controller.

"

NOTE: The pseudo programs in the following subsections do not have a status screen.

They do not send blank initialization and activation records to the controllers.
The program does run until a communication error occurs. You must thoroughly

test all code before including it in your system.

"

NOTE: For the latest “C” programs available on BBS, call [phone].

Starting the Main Routine

The main routine is a top-level routine directing the flow of the pro­gram. Physically, this routine determines if a controller is trying to
communicate with it, reads a record, checks parameters, and depend­ing on record type, performs or calls a subroutine to do the real work.
When done reading records, it closes the files and ends.

There are several subroutines that check errors and parameter. If er­rors appear,or a field’s contents are invalid, the program outputs a
message to a log file or a display.

EXAMPLE: Pseudo-code program Main Routine

Main Routine
Open Files
Initialize counters to 0 and port/channel states to inactive.
Send Initialization Record to controller.

6-2 4985 Network Controller Programmer’s Guide

SECTION 6 " Writing the Host Program

While Not Finished

Send the ready character.
Perform Controller_Read
Decode (channel) and Record (type)
If type is Upload_Data

Perform Received_Upload_Data_Routine

Else if type is End_Tcom_Status

Perform End_Status_Routine

Else if type is Download_Data_Request

Perform Download_Data_Routine

Else if type is Inactive_Status

Update host display “port inactive”

Else if type is Active_Status

Update host display “port active”

Else if type is Activate_Request

Perform Activation_Routine

Else if type is Special_Request

Perform File_Processing_Routine

Else if type is Directive_Status

Perform Directive_Status_Routine

Else

Perform Invalid_Record_Routine

Endif
End While Not Finished
Close Files
End Program
End Main Routine

4985 Network Controller Programmer’s Guide 6-3

SECTION 6 " Writing the Host Program

Receiving Data

The controller-to-host record type read was an Upload Data Record.
This means a HHC on the controller’s LAN is sending upload data to
the host computer. Y ouneed to:

1. Determine which channel receives the data.

2. Ensure that the received data writes to the proper receive file.

3. Send a “READY” command to indicate to the controller to send
the next data block.

Y oureturn to the Main Routine to read the next record from the con­troller.

The following example is a simplified version of the communication
session using a three-channel LAN.

EXAMPLE: File processing session

Host Controller

1. Get initialization parms for device
Send Init “2 -S0/” -------->
(do not wait for response)
“?” (ready) --------> first HHC begins to transmit

Set up data save area for channel 1
“?” (ready) -------->

Set up data save area for channel 7
“?” (ready) -------->

Add record to data save area already set up
“?” (ready) --------->

Set up data save area for channel 4
“?” (ready) -------->

<------- Chan 1 Upload Data

second HHC begins to transmit

<-------- Chan 7 Upload Data

second HHC transmits another
block of data

<-------- Chan 7 Upload Data

third HHC begins to transmit

<-------- Chan 4 Upload Data

6-4 4985 Network Controller Programmer’s Guide

SECTION 6 " Writing the Host Program

Host Controller

<-------- Chan 7 Upload Data

EXAMPLE: Pseudo-code program Upload Data Routine

Upload Data Routine
If channel is inactive

Save HHC ID from first upload record in save area for channel
Reset upload sequence counter for channel.

Change channel state for channel to “uploading.”
Writeupload record with channel/HHC ID/sequence counter

key.

Else

Increment upload sequence counter.
Writeupload record with channel/HHC ID/sequence counter key.

second HHC transmits another
block of data

Endif
End Upload_Data Routine

Download Data

The HHC sends a download data request through the controller to the
host computer. The host program needs to send a download data re­cord, an end-of-data record, or a download file directive in return.

EXAMPLE: Pseudo-coded Download Data routine

Download Data Routine
If channel state is uploading

log good status for upload
reset download sequence counters for channel
change channel state to downloading

4985 Network Controller Programmer’s Guide 6-5

SECTION 6 " Writing the Host Program

Endif
If there is more download data for the HHC

send download data record

Else

send an end-of-data record
Endif
Return
End Download_Data_Routine

"

NOTE: One way to associate download data with an HHC is to maintain a download

request file which contains a list of download files for each scheduled HHC. The

list of files may actually be a list of keys for indexed file systems.

Ending Status Routine

When the host receives this record, the record indicates that an HHC
has terminated its communications session. The session information
must be recorded in a log file. The log file is helpful when starting out,
as it allows you to debug your code faster.

EXAMPLE: Pseudo-coded program Ending Status Routine

End Status Routine:
Initialize log record.
Move “END” to log record type
Move the session key (channel, HHC ID) to log record key.
Move Upload_count to log record upload counter.
Move Download_count to log record download counter.
Move current_status to log record status.
Add the log record to the upload status.
Change session status to inactive.
Display log status of HHC telecom session.

6-6 4985 Network Controller Programmer’s Guide

/* close and reopen the upload file to flush the buffers to disk */
Perform Upload_flush.
/* write the log record */
Writelog_rec to the log file.
Close the log file.

Reset the channel status to inactive.

Return.
End End_Status_Routine.

Handling Time-Fill Records

The controller periodically sends either an Inactive Status Record (re ­cord type “3”) or an Active Status Record (record type “4”). These re­cords indicate the logical port’s current status, and are sent whenever
the controller is idle. The idle period could occur during a telecom
session with an HHC as it switches from upload to download mode, or,
when the controller is waiting for the next HHC to begin its telecom­munications.

SECTION 6 " Writing the Host Program

When the host program receives the Inactive or Active status record, it
should possibly update a status display or write status information to a
log file. These records primarily tell the host program that the control­ler is still alive, and should not be disconnected through an automatic
timeout.

Activating LAN Port

The host program activates the LAN port in response to active request
records. The controller sends requests for the port whenever it dis­connects. The prior connection status for this port is contained in the
uploaded activate request record. The host program should respond
with either an activate auto-answer record (record type 3) or an acti­vate auto-dial record (record type 4).

4985 Network Controller Programmer’s Guide 6-7

SECTION 6 " Writing the Host Program

Processing Special Requests

Special request records combine a variety of special records into one
record type. Currently only one subtype is defined: File Request. File
requests obtain file processing information from the host. The host
responds to this record with either a file directive or an end-of-data re­cord to return to normal data communications. See pages 5-8 through
5-10 for sample host-to-controller communications sessions.

Processing Directive Status
Records

The controller sends a directive status record to the host after complet­ing a host directive. Check this record for a good read before sending
the next record, or for an error status. You may wish to set up a differ­ent routine for handling each error type returned.

Valid status responses for file processing directives returned from the
controller are detailed on page 4-19.

Adapting Older Host Programs

Host programs designed to run with an NI311 require minimal
changes, as specified below, to communicate with the controllers run­ning in a compatibility mode.

The required changes generally fall into the following categories:

" Record Types: the controller adds a number of new record

types and the function of some of the old NI311 record types has
changed.

" Logical Channels: The controller may have up to three logical

channels per physical port.

" New Enhancements: The controller provides a number of new

enhancements which may be enabled when the host is ready to
support them.

The other major area of change is in the data record. The length of the
data block has increased from 128 bytes to 256 bytes.

6-8 4985 Network Controller Programmer’s Guide

Record Types

SECTION 6 " Writing the Host Program

Record types for both the NI311 and controllers follow. Listed are dif­ferences (if any) in how you can use the records.

NI311 Record Types

NI311-to-Host

a) 0 Upload Data
b) 1 End-of-call Status
c) 2 Data Request

Host-to-NI311

a) 0 Download Data
b) 1 End-of-data
c) 2 Initialization
d) 3 Cancel auto-dial
f) 5 Deactivate auto-dial for one minute.

4985 Network Controller

The length of the data block has increased from 128 bytes to 256 bytes.

Controller-to-Host

a) 0 Upload Data
b) 1 End-of-session Status
After each HHC completes the communication session, the system

sends end-of-session records to indicate the status of a single HHC ses­sion. This differs from the NI311 end-of-call record that provides the
status after the system loses a port connection.

c) 2 Data Request

4985 Network Controller Programmer’s Guide 6-9

SECTION 6 " Writing the Host Program

d) 3 Inactive Status
The system sends inactive status records to the host whenever a peri-

od of time expires without any activity on the host port. The status
records indicate the status of the associated port.

e) 4 Active Status
See previous Inactive Status record.
f) 5 Activate Request
Activate request records obtain the information, necessary to activate a

port. Activate requests include the status of the previous activate re­quest for the port. The system sends these requests for a physical port
whenever the port becomes disconnected. The host may respond with
with one of these activate records: auto-dial, auto-answer,or deactivate­for-one-minute.

For compatibility, the activate request record processes exactly like an
NI311 phone request record with the following restrictions:

" A 1-byte status field follows the record type in the activate re-

quest. The status field indicates the status of the previous acti­vate request. This status corresponds to the NI311 end-of-call
status.

" Responding to an activate request with an auto-answeractivate

record corresponds to responding to an NI311 phone number
request with a cancel-auto-dial record. However,the controller
will continue to prompt the host with activate requests each time
a port disconnects.

The following record types are not NI311 compatible and do not go to
the host unless the system enables the associated options.

g) 6 Special Request
Currently, one subtype follows:

1 File Requests
h) 7 Directive Status
i) 8 Controller Identification

Host-to-Controller Records

a) 0 Download Data

6-10 4985 Network Controller Programmer’s Guide

SECTION 6 " Writing the Host Program

b) 1 End-of-Data
c) 2 Initialization
The initialization record supplies system configuration parameters.
Store initialization information in a changeable file to avoid host pro-

gram changes.
The controller uses the initialization record to determine the block size

of the host computer. The block size includes a beginning-of-record
delimiter, record type, data, and an optional “end-of-line”pad character
(a carriage return). Minimum block size is 258 bytes.

"

NOTE: All records sent to the controller, except special commands, must have the same

size. Any end-of-line pad, appended-to-records, and special commands sent to
the controller must be consistent.

d) 3 Auto-answer Activate
Auto-answer activate records respond to an activate request and may

include optional port configuration parameters. The auto-answer acti­vate record replaces the NI311 cancel-auto-dialrecord.

e) 4 Auto-dial Activate
Auto-dial activate records respond to an activate request, and may in-

clude optional port configuration parameters. The auto-dial activate
record replaces the NI311 phone number record.

Auto-answer and Auto-dial Activate records process identically. The
auto-answer type is provided for backward compatibility.

f) 5 Deactivate-for-one-minute

"

NOTE: The following record types are not NI311 compatible, and cannot be sent to the

controller unless the system enables the associated options.

g) 6 Host Directive

4985 Network Controller Programmer’s Guide 6-11

SECTION 6 " Writing the Host Program

The host may send a host directive in response to a special request or
data request from the controller. Currently, five subtypes of host direc­tives follow:

" 1 File Upload
" 2 File Create or Load
" 3 File Delete
" 4 File Download
" 6 File Processing Abort

Special Commands

In addition to the preceding records, the host may send two other com­mands to the controller.

" The host must send a question mark (?) to the controller to indi-

cate that it is ready to receive data. Youcan change the question
mark to any other character (such as XON) with an initialization
record parameter. If optional pad characters follow the question
mark, they must be consistent.

" The host may reinitialize the controller by sending an asterisk

(*). This parallels sending a slash and an asterisk (/*) to the
NI311. The host must wait at least 15 seconds before sending
another initialization record after sending the asterisk.

"

NOTE: The system sends sends an asterisk before the initialization record or when the

controller expects a question mark.

Logical Channels

The controller has two physical ports logically numbered “0” and “1.”
Logical port “0” is always the host port. Port “1” is the HHC port.
There may be up to three logical channels for the HHC port.

EXAMPLE: If enabled, port “1” may have logical channels “1,” “4,” and “7.”

Records from the controller (specific to a port, such as Activate Re­quests) always use the logical channel that equates to the logical port

6-12 4985 Network Controller Programmer’s Guide

ID. Data to or from an HHC is sequential on a logical channel and will
always be port “1.” This occurs after establishing the physical connec­tion on a port.

Data Record Length

The controller data record length is 256 bytes, not including channel
and record type bytes. The NI311 data record length is 128 bytes.

Enhancements

The communications controller provides a number of new features:

" File Support: The controller allows the host computer to down-

load boot files used to boot an HHC independent of the host
computer.

" Line Discipline: The controller has a single LAN port which

uses NPCP.

" Booting HHCs: The controller can boot HHCs and the host

downloads boot files.

" Changing System and Port Configurations: The host com-

puter can change the controller system and port configurations
with initialization and activation parameters.

" DWNLRQ File Server: The controller has a DWNLRQ file

server which services file requests from HHCs. The file server
can warm start HHCs. The server is always active except with a
locked file system.

Y oucan add support for any of the above enhancements to an existing
controller host program running in an NI311 compatibility mode with­out changing the general structure of the host program.

SECTION 6 " Writing the Host Program

4985 Network Controller Programmer’s Guide 6-13

SECTION 6 " Writing the Host Program

6-14 4985 Network Controller Programmer’s Guide

Section 7

4000 Series Warm Start System

" " " " " " " " " " " " " " " " " " " " " " " " " " " "

Using the 4985 warm start system requires changing the Hand-Held
Computer (HHC) application program. This change has two parts to
implement:

" Automatic program updates
" DWNLRQ file requests

The first change requires the application to overlay itself with an up­dated version. The second change requires the application to interpret
a command file, directing the HHC to set up for a second session. The
application then requests a program update from the DWNLRQ file ser­ver.

The HHC application binds to the file server (NORAND_SERVER).
Code the application to obtain new program files from the host when
the files are not available from the server because the server is unavail­able or the HHC attaches to a modem.

"

NOTE: The 4000 Series HHC receive routine uses IPFRCV, and cannot pack 7-bit Z-

space hex files. Therefore, any PL/N application implementing automatic pro­gram updates must use the 8-bit binary format. Consult the Nordev Toolkit, soft­ware kit #210-682-001.

Complete the following items before controller-based file processing
can begin. Details follow:

" Set the ID on the remote controller. The default 4985 Controller

ID is “49850000.” A unique ID is not required for each control­ler, but is recommended.

" Create a file maintenance list for each controller ID.

4985 Network Controller Programmer’s Guide 7-1

SECTION 7 " 4000 Series Warm Start System

" Create an HHC program load “command file” and add a program

load request for each HHC. A single request can broadcast to all
HHCs.

" Build a session control file.
" Set the current version number of the HHC application.
" Copy the HHC application program files into the download direc-

tory.

" Copy the filenames specified as boot files into a boot list file for

the associated controller device.

" Execute session control formatting (if using 4921 Series of PC

Telecommunications Packages). The boot file list, created with
the device ID as the filename, goes to the controller as

NETRPL.LST.

" Convert the HHC program to support program updates and

DWNLRQ program requests.

Once the warm start system is in place, distribute a new application by
copying the program files into the DWNDIR directory.

Creating File Maintenance Lists

"

NOTE: Many of the configuration specifics are related to the operation of the 4921 Se-

ries of PC Telecommunications Packages.

The host communications program needs to create file maintenance
lists for the controllers. This file list associates with the controller ID
in the host session control file.

Create a file maintenance list for each remote controller ID, using a
host session control file interface. Use a boot-type parameter to gener­ate a boot list (NETRPL.LST) for the controller.

EXAMPLE: Host session control maintenance list

N 498500201 type=boot dir=bootdir
F pacxm0p type=data dir=dnldir
F pacx10p type=data dir=dnldir

7-2 4985 Network Controller Programmer’s Guide

SECTION 7 " 4000 Series Warm Start System

F sysarc.exe

" Controller ID is “49850201”
" Type and dir parameters in the “N” record set default type (boot)

and directory (bootdir), for the following files

" Pacx files (pacxm0- and pacx10p) represent modules in HHC

PL/N application

" sysarc.exe file is self-extracting archive which contains HHC

operating system files and kernel program

In this example, when an HHC is cold-started, it receives the SYSARC
file. After the operating system file “boots” the HHC, it passes control
over to the kernel program.

The kernel program immediately sets up a telecommunications session
with the DWNLRQ file server to request download of the application pro­gram and data files. The boot process is complete when control passes
to the application.

After the application is running, it overlays (warm starts) itself by pass­ing control to a communications module. The communications module
requests the new PACX files from the server. The warm start initiates
from the host by scheduling a program load request for the HHC.

"

NOTE: The controller file maintenance subsystem does more than boot and warm start

files.

Y ourhost communications program should provide a means for updat­ing HHC application programs. A program version number and pro­gram load request can associate with HHC identifiers in the host ses­sion control file.

The program load requests activate when the program version on the
HHC does not match the program version number associated with the
HHC identifier on the host.

Program the application on the HHC to overlay itself if you want to sup­port warm starting. Y oudo not have to write the HHC application to
support the DWNLRQ file server on the controller.

If the HHC application does not support the DWNLRQ file server, direct
the host communication program to download a new program to each
HHC with an out-of-date application.

4985 Network Controller Programmer’s Guide 7-3

SECTION 7 " 4000 Series Warm Start System

If the HHC application supports the DWNLRQ file server, direct the host
communication program to download a command file to the HHC.
This command file directs the HHC to set up for a second session to
receive the set of program files specified in the command file.

The DWNLRQ file server system provides a mechanism for 4000 and
6000 Series HHCs to request files from a locally attached NORAND
LAN controller. The session interface is identical to the interface that
the HHCs use to communicate with a host computer. To access the
server, the application must change the name of the target application
to which it is binding from NORAND_HOST to NORAND_SERVER. The
server expects file requests like PL/N DWNLRQ request files.

<DDWNLRQ00003X016>MYDATA.DAT PMBNX0P PMBNG0P

The server sends the files as requested until:

" A fatal communications error occurs
" A file cannot be found
" All files have been sent

The server supports MS-DOS filenames and extensions, but does not
support a path name.

Setting Version Number

Set the current version number of the HHC application. A version
number can enter the mode or terminal identification records in the
session control file.

R

A version number on the mode record is global. A version number on
the terminal identification record applies to a specific terminal.

The terminal identification option is for multiple application support.

Converting HHC Application
Programs

Convert the HHC program to support program updates and DWNLRQ
program requests.

7-4 4985 Network Controller Programmer’s Guide

SECTION 7 " 4000 Series Warm Start System

Once the warm start system is in place, a new application distributes
by copying the program files into the host download directory.

Due to improvements in hardware design in remote data communica­tion technology, the 4000 and 6000 Series HHCs maintain their operat­ing system and programs in Random Access Memory (RAM) rather
than in Read-Only Memory (ROM).

Therefore, the HHCs must have the operating system, programs, and
data sent to them when you cold boot them into service for the first
time.

There are two changes required before your HHC application can uti­lize the host-to-controller warm start system.

The first change requires that the application can overlay itself with an
updated version. The second change requires that the application can
interpret a command file. The command file directs the HHC to set up
immediately for a second session. Then the file requests a program
update from a controller DWNLRQ file server.

The HHC application can bind to the controller file server (NO-
RAND_SERVER). Code the HHC application to obtain new program
files from the host when the files are not available from the controller’s
server. Either the controller has suffered a malfunction (causing it to
lose the files from its memory), or the HHC attaches to a modem and
uses TTY to communicate.

The receive routine for the 4000 HHC, (IPFRCV), cannot pack 7-bit
z-space hex files. Therefore, any PL/N applications that implement
automatic program updates must use the 8-bit binary format.

4985 Network Controller Programmer’s Guide 7-5

SECTION 7 " 4000 Series Warm Start System

7-6 4985 Network Controller Programmer’s Guide
