Page 1
PT-9107SD Stereo Tuner
VOLUME
MAX
MIN
DOWN
UP
6
172839405
PRESET
SCAN
MEMORY
POWER
OFF
ON
AM
MONO / ST
FM
MODE
PRESET/TUNE
MONO
MHz
KHz
* Rack mount products in the Western Hemisphere(North America, South America,
and the Caribbean) do not have handles installed due to customer preference.
Page 2
Contents
Contents
Welcome
Warning...............................................................................................................................1
Unpacking ............................................................................................................................2
Short Form Instructions...........................................................................................................2
Installation
Environment..........................................................................................................................3
Safety...................................................................................................................................3
Description.............................................................................................................................4
Features..................................................................................................................................4
Accessories ...........................................................................................................................4
Front Panel.............................................................................................................................5
Rear Panel .............................................................................................................................7

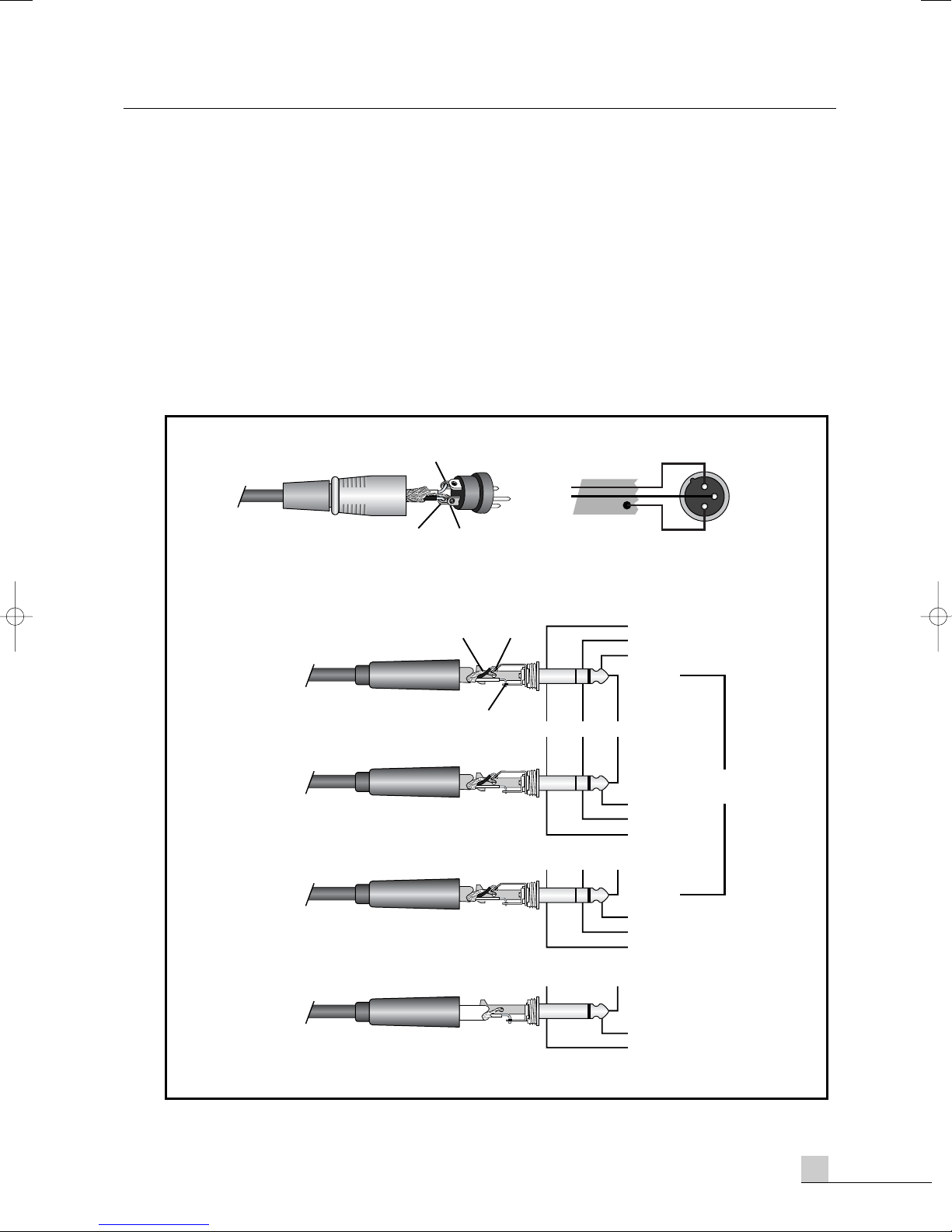

Connections ...........................................................................................................................8

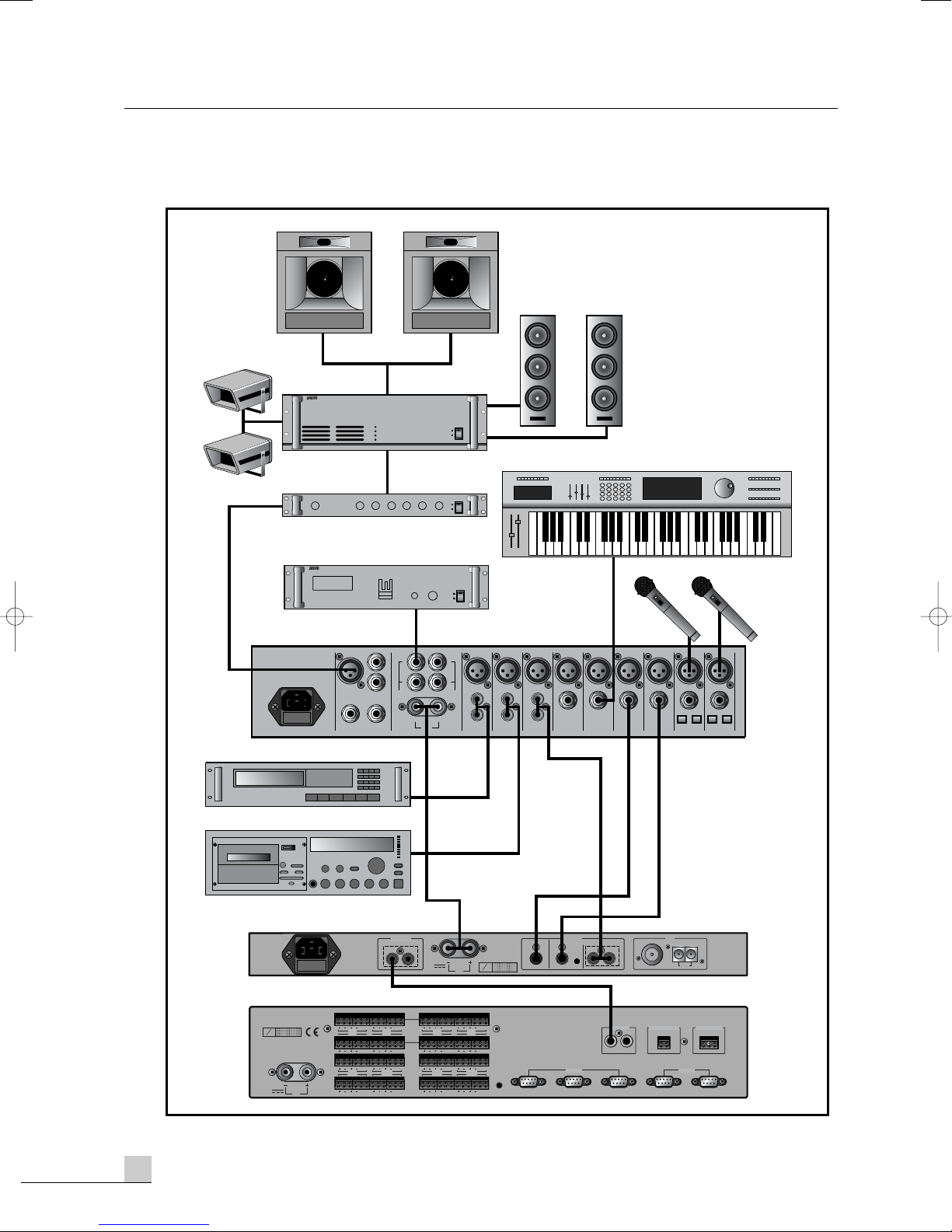

Applications.........................................................................................................................10

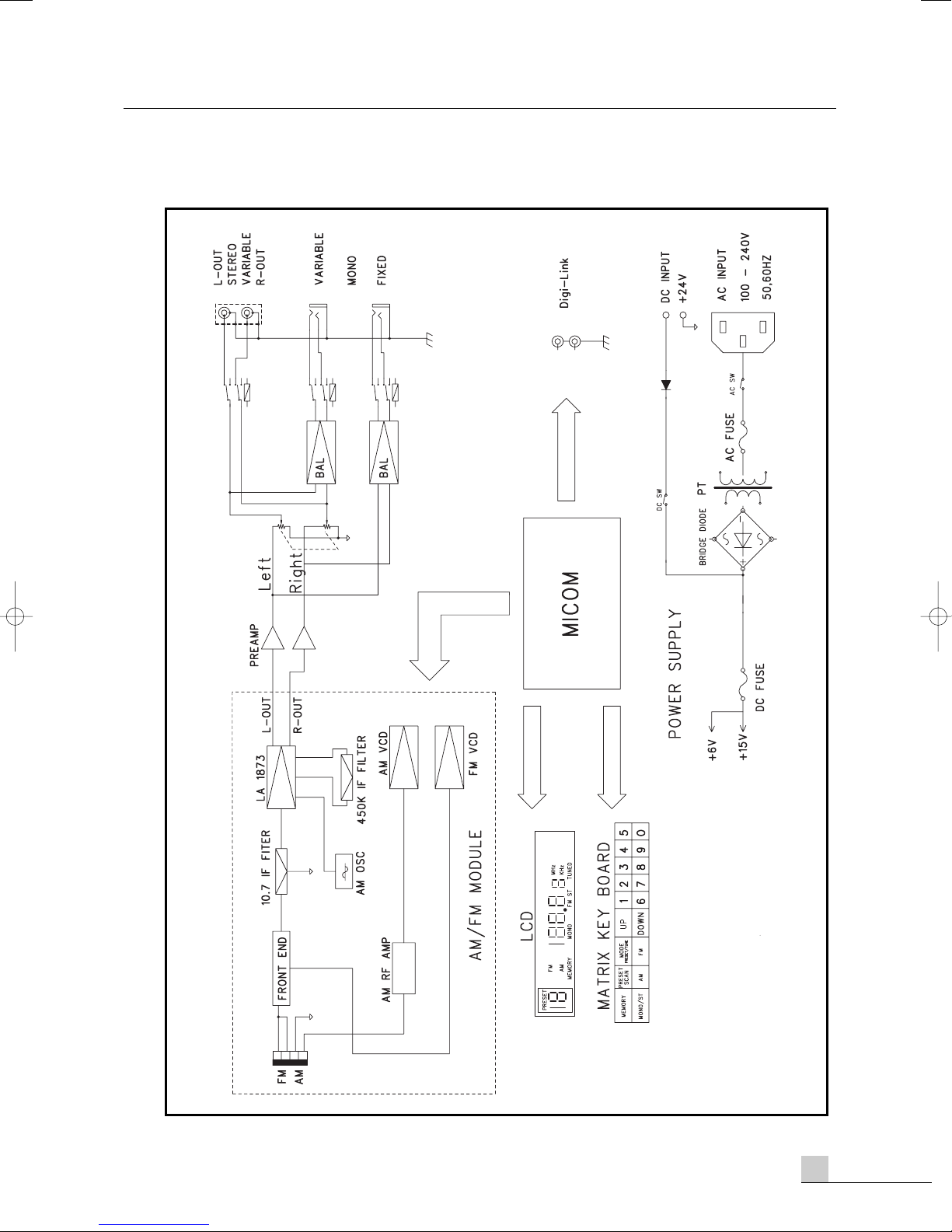

Block Diagram ....................................................................................................................11
Specifications ......................................................................................................................12
Service
Procedures..........................................................................................................................13
Schematic ...........................................................................................................................13
Parts List .............................................................................................................................13
Variations and Options .....................................................................................................13
Warranty..............................................................................................................................13
OFFICE :
653-5 BANGHAK-DONG, DOBONG-KU, SEOUL, KOREA
TEL : 82-2-2289-8140~8, FAX : 82-2-2289-8149
Home Page : http://www.inter-m.com
E-mail : export@inter-m.com
Page 3
STEREO TUNER
Welcome
Welcome
A personal welcome to you from the management and employees of Inter-M
Although it is neither complicated to install nor difficult to operate your A/V Modulator, a few minutes of
your time is required to read this manual for a properly wired installation and becoming familiar with its
All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good
many features and how to use them.
value, and we are delighted you have purchased one of our products.
Please take a great care in unpacking your set and do not discard the carton and other packing necessary
to return your set for when moving your set and are required if it ever becomes necessary to return your set
We sincerely trust this product will provide years of satisfactory service, but if anything is not to your
for service.
complete satisfaction, we will endeavor to make things right.
Never place the unit near radiators, in front of heating vents, to direct sun light, in excessive humid or dusty
location to avoid early damage and for your years of quality use.
Welcome to Inter-M, and thank you for becoming part of our worldwide extended family!
Connect your complementary components as illustrated in the following page.
This symbol is intended to alert the user to the
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
*Do not install this equipment in a confined space such as a book case or similar unit.
*The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such vases, shall be placed on the apparatus.
*Worded: “WARNING FOR YOUR PROTECTION PLEASE READ THE FOLLOWING-WATER AND MOISTURE: Unit should not be used
near water(e.g. near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc). Care should be taken
so than objects do not fall and liquids are not spilled into the enclosure through openings.”
Caution: To prevent electric shock do not use this (polarized) plug
Attentions: Pour prévenir les chocs électriques ne pas utiliser cette
presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric
shock to persons.
This symbol is intended to alert the user to the
presence of important operation and maintenance (servicing) instructions in the literature
accompanying the appliance.
with an extension cord, receptacle or other outlet unless
the blades can be fully inserted to prevent blade exposure.
fiche polarisée avec un prolongateur, une prise de
courant on une autre sortie de courant, sauf si les
lames peuvent étre insérées à fond sans en laisser
aucune partie à découvert.
PT-9107SD
1
Page 4
STEREO TUNER
Unpacking
Please take a few minutes to read this manual to familiarize yourself with the important information regarding installation, product features, and operation.
As with most electronic devices, ORIGINAL PACKAGING (OR EQUAL) IS REQUIRED in the unlikely event
that the product needs to be returned for servicing.
Short Form Instructions
1. Do not connect the AC power until step 4. The POWER switch should be in the OFF position.
2. Adjust the VOLUME control to the MIN Position (turn counter-clockwise).
3. Connect the desired OUTPUT (usually one of the variable outputs) to the input(s) of a mixer/amplifier
or other appropriate device.
4. With the power switch in the OFF position, plug in the supplied Universal AC power cord to the
product and an appropriate AC source.
5. Depress the power switch to the ON position. The power switch will illuminate.
6. Connect antennas and position them to receive the best reception.
7. The product is ready for operation. Slowly increase the VOLUME control to the desired operating
level.
8. Incorporate the Tuner’s remaining capabilities as desired.
2
PT-9107SD
Page 5
STEREO TUNER
S3125A
Installation
Installation
Environment
Never place this product in an environment which could alter its performance or reduce its service life. Such
environments usually include high levels of heat, dust, moisture, and vibration.
Safety
1. Read these instructions.
2. Follow all instructions.
3. Keep all warnings.
4. Do not use this apparatus near water.
5. Clean only with a damp cloth.
6. Do not block any of the ventilation openings.
7. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong is provided for your safety. When the provided plug does not fit
into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Use only the attachments/accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
S3125A
PT-9107SD
3
Page 6
STEREO TUNER
Description
Description
- A 1U rack space, digital AM/FM STEREO tuner.
- A 1U rack space, digital AM/ FM STEREO tuner.
Features
Features
- Fixed and Variable Output
- Fixed and Variable Output
- Stereo and Mono Output
- Stereo and Mono Outputs
- Auto Scan, Auto Scan Memory
- Auto Scan, Auto Scan Memory
- FM Stereo Indicator, MONO/STEREO Function
- FM Stereo Indicator, MONO/STEREO Function
- 20 station preset
- 20 station preset
- Automatic Mute Circuit
- Automatic Mute Circuit
- DIGI-LINK function for remote control (The Digi-link contact terminal is only compatible with Inter-M code,
- DIGI-LINK function for remote control (Inter-M Code)
preset, control 10, 20)
Accessories
One detachable AC power cord and two antennas (one AM, one FM) are provided for use with this product.
4
PT-9107SD
Page 7
Front Panel
VOLUME
MAX
MIN
DOWN
UP
6
172839405
PRESET
SCAN
MEMORY
OFF
ON
PT
9107SD
STEREO TUNER
AM
MONO / ST
FM
MODE
PRESET/TUNE
MONO
MHz
KHz
654321
789 10 11 12 13

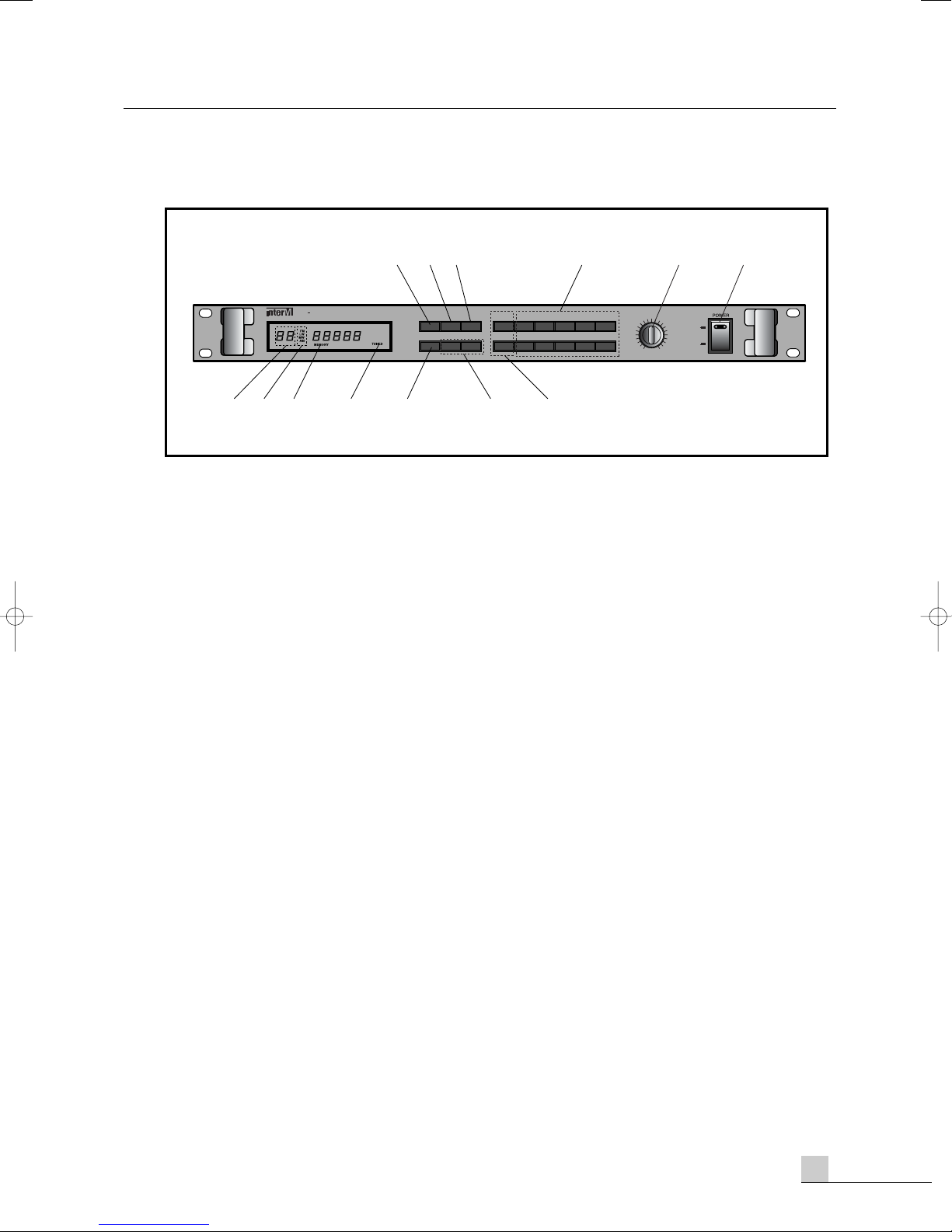

Front Panel
1. MEMORY BUTTON
The MEMORY button is used to store the frequency of a broadcast station. To manually store station
settings, tune in the desired station, press the MEMORY button and then a memory number 1-20, and
then press the MEMORY button again. This is a time-critical operation and it must be completed with a
few seconds.
STEREO TUNER
The MEMORY button also functions as the AUTO SCAN/Memory Store key. When depressed and held
for more than 2 seconds, it automatically scans the entire FM band memorizes the first 20 signals and
then repeats this process in the AM band.
2. PRESET BUTTON
Pressing this button and the MEMORY button simultaneously will play the memorized setting for 5
seconds.
3. MODE PRESET/TUNE BUTTON
This button selects between the PRESET mode and TUNE mode. In the PRESET mode the up/down button
will change to the next channel. In the TUNE mode the up/down button will change to the next frequency.
4. MEMORIZED FREQUENCY SELECTION BUTTONS
This allows for as many as 20 station presets to be stored and recalled from memory.
To select channels 1-9 simply depress the desired button. For channels 10-19 simply depress number 1
and then the other number within one second. For channel 20 simply depress the number 2 and then 0
within one second.
5. VOLUME CONTROL
This determines the level of the output signal (of the variable outputs only). The level increases as you turn
it clockwise and decreases when turned counter clockwise.
6. POWER SWITCH
This switch turns the AC mains ON/OFF. When in the ON position, the power switch will illuminate.
PT-9107SD
5
Page 8
STEREO TUNER
7. CHANNEL INDICATOR
The CHANNEL INDICATOR displays the selected channel’s MEMORY number as well as the MODE
(Preset or tune).
8. BROADCAST BAND INDICATOR
This indicates whether AM or FM has been selected.
9. MEMORY DISPLAY
The word MEMORY is displayed to confirm that the MEMORY function is ready to operate.
10. TUNING INDICATOR
The word TUNE is displayed to confirm that a radio station is broadcasting on the selected frequency.
11. MONO/ST BUTTON
This button changes the Stereo output (located on the rear panel) to a Mono output.
12. AM FM BUTTONS
Depressing these buttons selects between the AM and FM bands.
13. UP DOWN BUTTONS
Depressing either of these buttons will tune UP or DOWN in frequency. Depressing and holding either
button for 2 seconds will cause the Tuner to move UP or DOWN to the next broadcast signal.
6
PT-9107SD
Page 9
Rear Panel
RL
DC INPUT
24V
UNBAL / 75Ω
LOOP
ANT.
LR
STEREO
MONO(BAL)MONO(BAL)
VARIABLEFIXED
S
N
www.inter-m.com
OUTPUT
ANT
RESET
FM AM
23 4 5
8
7
9
DIGI-LINK
1
6

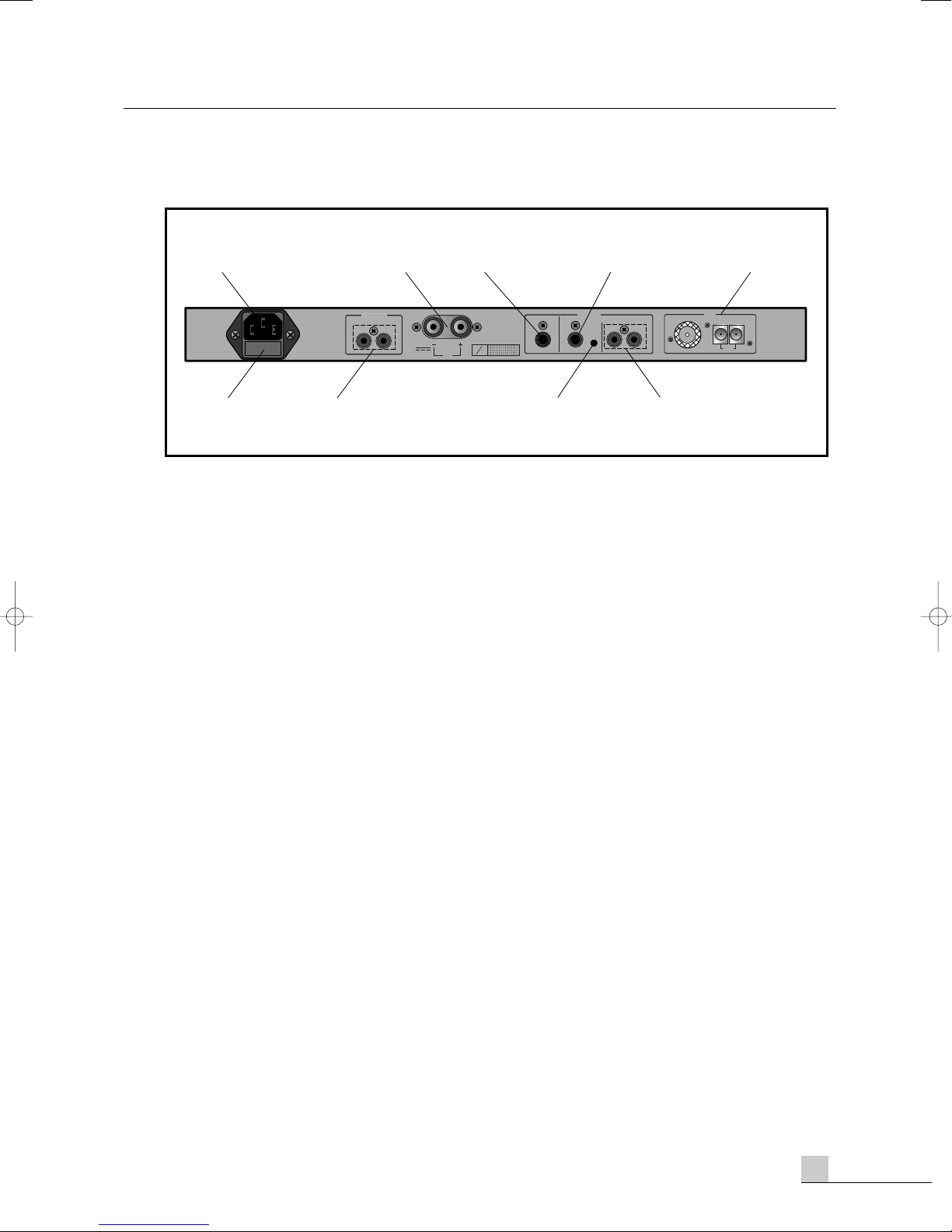

Rear Panel
1. AC INLET
This terminal is connected AC input cord.
STEREO TUNER
2. DC INPUT 24 VOLT
This input is for connection to a 24V DC power source and is not commonly used except in applications
requiring emergency operation via 24V DC.
3. FIXED OUTPUT CONNECTOR
This Mono Balanced Output has a fixed level that is not affected by the Output Level Control (located on
the front panel).
4. MONO VARIABLE OUTPUT CONNECTOR
This Mono Balanced Output has a variable level that is determined by the Output Level Control (located
on the front panel).

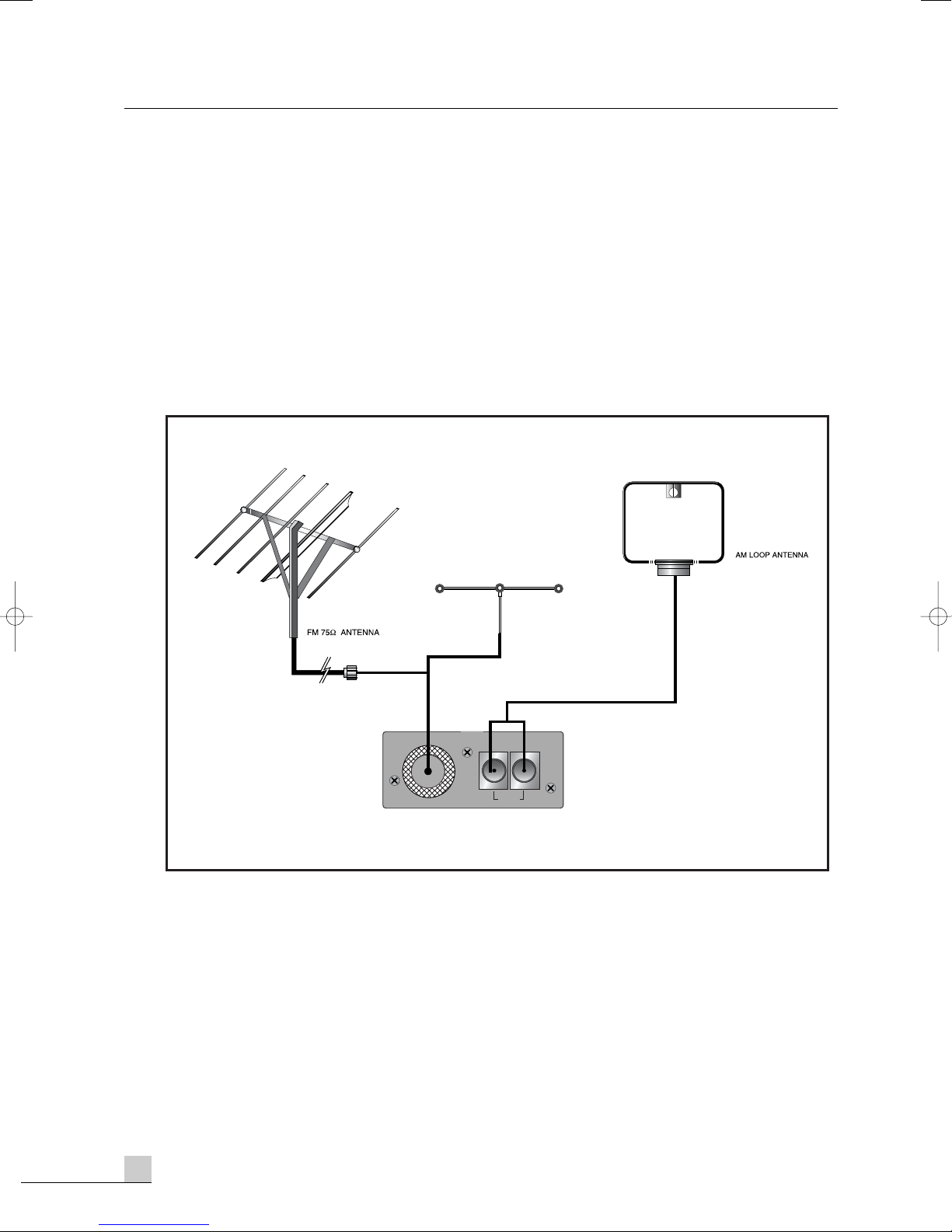

5. AM FM ANTENNA TERMINALS
The FM terminal accepts a 75 Ohm Coaxial cable that terminates at an FM antenna.
The AM terminal accepts the lead wires of the provided AM antenna (or other suitable antenna). Antenna
position may affect performance so it may be necessary to reposition the antenna for the best reception.
6. FUSE COVER
This fuse cover contain AC fuse, replace only with same type fuse when it is blown out. If it continuously
low, stop replacing fuse and refer servicing to qualified personnel.
7. DIGI-LINK ACCESS CONNECTOR
(The Digi-link contact terminal is only compatible with Inter-M code, preset, control 10, 20)
This connector interfaces with the DIGI-LINK remote control.
8. RESET BUTTON
The RESET button clears any microprocessor problems which may occur when the power is switched on.
If a malfunction occurs, switch the power off and press RESET for 2~3 seconds.
9. STEREO VARIABLE OUTPUT CONNECTOR
This Stereo Unbalanced Output has a variable level that is determined by the Output Level Control (located on the front panel). This output can be either stereo or Mono as determined by the MONO/ST button
located on the front panel.
PT-9107SD
7
Page 10
STEREO TUNER
UNBAL / 75Ω
LOOP
ANT.
ANT
FM AM
FM T -SHAPE ANTENNA
(USE 300Ω/75Ω MATCHING TRANS)
Connections
Connections
- ANTENNA
FM
The ability to receive an FM signal may be diminished by terrain, area buildings, and the construction
materials of the building housing the receiver. Keep these circumstances in mind when selecting the type of
FM antenna and its mounting position.
An indoor FM antenna is provided and should be suitable for most applications. Repositioning the antenna
may be necessary to identify the optimum mounting location. If greater signal strength is required, replace
the supplied antenna with a large outdoor FM antenna using 75 Ohm coax as the lead wire.
AM
The ability to receive an AM signal may be diminished by terrain, area buildings, and the construction
materials of the building housing the receiver. Keep these circumstances in mind when selecting the type of
AM antenna and its mounting position.
An AM antenna is provided and should suitable for most applications. Repositioning the antenna (including
taking it outdoors) may be necessary to identify the optimum mounting location.
8
PT-9107SD
Page 11
- SYSTEM INTERCONNECT
Ring
Ring
Tip
Tip
Sleeve
Sleeve
Send
Return
Screen
Hot (+ve)
Cold (-ve)
Screen
Left Signal
Right Signal
Ground
Signal
Ground
3 Pole (Stereo) Jack
2 Pole (Mono) Jack
Ring TipSleeve
TipSeeve
2
1
3
Balanced Input
Hot (+ve)
Hot (+ve)
Sleeve
Screen
Cold (-ve)
Cold (-ve)
Inter-M products are wired to reflect accepted wiring practices used throughout the world.
Balanced 1/4” TRS connectors are wire as described:
Tip is Positive
Ring is Common
Sleeve is Shield
Unbalanced RCA connectors are wire as described:
Tip is Positive
Sleeve is Common
STEREO TUNER
Insert Points
Amp/Line Input
Headphones
Unbalanced
Input/Output
AUX Send
PT-9107SD
9
Page 12
STEREO TUNER
CASSETTE DECK
CD PLAYER
KEY BOARD
DISTRIBUTOR
POWER AMPLIFIER
EMERGENCY PANEL
AUDIO PRE AMPLIFIER
PT-9107SD
DSC-8200 DIGI-LINK CONTROL UNIT
SPEAKERS
DUCK P.PWR
CH1CH2
DUCK P.PWR
CH3CH4CH5CH6CH7CH8CH9
LINE IN
MIC IN
L
RR
L
R
L
2
1
AUX
1
2
PRIORITY
+-
DC INPUT
24V
INSERTREC OUT
MASTER
2
1
SUB OUT
OUTPUT
INPUTINPUT
LINE IN
MIC IN
LINE IN
MIC IN
LINE IN
MIC IN
LINE IN
MIC IN
LINE IN
MIC IN
LINE IN
MIC IN
LINE IN
MIC IN
LINE IN
MIC IN
POWER
ON
OFF
S
N
RX RX TX TX G 24V RX RX TX TX G 24V
RX
RX TX TX G 24V RX RX TX TX G 24V
RX
RX TX TX G 24V RX
RM 11 RM 12
RM 15 RM 16
RM 3 RM 4
RM 7 RM 8
RX TX TX G 24V
RX
RX TX TX G 24V RX RX TX TX G 24V
RESET
PC 1 PC 2 DRP / INTERFACE LINK 1 LINK 2
RS-422RS-232
DIGI LINK
HC HCG
12
EM AUDIO OUTFROM DRG-8232
RX RX TX TX G 24V RX RX TX TX G 24V
RX
RX TX TX G 24V RX RX TX TX G 24V
RX
RX TX TX G 24V RX
RM 9 RM 10
RM 13 RM 14
RM 1 RM 2
RM 5 RM 6
RX TX TX G 24V
RX
RX TX TX G 24V RX RX TX TX G 24V
DC INPUT
24V
www.inter-m.com
S
N
POWER
ON
OFF
FIRE
POWER
ON
OFF
ON
ON
FUSE
T125mAL / 250V
~AC INPUT
220V 60Hz
RL
DC INPUT
24V
UNBAL / 75Ω
LOOP
ANT.
LR
STEREO
MONO(BAL)MONO(BAL)
VARIABLEFIXED
S
N
www.inter-m.com
OUTPUT
ANT
RESET
FM AM
DIGI-LINK
Applications
Applications
10
PT-9107SD
Page 13
Block Diagram
Block Diagram
STEREO TUNER
PT-9107SD
11
Page 14
STEREO TUNER
Specifications
Specifications
- ELECTRICAL
Scope of Frequency .....................................................FM : 87.5MHz~108MHz, AM : 522kHz~1611kHz
Sensibility ......................................................................................................FM : <3µV, AM : < 100µV
Signal to Noise Ratio.......................................................................................FM : > 65dB, AM : > 40dB
Total Harmonic Distortion .........................................................................................FM : 0.3%, AM : 1%
Output Level
FM (Mono Balanced)...............................................................................................1V(modul. 75kHz)
FM (Stereo Balanced) .......................................................................................500mV(modul. 75kHz)
AM (Mono Balanced) ..........................................................................................240mV(modul. 30%)
- GENERAL
Power Source ..............................................................AC 100V/120V/230V/240V, 50/60Hz, DC 24V
Power Consumption .......................................................................................................................11W
Weight.........................................................................................................................................3.5kg
Dimensions.................................................................................................482(W)×44(H)×280(D)mm
* Specifications and design subject to change without notice.
12
PT-9107SD
Page 15
STEREO TUNER
Service
Service
Procedures
Ensure the problem is not related to operator error, or system devices that are external to the unit.
Information provided in the troubleshooting portion of this manual may help with this process. Once it is
certain that the problem is related to the product contact your warranty provider as described in the warranty section of this manual.
Schematic
A Schematic is available by contacting your warranty provider.
Parts List
A Parts List is available by contacting your warranty provider.
Variations and Options
Variations and Options
Variations
Products supplied through legitimate sources are compatible with local AC power requirements.
Options
No optional items are available for this product.
Warranty
Warranty
Warranty terms and conditions vary by country and may not be the same for all products. Terms and conditions of warranty for a given product may be determined first by locating the appropriate country which
the product was purchased in, then by locating the product type.
To obtain specific warranty information and available service locations contact Inter-M directly or the authorized Inter-M Distributor for your specific country or region.
PT-9107SD
13
Page 16
MADE IN KOREA
December 2005 9007102410 B
Inter-M, Ltd. (Korea) began operations in 1983.
Since then, Inter-M has grown to become one of the largest manufacturers
of professional audio and commercial sound electronics equipment in the world.
Inter-M has gained worldwide recognition for its own branded products,
as well as private label manufacturing of electronics sold under other names (OEM).
The company is no longer just a Korean company, but rather a global company
that is truly international in scope, with factories and offices in Korea and China,
and sales and marketing operations located in Japan, Europe, and the U.S.A.
With more than 850 employees around the globe,
Inter-M is well-poised for further growth and expansion.
INTER-M AMERICAS, INC.
1 EAST BEACON LIGHT LANE CHESTER, PA USA 19013-4409
TEL : 1-610-874-8870, FAX : 1-610-874-8890
Home Page : http://www.inter-m.net, E-mail : service@inter-m.net
INTER-M Corporation
SEOUL OFFICE:653-5 BANGHAK-DONG, DOBONG-KU, SEOUL, KOREA
TEL : 82-2-2289-8140~8, FAX : 82-2-2289-8149
Home Page : http://www.inter-m.com, E-mail : export@inter-m.com
Loading...
