Installation Guide 5

Introduction

Product overview

This is the installation guide for TruVision IP camera models:

 TVB-1101 (1.3MPX IP bullet camera, PAL)

 TVB-3101 (1.3MPX IP bullet camera, NTSC)

 TVB-1102 (3MPX IP bullet camera, PAL)

 TVB-3102 (3MPX IP bullet camera, NTSC)

 TVD-1103 (1.3MPX IP VF mini dome, PAL)

 TVD-3103 (1.3MPX IP VF mini dome, NTSC)

 TVD-1104 (3MPX IP VF mini dome, PAL)

 TVD-3104 (3MPX IP VF mini dome, NTSC)

 TVD-1101 (1.3MPX IP indoor mini dome, PAL)

 TVD-3101 (1.3MPX IP indoor mini dome, NTSC)

 TVD-1102 (3MPX IP indoor mini dome, PAL)

 TVD-3102 (3MPX IP indoor mini dome, NTSC)

 TVW-1101 (1.3MPX IP wedge dome, PAL)

 TVW-3101 (1.3MPX IP wedge dome, NTSC)

 TVW-1102 (3MPX IP wedge dome, PAL)

 TVW-3102 (3MPX IP wedge dome, NTSC)

6 Installation Guide

Installation

This section provides information on how to install the
cameras.

Installation environment

When installing your product, consider these factors:

• Electrical: Install electrical wiring carefully. It should be
done by qualified service personnel. Always use a proper
PoE switch or a 12 VDC UL listed Class 2 or CE certified
power supply to power the camera. Do not overload the
power cord or adapter.

• Ventilation: Ensure that the location planned for the
installation of the camera is well ventilated.

• Temperature: Do not operate the camera beyond the
specified temperature, humidity or power source ratings.
The operating temperature of the camera is between -30
to +60°C (-22 to 140°F). Humidity is below 90%.

• Moisture: Do not expose the camera to rain or moisture,
or try to operate it in wet areas. Turn the power off
immediately if the camera is wet and ask a qualified
service person for servicing. Moisture can damage the
camera and also create the danger of electric shock.

• Servicing: Do not attempt to service this camera
yourself. Any attempt to dismantle or remove the covers
from this product will invalidate the warranty and may
also result in serious injury. Refer all servicing to qualified
service personnel.

• Cleaning: Do not touch the sensor modules with fingers.
If cleaning is necessary, use a clean cloth with some
ethanol and wipe the camera gently. If the camera will not

Installation Guide 7

be used for an extended period of time, put on the lens
cap to protect the sensors from dirt.

Package contents

Check the package and contents for visible damage. If any
components are damaged or missing, do not attempt to use
the unit; contact the supplier immediately. If the unit is
returned, it must be shipped back in its original packaging.

Package contents:

 Camera

 Hex wrench (for dome and mini dome cameras only)

 Installation manual

 CD with Configuration manual and TruVision Device

Finder

CAUTION: Use direct plug-in UL listed power supplies
marked Class 2/CE certified or LPS (limited power source) of
the required output rating as listed on the unit.

Cable requirements

For proper operation, adhere to the following cable and power
requirements for the cameras. Category 5 cabling or better is
recommended. All network cabling must be installed according
to applicable codes and regulations.

Table 1 on page 9 lists the requirements for the cables that
connect to the camera.

8 Installation Guide

Table 1: Recommended power cable requirements

Bullet camera:

Mini dome:

Wedge camera:

VF dome camera: 12 VDC power jack or PoE (802.3af)

12 VDC power jack or PoE (802.3af)

PoE (802.3af)

12 VDC power jack or PoE (802.3af)

Camera description

Figure 1: IP bullet camera

Adjustable

bracket

shield

Sun

Housing

Grounding

screws

Reset button

Installation Guide 9

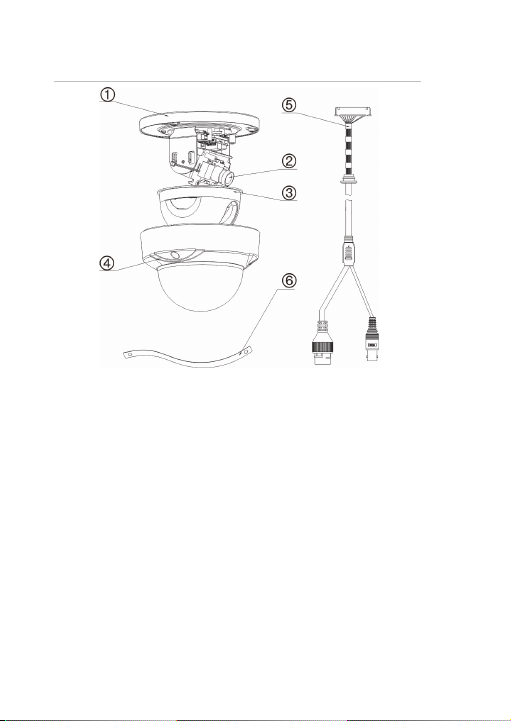

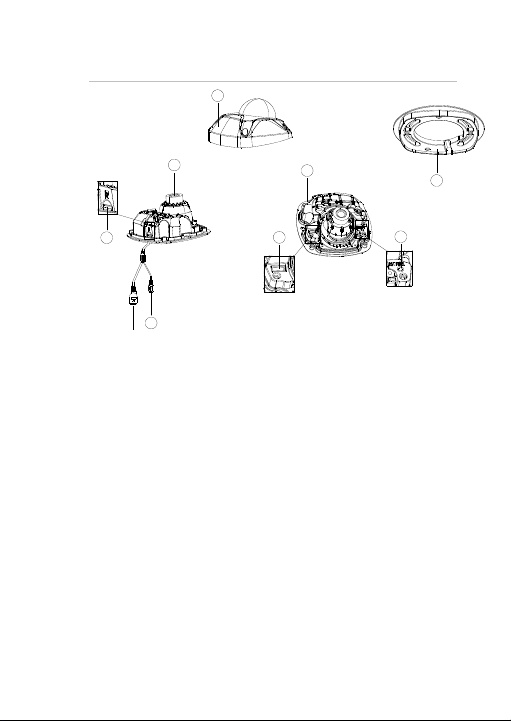

Figure 2: IP indoor mini dome camera

1. Base

2. Lens

3. Dome liner

4. Housing

5. Ethernet RJ45 and BNC
cable

6. Safety cable

10 Installation Guide

Figure 3: IP wedge camera

1

2

3

5

4

1. Cover

2. Lens

3. SD card

4. Ethernet RJ45 PoE port

6

7

6. Base

7. Serial port

8. Reset button

9. Converter pan

9

8

5. Power supply

Installation Guide 11

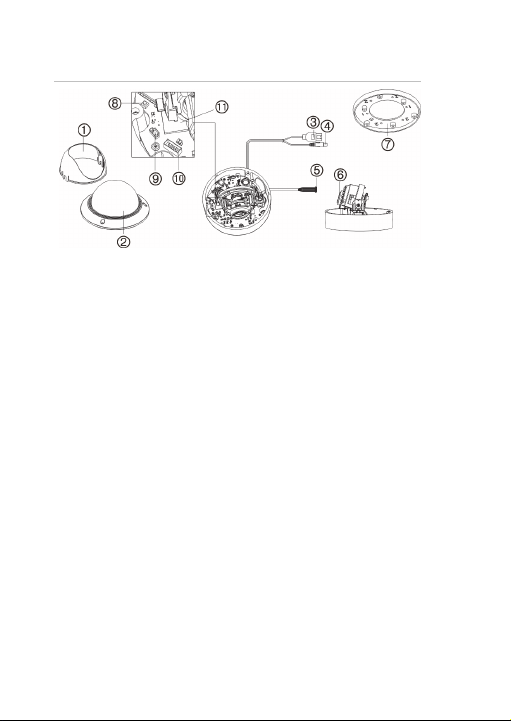

Figure 4: IP VF dome camera

1. Dome liner

2. Housing

3. Ethernet RJ45 PoE port

4. Power supply

5. Audio and alarm cables

6. Lens

7. Mounting plate

8. Reset button

9. Analog video output

10. Serial port

11. SD card

Setting up the camera

Note: If the light source where the camera is installed

experiences rapid, wide- variations in lighting, the camera may
not operate as intended.

To quickly put the camera into operation:

1. Prepare the mounting surface.

2 Mount the camera on the ceiling using the appropriate

fasteners. See “Mounting the bullet camera” on page 13.

3. Set up the camera’s network and streaming parameters
so that the camera can be controlled over the network.

12 Installation Guide

For further information, please refer to the “TruVision IP
Camera Configuration Manual”.

4. Program the camera to suit its location. For further
information, please refer to the “TruVision IP Camera
Configuration Manual”.

Accessing the SD card

Insert a Micro SD card with up to 64GB for local storage as a
backup in case, for example, the network fails (see Figure 1
on page 9). The card is not supplied with the camera.

For the IP VF dome camera, point the lens vertically upwards
to access the SD card slot.

Video and log files stored on the Micro SD card can only be
accessed via the web browser. You cannot access the card
using TruVision Navigator or a recording device.

Note: There is no Micro SD card slot in the bullet and indoor
mini dome cameras.

Mounting the bullet camera

Mount the camera on a ceiling or wall.

To mount the bullet camera:

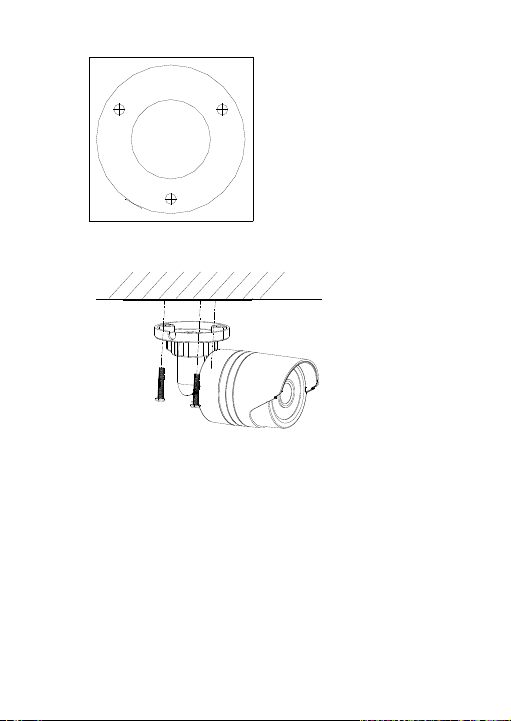

1. Use the supplied template to mark out the mounting area.
Drill the screw holes on the ceiling or wall. If you need to
route the cables from the camera base, cut a cable hole
in the ceiling or wall.

Installation Guide 13

Ceiling Mounting

Hole

2. Secure the mounting base to the ceiling or wall with the
supplied screws.

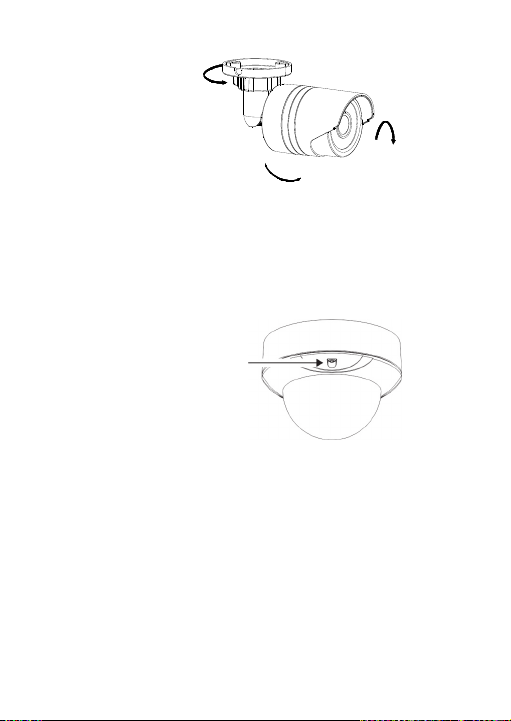

3. Loosen the adjustable nuts on the bracket, and adjust the
camera from P/R/T (pan/rotate/tilt) direction.

P Direction: 0 to 360°adjustable.

T Direction: 0 to 90°adjustable.

R Direction: 0 to 360°adjustable

Adjust the lens to the required surveillance angle. Tighten
the adjustable nuts to complete the installation.

Hole

Hole

14 Installation Guide

0°~360°

0°~360°

0°~ 9 0°

Mounting the VF dome camera

To mount the VF dome camera on a ceiling or wall:

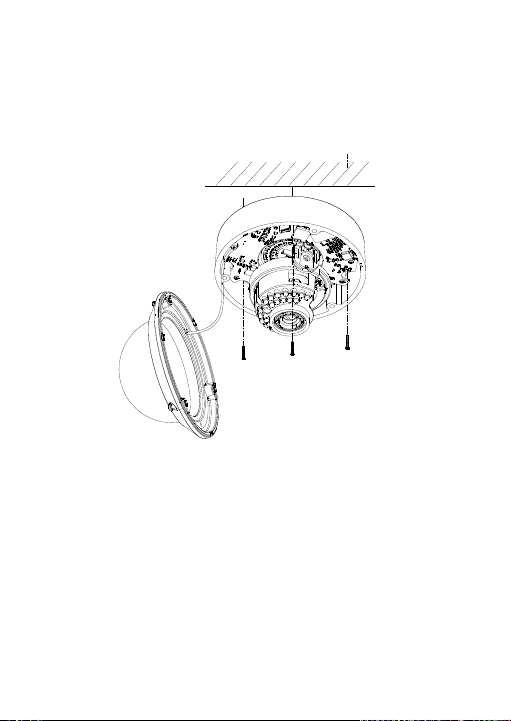

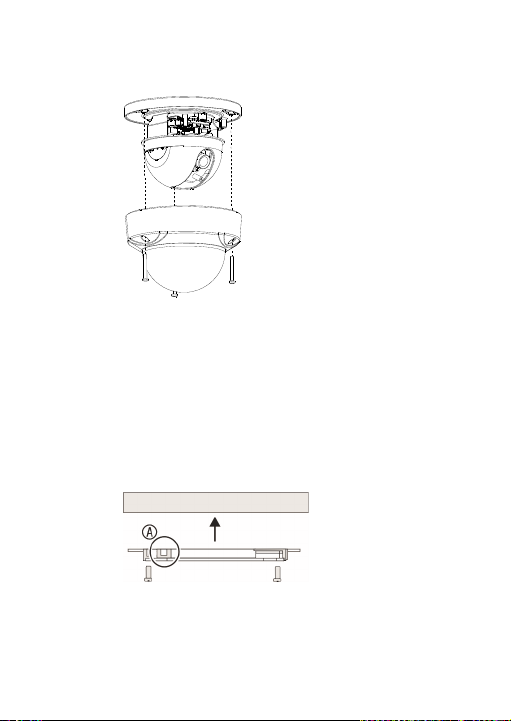

1. Loosen the three screws on the edge of the lower dome
with screw driver.

Screws

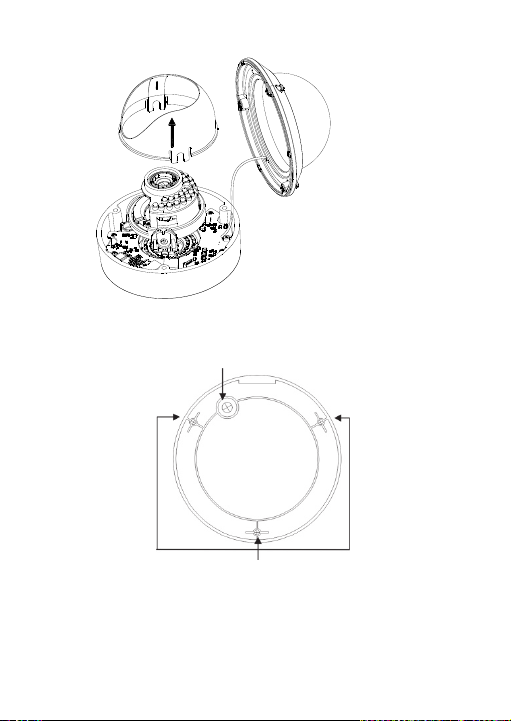

2. Open the lower dome and remove the black inner liner.

Installation Guide 15

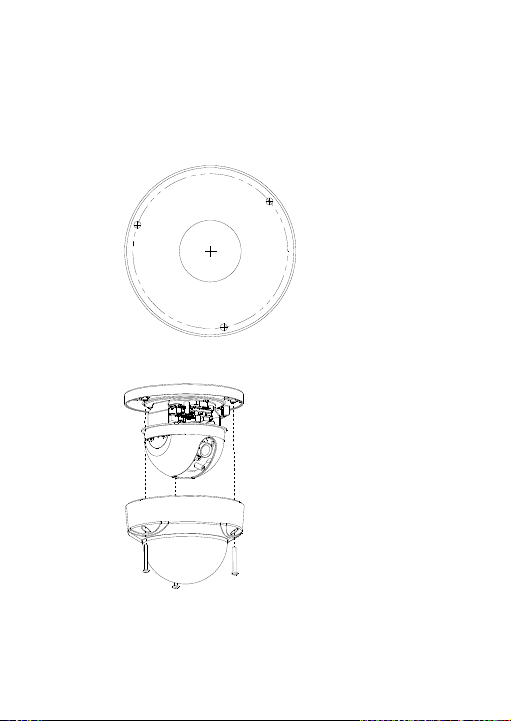

3. Drill the three screw holes on the ceiling with the supplied
drill template.

Cable hole

Screw holes

16 Installation Guide

4. If you want to route the cables inside the ceiling, drill a
cable hole in the ceiling or wall using the drill template.

5. Attach the camera to the ceiling or wall by aligning the
housing holes with those in the ceiling. Secure the
camera with the supplied screws as shown below.

6. Route the cables through the cable hole.

Note: If required, you can route cables through the side
screw opening of the camera

7. Connect the video output connector to the monitor.
Connect the power connector to the power supply.

8. Adjust the image and focus.

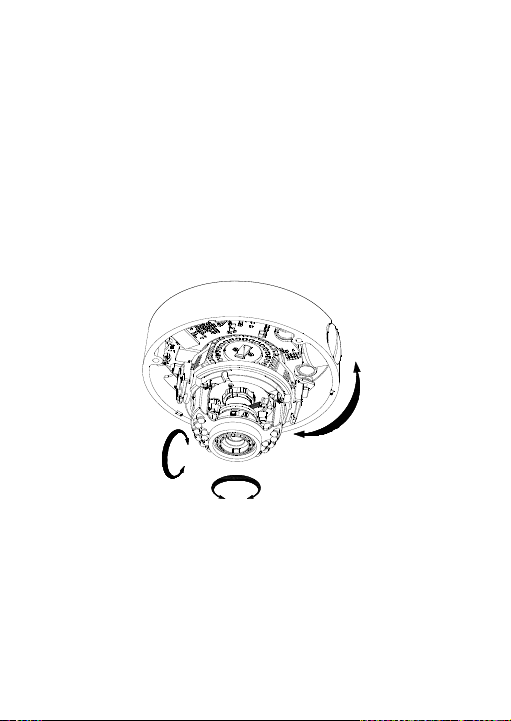

1) Three-axis adjustment.
View the camera image using the monitor. Hold the
panning table and pull out slightly to adjust the

Installation Guide 17

panning position of the camera. Rotate the tilting
axes to adjust the tilting position of the camera.
Rotate the lens table to adjust the azimuth angle of
the image.

2) Zoom and focus adjustment.
Loosen the zoom lever and move the lever between
T(Tele) and W(Wide) to obtain the appropriate angle
of view.

3) Tighten the zoom lever.
Loosen the focus lever and move the lever between
F(Far) and N(Near) to obtain the optimum focus.
Tighten the focus lever.

Tilting

Rotation

Rotation

18 Installation Guide

Mounting the indoor mini dome camera

To mount the indoor mini dome camera on a ceiling:

1. Drill the screw holes on the ceiling with the supplied
drilling template. If you need to route the cables from the
bottom of the camera, cut a cable hole in the ceiling.

1

1

1

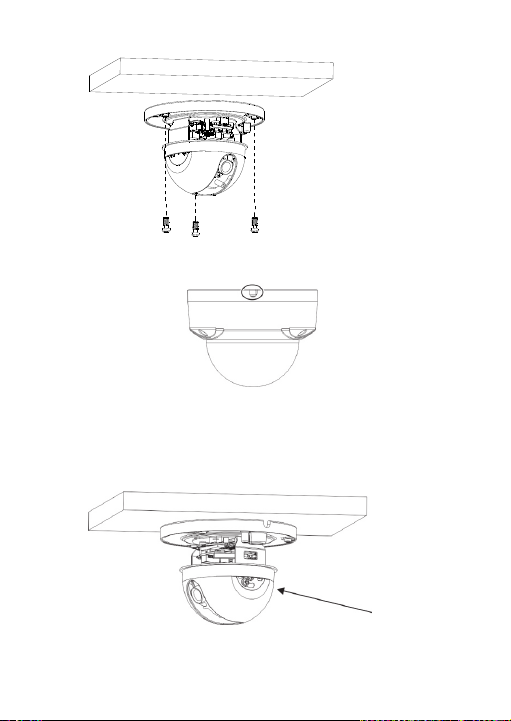

2. Using the supplied hex wrench, loosen the set screws to
remove the dome enclosure.

3. Fix the mounting base onto the ceiling with screws.

Installation Guide 19

Note: If required, you can route cables through the side
opening of the mounting base.

4. Loosen the tilt lock screws, and adjust the tilting position
in a range of 65 degrees. Retighten the tilt lock screws.

Rotate the dome liner to adjust the panning position in a
range of 360 degrees to obtain the desired surveillance
angle.

Adjust
screw

20 Installation Guide

5. Reinstall the lower dome and tighten the screws.

Mounting the wedge dome camera

To mount the wedge dome camera on a ceiling:

1. Drill the screw holes on the ceiling with the supplied
drilling template. To route the cables from the base of the
camera, cut a cable hole in the ceiling.

2. Fix the converter pan to the ceiling (optional).

Note: If required, you can remove the tabs (A) on the
side of the converter pan to pass the cables through.

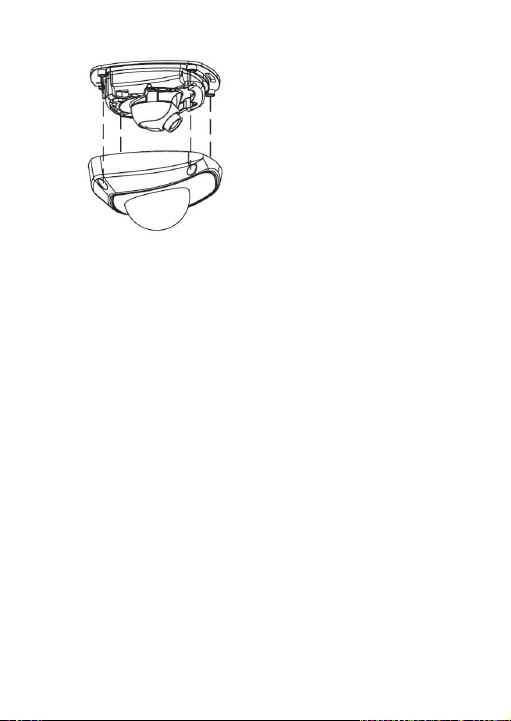

3. Loosen the set screws with a hex wrench (supplied) to
remove the dome enclosure.

Installation Guide 21

4. Fix the camera base to the converter pan or mounting
surface.

5. Re-attach the dome enclosure to the camera.

Using the camera with an Interlogix NVR
or Hybrid DVR or another system

Please refer to the NVR/DVR user manuals for instructions on
connecting and operating the camera with these systems.

Using the camera with TruVision
Navigator

A camera must be connected to an Interlogix NVR or hybrid
DVR in order to be operated by TruVision Navigator. Please
refer to the TruVision Navigator user manual for instructions
on operating the camera with the TruVision Navigator.

22 Installation Guide

Specifications

TruVision IP bullet cameras

Electrical

Voltage input 12 VDC, PoE (IEEE 802.3af)

Power consumption Max. 5 W

Miscellaneous

Connectors DC jack flying lead, RJ45 flying lead

Operating temperature -30 to 60 °C (-22 to 140°F)

Dimensions Φ 60 × 153 mm (2.3” × 6.0”)

Weight 373 g (0.82 lbs)

Environmental rating IP66

TruVision IP indoor mini dome

Electrical

Voltage input PoE (IEEE 802.3af)

Power consumption Max. 5 W

Miscellaneous

Connectors RJ45 flying lead

Operating temperature -30 to +60 °C (-22 to +140 °F)

Dimensions (L × W × H) Φ 111 × 82 mm (4.4” × 3.2”)

Weight 370 g (0.81lbs)

Installation Guide 23

TruVision IP wedge cameras

Electrical

Voltage input 12 VDC, PoE (IEEE 802.3af)

Power consumption Max. 5 W (Max. 7 W with IR on)

Miscellaneous

Connectors DC jack flying lead, RJ45 flying lead

Operating temperature -30 to +60°C (-22°F to +140°F)

Dimensions (L × W × H)

Weight 407 g (0.89 lb)

Environmental rating IP66

98 × 89 × 329 mm
(3.86 ×3.49 × 12.94 in.)

TruVision IP VF mini dome cameras

Electrical

Voltage input 12 VDC, PoE (IEEE 802.3af)

Power consumption Max. 5.5 W

Miscellaneous

Connectors

Operating temperature -30 to +60°C (-22°F to 140°F)

Dimensions (L × W ×
H)

Weight 767 g (1.69 lb)

Environmental rating IP66

24 Installation Guide

DC jack flying lead, RJ45
flying lead

Φ 140 × 100 mm (Φ 5.51” ×

3.94”)

Pin definitions

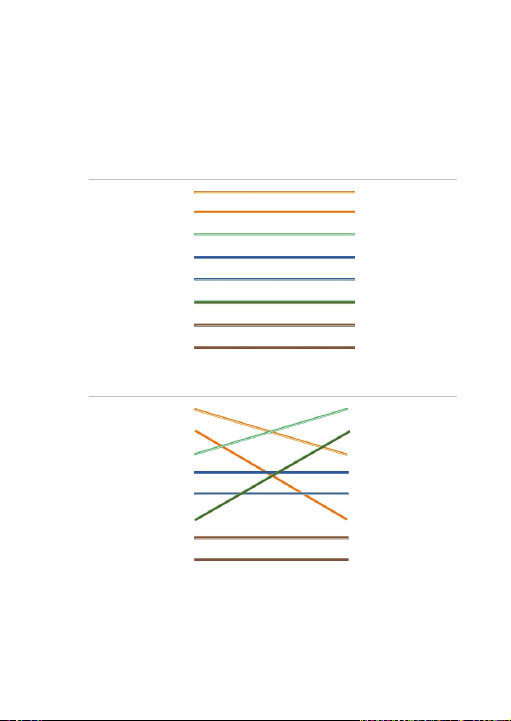

There are eight wires on a standard UTP/STP cable and each
wire is color-coded. The following shows the pin allocation and
color of straight and crossover cable connection:

Figure 3: Straight-through cable

1 White/Orange White/Orange 1

2 Orange Orange 2

3 White-Green White-Green 3

4 Blue Blue 4

5 White/Blue White/Blue 5

6 Green Green 6

7 White/Brown White/Brown 7

8 Brown Brown 8

Figure 4: Cross-over cable

1 White/Orange

2 Orange Orange 2

3 White-Green White-Green 3

4 Blue Blue 4

5 White/Blue White/Blue 5

6 Green Green 6

7 White/Brown White/Brown 7

8 Brown Brown 8

White/Orange 1

Installation Guide 25

Please make sure your connected cables have the same pin
assignment and color as above before deploying the cables in
your network.

26 Installation Guide
