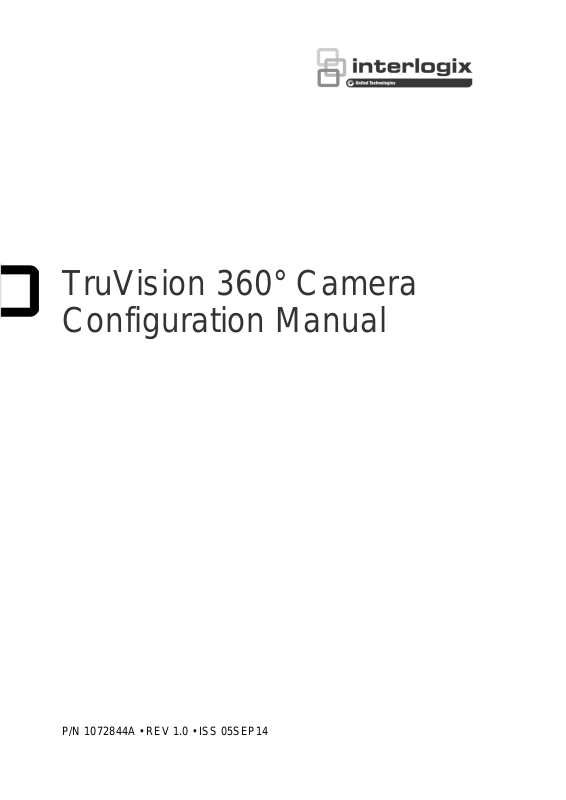

Interlogix TruVision 360 Configuration Manual
TruVision 360° Camera
Configuration Manual
P/N 1072844A • REV 1.0 • ISS 05SEP14
Copyright
©
Interlogix is part of UTC Building & Industrial S ystems, a unit of United
Technologies Corpora
Trademarks and
patents
T
trademarks of the manufacturers or vendors of the respective
products
Manufacturer
Interlogix
2955 Red Hill Avenue, Costa Mesa, CA
Authorized EU manufacturing represent ative:
UTC Fire & Security B.V.
Kelvinstraat 7, 6003 DH Weert, The Netherland s
Contact information
For contact information
www.utcfssecurityproducts.eu
t
www.interlogix.com/customer
2014 United Technologies Corporation,
tion. All rights reserved.
rade names used in this document may be trademarks or registered
.
,
92626-5923, USA
, see www.interlogix.com or
.
Customer suppor
-support
Content
Introduction 3
Checking your web browser security level 3
Accessing the camera over the internet 5
Overview of the camera web browser 5
Camera configuration 7
Local configuration 7
Configuration 8
Defining the system time 9
Defining RS-485 settings 10
Defining 360° settings 11
Configuring network settings 13
Defining recording parameters 17
Configuring the video image 19
Defining how information is displayed 22
Configuring privacy mask 23
Motion detection alarms 24
Tamper-proof alarms 26
Exception alarms 27
Snapshot parameters 27
Configuring NAS settings 28
Formatting the storage devices 29
Defining a recording schedule 30
Camera management 33
User management 33
Defining RTSP authentication 35
Defining IP Address Filter 35
Defining Security Service 37
Restoring default settings 37
Importing/exporting a configuration file 38
Upgrading the firmware 38
Rebooting the camera 38
Camera operation 39
Logging on and off 39
Live view mode 39
Playing back recorded video 40
Searching event logs 42
Operating PTZ control 44
Index 47
TruVision 360° Camera Configuration Manual i
ii TruVision 360° Camera Configuration Manual
Introduction
This manual explains how to configure the camera over the network with a web
browser.
TruVision IP cameras can be configured and controlled using Microsof t Int er net
Explorer (IE) and other browsers. The procedures described use Micr os of t Internet
Explorer (IE) web browser.
Checking your web browser security level
When using the web browser interface, you can install ActiveX controls to connect and
view video using Internet Explorer. However, you cannot download data, such as video
and images due to the increased security measure. Consequently you should check the
security level of your PC so that you are able to interact with the cameras over the web
and, if necessary, modify the Active X settings.
Configuring IE ActiveX controls
You should confirm the ActiveX settings of your web browser.
To change the web browser’s security level:
1. In Internet Explorer click Internet Options on the Tools menu.
2. On the Security tab, click the zone to which you want to assign a web site under
“Select a web content zone to specify its security settings”.
3. Click Custom Level.
4. Change the ActiveX controls and plug-ins options that are signed or m arked as
safe to Enable. Change the ActiveX controls and plug-ins options that are
unsigned to Prompt or Disable. Click OK.
- or -
TruVision 360° Camera Configuration Manual 3
Under Reset Custom Settings, click the security level for the whole zone in the
Reset To box, and select Medium. Click Reset.
Then click OK to the Internet Options Security tab window.
5. Click Apply in the Internet Options Security tab window.
Windows 7 and 8 users
Internet Explorer for Windows 7 and Windows 8 operating systems have increased
security measures to protect your PC from any malicious software being installed.
To have complete functionality of the web browser interface with Windows 7 and
Windows 8, do the following:
• Run the Browser interface as an administrator in your workstation
• Add the camera’s IP address to your browser’s list of trusted sites
• To avoid compatibility problems with your browser, add the camera IP address to
the browser compatibility view.
To add the camera’s IP address to Internet Explorer’s list of trusted sites:
1. Open Internet Explorer.
2. Click Tools, and then Internet Options.
3. Click the Security tab, and then select the Trusted sites icon.
4. Click the Sites button.
5. Clear the “ Require server verification (https:) for all sites in this zone box” checkbox.
6. Enter the IP address in the “Add this website to the zone” field.
7. Click Add, and then click Close.
8. Click OK in the Internet Options dialog window.
9. Connect t o t he c am era for full browser functionality.
4 TruVision 360° Camera Configuration Manual
To add the camera’s IP address to Internet Explorer’s compatibility view:
1. Open Internet Explorer.
2. If using I nter net Explorer 11, click Compatibility view and then Add.
– Or –
If using Internet Explorer 10 or below, click Tools > Compatibi lity View Settings
and then Add.
Accessing the camera over the internet
Use the web browser to access and configure the camera over the internet.
It is recommended that you change the administrator password once the set up is
complete. Only authorized users should be able to modify camera settings. See “User
management” on page 33 for further information.
To access the camera online:
1. In the web browser enter the camera’s IP address (default is 192.168.1.70). Use the
tool, TruVision Device Finder, enclosed on the CD to find the IP address of the
camera.
The Login dialog box appears.
Note: Ensure that the Active X controls are enabled.
2. Enter your user name and password.
User name: admin
Password: 1234
3. Click Login. The web browser window appears in live view mode.
Overview of the camera web browser
The camera web browser lets you view, record, and play back recorded videos as well
as manage the camera from any PC with Internet access. The browser’s easy-to-use
controls give you quick access to all camera functions. See Figure 1 on page 6.
If there is more than one camera connected over the network, open a separate web
browser window for each individual camera.
TruVision 360° Camera Configuration Manual 5
Figure 1: Browser interface (Live view shown)
Parameters
Description
1. Live View Click to view live video.
2. Playback Click to playback video.
3. Log Click to search for event logs. There are three m ai n types:
Alarm, Exception, and Operation.
4. Configuration Click to display the configuration window for setting up the
camera.
5. Current User Display current user logged on.
6. Logout Click to log out from the system. This can be done at any time.
7. PTZ Controls Control pan, tilt, zoom actions, set up presets and tour.
8. Aspect Ratio Choose the aspect ratio (4×3, 16×9 or auto).
9. Live View Mode Choose live view mode among 360°, panorama, and (or) PTZ
mode.
10. Start/stop Live View Click to start/stop live view.
11. Audio Adjust volume.
12. Viewer View live video. Time, date and camera name are displayed
here.
13. Bidirectional Audio Enable/disable bidirectional audio
14. Capture Click to take a snapshot of the video. The snapshot will be saved
to the default folder in JPEG format.
15. Start/stop Recording Click to record live video.
16. Digital Zoom Click to enable digital zoom.
6 TruVision 360° Camera Configuration Manual
Camera configuration
This chapter explains how to configure the cameras through a web browser.
Once the camera hardware has been installed, configure the camera’s settings through
the web browser. You must have administrator rights in order to configure the cameras
over the internet.
The camera web browser lets you configure the camera remotely using your PC. Web
browser options may vary depending on camera model.
There are two main folders in the configuration panel:
Local configuration
Configuration
Local configuration
Use the Local Configuration menu to manage the protocol type, live view performance
and local storage paths. In the Configuration panel, click Local Configuration to
display the local configuration window. See Figure 2 below for des criptions of the
different menu parameters.
Figure 2: Local Configuration window
TruVision 360° Camera Configuration Manual 7
Live View Parameters
Protocol
specific ports for streaming under some network environments.
Live View Performance
Rules
Image Format
Record File Settings
Record F
Save
Save
Picture and Clip Settings
Save
View To
Save
To
Save Clips To
Parameters Description
1.
2.
Specifies the network protocol used.
Options include: TCP, UDP, MULTICAST and HTTP.
TCP: Ensures complete delivery of streaming data a nd better
video quality, yet the real-time transmissi on wil l be affected.
UDP: Provides real-time audio and video streams.
HTTP: Allows the same quality as of TCP without setting
MULTICAST: It’s recommended to select MCAST type when
using the Multicast function.
Specifies the transmission speed.
Options include: Real Time, Balanced or Fluency.
Enable this option to detect real-time alarm such as motion
detection. The area which detected the alarm wil l be
highlighted as green.
Specifies the snapshot format as JPEG or BMP.
ile Size Specifies the maximum file size.
Options include: 256 MB, 512 MB, and 1G.
3.
Record Files to Specifies the directory for recorded files.
Downloaded Files to Specifies the directory for downloaded files.
Snapshots In Live
Snapshots When Playback
Specifies the directory for saving video clips in playback mode.
Specifies the directory for saving snapshots in live view mode.
Specifies the directory for saving snapshots in playback mode.
Configuration
Use the Configuration panel to configure the camera system, network, video audio,
alarms, users, transactions and other parameters such as upgrading the firmware. See
Figure 3 on page 9 for descriptions of the configuration folders available.
8 TruVision 360° Camera Configuration Manual
System
and the current
Network
Video/Audio
Security
Events
Storage
Figure 3: Configuration panel (Device Information window selected)
Parameters Description
1.
2.
3
4.
5.
6.
7.
Displays the basic device information in cluding serial number
firmware version, time settings, maintenance, and serial port parameters.
Defines the network parameters required to access the camera over the
internet.
Defines recording parameters.
Defines the image parameters, OSD settings, overlay text and privacy mask.
Defines who can use the camera, their pass words and access privileges,
RTSP authentication, IP address filter and telnet access.
Defines moti on detection, tamper-proof, alarm input/output, exception and
snapshot configuration.
Defines recording schedule, storage management and NAS configuration.
Defining the system time
NTP (Network Time Protocol) is a protocol for synchronizing the clocks of network
devices, such as IP cameras and computers. Connecting network devices to a
dedicated NTP time server ensures that they are all synchronized.
To define the system time and date:
1. Click Configuration > System > Time Settings.
TruVision 360° Camera Configuration Manual 9
2. From the Time Zone drop-down menu, select the time zone that is the closest to the
camera’s location.
3. Under Time Sync, check one of the options for setting the time and date:
Synchronize with an NTP server: Check the NTP enable box and enter the server
NTP address. The time interval can be set from 1 to 10080 minutes.
- Or Set manually: Enable the Manual Time Sync function and then click to set the
system time from the pop-up calendar.
Note: You can also check the Sync with computer time checkbox to synchronize
the time of the camera with the time of your computer.
4. Check Enable DST to enable the DST function, and set the start and end dates of
the DST period.
5. Click Save to save changes.
Defining RS-485 settings
The RS-485 serial port is used to control extra devices that support the 485 protocol
(Pelco D or Pelco P), such as PTZ devices, lighting devices or other devices. You can
also connect it to an analog PTZ camera, using a 360° camera to control PTZ
movement.
You need to configure these parameters before connecting the camera to any devices.
10 TruVision 360° Camera Configuration Manual
Figure 4: RS-485 Settings window
To set up RS-485 settings:
1. Click Configuration > System > RS485.
2. Select the RS-485 port parameters.
Note: The Baud Rate, PTZ Protocol, and PTZ Address parameters should be
exactly the same as the PTZ camera parameters.
3. Click Save to save changes.
Defining 360° settings
The 360° Settings configuration enables you to select the real-time mode, and the
mounting type, etc.
TruVision 360° Camera Configuration Manual 11
Figure 5: 360° Settings window
Parameters Description
1. 360° Mode
2. Mounting Type Select the camera mounting type: Ceiling, Desktop, or Wall.
Real-time High
Resolution Mode
Multi Channel Mode When you choose this option, the camera will
Note: Changing the mounting type will change the live view mode, image
effect, PTZ control, preset scene and other parameters.
When you choose this option, the camera will
support one 360° view or four PTZ views, with high
resolution and high frame rate.
support one 360° view, one panoramic view, and
three PTZ views at the same time.
Note: PTZ view and 360° view cannot be performed at the same time under “Real-time
High Resolution” mode. When PTZ view is displayed, there will be NO local recording in
the camera SD card or NAS.
12 TruVision 360° Camera Configuration Manual
TCP/IP
to automatically obtain an IP address and other network
class IP address between 224.0.0.0
Configuring network settings
Accessing the camera through a network requires that you define certain network
settings. Use the “Network” folder to define the network settings. See Figure 6 below for
further information.
Figure 6: Network window (TCP/IP window shown)
Parameters Description
1.
NIC Type: Specifies the NIC type. Default is Auto. Other options
include: 10M Half-dup, 10M Full-dup, 100M Half-dup and 100M Fulldup.
DHCP: Enable
settings from that server.
IPv4 Address: Specifies the IPv4 address of the camera.
IPv4 Subnet Mask: Specifies the IPv4 subnet mask.
IPv4 Default Gateway: Specifies the IPv4 gateway IP address.
IPv6 Mode: Specifies the IPv6 mode, including Manual (Static),
Automatic (DHCP) and Neighbor Discovery (Router Advertise m ent ).
IPv6 Address: Specifies the IPv6 address of the camera.
IPv6 Subnet Prefix Length: Specifies the IPv6 prefix length.
IPv6 Default Gateway: Specifies the IPv6 gateway IP address.
MTU: Specifies the valid value range of MTU. Default is 1500.
Multicast Address: Specifies a D-
to 239.255.255.255. Only specify this opt i on i f you are using the
multicast function. Some routers prohibit the use of multicast function
in case of a network storm.
DNS server: Specifies the DNS server for your network.
TruVision 360° Camera Configuration Manual 13
Loading...
