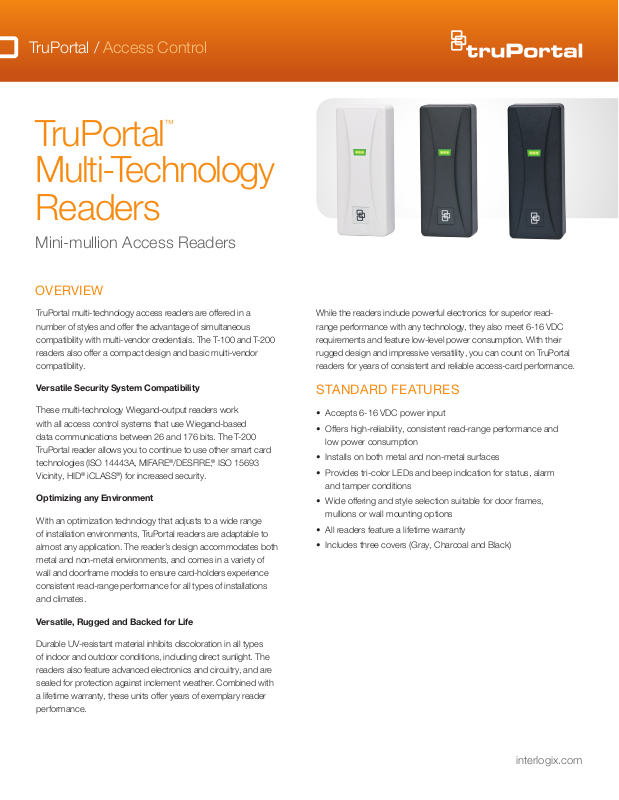

Interlogix TP-RDR-200A Specsheet

TruPortal / Access Control

™

TruPortal
Multi-Technology

Readers

Mini-mullion Access Readers

OVERVIEW

TruPortal multi-technology access readers are offered in a
number of styles and offer the advantage of simultaneous
compatibility with multi-vendor credentials. The T-100 and T-200
readers also offer a compact design and basic multi-vendor
compatibility.

Versatile Security System Compatibility

These multi-technology Wiegand-output readers work
with all access control systems that use Wiegand-based
data communications between 26 and 176 bits. The T-200
TruPortal reader allows you to continue to use other smart card
technologies (ISO 14443A, MIFARE
Vicinity, HID

Optimizing any Environment

With an optimization technology that adjusts to a wide range
of installation environments, TruPortal readers are adaptable to
almost any application. The reader’s design accommodates both
metal and non-metal environments, and comes in a variety of
wall and doorframe models to ensure card-holders experience
consistent read-range performance for all types of installations
and climates.

®

iCLASS®) for increased security.

®

/DESFIRE,® ISO 15693

While the readers include powerful electronics for superior read­range performance with any technology, they also meet 6-16 VDC
requirements and feature low-level power consumption. With their
rugged design and impressive versatility, you can count on TruPortal
readers for years of consistent and reliable access-card performance.

STANDARD FEATURES

• Accepts 6-16 VDC power input

• Offers high-reliability, consistent read-range performance and
low power consumption

• Installs on both metal and non-metal surfaces

• Provides tri-color LEDs and beep indication for status, alarm
and tamper conditions

• Wide offering and style selection suitable for door frames,
mullions or wall mounting options

• All readers feature a lifetime warranty

• Includes three covers (Gray, Charcoal and Black)

Versatile, Rugged and Backed for Life

Durable UV-resistant material inhibits discoloration in all types
of indoor and outdoor conditions, including direct sunlight. The
readers also feature advanced electronics and circuitry, and are
sealed for protection against inclement weather. Combined with
a lifetime warranty, these units offer years of exemplary reader
performance.

interlogix.com

TruPortal™
Multi-Technology Readers

Mini-mullion Access Readers

North America

T 855-286-8889

Latin America

T 561-998-6114

Specifi cations

Name T-100 Series Reader T-200 Series Reader

Model Number TP-RDR-100A/TP-RDR-100B TP-RDR-200A/TP-RDR-200B

Mini-mullion mount,

Description

Color Options Gray, Charcoal or Black Gray, Charcoal or Black

Agency Approvals FCC Part 15, CE mark, UL 294 FCC Part 15, CE mark, UL 294

Physical Dimensions
(LxWxH)

Operating
Temperature Range

Relative Humidity 0% to 95% (non-condensing) 0% to 95% (non-condensing)

Minimum Wiring

Cabling Distance

Supported Credential
Technology

Proximity Cards

Interlogix Proximity •

®

Proximity •

HID

HID® Proximity Corporate 1000™•

Smart Cards

®

MIFARE

(ISO 14443A) Card

Serial Number (CSN)

®

/DESFIRE® CSN •

MIFARE

Vicinity (ISO 15693) CSN •

HID® iCLASS® CSN •

3 Covers, 18"/45.7cm pigtail
(6'/182.9cm for TP-RDR-100B long
readers) wire, Wiegand output

4.2 x 1.72 x 1 in.
(44 x 107 x 25.4mm)

-13 to 149º F (-25 to 65º C) -13 to 149º F (-25 to 65º C)

Wiegand-based systems:
5 conductors (minimum)

Wiegand-based systems:
up to 500 ft. (152 m) @ 12VDC

125 kHz

Mini-mullion mount,
3 Covers, 18"/45.7cm pigtail
(6'/182.9cm for TP-RDR-200B long
readers) wire, Wiegand output

4.2 x 1.72 x 1 in.
(44 x 107 x 25.4mm)

Wiegand-based systems:
5 conductors (minimum)

Wiegand-based systems:
up to 500 ft. (152 m) @ 12VDC

13.56 MHz
(ISO 15693 & 14443A, B)

•

Ordering Information

TruPortal T-100 Series Reader

TP-RDR-100A

TP-RDR-100B

TP-RDR-200A

TP-RDR-200B

430209004/5/6 ­T-500W

430210004/5/6 ­T-520W

430211004/5/6 ­T-525W

*TruPortal supports Wiegand only input.

(mini-mullion mount, Proxlite/

®

3 covers, 18"/45.7cm

HID,
pigtail wire, Wiegand output)
TruPortal T-100 Series Reader
(mini-mullion mount, Proxlite/

®

3 covers, 84"/214cm pigtail

HID,
wire, Wiegand output)
TruPortal T-200 Series Reader
(mini-mullion mount, Vicinity (ISO

15693)/Proximity (ISO14443), 3
covers, 18"/45.7cm pigtail wire,
Wiegand output)
TruPortal T-200 Series Reader
(mini-mullion mount, Vicinity (ISO

15693)/Proximity (ISO14443), 3
covers, 84"/214cm pigtail wire,
Wiegand output)
Casi Proximity, MIFARE
(ISO14443A) and Vicinity
(ISO15693), HID proximity &
Corp 1000, Wiegand or F/2F
output*, Mullion Mount, Gray/
Charcoal/Black, 18" pigtail wire
Casi Proximity, MIFARE
(ISO14443A) and Vicinity
(ISO15693), HID proximity &
Corp 1000, Wiegand or F/2F
output*, Single-width USA
electrical box mount, Gray/
Charcoal/Black, 18" pigtail wire
Casi Proximity, MIFARE
(ISO14443A) and Vicinity
(ISO15693), HID proximity
& Corp 1000, Wiegand or
F/2F output*, 12-key keypad,
single-width USA electrical box
mount, Gray/Charcoal/Black,
18" pigtail wire

®

®

®

Compatible TruPortal Line Credentials

Model Number Description

TP-PRX-CLAM-50PK TruPortal Credential - HID® Proxcard® II Clamshell Design Cards - 50 pack

TP-PRX-KF-50PK TruPortal Credential - HID

TP-PRX-ISO-50PK TruPortal Credential - HID

TP-MFC-ISO-50PK TruPortal Credential - MIFARE

TP-MFC-ISOM-50PK TruPortal Credential - MIFARE

TP-MFC-KF-BK-25PK TruPortal Credential - MIFARE

TP-MFC-KF-OG-25PK TruPortal Credential - MIFARE

TP-MFC-KF-LG-25PK TruPortal Credential - MIFARE

TP-CP-KF-BK-25PK TruPortal Credential - Interlogix Prox Keyfobs Piano Black - 25 pack

TP-CP-KF-OG-25PK TruPortal Credential - Interlogix Prox Keyfobs Piano TruPortal Orange - 25 pack

TP-CP-KF-LG-25PK TruPortal Credential - Interlogix Prox Keyfobs Epoxy Slender - 25 pack

®

Prox Keyfobs - 50 pack

®

Prox ISO Cards - 50 pack

®

Classic ISO Cards No Magstripe Gloss/Gloss - 50 pack

®

Classic ISO Cards 2750oe Magstripe - Gloss/Gloss - 50 pack

®

Classic Keyfobs Piano Black - 25 pack

®

Classic Keyfobs Piano TruPortal Orange - 25 pack

®

Classic Keyfobs Epoxy Slender - TruPortal - 25 pack

interlogix.com

Specifi cations subject to change without notice.

© 2013 United Technologies Corporation.

All rights reser ved.

Interlogix is par t of UTC Climate, Controls & Security,

a unit of United Technologies Corporation.

307-3704 2013/10 (75683B)
