Intergraph Rack-Mount Workstation/Server Reference

Rack-Mount Workstation/Server

System Reference

November 1997 DHAF02430

Warranties and Liabilities

The information and the software discussed in this document are subject to change without notice and should not be considered commitments by Intergraph Corporation. Intergraph Corporation assumes no responsibility for any errors in this document.

The software discussed in this document is furnished under a license and may be used or copied only in accordance with the terms of the license. No responsibility is assumed by Intergraph for the use or reliability of software on equipment that is not supplied by Intergraph or its affiliated companies.

All warranties given by Intergraph Corporation about equipment or software are set forth in your purchase contract, and nothing stated in, or implied by, this document or its contents shall be considered or deemed a modification or amendment of such warranties.

Copyright



1997, Intergraph Corporation including this documentation, and any software and its file formats and audiovisual displays described herein; all rights reserved; may only be used pursuant to the applicable software license agreement; contains confidential and proprietary information of Intergraph and/or other third parties which is protected by copyright, trade secret and trademark law and may not be provided or otherwise made available without prior written authorization.

Restricted Rights Legend

Use, duplication, or disclosure by the United States Government is subject to restrictions as set forth in subdivision (c)(1)(ii) of the rights in technical data and computer software clause at DFARS 252.227-7013.

Unpublished rights reserved under the copyright laws of the United States. Intergraph Corporation, Huntsville AL 35894-0001

Trademarks

Intergraph and the Intergraph logo are registered trademarks, and StudioZ, RenderRAX, and InterServe are trademarks, of Intergraph Corporation.

Other brands and product names are trademarks of their respective owners.

FCC/DOC Compliance

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy. If the equipment is not installed and used in accordance with the instruction manual, it may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

Warnings

To reduce the risk of electrical shock, do not attempt to open the equipment unless instructed. Do not use a tool for purposes other than instructed.

There is a danger of explosion if the battery is incorrectly replaced. Replace the battery only with the same or equivalent type as recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

Notes

Read all operating instructions before using this device. Keep these instructions for future reference. Follow all warnings on the device or in the operating instructions.

Introduction.....................................................................................................................................ix

Document Conventions.....................................................................................................................ix

Additional System Information .........................................................................................................ix

1 Accessing the System....................................................................................................................1

Tools..................................................................................................................................................1

Opening the Base Unit .......................................................................................................................1

Protecting Against Electrostatic Discharge .........................................................................................2

Removing the Face Plate....................................................................................................................2

Attaching the Face Plate.....................................................................................................................2

Closing the Base Unit......................................................................................................................... 2

2 Servicing the System ....................................................................................................................3

Peripheral Drives ...............................................................................................................................4

Floppy Disk Drive................................................................................................................4

CD-ROM Drive....................................................................................................................6

Vertical Bay Disk Drives...................................................................................................... 8

Internal Bay Disk Drives ....................................................................................................11

Power Supply...................................................................................................................................12

Riser Card........................................................................................................................................13

P6 Bus Termination Card.................................................................................................................15

Processor Module for MSMT353 and MSMT359.............................................................................15

Processor Module for MSMT378......................................................................................................15

System Board...................................................................................................................................16

Fans.................................................................................................................................................17

Power Supply Fan...............................................................................................................17

System Fans.......................................................................................................................18

Internal Bay Fan.................................................................................................................18

Vertical Bay Fan................................................................................................................. 18

Speaker............................................................................................................................................19

Lithium (CMOS/Clock) Battery .......................................................................................................19

AC Line Filter..................................................................................................................................21

Keyswitch and LEDs........................................................................................................................21

3 Upgrading the System................................................................................................................23

Adding Memory...............................................................................................................................23

Adding Processors to MSMT353 or MSMT359................................................................................24

Single to Dual Upgrade ......................................................................................................24

Dual to Quad Upgrade........................................................................................................25

Adding Processors to MSMT378......................................................................................................26

Single to Dual Upgrade ......................................................................................................26

Pentium Pro to Pentium II Upgrade ....................................................................................26

Adding Option Boards .....................................................................................................................28

Installing an Option Board ................................................................................................. 28

Assigning System Resources...............................................................................................29

Adding Internal SCSI Drives ...........................................................................................................31

Adding External SCSI Drives ..........................................................................................................34

SCSI Cable Guidelines.......................................................................................................35

Connecting the Drive..........................................................................................................35

Disabling Sync Negotiation................................................................................................35

4 System Hardware Overview and Specifications........................................................................37

Functional Diagram .........................................................................................................................37

System Board Combinations.............................................................................................................38

System Board Feature Summary....................................................................................................... 38

System Boards Component Specification..........................................................................................39

Riser Card Features..........................................................................................................................39

System Model Number.....................................................................................................................40

Specifications...................................................................................................................................41

Optional Hardware...........................................................................................................................42

5 System Board MSMT353 and MSMT359 ..................................................................................43

Connectors....................................................................................................................................... 43

Jumpers..............................................................................................................................44

Cable Routing and Pinouts .................................................................................................46

Sound Controller.............................................................................................................................. 49

Address Resources for MSMT353 and MSMT359............................................................................50

DMA Channels .................................................................................................................. 50

Input/Output Addresses ......................................................................................................50

Memory Address Map........................................................................................................50

PCI to ISA Bus Interrupt Mapping .....................................................................................51

PCI Bus Configuration Space .............................................................................................51

ISA Bus..............................................................................................................................52

6 System Board MSMT378............................................................................................................53

Connectors....................................................................................................................................... 53

Jumpers..............................................................................................................................54

Cable Routing and Pinouts .................................................................................................55

Sound Controller.............................................................................................................................. 58

Address Resources........................................................................................................................... 59

DMA Channels .................................................................................................................. 59

Input/Output Addresses ......................................................................................................59

Memory Address Map........................................................................................................59

PCI to ISA Bus Interrupt Mapping .....................................................................................60

ISA Bus..............................................................................................................................60

7 External Port Pinouts..................................................................................................................61

MIDI/Game .....................................................................................................................................62

Parallel ............................................................................................................................................ 62

SCSI................................................................................................................................................63

Serial (COM)................................................................................................................................... 63

Ethernet 10/100 Base-TX.................................................................................................................64

Mouse and Keyboard........................................................................................................................64

Universal Serial Bus (for MSMT378 system bo ard)............................................................................ 65

Video (for MSMT353 or MSMT359 system board)..........................................................................65

VGA In (for MSMT353 or MSMT359 system board).......................................................................66

Video Out (for MSMT378 system board)..........................................................................................67

VGA In (for MSMT378 system board).............................................................................................67

vii

8 Riser Card MSMT463.................................................................................................................69

Expansion Slots ...............................................................................................................................69

Internal SCSI Controller ..................................................................................................................69

SCSI Connector ...............................................................................................................................70

Power Connector..............................................................................................................................70

Graphics Option Card Slot Assignments ..........................................................................................70

9 Peripherals ..................................................................................................................................73

SCSI CD-ROM Drive (CDSK178)...................................................................................................74

Disk Drives......................................................................................................................................74

CDSK111 (1 GB)...............................................................................................................75

CDSK094 (2 GB)...............................................................................................................76

CDSK098 (4 GB)...............................................................................................................76

CDSK123, CDSK164, CDSK165, CDSK166, CDSK167 (4 GB)........................................77

Floppy Disk Drive (CDSK146)......................................................................................................... 77

Combo Drive (MESAM86)..............................................................................................................78

EIDE CD-ROM Drive (CDSK177) ..................................................................................................79

10 Power Supply and Fans............................................................................................................ 81

Power Supply (MPWS145)...............................................................................................................81

DC Output Specifications...................................................................................................81

Cable Connectors ...............................................................................................................82

P1 Pinout............................................................................................................................82

P2 - P7 Pinout ....................................................................................................................83

P9 Pinout............................................................................................................................83

P10 Pinout..........................................................................................................................83

System Fans.....................................................................................................................................83

Power Supply Fan (MCBLZ52 or CFAN1170)...................................................................83

System Fans (MCBLY690).................................................................................................83

Vertical Bay Disk Drive Fan (MCBLY690)........................................................................84

Internal Bay Disk Drive Fan (MCBLY690) ........................................................................84

Index...............................................................................................................................................85

viii

Introduction

This System Reference provides the information necessary to service the following systems:

TDZ-425 RAX and TDZ-612 RAX workstations

StudioZ RenderRAX

InterServe 615R and 625R servers

Document Conventions

Bold

Commands, words, or characters that you key in literally.

Italic Variable values that you supply, or cross-references.

Monospace

SMALL CAPS Key names on the keyboard, such as D, ALT or F3. Names of files and

Output displayed on the screen.

directories. You can type filenames and directory names in the dialog boxes or the command line in lowercase unless directed otherwise.

CTRL+D Press a key while simultaneously pressing another key; for example, press

CTRL and D simultaneously.

Additional System Information

A System Setup is shipped with each system, and provides detailed information about:

Configuring the operating system and associated system software

Using the system

Using the AMIBIOS Setup program

Installing system software

A System Introduction is delivered with the system, and provides information about:

Intergraph Support

System hardware features

Available hardware option

1 Accessing the System

This chapter lists hand tools and describes servicing restrictions, opening the base unit, avoiding electrostatic discharge, removing and attaching the face plate, and closing the base unit.

This system features a telescoping chassis that provides increased serviceability and access to internal components. The telescoping section, to which the system board is mounted, is secured by five screws and slides out from the rear.

NOTE “Right side” and “left side” are as seen from the front of the base unit.

CAUTION Follow all warnings and cautions in servicing instructions. Personal injury and damage to equipment

can occur if documented procedures are not followed.

CAUTION Use an antistatic wrist strap for all servicing procedures to avoid the possibility of electrostatic

discharge.

Tools

You will need the following tools to service the system:

Antistatic wrist strap

Quarter-inch nutdriver

No. 1 and No. 2 Phillips screwdrivers

Three-sixteenth-inch nutdriver

Five-sixteenth-inch or 8 mm nutdriver

Small single-slot screwdriver

Opening the Base Unit

CAUTION Shut the system down and turn the system power off. Use caution to avoid injury when removing

covers and other hardware.

CAUTION If the system is installed in a free-standing rack, ensure front and side stabilizers are fully extended.

To open the base unit:

1. Remove the screws that secure the face plate to the rack.

2. Slide the system out of the rack until it locks in the extended position.

3. Remove the following eight screws that secure the cover to the chassis: One at right and left top

corners of face plate; two at top, back of cover; and two at right and left sides, back of cover.

4. Slide the cover back about an inch, then lift the cover off.

5. Attach grounding clip from antistatic wrist strap to bare metal.

Protecting Against Electrostatic Discharge

Sensitive components inside the base unit can be damaged by static electricity. To protect against this

possibility, take the following precautions when working with the system’s internal components.

Touch the bare metal of the base unit to ensure it and your body are at the same electric potential.

Handle all printed circuit boards as little as possible and by the edges only. Leave new parts in their protective packaging until you install them.

Use a disposable or reusable antistatic wrist strap when servicing or upgrading the system. Once a disposable wrist strap is used, it cannot be used again. A reusable antistatic wrist strap can be attached to any bare metal part of the base unit. The metal conductor bead in the elastic sleeve of reusable antistatic straps must contact bare skin.

Removing the Face Plate

To remove the face plate:

1. Remove the cover.

2. Remove one lower screw on each side of system front that secures handle to the base unit.

3. Remove the six screws that secure face plate to the base unit.

4. Pull the face plate toward you to remove it. Note how the bottom lip of the face plate attaches to

the cutout in front of the power supply.

A ttaching the Face Plate

To attach the face plate:

1. Push the face plate onto the base unit. Ensure that the top part of the lip at bottom slides over the

cutout in front of the power supply.

2. Adjust the face plate as needed to ensure all components are flush.

3. Secure the face plate to the base unit.

4. Close the cover.

Closing the Base Unit

CAUTION After servicing the system, always replace the covers that were removed. The covers ensure the

system maintains proper air flow, so internal components do not overheat and fail. The covers also ensure that electromagnetic interference (EMI) emissions remain below the standard requirements.

To close the base unit:

1. Remove the antistatic wrist strap from the base unit.

2. Replace the cover.

3. Slide the base unit into the rack.

4. Secure the base unit with screws at each corner of the face plate.

2 Servicing the System

This chapter describes how to replace the standard parts within the system.

NOTE Refer to Chapter 1 for details on opening the system and protecting against electrostatic discharge.

CAUTION Follow all warnings and cautions in servicing instructions. Personal injury and damage to equipment

can occur if documented procedures are not followed.

CAUTION Use an antistatic wrist strap for all servicing procedures to avoid the possibility of electrostatic

discharge.

The following shows the location of major parts in the system. Unit with MSMT353 system board is shown.

Internal Drive Bay

Riser Card Brace

Riser Card

System Board

Horizontal Drive Bay

Disk Drive Fan

Vertical Drive Bay

Processor Module or P6 Bus Termination Card (MSMT353 or MSMT359 onl

Floppy Drive

Memory

Power Supply

PCI Card Guide

(

)

Peripheral Drives

Floppy Disk Drive

To replace the floppy disk drive:

1. Disconnect the power cable and floppy cable from the drive as shown in the following figure.

Note the position of the red stripe on the floppy cable.

2. Remove the two screws securing the drive bracket to the power supply.

Power Cabl

Floppy Cable

Screw

One each side

3. Remove the four screws securing the bracket to the drive as shown in the following figure.

Screws (Two each side)

4. Attach the new drive to the bracket and attach it to the power supply. Connect the power cable

and floppy cable. Ensure the red stripe on the floppy cable is oriented correctly.

5. Close the base unit.

CD-ROM Drive

Depending on system options, the CD-ROM drive may be a SCSI drive or an EIDE drive. Refer to

Chapter 9, “Peripherals,” for details.

To replace the CD-ROM drive:

1. Disconnect the power cable, data cable, and audio cable from the CD-ROM drive as shown in the

following figure. Note the position of the stripe on the data cable.

2. Remove the screws securing the horizontal bay to the base unit.

Screw

Horizontal Bay

Audio Cable

Data Cable

Screw

Power Cable

3. Remove the four screws securing the drive to the drive bay as shown in the following figure.

Screws (Two each side)

4. Set the SCSI ID on a new SCSI drive to the same ID as the old drive. On a new EIDE drive, set

the mode select header to “master.” Refer to Chapter 9, “Peripherals,” for details.

5. Attach the new drive to the horizontal bay and attach it to the base unit. Connect the power

cable, data cable, and audio cable. Ensure the stripe on the data cable is oriented correctly.

6. Close the base unit.

Vertical Bay Disk Drives

If Kingston removable disk modules are installed in the system, refer to the Kingston documentation for disk drive or module replacement instructions.

To replace drives in the vertical bay:

1. Remove the disk drive fan by removing the screw at the top of the vertical bay and disconnecting

the fan power cable from the inline connector.

Screw

Fan

Fan Power Cable In-line Connecto

2. Disconnect the power cable and SCSI cable from the disk drive.

3. Remove the screws securing the disk drive at the top of the vertical bay as shown in the following

figure.

Screws

4. Pull out the black disk drive tray through the front of the system. The disk drive is attached to

the tray.

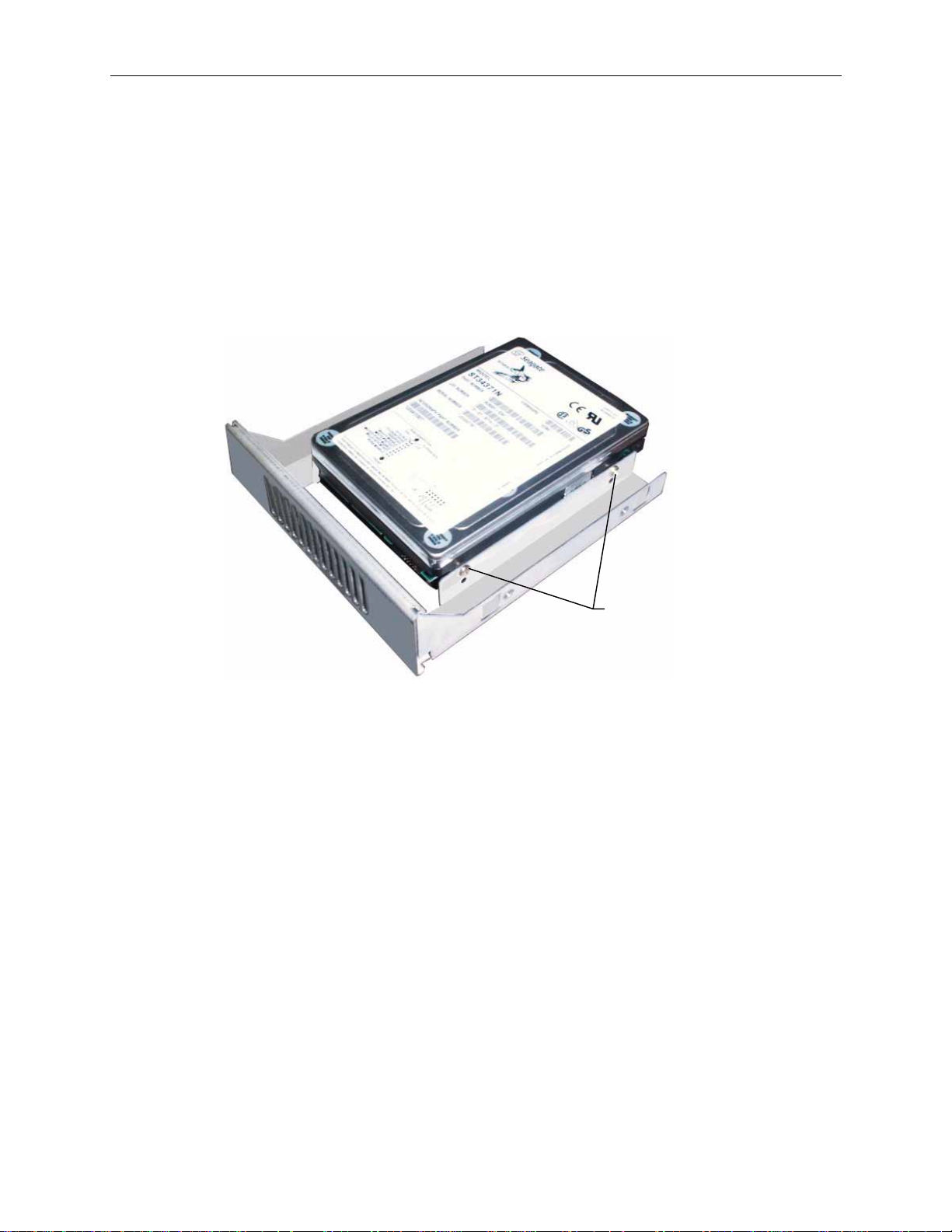

5. Remove the slot filler by removing screws as shown in the following figure; then remove the four

screws securing the disk drive to the tray.

Screws

Slot Filler

Drive Tray

Screws (Two each side)

6. Set the SCSI ID on the new disk drive to the same SCSI ID as on the old disk drive.

7. Attach the new disk drive to the tray and slide it into the vertical bay.

8. Secure the drive to the bay.

9. Connect the SCSI cable and power cable to the disk drive.

10. Replace the disk drive fan and connect the fan power cable.

11. Close the base unit.

Internal Bay Disk Drives

To replace drives in the internal bay:

1. Disconnect the SCSI cable and power cable from the disk drive as shown in the following figure.

2. Disconnect the fan cable. Note the location where the fan cable connects to the system board.

3. Remove the two screws that secure the internal bay to the base unit.

4. Slide the internal bay toward the front until it disengages; then lift it out of the system.

Screws

Internal

Bay

SCSI Cable

Power Cable

Screws

Fan Cable

5. Remove the screws that secure the disk drive to the internal bay. Two screws are on top, as

shown, and two are on the bottom.

6. Remove the disk drive from the bay.

7. Set the SCSI ID on the new disk drive to the same SCSI ID as on the old disk drive.

8. Attach the new disk drive to the internal bay.

9. Place the internal bay into the base unit, and slide it toward the rear until it engages.

10. Attach the bay to the base unit.

11. Connect the SCSI cable and power cable to the disk drive.

12. Connect the fan cable to the system board.

13. Close the base unit.

Power Supply

To replace the power supply:

1. Open the unit and remove the face plate as described in Chapter 1.

2. Disconnect all power cables from the internal devices (riser card, floppy disk drive, internal disk

drive bay, vertical and horizontal disk drive bays, and speaker).

Power Supply

Screw

Riser Card Brace

3. Disconnect the AC power cable from the rear of the power supply. (The AC power cable is

routed from the line filter).

4. Remove the floppy drive and the horizontal drive bay. Refer to the respective procedures earlier

in this chapter.

5. Disconnect the speaker cable and remove the speaker. (Any system with the MSMT378 system

board does not have a speaker). Refer to the “Speaker” procedure later in this chapter.

6. Remove the screw securing the power supply to the base unit.

7. Pull the power supply forward until it disengages; lift up to remove it.

8. Place the new power supply into the base unit, and push it forward until it engages.

9. Secure the power supply to the base unit.

10. Connect the power cables to the internal devices.

11. Connect the AC power cable to the power supply.

12. Attach the floppy drive and horizontal drive bay.

13. Install the speaker and connect the speaker cable.

14. Install the face plate and cover.

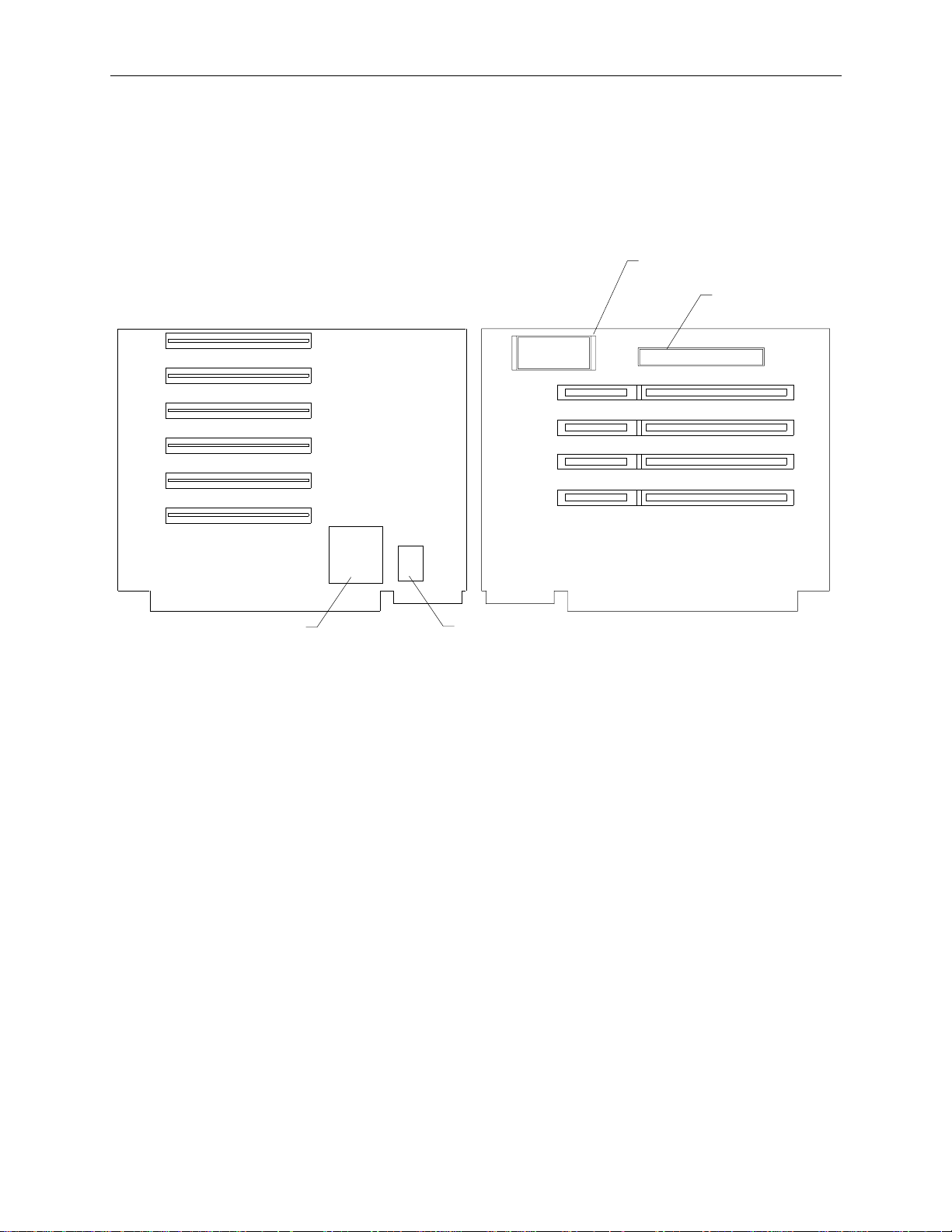

Riser Card

To replace the riser card:

1. Open the base unit as described in Chapter 1.

2. Remove all installed option boards. If ISA boards are installed, remove the internal disk drive

bay, and then remove the ISA cards. Refer to “Internal Bay Disk Drives” earlier in this chapter.

3. Disconnect the SCSI cable and power cable from the riser card.

4. Remove the screw that secures the riser card brace to the top of the PCI card guide.

5. Loosen the two screws that secure the riser card brace to the PCI card guide, slide the card guide

back, and remove the card guide. Note how the PCI card guide fits over the lip on the rear of the power supply.

Riser Card

Riser Card Screws

PCI Card Guide Screws

Screw

Power Supply

(

)

6. Remove the two screws securing the riser card brace to the back of the system.

Screws

Riser Card

PCI Card Slots

Riser Card Brace

7. Remove the two screws that secure the riser card to the brace.

8. Remove the riser card brace.

9. Grasp the riser card firmly on both ends, and carefully pull straight up until the card disengages.

10. Insert the new riser card into the system board connector. Press firmly over the center of the PCI

connectors to fully seat the card.

CAUTION Do not rock the riser card back and forth; pins inside the connector may be damaged as a result.

Press firmly so the card connector slides evenly into the slot.

11. Install the riser card brace, and install the two screws securing the card to the brace.

12. Place the PCI card guide on the two screws attached to the riser card. Slide the guide over the lip

on the rear of the power supply, then tighten the screws.

13. Attach the top of the riser card brace to the PCI card guide.

14. Replace the two screws securing the rear of the riser card brace to the back of the system.

15. Connect the power and SCSI cable to the riser card.

16. Replace any PCI or ISA option boards, and the internal drive bay (if removed).

17. Close the base unit.

P6 Bus Termination Card

The P6 bus termination card, MSMT311, is used only in systems with the MSMT353 or MSMT359

system board that has one or two processors. Refer to Chapter 5, “System Board MSMT353 and MSMT359,” for details.

To replace the P6 Bus termination card:

1. Open the base unit.

2. Remove the installed PCI cards. The termination card is attached to the system board adjacent to

the memory modules.

3. Remove the screws securing the termination card to the system board.

4. Carefully disengage the card from the system board and remove it.

5. Attach the new card to the system board, and secure the card with the screws.

6. Replace the PCI cards.

7. Close the base unit.

Processor Module for MSMT353 and MSMT359

The replacement processor module, MSMT364 or MSMT310, for the MSMT353 and MSMT359 system board, includes pre-installed voltage regulator modules(VRMs) and processors.

To replace the processor module:

1. Open the base unit.

2. Remove the installed PCI cards. The processor module is attached to the system board adjacent

to the memory modules.

3. Remove the left VRM to access mounting screw.

4. Remove the screws securing the processor module to the system board.

5. Carefully disengage the module from the system board and remove it.

6. Attach the new processor module to the system board, and secure it with the screws.

7. Reinstall the left VRM.

8. Replace the PCI cards.

9. Close the base unit.

Processor Module for MSMT378

The Pentium Pro and Pentium II processors for the MSMT378 system board are housed in plastic processor modules, which have heat sinks attached to one side. When a Pentium II module is installed into an S1 slot, the heat sinks are supported at the bottom by a black plastic bar, which runs between the two bottom-most rows of heat sink fins. The support bar is connected to a support assembly via four posts.

WARNING Setting processor voltage incorrectly may destroy the processor! Refer to Chapter 6, “System

Board MSMT378,” for details.

To replace the processor module:

1. Remove ISA cards if installed.

NOTE Pentium Pro processor modules do not require heat sink support.

2. Remove the top section of the heat sink support, if necessary. The plastic support bar has a tab

on each end. Press both tabs inward, towards each other, while using a pulling motion to pull the bar away from the heat sink fins. The support assembly is permanently connected to the system board, and need not be removed.

3. Remove the processor module. Grasp both tabs on the top corners of the processor module and

press them inward, towards each other. Then pull the entire module upward, keeping the tabs pressed inward. Heat sinks are permanently connected to the module, and need not be removed.

4. If necessary, set the frequency for the new processor by adjusting jumpers J47 through J50. Refer

to Chapter 6, “System Board MSMT378,” for more information.

5. Align the new processor module over the S1 slot and firmly press it down into the slot.

6. If necessary, replace the top section of the heat sink support. Gently push the plastic support bar

toward the four posts on the heat sink support assembly, until the bar snaps into place.

7. Reinstall the ISA cards.

System Board

Replacement system boards contain pre-installed voltage regulator modules and processors. However, you must swap the memory modules and P6 bus termination card (on MSMT353 or MSMT359) or processor module from the old system board to the new one.

NOTE Steps 10 and 14 apply only to the the MSMT353 or MSMT359 system board.

The telescoping (modular) chassis makes it easier for you to replace the system board. You must remove the unit from the rack before replacing the system board.

WARNING Two people must remove the unit from the rack. Failure to do so can result in personal injury

and equipment damage. The unit is heavy and difficult to handle.

To replace the system board:

1. Disconnect all external cables from the unit and remove it from the rack. Use a helper!

2. Open the base unit as described in Chapter 1.

3. Remove the riser card and any installed option cards as described earlier in this chapter.

4. Remove the five screws securing the telescoping section to the base unit. There are two screws

on the right and three on the left.

5. Pull the telescoping section toward you a few inches.

6. Disconnect all internal cables attached to the system board. Note the locations where the cables

are connected.

7. Remove the telescoping section from the base unit.

8. Remove the jackscrews from the parallel and serial ports, and from the three audio jacks.

9. Remove the memory modules from the system board, and place them on an antistatic surface.

10. Remove the processor module (for quad processor systems) or the P6 bus termination card (for

dual processor systems) from the MSMT353 or MSMT359 system board as described earlier in this chapter.

11. Remove the eight screws securing the system board to the telescoping section.

12. Lift the system board out of the unit.

13. Install the new system board and secure it with the eight screws.

14. Attach the processor module or P6 bus termination card to the MSMT353 system board.

15. Install the memory modules on the system board.

16. Connect the internal cables to the system board. If you need help identifying cable connections,

refer to Chapter 5 for the MSMT353 or MSMT359 system board or Chapter 6 for the MSMT378 system board.

17. Secure the parallel and serial ports and audio jacks with the jackscrews.

18. Slide the telescoping section into the base unit. Ensure that all tabs engage correctly.

19. Install the five screws that secure the telescoping section to the base unit.

20. Install the riser card and option cards, and connect the internal SCSI cable to the riser card.

21. Reinstall the unit in the rack. Use a helper!

22. Close the base unit and reconnect the external cables.

Fans

Refer to Chapter 10, “Power Supply and Fans,” for details on fans.

NOTE Airflow in the system is front to back. Arrows on the fan indicate airflow direction and rotation.

Ensure that you install fans with arrows pointing to the back of the system.

Power Supply Fan

To replace the power supply fan:

1. Open the base unit.

2. Remove the power supply as described earlier in this chapter.

3. Disconnect the fan power cable.

4. Note the airflow direction of the fan, and then remove the four screws securing the fan to the

power supply housing.

5. Install the new fan on the power supply housing.

6. Reinstall the power supply and connect the fan power cable.

7. Close the base unit.

System Fans

To replace a system fan:

1. Open the base unit.

2. Remove the power supply as described earlier in this chapter.

3. Disconnect the fan power cables.

4. Note the airflow direction of the fan, and then remove the four screws securing the fan to the

power supply housing.

5. Install the new fan on the power supply housing and connect the fan power cable.

6. Reinstall the power supply and close the base unit.

Internal Bay Fan

To replace the internal disk drive bay fan:

1. Open the base unit.

2. Disconnect the internal disk drive fan power cable.

3. Remove the four screws securing the fan to the internal disk drive bay at the rear of the unit.

Note the airflow direction of the fan.

Fan Screws

4. Install the new fan and connect the fan power cable.

5. Close the base unit.

Vertical Bay Fan

To replace the vertical disk drive bay fan:

1. Open the base unit.

2. Disconnect the fan power cable and remove the screw from the top of the fan bracket. For an

illustration, refer to the “Vertical Bay Disk Drives” procedure earlier in this chapter.

3. Remove the fan from the fan bracket. Note the orientation of the fan.

4. Install the new fan on the bracket and install the bracket on the vertical disk drive bay.

5. Connect the fan power cable and close the base unit.

Speaker

A speaker is not installed in systems with the MSMT378 system board.

To replace the speaker:

1. Remove the face plate. Six screws on the front and one screw on each lower side secure the face

2. Remove the two screws securing the floppy drive to the power supply, and set the drive aside

3. Note the position of the red wire and disconnect the speaker cable connector from the system

4. Remove the screws that secure the speaker retaining ring to the power supply, and remove the

5. Place the retaining ring on top of the new speaker, insert the assembly into the power supply

6. Connect the speaker cable.

7. Attach the floppy disk drive.

plate to the system.

carefully.

board.

ring and speaker. Access holes are provided on top of the power supply housing.

housing, and secure the ring with the screws.

8. Attach the face plate.

Lithium (CMOS/Clock) Battery

On the MSMT353 or MSMT359 system board, the battery is located to the right of the riser card, near the back. On the MSMT378 system board, the battery is located near the memory modules on the left side.

WARNING There is a danger of explosion if the battery is incorrectly replaced.

WARNING Replace the battery with the same or equivalent type only, as recommended by the manufacturer.

Dispose of used batteries according to the manufacturer’s instructions.

To replace the battery (on MSMT353 or MSMT359 system board):

1. Remove the ISA cards, if installed. (You must remove the internal drive bay if ISA cards are

installed. Refer to “Installing an Option Board ” in Chapter 3 for details).

2. Note the positive orientation of the battery. Carefully remove the discharged battery by grasping

it firmly and lifting upward.

3. Install the new battery in the same orientation as the old battery.

4. Install the ISA cards and install the internal drive bay.

5. Dispose of the battery according to the manufacturer’s instructions.

Battery

ISA Card Slots

To replace the battery (on MSMT378 system board):

1. Remove any PCI cards that interfere with access to the battery.

Battery

2. Carefully remove the discharged battery by grasping it firmly and lifting upward.

3. Install the new battery in the same orientation as the discharged battery.

4. Replace the PCI cards that you removed in step 1 above.

AC Line Filter

You must remove the unit from the rack before replacing the AC line filter. This component ordinarily does not require replacement unless it has been damaged by current surges or other AC power problems.

WARNING Two people must remove the unit from the rack. Failure to do so can result in personal injury and

equipment damage. The unit is heavy and difficult to handle.

To replace the AC line filter:

1. Remove the unit from the rack. Use a helper!

2. Open the cover.

3. Disconnect the power cable from the top of the line filter.

4. Remove the right rail from the base unit.

5. Remove the four screws securing the line filter to the base unit.

6. Lift the line filter from the base unit.

7. Install the new line filter in the base unit and connect the power cable.

8. Install the right rail.

9. Install the cover.

10. Install the unit into the rack. Use a helper!

Keyswitch and LEDs

To replace the keyswitch:

1. Open the cover and remove the face plate as described in Chapter 1.

2. Remove the two screws securing the keyswitch and LED bracket to the base unit. The screws are

underneath the base unit.

Screws

3. Pull the bracket forward slightly, note the location of the LED cables, and disconnect the cables.

4. Remove the keyswitch from the bracket.

5. Remove the keyswitch cable from the cable clip near the front of the system board, and

disconnect the cable at the inline connector.

6. Install the new keyswitch with the arrow pointing up, place the keyswitch cable into the cable

clip, and connect the cable at the inline connector.

7. Connect the LED cables and secure the bracket to the base unit.

8. Attach the face plate and install the cover.

To replace the LEDs:

1. Perform steps 1 through 4 above.

2. Remove both LEDs.

3. Install the two new LEDs.

4. Connect the LED cables and secure the bracket to the base unit.

5. Attach the face plate and install the cover.

3 Upgrading the System

This chapter describes adding memory, processors, option boards, internal SCSI drives, and external SCSI drives for all rack-mount systems.

NOTE Refer to Chapter 1 for details on opening the base unit and protecting against electrostatic discharge.

CAUTION Follow all warnings and cautions in servicing instructions. Personal injury and damage to equipment

can occur if documented procedures are not followed.

CAUTION Use an antistatic wrist strap for all servicing procedures to avoid electrostatic discharge.

Adding Memory

You can upgrade memory on the MSMT353 or MSMT359 system board in 32 MB, 64 MB, 128 MB, and 256 MB increments; and the MSMT378 system board in 32 MB, 64 MB, and 128 MB increments. RenderRAX systems ship with all eight SIMM sockets populated.

Memory upgrade kits from Intergraph contain two SIMMs and a disposable antistatic wrist strap.

CAUTION System memory modules available from Intergraph have been certified for use with Intergraph

computers at extremes of temperature and system load to ensure reliable performance. System memory modules available from other vendors may not function properly or reliably in your Intergraph computer.

To avoid damaging the SIMMs and voiding the warranty, take the following precautions.

Do not bend, twist, drop, or otherwise handle the SIMMs carelessly.

Do not expose the SIMMs to moisture or extreme temperatures.

Do not remove the SIMMs from the antistatic bag until installation.

Follow these SIMM population rules to correctly install the SIMMs.

Each bank has two slots. Fill both slots in a bank.

Use the same size SIMM in both slots in a bank.

After adding or replacing SIMMs, restart the computer. The new memory configuration is detected automatically.

The following table shows valid memory configurations. Each bank contains two sockets, and both sockets must be populated. Memory density must be the same in all populated sockets. NP designates the bank is not populated.

Supported Memory

Bank 0 Bank 1 Bank 2 Bank 3

64 MB 2 x 32 MB NP NP NP

128 MB 2 x 64 MB NP NP NP

2 x 32 MB 2 x 32 MB NP NP

256 MB 2 x 128 MB NP NP NP

Supported Memory Bank 0 Bank 1 Bank 2 Bank 3

2 x 64 MB 2 x 64 MB NP NP 2 x 32 MB 2 x 32 MB 2 x 32 MB 2 x 32 MB

512 MB 2 x 128 MB 2 x 128 MB NP NP

2 x 64 MB 2 x 64 MB 2 x 64 MB 2 x 64 MB

1 GB 2 x 128 MB 2 x 128 MB 2 x 128 MB 2 x 128 MB

To install the memory upgrade:

1. Open the base unit and remove the necessary parts as described in Chapter 1.

2. Remove the graphics boards and other installed PCI option boards.

3. Remove the existing SIMMs from their sockets before adding new ones.

4. Remove the SIMMs from the antistatic bag and install them in the following order:

−

For system board MSMT353 or MSMT359, if the total number of installed SIMMs will be

four, install the SIMMs in the Bank 1 sockets first, then in the Bank 0 sockets.

−

For system board MSMT353 or MSMT359, if the total number of installed SIMMs will be

eight, install the first SIMM in socket J58. Install the remaining SIMMs in the next empty

socket until socket J51 is the last socket populated.

−

For system board MSMT378, install the first SIMM in the first available socket.

5. Position the SIMM in the next available socket so that the notch faces the back of the base unit.

6. Insert the SIMM at a 60 degree angle, pressing it firmly into the socket.

7. Push on the top edge of the SIMM until it snaps into the metal clips. The socket tabs must fit

inside the mounting holes of the SIMM.

8. Repeat steps 5 through 7 for the remaining SIMMs.

9. Replace the graphics and PCI option boards and close the base unit.

10. Restart the system. The new memory is recognized automatically.

A dding Processors to MSMT353 or MSMT359

You cannot add processors to the MSMT353 system board, since it ships with quad processors. The MSMT359 system board allows you to upgrade a single processor to dual processors and dual processors to quad processors. For the MSMT378 system board, you can upgrade a single processor to dual processors and Pentium Pro to Pentium II.

Single to Dual Upgrade

Single to dual processor upgrade kits include a CPU with attached heat sink, a voltage regulator module (VRM), and a metal clip.

To upgrade a single processor system:

1. Open the base unit and remove the necessary parts as described in Chapter 1.

NOTE If full-length ISA option boards are installed, they must be removed to access the CPU sockets.

2. Find the empty processor socket (adjacent to the existing CPU) on the system board. Raise the

lever on the empty socket to open the socket.

3. Install the new CPU into the socket. The CPU socket is keyed to ensure proper insertion.

4. Lower the lever to lock the CPU in the socket.

5. Attach the metal clip over the new CPU. Examine how the clip on the first CPU is installed to

see how it should fit on the new CPU. Ensure each end of the clip fully engages the socket tabs.

6. Attach the VRM into the empty VRM socket. Ensure the release tabs in the VRM socket fully

engage the VRM.

The following figure shows the completed upgrade with the new CPU and VRM installed.

7. Replace any full-length ISA option boards and close the base unit.

Dual to Quad Upgrade

Dual to quad upgrade kits contain a processor module with two pre-installed processors and voltage regulator modules (VRMs), and screws.

CPU

VRM

Socket

Metal Clip

To upgrade a dual processor system:

1. Open the base unit and remove the necessary parts as described in Chapter 1.

NOTE If PCI option boards are installed, remove to access the quad processor sockets.

2. Remove the P6 bus termination card. The processor module will be installed in this location.

3. Align the processor module with the sockets and carefully insert the module.

4. Press the processor module firmly into the sockets.

5. Remove the left VRM.

6. Secure the processor module with screws supplied in the kit.

7. Install the left VRM.

8. Install any PCI option boards and close the base unit.

9. Return the P6 bus termination card to the Intergraph Repair Depot.

Adding Processors to MSMT378

The MSMT378 system board allows you to upgrade the system from single to dual processors, and from Pentium Pro processors to Pentium II processors.

Single to Dual Upgrade

To install a new processor module:

1. Open the base unit and remove the ISA cards.

2. Set the frequency, if necessary, for the new processor by adjusting jumpers J47 through J50.

Refer to Chapter 6, “System Board MSMT378,” for more information.

3. Align the new processor module over the S1 slot and firmly press it down into the slot.

4. If necessary, replace the top section of the heat sink support. Gently push the plastic support bar

toward the four posts on the heat sink support assembly, until the bar snaps into place.

5. Reinstall the ISA cards and close the base unit.

Pentium Pro to Pentium II Upgrade

WARNING Setting processor voltage incorrectly may destroy the processor! Refer to Chapter 6, “System

Board MSMT378,” for details.

To upgrade Pentium Pro module with Pentium II module:

1. Open the base unit and remove ISA cards if installed.

2. Remove the top section of the heat sink support, if necessary. The plastic support bar has a tab

on each end. Press both tabs inward, towards each other, while using a pulling motion to pull the

bar away from the heat sink fins. The support assembly is permanently connected to the system board, and need not be removed.

3. Remove the Pentium Pro processor module. Grasp both tabs on the top corners of the processor

module and press them inward, towards each other. Then pull the entire module upward, keeping the tabs pressed inward. Heat sinks are permanently connected to the module, and need not be removed.

4. Remove the voltage jumper from J19, and place it on jumper J39. Refer to the following figure.

Also refer to Chapter 6, “System Board MSMT378,” for details on jumper settings.

5. Install the heat sink support assembly to the system board. The assembly snaps into place in two

of the indicated holes. Refer to the following figure.

CPU 0

CPU

Frequency

Clock

Voltage

Socket for CPU 1

J49 J50 J47 J48

J19

J39

Clock Voltage J39

SCSI

J34 J33

Host Bus Frequency J33, J34

Holes for Heat Sink Supports

J23 J24

Host Bus

Frequency

6. Reinstall the ISA cards and close the base unit.

Adding Option Boards

Peripheral Component Interconnect (PCI), non-compliant PCI, Industry Standard Architecture (ISA), and Plug-n-Play (PnP) option boards may be installed in the system. A general description of the types of boards is provided below.

PCI boards contain configuration registers that define resource information to the system during startup. PCI boards do not require manual system configuration when installing the board. The

system BIOS detects the board’s presence during startup and reads information from the board’s configuration registers to assign the necessary system resources. The system’s PCI slots are limited to 25 Watts power dissipation per the Peripheral Component Interconnect Specification,

2.1. Installed PCI boards must draw less than 25 Watts of power. Also, the total power consumed by all PCI boards in the system should be less than 180 Watts.

NOTE All PCI option boards sold by Intergraph fully comply with the

Specification, 2.1.

Non-compliant PCI boards mechanically comply with the Peripheral Component Interconnect

Peripheral Component Interconnect

Specification 2.1, but do not contain configuration registers that allow the system to automatically assign the necessary resources. These boards install in PCI slots, but you assign system resources manually using the System Configuration Utility (SCU) before installing the board. In this regard, they are like ISA boards, as described below.

ISA boards do not contain registers that define the resource information to the system during startup. Therefore, you must run the SCU to define the board to the system before installing the ISA board. This reserves system resources for the board and prevents conflicts with ISA option boards already installed. Refer to the section, “Assigning System Resources” later in this chapter.

PnP boards are ISA boards that contain configuration registers like PCI boards. During startup, the system BIOS automatically detects the installed board and assigns the necessary system resources. Since PnP boards are ISA-based boards, they must be installed in the ISA slots.

PCI slots are on Side One of the riser card; ISA slots are on Side Two.

NOTE Assign system resources for ISA and non-compliant PCI boards before installation. Refer to the

section, “Assigning System Resources” later in this chapter.

Installing an Option Board

To install option boards:

1. Open the base unit as described in Chapter 1. If installing an ISA card, the internal disk drive

bay must be removed to access ISA slots. Refer to “Internal Bay Disk Drives” in Chapter 2 for instructions on removing the internal disk drive bay.

2. Using a quarter-inch nutdriver, remove the blanking plate from an available slot. If installing a

PCI card, loosen the two screws securing the board clip to the PCI card guide (just behind the power supply), and slide the board clip forward.

3. Install the option board. Press firmly to ensure the board seats completely into the slot.

4. Secure the board to the chassis using the screw removed previously. If installing a PCI card,

slide the board clip back and tighten the two screws.

5. Connect any cables to the board as required by the manufacturer.

6. Close the base unit and restart the system.

NOTE For PnP boards, notice when the following message displays: Hit DEL if you want to run

SETUP

. Press DELETE to run AMIBIOS Setup, and enable the Boot to PnP Operating System

parameter under PnP Setup menu. Exit AMIBIOS Setup and restart the system.

Assigning System Resources

Some option boards include a configuration diskette that you can use to reserve the system resources required for the board. Other option boards do not include a diskette, but require that you manually enter the configuration information. The next two sections describe how to reserve the resources for both types.

The System Configuration Utility (SCU) is an MS-DOS utility that will not run in the Windows NT environment. Use the System Utilities (SYSUTIL) diskette delivered with your system to boot the system into MS-DOS. The system must be set to boot from the floppy disk drive (normally drive A)

to use the SCU. If necessary, refer to “Changing the System Boot Sequence” in the System Setup.

NOTE For a list of available system address resources (DMA, I/O, memory) refer to Chapter 5 or 6.

NOTE Treat non-compliant PCI boards and PC Cards as ISA boards for assigning system resources.

Option Boards with a Configuration File

Some ISA boards are shipped with a diskette containing a configuration file. The configuration file can be loaded to the system so that the BIOS reads this file to assign resources during startup. If you install ISA boards that are shipped with a configuration diskette, follow this procedure.

NOTE If a configuration diskette is not delivered with the option board, refer to “Option Boards without a

Configuration File.”

To configure option boards with a configuration file:

1. Shut down and power off the system.

2. Insert the SYSUTIL diskette into the floppy diskette slot of the combo drive; then restart the

system.

3. When the MS-DOS Startup menu displays, select option 1 to run the SCU.

4. Use the arrow keys or the mouse to select Step 2 from the SCU Main Menu. Then press

INSERT

to add a board that was not detected or has not been installed. A prompt displays requesting you to copy the configuration files needed to configure the system.

The configuration file is on a diskette provided by the ISA board manufacturer.

5. Press

ENTER to accept A:\ as the path to the configuration file.

6. Select the slot where the board will be installed. Slots 1 through 4 are valid for ISA boards, slots

1 through 12 are valid for PCI boards.

7. When prompted to insert the source disk, insert the diskette containing the configuration file and

ENTER.

press

8. When prompted to insert the destination disk, insert the SYSUTIL diskette and press

The configuration file from the option board manufacturer will be installed to the system and to the SYSUTIL diskette.

9. Press

ESC to return to the SCU Main Menu.

ENTER.

10. Select Step 4 of the SCU Main Menu to save the configuration, and then select Step 6 of the SCU

Main Menu to exit the SCU.

11. Remove the diskette from the combo drive and shutdown the system.

12. Install the option board as described in “Installing an Option Board” previously in this chapter.

13. Restart the system.

Option Boards without a Configuration File

Some board vendors do not include configuration files with their boards. For these boards, you must use the System Configuration Utility (SCU) to define the board to the system.

To configure option boards without a configuration file:

1. Shut down and power off the system.

2. Insert the SYSUTIL diskette into the floppy diskette slot of the combo drive; then restart the

system.

3. When the MS-DOS Startup menu displays, select option 1 to run the SCU.

4. From the SCU Main Menu, select Step 2, then press

F6. The ISA Board Definition Menu

displays as shown in the following figure.

ISA Board Definition

Board Name: Manufacturer: Board Type:

[Save - F10] [Load - F9] [New - F2] [Delete - F4] [Quit - ES]

( ) Video Board ( ) Multifunction Board ( ) Mass Storage Device

Slot Type:

( ) 16 Bit ( ) 8 Bit ( ) 8 or 16 Bit

MemoryPortsIRQDMA

5. Enter the data specified in the manufacturer’s configuration instructions.

NOTE Use the TAB and arrow keys to move the cursor from field to field. Once inside the DMA, IRQ, and

Ports fields, press

ENTER to display the sub-fields for entering the information.

6. Press F10 to save the data to the system.

7. Press

8. Press

ENTER to return to the ISA Board Definition Menu. ESC to return to the SCU Main Menu.

9. Select Step 2 of the SCU Main Menu. The Add and Remove Boards Menu displays.

10. Select the required slot number and press

11. Select

INSERT again to add the board. The ISA Board Database Menu displays.

12. Select the correct board name and press

INSERT.

ENTER.

13. When the Slot Selection Menu displays, select the required slot and press ENTER.

14. Press

ESC to return to the SCU Main Menu.

15. Select Step 4 of the SCU Main Menu to save the configuration.

16. Select Step 6 of the SCU Main Menu to exit the SCU.

17. Remove the diskette from the combo drive and shutdown the system.

18. Install the option board as described in “Installing an Option Board” previously in this chapter.

19. Restart the system.

NOTE If you assign resources for a new board that are assigned to a previously installed board, then the

message the resources so the boards do not conflict with each other.

Static Resource Conflict displays during boot up. Use AMIBIOS Setup to change

Adding Internal SCSI Drives

The front of the system allows four 5.25-inch drives to be installed—two drives in the horizontal bay and two in the vertical bay. There is also an internal bay that accepts two 3.5-inch drives.

In StudioZ RenderRAX workstations and InterServe 615R and 625R servers, one disk drive is installed in the left slot of the vertical bay. A CD-ROM is installed in the lower slot of the horizontal bay. The two internal drive bays are empty. The disk drive uses SCSI ID 0 and the CD-ROM drive uses SCSI ID 4.

In the TDZ-425 RAX and TDZ-612 RAX, one removable disk drive module is installed in the left vertical bay. A CD-ROM drive is installed in the lower horizontal bay. The two internal drive bays are empty. The disk drive uses SCSI ID 0, the SCSI CD-ROM drive in the TDZ-612 RAX drive uses ID 4, and the EIDE CD-ROM in the TDZ-425 RAX uses the primary EIDE bus and the mode select header is set to “Master.”

The Adaptec AIC-7880 controller on the riser card provides Ultra Wide SCSI for internal drives in all rack-mounted systems.

When installing a SCSI drive, have the vendor’s documentation available to follow instructions for setting SCSI IDs for SCSI drives, installing device drivers when required, and configuring other drive attributes necessary for operation.

If installing a drive that connects to an adapter card (such as an EIDE drive), refer to the vendor’s documentation for installing the adapter card and required cables. The previous section, “Adding Option Boards,” provides information about PCI and ISA slot locations in the system.

If installing a Kingston removable disk drive module, refer to the vendor’s documentation for installing the module, removing terminators, and setting the SCSI ID.

If installing a Fast SCSI (Narrow) drive, use the 68 pin to 50 pin adapter (CCON401B), provided with the system. If you install a non-Wide SCSI device, the data transfer rate is limited to that device's speed.

Refer to Chapter 9, “Peripherals,” for details on drive configurations, jumpers, and cables.

NOTE Internal SCSI drives are not terminated. The internal SCSI cable provides termination. You must

remove termination from any drive that you install in the system.

SCSI IDs should be set for the drives using the following guidelines:

Slot Location

Left Vertical System disk drive 0 Right Vertical Add-on disk drive 1 Left Internal Add-on disk drive 2 Right Internal Add-on disk drive 3 Lower Horizontal CD-ROM drive 4 Upper Horizontal Other drive type 5 or 6

To install a drive into the internal drive bay:

1. For SCSI devices, disable the SCSI termination, and set the SCSI ID for the drive to an unused

number.

2. Remove the top cover from the base unit as described in Chapter 1.

3. Disconnect the fan power cable. Note the location where the fan power cable connects to the

system board.

4. Remove the two screws that secure the internal bay to the base unit.

5. Slide the internal bay toward the front until it disengages; then lift it out of the system.

6. Install the disk drive and secure it with four screws (two on top and two on bottom). Refer to

“Disk Drives in the Internal Bay,” in Chapter 2, for an illustration.

7. Place the internal bay into the base unit, and slide it toward the rear until it engages.

Drive SCSI ID

8. Attach the bay to the base unit.

9. Connect the fan power cable to the system board.

10. Connect the power cable and SCSI cable to the disk drive. The connectors are keyed to ensure

proper insertion.

11. Close the base unit.

To install a drive into the front vertical slots:

1. For SCSI devices, disable the SCSI termination, and set the SCSI ID for the drive to an unused

number.

2. Remove the top cover from the base unit as described in Chapter 1.

3. Remove the drive tray from the slot. Two screws on top of the vertical bay secure the drive tray.

4. If installing a 3.5-inch drive that uses removable media (such as a 4 mm DAT drive), mount the

drive to an adapter that increases the mounting size to 5.25 inches.

5. Disk drives are mounted to the drive tray removed in step 3. Remove the slot filler from the

drive tray as shown in the following figure.

Screws

Slot Filler

Drive Tray

6. Set the drive into the tray and secure it with two screws on each side.

Screws (Two each side)

7. Attach the slot filler to the drive tray.

8. Slide the drive into the slot and secure it to the vertical bay.

9. Remove the disk drive fan.

10. Connect the power cable and SCSI cable to the drive.

11. Replace the disk drive fan.

12. Close the base unit and restart the system.

13. If necessary, install the appropriate device driver and configure the device according to the

vendor’s instructions.

To install a drive into the front horizontal slots:

1. For SCSI devices, disable the SCSI termination, and set the SCSI ID for the drive to an unused

number.

2. Remove the top cover from the base unit as described in Chapter 1.

3. Remove the two screws that secure the horizontal bay to the system. Refer to “CD-ROM Drive”

in Chapter 2 for an illustration.

4. Pull the horizontal bay back about an inch and lift it out of the system.

5. Remove the two screws that secure the top drive tray on each side of the horizontal bay, and

remove the tray. Refer to “CD-ROM Drive” in Chapter 2 for an illustration.

6. If installing a 3.5-inch drive that uses removable media (such as a 4 mm DAT drive), mount the

drive to an adapter that increases the device size to 5.25 inches.

7. Disk drives are mounted to the drive tray removed in step 5.

8. Place the drive into the tray and secure it with two screws on each side.

9. Slide the tray into the drive bay and secure it with two screws on each side.

10. Place the drive bay into the system and secure it with the screws.

11. Connect the SCSI cable and power cable to the new drive.

12. Close the base unit.

Adding External SCSI Drives

You can add single-ended external SCSI drives to the system by connecting them to the SCSI port on the back of the base unit. Additional SCSI option boards (adapters) can be installed to support external SCSI drives as well. The section “Adding Option Boards” earlier in this chapter describes installing new boards.

The Adaptec AIC-7860 SCSI controller (on MSMT353, MSMT359 and MSMT378 system boards) provides the Ultra SCSI bus for external devices.

Screws (Two each side)

SCSI Cable Guidelines

If you are using a SCSI adapter card, this information also applies.

The number of drives and length of the cables used to connect the drives becomes a factor when using SCSI-1, Fast SCSI (SCSI-2), Ultra SCSI, and Ultra Wide SCSI drives. Fast SCSI, Ultra SCSI, and Ultra Wide SCSI impose shorter cable restrictions than SCSI-1. The total length of the SCSI cabling must not exceed the following:

Drives

SCSI-1 Fast SCSI-2 Ultra SCSI Ultra Wide SCSI

1 to 4 19.8 feet (6 meters) 9.9 feet (3 meters) 9.9 feet (3 meters) 9.9 feet (3 meters) 5 to 7 9.9 feet (3 meters) 9.9 feet (3 meters) 4.5 feet (1.5 meters) 4.5 feet (1.5 meters)

NOTE The SCSI controller (on the system board or an adapter card) counts as one device.

The total length of the SCSI cabling is the sum of the following:

SCSI cable inside the base unit - 6.0 inches (15 cm)

SCSI cable inside each device - average 8 inches, (20 cm)

SCSI cable between the base unit and the first device

SCSI cable between each device

Connecting the Drive

To add an external SCSI drive:

1. Connect the SCSI cable to the SCSI port on the base unit and to the device.

2. Set the drives SCSI ID to an unused number (1, 2, 3, 5, or 6). By default, the following devices

use these SCSI IDs:

−

System disk drive uses ID 0.

−

CD-ROM drive uses ID 4.

−

SCSI bus uses ID 7.

3. Disable or enable the drive’s SCSI termination according to the vendor’s instructions. The last

external drive on the SCSI cable chain must have SCSI termination enabled. All other external drives must have SCSI termination disabled.

4. If necessary, install the software drivers and configure the drive according to the vendor’s

instructions.

Disabling Sync Negotiation

Use the following instructions if you need to disable the sync negotiation, which forces the controller to transfer data at a specified rate (slower than its capability) for the target drives.

To disable sync negotiation:

1. Power off the system and reboot into DOS using the SYSUTIL diskette.

2. From the SYSUTIL main menu, select SCSISelect Utility.

3. From the Options box, select Configure/View Host Adapter Settings.

4. Select the SCSI Device Configuration option.

5. Change the Initiate Sync Negotiation values for all the attached SCSI drives

(represented by their SCSI ID number) to no.

6. Set the Maximum Sync Transfer Rate values for the drives to the desired settings. If

changing these settings to extend cable lengths or add more devices, set Fast SCSI-2 drives to

8.0. (or less if available).

7. Press

ESC until the Exit Utility dialog displays. Select Yes and press ENTER.

8. Press any key to restart the system.

4 System Hardware Overview and

Specifications

This chapter contains general, technical information about the hardware included in the following rack-mounted systems: TDZ-425 RAX, TDZ-612 RAX, StudioZ RenderRAX, InterServe 615R, and InterServe 625R.

Functional Diagram

AC In

External Ports

SCSI

Port

MIDI

Port

AC Line Filter

Power switch

(MSMT353, MSMT359, or

Processor Module

or P6 Bus

Termination Card

(MSMT353 or

MSMT359 only)

Power Supply (MPWS1450)

Riser Card

(MSMT463)

System Board

MSMT 378)

Floppy Disk Drive

SCSI

Accelerator

EIDE (MSMT378 only)

Audio

Speaker(MSMT353)

or Combo Drive

CD-ROM Drive

Option Drive

Disk Drive Option Drive Option Drive Option Drive

Graphics

Floppy Data

PCMCIA Data (Combo drive only)

System Fans Disk Drive Fan Power On LED

Disk Activity LED

System Board Combinations

The following table differentiates the rack mount workstation and server systems. All use the same chassis, but are configured with a different system board.

RenderRAX

MSMT359 system board

MSMT463 riser card MSMT463 riser card MSMT463 riser card MSMT463 riser card

TDZ-612 RAX TDZ-425 RAX InterServe 615R/625R

MSMT353 system board

MSMT378 system board

System Board Feature Summary

The following table summarizes the SCSI, memory, and processor features of the system boards. Refer to Chapter 5 for details on MSMT353 or MSMT359 and Chapter 6 for MSMT378.

Board

MSMT353 or MSMT359 system board

MSMT378 system board

SCSI Memory Processors

Adaptec AIC-7860 controller (external) Ultra SCSI

1 GB Maximum 8 slots in 4 banks 70 ns DRAM 4-way interleave 512 MB Maximum 8 slots in 4 banks 60 ns ECC EDO No interleave

MSMT359 system board

Dual or Quad 200 MHz Intel Pentium Pro

Single or Dual 266 MHz Intel or 300 MHz Intel Pentium II or 200 MHz Intel Pentium Pro

System Boards Component Specification

The following table summarizes the main component specifications of the available system boards.

Component System

BIOS

Processor(s) Host Bridge

Sound Controller

Ethernet Controller

SCSI Controller

Peripheral Controller

PCI-to-ISA Bridge

EIDE Controller

Universal Serial Bus Ports

Onboard Video

MSMT353 or MSMT359 MSMT378

Quad-processor systems: American Megatrends BIOS core 782 Single and dual processor systems: American Megatrends BIOS core 752

Intel Pentium Pro Intel Pentium Pro or Pentium II Intel P6 Bus-to-PCI Bridge chip (OPB)

and memory controller (OMC). PCI bus compliant to PCI Bus Specification revision 2.0

Creative Labs Vibra 16C, MPC 2.0 compliant

Intel 82557 10/100BaseTX PCI Intel 82557 10/100BaseTX PCI

Adaptec AIC-7860 (Ultra SCSI external port)

Standard Microsystems FDC37C932 Standard Microsystems FDC37C932

Intel 82379AB Intel 82371SB PCI/ISA IDE

Not Applicable Intel 82371SB PCI/ISA IDE

Not Applicable 12 MBit per second transfer rate

G95 Not Applicable

American Megatrends BIOS core 800

Intel P6 Bus-to-PCI Bridge chip (OPB) and memory controller (OMC). PCI bus compliant to PCI Bus Specification revision 2.0

Crystal CS4236B, PC97 compliant

Adaptec AIC-7860 (Ultra SCSI external port)

Xccelerator (PIIX3)

Riser Card Features

The following table summarizes the main features of the riser card.

Component PCI Slots

ISA Slots SCSI Controller

MSMT463

6 (side 1) 4 (side 2) Adaptec AIC-7880P

(Wide Ultra SCSI internal)

System Model Number

The model number on the back of the base unit identifies the system hardware configuration. The following table defines the individual digits.

Digit

1: Series Y: Rack-mount system 2: Processor Type F: Quad P6 200 MHz CPU; 256 KB cache

3. Graphics 0: No graphics

4: Chassis 0: Workstation

Meaning

G: Dual P6 200 MHz CPU (Quad ready); 256 KB cache H: Single P6 200 MHz CPU; 256 KB cache J: Dual P6 200 MHz CPU; 256 KB cache N: Single 200 MHz CPU (Quad ready); 512 KB cache P: Dual P6 200 MHz CPU (Quad ready); 512 KB cache Q: Quad P6 200 MHz CPU (Quad ready); 512 KB cache V: Dual PII 266 MHz CPU

5: G95, 2 MB WRAM Q: Z13 R: Z25 S: Z13 with 32 MB texture memory T: Z25GT with 64 MB RAM U: G76 with 1 MB RAM V: G76 with 2 MB RAM Y: V25

1: InterServe N: TDZ-610 with Internal RAID disk array Q: StudioZ V: with Kingston Removable Drive Module W: StudioZ RenderRAX X: with Kingston Removable Ultra Wide Drive Module

5: Memory 0: No memory

2: 8 MB 3: 16 MB 4: 32 MB 6: 64 MB 7: 128 MB 9: 256 MB A: 24 MB B: 512 MB C: 1 GB

Digit Meaning

6: Peripheral Drives 0: No CD-ROM drive and no floppy disk drive

1: Floppy disk drive and no CD-ROM drive 2: Combo drive and no CD-ROM drive 3: CD-ROM drive and floppy disk drive 4: CD-ROM and combo drive

7: Disk Drives 0: No hard disk drive

3: 2 GB 4: 4 GB 7: 2 GB w/4 GB AV drive (StudioZ) 9: 9 GB L: 4 GB w/4 GB AV drive (StudioZ)

8: Operating System 0: No operating system

1: DOS/Windows 2: Windows NT Workstation 3: Windows 95 4: Windows NT Server, phase III 7: Windows NT Server, phase II 9: Solaris A: Windows NT Workstation/Solaris

9: Revision Variable

Specifications

Base Unit Dimension (HxWxD) Base Unit Weight Maintenance Clearance

8.75 x 16.65 x 25.25 inches (22.2 cm x 42.3 cm x 64.1 cm) without rails, handles, and cables

Electrical

AC line voltage:

90-132 VAC 47-63 Hz 1-phase 15-amp, 125V 180-264 VAC 47-63 Hz 1-phase 15-amp, 250V

Environmental Recommendations

Ambient room temperature, operating: 50° to 80° F (10° to 26° C)

Relative Humidity, operating: 20 to 80% (non-condensing)

Frequency: Phase: Rated receptacle

64 lb (140.8 kg) without rails

current:

36 inches (91.4 cm) front and back

Power Consumption

539 Watts (based on 120 VAC, 60 Hz)

Environmental Impact

Heat Dissipation: 1878 BTUs/hour (7.88 kcals/min)

Optional Hardware

If your system includes any of the following hardware, refer to the documentation delivered with that hardware for additional information:

Monitors

Concentrator

Removable disk drives

Uninterruptible power supply

RealiZm graphics (TDZ-425 RAX and TDZ-612 RAX only); G95 card (RenderRAX only)

5 System Board MSMT353 and

MSMT359

This chapter provides information about board connectors, the sound controller, and address resources for the MSMT353 and MSMT359 system boards, which use Pentium Pro processors. Refer

to “Board Combinations” in Chapter 4 for information on which system boards are used in the various workstations and servers.

Connectors

The following figure shows the internal connector locations.

SCSI -

J43

CPU 0

ISA Bus -

J32

VRM 0

ISA Bus J33

CPU 1

VRM 1

Floppy -

J30

Memory Sockets

Riser Card Connectors

J74

J71

J68

Audio - J22

MIDI - J17

Memory Sockets

Jumpers

The system board uses jumpers to set the CPU frequency, enable or disable G95 VGA mode (MSMT359 only), and clear the BIOS password.

CPU 0

VRM

CPU Frequency Jumpers

CPU 1

VRM

J25 VGA Mode Jumper

J16 BIOS Jumper

CPU Frequency

The 180 MHz CPU uses a 60 MHz P6 bus, with jumpers installed to obtain the 3x multiplier. The 200 MHz CPU uses a 66.67 MHz P6 bus, with jumpers installed to obtain the 3x multiplier.

CAUTION Do not change the jumper settings in an attempt to change CPU speed. The CPUs will only operate

properly when the jumpers are installed in their default settings.

The following tables show jumper settings for CPU frequency multipliers. Settings are identical for 180 MHz and 200 MHz CPUs. IN denotes the jumper is installed on both pins.

CPU 0 Frequency

CPU 1 Frequency

Jumper Setting Jumper Setting

J63 OUT J49 IN J62 IN J50 IN J61 IN J47 IN J60 IN J48 OUT

The following figure shows the detail of the CPU frequency jumpers.

CPU 0

VRM

Jumpers for CPU 0

J63 J62 J61 J60

CPU 1

Jumpers for CPU 1

J49 J50 J47 J48

VGA Mode

J25 on the system board enables or disables the VGA mode for the graphics accelerator. If the jumper is not installed (default), the VGA mode is enabled. If the jumper is installed, the VGA mode is disabled. You must remove the PCI option boards and the processor module (or P6 bus termination card) to access J25.

NOTE The jumper is absent if the system board does not feature onboard G95.

BIOS Password Clear

J16 on the system board enables or disables the BIOS password stored in CMOS RAM. If the jumper is not installed (default), the password (if present) is enabled. If the jumper is installed, the password is cleared, allowing the AMIBIOS Setup program to be accessed without a password. You must remove the PCI option boards and the processor module (or P6 bus termination card) to access J16.

Cable Routing and Pinouts

From Cable To

J12, Fan Power MCBLZ660 Internal bay disk drive fan J17, MIDI MCBL038A External MIDI port J22, Audio MCBLZ630 CDSK132 CD-ROM drive J30, Floppy MCBLZ380 CDSK102 Floppy disk drive or

MESAM86 Combo drive J43, SCSI MCBLZ176A External SCSI drives J68, Fan Power MCBLZ530 System Fans (2) J69, Fan Power MCBLZ660 Vertical bay disk drive fan J71, Speaker MCBLW660 Speaker J72, Power On LED MCBLZ610 Power On LED J73, Disk Activity LED MCBLZ620 Disk Activity LED

NOTE The following connectors and cables are used if the combo drive MESAM86 is installed in the system,

in place of the floppy disk drive CDSK102.

From Cable To

J32, ISA Bus (PCMCIA) MCBL084A MESAM86 Combo drive, J6 J33, ISA Bus (PCMCIA) MCBL084A MESAM86 Combo drive, J3

J17, MCBL038A, MIDI

Signal Pin Signal Pin Signal

1 +5V 6 Y-axis, joystick 1 11 X-axis, joystick 2 2 Fire button 0 7 Fire button 1 12 MIDI out 3 X-axis, joystick 1 8 +5V 13 Y-axis, joystick 2 4 Ground 9 +5V 14 Fire button 3 5 Ground 10 Fire button 2 15 MIDI in

J22, MCBLZ630, Audio

Signal

1 Right Sound Channel 2 Ground 3 Left Sound Channel 4 Ground

NOTE The MCBLZ630 cable is used when the Panasonic CD-ROM drive is used in the system. If the Sony

CD-ROM drive is used, then the cable MCBLZ220 is installed. The pinout for the cables is the same.

J30, MCBLZ380, Floppy

Signal Pin Signal Pin Signal

2 RPM 14 DRV0- 26 TRK04 No connect 16 MTR1- 28 WRPRT6 DRATE0 18 DIR 30 RDATA8 INDEX- 20 STEP- 32 HDSEL 10 MTR0- 22 WDATA- 34 DSKCHG 12 DRV1- 24 WGATE-

NOTE All odd-numbered pins of J30 are connected to ground, except pin 29 (MID1) and pin 33 (MID0).

J43, MCBLZ176A, SCSI

Signal Pin Signal Pin Signal

26 CD0 33 CD7 46 MSG 27 CD1 34 CD Parity 47 SCT 28 CD2 38 TPWR 48 CMD 29 CD3 41 ATTN 49 REQ 30 CD4 43 BSY 50 I/O 31 CD5 44 ACK Remaining Ground 32 CD6 45 RST

J68, MCBLZ530, Fan power

Signal Color

1 +12V Red 2 Ground Black

J12 and J69, MCBLZ660, Fan power

Signal Color

1 +12V Red 2 Ground Black

J71, MCBLY520, Speaker

Signal Color

1 + 5.1 V Red 2 Ground White

J72, MCBLZ610, Power On LED

Signal Wire Color

1 Pwrgood Red 2 Ground Black

J73, MCBLZ620, Disk Activity LED

1 DiskActive Orange 2 Ground Black

J32, MCBL084A, PCMCIA ISA Bus

1 IRQ15 15 SD+(0) 28 Ground 2 IRQ14 16 SD+(1) 29 RSTDRV 3 IRQ10 17 SD+(4) 30 Ground 4 IRQ3 18 SD+(5) 31 SA+(6) 5 IRQ7 19 MEMW- 32 SA+(7) 6 IRQ9 20 MEMR- 33 SA+(10) 7 IOCS16- 21 SA+(17) 34 SA+(11) 8 Ground 22 SA+(18) 35 SA+(14) 9 IOCHRDY+ 23 SA+(21) 36 SA+(15) 10 Ground 24 SA+(22) 37 BALE 11 SD+(14) 25 SA+(1) 38 IOR12 SD+(15) 26 Ground 39 D7BUFDIR 13 SD+(11) 27 SA+(3) 40 14 SD+(10)

Signal Wire Color

Signal Pin Signal Pin Signal

PWR_DWN

J33, MCBL084A, PCMCIA ISA Bus

1 Spare 15 SD+(2) 28 Ground 2 IRQ11 16 SD+(3) 29 SA+(4) 3 IRQ4 17 SD+(6) 30 SA+(5) 4 IRQ5 18 SD+(7) 31 SA+(8) 5 0WS- 19 SA+(19) 32 SA+(9) 6 Ground 20 SA+(20) 33 SA+(12) 7 MEMCS16- 21 SA+(23) 34 SA+(13) 8 Ground 22 SBHE- 35 SA+(16) 9 SPKR- 23 SA+(0) 36 AEN 10 Ground 24 Ground 37 IOW11 SD+(13) 25 SA+(2) 38 Ground 12 SD+(12) 26 Ground 39 LOBUFDIR 13 SD+(9) 27 ISA BCLK 40 HIBUFDIR 14 SD+(8)

Signal Pin Signal Pin Signal

Sound Controller

The sound controller is the Vibra 16C chip from Creative Labs. Integrated onto the system board, the controller is a complete, full-featured MPC 2.0 compliant sound implementation, providing full Sound Blaster Pro functionality and compatibility. The sound controller has the following features and specifications:

Feature

Sound Controller Creative Labs Vibra 16C Audio Resolution 16-bit Sound Blaster Compatibility Sound Blaster Pro, with Sound Blaster 16 register

MIDI/UART Mode/ Compatibility

Bus Interface 16-bit ISA CODEC 16-bit Sigma Delta Stereo CODEC FIFO 4 Samples FM Synthesizer Yamaha OPL3 External Audio Inputs Microphone (Monaural), Stereo Line-In Internal Audio Inputs Stereo FM Synthesis, Stereo Wave Data, Stereo

Audio Outputs Stereo Line-Out MIDI/Joystick MIDI In, MIDI Out, up to 4 fire buttons ADPCM Audio Compression 4:1, 3:1, and 2:1 Sampling Rate Range 5 KHz - 44.1 KHz in 228 selectable steps Selectable Microphone AGC Yes Microphone Support Low-Impedance (600 Ohms) Dynamic, Electek

Specification

compatibility Roland MPU401

CD, Monaural PC Speaker

The Vibra 16C sound controller is configured entirely through I/O port accesses. When the system is powered up, the hardware forces the Vibra 16C to respond to default I/O port addresses, interrupt request (IRQ) level, and direct memory access (DMA) request and acknowledge. The following table shows the default sound controller configurations and available programmable settings.

Parameter

Base I/O Address / MPU-401 220/330 240/300 8-bit DMA Req / Ack Level 1 3 16-bit DMA Req / Ack Level 5 7 Interrupt Request Level 10 5, 7

The settings above may be changed in AMIBIOS Setup (see “Chipset Setup” in the Setup and Maintenance Guide, delivered with the system) so the Vibra 16C internal registers respond to custom settings.

Default Other Available

A ddress Resources for MSMT353 and MSMT359

DMA Channels

The system board uses Direct Memory Address (DMA) channels to exchange data without accessing the CPU. Some channels are assigned for specific use by the system, as defined below. Each DMA channel or MSMT359 appropriates full 32-bit processing. For an ISA bus, channels 0 through 3 are 8-bit and channels 4 through 7 are 16-bit channels.

DMA

0 Spare 4 Cascade input for 0-3 1 Vibra 16C Controller 5 Vibra 16C Controller 2 I/O Controller 6 Spare 3 Parallel Port 7 Spare

Assignment DMA Assignment

Inpu t/Output A ddr esses

The following table lists a small subset of the reserved I/O or MSMT359 addresses.

Address

0278 - 027F Parallel Port LPT2 02E8 - 02EF Serial Port COM4 02F8 - 02FF Serial Port COM2 0378 - 037F Parallel Port LPT1 03B0 - 03BF Monochrome Display/Printer Adapter 03C0 - 03CF Enhanced Graphics Adapter (EGA/VGA) 03D0 - 03DF Color/Graphics Monitor Adapter (CGA/MCGA) 03E8 - 03EF Serial Port COM3 03F0 - 03F7 I/O Controller 03F8 - 03FF Serial Port COM1

Device

Memory A ddress Map

The following table lists the memory address map or MSMT359 assignments.

Memory Address

00000000 - 0009FFFF 640K System board memory 000A0000 - 000BFFFF 128K Video memory 000C0000 - 000C7FFF 32K Video ROM 000C8000 - 000DFFFF 96K Available I/O Adapter ROM 000E0000 - 000EFFFF 64K BIOS ROM and PCMCIA 000F0000 - 000FFFFF 64K BIOS ROM 00100000 - 0FFFFFFF 256M Expansion memory 10000000 - 3FFFFFFF ----- Reserved

Size Assignment

PCI to ISA Bus Interrupt Mapping

The ISA bridge (Intel 82379AB) or MSMT359 the sixteen conventional ISA interrupts, plus four interrupt request pins for PCI peripheral interrupts (PIRQ0 through PIRQ3). For PC-AT architecture compatibility reasons, the PCI interrupts are routed to the ISA interrupts within the ISA bridge. The assertion of a PCI interrupt concludes in an ISA interrupt being asserted.

The 8-bit PIRQ Route Control Registers in the ISA bridge determine to which ISA interrupt a PIRQ or MSMT359 is routed. Four PIRQ Route Control Registers are used for the PCI interrupts, located at the ISA bridge address offsets defined below.

PCI Interrupt Request

PIRQ0 60 PIRQ1 61 PIRQ2 62 PIRQ3 63

Bit 7 of each PIRQ registers enable (Low) or disable (High) the routing of the PIRQ to an ISA interrupt. The lowest four bits (3:0) of each PIRQ register determines to which ISA interrupt the PIRQ will be routed, as defined below.

Bits (3:0) of PIRQ

0000 Reserved 1000 Reserved 0001 Reserved 1001 IRQ9 0010 Reserved 1010 IRQ10 0011 IRQ3 1011 IRQ11 0100 IRQ4 1100 IRQ12 0101 IRQ5 1101 Reserved 0110 IRQ6 1110 IRQ14 0111 IRQ7 1111 IRQ15

ISA Interrupt Bits (3:0) of PIRQ ISA Interrupt

PCI Bus Configuration Space

Address Offset (Hex)

The table below lists the configuration space used for the primary PCI bus. The PCI bus uses type 1 configuration access, which specifies two 32-bit I/O ports used as the index register (0CF8h) and the data register (0CFCh).

Device

Host-to-PCI Bridge (PCMC) 0 800000XX PCI-to-ISA Bridge 2 800010XX Graphics Accelerator 5 800028XX Ethernet Controller 6 800030XX SCSI Controller 7 800038XX PCI Slot 1 D 800068XX PCI Slot 2 E 800070XX PCI Slot 3 F 800078XX

Device Number 0CF8h Value

Each PCI slot on the riser card has four available or MSMT359 interrupt lines: INTA, INTB, INTC, and INTD. These are connected to the PCI interrupts, PIRQ0 through PIRQ3, as shown below:

ISA Bus

Interrupt Line

INTA PIRQ0 PIRQ1 PIRQ2 PIRQ3 PIRQ0 PIRQ1 INTB PIRQ1 PIRQ2 PIRQ3 PIRQ0 PIRQ1 PIRQ2 INTC PIRQ2 PIRQ3 PIRQ0 PIRQ1 PIRQ2 PIRQ3 INTD PIRQ3 PIRQ0 PIRQ1 PIRQ2 PIRQ3 PIRQ0

The ISA slots on the riser card MSMT463 accommodate ISA based option boards and a 16-bit wide expansion bus. The ISA bus or MSMT359 interrupt (IRQ) assignments are defined below.

IRQ

0 System Timer 0 8 Real Time Clock 1 Keyboard Full 9 Spare 2 Cascade input for IRQ8 - IRQ15 10 Vibra 16C Controller 3 COM2, COM4 11 Spare 4 COM1, COM3 12 Mouse 5 Spare 13 Not Available 6 I/O Controller 14 Spare 7 Parallel Port 15 Spare

Name IRQ Name

Slot 1 Slot 2 Slot 3 Slot 4 Slot 5 Slot 6

The spare interrupts listed above may be assigned to PCI and ISA devices. When you add a PCI device to the system, the interrupt will be automatically assigned by the system BIOS. However, at least one interrupt must be available for the PCI bus. For increased performance, one interrupt should be left available for each PCI based controller used in the system. When you add a ISA board, you must assign the interrupt using the System Configuration Utility and jumpers on the option board.

6 System Board MSMT378

Power On LED - J72

This chapter provides information about board connectors, the sound controller, and address

resources for the MSMT378 system board, which uses Pentium II processors. Refer to “Board Combinations” in Chapter 4 for details on board types used in the various workstations and servers.

Connectors

The following figure shows the internal connector locations.

Fan Power - J64

CPU 0

Socket for

VRM

CPU 1

Fan Power - J70

SCSI -

J43

Disk Activity

LED - J73

Fan Power - J68

J51 J58

Memory Sockets

Riser Card Connectors

Fan Power - J14 Fan Power - J12

IDE - J32

Floppy - J30

MIDI - J17 Audio - J22

Jumpers

The system board uses jumpers to set the CPU frequency and clock voltage.

CPU 0

CPU

Frequency

Clock

Voltage

Socket for CPU 1

J49 J50 J47 J48

J19

J39

Clock Voltage J39

SCSI

J34 J33

Host Bus Frequency J33, J34

Host Bus

Frequency

J23 J24

CPU Frequency and Host Bus Frequency

The following table shows the jumper settings for the CPU frequency and its corresponding host bus frequency. IN denotes the jumper is installed on both pins.

CPU Frequency Jumper

J48 OUT OUT IN IN J47 IN IN OUT OUT J50 IN OUT IN OUT J49 IN IN IN IN

Host Bus Frequency Jumper

J23 IN J24 IN IN IN J33 IN IN IN J34 IN

CPU Voltage

The 200 MHz CPU uses a clock voltage of 3.3 volts, and the 266 MHz and 300 MHz CPU use a clock voltage of 2.5 volts.

WARNING Double-check voltage jumper settings before starting the system! Setting a high voltage for a

266 MHz or 300 MHz processor will destroy the processor.

The following table shows voltage jumper settings. IN denotes the jumper is installed on both pins.

200 MHz 233 MHz 266 MHz 300 MHz

66 MHz 66 MHz 66 MHz 60 MHz

Jumper

J19 IN OUT OUT J39 OUT IN IN

BIOS Password Clear

J16 on the system board (near the parallel port) enables or disables the BIOS password stored in CMOS RAM. By default, the jumper is not installed, and the password (if present) is enabled. If the jumper is installed, the password is cleared, allowing the AMIBIOS Setup program to be accessed without entering a password. You may need to remove the PCI option boards (if installed) to access J16.

200 MHz/3.3v 266 MHz/2.5v 300 MHz/2.5v

Cable Routing and Pinouts

From Cable To

J12, Fan Power MCBLZ660 Internal bay disk drive fan J17, MIDI MCBL038A External MIDI port J22, Audio MCBLZ630 SCSI CD-ROM drive J22, Audio MCBL122A EIDE CD-ROM drive J30, Floppy MCBLZ380 Floppy disk drive J32, Primary EIDE MCBL121 EIDE CD-ROM drive

From Cable To

J43, SCSI MCBL176A External SCSI drives J68, Fan Power MCBLZ177 System Fans J64, Fan Power MCBLZ660 Vertical bay disk drive fan J72, Power On LED MCBLZ610 Power On LED J73, Disk Activity LED MCBLZ620 Disk Activity LED

J17, MCBL038A, MIDI

Signal Pin Signal Pin Signal

J22, MCBLZ630 (for SCSI drive) or MCBL122A (for EIDE drive), Audio

Signal

1 Right Sound Channel 2 Ground 3 Left Sound Channel 4 Ground

J30, MCBLZ380, Floppy

Signal Pin Signal Pin Signal

2 RPM 14 DRV0- 26 TRK04 No connect 16 MTR1- 28 WRPRT6 DRATE0 18 DIR 30 RDATA8 INDEX- 20 STEP- 32 HDSEL 10 MTR0- 22 WDATA- 34 DSKCHG 12 DRV1- 24 WGATE-

NOTE All odd-numbered pins of J30 are connected to ground, except pin 29 (MID1) and pin 33 (MID0).

J43, MCBL176A, SCSI

Signal Pin Signal Pin Signal

26 CD0 33 CD7 46 MSG 27 CD1 34 CD Parity 47 SCT 28 CD2 38 TPWR 48 CMD 29 CD3 41 ATTN 49 REQ 30 CD4 43 BSY 50 I/O 31 CD5 44 ACK Remaining Ground 32 CD6 45 RST

J68, MCBLZ177, Fan power

1 +12V Red 2 Ground Black

J12 and J64, MCBLZ660, Fan power

1 +12V Red 2 Ground Black

J72, MCBLZ610, Power On LED

1 Pwrgood Red 2 Ground Black

J73, MCBLZ620, Disk Activity LED

1 DiskActive Orange 2 Ground Black

Signal Color

Signal Wire Color

J32, MCBL121, Primary EIDE Bus

1 BRSTDRV- 15 D01+(1) 28 VCC 2 Ground 16 D01+(14) 29 DOAK03 D01+(7) 17 D01+(0) 30 Ground 4 D01+(8) 18 D01+(15) 31 IRQ14 5 D01+(6) 19 Ground 32 IOCS66 D01+(9) 20 ------- 33 DA1 7 D01+(5) 21 D0RQ0- 34 ------8 D01+(10) 22 Ground 35 DA0

Signal Pin Signal Pin Signal

Pin Signal Pin Signal Pin Signal

9 D01+(4) 23 DOIOW- 36 DA2 10 D01+(11) 24 Ground 37 CS1P11 D01+(3) 25 D0IOR- 38 CS3P12 D01+(12) 26 Ground 39 IDEACTVP13 D01+(2) 27 IORDY 40 Ground 14 D01+(13)

Sound Controller

The sound controller is the Crystal CS4236B from Crystal Labs. Integrated onto the system board, the controller is a complete, full-featured PC 97 compliant sound implementation. The sound controller has the following features and specifications:

Feature

Sound Controller Crystal Labs CS4236B Audio Resolution 16-bit Sound Blaster Compatibility PC 97 MIDI/UART Mode/Compatibility Roland MPU401 Bus Interface 16-bit ISA CODEC Delta Sigma-based Windows Sound System CODEC FIFO 16 Samples FM Synthesizer Crystal internal FM synthesis External Audio Inputs Microphone (Monaural), Stereo Line-In Internal Audio Inputs Stereo FM Synthesis, Stereo Wave Data, Stereo CD,

Audio Outputs Stereo Line-Out MIDI/Joystick MIDI In, MIDI Out, up to 4 fire buttons ADPCM Audio Compression 4:1, 3:1, and 2:1 Sampling Rate Range 5 KHz - 44.1 KHz in 228 selectable steps

The Crystal CS4236B sound controller is configured entirely through I/O port accesses. When the system is powered up, the hardware forces the Crystal CS4236B to respond to default I/O port addresses, interrupt request (IRQ) level, and direct memory access (DMA) request and acknowledge. The following table shows the default sound controller configurations and available programmable settings.

Specification

Monaural PC Speaker

Parameter

Base I/O Address / MPU-401 220/330 8-bit Playback DMA 1 8-bit Capture DMA 3 Base IRQ / MPU IRQ 5/15

Default

A ddress Resources

DMA Channels

The system board uses Direct Memory Address (DMA) channels to exchange data without accessing the CPU. Some channels are assigned for specific use by the system, as defined below. Each DMA channel appropriates full 32-bit processing. For an ISA bus, channels 0 through 3 are 8-bit and channels 4 through 7 are 16-bit channels.

DMA

0 LPT 4 Cascade input for 0-3 1 Crystal CS4236B Controller 5 Spare 2 Floppy Controller 6 Spare 3 Crystal CS4236B Controller 7 Spare

Assignment DMA Assignment

Inpu t/Output A ddr esses

The following table lists a small subset of the reserved I/O addresses.

Address

Device

Memory A ddress Map

The following table lists the memory address map assignments.

Memory Address

00000000 - 0009FFFF 640K System board memory 000A0000 - 000BFFFF 128K Video memory 000C0000 - 000C7FFF 32K Video ROM 000C8000 - 000DFFFF 96K Available I/O Adapter ROM 000E0000 - 000EFFFF 64K BIOS ROM and PCMCIA 000F0000 - 000FFFFF 64K BIOS ROM 00100000 - 1FFFFFFF 511M Expansion memory 20000000 - 3FFFFFFF ----- Reserved

Size Assignment

PCI to ISA Bus Interrupt Mapping

The ISA bridge (Intel 82371SB) provides the sixteen conventional ISA interrupts, plus four interrupt request pins for PCI peripheral interrupts (PIRQ0 through PIRQ3). For PC-AT architecture compatibility reasons, the PCI interrupts are routed to the ISA interrupts within the ISA bridge. The assertion of a PCI interrupt concludes in an ISA interrupt being asserted.

Each PCI slot on the riser card has four available interrupt lines: INTA, INTB, INTC, and INTD. These are connected to the PCI interrupts, PIRQ0 through PIRQ3, as shown below:

ISA Bus

Interrupt Line

INTA PIRQ0 PIRQ1 PIRQ2 PIRQ3 PIRQ0 PIRQ1 INTB PIRQ1 PIRQ2 PIRQ3 PIRQ0 PIRQ1 PIRQ2 INTC PIRQ2 PIRQ3 PIRQ0 PIRQ1 PIRQ2 PIRQ3 INTD PIRQ3 PIRQ0 PIRQ1 PIRQ2 PIRQ3 PIRQ0

The ISA slots on the MSMT463 riser card accommodate ISA based option boards and a 16-bit wide expansion bus. The ISA bus interrupt (IRQ) assignments are defined below.

IRQ

0 System Timer 8 Real Time Clock 1 Keyboard 9 H/W Monitor 2 Cascade input for IRQ8 - IRQ15 10 Spare 3 COM2, COM4 11 Spare 4 COM1, COM3 12 Mouse 5 Crystal CS4236B Controller 13 Floating Point Unit 6 Floppy Controller 14 EIDE CDROM 7 Parallel Port 15 MIDI Port

Name IRQ Name

Slot 1 Slot 2 Slot 3 Slot 4 Slot 5 Slot 6

The Sound Controller can be configured for either IRQs 5, 7, 9, 11, 12, or 15. The MIDI Port can be configured for either IRQs 9, 10, 11, 15, or no interrupt, in which case it will act as a write-only device.

7 External Port Pinouts

(

)

This chapter describes the external port pinouts for the MSMT353 or MSMT359 and MSMT378 system boards. The pinouts are the same for both systems, except where noted.

The following figure shows the external ports on the back of the base unit.

SCSI

MIDI

Universal Serial Bus

MSMT378

Ethernet

Keyboard

Serial Parallel Video

(MSMT359)

Mouse

MIDI/Game

8 1

Signal Pin Signal Pin

+5V 1 +5V 9 Fire button 0 2 Fire button 2 10 X-axis, joystick 1 3 X-axis, joystick 2 11 Ground 4 MIDI out 12 Ground 5 Y-axis, joystick 2 13 Y-axis, joystick 1 6 Fire button 3 14 Fire button 1 7 MIDI in 15 +5V 8

Parallel

13 1

25 14

Signal Pin Signal Pin

Strobe 1 ACK - Acknowledge 10 Data 0 2 Busy 11 Data 1 3 PE - Paper Empty 12 Data 2 4 +Select 13 Data 3 5 Auto FDXT - Auto Feed 14 Data 4 6 Error 15 Data 5 7 Init - Start 16 Data 6 8 SLCTIN - Select 17 Data 7 9 Ground 18-25

SCSI

251

Signal Pin Signal Pin

Command Data-0 26 Attention 41 Command Data-1 27 Busy 43 Command Data-2 28 Acknowledge 44 Command Data-3 29 Reset 45 Command Data-4 30 Message 46 Command Data-5 31 Select 47 Command Data-6 32 Command 48 Command Data-7 33 Request 49 Command Data Parity 34 Input/Output 50 Terminator Power 38

NOTE Pins 12, 13, 14, 37, and 39 are not connected; all other pins not listed are connected to ground.

Serial (COM)

Signal Pin

DCD - Data Carrier Detect 1 RD - Receive Data 2 TD - Transmit Data 3 DTR - Data Terminal Ready 4 Ground 5 DSR - Data Set Ready 6 RTS - Request to Send 7 CTS - Clear to Send 8 RI - Ring Indicator 9

Ethernet 10/100 Base-TX

1 8

Signal Pin

TD+ - Transmit Data 1

TD– - Transmit Data 2 RD+ - Receive Data 3 Reserved 4 Reserved 5 RD– - Receive Data 6 Reserved 7 Reserved 8

Mouse and Keyboard

Mouse Signal Pin Keyboard Signal Pin

MDATA - Mouse Data 1 KDATA - Keyboard Data 1 Reserved 2 Reserved 2 Ground 3 Ground 3 Fused VCC - +5V 4 Fused VCC - +5V 4 MCLK - Mouse Clock 5 KCLK - Keyboard Clock 5 Reserved 6 Reserved 6

Universal Serial Bus (for MSMT378 system board)

Signal Contact

VCC (Cable Power) 1 Negative Data 2 Positive Data 3 Ground 4

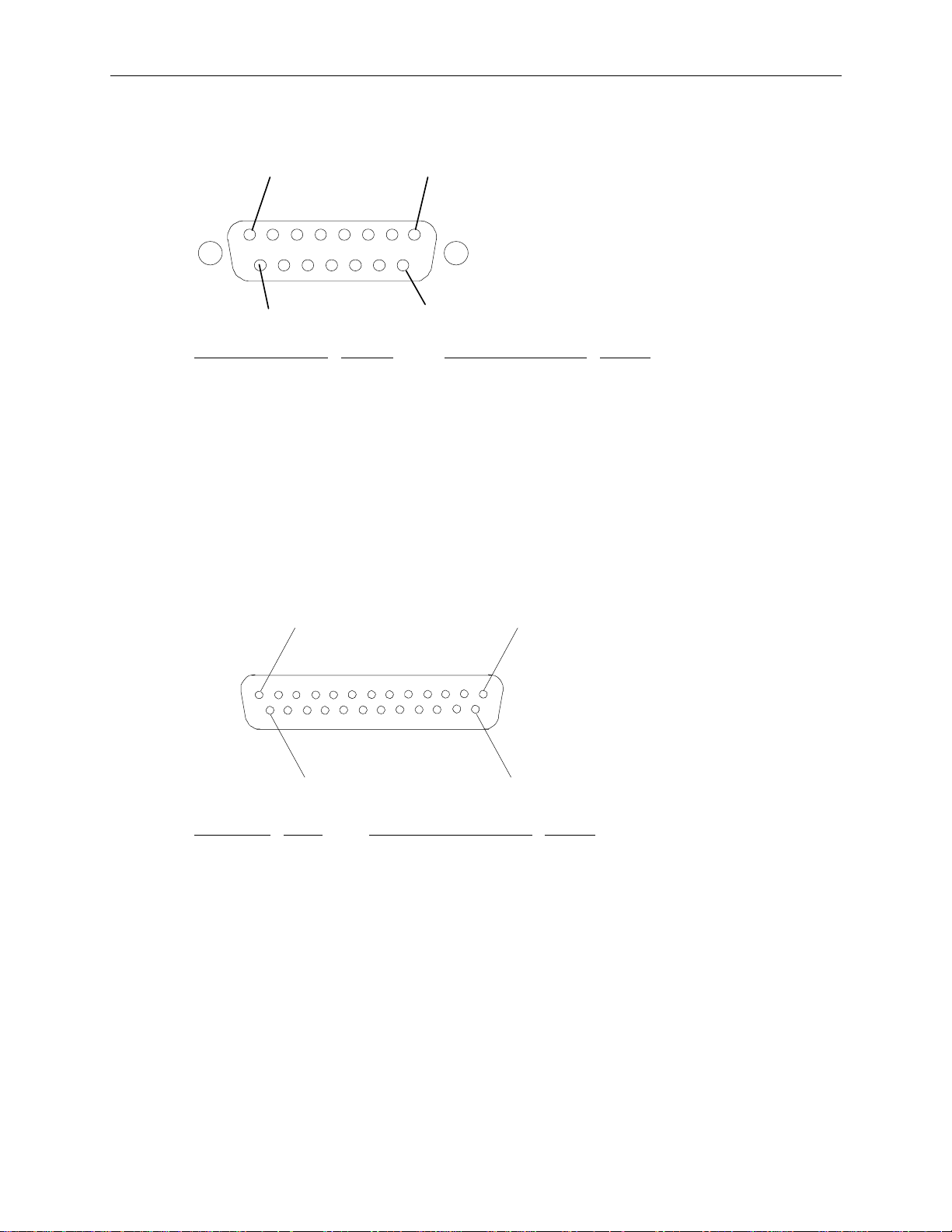

Video (for MSMT353 or MSMT359 system board)

Z10 Signal G95/I3D/Z13/Z25 Signal Pin

R - Red R - Red 1 G - Green G - Green 2 B - Blue B - Blue 3 Ground MID2 - Monitor ID2 4 Ground Ground 5 Ground Ground 6 Ground Ground 7 Ground Ground 8 No Connect Supply +5V (No Connect on G95) 9 Ground Ground 10 Ground MID0 - Monitor ID0 11 Ground MID1 - Monitor ID1 12 HSYNC - Horizontal Sync HSYNC - Horizontal Sync 13 VSYNC - Vertical Sync VSYNC - Vertical Sync 14 Ground MID3 - Monitor ID3 15

VGA In (for MSMT353 or MSMT359 system board)

Z10 Signal I3D/Z13/Z25 Signal Pin

R - Red R - Red 1 G - Green G - Green 2 B - Blue B - Blue 3 Ground MID2 - Monitor ID2 4 Ground Cable Sense 5 Ground Ground 6 Ground Ground 7 Ground Ground 8 No Connect No Connect 9 Ground Ground 10 Ground MID0 - Monitor ID0 11 Ground MID1 - Monitor ID1 12 HSYNC - Horizontal Sync HSYNC - Horizontal Sync 13 VSYNC - Vertical Sync VSYNC - Vertical Sync 14 Ground MID3 - Monitor ID3 15

Video Out (for MSMT378 system board)

11 15

G95/I3D/Z13/Z25/V25 Signal Pin G95/I3D/Z13/Z25/V25 Signal Pin

R - Red 1 Ground 8 G - Green 2 Supply +5V (No Connect on

B - Blue 3 Ground 10 MID2 - Monitor ID2 4 MID0 - Monitor ID0 11 Ground 5 MID1 - Monitor ID1 12 Ground 6 HSYNC - Horizontal Sync 13 Ground 7 VSYNC - Vertical Sync 14

G95)

MID3 - Monitor ID3 15

VGA In (for MSMT378 system board)

11 15

I3D/Z13/Z25/V25 Signal Pin I3D/Z13/Z25/V25 Signal Pin

R - Red 1 Ground 8 G - Green 2 No Connect 9 B - Blue 3 Ground 10 MID2 - Monitor ID2 4 MID0 - Monitor ID0 11 Cable Sense 5 MID1 - Monitor ID1 12 Ground 6 HSYNC - Horizontal Sync 13 Ground 7 VSYNC - Vertical Sync 14

MID3 - Monitor ID3 15

8 Riser Card MSMT463

This chapter describes the components on the riser card MSMT463 and the graphics card configurations. The following figure shows the riser card.

Side One Side Two

PCI 1 PCI 2

ISA 1

PCI 3

ISA 2

PCI 4

ISA 3

PCI 5

ISA 4

PCI 6

Power Connector

SCSI Connector

Programmable Part

(Secondary PCI Bus)

Internal SCSI Controller (AIC-7880)

Expansion Slots

The riser card has six PCI slots and four ISA slots. PCI slots 5 and 6 are on the primary PCI bus, supported by the PCI bridge on the system board. PCI slots 1 through 4 (secondary) are supported by an Intergraph programmable part on the riser card. Some PCI option boards must be installed in a primary PCI slot, as stated in the documentation delivered with the option board.

Systems with the MSMT359 system board have onboard G95 video. Other systems that do not use onboard G95, such as RenderRAX, use the G95 card (MSMT340) in PCI slot 5, or other graphics board in specified slots (see below).

NOTE Full-length PCI cards cannot be installed in PCI slot 6 if the processor module is installed on system

board MSMT353. The processor module is used in quad-processor systems only.

Internal SCSI Controller

The system’s internal SCSI controller is the Adaptec AIC-7880. All internal SCSI devices use the AIC-7880.

SCSI Connector

The SCSI connector is on side 2 of the riser card. The cable MCBL234A connects to the SCSI connector and to the internal SCSI devices. The following shows the cable pinout. Pins not listed in the table are connected to Ground.

Signal Pin Signal

26 Command Data-0 41 Attention 27 Command Data-1 43 Busy 28 Command Data-2 44 Acknowledge 29 Command Data-3 45 Reset 30 Command Data-4 46 Message 31 Command Data-5 47 Select 32 Command Data-6 48 Command 33 Command Data-7 49 Request 34 Command Data Parity 50 Input/Output 38 Terminator Power

Power Connector

The power supply cable P1 connects to the power connector.

Graphics Option Card Slot Assignments

Graphics cards are installed in specific PCI slots on the riser card. The following chart specifies the slots where graphics boards are located.

NOTE Systems with onboard graphics use G95 accelerator on the system board, rather than an installed PCI

card.

Slot 4 Slot 5

Slot 3 Slot 4 Slot 5

Slot 1 Slot 2 Slot 3 Slot 4

G95

G95 card G95 card (second screen)

Intense 3D 1000 (I3D)

I3D card I3D card I3D card I3D card

Z13

Z13 card Z13 card Z13 card Z13 card VGA card VGA card VGA card VGA card

G95, Dual Screen (DS)

G95 card (first screen)

I3D, DS I3D with Geometry (G) I3D-G, DS

I3D card I3D card

Geometry accelerator Geometry accelerator

Z13, DS Z13-G Z13-G, DS

Z13 card Z13 card VGA card VGA card

Slot 5

Slot 1 Slot 2 Slot 3 Slot 4 Slot 5

Geometry accelerator Geometry accelerator

Z25

Z25 card Z25 card Z25 card Z25 card VGA card VGA card VGA card VGA card

V25

V25 card V25 card V25 card V25 card VGA card VGA card VGA card VGA card

Z25 Dual Screen Z25-G Z25-G Dual Screen

Z25 card Z25 card VGA card VGA card

Geometry accelerator Geometry accelerator

V25 Dual Screen V25-G V25-G Dual Screen

V25 card V25 card VGA card VGA card

Geometry accelerator Geometry accelerator

9 Peripherals

This chapter provides information on configuring peripherals in all rack-mount systems.

Up to six SCSI devices may be added to the system drive bays. The following table defines the standard drive locations when drives are factory installed.

Location

1 - Left Vertical System disk drive 0 2 - Right Vertical Add-on disk drive 1 3 - Left Internal Add-on disk drive 2 4 - Right Internal Add-on disk drive 3 5 - Lower Horizontal CD-ROM drive 4 6 - Upper Horizontal Other drive type 5 or 6

NOTE The SCSI cable MCBL234A provides active termination. All SCSI devices installed in the system

must have termination disabled.

The following figure shows the physical drive locations in the system.

Drive SCSI ID

Location 3

Location 4

Location 2

Location 6

Location 5

Location 1

SCSI CD-ROM Drive (CDSK178)

The following figure shows the back of the CD-ROM drive.

Audio Connector

Mode Select Header

The audio connector uses MCBLZ630 and connects to J22 on the system board. Refer to Chapter

Terminat or Sockets

SCSI Connector

Power Connector

5 or 6 for the cable pinout.

The SCSI connector uses MCBL234A and connects to the riser card.

Settings for mode select header, which sets SCSI ID, parity, and other drive functionality are printed on the CD-ROM drive.

Terminator resistors are installed in the terminator sockets only when active termination is required. By default, these sockets are empty since termination is provided by the SCSI cable.

The power connector uses power supply cable P6 from the power supply. Refer to Chapter 10,

“Power Supply and Fans,” for the cable pinout.

Disk Drives

Any of the following disk drives can be used in the system.

Part Number

CDSK098 Conner CFP4207S 4 GB CDSK111 Seagate ST51080N 1 GB CDSK094 Seagate ST32155N 2 GB CDSK123 Seagate ST34371N 4 GB CDSK164 Seagate ST34501N 4 GB CDSK167 Seagate ST34501W 4 GB CDSK165 Seagate ST19101N 9 GB CDSK166 Seagate ST19101W 9 GB

Vendor Number Capacity

SCSI ID selection is defined in the following table. Each disk drive has a connector which uses jumpers to set the SCSI ID. Where Seagate uses ID1, ID2, and ID4 to identify how to set the SCSI ID, Conner uses 0E1, 0E2, and 0E3.

SCSI ID

0 Off Off Off 1 On Off Off 2 Off On Off 3 On On Off 4 Off Off On 5 On Off On 6 Off On On

The SCSI connector uses MCBL234A and connects to the riser card.

The power connector uses any of the P2 through P7 power supply cables from the power supply.

Refer to Chapter 10, “Power Supply and Fans” for the cable pinout.

CDSK111 (1 GB)

The following figure shows the jumper connector J8 on the back of the Seagate 1 GB disk drive.

Pin 2 Pin 1

ID1/0E1 ID2/0E2 ID4/0E3

ID1 ID2 ID4

ooooooo oooooooooo ooooooooooooooooo

Parity Enable

Term Disable

SCSI ID selection uses the ID1, ID2, and ID4 jumpers on connector J8. To enable SCSI

Term Power

termination, remove the Term Disable jumper and install both Term Power jumpers onto J8 To disable SCSI termination, install the Term Disable jumper and remove both Term Power jumpers from connector J8..

CDSK094 (2 GB)

The following figure shows the jumper connectors J6 and J2 on the Seagate 2 GB disk drive. SCSI ID selection uses the ID1, ID2, and ID4 jumpers on connector J6. To disable SCSI termination, remove the TE jumper from connector J2.

ID1 ID2

ID4

oooooooo oooooooo

SCSI

Connector

Pin 1

Power

Connector

CDSK098 (4 GB)

The following figure shows the jumper connector J5 and SCSI terminator sockets on the Conner 4 GB disk drive. Connectors 0E1 through 0E3 are also available on a jumper block near the SCSI terminator sockets; do not install jumpers on these connectors. To enable SCSI termination, install the proper resistors into both terminator sockets. To disable SCSI termination, remove both resistors from the sockets.

0E1

0E2

0E3

SCSI Terminator Sockets

CDSK123, CDSK164, CDSK165, CDSK166, CDSK167 (4 GB)

The following figure shows the jumper connectors J6 and J2 on the Seagate 4 GB and 9 GB disk drives. SCSI ID selection uses the ID1, ID2, and ID4 jumpers on connector J6. To disable SCSI termination, remove the TE jumper from connector J2.

ID1 ID2

ID4

Floppy Disk Drive (CDSK146)

The following figure shows the cable connectors on the back of the floppy disk drive.

oooooooo oooooooo

SCSI

Connector

Pin 1

Power

Connector

Power Connector

The power connector uses power supply cable P9 from the power supply. Refer to Chapter 10,

Floppy Connector

“Power Supply and Fans,” for the cable pinout.

The floppy connector uses cable MCBLZ380 and connects to J30 on the system board. Refer to Chapter 5 or 6 for the cable pinout.

Combo Drive (MESAM86)

The following figure shows the cable connectors on the combo drive MESAM86.

Power Connector

J5 J4

J6 J3

The power connector uses power supply cable P9 from the power supply. Refer to Chapter 10,

Converter Connector

ISA Bus Connectors

Floppy Connector

“Power Supply and Fans,” for the cable pinout.

The ISA bus connector J3 uses MCBL084A and connects to J33 on the MSMT353 system board. Refer to the table “J33, MCBL084A, PCMCIA ISA Bus” in Chapter 5 for the cable pinout.

The ISA bus connector J6 uses MCBL084A and connects to J32 on the MSMT353 system board. Refer to the table “J32, MCBL084A, PCMCIA ISA Bus” in Chapter 5 for the cable pinout.

The floppy connector uses cable MCBLZ380 and connects to J30 on the system board. Refer to Chapter 5 or 6 for the cable pinout. The floppy connector also uses cable MCBLZ230 to connect to the converter connector J4 on the combo drive.

The following table shows the pinout of MCBLZ230.

Signal Pin Signal Pin Signal

1 VCC 10 MTR1- 19 Ground 2 INDEX- 11 No connect 20 TRK03 VCC 12 DIR 21 Ground 4 DRV1- 13 No connect 22 WRPRT5 VCC 14 STEP- 23 Ground 6 DSKCHG 15 Ground 24 RDATA7 No connect 16 WDATA- 25 Ground 8 No connect 17 Ground 26 HDSEL 9 RPM 18 WGATE-

EIDE CD-ROM Drive (CDSK177)

The following figure shows the back of the EIDE CD-ROM drive for the TDZ-425 RAX system. Install jumpers as shown.

Audio Connector

Mode Select 2

The power connector uses power supply cable P6 from the power supply. Refer to Chapter 10,

Mode Select 1

IDE Connector

Power Connector

“Power Supply and Fans,” for the cable pinout.

The audio connector uses MCBL122A and connects to J22 on the system board. Refer to Chapter 6 for the cable pinout.

The IDE connector uses cable MCBL121A and connects to the Primary IDE Bus on the MSMT378 system board. Refer to Chapter 6 for the cable pinout.

The Mode Select 1 header is jumpered “master” as shown. Settings for the mode select header are printed on the CD-ROM drive.

10 Power Supply and Fans

This chapter describes the 539-watt power supply and cooling fans used in all rack-mount systems. Differences among systems are noted.

Power Supply (MPWS145)

MPWS145 is a 539 watt autoranging supply, that switches between 90-132 VAC or 180-264 VAC, depending on the location. The input frequency is 47-63 Hz, single phase. At full load, the power supply has a minimum efficiency of 65 percent.

DC Output Specifications

The following table details the DC output specifications for the power supply.

Output #2 Output #3 Output #4 Output #5 Unit

+5.1

3, 4

+12.0

−

12.0

−

5.0

0.5 0.5 ADC

VDC

Max

Nominal Output Voltages

Continuous Load (Maximum.)

Continuous Load (Minimum.)

1, 5

Noise and Ripple (PARD) (DC to

Output #1

+3.3

3, 4

06000ADC

50 50 100 250 100 mVp-p

30 MHz) Initial Setting

Tolerance

Regulation Line/Load

2, 5

Overshoot

10%

5% 5% 10% 10% 10% Max

Max

(Turn on/off)

The following items apply to the table of DC output specifications.

1. The power supply meets or exceeds these specifications. For the noted specifications, the

maximum values describe the smallest acceptable maximum load, and the minimum values describe the largest acceptable minimum load.

2. These outputs are measured at the user end of an unloaded peripheral cable.

3. +3.3 V and +5.1 V will never draw over 400 Watts combined.

4. Any combination of +3.3 V, +5.1 V, and +12 V do not exceed their maximum or 539 watts of

total power.

5. The sum of Initial Setting Tolerance and Line/Load Regulation do not exceed 3% for the +3.3 V

and +5.1 V outputs, 5% for the +12 V output, and 10% for the negative output voltages.

Cable Connectors

The following table shows the cable connectors from the power supply that connect to the riser card and to the devices in the system.

P1 Pinout

Connector

P1 Riser Card (Main Power) P2 System disk drive 0 P3 Add-on disk drive 1 P4 Add-on disk drive 2 P5 Add-on disk drive 3 P6 CD-ROM drive 4 P7 Tape drive/Other drive 5 P8 Not used P9 Floppy disk or combo drive P10 System key switch (MCBL166A)

Pin Signal Wire Color Pin Signal Wire Color

1 +3.3V Orange 13 +5V Red 2 +3.3V Orange 14 Ground Black 3 +3.3V Orange 15 Ground Black 4 Ground Black 16 +5V Red 5 Ground Black 17 Ground Black 6 Ground Black 18 -12V Blue 7 +3.3V Orange 19 +5V Red 8 +3.3V Orange 20 -5V Red 9 +5V Red 21 Ground Black 10 Ground Black 22 +12V Yellow 11 +5V Red 23 Ground Black 12 Ground Black 24 Power

Device SCSI ID

Green

Good

P2 - P7 Pinout

Pin Signal Wire Color

1 +12V Yellow 2 Return Black 3 Return Black 4 +5V Red

P9 Pinout

Pin Signal Wire Color

1 +5V Red 2 Return Black 3 Return Black 4 +12V Yellow

P10 Pinout

Pin Signal Wire Color

1 System Reset Yellow 2 No Connect Black 3 Ground Black 4 System On Red

System Fans

Refer to Chapter 5 or 6 for fan cable pinouts and system board connector locations.

NOTE Airflow in the system is front to back. Arrows on the fan indicate airflow direction and rotation.

Ensure fans are installed with airflow direction arrows pointing to the back of the system.

Power Supply Fan (MCBLZ52 or CFAN1170)

The power supply fan is a single, 119 mm fan (MCBLZ52), mounted on the rear left of the power supply housing. The power cable connects to MCBLZ530, which connects to J68 on the MSMT353 or MSMT359 system board.

On systems with the MSMT378 system board only, the power supply fan is a single, temperaturecontrolled, 119 mm fan (CFAN1170), mounted on the rear left of the power supply housing. The three-conductor power cable connects to the extension cable MCBL177, which connects to J68 on the MSMT378 system board.

System Fans (MCBLY690)

The system fans are two 80 mm (MCBLY690) fans, attached to the right rear of the power supply housing. The fan power cables connect to MCBL530, which connects to J68 on the MSMT353 or MSMT359 system board. On systems with the MSMT378 system board, the fan power cables connect to the extension cable MCBL177, which connects to J68 on the MSMT378 system board.

Vertical Bay Disk Drive Fan (MCBLY690)

The disk drive fan is MCBLY690, an 80 mm fan mounted to the vertical drive bay. The fan power cable connects to MCBLZ660, which connects to J69 on the MSMT353 or MSMT359 system board or connects to MCBL284A and to J64 on the MSMT378 system board.

Internal Bay Disk Drive Fan (MCBLY690)

The disk drive fan is MCBLY690, an 80 mm fan mounted to the internal drive bay. A hole on the back of the chassis provides access to the fan screws and grille. The fan power cable connects to MCBLZ660, which connects to J12 on the MSMT353 or MSMT359 system board or connects to MCBL284A and to J12 on the MSMT378 system board.

Index

1 GB disk drive, 75

2 GB disk drive, 76

4 GB and 9 GB disk drives (Seagate),

4 GB disk drive (Conner), 76

68 pin to 50 pin SCSI adapter

AC line filter

Address resources

Assigning system resources for option

Attaching face plate, 2 Audio cable

(CCON401B), 31

replacing, 21

(MSMT353 for MSMT353 and

MSMT359, 50

(MSMT378), 59

boards, 29

MCBLZ630 and MCBL122A

pinout, 56

MCBLZ630 pinout, 46

SCSI (CDSK178), 74 Closing the base unit, 2 Combo drive (MESAM86), 78

converter cable (MCBLZ230)

pinout, 78

Connectors

MSMT353 or MSMT359 system

board, 43

MSMT378 system board, 53 Conventions

document, ix CPU frequency

jumper connectors, 44, 55 CPU voltage

jumper connectors, 55 Crystal CS4236B, 58

DC output specifications

power supply (MPWS145), 81 Disabling sync negotiation

external SCSI device, 35 Disk activity LED cable (MCBLZ620)

pinout, 48, 57 Disk drives, 74 DMA channels MSMT353 or

MSMT359, 50 DMA channels MSMT378, 59 Document

conventions, ix

Dual to quad processor upgrade

(MSMT359), 25

Base unit

closing, 2

Cable connectors

power supply (MPWS145), 82

Cable lengths

external SCSI drives, 35

Cable routing and pinouts

MSMT353 system board, 46 MSMT378 system board, 55

CD-ROM drive

EIDE (CDSK177), 79 replacing, 6

EIDE controller, 39 Electrostatic discharge

protecting against, 2

Ethernet 10/100 Base-TX

port pinout, 64 Ethernet controller, 39 Expansion slots

riser card, 69 External port pinouts, 61 External SCSI drive

connecting, 35 External SCSI drives

adding, 34

Face plate

attaching, 2 removing, 2

Fan power cable (MCBLZ177)

pinout, 57

Fan power cable (MCBLZ530)

pinout, 47

Fan power cable (MCBLZ660)

pinout, 47, 57

Fans, 81

replacing, 17 system, 83

Floppy

cable (MCBLZ380) pinout, 47, 56 disk drive (CDSK146), 77

Floppy disk drive

replacing, 4

Graphics option card slot assignments

riser card, 70

Hardware

optional, 42

overview and specifications, 37 Host bridge, 39 Host bus frequency

jumper connectors, 55

Information

system, ix Input/output addresses MSMT353 or

MSMT359, 50 Input/output addresses MSMT378, 59 Installing an option board, 28 Internal bay disk drive fan, 84 Internal bay disk drives

replacing, 11

Internal bay fan

replacing, 18 Internal drive locations, 73 Internal SCSI controller

riser card, 69 Internal SCSI drives

adding, 31 Interrupt lines

MSMT353 or MSMT359, 52

MSMT378, 60 Interrupt mapping

MSMT378, 60

ISA bus

MSMT353 or MSMT359, 52 MSMT378, 60

ISA option boards, 28

Jumper connectors

BIOS password clear

(MSMT378), 55

BIOS password clear (MSMT353

or MSMT359), 45

G95 VGA mode disable/enable

(MSMT353), 45

MSMT353 or MSMT359 CPU

frequency, 44 MSMT378 CPU frequency, 55 MSMT378 CPU voltage, 55 MSMT378 host bus frequency, 55

Keyboard

port pinout, 64

Keyswitch

replacing, 21

LEDs

replacing, 21

Lithium battery

replacing, 19

Memory

adding, 23

Memory address map

MSMT353 or MSMT359, 50

Memory addresses

MSMT378, 59

Memory upgrade

installing, 24

MIDI cable (MCBL038A) pinout, 46,

MIDI/Game

port pinout, 62

Model number

system, 40

Mouse

port pinout, 64

MSMT353 or MSMT359 sound

controller

features, 49

MSMT353 or MSMT359 system board,

MSMT353 or MSMT359 system board

jumper connectors, 44

MSMT378 sound controller

features, 58 MSMT378 system board, 53 MSMT378 system board jumper

connectors, 54

MSMT463 (riser card)

description, 69

Non-compliant PCI option boards, 28

Onboard video, 39 Opening the base unit, 1 Option board

installing, 28 Option boards

adding, 28

with a configuration file, 29

without a configuration file, 30 Optional hardware, 42

P1 pinout

power supply connector, 82 P10 pinout

power supply connector, 83 P2 - P7 pinout

power supply connectors, 83 P6 bus termination card

replacing, 15 P9 pinout

power supply connector, 83 Parallel

port pinout, 62 PCI bus configuration space

(MSMT353 or MSMT359), 51 PCI option boards, 28 PCI to ISA bus interrupt mapping, 60 PCI-to-ISA bridge, 39 PCMCIA ISA cable (MCBL084A)

pinout, 48

Pentium Pro to Pentium II processor

upgrade

(MSMT378), 26 Peripheral conttroller, 39 Peripheral drives

replacing, 4

Peripherals, 73 Pinouts

Ethernet 10/100 Base-TX port, 64 GA in port (for MSTM378 system

board), 67 keyboard port, 64 MIDI/Game port, 62 mouse port, 64 parallel port, 62 SCSI port, 63 serial (COM) port, 63 universal serial bus port (for

MSMT378 system board), 65 VGA in port (for MSMT353 or

MSMT359 system board), 66 video out port (for MSMT378

system board), 67 video port (for MSMT353 or

MSMT359), 65

PIRQ

MSMT353 or MSMT359, 51 MSMT378, 60

PnP option boards, 28 Power connector

riser card, 70

Power on LED cable (MCBLZ610)

pinout, 47, 57

Power supply

replacing, 12

Power supply (MPWS145), 81 Power supply fan, 83

replacing, 17

Primary EIDE cable (MCBL121)

pinout, 57

Processor

Pentium II, 26 Pentium Pro, 26

Processor module

replacing on MSMT353 or

MSMT359 system board, 15 replacing on MSMT378 system

board, 15

Processor(s), 39 Processors

adding to MSMT353 or

MSMT359, 24 adding to MSMT378, 26

Protecting against electrostatic

discharge, 2

Removing the face plate, 2 Riser card

description, 69 features, 39 replacing, 13

SCSI

cable (MCBL176A) pinout, 57 cable (MCBLZ176A) pinout, 47 cable lengths, 35 disk drive termination, 75, 76, 77

port pinout, 63 SCSI cable guidelines, 35 SCSI CD-ROM drive (CDSK178), 74 SCSI connector

riser card, 70 SCSI controller, 39 Serial (COM)

port pinout, 63 SIMMs

installation rules, 23 Single processor to dual upgrade

(MSMT378), 26 Single to dual processor upgrade

(MSMT359), 25 Slots

primary PCI, 69

secondary PCI, 69 Sound controller, 39

(MSMT353, 49

(MSMT378), 58 Speaker

replacing, 19 Speaker cable (MCBLZ520) pinout, 47 Specifications, 37, 41 Sync negotiation

disabling, 35 System

accessing, 1

attaching face plate, 2

BIOS, 39

closing the base unit, 2

functional diagram, 37

hardware overview, 37

information, ix

maintenance

tools required, 1 model number, 40 opening the base unit, 1 removing the face plate, 2

servicing, 3 specifications, 37 upgrading, 23

System board

combinations, 38 component specification, 39 feature summary, 38 MSMT353 and MSMT359, 43 MSMT378, 53 replacing, 16

System Configuration Utility

assigning system resources for

option boards, 29

System fans, 83

replacing, 18

Tools, 1

Universal serial bus (for MSMT378

system board)

port pinout, 65
