Intergraph InterServe 80 SL Reference

InterServe 80 SL Rack Mount

System Reference

November 1998 DHA030310

Copyright

 1998 Intergraph Computer Systems. All rights reserved. This document contains information protected by copyright, trade secret, and trademark law. This document may not, in whole or in part, be reproduced in any form or by any means, or be used to make any derivative work, without written consent from Intergraph Computer Systems.

Use, duplication, or disclosure by the United States Government is subject to restrictions as set forth in subdivision (c)(1)(ii) of the rights in technical data and computer software clause at DFARS 252.227-7013. Unpublished rights are reserved under the copyright laws of the United States.

Intergraph Computer Systems, Huntsville AL 35894-0001

Notice

Information in this document is subject to change without notice and should not be considered a commitment by Intergraph Computer Systems. Intergraph Computer Systems shall not be liable for technical or editorial errors in, or omissions from, this document. Intergraph Computer Systems shall not be liable for incidental or consequential damages resulting from the furnishing or use of this document.

All warranties given by Intergraph Computer Systems about equipment or software are set forth in your purchase contract. Nothing stated in, or implied by, this document or its contents shall be considered or deemed a modification or amendment of such warranties.

Trademarks

Intergraph Computer Systems and the Intergraph Computer Systems logo are registered trademarks of Intergraph Computer Systems. InterServe is a trademark of Intergraph Computer Systems. Other brands and product names are trademarks of their respective owners.

FCC/DOC Compliance

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy. If the equipment is not installed and used in accordance with the instruction manual, it may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Changes or modifications made to the system that are not approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil

numérique de la classe B respecte toutes les exigencies du Règlement sur le materiél brouilleur du Canada.

Warnings

The service and upgrade instructions should be performed by qualified personnel only. Qualified personnel do not have to be Intergraph service personnel. Those who are familiar with servicing computers can follow instructions in a manual to service equipment, and do so without harm to themselves or damage to the equipment.

Changes or modifications made to the system that are not approved by the party responsible for compliance could void the user's authority to operate the equipment.

To reduce the risk of electrical shock, do not attempt to open the equipment unless instructed. Do not use a tool for purposes other than instructed.

There is a danger of explosion if the battery is incorrectly replaced. Replace the battery only with the same or equivalent type as recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

Notes

Read all operating instructions before using this device. Keep these instructions for future reference. Follow all warnings on the device or in the operating instructions. This device is designed and manufactured to comply with approved safety standards for information processing and business equipment.

Preface..................................................................................................................................... ix

About This Document ..............................................................................................................ix

Document Conventions............................................................................................................ix

Customer Support...................................................................................................................... x

1 Accessing the Components.................................................................................................. 1

Before You Begin...................................................................................................................... 2

Tools.......................................................................................................................................... 2

Avoiding Electrostatic Discharge.............................................................................................. 2

Opening the Base Unit...............................................................................................................3

Opening and Closing the Face Panel......................................................................................... 3

Closing the Base Unit................................................................................................................ 4

System Illustrations................................................................................................................... 5

Hardware and Software Support Services................................................................... x

World Wide Web........................................................................................................ x

Intergraph Bulletin Board Service............................................................................... x

FAXLink.................................................................................................................... xi

Telephone................................................................................................................... xi

More Support Options............................................................................................... xii

2 Servicing the System ........................................................................................................... 7

Before You Begin...................................................................................................................... 8

Base Unit Components.............................................................................................................. 8

Peripheral Drives.......................................................................................................................9

CD-ROM Drive........................................................................................................... 9

Floppy Disk Drive..................................................................................................... 11

JBOD or RAID Disk Drives ..................................................................................... 13

Disk Drive Section (MESAP02) ............................................................................................. 14

SAF-TE Card........................................................................................................................... 16

Bus Terminator........................................................................................................................ 16

Power Supply (MPWS183)..................................................................................................... 17

Processor Modules .................................................................................................................. 19

Heat-Sink Mounting Brackets................................................................................................. 20

Retention Modules .................................................................................................................. 20

DIMMs.................................................................................................................................... 21

System Board .......................................................................................................................... 22

Option Cards ........................................................................................................................... 23

Chassis Fan.............................................................................................................................. 24

RAID/JBOD Fans.................................................................................................................... 25

Chassis Intrusion Alert Switch................................................................................................ 26

Lithium (CMOS/Clock) Battery.............................................................................................. 26

LEDs, Power, and Reset Switches........................................................................................... 27

3 Upgrading the System....................................................................................................... 29

Before You Begin.................................................................................................................... 30

Adding Memory...................................................................................................................... 30

Memory Configurations............................................................................................ 31

Adding a Processor.................................................................................................................. 32

Single-to-Dual Upgrade............................................................................................ 32

Adding Option Cards............................................................................................................... 33

Slot Locations ........................................................................................................... 34

Upgrading Graphics Cards........................................................................................ 34

Installing Option Cards............................................................................................. 34

Assigning System Resources..................................................................................... 35

Reserving an IRQ...................................................................................................... 37

Adding Hard Disk Drives........................................................................................................38

RAID Configurations................................................................................................ 38

SCSI Configurations ................................................................................................. 39

Adding Internal SCSI Drives and Devices.............................................................................. 39

Device Bays.............................................................................................................. 40

Installing Devices in the Drive Bays......................................................................... 40

Adding External SCSI Drives.................................................................................................. 42

SCSI Cable Length Guidelines.................................................................................. 42

SCSI Cable Quality Guidelines................................................................................. 43

SCSI ID Guidelines................................................................................................... 43

SCSI Termination Guidelines for External Devices.................................................. 43

Connecting an External SCSI Drive.......................................................................... 44

Changing SCSI Host Adapter or Device Settings ..................................................... 44

4 System Hardware..............................................................................................................45

Hardware Overview.................................................................................................................46

Functional Diagram................................................................................................................. 47

Disk Drive Section (MESAP02) ............................................................................................. 48

Cable Routing and Pinouts........................................................................................ 48

SAF-TE Card ............................................................................................................ 50

Jumper Settings......................................................................................................... 50

LED Function............................................................................................................ 50

300 Watt Power Supply (MPWS183) ..................................................................................... 51

Chassis Cooling Fan Specifications......................................................................................... 52

RAID/JBOD Cooling Fan Specifications................................................................................ 53

5 System Board...................................................................................................................... 55

Major Features ........................................................................................................................ 56

Connectors, Slots, and Sockets................................................................................................ 57

PCI to ISA Bus Interrupt Mapping.......................................................................................... 58

Cable Routing and Pinouts...................................................................................................... 58

External Ports.......................................................................................................................... 61

RAID Controller ....................................................................................................... 61

SCSI Controller......................................................................................................... 62

vii

Keyboard, Mouse...................................................................................................... 62

Universal Serial Bus.................................................................................................. 63

Serial......................................................................................................................... 63

Parallel ...................................................................................................................... 64

Line Out.................................................................................................................... 64

Line In....................................................................................................................... 65

Microphone............................................................................................................... 65

Game/MIDI............................................................................................................... 66

6 Peripherals.......................................................................................................................... 67

Peripheral Cables..................................................................................................................... 68

EIDE Cable (MCBL121) .......................................................................................... 68

Internal Wide Ultra SCSI Cable (MCBL246)........................................................... 68

Floppy Cable (MCBL194)........................................................................................ 69

Peripheral Configuration......................................................................................................... 69

Floppy Disk Drive (CDSK146)................................................................................. 69

Disk Drives (FDSKxxx) ............................................................................................ 70

IDE CD-ROM Drive (CDSK196)............................................................................. 71

40 GB 8 MM Tape Drive (CMTP169) ..................................................................... 72

7 System Specifications ........................................................................................................73

System Model Number............................................................................................................ 74

Specifications..........................................................................................................................75

System Configuration Summary.............................................................................................. 75

System Board .......................................................................................................................... 76

Sound Controller .....................................................................................................................77

Hardware Monitoring and Power Management....................................................................... 77

Intrusion Alert Switch ............................................................................................................. 78

Optional Hardware.................................................................................................................. 78

viii

Preface

InterServe 80 SL Rack Mount System Reference describes how to service and upgrade an InterServe 80 SL Rack Mount system.

About This Document

InterServe 80 SL Rack Mount System Reference is organized as follows:

Chapter 1, “Accessing the Components,” describes how to open and close the base unit and how to access internal components.

Chapter 2, “Servicing the System,” describes how to replace the components of the system.

Chapter 3, “Upgrading the System,” describes how to add components to expand the system.

Chapter 4, “System Hardware,” provides a system hardware overview and technical information on the components of the system.

Chapter 5, “System Board,” provides technical information specific to the system board.

Chapter 6, “Peripherals,” provides connector locations for peripheral cables and drives.

Chapter 7, “System Specifications,” provides system specifications and configuration summary.

Document Conventions

Bold

Italic Variable values that you supply, or cross-references.

Monospace

SMALL CAPS Key names on the keyboard, such as D, ALT or F3. Names of files and

CTRL+D Press a key while simultaneously pressing another key; for example, press

Commands, words, or characters that you key in literally.

Output displayed on the screen.

directories. You can type filenames and directory names in the dialog boxes or the command line in lowercase unless directed otherwise.

CTRL and D simultaneously.

Customer Support

Intergraph Computer Systems offers an assortment of customer support options.

Hardware and Softwa r e Suppor t Services

Intergraph Computer Systems provides a variety of hardware services for Intergraph and thirdparty equipment. Services include warranty upgrades, repair depot service, on-site hardware maintenance, system administration, and network consulting. Hardware purchased from Intergraph Computer Systems includes a factory warranty ranging from 30 days to three years. A detailed warranty description is available on the World Wide Web; see the Support pages at http://www.intergraph.com/ics.

Intergraph Computer Systems provides complimentary software support for 30 or 90 days following shipment of a hardware or software product. This includes World Wide Web access, Intergraph Bulletin Board Service access, FAXLink service, and telephone (Help Desk) support. At the end of the complimentary support period, you can purchase other levels of software support.

World Wide Web

You can visit Intergraph Computer Systems on the World Wide Web at http://www.intergraph.com/ics. On these pages, you can get news and product information, technical support information, software updates and fixes, and more.

Intergraph Bulletin Board Servi ce

On the Intergraph Bulletin Board Service (IBBS), you can get technical support information, software updates and fixes, and more.

To connect to the IBBS:

1. Set your system’s communications protocol for eight (8) data bits, no parity, one (1) stop

bit, and any baud rate up to 14,400.

2. Using a modem, call 1-256-730-8786. Outside the United States, call one of the mirror

sites listed on World Wide Web; see the Software Support pages at http://www.intergraph.com.

3. At the login prompt, key in your user ID. If you have not connected before, key in new to

create a user ID.

4. Follow the menus to find what you need. The IBBS provides clear choices and online

help.

If you have trouble connecting to or using the IBBS, call the Customer Response Center at 1-800-633-7248 (product entry IBBS) or leave a message for the IBBS System Operator at 1-256-730-1413.

FAXLink

To use the FAXLink:

Telephone

To get customer support by telephone:

Call 1-800-240-4300 for information on how to get technical support information using the FAXLink.

Call 1-256-730-9000 to get documents (up to five per call).

In the United States, call 1-800-633-7248 between the hours of 7:00 a.m. and 7:00 p.m. Central Time, Monday through Friday (except holidays).

Outside the United States, contact your local Intergraph Computer Systems subsidiary or distributor.

Have the following information available when you call:

Your service number, which identifies your site to Intergraph Computer Systems. You use your service number for warranty or maintenance calls.

Your Customer Personal Identification Number (CPIN). You get a CPIN the first time you call the Customer Response Center; it is associated with your service number for future call logging.

The product’s name or model number.

The product’s serial number. Software product serial numbers are included in the product packaging. Hardware product serial numbers are on a sticker affixed to the hardware product.

Your name and telephone number.

A brief description of the question or problem.

xii

More Support Options

To get information on more customer support options:

Visit the Support pages on the World Wide Web at http://www.intergraph.com/ics.

For hardware support questions in the United States, call 1-800-763-0242.

For software support questions in the United States, call 1-800-345-4856.

Outside the United States, contact your local Intergraph Computer Systems subsidiary or distributor.

1 Accessing the Components

This chapter describes how to access the internal components of the system so you can service and upgrade an InterServe 80 SL Rack Mount system. It lists tools and describes methods for avoiding electrostatic discharge, removing and replacing cover panels, and accessing components.

Before You Begin...................................................................................................................... 2

Tools.......................................................................................................................................... 2

Avoiding Electrostatic Discharge.............................................................................................. 2

Opening the Base Unit...............................................................................................................3

Opening and Closing the Face Panel......................................................................................... 3

Closing the Base Unit................................................................................................................ 4

System Illustrations................................................................................................................... 5

Before You Begin

WARNING Disconnect the system and peripheral devices from AC power before servicing internal

components! Failure to remove AC power may result in equipment damage or personal injury.

WARNING Follow all warnings and cautions in the servicing instructions. If you fail to follow

documented, approved procedures, personal injury and damage to equipment can result.

CAUTION Use an antistatic wrist strap for all servicing procedures to avoid the possibility of electrostatic

discharge.

“Right side” and “left side” are as seen from the front of the unit.

Tools

You will need the following tools to service the system:

Antistatic wrist strap

Quarter-inch nutdriver

No. 1 and No. 2 Phillips screwdrivers

Three-sixteenth-inch nutdriver

Five-sixteenth-inch or 8 mm nutdriver

Small single-slot screwdriver

Avoiding Electrostatic Discharge

Sensitive components inside the base unit can be damaged by static electricity. To protect against this possibility, take the following precautions when working with internal components.

Unplug the unit from AC power before servicing any electronic component inside the chassis.

Touch the bare metal of the base unit to ensure the base unit and your body are at the same electric potential.

Handle all printed circuit boards as little as possible and by the edges only. Leave new parts in their protective packaging until you install them.

Use a disposable or reusable antistatic wrist strap when servicing or upgrading the system. Once a disposable wrist strap is used, it cannot be used again.

A reusable antistatic wrist strap can be attached to any bare metal part of the base unit. The metal conductor in the elastic sleeve of reusable antistatic straps must contact bare skin.

Opening the Base Unit

CAUTION Before you open the base unit, shut down the system and turn off power to the system and

external devices (including peripheral drives and display). Use caution to avoid injury when removing covers and other hardware.

CAUTION Ensure the front and side stabilizers of the rack in which the system is moun ted are fully

extended.

To open the base unit:

1. Remove the screws that secure the handles to the rack.

2. Disconnect all cables including the power cable, monitor, and all peripheral cables from

the back of the unit.

3. Slide the base unit out of the rack until it locks in the extended position.

4. Remove and retain the two screws that secure the cover to the chassis: one each on the

upper left and right corners of the back of the chassis.

5. Slide the cover back about an inch, then lift the cover off.

6. Attach the grounding clip from the antistatic wrist strap to bare metal.

Opening and Closing the Face Panel

To open the face panel:

1. Loosen the two thumb screws that secure the face panel to the base unit (on the upper

right and left corners of the face plate).

2. Pull the face panel toward you to open it. The face panel swings down on hinges attached

to the lower corners of the base unit, as shown in the following illustration.

To close the face panel:

1. Lift the face panel upward and push it onto the base unit.

2. Secure the face panel to the base unit by tightening the two thumb screws.

Closing the Base Unit

CAUTION After servicing or upgrading the system, always replace the covers that were removed. The

covers ensure the system maintains proper air flow, so internal components do not overheat and fail. The covers also ensure that electromagnetic interference (EMI) emissions remain below the standard requirements.

To close the base unit:

1. Remove the antistatic wrist strap from the base unit.

2. Replace the cover.

3. Secure the cover to the base unit with the screws retained earlier.

4. Slide the base unit into the rack.

5. Secure the base unit to the rack by replacing the screws attaching the handles to the rack.

6. Reconnect all cables including the power cable, monitor, and peripheral cables to the

back of the system.

System Illustrations

The following illustrations show both external and internal views of the system.

This front, right view shows the system with all covers in place.

Power Supply

This back, right view shows major parts of the system without covers, cables, system board, and option cards.

Peripheral Drive Section

Chassis Fan/ Mounting Plate

RAID/JBOD Fans

Input/Output Panel

Front Panel

RAID/JBOD Disk Section

Expansion Slots

2 Servicing the System

This chapter describes how to replace the standard parts inside the InterServe 80 SL Rack Mount.

Before You Begin...............................................................................................................8

Base Unit Components....................................................................................................... 8

Peripheral Drives................................................................................................................9

CD-ROM Drive.................................................................................................... 9

Floppy Disk Drive.............................................................................................. 11

JBOD or RAID Disk Drives .............................................................................. 13

Disk Drive Section (MESAP02) ...................................................................................... 14

SAF-TE Card....................................................................................................................16

Bus Terminator................................................................................................................. 16

Power Supply (MPWS183).............................................................................................. 17

Processor Modules ........................................................................................................... 19

Heat-Sink Mounting Brackets..........................................................................................20

Retention Modules ........................................................................................................... 20

DIMMs............................................................................................................................. 21

System Board ................................................................................................................... 22

Option Cards ....................................................................................................................23

Chassis Fan....................................................................................................................... 24

RAID/JBOD Fans............................................................................................................. 25

Chassis Intrusion Alert Switch.........................................................................................26

Lithium (CMOS/Clock) Battery....................................................................................... 26

LEDs, Power, and Reset Switches.................................................................................... 27

Before You Begin

WARNING Disconnect the system and peripheral devices from AC power before servicing internal

components! Failure to remove AC power may result in equipment damage or personal injury.

WARNING There is a danger of explosion if the battery is incorrectly replaced.

CAUTION Use an antistatic wrist strap for all servicing procedures to avoid the possibility of electrostatic

discharge.

CAUTION Do not overtighten screws and other fasteners to avoid damaging threads.

CAUTION Follow all warnings and cautions in these servicing instructions. If you fail to follow

documented, approved procedures, personal injury or damage to equipment can result.

See Chapter 1, “Accessing the Components,” for details on opening the system and protecting against electrostatic discharge. These procedures assume you have removed the cover from the system. “Right side” and “left side” are as seen from the front of the unit. After servicing the system, replace panels as described in Chapter 1, “Accessing the Components.”

Base Unit Components

The following figure shows the base unit components:

Intruder Alert Switch

Drive Bay Door Lock

Drive Bay Door

(behind panel)

CD-ROM Drive

Floppy Drive

Cover

Front Panel

System LEDs and Power/Reset Switches

To replace the drive bay door, you must first remove the top cover and open the face panel. To replace the face panel, you must remove the top cover and the drive bay door.

To replace the top cover:

1. Remove the top cover. See Chapter 1, “Accessing the Components,” for details.

2. Install the new cover.

To replace the drive bay door:

1. Open the face panel. See Chapter 1, “Accessing the Components,” for details.

2. Remove the two hinge screws attaching the drive door to the face panel.

3. Remove the drive door.

4. Position the new drive door so that the screw holes on the door are aligned with holes in

the face panel.

5. Replace the two hinge screws, ensuring that the hinge screws are equally tightened. This

will ensure that the drive bay door is centered properly.

To replace the face panel:

1. Remove the drive bay door from the old face panel. See the “To replace the drive bay

door” procedure.

2. Install the drive bay door in the new face panel as described earlier in the “To replace the

drive bay door” procedure.

3. Remove the old face panel by removing the two shoulder screws at the bottom left and

right corners of the face panel.

4. Align the bottom of the new face panel with the front of the unit, and reattach the two

shoulder screws from step 3.

5. Close the new face panel. See Chapter 1, “Accessing the Components,” for details.

Peripheral Drives

This section explains how to replace the CD-ROM, floppy, and JBOD or RAID disk drives. See Chapter 6, “Peripherals,” for details on drive configuration and cables.

CD-ROM Drive

The procedure for replacing a SCSI or an EIDE CD-ROM drive is the same, except for data cables and jumper settings.

To replace the CD-ROM drive:

1. Disconnect the power cable and data cable from the CD-ROM drive. Note the position of

the red stripe on the data cable.

Data Cable Power Connector

2. Loosen the screw on the front-most locking plate on the top left side of the peripheral

drive bay.

Locking Plate Screw

3. Lift and hold the locking plate.

4. From inside the chassis, push the back of the CD-ROM until the bezel clears the front of

the chassis, then slide the device out.

5. Remove the mounting guides from the right and left sides of the CD-ROM.

Mounting Guide Screws

6. Note the jumper settings on the back of the CD-ROM.

7. Do one of the following on the new CD-ROM:

−

Set the EIDE master/slave jumper to the same position (Master) as the old drive if

you are replacing an EIDE drive.

−

Set the SCSI ID jumper to the same address as the old drive if you are replacing a

SCSI drive.

8. Install the mounting guides on the sides of the new CD-ROM. The flat mounting guide

goes on the right side of the CD-ROM; the slotted mounting guide goes on the left side.

9. Slide the new CD-ROM drive into the chassis and align the first slot in the mounting

guide with the locking plate.

10. Lower the locking plate, making sure the locking plate tabs slide into the first slot on the

mounting guide.

11. Tighten the locking plate screw.

12. Connect the data and power cables to the CD-ROM drive.

Floppy Disk Drive

Slot for Drive Placement

To replace the floppy disk drive:

1. Remove the CD-ROM drive as described earlier in “CD-ROM Drive.”

2. Disconnect the power cable and data cable from the drive. Note the position of the red

stripe on the data cable.

Data Cable

Power Connector

3. Loosen the screw on the locking plate to the top left side of the peripheral drive bay, as

shown above in step two of “CD-ROM Drive.”

4. Lift and hold the locking plate.

5. From inside the chassis, push the back of the floppy disk drive until the bezel clears the

front of the chassis, and slide the device out.

6. Remove the mounting guide on the left side of the floppy disk drive:

Mounting Guide Screws

Alignment Slot

7. Attach the mounting guide to the left side of the new floppy disk drive.

8. Raise the locking tab on the peripheral drive bay.

9. Slide the new floppy disk drive into the chassis and align the first slot on the mounting

guide with the locking plate tab.

10. Lower the locking plate, making sure the locking plate tab slides into the first slot on the

mounting guide.

11. Tighten the locking plate screw.

12. Connect the data cable and the power cable to the floppy disk drive.

13. Replace the CD-ROM drive as described earlier in “CD-ROM Drive.”

JBOD or RAID Disk Drives

The disk drive bay may contain up to four non-RAID (JBOD) or RAID drives. The replacement procedure for these drives is similar.

To replace disk drives:

1. Open the drive access door on the front of the system.

2. Flip the drive latches outward to disengage the disk drive. Wait 30 seconds to allow the

drive to spin down and park the heads.

3. Carefully eject the drive completely from the rails, and remove it from the disk drive

section.

WARNING Handling a spinning drive or mishandling a removed drive can cause the heads to

crash! Subsequent failures may not be noticeable for three to six months. Handle disk drives carefully to avoid damage.

4. Remove the drive mounting plate from the removed disk drive, making sure to retain the

mounting plate screws. Attach the mounting plate to the bottom (circuit board side) of the new drive, using the four screws you retained from the removed drive.

WARNING Removing and attaching the drive mounting plate requires careful handling to avoid contact

with the delicate, electrostatic-sensitive parts on the circuit board of the drive. All drives must be handled carefully to prevent failure and voiding the warranty for the drives.

5. To insert the new drive, extend the latching clips on the disk drive and align the rails on

the sides of the drive with the slot guides. The metal casing of the drive faces left.

Drive Slot

Drive Rail

Latching Clips

6. With your thumb, push the mounting plate at the center between the latching clips until it

slides all the way into the slot and firmly engages the connector.

7. Close the latching clips to lock the drive in the slot.

8. If the system has a RAID configuration, verify that the drive status LED lights. Its

behavior is dependent on the status of the array that the drive is in.

9. Label the new drive with the same ADP, CH, and ID numbers used on the replaced drive.

Disk Drive Section (MESAP02)

The disk drive section includes the disk drive cage, backplane, and LEDs. This assembly is always replaced as one unit.

To replace the disk drive section:

1. Remove all the drives from the disk drive section (see steps 2 and 3 above in “JBOD or

RAID Disk Drives”). Note the original slot location for each drive. The drives should be reinstalled in the same slot locations from which they were removed.

2. Remove and retain the six screws that attach the disk drive section to the chassis.

Support the drive section as the last screw is removed.

Disk Drive Section Screws

3. Gently pull forward on the disk drive section until it is partially out of the chassis.

4. Make note of the location of the SCSI cable and disconnect the SCSI cable from the back

of the disk drive section.

Power Connectors

SCSI Cable

5. Disconnect the power cables attached to the disk drive section, using caution to avoid

damage to the cables and components on the disk drive backplane. Do not pull on the wires of the power cables to remove them from the plugs, as damage to the cables will occur.

6. Slide the disk drive section the rest of the way out of the chassis.

7. Verify that the jumper settings on the back of the replacement disk drive section match

the one being replaced.

NOTE If the system uses the Mylex RAID controller, the jumper connectors JP2 and JP3 must not

have any jumpers installed.

9. Remove the SAF-TE card (as described in the next section) from the old disk drive

section, and replace it in the same location on the new disk drive section.

10. Insert the new disk drive section partially into the chassis.

11. Reconnect the SCSI cable and power connectors in the same positions as the old disk

drive section.

12. Insert the new disk drive section the rest of the way into the chassis, and secure it with the

screws removed earlier.

13. Insert the disk drives into the system. The drives should be installed in the same slots

from which they were removed.

14. Replace the front panel and cover.

15. Restart the system and ensure the LED for each drive lights and remains steady green. If

not, refer to the System Setup for status LED information.

SAF-TE Card

The SCSI Activity Fault-Tolerant Enclosure (SAF-TE) card is only used on systems with RAID configurations. If your system has a RAID configuration, use the following procedure to replace the SAF-TE card.

To move or replace the SAF-TE card:

1. Remove the disk drive cage as described above in “Disk Drive Section.” The SAF-TE

card is located in the middle of the SCSI backplane.

2. Press the two metal clips on the outside of the SAF-TE card mounting slot away from

each other, then gently rotate the SAF-TE card to a vertical position and remove it.

3. Place the SAF-TE card vertically in the mounting slot and rotate it toward the metal clips

until it snaps into place, with the clips securing the card. Use caution to avoid applying too much force, as damage to the SAF-TE card and/or the disk drive backplane may result.

4. Replace the disk drive cage as described above in “Disk Drive Section.”

Bus Terminator

The bus termination card (MSMT379) is used only in systems with one processor. The card provides termination for the processor bus. Single-processor systems will not operate without the card installed. See the system board diagrams in Chapter 5, “System Board,” for connector and socket locations.

SAF-TE Card

Mounting Clips

To replace the bus termination card:

1. Locate the bus termination card at U2, just in front of the primary CPU.

2. Note the orientation of the card is keyed to prevent incorrect insertion.

3. Grasp the top edge of the card at each end, and pull it straight out.

4. Remove the new card from its antistatic package, orient the card the same way as the old

card, and insert the card in the slot.

5. Press down firmly until the card is seated.

Power Supply (MPWS183)

See Chapter 4, “System Hardware,” for details on the power supply.

To replace the power supply:

1. Remove the top cover. See Chapter 1, “Accessing the Components,” for details.

2. Note the location of all power cable connectors on the system board and peripheral

devices:

Connector

P1 System board P2 Reserved P3 CD-ROM drive P4 Floppy drive P5 Reserved P6 SCSI backplane (on disk drive section) P7 Reserved; use for peripheral drive bay device P8 Reserved P9 SCSI backplane (on disk drive section)

2. Disconnect all power cables from all internal devices and the system board.

Connects to

3. Remove and retain the four screws securing the power supply and mounting plate to the

back and top of the system.

NOTE Support the power supply as you remove the screws. Do not let the power supply fall as you

remove the fourth screw.

Power Supply Screws

4. Remove the old power supply and mounting plate.

5. Remove and retain the four screws securing the mounting plate to the power supply.

Mounting Screws

6. Using the same four screws, attach the mounting plate to the new power supply.

7. Place the new power supply and mounting plate into the chassis, and secure it with the

four screws retained in step 3.

8. Make sure that the voltage selection switch on the back panel of the base unit is set to the

proper line voltage for your location. If your location uses 115 volts, make sure the number 115 is visible on the switch. If your location uses 230 volts, make sure the number 230 is visible on the switch.

WARNING If you do not set the voltage selection switch correctly, serious equipment damage may

result when you turn on power to the system.

9. Connect the power cables to the system board and internal devices. See Chapter 4,

“System Hardware,” for connection details.

Processor Modules

InterServe 80 SL Rack Mount systems are compatible with 350, 400, and 450 MHz Pentium II

processors. See the system board diagram in Chapter 5, “System Board,” for connector and socket locations.

To replace a passive processor module:

1. Remove the heat-sink lock from within the heat-sink fins, if necessary, by pressing the

ends of the lock inward and pulling outward.

2. Press the locking tabs on the top corners of the processor module inward, towards each

other, until they click into the release position.

3. Slide the processor module out of the retention module.

4. Remove the new processor from its antistatic package, and align the processor module

over the retention module. The processor module is keyed and fits only one way.

5. Press the processor module down until it seats.

6. Press the processor module locking tabs outward until they click into the locked position.

7. Install the heat-sink lock between the heat-sink fins, if necessary, by sliding the lock

between the fins and pressing it onto the heat-sink lock mounting posts.

To replace an active processor module:

1. Disconnect the processor’s cooling fan power cable from the processor fan power

connector on the system board.

2. Press the locking tabs on the top corners of the processor module inward, towards each

other, until they click into the release position.

3. Slide the processor module out of the retention module.

4. Remove the new processor from its antistatic package, and align the processor module

over the retention module. The processor module is keyed and fits only one way.

Heat-sink lock

5. Press the processor module down until it seats.

6. Press the processor module locking tabs outward until they click into the locked position.

7. Connect the processor’s cooling fan power cable to the processor fan power connector on

the system board.

Heat-Sink Mounting Brackets

Pentium II processors equipped with heat-sink fins use heat-sink locks fastened to mounting brackets to secure them to the system board, providing additional stability to the processor module. See the system board diagram in Chapter 5, “System Board,” for connector and socket locations.

To replace a heat-sink mounting bracket:

1. Remove the processor module. See the “Processor Modules” section above for details.

2. Remove the system board from the chassis, as described in the “System Board” section

below.

3. Two mounting locks on the rear side of the system board secure the mounting bracket.

Remove these locks, and then remove the mounting bracket from the system board.

4. The heat-sink mounting bracket has two pins on the bottom and four pins on the top. The

bottom two pins are of different sizes. The size of the pins and the holes in the system board determine the correct orientation.

Insert the new heat-sink mounting bracket into the appropriate holes on the system board. The bracket will click when it is correctly inserted. Ensure the four top pins are closest to the processor slot.

4. Lock the heat-sink mounting bracket to the system board by inserting the two mounting

locks into the pins of the heat-sink mounting bracket, which are below the system board. The locks will click when they are securely fastened.

Retention Modules

Pentium II processors are secured to the system board using retention modules. See the system board diagram in Chapter 5, “System Board,” for connector and socket locations.

NOTE You do not need to replace a retention module to replace a processor m odule.

Retention mod u le

To replace a retention module:

1. Remove the processor module. See the “Processor Modules” section above for details.

2. Remove the heat-sink locks, if necessary. See the “Heat-Sink Mounting Brackets” section

above for details.

3. Remove the screws securing the retention module to the system board, and remove the

retention module.

4. Locate the key pin on one end of the processor slot on the board. Carefully line up the

key notch on the new retention module with the key pin on the processor slot. The key pin on the processor slot indicates the correct orientation of the CPU.

5. Lower the retention module down over the processor slot so that the retention module

seats flatly against the system board. Tighten the screws in a clockwise manner to secure the module to the board.

WARNING Do not overtighten the screws as you may damage the module and/or the system board.

6. Replace the heat-sink locks, if necessary. See the “Heat-Sink Mounting Brackets” section

above for details.

7. Replace the processor module. See the “Processor Modules” section above for details.

DIMMs

See the section, “Adding Memory,” in Chapter 3, for important details on handling DIMMs. The DIMM sockets are located near the top front corner of the system board. See the system board diagrams in Chapter 5, “System Board,” for connector and socket locations.

To replace a DIMM:

1. Press the release tabs outward, away from each other.

2. Grasp the top edge of the DIMM and pull it out of the socket.

3. Remove the new DIMM from the antistatic package.

4. Orient the DIMM so that the notches match the keys in the socket.

DIMM

Release Tab Notch

6. Push gently straight down until the release tabs snap into place.

7. When you restart the computer, the BIOS detects the new memory automatically.

System Board

You must swap the DIMMs, bus termination card (if installed), and processor module(s) from

the old system board to the new one. See the system board diagrams in Chapter 5, “System Board,” for connector and socket locations.

To remove the system board:

1. Remove the top cover. See Chapter 1, “Accessing the Components,” for details.

2. Remove cables connected to the system and option cards, taking note of cable

connections and orientation.

3. Note the locations where all cables connect to the system board.

4. Disconnect all cables from the system board.

5. Note the locations of the option cards, remove them by following instructions in the next

section, and place on an antistatic surface.

6. Remove DIMMs, the processor bus terminator (if installed), and processor module(s) and

place them on an antistatic surface. See the respective procedures above for details on removing these components.

DIMM soc ket

7. Remove the jackscrews on all external port connectors.

WARNING Use care when removing or installing the screws to avoid damaging components on the

system board.

7. Remove the four screws and plastic rivets on the DPRM, and remove the DPRM from the

chassis.

8. Remove the screws from the system board.

9. Slide the system board forward slightly, and then lift the system board out of the chassis

and place it on an antistatic surface.

To install a new system board:

1. Place the new system board into the chassis, align all mounting holes, and install the

jackscrews on the external port connectors.

2. Loosely install the remaining screws on the system board, except those for the DPRM.

Do not tighten the screws yet; you will tighten them in step 4.

3. Mount the DPRM to the system board with the plastic rivets. The DPRM is keyed to the

processor slots to ensure correct orientation.

4. Tighten the remaining screws on the system board.

5. Install the DIMMs, processor(s), and bus termination card (if used) on the system board.

6. Install the option cards back into their original slots and secure them in place with the

screws removed previously.

7. Connect the internal cables to the system board. If you need help identifying cable

connections, see Chapter 5, “System Board.”

Option Cards

See the system board diagrams in Chapter 5, “System Board,” for connector and socket locations.

To replace an option card:

1. Disconnect the external device attached to the option card connector on the back of the

system.

2. Disconnect any internal cable that connects the card to another device (if installed).

3. Remove the screw that secures the card to the left card guide.

4. Pull the option card straight out, and place it on an antistatic surface.

5. Slide the new card into the same slot from which you removed the old card.

6. Install the screw that secures the card to the left card guide.

7. Connect any cables from other internal devices, if installed.

8. Connect the external device to the option card connector on the back of the system.

Chassis Fan

See Chapter 4, “System Hardware,” for details on the chassis fan.

NOTE Arrows on the chassis fan indicate airflow direction and rotation. Ensure that you install the

new chassis fan with the airflow direction arrow pointing toward the back of the chassis.

To replace the chassis fan:

1. Disconnect the fan power cable from the power supply connector.

2. Remove and retain the screw securing the mounting plate and fan to the chassis.

3. Loosen the thumb screw attaching the mounting plate to the inside of the chassis.

4. Note the airflow direction of the fan and the position of the fan on the mounting plate (the

5. Remove and retain the four screws attaching the fan and fan grille to the mounting plate.

6. Ensure the airflow direction arrow on the new fan is pointing in the correct direction, then

Thumb Screw Mounting Screw

side closest to the processors), and gently pull upward on the mounting plate until the mounting plate and fan clear the chassis.

Fan Mounting Screws

attach the new fan and fan grille to the mounting plate using the same four screws.

7. Reinsert the mounting plate into the chassis, aligning the tabs on the bottom of the

mounting plate with the slots in the chassis.

8. Tighten the screws attaching the mounting plate and fan to the chassis.

9. Connect the fan power cable to the power supply connector it was disconnected from

earlier.

RAID/JBOD Fans

See Chapter 4, “System Hardware,” for details on the RAID/JBOD fans.

To replace the RAID/JBOD fans:

1. Disconnect the fan power cable from the power supply connector.

2. Note the cable position and airflow direction of the old fan. Pull up on the metal tab

attached to the fan until it clears the chassis, carefully guiding the wires and connectors on the fan out of the cable access hole at the bottom of the fan cage. Note the routing of the wires and connectors on the old fan, as the new fan cables and connectors should be routed the same way.

3. Route the power cable of the new fan through the cable access hole at the bottom of the

fan cage.

4. Insert the new fan into the fan cage until it snaps into place.

5. Reconnect the fan power cable to the power supply connector.

Fan Tabs

Chassis Intrusion Alert Switch

The chassis intrusion alert switch (CWSX308) has three connectors. Only the bottom two

connectors are used. See the system board diagrams in Chapter 5, “System Board,” for connector and socket locations.

To replace the chassis intrusion alert switch:

1. Disconnect the wires from the switch. Note the black wire connects behind the red wire

(closest to the interior of the chassis), and the red wire connects to connector closest to the front panel.

Black

Red

2. Remove the two screws that secure the switch to the chassis and remove the switch.

3. Align the new switch with the chassis mounting holes and install the screws.

4. Connect the wires to same locations noted in Step 1.

Mounting Screws

Lithium (CMOS/Clock) Battery

Before removing the system battery, start the system and enter BIOS Setup. Page through all the screens, making note of all parameters. Parameters include date, time, hardware configuration, and other data.

CAUTION Do not change any parameters. Doing so could cause your system to operate improperly or

not at all. After replacing the battery, you will need these BIOS parameters to ensure the system is restored to its previous state.

The battery is located near the bottom front of the system board. See the system board diagram in Chapter 5, “System Board,” for details. When you remove the battery, the system will lose its operating parameters stored in CMOS. As a result, the system BIOS parameters are lost.

After you install the new battery, you must reset the date and time and reconfigure the BIOS. See the InterServe 80 SL Rack Mount System Setup for details on updating and configuring the BIOS.

WARNING There is a danger of explosion if the battery is incorrectly replaced.

WARNING Replace the battery with the same or equivalent type only, as recommended by the

battery manufacturer. Dispose of used batteries according to the battery manufacturer’s instructions.

To replace the battery:

1. Remove any option cards that restrict access to the battery. See “Option Cards” in this

chapter for details.

2. Note the positive orientation of the battery. Carefully remove the discharged battery by

grasping it firmly and pulling it out of the socket.

3. Install the new battery in the same orientation as the old battery.

4. Dispose of the battery according to the manufacturer’s instructions.

5. Install the option cards that you removed.

LEDs, Power, and Reset Switches

See the system board diagram in Chapter 5, “System Board,” for connector and socket locations. See also the “Cable Routing and Pinouts” section in Chapter 5 for LED and power switch cable and connector details.

To replace the reset or power switches:

1. Open the face panel. See “Base Unit Components” in this chapter for details.

2. Disconnect the switch cable connector from the system board.

3. Remove the two screws attaching the LED and switch mounting plate to the chassis.

4. Disconnect the power and LED cables from the switch mounting plate. Note the position

of the cables before you disconnect them.

5. Remove the switch button cover as shown in the following figure.

6. Insert the connector end of the switch cable through the cable access hole on the front of

the chassis and route the new switch cable through the chassis.

7. Connect the switch cable to the connector on the system board.

8. Press the switch into its mount on the switch plate and tighten.

9. Reconnect the power and LED cables to the appropriate LED or switch.

10. Replace the two screws attaching the mounting plate to the chassis.

11. Install the face panel and the standby switch button.

Power/Reset Switch Assembly

LED Assembly

To replace an LED:

1. Open the face panel. See Chapter 1, “Accessing the Components,” for details.

2. Note the locations of the two LEDs on the switch mounting plate.

3. Remove the switch mounting plate by removing the two screws attaching the plate to the

chassis.

4. Disconnect the power and LED cables from the switch mounting. Note the position of the

cables before you disconnect them.

5. Remove the LED from its mount on the switch plate as shown in the previous figure, then

disconnect the LED cable from its connector on the system board.

6. Remove the LED cable from the chassis.

7. Route the new LED cable through the chassis and connect it to the appropriate connector

on the system board.

8. Press the LED into its mount on the switch plate.

9. Reconnect the power and LED cables to the appropriate LED or switch.

10. Reattach the switch plate to the chassis.

11. Close the face panel as described in Chapter 1, “Accessing the Components.”

3 Upgrading the System

This chapter describes upgrading memory and processors, as well as installing option cards, internal drives, and external SCSI drives.

Before You Begin............................................................................................................. 30

Adding Memory...............................................................................................................30

Memory Configurations..................................................................................... 31

Adding a Processor........................................................................................................... 32

Single-to-Dual Upgrade.....................................................................................32

Adding Option Cards........................................................................................................ 33

Slot Locations .................................................................................................... 34

Upgrading Graphics Cards................................................................................. 34

Installing Option Cards......................................................................................34

Assigning System Resources..............................................................................35

Reserving an IRQ............................................................................................... 37

Adding Hard Disk Drives................................................................................................. 38

RAID Configurations......................................................................................... 38

SCSI Configurations .......................................................................................... 39

Adding Internal SCSI Drives and Devices.......................................................................39

Device Bays.......................................................................................................40

Installing Devices in the Drive Bays.................................................................. 40

Adding External SCSI Drives........................................................................................... 42

SCSI Cable Length Guidelines...........................................................................42

SCSI Cable Quality Guidelines..........................................................................43

SCSI ID Guidelines............................................................................................ 43

SCSI Termination Guidelines for External Devices........................................... 43

Connecting an External SCSI Drive................................................................... 44

Changing SCSI Host Adapter or Device Settings .............................................. 44

Before You Begin

WARNING Disconnect the system and peripheral devices from AC power before servicing internal

components! Failure to remove AC power may result in equipment damage or personal injury.

CAUTION Use an antistatic wrist strap for all upgrading procedures to avoid the possibility of

electrostatic discharge.

CAUTION Do not overtighten screws and other fasteners to avoid damaging threads.

CAUTION System memory modules from Intergraph Computer Systems are certified for use with

Intergraph computers at extremes of temperatures and system load to ensure reliable performance. System memory modules available from other vendors may not function properly or reliably in your Intergraph computer.

CAUTION Follow all warnings and cautions in these upgrade instructions. If you fail to follow

documented, approved procedures, personal injury or damage to equipment can result.

See Chapter 1, “Accessing the Components,” for details on opening the system and protecting against electrostatic discharge. These procedures assume you have removed the cover from the system. “Right side” and “left side” are as seen from the front of the unit. After upgrading the system, replace panels as described in Chapter 1, “Accessing the Components.”

Adding Memory

You can add system memory to the computer by adding or replacing Dual Inline Memory Modules (DIMMs). Memory upgrade kits from Intergraph Computer Systems contain one DIMM and a disposable antistatic wrist strap.

To avoid damaging DIMMs and voiding the warranty, take the following precautions:

Do not touch the gold-plated finger contacts.

Do not bend, twist, drop, or otherwise handle DIMMs carelessly.

Do not expose DIMMs to moisture or extreme temperatures.

Do not remove DIMMs from the antistatic bag until you are ready to install them.

Before you install memory, do the following:

Inspect DIMM keying. The finger contacts on the DIMM must match the socket configuration. This ensures that you have the correct voltage and type of DIMM.

Inspect DIMM contacts. The DIMM must have gold-plated fingers that match the goldplated socket contacts.

Follow these population rules to correctly install the DIMMs:

Remember that you must install DIMMs one at a time.

Install DIMMs one bank at a time; begin with bank 0 (nearest to the processor) or the first open bank; end with bank 3.

Press the DIMM into the socket at a 90 degree angle. Do not rock the DIMM; apply even pressure along the top edge of the DIMM.

Memory Configurations

The following tables shows possible memory configurations. Each bank contains one socket.

Memory size

Configuration (ECC)

32 MB 4 MB x 72 64 MB 8 MB x 72 128 MB 16 MB x 72 256 MB 32 MB x 72 registered

NOTE The 32 MB x 72 registered DIMM cannot be mixed with any other type of DIMM.

Memory

Bank 0 DIMMs

Bank 1 DIMMs

Bank 2 DIMMs

Bank 3 DIMMs

32 MB 32 MB 64 MB 64 MB 96 MB 64 MB 32 MB 128 MB 128 MB 256 MB 128 MB 128 MB 384 MB 128 MB 128 MB 128 MB 512 MB 128 MB 128 MB 128 MB 128 MB 1 GB 256 MB 256 MB 256 MB 256 MB

The system board features four DIMM sockets, which combined can hold up to 1 GB of Synchronous Dynamic Random-Access Memory (SDRAM). See the system board diagram in

Chapter 5, “System Board,” for socket locations.

See Chapter 2, “Servicing the System,” to install a memory upgrade. Restart the system after adding or replacing DIMMs. The computer detects the new memory automatically.

Adding a Processor

You can upgrade a single processor system to a dual processor system. You can upgrade a processor to a faster processor.

Processors are mounted in a processor retention module which surrounds the processor slots.

See the system board diagrams in Chapter 5, “System Board,” for the location of processor slots and related connectors.

Single-to-Dual Upgrade

You can upgrade to dual processors by purchasing a TDZ 2000 GL2 single-to-dual processor upgrade kit from Intergraph Computer Systems. The kit contains all the hardware, software, and documentation required to perform the upgrade.

After installing a second processor, you must reinstall Windows NT on the system to ensure proper operation with multiple processors.

NOTE Since the second processor should be the same speed as the first, you do not have to change

any processor frequency jumper settings when installing a second processor.

To install a single-to-dual processor upgrade:

1. Remove the secondary processor terminator card from the secondary processor slot, as

shown in the following figure.

Secondary processor

2. Install a retention module, if necessary, onto the open processor slot. See Chapter 2,

“Servicing the System,” for details.

terminator card

3. Install a heat-sink mounting bracket, if necessary, into place over the open processor slot.

See Chapter 2, “Servicing the System,” for details.

4. Orient the processor module so that the heat sink fins or cooling fan points toward the

DIMM sockets, and then insert the module into the open socket of the retention module.

5. Press straight down and apply even pressure at both ends of the CPU module until it seats.

The retention module is keyed to ensure proper insertion.

6. Press the processor module locking tabs outward until they click into the locked position.

7. If you installed a boxed processor with integral fan into the secondary processor slot,

connect the fan power cable to the processor fan power connector on the system board. If you installed a processor with a heat-sink, secure the heat-sink fins using a heat-sink

lock. See Chapter 2, “Servicing the System,” for details.

Adding Option Cards

You can install Peripheral Component Interconnect (PCI), non-compliant PCI, Industry Standard Architecture (ISA), and Plug-n-Play (PnP) option cards in the system. See below for a general description of the types of cards.

PCI cards contain configuration registers that define resource information to the system during startup. PCI cards do not require manual system configuration when installing the card. The system BIOS detects the board’s presence during startup and reads information from the board’s configuration registers to assign the necessary system resources.

NOTE All PCI option cards sold by Intergraph Computer Systems fully comply with the

Component Interconnect Specification, 2.1.

Non-compliant PCI cards mechanically comply with the Peripheral Component

Peripheral

Interconnect Specification 2.1, but do not contain configuration registers that allow the system to automatically assign the necessary resources. These cards install in PCI slots, but you must configure the BIOS to assign system resources before installing the card. In this regard, they are like ISA cards, as described below.

ISA cards do not contain registers that define the resource information to the system during startup. Therefore, you must configure the BIOS to define the card to the system before installing the ISA card. This reserves system resources for the card.

PnP cards are ISA cards that contain configuration registers like PCI cards. During startup, the system BIOS automatically detects the installed card and assigns the necessary system resources. Since a PnP card is ISA-based, you install it in the ISA slot.

NOTE Assign system resources for an ISA card and any non-compliant PCI cards before installation.

See “Assigning System Resources” later in this chapter.

Each installed PCI card must draw less than 25 watts of power. The total allowable maximum wattage for PCI cards is 175 watts. The PCI slots are limited to 25 watts power dissipation per the Peripheral Component Interconnect Specification, 2.1.

Slot Locations

The option slots are located at the back left section of the system board. When viewed from the front of the base unit, the right-most slot is an AGP slot; the left-most slot is an ISA slot. The order of the slots is shown in the following figure.

ISA Slot

PCI Slot

AGP Slot

Upgrading Graphics Cards

The Matrox G100 video adapter is available for the InterServe 80 SL Rack Mount system.

See Chapter 7, “System Specifications,” for details.

Intergraph Computer Systems installs the graphics card into the AGP slot by default.

Installing Option Cards

For cards such as internal modems or SCSI adapters, see the documentation that came with the card for additional information on installation, and for details on configuration, cable connections, and operation.

To install an option card:

1. Locate an open slot. If you are installing an Intergraph Computer Systems graphics card,

see the figure above for required slot assignments.

2. Remove the blanking plate for the slot. Keep the retaining screw.

3. Remove the option card from its antistatic packaging.

4. Slide the option card carefully into the card guides. Ensure that the gold-fingered

connectors on the board’s edge are aligned properly with the slot connector.

5. Push the card into the slot firmly and evenly until it is fully seated in the slot connector.

6. Inspect the connection. If it does not appear to be correct, remove and reinstall the card.

7. Install the retaining screw.

8. Attach any required cables to the internal or external connectors.

Assigning System Resources

Some option cards include a configuration diskette that you can use to reserve the system resources required for the card. Other option cards do not include a diskette, but require that you manually program the BIOS with the configuration information.

See Chapter 5, “Configuring the BIOS” in the InterServe 80 SL Rack Mount System Setup, for details on assigning system resources and configuring the BIOS for option cards.

NOTE Treat non-compliant PCI cards and PCMCIA cards as ISA cards for assigning system

resources.

The following sections list the available system resources. See the vendor documentation delivered with an option card or a peripheral device for instructions on how to use these resources.

ISA Bus Interrupt (IRQ) Assignments

IRQ

System Resource IRQ System Resource

0 Reserved (interval timer) 8 Real time clock 1 Reserved (keyboard) 9 Open / PIRQ mapping 2 Reserved (interrupt controller) 10 Open 3 Serial port COM2 (default) 11 Open 4 Serial port COM1 (default) 12 PS/2 mouse port 5 Open 13 Reserved (math coprocessor) 6 Floppy disk controller 14 Primary IDE controller or open 7 Parallel port LPT1 (default) 15 Secondary IDE controller or open

Direct Memory Access (DMA) Channels

Channel

Assignment Channel Assignment

0 Open 4 DMA controller 1 Open 5 Open 2 Floppy disk controller 6 Open 3 ECP parallel port 7 Open

Input/Output (I/O) Addresses

Address (hex)

Description

0000-000F Direct memory access controller 1 0020-0021 Programmable interrupt controller 1 0040-0043 System timer 0060-006F Standard 101/102-key or Microsoft Natural keyboard 0070-0071 Real time clock 0080-008F Direct memory access page register 00A0-00A1 Programmable interrupt controller 2 00C0-00CF Direct memory access controller 2 00F0-00F0 Clear math co-processor busy 00F1-00F1 Reset math co-processor 00F8-00FF Match co-processor 0170-0177 Secondary PCI bus master EIDE driver (dual FIFO) 01F0-01F7 Primary PCI bus master EIDE driver (dual FIFO) 0278-027A Printer port (LPT2) 02E8-02EF Communications port (COM4)

Address (hex) Description

02F8-02FF Communications port (COM2) 0378-037A Printer port (LPT1) 03BC-03BE Printer port (LPT3) 03F0-03F5 Standard floppy disk controller 03F6-03F6 Primary PCI bus master EIDE driver (dual FIFO) 03F7-03F7 Standard floppy disk controller 03F8-03FF Communications port (COM1) 04D0-04D0 Edge/level control register-INTCNTRL1 04D1-04D1 Edge/level control register-INTCNTRL2 0CF8-0CFF PCI configure space control register

Memory Addresses

Address Range (hex)

0000h to 9FFFFh 640 KB Base memory 0A0000h to 0BFFFFh 128 KB Video Ram 0C0000h to 0C7FFFh 32 KB Video BIOS 0C8000h to 0DFFFFh 96 KB BIOS Extension ROM (AT bus used) 0E0000h to 0FFFFFh 128 KB PnP BIOS/APM BIOS 00100000-FFFFFFFF Extended Memory FFFE0000-FFFE3FFF BIOS ROM Alias FEC00000-FEC00FFF APIC FEE00000-FEE00FFF APIC

Size Assignment

Reserving an IRQ

Most ISA devices installed in the system require you to reserve an IRQ. PCI devices also need to use an IRQ, but since they share system resources they can use the same IRQ. At least one IRQ must be left unassigned, for use with any PCI devices installed in your system. The system has a limited number of open IRQs. To install more ISA devices than you have open IRQs, you must disable one unused system port for each excess ISA device, unless the device does not require an IRQ.

To reserve an IRQ for an installed device:

1. Restart the system and start the BIOS Setup program.

2. On the PCI/PnP screen, select the IRQ you want to reserve.

3. Change the setting for the selected IRQ to ISA/EISA.

4. Save the changes and exit from the BIOS Setup program.

The following option cards require specific system resource settings, as noted:

Option card (installed)

First modem (Windows NT) COM1, IRQ 4 Disable serial port 1 (COM1);

Second modem (Windows NT) COM2, IRQ 3 Disable serial port 2 (COM2);

First parallel printer adapter Base address 278 None Second parallel printer adapter Base address 3BC None 3Com network adapter IRQ 10 (default) Reserve IRQ 10

Resources required

Adding Hard Disk Drives

The InterServe 80 SL Rack Mount system is configured to support either RAID or non-RAID (JBOD) disk drive configurations.

RAID Configurations

RAID capability is provided by the single-channel Mylex RAID controller and a SCSI Activity Fault-Tolerant Enclosure (SAF-TE) card in the disk section. The non-RAID system uses a plug-in single-channel Wide Ultra SCSI controller, which does not provide RAID capabilities.

BIOS Setup parameter settings

reserve IRQ 4

reserve IRQ 3

For a system with internal RAID, three RAID disk drives, with the operating system and system software, are standard. These drives, called boot drives, are labeled with specific adapter, channel, and SCSI ID. They must be installed in specific slots in the disk section. Refer to the System Setup for installation instructions.

CAUTION The RAID controller has one external connector on the back of the system and is non-

functional. Connecting a peripheral device to the connector can result in system failures and

loss of data. Refer to Chapter 5, “System Board,” for more information.

NOTE Only use disk drives purchased from Intergraph in the disk array. This ensures the drives

meet the disk array specifications.

SCSI Configurations

Non-RAID systems are configured to support Just a Bunch of Disks (JBOD) functionality. The InterServe 80 SL Rack Mount system can support up to four JBOD disks. One disk drive, with pre-installed operating system and system software, is standard. This drive is called the boot drive. It is labeled with specific adapter, channel, and SCSI ID. The boot drive must be installed in the lowest slot of the disk section. If additional drives are ordered, they may be delivered formatted.

Refer to the System Setup for disk installation instructions.

Adding Internal SCSI Drives and Devices

The system features the following peripheral bays:

•

One 3.5-inch x 1-inch external bay for floppy disk drive.

•

One 5.25-inch x 1.6-inch external bay for CD-ROM drive.

•

One 5.25-inch x 1.6-inch external bay for other peripheral devices.

Note the following restrictions on adding peripheral devices:

•

Other than the CD-ROM drive, only one front-accessible EIDE device can be added. This device must be installed in the 5.25-inch bay.

•

Internal or external SCSI devices require an additional SCSI controller card. Refer to "Adding Option Cards" earlier in this chapter for information about adding option cards to the system.

See the following chapters for related information and important details:

Chapter 4, “System Hardware,” for details on power supply cable connectors and pinouts.

Chapter 5, “System Board,” for details on SCSI connector locations and pinouts.

Chapter 6, “Peripherals,” for details on internal drive locations, configurations, jumpers, and cables.

Remember the following when installing devices in the system’s drive bays:

If you are installing a SCSI drive, have the vendor’s documentation available to follow instructions for setting the SCSI ID, enabling or disabling termination, installing device drivers when required, and configuring other drive attributes.

If you are installing a drive that connects to an adapter card (such as an EIDE drive), see the vendor’s documentation for installing the adapter card and required cables. See “Adding Option Cards” earlier in this chapter for details.

If you are installing a removable disk drive module, see the vendor’s documentation for installing the module, removing terminators, and setting the SCSI ID.

Device Bays

You can add optional mass storage devices to the external bay. The EIDE CD-ROM, floppy drive, and system drive are standard. Other devices are available as options.

The following table lists the device bays and provides related information.

Bay

Drive Type Max Bay Capacity SCSI ID

4 Add-on device External 5.25-inch x 1.6-inch SCSI devices only

supported with an

additional SCSI controller. 3 EIDE CD-ROM External 5.25-inch x 1.6-inch — 2 Floppy drive External 3.50-inch x 1.0-inch — 1 RAID/JBOD

Drive Section

NOTE If you are installing an additional EIDE device, you must mount the device in Bay 4.

Internal 3.5-inch x 1.0 or 1.6-

inch

Assigned by the

RAID/JBOD backplane.

Installing Devices in the Drive Bays

To install a drive in the external drive bay:

1. Open the face panel.

2. Loosen the screw on the locking plate near the top left corner of the peripheral drive area.

Locking Plate Screw

3. Lift the locking plate.

4. From inside the chassis, push the front of the tray and slide it out of the bay.

NOTE SCSI devices are only supported if an additional SCSI controller is added to the system.

5. If you are installing a SCSI device, do both of the following (see Chapter 6,

“Peripherals,” for details):

−

Set the SCSI ID on the new drive to an unused ID number.

−

Disable termination on the new drive.

6. If you are installing an IDE device, proceed to the next step.

7. Do one of the following:

−

If installing a standard disk drive, place the disk drive in the tray, align the mounting holes, and install the four mounting screws. See the following figure.

−

If installing a 5.25-inch device, such as a tape drive or a CD writer, remove the right and left mounting guides from the drive tray and attach the right mounting guide to the right side of the device, and the left mounting guide to the left side of the device.

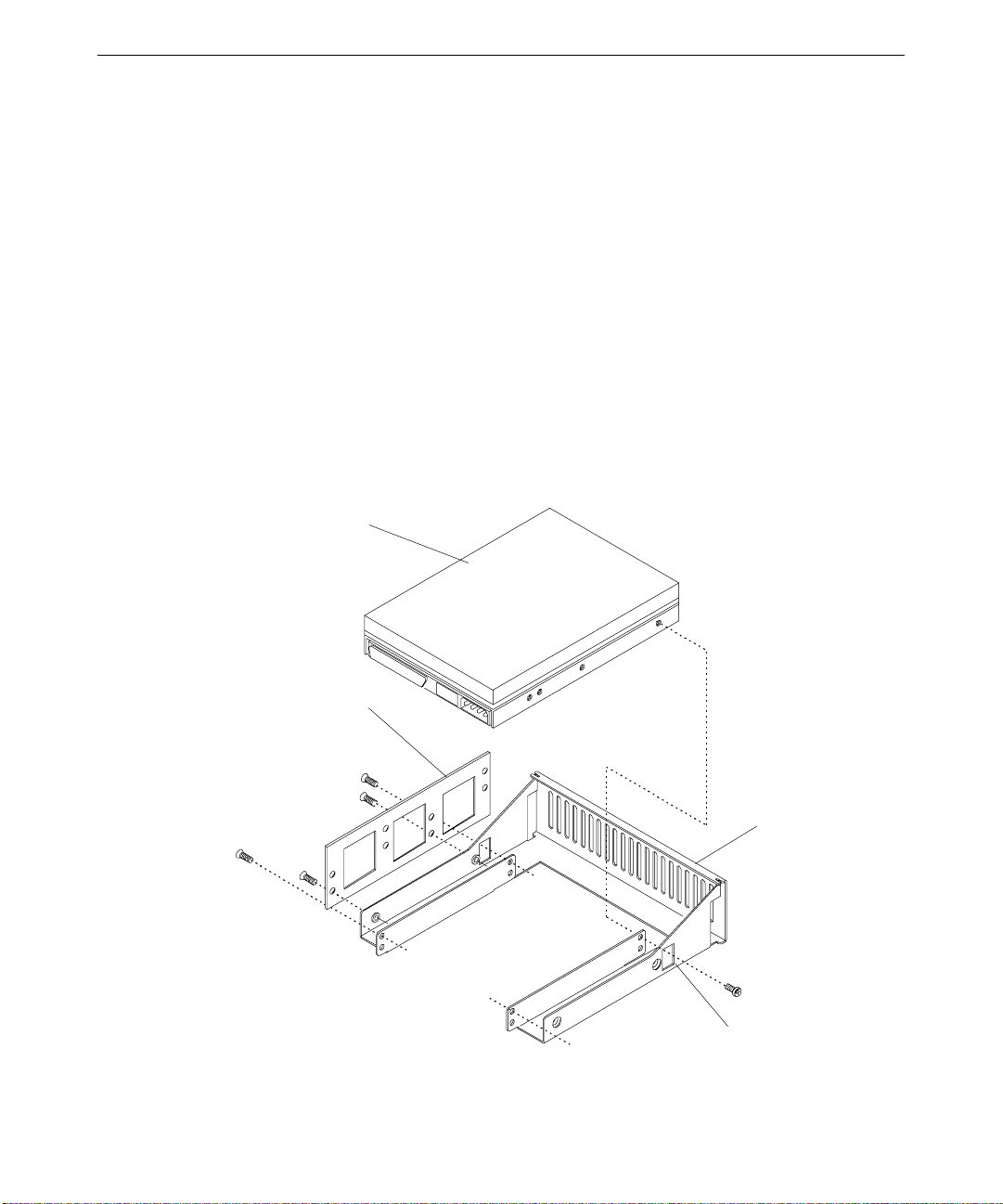

Drive

Mounting Guide

Drive Tray

Access Hole (2)

8. Do one of the following:

−

Lift the locking plate, and install the tray assembly with standard disk drive into the chassis, align the first slot on the mounting guide with the tab on the locking plate, and lower the locking plate.

−

Slide the 5.25-inch device into the chassis, align the tab on the locking plate with the first slot on the mounting guide, and lower the locking plate.

9. Tighten the screw on the top of the locking plate to lock the drive into place.

10. Connect the proper interface cable (either SCSI or EIDE) and the power cable to the disk

drive.

Adding External SCSI Drives

If your system has an optional SCSI adapter, you can install additional external SCSI drives to the system. If you do not have the optional SCSI adapter, you can install additional SCSI

expansion cards (adapters) to support SCSI drives. See “Adding Option Cards” earlier in this chapter for details.

NOTE Most SCSI adapters do not recognize a hard disk drive that was formatted using a different

brand of adapter. For example, a hard disk drive formatted with an Adaptec SCSI adapter will not work with a Symbios SCSI adapter. You must use only Symbios-formatted hard disk drives with a Symbios SCSI adapter.

SCSI Cable Length Guidelines

The number of drives and length of the cables used to connect the drives is a factor when using SCSI-1, Fast SCSI (SCSI-2), Ultra SCSI, and Wide Ultra SCSI drives. Fast SCSI, Ultra SCSI, and Wide Ultra SCSI impose shorter cable restrictions than SCSI-1. The total length of the SCSI cabling must not exceed the following:

Drives

One to Four 19.8 ft

Five to Seven 9.9 ft

NOTE The SCSI controller (on the system board or an adapter card) counts as one device.

SCSI-1 Fast SCSI-2 Ultra SCSI Wide Ultra SCSI

(6 meters)

(3 meters)

9.9 ft (3 meters)

4.5 ft (1.5 meters)

9.9 ft (3 meters)

4.5 ft (1.5 meters)

The total length of the SCSI cabling is the sum of the following:

Wide Ultra SCSI cable inside the system - 52 inches (132 cm)

Ultra SCSI cable inside the system - 14 inches (35.5 cm)

SCSI cable inside each device - typically 8 inches (20 cm)

SCSI cable between the system and the first device

SCSI cable between each device

SCSI Cable Quality Guidelines

To ensure data integrity and optimum performance, do the following:

Use only Intergraph Computer Systems SCSI cables. Cables from other vendors may not provide adequate shielding.

Use the shortest cables possible to connect SCSI devices to the system and to each other.

SCSI ID Guidelines

By default, specific devices use the following SCSI IDs:

System disk drive (standard) uses ID 0

SCSI controller always uses ID 7

Read/write CD-ROM (optional) drive uses ID 4

4 mm DAT drive (optional) uses ID 6

Iomega Jaz drive (optional) uses ID 6

NOTE To easily determine the ID of each SCSI device on the system, restart the system. When the

BIOS screen displays, look for the list of SCSI devices and write down the ID for each device.

Some SCSI devices feature push switches to set the ID, while others have DIP switches or jumpers. See the vendor documentation for details on setting the ID.

SCSI Termination Guidelines for External Devices

Follow the guidelines below for terminating SCSI devices:

Enable termination on the last external drive on the SCSI cable chain.

Disable termination on all other external drives on the SCSI cable chain.

Use only an active terminator on externally-terminated devices.

Connecting an External SCSI Drive

To connect an external SCSI drive:

1. Connect one end of the external SCSI cable to the connector on the back of the optional

SCSI card.

2. Connect the other end of the cable to the SCSI device.

3. Set the SCSI ID of the device to an unused number. See “SCSI ID Guidelines” above for

details.

4. Do one of the following:

−

If the device is the last or only device on the SCSI chain, enable SCSI termination.

−

If the device is the first device or is between the first and last device on the SCSI chain, disable SCSI termination.

5. Ensure that the power switch on the device is in the off position, and then connect the

power cord to the device and then to an AC receptacle.

6. Turn on the power to the device and any other devices on the SCSI chain.

7. Start the system. If necessary, install the software drivers and configure the drive

according to the vendor’s instructions.

Changing SCSI Host Adapter or Device Settings

Depending on your system configuration or the capabilities of SCSI devices connected to your system, you may need to use the SCSI Configuration Utility to change host adapter or device settings. See the System Setup delivered with the system for details.

4 System Hardware

This chapter contains technical information about the hardware included in an InterServe 80 SL Rack Mount system.
