Introduction

This System Reference provides the information necessary to service and upgrade the InterServe 80.

Document Conventions

vii

Bold

Italic Variable values that you supply, or cross-references.

Monospace

SMALL CAPS Key names on the keyboard, such as D, ALT or F3. Names of files and

CTRL+D Press a key while simultaneously pressing another key; for example, press

Commands, words, or characters that you key in literally.

Output displayed on the screen.

directories. You can type filenames and directory names in the dialog boxes or the command line in lowercase unless directed otherwise.

CTRL and D simultaneously.

Additional System Information

A System Setup is shipped with each system, and provides detailed information about the following:

Configuring the operating system and associated system software

Using the system

Using the AMIBIOS Setup program

Installing system software

An online System Introduction is delivered with the system, and provides information about the following:

Intergraph Support

System hardware features

Available hardware options

viii

1 Accessing the System

This chapter lists tools and describes protecting against electrostatic discharge. It also describes opening and closing the case, and accessing components behind the power supply.

This system features a new, extensible chassis architecture designed for ease of upgrades and expansion. The design provides easy access to PCI and ISA card slots, memory, processors, and the power supply. You do not need any tools to open the InterServe 80 case.

NOTE “Right side” and “left side” are as seen from the front of the unit.

CAUTION Use an antistatic wrist strap for all servicing procedures to avoid the possibility of electrostatic

discharge.

WARNING Follow all warnings and cautions in the servicing instructions. If you fail to follow

documented, approved procedures, personal injury and damage to equipment can result.

Tools

You will need the following tools to service the system:

Antistatic wrist strap

Antistatic mat connected to an earth ground

Quarter-inch nutdriver

No. 1 and No. 2 Phillips screwdrivers

Small or medium flat-blade standard screwdriver

Protecting Against Electrostatic Discharge

Electrostatic discharge (ESD) can damage sensitive components inside the unit. Take the following precautions when working with internal components:

Unplug the unit from AC power before servicing any electronic component inside the chassis. Remember that the InterServe 80 is always on when connected to AC power.

Touch the bare metal of the chassis to ensure the chassis and your body are at the same electric potential.

Attach the antistatic wrist strap to its connector on the antistatic mat. Ensure that the metal conductor bead in the elastic sleeve of the antistatic strap contacts bare skin.

Handle all printed circuit boards as little as possible and by the edges only.

Leave new parts in their protective packaging until you install them.

Opening and Closing the Case

Opening the system for service or upgrades consists of two simple steps. Remove the top cover first, then remove the left side panel. No tools are needed. You need only remove the top cover and left

side panel for most routine service procedures. See Chapter 2, “Servicing the System,” for additional details on removing and replacing case components.

CAUTION Do not use the bottom portion of the face panel or the lip at the top rear of the unit as a hand hold

when moving the system. Equipment damage and personal injury can result.

The left side panel has a tab that closes an interlock switch inside the power supply. When you take off the left side panel, the safety interlock removes AC power to the system.

WARNING Do not attempt to defeat the safety interlock and run the system with the left side panel

removed. Personal injury and equipment damage can result.

CAUTION Before you open the case, shut down the system and turn off power to the system and external

devices (including peripheral drives and display). Use caution to avoid injury when lifting the computer or removing covers and other hardware.

To open the case:

1. Ensure the system is shut down and that you have disconnected the system and any attached

external devices from AC power.

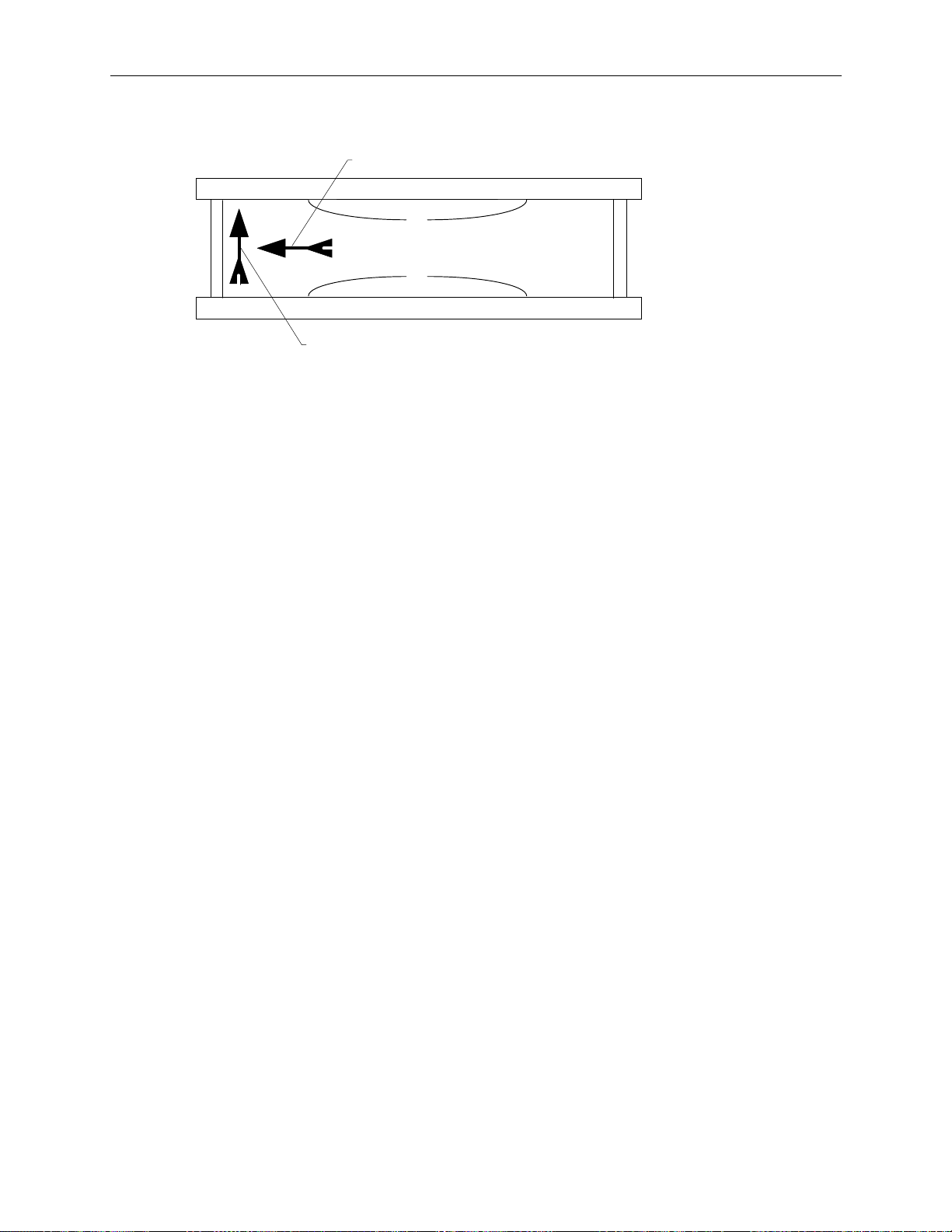

2. Grasp the lip on the top cover at the rear of the system and press up on the release.

Press up on release located under lip

3. Keep pressing the release, slide the top cover back until it stops, remove it from the chassis, and

set it aside.

4. Do the following to remove a side panel.

−

Grasp the cowling at the bottom of the side panel and lift.

−

Slide the side panel back until it stops, and then remove it from the chassis.

NOTE Removing the right side panel is necessary only for servicing internal bay disk drives, the plastic

cowling on the right panel, or the face panel.

To close the case:

1. Place the side panel on the chassis so that all tabs on the rear of the chassis insert into their slots.

NOTE When installing the left side panel, ensure that the security tab aligns with its corresponding slot on

the panel.

2. Push the side panel toward the front of the chassis, then push down to seat the panel.

3. Repeat steps 1 and 2 above to install the remaining side panel, if necessary.

4. Place the top cover on the chassis so that all tabs are inserted into their slots.

5. Slide the top cover forward until it locks into place.

CAUTION After servicing or upgrading the system, always replace the covers that were removed. Do not defeat

the AC interlock. The covers ensure the system maintains proper air flow, so internal components do not overheat and fail. The covers also ensure that electromagnetic interference (EMI) emissions remain below the standard requirements.

A ccessing Component s Behind the Power Supply

The power supply swings away from the system board, giving you easy access to the processors, DIMMs, and other components. You can remove the power supply entirely, but this is not necessary for most routine service or upgrade tasks. As needed, you may want to disconnect power supply cables to peripheral devices to swing the power supply out fully.

See Chapter 2, “Servicing the System,” for complete details on removing the power supply.

To access components behind the power supply:

1. Unplug the AC power cord from the rear of the unit.

2. Remove the top cover and left side panel. See the previous section for details.

3. Remove the knurled retaining/grounding screw just below the top system fan on the rear of the

chassis.

4. Grasp both knurled plungers on the power supply, pull them toward each other, and then swing

the power supply toward you.

Top plunger

Bottom plunger

NOTE Disconnect power cables to internal devices as needed to allow the power supply to swing out fully.

5. Access the exposed components as needed.

To stow the power supply:

1. Reconnect any power cables that you disconnected.

2. Grasp both knurled plungers, pull them toward each other, and then swing the power supply

away from you, back into the chassis.

CAUTION Carefully swing the power supply back into the chassis. Avoid pinching cables. Hold the external

SCSI cable against the chassis brace or rearrange cables slightly while swinging the power supply into the chassis.

3. Align the plunger holes and release both plungers.

4. Install the retaining/grounding screw on the rear panel.

5. Install the left side panel and top cover.

6. Plug the AC power cord into its connector on the rear of the chassis.

2 Servicing the System

This chapter describes how to replace the standard parts within the system. Heed all warning and caution labels while replacing parts. These servicing procedures assume you have removed the left side panel from the system, and have taken antistatic precautions, as described in Chapter 1. After you have finished servicing the system, replace panels as described in Chapter 1.

CAUTION Use an antistatic wrist strap for all servicing procedures to avoid the possibility of electrostatic

discharge.

CAUTION Do not overtighten screws and other fasteners to avoid damaging threads.

WARNING Disconnect the system from AC power before servicing internal components! Failure to

remove AC power may result in equipment damage or personal injury.

WARNING Follow all warnings and cautions in servicing instructions. If you fail to follow documented,

approved procedures, personal injury or damage to equipment can result.

System Illustrations

The illustrations show various external and internal views of the system. The front right view below depicts the system with all covers in place.

The front left view below depicts the major parts of the system. Covers, cables, system board and option cards are not shown.

The back left view below depicts the chassis with all major components removed.

Front left view Back left view

Case Components

Ordinarily, you will not need to replace any of the external case components unless they are broken or cosmetically damaged. All case components are designed for durability, but the most likely item that may need replacement is the door and hinge assembly. The following components can be replaced if necessary:

Top cover

Door assembly

Hinge rails

Face plate

Side cowlings

To replace the top cover: .

1. Remove the top cover as described in Chapter 1

2. Install the new cover.

To replace the door assembly:

1. Remove the top cover as described in Chapter 1.

2. Lift the door and hold it at a 90-degree angle from the face panel.

3. Insert a small flat-blade screwdriver between the door and hinge, near one of the square holes on

the underside of the door.

Guide slot (1 each side)

Door

Locking tabs

Stop tabs

Hinge

Stop tabs

4. Pull the door toward you and pry the hinge and door apart until one side of the door releases from

its locking tab.

5. Repeat steps 3 and 4 for the other side of the door hinge.

6. Remove the door.

7. Do both of the following on the underside of the door:

−

Spread the release tabs on the large emblem and remove it

−

Squeeze the release tabs on the small emblem and remove it

8. Perform steps 2 and 3 in the “To replace the hinge rails” procedure below.

9. Orient the new hinge so that the locking tabs face down and insert the new hinge into the track

and push it forward until it stops.

10. Hold the hinge, align the beveled edges of the hinge with the guide slots on the door, and push

the door firmly onto the hinge until it snaps into place.

11. Press the two emblems onto the door until they snap into place.

12. Operate the door to test its movement.

13. Install the top cover.

To replace the hinge rails:

1. Remove the door as described above.

2. Slide the hinge toward the front of the chassis until it stops.

3. Use a flat-blade screwdriver and pry each of the stop tabs on the hinge until the hinge releases

from the rails.

Hinge rails

4. Remove the hinge from the rail.

5. Press a hinge rail toward the middle of the chassis until all four tabs release.

6. Lift the hinge rail off the chassis.

7. Orient the new hinge rail the same way as the one you removed, place the tabs in the slots, and

press outward until the rail snaps into place.

8. From the front of the chassis, slide the hinge into the rails.

To replace the face panel:

1. Remove the top cover and both side panels as described in Chapter 1.

2. Remove the door. See the “To replace the door assembly” procedure above for details.

3. Push the hinge back, away from the front of the chassis.

4. Use a flat-blade screwdriver to gently pry and release each of the plastic tabs on both sides of the

chassis. The tabs on the right side of the chassis are recessed. First release the bottom tabs, release the middle tabs, and then release the top tabs.

CAUTION Release the tabs with care. Do not apply more pressure than necessary.

Tab

(3 each side)

Light pipe guides

Standoff posts

(4 each side)

Tab (3 each side)

Switch mount locking tabs

5. Pull the face panel away from the chassis slightly to ensure all tabs are released.

6. Grasp the left side of the face panel and pivot it left to expose the standby switch and cable.

7. Spread the switch mount locking tabs, grasp the switch, and pull the switch out of its mount.

8. Turn the face panel downward until the standby switch button drops out.

9. Place the left side of the new face panel near the left front of the chassis and orient the switch so

that the black and green wires are at the bottom.

10. Push the standby switch into the mount until it snaps into place.

11. Place the standby switch button into its hole and push firmly until it seats.

12. Align the new face panel with the tab notches and light pipe guides, and carefully push the panel

onto the chassis until all tabs engage.

13. Install the door, left and right side panels, and top cover.

To replace the left or right side plastic cowling:

1. Remove the top cover, then remove the side panel that has the plastic you want to replace. See

Chapter 1 for details.

2. Place the side panel, with the cowling side down, on a flat, padded surface.

3. Remove the screw that secures the plastic to the side panel.

4. Grasp one side of the panel, press the release tabs, and lift the panel off the plastic.

5. Turn the side panel over and press the new plastic onto the panel until the release tabs engage.

6. Turn the side panel over and install the screw.

7. Install the side panel onto the chassis.

8. Install the top cover.

Peripheral Drives

This section explains how to replace the floppy, CD-ROM, and external and internal bay disk drives.

See Chapter 6, “Peripherals,” for details on drive configuration and cables.

Floppy Disk Drive

To replace the floppy disk drive:

1. Disconnect the power cable and data cable from the drive. Note the position of the red stripe on

the data cable.

2. Remove the two screws that secure the floppy drive to the chassis.

3. From inside the chassis, push the back of the floppy drive until the bezel clears the chassis, and

slide the device out.

4. Slide the new floppy drive into the chassis and align the mounting holes.

5. Install the two mounting screws.

6. Connect the data cable and the power cable.

CD-ROM Drive

The procedure for replacing a SCSI or an EIDE CD-ROM drive is the same, except for data cables and jumper settings.

CD-ROM mounting screws

(2 each side)

Floppy drive mounting screws

To replace the CD-ROM drive:

1. Disconnect the power cable, data cable, and audio cable from the CD-ROM drive.

2. Remove the screws that secure the CD-ROM drive to the chassis. See the previous illustration.

3. From inside the chassis, push the back of the CD-ROM until the bezel clears the chassis, then

slide the device out.

4. Remove the mounting guide from the right side of the CD-ROM.

Mounting guide

5. Note the jumper settings on the rear of the CD-ROM.

6. Do one of the following on the new CD-ROM:

−

Set the EIDE master/slave jumper to the same position (Master) as the old drive if you are

installing an EIDE drive

−

Set the SCSI ID jumper to the same address as the old drive if you are installing a SCSI

drive

7. Install the mounting guide on the right side of the new CD-ROM.

8. Slide the new CD-ROM drive into the chassis and align the mounting holes.

9. Install the screws that secure the CD-ROM to the chassis.

10. Connect the audio cable, data cable, and power cable.

External Bay Disk Drives

If a Kingston or other brand of removable disk module is installed in the external bay, see the vendor documentation for disk drive and module replacement instructions.

To replace an external bay disk drive:

1. Disconnect the SCSI cable and power cable from the disk drive.

2. Remove the two screws that secure the external bay disk drive tray to the chassis.

External bay mounting screws

3. From inside the chassis, push the tray out of the external bay, grasp the front of the tray, and then

slide it out of the bay.

4. Remove the screws that secure the disk drive to the tray and remove the drive.

5. Do all of the following:

−

Note the SCSI ID jumper settings on the old drive

−

Set the SCSI ID on the new drive to the same ID as the old drive

−

Disable termination on the new drive

See Chapter 6, “Peripherals,” for details on these tasks.

6. Place the disk drive in the tray, align the mounting holes, and install the mounting screws that

secure the disk drive to the tray.

Mounting guide

Drive tra

Access hole (2)

7. Slide the tray assembly into the chassis and align the mounting holes.

8. Install the screws that secure the tray to the chassis.

9. Connect the SCSI cable and the power cable to the disk drive.

Internal Bay Disk Drives

To replace an internal bay disk drive:

1. Remove the right and left covers. See Chapter 1 for details.

2. Disconnect the SCSI cable and power cable from the disk drive.

3. Remove the two screws that secure the drive bracket assembly to the left side of the chassis.

4. Grasp the drive bracket assembly and remove the screw that secures the bracket to the right side

of the chassis.

5. Pull the drive bracket assembly out of the chassis.

6. Remove the four screws that secure the old drive to the bracket.

7. Do all of the following:

−

Note the SCSI ID jumper settings on the old drive

−

Set the SCSI ID on the new drive to the same ID as the old drive

−

Disable termination on the new drive

See Chapter 6, “Peripherals,” for details on these tasks.

8. Install the new drive on the bracket.

Alignment tabs

Rear mounting tab

Front mounting tabs

9. Insert the alignment tabs into the appropriate slots in the chassis.

Screw holes for front mounting tabs

10. Install the two screws that secure the drive bracket assembly front mounting tabs to the chassis.

11. Install the screw that secures the drive bracket assembly to the right side of the chassis.

12. Install the right side panel.

13. Connect the SCSI cable and the power cable to the new drive.

External SCSI Terminator

The connector for the external SCSI terminator board, MSMT283, is mounted on the rear of the chassis just below the power supply. MSMT283 provides active termination for the system end of the external Ultra SCSI bus. Cable MCBL253A connects the terminator to J44 on the system board. See the system board diagram in Chapter 5 for connector and socket locations.

To replace the external SCSI terminator board:

1. Swing the power supply out of the chassis. See Chapter 1 for details.

2. Unfasten the reusable wire tie that secures the power supply cable bundle.

3. Lift the power supply off its hinge pins and place it aside carefully.

4. Disconnect the SCSI cable (MCBL253A) from the terminator board.

SCSI cable (to J44)

Term in ator board

Screws (2)

5. Remove the two small screws that secure the connector to the rear of the chassis.

6. Note the orientation of the terminator board and remove it from inside the chassis.

7. Orient the new terminator board component side down, align the mounting holes of the new

terminator with the chassis mounting holes, and install the two screws.

8. Connect the SCSI cable to the terminator.

9. Place the power supply on its hinge pins and fasten the wire tie on the cable bundle.

10. Swing the power supply back into the chassis and secure it with the plungers.

Power Supply

See Chapter 7, “Power Supply, Fans, and Hardware Monitoring Devices,” for details on the power supply.

To replace the power supply:

1. Unplug the AC power cord from the rear of the unit.

2. Note the location of all power cable connectors on the system board and peripheral devices.

3. Disconnect all power cables from all internal devices and the system board.

4. Place the power supply cable bundle outside the chassis.

5. Remove the knurled retaining/grounding screw on the back of the system. This fastener is

located between the top fan and the power supply fan.

6. Grasp and pull the power supply plungers toward each other, and then swing the power supply

out from the chassis.

Top plunger

Bottom plunger

7. Swing the power supply out sufficiently to avoid interference from the chassis or the top system

fan.

8. Lift the power supply off its hinges and set it aside.

9. If the new power supply does not have hinges and plungers, remove them from the old supply

and install them on the new power supply.

10. Place the new power supply on the hinge pins.

11. Connect the power cables to the system board and internal devices. See Chapter 7, “Power

Supply, Fans, and Hardware Monitoring Devices,” for connection details.

12. Grasp and pull the plungers toward each other, swing the power supply back into the chassis, and

secure it with the plungers.

CAUTION Carefully swing the power supply back into the chassis. Avoid pinching cables. Hold the external

SCSI cable against the chassis brace or rearrange cables slightly while swinging the power supply into the chassis.

13. Install the retaining/grounding screw on the back of the chassis.

14. Plug the AC power cord into its connector on the back of the chassis.

Processor Bus Termination Card

The processor bus termination card, MSMT379, is used only in systems with one processor. Singleprocessor systems will not operate without the card installed. See the system board diagram in Chapter 5 for connector and socket locations.

To replace the processor bus termination card:

1. Swing the power supply out of the chassis. See Chapter 1 for details.

2. Locate the bus termination card at J8, just below the primary CPU.

3. Note the orientation of the card.

4. Grasp the top edge of the card at each end, and pull it straight out.

5. Remove the new card from its antistatic package, orient the card component side up, and insert

the card in the slot.

6. Press down firmly until the card is seated.

7. Swing the power supply back into the chassis and secure it with the plungers.

Processor Module

The replacement processor is housed in a plastic module with heat sinks. The bottom right heat sink fin has been removed to provide clearance for the fan connector on the Revision A system board. The processor module mounts in the dual processor retention module (DPRM). See the system board diagram in Chapter 5 for connector and socket locations.

CAUTION To avoid damaging the system board, ensure that your replacement processor has the bottom

right heat sink fin removed.

To replace the processor module:

1. Swing the power supply out of the chassis to expose the processor. See Chapter 1 for details.

2. Press the locking tabs on the top corners of the processor module inward, towards each other,

until they click into the release position.

3. Slide the processor module out of the DPRM.

4. Remove the new processor from its antistatic package, and align the processor module over the

DPRM. The processor module is keyed and fits only one way.

5. Press the processor module down until it seats.

6. Press the processor module locking tabs outward until they click into the locked position.

7. Swing the power supply back into the chassis and secure it with the plungers.

Voltage Regulator Module (VRM)

The voltage regulator module (VRM), CPWS165, is used only in dual-processor systems. The VRM is located at J10, just below the secondary processor. See the system board diagram in Chapter 5 for connector and socket locations.

You may want to remove the secondary processor to provide better access before replacing the VRM.

To replace the VRM:

1. Swing the power supply out of the chassis to expose the VRM. See Chapter 1 for details.

2. Grasp the top of the VRM with one hand, and use your forefinger and middle finger of the other

3. Keep pushing the release tabs and pull the VRM out of its socket.

4. Remove the new VRM from its antistatic package, and align it over the slot.

5. Press the VRM into the slot until the release tabs click.

6. Swing the power supply back into the chassis and secure it with the plungers.

DIMMs

See the section, “Adding Memory,” in Chapter 3 for important details on handling DIMMs. The DIMM sockets are located just above the power connectors P1 and P2 on the system board. See the system board diagram in Chapter 5 for connector and socket locations.

To replace a DIMM:

1. Swing the power supply out to expose the DIMM sockets. See Chapter 1 for details.

2. Press the release tabs outward, away from each other.

3. Grasp the top edge of the DIMM and pull it out of the socket.

4. Remove the new DIMM from the antistatic package.

hand to push the release tabs up, toward the processor.

5. Orient the DIMM so that the notches match the keys in the socket.

DIMM

6. Insert the DIMM at a 90-degree angle into the socket.

7. Push gently straight down until the release tabs snap into place.

8. Swing the power supply back into the unit and secure it with the plungers.

System Board

You must swap the DIMMs, bus termination card (if installed), VRM (if installed), and processor module(s) from the old system board to the new one. See the system board diagram in Chapter 5 for connector and socket locations

Several Fastex fasteners are mounted in the right side of the chassis to secure the system board and dual processor retention module (DPRM) supports. Do not overtighten the screws to these fasteners. If you do, the fasteners may distort.

Release Tab

Notch

Hole in right side of chassis

DIMM socket

Fastex fastener

To remove the system board:

1. Remove the top cover and both side panels as described in Chapter 1.

2. Remove the power supply. See “Power Supply” on page 16 for details.

3. Lay the chassis down on its right side.

4. Note the locations where all cables are connected to the system board.

5. Disconnect all cables from the system board.

6. Note the locations of the option cards, remove them, and place the cards on an antistatic surface.

7. Remove DIMMs, the processor bus termination card (if installed), VRM (if installed), and

processor module(s) and place them on an antistatic surface. See the respective procedures above for details on removing these components.

8. Remove the chassis brace.

9. Remove the jackscrews on all external port connectors.

WARNING Use care when removing or installing the screws to avoid damaging components on the

system board.

10. Remove the four screws and the four plastic rivets on the DPRM, and remove the DPRM from

the chassis.

11. Remove the 21 screws from the system board.

12. Lift the system board out of the chassis and place it on an antistatic surface.

To install a new system board:

1. Place the new system board into the chassis, align all mounting holes, and install the jackscrews

on the external port connectors.

2. Loosely install the remaining screws on the system board, except those for the DPRM. Do not

tighten the screws yet.

3. Mount the DPRM to the system board with the plastic rivets. The DPRM is keyed to the

processor slots to ensure correct orientation.

4. Tighten all fasteners that secure the system board and DPRM to the chassis. You may need to

adjust the Fastex fasteners slightly on the right side of the chassis.

5. Install the chassis brace.

6. Install the DIMMs, processor(s), VRM (if used), and bus termination card (if used) on the system

board.

7. Install the option cards back into their original slots.

8. Connect the internal cables to the system board. If you need help identifying cable connections,

see Chapter 5.

9. Place the power supply on its hinge pins, swing it back into the chassis, and secure it with the

plungers.

10. Install the power supply retaining/grounding screw on the rear of the chassis.

11. Install the right and left side panels, and then install the top cover.

Option Cards

See the system board diagram in Chapter 5 for connector and socket locations.

To replace an option card:

1. Disconnect the external device attached to the option card connector on the rear of the system.

2. Disconnect any internal cable that connects the card to another device (if installed), such as a

geometry board.

3. Remove the screw that secures the card to the left card guide.

4. Pull the option card straight out, and place it on an antistatic surface.

5. Slide the new card into the same slot from which you removed the old card.

6. Install the screw that secures the card to the left card guide.

7. Connect any cables from other internal devices, if installed.

8. Connect the external device to the option card connector on the rear of the system.

Chassis Fans

See Chapter 7, “Power Supply, Fans, and Hardware Monitoring Devices,” for details on chassis fans.

NOTE Arrows on the fan indicate airflow direction and rotation. Ensure that you install the new fan with the

airflow direction arrow pointing toward the

To replace the top chassis fan:

1. Remove the power supply. See “Power Supply” on page 16 for details.

2. Remove the primary processor and the secondary processor (if installed). See “To replace the

processor module” on page 17 for details.

3. Disconnect the fan power cable from J5, which is located near the top left of the secondary

processor slot on the system board.

4. Remove the four screws securing the grille and fan to the chassis.

inside

of the chassis.

5. Gently pull the fan right until the motor housing contacts the DPRM.

6. Gently pull the fan downward until the fan housing clears the chassis and remove the fan.

7. Note the airflow direction of the fan and the position of the fan cable.

8. Ensure the airflow direction arrow on the new fan is pointing in the correct direction, then place

the new fan at an angle inside the chassis.

9. Grasp the fan with one hand and use the other to slightly pull the left side of the DPRM toward

the right so that the fan slips into place.

10. Place the grille on the outside, align the mounting holes, and install the four screws. Do not

overtighten.

11. Connect the fan power cable to J5.

12. Install the processor module(s).

13. Install the power supply, swing it back into the chassis, and secure it with the plungers.

To replace the bottom chassis fan:

1. Remove the face panel. See the “Case Components” section on page 6 for details.

2. Remove the option cards. See “Option Cards” on page 20 for details.

3. Remove the two screws that secure the right card guide to the chassis.

4. Lift the card guide up to disengage the mounting tabs, and remove it from the chassis.

5. Disconnect the fan power cable from J54, which is located near the battery on the front edge of

the system board.

6. Note the airflow direction of the fan.

7. Remove the four screws securing the fan to the front of the chassis and remove the fan.

8. Ensure that the airflow direction arrow on the new fan is pointing in the correct direction and

place the fan inside the chassis.

9. Align the mounting holes, and install the four screws. Do not overtighten.

10. Connect the fan power cable to J54.

11. Insert the card guide tabs into the slots and push the card guide down until the tabs engage.

12. Install the two screws that secure the card guide to the chassis.

13. Install the option cards.

14. Install the face panel.

Chassis Intrusion Alarm Switch

The chassis intrusion alarm switch has three connectors. Only the bottom two connectors are used. See the system board diagram in Chapter 5 for connector and socket locations.

To replace the chassis intrusion alarm switch:

1. Note where the red and black wires connect to the switch.

2. Disconnect the wires from the switch.

Alarm switch

3. Remove the two screws that secure the switch to the chassis and remove the switch.

4. Align the new switch with the chassis mounting holes and install the screws.

5. Connect the black wire to the middle connector and connect the red wire to the bottom connector.

Lithium (CMOS/Clock) Battery

The battery is located near the bottom front of the system board. See the system board diagram in Chapter 5 for details.

After you remove the battery, the system will lose its operating parameters stored in CMOS. As a result, the system BIOS parameters are lost. Parameters include date, time, hardware configuration, and other data.

After you install the new battery, you must reset the date and time and reconfigure the BIOS. See the InterServe 80 System Setup for details on updating and configuring the BIOS.

WARNING There is a danger of explosion if the battery is incorrectly replaced.

WARNING Replace the battery with the same or equivalent type only, as recommended by the battery

manufacturer. Dispose of used batteries according to the battery manufacturer’s instructions.

To replace the battery:

1. Remove any option cards that restrict access to the battery. See “Option Cards” on page 20 for

details.

2. Note the positive orientation of the battery. Carefully remove the discharged battery by grasping

it firmly and pulling it out of the socket.

3. Install the new battery in the same orientation as the old battery.

4. Dispose of the battery according to the manufacturer’s instructions.

5. Install the option cards that you removed.

LEDs, Light Pipe, and Standby Switch

See the system board diagram in Chapter 5 for connector and socket locations. See also the “Cable Routing and Pinouts” section in Chapter 5 for LED and standby switch cable and connector details.

To replace an LED:

1. Remove the internal bay disk drives. See “Internal Bay Disk Drives” on page 13 for details.

2. Note the locations of each of the three LEDs on the light pipe.

3. Remove the LED from its mount on the light pipe, then disconnect the LED cable from its

connector on the system board.

4. Remove the LED cable from the chassis.

5. Route the new LED cable through the chassis and connect it to the appropriate connector on the

system board.

6. Press the LED into its mount on the light pipe.

To replace the light pipe:

1. Remove the face panel. See “Case Components” on page 6 for details.

2. Remove the internal bay disk drives. See “Internal Bay Disk Drives” on page 13 for details.

3. Disconnect the LEDs from the light pipe.

Green LED (power)

black/white wires

Yellow LED (power managed)

blue/black wires

Green LED (disk activity) black/orange wires

Top of chassis

4. Squeeze the mounting tabs on the light pipe inward and push the light pipe through its mounting

hole.

5. From inside the chassis, remove the light pipe.

6. Orient the new light pipe so that its twin LED mounts face up, and press the light pipe through

its mounting hole until it snaps into place.

7. Push each of the LEDs into its respective mount on the new light pipe.

8. Install the internal bay disk drives.

9. Install the face panel.

To replace the standby switch:

1. Remove the face panel. See “Case Components” on page 6 for details.

2. Disconnect the standby switch cable connector from the system board.

3. Remove the switch cable from the chassis.

4. Insert the connector end of the switch cable through the cable access hole on the front of the

chassis and route the new switch cable through the chassis.

5. Connect the switch cable to the connector on the system board.

6. Press the switch into its mount on the face panel.

7. Install the face panel and the switch button.

3 Upgrading the System

This chapter describes upgrading memory and processors, as well as installing option cards, internal SCSI drives, and external SCSI drives. Obey all warning and caution labels while replacing parts. These servicing procedures assume you have removed the left side panel from the system, and have taken antistatic precautions, as described in Chapter 1. After you have finished servicing the system, replace panels as described in Chapter 1.

CAUTION Use an antistatic wrist strap for all servicing procedures to avoid the possibility of electrostatic

discharge.

CAUTION Do not overtighten screws and other fasteners to avoid damaging threads.

WARNING Disconnect the system from AC power before servicing internal components! Failure to

remove AC power may result in equipment damage or personal injury.

WARNING Follow all warnings and cautions in servicing instructions. If you fail to follow documented,

approved procedures, personal injury or damage to equipment can result.

Adding Memory

You can upgrade memory on the system board in 32, 64 MB, or 128 MB increments. The maximum total memory is 512 MB. Memory upgrade kits from Intergraph contain one DIMM and a disposable antistatic wrist strap.

CAUTION System memory modules from Intergraph are certified for use with Intergraph computers at extremes

of temperature and system load to ensure reliable performance. System memory modules available from other vendors may not function properly or reliably in your Intergraph computer.

To avoid damaging DIMMs and voiding the warranty, take the following precautions:

Do not touch the gold-plated finger contacts.

Do not install DIMMs that have tin-plated finger contacts.

Do not bend, twist, drop, or otherwise handle DIMMs carelessly.

Do not expose DIMMs to moisture or extreme temperatures.

Do not remove DIMMs from the antistatic bag until installation.

Before you install memory purchased from a non-Intergraph source, do the following:

Inspect DIMM keying. The finger contacts on the DIMM must match the socket configuration. This ensures that you have the correct voltage and type of DIMM.

Inspect DIMM contacts. The DIMM must have gold-plated fingers that match the gold-plated socket contacts.

The following table shows possible memory configurations. Each bank contains one socket. NP designates the bank is not populated.

Memory

Bank 0 Bank 1 Bank 2 Bank 3

32 MB 32 MB NP NP NP 64 MB 64 MB NP NP NP 128 MB 64 MB 64 MB NP NP

128 MB NP NP NP

256 MB 64 MB 64 MB 64 MB 64 MB

64 MB 64 MB 128 MB NP 128 MB 128 MB NP NP

512 MB 128 MB 128 MB 128 MB 128 MB

To install the memory upgrade:

1. Remove the top cover and the left side panel. See Chapter 1 for details.

2. Swing the power supply out to expose the DIMM sockets on the system board.

Memory Sockets (SDRAM DI MM Slots)

Population

Bank 0 Bank 1 Bank 2 Bank 3

Sequence

3. Locate the DIMM sockets and ensure the release tabs on either end of the socket are open.

4. Install DIMMs one bank at a time in sequence from socket 0 to socket 3, beginning with the first

open socket.

5. Grasp the DIMM so that the notch positions match the keys in the socket. See the illustration in

the section, “DIMMs,” in Chapter 2.

6. Insert the DIMM at a 90-degree angle into the socket.

7. Press the DIMM straight down into the socket. Do not rock the DIMM; apply even pressure

along the top edge of the DIMM until the release tabs snap into place.

8. Swing the power supply back into the chassis and secure it with the plungers.

9. Restart the computer after adding or replacing DIMMs. The computer detects the new memory

automatically.

Adding a Processor

Systems with a single 300 MHz processor system are upgradeable to dual 300 MHz processor. You can install a processor module with heat sinks (CICM452, Intergraph standard part) or a boxed processor module with integral fan (non-Intergraph part). Single-to-dual processor upgrade kits include a CPU with attached heat sink and a voltage regulator module (VRM).

The lower right heat sink fin on the Intergraph processor module must be removed to provide clearance for the fan connector at J5 on the system board. Processors are mounted in a dual processor retention module (DPRM), which surrounds the processor slots. See the system board diagram in Chapter 5 for the location of processor slots and related connectors.

NOTE You do not have to change any jumper settings when installing a second processor.

To install a single-to-dual processor upgrade:

1. Swing the power supply out to expose the processor slots. See Chapter 1 for details.

2. Remove the bus termination card from J8, the secondary processor slot. Place the card in an

antistatic package.

3. Orient the processor module so that the heat sink fins point to the top of the chassis and insert the

module into the open socket on the DPRM.

4. Press straight down and apply even pressure at both ends of the CPU module until it seats. The

DPRM is keyed to ensure proper insertion.

5. Press the processor module locking tabs outward until they click into the locked position.

6. Find J10, the secondary voltage regulator module (VRM) socket.

7. Remove the new VRM from its antistatic package and slide the VRM into its mount.

8. Press straight down and apply even pressure at both ends of the VRM until it snaps into place.

The socket is keyed to ensure proper insertion.

9. If you installed a boxed processor with integral fan into the secondary processor slot, connect the

fan cable to J1, located near the top right corner of the system board. The fan cable for a boxed processor installed in the primary processor slot connects to J4, located near the top left of the system board.

10. Swing the power supply back into the chassis and secure it with the plungers.

Adding Option Cards

You can install Peripheral Component Interconnect (PCI), non-compliant PCI, Industry Standard Architecture (ISA), and Plug-n-Play (PnP) option cards in the system. See below for a general description of the types of cards.

PCI cards contain configuration registers that define resource information to the system during startup. PCI cards do not require manual system configuration when installing the card. The

system BIOS detects the board’s presence during startup and reads information from the board’s configuration registers to assign the necessary system resources.

NOTE All PCI option cards sold by Intergraph fully comply with the

Specification, 2.1.

Non-compliant PCI cards mechanically comply with the Peripheral Component Interconnect

Peripheral Component Interconnect

Specification 2.1, but do not contain configuration registers that allow the system to automatically assign the necessary resources. These cards install in PCI slots, but you must configure the BIOS to assign system resources before installing the card. In this regard, they are like ISA cards, as described below.

ISA cards do not contain registers that define the resource information to the system during startup. Therefore, you must configure the BIOS to define the card to the system before installing the ISA card. This reserves system resources for the card.

PnP cards are ISA cards that contain configuration registers like PCI cards. During startup, the system BIOS automatically detects the installed card and assigns the necessary system resources. Since a PnP card is ISA-based, you install it in the ISA slot.

NOTE Assign system resources for an ISA card and any non-compliant PCI cards before installation. See

“Assigning System Resources” on page 29.

Each installed PCI card must draw less than 25 watts of power. The total allowable maximum wattage for PCI cards is 175 watts. The PCI slots are limited to 25 watts power dissipation per the Peripheral Component Interconnect Specification, 2.1 .

Slot Locations

The expansion slots are located at the bottom left section of the system board, as shown below. Slots 1 through 4 are primary slots and slots 5 through 7 are secondary. Slot 7 is a shared PCI/ISA slot. You can install a card in the number 7 PCI slot or the ISA slot, but not both.

Slot 0 - AGP

Slot 1 - PCI Slot 2 - PCI Slot 3 - PCI Slot 4 - PCI Slot 5 - PCI Slot 6 - PCI

Slot 7 - PCI (Shared)

Slot 7 - ISA (shared)

Upgrading Graphics Cards

The following graphics cards are available for InterServe 80.

MSMT223 - Intergraph G90

MSMT381 - Intergraph Intense 3D 100

Intergraph installs the graphics card into PCI slot 4 by default. If necessary you can move the card to PCI slots 1, 2, or 3. Do not install graphics cards in PCI slots 5, 6, or 7. See the following procedure for steps to install a graphics card.

Installing Option Cards

For cards, such as internal modems or SCSI adapters, see the documentation that came with the card for additional information on installation, and for details on configuration, cable connections, and operation.

To install an option card:

1. Remove the top cover and left side cover as described in Chapter 1.

2. Locate an open slot. If you are installing an Intergraph graphics card, see the table above for

required slot assignments.

3. Remove the blanking plate for the slot. Keep the retaining screw.

4. Remove the option card from its antistatic packaging.

5. Slide the option card carefully into the card guides. Ensure that the gold-fingered connectors on

the board’s edge are aligned properly with the slot connector.

6. Push the card into the slot firmly and evenly until it is fully seated in the slot connector.

7. Inspect the connection. If it does not appear to be correct, remove and reinstall the card.

8. Install the retaining screw.

9. Attach any required cables to the internal or external connectors.

10. Install covers and restart the system. If necessary, assign system resources to the new card.

Assigning System Resources

Some option cards include a configuration diskette that you can use to reserve the system resources required for the card. Other option cards do not include a diskette, but require that you manually program the BIOS with the configuration information.

See the “Configuring the BIOS” chapter in the InterServe 80 System Setup for details on assigning system resources and configuring the BIOS for option cards.

NOTE Treat non-compliant PCI cards and PCMCIA cards as ISA cards for assigning system resources.

Adding Internal SCSI Drives

The system provides dual-channel Wide Ultra SCSI-3 support for internal and external mass storage devices.

The system features the following peripheral bays:

One 3.5-inch x 1-inch external bay for floppy or combo drive.

One 5.25-inch x 1.6-inch external bay for CD-ROM drive.

Two 5.25-inch x 1.6-inch external bays for disk drives or other devices.

Three 3.5-inch x 1-inch or two 3.5-inch x 1.6-inch internal bays for system or optional disks.

See the following chapters for related information and important details:

Chapter 5, “System Board,” for details on SCSI connector locations and pinouts.

Chapter 6, “Peripherals,” for details on internal drive locations, configurations, jumpers, and cables.

Chapter 7, “Power Supply, Fans, and Hardware Monitoring Devices,” for details on power supply cable connectors and pinouts.

Remember the following when installing devices in the system’s drive bays:

If you are installing a SCSI drive, have the vendor’s documentation available to follow instructions for setting the SCSI ID, enabling or disabling termination, installing device drivers when required, and configuring other drive attributes.

If you are installing a drive that connects to an adapter card, see the vendor’s documentation for installing the adapter card and required cables. See “Adding Option Cards” on page 27 for details.

If you are installing a Kingston or other brand of removable disk drive module, see the vendor’s documentation for installing the module, removing terminators, and setting the SCSI ID.

NOTE The internal SCSI cable provides termination for the SCSI bus. When installing internal SCSI drives,

be sure to disable SCSI termination on the drives.

Device Locations

You can add optional mass storage devices to the internal and external drive bays. The following table provides the drive locations and related information. See the illustration below.

Location

1 System disk drive Internal 3.5-inch x 1.0 or 1.6-inch 0 2 Add-on disk drive Internal 3.5-inch x 1.0 or 1.6-inch 1 3 Add-on disk drive Internal 3.5-inch x 1.0-inch 2 4 Add-on device External 5.25-inch x 1.6-inch 3 5 Add-on device External 5.25-inch x 1.6-inch 4 6 Floppy drive External 3.55-inch x 1.0-inch — 7 EIDE CD-ROM External 5.25-inch x 1.6-inch —

Drive Peripheral Bay Max Bay Capacity SCSI ID

NOTE You can install a total of three 3.5-inch x 1.0-inch drives or a total of two 3.5-inch x 1.6-inch drives in

the internal drive bay.

The following shows drive locations. Devices are installed in all locations for illustration. The EIDE CD-ROM, floppy drive, and system drive are standard. Other devices are available as options.

NOTE If you are installing an additional EIDE device on the primary EIDE bus, you must mount the device in

Location 5 due to cabling restrictions.

EIDE CD-ROM—Location 7

Floppy Drive—Location 6

Add-on device—Location 5

Add-on device—Location 4

Add-on drive—Location 3 Add-on drive—Location 2

System drive—Location 1

Installing Devices in the Drive Bays

NOTE Two internal bay drive brackets are installed in the chassis for mounting drive mechanisms.

To install a drive in the external drive bay:

1. Remove the two screws that secure the external bay disk drive tray to the chassis.

External bay mounting screws

2. From inside the chassis, push the tray out of the external bay. Then, grasp the front of the tray

and slide it out of the bay.

3. Do both of the following (see Chapter 6 for details):

−

Set the SCSI ID on the new drive to an unused ID number.

−

Disable termination on the new drive.

4. Do one of the following:

−

If installing a standard disk drive, place the disk drive in the tray, align the mounting holes,

and install the four mounting screws.

−

If installing a 1.6-inch device, such as a tape drive or a CD writer, remove the mounting

guide from the drive tray and attach the guide to the right side of the device.

−

If installing a Kingston removable disk drive module, do not use the mounting guide.

Mounting guide

Drive tra

Access hole (2)

5. Do one of the following:

−

Slide the tray assembly with standard disk drive into the chassis, align the mounting holes,

and install the screws

−

Slide the 1.6-inch device into the chassis, align the mounting holes, and install the screws

−

Slide the Kingston removable disk drive module into the chassis, align the mounting holes,

and install the mounting screws on the left and right sides of the chassis

6. Connect the SCSI cable and the power cable to the disk drive.

To install a drive in the internal bay:

1. Remove the right and left covers. See Chapter 1 for details.

2. Remove the two screws that secure the spare drive bracket assembly to the left side of the chassis.

3. Grasp the drive bracket assembly and remove the screw that secures the bracket to the right side

of the chassis.

4. Pull the drive bracket assembly out of the chassis.

5. Do all of the following:

−

Set the SCSI ID on the new drive to an unused ID number

−

Disable termination on the new drive

See Chapter 6, “Peripherals,” for details on these tasks.

6. Attach the bracket to the new drive.

Alignment tabs

Bracket

Rear mounting tab

Front mounting tabs

7. Insert the alignment tabs into the appropriate slots in the chassis.

Screw holes for front mounting tabs

8. Install the two screws that secure the drive bracket assembly front mounting tabs to the chassis.

9. Install the screw that secures the drive bracket assembly to the right side of the chassis.

10. Install the right cover.

11. Connect the SCSI cable and the power cable to the new drive.

Adding External SCSI Drives

You can add single-ended external SCSI drives to the system by connecting them to the Ultra SCSI

port on the back of the system. A Wide Ultra SCSI external port is optional. See “External Ports” in Chapter 5 for an illustration of port locations.

You can also install additional SCSI option cards (adapters) to support external SCSI drives. See “Adding Option Cards” on page 27 for details.

SCSI Cable Length Guidelines

The number of drives and length of the cables used to connect the drives is a factor when using SCSI-1, Fast SCSI (SCSI-2), Ultra SCSI, and Wide Ultra SCSI drives. Fast SCSI, Ultra SCSI, and Wide Ultra SCSI impose shorter cable restrictions than SCSI-1. The total length of the SCSI cabling must not exceed the following:

Drives

1 to 4 19.8 ft (6 meters) 9.9 ft (3 meters) 9.9 ft (3 meters) 9.9 ft (3 meters) 5 to 7 9.9 ft (3 meters) 9.9 ft (3 meters) 4.5 ft (1.5 meters) 4.5 ft (1.5 meters)

SCSI-1 Fast SCSI-2 Ultra SCSI Wide Ultra SCSI

NOTE The SCSI controller (on the system board or an adapter card) counts as one device.

The total length of the SCSI cabling is the sum of the following:

Wide Ultra SCSI cable inside the system - 52 inches (132 cm)

Ultra SCSI cable inside the system - 14 inches (35.5 cm)

SCSI cable inside each device - typically 8 inches (20 cm)

SCSI cable between the system and the first device

SCSI cable between each device

SCSI Cable Quality Guidelines

To ensure data integrity and optimum performance, do the following:

Use only Intergraph SCSI cables. Cables from other vendors may not provide adequate shielding.

Use the shortest cables possible to connect SCSI devices to the system and to each other.

SCSI ID Guidelines

By default, specific devices use the following SCSI IDs:

System disk drive (standard) uses ID 0

SCSI bus always uses ID 7

Read/write CD-ROM (optional) drive uses ID 4

4 mm DAT drive (optional) uses ID 6

Iomega Jaz drive (optional) uses ID 6

NOTE To easily determine the ID of each SCSI device on the system, restart the system. When the BIOS

screen displays, look for the list of SCSI devices and write down the ID for each device.

Some SCSI devices feature push switches to set the ID, while others have DIP switches or jumpers. See the vendor documentation for details on setting the ID.

SCSI Termination Guidelines for External Devices

Follow the guidelines below for terminating SCSI devices:

Enable termination on the last external drive on the SCSI cable chain.

Disable termination on all other external drives on the SCSI cable chain.

Use only an active terminator on externally-terminated devices.

Connecting the Drive

To add an external SCSI drive:

1. Connect one end of the external SCSI cable to one of the following external ports:

−

The standard Ultra SCSI port, located just under the AC line out connector

− The optional Wide Ultra SCSI port, located on the right side of the I/O panel

2. Connect the other end of the cable to the SCSI device.

3. Set the SCSI ID of the device to an unused number. See “SCSI ID Guidelines” above for details.

4. Do one of the following:

−

If the device is the last or only device on the SCSI chain, enable SCSI termination

−

If the device is the first device or is between the first and last device on the SCSI chain,

disable SCSI termination

5. Ensure that the power switch on the device is in the off position, and then connect the power cord

to the device and then to an AC receptacle.

6. Turn on the power to the device and any other devices on the SCSI chain.

7. Start the system. If necessary, install the software drivers and configure the drive according to

the vendor’s instructions.

Changing SCSI Host Adapter or Device Settings

Depending on your system configuration or the capabilities of SCSI devices connected to your system, you may need to use the SCSI Configuration Utility to change host adapter or device settings. See the System Setup delivered with the system for details.

4 System Information and

Specifications

This chapter contains general information and specifications about the hardware included in the InterServe 80.

System Configuration Summary

The following table summarizes the main features of the system.

Feature

Processors One or two 266 MHz Intel Pentium II with external 512 KB cache Memory Four banks, one DIMM per bank, non-interleaved Memory Width 72 bits, ECC protected Memory Style Industry-standard 168-pin, unbuffered DIMM Memory Type SDRAM (Synchronous Dynamic Random Access Memory) Memory Speed 66 MHz Memory Density Single or double density Minimum Memory 32 MB (single processor) or 64 MB (dual processor) Maximum Memory 512 MB Memory Expansion 32 MB, 64 MB, or 128 MB increments Networking 10/100BaseT/TX Ethernet SCSI One dual channel, 16-bit, Fast-20 Wide SCSI-3 controller for internal

EIDE Primary EIDE port for CD-ROM (standard) Mouse Microsoft IntelliMouse Keyboard PS/2 style Graphics Intergraph G90, or Intergraph Intense 3D 100 System Disk Drive 4.3 GB or 9.1 GB 10,000 RPM (Wide Ultra, SMART) CD-ROM 24X EIDE CD-ROM (standard) or 4X/2X SCSI CD Writer I/O Slots Six full-length PCI, one full-length PCI/ISA, one full-length

Peripheral Bays Three 3.5-inch x 1-inch or two 3.5-inch x 1.6-inch internal bays for

Description

and external SCSI devices

Accelerated Graphics Port (AGP)

system disk and optional disks One 3.5-inch x 1.0-inch external bay for floppy drive One 5.25-inch x 1.6-inch external bay for CD-ROM Two 5.25-inch x 1.6-inch external bays for optional devices

Feature Description

I/O Ports One PS/2 Mouse Port and one PS/2 Keyboard Port

Power Supply 500 Watts, auto-ranging

System Board

The following table lists the main chip components on the system board.

One Parallel Port, EPP- and ECP-compatible Two Serial (COM) Ports MIDI/Game Port Two Universal Serial Bus (USB) Ports One Fast-SCSI 3 (Ultra) Port (standard) One Fast Wide SCSI 3 (Wide Ultra) Port (optional) Ethernet Port (RJ45 connector) Audio Ports: Microphone, Line In, Line Out

Component

System BIOS Processor Intel Pentium II; 266 MHz or 300 MHz, SEC (Single Edge

Host-to-PCI Bridge Intel 82443LX Sound Controller Crystal CS4237B Ethernet Controller Intel 82558 10/100BaseTX PCI SCSI Controller Symbios SYM53C876 Combo Controller Standard Microsystems FDC37C682 PCI-to-ISA Bridge Intel PIIX4 EIDE Controller Intel 82371AB PCI/IDE Xccelerator Universal Serial Bus Ports Intel 82371AB PCI/IDE Xccelerator

Sound Controller

The sound controller is the Crystal CS4237B. Integrated onto the system board, the controller is a complete, fully-featured PC 97 compliant sound implementation. It has the following specifications:

Feature

Audio Resolution 16-bit MIDI/UART Mode Compatibility Roland MPU401 Bus Interface 16-bit ISA CODEC Delta Sigma-based Windows Sound System CODEC FIFO 16 Samples FM Synthesizer Crystal internal FM synthesis External Audio Inputs Microphone (Monaural), Stereo Line-In

Description

American Megatrends BIOS 887xx.ROM

Connector)

Specification

Feature Specification

Internal Audio Inputs Stereo FM Synthesis, Stereo Wave Data, Stereo CD,

Monaural PC Speaker Audio Outputs Stereo Line-Out MIDI/Joystick MIDI In, MIDI Out, up to 4 fire buttons ADPCM Audio Compression 4:1, 3:1, and 2:1 Sampling Rate Range 5 KHz - 44.1 KHz in 228 selectable steps

The Crystal CS4237B sound controller is configured entirely through I/O port accesses. When the system is powered up, the hardware forces the Crystal CS4237B to respond to default I/O port addresses, interrupt request (IRQ) level, and direct memory access (DMA) request and acknowledge. The following table shows the default sound controller configurations and available programmable settings.

Parameter

Default

Base I/O Address / MPU-401 220/330 8-bit Playback DMA 1 8-bit Capture DMA 3 Base IRQ / MPU IRQ 5/15

Hardware Monitoring and Power Management

The InterServe 80 features advanced hardware monitoring and power management capabilities. These capabilities help you save energy, prolong system life, and provide for future functionality, such as remote system wakeup.

The InterSite Hardware Monitor software reports the following key voltages and system states:

All major voltages, including processor bus voltage; +5 V; +3.3 V; +12 V; -12 V

Processor voltage ID

Temperature at two locations (near primary processor and near expansion slots)

Fan speed

Low battery voltage alert

Chassis intrusion security alert

See Chapter 2 in the System Setup for details on InterSite Hardware Monitor.

Power States

The top LED on the front panel indicates the following power states of the system:

LED

Green Working On System is fully usable; power conservation is on a

Off Mechanical

If the power cord is plugged in, but the LED is off, then the system has a power voltage problem. Call the Customer Response Center for assistance.

Refer to the System Setup for information about using the Automatic Shutdown Utility.

Power State Description Explanation

Off

Intrusion Alert Switch

The intrusion alert switch (CSWX308) is mounted at the top left side of the system near the front. This microswitch is the only replaceable component in the hardware monitoring system. If you detach the side panel when the system is off, the event is registered in the InterSite Hardware Monitor software.

Refer to Chapter 2 for details on replacing the switch. See also InterSite Hardware Monitor Help for details.

per-device basis.

Off No power consumption. The system is

disconnected from AC power. To return the system to the Working state, you

must reconnect the power cord and perform a full system shutdown and restart using the Automatic Shutdown Utility.

Temperature Sensors

Resistive temperature sensors are located on the system board at U1 and U143, near the primary processor and the expansion slots, respectively. These devices provide signals for reporting temperature readout data to the InterSite Hardware Monitor software. The sensor at U143 provides the signal for controlling fan speed. The temperature sensors are part of the system board and are not field replaceable.

Dynamic Fan Speed Control

Specialized components control dynamic fan speed, based on temperature measured by two sensors, and whether the temperature is rising or falling. Fan speed is calculated based on the average (or composite) of all three fans. The following table defines composite fan speeds identified by the hardware monitoring components.

Composite Fan Speed

High High High High Medium High High High Low Medium Low High Low Low Low Low Low Low

Chassis Fan 1 Chassis Fan 2 Power Supply Fan

The following table indicates the composite fan speed for four temperature setpoints. As the temperature inside the chassis varies with the heat load, the fans change speed accordingly. For example, if the temperature rises above setpoint T1, composite fan speed increases to medium low.

Temperature Setpoint

T3—109.4° F (43° C)

T2—104° F (40° C)

T1—98.6° F (37° C)

T0—93.7° F (34° C)

Fan Speed (Composite) Temperature Rising

High High

↑ ↓

Medium High High

↑ ↓

Medium Low Medium High

↑ ↓

Low Medium Low

↑ ↓

Low Low

System Model Number

The model number on the unit identifies the system hardware and software configuration. The following table defines the individual digits.

Digit

1: Series K: InterServe 80 2: Processor Type U: Single Intel Pentium II, 2660 MHz, 512 KB cache

3. Graphics 0: No graphics

4: Chassis 1: Server, non-RAID

5: Memory 0: No memory

6: CD-ROM 0: No CD-ROM

7: Disk Drives 4: 4.3 GB 7, 200 RPM 8: Operating System 7: Windows NT Server 9: Revision Variable

Meaning

V: Dual Intel Pentium II, 266 MHz, 512 KB cache

2: Intergraph G90

4: Server with 2-Channel Hardware RAID

4: 32 MB 6: 64 MB 7: 128 MB 9: 512 MB

3: EIDE CD-ROM 5 SCSI CD-ROM

Fan Speed (Composite) Temperature Falling

Specifications

The following specifications apply to the InterServe 80.

Dimensions (HxWxD)

25.8 x 7.9 x 20.2 inches (65.4 x 20.0 x 50.8 cm)

Weight

55 lb (25 kg) fully configured

Electrical

90 -132 VAC 47-63 Hz 1-phase 15 A, 125V 180-264 VAC 47-63 Hz 1-phase 15 A, 250V

Power Consumption

780 W (based on 6.5 A, 120 VAC, 60 Hz)

Environmental Recommendations

Ambient room temperature, operating: 50° to 80° F (10° to 26° C) Relative humidity, operating: 20 to 80% (non-condensing)

Environmental Impact

Heat dissipation: 2,662.14 BTU/hr

Optional Hardware

If your system includes any of the following hardware, see the documentation delivered with that hardware for additional information:

AMI RAID Controller

InterRAID-8e disk array cabinet

Graphics card

Monitor

External or internal peripherals

5 System Board

This chapter provides information about system board features and components, inlcuding, slots and sockets, cable routing and pinouts, jumper connectors, external ports, sound controller, and configuration data. The system board decsribed in the chapter is MSMT497 Revision A.

Slots and Sockets

The following diagram shows the location of the slots and sockets on the system board.

Pri mary Processor Slot - J3

Secondary Processor Slot - J8

Bank 0 Bank 1 Bank 2 Bank 3

Slot 0 - AGP Slot 1 - PCI Slot 2 - PCI Slot 3 - PCI Slot 4 - PCI Slot 5 - PCI Slot 6 - PCI

Memo ry S o ckets (SDRA M D IMM Slo ts)

Expansion Slots

Slot 7 - PCI

Slot 7 - ISA

Cable Routing and Pinouts

The following figure shows the cable connectors on the system board.

Primary CPU Fan (optional) - J4

Chassis Fan 1 - J5

Secondary CPU Fan (optional) - J1

Secondary IDE - J15

Primary IDE - J16

Floppy Dr iv e - J18

CD Audio J37

Serial 2 - T1

Power Supply P2 - J38

Power Supply P1 - J34

Power Supply Fan - J39

Power Switch - J22

LED Connectors

External Wide Ultra SCSI - J35

Chassis Intrusion - J36

Internal Wide Ultra SCSI-J40

External Ultra SCSI - J44

Chassis Fan 2 - J54

The following table shows the cable routing from the system board connectors to the various components and peripherals.

NOTE See Chapter 7, “Power Supply, Fans, and Hardware Monitoring Devices,” for power connectors J34

and J38. See also Chapter 6, “Peripherals,” for details on data cables.

From Board Connector Cable To

J1 Secondary CPU Fan — Optional CPU fan J4 Primary CPU Fan — Optional CPU fan J5 Chassis Fan 1 CFAN12009 Fan, top rear J15 Secondary EIDE MCBL252A Optional EIDE device J16 Primary EIDE MCBL252A EIDE CD-ROM drive J18 Floppy MCBL067A Floppy drive J22 Main Power MCBL250A Front panel standby button J23 LED Power MCBL249A Front panel power LED (yellow) J29 LED Power MCBL248A Front panel power LED (green) J33 Disk Activity LED MCBL247A Front panel disk activity LED (green) J35 SCSI, External Wide Ultra MCBL255A Rear panel 68-pin connector, optional J36 Intrusion Alarm MCBL251A Intrusion alarm switch J37 CD-ROM Audio MCBL122A EIDE CD-ROM drive J39 Power Supply Fan P10 Fan, power supply, 2- or 4-wire J40 SCSI, Internal Wide Ultra MCBL254A System disk at SCSI ID 0 J44 SCSI, External Ultra MCBL253A3 Terminator/adapter J54 Chassis Fan 2 CFAN12009 Fan, bottom front T1 Serial Port 2 MCBLW680A External serial port 2 (COM2)

The following tables show pinouts for the connectors listed above. Headings denote system board location, cable number, and the device to which the cable is connected.

J1, J4 - Processor Fans (Optional)

Signal

1 Ground 2 +12V 3 Tach

J5, J54 - CFAN120, Chassis Fan 1 (top rear) and 2 (bottom front)

Signal Color Pin Signal Color

1 Fan control input Brown 3 Voltage + Red 2 Fan Tach White 4 Return - Black

J15 and J16 - MCBL252A, EIDE Data

1 BRSTDRV- 15 D01+(1) 28 VCC 2 Ground 16 D01+(14) 29 DOAK03 D01+(7) 17 D01+(0) 30 Ground 4 D01+(8) 18 D01+(15) 31 IRQ14 5 D01+(6) 19 Ground 32 IOCS166 D01+(9) 20 — 33 DA1

7 D01+(5) 21 D0RQ0- 34 — 8 D01+(10) 22 Ground 35 DA0 9 D01+(4) 23 DOIOW- 36 DA2 10 D01+(11) 24 Ground 37 CS1P11 D01+(3) 25 D0IOR- 38 CS3P12 D01+(12) 26 Ground 39 IDEACTVP13 D01+(2) 27 IORDY 40 Ground 14 D01+(13)

J18 - MCBL067A, Floppy Drive (Data)

2 RPM 14 DRV0- 26 TRK04 No connect 16 MTR1- 28 WRPRT6 DRATE0 18 DIR 30 RDATA8 INDEX- 20 STEP- 32 HDSEL 10 MTR0- 22 WDATA- 34 DSKCHG 12 DRV1- 24 WGATE-

Signal Pin Signal Pin Signal

J22 - MCBL250A, Standby Switch

Signal Color

1 + 5 V trickle White 2 PWRBTN Green

J23 - MCBL249A, Power Managed LED

Signal Color

1 PwrGood Blue 2 Ground Black

J29 - MCBL248A, Power On LED

Signal Color

1 PwrGood White 2 Ground Black

J33 - MCBL247A, Disk Activity LED

Signal Color

1 DiskActive Orange 2 Ground Black

J36 - MCBL251A, Intrusion Alarm Switch

Signal Color

1 Alarm Red 2 Ground Black

J37 - MCBL122A, EIDE CD-ROM Drive (Audio)

Signal Pin Signal

1 Right Sound Channel 3 Left Sound Channel 2 Ground 4 Ground

J39 - P10 (MPWS152), Power Supply Fan

Signal Color

1 Voltage + Red 2 Return - Black

J39 - P10 (MPWS152), Power Supply Fan

Signal Color Pin Signal Color

1 Fan control input Brown 3 Voltage + Red 2 Fan Tach 1 White 4 Return - Black

J35 - MCBL255A, External Wide Ultra SCSI Port; and J40 - MCBL254A, Internal Wide Ultra SCSI cable

17 TERMPWR 45 SD-(5) 57 SBSY18 TERMPWR 46 SD-(6) 58 SACK35 SD-(12) 47 SD-(7) 59 SRSI36 SD-(13) 48 SDP0- 60 SMSG37 SD-(14) 49 Ground 61 SSEL38 SD-(15) 50 Ground 62 SCD39 SDP1- 51 TERMPWR 63 SREQ40 SD-(0) 52 TERMPWR 64 SIO41 SD-(1) 53 No connection 65 SD-(8) 42 SD-(2) 54 Ground 66 SD-(9) 43 SD-(3) 55 SATII- 67 SD-(10) 44 SD-(4) 56 Ground 68 SD-(11) Remaining pins connected to ground.

Signal Pin Signal Pin Signal

J44 - MCBL253A, External SCSI Terminator

2 SD-(0) 20 Ground 36 SBSY4 SD-(1) 22 Ground 38 SACK6 SD-(2) 24 Reserved 40 SRST8 SD-(3) 26 TPWR 42 SMSG10 SD-(4) 28 Reserved 44 SSEL12 SD-(5) 30 Ground 46 SCD14 SD-(6) 32 SATII- 48 SREQ16 SD-(7) 34 Ground 50 SIO18 SDP0Remaining pins connected to ground.

T1 - MCBLW680A, External Serial Port (COM 2)

1 DCD - Data Carrier Detect 6 DSR - Data Set Ready 2 RD - Receive Data 7 RTS - Request to Send 3 TD - Transmit Data 8 CTS - Clear to Send 4 DTR - Data Terminal Ready 9 RI - Ring Indicator 5 Ground

Signal Pin Signal Pin Signal

Signal Pin Signal

Jumper Connectors

The following figure shows the jumper locations on the system board.

CPU Frequency

SCSI T er m

Password Clear

The following figure details the jumper settings.

CPU Frequency.

Settings for 266 MHz J21 - ON J27 - OFF J28 - OFF J31 - ON

OFF

(Default)

SCSI Term - J4 1

Password Clear - J47

Do not change CPU Frequency jumper settings.

OFF (default) means termination is enabled. Add a jumper to disable termination.

OFF means BIOS checks for password during boot . ON means BIOS will not check for password.

External Ports

The following figure shows the external ports on the back of the unit.

Mouse

Keyboard

Serial

(COM 1 )

Parallel

Ethernet

USB 1 & 2

Serial

(COM 2 )

Ultra SCSI

Keyboard, Mouse

The Keyboard and Mouse ports are PS/2 style, 6-pin ports. They are not interchangeable.

1 3 5

Wide Ultra SCSI (Optional)

Keyboard Mouse

Pin Signal Pin Signal

1 KDATA 1 MDATA 2 Spare 2 Spare 3 Ground 3 Ground 4 VCC 4 VCC 5 KCLK 5 MCLK 6 Spare 6 Spare

Serial

The Serial ports (also referred to as RS-232 asynchronous communications ports, or COM ports) connect modems, printers, peripherals, and other computers to the system. The serial ports (labeled 1 and 2) are 9-pin, male DB9 connectors. If connecting a serial device with a 25-pin DB25 connector, use a 25-pin to 9-pin adapter cable to mate with the serial port on the system. Use only shielded cables with the serial ports.

Signal

1 DCD - Data Carrier Detect 2 RD - Receive Data

3 TD - Transmit Data 4 DTR - Data Terminal Ready 5 Ground 6 DSR - Data Set Ready 7 RTS - Request to Send 8 CTS - Clear to Send 9 RI - Ring Indicator

Parallel

The Parallel port is used almost exclusively for printers, but is compatible with any peripheral device designed to interface with a standard Centronics-type parallel port. Use only shielded cables with the parallel port (DB-25).

Signal Pin Signal

1 -Strobe 10 -ACK -

Acknowledge 2 Data 0 11 Busy 3 Data 1 12 PE - Paper Empty 4 Data 2 13 +Select 5 Data 3 14 -Auto FDXT -

Auto Feed 6 Data 4 15 -Error 7 Data 5 16 -Init - Start

8 Data 6 17 -SLCTIN - Select 9 Data 7 18-25 Ground

Ethernet

The Ethernet port connects a network cable (with an RJ45 connector) to the computer.

Signal Pin Signal

1 TD+ - Transmit 5 Reserved 2 TD– - Transmit 6 RD– - Receive

3 RD+ - Receive 7 Reserved

4 Reserved 8 Reserved

Universal Serial Bus

The Universal Serial Bus (USB) port connects USB devices to the computer. These devices can include printers, keyboards and other peripherals that have historically used serial, parallel, mouse, and keyboard I/O buses. USB devices, designed to be fully Plug-and-Play (PnP), feature hot attach/detach and daisy-chain capabilities. The USB port can transfer data at a maximum theoretical rate of 12 megabits per second.

1 4

Signal Pin Signal

A1 PWR B1 PWR A2 - B2 -

A3 + B3 + A4 GROUND B4 GROUND

1 4

External Ultra SCSI

The External Ultra SCSI port (standard) connects external SCSI devices, such as tape drives or

hard disks, to the computer. The maximum sustainable data transfer rate is 20 MB per second.

26 Command Data-0 27 Command Data-1 28 Command Data-2 29 Command Data-3 30 Command Data-4 31 Command Data-5 32 Command Data-6 33 Command Data-7 34 Command Data Parity 38 Terminator Power 41 Attention 43 Busy 44 Acknowledge 45 Reset 46 Message 47 Select 48 Command 49 Request 50 Input/Output

Signal

NOTE Pins 12, 13, 14, 37, and 39 are not connected; pins not listed are connected to ground.

External Wide Ultra SCSI

The External Wide Ultra SCSI port (optional) connects Wide Ultra SCSI devices, such as tape drives or hard disks, to the computer. This port has a maximum theoretical sustainable data transfer rate of 40 MB per second.

17 TERMPWR 50 Ground 18 TERMPWR 52 TERMPWR 35 SD-(12) 53 No connection 36 SD-(13) 54 Ground 37 SD-(14) 55 SATII38 SD-(15) 56 Ground 39 SDP1- 57 SBSY40 SD-(0) 58 SACK41 SD-(1) 59 SRSI42 SD-(2) 60 SMSG43 SD-(3) 61 SSEL44 SD-(4) 62 SCD45 SD-(5) 63 SREQ46 SD-(6) 64 SIO47 SD-(7) 65 SD-(8) 48 SDP0- 66 SD-(9) 49 Ground 67 SD-(10) 51 TERMPWR 68 SD-(11)

Signal Pin Signal

NOTE Pins not listed are connected to ground.

Configuration Data

DMA Channels

The system board uses Direct Memory Address (DMA) channels to exchange data without accessing the CPU. Some channels are assigned for specific use by the system, as defined below. Each DMA channel appropriates full 32-bit processing. For an ISA bus, channels 0 through 3 are 8-bit and channels 4 through 7 are 16-bit channels.

DMA

0 LPT 4 Cascade input for 0-3 1 Crystal CS4237B Controller 5 Spare 2 Floppy Controller 6 Spare 3 Crystal CS4237B Controller 7 Spare

Assignment DMA Assignment

Inpu t/Output A ddr esses

The following table lists a small subset of the reserved I/O addresses.

Address

0278 - 027F Parallel Port LPT2 02E8 - 02EF Serial Port COM4 02F8 - 02FF Serial Port COM2 0378 - 037F Parallel Port LPT1 03B0 - 03BF Monochrome Display/Printer Adapter 03C0 - 03CF Enhanced Graphics Adapter (EGA/VGA) 03D0 - 03DF Color/Graphics Monitor Adapter (CGA/MCGA) 03F0 - 03F7 Floppy Controller 03F8 - 03FF Serial Port COM1

Memory A ddress Map

The following table lists the memory address map assignments.

Memory Address

00000000 - 0009FFFF 640K System board memory 000A0000 - 000BFFFF 128K Video memory 000C0000 - 000C7FFF 32K Video ROM 000C8000 - 000DFFFF 96K Available I/O Adapter ROM 000E0000 - 000EFFFF 64K BIOS ROM and PCMCIA 000F0000 - 000FFFFF 64K BIOS ROM 00100000 - 1FFFFFFF 511M Expansion memory 20000000 - 3FFFFFFF — Reserved

Device

Size Assignment

PCI to ISA Bus Interrupt Mapping

The ISA bridge provides the sixteen conventional ISA interrupts, plus four interrupt request pins for PCI peripheral interrupts (PIRQ0 through PIRQ3). For PC-AT architecture compatibility reasons, the PCI interrupts are routed to the ISA interrupts within the ISA bridge. The assertion of a PCI interrupt concludes in an ISA interrupt being asserted.

Bit 7 of each PIRQ registers enable (Low) or disable (High) the routing of the PIRQ to an ISA interrupt. The lowest four bits (3:0) of each PIRQ register determines to which ISA interrupt the PIRQ is routed. You can map the PIRQs to the following ISA interrupts IRQ 5, 10, 11, 15. You can also map to IRQ 3, 4, 7, 12, and 14, but other devices are disabled if you do so.

Each PCI slot has four available interrupt lines: INTA, INTB, INTC, and INTD. These are connected to the PCI interrupts, PIRQ0 through PIRQ3, as shown below:

Interrupt Line

INTA PIRQ0 PIRQ1 PIRQ2 PIRQ3 PIRQ0 PIRQ1 PIRQ2 INTB PIRQ1 PIRQ2 PIRQ3 PIRQ0 PIRQ1 PIRQ2 PIRQ3 INTC PIRQ2 PIRQ3 PIRQ0 PIRQ1 PIRQ2 PIRQ3 PIRQ0 INTD PIRQ3 PIRQ0 PIRQ1 PIRQ2 PIRQ3 PIRQ0 PIRQ1

Slot 1 Slot 2 Slot 3 Slot 4 Slot 5 Slot 6 Slot 7

Interrupt Requests (IRQs)

System interrupt request (IRQ) assignments are defined below.

IRQ

0 System Timer 8 Real Time Clock 1 Keyboard 9 SMBUS/ACPI 2 Cascade input for IRQ8 - IRQ15 10 Crystal CS4237B Sound Controller 3 COM2, COM4 11 Spare 4 COM1, COM3 12 Mouse 5 MIDI Port 13 Floating Point Unit 6 Floppy Controller 14 EIDE CD-ROM 7 Parallel Port 15 Hardware Monitor

You can assign the spare interrupt listed above to an ISA device. When you add a PCI device to the system, the system BIOS automatically assigns the interrupt. However, at least one interrupt must be available for the PCI bus.

Name IRQ Name

When you add an ISA board, you must reserve the interrupt using the AMIBIOS Setup utility and jumpers on the option board. See the System Setup delivered with the system for details on using AMIBIOS Setup. See also the vendor documentation for the option board for jumper and related information.

6 Peripherals

This chapter provides information on the cabling and configuration of common peripherals within the system.

Peripheral Cables

This section provides information on peripheral cables and associated connections. See the section,

“Cable Routing and Pinouts,” in Chapter 5 for additional details. Cable illustrations are not to scale. You can identify the cables and connectors using their spacing as reference. Connectors for SCSI devices are spaced approximately 8 in (20 cm) apart.

CAUTION You must disable termination on any SCSI device you install internally. If you do not disable

termination, the system may fail to start or may behave erratically.

Internal Wide Ultra SCSI Cable (MCBL254A) Connection Locations

The following illustration and table show the cable connectors and the locations to which they attach. This cable is approximately 52 inches (132 cm) long.

1 765432

Connector Connects To

1 J40, System Board 2 System Disk at Location 1 (internal bay) 3 Disk at Location 2 (internal bay) 4 Disk at Location 3 (internal bay) 5 Device at Location 4 (external bay) 6 Device at Location 5 (external bay) 7 Active Terminator

See “Device Locations” in Chapter 3 for details on standard peripheral locations.

Internal Ultra SCSI Cable (MCBL253A) Connection Locations

The following illustration and table show the cable connectors and the locations to which they attach. This cable is approximately 36 inches (91 cm) long.

1 432

Connector Connects To

1 J44, System board 2 Device at Location 4 (external bay) 3 Device at Location 5 (external bay) 4 External SCSI Terminator board MSMT283

External Wide Ultra SCSI Cable (MCBL255A) Connection Locations

The following illustration and table show the cable connectors and the locations to which they attach. This optional cable is approximately 14 inches (35.5 cm) long.

1 2

Connector Connects To

1 J35, System board 2 External SCSI 68-pin connector on rear panel

EIDE Cable (MCBL252A) Connection Locations

The following illustration and table show the cable connectors and the locations to which they attach. This cable is approximately 10.5 inches (26.7 cm) long.

1 32

Connector Connects To

1 J16, System board 2 Device at Location 5 (external bay) 3 EIDE CD-ROM CDSK177 at Location 7

Floppy Cable (MCBL067A) Connection Locations

The following illustration and table show the cable connectors and the locations to which they attach. This cable is standard and is approximately 17 inches (43.1 cm) long.

1 2

Connector Connects To

1 J18, System board 2 Floppy disk drive

Peripheral Configuration

This section provides illustrations and information on configuring common peripherals for the system.

See the following for related information:

Chapter 5, “System Board” for cable connector locations and pinouts.

Chapter 7, “Power Supply and Cooling Fans” for power cable information and pinouts.

Vendor documentation provided with the peripheral device.

EIDE CD-ROM Drive (CDSK177)

The following figure shows the back of the EIDE CD-ROM drive.

Audio Connector

Mode Select (Set to Master)

EIDE Connector

Power Connector

Device Connector Cable Connects to

Audio (analog) MCBL122A J37, System board EIDE MCBL252A J16, Primary EIDE, System board Power P4 Power supply

The Mode Select header is set to Master as shown.

SCSI CD Recorder (CDSK133)

The following figure shows the back of the CD recorder.

SCSI Connector

Power Connector

ID1

ID2

Audio Connector

Term Power

Termination

Parity EnableID4

Device Connector Cable Connects to

Audio (analog) MCBL122A J37, System board Power P3; P5-P9 Power supply SCSI MCBL254A J40, System board

To disable SCSI termination, remove the Termination jumper and the Term Power jumper.

Use jumpers as defined in the following table to set the SCSI ID.

SCSI ID

ID1 ID2 ID4

0 OFF OFF OFF 1 ON OFF OFF 2 OFF ON OFF 3 ONONOFF 4 OFF OFF ON 5 ON OFF ON 6 OFF ON ON

Iomega Jaz 1 GB SCSI Internal Drive (CDSK168)

The following figure shows the jumpers on the bottom of the drive.

Front

ID4 ID2 ID1

Powe r Connector

SCSI Connector

Device Connector Cable Connects to

Power P3; P5-P9 Power supply SCSI MCBL254A J40, system board

The drive is not terminated and requires external termination only if installed as the last device on the SCSI chain.

Use jumpers as defined in the following table to set the SCSI ID. The factory default address is SCSI ID 5.

SCSI ID

ID1 ID2 ID4

0 OFF OFF OFF 1 ON OFF OFF 2 OFF ON OFF 3 ONONOFF 4 OFF OFF ON 5 ON OFF ON 6 OFF ON ON

40 GB 8 MM Tape Drive (CMTP169)

The following figure shows the back of the tape drive.

ID2

ID1

ID0

Device Connector Cable Connects to

Power P3; P5-P9 Power supply SCSI MCBL254A J40, system board

SCSI termination is permanently disabled.

Use jumpers as defined in the following table to set the SCSI ID.

SCSI ID

ID0 ID1 ID2

0 OFF OFF OFF 1 ON OFF OFF 2 OFF ON OFF 3 ONONOFF 4 OFF OFF ON 5 ON OFF ON 6 OFF ON ON

Floppy Disk Drive (CDSK146)

SCSI Connector

Power Connector

The following figure shows the cable connectors on the back of the floppy disk drive.

Power Connector

Floppy Data Connector

Device Connector Cable Connects to

Power P3 Power supply Data MCBL194A J18, system board

Disk Drives

You can use either of the following SCSI disk drives in the system:

Part Number

RPM Capacity Type

CDSK167 10,000 4.3 GB RAID CDSK166 10,000 9.1 GB RAID CDSK153 7,200 4.3 GB Non-RAID

The following figure shows the jumper connectors J2 and J6 on the non-RAID 4.3 GB disk drive. Remove the drive from its bracket to access J2.

ID 1 ID 2 ID 4 ID 8

SCSI Connector

SCSI Pin 1

Power Connector

Device Connector Cable Connects to

Power P3; P5-P9 Power supply SCSI MCBL254A J40, System board

To disable SCSI termination, remove the TE jumper from connector J2. To enable parity, remove the PD jumper from connector J2. For optimum performance, remove all jumpers from J2.

Use jumpers as defined in the following table to set the SCSI ID.

SCSI ID

0 OFF OFF OFF OFF 4 OFF OFF ON OFF 1 ON OFF OFF OFF 5 ON OFF ON OFF 2 OFF ON OFF OFF 6 OFF ON ON OFF 3 ON ON OFF OFF

ID1 ID2 ID4 ID8 SCSI ID ID1 ID2 ID4 ID8

7 Power Supply and Cooling Fans

This chapter describes the power supply, power-related pinouts, and cooling fans.

Power Supply

MPWS152 is a 500-watt autoranging supply. It switches between 90-132 VAC or 180-264 VAC, depending on the location. The input frequency is 47-63 Hz, single phase. At full load, the power supply has a minimum efficiency of 65 percent.

When you connect AC power to the system, the computer is powered in its lowest “trickle” power state, even though the fans do not run and the LEDs do not glow. In this respect, the InterServe 80 is always powered on.

An interlock switch turns off input voltage to the power supply when the side panel is removed. A tab on the left end of the left side panel closes the switch when the panel is correctly installed on the system.

The power supply contains no user- or field-serviceable parts. You must install a new power supply if an internal component, such as the fan or interlock switch, is defective. See Chapter 2 for instructions to replace the power supply.

The following table details the DC output specifications for the power supply.

Outputs

Unit

1 2 3 4 5 6

Nominal Output Voltages

Continuous Load (Maximum)

Continuous Load (Minimum)

1, 5

Noise and Ripple (PARD) (DC to 30 MHz)

Regulation Line/Load

2, 5

Overshoot (Turn on/off)

+3.3

3, 4

220000 ADC

50 50 100 250 100 50 mVp-p

5% 5% 10% 10% 10% 5% Max

+5.0

3, 4

+12.0

−

12.0

−

5.0

5 V AO

0.5 0.5 1 ADC

VDC

Max

10%

Max

The following notes apply:

1. Power supply should meet or exceed these specifications.

2. The maximum combined continuous load of all outputs shall not exceed 500 Watts.

3. The maximum combined continuous load of the +5.0V and +3.3V outputs shall not exceed 385

Watts.

4. The +12 V output must be able to supply a peak current of 17 amps for 30 seconds.

5. Current will always be flowing from the +12V (or −12V) output to the fans.

6. The 5V AO (Always On) output remains ON with the AC input power connected, whether the

power supply DC outputs are disabled (OFF) or enabled (ON) by the power-up circuitry.

Cable Connectors

The following table lists the cable connectors from the power supply that connect to the system board and other devices.

P1 Pinout

Connector

P1 J34 on System board P2 J38 on System board P3 Disk Drive P4 Floppy disk or Combo drive Daisy chained from P3 P5 Disk Drive P6 Disk Drive Daisy chained from P5 P7 Disk Drive P8 Disk Drive P9 Disk Drive Daisy chained from P8 P10 Power Supply Fan Connects to J39

P1 connects to J34, a 20-pin connector on the system board.

Signal Wire Color Pin Signal Wire Color

1 +3.3V Orange 11 +3.3V/+3.3V sense Orange/Brown 2 +3.3V Orange 12 -12V Blue 3 Ground Black 13 Ground/3.3V sense Black/Black 4 +5V Red 14 Remote On Green 5 Ground Black 15 Ground Black 6 +5V Red 16 Ground Black 7 Ground Black 17 Ground Black 8 Powergood Gray 18 -5V White 9 No connection — 19 5V Red

10 +12V Yellow 20 5V Red

Device Notes

P2 Pinout

P2 connects to J38, a 22-pin connector on the system board.

Signal Wire Color Pin Signal Wire Color

1 +3.3V Orange 12 +3.3V Orange 2 +3.3V Orange 13 Ground Black 3 Ground Black 14 Ground Black 4 Ground Black 15 Ground Black 5 +5V Red 16 +5V Red

Pin Signal Wire Color Pin Signal Wire Color

6 +5V Red 17 Ground Black 7 Ground Black 18 +5V Red 8 +5V Red 19 Ground Black 9 Ground Black 20 Ground Black 10 5V Standby Purple 21 Ground Black 11 +5V Red 22 +5V Red

P3 and P5 - P9 Pinout

Pin Signal Wire Color

1 +12V Yellow 2 Return Black 3 Return Black 4 +5V Red

P4 Pinout

Pin Signal Wire Color

1 +5V Red 2 Return Black 3 Return Black 4 +12V Yellow

Cooling Fans

The system has three cooling fans. One is inside the power supply; the others are mounted in the chassis. All fans are 12 VDC. The fans pressurize the chassis and force warm air out the vents. The table below summarizes fan information.

Fan

Chassis Fan 1 120 mm Top rear Back-to-front Processors, drives J5, System board Chassis Fan 2 120 mm Bottom front Front-to-back Option cards J54, System board Power supply 92 mm Power supply Back-to-front Power supply J39, System board

The two chassis fans (CFAN120) are field replaceable. Refer to Chapter 2 for instructions to replace the chassis fans. The power supply fan is not field replaceable. If the fan requires replacement, you must replace the power supply.

Size Location Airflow Devices Cooled Connector

See Chapter 5 for connector locations and fan cable pinouts.

Arrows on each fan indicate airflow direction and rotation, as shown:

Rotation

Side view of fan

Airflow

If you replace a chassis fan, ensure that you install the fan with the airflow direction arrow pointing toward the inside of the chassis.

Refer to Chapter 4 for information about fan speed control.

Index

40 GB 8 MM tape drive (CMTP169),

AC safety interlock

function of, 2

Accessing

components behind the power

supply, 3

internal components, 1 Addresses (memory), 57 Airflow direction and fan rotation, 70 Assigning resources for option cards,

Cable

length for external SCSI drives, 35

quality for external SCSI devices,

system board routing and pinouts,

Cable connectors

power supply (MPWS152), 68 Case

closing after service, 3

components, 6

opening for service, 2

replacing door assembly, 7

replacing face panel, 8

replacing hinge rails, 8

replacing side plastic cowling, 9

replacing top cover, 6 CD-ROM drive

replacing, 10 Chassis fans

replacing, 21 Chassis intrusion alarm switch

(CWSX308)

replacing, 22 Closing case after service, 3 Combo controller, 40 Component list

system board, 40

Components

case, 6 Configuration data, 56 Configuration summary

system, 39 Configuring peripherals, 59 Cooling fans, 69 CPU frequency jumpers, 51 Crystal CS4237B sound controller, 40

Daisy chained power supply cables, 68 DC output specifications

power supply (MPWS152), 67 Diagram of external ports, 52 Diagram of system board, 45 DIMMs

replacing, 18 Disk drives, 65 DMA channels, 56 Document

conventions, vii Door assembly replacement, 7 Dynamic fan speed control, 42

EIDE cable (MCBL252A) connection

locations, 60 EIDE CD-ROM drive (CDSK177), 61 EIDE Controller, 40 Electrostatic discharge

protecting against, 1 Ethernet controller, 40 Ethernet port

pinout, 54 External bay disk drives

installing, 31

replacing, 11 External ports diagram, 52 External SCSI drives

adding, 35 External SCSI terminator (MSMT283)

replacing, 15 External Ultra SCSI port

pinout, 55

External Wide Ultra SCSI cable

(MCBL255A) connection locations, 60

External Wide Ultra SCSI port

pinout, 56

Face panel replacement, 8 Fans

airflow direction and rotation, 70 dynamic speed control, 42 power supply, 69

Fans (CFAN120)

system, 69 Fastex fasteners on system board, 19 Floppy cable (MCBL067A) connection

locations, 61

Floppy disk drive

replacing, 10 Floppy disk drive (CDSK146), 64

Graphics cards

upgrading, 29

Hardware

optional, 44

overview and specifications, 39 Hardware monitoring

dynamic fan speed control, 42

features, 41

intrusion alert switch, 42

power states, 42

temperature sensors, 42 Hinge rails

replacing, 8 Host adapter (SCSI)

changing settings, 37 Host-to-PCI bridge, 40

ID guidelines for SCSI devices, 36 Information

additional system, vii Input/output (I/O) addresses, 57 Installing

external bay disk drives, 31

internal bay disk drives, 33

option cards, 29

Internal bay disk drives

installing, 33 replacing, 13

Internal SCSI drives

adding, 30

Internal Ultra SCSI cable

(MCBL253A) connection locations, 60

Internal Wide Ultra SCSI cable

(MCBL254A) connection locations,

59 Interrupt lines, 58 Interrupt mapping, 57 Interrupt request (IRQ) assignments, 58 Iomega Jaz 1 GB SCSI internal drive

(CDSK168), 63 IRQs (interrupt requests), 58 ISA option cards, 28

Jumpers on system board, 51

Keyboard

port pinout, 52

LED power indicator, 42 LEDs

replacing, 23

Light pipe

replacing, 23

Lithium battery

replacing, 22

Locations of peripherals, 30

Memory

adding, 25 Memory address map, 57 Model number, 43 Monitoring

voltages and system states, 41 Mouse

port pinout, 52 MPWS152 (500 Watt power supply),

MSMT283 (external SCSI terminator)

replacing, 15 MSMT379 processor bus termination

card, 17

MSMT497 system board, 45

Non-compliant PCI option cards, 28

Opening case for service, 2 Option cards

adding, 27 installing, 29 replacing, 20 slot location diagram, 28

Optional hardware, 44

P1 pinout

power supply connector, 68

P2 pinout

power supply connector, 68

P3 and P5 - P9 pinout

peripheral disk power supply

connectors, 69

P4 pinout

floppy disk power supply

connector, 69

Parallel port

pinout, 53 Password clear jumper, 51 PCI option cards, 28 PCI to ISA bus interrupt mapping, 57 PCI-to-ISA bridge, 40 Peripherals, 59

40 GB 8 MM tape drive

(CMTP169), 64 cables, 59 configuring, 61 device locations, 30 disk drives, 65 EIDE cable (MCBL252A)

connection locations, 60 EIDE CD-ROM drive (CDSK177),

61 External Wide Ultra SCSI cable

(MCBL255A) connection

locations, 60 Floppy cable (MCBL067A)

connection locations, 61 floppy disk drive (CDSK146), 64 Internal Ultra SCSI cable

(MCBL253A) connection

locations, 60 Internal Wide Ultra SCSI cable

(MCBL254A) connection

locations, 59

Peripherals (Continued)

Iomega Jaz 1 GB SCSI internal

drive (CDSK168), 63 replacing, 10 SCSI CD recorder (CDSK133), 62

PIRQ, 57 PnP option cards, 28 Ports

external (diagram), 52

Power management, 41 Power states, 42 Power supply (MPWS152), 67

AC safety interlock, 2 accessing components behind, 3 cable connectors, 68 fan, 69 pinouts (P1), 68 pinouts (P2), 68 pinouts (P3, P5-P9), 69 pinouts (P4), 69 replacing, 16 stowing after service, 4

Primary slots for option cards, 28 Processor, 40

adding, 27

Processor bus termination card

replacing, 17

Processor module, 27

replacing, 17

Protecting against electrostatic

discharge, 1

Replacing

bottom chassis fan, 21 CD-ROM drive, 10 chassis fans, 21 chassis intrusion alarm switch, 22 DIMMs, 18 door assembly, 7 external bay disk drives, 11 external SCSI terminator, 15 face panel, 8 floppy disk drive, 10 hinge rails, 8 internal bay disk drives, 13 LEDs, 23 light pipe, 23 lithium battery, 22 option cards, 20 power supply, 16 processor bus termination card, 17

Replacing (Continued)

processor module, 17 side plastic cowling, 9 standby switch, 23 system board, 19 top chassis fan, 21 top cover, 6 voltage regulator module (VRM),

SCSI

cable lengths, 35 cable quality, 36 changing host adapter settings, 37 connecting external drive, 36 controller, 40 determining IDs from startup

screen, 36 ID guidelines, 36 replacing external terminator, 15 termination guidelines, 36

SCSI CD recorder (CDSK133), 62 SCSI Configuration Utility

using to change host adapter

settings, 37

SCSI termination jumper, 51 Secondary slots for option cards, 28 Serial port

(COM 2) pinout, 50 external port pinout, 53

Side plastic cowling replacement, 9 Single-to-dual processor upgrade, 27 Slot location diagram for option cards,

Sound controller, 40

features, 40

Sound controller, 40 Specifications, 39, 44 Standby switch

replacing, 23

Stowing power supply, 4 System

accessing internal components, 1 additional information, vii

System (Continued)

assigning resources, 29 BIOS, 40 configuration summary, 39 fans (CFAN120), 69 hardware overview and

specifications, 39 illustrations, 5, 6 model number, 43 replacing the board, 19 servicing, 5 specifications, 44 tools required for maintenance, 1 upgrading, 25

System board

cable routing and pinouts, 46 component list, 40 diagram of slots and sockets, 45 external ports (diagram), 52 jumpers, 51 MSMT497, 45 sound controller specifications, 40

System Configuration Utility

assigning system resources for

option cards, 29

Temperature sensors, 42 Termination guidelines for SCSI

devices, 36

Terminator (MSMT283)

replacing, 15

Tools needed for servicing system, 1 Top cover replacement, 6

Universal Serial Bus Ports, 40

pinout, 54

Upgrading

graphics cards, 29

Voltage regulator module (VRM)

replacing, 18

Intergraph InterServe 80 Reference

Specifications and Main Features

Frequently Asked Questions

User Manual

Warranties and Liabilities

Copyright

Restricted Rights Legend

Trademarks

Warnings

Notes

Contents

Introduction

Document Conventions

Additional System Information

1 Accessing the System

Tools

Protecting Against Electrostatic Discharge

Opening and Closing the Case

A ccessing Component s Behind the Power Supply

2 Servicing the System

System Illustrations

Case Components

Peripheral Drives

Floppy Disk Drive

CD-ROM Drive

External Bay Disk Drives

Internal Bay Disk Drives

External SCSI Terminator

Power Supply

Processor Bus Termination Card

Processor Module

Voltage Regulator Module (VRM)

DIMMs

System Board

Option Cards

Chassis Fans

Chassis Intrusion Alarm Switch

Lithium (CMOS/Clock) Battery

LEDs, Light Pipe, and Standby Switch

3 Upgrading the System

Adding Memory

Adding a Processor

Adding Option Cards

Slot Locations

Upgrading Graphics Cards

Installing Option Cards

Assigning System Resources

Adding Internal SCSI Drives

Device Locations

Installing Devices in the Drive Bays

Adding External SCSI Drives

SCSI Cable Length Guidelines

SCSI Cable Quality Guidelines

SCSI ID Guidelines

SCSI Termination Guidelines for External Devices

Connecting the Drive

Changing SCSI Host Adapter or Device Settings

System Configuration Summary

System Board

Sound Controller

Hardware Monitoring and Power Management

Power States

Intrusion Alert Switch

Temperature Sensors

Dynamic Fan Speed Control

System Model Number

Specifications

Optional Hardware

5 System Board

Slots and Sockets

Cable Routing and Pinouts

Jumper Connectors

External Ports

Keyboard, Mouse

Serial

Parallel

Ethernet

Universal Serial Bus

External Ultra SCSI

External Wide Ultra SCSI
