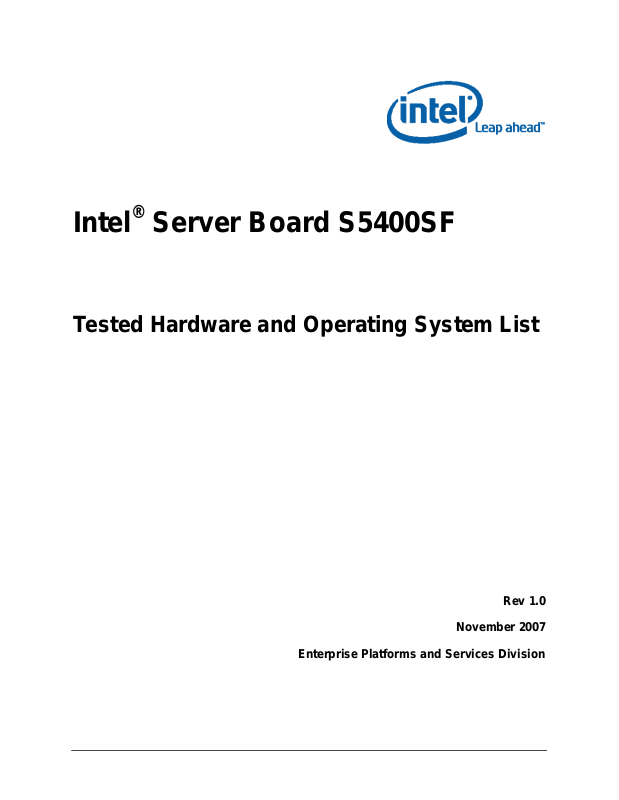

Intel® Server Board S5400SF

Tested Hardware and Operating System List

November 2007

Enterprise Platforms and Services Division

Rev 1.0

Revision History Intel® Server Board S5400SF

Revision History

Revision

Date

November 2007 1.0 Initial Release

Number Modifications

Rev 1.0

Intel® Server Board S5400SF Disclaimers

Disclaimers

THE INFORMATION IN THIS DOCUMENT IS PROVIDED “AS IS” WITH NO WARRANTIES WHATSOEVER, INCLUDING ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR ANY PARTICULAR PURPOSE, OR ANY WARRANTY OTHERWISE ARISING OUT OF ANY PROPOSAL, SPECIFICATION, OR SAMPLE.

Information in this document is provided in connection with Intel estoppel or otherwise, to any intellectual property rights is granted by this document. Except as provided in Intel’s Terms and Conditions of Sale for such products, Intel assumes no liability whatsoever, and Intel disclaims any express or implied warranty, relating to sale and/or use of Intel products including liability or warranties relating to fitness for a particular purpose, merchantability, or infringement of any patent, copyright or other intellectual property right. Intel products are not intended for use in medical, life saving, or life sustaining applications.

Intel retains the right to make changes to its test specifications at any time, without notice.

The hardware vendor remains solely responsible for the design, sale and functionality of its product, including any liability arising from product infringement or product warranty.

Intel, the Intel logo, and EtherExpress are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

Other names or brands may be claimed as the property of others.

products. No license, express or implied, by

Rev 1.0

iii

Table of Contents Intel® Server Board S5400SF

Table of Contents

1. Introduction ..........................................................................................................................1

1.1 Test Overview..........................................................................................................1

1.1.1 Basic Installation Testing.........................................................................................1

1.1.2 Adapter / Peripheral Compatibility and Stress Testing............................................2

1.2 Pass/Fail Test Criteria .............................................................................................3

2. Intel® Server Board S5400SF Base System Configurations.............................................4

3. Supported Operating Systems............................................................................................5

3.1 Operating System Certifications..............................................................................7

4. Adapters and Peripherals....................................................................................................8

4.1 PCI NIC....................................................................................................................9

4.2 PCI HW RAID SAS..................................................................................................9

4.3 PCI Fiber Channel...................................................................................................9

4.4 Video......................................................................................................................10

4.5 Infiniband...............................................................................................................10

4.6 CD ROM Drives.....................................................................................................10

4.7 DVD Drives............................................................................................................11

4.8 Input.......................................................................................................................11

4.9 Removable Media..................................................................................................11

5. Hard Disk Drives.................................................................................................................13

Rev 1.0

Intel® Server Board S5400SF Introduction

1. Introduction

This document is intended to provide users of the Intel® Server Board S5400SF with a guide to the different operating systems, adapter cards, and peripherals tested by Intel on this platform.

This document will continue to be updated as new adapters, peripherals, and operating systems are tested, or until the Intel release of the document will present updated information as well as information from previous releases.

Intel will only provide support for adapters and peripherals under the specified system configuration (system BIOS and firmware revisions) and tested operating systems versions.

Server Board S5400SF is no longer in production. Each new

1.1 Test Overview

Testing performed on the Intel® Server Board S5400SF is classified as either basic installation testing, or adapter / peripheral compatibility and stress testing.

1.1.1 Basic Installation Testing

Basic installation testing is performed with each supported operating system. Basic installation testing validates that the operating system can be installed on the system correctly and that the base hardware feature set is functional. A small set of peripherals is used for installation purposes only. No add-in adapter cards are tested. On-board RAID is not tested during basic installation testing. suites are run.

✏

Network connectivity is tested, and proprietary and industry standard test

The latest version of an operating system signifies the latest supported version at the time of the test run. Each new release of this document may list a newly supported release of a given operating system. Previous releases of a supported operating system may not be tested beyond the basic installation test process.

1.1.1.1 Support Commitment for Basic Installation Testing

Intel commits to provide the following level of customer support for operating systems that receive only basic installation testing:

• Intel will provide tested operating system drivers for each of the server board’s

integrated controllers, provided that the controller vendor has a driver available. Vendors are not required by Intel to develop drivers for operating systems that they do not already support. This may limit the functionality of certain server board integrated controllers.

• Intel will provide support to customers who experience issues with the integrated

controllers on the server board due to the installation or functionality of the operating system if a driver is available.

Rev 1.0

Introduction Intel® Server Board S5400SF

• Intel will not provide support for issues related to the use of add-in adapters or

peripherals installed in a server system with an operating system that received only basic installation testing.

• Support is defined as helping a customer to root cause an issue and determining an

acceptable resolution to the problem. The resolution may include, but is not limited to, on-board controller driver updates, engaging the vendor, BIOS changes, firmware changes, or determining an acceptable workaround for the issue with the customer.

1.1.2 Adapter / Peripheral Compatibility and Stress Testing

Adapter / peripheral compatibility and stress testing is performed only on the most current release of a supported operating system at the time of a given validation run. The adapter / peripheral compatibility and stress testing process consists of three areas: base platform, adapter compatibility, and stress.

Base Platform: Each base platform will successfully install a given operating system, successfully run a disk stress test, and successfully run a network stress test.

Adapter Compatibility: Adapter compatibility validation (CV) testing uses test suites to gain an accurate view of how the server performs with a wide variety of adapters under the primary supported operating systems. These tests are designed to check hardware compatibility between the cards and the server platform and include functional testing only. CV testing does not include heavy stressing of the systems or the cards.

Stress Testing: This test sequence uses configurations with add-in adapters installed in all available slots (depending on the chassis used) and run for a minimum of 72-hours without errors. Each configuration passes an installation test, a network/disk stress test, and a tape backup test. Any fatal errors that occur require a complete test restart.

1.1.2.1 Support Commitment for Adapter / Peripheral Compatibility and Stress Testing

Intel is committed to providing the following level of customer support for operating systems that receive adapter / peripheral compatibility and stress testing:

• Intel will provide support to customers who experience operating system issues when

installing or using the server board whether or not the adapters and peripherals listed in this document have been tested with that specific operating system.

• Support is defined as helping a customer to root cause an issue and determining an

• Intel will provide tested operating system drivers for each on-board video, network, and

storage controller.

• Intel will enable vendors to provide driver support for add-in adapters using these

operating systems.

• Intel will complete selected certification steps to ensure customers do not experience

problems; however, obtaining the certification is the responsibility of the individual customer.

Rev 1.0

Intel® Server Board S5400SF Introduction

There is no support commitment for operating systems, adapter cards, and

✏

peripherals not listed in this document. Intel will consider requests for support on a case-by-case basis.

1.2 Pass/Fail Test Criteria

For each operating system, adapter, and peripheral configuration, a test passes when specific criteria are met. There may be exceptions for some configurations with a particular characteristic. These exceptions will be addressed on a case-by-case basis. In general, a configuration passes testing if the following conditions are met:

• The operating system installed without error.

• Manufacturer’s installation instructions or Intel’s best-known methods were used for the

operating system installation.

• No extraordinary workarounds were required during the operating system installation.

• The server system behaved as expected during and after the operating system

installation.

• Application software installed and executed normally.

• Hardware compatibility tests ran to completion without error.

• Test software suites executed successfully

• Test and data files were created in the correct directories without error.

• Files copied from client to server and back match the original with zero errors.

• Clients remain connected to the server system.

• Industry standard test suites run to completion with zero errors.

All Intel SR1560SF.

Rev 1.0

Server Board S5400SF testing was performed using the Intel® Server System

Intel® Server Board S5400SF Base System Configurations Intel® Server Board S5400SF

2. Intel® Server Board S5400SF Base System

Configurations

The following table lists the base system configurations tested. Base system configurations will change as new revisions of the Intel

Server Board S5400SF are released and/or new system BIOS and BMC firmware are cut onto the board in the factory. Each base system configuration is assigned a number that is referenced in the tables throughout this document. New base system configurations are added with each new release of this document.

✏

system configuration and with the tested operating system version installed.

Intel only provides support for adapters and peripherals in the specified base

Base System Configuration

Identifier #

1 S5400SF D87491-401 R0018 SFBMC06 FSF_06

2 S5400SF D87491-401 R0019 SFBMC07 FSF_07

3 S5400SF D87491-402 R0018 SFBMC06 FSF_06

4 S5400SF D87491-402 R0019 SFBMC07 FSF_07

Board

Type

PBA

Number

BIOS

Revision

BMC

Firmware

Revision

HSBP

Firmware

Revision

Notes

Rev 1.0

Intel® Server Board S5400SF Supported Operating Systems

3. Supported Operating Systems

The following table provides a list of supported operating systems for the Intel® Server Board S5400SF. Each of the listed operating systems was tested for compatibility with Intel

Server Board S5400SF base system configuration listed in Section 2 of this document. Operating systems are supported only with the specified base system configuration(s) they were tested with.

The table below also indicates whether each operating system received basic installation testing or adapter / peripheral compatibility and stress testing. For information on the support commitments for basic installation testing vs. adapter / peripheral compatibility and stress testing, please reference Section 1 of this document.

Any variations to the standard operating system installation process are documented in the Installation Guidelines section of this document. If there are no installation guidelines noted in the following table, then the operating system installed as expected using the manufacturer’s installation instructions or Intel’s best-known methods.

✏

LANDesk* Client Manager software may be different than the operating systems supported by the Intel

Server Board S5400SF. Please refer to the

Readme and User Guide documents that are included as part of each Intel

Operating systems supported by Intel® Server Management software or

Server Management and LANDesk* Client Manager package for supported operating systems.

Operating System

Microsoft Windows Server 2003* SP2 32 bit

Microsoft Windows Server 2003* SP2 64 bit

Red Hat* Enterprise Linux AS 5.0 32 bit

Base System Configuration

Tested & Type of Testing

Configuration 1 – OS installation & Stress

Configuration 2 - Stress Configuration 4 – OS

installation & Compatibility Configuration 1 – OS

installation & Stress Configuration 2 - Stress

Configuration 4 – OS installation & Stress

Configuration 1 – OS installation & Stress

Configuration 2 – OS installation

Configuration 3 –Stress Configuration 4 –

Compatibility

Notes

Testing was completed with Microsoft Windows Server 2003*. The Intel Board S5400SF supports the operating system portion of Microsoft Windows Server 2003* SP2 32 bit only. The application portion is not tested or supported.

Testing was completed with Microsoft Windows Server 2003*. The Intel Board S5400SF supports the operating system portion of Microsoft Windows Server 2003* SP2 64 bit only. The application portion is not tested or supported.

Testing was completed with Red Hat* Enterprise Linux AS 5.0 32 bit. The Intel Server Board S5400SF supports the operating system portion of Red Hat* Enterprise Linux AS 5.0 32 bit only. The application portion is not tested or supported.

Server

Rev 1.0

Supported Operating Systems Intel® Server Board S5400SF

Operating System

Red Hat* Enterprise Linux AS 5.0 64 bit

SUSE* Linux Enterprise Sever 10 SP1 32 bit

SUSE* Linux Enterprise Sever 10 SP1 64 bit

Base System Configuration

Tested & Type of Testing

Configuration 1 – OS installation & Stress

Configuration 2 – OS installation

Configuration 1 – OS installation & Stress

Configuration 2 – OS installation

Configuration 3–Stress Configuration 4 –

Compatibility Configuration 1 – OS

installation Configuration 2 – OS

installation & Stress Configuration 4 – Stress

Notes

Testing was completed with Red Hat* Enterprise Linux AS 5.0 64 bit. The Intel Server Board S5400SF supports the operating system portion of Red Hat* Enterprise Linux AS 5.0 64 bit only. The application portion is not tested or supported.

Testing was completed with SUSE* Linux Enterprise Sever 10 SP1 32 bit. The Intel Server Board S5400SF supports the operating system portion of SUSE* Linux Enterprise Sever 10 SP1 32 bit only. The application portion is not tested or supported.

Testing was completed with SUSE* Linux Enterprise Sever 10 SP1 64 bit. The Intel Server Board S5400SF supports the operating system portion of SUSE* Linux Enterprise Sever 10 SP1 64 bit only. The application portion is not tested or supported.

Rev 1.0

Intel® Server Board S5400SF Supported Operating Systems

3.1 Operating System Certifications

Listed below are the operating systems certified with the Intel® Server Board S5400SF. Each customer is responsible for their own certification from the individual operating system vendors. In many cases, the customer may leverage their operating system certifications from the testing completed by Intel. See the comments column in the table below for more information. Intel’s certifications, pre-certification, and operating system testing might make it easier to obtain customer certifications from the operating system vendors.

Operating System Certification Listing Comments

TBD

Rev 1.0

Adapters and Peripherals Intel® Server Board S5400SF

4. Adapters and Peripherals

Add-in adapter card and peripheral compatibility and stress testing will only be performed with the latest version of an operating system available at the time of testing. The following table shows the operating system and base system configurations used to validate each device. The adapters are divided into categories based on their functionality. All integrated on-board devices are tested by default and are therefore not included in the following tables.

Not all adapter cards were tested with all operating systems. The following notation is used in the tested adapters and peripherals table below to indicate the support level that Intel provides for a particular adapter under a particular operating system:

This adapter or peripheral has been tested and is supported under the specific

Number (i.e. 1)

Number in brackets (i.e. [1])

configuration identified in the Base System Configurations Table in Section 2 of this document.

This adapter or peripheral has been tested, but is NOT supported under the specific configuration identified in the Base System Configurations Table in Section 2 of this document.

SA (Similar Adapter)

This adapter or peripheral has not been tested under this operating system and is not supported under this operating system.

This adapter or peripheral has not been tested under this operating system due to limitations in IHV driver availability, and is not suported under this operating system.

This adapter is supported, but has not been tested with this server board. Intel will support the adapter based on successful testing of a similar product from the same adapter family. Intel has high confidence that this adapter will function correctly with the server board. This adapter uses the same firmware and drivers, and has a nearly identical system interface to another adapter of the same family that has been successfully tested with this server board. In addition, Intel has secured IHV commitment to support the similar adapter equally. Customers should always test an adapter as part of the final system configuration prior to deployment. All installation guidelines for the tested adapter also apply to the similar adapter.

Any variations to the standard adapter installation process or to expected adapter functionality are documented in the Installation Guidelines section of this document. If there are installation guidelines affecting a particular adapter and operating system combination, these are referenced in the following table. If there are no installation guidelines noted in the following table, then the adapter installed and functioned as expected using manufacturer’s installation instructions or Intel’s best-known methods.

✏

board controller expansion ROMs disabled in BIOS setup. Intel recommends

Adapters cards are normally tested with the unused add-in adapters and onthat customers disable the option ROM for add-in controllers and/or the on-

board controllers when not booting from the controller or using the built in utilities.

Rev 1.0

Intel® Server Board S5400SF Adapters and Peripherals

Manufacturer Model Name Model Number Interface Comments

Microsoft

Windows Server

Microsoft

2003* SP2 32 bit

Windows Server

Red Hat*

2003* SP2 64 bit

Red Hat*

AS 5.0 32 bit

Enterprise Linux

AS 5.0 64 bit

Enterprise Linux

SUSE* Linux

10 SP1 32 bit

Enterprise Sever

4.1 PCI NIC

SUSE* Linux

10 SP1 64 bit

Enterprise Sever

Syskonnect SK-9E22 SK-9E22 PCI

Express*

Intel Intel® PRO/1000 PT

Server Adapter

Intel Intel® PRO/1000 PF

Server Adapter

Intel Intel® PRO/1000 PT

Server Adapter

Intel Intel® PRO/1000 PT

Dual Port Server Adapter

Intel Intel® PRO/1000 PF

Dual Port Server Adapter

EXPI9400PT PCI

Express*

EXPI9400PF PCI

Express*

EXPI9300PT PCI

Express*

EXPI9402PT PCI

Express*

EXPI9402PF PCI

Express*

4.2 PCI HW RAID SAS

Intel Intel® RAID Controller

SRCSAS144E

SRCSAS 144E PCI

Express*

4.3 PCI Fiber Channel

LSI Logic LSI7204EP-LC LSI7204EP-LC PCI

Express*

LSI Logic LSI7104EP-LC LSI7104EP-LC PCI

Express*

LSI Logic LSI7404EP-LC LSI7404EP-LC PCI

Express*

Emulex LP10000ExDC LP10000ExDC-M2 PCI

Express*

4 4 [4] [4] [4] [4] 4 SA SA SA SA SA SA SA SA SA SA SA SA 4 4

SA SA SA SA SA SA

4 4 4 4 4 4

SA SA SA SA SA SA

4 4 4 4 4 4

4 4 4

4 4

Rev 1.0

Adapters and Peripherals Intel® Server Board S5400SF

Manufacturer Model Name Model Number Interface Comments

Emulex LP10000Ex LP10000Ex-M2 PCI

Express*

Qlogic QLE2462 QLE2462 PCI

Express*

Qlogic QLE2460 QLE2460 PCI

Express*

Microsoft

Windows Server

SA SA SA SA SA SA

4 4 4 4 4 4 SA SA SA SA SA SA

Microsoft

2003* SP2 32 bit

Windows Server

Red Hat*

2003* SP2 64 bit

Red Hat*

AS 5.0 32 bit

Enterprise Linux

AS 5.0 64 bit

Enterprise Linux

SUSE* Linux

10 SP1 32 bit

Enterprise Sever

4.4 Video

SUSE* Linux

10 SP1 64 bit

Enterprise Sever

ASUS ATI X1300 EAX1300/TD/256M PCI

Express*

ATI ATI X1300(R515) X1300 PCI

Express*

4 4 [4] [4] [4] [4]

SA SA SA SA SA SA

4.5 Infiniband*

Mellanox Infinihost* III Ex MHGA28-XTC PCI

Express*

Mellanox Infinihost* III Ex MHGA28-1TC PCI

Express*

Mellanox Infinihost* III Ex MHEA28-XTC PCI

Express*

Mellanox Infinihost* III Ex MHEA28-1TC PCI

Express*

Voltaire HCA 4X0 400Ex PCI

Express*

Voltaire HCA 4X0 400Ex-D PCI

Express*

4 4 4 4 4 4

SA SA SA SA SA SA

4.6 CD ROM Drives

Samsung SN-124P SN-124P IDE/Slimline 4 4 4 4 4 4

Rev 1.0

Intel® Server Board S5400SF Adapters and Peripherals

Manufacturer Model Name Model Number Interface Comments

Microsoft

Windows Server

TEAC CD-224E-NZ3 CD-224E-NZ3 IDE/Slimline 4 4 4 4 4 4

Microsoft

2003* SP2 32 bit

Windows Server

Red Hat*

2003* SP2 64 bit

Red Hat*

AS 5.0 32 bit

Enterprise Linux

AS 5.0 64 bit

Enterprise Linux

SUSE* Linux

10 SP1 32 bit

Enterprise Sever

4.7 DVD Drives

SUSE* Linux

10 SP1 64 bit

Enterprise Sever

Iomega Super DVD Writer

16x16 Dual Layer HLDS GWA-4082N GWA-4082N IDE/Slimline 4 4 4 4 4 4 TEAC DV-224E-C93 DV-224E-C93 IDE/Slimline 4 4 4 4 4 4

TEAC DV-224E-C83 DV-224E-C83 IDE/Slimline 4 4 4 4 4 4 TEAC DV-28EN83 DV-28EN83 IDE/Slimline 4 4 4 4 4 4 TEAC DV-28E DV-28E IDE/Slimline 4 4 4 4 4 4 Toshiba SD-R2212 SD-R2212 IDE/Slimline 4 4 4 4 4 4

Super DVD Writer 16x16 Dual Layer

IDE/Slimline 4 4 4 4 4 4

4.8 Input

Logitech G5 Laser mouse G5 Laser mouse USB 2.0 4 4 4 4 4 4

4.9 Removable Media

SanDisk Cruzer Mini USB

Flash TEAC FD-O5PUB FD-O5PUB USB 4 4 4 4 4 4

TEAC FD05PUW268 FD05PUW268 USB 4 4 4 4 4 4

TEAC FD005U396 FD005U396 USB 4 4 4 4 4 4 PNY Attache’ 2 GB P-FD02GU20 USB 2.0 4 4 4 4 4 4

SDCZ2-4096 USB 2.0 4 4 4 4 4 4

Memorex 1 GB Travel Drive 32509363 USB 2.0 4 4 4 4 4 4

Rev 1.0

Adapters and Peripherals Intel® Server Board S5400SF

Manufacturer Model Name Model Number Interface Comments

Sony VAIO USB floppy

Microsoft

Windows Server

VPG-UFD1 USB NT NT NT NT NT NT

Microsoft

2003* SP2 32 bit

Windows Server

Red Hat*

2003* SP2 64 bit

Red Hat*

AS 5.0 32 bit

Enterprise Linux

AS 5.0 64 bit

Enterprise Linux

SUSE* Linux

10 SP1 32 bit

Enterprise Sever

drive

SUSE* Linux

10 SP1 64 bit

Enterprise Sever

Rev 1.0

Intel® Server Board S5400SF Hard Disk Drives

5. Hard Disk Drives

A list of qualified hard drives for the Intel® Server Board S5400SF is now available in the Server Hard Drive Validation Test Report. See

http://www.intel.com/support/motherboards/server/sb/CS-025416.htm

Rev 1.0

Intel S5400SF User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
