Summary of Device Behaviors (Completed)
4
Exact LED Colors TBD pending testing. Inactive = no movement/no alerts received from paired phone.
Intel Confidential — Do Not Forward |
Summary of Device Behaviors (Planned)
5
Exact LED Colors TBD pending testing. Inactive = no movement/no alerts received from paired phone.
[By Beta. App must guide
user to do FW update]
Intel Confidential — Do Not Forward |

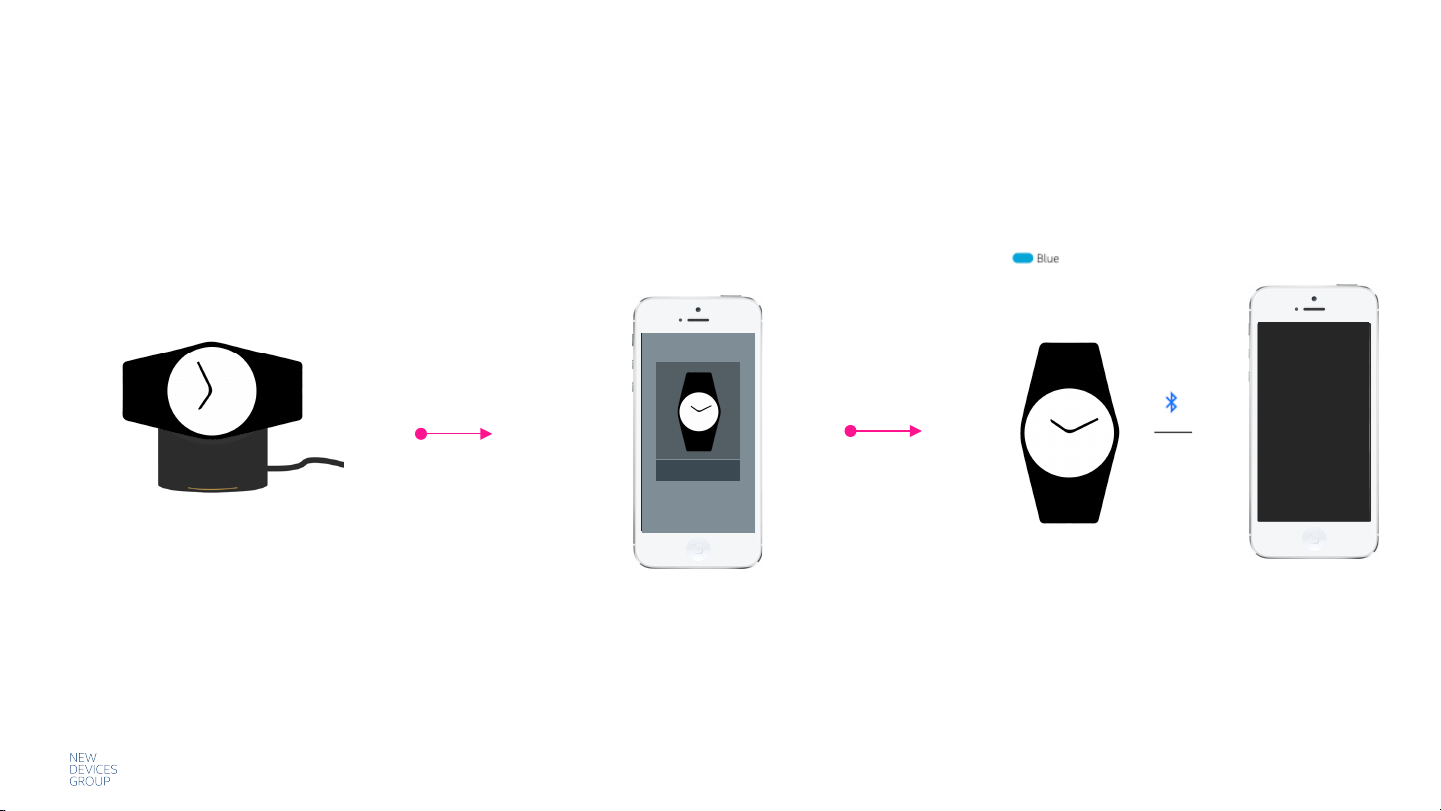

Bluetooth Advertising
6
Events that will make the Device advertise itself (30 seconds):
If the Device has not been paired with a phone
! The device is turned on
! The bluetooth pairing information is removed (via an 8-second button press)
! [Planned] The button is pressed once when the device is already turned on
If the Device has been paired with a phone
! The device is turned on
! A button press
! A recognized double or triple tap
! The BLE connection is interrupted
! The bluetooth pairing information is removed (via an 8-second button press)
! Periodically (~every 1s) to maintain a constant connection
! [Planned] When movement (accelerometer) occurs after device hasn’t moved in a given time TBD
More details in Clark/Lois BLE Behaviors document.
Intel Confidential — Do Not Forward |
Button Overview
7
Vibra Device turns off
Vibra
Vibra Vibra
Vibra
Vibra
Turn on / BLE Advertise
Device wipes
pairing info
Device goes to
recover mode
0 Sec 3 Sec 8 Sec 12 Sec
Button
Button
Button
Button
HW Reset
User releases button in response to vibra
User releases button in response to vibra
User releases button in response to vibra
Power On
Power Off
Wipe Pairing Info
Recovery Mode
(used rarely)
Note: If device is already powered on, pressing
the button will trigger BLE to advertise
Note: Currently, on release of the device button the haptic response is played. This
will be fixed so that the haptics play after the button is held for the specified time.
Hold button for 12s for recovery mode/hw reset until light feedback (exact pattern TBD)
Intel Confidential — Do Not Forward |
Debug Notifications!– Extra Lights You’re Experiencing
8
These occur along with the normal behaviors. They are temporary debugging codes
and will be removed before the Beta Field Trial.
Please see Device Release Notes for the most up to date debug notifications.
Intel Confidential — Do Not Forward |

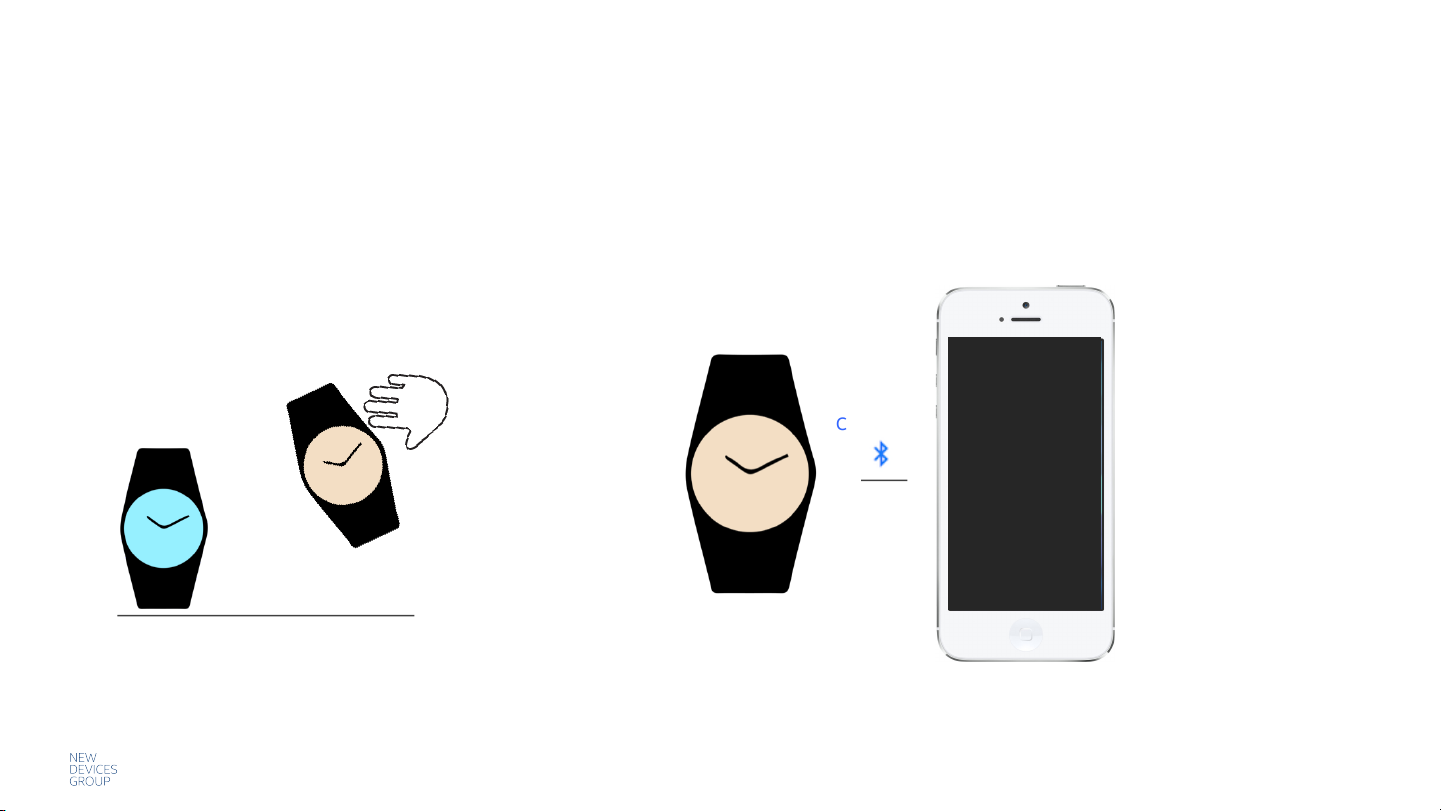

Tap Input
9
Pattern Error: Feedback if a tap not successfully sent to phone.
Buzz: 250ms LED: Red 5 Flicker (100ms On, 100ms Off)
Pattern Gestures: Blink feedback for two and 3 taps.
