Intel G03-NF9W-F Technical Manual

Technical Manual
Of
Intel Bay Trail Series CPU
Based Mini-ITX M/B
NO.G03-NF9W-F
Revision: 1.0
Release date: April 7, 2015
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
ii
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. To minimize
pollution and ensure environment protection of mother earth, please recycle.
iii
ENVIRONMENTAL SAFETY INSTRUCTION ...........................................................................iv
USER’S NOTICE .......................................................................................................................v
MANUAL REVISION INFORMATION .......................................................................................v
ITEM CHECKLIST .....................................................................................................................v
CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD
1-1 FEATURE OF MOTHERBOARD................................................................................1
1-2 SPECIFICATION .........................................................................................................2
1-3 LAYOUT DIAGRAM ....................................................................................................3
CHAPTER 2 HARDWARE INSTALLATION
2-1 JUMPER SETTING .....................................................................................................8
2-2 CONNECTORS AND HEADERS................................................................................13
2-2-1 CONNECTORS .............................................................................................13
2-2-2 HEADERS .....................................................................................................18
CHAPTER 3 INTRODUCING BIOS
3-1 ENTERING SETUP .....................................................................................................25
3-2 BIOS MENU SCREEN ................................................................................................26
3-3 FUNCTION KEYS .......................................................................................................26
3-4 GETTING HELP ..........................................................................................................27
3-5 MEMU BARS...............................................................................................................27
3-6 MAIN MENU ................................................................................................................28
3-7 ADVANCED MENU .....................................................................................................29
3-8 CHIPSET MENU..........................................................................................................39
3-9 SECURITY MENU .......................................................................................................42
3-10 BOOT MENU...............................................................................................................43
3-11 SAVE & EXIT MENU...................................................................................................44
TABLE OF CONTENT
iv
Environmental Safety Instruction
Avoid the dusty, humidity and temperature extremes. Do not place the product in
any area where it may become wet.
0 to 60 centigrade is the suitable temperature. (The figure comes from the request
of the main chipset)
Generally speaking, dramatic changes in temperature may lead to contact
malfunction and crackles due to constant thermal expansion and contraction from the welding spots’ that connect components and PCB. Computer should go through an adaptive phase before it boots when it is moved from a cold environment to a warmer one to avoid condensation phenomenon. These water drops attached on PCB or the surface of the components can bring about phenomena as minor as computer instability resulted from corrosion and oxidation from components and PCB or as major as short circuit that can burn the components. Suggest starting the computer until the temperature goes up.
The increasing temperature of the capacitor may decrease the life of computer.
Using the close case may decrease the life of other device because the higher temperature in the inner of the case.
Attention to the heat sink when you over-clocking. The higher temperature may
decrease the life of the device and burned the capacitor.
v
USER’S NOTICE
COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN PERMISSION OF THE MANUFACTURER.
THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE THIS MOTHER-BOARD SERIES AND WE DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL DAMAGES (INCLUDING DAMANGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA, INTERRUPTION OF BUSINESS AND THE LIKE).
PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT INTENT TO INFRINGE.
Manual Revision Information
Reversion Revision History Date
1.0 First Edition April 7, 2015
Item Checklist
Motherboard
User’s Manual
CD for motherboard utilities
Cable(s)
1
Chapter 1
Introduction of the Motherboard
1-1 Feature of Motherboard
Onboard Intel® Bay Trail Series Processor, with low power consumption never
denies high performance
Support 1* DDR3L 1066/1333 MHz SO-DIMM, up to 8GB
Support full-size Mini-PCIE connector
Support 2 * SATAII device & 2 * SATAIII device
Support USB 3.0 data transport demand
Support LVDS &DVI-I dual display output
Support CPU Over-Temperature protection
Support CPU Over-Current/Under Voltage protection
Support DRAM Over-Current/Under Voltage protection
Amplifier implement to support 3W Speaker
Support CPU Smart FAN
Compliance with ErP standard
Support Watchdog function
2
1-2 Specification
Spec
Description
Design
6 layers; PCB size: 17x 17 cm
Embedded CPU
Integrated with Intel® Bay Trail-D/M/I series CPU
Memory Slot
1 * DDR3L SODIMM Slot for un-buffered DDR
3L 1066/1333 MHz
SDRAM, expandable to 8GB in total
Expansion Slot
1* Full-size Mini-PCIE slot
1* PCIE x1 slot
LAN Chip
Integrated with Realtek RTL8111G PCI-E Gigabit LAN chip
Support Fast Ethernet LAN function of providing
10/100/1000Mbps Ethernet data transfer rate
Storage
2* SATAII port (SATA1/2)
2* SATAIII port (SATA3/4)
BIOS
AMI 64MB Flash ROM
Rear I/O
1* 12V system DC Jack power-in connector
1* USB 3.0 port
3* USB 2.0 port
1* DVI-I port
1* COM1 serial port(COM1 supports RS422/485 function)
1* RJ-45 LAN port
Audio Line Out port x1
Internal I/O
1* 2-Pin DC 12V system power-in connector
1* 2-Pin DC 12V power-out connector
2* SATA Power-out connector
1* CPUFAN header
2* SYSFAN header
1* Front panel audio header
1* SPDIF Out header
3
1* SPEAK_CON header
1* 4-pin USB 2.0 header (Expansible to 1* USB 2.0 port)
2* 9-pin USB 2.0 header (Expansible to 4* USB 2.0 ports)
1* Front panel header
1* Power LED & speaker header
1* Serial port header
1* GPIO_CON header
1* SMBUS header
1* LAN LED activity header
1* LVDS header
1* LVDS inverter header
1-3 Layout Diagram
Rear IO Panel Diagram:
Warning!
The board has a DC 12V power connector (DCIN) in I/O back panel and an internal ATX12V (ATX2P) power connector. User can only connect one type of compatible power supply to one of them to power the system.
Line-
Out Port
USB 2.0 Ports
RJ-45 LAN Port
USB 3.0 Port
USB 2.0 Port
DVI-
I Port
COM1 Port
DC 12V
Power-in
Connector
4
Motherboard Internal Diagram
Note: The memory module should be DDR3L 1.35V SODIMM and not exceeding 8GB total capacity.
Internal 12V DC-in
Power connector
Intel CPU
PCI Express x1 Slot
Front Panel
Audio Header
Front Panel Header
LVDS Inverter
Serial Port Header
(COM2)
GPIO Header
SATA Hard Disk
Power-Out Connector
Speaker
Connector
USB 2.0 Headers
LVDS Header
SATAII Ports (SATA1/2)
SYSFAN1 Header
LAN_LED1 Header
*DDR3L SODIMM Slot
(SODIMM1)
SMBUS Header
Power LED Header &
Speaker Header
Full-size
Mini-PCIE
Slot (MPE1)
USB 3.0 Port
Over USB 2.0 Port
DVI-I Port
COM1
USB 2.0 Ports
RJ-45 LAN Port
Line-Out Port
USB 2.0 Header
SATAIII Ports (SATA3/4)
CPUFAN Header
SYSFAN2 Header
SPDIF Out Header
MON_PWR
Connector
DC12V
Power-in Connector
5
Jumper Position:
JP1
JPCOM1
JPLED
JPCOM2
JPLCD
6
Jumper
Jumper Name Description
JP1 Pin 1-2: Clear ME Function Setting
Pin 3-4: Clear CMOS RAM Function Setting Pin 5-6: ATX Mode & AT Mode Select Pin 7-8: ME Security Measure Function Select Pin 9-10: Case Open Message Display Function
10-Pin Block
JPLED INVERTER Back Light 5V/12V Select 3-Pin Block JPLCD LVDS PVCC 5V/3.3V /12V Select 4-Pin Block JPCOM1 COM1 Port Pin9 Function Select 4-Pin Block JPCOM2 COM2 Header Pin9 Function Select 4-Pin Block
Connectors
Connector
Name
DCIN DC 12V System Power–in Connector ATX2P Internal DC 12V System Power–in Connector MON_PWR DC 12V Power–out Connector SATA1/2 SATAII Port Connector X2 SATA3/4 SATAIII Port Connector X2 SATAPW1/2 SATA Power out Connector X2 CPUFAN CPUFAN Connector SYSFAN1/SYSFAN2 SYSFAN Connector X2 USB1(Top) /USB2 USB 2.0 Port Connector X3 USB1(Bottom) USB 3.0 Port Connector DVI-CRT1 DVI-I Port Connector COM1 Serial Port Connector LAN RJ-45 LAN Port Connector
7
Headers
Header Name Description
FP_AUDIO Front Panel Audio Header 9-pin Block SPDIF SPDIF Out Header 2-pin Block SPEAK_CON Speaker Header 4-pin Block FP_USB1/2 USB 2.0 Header 9-pin Block FP_USB3 USB 2.0 Header 4-pin Block JW_FP1
Front Panel Header(PWR LED/ HDD LED/Power Button /Reset)
9-pin Block
SPK-LED1 Power LED & Speaker Header 7-pin Block COM2 Serial Port Header X1 9-pin Block GPIO_CON1 GPIO Header 10-pin Block SMBUS1 SMBUS Header 5-pin Block LAN_LED1 LAN Activity LED Header 2-pin Block LVDS LVDS Header 30-pin Block INVERTER LVDS Inverter 8-pin Block
8
Chapter 2
Hardware Installation
2-1 Jumper Setting
Pin 1 & 2 of JP1 (10-pin): Clear ME Function Setting
Pin 1-2 of JP1→ Clear ME
1-2 Closed: Clear ME.
1-2 Open: Normal(Default);
2
Pin 1
Pin 1
2
Pin 3 & 4 of JP1 (10-pin): Clear CMOS Setting
Pin 3-4 of JP1→ Clear CMOS
3-4 Closed: Clear CMOS(One Touch).
3-4 Open: Normal(Default);
2
Pin 1
3
4
Pin 1
2
3
4
9
Pin 5 & 6 of JP1 (10-pin): AT Mode Select
Pin 5-6 of JP1→ AT Mode Select
5-6 Closed: AT Mode Selected.
5-6 Open: ATX Mode Selected(Default);
2
Pin 1
3
4
Pin 1
2
3
4
5
6
5
6
*ATX Mode Selected: Press power button to power on after power input ready; AT Mode Selected: Directly power on as power input ready.
Pin 7 & 8 of JP1 (10-pin): ME Security Measure Function Select
Pin 7-8 of JP1→ ME Security Function Select
2
Pin 1
7-8 Closed: Disable Security Measures in the Flash Descriptor(Override).
4
6
8
3
5
7
7-8 Open: Enable Security Measures in the Flash Descriptor(Default);
Pin 1
3
5
7
2
4
6
8
10
Pin 9 & 10 of JP1 (10-pin):): Case Open Message Display Function Select
Pin 9-10 of JP1→ Case Open
9-10 Closed: Case Open Function Selected(One Touch).
9-10 Open: Normal(Default);
2
Pin 1
3
4
Pin 1
2
3
4
5
6
5
6
7
8
7
8
9
10
9
Pin 9-10 Close: When Case open function pin short to GND, the Case open function
was detected. When Used, needs to enter BIOS and enable ‘Case Open Detect’ function. In this case if your case is removed, next time when you restart your computer, a message will be displayed on screen to inform you of this.
11
JPLED (3-pin): INVERTER Back Light VCC 5V/12V Select
2-3 Close: INVERTER Back Light 12V Selected.
JPLED→INVERTER Back Light VCC
1-2 Close: INVERTER Back Light 5V Selected(Default);
1
3
1
3
JPLCD (4-pin): LCD PVCC VCC3.3V/5V/12V Select
JPLCD→LCD PVCC
6
4
2
3
1
5
1
2 4 6
3 5
2 4 6
1 3 5
2-4 Closed:
VCC=3.3V
(Default);
3-4 Closed:
VCC= 5V;
4-6 Closed:
VCC= 12V.
12
JPCOM1 (4-pin): COM1 Port Pin9 Function Select
JPCOM1→COM1 Port Pin-9
6
4
2
3
1
5
1
2 4 6
3 5
2 4 6
1 3 5
2-4 Closed:
RI=RS232(Default);
3-4 Closed:
RI= 5V;
4-6 Closed:
RI= 12V.
JPCOM2 (4-pin): COM2 Header Pin9 Function Select
JPCOM2→COM2 Header Pin-9
6
4
2
3
1
5
1
2 4 6
3 5
2 4 6
1 3 5
2-4 Closed:
RI=RS232(Default);
3-4 Closed:
RI= 5V;
4-6 Closed:
RI= 12V.
13
2-2 Connectors and Headers 2-2-1 Connectors
(1) Rear I/O Connectors
(2) COM1 (9-pin Block): RS232/422/485 Port
COM1 port can function as RS232/422/485 port. In normal settings COM1 functions as RS232 port. With compatible COM cable COM1 can function as RS422 or RS 485 port. User also needs to go to BIOS to set ‘Transmission Mode Select’ for COM1 (refer to Page 30) at first, before using specialized cable to connect different pins of this port.
For RS422 Mode
RS422 TX(B)
RS422 TX(A)
RS422 RX(A)
RS422 RX(B)
For RS485 Mode
RS485 D-(B)
RS485 D+(A)
Line-
Out Port
USB 2.0 Ports
RJ-45 LAN Port
USB 3.0 Port
USB 2.0 Port
DVI-
I Port
COM1 Port
DC 12V
Power-in
Connector
14

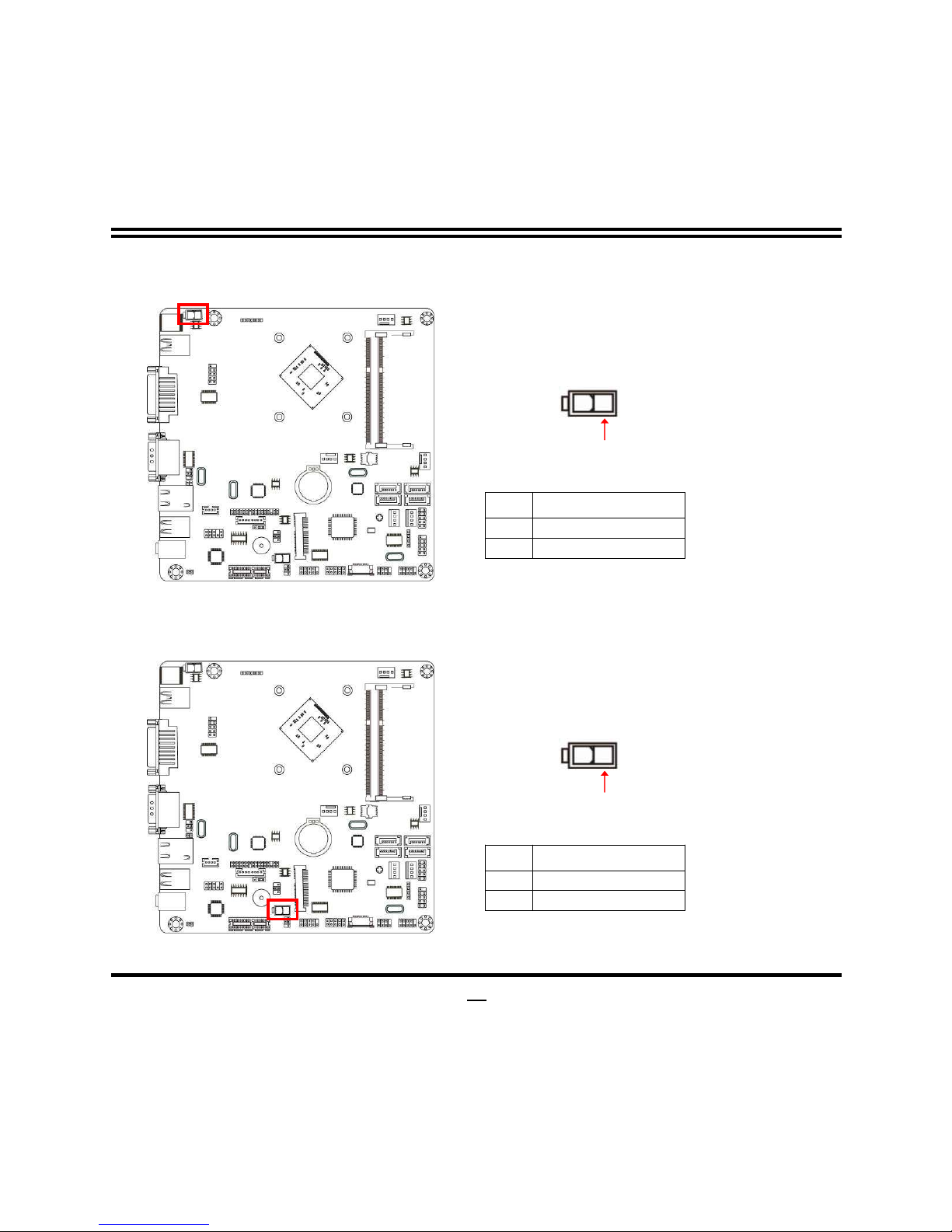

(3) ATX2P (2-pin Block): DC 12V Power-in Connector
Pin1
Pin. Definition
1 GND 2 +12V DC_IN
(4) MON_PWR(2-pin Block): DC 12V Power-out Connector
Pin1
Pin. Definition
1 GND 2 +12V
15
(5) SATA1/SATA2(7-pin Block): SATAII Port connector
These are high-speed SATAII ports that support 3GB/s transfer rate.
Pin No. Definition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
(6) SATA3/SATA4(7-pin Block): SATAIII Port connector
These are high-speed SATAIII ports that support 6GB/s transfer rate.
Pin No. Definition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
16
(7) SATAPW1/SATAPW2(4-pin): SATA Power Out Connector
Pin 1
+5V
GND
+12V
GND

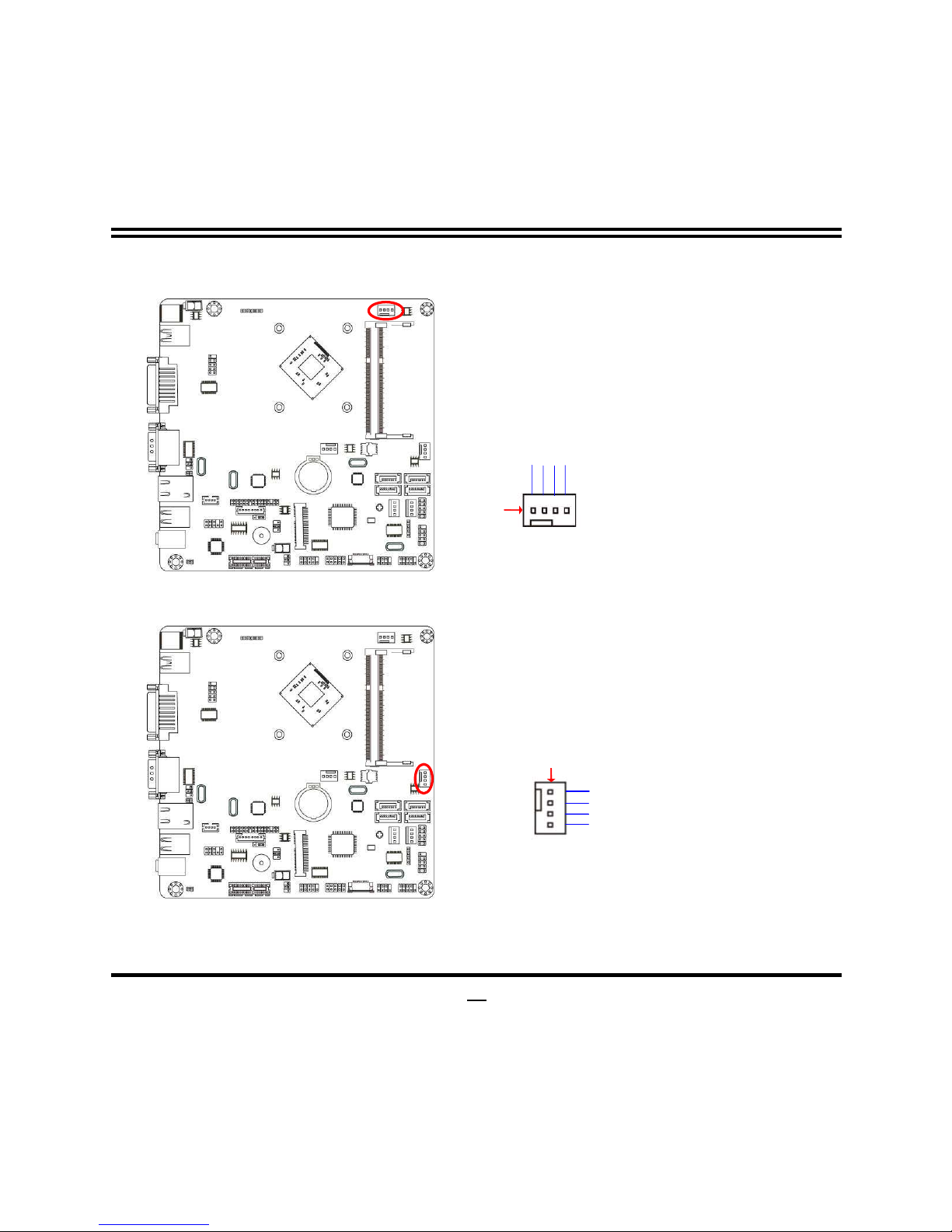

(8) CPUFAN1 (4-pin): CPUFAN Connector
CPUFAN1
GND
+12V Fan Power
Fan Speed
Control
Pin1
17

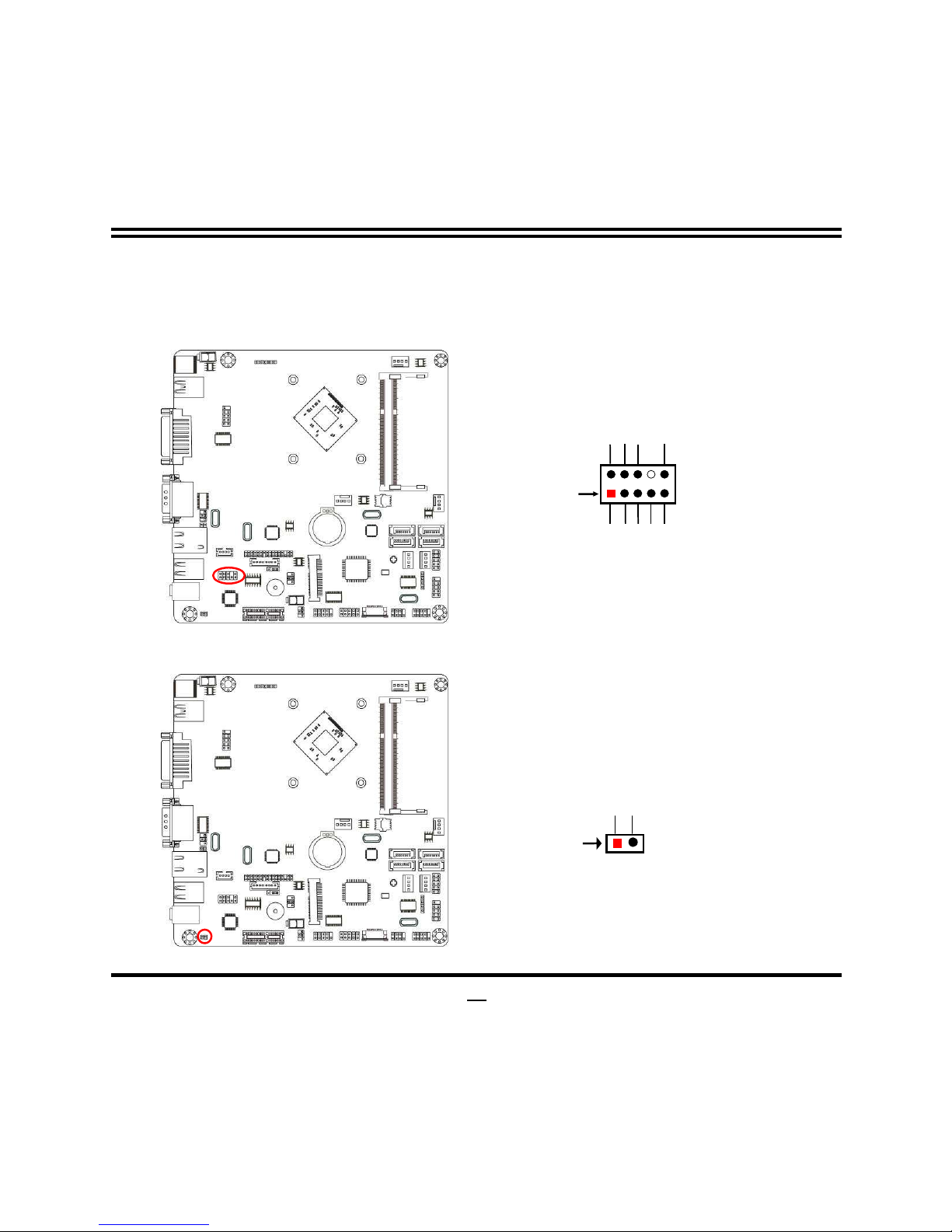

(9) SYSFAN1 (4-pin): SYSFAN1 Connector
SYSFAN1
Fan Speed
GND
Pin1
+12V Fan Power
Control
(10) SYSFAN2 (4-pin): SYSFAN2 Connector
Pin1
+12V Fan Power
GND
Fan Speed
SYSFAN2
Control
18

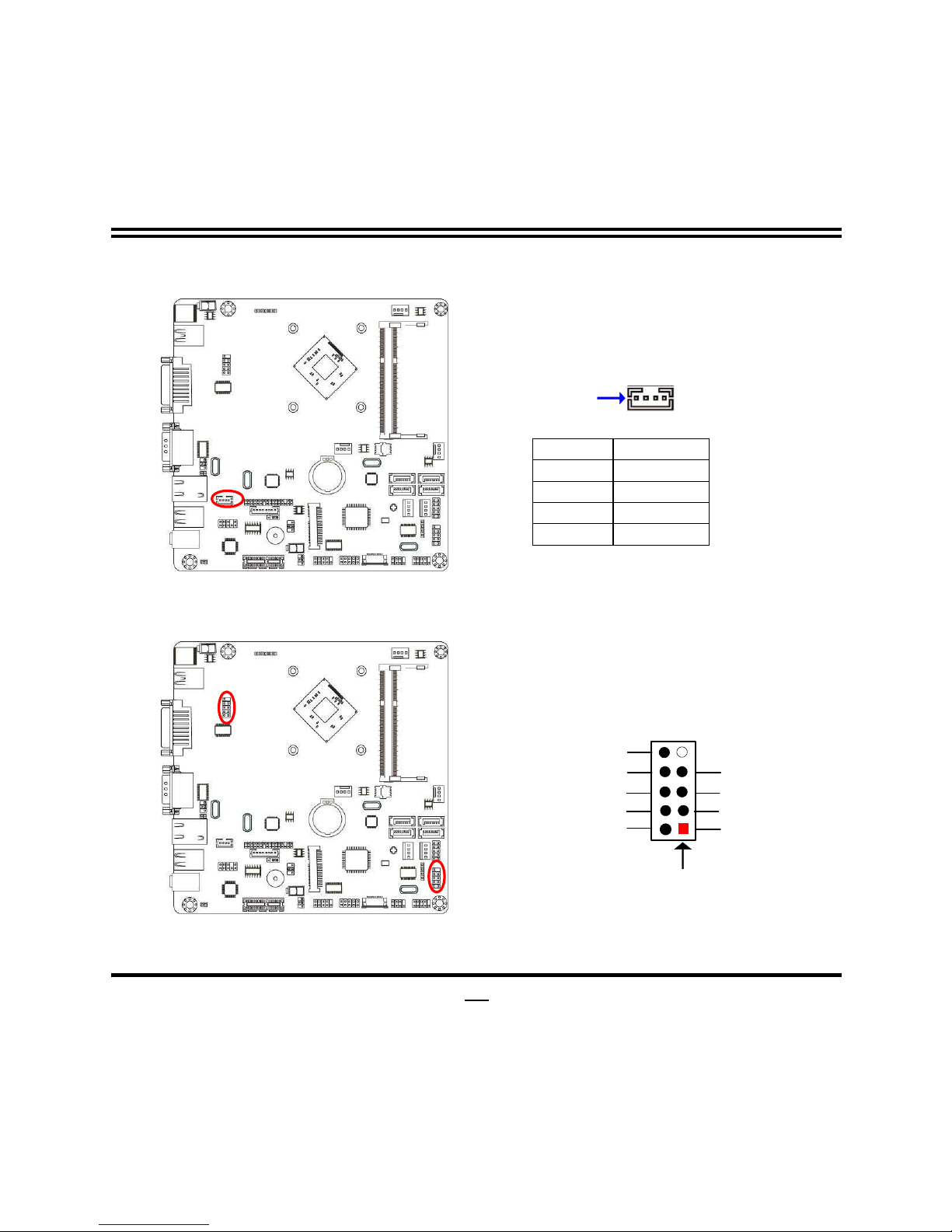

2-2-2 Headers
(1) FP_AUDIO (9-pin): Line-Out, MIC-In Header This header connects to Front Panel Line-out, MIC-In connector with cable.
Line-Out, MIC Header
Pin 1
MIC2-L
LINE OUT-L
MIC2-R
LINE OUT-R
SENSE
GND
LINE_OUT_JD
MIC_JD
DETECT
2
(2) SPDIF (2-pin): SPDIF Out Header
Pin1
SPDIF GND
19
(3)SPEAK_CON (4-pin): Speaker Connector
Pin1
Pin No. Definition
1 L-
2 L+
3 R+
4 R-
(4) FP_USB1/FP_USB2 (9-pin): USB 2.0 Port Header
-DATA
NC
GND
GND
-DATA
+DATA
Pin 1
+DATA
2
VCC
VCC
20
(5) FP_USB3 (4-pin): USB 2.0 Port Header
-DATA
GND
+DATA
Pin 1
VCC
(6) JW_FP (9-pin): Front Panel Header
HDLED
RESET
HDDLED+
GND
PWRLED+
PWRBTN
GND
PWRLED-
HDDLED-
RSTSW
VCC
PWRBT
Pin 1
2
PWR LED
21
(7) SPK-LED (7-pin): Speaker Header & PWR LED Header
SPK+
NC
NC
PWRLED-
2
Pin 1
SPK-
PWRLED+
PWRLED-
(8) COM2 (9-pin): Serial Port Header
DCD
Pin1
Pin6
SIN
SOUT
DTR
GND
DSR
RTS CTS
RI
22
(9) GPIO_CON (10-pin): GPIO Header
GPIO30
Pin1
2
GPIO32
GPIO34
GPIO36
GND
GPIO31
GPIO33
GPIO35
GPIO37
VCC
(10) SMBUS1 (5-Pin): SM BUS Header
SMBUS_CLK
VCC3
Pin1
SMBUS_DATA
GND
SMBUS_ALERT-
23
(11)LAN_LED1 (2-pin): LAN Activity LED Header
Pin1
LED+
LED-
(12) INVERTER (8-pin): LVDS Inverter Connector
Pin 1
Pin No. Definition
1 Backlight Enable
2 Backlight PWM
3 Backlight VCC
4 Backlight VCC
5 GND
6 GND
7 Backlight Up SW
8 Backlight Down SW
24
(13) LVDS (30-pin): 24-bit Dual Channel LVDS Header
Pin 1
Pin 2
Pin NO. Pin Define Pin NO. Pin Define
Pin 1 LVDSB_DATAN3 Pin 2 LVDSB_DATAP3 Pin 3 LVDS_CLKBN Pin 4 LVDS_CLKBP Pin 5 LVDSB_DATAN2 Pin 6 LVDSB_DATAP2 Pin 7 LVDSB_DATAN1 Pin 8 LVDSB_DATAP1 Pin 9 LVDSB_DATAN0 Pin 10 LVDSB_DATAP0 Pin 11 LVDS_DDC_DAT Pin 12 LVDS_DDC_CLK Pin 13 N/A Pin 14 GND Pin 15 GND Pin 16 GND Pin 17 LVDSA_DATAP3 Pin 18 LVDSA_DATAN3 Pin 19 LVDS_CLKAP Pin 20 LVDS_CLKAN Pin 21 LVDSA_DATAP2 Pin 22 LVDSA_DATAN2 Pin 23 LVDSA_DATAP1 Pin 24 LVDSA_DATAN1 Pin 25 LVDSA_DATAP0 Pin 26 LVDSA_DATAN0 Pin 27 PVDD Pin 28 N/A Pin 29 PVDD Pin 30 PVDD Pin 31 GND Pin 32 GND
25
Chapter 3
Introducing BIOS
Notice! The BIOS options in this manual are for reference only. Different
configurations may lead to difference in BIOS screen and BIOS screens in manuals are usually the first BIOS version when the board is released and may be different from your purchased motherboard. Users are welcome to download the latest BIOS version form our official website.
The BIOS is a program located on a Flash Memory on the motherboard. This program is a bridge between motherboard and operating system. When you start the computer, the BIOS program will gain control. The BIOS first operates an auto-diagnostic test called POST (power on self test) for all the necessary hardware, it detects the entire hardware device and configures the parameters of the hardware synchronization. Only when these tasks are completed done it gives up control of the computer to operating system (OS). Since the BIOS is the only channel for hardware and software to communicate, it is the key factor for system stability, and in ensuring that your system performance as its best.
3-1 Entering Setup
Power on the computer and by pressing <Del> immediately allows you to enter Setup. If the message disappears before your respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the “RESET” button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt> and <Delete> keys. If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to Press <Del> to enter Setup; press < F7> for Pop Menu.
26
3-2 BIOS Menu Screen
The following diagram show a general BIOS menu screen:
BIOS Menu Screen
3-3 Function Keys
In the above BIOS Setup main menu of, you can see several options. We will explain these options step by step in the following pages of this chapter, but let us first see a short description of the function keys you may use here:
Press (left, right) to select screen;
Menu Bar
Menu Items
Current Setting Value
Function Keys
General Help Items
27
Press  (up, down) to choose, in the main menu, the option you want to confirm
or to modify.
Press <Enter> to select.
Press <+>/<–> keys when you want to modify the BIOS parameters for the active
option.
[F1]: General help.
[F2]: Previous value.
[F3]: Optimized defaults.
[F4]: Save & Exit.
Press <Esc> to quit the BIOS Setup.
3-4 Getting Help
Main Menu
The on-line description of the highlighted setup function is displayed at the top right corner the screen.
Status Page Setup Menu/Option Page Setup Menu
Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window, press <Esc>.
3-5 Menu Bars
There are six menu bars on top of BIOS screen:
Main To change system basic configuration Advanced To change system advanced configuration Chipset To change chipset configuration Security Password settings Boot To change boot settings Save & Exit Save setting, loading and exit options.
28
User can press the right or left arrow key on the keyboard to switch from menu bar. The selected one is highlighted.
3-6 Main Menu
Main menu screen includes some basic system information. Highlight the item and then use the <+> or <-> and numerical keyboard keys to select the value you want in each item.
System Date
Set the date. Please use [Tab] to switch between data elements.
System Time
Set the time. Please use [Tab] to switch between time elements.
29
3-7 Advanced Menu
OS Selection
The optional settings: [Windows 8.X]; [Android]; [Windows 7].
*Note: User needs to go to this item to select OS before installing OS. If Windows Embedded standard 8, please select [Windows 8x] and set “USB 3.0 Support” as [Disabled], “USB 2.0 Support” as [Enabled] (refer to Page 41).
ACPI Settings
Press [Enter] to make settings for the following sub-item:
ACPI Settings
ACPI Sleep State
Use this item to select the highest ACPI sleep state the system will enter when the
30
suspend button is pressed. The optional settings are: [Suspend Disabled]; [S3 (Suspend to RAM)].
Super I/O Configuration
Press [Enter] to make settings for the following sub-items:
Super IO Configuration
Serial Port 1 Configuration Press [Enter] to make settings for the following items:
Serial Port
Use this item to enable or disable serial port (COM).
Change Settings
Use this item to select an optimal setting for super IO device.
Transmission Mode Select
The optional settings are: [RS422]; [RS232]; [RS485].
Mode Speed Select
The optional settings are: [RS232/RS422/RS485=250kbps]; [RS232=1Mbps, RS422/RS485=10Mbps].
Serial Port FIF0 Mode
The optional settings are: [16-Byte FIF0]; [32-Byte FIF0]; [64-Byte FIF0]; [128-Byte FIF0].
Serial Port 2 Configuration Press [Enter] to make settings for the following items:
Serial Port
Use this item to enable or disable serial port (COM).
Change Settings
Use this item to select an optimal setting for super IO device.
Serial Port FIF0 Mode
The optional settings are: [16-Byte FIF0]; [32-Byte FIF0]; [64-Byte FIF0]; [128-Byte FIF0].
OS Select for Serial Port
The optional settings are: [Windows]; [LINUX].
31
ERP Support
The optional settings: [Enabled]; [Disabled]. This item should be set as [Disabled] if you wish to have all active wake-up functions.
Case Open Detect
This item controls detect case open function. The optional settings are: [Enabled]; [Disabled].
WatchDog Timer
Use this item to enable or disable WatchDog Timer Control. When set as [Enabled], the following sub-items shall appear:
WatchDog Timer Value
User can set a value in the range of [10] to [255].
WatchDog Timer Unit
The optional settings are: [Sec.]; [Min.].
WatchDog Wake-up Timer
This item support WDT wake-up while ERP function is set as [Enabled]. The optional settings are: [Enabled]; [Disabled]. When set as [Enabled], the following sub-items shall appear:
WatchDog Timer Value
The setting range is [10] ~ [4095] seconds, or [1]~[4095] minutes.
WatchDog Timer Unit
The optional settings are: [Sec.]; [Min.].
ATX Power Emulate AT Power
This item displays current Emulate AT Power Status, motherboard power On/Off control by power supply. User needs to select ‘AT or ATX Mode’ on MB jumper at first (refer to Page 9, Jumper AT_MODE for ATX Mode & AT Mode Select).
Serial Port Console Redirection
Press [Enter] to make settings for the following sub-items:
COM1/COM2
32
Console Redirection
Use this item to enable or disable COM1 Console Redirection. The optional settings are: [Disabled]; [Enabled].
When set as [Enabled], user can make further settings in the ‘Console Redirection Settings’ screen:
Console Redirection Settings The settings specify how the host computer and the remote computer (which the user is using) will exchange data. Both computers should have the same or compatible settings. Press [Enter] to make settings for the following sub-items.
Terminal Type
The optional settings are: [VT100]; [VT100+]; [VT-UTF8]; [ANSI].
Bits per second
The optional settings are: [9600]; [19200]; [38400]; [57600]; [115200].
Data Bits
The optional settings are: [7]; [8].
Parity
The optional settings are: [None]; [Even]; [Odd];[Mark]; [Space].
Stop Bits
The optional settings are: [1]; [2].
Flow Control
The optional settings are: [None]; [Hardware RTS/CTS].
VT-UTF8 Combo Key Support
The optional settings are:[Disabled]; [Enabled].
Recorder Mode
The optional settings are:[Disabled]; [Enabled].
Resolution 100x31
The optional settings are:[Disabled]; [Enabled].
Legacy OS Redirection Resolution
The optional settings are: [80x24]; [80x25].
Putty Keypad
33
The optional settings are: [VT100]; [LINUX]; [XTERMR6]; [SCO]; [ESCN]; [VT400].
Redirection After BIOS POST
The optional settings are: [Always Enable]; [BootLoader].
Serial Port for Out-of-Band Management/ Windows Emergency Management Services (EMS)
Console Redirection
The optional settings are: [Enabled]; [Disabled]. When set as [Enabled], user can make further settings in ‘Console Redirection Settings’:
Console Redirection Settings The settings specify how the host computer and the remote computer (which the user is using) will exchange data. Both computers should have the same or compatible settings. Press [Enter] to make settings for the following sub-items.
Out-of-Band Mgmt Port
The optional settings are: [COM1]; [COM2].
Terminal Type
The optional settings are: [VT100]; [VT100+];[VT-UTF8];[ANSI].
Bits per second
The optional settings are: [9600]; [19200]; [57600]; [115200].
Flow Control
The optional settings are: [None]; [Hardware RTS/CTS]; [Software Xon/Xoff].
Data Bits
The default setting is: [8].
*This item may or may not show up, depending on different configuration.
Parity
The default setting is: [None].
*This item may or may not show up, depending on different configuration.
Stop Bits
34
The default setting is: [1].
*This item may or may not show up, depending on different configuration.
PC Health Status
Press [Enter] to view current hardware health status, set shutdown temperature, or make further settings in ‘Smart Fan Configuration’.
SmartFAN Configuration Press [Enter] to make settings for SmartFAN Configuration:
CPUFAN / SYSFAN1/ SYSFAN 2 Smart Mode
The optional settings: [Disabled]; [Enabled]. When set as [Enabled], the following sub-items shall appear: CPUFAN / SYSFAN1/ SYSFAN 2 Full-Speed Temperature Use this item to set CPUFAN/SYSFAN1/ SYSFAN2 full speed temperature. Fan will run at full speed when above this temperature. CPUFAN / SYSFAN1/ SYSFAN 2 Full-Speed Duty Use this item to set CPUFAN/SYSFAN1/ SYSFAN2 full speed duty. Fan will run at full speed when above the pre-set duty. CPUFAN / SYSFAN1/ SYSFAN 2 Idle-Speed Temperature Use this item to set CPUFAN/SYSFAN1/ SYSFAN2 idle speed temperature. Fan will run at idle speed when below this temperature. CPUFAN / SYSFAN1/ SYSFAN 2 Idle-Speed Duty Use this item to set CPUFAN/SYSFAN1/ SYSFAN2 idle speed duty.. Fan will run at idle speed when below the pre-set duty.
Shutdown Temperature Configuration
Use this item to select system shutdown temperature. The optional settings are: [Disabled]; [70oC/156oF]; [75oC/164oF]; [80oC/172oF]; [85oC/180oF];[90oC/188oF].
CPU Configuration
Press [Enter] to view current CPU configuration and make settings for the following sub-items:
35
Limit CPUID Maximum
The optional settings: [Disabled]; [Enabled]. This item should be set as [Disabled] for Windows XP.
Execute Disable Bit
The optional settings: [Disabled]; [Enabled].
Hardware Prefetcher
The optional settings are: [Disabled]; [Enabled]. Use this item to turn on/off the Mid Level Cache (L2) streamer prefetcher.
Adjacent Cache Line Prefetch
The optional settings are: [Disabled]; [Enabled]. Use this item to turn on/off prefetching of adjacent cache lines.
Intel Virtualization Technology
The optional settings: [Enabled]; [Disabled]. When set as [Enabled], a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.
EIST
The optional settings: [Disabled]; [Enabled]. Use this item to enable or disable Intel SpeedStep.
CPU C6 Report
Use this item to enable or disable CPU C6 (ACPI C3) report to OS. The optional settings: [Disabled]; [Enabled].
CPU C7 Report
Use this item to enable or disable CPU C7 (ACPI C3) report to OS. The optional settings: [Disabled]; [Enabled].
Package C-state Limit
The optional settings: [C0]; [C1]; [C3] [C6]; [C7]; [No Limit].
SATA Configuration
Press [Enter] to make settings for the following sub-items:
SATA Configuration
SATA Controller
The optional settings: [Disabled]; [Enabled].
36
SATA Speed Support
The item is for user to set the maximum speed the SATA controller can support. The optional settings are: [Gen1]; [Gen2].
SATA Mode
The optional settings are: [IDE Mode]; [AHCI Mode].
Serial-ATA Port1/ Serial-ATA Port2
The optional settings are: [Enabled]; [Disabled].
ASMedia SATA Configuration
Press [Enter] to make settings for the following sub-item for SATA3/SATA4 port:
SATA Mode
The optional settings are: [IDE Mode]; [AHCI Mode].
Network Stack Configuration
Press [Enter] to go to ‘Network Stack’ screen to make further settings.
Network Stack
The optional settings are: [Enabled]; [Disabled]. When set as [Enabled], the following sub-items shall appear:
Ipv4 PXE Support
The optional settings are: [Disabled]; [Enabled]. Use this item to enable Ipv4 PXE Boot Support. When set as [Disabled], Ipv4 boot optional will not be created.
Ipv6 PXE Support
The optional settings are: [Disabled]; [Enabled]. Use this item to enable Ipv6 PXE Boot Support. When set as [Disabled], Ipv4 boot optional will not be created.
PXE boot wait time
Use this item to set wait time to press [ESC] key to abort the PXE boot.
CSM Configuration
Press [Enter] to make settings for the following sub-items:
Compatibly Support Module Configuration
Boot Option Filter
This item controls Legacy/UEFI ROMs priority.
37
The optional settings are: [UEFI and Legacy]; [Legacy only]; [UEFI only].
Network
This item controls the execution of UEFI and legacy PXE OpROM. The optional settings are: [Do not launch]; [UEFI only]; [Legacy only].
Storage
This item controls the execution of UEFI and Legacy Storage OpROM. The optional settings are: [Do not launch]; [UEFI only]; [Legacy only].
Other PCI devices
This item determines OpROM execution policy for devices other than Network, storage or video. The optional settings are: [UEFI first]; [Legacy first].
Wake-up Function Settings
Press [Enter] to make settings for the following sub-items:
Wake-up System with Fixed Time
Use this item to enable or disable system wake-up by RTC alarm. The optional settings: [Disabled]; [Enabled]. When set as [Enabled], system will wake on the hour/min/sec specified.
Wake-up System with Dynamic Time
Use this item to enable or disable system wake-up by RTC alarm.The optional settings: [Disabled]; [Enabled]. When set as [Enabled], system will wake on the current time + increased minute(s).The settings range is from [1] ~ [60] minute(s).
USB Wake-up from S3-S4
Use this item to enable or disable USB Wake-up from S3-S4. The optional settings: [Disabled]; [Enabled].
*This item is only supported when ‘ERP Support’ is set as [Disabled]. Please disable ERP before activating this function in S4 .
USB Configuration
Press [Enter] to make settings for the following sub-items:
USB Configuration
Legacy USB Support
38
The optional settings are: [Enabled]; [Disabled]; [Auto].
[Enabled]: To enable legacy USB support. [Disabled]: To keep USB devices available only for EFI specification, [Auto]: To disable legacy support if no USB devices are connected. XHCI Hand-off
This is a workaround for OSes without XHCI hand-off support. The XHCI ownership change should be claimed by XHCI driver. The optional settings are: [Enabled]; [Disabled].
EHCI Hand-off
This is a workaround for OSes without EHCI hand-off support. The EHCI ownership change should be claimed by EHCI driver. The optional settings are: [Disabled]; [Enabled].
USB Mass Storage Driver Support
The optional settings are: [Disabled]; [Enabled].
USB Hardware Delays and Time-outs:
USB Transfer Time-out
Use this item to set the time-out value for control, bulk, and interrupt transfers. The optional settings are: [1 sec]; [5 sec]; [10 sec]; [20 sec].
Device Reset Time-out
Use this item to set USB mass storage device start unit command time-out. The optional settings are: [10 sec]; [20 sec]; [30 sec]; [40 sec].
Device Power-up Delay
Use this item to set maximum time the device will take before it properly reports itself to the host controller. ‘Auto’ uses default value: for a root port it is 100 ms, for a hub port the delay is taken from hub descriptor. The optional settings: [Auto]; [Manual]. Select [Manual] you can set value for the following sub-item: ‘Device Power-up
Delay in Seconds’. Device Power-up Delay in Seconds
The delay range is from [1] to [40] seconds, in one second increments.
Realtek PCIe GBE Family Controller (MAC:XX:XX:XX:XX:XX:XX)
39
Use this item to get driver information and configure Realtek ethernet controller parameter.
3-8 Chipset Menu
North Bridge
Press [Enter] to make settings for the following sub-items:
PAVC
Use this item to enable or disable protected audio video control. The optional settings are: [Disabled]; [LITE Mode]; [SERPENT Mode].
DVMT Pre-Allocated
Use this item to select DVMT 5.0 pre-allocated (fixed) graphics memory size used by the internal graphics device. The optional settings are: [64M]; [96M]; [128M]; [160M]; [192M]; [224M]; [256M];
40
[288M]; [320M]; [352M]; [384M]; [416M]; [448M]; [480M]; [512M].
DVMT Total Gfx Mem
Use this item to select DVMT 5.0 total graphics memory size used by the internal graphics device. The optional settings are: [128M]; [256M]; [MAX].
Aperture Size
The optional settings are: [128MB]; [256MB]; [512MB].
GTT Size
The optional settings are: [1MB]; [2MB].
Primary IGFX Boot Display
The optional settings are: [VBIOS Default]; [CRT(Dongle)]; [DVI];[LVDS].
Active LVDS
The optional settings are: [Disabled]; [Enabled]. [Disable]: VBIOS disable LVDS. [Enable]: VBIOS enable LVDS.
* Note: When set as ‘Enabled’, user can make further settings in ‘LVDS Panel Type’.
LVDS Panel Type
Use this item to manually select LVDS panel type. The optional setting are: [800x 480 1ch 18-bit]; [800x 600 1ch18-bit]; [800x 600 1ch 24-bit]; [1024 x 600 1ch 18-bit]; [1024 x 768 1ch 18-bit]; [1024 x 768 1ch 24-bit]; [1280 x 768 1ch 24-bit]; [1280 x 800 1ch 18-bit]; [1280 x 800 24-bit]; [1366 x 768 1ch 18-bit]; [1366 x 768 1ch 24-bit]; [1440 x 900 2ch 18-bit]; [1440 x 900 2ch 24-bit]; [1280 x 1024 2ch 24-bit]; [1680 x 1050 2ch 24-bit]; [1920 x 1080 2ch 24-bit].
DVI to CRT Dongle Support
The optional settings are: [Disabled]; [Enabled].
South Bridge
Press [Enter] to further setting USB device configuration.
ASMedia SATA Controller
The optional settings are: [Enabled]; [Disabled].
41
Mini PCIE
The optional settings are: [Enabled]; [Disabled].
Mini PCIE Speed
The optional settings are: [Auto]; [Gen2]; [Gen1].
PCIE Slot
The optional settings are: [Enabled]; [Disabled].
PCIE Slot Speed
The optional settings are: [Auto]; [Gen 2]; [Gen 1].
Onboard PCIE LAN
The optional settings are: [Enabled]; [Disabled].
Audio Controller
Use this item to control detection of the Azalia device. The optional settings are: [Disabled]; [Enabled]. [Disabled]: Azalia will be unconditionally disabled; [Enabled]: Azalia will be unconditionally enabled.
Azalia Internal HDMI Codec
Use this item to enable or disable internal HDMI codec for Azalia. The optional settings are: [Disabled]; [Enabled].
USB Configuration Press [Enter] to make settings for the following sub-items:
USB Configuration
USB 3.0 Support
The optional settings are: [Auto]; [Enabled]; [Disabled].
USB 2.0 Support
The optional settings are: [Enable]; [Disabled].
*This item may or may not show up, depending on different configuration.
System State after Power Failure
Use this item to select AC power state when power is re-applied after a power failure. The optional settings are: [Always Off]; [Always On]; [Former State].
* The option [Always On] and [Former State] are affected by ERP function. Please
42
disable ERP to support [Always On] and [Former State] function.
3-9 Security Menu
Security menu allow users to change administrator password and user password settings.
43
3-10 Boot Menu
Boot Configuration
Setup Prompt Timeout
Use this item to set number of seconds to wait for setup activation key.
Bootup Numlock State
Use this item to select keyboard numlock state. The optional settings are: [On]; [Off].
Quiet Boot
The optional settings are: [Disabled]; [Enabled].
Boot Option Priorities
Boot Option
44
The optional settings are: [UEFI: Built-in EFI Shell]; [Disabled].
3-11 Save & Exit Menu
Save Changes and Reset
This item allows user to reset the system after saving the changes.
Discard Changes and Reset
This item allows user to reset the system without saving any changes.
Restore Defaults
Use this item to restore /load default values for all the setup options.
Save as User Defaults
Use this item to save the changes done so far as user defaults.
Restore User Defaults
45
Use this item to restore the user defaults to all the setup options.
Boot Override
Boot Override UEFT: Built-in EFI Shell
Launch Internal EFI shell application (shell.efi).
Reset System with TXE disable Mode
Press [Enter] for TXE to run into the temporary disable mode.Ignore if TXE Ignition FM.
Loading...
