INTEL DG965MQ Product Guide
Intel® Desktop Board DG965MQ Product Guide
Order Number: D42072-003
Revision History
Revision Revision History Date
001 First release of the Intel® Desktop Board DG965MQ Product Guide June 2006
002
Second release of the Intel
Product Guide
003 Added operating system support and updated Chapter 4 January 2007
If an FCC declaration of conformity marking is present on the board, the following statement applies:
FCC Declaration of Conformity
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
For questions related to the EMC performance of this product, contact:
Intel Corporation, 5200 N.E. Elam Young Parkway, Hillsboro, OR 97124
1-800-628-8686
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit other than the one to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications to the equipment not expressly approved by Intel Corporation could void the
user’s authority to operate the equipment.
Tested to comply with FCC standards for home or office use.
Canadian Department of Communications Compliance Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set
out in the Radio Interference Regulations of the Canadian Department of Communications.
Le présent appareil numerique német pas de bruits radioélectriques dépassant les limites applicables aux
appareils numériques de la classe B prescrites dans le Réglement sur le broullage radioélectrique édicté par
le ministére des Communications du Canada.
Disclaimer
INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL® PRODUCTS. NO LICENSE,
EXPRESS OR IMPLIED, BY ESTOPPEL OR
GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL’S TERMS AND CONDITIONS OF SALE FOR
SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR
IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR
WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT
OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. Intel products are not intended
for use in medical, life saving, or life sustaining applications. Intel may make changes to specifications and
product descriptions at any time, without notice.
Desktop Board DG965MQ may contain design defects or errors known as errata which may cause the
product to deviate from published specifications. Current characterized errata are available on request.
Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing
your product order.
Copies of documents which have an ordering number and are referenced in this document, or other Intel
literature, may be obtained from Intel Corporation by going to the World Wide Web site at:
http://www.intel.com/ or by calling 1-800-548-4725.
Intel, the Intel logo, Pentium, and Celeron are registered trademarks of Intel Corporation or its subsidiaries
in the United States and other countries.
* Other names and brands may be claimed as the property of others.
Copyright © 2006-2007, Intel Corporation. All rights reserved.
®
Desktop Board DG965MQ
August 2006
OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS
Preface
This Product Guide gives information about board layout, component installation, BIOS
update, and regulatory requirements for Intel
®
Desktop Board DG965MQ.
Intended Audience
The Product Guide is intended for technically qualified personnel. It is not intended for
general audiences.
Use Only for Intended Applications
All Intel desktop boards are evaluated as Information Technology Equipment (I.T.E.)
for use in personal computers (PC) for installation in homes, offices, schools, computer
rooms, and similar locations. The suitability of this product for other PC or embedded
non-PC applications or other environments, such as medical, industrial, alarm systems,
test equipment, etc. may not be supported without further evaluation by Intel.
Document Organization
The chapters in this Product Guide are arranged as follows:
1 Desktop Board Features: a summary of product features
2 Installing and Replacing Desktop Board Components: instructions on how to install
the desktop board and other hardware components
3 Updating the BIOS: instructions on how to update the BIOS
®
4 Configuring for RAID (Intel
configuring your system for RAID
5 Intel
A Error Messages and Indicators: information about BIOS error messages and beep
B Regulatory Compliance: safety and EMC regulations and product certifications
®
Quick Resume Technology Driver (Intel® QRTD): information about
installing and configuring Intel Quick Resume Technology Driver
codes
Matrix Storage Technology): information about
Conventions
The following conventions are used in this manual:
CAUTION
Cautions warn the user about how to prevent damage to hardware or loss of data.
NOTE
Notes call attention to important information.
iii
Intel Desktop Board DG965MQ Product Guide
Terminology
The table below gives descriptions of some common terms used in the product guide.
Term Description
GB Gigabyte (1,073,741,824 bytes)
GHz Gigahertz (one billion hertz)
KB Kilobyte (1024 bytes)
MB Megabyte (1,048,576 bytes)
Mbit Megabit (1,048,576 bits)
MHz Megahertz (one million hertz)
Box Contents
• Intel Desktop Board DG965MQ
• I/O shield
• One diskette drive cable
• One ATA-66/100 cable
• Two locking Serial ATA cables
• Back panel audio port covers
®
• Intel
• Intel
• Quick Reference poster
• Configuration and battery caution statement label
Express Installer DVD-ROM
®
Matrix Storage Technology RAID driver diskette
iv
Contents
1 Desktop Board Features
Supported Operating Systems .............................................................................. 10
Desktop Board Components.................................................................................. 11
Processor ...........................................................................................................13
Main Memory......................................................................................................13
®
Intel
G965 Express Chipset................................................................................. 14
Intel G965 Graphics Subsystem.....................................................................14
GMA X300 Graphics Controller ............................................................... 15
Digital Video Interface (DVI).................................................................. 15
Onboard Audio Subsystem ................................................................................... 16
Input/Output (I/O) Controller ............................................................................... 17
LAN Subsystem................................................................................................... 17
LAN Subsystem Software.............................................................................. 17
RJ-45 LAN Connector LEDs ...........................................................................18
Hi-Speed USB 2.0 Support ...................................................................................18
Enhanced IDE Interface ....................................................................................... 19
Serial ATA ..........................................................................................................19
Expandability...................................................................................................... 19
BIOS .................................................................................................................19
Serial ATA and IDE Auto Configuration ...........................................................19
PCI and PCI Express* Auto Configuration .......................................................20
Security Passwords ...................................................................................... 20
Hardware Management Features ........................................................................... 20
Hardware Monitoring and Fan Speed Control ................................................... 21
Chassis Intrusion Detection........................................................................... 21
Power Management Features ................................................................................ 21
ACPI .......................................................................................................... 21
Power Connectors ........................................................................................ 22
Fan Headers ............................................................................................... 22
LAN Wake Capabilities..................................................................................22
Instantly Available PC Technology.................................................................. 23
+5 V Standby Power Indicator LED ................................................................24
Wake from USB ........................................................................................... 25
Wake from PS/2 Keyboard/Mouse..................................................................25
PME# Signal Wake-up Support ...................................................................... 25
WAKE# Signal Wake-up Support ...................................................................25
Speaker .............................................................................................................25
Battery ..............................................................................................................25
Real-Time Clock .................................................................................................. 25
2 Installing and Replacing Desktop Board Components
Before You Begin.................................................................................................27
Installation Precautions........................................................................................ 28
Prevent Power Supply Overload .....................................................................28
Observe Safety and Regulatory Requirements ................................................. 28
Installing the I/O Shield ....................................................................................... 29
Installing and Removing the Desktop Board............................................................ 30
v
Intel Desktop Board DG965MQ Product Guide
Installing and Removing a Processor...................................................................... 32
Installing a Processor ................................................................................... 32
Installing the Thermal Module .......................................................................35
Removing the Processor ............................................................................... 37
Installing and Removing Memory ..........................................................................38
Guidelines for Dual Channel Memory Configuration .......................................... 38
Two or Four DIMMs .............................................................................. 38
Three DIMMs ....................................................................................... 39

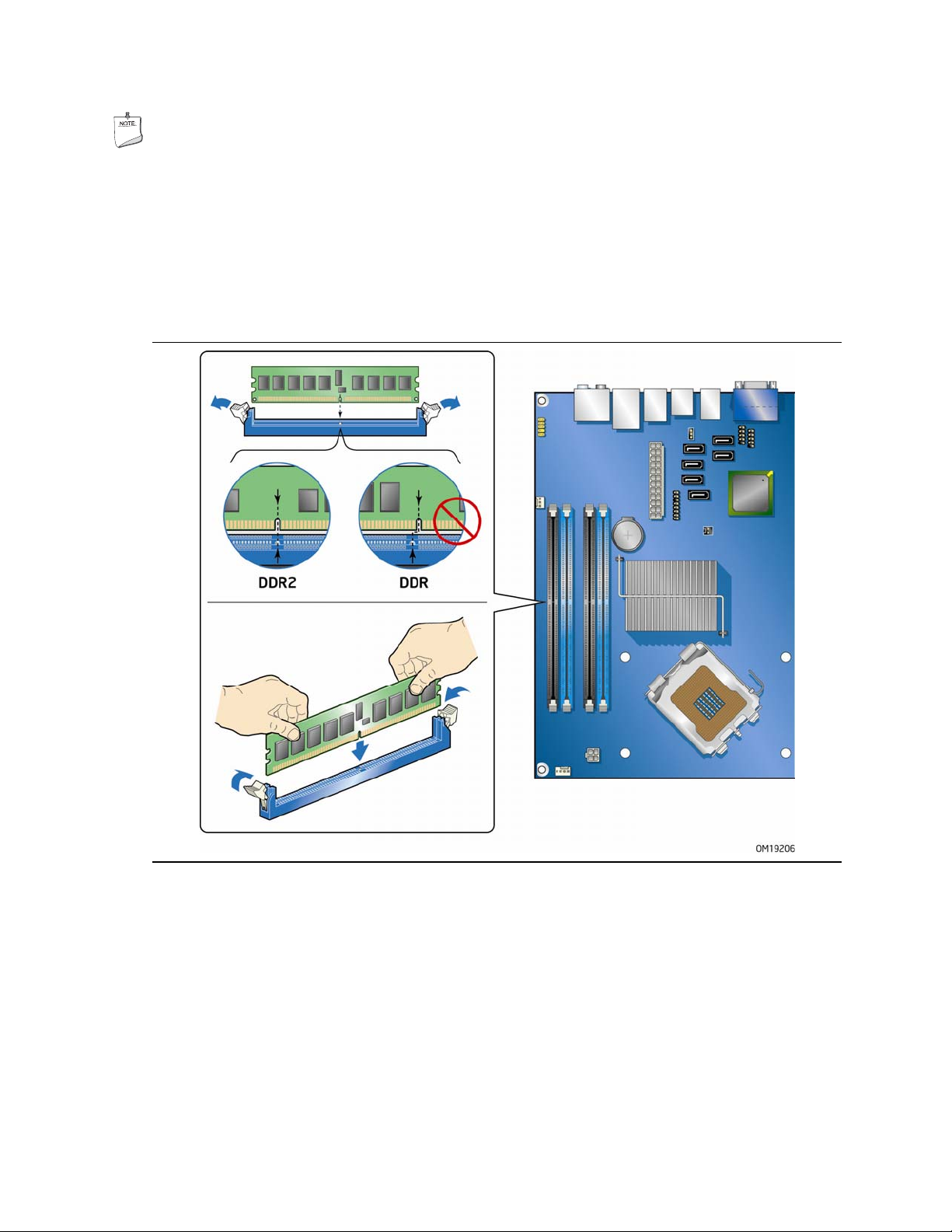

Installing DIMMs.......................................................................................... 40
Removing DIMMs......................................................................................... 42
Installing and Removing a PCI Express x16 Card.....................................................43
Installing a PCI Express x16 Card .................................................................. 43

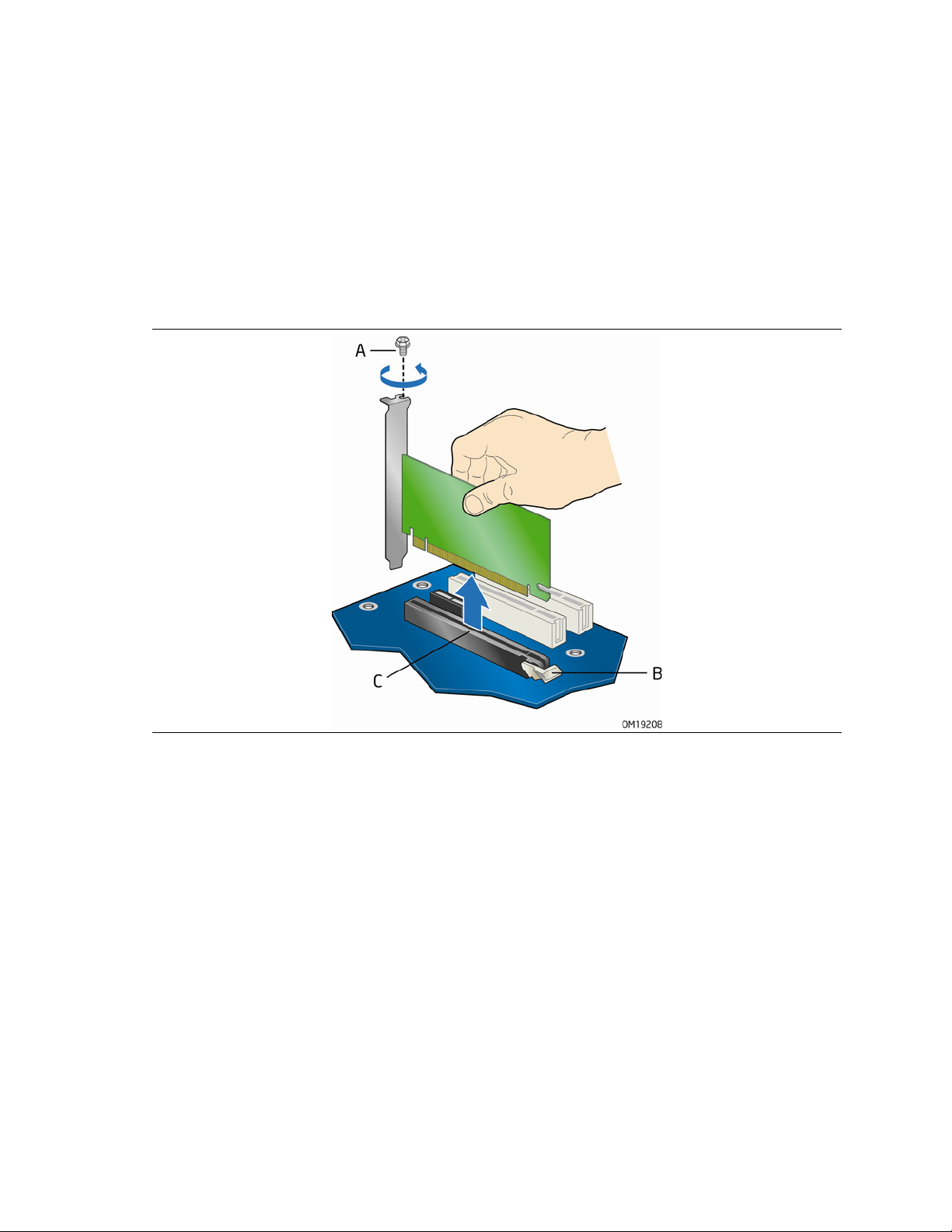

Removing the PCI Express x16 Card .............................................................. 44
Connecting the IDE Cable..................................................................................... 45
Connecting the Serial ATA (SATA) Cable ................................................................ 46
Connecting to Internal Headers.............................................................................47
Installing a Front Panel Audio Solution for Intel
®
High Definition Audio ............... 48
Connecting to the USB 2.0 Headers ............................................................... 49
Connecting to the Front Panel Header ............................................................49
Connecting to the Alternate Front Panel Power LED Header............................... 50
Connecting to the IEEE 1394a Header ............................................................ 50
Connecting to the Parallel Port Header ...........................................................51
Connecting to the Serial Port Header.............................................................. 51
Connecting to the HD Audio Link Header ........................................................ 52
Connecting to the Flexible Audio System ................................................................ 52
Connecting Chassis Fan and Power Cables.............................................................. 53
Connecting Chassis Fan Cables...................................................................... 53

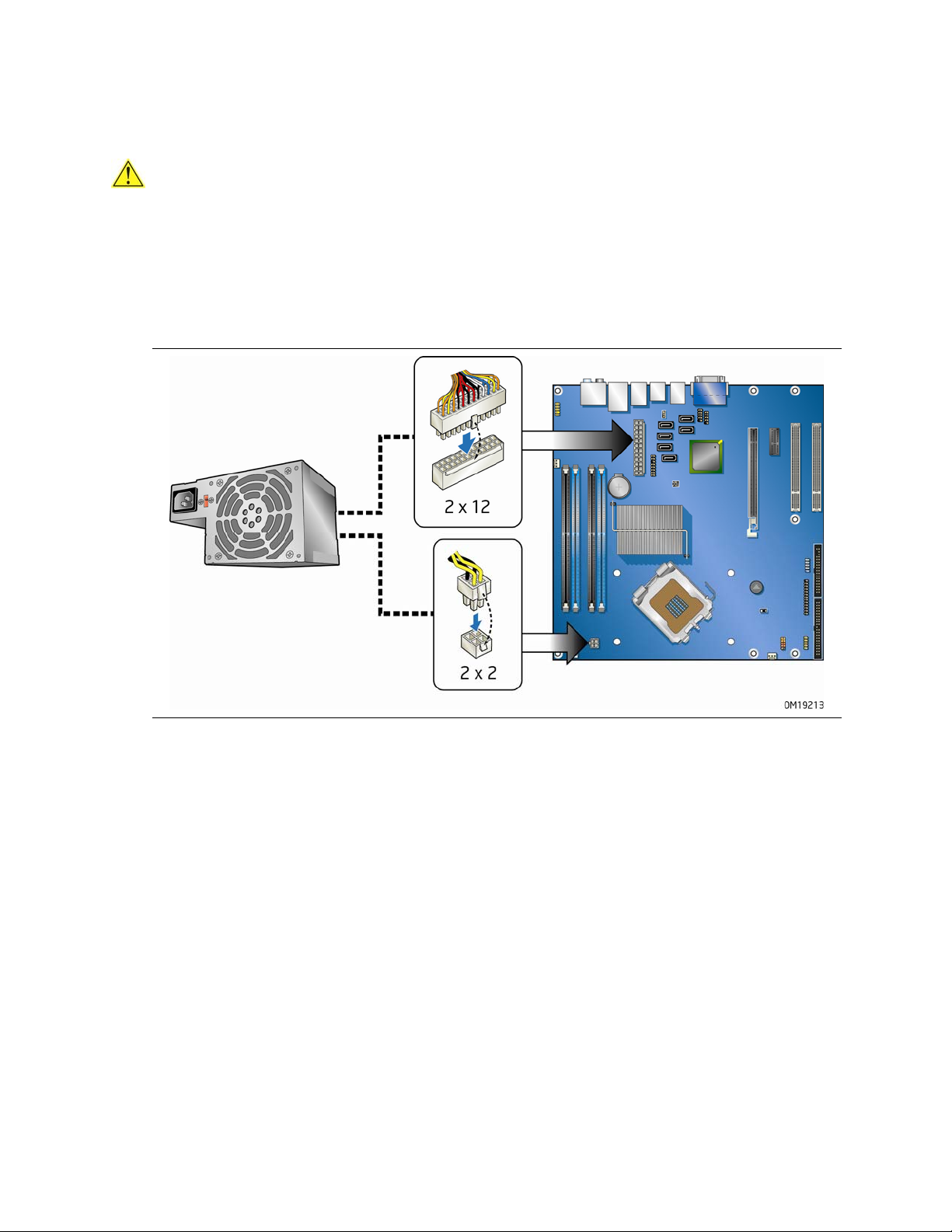

Connecting Power Cables.............................................................................. 54
Other Connectors and Headers ............................................................................. 55
Setting the BIOS Configuration Jumper ..................................................................56
Clearing Passwords..............................................................................................58
Back Panel Connectors......................................................................................... 59
3 Updating the BIOS
Updating the BIOS with the Intel
Updating the BIOS with the ISO Image BIOS Update File or the
Iflash Memory Update Utility ...........................................................................
Obtaining the BIOS Update File .....................................................................66
Updating the BIOS with the ISO Image BIOS Update File.................................. 66
Updating the BIOS with Iflash .......................................................................67
Recovering the BIOS....................................................................................68
4 Configuring for RAID (Intel
Configuring the BIOS for Intel Matrix Storage Technology................................. 69
SATA Port Mapping ......................................................................................69
Creating Your RAID Set ................................................................................ 70
Loading the Intel Matrix Storage Technology RAID Drivers and Software ............ 71
Setting Up a “RAID Ready” System ................................................................ 71
®
Express BIOS Update Utility .................................65
®
Matrix Storage Technology)
66
vi
Contents
5 Intel
Overview............................................................................................................ 73
Installation and Configuration ...............................................................................74
®
Quick Resume Technology Driver (Intel
Intel Quick Resume Technology Power Modes ................................................. 73
®
QRTD)
A Error Messages and Indicators
BIOS Beep Codes ................................................................................................77
BIOS Error Messages ...........................................................................................77
B Regulatory Compliance
Safety Regulations ..............................................................................................79
Place Battery Marking ..................................................................................79
European Union Declaration of Conformity Statement .............................................. 80
Product Ecology Statements .................................................................................81
Lead-Free Desktop Board .............................................................................84
EMC Regulations ................................................................................................. 85
Ensure Electromagnetic Compatibility (EMC) Compliance .................................. 86
Product Certifications........................................................................................... 87
Board-Level Certification Markings ................................................................. 87
Chassis and Component Certifications ............................................................ 88
Figures
1. Desktop Board DG965MQ Components ............................................................. 11
2. LAN Connector LEDs ......................................................................................18
3. Location of Standby Power Indicator ................................................................ 24
4. Installing the I/O Shield ................................................................................. 29
5. Desktop Board DG965MQ Mounting Screw Hole Locations................................... 31
6. Lift Socket Lever ........................................................................................... 32
7. Lift the Load Plate..........................................................................................32
8. Remove the Protective Socket Cover ................................................................ 33
9. Remove the Processor from the Protective Processor Cover ................................ 33
10. Install the Processor ...................................................................................... 34
11. Close the Load Plate....................................................................................... 34
12. Position the Thermal Module Over the Mounting Holes........................................ 35
13. Use Care Routing the Thermal Module Fan Cable ...............................................36
14. Secure the Thermal Module............................................................................. 36
15. Connect the Thermal Module Fan Cable ............................................................ 37
16. Dual Channel Memory Configuration Example 1 .................................................38
17. Dual Channel Memory Configuration Example 2 .................................................39
18. Dual Channel Memory Configuration Example 3 .................................................39
19. Use DDR2 DIMMs ..........................................................................................40
20. Installing a DIMM ..........................................................................................41
21. Installing a PCI Express x16 Card .................................................................... 43
22. Removing a PCI Express x16 Card ................................................................... 44
23. Connecting the IDE Cable ............................................................................... 45
24. Connecting the Serial ATA Cable...................................................................... 46
25. Internal Headers ...........................................................................................47
26. Back Panel Audio Connectors ..........................................................................52
27. Location of Chassis Fan Headers...................................................................... 53
28. Connecting Power Supply Cables ..................................................................... 54
29. Location of Other Connectors and Headers........................................................ 55
vii
Intel Desktop Board DG965MQ Product Guide
30. Location of the BIOS Configuration Jumper Block............................................... 56
31. Back Panel Connectors ................................................................................... 59
32. Removing the Battery .................................................................................... 64
33. Original SATA Port Mapping for Desktop Board DG965MQ ................................... 69
34. SATA Port Mapping for Desktop Board DG965MQ After RAID is Enabled................ 70
Tables
1. Feature Summary............................................................................................9
2. Desktop Board DG965MQ Components ............................................................. 12
3. DVI Port Status ............................................................................................. 15
4. LAN Connector LED States .............................................................................. 18
5. Front Panel Audio Header Signal Names for Intel High Definition Audio................. 48
6. AC ’97 Audio Header Signal Names ..................................................................48
7. USB 2.0 Header Signal Names......................................................................... 49
8. Front Panel Header ........................................................................................49
9. Alternate Front Panel Power LED Header........................................................... 50
10. IEEE 1394a Header Signal Names.................................................................... 50
11. Parallel Port Header Signal Names ................................................................... 51
12. Serial Port Header Signal Names .....................................................................51
13. HD Audio Link Header Signal Names ................................................................52
14. Jumper Settings for the BIOS Setup Program Modes .......................................... 57
15. Beep Codes................................................................................................... 77
16. BIOS Error Messages ..................................................................................... 77
17. Safety Regulations......................................................................................... 79
18. Lead-Free Board Markings ..............................................................................84
19. EMC Regulations............................................................................................ 85
20. Product Certification Markings .........................................................................87
viii
1 Desktop Board Features
This chapter briefly describes the main features of Intel® Desktop Board DG965MQ.
Table 1 summarizes the major features of the desktop board.
Table 1. Feature Summary
Form Factor
Processor Support for an Intel® processor in the LGA775 package
Main Memory • Four 240-pin, DDR2 1.8 V SDRAM Dual Inline Memory Module (DIMM)
Chipset Intel® G965 Express Chipset consisting of:
Graphics
Audio
Expansion
Capabilities
Peripheral
Interfaces
microBTX (264.16 millimeters [10.40 inches] x 266.70 millimeters
[10.50 inches])
sockets
• 800/667/533 MHz single or dual channel DDR2 SDRAM interface
• Support for up to 8 GB of system memory
®
• Intel
• Intel
• Intel
• Intel® Clear Video Technology
• Support for VGA and DVI displays
• Support for Dual-Independent Display via VGA and DVI
• PCI Express* graphics card support via a PCI Express x16 connector
• 8-channel (7.1) onboard subsystem, featuring:
• One PCI Express x1 connector
• One PCI Express x16 connector
• Two PCI connectors
• Up to 10 USB 2.0 ports
• Six Serial ATA (SATA) channels (3.0 Gb/s), via the ICH8, one device per
• Up to two IEEE 1394a ports
• One IDE interface with ATA-66/100 support (two devices)
• One diskette drive interface
• One VGA port
• One DVI port
• One parallel port header
• One serial port header
• PS/2* keyboard and mouse ports
G965 Express Chipset Graphics and Memory Controller Hub (GMCH)
®
82801HH I/O Controller Hub (ICH8DH)
®
G965 Express Chipset with Intel® Graphics Media Accelerator X3000
®
― Intel
― SigmaTel* STAC9271D audio codec
― HD Audio Link header
― Support for Dolby* Home Theater*
― Six ports routed to the back panel
― Four ports routed to two USB headers
channel
― One port routed to the back panel
― One port routed to a IEEE 1394a header
High Definition Audio interface
continued
9
Intel Desktop Board DG965MQ Product Guide
Table 1. Feature Summary (continued)
LAN Support Gigabit (10/100/1000 Mb/s) LAN subsystem using the Intel® 82566DC
Gigabit Network Connection
BIOS • Intel® Platform Innovation Framework for extensible firmware
interface
• 8 Mbit symmetrical flash memory
• Support for SMBIOS
• Intel
• Intel® Express BIOS Update
Power
Management
Hardware
Management
• Support for Advanced Configuration and Power Interface (ACPI)
• Suspend to RAM (STR)
• Wake on USB, PCI Express, PS/2, LAN, and front panel
Hardware monitor with:
• Three fan sensing inputs used to monitor fan activity
• Remote diode temperature sensing
• Voltage sensing to detect out of range values
• Intel
®
Rapid BIOS Boot
®
Quiet System Technology (Intel® QST) fan speed control
Related Links:
For more information about Desktop Board DG965MQ, including the Technical Product
Specification (TPS), BIOS updates, and device drivers, go to:
http://support.intel.com/support/motherboards/desktop/
Supported Operating Systems
The desktop board supports the following operating systems:
• Microsoft Windows Vista* Ultimate
• Microsoft Windows Vista Enterprise
• Microsoft Windows Vista Business
• Microsoft Windows Vista Home Premium
• Microsoft Windows Vista Home Basic
• Microsoft Windows Vista Ultimate 64-bit edition
• Microsoft Windows Vista Enterprise 64-bit edition
• Microsoft Windows Vista Business 64-bit edition
• Microsoft Windows Vista Home Premium 64-bit edition
• Microsoft Windows Vista Home Basic 64-bit edition
• Microsoft Windows* XP Media Center Edition 2005
• Microsoft Windows XP Professional
• Microsoft Windows XP Professional x64 Edition
• Microsoft Windows XP Home Edition
• Microsoft Windows 2000
10
Desktop Board Features
Desktop Board Components
Figure 1 shows the approximate location of the major components on Desktop Board
DG965MQ.
Figure 1. Desktop Board DG965MQ Components
11
Intel Desktop Board DG965MQ Product Guide
Table 2. Desktop Board DG965MQ Components
Label Description
A Front panel audio header
B Back panel connectors
C Hi-speed USB 2.0 headers
D Serial ATA connectors
E PCI Express x16 connector
F PCI Express x1 connector
G PCI bus connector 1
H PCI bus connector 2
I IEEE 1394a header
J Diskette drive connector
K IDE connector
L Serial port header
M Parallel port header
N Front panel header
O Front chassis fan header (3-pin)
P Alternate front panel power LED header
Q Speaker
R Chassis intrusion header
S HD Audio Link header
T Processor socket
U 12 V processor core voltage connector (2 x 2 pin )
V Processor fan header (4-pin)
W DIMM 1, Channel A and B sockets
X DIMM 0, Channel A and B sockets
Y Rear chassis fan header (3-pin)
Z Battery
AA Main power connector (2 x 12 pin)
BB BIOS configuration jumper block
Related Links:
Go to the following links for more information about:
• Desktop Board DG965MQ
• Supported processors
• Audio software and utilities
• LAN software and drivers
http://www.intel.com/design/motherbd
http://support.intel.com/support/motherboards/desktop
http://www.intel.com/go/findCPU
http://www.intel.com/design/motherbd
http://www.intel.com/design/motherbd
12
Desktop Board Features
Processor
CAUTION
Failure to use an appropriate power supply and/or not connecting the 12 V (2 x 2 pin)
power connector to the desktop board may result in damage to the board or the
system may not function properly.
Desktop Board DG965MQ supports an Intel processor in the LGA775 package.
Processors are not included with the desktop board and must be purchased separately.
The processor connects to the desktop board through the LGA775 socket.
The supported processors list for Desktop Board DG965MQ is located on the web at:
http://www.intel.com/go/findCPU
Related Links:
Go to the following links or pages for more information about:
• Instructions on installing or upgrading the processor, page
32 in Chapter 2
Main Memory
NOTE
To be fully compliant with all applicable Intel® SDRAM memory specifications, the
board should be populated with DIMMs that support the Serial Presence Detect (SPD)
data structure. If your memory modules do not support SPD, you will see a
notification to this effect on the screen at power up. The BIOS will attempt to
configure the memory controller for normal operation.
The desktop board supports the dual or single channel memory configurations defined
below.
• Four 240-pin Double Data Rate 2 (DDR2) SDRAM Dual Inline Memory Module
(DIMM) connectors with gold-plated contacts.
• Support for:
― Unbuffered, non-registered single or double-sided DIMMs
― Non-ECC DDR2 memory
― DIMM Type and Timings listed below:
Type Timing
DDR2-800 5-5-5 or 6-6-6 only
DDR2-667 5-5-5 only
DDR2-533 4-4-4 only
― Serial Presence Detect (SPD) memory only
13
Intel Desktop Board DG965MQ Product Guide
― Memory configurations listed below:
• Up to 2.0 GB utilizing 256 Mb technology
• Up to 4.0 GB utilizing 512 Mb or 1 Gb technology
NOTE
1 Gb memory technology is not supported on DDR2-800 DIMMs.
Intel recommends using memory from the tested memory lists, available at:
Related Links:
Go to the following links or pages for more information about:
• SDRAM specifications,
• Installing memory, page
• Up to 8.0 GB utilizing 1 Gb technology
http://www.cmtlabs.com/mbsearch.asp
or
http://www.intel.com/products/motherboard/index.htm?iid=HMPAGE+Header_2_Pro
duct_MB
http://www.intel.com/technology/memory/
38 in Chapter 2
Intel® G965 Express Chipset
The Intel G965 Express Chipset consists of the following devices:
• Intel G965 Express Chipset Graphics and Memory Controller Hub (GMCH) with
Direct Media Interface (DMI) interconnect
• Intel 82801HH I/O Controller Hub (ICH8DH) with DMI interconnect
Related Link:
Go to the following link for more information about the Intel G965 Express Chipset:
http://developer.intel.com/design/nav/pcserver.htm
Intel G965 Graphics Subsystem
The Intel G965 Express Chipset contains two separate, mutually exclusive graphics
options. Either the integrated GMA X3000 graphics controller is used or a PCI Express
x16 add-in card can be used. When a PCI Express x16 add-in card is installed, the
GMA X3000 graphics controller is disabled.
14
GMA X300 Graphics Controller
The GMA X3000 graphics controller features the following:
• 400 MHZ core frequency
• Enhanced 3D graphics
• Flat panel displays up to 2048 x 1536 at 75 Hz refresh rate (in dual-channel
mode) or digital CRT/HDTV up to 1920 x 1080 at 85 Hz refresh rate
• Dynamic Video Memory Technology (DVMT).
• Intel
― Enhanced high-definition video playback including multi-stream playback (up to
― Advanced Digital Display 2 cards or Media Expansion Cards (ADD2/MEC) which
― Precise color control featuring ProcAmp brightness, hue, saturation, and
― Advanced de-interlacing for sharp image quality at high resolutions
For more information on Intel Clear Video Technology, go to:
®
Clear Video Technology which supports:
one HD and one SD stream) for picture-in-picture
enable digital display connections such as DVI and TV-out in a single-card
solution
contrast control
http://www.intel.com/go/clearvideo
Desktop Board Features
NOTE
A minimum of 512 MB of system memory is required in order for the Intel GMA X3000
integrated graphics controller to operate properly.
Digital Video Interface (DVI)
The DVI port supports only DVI-D displays. The maximum support resolution is
1600 x 1200 at 60 Hz refresh rate. The DVI port is compliant with the following
specifications:
• DVI 1.0
• HDCP, rev 1.1 down-stream (when applicable)
Depending on the type of add-in card installed in the PCI Express x16 connector, the
DVI port will behave as described in
Table 3. DVI Port Status
PCI Express x16 Connector DVI Port VGA Port
No add-in card installed Enabled Enabled
Non-video PCI Express x1 add-in card installed Enabled Enabled
PCI Express x4, x8, or x16 add-in card installed Disabled Disabled
ADD2 or MEC card installed Disabled Enabled
Table 3.
15
Intel Desktop Board DG965MQ Product Guide
Onboard Audio Subsystem
Desktop Board DG965MQ has a flexible 8-channel (7.1) onboard audio subsystem that
includes a SigmaTel STAC9271D audio codec and an HD Audio Link header.
The audio subsystem features:
• Intel High Definition Audio interface
• Advanced jack sense, for the back panel connectors, that enables the audio codec
to recognize the device that is connected to an audio port and retask the connector
via the audio driver.
• S/N (signal-to-noise) ratio: 95 dB
• Microphone input supporting:
― Stereo microphone
― Microphone boost
The subsystem includes the following connectors:
• Front panel audio connector, including functionality for:
― Line out
― Microphone in
• Back panel audio connectors that are configurable through the audio device
drivers:
― Surround left and right/retasking jack
― Center channel and LFE (subwoofer)/retasking jack
― S/PDIF optical digital audio line out
― Line in/side surround left and right/retasking jack
― Line out/retasking jack
― Mic in/retasking jack
Related Links:
Go to the following link or pages for more information about:
• Audio drivers and utilities
• Installing the front panel audio solution, page
• The location of audio connectors,
http://support.intel.com/support/motherboards/desktop/
Figure 26 on page 52
48
16
Desktop Board Features
Input/Output (I/O) Controller
The super I/O controller features the following:
• One serial port header
• One parallel port header with Extended Capabilities Port (ECP) and Enhanced
Parallel Port (EPP) support
• Serial IRQ interface compatible with serialized IRQ support for PCI systems
• PS/2-style mouse and keyboard interfaces
• Interface for one 1.2 MB or 1.44 MB diskette drive
• Intelligent power management, including a programmable wake up event interface
• PCI power management support
LAN Subsystem
The LAN subsystem consists of the following:
• Intel
• RJ-45 connector with status indicator LEDs
®
82566DC Gigabit (10/100/1000 Mb/s Ethernet LAN controller)
LAN Subsystem Software
For LAN software and drivers, refer to the DG965MQ link on Intel’s World Wide Web
site at:
http://support.intel.com/support/motherboards/desktop
17
Intel Desktop Board DG965MQ Product Guide
RJ-45 LAN Connector LEDs
Two LEDs are built into the RJ-45 LAN connector located on the back panel (see
Figure 2). These LEDs indicate the status of the LAN.
Figure 2. LAN Connector LEDs
Table 4 describes the LED states when the board is powered up and the LAN
subsystem is operating.
Table 4. LAN Connector LED States
LED LED Color LED State Indicates
A Green
B
N/A Off 10 Mb/s data rate
Green On 100 Mb/s data rate
Yellow On 1000 Mb/s data rate
Off LAN link is not established
On LAN link is established
Blinking LAN activity is occurring
Hi-Speed USB 2.0 Support
NOTE
Computer systems that have an unshielded cable attached to a USB port might not
meet FCC Class B requirements, even if no device or a low-speed USB device is
attached to the cable. Use a shielded cable that meets the requirements for a
full-speed USB device.
The desktop board supports up to 10 USB 2.0 ports via ICH8 six ports routed to the
back panel and four ports routed to two internal USB 2.0 headers. USB 2.0 ports are
backward compatible with USB 1.1 devices. USB 1.1 devices will function normally at
USB 1.1 speeds.
18
Desktop Board Features
USB 2.0 support requires both an operating system and drivers that fully support
USB 2.0 transfer rates. Disabling Hi-Speed USB in the BIOS reverts all USB 2.0 ports
to USB 1.1 operation. This may be required to accommodate operating systems that
do not support USB 2.0.
Enhanced IDE Interface
The desktop board’s IDE interface handles the exchange of information between the
processor and peripheral devices such as hard disk drives and CD-ROM drives. The
interface supports:
• Up to two IDE devices (such as hard drives)
• ATAPI-style devices (such as CD-ROM drives)
• Older PIO Mode devices
• Ultra DMA-33 and ATA-66/100 protocols
Serial ATA
The desktop board supports six Serial ATA channels (3.0 Gb/s) via ICH8, connecting
one device per channel.
Expandability
For system expansion, the desktop board provides the following:
• One PCI Express x16 connector
• One PCI Express x1 connector
• Two PCI bus connectors
BIOS
The BIOS provides the Power-On Self-Test (POST), the BIOS Setup program, the
PCI/PCI Express and IDE auto-configuration utilities, and the video BIOS. The BIOS is
stored in a Serial Peripheral Interface (SPI) Flash device.
The BIOS can be updated by following the instructions on page
Serial ATA and IDE Auto Configuration
If you install a Serial ATA or IDE device (such as a hard drive) in your computer, the
auto-configuration utility in the BIOS automatically detects and configures the device
for your computer. You do not need to run the BIOS Setup program after installing a
Serial ATA or IDE device. You can override the auto-configuration options by
specifying manual configuration in the BIOS Setup program.
65 in Chapter 3.
19
Intel Desktop Board DG965MQ Product Guide
PCI and PCI Express* Auto Configuration
If you install a PCI/PCI Express add-in card in your computer, the PCI/PCI Express
auto-configuration utility in the BIOS automatically detects and configures the
resources (IRQs, DMA channels, and I/O space) for that add-in card. You do not need
to run the BIOS Setup program after you install a PCI/PCI Express add-in card.
Security Passwords
The BIOS includes security features that restrict whether the BIOS Setup program can
be accessed and who can boot the computer. A supervisor password and a user
password can be set for the BIOS Setup and for booting the computer, with the
following restrictions:
• The supervisor password gives unrestricted access to view and change all Setup
options. If only the supervisor password is set, pressing <Enter> at the password
prompt of Setup gives the user restricted access to Setup.
• If both the supervisor and user passwords are set, you must enter either the
supervisor password or the user password to access Setup. Setup options are then
available for viewing and changing depending on whether the supervisor or user
password was entered.
• Setting a user password restricts who can boot the computer. The password
prompt is displayed before the computer is booted. If only the supervisor
password is set, the computer boots without asking for a password. If both
passwords are set, you can enter either password to boot the computer.
Related Links:
For instructions on resetting the password, see
Clearing Passwords on page 58.
Hardware Management Features
The hardware management features of Desktop Board DG965MQ enable the board to
be compatible with the Wired for Management (WfM) specification. The board has
several hardware management features including the following:
• Fan speed monitoring and control
• Thermal and voltage monitoring
• Chassis intrusion detection
20
Desktop Board Features
Hardware Monitoring and Fan Speed Control
The features of the hardware monitoring and fan speed control include:
• Monitoring of power supply voltages to detect levels above and below acceptable
values
• Intel Quiet System Technology, delivering acoustically-optimized thermal
management
NOTE
Memory must be installed in the Channel A, DIMM 0 socket to enable Intel®
• Fan speed controllers and sensors integrated into the ICH8
• Thermal sensors in the processor, GMCH, and ICH8 plus an onboard remote sensor
• Thermally monitored closed-loop fan control, for all onboard fans, that can adjust
Quiet System Technology.
fan speed or switch the fans off as needed
Chassis Intrusion Detection
The board supports a chassis security feature that detects if the chassis cover has
been removed. The security feature uses a mechanical switch on the chassis that can
be connected to the chassis intrusion header on the desktop board. See
page
55 for the location of the chassis intrusion header.
Figure 29 on
Power Management Features
Power management is implemented at several levels, including:
• Software support through the Advanced Configuration and Power Interface (ACPI)
• Hardware support:
― Power connectors
― Fan headers
― LAN wake capabilities
― Instantly Available PC technology (Suspend to RAM)
― +5 V standby power indicator LED
― Wake from USB
― Wake from PS/2 keyboard/mouse
― Power Management Event signal (PME#) wakeup support
― WAKE# signal wake-up support
ACPI
ACPI gives the operating system direct control over the power management and Plug
and Play functions of a computer. The use of ACPI with the desktop board requires an
operating system that provides full ACPI support.
21
Intel Desktop Board DG965MQ Product Guide
Power Connectors
ATX12V-compliant power supplies can turn off the computer power through system
control. When an ACPI-enabled computer receives the correct command, the power
supply removes all non-standby voltages.
When resuming from an AC power failure, the computer returns to the power state it
was in before power was interrupted (either on or off). The computer’s response can
be set by using the Last Power State feature in the BIOS Setup program’s Boot menu.
The desktop board has two power connectors. See
location of the power connectors.
Figure 28 on page 54 for the
Fan Headers
The function/operation of the fans is as follows:
• The fans are on when the computer is in the ACPI S0 state.
• The fans are off when the computer is in the ACPI S3, S4, or S5 state.
• Each fan header is wired to a tachometer input of the hardware monitoring and
control device.
• All fan headers support closed-loop fan control that can adjust the fan speed or
switch the fan on or off as needed.
• All fan headers have a +12 V dc connection.
The desktop board has a 4-pin processor fan header and two 3-pin chassis fan
headers.
LAN Wake Capabilities
CAUTION
For LAN wake capabilities, the 5 V standby line for the power supply must be capable
of delivering adequate +5 V standby current. Failure to provide adequate standby
current when using this feature can damage the power supply.
LAN wakeup capabilities enable remote wake-up of the computer through a network.
The LAN subsystem monitors network traffic and upon detecting a Magic Packet*
frame, it asserts a wake-up signal that powers up the computer.
22
Desktop Board Features
Instantly Available PC Technology
CAUTIONS
For Instantly Available PC technology, the 5 V standby line for the power supply must
be capable of delivering adequate +5 V standby current. Failure to provide adequate
standby current when using this feature can damage the power supply and/or effect
ACPI S3 sleep state functionality.
Power supplies used with this desktop board must be able to provide enough standby
current to support the standard Instantly Available (ACPI S3 sleep state) configuration.
If the standby current necessary to support multiple wake events from the PCI and/or
USB buses exceeds power supply capacity, the desktop board may lose register
settings stored in memory.
Instantly Available PC technology enables the board to enter the ACPI S3 (Suspend-toRAM) sleep state. While in the S3 sleep state, the computer will appear to be off. If
the computer has a dual-colored power LED on the front panel, the sleep state is
indicated by the LED turning amber. When signaled by a wake-up device or event, the
computer quickly returns to its last known awake state.
The desktop board supports the PCI Bus Power Management Interface Specification.
Add-in cards that support this specification can participate in power management and
can be used to wake the computer.
23
Intel Desktop Board DG965MQ Product Guide
+5 V Standby Power Indicator LED
CAUTION
If the AC power has been switched off and the standby power indicator is still lit,
disconnect the power cord before installing or removing any devices connected to the
board. Failure to do so could damage the board and any attached devices.
The desktop board’s standby power indicator, shown in Figure 3, is lit when there is
standby power still present on the board even when the computer appears to be off.
For example, when this LED is lit, standby power is still present at the memory module
sockets and the PCI bus connectors.
Figure 3. Location of Standby Power Indicator
Related Links:
For more information on standby current requirements for the desktop board, refer to
the Technical Product Specification by going to the following link, finding the product,
and selecting Product Documentation from the left-hand menu:
http://support.intel.com/support/motherboards/desktop/
24
Desktop Board Features
Wake from USB
NOTE
Wake from USB requires the use of a USB peripheral that supports Wake from USB.
USB bus activity wakes the computer from an ACPI S3 state.
Wake from PS/2 Keyboard/Mouse
PS/2 keyboard/mouse activity wakes the computer from an ACPI S3 state.
PME# Signal Wake-up Support
When the PME# signal on the PCI bus is asserted, the computer wakes from an ACPI
S3, S4, or S5 state.
WAKE# Signal Wake-up Support
When the WAKE# signal on the PCI Express bus is asserted, the computer wakes from
an ACPI S2, S3, S4, or S5 state.
Speaker
A speaker is mounted on the desktop board. The speaker provides audible error code
(beep code) information during the Power-On Self-Test (POST).
Battery
A battery on the desktop board keeps the values in CMOS RAM and the clock current
when the computer is turned off. Go to page
battery.
60 for instructions on how to replace the
Real-Time Clock
The desktop board has a time-of-day clock and 100-year calendar. The battery on the
desktop board keeps the clock current when the computer is turned off.
25
Intel Desktop Board DG965MQ Product Guide
26
2 Installing and Replacing Desktop
Board Components
This chapter tells you how to:
• Install the I/O shield
• Install and remove the desktop board
• Install and remove a processor
• Install and remove memory
• Install and remove a PCI Express x16 card
• Connect the IDE and Serial ATA cables
• Connect to the internal headers
• Connect the flexible audio system
• Connect the chassis fan and power cables
• Set the BIOS configuration jumper
• Clear passwords
• Replace the battery
Before You Begin
CAUTIONS
The procedures in this chapter assume familiarity with the general terminology
associated with personal computers and with the safety practices and regulatory
compliance required for using and modifying electronic equipment.
Disconnect the computer from its power source and from any telecommunications
links, networks, or modems before performing any of the procedures described in this
chapter. Failure to disconnect power, telecommunications links, networks, or modems
before you open the computer or perform any procedures can result in personal injury
or equipment damage. Some circuitry on the board can continue to operate even
though the front panel power button is off.
Follow these guidelines before you begin:
• Always follow the steps in each procedure in the correct order.
• Set up a log to record information about your computer, such as model, serial
numbers, installed options, and configuration information.
• Electrostatic discharge (ESD) can damage components. Perform the procedures
described in this chapter only at an ESD workstation using an antistatic wrist strap
and a conductive foam pad. If such a station is not available, you can provide
some ESD protection by wearing an antistatic wrist strap and attaching it to a
metal part of the computer chassis.
27
