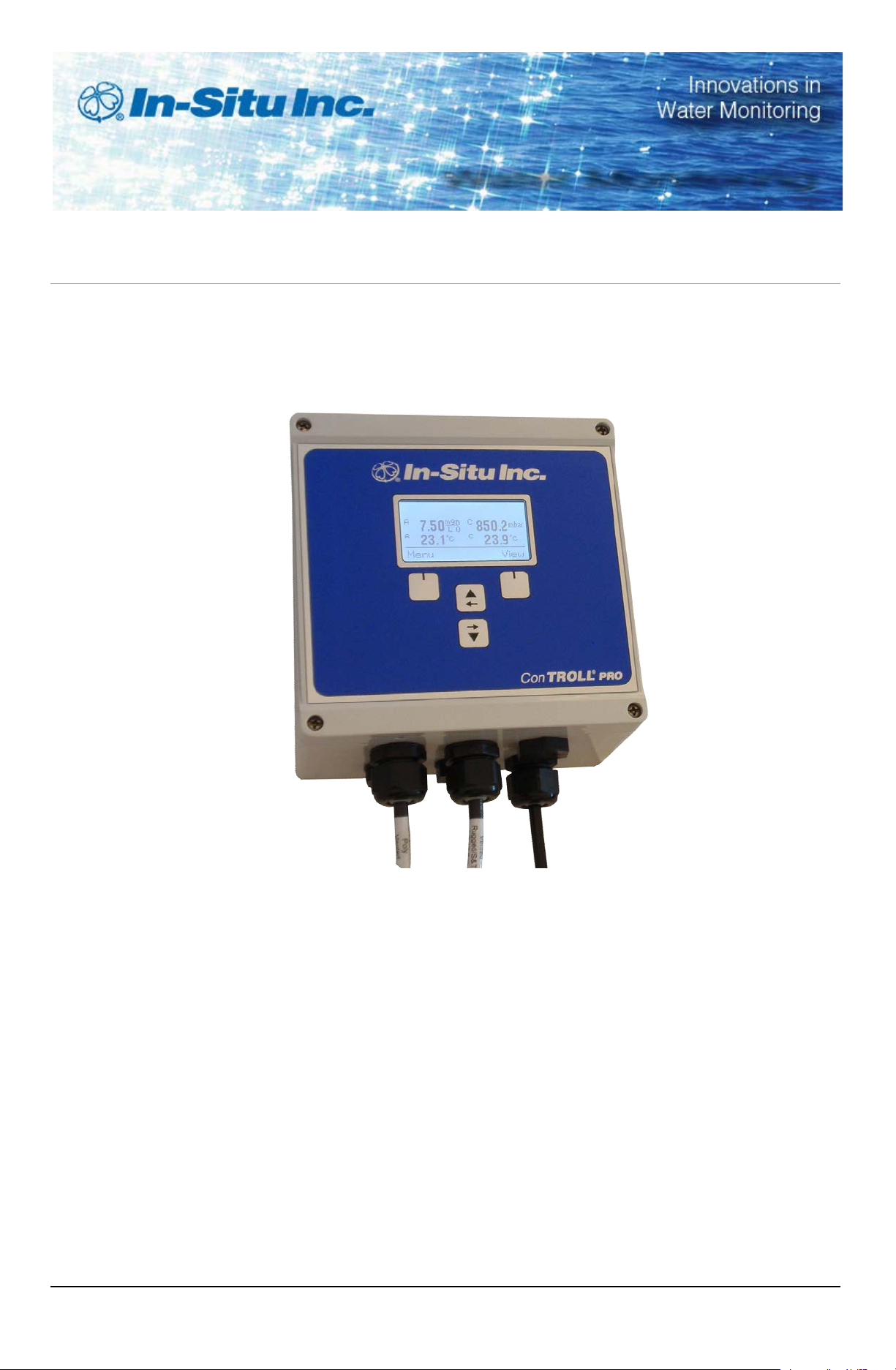

In-Situ Con TROLL PRO Operators Manual

Con TROLL®PRO

Operator's Manual

Informationsubject to changewithout notice. In-Situ, In-Situ logo, Baro Merge, BaroTROLL, HERMIT, iSitu, Pocket-Situ, RDO, RuggedCable, RuggedReader, TROLL, and Win-Situ are trademarks or registered trademarks of I n-Situ Inc.©2013. All rights reserved.

0085670 | Rev. 002 | 12/2013

This document contains proprietary information which is protected by copyright. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of In-Situ Inc.

Mailing and Shipping Address:

In-Situ Inc. 221 East Lincoln Avenue Fort Collins, CO 80524 U.S.A.

Phone: 970-498-1500 (international & domestic)

Fax: 970-498-1598

Internet: www.in-situ.com

Support: 800-446-7488 (U.S.A. & Canada)

In-Situ Inc. makes no warranty of any kind with regard to this material, including, but not limited to, its fitness for a particular application. In-Situ will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

In no event shall In-Situ Inc. be liable for any claim for direct, incidental, or consequential damages arising out of, or in connection with, the sale, manufacture, delivery, or use of any product.

In-Situ and the In-Situ logo, Win-Situ, TROLL, Baro Merge, BaroTROLL, HERMIT, iSitu, Pocket-Situ, RDO, RuggedCable, RuggedReader, TROLL, and Win-Situ are trademarks or registered trademarks of In-Situ Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. Pentium is a registered trademark of Intel. Tefzel and Delrin are registered trademarks of E. I. DuPont de Nemours and Company. Viton is a registered trademark of DuPont Dow Elastomers. Kellems is a registered trademark of Hubbell Inc. Alconox is a registered trademark of Alconox Company. Lime-A-Way is a registered trademark of Reckitt Benckiser. iPod and iPhone are trademarks of of Apple Inc., registered in the U.S. and other countries. The Bluetooth word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by In-Situ Inc. is under license. NIST is a registered trademark of the National Institute of Standards and Technology, U.S.A. Other brand names and trademarks are property of their respective owners.

The presence of the Waste Electrical and Electronic Equipment (WEEE) marking on the product indicates that the device is not to be disposed via the municipal waste collection system of any member state of the European Union.

For products under the requirement of WEEE directive, please contact your distributor or local InSitu Inc. office for the proper decontamination information and take back program, which will facilitate the proper collection, treatment, recovery, recycling, and safe disposal of the device.

0085670 | Rev. 002

800-446-7488 2 www.in-situ.com

Table of Contents

1 Getting Started

Probe Installation Requirements 6

Navigating Through the Menus 6

Menu Diagram 7

Initial Configuration 7

Using the View Function 8

Changing the Date and Time 9

Display (Screen) Appearance 9

Locking the Display 9

Changing the Display Contrast 9

Changing the Displayed Location 9

Changing the Back-light Time 9

Changing the Auto-Off Time (DC-L Model Only) 10

Changing the Language 10

On-Screen Icon Descriptions 11

Setting the Log Interval 11

Setting the Communications Preferences 12

Setting the Device Address for the Controller (RS485 Instruments Only) 12

Setting the RS485 Settings for the Controller 12

Enabling Bluetooth Communications on the Controller 12

Pairing Bluetooth Devices 12

Administrator and Password Access 13

2 Configuring Probes

Adding a Probe After Initial Configuration or Deletion 14

Deleting a Probe 14

Replacing a Probe 14

Enabling and Disabling Parameters 14

Setting Parameter Units 15

Settings Parameter Resolution (Setting Significant Units) 15

Setting the Sentinel Value (Offline/Error Value) 15

3 RDO PRO or RDO PRO-X Probe

Configuring RDO PRO or RDO PRO-X Options 16

Barometer 16

Salinity 16

Calibration Interval 16

Calibrating the RDO PRO or RDO PRO-X Probe 16

Calibration Options 16

1-Point Calibration 17

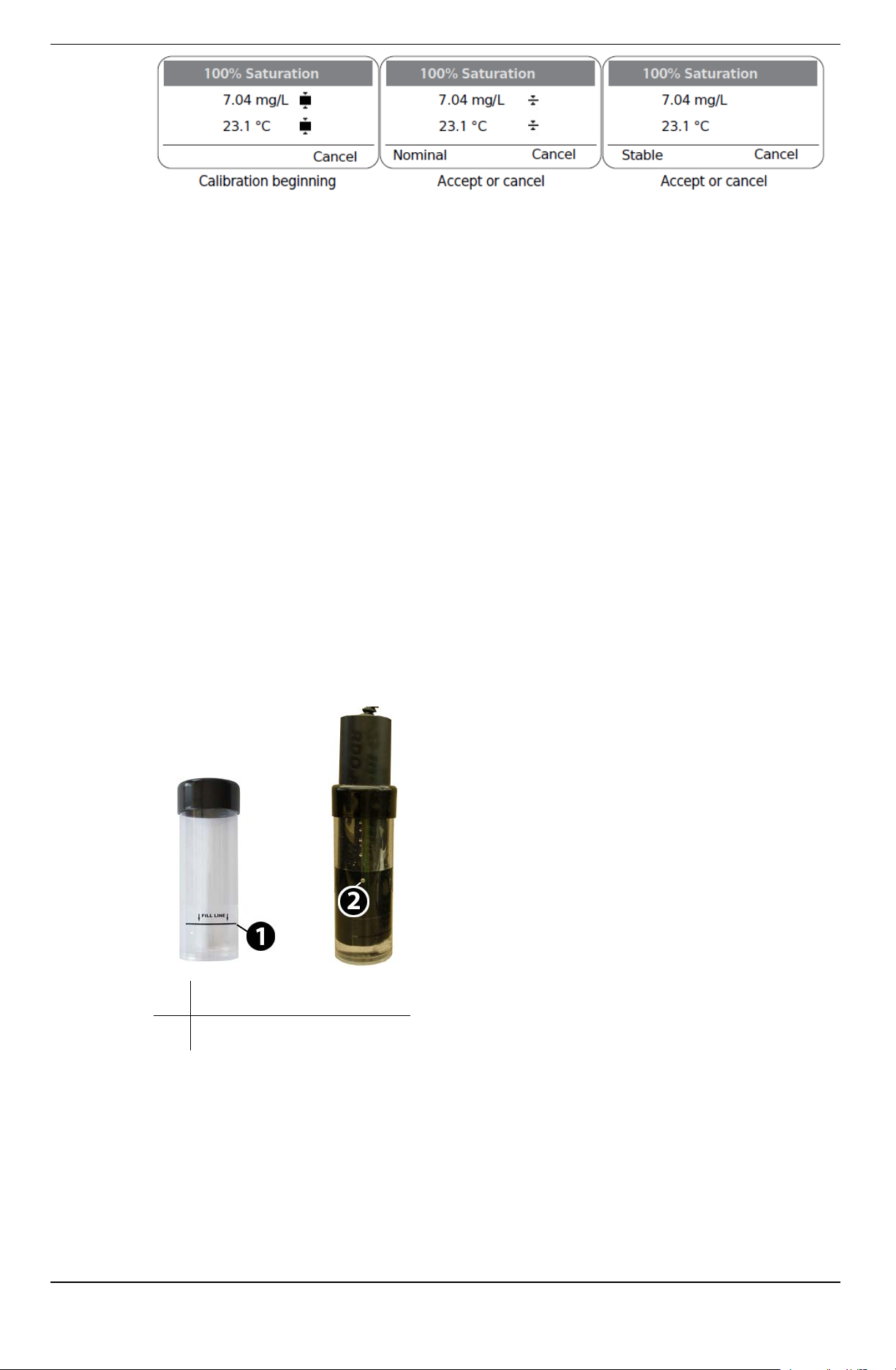

Water-Saturated Air 17

Controller 1-Point Calibration 17

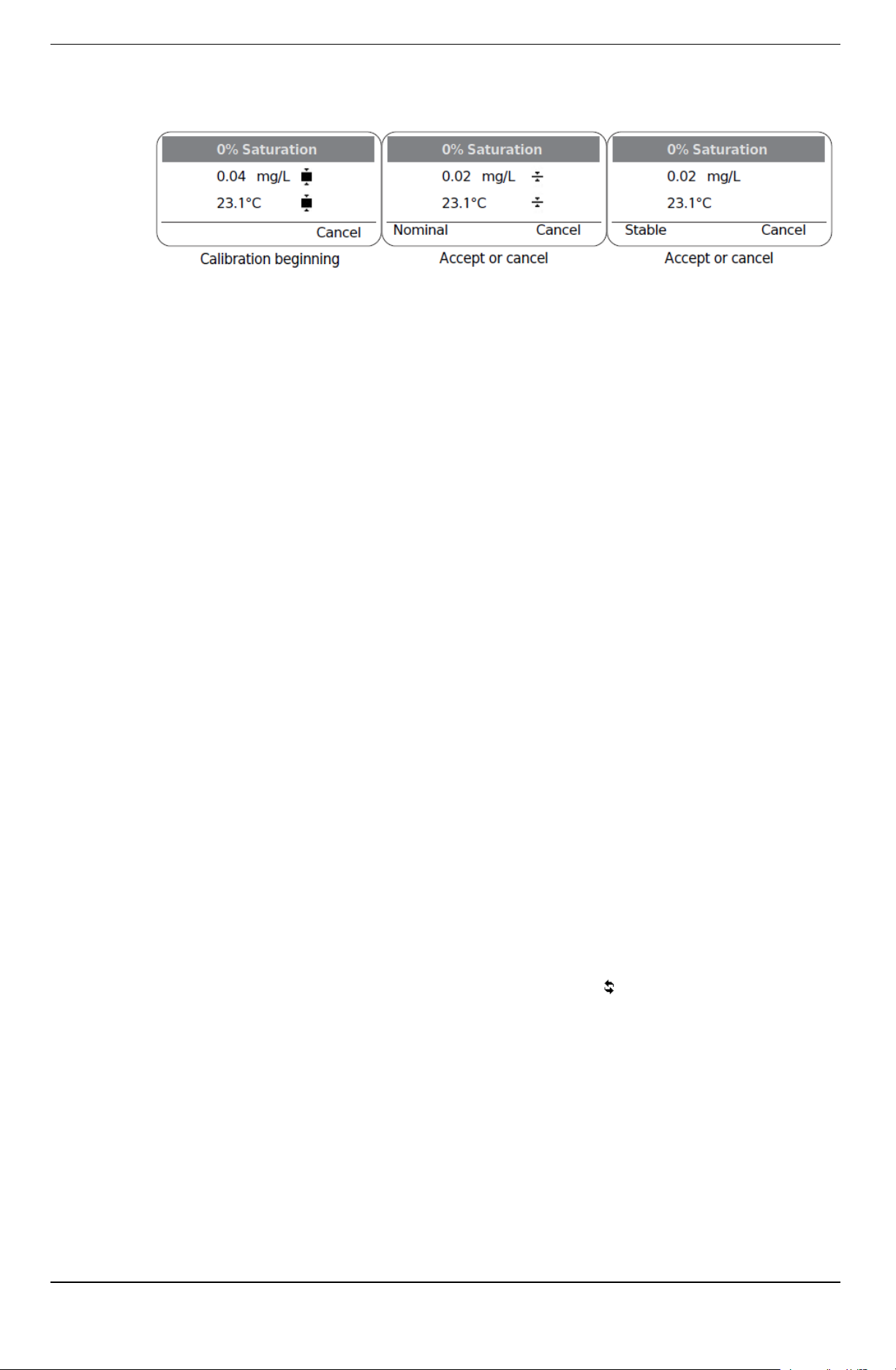

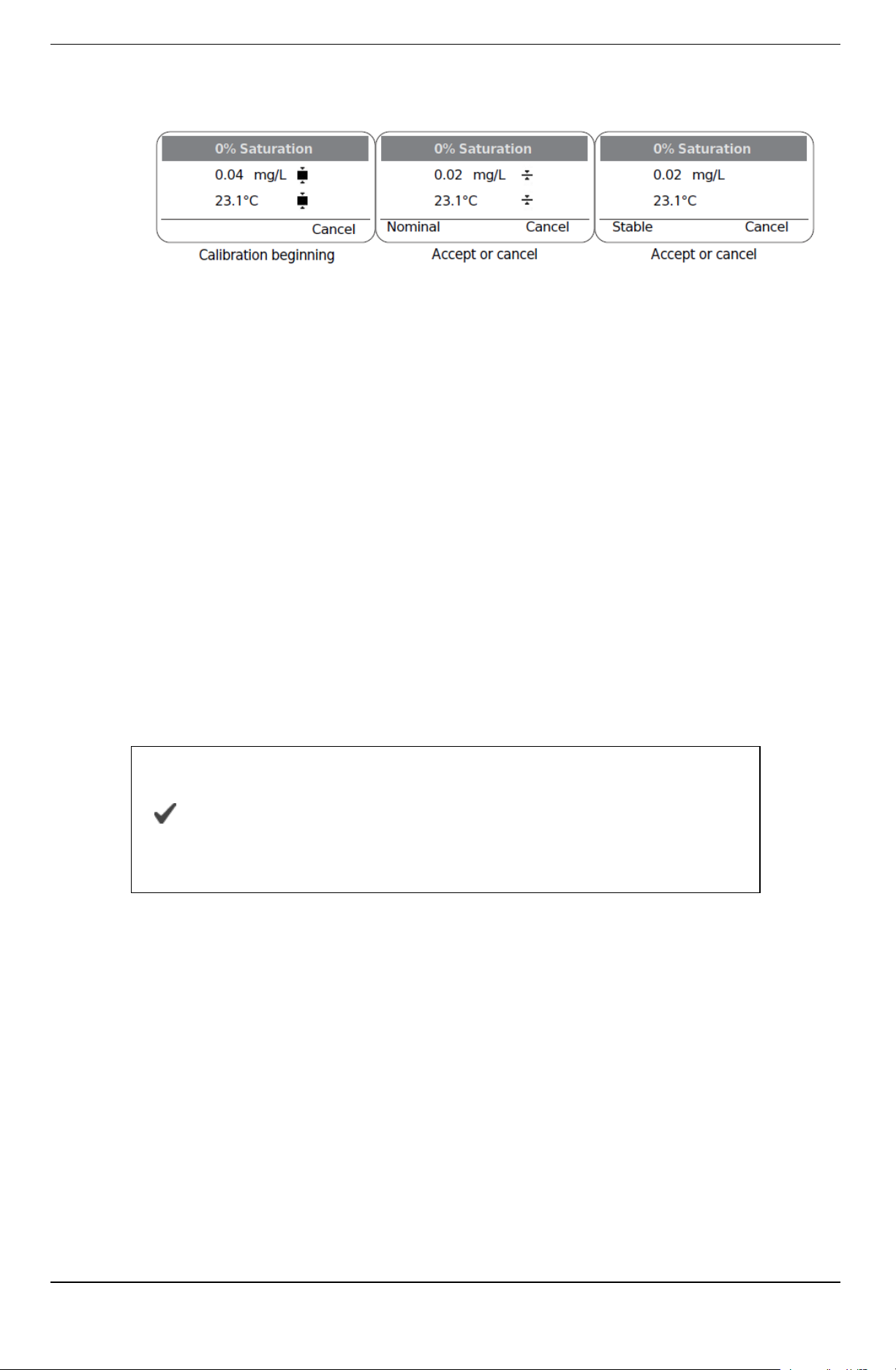

Controller 2-Point Calibration (100% and 0% Saturation) 18

Calibration using the Concentration Option 19

Calibration Hints 19

800-446-7488 3 www.in-situ.com

Nominal Stability vs. Full Stability 19

Factory Recalibration 19

4 Aqua TROLL 100 and 200 Instruments

Configuring Aqua TROLL 100 and 200 Options 20

Conductivity/Alpha Coefficient 20

Conductivity/Reference Temperature 20

Conductivity/TDS Factor 20

Level/Level Mode (Aqua TROLL 200 only) 20

Level/Specific Gravity (Aqua TROLL 200 only) 21

Calibration Interval 21

Calibrating the Aqua TROLL 100 and 200 Instruments 21

Calibrating Conductivity 21

Zeroing the Pressure Sensor 22

Setting a Level Reference 22

Calibration Hints 22

Nominal Stability vs. Full Stability 22

Factory Recalibration 22

5 Aqua TROLL 400 Instrument

Configuring the Aqua TROLL 400 Sensor Options 23

Barometer 23

RDO/Salinity 23

Conductivity/Alpha Coefficient 23

Conductivity/Reference Temperature 23

Conductivity/TDS Factor 24

Level/Level Mode 24

Level/Baro Correction 24

Level/Specific Gravity 24

Calibration Interval 25

Calibrating the Aqua TROLL 400 Instrument 25

Calibrating the Optical RDO Sensor 25

Calibration Options 25

1-Point Calibration 26

Water-Saturated Air 26

2-Point Calibration (100% and 0% Saturation) 27

Calibration using the Concentration Option 28

Calibrating the Conductivity Sensor 28

Calibrating Pressure/Level 29

Zero Pressure 29

Calibrating the pH/ORP Sensor 29

Calibrating the pH Sensor 29

Calibrating the ORP Sensor 30

Calibration Hints 30

Nominal Stability vs. Full Stability 30

Factory Recalibration 30

Cal. Report 31

800-446-7488 4 www.in-situ.com

Defaults 31

6 Level TROLL Instrument

Configuring Level TROLL Options 32

Setting the Level Mode 32

Entering the Specific Gravity 32

Setting the Calibration Interval 32

Calibrating the Level TROLL Instrument 32

Zero Pressure 32

Calibration Hints 33

Nominal Stability vs. Full Stability 33

Factory Recalibration 33

7 Current Loops and Relays

Configure the Current Loops 34

Configure the Relays 34

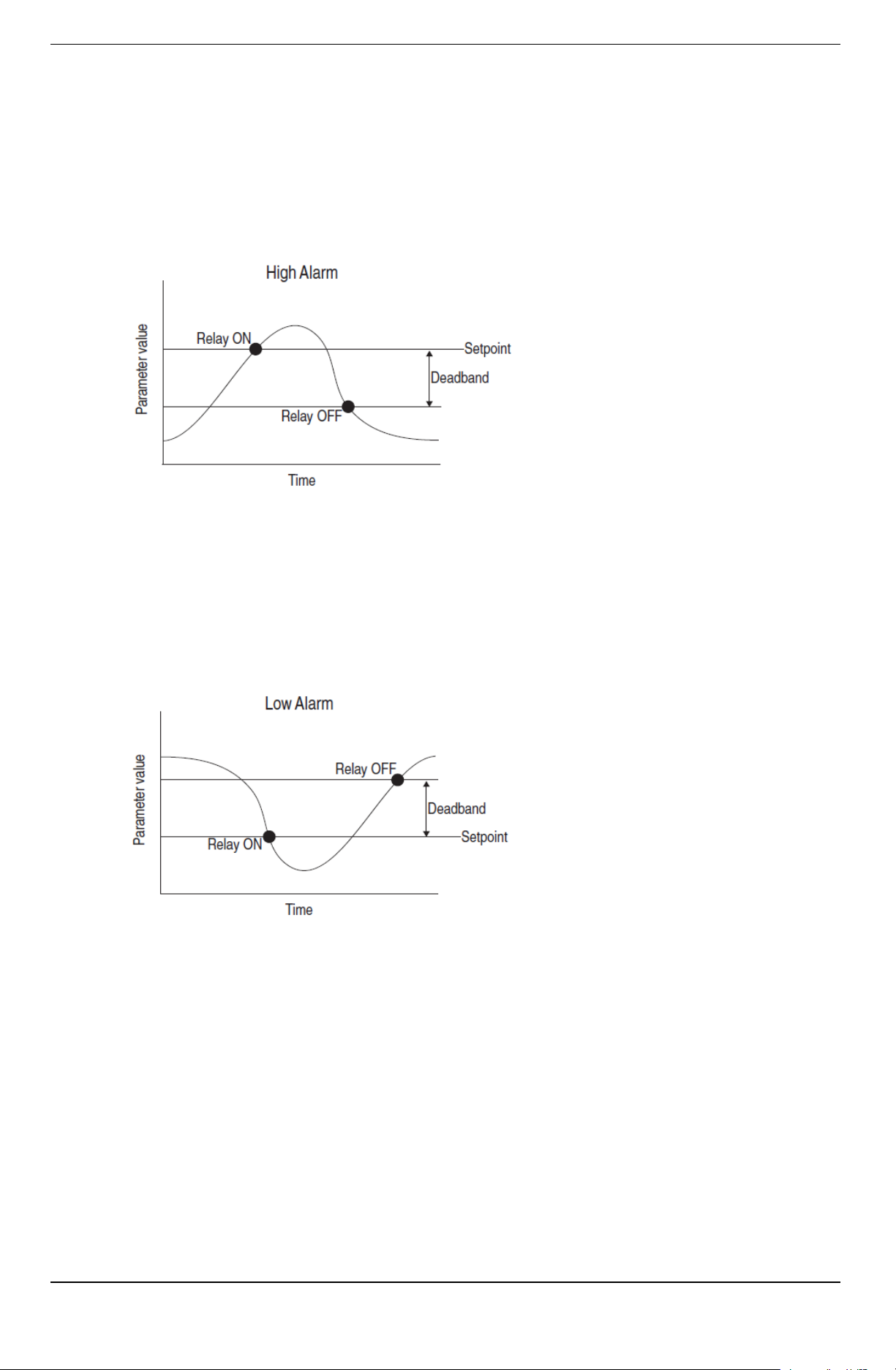

Alarms Setpoints and Deadbands 35

High Alarm Mode 35

Low Alarm Mode 35

Hold (Pause) the Outputs 35

8 Logged Data

Viewing Logged Data 36

Downloading Data Using Win-Situ 5 and a PC 36

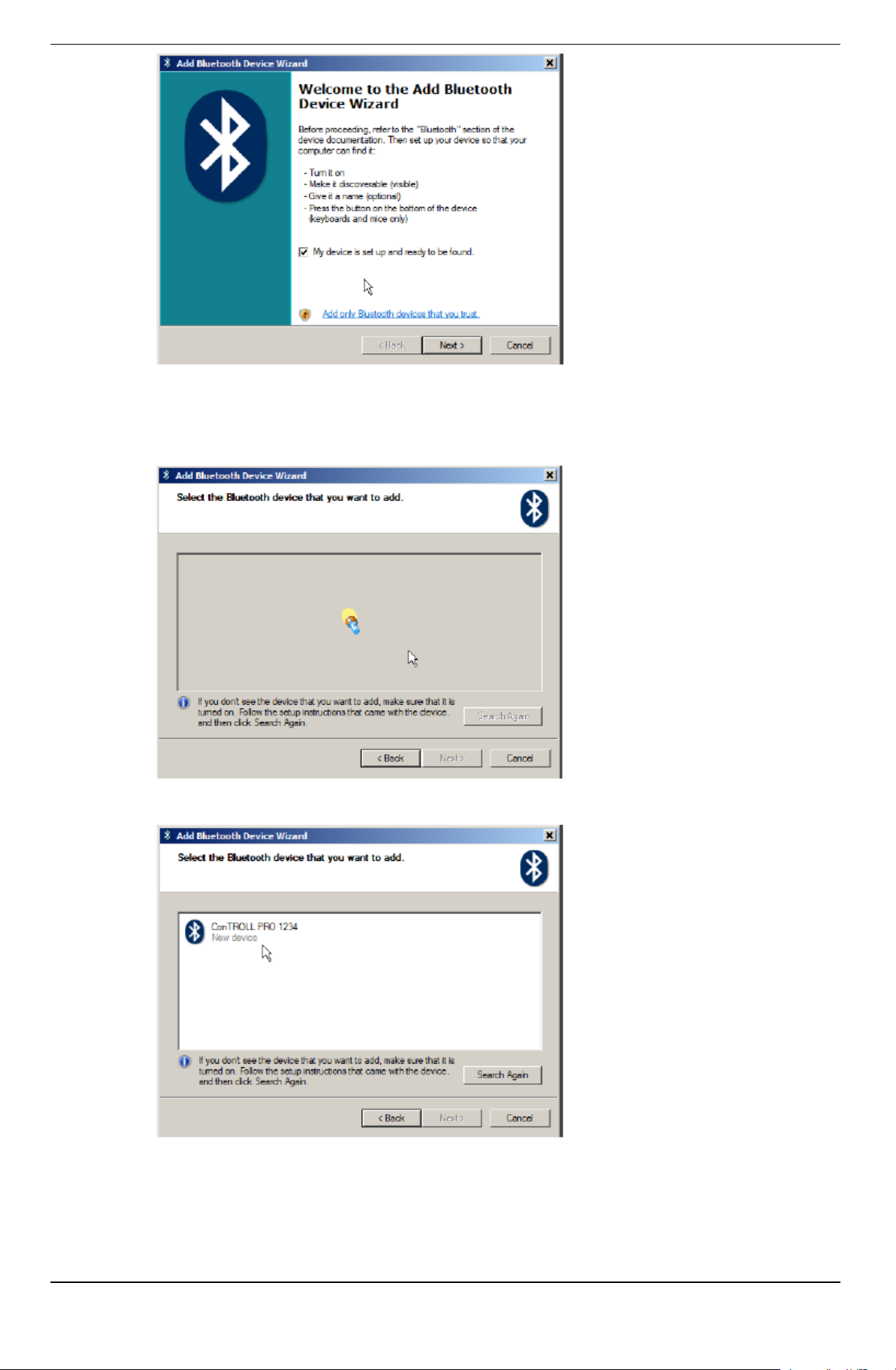

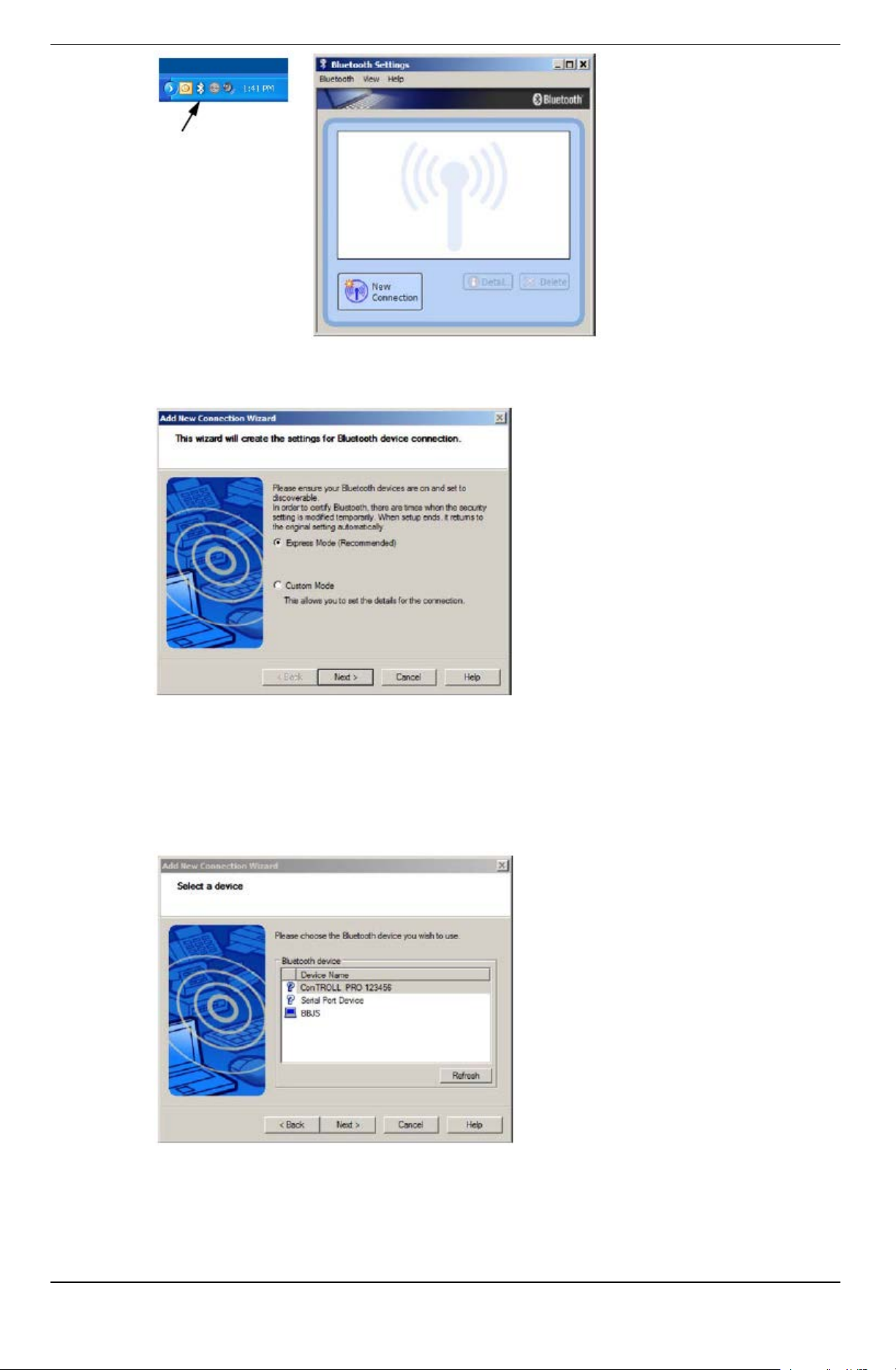

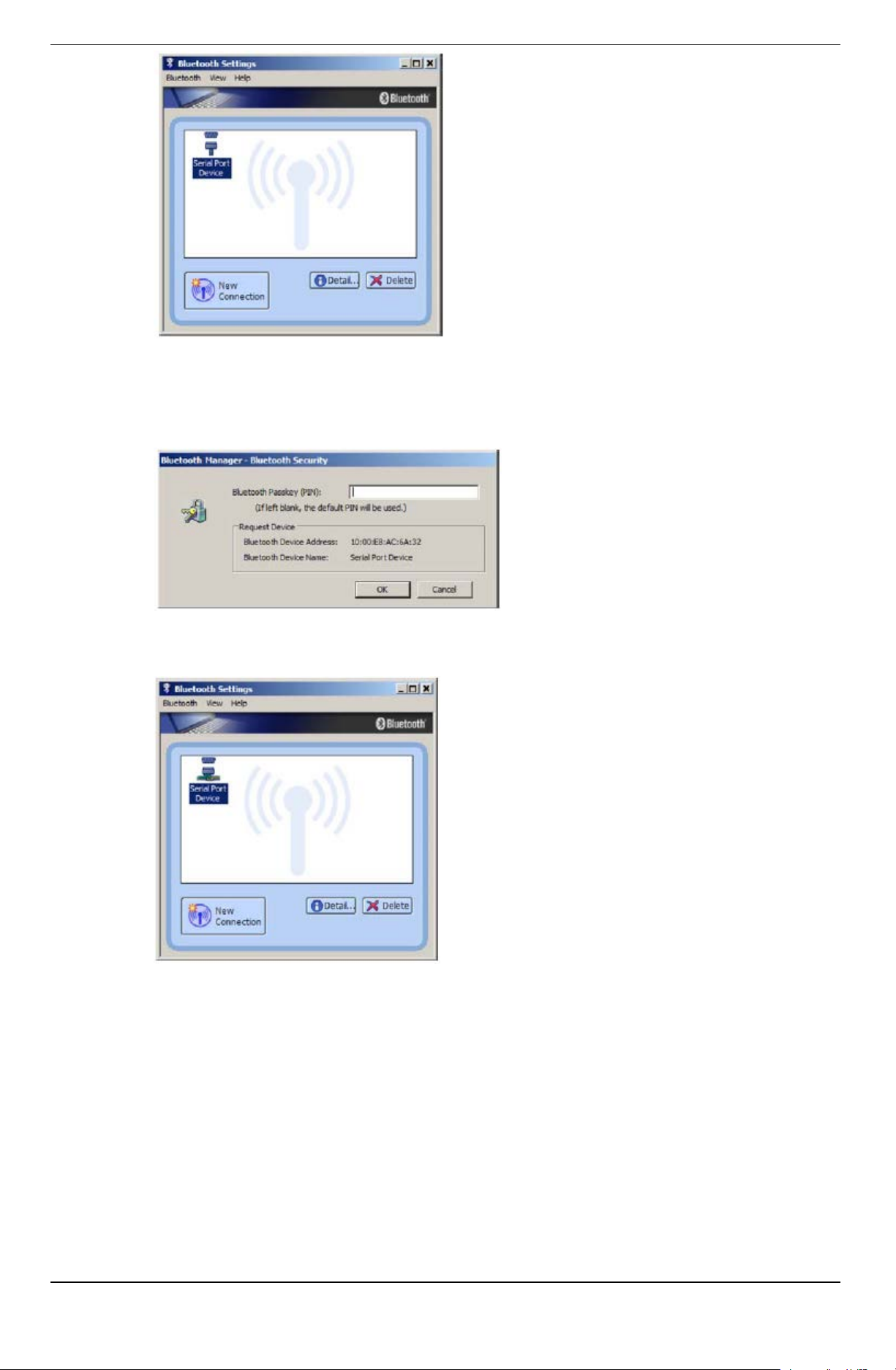

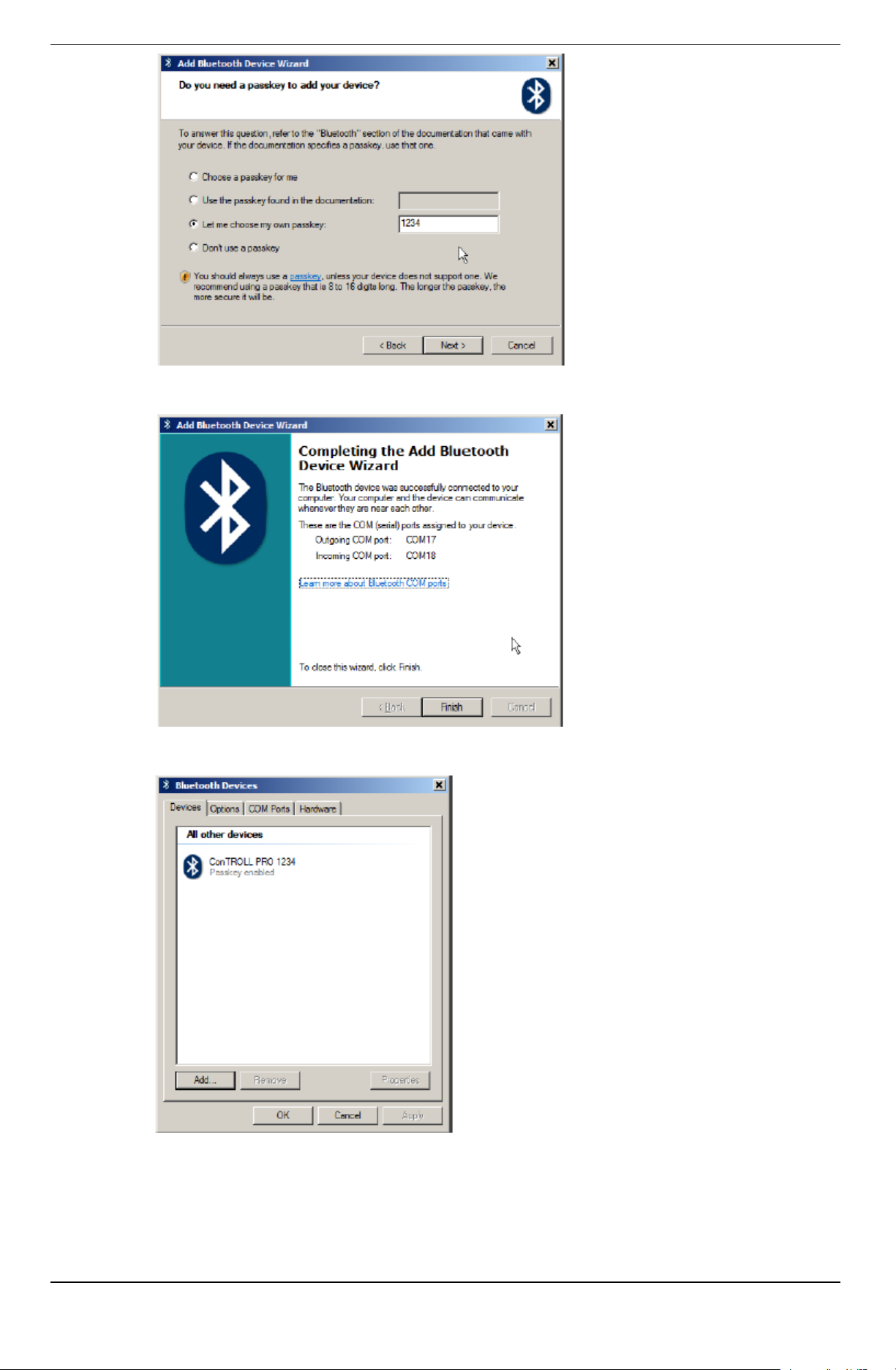

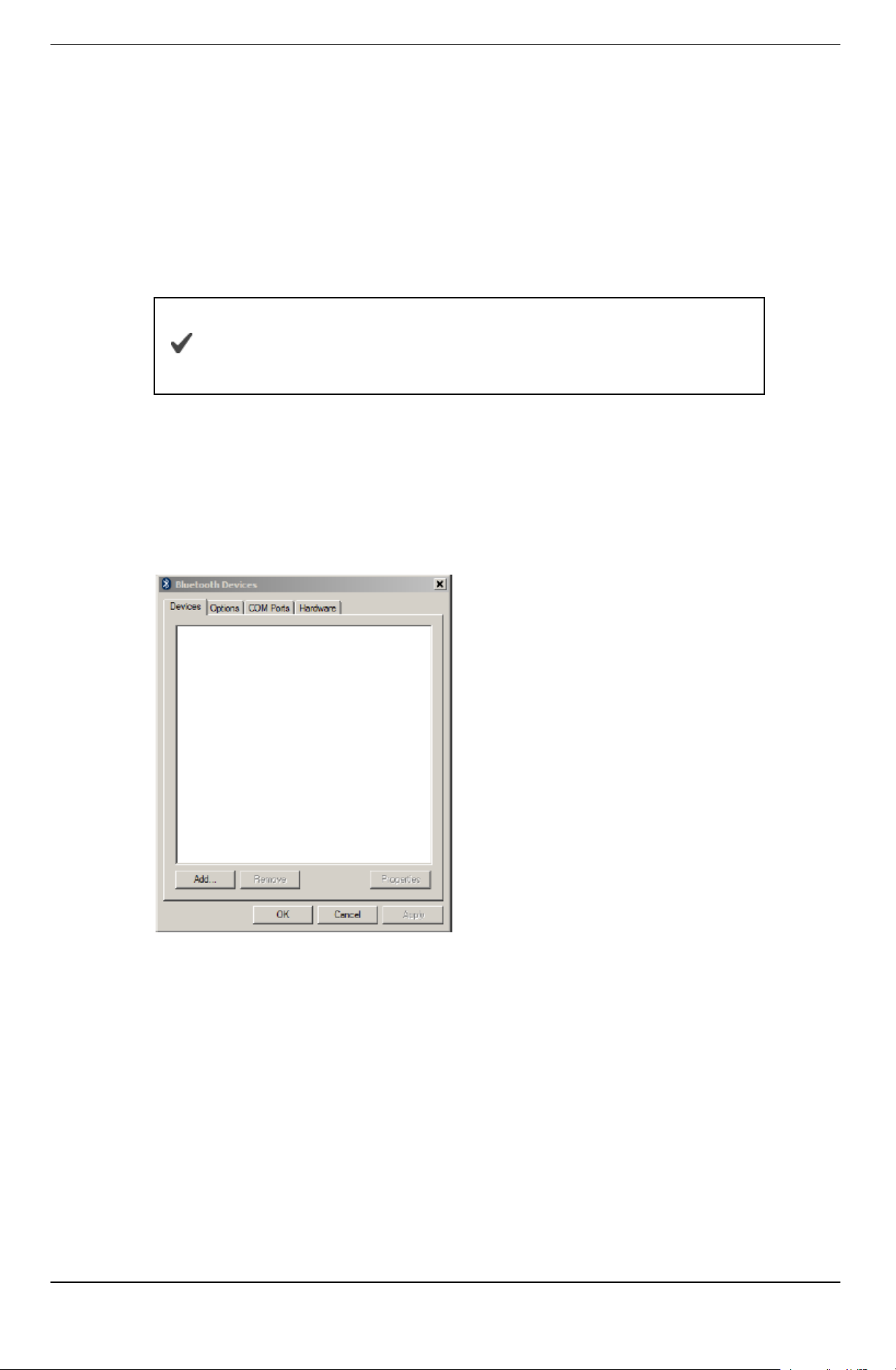

Configuring the Bluetooth Utility for PCs with Factory-Enabled Bluetooth Communications 36

Configuring the Bluetooth Utility for PCs Not Factory-Enabled with Bluetooth Communications (Example) 39

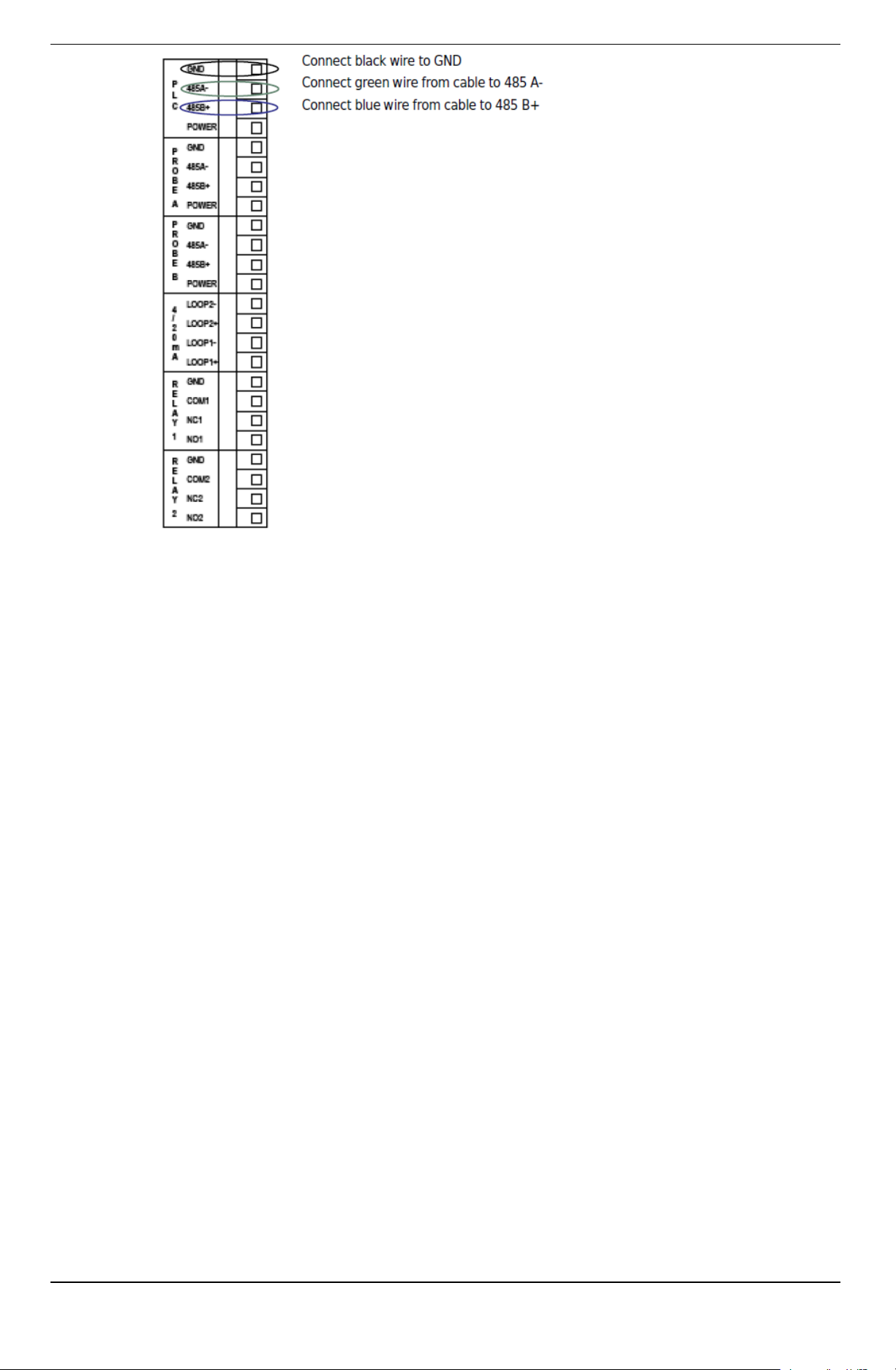

Connecting a TROLL Com Communication Cable to the Controller (Bluetooth Alternative) 41

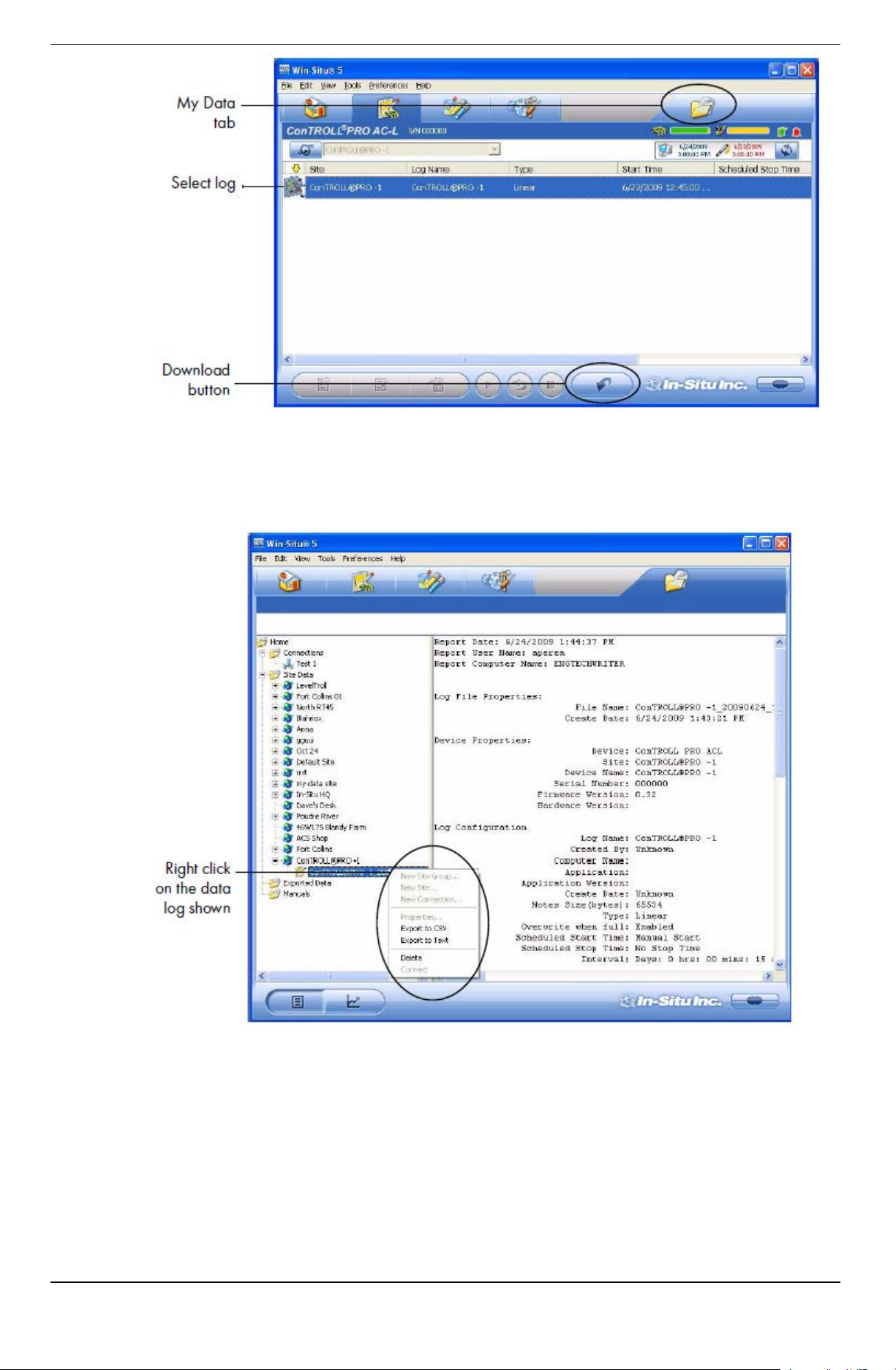

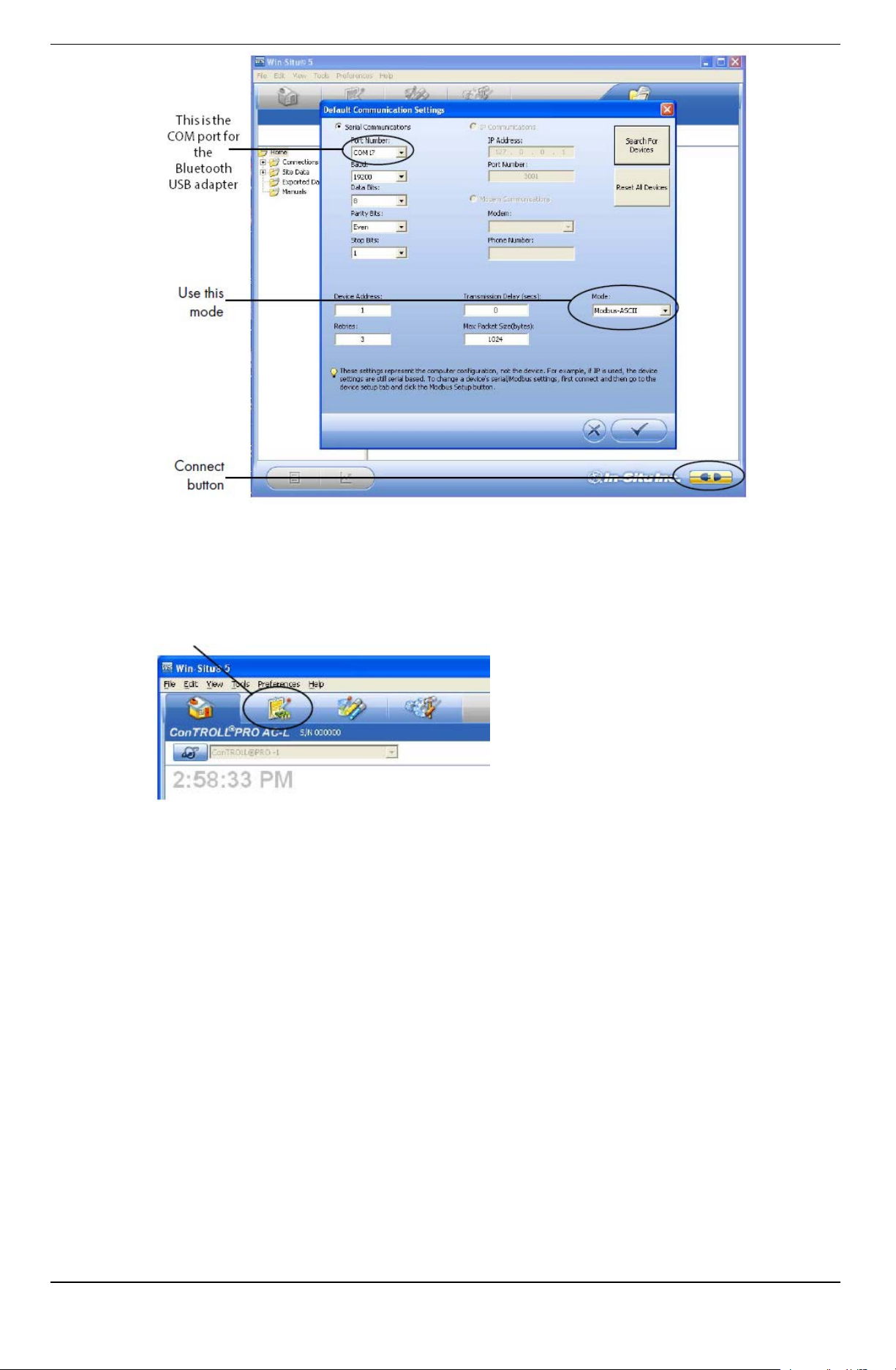

Connecting the Con TROLL PRO to Win-Situ 5 Software 42

Downloading Data using Win-Situ Mobile and a RuggedReader Handheld PC 45

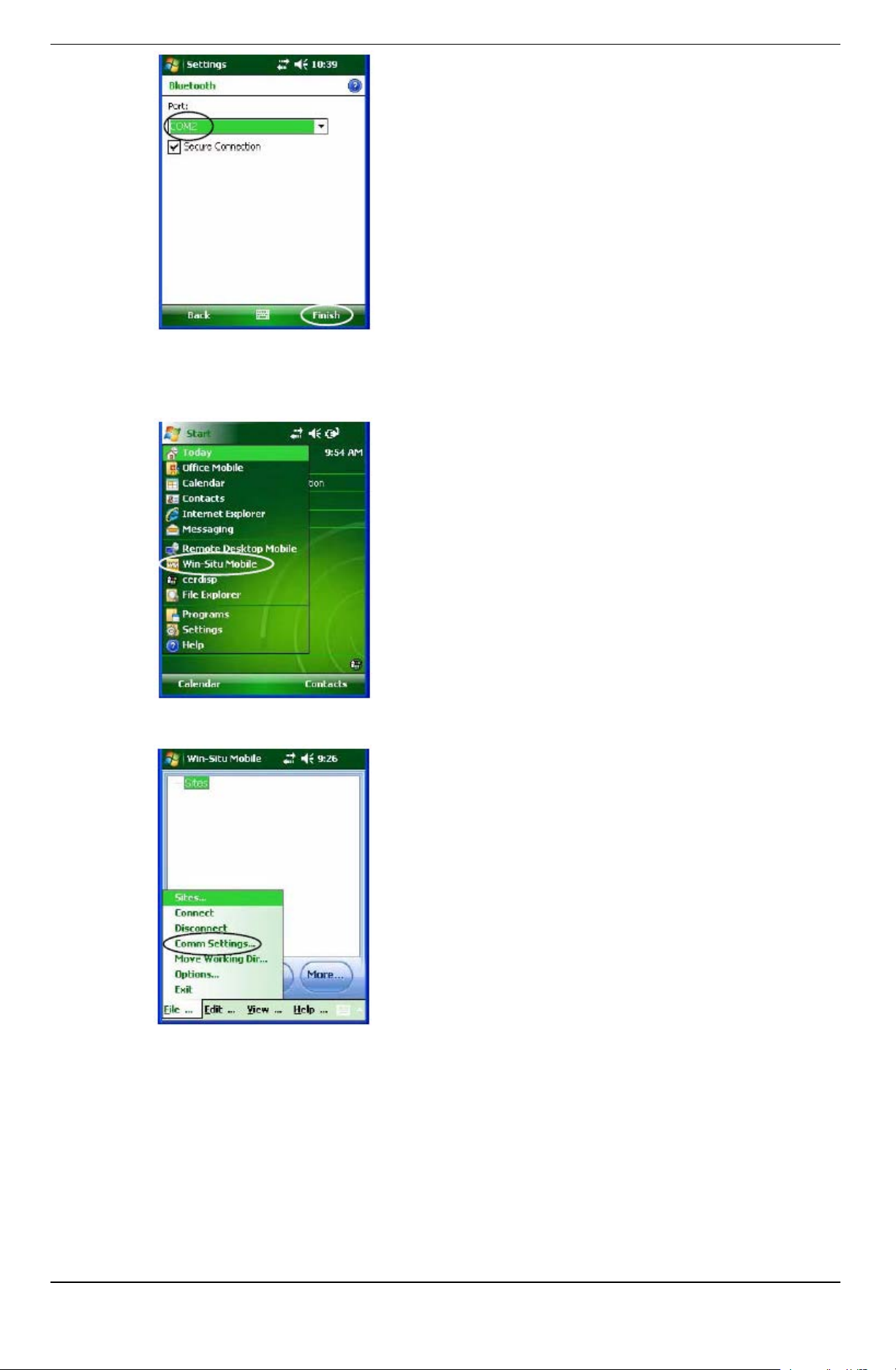

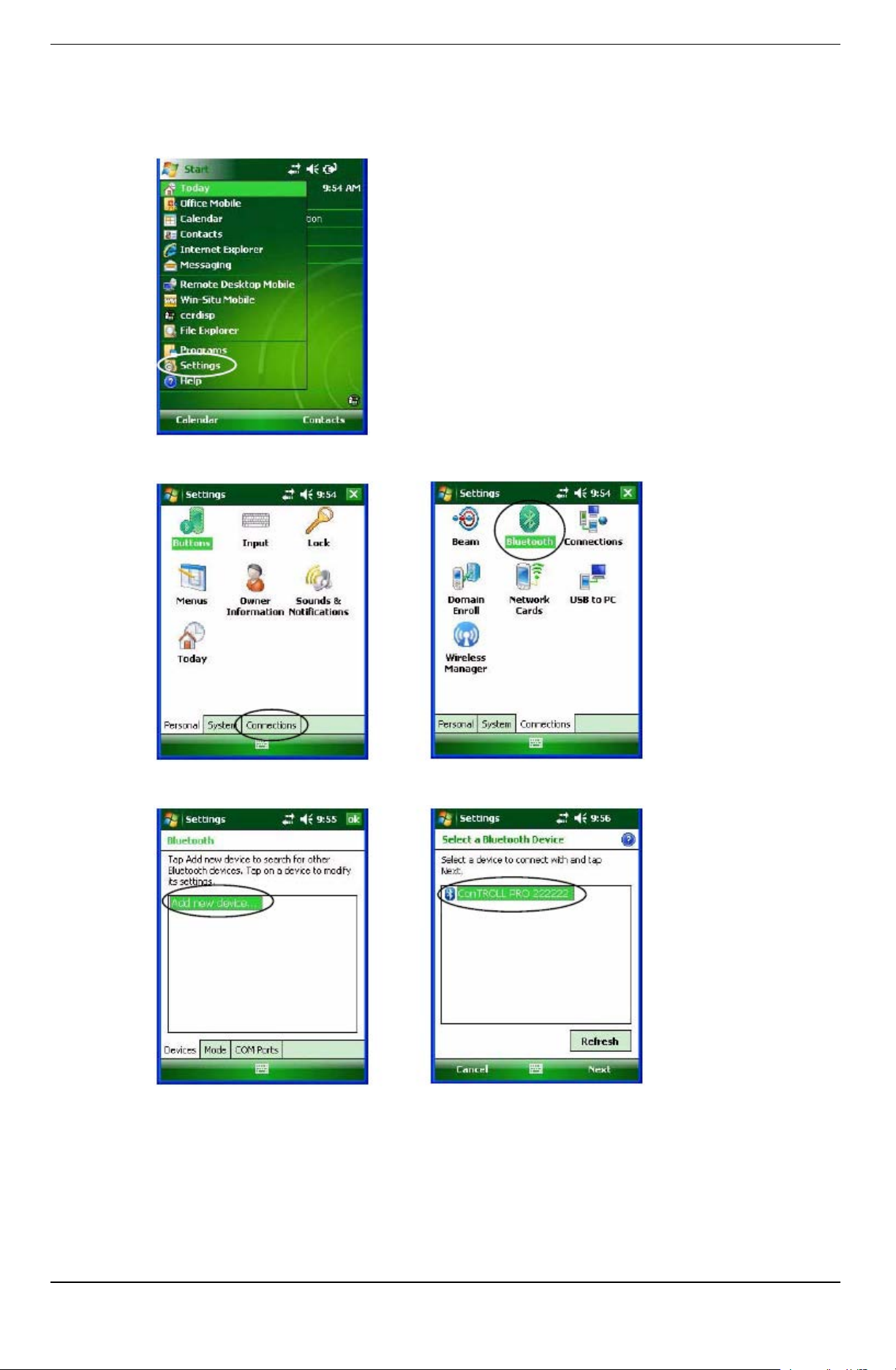

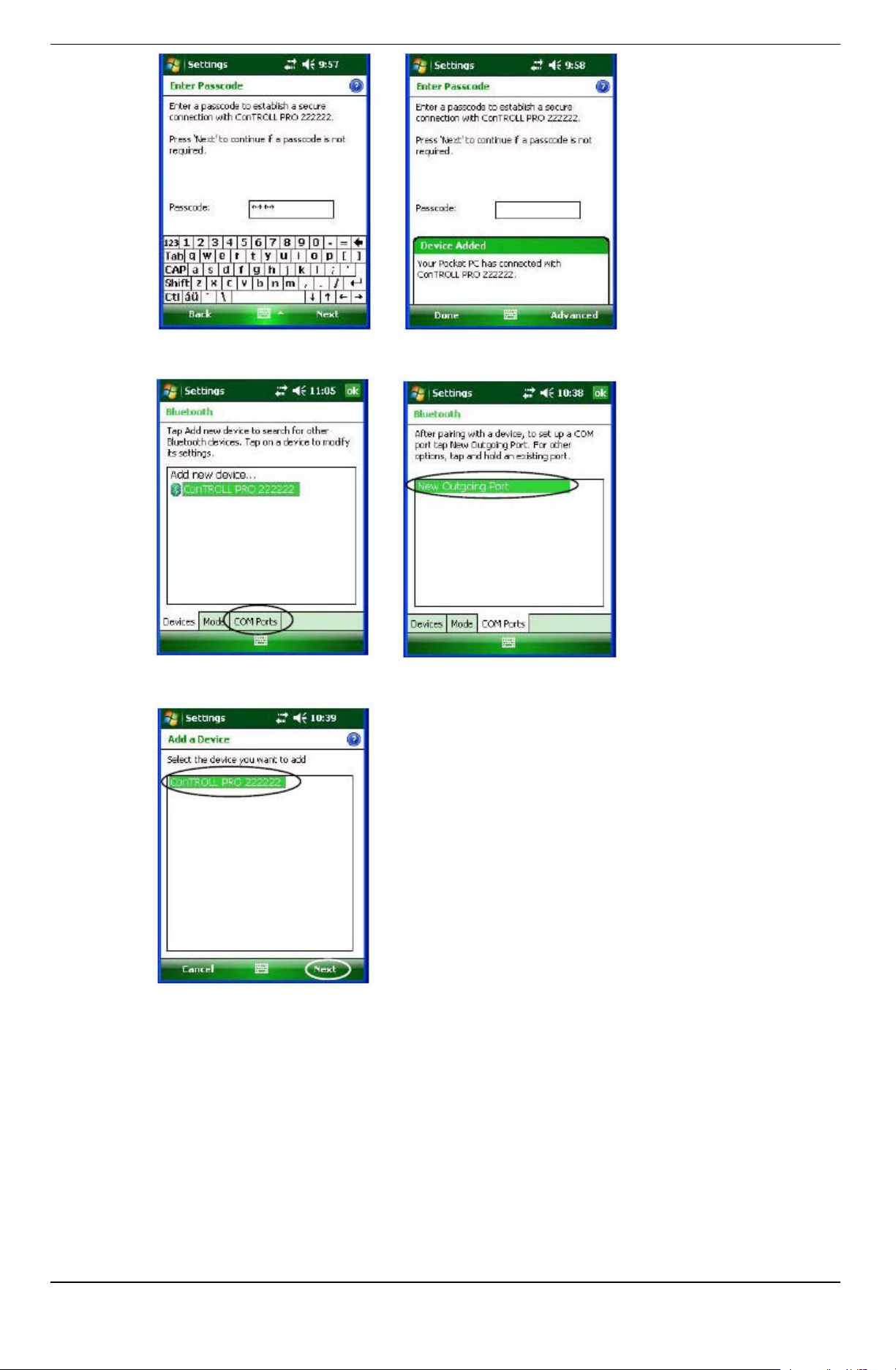

Configuring the Bluetooth Utility on the RuggedReader PC 45

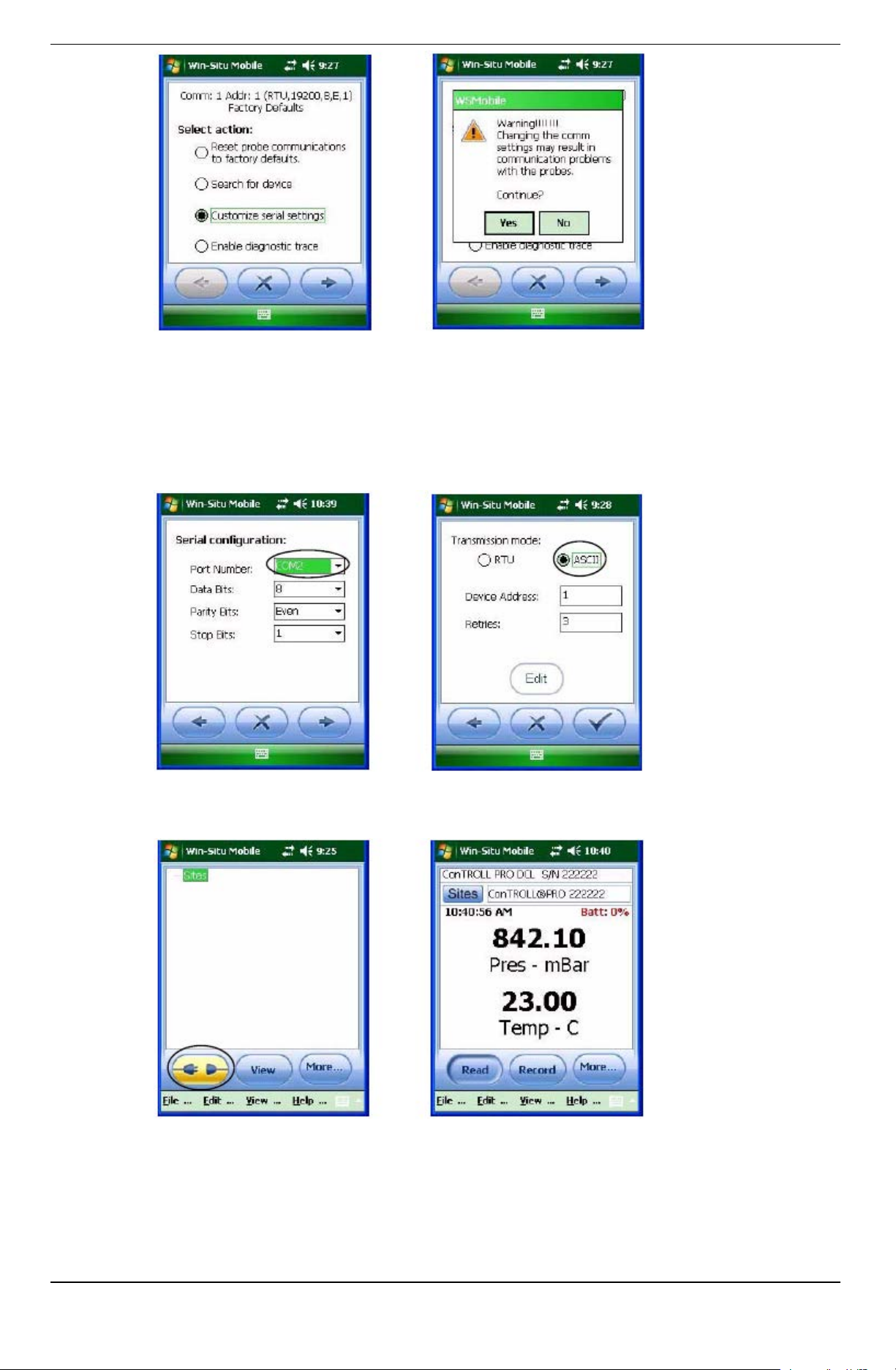

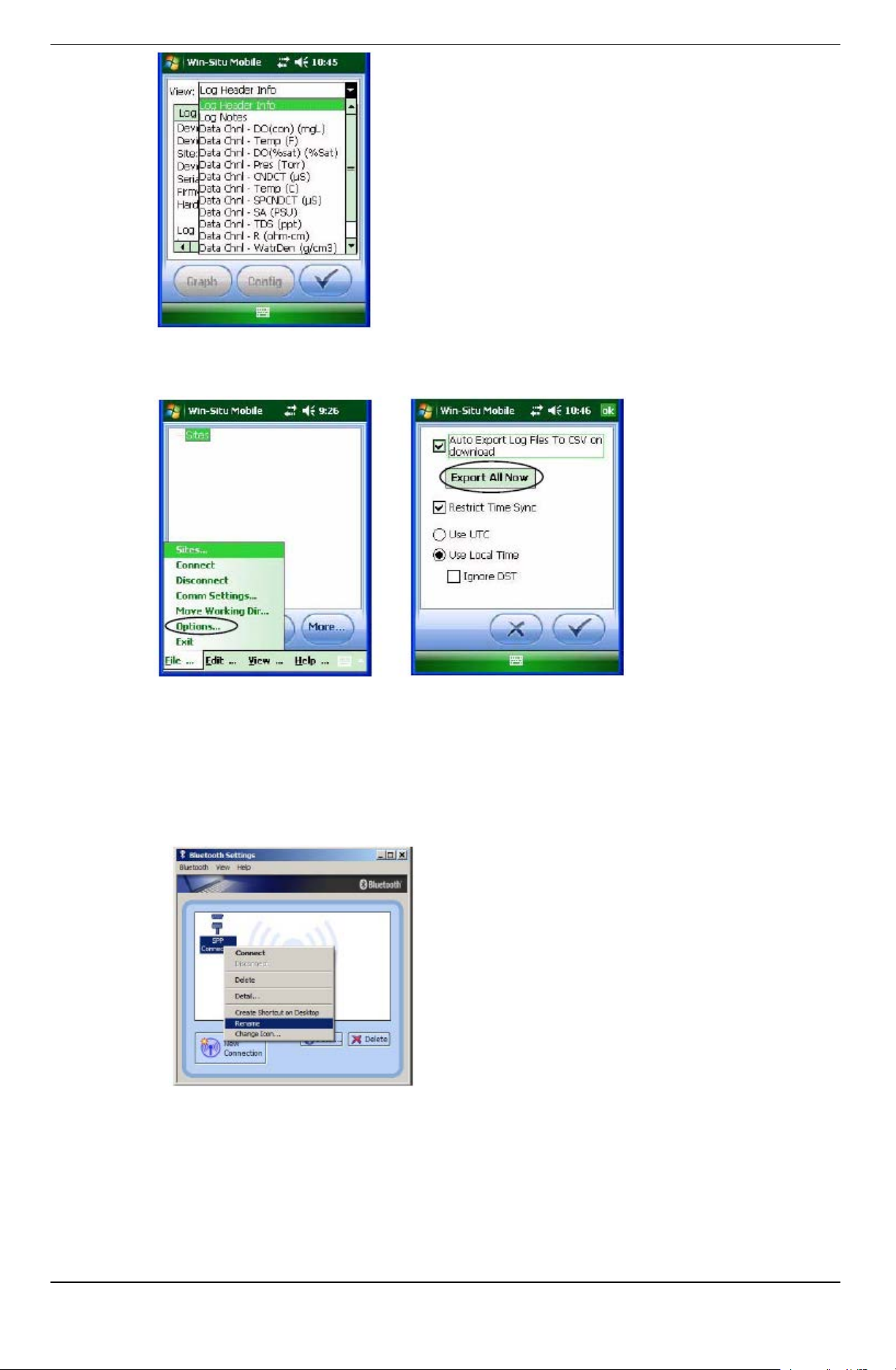

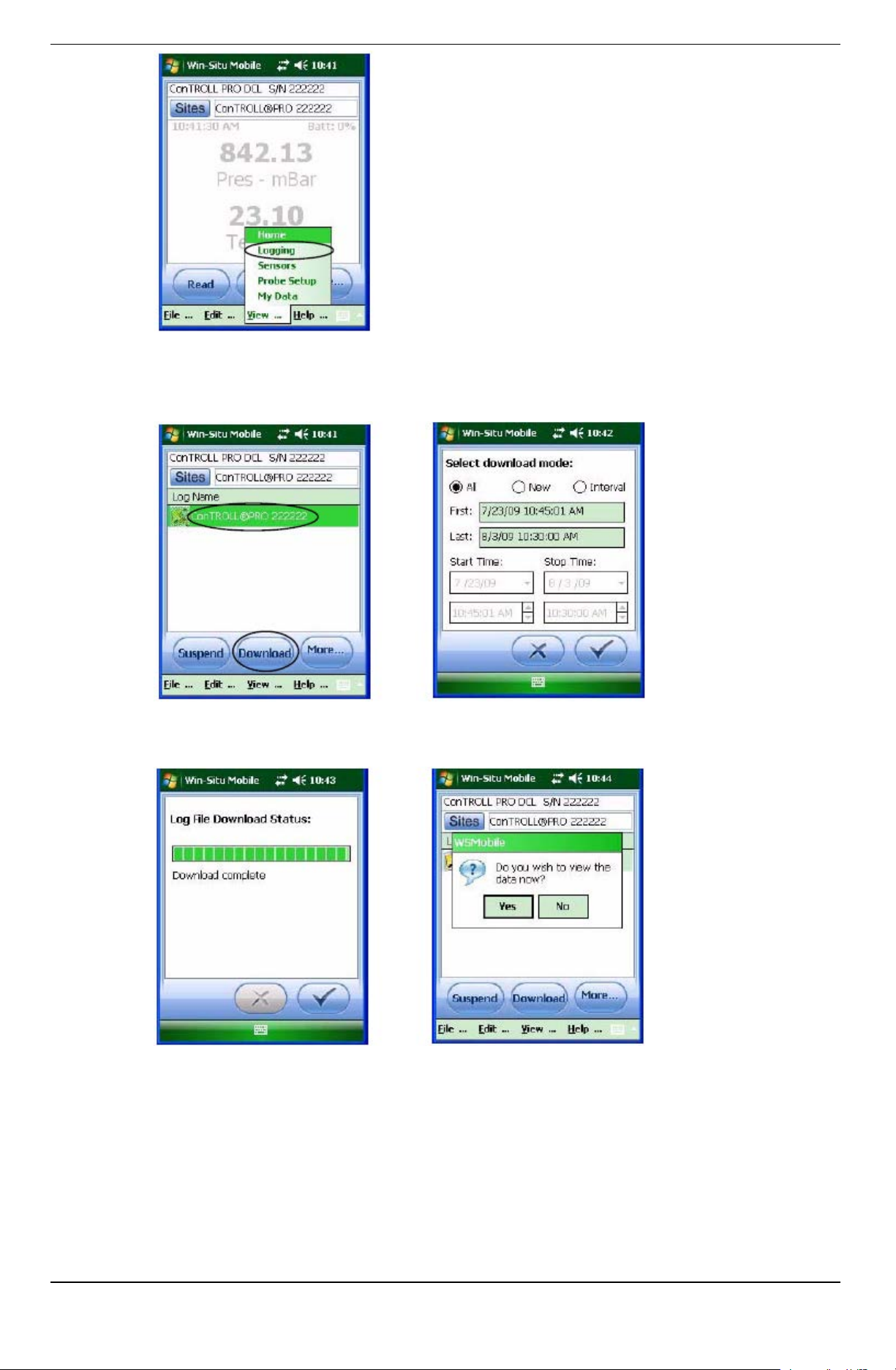

Connecting the Con TROLL PRO to Win-Situ Mobile Software 47

Bluetooth Special Hints 50

9 Troubleshooting

Diagnostics 51

Con Troll PRO Diagnostics Menu 51

RDO PRO, RDO PRO-X, RDO Titan, AquaTROLL 400 51

Level TROLL (300, 400, 500, 700) and AquaTROLL 200 51

Aqua TROLL 100 51

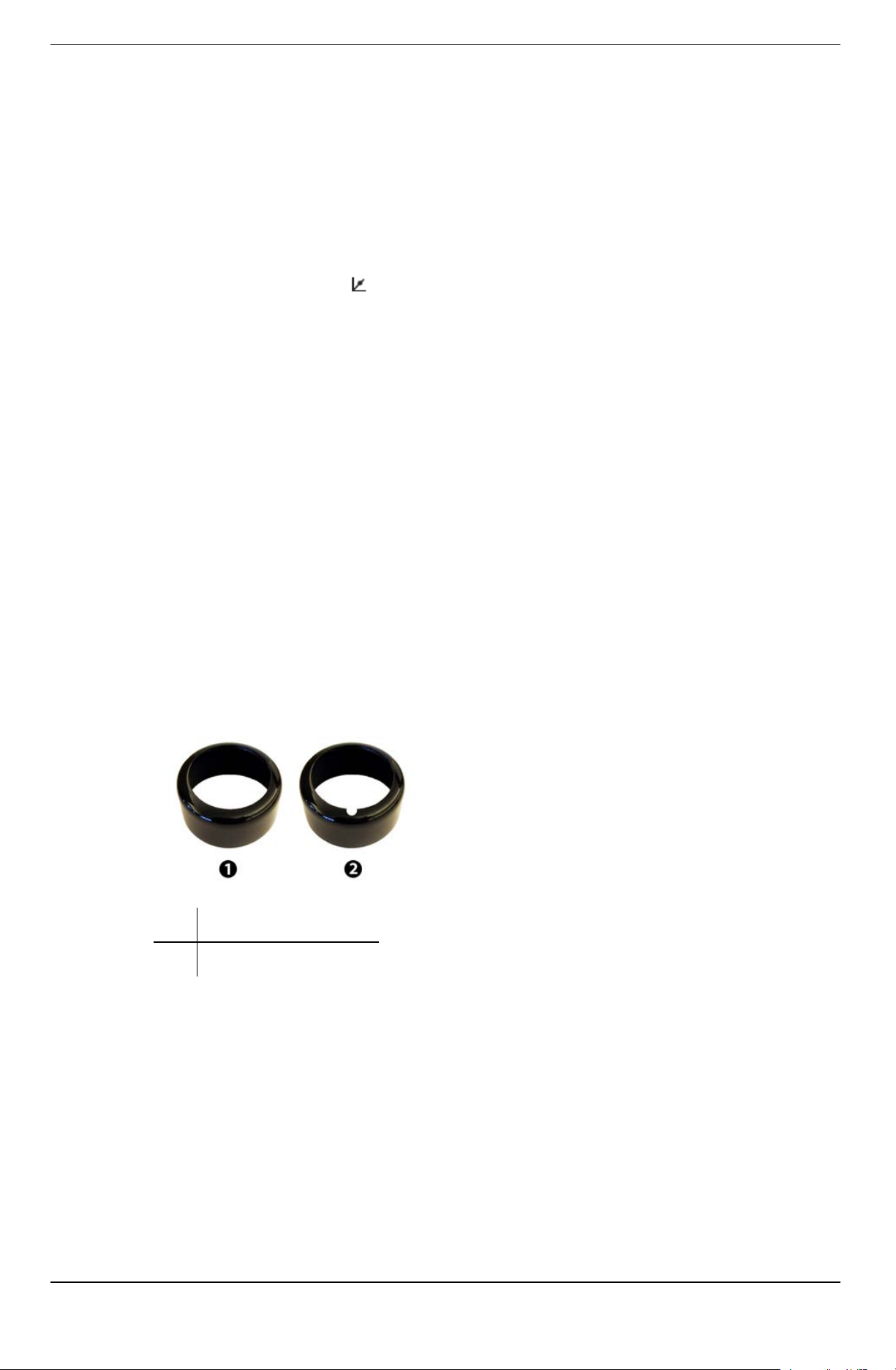

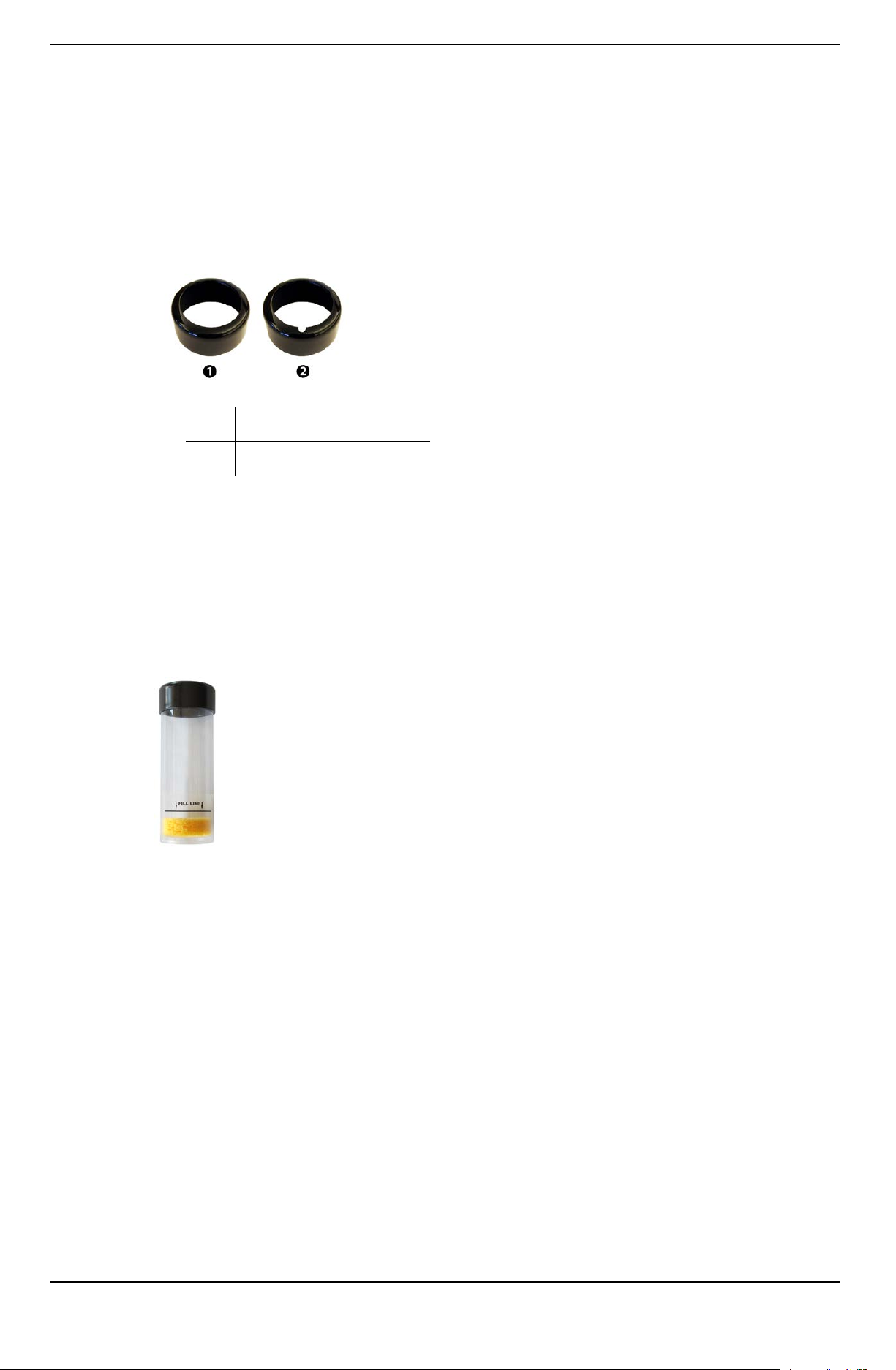

Special Note Regarding RDO Cap Placement 51

Finding Calibration Data and Constants 52

Troubleshooting Power Issues 53

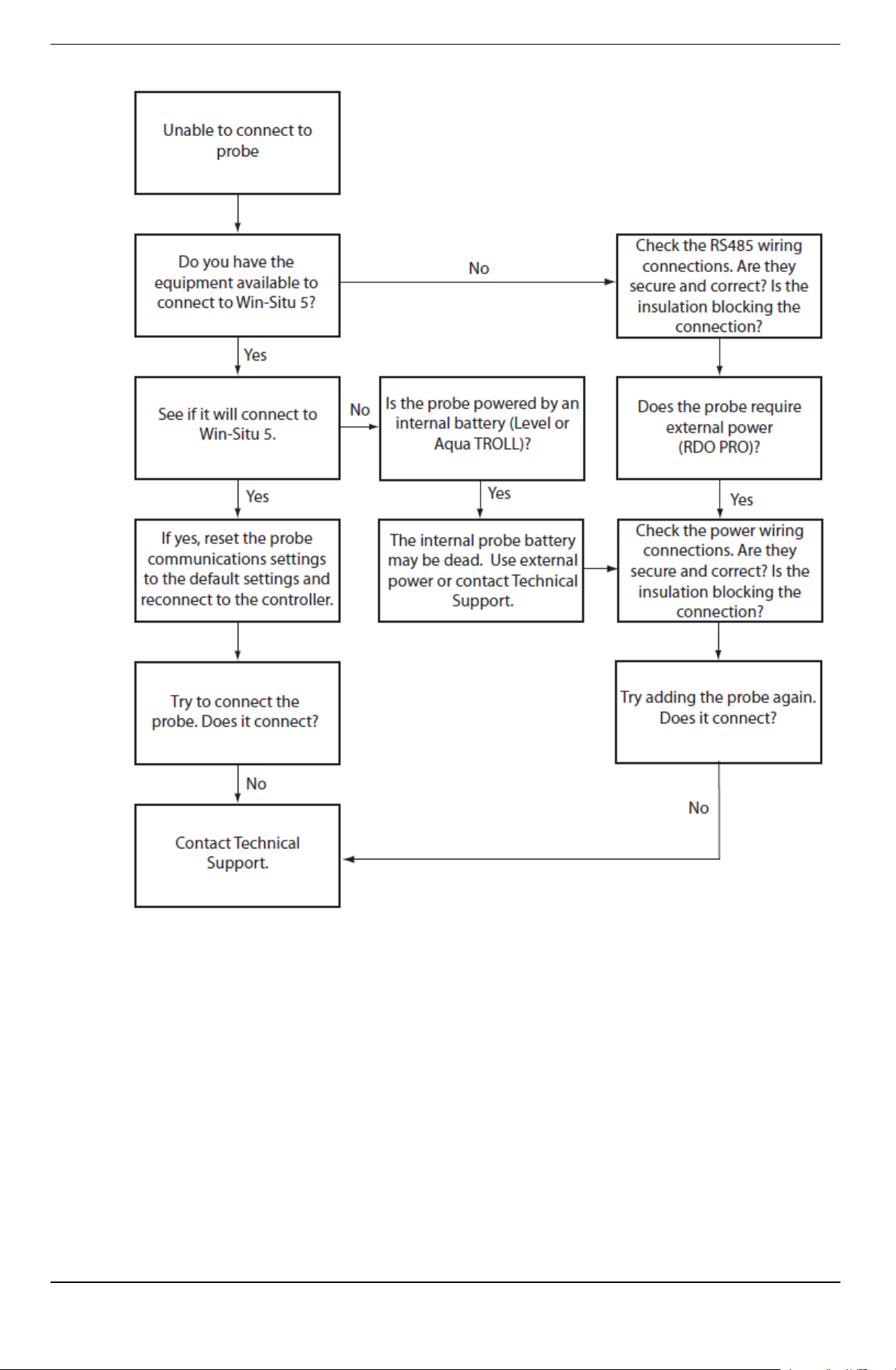

Troubleshooting Probe Connection Issues 54

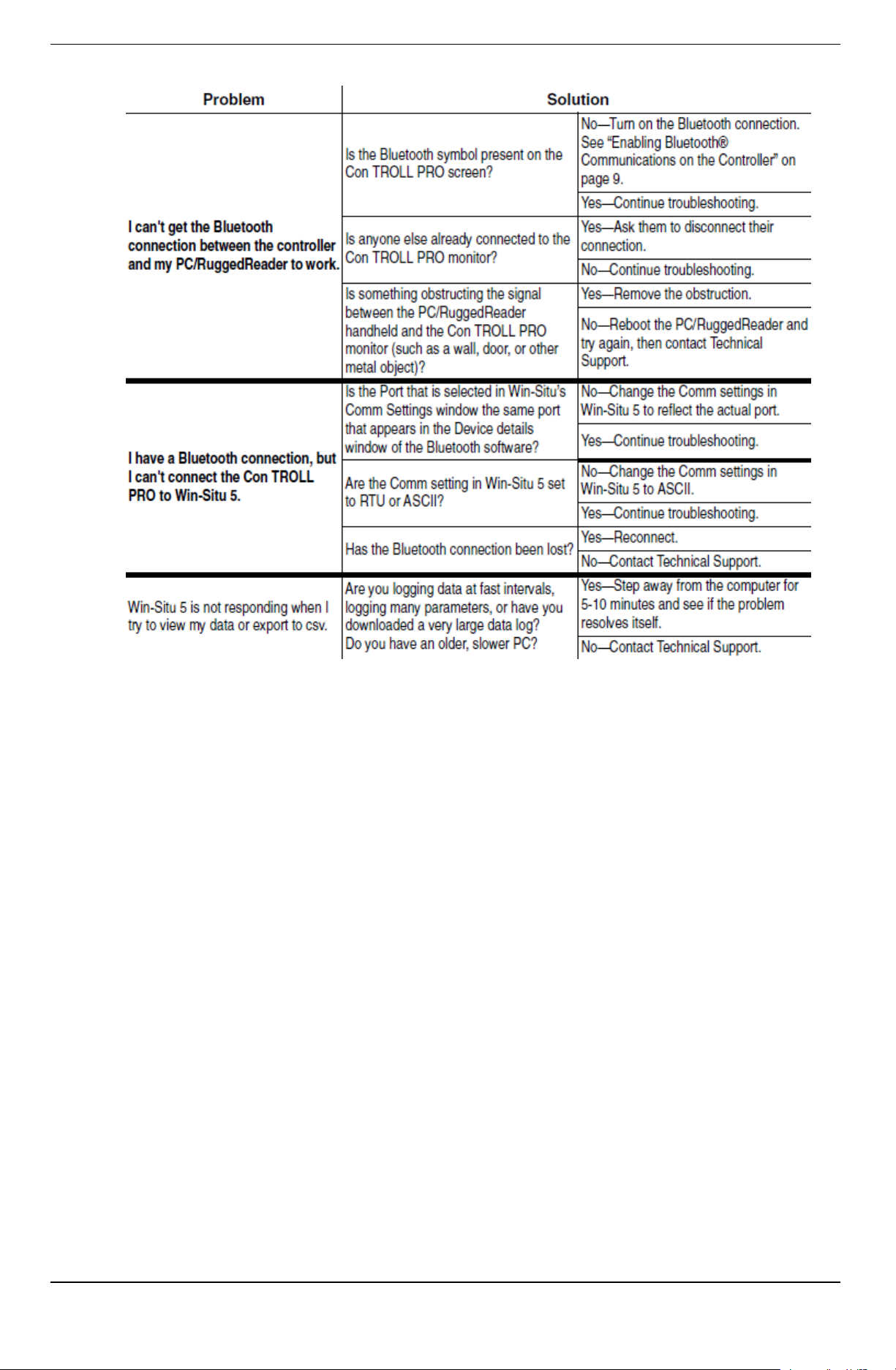

Troubleshooting Bluetooth Communications Issues 55

800-446-7488 5 www.in-situ.com

Getting Started

Probe Installation Requirements

Before making any wiring connections between the probes and the module, make sure that the probes are set to their factory-default communication settings.

If you are using brand new probes, you do not need to do anything. If you are using preconfigured probes, use Win-Situ 5 Software to reset the default communication settings.

1. Open Win-Situ Software and connect to the probe.

2. Change communication settings for the device by selecting Preferences, then Comm Settings. Click the Reset All Devices button.

This returns the device communication settings to their serial communication defaults (19200, 8, Even, 1, RTU, and Device Address 1).

Navigating Through the Menus

After the Con TROLL PRO is installed by a qualified professional using the Installation Manual, you can begin operating the keypad. The DC model display turns on after you push any button. The AC model display is always on when the unit is connected to power.

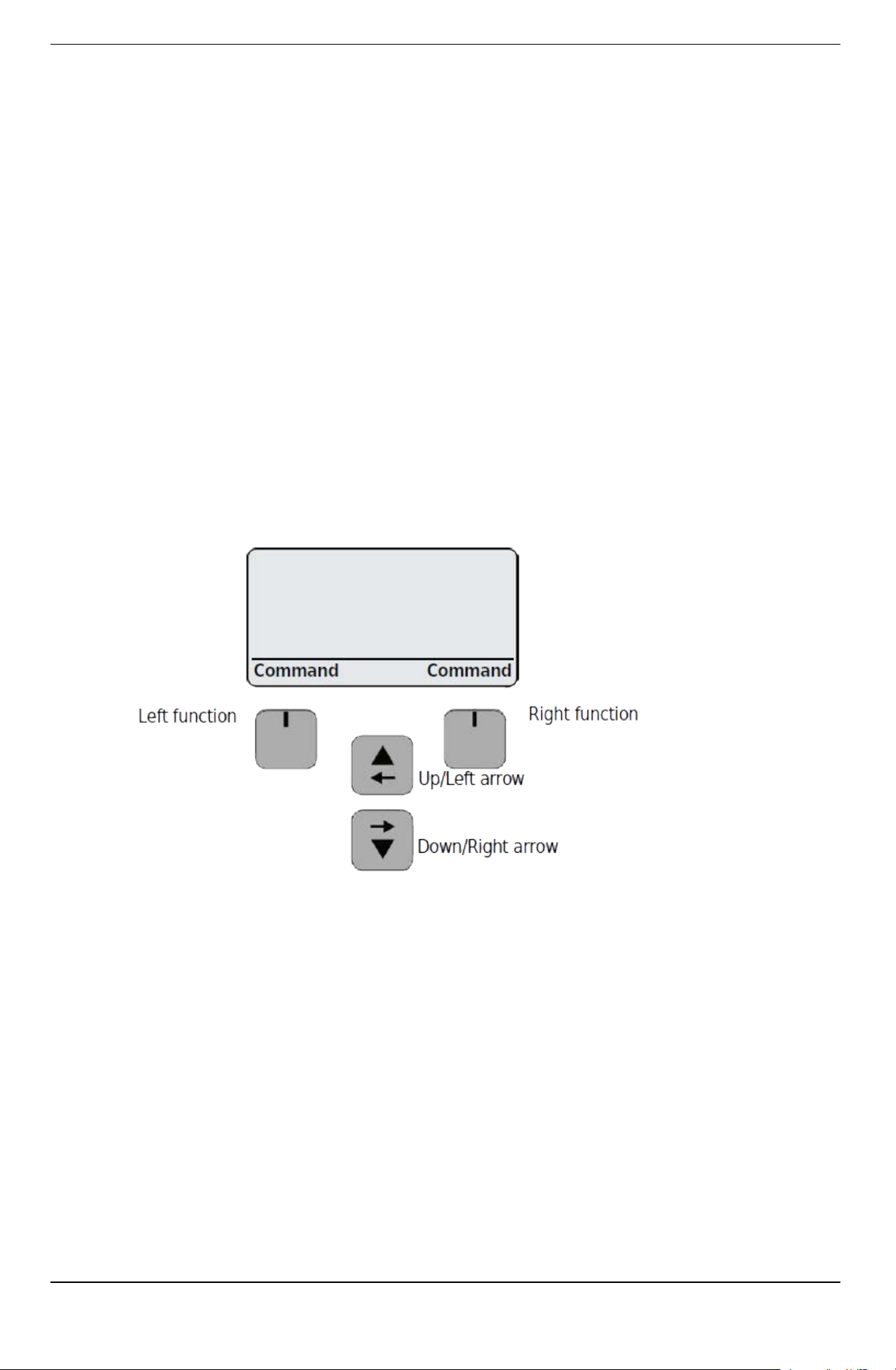

Figure 1.1 Keypad and display window

800-446-7488 6 www.in-situ.com

Menu Diagram

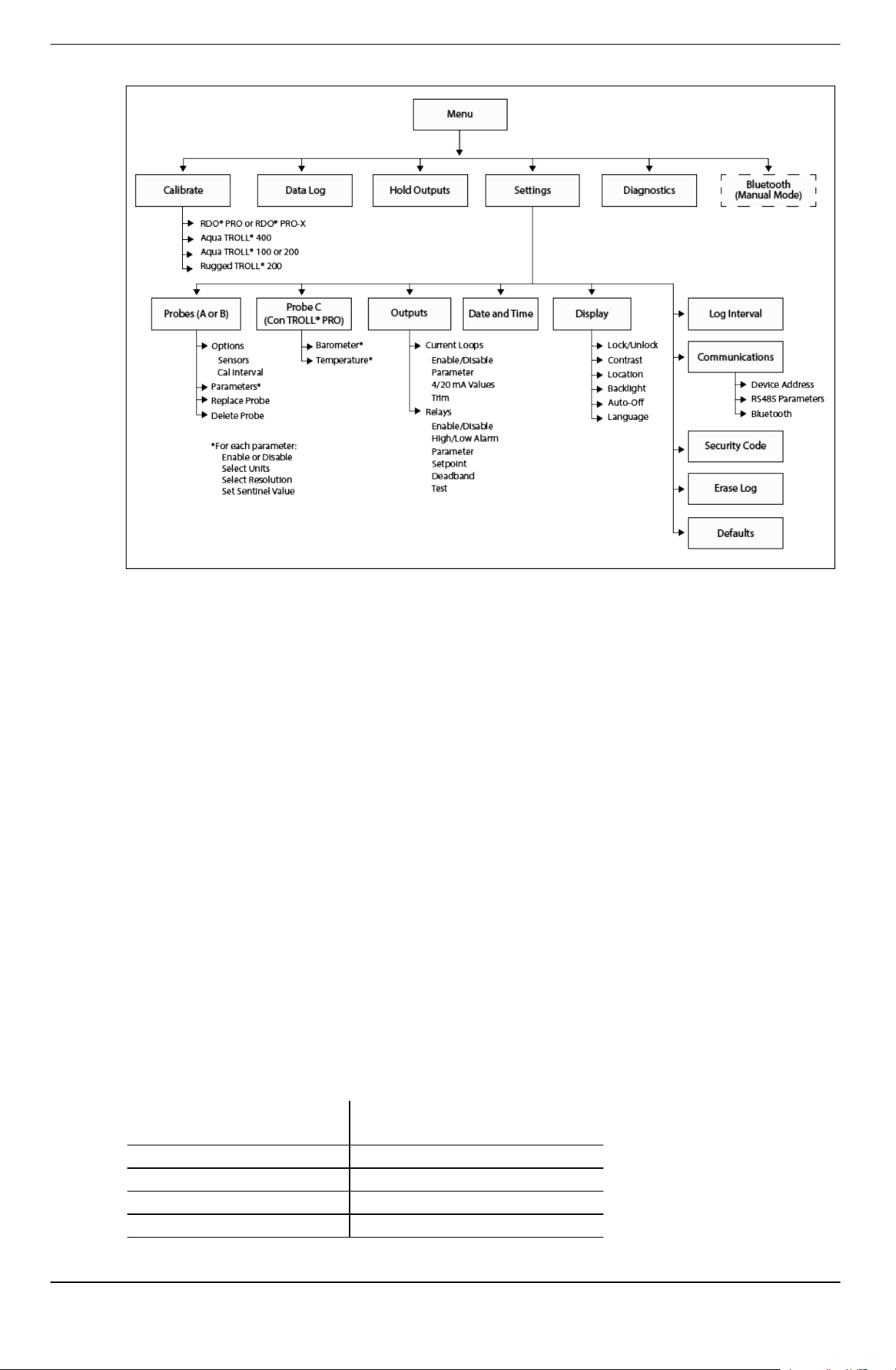

Figure 1.2 ConTROLL PRO Menu Diagram

Initial Configuration

Enter the following information upon first use or anytime after you have restored the default settings on the controller.

1. Use the arrow keys to move up or down to the appropriate language. Select Enter to accept the language.

2. Use the arrow keys to adjust the Contrast level. Select Enter to accept the contrast.

3. Refer to Table 1 to determine your UTC value (Universal Coordinated Time, formerly GMT).

a. Choose the appropriate time zone as shown in the table.

b. Find the corresponding time zone number.

c. Use the Up/Left arrow key to enter a positive or negative value.

d. Press the Down/Right arrow key to move the appropriate numeric

e. Use the Up/Left arrow key to enter the correct numeric value. Repeat

position.

for additional digits as needed.

f. Press Enter to accept the time.

Table 1. Selected regions and their time in UTC

Region UTC Value (± numeric value)

Australia Northern Territory +9.5

Australia Lord Howe Island +10.5 (Daylight saving time +11)

Australia New South Wales +10 (Daylight saving time +11)

Australia Queensland +10

Australia Victoria +10 (Daylight saving time +11)

800-446-7488 7 www.in-situ.com

Region UTC Value (± numeric value)

Australia Australian Capital Territory

Australia South +9.5 (Daylight saving time +10.5)

Australia Tasmania +10 (Daylight saving time +11)

Australia Western +8

Canada Central -6 (Daylight saving time -5)

Canada Eastern -5 (Daylight saving time -4)

Canada Mountain -7 (Daylight saving time -6)

Canada Yukon & Pacific -8 (Daylight saving time -7)

Canada Atlantic -4 (Daylight saving time -3)

Canada Newfoundland -3.5 (Daylight saving time -2.5)

England 0 hours (Daylight saving time +1)

USA Puerto Rico -4

USA Central -6 (Daylight saving time -5)

USA Eastern -5 (Daylight saving time -4)

USA Mountain -7 (Daylight saving time -6)

USA Arizona -7

USA Indiana East -5

USA Pacific -8 (Daylight saving time -7)

USA Alaska -9 (Daylight saving time -8)

USA Aleutian -10

USA Hawaii -10

+10 (Daylight saving time +11)

4. Enter the date using the Up/Left arrow key. Select Enter to accept.

5. Enter the time using the Up/Left arrow key. Select Enter to accept.

6. It is optional to enter the installed location of the Con TROLL PRO. The location name can contain up to 10 characters.

7. The Add Probe A screen appears. The name of the probe that is wired in this position also appears. Select Enter to configure this probe.

8. The Add Probe B screen appears. The name of the probe that is wired in this position also appears. If there is no Probe B, the display will tell you that no probe is connected. Select Enter to configure this probe if it exists, or to proceed to the next screen if it does not.

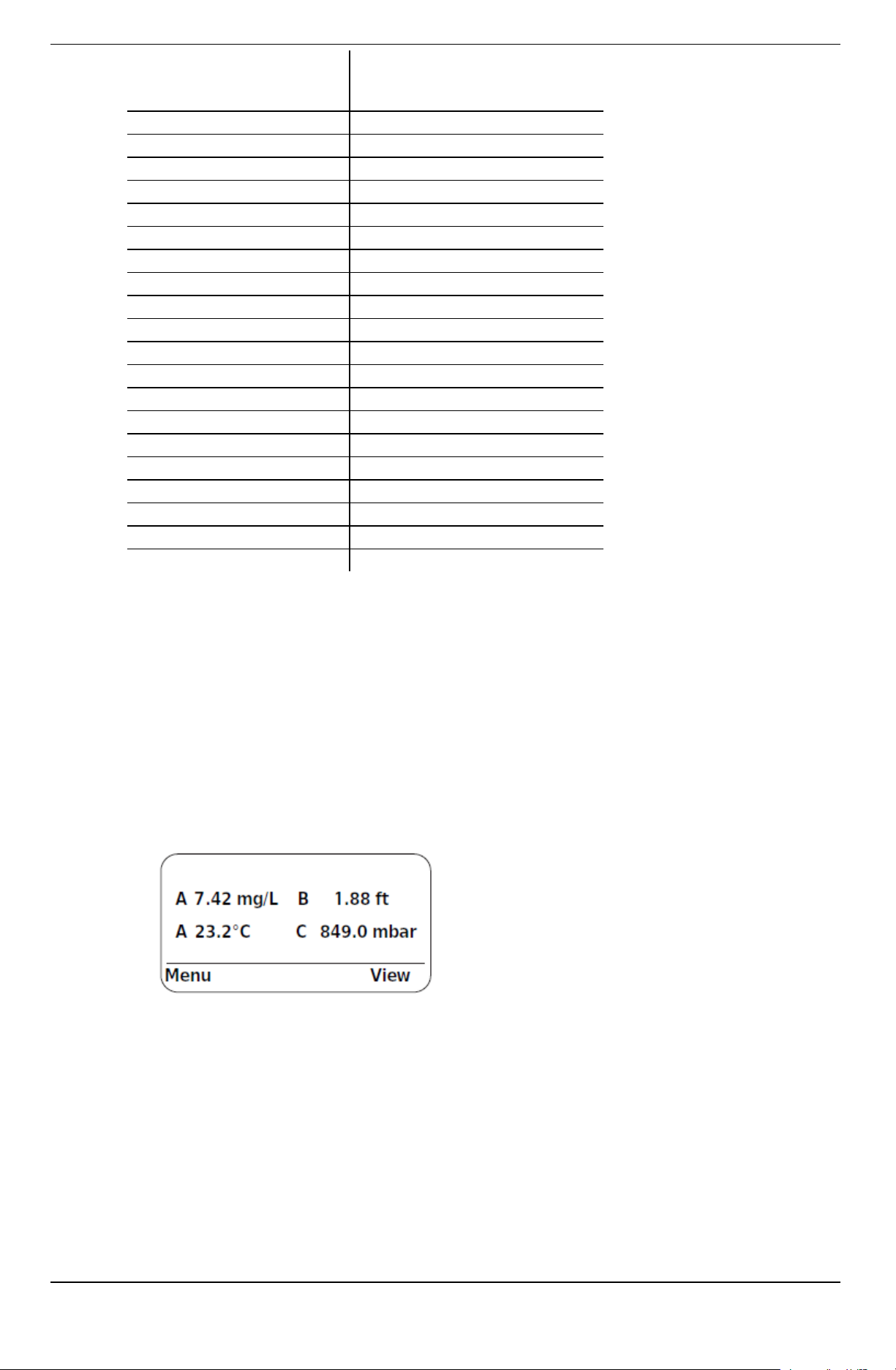

Figure 1.3 Probe and parameters view

9. Parameters are labeled A, B, and C. References to Probe C refer to the Con TROLL PRO itself.

Using the View Function

1. Select the View option. An arrow will point to the first parameter.

2. Select View again to move the arrow to the next parameter.

3. With the arrow pointing to a parameter, use the Up and Down arrow keys to cycle through all the available parameters on both sensors and the control module.

800-446-7488 8 www.in-situ.com

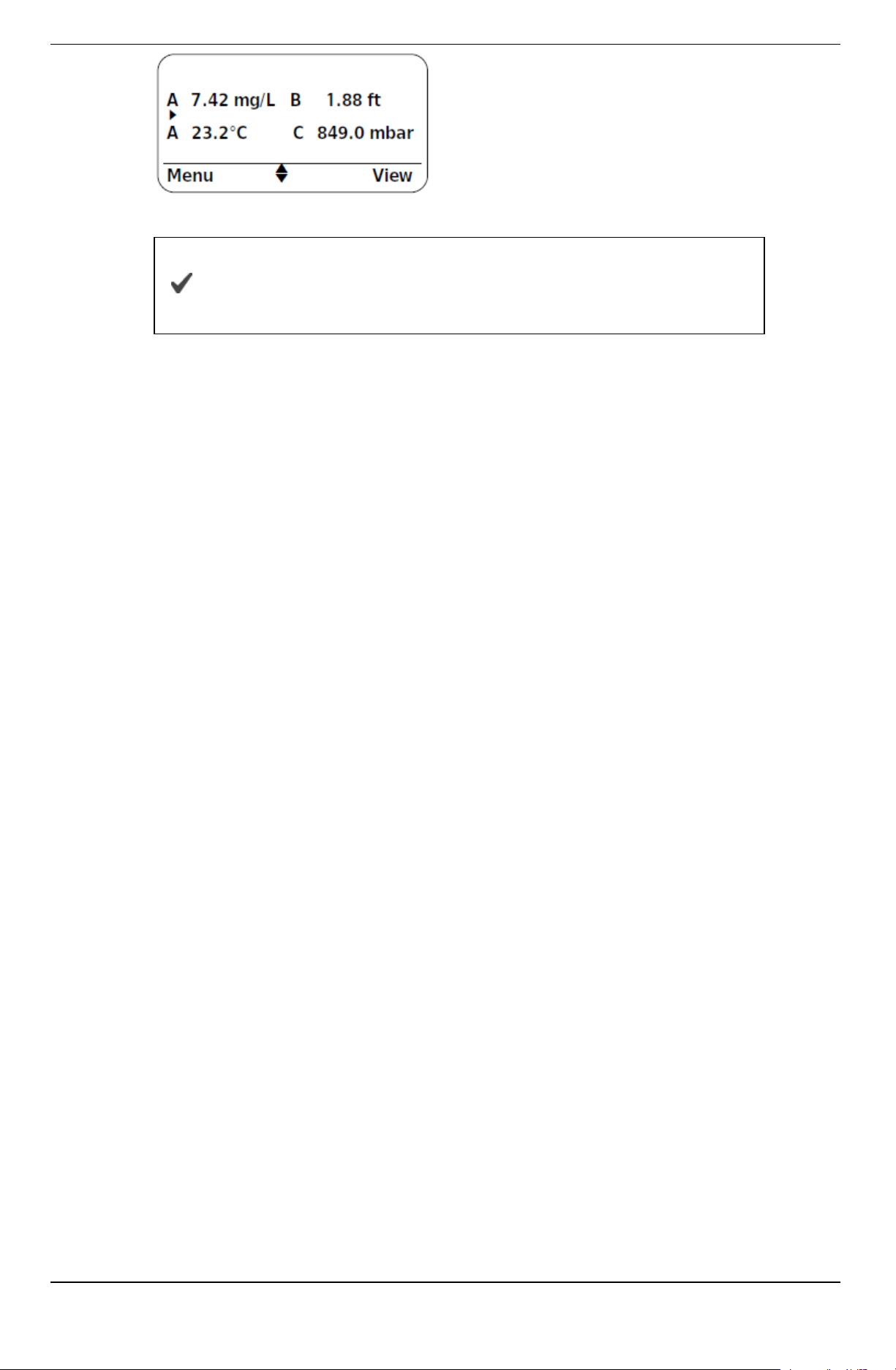

Figure 1.4 Probe A, probe B and probe C

Probe A parameters are labeled with A. Probe B parameters are labeled with B, and Con TROLL PRO parameters are labeled with C.

Changing the Date and Time

1. From the main screen, select Menu, Settings, Date & Time.

2. Three menu items will appear.

l Date shown as: YYYY-MM-DD

l Time shown as: HH:MM:SS

l UTC shown as: ±HH:MM

3. Use Select to choose the menu item.

4. Use the arrow keys to choose the new setting.

5. Select Enter.

Display (Screen) Appearance

Locking the Display

When the display is locked, users will not be able to scroll through the

parameters using the View menu option.

1. From the main screen, select Menu, Settings, Display.

2. Choose Lock View.

3. Press Select to toggle between the locked view and the unlocked view.

Changing the Display Contrast

1. From the main screen, select Menu, Settings, Display, Contrast.

2. Use the arrow keys to brighten or darken the screen’s appearance.

3. Select Enter to save the setting.

Changing the Displayed Location

1. From the main screen, select Menu, Settings, Display, Location.

2. Use the arrow keys to enter a location.

3. Select Enter to save the new location.

Changing the Back-light Time

1. From the main screen, select Menu, Settings, Display, Backlight.

2. Select the desired option and press Enter.

800-446-7488 9 www.in-situ.com

l ON—The back-light stays on continuously.

l Interval—The back-light stays on for the specified interval after the last keyboard

activity and then turns off. Press any key to turn the back-light on again.

Changing the Auto-Off Time (DC-L Model Only)

To conserve power, you can set the display to turn off after the keypad has not been used for a certain length of time.

1. From the main screen, select Menu, Settings, Display, Auto-off.

2. Select the desired option and press Enter.

l OFF—The Auto-Off feature is disabled. The display is continuously on.

l Interval—The display stays on for the specified interval after the last keyboard

activity and then turns off. Press any key to turn the display on again.

Measurement and control continue at the programmed log interval even while the display is off.

Changing the Language

1. From the main screen, select Menu, Settings, Display, Language.

2. Use the arrow keys to display a language.

3. Select Enter to save the setting.

800-446-7488 10 www.in-situ.com

On-Screen Icon Descriptions

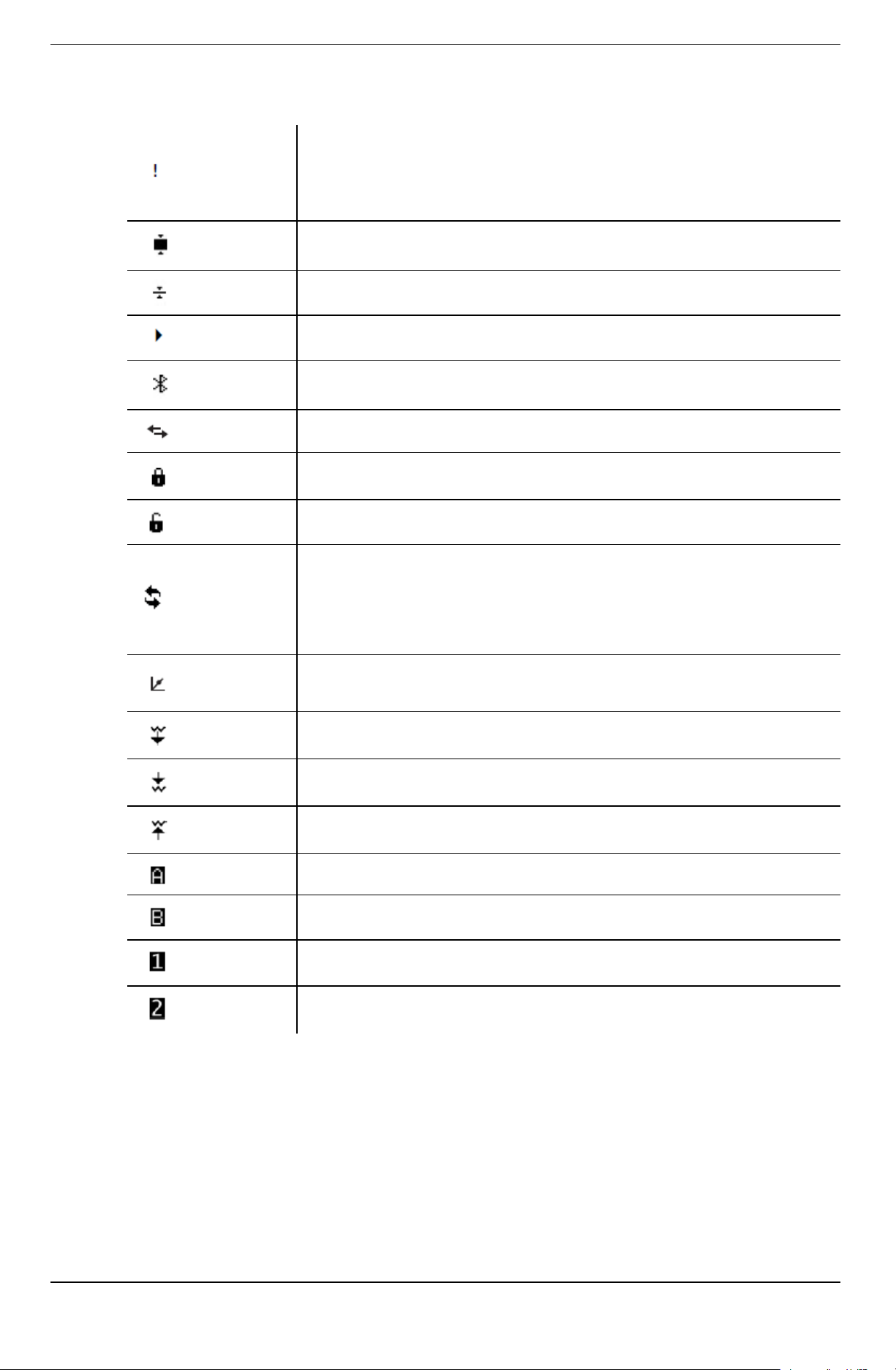

Table 2. Icons and their descriptions

Error with parameter

RDO PRO (RDO Classic Sensor Cap) has expired.

Error with parameter

Calibration nominally stable

View

Bluetooth wireless technology turned on

Communication ongoing

View locked

View is not locked

Level or Aqua TROLL: Factory calibration has expired.

RDO PRO-X: RDO-X Sensor Cap has exceeded its recommended service period, or the cap has sustained significant abrasion and should be replaced.

User calibration has expired, based on the "Calibrate Interval"

Depth of water

Level—Depth to water

Level—Surface elevation

Probe A not communicating

Probe B not communicating

Relay 1 active

Relay 2 active

Setting the Log Interval

The log interval specifies how often the Con TROLL PRO logs data from the probes. On the DC-L model, the log interval also sets the interval that the controller checks the probes and updates the configured outputs when the display is off.

1. From the main screen, select Menu, Settings, Log Interval.

2. Select the desired interval and select Enter.

800-446-7488 11 www.in-situ.com

IMPORTANT: Any change to the configuration of the parameters (add probe, delete probe, enable/disable parameters, change units, etc.) will cause the data log to be erased and restarted.

Setting the Communications Preferences

Setting the Device Address for the Controller (RS485 Instruments Only)

1. From the main screen, select Menu, Settings, Communication.

2. Select Address.

3. Enter a value between 1 and 245.

The address of Probe A is the controller address plus 1. The address of Probe B is the controller address plus 2.

Setting the RS485 Settings for the Controller

1. From the main screen, select Menu, Settings, Communication.

2. Select RS485. You can choose from the following options:

l Mode (Choose RTU or ASCII)

l Baud Rate (Choose 9600, 19200, 38400, or 57600)

l Data Bits (Choose 8)

l Parity (Choose Even, Odd, or None)

l Stop Bits (Choose 1 or 2)

l Defaults (Restore RS485 default settings, yes or no)

Enabling Bluetooth Communications on the Controller

1. From the main screen, select Menu, Settings, Communication, Bluetooth, Mode.

2. You can choose from the following options:

l Disabled—Bluetooth is always off.

l Manual—When this setting is selected, a Bluetooth On/Bluetooth Off toggle

setting will be added to the list of Main Menu items. Note that when Bluetooth communications are turned on the Bluetooth symbol appears on the main display. In Manual Mode, Bluetooth automatically turns off after one minute of inactivity.

l Always On—Recommended for use with AC and AC-L versions only.

Pairing Bluetooth Devices

In order for a Bluetooth device (such as a RuggedReader or a computer) to communicate with the controller, it must be “paired.” For security purposes, the following procedure must be used to pair a device with the controller before communication is possible.

1. From the main screen, select Menu, Settings, Communication, Bluetooth, Enable Pairing.

2. Configure the Bluetooth settings on the handheld device or computer.

800-446-7488 12 www.in-situ.com

3. When pairing between the controller and the Bluetooth device is successful the controller screen will show “Pairing Successful.”

4. Select OK.

After a device is paired with the Con TROLL PRO, it can connect to the Con TROLL PRO any time Bluetooth is turned on.

Administrator and Password Access

You may set up the controller with passwords for an administrator and a single user.

The User can access the Calibrate, Log Data, Hold Outputs, and Diagnostics menus. The Administrator can access all functions, most notably, the Settings menu. If there is no administrator code set, the User becomes the default Administrator and can access all functions. To remove pass code-protected access, enter “0000” for all codes.

1. From the main screen, select Menu, Settings, Security Code, Administrator.

2. Set a 4-digit code for the Administrator using the arrow keys. Select Enter.

3. Select User. Set a 4-digit code for the User using the arrow keys. Select Enter.

800-446-7488 13 www.in-situ.com

Configuring Probes

Adding a Probe After Initial Configuration or Deletion

1. From the main screen, select Menu, Settings, Probes.

2. Select Probe A or B, then Add Probe.

3. The Add Probe screen appears with the name of the sensor that is wired in this position. If there is no probe detected, the display will tell you that no probe is connected. Select Enter to add and configure the probe.

Deleting a Probe

If you plan to permanently remove a probe or remove the probe and replace it with a different type of probe, follow the steps below.

1. From the main screen, select Menu, Settings, Probes.

2. Highlight the probe that you want to remove and press Select.

3. Use the arrow keys to scroll down to Delete Probe.

4. Press Select, then Enter to confirm.

5. The probe has been deleted from the configuration. Refer to the Con TROLL PRO Installation Manual to physically remove the probe from the controller and add a different probe.

Replacing a Probe

If you want to replace a probe with the same model and type of probe (i.e., Level TROLL 300 with a Level TROLL 300 or Aqua TROLL 100 with an Aqua TROLL 100), you can replace a probe directly and retain the existing settings.

1. Refer to the Con TROLL PRO Installation Manual, Input/Output Connection for directions on safely disconnecting the existing probe and replacing it with the same model of probe.

2. From the main screen, select Menu, Settings, Probes, the probe type, Replace Probe, Enter. The controller will configure the probe.

3. Press and hold the Back option to return to the display screen.

Enabling and Disabling Parameters

In most situations, you will only need to monitor or log specific parameters rather than every possible parameter. For example, each probe and the controller are capable of measuring/logging temperature, but you may only want to measure temperature from one probe. Thus, you will want to disable some parameters while leaving others enabled.

1. Select Menu, Settings, Probes.

2. Select a probe, then select parameters.

3. Select a parameter from the list and select Disable to stop logging or viewing that parameter.

Any change to the configuration of the parameters (add probe, delete probe, enable/disable parameters, change units, etc.) will cause the data log to be erased and restarted.

800-446-7488 14 www.in-situ.com

Setting Parameter Units

1. From the main screen, select Menu, Settings, Probes.

2. Select a probe.

3. Select parameters.

4. Use the arrow keys to scroll to the selected parameter. Select Enter.

5. Select Units.

6. Use the arrow keys to scroll to the correct unit of measure. Select Enter.

Settings Parameter Resolution (Setting Significant Units)

1. From the main screen, select Menu, Settings, Probes.

2. Select a probe. (Remember that Probe C is the controller.)

3. Select Parameters.

4. Use the arrow keys to scroll to the selected parameter. Select Enter.

5. Select Resolution.

6. Continue to press Select in order to move the decimal point. When you achieve the desired resolution, press Back.

Setting the Sentinel Value (Offline/Error Value)

To set a value to display when the probe returns an error condition for a parameter.

1. Select Menu, Settings, Probes.

2. Select a probe. (Remember that Probe C is the controller.)

3. Select Parameters.

4. Use the arrow keys to scroll to the selected parameter. Select Enter.

5. Select Sentinel.

6. Use the arrow keys to set the sentinel (error) value. Select Enter.

800-446-7488 15 www.in-situ.com

RDO PRO or RDO PRO-X Probe

Configuring RDO PRO or RDO PRO-X Options

The RDO PRO and the RDO PRO-X probes are both compatible with the Con TROLL PRO.

Barometer

1. From the main screen, select Menu, Settings, Probes.

2. Select the RDO PRO or RDO PRO-X Probe.

3. Select Options, then Barometer.

4. Choose between Fixed or Automatic compensation.

l If you select “Fixed,” you must then enter a barometric value.

l If you select “Automatic,” the Con TROLL PRO will provide a barometric value to

the probe.

Salinity

You can enter a fixed salinity correction value under all circumstances. You can enter an automatic/dynamic value for salinity correction if you also have an Aqua TROLL 100, 200, or 400 installed.

1. From the main screen, select Menu, Settings, Probes.

2. Select the RDO PRO or RDO PRO-X Probe.

3. Select Options, then Salinity.

4. Choose Fixed or Automatic.

l If you select “Fixed,” you must then enter a salinity value.

l If you select “Automatic,” the probe will pull a salinity value from the Aqua TROLL

if installed.

Calibration Interval

This function will warn you when you are overdue for a calibration by displaying the graph symbol on the screen.

1. From the main screen, select Menu, Settings, Probes.

2. Select the RDO PRO or RDO PRO-X Probe.

3. Select Options, then Calibrate Interval.

4. Select the preferred interval (ranging from one week to 12 months) from the onscreen options.

Calibrating the RDO PRO or RDO PRO-X Probe

Calibration Options

From the Con TROLL PRO Main menu, select Calibrate, then select the RDO PRO or RDO PRO-X Probe. You will have the following options.

l Saturation—Choose this option if you want to perform a one-or two-point percent

saturation calibration.

800-446-7488 16 www.in-situ.com

l Concentration—Choose this option if you want to calibrate the concentration

values to a concentration obtained using another method.

l Defaults—Choose this option if you want to restore the default calibration values.

1-Point Calibration

Water-Saturated Air

1. Remove the storage cap from the top of the calibration chamber and replace it with the vented calibration cap.

1 Storage cap

2 Vented calibration cap

Figure 3.1 Storage cap and vented calibration cap shown together

2. Place the sponge wafer in the bottom of the calibration chamber and saturate with approximately 10 mL water.

3. Gently dry the instrument and sensing material with a paper towel, making sure there is no water or debris on the instrument or on the sensing surface.

4. Place the instrument into the calibration chamber about 2.5 cm (1 in.) above the water-saturated sponge.

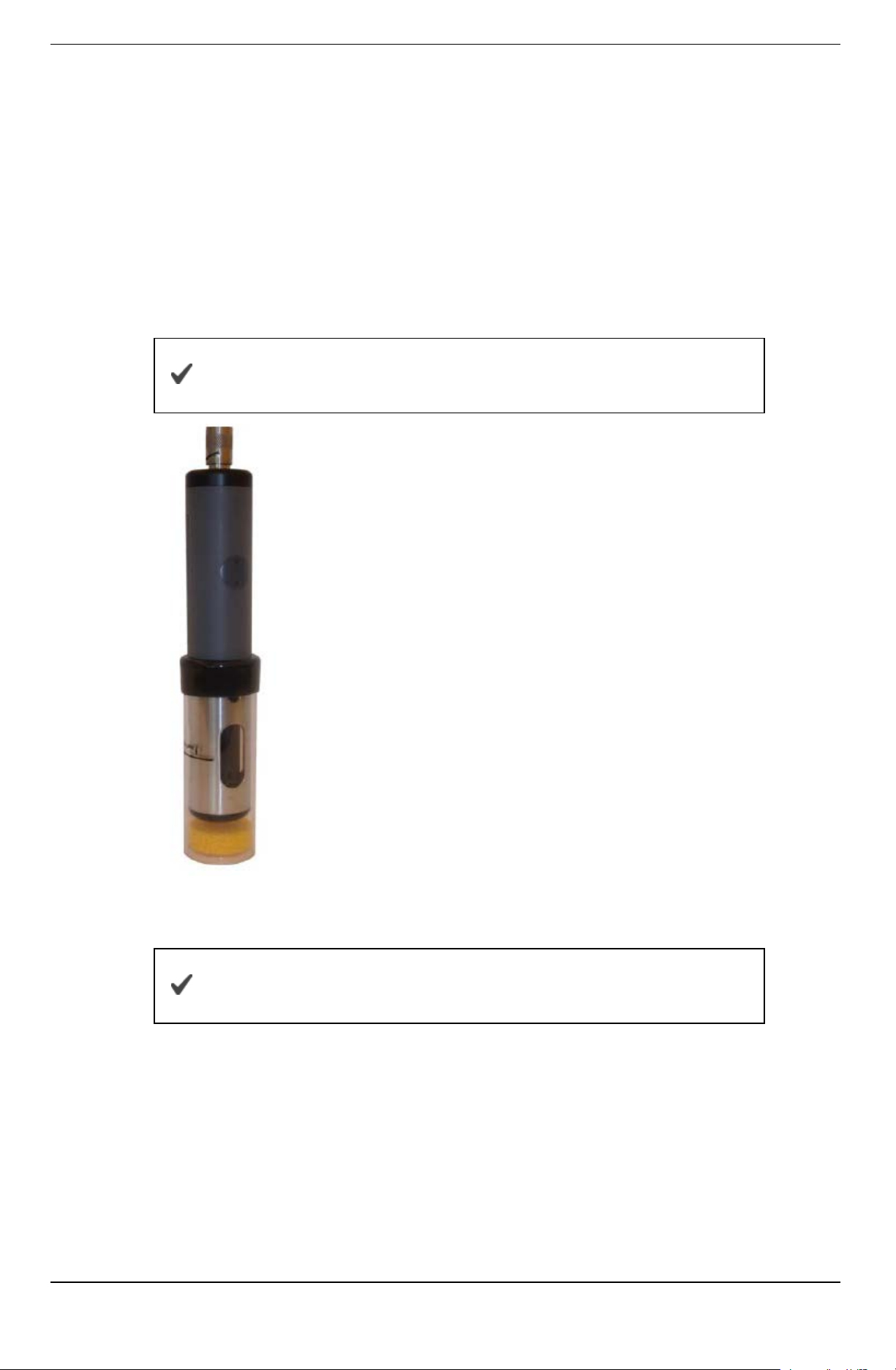

Figure 3.2 Calibration chamber with water-saturated sponge

5. Allow 5 to 10 minutes for temperature stabilization prior to starting the calibration procedure. Do not leave the instrument in the calibration chamber for more than 30 minutes. This can allow condensation to form on the sensing material, which will produce false low readings after calibration. If condensation does occur, remove the instrument, dry the sensing material, place the instrument in the chamber, and calibrate.

Controller 1-Point Calibration

1. From the Con TROLL PRO Main screen, select Menu, Calibrate, then RDO PRO.

2. Select Saturation, then select 1-point cal.

3. Press OK to start the calibration.

4. You will see the Calibration Beginning icon next to the mg/L reading. When the calibration is complete, choose Stable to accept the calibration or Cancel to return to the pre-existing calibration.

800-446-7488 17 www.in-situ.com

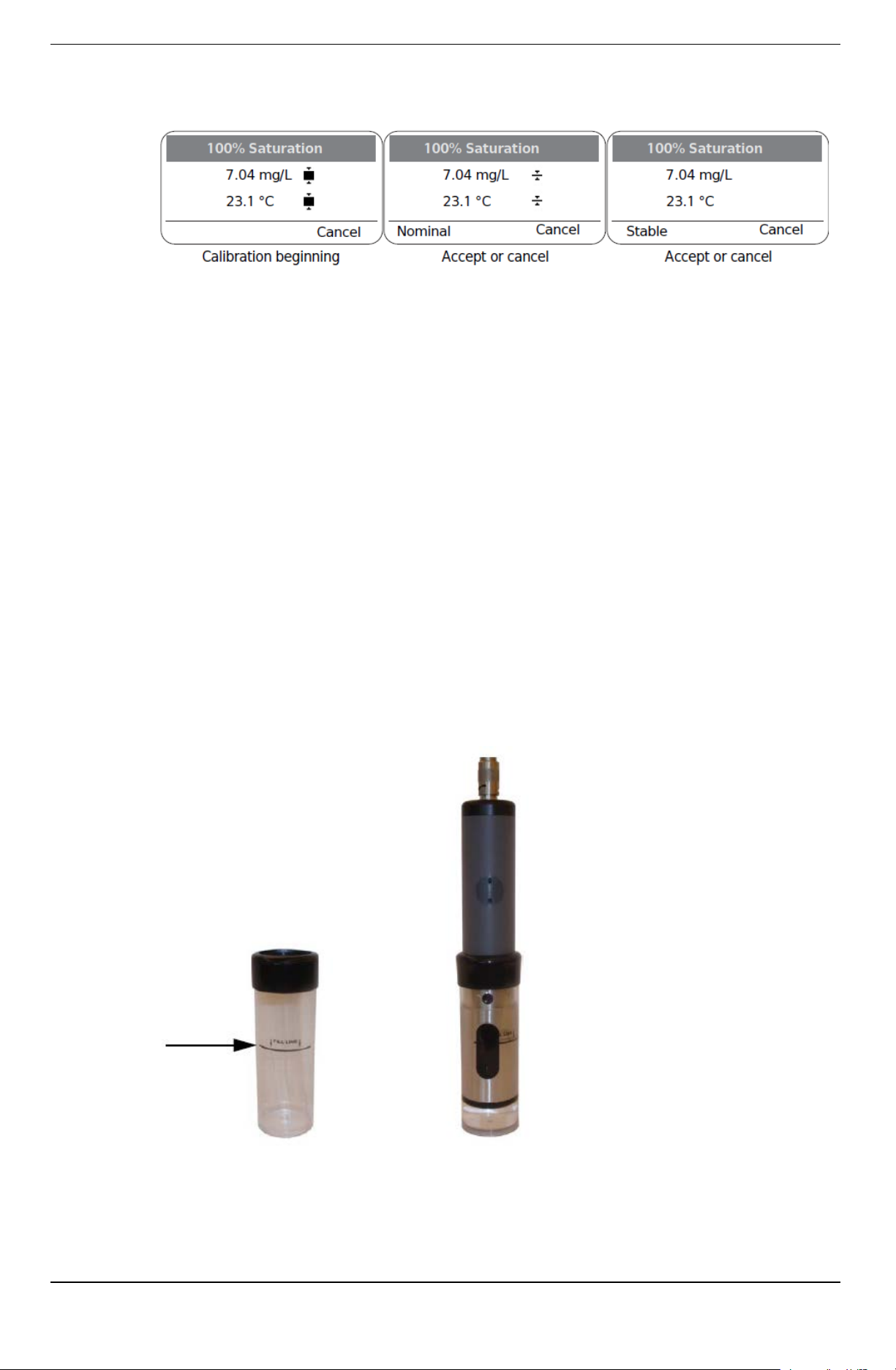

Figure 3.3 Beginning the 1-point calibration; accepting or canceling the calibration.

Controller 2-Point Calibration (100% and 0% Saturation)

100% Calibration Point

1. Set up the calibration equipment. See page 17.

2. From the Con TROLL PRO Main screen, select Menu, Calibrate, RDO PRO or RDO PRO-X.

3. Select Saturation, then select 2-point cal.

4. Press OK to start the 100% saturation calibration.

5. You will see the Calibration Beginning icon next to the % Sat value. When the calibration is complete, choose Stable to accept the 100% calibration point and proceed to the 0% point or Cancel to return to the previous calibration.

0% Calibration Point

1. Remove the sponge from the calibration chamber.

2. Ensure the calibration cap, with the vent hole, is on the top of the calibration chamber.

3. Fill the calibration chamber to the fill line with approximately 60 mL of fresh sodium sulfite solution.

1 Fill line

2 Temperature sensor

Figure 3.4 Calibration chamber fill line and submerged sensors

4. Completely submerge the sensor, making sure that the temperature sensor is also under the surface of the solution. Do not allow the sensor to rest completely on the bottom of the calibration chamber. Leave at least 1.25 cm (0.5 in.) between the surface of the sensing material and the bottom of the chamber.

5. Press OK to start the 0% saturation calibration.

800-446-7488 18 www.in-situ.com

6. You will see the Calibration Beginning icon next to the % Sat value. When the calibration is complete, choose Stable to accept the calibration or Cancel to return to the pre-existing calibration.

Figure 3.5 Beginning the 2-point calibration; accepting or canceling the calibration

7. Once calibrated, remove the probe, and thoroughly rinse with water to remove any excess sodium sulfite.

Calibration using the Concentration Option

1. From the Con TROLL PRO Main screen, select Menu, Calibrate, RDO PRO or RDO PRO-X.

2. Select Concentration.

3. With the probe in the water, take a measurement using a method of choice.

4. Enter the value from your reference method as the “Standard Value” shown on the Con TROLL PRO screen. Select Enter.

Calibration Hints

Nominal Stability vs. Full Stability

To meet the criteria for a valid calibration point, the change (delta) in probe response is monitored over time. The controller is looking for the calibration solution temperature and the probe readings to settle over a specific time period. The criteria for Full Stability are designed to meet the published specifications. The criteria for Nominal Stability are designed to shorten the calibration time when an approximate calibration is acceptable.

Factory Recalibration

Proper maintenance can improve your results and extend the life of the instrument.

l RDO PRO and Aqua TROLL 400 instruments use the RDO Classic Sensor cap

that must be replaced annually. When this cap has expired, the exclamation icon appears on screen.

l RDO PRO-X Probes use RDO-X Sensor caps that typically last 2 years. If the

RDO-X Sensor cap has exceeded its recommended service period, or if the cap has sustained significant abrasion The Service Needed icon appears on screen.

800-446-7488 19 www.in-situ.com

Aqua TROLL 100 and 200 Instruments

Configuring Aqua TROLL 100 and 200 Options

Conductivity/Alpha Coefficient

1. From the main screen, select Menu, Settings, Probes.

2. Select the Aqua TROLL 100 or 200 Instrument.

3. Select Options.

4. Select Conductivity, Alpha.

5. Use the arrow keys to enter the desired coefficient.

6. Select Enter. (The default value is 0.0191.)

Conductivity/Reference Temperature

1. From the main screen, select Menu, Settings, Probes.

2. Select the Aqua TROLL 100 or 200 Instrument.

3. Select Options.

4. Select Conductivity, Tref.

5. Use the arrow keys to enter the desired reference temperature.

6. Select Enter. (The default value is 25° C.)

Conductivity/TDS Factor

1. From the main screen, select Menu, Settings, Probes.

2. Select the Aqua TROLL 100 or 200 Instrument.

3. Select Options.

4. Select Conductivity, TDS.

5. Use the arrow keys to enter the TDS factor.

6. Select Enter. (The default value is 0.6500 ppt.)

Level/Level Mode (Aqua TROLL 200 only)

1. From the main screen, select Menu, Settings, Probes.

2. Select the Aqua TROLL 200 Instrument.

3. Select Options.

4. Select Level, Level Mode.

5. Choose between Depth, Level-DTW, and Level-SE.

l Depth is the depth of the water above the level sensor.

l Level-DTW (depth to water) is the distance from the top of a well casing or other

level reference down to the water surface.

l Level-SE (surface elevation) relates the probe measurements to a user-selected

level reference.

Refer to the Calibration menu to set the level reference for DTW and SE modes.

800-446-7488 20 www.in-situ.com

Level/Specific Gravity (Aqua TROLL 200 only)

1. From the main screen, select Menu, Settings, Probes.

2. Select the Aqua TROLL 200 Instrument.

3. Select Options.

4. Select Level, Specific Gravity.

5. Choose Fixed or Automatic.

l For Fixed, enter a desired value and select Enter.

l For Automatic, the controller will configure the Aqua TROLL to calculate specific

gravity automatically.

Calibration Interval

This function will warn you when you are overdue for a user calibration by displaying the graph symbol on screen.

1. From the main screen, select Menu, Settings, Probes, Aqua TROLL 200, Options, Cal. Interval.

2. Select the preferred interval from the on-screen options.

Calibrating the Aqua TROLL 100 and 200 Instruments

From the main screen, select Menu, Calibrate, then Aqua TROLL 100 or Aqua TROLL

200. You will have the following options.

l Conductivity

l Zero Pressure (Aqua TROLL 200 only)

l Level Reference (Aqua TROLL 200 only)

l Cal Report

l Defaults

Calibrating Conductivity

The Aqua TROLL 200 Instrument’s factory calibration with NIST-traceable standards provides a high degree of linearity across the entire operating range of 5 to 100,000 μS/cm. The Aqua TROLL 200 is capable of meeting its published specifications without requiring additional calibration by the user, as most commercially available standards can introduce a larger potential measurement error than the instrument’s initial factory calibration.

A user calibration is only recommended if you must conform to a standard operating procedure or if the cell has undergone physical change (e.g., deposits on conductivity cell walls that cannot be removed; physical damage to conductivity cell walls).

1. If you opt to calibrate the Aqua TROLL conductivity cell, refer to the calibration procedure in the Aqua TROLL Operator’s Manual for laboratory setup instructions.

2. From the Con TROLL PRO Main menu, select Calibrate, then Aqua TROLL 200 (or

100), then Conductivity.

3. Use the arrow keys to enter the standard value. Select Enter.

800-446-7488 21 www.in-situ.com

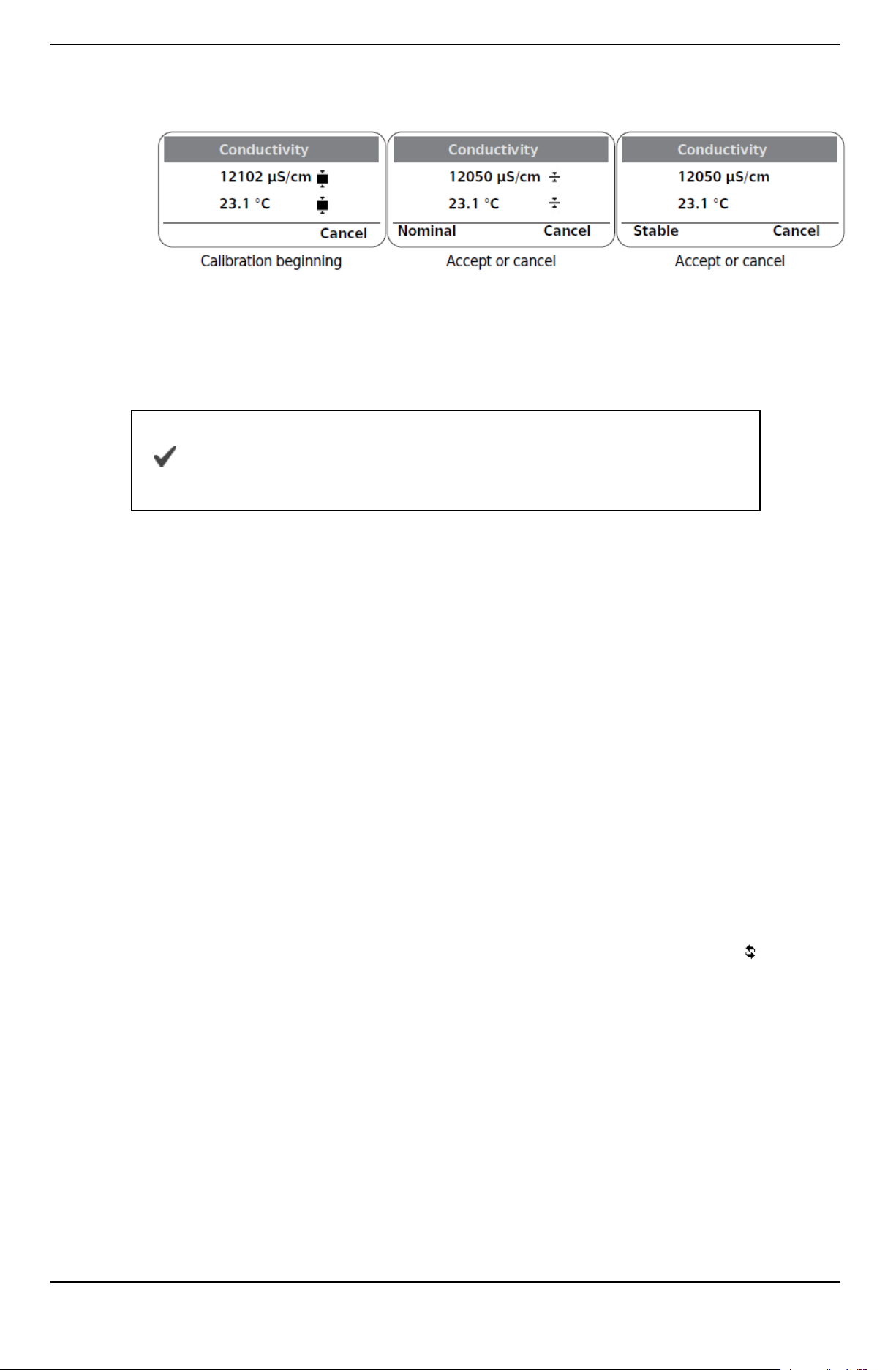

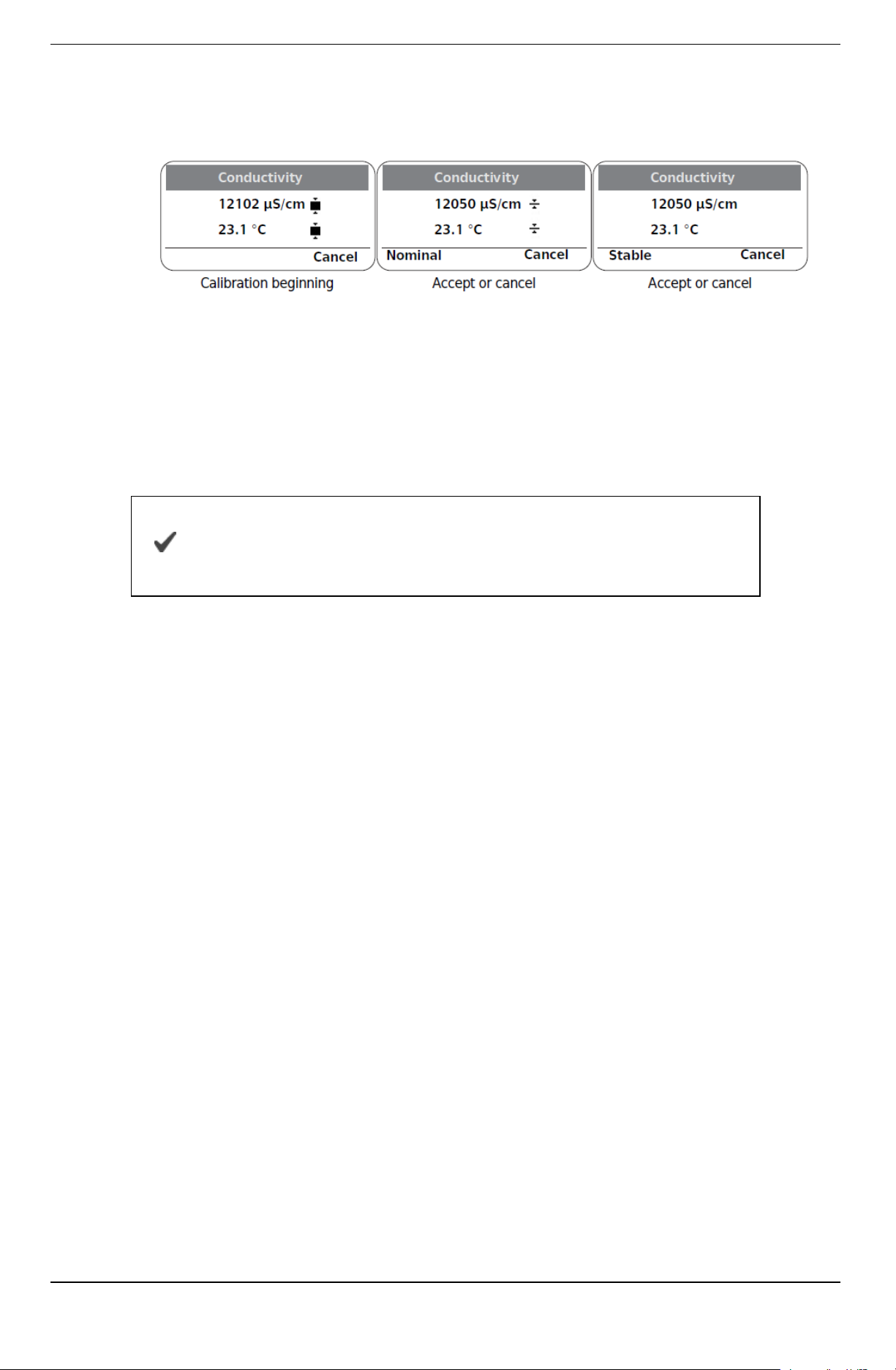

4. You will see the Calibration Beginning icon next to the μS/cm value. When the calibration reaches stability, choose Stable to accept the value or Cancel to return to the pre-existing calibration.

Figure 4.1 Beginning the calibration; accepting or canceling the calibration

Zeroing the Pressure Sensor

Aqua TROLL 200 has been factory calibrated with NIST standards to a greater degree of accuracy than can be achieved in nearly any alternate setting.

The pressure sensor in an Aqua TROLL 200 can be “zeroed” in air, but should never be “zeroed” in water. In-Situ Inc. does not recommend zeroing the pressure sensor.

Setting a Level Reference

1. From the main screen, select Menu, Calibrate.

2. Select the Aqua TROLL 200 Instrument.

3. Select Level Reference, and use the arrow keys to enter the level reference value, and Press Enter.

Calibration Hints

Nominal Stability vs. Full Stability

Factory Recalibration

Proper maintenance can improve your results and extend the life of the instrument. When your instrument is overdue for a factory recalibration, the Service Needed icon will appear on the display.

l Factory recalibration of the Aqua TROLL Instruments should be performed every

12 to 18 months.

800-446-7488 22 www.in-situ.com

Aqua TROLL 400 Instrument
