Insignia NS-SBNC100P9 Quick Setup Guide
QUICK SETUP GUIDE
4K Premium

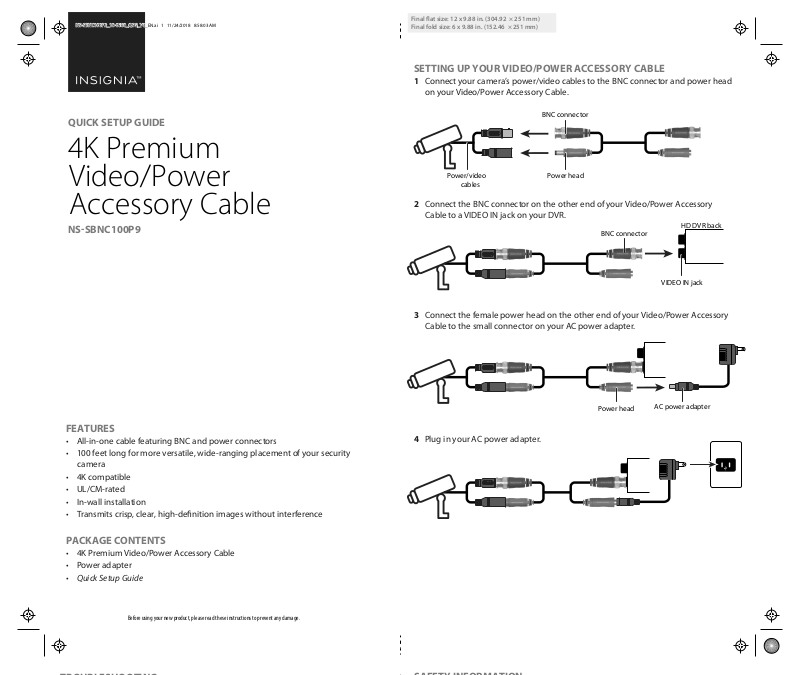

SETTING UP YOUR VIDEO/POWER ACCESSORY CABLE
1 Connect your camera’s power/video cables to the BNC connector and power head
on your Video/Power Accessory Cable.
BNC connector
Video/Power
Accessory Cable
NSSBNC100P9
Power/video
cables
2 Connect the BNC connector on the other end of your Video/Power Accessory
Cable to a VIDEO IN jack on your DVR.
3 Connect the female power head on the other end of your Video/Power Accessory
Cable to the small connector on your AC power adapter.
Power head
BNC connector
Power head
HD DVR back
VIDEO IN jack
AC power adapter
FEATURES
• All-in-one cable featuring BNC and power connectors
• 100 feet long for more versatile, wide-ranging placement of your security
camera
• 4K compatible
• UL/CM-rated
• In-wall installation
• Transmits crisp, clear, high-denition images without interference
PACKAGE CONTENTS
• 4K Premium Video/Power Accessory Cable
• Power adapter
• Quick Setup Guide
Before using your new product, please read these instructions to prevent any damage.
4 Plug in your AC power adapter.
TROUBLESHOOTING
The audio or video cuts in and out.
• Make sure that all cable connections are correct and secure.
The video has static.
• Make sure that you did not use an adapter or converter with your cables. Plug your
cables directly into your camera and DVR.
My display does not show 4K content.
• Make sure that your camera and DVR are able to record 4K content.
• Make sure that your display supports 4K content.
SPECIFICATIONS
• Cable length: 100 ft. (30.5 m)
• Cable diameter (OD): 0.11 x 0.22 in. (2.8 x 5.8 mm)
• Cable bending radius: R>10D (D=cable diameter)
• Operating temperature: -4° ~ 140°F (-20° ~ 40°C)
• Storage temperature: -4° ~ 140°F (-20° ~ 40°C)
• Interface: BNC Male to BNC Male
• Maximum resolution: 4K
• In-wall Installation: UL Certied, CM
SAFETY INFORMATION
• Read these instructions.
• Never pull on the cable to disconnect the connector end from a source or display.
• Do not bend your Video/Power Accessory cable too far. The bending radius at any point on your
Video/Power Accessory cable must be more than .8 in. (20 mm).
• Do not expose your Video/Power Accessory cable to water.
• Do not use excessive force when installing your Video/Power Accessory cable.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other devices
(including ampliers) that produce heat.
• Do not store your Video/Power Accessory cable in an extremely cold, warm, or humid environment.
• Do not dismantle your Video/Power Accessory cable.
LEGAL NOTICES
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC Caution
Changes or modications not expressly approved by the party responsible for compliance could void the
user’s authority to operate this equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, maybe cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
ICES statement: CAN ICES-3 B/NMB-3 B
ONEYEAR LIMITED WARRANTY
Visit www.insigniaproducts.com for details.
CONTACT INSIGNIA
For customer support, call 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000
(Mexico)
www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its aliated companies
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richeld, MN 55423 U.S.A.
©2018 Best Buy. All rights reserved.
Made in China
V1 ENGLISH 18-0568
