USER GUIDE
Mini 2.0 Soundbar with
Bluetooth
NS-SB216
Before using your new product, please read these instructions to prevent any damage.
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Important safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Using the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Setting up your soundbar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
First step - Choosing your connection . . . . . . . . . . . . . . . . . . . . . . .8
Second step - Connecting your soundbar - Pick one . . . . . . . . . .9
Third step - Connecting the AC adapter . . . . . . . . . . . . . . . . . . . . .10
Connecting your soundbar using Bluetooth . . . . . . . . . . . . . . . .11
Positioning your soundbar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Using your soundbar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Maintaining your soundbar. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Legal notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
ONE-YEAR LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Introduction
Congratulations on your purchase of an Insignia Mini 2.0 Soundbar with
Bluetooth. The soundbar is designed to be suitable for use with today’s flat
panel TVs. It features a variety of connections, including Bluetooth, and it can
either be mounted on the wall or placed on a TV stand.
This user guide explains how to correctly install, operate, and get the best
performance from your soundbar. Read this user guide carefully before
installing your system, and then keep it handy for quick reference.
Important safety instructions
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.
2
www.insigniaproducts.com
Mini 2.0 Soundbar with Bluetooth
8 Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9 Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The
wide blade or the third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement
of the obsolete outlet.
10 Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
11 Only use attachments/accessories specified by the manufacturer.
12 Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
13 Unplug this apparatus during lightning storms or when
unused for long periods of time.
14 Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
15 To reduce the risk of fire or electric shock, do not expose this device to
rain, moisture, dripping, or splashing, and no objects filled with liquids,
such as vases, shall be placed on it.
16 An apparatus with a three-prong, grounding-type plug is a Class I
apparatus, which needs to be grounded to prevent possible electric
shock. Make sure that you connect any Class I device to a grounding-type,
three-prong outlet.
17 DO NOT overload wall outlets or extension cords beyond their rated
capacity as this can cause electric shock or fire.
18 The wall plug is the disconnecting device. The plug must remain readily
operable.
19 No naked flame sources, such as lighted candles, should be placed on the
apparatus.
20 The ventilation should not be impeded by covering the ventilation
openings with items, such as newspapers, tablecloths, curtains, etc.
21 The remote control supplied with this product contains a coin/button cell
battery. If the coin/button cell battery is swallowed, it can cause severe
internal burns in just 2 hours and can lead to death.
www.insigniaproducts.com
3
22 Batteries should not be exposed to excessive heat such as sunshine, fire,
or the like.
Warning
Danger of explosion if the remote control battery is incorrectly replaced.
Replace only with the same or equivalent type.
23 Keep new and used batteries away from children.
24 If the battery compartment does not close securely, stop using the
product and keep it away from children.
25 If you think batteries might have been swallowed or placed inside any
part of the body, seek immediate medical attention.
The lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of sufficient magnitude
to constitute a risk of electrical shock to persons.
The exclamation point, within an equilateral triangle, is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the product.
Placement
• The soundbar cabinet is made out of plastic and is therefore sensitive to
extreme temperatures and humidity. Do not put it in locations subject to
direct sunlight or in humid places, such as near an air conditioner,
humidifier, bathroom, or kitchen.
• Do not put water or other liquids close to the soundbar. If liquid is spilled on
top of the soundbar, it may be damaged.
• The soundbar should be placed on a sturdy, flat surface that is free from
vibration, or mounted on a wall. Do not put the soundbar on an uneven or
unstable surface, where it may fall and cause damage.
NS-SB216
Using close to a TV or computer
Some older TVs and computer monitors are magnetically sensitive devices.
They are likely to suffer discoloration or picture distortion when conventional
speakers are placed nearby. If discoloration problems persist, try moving the
soundbar away from your TV or monitor.
4
www.insigniaproducts.com
Package contents
CONNECTING THE SOUNDBAR
Look at the back of your sound source device, such as a TV, DVD/Blu-ray player, or cable box, to
You can connect several devices and switch the sound source as required.
Note:

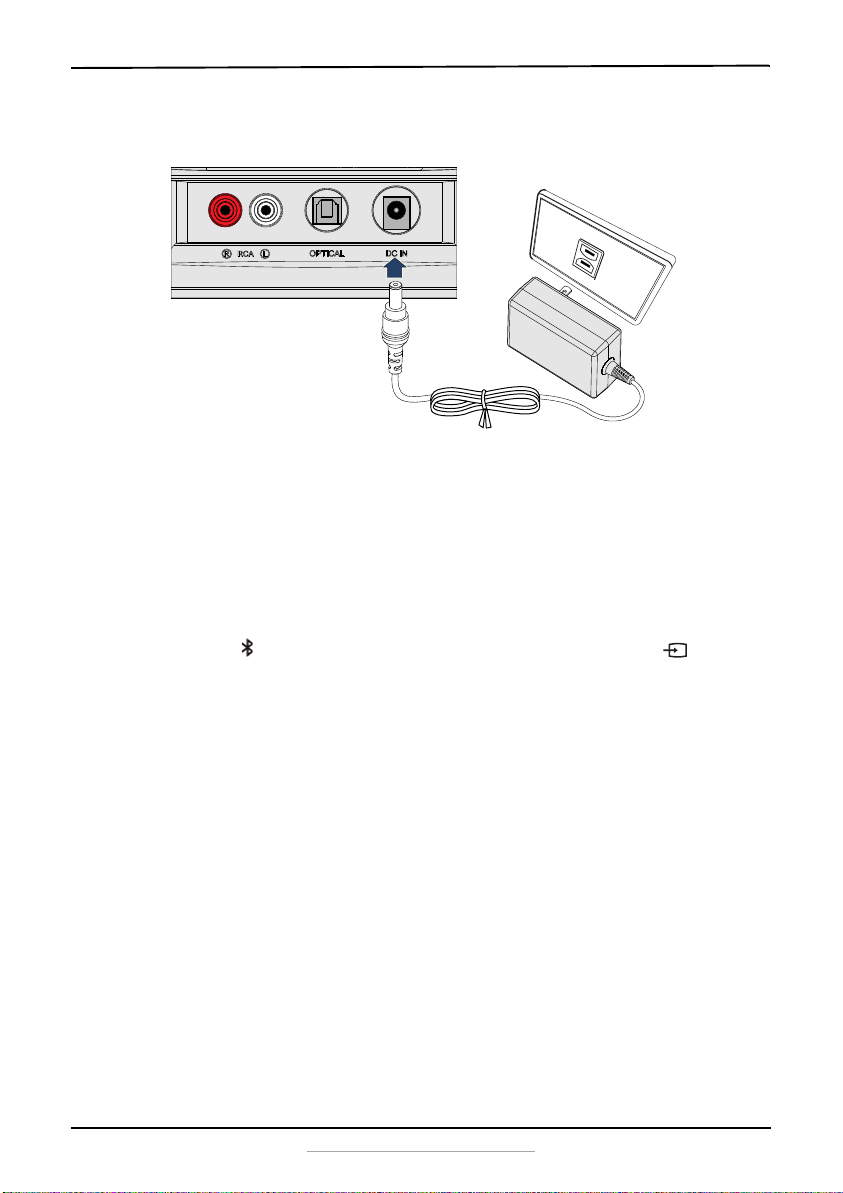

CONNECTING THE AC ADAPTER
Cautions:
• Make sure that the electrical outlet matches the AC adapter’s input requirements of 100-240 V, 50/60 Hz before
connecting.
• Use only the AC adapter provided.
• Plug in the AC adapter only after all other connections have been made.
1 Connect the AC adapter to the DC IN jack on the back of the soundbar.
2 Plug the other end of the AC adapter into a power outlet or surge protector.

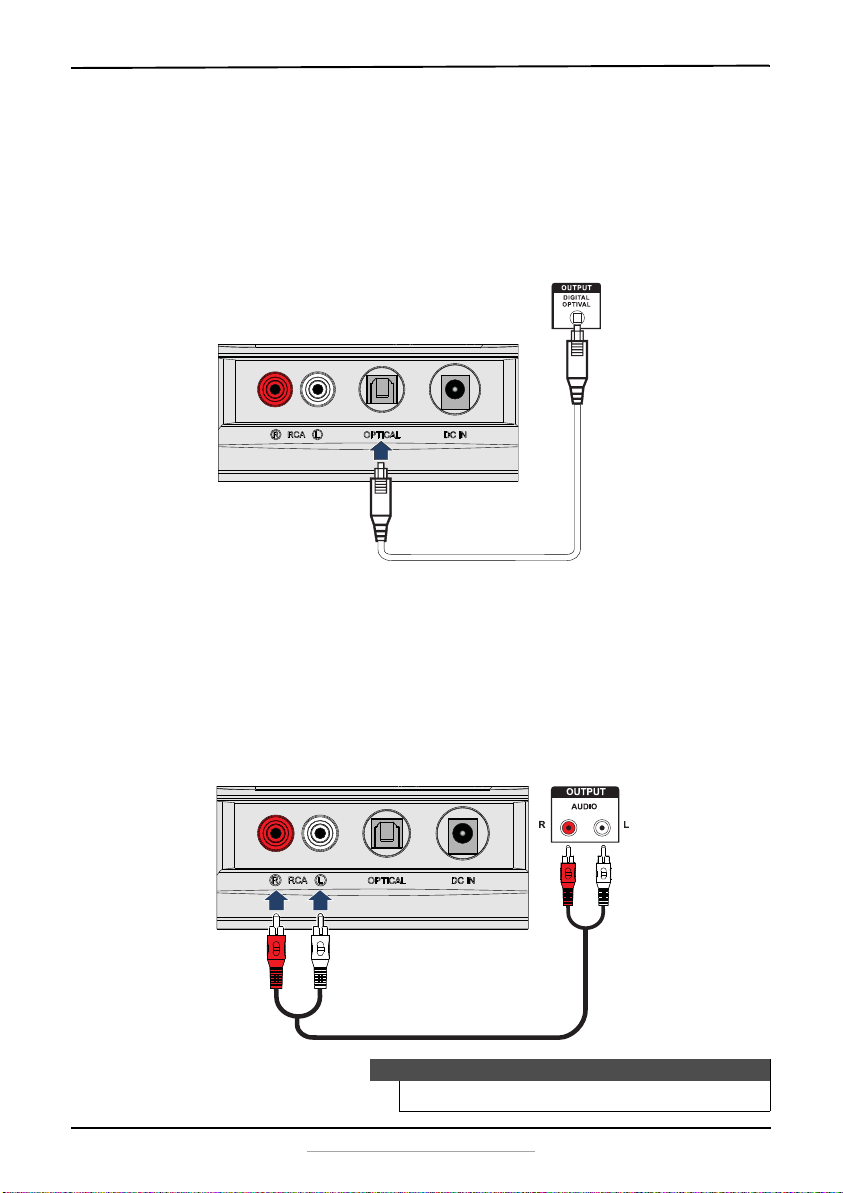

RCA connection (GOOD)
1 Connect one end of the RCA audio cable to the RCA ports
on your soundbar.
2 Connect the other end into the RCA audio OUTPUT ports
on your audio source device.
Note: Make sure that the cable ends match the color of the
ports.
Digital connections (BEST)
1 Connect one end of the digital optical cable (not included)
to the OPTICAL jack on your soundbar.
2 Connect the other end into the digital optical output port
on your audio source device.
3 Change the device’s audio output to 'PCM' format (typically
found in audio settings). Refer to the documentation that
came with your audio source device for more information.
3.5 mm connection (GOOD)
1 Connect one end of the RCA audio cable connectors
to your soundbar, then connect the other end to the
3.5 mm to RCA adapter (included).
2 Plug the other 3.5 mm male end of the adapter into
the headphone or AUX Output on your audio source
device.
OVER
PACKAGE CONTENTS
Before using your new product, please read these instructions to prevent any damage.
Pairing your devices
1 Turn on your soundbar.
2 Place your Bluetooth device within 30 ft. (10 m) of your soundbar.
3 Press the (Bluetooth) button on the remote control or the (source) button on the soundbar to
select Bluetooth mode. The LED blinks blue.
4 Navigate to your device’s Bluetooth settings, turn on Bluetooth, then search for available devices. For
additional information on pairing your device, refer to your devices’ documentation.
5 On your Bluetooth device, select “NS-SB216” from the device list. Repeat steps 1-4 if “NS-SB216” is not
displayed.
6 If a PIN code is requested, enter “0000.”
7 When pairing is completed the LED lights solid blue.
Notes:
• Some devices, such as an iPhone, connect immediately after pairing so the Bluetooth indicator on your
soundbar remains on. Other devices, such as notebook computers, may ask you if you wish to connect. In this
instance, the Bluetooth indicator continues to blink until a connection is established.
• Your soundbar saves pairing information for up to eight devices. However, it can only be connected and play
content from one device at a time.
• When you turn on your soundbar, it automatically connects to the last connected device if that device is in
and manually connect to the other paired device.
Disconnecting your devices
Note: For more information about using Bluetooth, see the online User Guide.
# DESCRIPTION
1 Power indicator
2 Source indicator
3 (Power) button
4 (Source) button
5 VOL +/– buttons
6 RCA (R and L) jacks
7 OPTICAL (input) jack
8 DC IN jack
9 (Power) button
10 SOURCE buttons
11 (Mute) button
12 VOL +/– buttons
13 DSP buttons
FUNCTION
• Lights red when the soundbar is in standby mode.
• Blinks red when the soundbar is muted.
• Green: Optical source
• Orange: RCA source
• Blue: Bluetooth source (blinks when in pairing mode)
• Purple: DSP selected (on remote)
• Flashes: when adjusting volume. Turns solid when the maximum or
minimum sound level is reached.
Press repeatedly to cycle through the available sound sources:
• Optical
• RCA
• Bluetooth
Press to increase or decrease the volume of the soundbar.
If your TV (or other audio source device) has RCA out jacks, connect the
RCA cables to your source device and these jacks.
If your TV (or other audio source device) has an optical out jack, connect
a digital optical cable (not included) to your source device and this jack.
Connect the AC adapter to this jack to power the soundbar.
Press to select the sound source. Select Optical, RCA, or Bluetooth.
Press to mute the sound from the soundbar. Press again to restore the
sound.
Press to increase or decrease the volume of the soundbar.
Press to select the Digital Signal Processor (DSP) sound mode:
• Standard: Lets you enjoy normal sound.
• Theater: Best for enjoying movies. Bass frequencies are enhanced.
• News: Select for clear voice reproduction.
RMC-SB216
- OR -
- PICK ONE -
- OR -
AUDIO QUALITY
BEST
GOOD
GOOD
JACK TYPE (on source device)
Digital optical cable (not included)
RCA audio cable (included)
3.5 mm audio cable (adapter included)
CABLE
QUICK SETUP GUIDE
Mini 2.0 Soundbar
with Bluetooth
NS-SB216
FIND YOUR USER GUIDE ONLINE!
Go to www.insigniaproducts.com, then click Support & Service.
Enter NS-SB216 in the box under Manual, Firmware, Drivers &
Product Information, then click ►.
RCA audio cable
3.5 mm to
RCA adapter
Quick Setup Guide
Remote control
AC adapter
FEATURES
Top view
Remote control
Back view
Back of the soundbar
Digital optical cable
(not included)
TV or DVD/Blu-ray
player
Soundbar
Back of the soundbar
AC adapter
AC wall plug
RCA audio cable (included)
reyalp yar-ulB/DVD ro VTrabdnuos eht fo kcaB
Back of the
soundbar
TV or
DVD/Blu-ray
player
3.5mm to RCA adapter
(included)
RCA audio cable (included)
Soundbar
Remote control
AC Adapter
RCA Audio Cable
Quick Setup Guide
3.5 mm to RCA adapter
Features
Top vi ew
Mini 2.0 Soundbar with Bluetooth
# Item Description
Power
1
indicator
2 Source
indicator
3 (Power)
button
• Lights red when the soundbar is in standby mode.
• Blinks red when the soundbar is muted.
• Turns off when the power is on.
• Green: Optical source
• Orange: RCA source
• Blue: Bluetooth source (blinks when in pairing mode)
• Purple: DSP selected (on remote)
• Flashes: when adjusting volume. Turns solid when the maximum or minimum
sound level is reached.
Press to turn the soundbar on. Press again to turn the soundbar to standby mode.
www.insigniaproducts.com
5
NS-SB216
# Item Description
4 (source)
button
5 VOL – / VOL +
buttons
Press repeatedly to cycle through the available sound sources:
•Optical
•RCA
•Bluetooth
Press to decrease or increase the volume of the soundbar.
Back view
# Item Description
1 RCA (R and L) jacks If your TV (or other audio source device) has RCA out jacks, connect the RCA
2 OPTICAL (input) jack If your TV (or other audio source device) has an optical out jack, connect a
3 DC IN jack Connect the AC adapter to this jack to power the soundbar.
4 Mounting points M4 threaded inserts for mounting. See “Positioning your soundbar” on
cables to your source device and these jacks.
digital optical cable (not included) to your source device and this jack.
page 13.
6
www.insigniaproducts.com
Loading...
