Insignia NS-HWMG1754G, NS-HWMG1754M, NS-HWMG1754M-C User Manual

Metal, Glass, and Wood Finish TV Stand

USER GUIDE

GUÍA DEL USUARIO

Base de metal y vidrio con acabado de madera para televisor

NS-HWMG1754G / NS-HWMG1754M / NS-HWMG1754M-C

ENGLISH.............................................................. 3

ESPAÑOL............................................................. 13

Before using your new product, please read these instructions to prevent any damage.

Antes de usar su producto nuevo, lea estas instrucciones para prevenir cualquier daño.

CONTENTS / ÍNDICE DE CONTENIDO

ENGLISH........................................................................................3

SAFETY INFORMATION AND SPECIFICATIONS....................................................... 3

PACKAGE CONTENTS: PARTS........................................................................................ 4

PACKAGE CONTENTS: HARDWARE ............................................................................ 5

ASSEMBLY INSTRUCTIONS............................................................................................ 6

CARE AND MAINTENANCE .........................................................................................11

ONE-YEAR LIMITED WARRANTY................................................................................12

ESPAÑOL.................................................................................... 13

INFORMACIÓN DE SEGURIDAD Y ESPECIFICACIONES......................................13

CONTENIDO DEL PAQUETE: PIEZAS ........................................................................14

CONTENIDO DEL PAQUETE: FERRETERÍA...............................................................15

INSTRUCCIONES DE MONTAJE ..................................................................................16

CUIDADO Y MANTENIMIENTO...................................................................................21

GARANTÍA LIMITADA DE UN AÑO............................................................................22

www.insigniaproducts.com

NS-HWMG1754G / NS-HWMG1754M / NS-HWMG1754M-C

Maximum Supported Weights:

- Top shelf: 125 lbs. (56.7 kg)

- Middle shelf: 35 lbs. (15.9 kg)

- Bottom shelf: 35 lbs. (15.9 kg)

Maximum screen size: 60” diagonal Overall dimensions (W × H × D):

54 x 24 x 18 in. (137.2 x 60.9 x 45.7 cm) Overall weight: 123.5 Lbs. (56.02 kg)

54 inch (137.2 cm)

24 inch (60.9 cm)

18 inch (45.7 cm)

125 lbs.

35 lbs.

Phillips screwdriver

ENGLISH

SAFETY INFORMATION AND SPECIFICATIONS

CAUTION: The top surface of this stand is

designed for use with a product weighing no more than 125 lbs. (56.7 kg) and having a width that

more than a one-inch overhang on each side of the shelf. Use with products that weigh more than the maximum weight allowed, or with dimensions that extend beyond the maximum width may result in instability, which may result in injury.

NS-HWMG1754M-C

permits it to sit evenly on the stand with no

CAUTION: This product contains small items that could be a choking hazard if swallowed. Keep these items away from young children!

Model #: NS-HWMG1754G / NS-HWMG1754M /

Tools needed:

www.insigniaproducts.com

Metal, Glass, and Wood Finish TV Stand

M1 - TV Stand Body (1)

M3 - Glass Shelf (3)

M2 - Wood Side (2)

M4 - Glass Top (1)

Base de metal y vidrio con acabado de madera para televisor

PACKAGE CONTENTS: PARTS

Make sure that you have all the parts necessary to assemble your new TV stand. While not all parts are labeled, some of the parts will have a label or an inked letter on the edge to help distinguish similar parts from each other. Use this part identification to help identify similar parts.

www.insigniaproducts.com

NS-HWMG1754G / NS-HWMG1754M / NS-HWMG1754M-C

Label Hardware Qty.

M5 4

M6 6

M7 8

M8 4

M9 4

7 mm Screw

10 mm Body Screw

Rubber glass support

Adhesive-backed glass support

22mm screw

Label Hardware Qty.

M10 2

M12 4

M13 5

Cabinet handle

28 mm side support screw

Shelf support posts

PACKAGE CONTENTS: HARDWARE

Note: The table below shows the required hardware. You may receive extra hardware.

Make sure that you have all the hardware necessary to assemble your new TV stand.

1234in

10 20 30 40 50 60 70 80 90 100mm

www.insigniaproducts.com

ASSEMBLY INSTRUCTIONS

Front

Back

M5 (4)

M13 (5)

Step 1: Preparing the TV stand body

Caution: Assemble your stand on a carpeted floor or on the empty box to avoid scratching your stand.

1 Place the TV Stand Body (M1) upright on the floor. 2 Pull the front of the body away from the back of the body until the hinged sides are straight.

Note: We recommend having two people to assemble your TV stand.

3 Screw five shelf support posts (M13) into the pre-threaded holes in the back and front frame. Use the holes that

provide the equipment clearance you need.

4 Screw two 7 mm screws (M5) into the bottom edge of both wood sides (M2) to the depth of the threads.

Metal, Glass, and Wood Finish TV Stand

Base de metal y vidrio con acabado de madera para televisor

You’ll need:

www.insigniaproducts.com

NS-HWMG1754G / NS-HWMG1754M / NS-HWMG1754M-C

M12 (2)

M6 (2)

M7 (8)

M8 (4)

Step 2: Securing the hinged sides and the left side panel

1 Secure the lower hinged braces in the straight position with two of the 10 mm body screws (M6). 2 Align the 7 mm screws (M5) on the lower edge of the left side (M2) with the holes in the cross braces on the stand

body (M1) (as shown in the detail below), then attach the left side. Secure the left side (M2) to the stand (M1) body using two of the 28 mm side support screws (M12) provided.

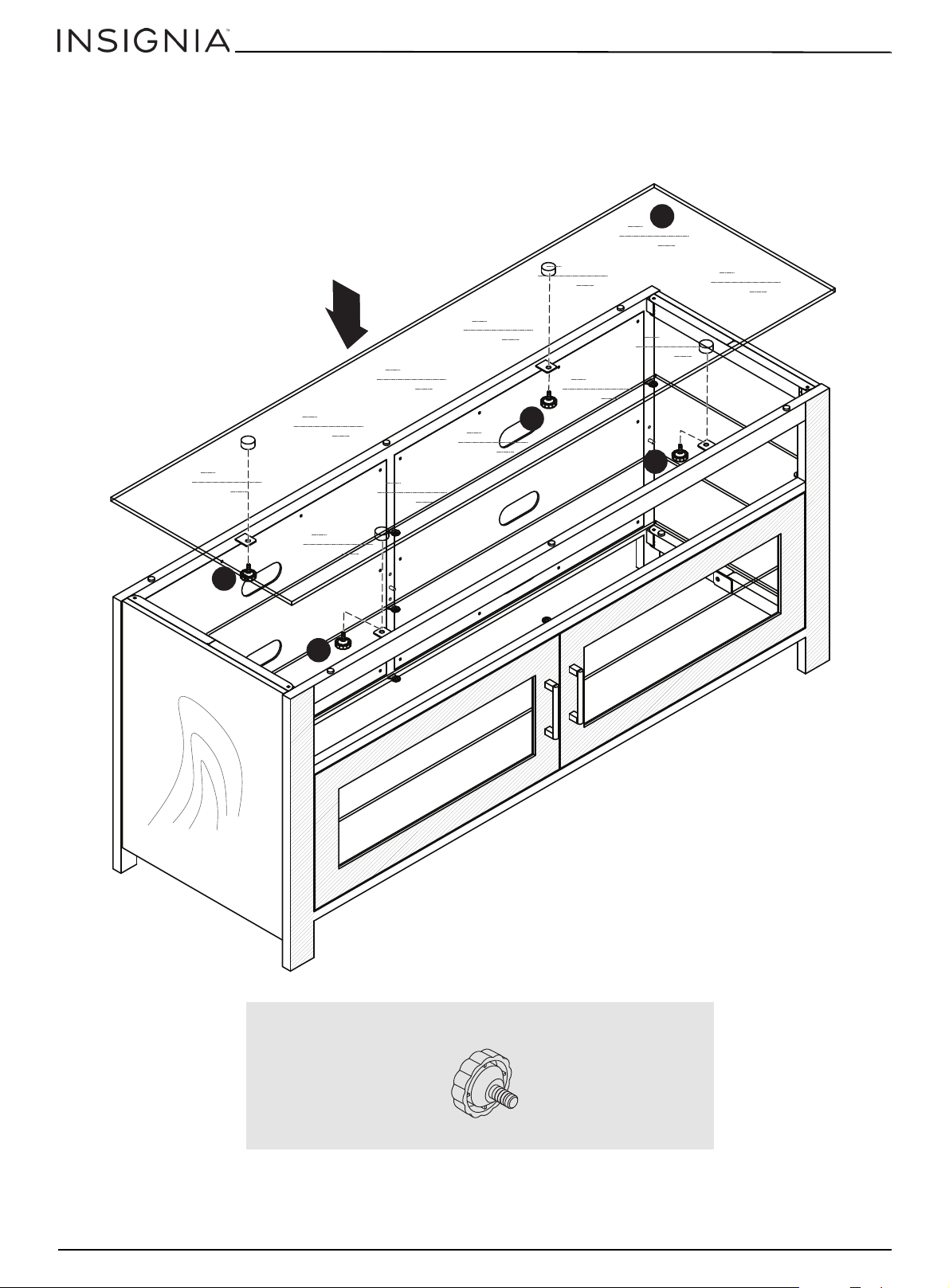

3 Add rubber glass supports (M7 and M8) to the top shelf brackets and the bottom, respectively.

M12

You’ll need:

www.insigniaproducts.com
