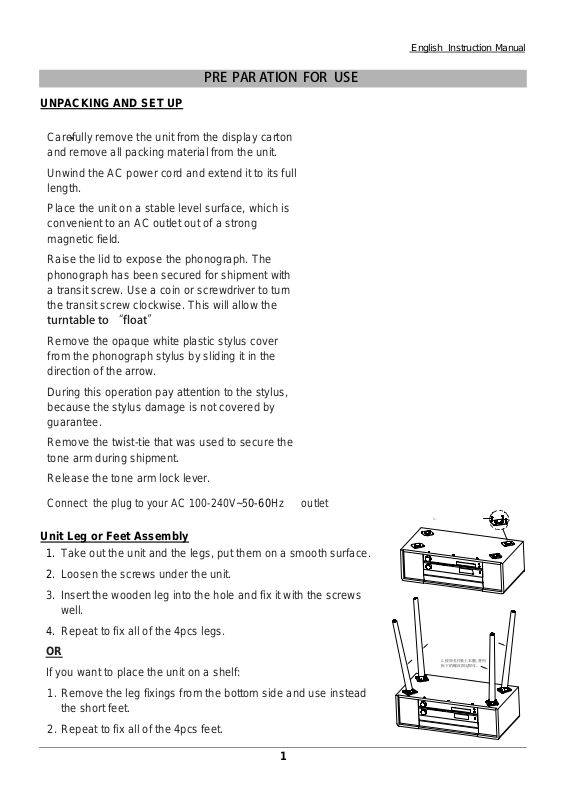

PRE PAR ATION FOR USE
UNPACKING AND SET UP
Carefully remove the unit from the display carton
and remove all packing material from the unit.
Unwind the AC power cord and extend it to its full
length.
Place the unit on a stable level surface, which is
convenient to an AC outlet out of a strong
magnetic field.
Raise the lid to expose the phonograph. The
phonograph has been secured for shipment with
a transit screw. Use a coin or screwdriver to turn
the transit screw clockwise. This will allow the
turntable to “float”
English Instruction Manual
Remove the opaque white plastic stylus cover
from the phonograph stylus by sliding it in the
direction of the arrow.
During this operation pay attention to the stylus,
because the stylus damage is not covered by
guarantee.
Remove the twist-tie that was used to secure the
tone arm during shipment.
Release the tone arm lock lever.
Connect the plug to your AC 100-240V~5 Hz outlet
0-60
Unit Leg or Feet Assembly
1. Take out the unit and the legs, put them on a smooth surface.
2. Loosen the screws under the unit.
3. Insert the wooden leg into the hole and fix it with the screws
well.
1.
4. Repeat to fix all of the 4pcs legs.
OR
If you want to place the unit on a shelf:
1. Remove the leg fixings from the bottom side and use instead
the short feet.
2. Repeat to fix all of the 4pcs feet.
1
2.按原孔位装上木腿,将用
拆下的螺丝固定即可。
LOCATIONS OF CONTROLS
FRONT PANEL
English Instruction Manual
1
2
3
4
5
6
7
8 9
102019
1112131415 17 18
16
21
3
1. Phonograph Lid 12. Stop Button
2. Phonograph Lid Support Bracket 13. DN F-R Button
3. Speakers 14.
4. 15. Play / Mode Button
USB Socket
5. 16. Record Button
3.5mm Phones Socket
6. 17. Rotary Volume Control (+/-) UP & down
3.5mm Aux in Socket
7. Unit leg 18.
CD Door
8. 19. LCD display
CD Door OP/CL-Open / Close Button
9. 20. Sensor
MODE/STANDBY Button
10. 21. Phonograph
UP F-F Button
Rotary TUNER/PRESET Control UP & down
11. Play / Pause Button
22
Back Panel
22. 75ohm FM Antenna Socket
23. AC Power Cord
23
2
English Instruction Manual
REMOTE CONTROL
24. RECORD
25. Open Close
26. EQ Sound settings
27.
VOL –
28. P.MODE / MENU
Play/Pause
29.
30.
DN - Track backwards
31.
32. PRESET
33. - 10
34. INFO Information
35. REPEAT
36.
37. MODE
38.
39.
40.
STOP
RANDOM
VOL +
UP - Track forwards
+ 10
24
25 37
MODE
26
27
38
28
29
30
39
31
32
33
34
35
REPEA
T
RANDOM
40
41
42
36
41. DELETE
42. MUTE
NOTE: All of the buttons on the remote control have same function as these buttons in the
unit.
TURNTABLE
. Single 45 RPM Adaptor
43
44. Turntable Platter
45. Transit Screw
46. Cue Lever
47. Tone Arm Lock
48. Speed Selector (33&45 rpm)
49. Tone Arm with Stylus
44
45
47
46
48
49
3
43
POWER SOURCE
English Instruction Manual
GETTING STARTED
This system is
Attempting to operate from any other power source may cause
damage to the system, and such damage is not covered by your
warranty.
NOTE
outdated non-polarized
changed by a
: If this plug will not fit into your
AC outlet. You should
qualified licensed electrician.
outlet
you probably have an
have
your outlet
BATTERY INSTALLATION OF REMOTE CONTROL
The infrared remote control requires 1 pc CR -2025 (3V) Lithium Battery
size battery for operation.
650-
.ylno CA zH0~V042-001 lamron no etarepo ot dengised
BASIC OPERATIONS
Power ON / OFF
Press“MODE/STANDBY” button to enter the working mode.
Press and hold“ ”button to turn off the unit in standy mode.
Adjusting Volume
Rotary the ‘VOL -/+’ knob to decrease / increase
Total 30 level volume and it displays Vol min to Vol max
ERP power management
If nobody presses and holds the button to turn OFF the unit after stopping
playing, the unit will power off automatically after around 10 minutes.
Press“ ” on the front to wake the device up from standby mode.
MODE/STANDBY
MODE/STANDBY
the volume.
MODE/STANDBY
4
English Instruction Manual
FM RADIO OPERATION
ANTENA
For FM reception there is a 75ohm FM antenna
move around to obtain the best reception signal.
socket (22)
and insert the antenna into the socket,
OPERATION
1. Switch ON the MODE/STANDBY BUTTON (10). The Display (19) will light up.
2. Press sequentially the MODE/STANDBY BUTTON (9) to select the FM Radio.
MANUAL TUNING
Tune to the desired radio station by turning the TUNER/PRESET KNOB (17).
AUTOMATIC TUNING
1. During FM working mode, press PLAY/PAUSE button on the unit or the remote will autoscan all of FM stations and will save automatically.
2. Press and hold UP F.F or DN F.R button for 2 seconds on the unit or the remote start auto scan
mode, if stereo FM station received, ‘Stereo’ will show on the LCD and will stop auto scan but enter
into the playing mode.
3. Move around the FM antenna(22) to get the best reception.
PRESET MEMORY FM
1. When selected the desired station, press and hold the PRESET BUTTON for 2 seconds.
2. The display show “MEMORY P01”, press UP F.F or DN F.R button to select the desired
preset FM station, then press the TUNER/PRESET(18) or PRESET(32) to store the station.
3. Repeat above step 1 and step 2 to save total
10 stations.
4. To play the preset stations, press UP F.F or DN F.R button or presse PRESET on the remote.
PHONES FUNCTION
1. During playing mode, insert the earphone (not
include) into the phones jack(5) .
2. The built-in speakers will be disconnected when the earphone are plugged in.
3. Lower the volume during listening by the earphone to avoid damage your ears.
AUX IN FUNCTION
1. Press MODE/STANDBY(10) button to choose AUX mode.
2. Insert the 3.5mm Aux in cable (not include) int
o the AUX jack(6), connect the other end of the
cable to your device (like your mobile phone, MP3 play, etc).
3. Adjust the volume using the Volume control knob (17) and play your device as normal.
MUTE / EQ OPERATION
During playing mode, press the Remote Control MUTE BUTTON (42) one time, the sound will not
be heard from the speakers and “MUTE ON” will show on the display; press the MUTE BUTTON
(42) or rotate the VOLUME KNOB (17) to cancel mute function and the sound can be heard again
from the speakers. During playing mode, press the EQ BUTTON (26) to choose from different
sound effect among POP/ CLASSIC/ ROCK/ JAZZ / FLAT.
6
TURNTABLE OPERATION
VERY IMPORTANT
VERY IMPORTANT!
To prevent damages from transportation , a transit screw is
located at the upper right side of the turntable pla
Before start playing use a screwdriver and turn the transit
screw in clockwise direction (screw going down) completely
In case of transportation, remember to clock again this screw
in counter-clockwise direction to prevent damages.
tform
Lock Lever Stylus Cover
English Instruction Manual
TRANSIT
SCREW
PREPARATION
1. Open the Record Player Cover.
2. Release the Tonearm Clamp, and remove the stylus protector.
LISTENING TO RECORDS
1. Press the MODE/STANDBY BUTTON ( ) to select the PHONO function.
2. Place a record on the turntable, over the central spindle. Place the EP adapter over the central
spindle when playing 17cm EP records.
3. Set the Speed Selector to 33 or 45 rpm according to the record.
4. Release the tonearm clamp, and remove the protective cap from the stylus.
5. Lift the Tonearm with the T onearm Lift Lever. 6. Move the tonearm to the beginning of the
6. Move the tonearm to the beginning of the
7. Gently lower the t one arm onto the record with the Tonearm Lift lever to start playing.
8. When the record is finished the t onearm will automatically stop. To stop manually, lift the
tonearm from the record and return it to the rest.
Notes: Do not stop or turn the platter manually. Moving or jarring the tur-ntable without
securing the Tonearm clamp could result in damage to the Tonearm. Replace the protective
cap on the stylus when not in use.
10
record, or to the start of a particular track.
7
English Instruction Manual
PLAYING COMPACT DISCS
To start
1. Press MODE/STANDBY BUTTON (10) to select “CD“ mode.
2. Press “open/close” button (9) to open the CD door (8).
3. Place a CD with the printed side facing up inside the tray & then close the co door.
4. Focus search is performing, the first track will start playback.
5. To interrupt, press the STOP (12) once, the total number of tracks will show on the LCD
display (19). Press again PLAY/PAUSE BUTTON (11) to resume normal playback.
Skip/search mode (skip/search up / skip/search down)
During play or pause mode, if UP F.F BUTTON (14) is pressed. it will go to next track and
display the track no. and then remain the play or pause mode.
During play or pause mode, if DN F.R BUTTON (13) is pressed. it will go back to the
beginning of the track, original track number is display and remain the play or pause mode.
After step 2, press DN F.R BUTTON (13) again will go to the pre-vious track and remain
the play or pause mode.
If press and hold the UP F.F BUTTON (14) or DN F.R BUTTON (13) during CD/MP3
playabck, the playing track will go fast forward or backward ckward until the button being
released.
To skip 10 tracks UP or DOWN press the TRACK +10 or -10 TRACK button on Remote Control.
CD DISC PROGRAMMING
Up to 99 tacks can be programmed for MP3 (20 tacks in CD) and play in anyorder. before use
be sure the system is at stop mode before programming:
1. In CD mode and stop the cd playback.
2. Press the TUNER / PRESET (18) or press PROGRAM (34) on the remote, “MEMORY P01“ will
appear on LCD display (19).
3. Select a desired track by pressing UP F.F. DN F.R.BUTTON (13)/(14).
4. Press the TUNER/PRESET BUTTON (18) or PROGRAM (34) on the remote to store the trace
into memory.
5. Repeat steps 3 and 4 to enter additional tracks into the memory if necessary.
6. When all the desired tracks have been progra
the disc in assigned order.
7. To cancel the programmed file, press STOP BUTTON (12).
mmed, press PLAY/PAUSE BUTTON (11) to play
PLAYBACK OF MP3/WMA SONG VIA USB STORAGE MEDIA
The system is able to decode and playback all MP3 /WMA file which stored in the memory media
with usb connecting port.
1. Press MODE/STANDBY BUTTON (10) to select “USB“ mode.
2. Plug-in the usb plug with the face up & make sure it going into completely.
3. The system will start reading the storage media automatically after connecting, and LCD display
(19) will show the total number of MP3/WMA files
4. Repeat the same playback procedure as playing CD/MP3 disc as above.
REMARKS:
The system can detect and read the file under MP3 and WMA format only though the USB port.
If connect the system to MP3 player via the usb socket, due to variances in MP3 encoding format
some MP3 player may not be able to play via the USB socket. this is not a maulfunction of the system.
Connecting the USB upside down or backwards could damage the audio system or the
storage media (USB thumb drive). Check to be sure the direction is correct before connection.
8
English Instruction Manual
BLUETOOTH OPERATION
1. Press MODE/STANDBY (10) button to select “BT” mode, the BT BLUE indicator will light up.
2. Select from your portable device (Smartphone, Tablet...) the ID Bluetooth tagged as “DL-P25”
then confirm connection.
3. Now you can transfer the music to the DL-P25.
4. PLAY/PAUS, UP F.F. OR DN F.R. to control th
e bluetooth playing. You may also use your mobile
phone to control.
NOTE: Press and hold STOP 2 seconds to disconnect the bluetooth connection.
ENCODING FROM CD
Plug USB Disk into USB socket. During CD playing mode, press the RECORD BUTTON (16) one
time, “REC-ONE” will show on the display: press
the RECORD BUTTON(16) secondly to record the
playing track; or press the UP F.F BUTTON (14) twice to choose to record whole file in the CD
and “REC-ALL” will show on the display.
ENCODING FROM CD - MP3
Plug USB Disk into USB socket. During MP3 playing mode press the RECORD BUTTON (16) one
time, “REC-ONE” will show on the display; then press the RECORD BUTTON(16) secondly to confirm
“REC”” will flash and start to record after 5 seconds; or press the UP F.F.BUTTON (14) one time to
choose to record all the file in the playing folder and “REC-FOLD” will show on the display; or press the
UP F.F BUTTON (14) twice to record the file in the whole playing MP3 disc and “REC-ALL” will show
on the display.
ENCODING FROM PHONO
Plug USB Disk into USB socket. During PHONO playing mode, press RECORD BUTTON (16) one
time, “USB” will show on the display, then press the RECORD BUTTON (16) twice to confirm, “USB”
will flash and start to record after 5 seconds; press PLAY/PAUSE BUTTON (11) one time to stop the
recording and “USB” will not flash; press PLAY/PAUSE BUTTON (11) again to resume to record and
“USB” will flash again.
ENCODING FROM BLUETOOTH
Plug USB Disk into USB socket. During BLUETOOTH playing mode, press the RECORD BUTTON
(16) one time, “USB” will show on the display, then press the RECORD BUTTON (16) secondly to
confirm, “USB” will flash and start to record after 5 second’ s; press the PLAY/PAUSE BUTTON (11)
one time to stop the recording and “USB ” will not flash; press the PLAY/PAUSE BUTTON (11) again
to resume to resord and “USB” will not flash again.
NOTE: Press the STOP button to stop recording when you finish recording.
9
English Instruction Manual
DELETE USB
1. During USB mode, press DELETE BUTTON (36) one time from Remote Control,“ DEL-ONE”
will show on the display. You can delete the playing track.
2. Press UP F.F BUTTON (14) one time and “DEL-FOLD” will show on the display. You can
delete the current playing folder.
3. Press UP F.F BUTTON (14) twice. “DEL-ALL”
the tracks into the playing USB.
4. Finally press DELETE BUTTON (36) again once confirmed to choose
will show on the display. You can delete all of
“DEL-1”, “DEL-F” or “DEL-A”.
SPECIFICATIONS
AC: 100-240V ~ 50-60Hz, 4A
FM: 87.5 - 108MHz
Design and specifications are subject to change without notice.
10
FCCCaution
Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothe
followingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)
thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay
causeundesiredoperation.
AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoidtheuser'sauthoritytooperatetheequipment.
Note: ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClass
Bdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedto
providereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.
Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnot
installedandusedinaccordancewiththeinstructions,maycauseharmfulinterference
toradiocommunications.However,thereisnoguaranteethatinterferencewillnot
occurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferenceto
radioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoff
andon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe
followingmeasures:
-Reorientorrelocatethereceivingantenna.
-Increasetheseparationbetweentheequipmentandreceiver.
-Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe
receiverisconnected.
-Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforan
uncontrolledenvironment.Thisequipmentshouldbeinstalledandoperatedwith
minimumdistance20cmbetweentheradiator&yourbody.
IC Caution:
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the
following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.
To maintain compliance with RF exposure guidelines, this equipment should be installed and
operated with a minimum distance of 20cm between the radiator and your body.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux apparei ls radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
Pour maintenir la conformité aux directives d'exposition aux radiofréquences, cet équipement
doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps.
Loading...
