3-IN-1 TURNTABLE
MODEL: VTA-67
CONTENTS
Safety Instructions.................................................................................................
Product overview..................................................................................................
Setup/Basic Operation..........................................................................................
Listening to a Vinyl Record...................................................................................
.
Listening to the FM Radio.....................................................................................
Listening to an External Audio Device(AUX Mode)..............................................
Listening to an External Audio Device(Bluetooth Mode).......................................
Maintenance/Proper Handing...............................................................................
Troubleshooting Guide..........................................................................................
Specifications........................................................................................................
FCC Statement and other warnings.....................................................................
10
12
13
1
3
5
6
6
6
7
8
SAFETY INSTRUCTIONS
16. The mains plug is used as disconnect device, the disconnect device shall
remain readily operable.
17. To reduce the risk of fire or electric shock, do not expose this apparatus to
rain or moisture. The apparatus shall not be exposed to dripping or splashing
and that no objects filled with liquids, such as vases, shall not be placed on
apparatus.
18. Use the equipment in a moderate climate.
ACCESSORIES INCLUDED
• INSTRUCTION MANUAL
• WARRANTY (BACK OF MANUAL)
• POWER ADAPTER
PRODUCT OVERVIEW
Front view
1
2
SEARCH FM BT PHONO
8
3
4 5 6 7
Display Screen
1.
3.5mm EARPHONE JACK:Accepts headphone/earphone plugs.
2.
3. Power: Press to turn the unit ON or OFF.
4. SEARCH /
In FM mode, press this button to automatically search stations.
this button to search stations manually.
In BT mode, press this button to play/pause playback.
5. FM /
Press to enter FM mode.
Press and hold to skip to the previous track or station.
6. BT /
Press to enter BT mode.
Press and hold to skip to the next track or station.
7. PHONO: Press to enter PHONO mode.
Volume Knob: Turn to adjust volume.
8.
3
Press and hold

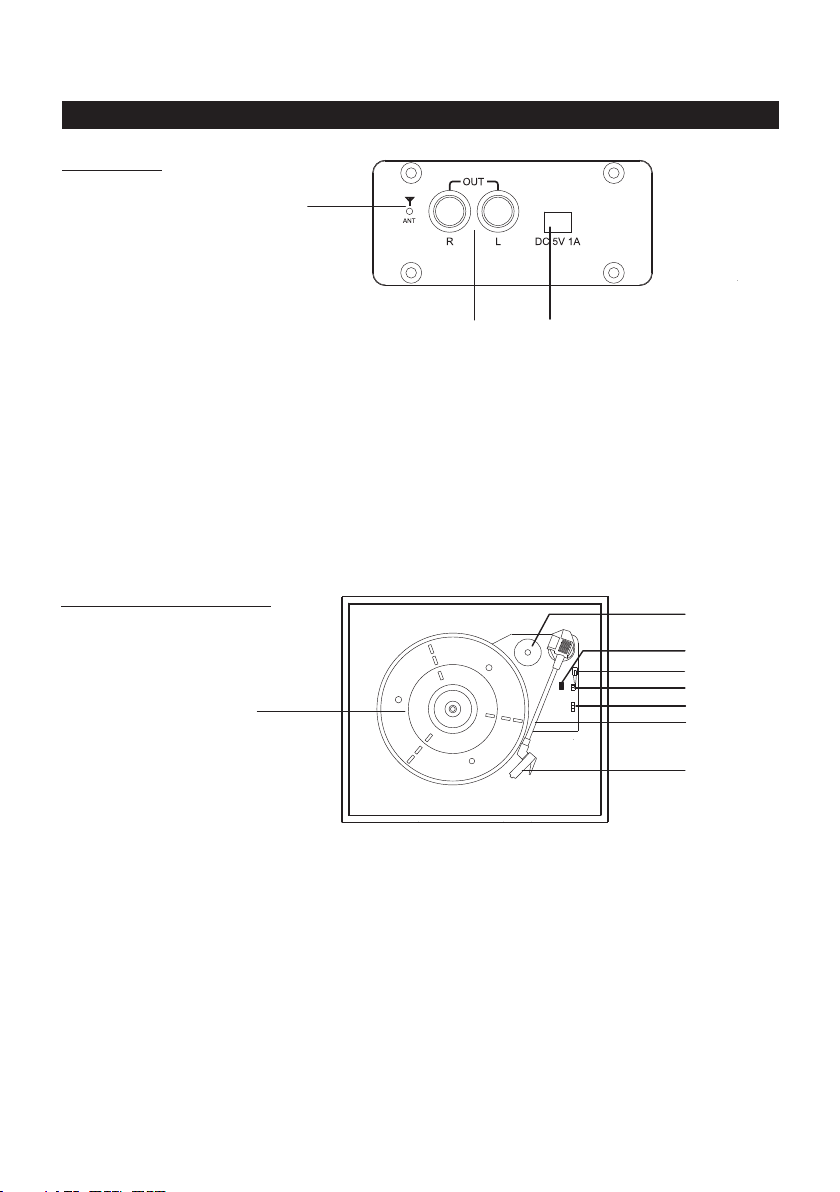

Rear view
PRODUCT OVERVIEW
9
10
9. FM wire antenna
While tuned to a station in FM mode, extend the wire and reposition.
10. LINE OUT jacks
For amplifier device with RCA auxiliary input sockets, insert the white and red
plugs on the RCA cable into the unit. Insert the opposite end into the amplifier
device. Be sure to connect the white plug to the white jack and the red plug
to the red jack.
11. DC Input Jack
Connect the power adapter to the jack to power on the unit.
Part of the Turntable
1
12
12. Turntable
13. 45 RPM adapter
14. Tone Arm holder
15. Cue Lever:
the Tone Arm.
AUTO STOP ON/OFF SWITCH:Switch “ON”,the turntable will stop
16.
automatically when finish playing.Switch “OFF”,the turntable will keep turning
when finish playing.
17. Speed Selector
18. Tone Arm
19. STYLUS
Before use,gently push the Turn Arm holder to the right to release
11
13
14
15
16
17
18
19
4
SETUP/BASIC OPERATION
Setup
1. Remove white protective needle cover by gently pulling towards front of unit.
2. Remove any packaging materials from the unit.
Connect the power adapter to the DC Input jack to power on the unit.
3.
Note:
- It is strongly recommended that this product should be operated
only from the type of power source indicated on the marking label.
Basic Operation
1. Press the POWER button to turn the unit on.
2. Select mode by pressing FM/BT/PHONO button on front panel.
3. Rotate the Volume Knob to adjust to the desired sound level.
Listening through RCA LINE OUT
For amplifier device listening,first reduce the volume level to minimum.Insert the
white and red plugs on the RCA cable into the unit,then insert the opposite end
into the amplifier device.Be sure to connect the white plug to the white jack and
the red plug to the red jack.

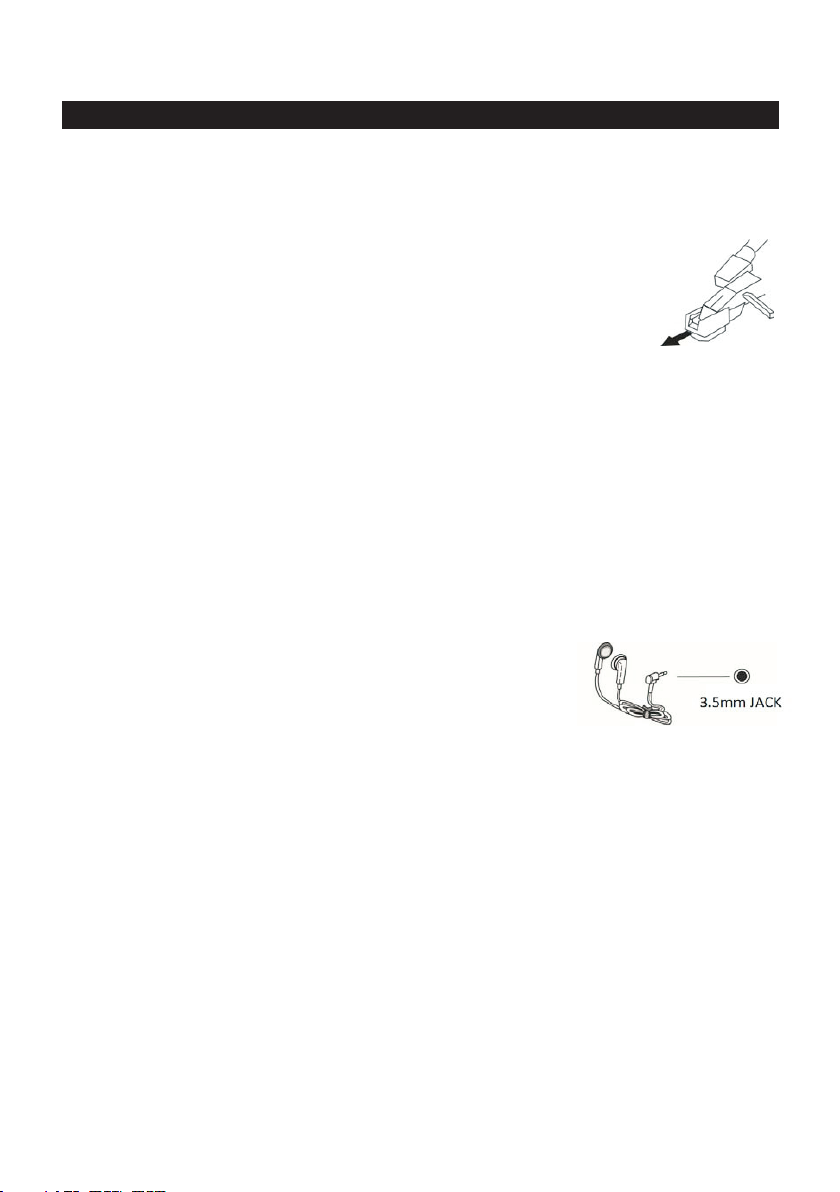

Listening through Earphones/Headphones(not included)
For private listening,first reduce the volume level to minimum.
Insert your headphones’ plug into the 3.5mm jack,then
adjust the volume up by turning the Volume Knob.
Note:The speakers will automatically be deactivated
while headphones are plugged in.
CONDENSATION WARNING:
When the unit is moved from a cold or warm place,or is used following a sudden
temperature change,there is the danger that water vapor in the air may condense
on the unit,preventing proper operation.In such cases,leave the unit for 1-2 hours
after powering on the unit to allow it to stabilize at the temperature of its
surroundings.
5
LISTENING TO A VINYL RECORD
1. Turn the unit ON by pressing the POWER button.
2. Press the PHONO button to enter the PHONO mode.
3. Gently open the dust cover.

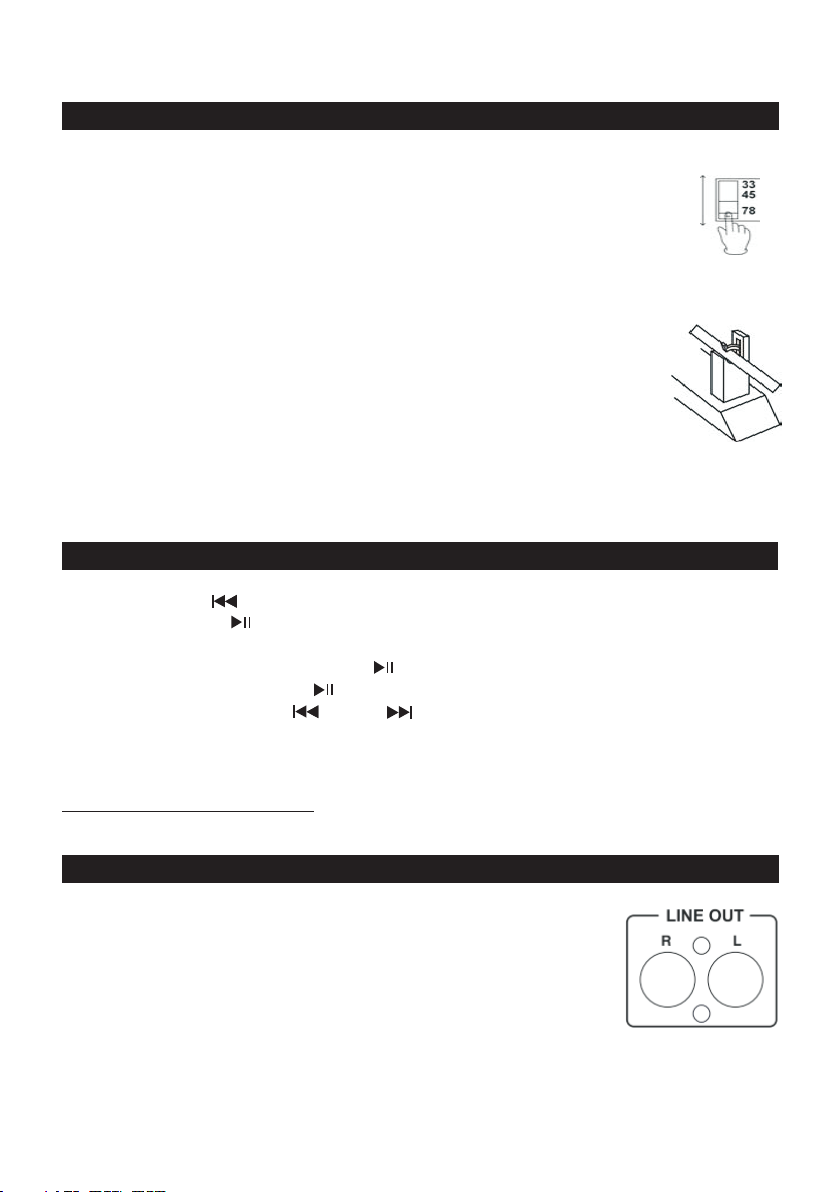

4. Put the record on the turntable. Select the speed. When playing a
45 RPM record, use the included 45 adaptor.
5. Gently push the Tone Arm holder to the right to release the Tone Arm.
6. Raise the to lift the Tone Arm off the tone arm support.
7. Move the Tone Arm gently to the edge of the record
(or the starting point of the track).The turntable will begin to turn.
8. Gently lower the Tone Arm by slowly releasing the Cue Lever.
You can lower the Tone Arm manually if the Cue Lever
has not been raised.
9. Turn the Volume Knob to adjust the volume.
10. When playback has finished, slightly lift the Tone Arm using the
Cue Lever and return it to the Tone Arm holder.
Cue Lever
LISTENING TO THE FM RADIO
1. Press the FM/
2. Press SEARCH/ button, the unit will search the stations and store the
stations it searches automatically.
NOTE: You can press SEARCH/ button again to stop searching.
3. Press and hold SEARCH/ button to search stations manually.,.
4. Press and hold the FM/ or BT/ button to skip to the previous/next stored
station.
Adjusting for Best Reception
FM broadcast: Extend and reposition the FM antenna.
button to enter the FM mode.
LISTENING TO AN EXTERNAL DEVICE(AUX MODE)
LINE-OUT Jacks on the BACK of the unit:
If you play this device through external powered speakers,
you can connect the unit with an RCA component cable
(not inclued).Make sure to connect the white plug to the white
jack(left) and the red plug to the red jack(right).
6
LISTENING TO AN EXTERNAL DEVICE (BLUETOOTH MODE)
In BT(bluetooth) mode,this unit can play music from external devices which have
a built-in Bluetoothe feature.
GETTING CONNETTED USING BLUETOOTH
1. Press the BT/ button to enter BT mode.
2. The “bt” will flash on the Display Screen.
3. Turn ON the Bluetooth function on your external device.
NOTE: The effective distance between your external device and this unit is
10 meters(33ft).
4. Wait for the “VTA-67” to appear on the paired devices list of your external
device and press “VTA-67”.
In some instances: a window will ask you a password. Fill in “0000" then press
“OK” on your external device.
5. A few seconds later your Bluetooth connection is successful and the “bt” on
the Display Screen will stop flashing.
6. Select the music media files on your external device, then press the
SEARCH/ button
7. To temporarily pause playback, press the SEARCH/ button. Press again to
resume.
8. To skip to the previous or next tracks, press and hold the FM/ or BT/
button to listen.
Note:Stop,fast forward/rewind are only available on your external device.
to begin playback.
7
MAINTENANCE/PROPER HANDING
Handling Vinyl Records
Do not touch the record’s grooves. Only handle records by the edges or the
•
label with clean hands. Touching the record surface will cause your record’s
quality to deteriorate.
• To clean a record, use a soft anti-static cloth to gently wipe the record surface.
• Keep records in their protective sleeves when not in use.
• Always store records upright on their edges.
• Avoid placing records in direct sunlight, close to a heat source
(radiators, stoves, etc.), or in a location subject to vibration, excessive dust,
heat, cold or moisture.
8

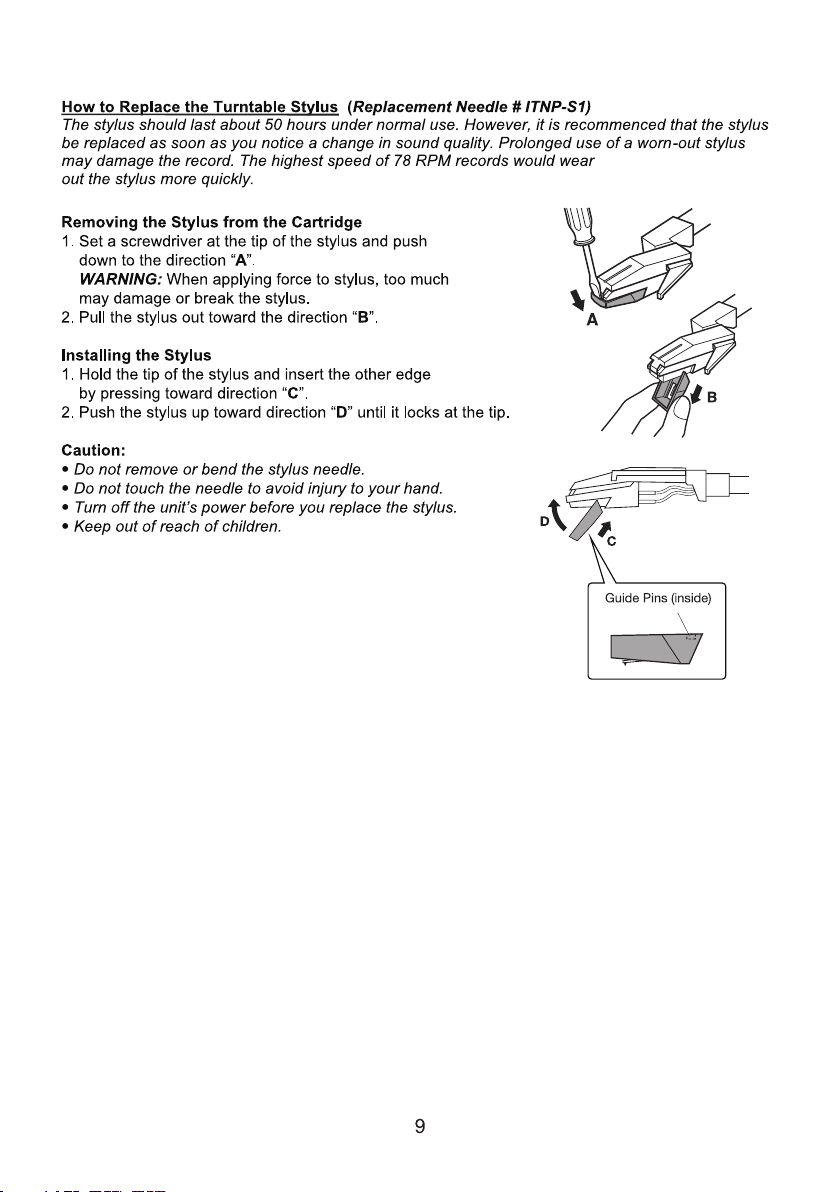

TROUBLESHOOTING GUIDE
symptom
• Uint will not power on
• No sound output from
speakers
GENERAL
• Noise/Distortion in
sound output
• Unit fails to respond
• Cannot listen to any
station, or signal
appears weak
• The sound is distorted
FM RADIO
Possible Cause
• Unit is unplugged.
The volume level is set
•
too low.
The input selector does
•
not match the playback
source.
• The unit is too close to
a TV set or another
interfering device.
• It might result from
externa factors such as
ESD(Electro-static
discharge).
The station is not
•
tuned-in properly.
A TV set is being used
•
nearby and is interfering
with the radio reception.
• The antenna is not
oriented properly.
Solution
• Connect the DC power
adapter to the jack.
Adjust the volume.
•
Select the correct
•
input source.
• Turn off the TV or
other appliance, and
relocate the unit.
• Disconnect the power
cord and external
audio device.Re-plug
the power cord after
one mimute.
• • Properly turn-in the
desired station.
Turn off the interfering
TV set.
• Re-orient the antenna
until reception
improves.
• Decline in turntable
audio performance
PHONO
• The turntable stylus is
worn out.
10
• Replace the stylus.
symptom
Possible Cause
Solution
• No sound
The unit is not switched
•
to Bluetooth mode.
Your device’s and/or
•
your unit’s volume is not
turn up.
• Your device is too far
from the unit or there’re
some obstacle between
your device and your
unit.
Ensure the unit is
•
switched to BT mode.
Move your Bluetooth
•
device closer to unit.
• Turn up the volume
on your portable
device and/or the unit.
• Turn OFF your
bluetooth device and
unit.Then power them
both back ON.
BLUETOOTH
• Sound has a lot of
static
• Unable to pair with a
bluetooth device
• Your device is too far
away.
• Your device dosen’t
have Bluetooth
connectivity.
• The Bluetooth pairing is
not successful
• Bring your device
closer to the turntable.
• Confirm that your
device is Bluetooth
compatible.
• Re-pair the unit and
device again.
For further assistance with your product, call Innovative Technology at
TOLL FREE# 1-877-ITECH-97 (1-877-483-2497).
Please note: As a result of continual improvements, the design and specifications
of this product are subject to change without notice.
Made in China.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Other trademarks and trade names are those of their respective owners.
11
SPECIFICATIONS
GENERAL
Power adapter -----------------DC 5V/1A
Power Consumption ----------5W
Power Output -------------------2X2W
Size--------------------------------12.7'’(322mm)W×11.4'’(290mm)D×5.2'’(132mm)H
Weight-----------------------------4.5 lbs (2kg)
FM Radio
Range -----------------------------------88 to 108 MHZ
RECORD PLAYER
Speeds ----------------------------------33-1/3 rpm, 45 rpm and78 rpm
BLUETOOTH
Bluetooth Version -------------------- Bluetooth V4.0
Bluetooth Profiles -------------------- A2DP, AVRCP
Bluetooth Frequency range ------- 2.402GHz-2.480GHz
Operating Distance ------------------10 meters (33 ft.)

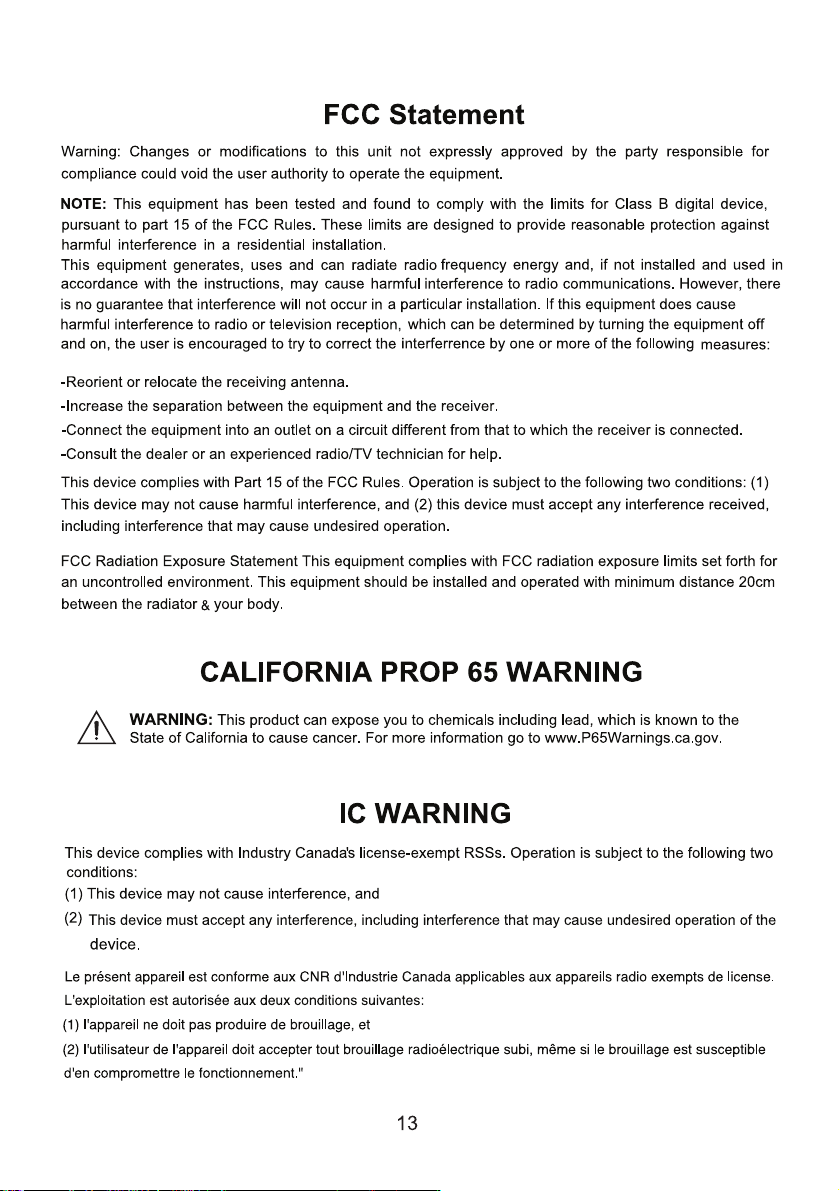

12
