Innovative Technology Electronics ITSBL547 User Manual

Model:

ITSBL-547-KBG

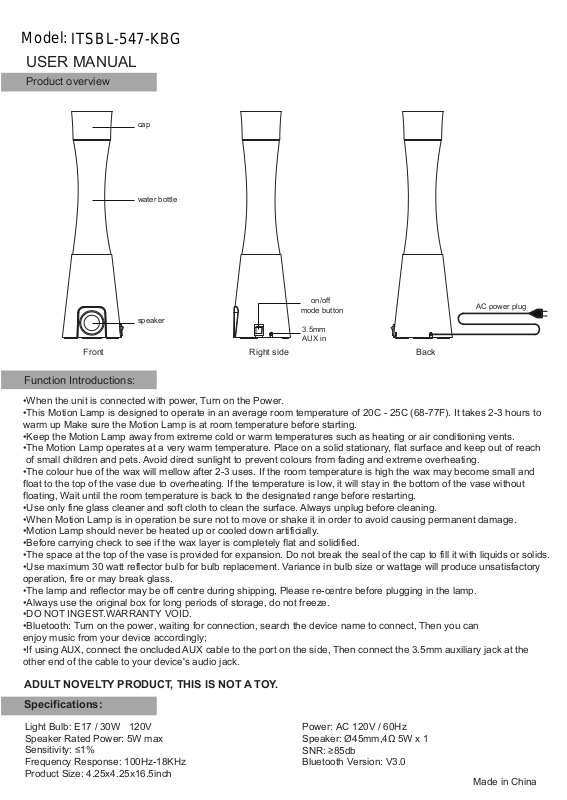

USER MANUAL

Product overview

cap

water bottle

on/off
mode button

speaker

3.5mm
AUX in

Front Right side Back

AC power plug

Function Introductions:

•When the unit is connected with power, Turn on the Power.

•This Motion Lamp is designed to operate in an average room temperature of 20C - 25C (68-77F). It takes 2-3 hours to

warm up Make sure the Motion Lamp is at room temperature before starting.

•Keep the Motion Lamp away from extreme cold or warm temperatures such as heating or air conditioning vents.

•The Motion Lamp operates at a very warm temperature. Place on a solid stationary, flat surface and keep out of reach
of small children and pets. Avoid direct sunlight to prevent colours from fading and extreme overheating.

•The colour hue of the wax will mellow after 2-3 uses. If the room temperature is high the wax may become small and

float to the top of the vase due to overheating. If the temperature is low, it will stay in the bottom of the vase without
floating, Wait until the room temperature is back to the designated range before restarting.

•Use only fine glass cleaner and soft cloth to clean the surface. Always unplug before cleaning.

•When Motion Lamp is in operation be sure not to move or shake it in order to avoid causing permanent damage.

•Motion Lamp should never be heated up or cooled down artificially.

•Before carrying check to see if the wax layer is completely flat and solidified.

•The space at the top of the vase is provided for expansion. Do not break the seal of the cap to fill it with liquids or solids.

•Use maximum 30 watt reflector bulb for bulb replacement. Variance in bulb size or wattage will produce unsatisfactory

operation, fire or may break glass.

•The lamp and reflector may be off centre during shipping, Please re-centre before plugging in the lamp.

•Always use the original box for long periods of storage, do not freeze.

•DO NOT INGEST.WARRANTY VOID.

Bluetooth: Turn on the power, waiting for connection, search the device name to connect, Then you can

•

enjoy music from your device accordingly;

•If using AUX, connect the oncluded AUX cable to the port on the side, Then connect the 3.5mm auxiliary jack at the

other end of the cable to your device's audio jack.

ADULT NOVELTY PRODUCT, THIS IS NOT A TOY.

Specifications:

Light Bulb: E17 / 30W 120V
Speaker Rated Power: 5W max
Sensitivity: ≤1%
Frequency Response: 100Hz-18KHz
Product Size: 4.25x4.25x16.5inch

Power: AC 120V / 60Hz
Speaker: Ø45mm,4Ω 5W x 1
SNR: ≥85db
Bluetooth Version: V3.0

Made in China

FCC STATEMENT

This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: 1) this device may not cause harmful interference, and 2) this device must accept any
interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could
void your authority to operate the equipment.

The device has been evaluated to meet general RF exposure requirement, the device can be used
in portable exposure condition without restriction.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

Consult the dealer or an experienced radio/TV technician for help.
