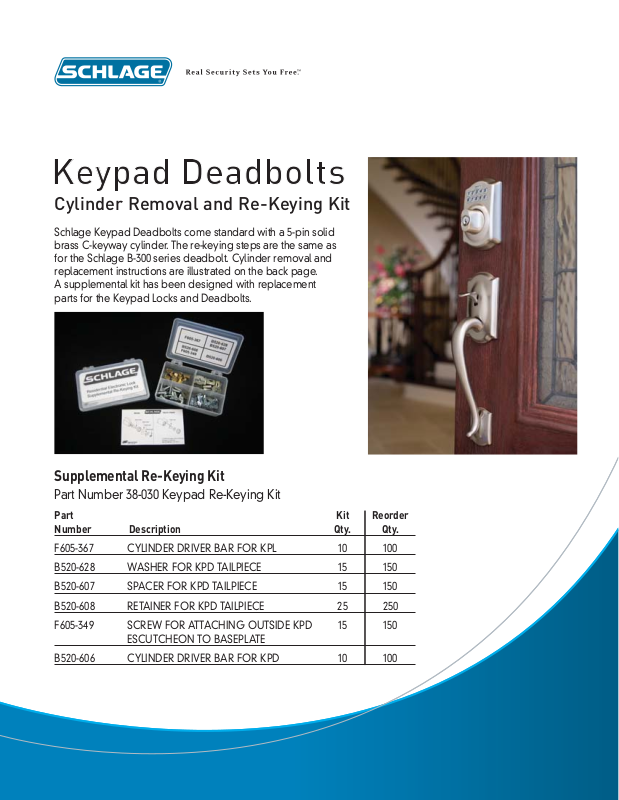

Cylinder Removal and Re-Keying Kit

Part Kit Reorder
Number Description Qty. Qty.

F605-367 CYLINDER DRIVER BAR FOR KPL 10 100

B520-628 WASHER FOR KPD TAILPIECE 15 150

B520-607 SPACER FOR KPD TAILPIECE 15 150

B520-608 RETAINER FOR KPD TAILPIECE 25 250

F605-349 SCREW FOR ATTACHING OUTSIDE KPD 15 150

ESCUTCHEON TO BASEPLATE

B520-606 CYLINDER DRIVER BAR FOR KPD 10 100

Schlage Keypad Deadbolts come standard with a 5-pin solid
brass C-keyway cylinder. The re-keying steps are the same as
for the Schlage B-300 series deadbolt. Cylinder removal and
replacement instructions are illustrated on the back page.
A supplemental kit has been designed with replacement
parts for the Keypad Locks and Deadbolts.

Supplemental Re-Keying Kit

Part Number 38-030 Keypad Re-Keying Kit

BE365 Cylinder Removal Instructions

© 2006 Ingersoll Rand Company Limited MR-1602

1

Remove Backplate from Outside Keypad Assembly

2

Remove Cylinder from Thumbturn

5

Rekey Cylinder as Usual

6

Install Spring, Pin, Tailpiece, and Cylinder Cap

NOTE: Tailpiece is available in the Schlage Supplemental

Electronics Lock Rekeying Kit

7

Install Disc, Block and Retainer

3

Remove Retainer, Block and Disc from Cylinder

4

Remove Cylinder Cap, Tailpiece, Pin, and Spring

8

Reinstall Cylinder as Shown

NOTE: Make sure top of cylinder is pointing toward keypad.

Keypad

Top of Cylinder

9

Use BE365 Installation Sheet to Install Lock.
