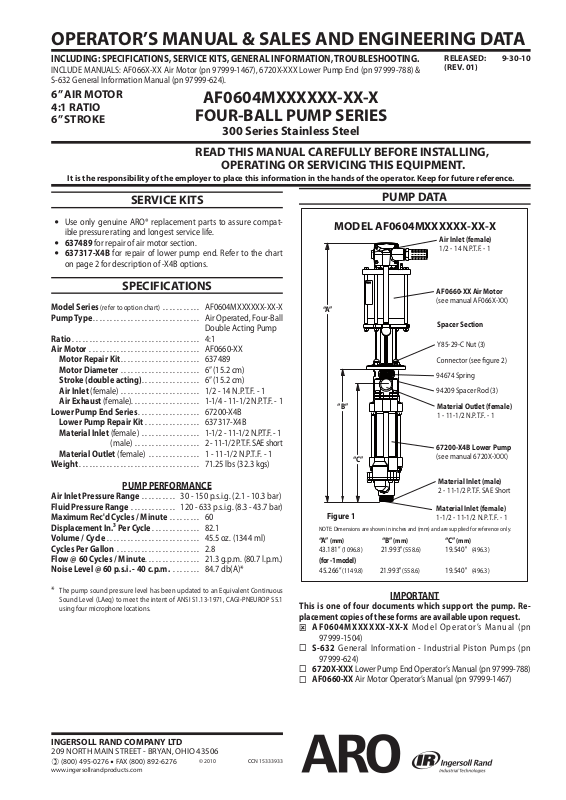

OPERATOR’S MANUAL & SALES AND ENGINEERING DATA
Figure 1
MODEL AF0604MXXXXXX-XX-X
NOTE: Dimensions are shown in inches and (mm) and are supplied for reference only.
“A”
(for -1 model)
(mm)
“B”
(mm)
“C”
(mm)
43.181”
(1096.8)
45.266”
(1149.8)
19.540"
(496.3)
21.993"
(558.6)
21.993"
(558.6)
19.540"
(496.3)
“A”
“B”
“C”
Air Inlet (female)
1/2 - 14 N.P.T.F. - 1
Material Outlet (female)
1 - 11-1/2 N.P.T.F. - 1
AF0660-XX Air Motor
(see manual AF066X-XX)
Material Inlet (male)
2 - 11-1/2 P.T.F. SAE Short
67200-X4B Lower Pump
(see manual 6720X-XXX)

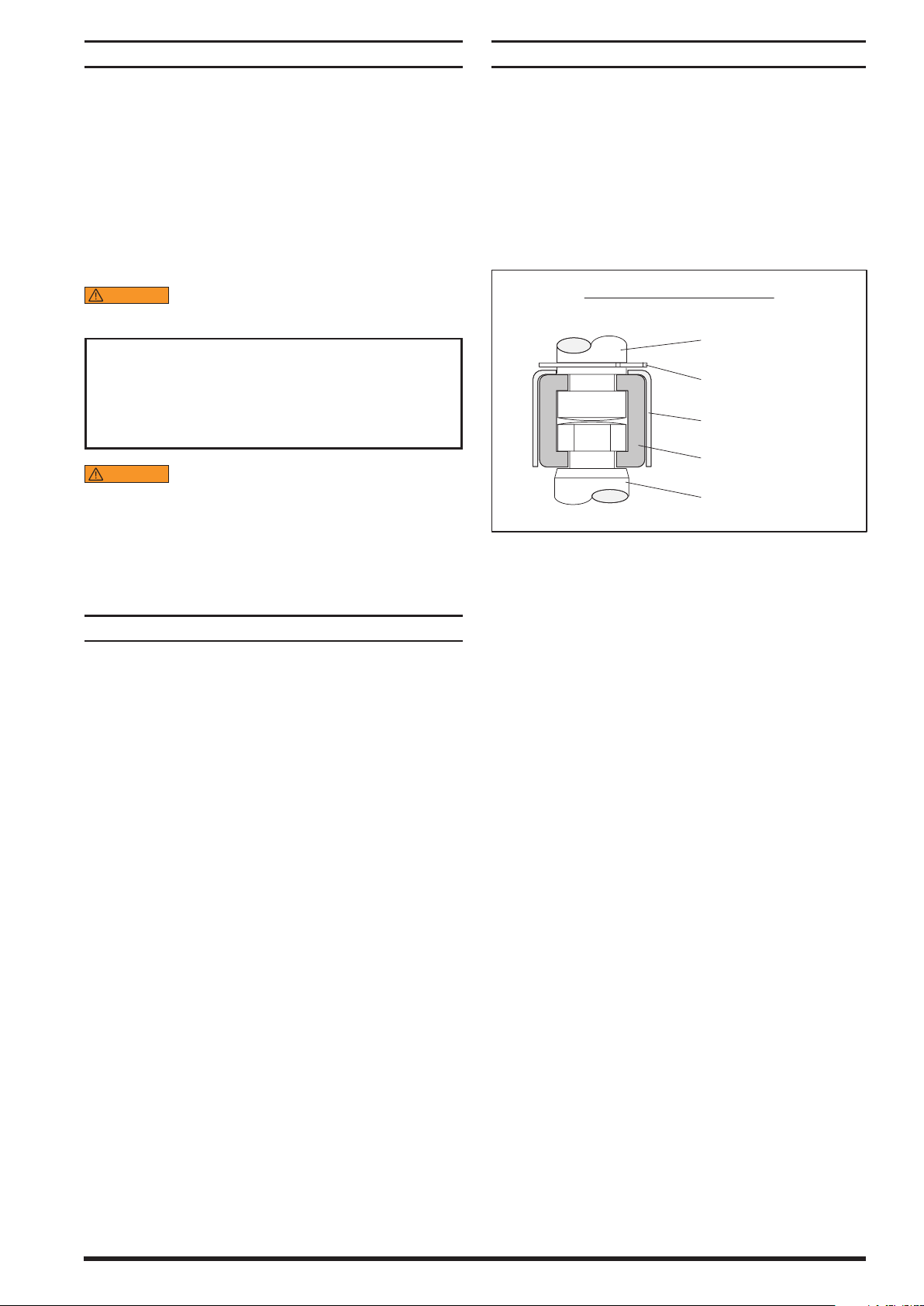

Spacer Section
gure 2)
Y85-29-C Nut (3)
94674 Spring
94209 Spacer Rod (3)
Material Inlet (female)
1-1/2 - 11-1/2 N.P.T.F. - 1
INCLUDING: SPECIFICATIONS, SERVICE KITS, GENERAL INFORMATION, TROUBLESHOOTING.
INCLUDE MANUALS: AF066X-XX Air Motor (pn 97999-1467), 6720X-XXX Lower Pump End (pn 97999-788) &
S-632 General Information Manual (pn 97999-624).
6” AIR MOTOR
4:1 RATIO
6” STROKE
AF0604MXXXXXX-XX-X
FOUR-BALL PUMP SERIES
300 Series Stainless Steel
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
RELEASED: 9-30-10
(REV. 01)
SERVICE KITS
Use only genuine ARO® replacement parts to assure compat-
ible pressure rating and longest service life.
637489 for repair of air motor section.
637317-X4B for repair of lower pump end. Refer to the chart
on page 2 for description of -X4B options.
SPECIFICATIONS
Model Series
Pump Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Air Operated, Four-Ball
Double Acting Pump
Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4:1
Air Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . AF0660-XX
Motor Repair Kit . . . . . . . . . . . . . . . . . . . . . . . 637489
Motor Diameter . . . . . . . . . . . . . . . . . . . . . . . 6” (15.2 cm)
Stroke (double acting) . . . . . . . . . . . . . . . . . 6” (15.2 cm)
Air Inlet (female) . . . . . . . . . . . . . . . . . . . . . . . 1/2 - 14 N.P.T.F. - 1
Air Exhaust (female). . . . . . . . . . . . . . . . . . . . 1-1/4 - 11-1/2 N.P.T.F. - 1
Lower Pump End Series . . . . . . . . . . . . . . . . . . 67200-X4B
Lower Pump Repair Kit . . . . . . . . . . . . . . . . 637317-X4B
Material Inlet (female) . . . . . . . . . . . . . . . . . 1-1/2 - 11-1/2 N.P.T.F. - 1
Material Outlet (female) . . . . . . . . . . . . . . . 1 - 11-1/2 N.P.T.F. - 1
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71.25 lbs (32.3 kgs)
(refer to option chart)
. . . . . . . . . . .
AF0604MXXXXXX-XX-X
(male) . . . . . . . . . . . . . . . . . . . 2 - 11-1/2 P.T.F. SAE short
PUMP DATA

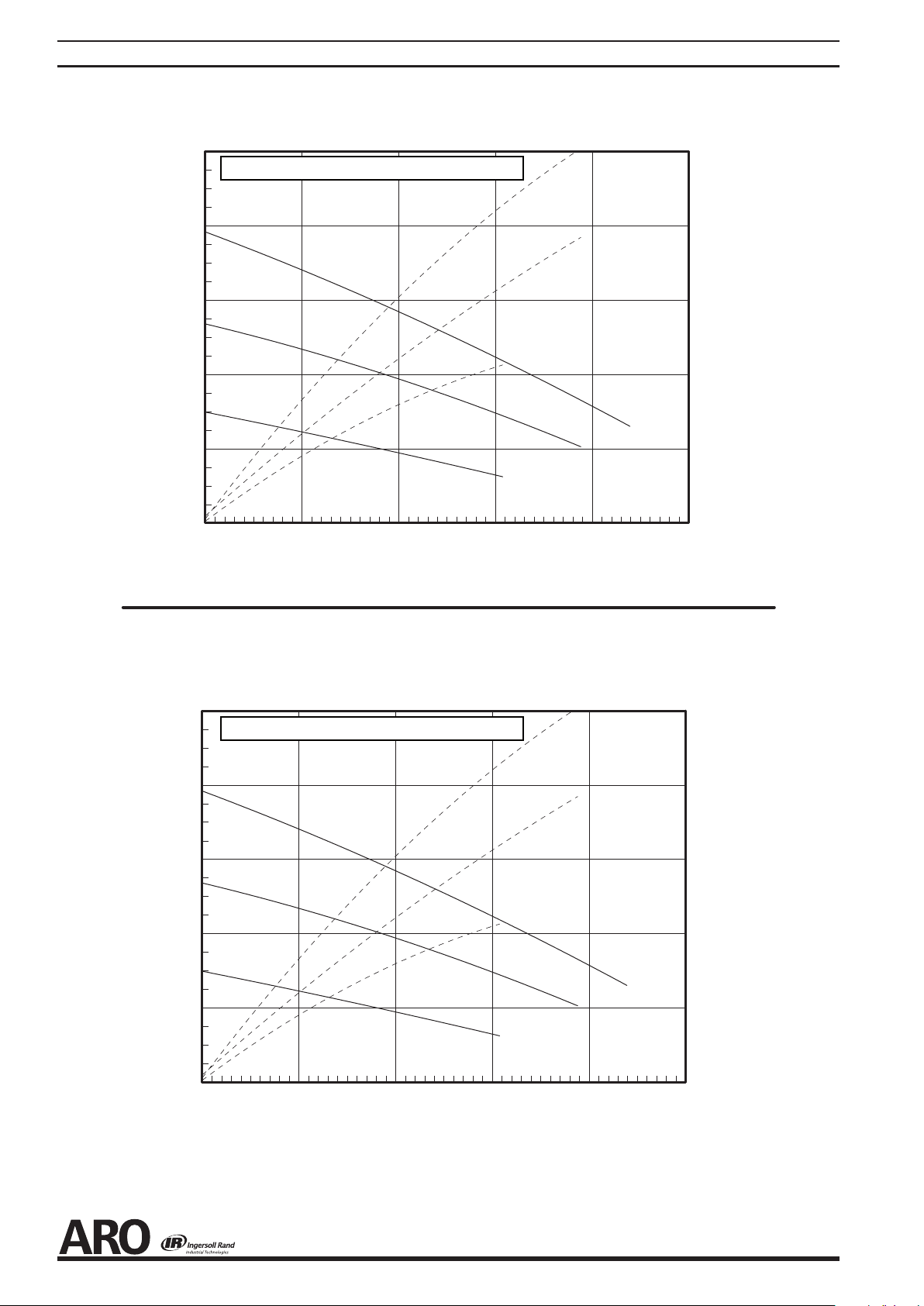

PUMP PERFORMANCE
Air Inlet Pressure Range . . . . . . . . . . 30 - 150 p.s.i.g. (2.1 - 10.3 bar)
Fluid Pressure Range . . . . . . . . . . . . . 120 - 633 p.s.i.g. (8.3 - 43.7 bar)
Maximum Rec'd Cycles / Minute . . . . . . . . . 60
Displacement In.³ Per Cycle . . . . . . . . . . . . . . 82.1
Volume / Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . 45.5 oz. (1344 ml)
Cycles Per Gallon . . . . . . . . . . . . . . . . . . . . . . . . 2.8
Flow @ 60 Cycles / Minute . . . . . . . . . . . . . . . . 21.3 g.p.m. (80.7 l.p.m.)
Noise Level @ 60 p.s.i. - 40 c.p.m. . . . . . . . . 84.7 db(A)*
The pump sound pressure level has been updated to an Equivalent Continuous
*
Sound Level (LAeq) to meet the intent of ANSI S1.13-1971, CAGI-PNEUROP S5.1
using four microphone locations.
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET - BRYAN, OHIO 43506
(800) 495-0276 FAX (800) 892-6276
www.ingersollrandproducts.com
© 2010 CCN 15333933
IMPORTANT
This is one of four documents which support the pump. Replacement copies of these forms are available upon request.
AF060 4 MXXXXXX-XX-X Model Op e r a t o r ’s Man u a l (pn
97999-1504)
S-632 General I nformation - Industrial Piston Pumps (pn
97999-624)
6720X-XXX Lower Pump End Operator’s Manual (pn 97999-788)
AF0660-XX Air Motor Operator’s Manual (pn 97999-1467)
Packing Material:
AF0604M11
X
X
X
X
-
X
Plunger Type
Spring Type
Lower Packing Material
Upper Packing Material
Air Motor Option
67200
-
X
4B
Packing Material
637317
-
X
4B
Packing Material
TOP VIEW
BOTTOM VIEW
5.625 (142.875 mm) dia.
45°
C
L
Material outlet
0.406 (10.3 mm)
dia. thru
4 equally spaced
Air Inlet
1/2 - 14 N.P.T.F. -1
C
L
Material outlet
PUMP OPTION DESCRIPTION CHART
Pump Model Lower Pump End Lower End Repair Kit
Glass Filled PTFE (upper)
Virgin PTFE (lower)
UHMW-PE (upper)
UHMW-PE (lower)
UHMW-PE/ Leather Staggered (upper)
UHMW-PE (lower)
UHMW-PE (lower)
Virgin PTFE (lower)
KS 7 7
FF C C
HF F F
GF P P
RS R R
Spring Type
Multiple Wave Spring 4 4 4
Plunger Type
Hardened Stainless Steel w/ Ceramic coating 8 B B
Air Motor Option
No Option N/A N/A
Intergrated ball valve regulator 1 N/A N/A
DIMENSIONS
Page 2 of 4 AF0604MXXXXXX-XX-X (en)
