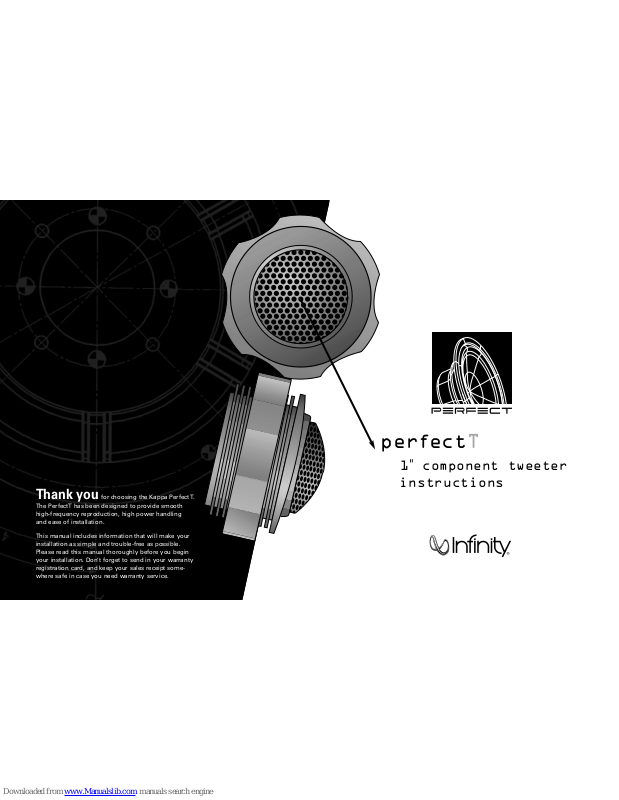

Infinity PERFECT T User Manual

Thank you

for choosing the Kappa Perfect T.
The PerfectT has been designed to provide smooth
high-frequency reproduction, high power handling
and ease of installation.

This manual includes information that will make your
installation as simple and trouble-free as possible.
Please read this manual thoroughly before you begin
your installation. Don’t forget to send in your warranty
registration card, and keep your sales receipt some­where safe in case you need warranty service.

perfectT

1"component tweeter

instructions

IMPORTANT

Installation of automotive stereo compo­nents can require extensive experience per­forming a variety of mechanical and electri­cal procedures. Although these instructions
explain how to install a Kappa Perfect T
component system in a general sense, they
do not show the exact installation method
for your particular car. If you feel you may
not have the necessary tools or experience,
ask your authorized Infinity car-audio dealer
about professional installation options.

WARNING

Playing loud music in an automobile can
permanently damage your hearing as well
as hinder your ability to hear traffic. We
recommend listening at a low volume while
driving. Infinity accepts no liability for hear­ing loss, bodily injury or property damage
resulting from use or misuse of this product.

SPEAKER PLACEMENT

Figures 1 & 2 show possible speaker
placements in the order of more desirable
to less desirable. Kick-panel mounting will
provide the best staging and imaging in
most vehicles.

A NOTE ABOUT CROSSOVER APPLICATION

Passive crossover design involves precise
circuit design and component selection. A
well-designed crossover circuit provides an
electrical response intended to be combined
with the electrical properties of the speaker
to provide a particular acoustic response.
The crossover included with the PerfectT
has been optimized to provide flat response
when used with the PerfectT. Do not use the
PerfectT with a passive crossover intended
for use with another tweeter, or connect
more than one tweeter to the crossover
provided with the PerfectT.

TWEETER INSTALLATION

TWEETER
and
WOOFER
on kick panel

TWEETER
on kick panel

WOOFER
in factory­door location

Figure 1.
Mounting the woofer and tweeter in
the kick panel

Figure 2.
Mounting the woofer in the door and
the tweeter in the kick panel

Figure 3.
Mounting the tweeter in the doors

1

2

–

+

1

2

Figure 4.
Surface-mounting the tweeter

Figure 5.
Flush-mounting the tweeter

- 2 -

1

2

(+) BIG LUG & RED WIRE

(-) SMALL LUG & BLK WIRE

(+) RED WIRE

(-) BLK WIRE
