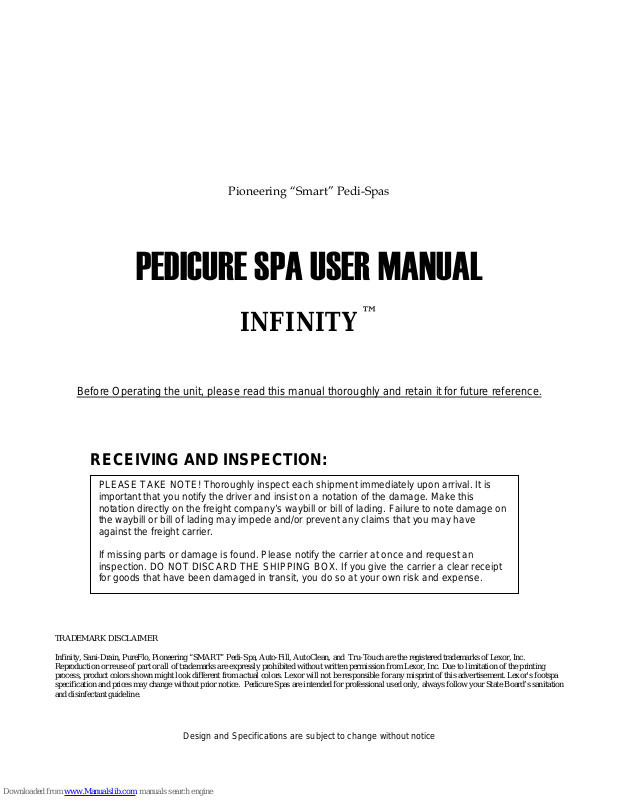

Infinity Pedicure Spa User Manual

Pioneering “Smart” Pedi-Spas

PLEASE TAKE NOTE! Thoroughly inspect each shipment immediately upon arrival. It is

PEDI

CURE SPA USER MANUAL

INFINITY™

Before Operating the unit, please read this manual thoroughly and retain it for future reference.

RECEIVING AND INSPECTION:

important that you notify the driver and insist on a notation of the damage. Make this
notation directly on the freight company’s waybill or bill of lading. Failure to note damage on
the waybill or bill of lading may impede and/or prevent any claims that you may have
against the freight carrier.

If

missing parts or damage is found. Please notify the carrier at once and request an
inspection. DO NOT DISCARD THE SHIPPING BOX. If you give the carrier a clear receipt
for goods that have been damaged in transit, you do so at your own risk and expense.

TR

ADEMARK DISCLAIME R

In

finity, Sani-Drain, Pu reFlo, Pioneering “SMART” Pedi-Spa, Auto-Fill, AutoClean, and Tru-Touch are the registered trademarks of Lexor, Inc.
Reproduction or reuse of part or all of trademarks are expressly prohibited without written permission from Lexor, Inc. Due to limitation of the printing
process, product colors shown might look different from actual colors. Lexor will not be responsible for any misprint of this advertisement. Lexor’ s footspa
specific ation and prices may change without prior notice. Pedi cure Spas are intended f or prof essional used only, always follow your State Board’s sanitation

and disinfe ct ant guidel ine.

Design and Specifications are subject to change without notice

2

Table of Contents

RECEIVING AND INSPECTION: ...................................................................................... 1

SAFETY PRECAUTIONS: ................................................................................................. 3

PARTS

Identifying Parts for INFINITY™ Model ............................................................................... 4

INSTALLATION

Spa to Spa Recommended Clearance: ............................................................................. 5

Manicure Tray/ Armres t ..................................................................................................... 6

Plumbing Connections: ...................................................................................................... 8

Power Drain: ................................................................................................................... 8

Gravity Drain (Under Ground): ........................................................................................ 9

Plumbing Flow Pattern for Power Drain: ....................................................................... 10

Plumbing Flow Pattern for Gravity Drain: ...................................................................... 11

Hot and Cold Water Supply Lines ................................................................................. 11

PA SPECIFICATION

S

Electrical and Pedicure Spa Component Specification .................................................... 13

OPERATION AND CARE

Auto-Fill™ Models: ............................................................. Error! Bookmark not defined.

Auto-Fill™ & AutoDrain™ Models: ..................................... Error! Bookmark not defined.

Front Panel Functional & Operating Instructions: ............... Error! Bookmark not defined.

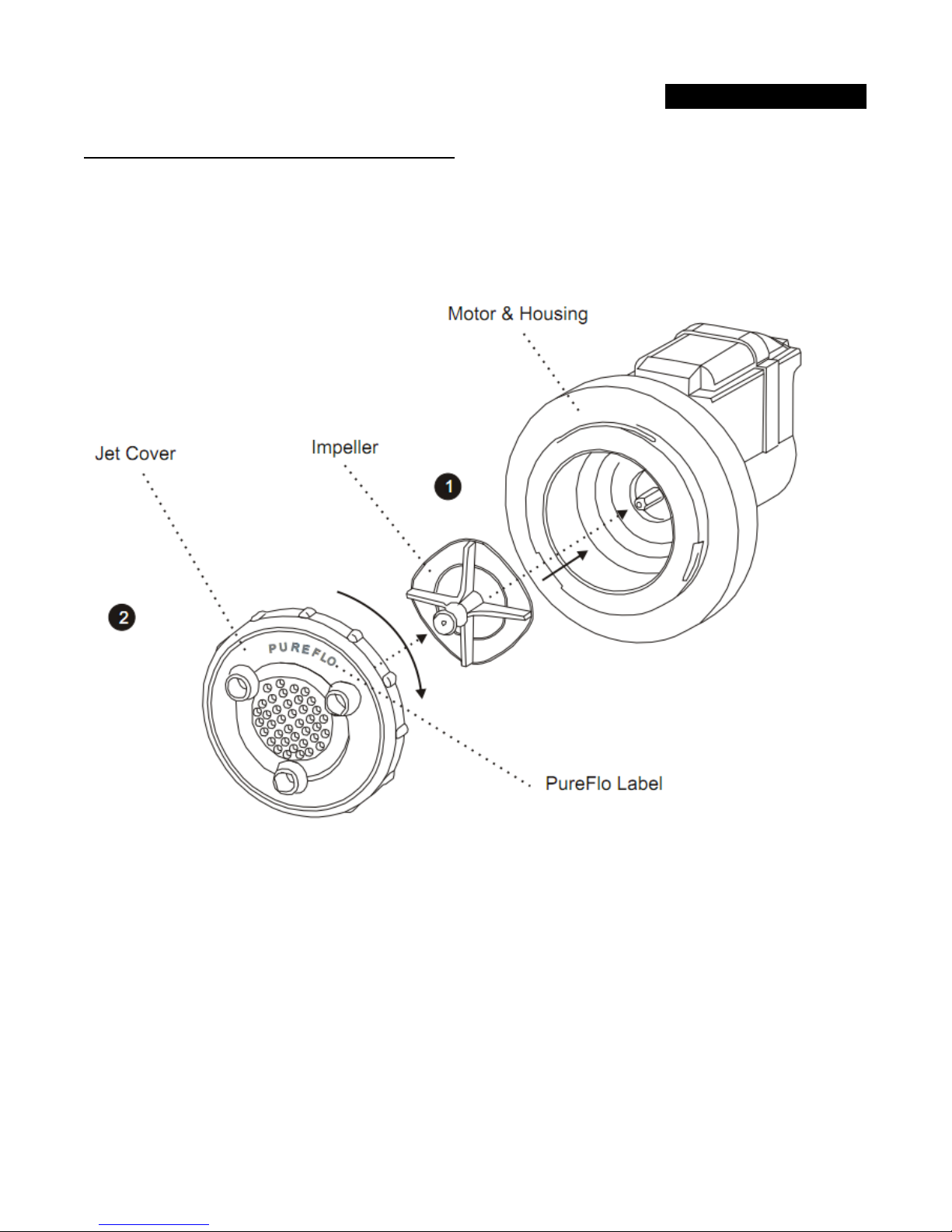

Jet Cover Removal & Installation: .................................................................................. 18

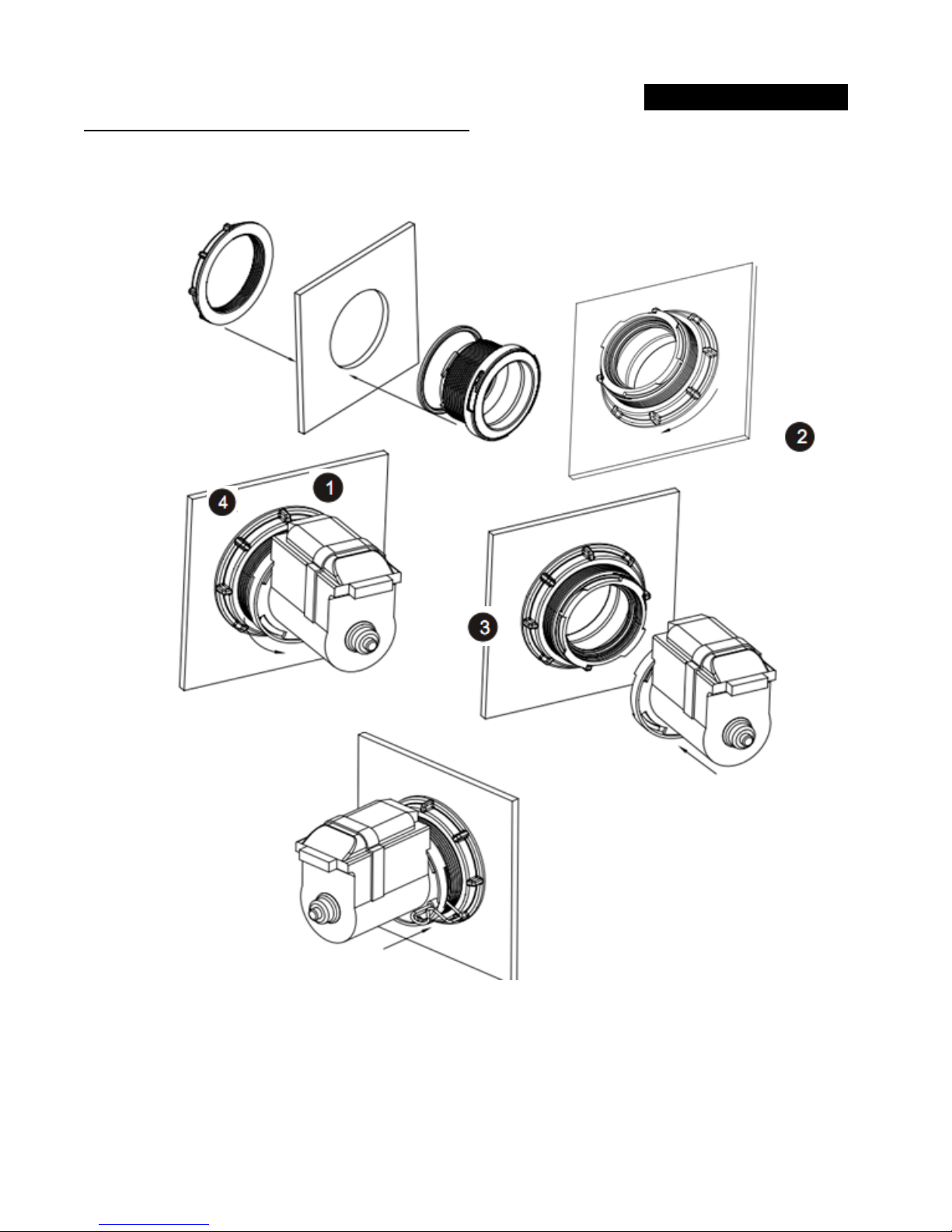

Jet Housing Removal & Installation ................................................................................. 19

Massage System & Remote Controller: ........................................................................... 20

Safety Requirements for Pedicure Spas .......................................................................... 22

WARRANTY

LEXOR LIMITED FACTORY WARRANTY ...................................................................... 23

3

______________________________________________________________Safety Precautions

READ AND FOLLOW INSTRUCTIONS CAREFULLY

SAFETY PRECAUTIONS:

Warning

This product is to be connected to a branch circuit outlet protected by a Class A GROUND FAULT CIRCUIT
INTERRUPTER (GFCI) , an d the G FC I shall be tested regularly for continued prot ection and c orr ec t o peration. If a
Class A GFCI protected outlet is not available, DO NOT USE THIS PRODUCT! Please contact a licensed
electrician for installation of a Class A GFCI according to local electric codes, or equivalent.

Warning

THIS PRODUCT IS FOR INDOOR USE ONLY & IS NOT RECOMMENDED

FOR USE ON CARPET OR WOOD FLOORS

DISCONNECT POWER SUPPLY CORD B EFORE SERVICING

DO NOT USE if you are diabetic, have poor circulation, or if any area of your feet or legs

is inflamed or has an open sore. Consult your physician before using if you have any kind of
fungal infection, swelling, fracture or persistent pain.

Warning

TO REDUCE RISK OF INJURY, DO NOT PERMIT CHIL DREN TO USE

THIS UNIT UNLESS THEY ARE CLOSELY SUPPERVISED AT ALL TIME

• LIRE LES INSTRUCTION DU FABRICANT AVANT DE METTRE EN MARCHE

• UTILISER SEULEMENT A L’INTERIEUR

• COUPER LE COURANT AVANT DE PROCEDRE AU DEPANNAGE, AU NETTOYAGE

Warning

Warning

1. Excessive water temperature is dangerous and should be checked BEFORE use.

2. Maximum temperature of the water should never exceed 100 degrees F.

3. DO NOT STEP/ STAND IN FOOT BASIN.

4. Always enter and exit the Pedicure Spa slowly and carefully.

5. NEVER bring and / or operate any electrical devices into or near the Pedicure Spa.

6. Maximum load in spa chair is 250lbs (114kg).

7. Pedicure Spa Chairs are not recommended for use on carpet or wood floors.

If a crack in the GLASS BOWL occurs, DO NOT handle unless the proper attire and
equipment is used. Discontinue use of the bowl until proper equipment is replaced. You
may be held accountable for any injury that may occur. Lexor, Inc. is not liable for any injury
that may occur.

STATES’ NOTICE

In the commonwealth of most of the States, all pedicure spas shall be installed for Commercial usage in the
states, are required to have backflow preventer. This equipment shall be installed between the water inlets and
the spa at Salon’s cost.

PLEASE SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

4

__________________________________________________________Identifying Parts

Identifying Parts for I NFINI TY™ Model

Pedicure Whirlpool with Massage System

F

igure 1 Identifying Parts for Infinity™

1. Head Rest

2.Chair Cushion wit

M

rmrest Cushi

3. A

4. M

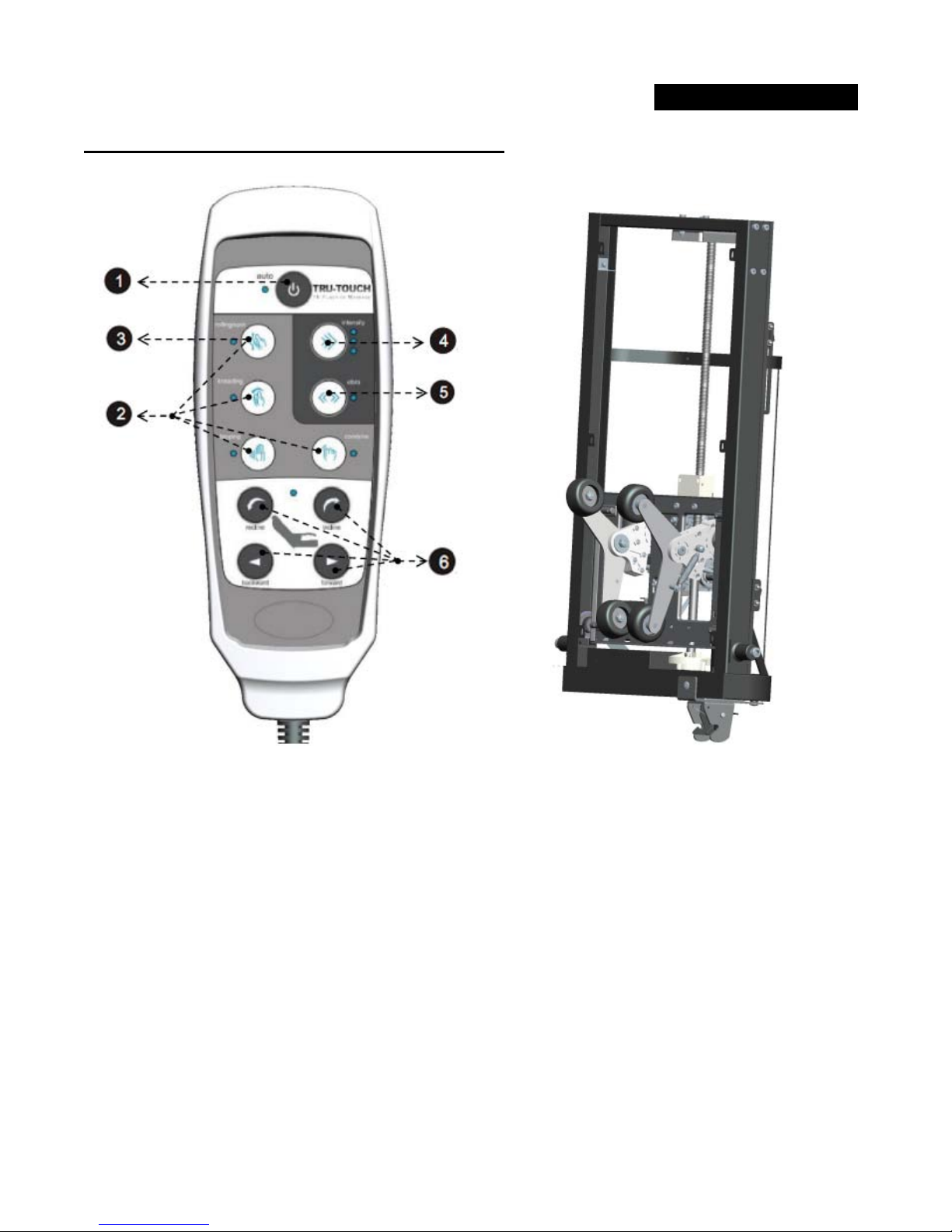

assage Remote Control

5. Manicure-Tray

6.Angelic Bowl

7. Footrest

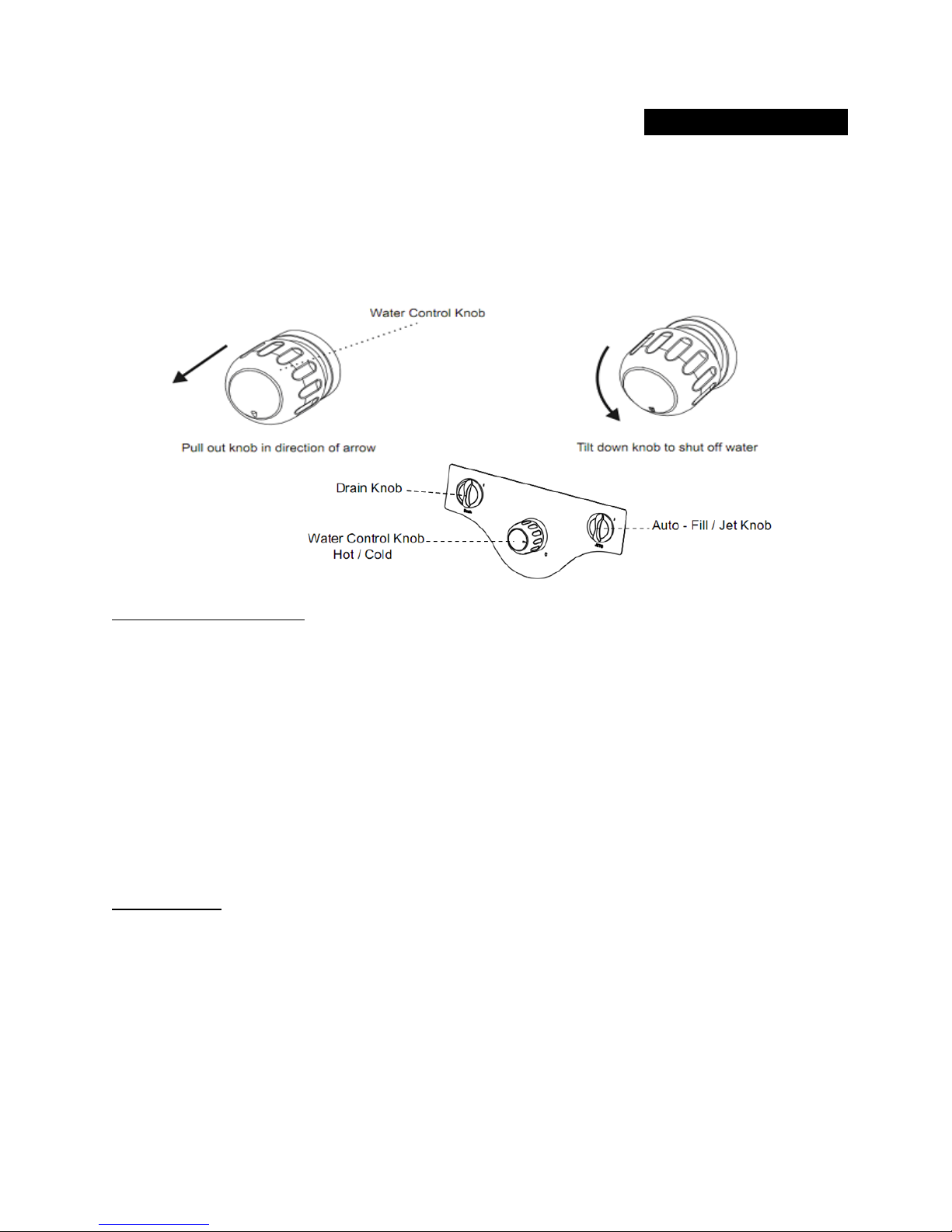

8. Sani-Drain™ System with

discharge On/Off Knob*

assag

e

h

on

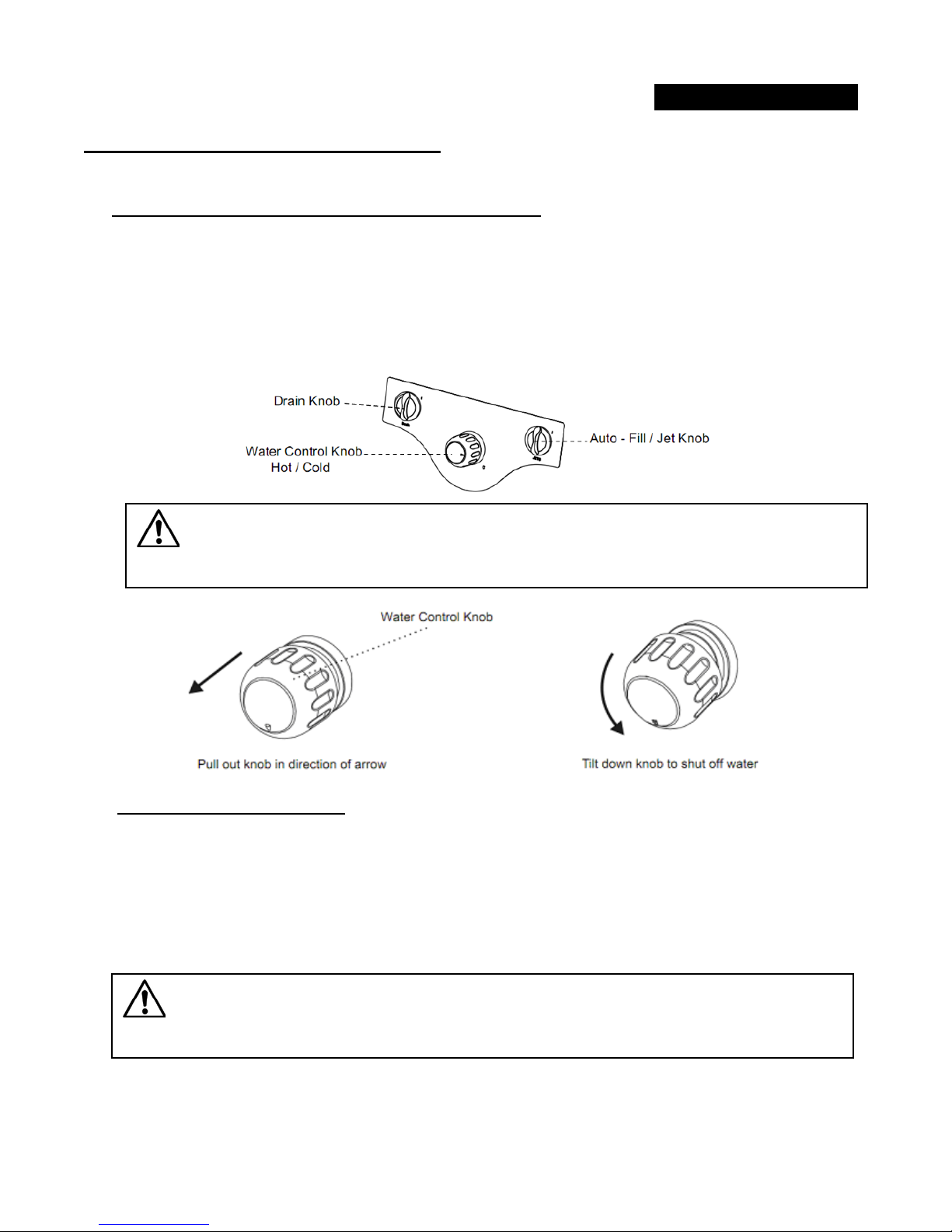

9.Hot/Cold Water Mixer
Valve

10. D

ual Function Auto-Fill™

& Jet On/Off Knob*

11.Flex Water Filler/Spray

Spout

12.Up/Down Armrest

13.Handbag (Purse) Hook

14. Tub Light

15.Drain Stopper

16.Water Level Sensors

17.Pure-Flo™ Jet

18.

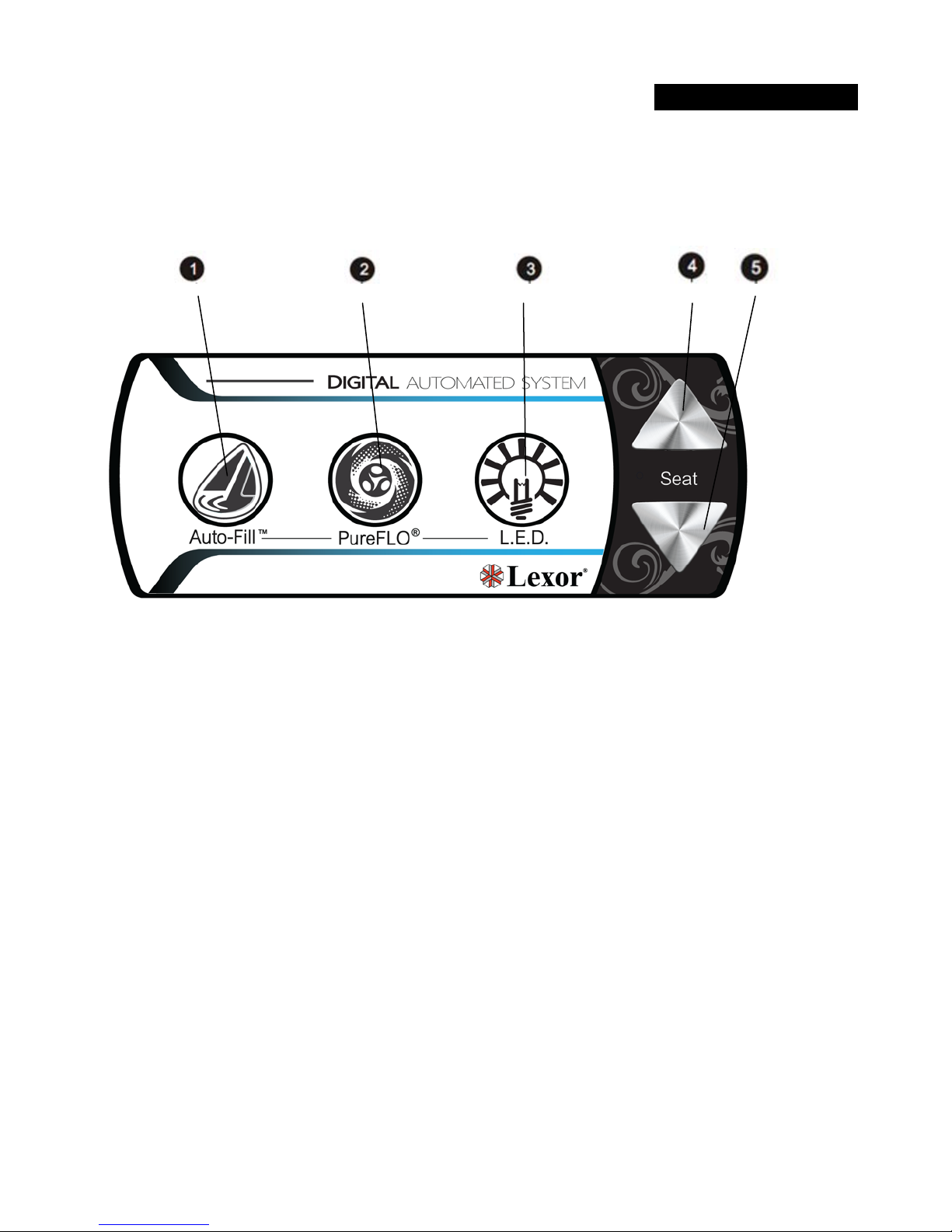

19.Digital Automate

Profile Stool for

Low

Pedicure

d

Sy

stem (DAS) control

panel (Optional)**

**found on AutoClean
models

5

_______________________________________________________________Installation

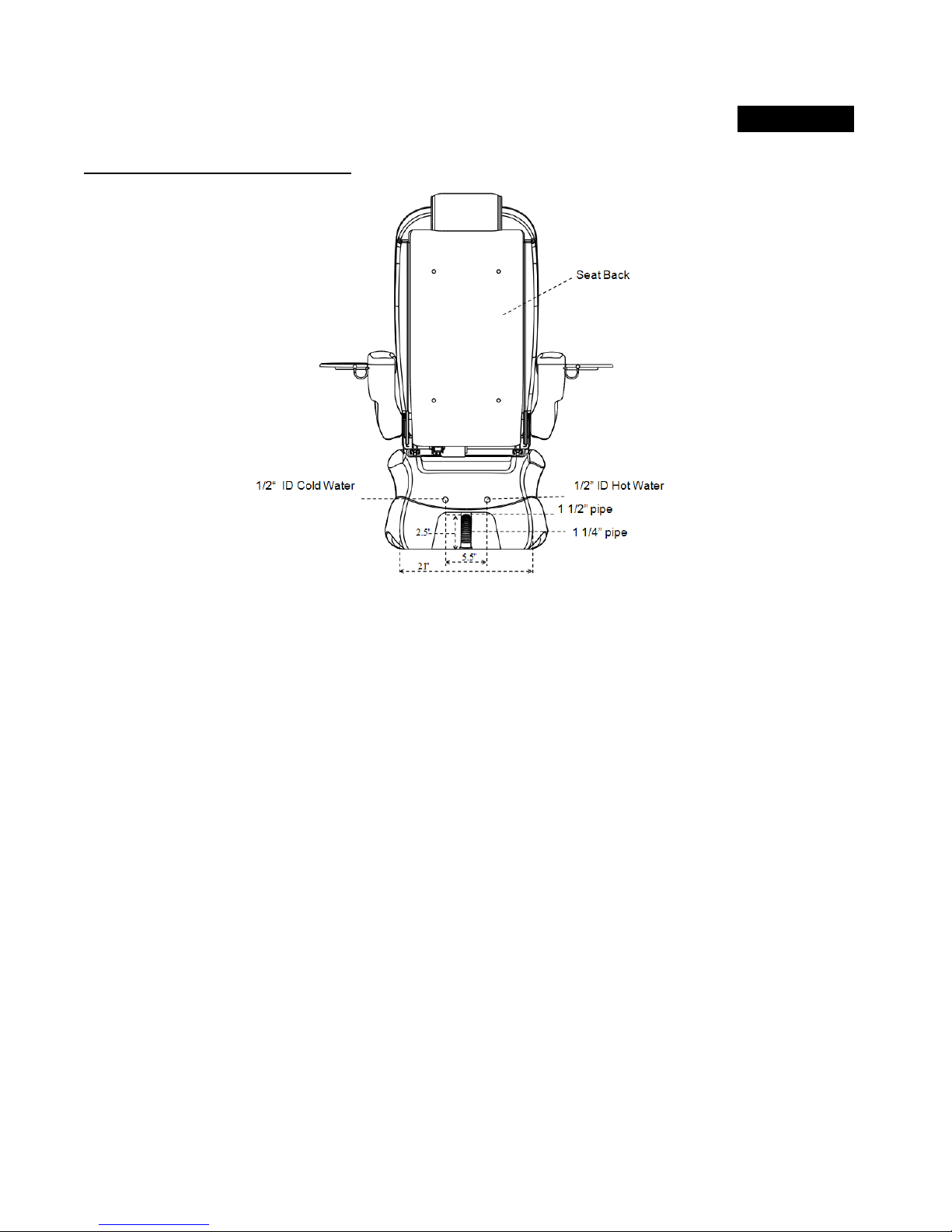

WALL CLEARANCE:

Fig.2

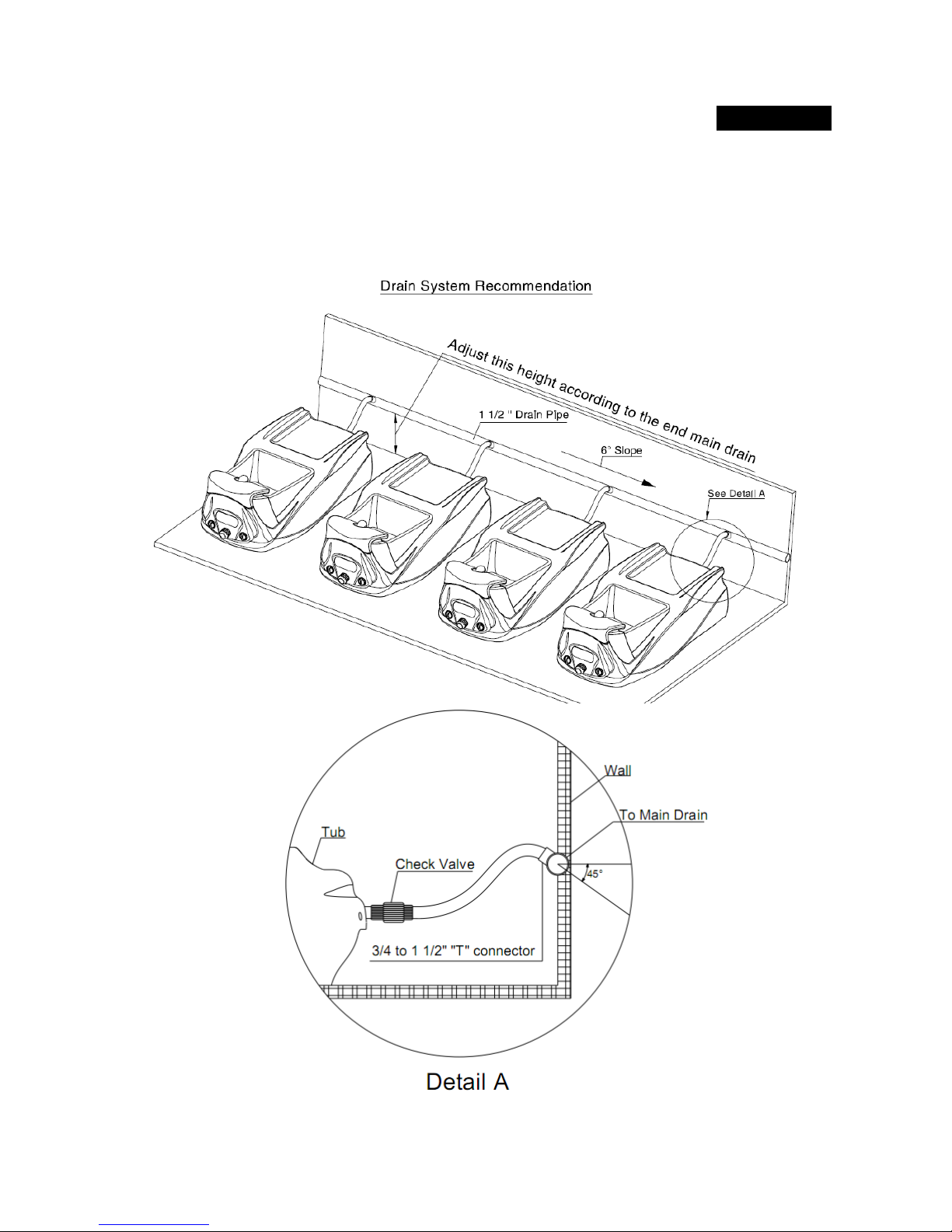

SPA to SPA RECOMMENDED CLEARANCE:

*Auto-Fill, SaniDrain knobs and DAS control panel may differ depending on the model purchased. Please refer to Identifying Parts section for
a detailed view

Fig. 3

6

_______________________________________________________________________Installation

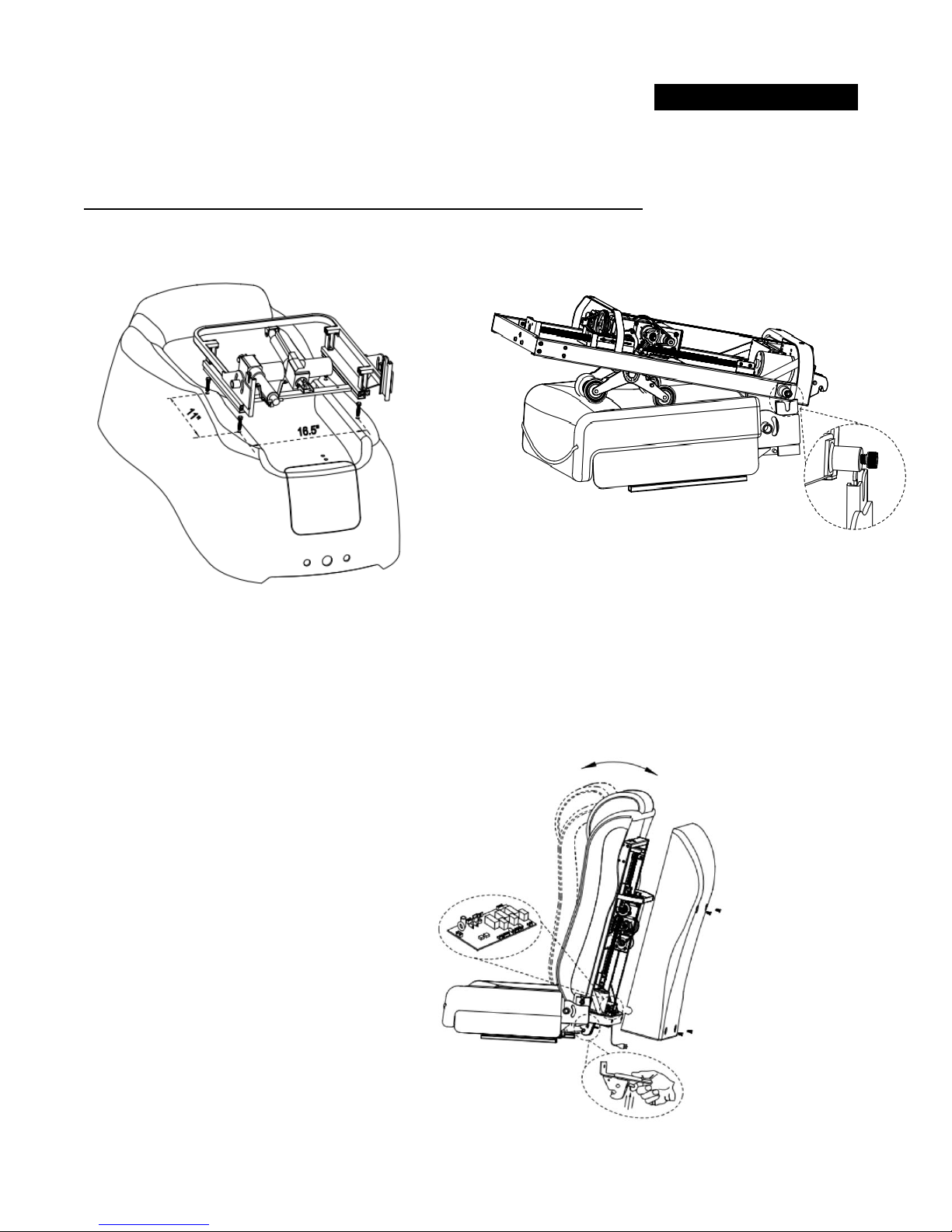

MANICURE TRAY/ ARMREST

Fig. 4

> Insert the manicure trays and attach the purse hook. (1 Supplied)

*Auto-Fill, SaniDrain knobs and DAS control panel may differ depending on the model purchased. Please refer to Identifying Parts section for
a detailed view

7

______________________________________________________________Installation

BACK REST

Fig. 5

1. To set backrest up: Lift up the backrest until a “Click” is heard.

2. To fold down backrest: Lift up latch handle located on the left side / bottom of Chair

8

______________________________________________________________Installation

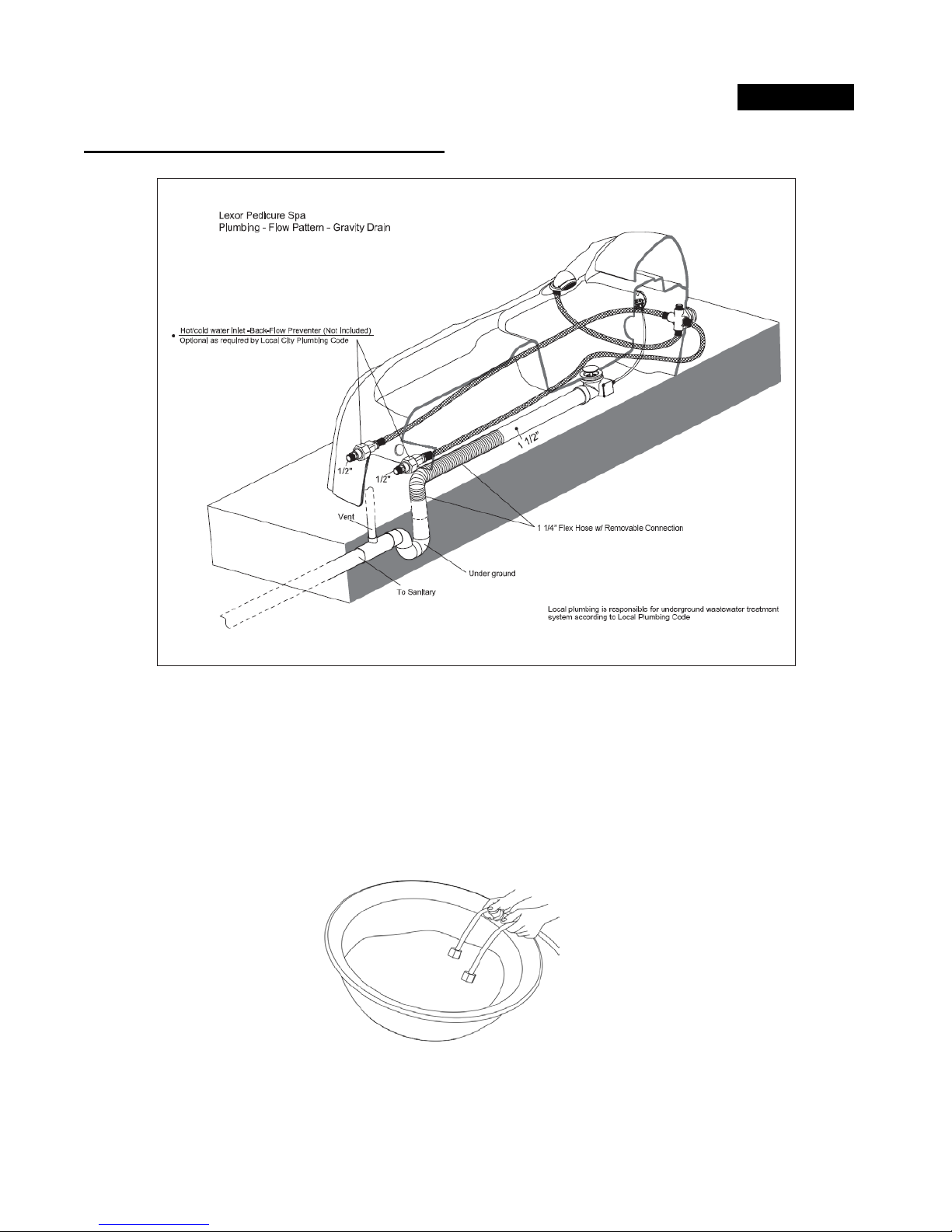

Plumbing Connections:

Warning

1. Debris or residue may become lodged into the Hot and Cold hoses during construction, which may clog

2. Hooking up a used Hot/Cold flex hose is not recommended since debris from broken rubber seal might

3. Backflow preventer: Due to differences in construction lay-out of your Salon and City’s plumbing code,

4. Check valve is an optional part and supplied free of charge for your convenience. Factory is not liable for

5. Maximum Inlet water pressure must be under 75 PSI.

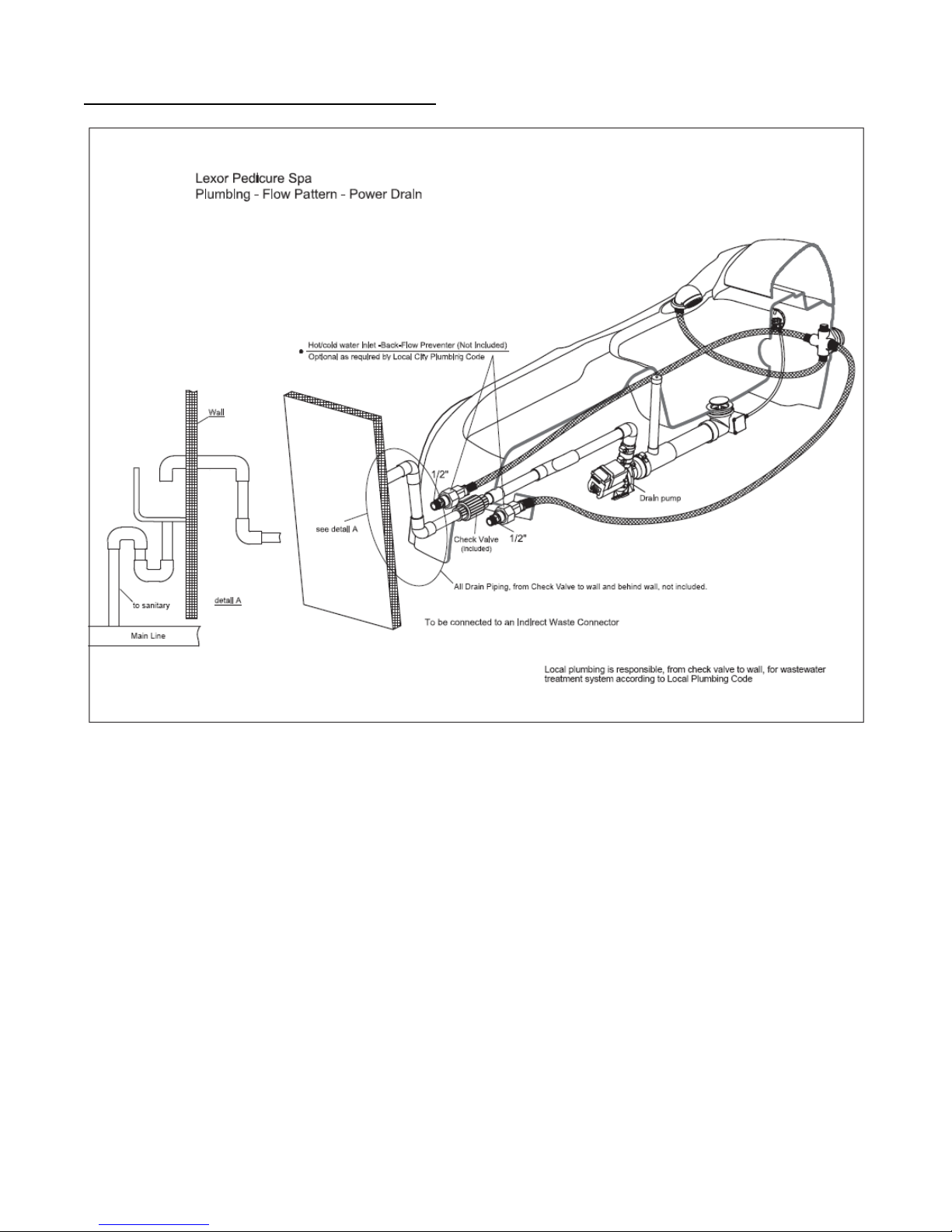

Power Drain:

Before any connection, pay attention to these subjects:

the Hot and Cold Mixer. To clean, drain a good amount of water from water hoses to bucket before
connecting them to the pedicure spa. Failure to do so may void your Warranty.

clog water mixer. Failure to do so may void your Warranty.

please contact your local Plumber to fulfill your needs as required. Backflow Preventers are not supplied
by the pedicure spa manufacturer.

this Check valve.

Fig. 6
