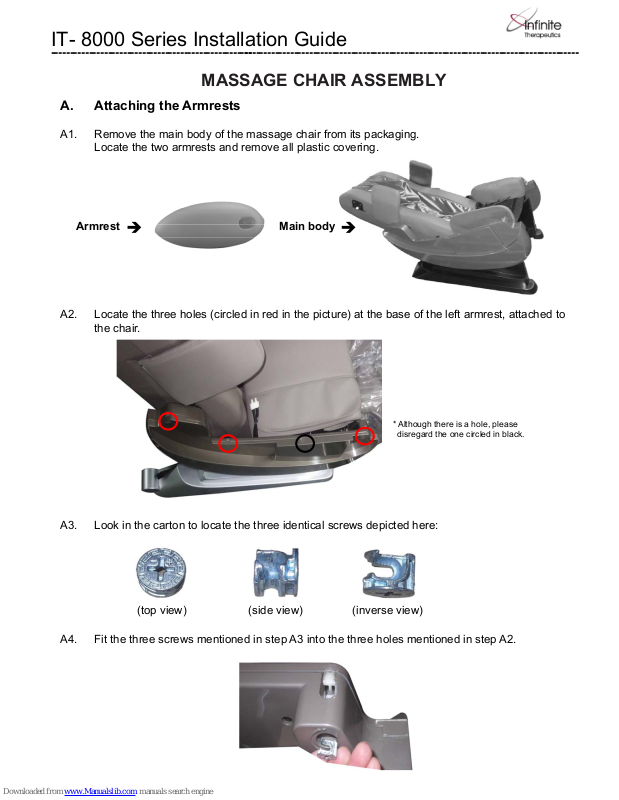

Infinity IT- 8000 Series Installation Manual

A. Attaching the Armrests

A1. Remove the main body of the massage chair from its packaging.
Locate the two armrests and remove all plastic covering.

A2. Locate the three holes (circled in red in the picture) at the base of the left armrest, attached to
the chair.

---------------------------------------------------------------------------------------------------------------------------------------------

MASSAGE CHAIR ASSEMBLY

USJ-9000

Main body

Armrest

* Although there is a hole, please
disregard the one circled in black.

A3. Look in the carton to locate the three identical screws depicted here:

A4. Fit the three screws mentioned in step A3 into the three holes mentioned in step A2.

(top view) (inverse view) (side view)

IT- 8000 Series Installation Guide

---------------------------------------------------------------------------------------------------------------------------------------------

==

USJ-9000

A5. Locate the three bolts already partially inserted along the top of the left armrest.

A6. Align these three bolts to the three holes on the base of the left armrest.
Tighten these screws, working from the back first, then progressing up to the front.

A7. Align the two air connectors on the bottom of the left armrest to their corresponding slots
on the left side of the chair. Insert, then be sure to push the excess air hose slack

A8. Check to confirm that the armrests are well-assembled. Then rotate the screw 90º
clock-wise.

IT- 8000 Series Installation Guide

down

into the base. This is CRITICAL
to prevent air line kinking and
the chairs proper function.
