Infinity KAPPA 32.3CF, KAPPA 693.3I, KAPPA 572.3CF, KAPPA 42.3I, KAPPA 52.3I User Manual
...
kappa series
4 2.3 i, 5 2.3 i, 6 2.3 i,63.3i,
6 5 2.3 i, 6 9 2.3 i,693.3i,
3 2.3 c f,462.3cfp,572.3cf
Thank you for purchasing Infinity’s Kappa Series
multi-element automotive loudspeakers. We’ve organized this
manual to make their installation as simple and trouble-free as
possible. Please read it thoroughly before proceeding. Remember
to keep your sales receipt with this manual in a safe place so
both are available for future reference.
instructions
- 2 -
ABOUT THESE INSTRUCTIONS
Installation of automotive stereo components
can require extensive experience with a
variety of mechanical and electrical procedures.
Although these instructions explain how to install
Kappa Series multi-element speakers in a general
sense, they do not show the exact installation
methods for your particular vehicle. If you do
not feel you have the experience, do not attempt
the installation yourself, but instead ask your
authorized Infinity car audio dealer about
professional installation options.
LOUD MUSIC AND HEARING
Playing loud music in an automobile can hinder
your ability to hear traffic as well as permanently
damage your hearing. The maximum volume levels achievable with Infinity speakers, combined
with high power amplification, may exceed safe
levels for extended listening. We recommend
using low volume levels when driving. Infinity
accepts no liability for hearing loss, bodily injury,
or property damage as a result of use or misuse
of this product.
REAR DECK PRECAUTION
In some cars, fuel tanks may be located directly
beneath the rear deck. Before installation, make
sure there is adequate speaker basket clearance
before considering this location!
ABOUT THE CROSSOVER
Except for the 462.3cfp, each Kappa Series multielement speaker includes a crossover for in-line
connection to an amplifier output and is required
for proper operation (see Figure 7 on the next
page). The attached crossover wires are keyed and
color-coded to aid in correct polarity connections.
Do not omit the crossover or substitute another
one – doing so will damage the speaker.
INSTALLATION TIPS
• Always wear protective eyewear when using
any tools.
• Turn off all audio components and other
electrical devices before you start. Disconnect
the (–) negative lead from your vehicle’s battery.
• Keep speakers in their package until final
installation. When moving a speaker, always
rest it with the cone or dome facing up. Never
use force to install any speaker.
• Check clearances on both sides of a planned
mounting surface before drilling any holes or
installing any screws. Remember that the
screws can extend behind the surface.
• At the installation sites, locate and make a
note of all fuel lines, hydraulic brake lines,
vacuum lines and electrical wiring. Use
extreme caution when cutting or drilling in
and around these areas.
• Before drilling or cutting holes, use a utility
knife to remove unwanted fabric or vinyl,
to keep material from snagging in a drill bit
or saw.
• For door installations, check the clearance
with the windows throughout the range of the
window’s travel, and verify that a mounted
speaker will not interfere with the window
crank or power window mechanism.
• If mounting speakers elsewhere, check for
clearance around rear deck torsion bars, glove
box or other structural elements.
• Do not mount speakers where they will get wet.
Figure 1. Mounting the 42.3i, 52.3i, 62.3i, 63.3i,
692.3i, 693.3i, 32.3cf or 572.3cf.
NOTE:The 32.3cf, 462.3cfp and 572.3cf speakers
are designed to be installed under factory grilles.
Consequently, no grilles are packaged with
these models.
NOTE: If you are mounting the 572.3cf in a 6" x 8"
location, use the adapter provided.
Figure 2. Modifying the 42.3i to be installed in
locations requiring fewer than 4 mounting “ears”.
(The 62.3i and 63.3i may be similarly modified.)
NOTE: Grip the tab with pliers and bend to detach
it from the speaker.
ROTATE TWEETER SO IT
IS ANGLED TOWARD
THE LISTENER USING
THE UNIPIVOT
™
(patent no. 6,002,780)
FEATURE ON THE 52.3i,
62.3i, 652.3i, 572.3cf
AND 692.3i.
INSTALLATION WARNINGS AND TIPS
INSTALLATION
- 3 -

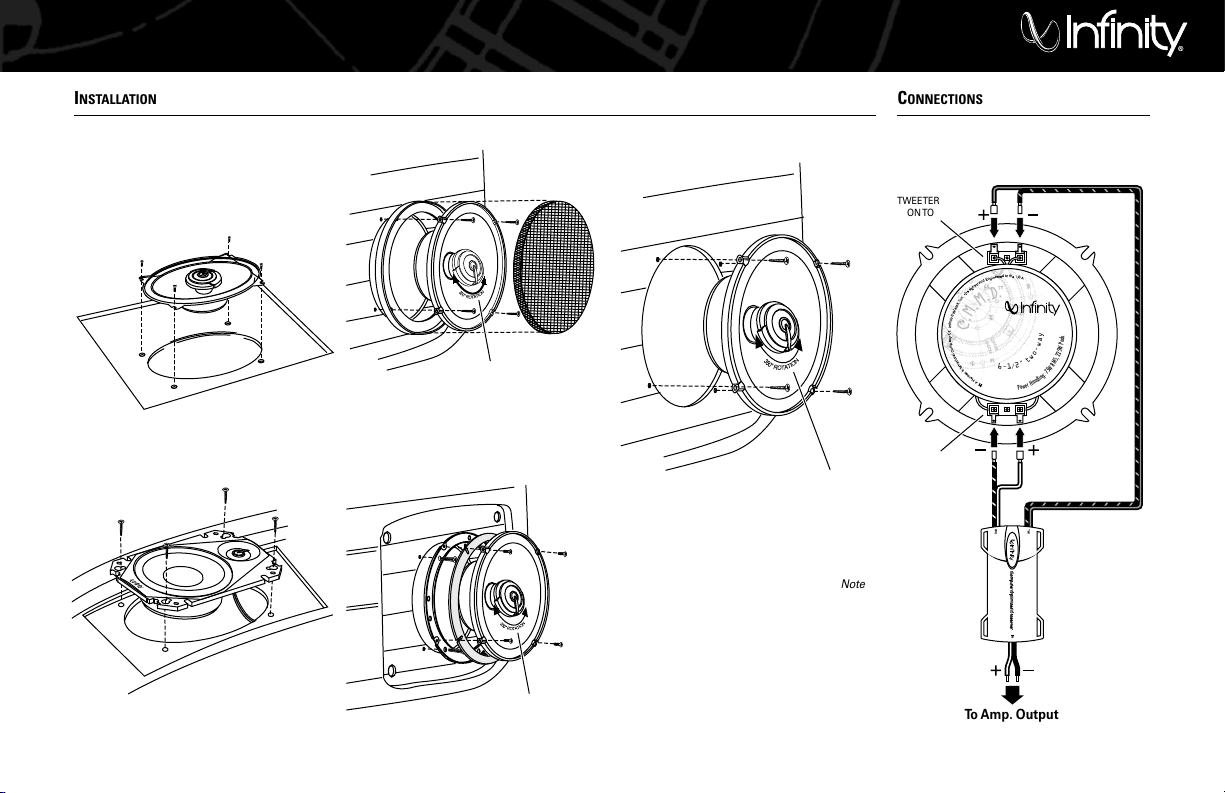

Figure 3. Mounting the 572.3cf or 462.3cfp. The
32.3cf (not shown) is mounted in a similar way.
NOTE:The 32.3cf, 462.3cfp, and 572.3cf speakers
are designed to be installed under factory grilles.
Consequently, no grilles are packaged with these
Kappa models.
Figure 3a.
Figure 4. Mounting the 652.3i with the grille.
Figure 5. Mounting the 652.3i in a standard
speaker location.
Figure 6. Mounting the 652.3i in a 165mm
speaker location.
Figure 7. Connecting an in-line crossover to a 62.3i
and an amplifier output. Other speaker
models are connected in a similar way.
ROTATE TWEETER SO IT IS ANGLED
TOWARD THE LISTENER USING THE
UNIPIVOT™ (patent no. 6,002,780)
FEATURE ON THE 52.3i, 62.3i, 652.3i,
572.3cf AND 692.3i.
ROTATE TWEETER SO IT IS ANGLED
TOWARD THE LISTENER USING THE
UNIPIVOT™ (patent no. 6,002,780)
FEATURE ON THE 52.3i, 62.3i, 652.3i,
572.3cf AND 692.3i.
ROTATE TWEETER SO IT IS ANGLED
TOWARD THE LISTENER USING THE
UNIPIVOT™ (patent no. 6,002,780)
FEATURE ON THE 52.3i, 62.3i,
652.3i, 572.3cf AND 692.3i.
ComputerOptimized Crossover
To Amp. Output
TWEETER
ON TOP
WOOFER
ON
BOTTOM
kappa series
A
H
a
r
m
a
n
I
n
t
e
r
n
a
t
i
o
n
a
l
C
o
m
p
a
n
y
I
n
f
i
n
i
t
y
S
y
s
t
e
m
s
,
I
n
c
.
¥
D
e
s
i
g
n
e
d
a
n
d
E
n
g
i
n
e
e
r
e
d
i
n
t
h
e
U
S
A
6
2
.
3
i
a
u
t
o
m
o
t
i
v
e
l
o
u
d
s
p
e
a
k
e
r
P
o
w
e
r
H
a
n
d
l
i
n
g
:
7
5
W
R
M
S
,
2
2
5
W
P
e
a
k
6
-
1
/
2
"
t
w
o
-
w
a
y
C
.
M
.
M
.
D
.
INSTALLATION CONNECTIONS
Note: The positions
shown here for the polarities may not resemble
the exact connections in
every installation.
However, in every case,
the larger terminal is the
positive (+) connection.
42.3i
Type: 4" 2-Way
Speaker Impedance: 4 ohms
Power Handling: 50W RMS, 150W Peak
Sensitivity (2.83V, 1m): 90dB
Frequency Response: 75Hz – 21kHz
Mounting Depth: 1-3⁄4" (45mm)
Cut-Out Diameter: 3-5 ⁄8" (93mm)
52.3i
Type: 5-1⁄4" 2-Way
Speaker Impedance: 4 ohms
Power Handling: 55W RMS, 165W Peak
Sensitivity (2.83V, 1m): 90dB
Frequency Response: 55Hz – 21kHz
Mounting Depth: 2" (51mm)
Cut-Out Diameter: 4-5 ⁄8" (118mm)
62.3i
Type: 6-1⁄2" 2-Way
Speaker Impedance: 4 ohms
Power Handling: 75W RMS, 225W Peak
Sensitivity (2.83V, 1m): 90dB
Frequency Response: 45Hz – 21kHz
Mounting Depth: 2-1⁄16" (53mm)
Cut-Out Diameter: 5" (127mm)
63.3i
Type: 6-1⁄2" 3-Way
Speaker Impedance: 4 ohms
Power Handling: 75W RMS, 225W Peak
Sensitivity (2.83V, 1m): 90dB
Frequency Response: 45Hz – 22kHz
Mounting Depth: 2-1⁄16" (53mm)
Cut-Out Diameter: 5" (127mm)
652.3i
Type: 165mm 2-Way
Speaker Impedance: 4 ohms
Power Handling: 75W RMS, 225W Peak
Sensitivity (2.83V, 1m): 90dB
Frequency Response: 45Hz – 21kHz
Mounting Depth: 2-3⁄8" (61mm)
Cut-Out Diameter: 5-1⁄2" (140mm)
692.3i
Type: 6" x 9" 2-Way
Speaker Impedance: 4 ohms
Power Handling: 110W RMS, 330W Peak
Sensitivity (2.83V, 1m): 90dB
Frequency Response: 35Hz – 21kHz
Mounting Depth: 3-3⁄16" (81mm)
Cut-Out Diameter: 5-7⁄ 8" x 8-11⁄ 16"
(150mm x 221mm)
693.3i
Type: 6" x 9" 3-Way
Speaker Impedance: 4 ohms
Power Handling: 110W RMS, 330W Peak
Sensitivity (2.83V, 1m): 90dB
Frequency Response: 35Hz – 22kHz
Mounting Depth: 3-3⁄16" (81mm)
Cut-Out Diameter: 5-7⁄ 8" x 8-11⁄ 16"
(150mm x 221mm)
32.3cf
Type: 3-1⁄2" 2-Way,
Custom-Fit
Speaker Impedance: 4 ohms
Power Handling: 35 W RMS, 105W Peak
Sensitivity (2.83V, 1m): 90dB
Frequency Response: 85Hz – 21kHz
Mounting Depth: 1-9⁄16" (40mm)
Cut-Out Diameter: 3-1⁄8" (80mm)
462.3cfp
Type: 4" x 6" 2-Way,
Custom-Fit Plate
Speaker Impedance: 4 ohms
Power Handling: 60W RMS, 180W Peak
Sensitivity (2.83V, 1m): 90dB
Frequency Response: 75Hz – 21kHz
Mounting Depth: 1-3⁄4" (45mm)
Cut-Out Diameter: 3-5⁄8" x 5-1⁄4"
(93mm x 134mm)
572.3cf
Type: 5" x 7" 2-Way,
Custom-Fit
Speaker Impedance: 4 ohms
Power Handling: 100W RMS, 300W Peak
Sensitivity (2.83V, 1m): 90dB
Frequency Response: 40Hz – 21kHz
Mounting Depth: 2-1⁄4" (58mm)
Cut-Out Diameter: 4-15⁄ 16" x 7-1⁄8"
(126mm x 181mm)
DECLARATION OF CONFORMITY
We, Harman Consumer International
2, route de Tours
72500 Chateau-du-Loir
France
Lutz Uphoff
Harman Consumer International
Chateau-du-Loir, France. 2/01
declare in own responsibility, that the products described in this owner’s manual are in compliance with technical standards:
EN 50081-1:1992
EN 50082-1:1992
®
Infinity Systems, Inc., 250 Crossways Park Drive, Woodbury, NY 11797 USA
(800) 553-3332 • FAX (516) 682-3523 • www.infinitysystems.com
© 2001 Infinity Systems, Inc. • P/N: KAPSEROM2/01 • Printed 2/01
