Indesit WIN 121 User Manual [it]

Instructions for use
WASHING MACHINE
GB
English,1
RO
Românã,37
WIN 121
I
Italiano,13
NL
Nederlands,49
DE
Deutsch,25
Contents
GB
Installation, 2-3
Unpacking and levelling Electric and water connections The first wash cycle Technical details
Washing machine description, 4-5
Control panel Leds
Starting and Programmes, 6
Briefly: how to start a programme Programme table
Personalisations, 7
Setting the temperature Functions
Detergents and laundry, 8
Detergent dispenser Preparing your laundry Special items
Precautions and advice, 9
General safety Disposal Saving energy and respecting the environment
Care and maintenance, 10
Cutting off the water or electricity supply Cleaning your appliance Cleaning the detergent dispenser Caring for your appliance door and drum Cleaning the pump Checking the water inlet hose
Troubleshooting, 11
Service, 12
Before calling for Assistance
1
Installation
GB
Keep this instruction manual in a safe place for
future reference. Should the appliance be sold, transferred or moved, make sure the instruction manual accompanies the washing machine to inform the new owner as to its operation and features.
Read these instructions carefully: they contain vital
information on installation, use and safety.
Unpacking and levelling
Unpacking
1. Unpack the washing machine.
2. Check whether the washing machine has been damaged during transport. If this is the case, do not install it and contact your retailer.
3. Remove the 3 protective screws and the rubber washer with the respective spacer, situated on the rear of the appliance (see figure).
4. Seal the gaps using the plastic plugs provided.
5. Keep all the parts: you will need them again if the washing machine needs to be moved to another location.
Levelling your appliance correctly will provide it with stability and avoid any vibrations, noise and shifting during operation. If it is placed on a fitted or loose carpet, adjust the feet in such a way as to allow enough room for ventilation beneath the washing machine.
Electric and water connections
Connecting the water inlet hose
1. Insert seal A into the end of the inlet hose and screw the latter onto a cold water tap
A
with a 3/4 gas threaded mouth (see figure). Before making the connection, allow the water to run freely until it is perfectly clear.
2. Connect the other end of the water inlet hose to the washing machine, screwing it onto the appliance's cold water inlet, situated on the top right-hand side on the rear of the appliance (see figure).
Packaging materials are not children's toys.
Levelling
1. Install the washing machine on a flat sturdy floor, without resting it up against walls, furniture cabinets or other.
2. If the floor is not perfectly level, compen­sate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured according to the worktop, must not exceed 2°.
2
3. Make sure there are no kinks or bends in the hose.
The water pressure at the tap must be within the
values indicated in the Technical details table (on the next page).
If the water inlet hose is not long enough, contact
a specialist store or an authorised serviceman.
Never use hoses that have already been used.
Connecting the drain hose
65 - 100 cm
Connect the drain hose, without bending it, to a draining duct or a wall drain situated between 65 and 100 cm from the floor;
Do not use extensions or multiple sockets.
GB
The power supply cable must never be bent or
dangerously compressed.
The power supply cable must only be replaced by
an authorised serviceman.
Warning! The company denies all liability if and when these norms are not respected.
The first wash cycle
alternatively, place it over the edge of a basin, sink or tub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater.
We advise against the use of hose extensions; in
case of absolute need, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.
Electric connection
Before plugging the appliance into the mains socket, make sure that:  the socket is earthed and in compliance with the
applicable law;
 the socket is able to sustain the appliance's
maximum power load indicated in the Technical details table (on the right);
 the supply voltage is included within the values i
ndicated on the Technical details table (on the right);
 the socket is compatible with the washing
machine's plug. If this is not the case, replace the socket or the plug.
The washing machine should not be installed in an
outdoor environment, not even when the area is sheltered, because it may be very dangerous to leave it exposed to rain and thunderstorms.
When the washing machine is installed, the mains
socket must be within easy reach.
Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, setting the 90°C programme without a pre-wash cycle.
Technical details
Model
Dimensions
Capacity
Electric
connections
Wat er connections
Spin speed
Control programmes
according to
EN 60456
directive
WIN 121
59.5 cm wide 85 cm high 52,5 cm deep
from 1 to 5 kg
please refer to the technical data plate fixed to the machine
maximum pressure 1 MPa (10 bar) minimum pressure 0.05 MPa (0.5 bar) drum capacity 46 litres
up to 1200 rpm
programme 3; temperature 60°C; run with a load of 5 kg.
This appliance is compliant with the following European Community Directives:
- 89/336/CEE of 03/05/89 (Electromagnetic Compatibility) and subsequent amendments
- 2002/96/CE
- 2006/95/CE (Low Voltage)
3
Washing machine description
GB

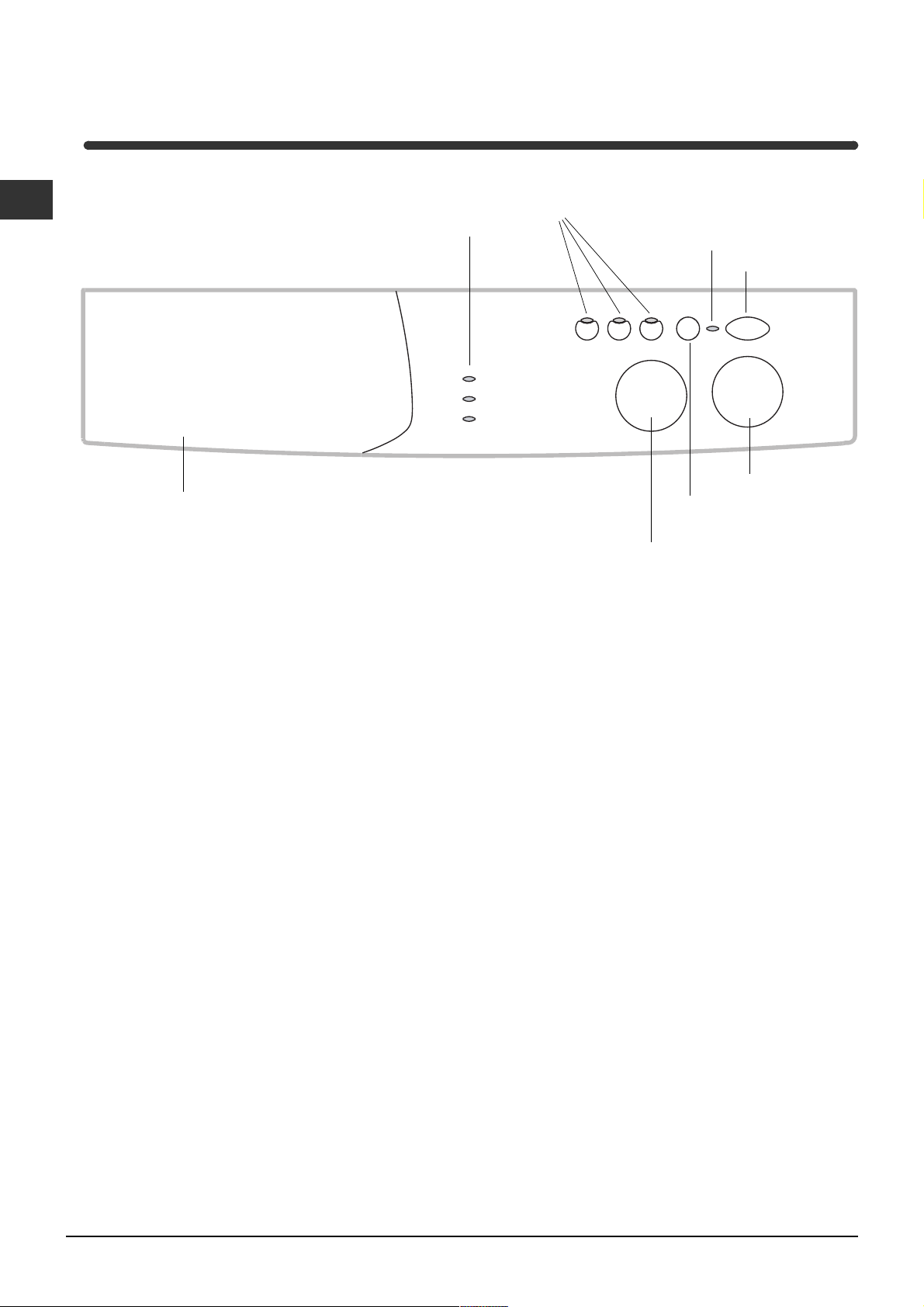

Control panel
Detergent dispenser
Detergent dispenser: to add detergent and fabric
softener (see page 8).
LEDS: to find out which wash cycle phase is under way.
FUNCTION buttons: to select the functions available. The button corresponding to the function selected will remain on.
FUNCTION
Buttons
Leds
ON-OFF/DOOR LOCK Led: to find out whether the washing machine is on and if the appliance door can be opened (see page 5).
ON/OFF button: to turn the washing machine on and off.
PROGRAMME knob: to select the wash programmes. The knob stays still during the cycle.
ON-OFF/ DOOR LOCK
Led
START/RESET
Button
TEMPERATURE
Knob
ON-OFF
Button
PROGRAMME
Knob
TEMPERATURE knob: to set the temperature or the cold wash cycle (see page 7).
START/RESET button: to start the programmes or cancel any incorrect settings.
4
Leds
The LEDS provide important information. This is what they can tell you:
Cycle phase under way:
During the wash cycle, the LEDs gradually illuminate on to indicate the cycle phase under way:
Wash
Rinse
Spin cycle
Note: during draining, the LED corresponding to the Spin cycle phase will be turned on.
Function buttons
The FUNCTION BUTTONS also act like LEDS. When a function is selected, the corresponding button is illuminated. If the function selected is incompatible with the programme set, the button will flash and the function will not be enabled. If you set a function that is incompatible with another function you selected previously, only the last one selected will be enabled.
GB
ON-OFF/DOOR LOCK led
If this LED is on, the appliance door is locked to prevent it from being opened accidentally; to avoid any damages, wait for the LED to flash before you open the appliance door.
The rapid flashing of the ON-OFF/DOOR LOCK Led together with the flashing of at least one other LED
indicates there is an abnormality (see page 11).
5
Starting and Programmes
GB
Briefly: starting a programme
1. Switch the washing machine on by pressing button . All the LEDS will light up for a few seconds and the ON-OFF/DOOR LOCK Led will begin to flash.
2. Load your laundry into the washing machine and shut the appliance door.
3. Set the PROGRAMME knob to the programme required.
4. Set the wash temperature (see page 7).
5. Add the detergent and any fabric softener (see page 8).
6. Start he programme by pressing the START/RESET button. To cancel it, keep the START/RESET button pressed for at least 2 seconds.
7. When the programme is finished, the ON-OFF/ DOOR LOCK Led will flash to indicate that the appliance door can be opened. Take out your laundry and leave the appliance door ajar to allow the drum to dry thoroughly. Turn the washing
Programme table
Type of fabric and degree of soil
Program­mes
Wash temperat.
Detergent
Pre-
wash
Wash
machine off by pressing button
Fabric
softener
Cycle length (minutes)
Description of wash cycle
Cotton
Extremely soiled whites (sheets, tablecloths, etc.)
Extremely soiled whites (sheets, tablecloths, etc.)
Heavily soiled whites and fast colours
Heavily soiled whites and delicate colours
Slightly soiled whites and delicate colours (shirts, jumpers, etc.)
Slightly soiled delicate colours
1
2
3
3
4
5
90°C 167
90°C 152
60°C 158
40°C 143
40°C 99
30°C 92
Pre-wash, wash cycle, rinse cycles, intermediate and final spin cycles
Wash cycle, rinse cycles, intermediate and final spin cycles
Wash cycle, rinse cycles, intermediate and final spin cycles
Wash cycle, rinse cycles, intermediate and final spin cycles
Wash cycle, rinse cycles, intermediate and final spin cycles
Wash cycle, rinse cycles, intermediate and final spin cycles
Synthetics
Heavily soiled fast colours (baby linen, etc.)
Fast colours (all types of slightly soiled garments)
Heavily soiled fast colours (baby linen, etc.)
Delicate colours (all types of slightly soiled garments)
Delicate colours (all types of slightly soiled garments)
6
6
7
8
9
60°C 80
40°C 71
50°C 75
40°C 71
30°C 30
Wash cycle, rinse cycles, anti-crease or delicate spin cycle
Wash cycle, rinse cycles, anti-crease or delicate spin cycle
Wash cycle, rinse cycles, anti-crease or delicate spin cycle
Wash cycle, rinse cycles, anti-crease or delicate spin cycle
Wash cycle, rinse cycles and delicate spin cycl
e
Delicates
Wool
Very delicate fabrics (curtains, silk, viscose, etc.)
PARTIAL PROGRAMMES
Rinse Rinse cycles and spin cycle
rinse cycle
Light
Spin cycle Draining and heavy duty spin cycle
spin cycle
Light
Drain Draining
10
11
40°C 50
30°C 52
Rinse cycles, anti-crease or draining
Wash cycle, rinse cycles and delicate spin cycle
Wash cycle, rinse cycles, anti-crease or draining cycle
Draining and delicate spin cycle
.
Notes
For the anti-crease function, please see page 7. The information contained in the table is purely indicative.
Special programme
Daily (programme 9 for Synthetics) is designed to wash lightly soiled garments in a short amount of time: it only lasts 30 minutes and allows you to save on both time and energy. By setting this programme (9 at 30°C), you can wash different fabrics together (except for woollen and silk items), with a maximum load of 3 kg.
We recommend the use of liquid detergent.
6
Personalisations
Setting the temperature
Turn the TEMPERATURE knob to set the wash temperature (see Programme table on page 6). The temperature can be lowered, or even set to a cold wash (
Functions
To enable a function:
1. press the button corresponding to the desired function, according to the table below;
2. the function is enabled when the corresponding button is illuminated.
Note: The rapid flashing of the button indicates that the corresponding function cannot be selected for the programme set.
).
GB
Function Effect Comments
Cuts the duration
Rapid
Extra R ins e
1200-600
Anti-crease
This function interrupts the wash programme, and the washing is left to soak in water before the appliance is drained. It is enabled in programmes 6 - 7 - 8 - 11 and Delicate rinse cycle. To conclude the cycle, press the START/RESET button. To run the draining cycle alone, set the knob to the relative symbol
of the wash cycle by 30%.
Increases the efficiency of the rinse.
Reduces the spin speed.
Recommended when the appliance has a full load or with large quantities of detergent.
and press the START/RESET button.
Enabled with programmes:
1, 2, 3, 4, 5, 6, 7, 8
1, 2, 3, 4, 5, 6, 7, 8, and Rinse cycles.
All programmes except for 11 and draining.
Note: to avoid excessive vibrations, before every spin cycle the machine distributes the load in a uniform manner by continuously rotating the drum at a speed which is slightly faster than the normal washing speed. When, despite repeated attempts, the load is still not evenly distributed, the machine spins at a lower speed than the set frequency. If the load is excessively unbalanced, the machine attempts to distribute it instead of spinning. The balancing attempts may extend the total duration of the cycle, up to a maximum of 10 minutes.
7
Detergents and laundry
GB
Detergent dispenser
Good washing results also depend on the correct dose of detergent: adding too much detergent won't necessarily make for a more efficient wash, and may in fact cause build up on the interior of your appliance and even pollute the environment.
Open up the detergent dispenser and pour in the detergent and fabric softener, as follows.
3
2
1
compartment 1: Detergent for pre-wash (powder) compartment 2: Detergent for the wash cycle (powder or liquid)
Liquid detergent should only be poured in immediately prior to the wash cycle start.
compartment 3: Additives (fabric softeners, etc.)
The fabric softener should not overflow from the grid.
Do not use hand wash detergent because it may
form too much foam.
Special items
Curtains: fold curtains and place them in a pillow
case or mesh bag. Wash them separately without exceeding half the appliance load. Use programme 11 which excludes the spin cycle automatically. Quilted coats and windbreakers: if they are padded with goose or duck down, they can be machine-washed. Turn the garments inside out and load a maximum of 2-3 kg, repeating the rinse cycle once or twice and using the delicate spin cycle. Wool: for best results, use a specific detergent, taking care not to exceed a load of 1 kg.
Preparing your laundry
 Divide your laundry according to:
- the type of fabric/the symbol on the label.
- the colours: separate coloured garments from
whites.  Empty all pockets and check for loose buttons.  Do not exceed the weight limits stated below,
which refer to the weight when dry:
Sturdy fabrics: max 5 kg
Synthetic fabrics: max 2.5 kg
Delicate fabrics: max 2 kg
Wool: max 1 kg
How much does your laundry weigh?
1 sheet 400-500 g
1 pillow case 150-200 g
1 tablecloth 400-500 g
1 bathrobe 900-1200 g
1 towel 150-250 g
8
Precautions and advice
The washing machine was designed and built in
compliance with the applicable international safety regulations. The following information is provided for your safety and should consequently be read carefully.
General safety
 This appliance has been designed for non-
professional, household use and its functions must not be changed.
 This washing machine should only be used by
adults and in accordance with the instructions provided in this manual.
 Never touch the washing machine when barefoot
or with wet or damp hands or feet.
 Do not pull on the power supply cable to unplug
the appliance from the electricity socket. Pull the plug out yourself.
 Do not open the detergent dispenser while the
appliance is in operation.
 Do not touch the drain water as it could reach
very high temperatures.
 Never force the washing machine door: this could
damage the safety lock mechanism designed to prevent any accidental openings.
The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.
Saving energy and respecting the environment
Environmentally-friendly technology
If you only see a little water through your appliance door, this is because thanks to the latest Indesit technology, your washing machine only needs less than half the amount of water to get the best results: an objective reached to respect the environment.
Saving on detergent, water, energy and time
 To avoid wasting resources, the washing machine
should be used with a full load. A full load instead of two half loads allows you to save up to 50% on energy.
 The pre-wash cycle is only necessary on
extremely soiled garments. Avoiding it will save on detergent, time, water and between 5 and 15% energy.
GB
 In the event of a malfunction, do not under any
circumstances touch internal parts in order to attempt repairs.
 Always keep children well away from the
appliance while in operation.
 The appliance door tends to get quite hot during
the wash cycle.
 Should it have to be moved, proceed with the
help of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.
 Before loading your laundry into the washing
machine, make sure the drum is empty.
Disposal
 Disposing of the packaging material:
observe local regulations, so the packaging can be re-used.
 The European Directive 2002/96/EC on Waste
Electrical and Electronic Equipment, requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.
 Treating stains with a stain remover or leaving them
to soak before washing will cut down the need to wash them at high temperatures. A programme at 60°C instead of 90°C or one at 40°C instead of 60°C will save up to 50% on energy.
 Use the correct quantity of detergent depending
on the water hardness, how soiled the garments are and the amount of laundry you have, to avoid wastage and to protect the environment: despite being biodegradable, detergents do contain ingredients that alter the natural balance of the environment. In addition, avoid using fabric softener as much as possible.
 If you use your washing machine from late in the
afternoon until the early hours of the morning, you will help reduce the electricity board's peak load.
 If your laundry has to be dried in a tumble dryer,
select a high spin speed. Having the least water possible in your laundry will save you time and energy in the drying process.
9
Care and maintenance
GB
Cutting off the water or electricity supply
 Turn off the water tap after every wash. This will
limit the wear of your appliance's water system and also prevent leaks.
 Unplug your appliance when cleaning it and
during all maintenance operations.
Cleaning your appliance
The exterior and rubber parts of your appliance can be cleaned with a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.
Cleaning the detergent dispenser
Remove the dispenser by pulling it out (see figure). Wash it under running water; this operation should be repeated frequently.
Cleaning the pump
The washing machine is fitted with a self-cleaning pump that does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the pre-chamber that protects the pump, situated in the lower part of the same.
Make sure the wash cycle has ended and unplug
the appliance.
To access the pre-chamber:
1. using a screwdriver, remove the cover panel on the lower front of the washing machine (see figure);
2. unscrew the lid rotating it anti­clockwise (see figure): a little water may trickle out. This is perfectly normal;
Caring for your appliance door and drum
 Always leave the appliance door ajar to prevent
unpleasant odours from forming.
3. clean the interior thoroughly;
4. screw the lid back on;
5. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.
Checking the water inlet hose
Check the water inlet hose at least once a year. If you see any cracks, replace it immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.
Never use hoses that have already been used.
10
Troubleshooting
Your washing machine could fail to work. Before calling for Assistance (see page 12), make sure the problem can't easily be solved by consulting the following list.
Problem
The washing machine won't start.
The wash cycle won't start.
The washing machine fails to load water.
The washing machine continuously loads and unloads water.
Possible causes/Solution:
 The appliance is not plugged into the socket, or not enough to
make contact.
 There has been a power failure.
 The appliance door is not shut properly.  The  The START/RESET button has not been pressed.  The water tap is not turned on.
 The water inlet hose is not connected to the tap.  The hose is bent.  The water tap is not turned on.  There is a water shortage.  The water pressure is insufficient.  The START/RESET button has not been pressed.
 The drain hose is not fitted between 65 and 100 cm from the floor
(see page 3).  The free end of the hose is underwater (see page 3).  The wall drainage system doesn't have a breather pipe. If the problem persists even after these checks, turn off the water tap, switch the appliance off and call for Assistance. If the dwelling is on one of the upper floors of a building, there may be drain trap problems causing the washing machine to load and unload water continuously. In order to avoid such an inconvenience, special anti-drain trap valves are available in shops.
button has not been pressed.
GB
The washing machine does not drain or spin.
The washing machine vibrates too much during the spin cycle.
The washing machine leaks.
The ON-OFF/DOOR LOCK Led flashes rapidly at the same time as at least one other LED.
There is too much foam.
 The programme does not foresee the draining: some programmes
require enabling the draining manually (see page 6).  The Anti-crease function is enabled: to complete the programme,
press the START/RESET button (see page 7).  The drain hose is bent (see page 3).  The drain duct is clogged.
 The drum was not unblocked correctly during installation (see page 2).  The washing machine is not level (see page 2).  The washing machine is closed in between furniture cabinets and
the wall (see page 2).
 The water inlet hose is not screwed on correctly (see page 2).  The detergent dispenser is obstructed (to clean it, see page 10).  The drain hose is not secured properly (see page 3).
 Switch off the machine and unplug the appliance; wait for
approximately 1 minute then switch it on again. If the problem persists, contact Assistance.
 The detergent is not suitable for machine washing (it should bear
the definition "for washing machines" or "hand and machine wash",
or the like).  You used too much detergent.
11
Service
GB
Before calling for Assistance:
Check whether you can solve the problem on your own (see page 11);  Restart the programme to check whether the problem has been solved;If this is not the case, contact an authorised Technical Service Centre on the telephone number
provided on the guarantee certificate.
Always request the assistance of authorised servicemen.
Notify the operator of:
 the type of problem;  the appliance model (Mod.);  the serial number (S/N). This information can be found on the data plate situated on the rear of the washing machine.
12
Istruzioni per luso
LAVABIANCHERIA
I
Italiano
WIN 121
Sommario
I
Installazione, 14-15
Disimballo e livellamento Collegamenti idraulici ed elettrici Primo ciclo di lavaggio Dati tecnici
Descrizione della lavabiancheria, 16-17
Pannello di controllo Spie
Avvio e Programmi, 18
In breve: avviare un programma Tabella dei programmi
Personalizzazioni, 19
Impostare la temperatura Funzioni
Detersivi e biancheria, 20
Cassetto dei detersivi Preparare la biancheria Capi particolari
Precauzioni e consigli, 21
Sicurezza generale Smaltimento Risparmiare e rispettare lambiente
Manutenzione e cura, 22
Escludere acqua e corrente elettrica Pulire la lavabiancheria Pulire il cassetto dei detersivi Curare oblò e cestello Pulire la pompa Controllare il tubo di alimentazione dellacqua
Anomalie e rimedi, 23
Assistenza, 24
13
Installazione
È importante conservare questo libretto per poterlo
I
consultare in ogni momento. In caso di vendita, di cessione o di trasloco, assicurarsi che resti insieme alla lavabiancheria per informare il nuovo proprietario sul funzionamento e sui relativi avvertimenti.
Leggere attentamente le istruzioni: ci sono
importanti informazioni sullinstallazione, sulluso e sulla sicurezza.
Disimballo e livellamento
Disimballo
1. Disimballare la lavabiancheria.
2. Controllare che la lavabiancheria non abbia subìto danni nel trasporto. Se fosse danneggiata non collegarla e contattare il rivenditore.
3. Rimuovere le 3 viti di protezione per il traspor­to e il gommino con il relativo distanziale, posti nella parte posteriore (vedi figura).
4. Chiudere i fori con i tappi di plastica in dotazione.
5. Conservare tutti i pezzi: qualora la lavabiancheria debba essere trasportata, dovranno essere rimontati.
Gli imballaggi non sono giocattoli per bambini.
Un accurato livellamento dà stabilità alla macchina ed evita vibrazioni, rumori e spostamenti durante il funzionamento. In caso di moquette o di un tappeto, regolare i piedini in modo da conservare sotto la lavabiancheria uno spazio sufficiente per la ventila­zione.
Collegamenti idraulici ed elettrici
Collegamento del tubo di alimentazione dellacqua
1. Inserire la guarnizione A nellestremità del tubo di alimentazione e avvitarlo a un rubinetto
A
3. Fare attenzione che nel tubo non ci siano né pieghe né strozzature.
dacqua fredda con bocca filettata da 3/4 gas (vedi figura). Prima di allacciare, far scorrere lacqua finché non sia limpida.
2. Collegare il tubo di alimentazione alla lavabiancheria avvitandolo allapposita presa dacqua, nella parte posteriore in alto a destra (vedi figura).
Livellamento
1. Installare la lavabiancheria su un pavimento piano e rigido, senza appoggiarla a muri, mobili o altro.
2. Se il pavimento non fosse perfettamente orizzontale, compensare le irregolarità svitando o avvitando i piedini anteriori (vedi figura); langolo di inclinazione, misurato sul piano di lavoro, non deve supe­rare i 2°.
14
La pressione idrica del rubinetto deve essere
compresa nei valori della tabella Dati tecnici
(vedi pagina a fianco).
Se la lunghezza del tubo di alimentazione non
fosse sufficiente, rivolgersi a un negozio specializzato o a un tecnico autorizzato.
Non utilizzare mai tubi già usati.
Collegamento del tubo di scarico
Collegare il tubo di scarico, senza piegarlo, a una conduttura di scarico o a uno scarico a muro posti tra 65 e
65 - 100 cm
100 cm da terra;
Non usare prolunghe e multiple.
I
Il cavo non deve subire piegature o compressioni.
Il cavo di alimentazione deve essere sostituito solo
da tecnici autorizzati.
Attenzione! Lazienda declina ogni responsabilità qualora queste norme non vengano rispettate.
Primo ciclo di lavaggio
oppure appoggiarlo al bordo di un lavandino o di una vasca, legando la guida in dotazione al rubinetto (vedi figura). Lestremità libera del tubo di scarico non deve rimanere immersa nellacqua.
È sconsigliato usare tubi di prolunga; se indispen-
sabile, la prolunga deve avere lo stesso diametro del tubo originale e non superare i 150 cm.
Collegamento elettrico
Prima di inserire la spina nella presa della corrente, accertarsi che:  la presa abbia la messa a terra e sia a norma
di legge;
 la presa sia in grado di sopportare il carico
massimo di potenza della macchina, indicato nella tabella Dati tecnici (vedi a fianco);
 la tensione di alimentazione sia compresa nei
valori indicati nella tabella Dati tecnici (vedi a fianco);
 la presa sia compatibile con la spina della
lavabiancheria. In caso contrario sostituire la presa o la spina.
La lavabiancheria non va installata allaperto,
nemmeno se lo spazio è riparato, perché è molto pericoloso lasciarla esposta a pioggia e temporali.
A lavabiancheria installata, la presa della corrente
deve essere facilmente raggiungibile.
Dopo linstallazione, prima delluso, effettuare un ciclo di lavaggio con detersivo e senza biancheria impostando il programma a 90°C senza prelavaggio.
Dati tecnici
Modello
Dimensioni
Capacità
Collegamenti
elettrici
Collegamenti idrici
Velo cit à di centrifuga
Programmi di
controllo secondo
la norma EN 60456
WIN 121
larghezza cm 59,5 altezza cm 85 profondità cm 52,5
da 1 a 5 kg
vedi la targhetta caratteristiche tecniche applicata sulla macchina
pressione massima 1 MPa (10 bar) pressione minima 0,05 MPa (0,5 bar) capacità del cesto 46 litri
sino a 1200 giri al minuto
programma 3; temperatura 60°C; effettuato con 5 kg di carico.
Questa apparecchiatura è conforme alle seguenti Direttive Comunitarie:
- 89/336/CEE del 03/05/89 (Compatibilità Elettromagnetica) e successive modificazioni
- 2002/96/CE
- 2006/95/CE (Bassa Tensione)
15
Descrizione della lavabiancheria
Pannello di controllo
I
Cassetto dei detersivi
Cassetto dei detersivi per caricare detersivi e
additivi (vedi pag. 20).
Spie per seguire lo stato di avanzamento del pro­gramma di lavaggio.
Tasti FUNZIONE per selezionare le funzioni disponi­bili. Il tasto relativo alla funzione selezionata rimarrà acceso.
Manopola TEMPERATURA per impostare la tempera­tura o il lavaggio a freddo (vedi pag. 19).
Tasti
FUNZIONE
Spia
Spie
Spia ACCENSIONE/OBLÒ BLOCCATO per capire se la lavabiancheria è accesa e se loblò è apribile (vedi pag. 17).
Tasto ACCENSIONE/SPEGNIMENTO per accen­dere e spegnere la lavabiancheria.
Manopola PROGRAMMI per impostare i programmi (vedi pag. 18). Durante il programma la manopola resta ferma.
ACCENSIONE/
OBLÒ BLOCCATO
Tasto
START/RESET
Manopola
TEMPERATURA
Tasto
ACCENSIONE/ SPEGNIMENTO
Manopola
PROGRAMMI
Tasto START/RESET per avviare i programmi o annullare quanto erroneamente impostato.
16
Spie
Le spie forniscono informazioni importanti. Ecco che cosa dicono:
Fase in corso:
Durante il ciclo di lavaggio le spie si accenderanno progressivamente per indicarne lo stato di avanza­mento:
Lavaggio
Risciacquo
Centrifuga
Nota: durante la fase di scarico si illuminerà la spia relativa alla fase Centrifuga.
Tasti funzione
I TASTI FUNZIONE fungono anche da spie. Selezionando una funzione il relativo tasto si illuminerà. Se la funzione selezionata non è compatibile con il programma impostato il tasto lampeggerà e la funzione non verrà attivata. Nel caso venga impostata una funzione incompatibi­le con unaltra precedentemente selezionata rimarrà attiva solo lultima scelta.
I
Spia ACCENSIONE/OBLÒ BLOCCATO
La spia accesa indica che loblò è bloccato per impedire aperture accidentali; per evitare danni è necessario attendere che la spia lampeggi prima di aprire loblò.
Il lampeggio veloce della spia ACCENSIONE/OBLÒ BLOCCATO contemporaneo a quello di almeno unaltra
spia segnala unanomalia (vedi pag. 23).
17
Avvio e Programmi
In breve: avviare un programma
I
1. Accendere la lavabiancheria premendo il tasto . Tutte le spie si accenderanno per qualche secondo, poi si spengono e la spia ACCENSIONE/ OBLÒ BLOCCATO inizierà a lampeggiare.
2. Caricare la biancheria e chiudere loblò.
3. Impostare con la manopola PROGRAMMI il programma desiderato.
4. Impostare la temperatura di lavaggio (vedi pag. 19).
5. Versare detersivo e additivi (vedi pag. 20).
6. Avviare il programma premendo il tasto START/RESET. Per annullare il ciclo impostato premere il tasto START/RESET per 2 secondi.
7. Al termine del programma la spia ACCENSIONE/ OBLÒ BLOCCATO lampeggerà indicando che loblò è apribile. Estrarre la biancheria e lasciare loblò socchiuso per far asciugare il cestello. Spegnere la lavabiancheria premendo il tasto
Tabella dei programmi
Natura dei tessuti e dello sporco
Programmi Temperatura
Detersivo
prelav. lavag.
Ammorbi-
dente
Cotone
Bianchi estremamente sporchi (lenzuola, tovaglie, ecc.)
Bianchi estremamente sporchi (lenzuola, tovaglie, ecc.)
Bianchi e colorati resistenti molto sporchi
Bianchi e colorati delicati molto sporchi
Bianchi poco sporchi e colori delicati (camice, maglie, ecc.)
Colorati delicati poco sporchi
1
2
3
3
4
5
90°C 167
90°C 152
60°C 158
40°C 143
40°C 99
30°C 92
Sintetici
Colori resistenti molto sporchi (biancheria per neonati, ecc.)
Colori resistenti (biancheria di tutti i tipi leggermente sporca)
Colori resistenti molto sporchi (biancheria per neonati, ecc.)
Colori delicati (biancheria di tutti i tipi leggermente sporca)
Colori delicati (biancheria di tutti i tipi leggermente sporca)
6
6
7
8
9
60°C 80
40°C 71
50°C 75
40°C 71
30°C 30
Delicati
Lana
Tessuti molto delicati (tende, seta, viscosa, ecc.)
PROGRAMMI PARZIALI
Risciacquo Risciacqui e centrifuga Risciacquo delicato Risciacqui, antipiega o scarico Centrifuga Scarico e centrifuga energica Centrifuga delicata Scarico e centrifuga delicata Scarico Scarico
10
11
40°C 50
30°C 52
Durata del ciclo (minuti)
Descrizione del ciclo di lavaggio
Prelavaggio, lavaggio, risciacqui, centrifughe intermedie e finale
Lavaggio, risciacqui, centrifughe intermedie e finale
Lavaggio, risciacqui, centrifughe intermedie e finale
Lavaggio, risciacqui, centrifughe intermedie e finale
Lavaggio, risciacqui, centrifughe intermedie e finale
Lavaggio, risciacqui, centrifughe intermedie e finale
Lavaggio, risciacqui, antipiega o centrifuga delicata
Lavaggio, risciacqui, antipiega o centrifuga delicata
Lavaggio, risciacqui, antipiega o centrifuga delicata
Lavaggio, risciacqui, antipiega o centrifuga delicata
Lavaggio, risciacqui, e centrifuga delicata
Lavaggio, risciacqui e centrifuga delicata
Lavaggio, risciacqui, antipiega o scarico
.
Note
Per la descrizione della funzione Antipiega vedi pag. 19.
I dati riportati nella tabella hanno valore indicativo.
Programma speciale
Refresh (programma 9 per Sintetici) è studiato per lavare capi leggermente sporchi in poco tempo: dura solo 30 minuti e fa così risparmiare energia e tempo. Impostando il programma (9 a 30°C) è possibile lavare insieme tessuti di diversa natura (esclusi lana e seta) con un carico massimo di 3 kg. Si consiglia l'uso di detersivo liquido.
18
Loading...
+ 42 hidden pages
