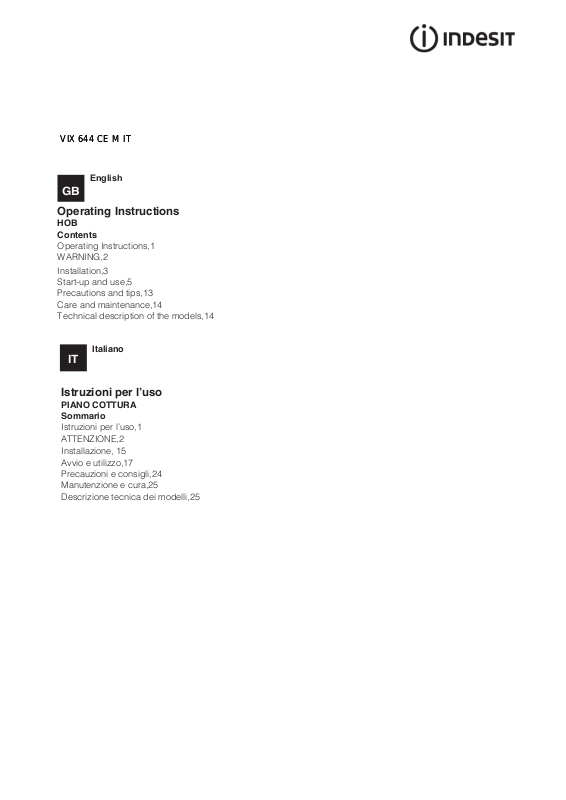

HOB Contents

Operating Instructions,1 WARNING,2

Installation,3 Start-up and use,5 Precautions and tips,13 Care and maintenance,14 Technical description of the models,14

Italiano

Istruzioni per l’uso

PIANO COTTURA Sommario

Istruzioni per l’uso,1 ATTENZIONE,2

Installazione, 15 Avvio e utilizzo,17 Precauzioni e consigli,24 Manutenzione e cura,25 Descrizione tecnica dei modelli,25

WARNING!

• WARNING: The appliance and its

accessible parts become hot during use.

• Care should be taken to avoid

touching heating elements.

• Children less than 8 years of age shall

be kept away unless continuously supervised.

• This appliance can be used by

children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• WARNING: Unattended cooking on a

hob with fat or oil can be dangerous and may result in fire.

• NEVER try to extinguish a fire with

water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

• WARNING: Danger of fire: do not

store items on the cooking surfaces.

• WARNING: If the surface in glass-

ceramic is cracked, switch off the appliance to avoid the possibility of electric shock.

•Never use steam cleaners or pressure

cleaners on the appliance.

•The appliance is not intended to be

operated by means of an external timer or separate remote control system.

• Do not place metal objects (knives,

spoons, pan lids, etc.) on the hob as they may become hot.

• After use, switch off the hob element

by its control and do not rely on the pan detector.

I T

ATTENZIONE!

• ATTENZIONE: Questo apparecchio e

le sue parti accessibili diventano molto caldi durante l’uso.

• Bisogna fare attenzione ed evitare di

toccare gli elementi riscaldanti.

• Tenere lontani i bambini inferiori agli 8

anni se non continuamente sorvegliati.

• Il presente apparecchio puo’ essere

utilizzato dai bambini a partire dagli 8 anni e da persone con ridotte capacita’ fisiche, sensoriali o mentali oppure con mancanza di esperienza e di conoscenza se si trovano sotto adeguata sorveglianza oppure se sono stati istruiti circa l’uso dell’apparecchio in modo sicuro e se si rendono conto dei pericoli correlati. I bambini non devono giocare con l’apparecchio. Le operazioni di pulizia e di manutenzione non devono essere effettuate dai bambini senza sorveglianza.

• ATTENZIONE: Lasciare un fornello

incustodito con grassi e olii puo’ essere pericoloso e puo’ provocare un incendio.

• Non bisogna MAI tentare di spegnere

una fiamma/incendio con acqua, bense bisogna spegnere l’apparecchio e coprire la fiamma per esempio con un coperchio o con una coperta ignifuga

•ATTENZIONE: Rischio di incendio:

non lasciare oggetti sulle superfici di cottura.

•ATTENZIONE: Se la superficie

vetroceramica e’ incrinata, spegnere l’apparecchio per evitare la possibilita’ di scossa elettrica.

•Non utilizzare mai pulitori a vapore

o ad alta pressione per la pulizia dell’apparecchio.

•L’apparecchio non e’ destinato a

essere messo in funzione per mezzo di un temporizzatore esterno oppure di un sistema di comando a distanza

separato.

•Non posare oggetti metallici (coltelli,

cucchiai, coperchi, ecc.) sul piano perche’ possono diventare caldi.

•Dopo l’uso, spegnere il piano cottura

per mezzo del suo dispositivo di comando e non fare affidamento sul rivelatore di pentole.

Description of the appliance

Control panel

Installation

The control panel described in this manual is only a representative example: it may not exactly match the panelon your appliance.

When using the touch control pannel panel:

•

Do not use gloves

•

Use a clean finger

•

Touch the glass smoothly

1 INCREASE(+)/REDUCE(-) POWER button - controls

the power level on every individual cooking zone

2 INCREASE (+)/ REDUCE(-) TIME button -controls the

time of cooking on the cooking zones.

3 COOKING ZONE POWER displays -show the power

level selected for every individual cooking zone

4 ON/OFF button switches the appliance on and off. 5 CONTROL PANEL LOCK button prevents accidental

changes to the hob settings and shows the control panel has been locked

6. .TIMER display -shows the cookig time selected .

7. .MOKA

buttom - activated moka function

Before operating your new appliance please read this instruction booklet carefully. It contains important information concerning the safe operation, installation and maintenance of the appliance.

Please keep these operating instructions for future reference. Pass them on to any new owners of the appliance.

Positioning

Keep all packaging material out of the reach of children.

It may present a choking or suffocation hazard (see Precautions and tips).

The appliance must be installed by a qualified

professional in accordance with the instructions provided. Incorrect installation may cause harm to people and animals or may damage property.

Built-in appliance

Use a suitable cabinet to ensure that the appliance functions properly.

• The supporting surface must be heat-resistant up to a

temperature of approximately 100°C.

• If the appliance is to be installed above an oven,

the oven must be equipped with a forced ventilation cooling system.

• Avoid installing the hob above a dishwasher:

if this cannot be avoided, place a waterproof separation device between the two appliances.

! For detailed information on the control panel functions refer to “Start-up and use” section.

! This product complies with the requirements of the latest European Directive on the limitation of power consumption of the standby mode. If no operations are carried out for a period of 2 minutes, after the residual heat indicator lights turn off and the fan stops (if present), the appliance automatically switches to the .off mode.. The appliance resumes the operating mode once the ON/OFF button is pressed.

! Depending on the number of heaters/cooking zones on the hob the COOKING ZONE SELECTED INDICATORS may vary between 3 and 4

Ventilation

To allow adequate ventilation and to avoid overheating of the surrounding surfaces the hob should be positioned as follows:

• At a minimum distance of 40 mm from the back panel

or any other vertical surfaces.

• So that a minimum distance of 20 mm is maintained

between the installation cavity and the cabinet underneath.

• Kitchen cabinets adjacent to the appliance and taller

than the top of the hob must be at least 200 mm from the edge of the hob.

Fixing

The appliance must be installed

supporting surface. Any deformities caused by improper fixing could affect the features and operation of the hob. The thickness of the supporting surface

into account when choosing

the fixing hooks:

• 3,5 mm thick: 9,5 mm screws

on a perfectly level

should be taken

the length of the screws for

Installation of the safety washer

CABINET DIMENSIONS

490

Min. 30/Max.50

SAFETY DISTANCES WITH FURNITURE

Min 5mm

560

Min 20mm

30mm

Fix the hob as follows:

1. Use short flat-bottomed screws to fix the 4 alignment springs in the holes provided at the central point of each side of the hob.

2. Place the hob in the cavity, make sure it is in a central position and push down on the whole perimeter until the hob is stuck to the supporting surface.

! The screws for the alignment springs must remain

accessible.

! In order to adhere to safety standards, the appliance

must not come into contact with electrical parts once it has been installed.

! All parts which ensure the safe operation of the

appliance must not be removable without the aid of a tool.

Electrical connection

! The electrical connection for the hob and for any built-

in oven must be carried out separately, both for safety purposes and to make extracting the oven easier.

Single-phase connection

Tensione e

frequenza corrente

220-240V 1+N ~

50/60 Hz

The hob is equipped with a pre-connected electricity supply cable, which is designed for single-phase connection. Connect the wires in accordance with the instructions given in the following table and diagrams:

Other types of connection

If the mains supply corresponds with one of the following:

Tensione e

frequenza corrente

400V - 2+N ~

50/60 Hz

220-240V 3 ~

50/60 Hz

Voltage and mains frequency

• 400V - 2+N ~ 50/60 Hz

• 220-240V 3 ~ 50/60 Hz Separate the wires and connect them in accordance with the instructions given in the following table and diagrams:

Connecting the electricity supply cable to the mains

If the appliance is being connected directly to the electricity mains an omnipolar switch must be installed with a minimum opening of 3 mm between contacts.

! The installer must ensure that the correct electrical

connection has been made and that it is fully compliant with safety regulations.

Cavo elettrico Collegamento cavi

: giallo/verde

N: i due cavi blu insieme L: marrone e nero insieme

Cavo elettrico Collegamento cavi

: :

giallo/verde

N: i due cavi blu insieme

L1: nero L2: marrone

Start-up and use

The user interface has implemented an initial keyboard calibration focused to adapt the sensibility of the keys, to the final mechanical, environmental and user conditions. Any time the cooktop is plugged or there is a power failure that generates a reset in the user interface, the first time the key lock is touched the sensitivity of the keyboard is readjusted. The first touch of the key lock must be done in certain conditions:

-do not use gloves

-use a clean finger

-touch the glass (smooth touching)

Before connecting the appliance to the power supply, make sure that:

• The socket can withstand the maximum power of the appliance, which is indicated on the data plate located on the appliance itself.

• The voltage falls within the range of values indicated on the data plate.

• The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets.

! Once the appliance has been installed, the power supply

cable and the electrical socket must be easily accessible.

! The cable must not be bent or compressed. ! The cable must be checked regularly and replaced by

authorised technicians only.

! The manufacturer declines any liability should these

safety measures not be observed.

! Do not remove or replace the power supply cable for any reason. Its removal or replacement will void the warranty and the CE marking. INDESIT does not assume liability for accidents or damage arising from replacement/removal of the original power supply cable. Replacement can only be accepted when carried out by personnel authorised by INDESIT and using an original spare part.

! The glue applied on the gaskets leaves traces of grease

on the glass. Before using the appliance, we recommend you remove these with a special non-abrasive cleaning product. During the first few hours of use there may be a smell of rubber which will disappear very quickly.

! A few seconds after the hob is connected to the electricity

supply, a buzzer will sound. The hob may now be switched on.

Types of noise during normal hob operation:

• Buzz: due to the vibration of the metallic parts that make up the induction element and the pot; it is generated by the electromagnetic field required for heating and increases as the power of the induction element increases.

• Soft whistle: heard when the pot placed on the heating zone is empty; the noise disappears once food or water is placed into the pot.

• Crackle: produced by the vibration of materials on the bottom of the pot due to the flow of parasitic currents caused by electromagnetic fields (induction); can be more or less intense depending on the material making up the bottom of the pot, and decreases as the pot dimensions increase.

• Loud whistle: heard when two induction elements of the same group function simultaneously at maximum power and/or when the booster function is set on the larger element while the other is auto-adjusted. Noise is reduced by decreasing the power level of the autoadjusted induction element; pot bottom layers made of different kinds of materials are among the main causes of this noise.

• Fan noise: a fan is necessary to ensure the hob functions correctly and to safeguard the electronic unit from possible overheating. The fan functions at maximum power when the large induction element is at maximum power or when the booster function is on; in all other cases, it works at average power depending on the temperature detected. Furthermore, the fan may continue to work even after switching the hob off, if the temperature detected is high.

The types of noise listed above are due to induction technology and are not necessarily operational faults.

If the (-)or (+)button is pressed for an extended period of

time, the display scrolls quickly though the power levels and timer minutes.

Switching on the hob

After connecting the hob to the electrical grid, the touch pannel might be automatically locked. To unclock the pannel press and hold the Control Panel

Loock button .

To switch the hob on, press and hold the button for approximately one second.

The cooktop is switched On when a beep sound is emitted and the cooking zones display shows the „0”

When the cooktop is off, after 5 sec. without any error/ alarm or residual heat to display, the control switches

in order to reduce power

off the (KEYLOCK LED) consumption. As soon as we touch a key, the (KEYLOCK

LED) usual. Switching off the cooktop is signalled by 3 beep sound.

goes on and we can continue to operate as

Initial Light Conditions

When power is initially applied to the Cooktop, the touch control conducts a calibration process for the touch keys, which requires a low level of ambient light in the area of the touch keys. If during this calibration process excessive ambient lighting is detected the User Interface displays „FL” (Infrared Ambient Light Error) and the control calibration process is suspended. In order to rectify the process any lighting that could effect the calibration process should be switched off (e.g. halogen cooker hood lighting). The error will disappear when satisfactory ambient lighting is detected and the touch control calibration procedure will now complete satisfactorily.

-The „FL” error can only be generated within approx 3s

of initial power being applied to the cooktop.

-We recommend that the user switches off all cooker

hood lighting and lighting directed towards the cooktop when power is initially applied to the cooktop.

-After the touch control has conducted its initial calibra-

tion process, (approx 3s) any cooker hood or other lighting can be switched on as normal and will not affect the

operation of the touch control.

Only available in certain models.

Switching on the cooking zones

Each cooking zone is switched on and controlled using the

(-) and (+) POWER buttons, which at the same time are used for power adjustment.

• To begin operating a cooking zone, set the desired power level (between 0 and 9) using the (-) and (+) POWER buttons

Press and hold the (-) POWER button to set the power level immediately at “9”

Press and hold (+) and (-) POWER buttons simulta neously to return to power level “0” If the power level is “0” press and hold the (+) button to increase the power level quickly.

Fast Boil- “Booster” function

The booster function for some of the cooking zones may be used to shorten heating-up times. It may be activated by pressing the (+) POWER button over level 9. This function boosts the power to 1600 W or 2000 W, depending on the size of the relevant cooking zone. The activation of of the booster is signalled by a beep sound, and the letter ‘P’ appearing on the display corresponding to the selected cooking zone

The booster works for max 10 minutes. After these 10 minutes a beep sounds and the cooking zone will return to level “9”

With the heater at Booster level, if the [+] key is Touched an error beep sounds and the cookset doesn’t change. With the heater at Booster level, if the [-] key is Touched a beep sounds and the cookset is reduced to 9.

Switching off the cooking zones

To switch off a cooking zone touch(-)and (+) POWER selection buttons simultaneously. A beep sounds and the corresponding display shows

“0”.

Using the Timer

! All the cooking zones can be programmed simultaneously, for a duration between 1 and 99 minutes.

1.Activate the timer by pressing the INCREASE / REDUCE TIME buttons. A beep sounds, the timer display shows a “00” and the cooking zone displays show a “t” blinking indicating that a cooking zone has to be selected. 2 Select the desired cooking zone by pressing any of the cooking zones (+) or (-)keys. A beep sounds, the LED next to the cooking zone display starts blinking if no power is selected, or is on if any power is selected. The timer display starts blinking indicating that the time has to be selected

3. Set the desired cooking time by pressing again the INCREASE / REDUCE TIME buttons.

!Pressing and holding the (+) and (-) keys increases the speed of time selection. ! If the time is not selected before 10 seconds, the timer is switched off. ! If the selected time is “00” after 10 seconds the timer is switched off.

! If the moka function is active the timer cannot be set for the cooking zone. !If the moka function is activated being the cooking zone timed the timer operation is cancelled.

Starting Timer countdown.

The countdown starts 10 seconds after the last operation

over the

INCREASE (+)/ REDUCE(-) TIME buttons

. If any power is selected, a beep sounds and the timer display stops blinking. The same happens to the led heater. The last minute will be displayed in seconds. ! When the timer is in countdown the user can change the time at any time by touching the

/ REDUCE TIME buttons

. Then the countdown

INCREASE

stops and the timer changes to time selection status waiting a time selection.

Using multiple programmers and the display

If one or more hotplates are programmed, the display will show the data for the hotplate with the least time remaining, and the light corresponding to the position of the hotplate will flash. The lights corresponding to the other hotplates programmed will be switched on. To visualise the time remaining for the other programmed hotplates, press the INCREASE / REDUCE TIME buttons and select the desired cooking zone by pressing any of the cooking zones (+) or (-)keys. The remaining time will be shown for 10 seconds.

End of Timer countdown.

When the time set on the timer has elapsed the timed heater is switched off, the timer display and the timed heater led starts blinking and a timer alarm beep sounds for one minute. The timer alarm can be cancelled by the user at any time, even during the first minute of the alarm . When the timer is in alarm status, by pressing any key of the touch control the timer is switched off. ! To cancel the operation of the timer, select the time value of “00”pressing the(+) and(-) TIME buttons at the same time. ! When all the cooking zones are not powered, and one of them is temporized at zero power level, the key-lock function is activated after 1 minute.

Control panel lock

When the hob is switched on, it is possible to lock the oven controls in order to avoid accidental changes being made to the settings (by children, during cleaning, etc.).

Press the will illuminate and an audible beep sound will be emmited. To use any of the controls (e.g. to stop cooking), you

must switch off this function. Press the few moments, the icon will stop illuminating and the lock function will be removed.

All the keys on the cooking zone selection wil be locked if :the cooktop is off,, if the Control Panel Lock is activated or if an error on a cooktop occurs..

button to lock the control panel: -the icon

Switching off the hob

Press the button to switch off the appliance - do not rely solely on the pan sensor. If the control panel lock has been activated, the controls will continue to be locked even after the hob is switched on again. In order to switch the hob on again, you must first remove the lock function.

button for a

Practical advice on using the appliance

SUITABLE

UNSUITABLE

Cast iron

Enamelled steel

Special stainless steel

Copper,

Aluminium, Glass, Earthenware,

Ceramic, non magnetic Stainless steel

! Use cookware made from materials which are compatible with the induction principle (ferromagnetic material). We especially recommend pans made from: cast iron, coated steel or special stainless steel adapted for induction. Use a magnet to test the compatibility of the cookware.

! Do not use adapters, diffusers, or metal plates on the cooking zones .They may have a detrimental effect upon the hob’s performance, and might damage the hob’s aesthetics.

In addition, to obtain the best results from your hob:

• Use pans with a thick, flat base in order to fully utilise the cooking zone.

• Always use pans with a diameter which is large enough to cover the hotplate fully, in order to use all the available heat.

• An incompatible pan

• A pan whose diameter is too small

• The pan has been removed from the hotplate. After 10 sec. with no pan on the heating zone, a warning beep signal is emmited. After 60 sec. with no pan on the heating zone,, the heater switches off.

Overheating protection

If the electronic elements overheat, the number signalizing the power level starts flashing, and the letter “c” appears on the display. When the temperature has reached a suitable level, this message disappears and the hob may be used again.

Safety switch

The appliance has a safety switch which automatically switches the cooking zones off after they have been in operation for a certain amount of time at a particular power level. When the safety switch has been triggered, the display shows “0”. For example: the right rear hotplate is set to 5 and will switch off after 5 hours of continuous operation, while the front left hotplate is set to 2 and will switch off after 8 hours.

When one or more keys are activated for more than 10 sec. the touch control. switches off A warning beep sounds is emitted every 10 sec., while the key/s is/are activated. With all heaters at zero power during 10 sec. the Cooktop is switched off. If the switching off is due to an accidental activa-

tion of keys, the touch control actuates as above.

• Make sure that the base of the cookware is always clean and dry, in order to fully utilise and extend the life of both the cooking zones and the cookware.

• Avoid using the same cookware which has been used on gas burners: the heat concentration on gas burners may distort the base of the pan, causing it not to adhere correctly.

• ! Do not leave an empty pot on any cooking zone, while the zone is active, as it might damage the hob.

Safety devices

Pan sensor

Each cooking zone is equipped with a pan sensor device. The hotplate only emits heat when a pan with suitable measurements for the cooking zone is placed on it.

The “u” sign on the display appears if after selecting the cooking zone the pan is not placed on a heater , or in case of:

Buzzer

This can also indicate several irregularities:

• An object (a pan, cutlery, etc.) has been placed on the control panel for more than 10 seconds.

• Something has been spilt on the control panel.

• A button has been pressed for too long. All of the above situations may cause the buzzer to sound. Remove the cause of the malfunction to stop the buzzer. If the cause of the problem is not removed, the buzzer will keep sounding and the hob will switch off.

Errors and Alarms

When an error is detected, the whole appliance or the heater/s are switched off, a beep sounds (only if one or more heaters are active) and all displays show a ‘F’ letter and the error code (an index number or a letter) alternately. If the problem does not disappear by itself, please contact the Technical Service.

+ 19 hidden pages
