INDESIT IDCA 735 (UK) User Manual

Instruction manual

TUMBLE DRYER

English,1

IDCA 735

Contents

Installation, 2

Where to install the tumble dryer Ventilation Electrical connections Preliminary information

Warnings, 4

General safety Saving energy and respecting the environment

Care and maintenance, 6

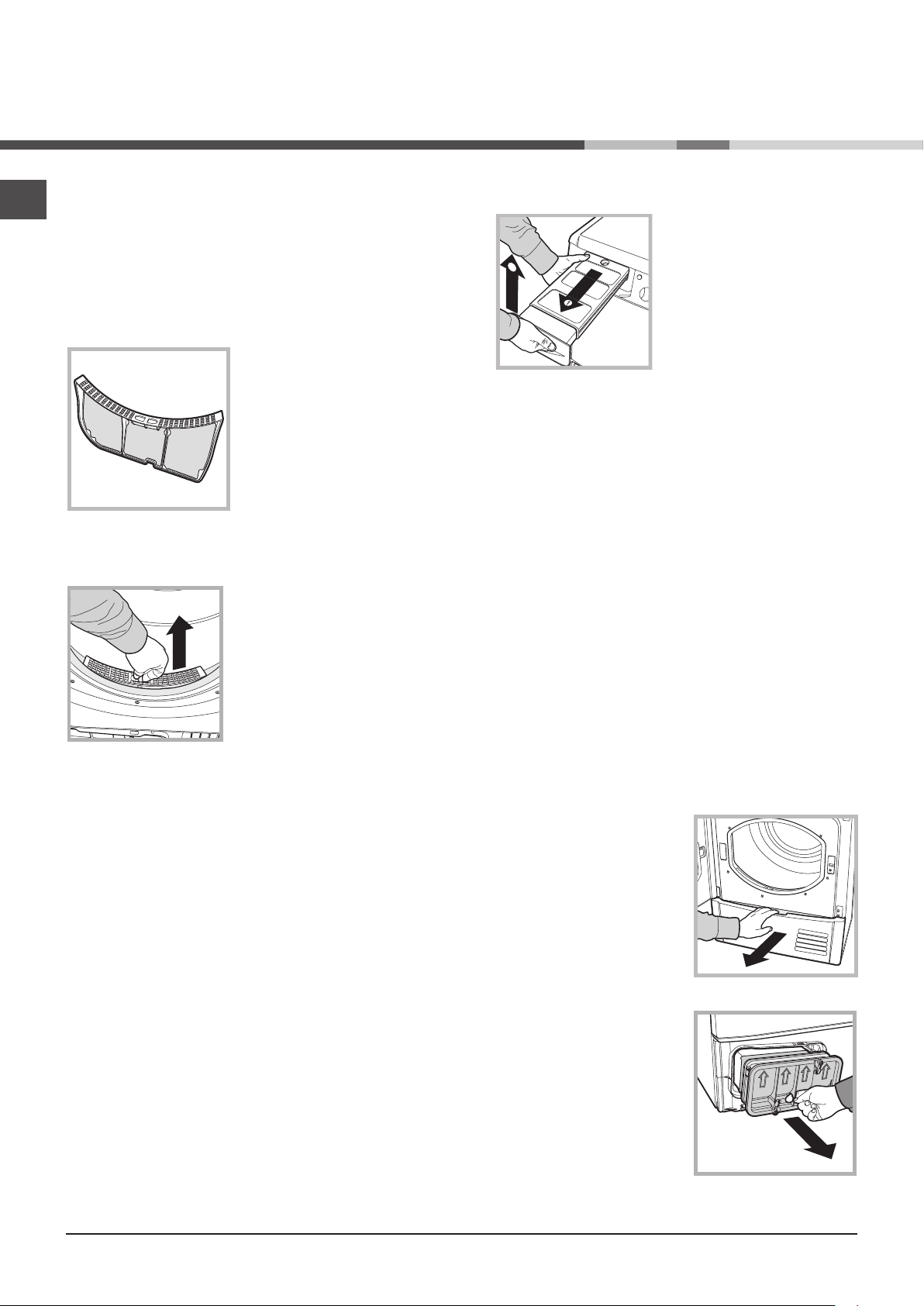

Disconnecting the power supply Cleaning the filter after each cycle Checking the drum after each cycle Emptying the water container after each cycle Cleaning the condenser unit Cleaning the tumble dryer

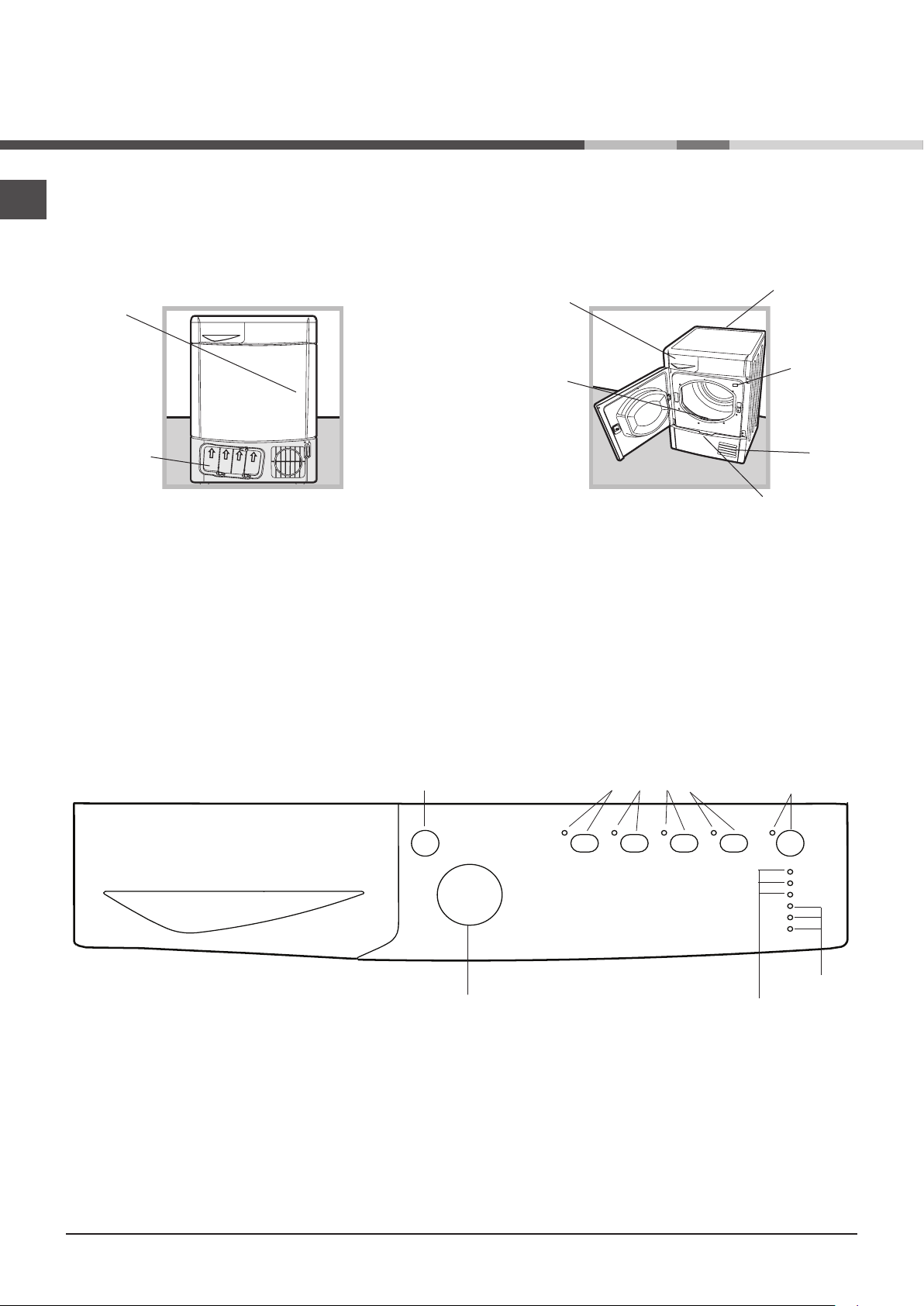

Description of the tumble dryer, 8

Features Control panel

How to carry out a drying cycle, 10

Starting and selecting a programme

www.indesit.co.uk

! This symbol reminds you to read this

instruction manual.

! Keep this manual at hand for immediate reference whenever

necessary. Always store this manual close to the tumble dryer and

remember to pass it on to any new owners when selling or tran-

sferring the appliance, so they may familiarise with the warnings

and suggestions herein contained.

! Read these instructions carefully: the following pages contain

important information on installation and useful suggestions for

operating the appliance.

Programmes and options, 11

Programme chart Special/Sport/Partial Programmes Options Opening the door

Laundry, 14

Sorting laundry Care labels Drying times

Troubleshooting, 15

Assistance, 16

Spare parts Essential Contact Information Information on recycling and disposal

10 mm

15 mm

Installation

Where to install the tumble dryer

• Install the dryer far from gas ranges, stoves, radiators or hobs, as flames may damage it. If the dryer is installed below a worktop, ensure there are 10 mm between the upper panel of the dryer and any objects above it, and 15 mm between the sides of the machine and the walls or furniture units adjacent to it. This ensures adequate air circulation. The appliance must be installed with the rear surface placed against a wall.

Ventilation

• The room must be adequately ventilated while the dryer is running. Make sure that the dryer is installed in a room free of humidity and with adequate air circulation. The flow of air around the dryer is essential to allow water to condense during drying; the dryer will not function properly if it is placed in an enclosed space or inside a cabinet.

! Some condensation may form if the dryer is used in a small

or cold room.

We do not recommend that the dryer is installed in a cupboard but the dryer must never be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the dryer door.

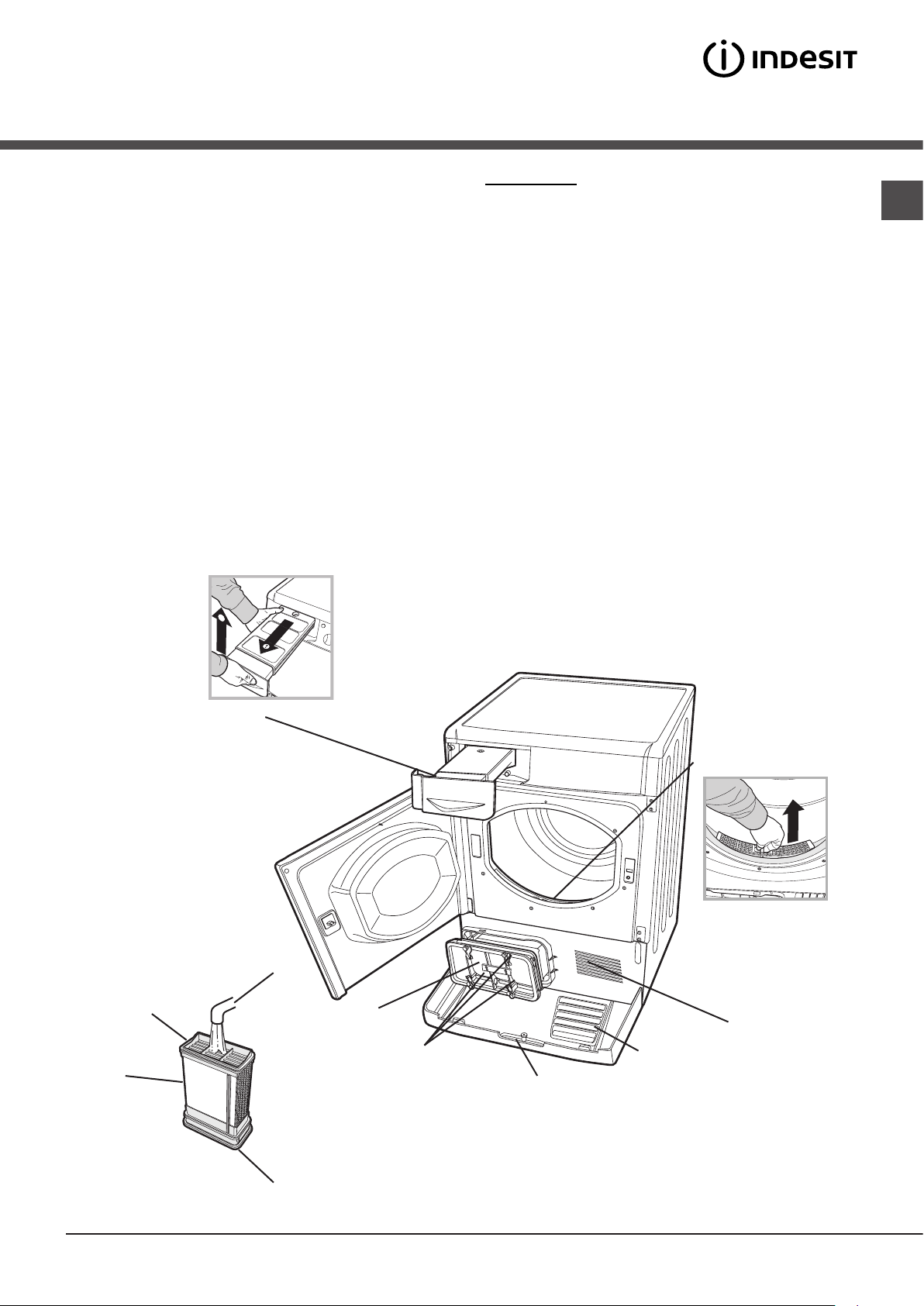

Water drain

If your dryer is installed next to a drain the water can be plumbed into this drain. This does away with the need to empty the water container. If the dryer is stacked onto or installed next to a washing machine it can share the same drain. The height of the drain must be less than 3’ (1 m) from the bottom of the dryer. Remove existing hose from position shown in picture A and fit a suitable length of hose and connect as shown in picture B.

! Make sure that the hose is not squashed or kinked

when the dryer is in its final location.

Electrical connections

Before plugging the appliance into the socket, check the following:

• Make sure your hands are dry.

• The socket must have an earth connection.

• The socket must be able to withstand the machine’s maximum power output as indicated on the rating plate (see Description

of the tumble dryer)

• The power supply voltage must fall within the values indicated on the data plate (see

Description of the tumble dryer).

• The socket must be compatible with the dryer’s plug. Should this not be the case, replace the plug or the socket.

! DO NOT USE EXTENSION CORDS. ! The dryer must not be installed outdoors,

even if the space is sheltered. It can be very dangerous if exposed to rain or storms. ! Once installed, the dryer’s electrical wire and plug must be within reach. ! The power cord must not be bent or squashed. ! If the plug being replaced is a non-rewirable type, then the cut-off plug must be disposed of safely. DO NOT leave it where it can be inserted into a socket and create a shock hazard. ! The power must be regularly checked. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. (see Assistance). New or longer electric cords are supplied by authorised dealers at a supplementary cost.

! The manufacturer denies any responsibility should any of these rules not be followed. ! If in doubt about any of the above consult a qualified electrician.

Preliminary information

Once the tumble dryer is installed, clean the inside of the drum before operating it and remove any dirt accumulated during transportation.

Picture A Picture B

Less than 1m

This household tumble drier is a Condenser

The weighted Annual Energy Consumption (AEc)* kWh 1) 562.9

This household tumble drier is a Automatic

Energy consumption full load; Edry - kWh 2) 4.79

Energy consumption partial load; Edry½ - kWh 2) 2.55

Power consumption: off-mode (Po) - Watts

Power consumption: left-on mode (Pl) - Watts 1.79

Prog. Time - weighted (Tt) full & partial load - minutes 3) 95

Full load (Tdry) - minutes 125

Partial load (Tdry½) - minutes 73

weighted (Ct) full & partial load 3) 71

full load (Cdry) 72

partial load (Cdry½) 70

Airborne acoustical noise emissions - dB(A) re 1 pW 69.0

Average condensation efficiency - %

1) "Standard cotton” at full and partial load is the standard programme to which the

Regulation 932/2012.

Condensation efficiency class on a scale from G (least efficient) to

Maximum load sizes: maximum 7 kg

roduct Data - Regulation 392/20 12.

Brand Indesit Model

IDCA 735 (UK)

Rated capacity of cotton laundry for the "standard cotton programme" at full load - kg

7.0

Energy efficiency class on a scale from A+++ (low consumption) to D (high consumption)

Duration of the 'left-on mode' for power management system minutes

A (most efficient)

information in the label and the fiche relates. The standard cotton program is suitable to dry at cupboard level (0%) cotton laundry and is the most efficient programme in terms of energy consumption. Partial load is half the rated load.

2) based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.

3) Weighted average of 3 cycles at full load and 4 cycles at half load.

Energy consumption in kWh, for program “Synthetics” full load 1.58

Programme time in minute, for program “Synthetics” full load 65

Partial load for program “Synthetics” N/A

Warnings

! This appliance has been designed and built according to international safety standards. These warnings are given for safety reasons and must be followed carefully.

General safety

• This appliance can be used by children

aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• This tumble dryer has been designed for home, and not professional, use.

• Do not touch the appliance while barefoot or with wet hands or feet.

• Unplug the machine by pulling on the plug, not the cord.

• After using the dryer, turn it off and unplug

it. Keep the door closed to make sure that children do not use it as a toy.

•Children should be supervised to ensure

that they do not play with the dryer.

• Cleaning and user maintenance shall not be

made by children without supervision.

•Children of less than 3 years should be

kept away from the appliance unless continuously supervised.

• The appliance must be installed correctly and have proper ventilation. The air intake at the front of the dryer should never be obstructed (see Installation).

• Never use the dryer on carpeting where the pile height would prevent air from entering the dryer from the base.

• Check to see if the dryer is empty before loading it.

• The back of the dryer could become very hot.

Never touch it while in use.

• Do not use the dryer unless the filter, watercontainer and condenser are securely in place (see Maintenance).

• Do not overload the dryer (see Laundry

for maximum loads).

• Do not load items that are dripping wet.

• Carefully check all instructions on clothing labels (see Laundry).

• Do not tumble dry large, very bulky items.

• Do not tumble dry acrylic fibres at high

temperatures.

• Do not turn off the dryer when there are still warm items inside.

• Clean the filter after each use (see Maintenance).

• Empty the water container after each use (see Maintenance).

�• Clean the condenser unit at regular intervals (see

Maintenance).

�• Do not allow lint to collect around the dryer.

• Never climb on top of the dryer. It could result in damage.

• Always follow electrical standards and requirements (see Installation).

• Always buy original spare parts and accessories (see Service).

To minimise the risk of fire in your tumble dryer, the following should be observed:

• Tumble dry items only if they have been

washed with detergent and water, rinsed and been through the spin cycle. It is a fire hazard to dry items that HAVE NOT been washed with water.

�• Do not dry garments that have been treated

with chemical products.

• Do not tumble dry items that have been spotted or soaked with vegetable or cooking oils, this constitutes a fire hazard. Oil-affected items can ignite spontaneously,especially when exposed to heat sources such as a tumble dryer. The items become warm, causing an oxidisation reaction with the oil, Oxidisation creates heat. If the heat cannot escape, items can become hot enough to catch fire. Piling, stacking or storing oil-effected items can prevent heat from escaping and so create a fire hazard.If it is unavoidable that fabrics containing vegetable or cooking oil or those that have been contaminated with hair care products be placed in a tumble dryer they should first be washed with extra detergent

- this will reduce, but not eliminate the hazard. They should not be removed from the dryer and piled or stacked while hot.

• Do not tumble dry items that have previously been cleaned in or washed in, soaked in or soiled with petrol/gasoline, dry cleaning solvents or other flammable or explosive substances. Highly flammable

substances commonly used in domestic environments including cooking oil, acetone, denatured alcohol, kerosene, spot removers, turpentine, waxes and wax removers. Ensure these items have been washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

�• Do not tumble dry items containing foam

rubber (also known as latex foam), or similarly textured rubber like materials. Foam rubber materials can, when heated, produce fire by spontaneous combustion.

�• Fabric softener or similar products should

not be used in a tumble dryer to eliminate the effects of static electricity unless the practice is specifically recommended by the manufacturer of the fabric softener product.

• Do not tumble dry undergarments that contain metal reinforcements eg. bras with metal reinforcing wires. Damage to the tumble dryer can result if the metal reinforcements come loose during drying.

�• Do not tumble dry rubber, plastic articles

such as shower caps or babies waterproof covers, polythene or paper.

• Do not tumble dry rubber backed articles, clothes fitted with foam rubber pads, pillows, galoshes and rubber coated tennis shoes.

• Remove all objects from pockets such as lighters and matches.

! WARNING: Never stop the dryer before

the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

Save energy and respect the environment

• Wring out all items to eliminate excess water before tumble drying (if you use a washing machine first, select a high spin cycle). Doing this will save time and energy during drying.

• Always dry full loads - you save energy: single items or small loads take longer to dry.

• Clean the filter after each use to contain energy consumption costs (see Maintenance).
