Indesit IDC85 User Manual

Instruction manual
TUMBLE DRYER
EN
English, 1
IDC 85

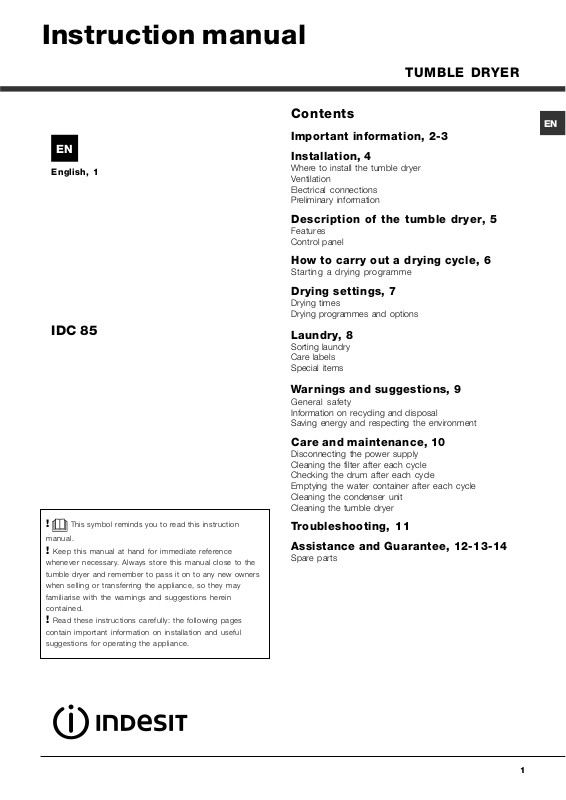

Contents
EN
Important information, 2-3 Installation, 4
Where to install the tumble dryer Ventilation Electrical connections Preliminary information
Description of the tumble dryer, 5
Features Control panel
How to carry out a drying cycle, 6
Starting a drying programme
Drying settings, 7
Drying times Drying programmes and options
Laundry, 8
Sorting laundry Care labels Special items
Warnings and suggestions, 9
General safety Information on recycling and disposal Saving energy and respecting the environment
This symbol reminds you to read this instruction
manual.
Keep this manual at hand for immediate reference
whenever necessary. Always store this manual close to the tumble dryer and remember to pass it on to any new owners when selling or transferring the appliance, so they may familiarise with the warnings and suggestions herein contained.
Read these instructions carefully: the following pages
contain important information on installation and useful suggestions for operating the appliance.
Care and maintenance, 10
Disconnecting the power supply Cleaning the filter after each cycle Checking the drum after each cycle Emptying the water container after each cycle Cleaning the condenser unit Cleaning the tumble dryer
Troubleshooting, 11 Assistance and Guarantee, 12-13-14
Spare parts
1
2
Important information
To ensure that the condenser dryer functions efficiently, the following routine maintenance
EN
procedures must be carried out:
Fluff filter  CLEAN off any fluff build-up on the filter after each drying cycle.
Step 1 Open the dryer door by pressing it as shown in the picture.
Failure to clean the filter after each drying cycle will reduce drying performance. The machine will take longer to dry and it will consume more energy.
Water container  empty the water container after each drying cycle.
Step 1 Pull the water container towards you and remove it completely from the dryer.
Step 2 Empty all the water in the water container.
Step 2 Pull out the filter (using two fingers).
Step 3 Clean off any fluff build-up on the internal surface of the filter net.
Step 4 Replace the filter  never operate the dryer without the filter in place.
Step 3 Replace the water container making sure that it is securely fixed.
Failure to empty the water container may cause the following:
- The dryer stops heating (thus the load may still be damp at the end of the drying cycle).
- The Empty water container light lights up to signal that the water container is full.
Filling of the Water Container
When the dryer is first used water will not immediately enter the water container as the pump needs to be primed. This is done automatically and will take a few minutes, during this period the efficiency of the drying process is not affected.
2
Condenser unit - remove any fluff build-up from the condenser on a monthly basis.
Step 1 Open the condenser cover
- grip the handle and pull towards you.
Step 2 Remove the condenser by turning the 3 catches, then pull the condenser towards you. (It is normal for some residual water to be left in the tubes).
Step 3 Clean the condenser with running water over the rear side to remove any fluff deposits.
EN
Step 4 Replace the condenser unit; make sure that the unit is securely in place, that all 3 catches are fixed and that the position arrows on the front end of the condenser are pointing upwards.
Failure to clean the condenser unit may cause premature faults to the dryer.
3
0
Installation
Where to install the tumble dryer
EN
 Install the dryer far from gas ranges, stoves, radiators or hobs, as flames may damage it. If the dryer is installed below a
m 1
worktop, ensure there are 10 mm between the upper panel of the dryer and any objects above it, and 15 mm between the sides of the machine and the walls or furniture units adjacent to it. This ensures adequate air circulation.
Ventilation
 The room must be adequately ventilated while the dryer is running. Make sure that the dryer is installed in a room free of humidity and with adequate air circulation. The flow of air around the dryer is essential to allow water to condense during drying; the dryer will not function properly if it is placed in an enclosed space or inside a cabinet.
Some condensation may form if the dryer is used in a small
or cold room.
We do not recommend that the dryer is installed in a
cupboard but the dryer must never be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the dryer door.
Electrical connections
Before plugging the appliance into the socket, check the following:  Make sure your hands are dry.  The socket must have an earth connection.  The socket must be able to withstand the machines maximum power output as indicated on the data plate (see
Description of the tumble dryer).
 The power supply voltage must fall within the values indicated on the data plate (see Description of the tumble dryer).  The socket must be compatible with the dryers plug. Should this not be the case, replace the plug or the socket.
Do not use extension cords. The dryer must not be installed outdoors, even if the space is
sheltered. It can be very dangerous if exposed to rain or storms.
Once installed, the dryers electrical wire and plug must
be within reach.
The power cord must not be bent or squashed. The power cord is supplied fitted with a BS1363 plug
and with a 13 amp BS1362 fuse. If it is necessary to fit a replacement fuse, it must be a 13 Amp ASTA approved to BS1362 type. WARNING: The plug must not be used without a fuse cover. If a replacement fuse holder/cover is required, it must be of the same colour coding or wording as shown on the base of the plug. Replacements are available from authorised dealers.
Moulded plug
Water drain
If your dryer is installed next to a drain the water can be plumbed into this drain. This does away with the need to empty the water container. If the dryer is stacked onto or installed next to a washing machine it can share the same drain. The height of the drain must be less than 3' (1 m) from the bottom of the dryer. Remove existing hose from position shown in picture A and fit a suitable length of hose and connect as shown in picture B.
Make sure that the hose is not squashed or kinked
when the dryer is in its final location.
1
2
Picture A Picture B
2
1
Less than 1m
Changing the plug
The wires in the power cord are coloured in accordance with the following.
Green and Yellow (Earth) wire to terminal marked E, symbol x, or coloured green and yellow.
Blue (Neutral) wire to terminal marked N or coloured black.
GREEN & YELLOW
BROWN
BLUE
13 ampere fuse
CROSS-BAR CORD GRIP
13A ASTA approved fuse to BS 1362.
Brown (live) wire to teminal marked L or coloured red.
If the plug being replaced is a non-rewirable type, then the
cut-off plug must be disposed of safely. DO NOT leave it where it can be inserted into a socket and create a shock hazard.
The power cord should be checked periodically and replaced
by a cord specially prepared for this dryer and fitted only by authorized technicians (see Service). New or longer power cords are supplied at an extra charge by authorized dealers.
The manufacturer denies any responsibility should any
of these rules not be followed.
If in doubt about any of the above consult a qualified electrician.
Preliminary information
Once the tumble dryer is installed, clean the inside of the drum before operating it and remove any dirt accumulated during transportation.
4
Description of the tumble dryer
Opening the door
Press the
door
Condenser
unit (cover
open)
Control panel
Features
Water container
Filter
High Heat
button
EN
Rating plate
Model &
Serial
Numbers
Air
intake
grille
Condenser cover
handle (pull to
open)
Start
button
Drying time
selector knob
Drying time selector knob
This is used to set the drying time: turn the knob in a clockwise direction until the indicator is set to the desired drying time (see Drying settings). Do not attempt to turn the knob anticlockwise.
High Heat button It can be used to customise the selected programme in accordance with your own requirements.
START button Press the button to begin drying.
Empty water container indicator light The Empty water container indicator light signals that the water container must be emptied. If the container becomes full during the programme, the tumble dryer will automatically start the cold air cycle. In order to avoid this procedure, always empty the water container after using the tumble dryer (see Care and maintenance).
Empty water container
indicator light
5
